PRESSURE WASHER SURFACE CLEANER
MODEL: XS-18inXDJ/XS-20inGYXDJ/XS-21inXDJ
/XS-22inXDJ/XS-24inGYXDJ
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL:
XS-18inXDJ/XS-20inGYXDJ/XS-21inXDJ/XS-22inXDJ/XS-24inGYXDJ
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
ASYNCHRONOUS
MOTOR
- 2 -
Warning-To reduce the risk of injury, user must read
instructions manual carefully.
INTRODUCTION
Congratulations on the purchase of your new Rotary Surface Cleaner! You
can be assured this Cleaner was constructed and designed with quality
and performance in mind. Each component has been rigorously tested to
ensure the high level of acceptance.
This surface cleaner is designed for high-pressure cleaning of various
outdoor surfaces such as concrete, asphalt, paving stone walkways, pool
decks, etc. Connect the rotary surface cleaner to your pressure washer,
pull the trigger, and walk behind for fast and efficient cleaning!
SPECIFICATIONS
Max. Pressure(PSI/BAR)
4500/310
Min. Pressure(PSI/BAR)
2000/138
Max. Flow Rate(GPM/LPM)
3.9/14.7
Max. Temperature(°F/
℃
)
140/60
IMPORTANT SAFETY INFORMATION
A WARNING
Read and understand all instructions. Failure to follow all instructions may
result in serious injury or property damage.
• The warnings, cautions, and instructions in this manual cannot cover all
possible conditions or situations that could occur. Exercise common sense
and caution when using this tool.
Always be aware of the environment and ensure the tool is used safely and
responsibly.
• Do not allow persons to operate or assemble the product until they have
- 3 -
read this manual and have thoroughly understood how it works.
• Do not modify this product in any way. Unauthorized modification may
impair the function and/or safety and could affect the product's life.
• There are specific applications for which the product was designed.
• Use the right tool for the job.DO NOT attempt to force small equipment to
do the work of larger industrial equipment. There are certain applications
for which this equipment was designed. It will do the job better and more
safely at the capacity for which it was intended. DO NOT use this
equipment for a purpose for which it was not intended.
WORK AREA SAFETY
• Inspect the work area before each use. Keep work area clean, dry, free of
clutter, and well lit.Cluttered, wet, or dark work areas can result in injury.
Using the product in confined work areas may put you dangerously close to
other cutting tools and rotating parts.
• Do not use the product where there is a risk of causing a fire or an
explosion; e.g., in the presence of flammable liquids, gases, or dust. The
product can create sparks, which may ignite the flammable liquids, gases,
or dust.
• Do not allow the product to come into contact with an electrical source.
The tool is not insulated and contact will cause electrical shock.
• Keep children and bystanders away from the work area while operating
the tool. Do not allow children to handle the product.
• Be aware of all power lines,electrical circuits, water pipes, and other
mechanical hazards in your work area. Some of these hazards may be
hidden from your view and may cause personal injury and/or property
damage if contacted.
PERSONAL SAFETY
• Stay alert, watch what your actions, and use common sense when
operating the tool. Do not use the tool while you are tired or under the
influence of drugs, alcohol, or medication. A moment of inattention while
operating the tool may result in serious personal injury.
- 4 -
• Dress properly.Do not wear loose clothing, dangling objects, or jewelry.
Keep your hair, clothing and gloves away from moving parts. Loose clothes,
jewelry, or long hair can be caught in moving parts. Air vents on the tool
often cover moving parts and should be avoided.
• Wear the proper personal protective equipment when necessary. Use
ANSI Z87.1 compliant safety goggles (not safety glasses) with side shields,
or when needed, a face shield. Use a dust mask in dusty work conditions.
Also use non-skid safety shoes, hardhat, gloves, dust collection systems,
and hearing protection when appropriate. This applies to all persons in the
work area.
• Do not overreach. Keep proper footing and balance at all times.
• Do not use the tool when tired or under the influence of drugs, alcohol or
medication.
• Remove keys or wrenches before connecting the tool to an air supply,
power supply, or turning on the tool. A left wrench or key attached to a
rotating part of the tool may cause personal injury.
• Secure the work with clamps or a vise instead of your hand when
practical. This safety precaution allows for proper tool operation using both
hands.
CLEANER USE AND CARE
• Do not force the cleaner. Tools do a better and safer job when used in the
manner for which they are designed. Plan your work, and use the correct
tool for the job.
• Check for damaged parts before each use and before connecting the
cleaner to a pressure washer. Carefully check that the cleaner will operate
properly and perform its intended function.Replace damaged or worn parts
immediately. Never operate the cleaner with a damaged part.
• Store the cleaner when it is not in use. Store it in a dry,secure place out of
the reach of children.Inspect the cleaner for good working condition before
storage and re-use.
• Use only replacement parts that are recommended by the distributor.
Parts that may be suitable for one cleaner may create a risk of injury when
- 5 -
used with another cleaner.
• Never use a part with a lower operating pressure than the cleaner.
• Do not leave the cleaner unattended when it is pressurized.
• Do not turn the cleaner over when it is pressurized by connection to an
operating pressure washer to avoid high-pressure spraying water that
could cause personal injury.
SPECIFIC OPERATION WARNINGS
• DO NOT exceed the rated PSI capacity.
• Keep body parts clear of nozzle heads and away from skirt while
operating machine.
• DO NOT lift machine from surface or point nozzle heads at people while
operating.
• Wear the proper safety gear including ANSI Z87.1 approved safety
glasses.
• Use only on hard level surfaces.
• No altercations shall be made to this product.
• Only attachments and/or adapters supplied by the manufacturer shall be
used.
• Not for use by or around children.
Packing List
1x pressure washer surface cleaner 1x Operate the handle
1x1.5m High-pressure oil tubing 1x Front bracket
1x Rear support 2x NPT 1 / 4” copper connector
2x1/4 fast plug 415 1x Waterproof raw material belt
2x Pinφ6 * 65 1x Pinφ6 * 55
3x O ring 1x Wrench
2x Hexagon wrench
- 6 -
PREPARATION & OPERATION

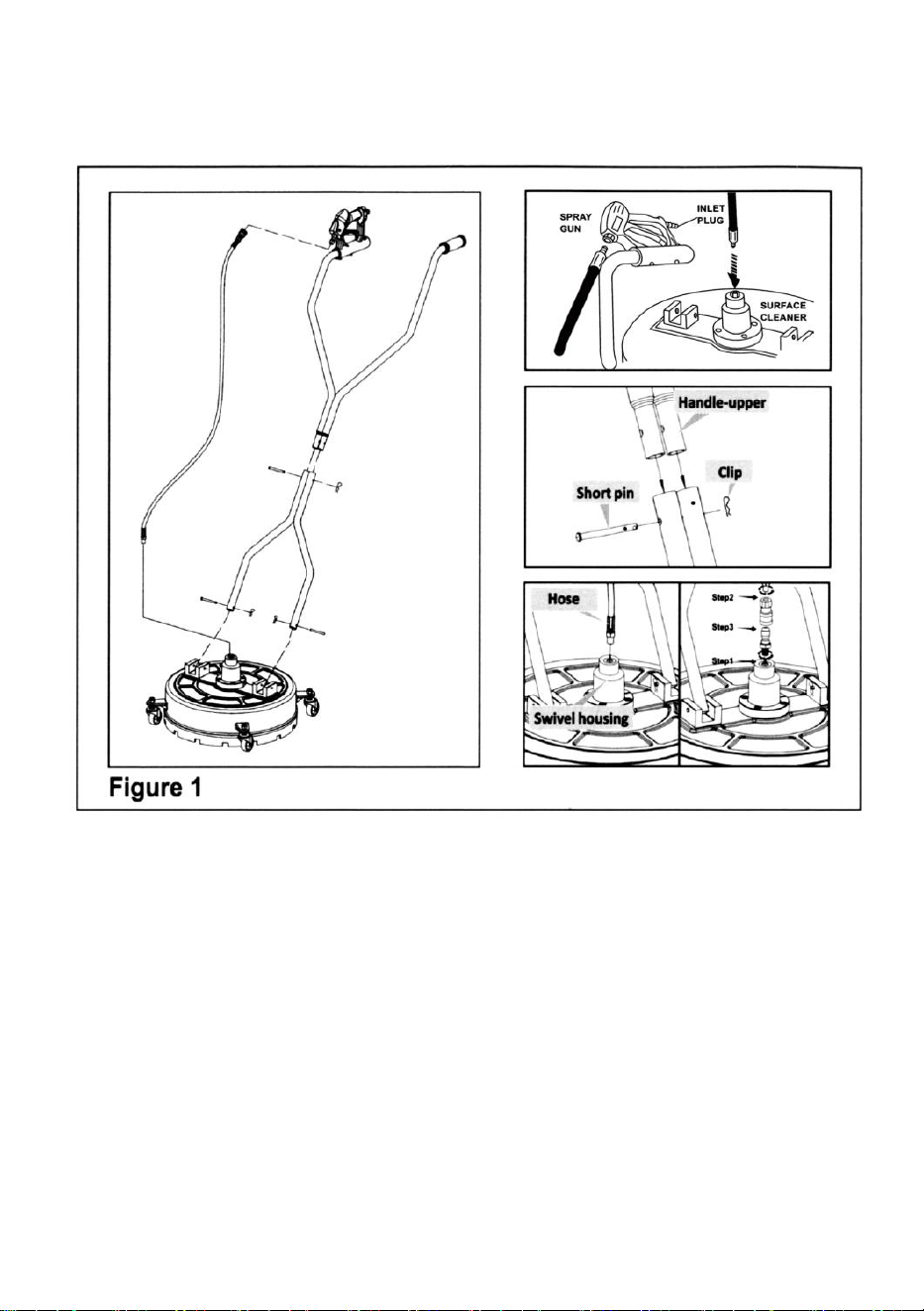

UNIT ASSEMBLY(See Figure 1.)
1. Line up the holes on the lower part of handle with the holes on the cover
assembly. Insert the long pins through the handle and cover holes and
attach to the clips.
2. Attach the upper handle by lining up the upper and lower handle
hole. Push the short pin through the aligned hole and attach
it to the clip.
3. Connect the hose to the trigger handle and to the swivel located on the
unit base. Tip:Package includes 1/4" quick connect set for quicker
connection.
- 7 -
SET-UP
1. Locate the high pressure discharge hose on your pressure washer and
ensure it is securely connected to the water outlet of the pressure washer.
Quick connect the other end of the high pressure discharge hose to the
gun on the Rotary Surface Cleaner.
2. Connect the water supply hose, one end to your pressure washer, the
other end to a pressurized water supply.
PREPARATION & OPERATION
SURFACE PREPARATION
1. Clear any loose debris from the area to
be cleaned.
2. Never attempt to clean surface with
objects that protrude from the surface
being cleaned.Striking any raised
obstacle during operation will damage
machine. If contact does occur and
results in vibration when operating
machine, STOP cleaning and check the
spray bar.
START-UP
1. Lock the trigger gun on the Rotary
Surface Cleaner in the "OFF" position
(move the lever on the gun handle to a
90° angle so it rests against the handle
grip).
2.Ensure all connections are secure.
3.Unlock the trigger gun and squeeze the Trigger while starting the
Pressure Washer.
4.Water will begin flowing from the nozzles of the Surface Cleaner.Ensure
nozzles are not clogged and spray pattern is not erratic.
Turn the pressure washer and water supply off and change nozzles before
proceeding if problems exist.
- 8 -

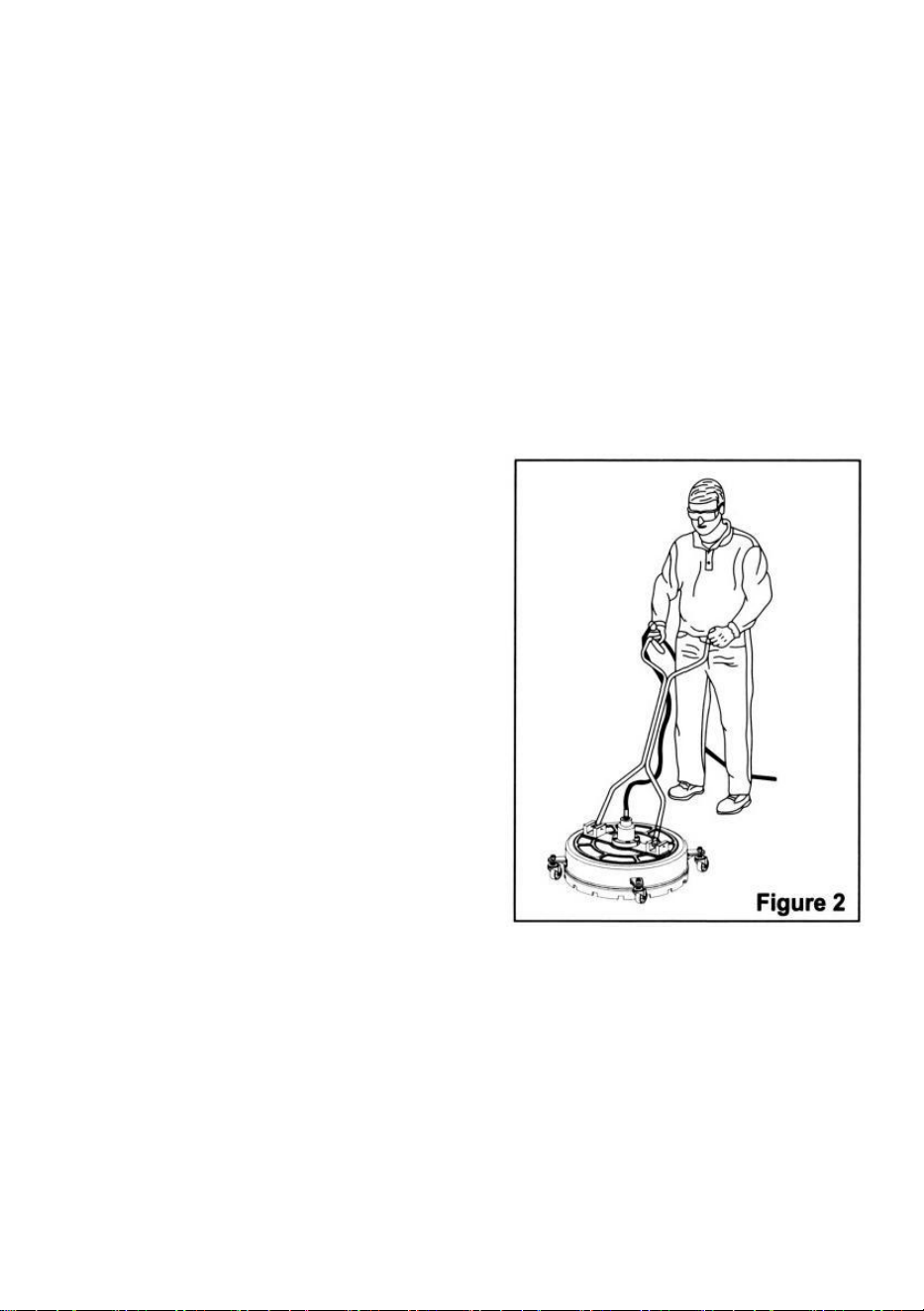

5. Walk slowly behind the unit, cleaning as you go. If striping occurs, slow
down the pace. Do not allow machine to remain stationary on soft surfaces
such as wood.
SHUT-DOWN
1. Turn the Pressure Washer off.
2. Turn the water supply off.
3. Squeeze the trigger gun to relieve water pressure.
4. Disconnect and drain the water hose and wipe down unit. Store the unit
in a dry environment.
AFTER EACH USE
Perform the following inspections after each use to clean the cleaner and
ready it for the next use.
• Clean out any dirt or foreign material from under the housing and the
casters. If necessary,use a cloth or sponge to wash the surface cleaner
and rinse it with tap water.
• Check for loose parts and any damage.

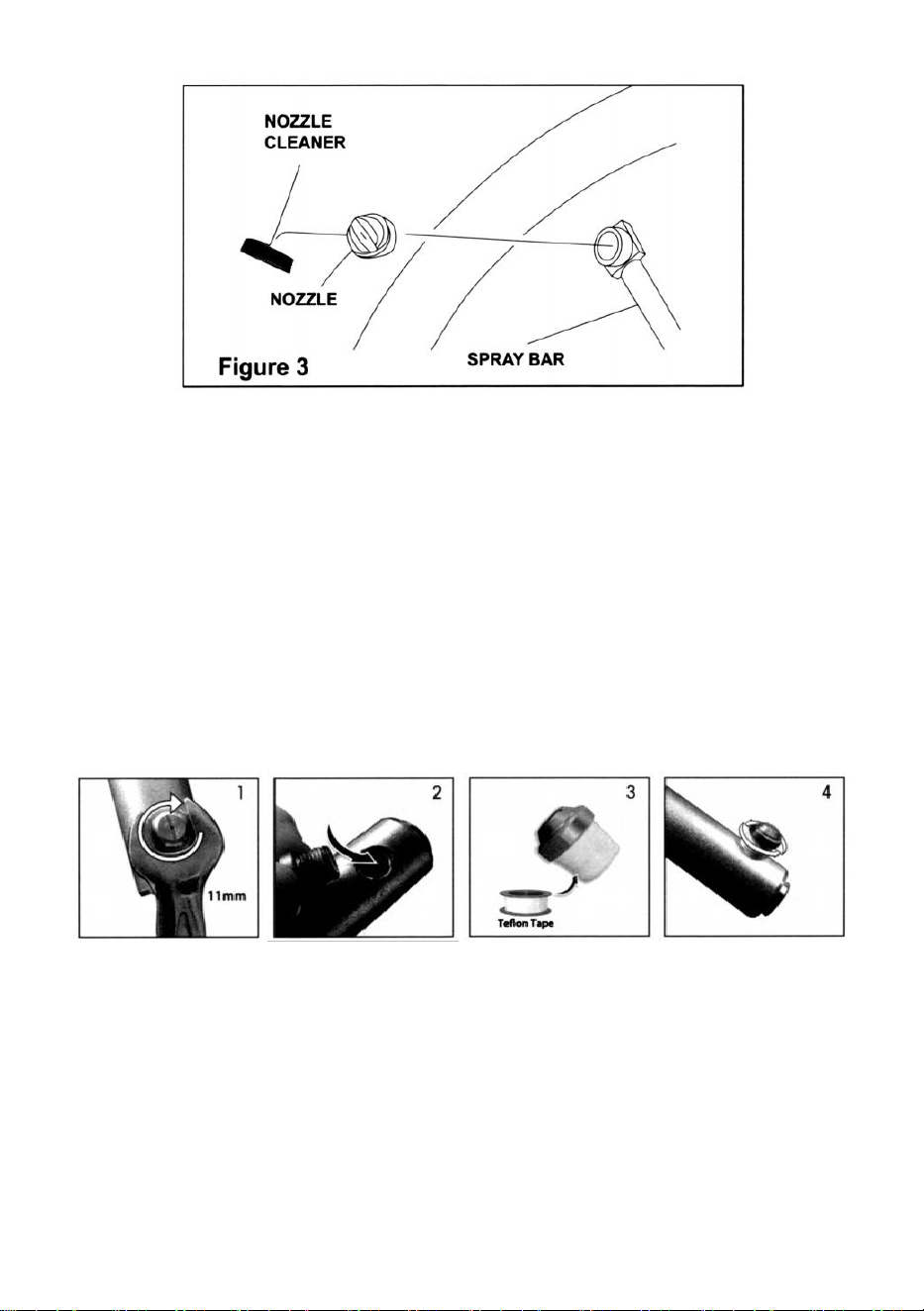

NOZZLE CLEANING
See Fiqure3.
Excessive pump pressure (a pulsing sensation felt while squeezing the
trigger) OR inadequate cleaning power may be the result of a clogged or
dirty nozzle
1.Turn off the pressure washer and shut off the water supply.Pull trigger to
release water pressure and disconnect surface cleaner from high pressure
hose.
2.Using a wrench, remove the nozzle from the spray bar.Using a nozzle
cleaner (provided) to clean the nozzles.
3.Using a garden hose, fush debris out of nozzle by back flushing(running
the water through the nozzle backward or from the outside to the inside).
4.Reconnect the nozzle to the spray bar and tighten it securely.
- 9 -
NOZZLE REPLACEMENT
1.Remove the nozzle from spray bar with an appropriate wrench.
2.Rinse mounting holes with fresh water to clean impurities.
3.Cover new nozzles thread with attached teflon tape.
4.Align the nozzle opening,reinstall nozzles to the spray bar.Tighten
securely.
Note: lf the nozzle is difficult to remove,please heat it with a hot blower
before removing.
- 10 -
TROUBLESHOOTING
PROBLEM
PROBABLE
CAUSE
CORRECTIVE ACTION
Missing parts
Damaged package
Contact our Customer Service for
help.
Inadequate
cleaning power
Not enough PSI
from
pressure washer
Ensure unit produces a minimum
pressure washer 2,000 PSI.
Nozzle obstructed
or worn
Clean or replace the nozzles.
Spray bar will not
rotate
Defective,snap ring
dislodged
Do not use!
Contact our Customer Service for
help.
Unstable
connection, the
spray bar fell off
Seal malfunction,
water shooting from
swivel
Excessive
vibration of
surface cleaner
Nozzle clogged
Clean or replace the nozzles.
Streaked cleaning
pattern
Nozzle clogged
Clean or replace the nozzles.
Cleaning too fast
Slow down pace.
Top leaks
The o-ring is broken
Please refer to instructions.
