Vehicle Diagnostic Tablet
460T
Powerful Diagnostics. Verified Fix Solutions. Link to Parts & Shops.
User’s Guide
i
WELCOME!
Hello...
On behalf of everyone at BLCKTEC [we say “Block Tech”], we want to welcome
and thank you for purchasing the BLCKTEC
®
460T Vehicle Diagnostic
Tablet! We may look like the new kid on the block, but we bring over 30 years
of experience making tools for DIYers and professionals. We also love working
on cars, so we’ve put a lot of effort into creating scan tools that help maximize
and simplify the OBD2 diagnostic routine.
In this manual, we’ll guide you on how to tap into your tool’s powerful functions
including:
Plus, gain the benefit of having unlimited access to real-world fixes on your mobile device:
We hope you have a blast using your BLCKTEC Diagnostic Tablet!
Yours sincerely,
The BLCKTEC Team

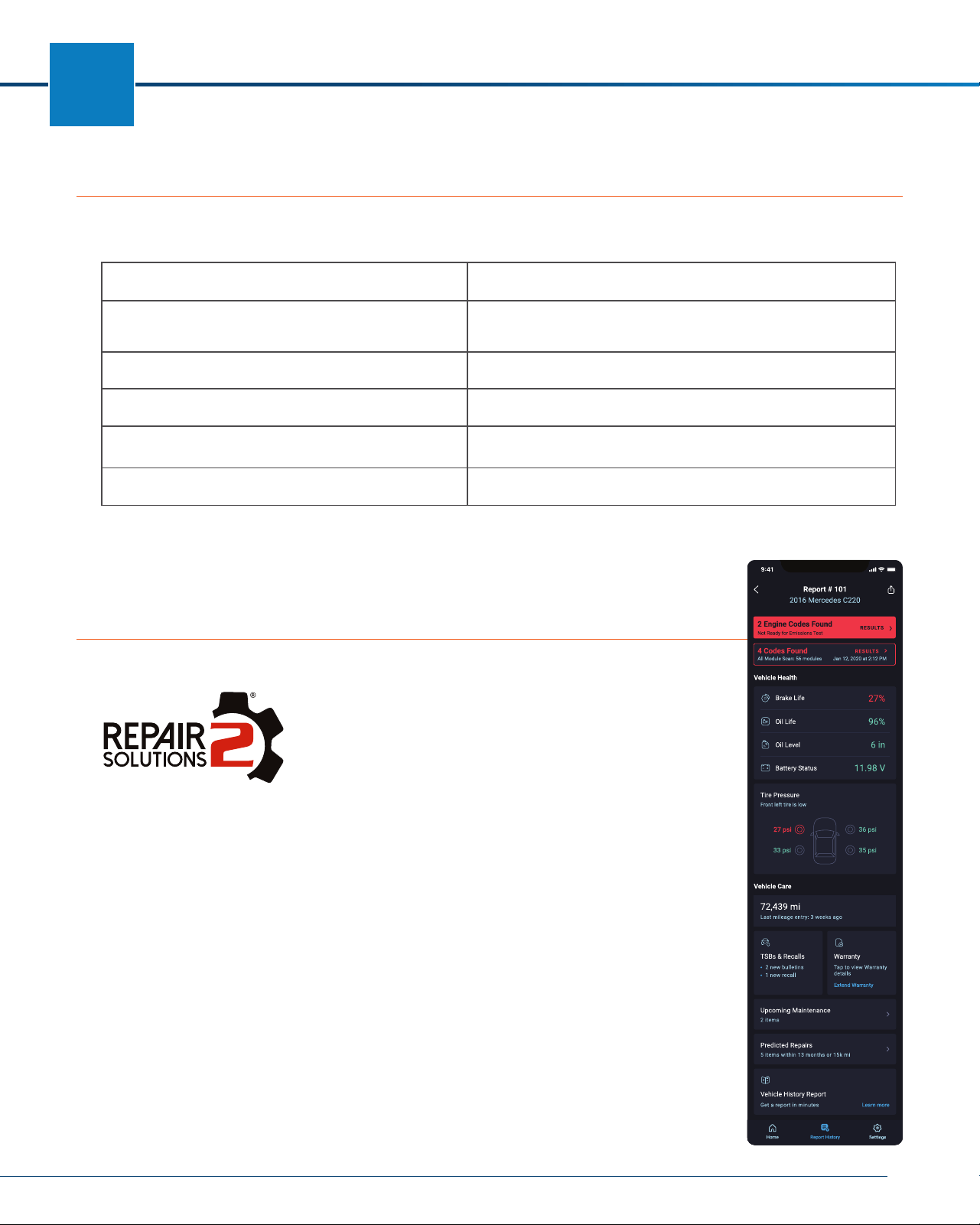

RepairSolutions2® seamlessly pairs with your BLCKTEC
OBD2 diagnostic tool to deliver the most complete
automotive repair database with verified fixes from ASE
Certified Master Technicians. Find the right fix and the right
parts instantly on your mobile device.
; Check Engine Light Diagnostics
; OEM Network Scans
; Smog / Emissions Readiness
; Enhanced Data Stream for ECM
(PCM), TCM, ABS, SRS systems
; Code Severity Level Identifier
; Battery / Charging System Test
; TPMS / Tire Pressure Readings
; Read Oil Life, Oil Level, Brake Pad
Life, Transmission Temperature
; Hybrid Battery Cell Voltage Readings
; Workshop Tools (12 service resets
including Oil Maintenance Reset,
Electronic Parking Brake Reset, ABS
Bleeding, DPF Reset, etc.)
; OEM ECU Information
; And Much More...
ii
LEGAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . 3
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

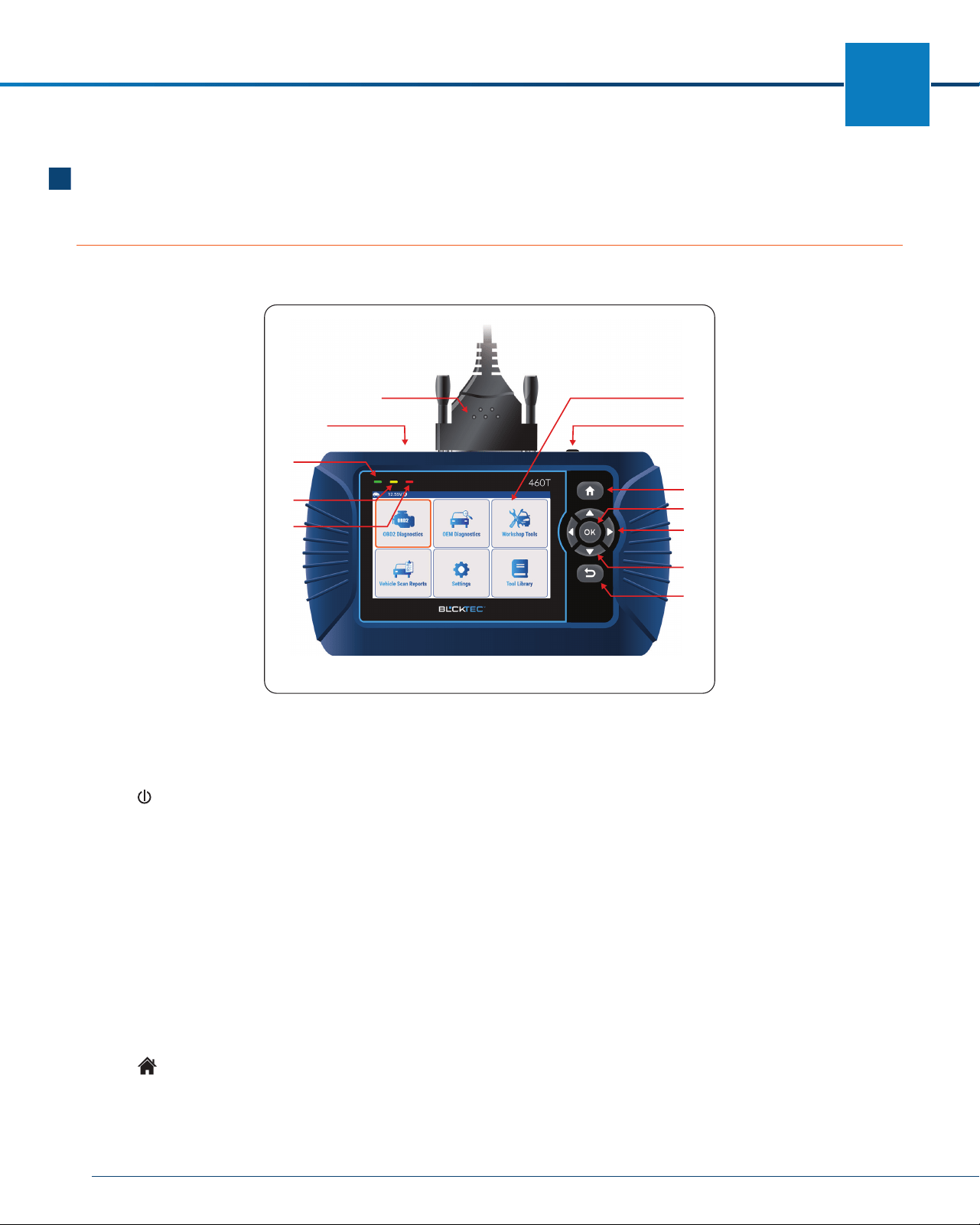

Tool Controls and Indicators � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5

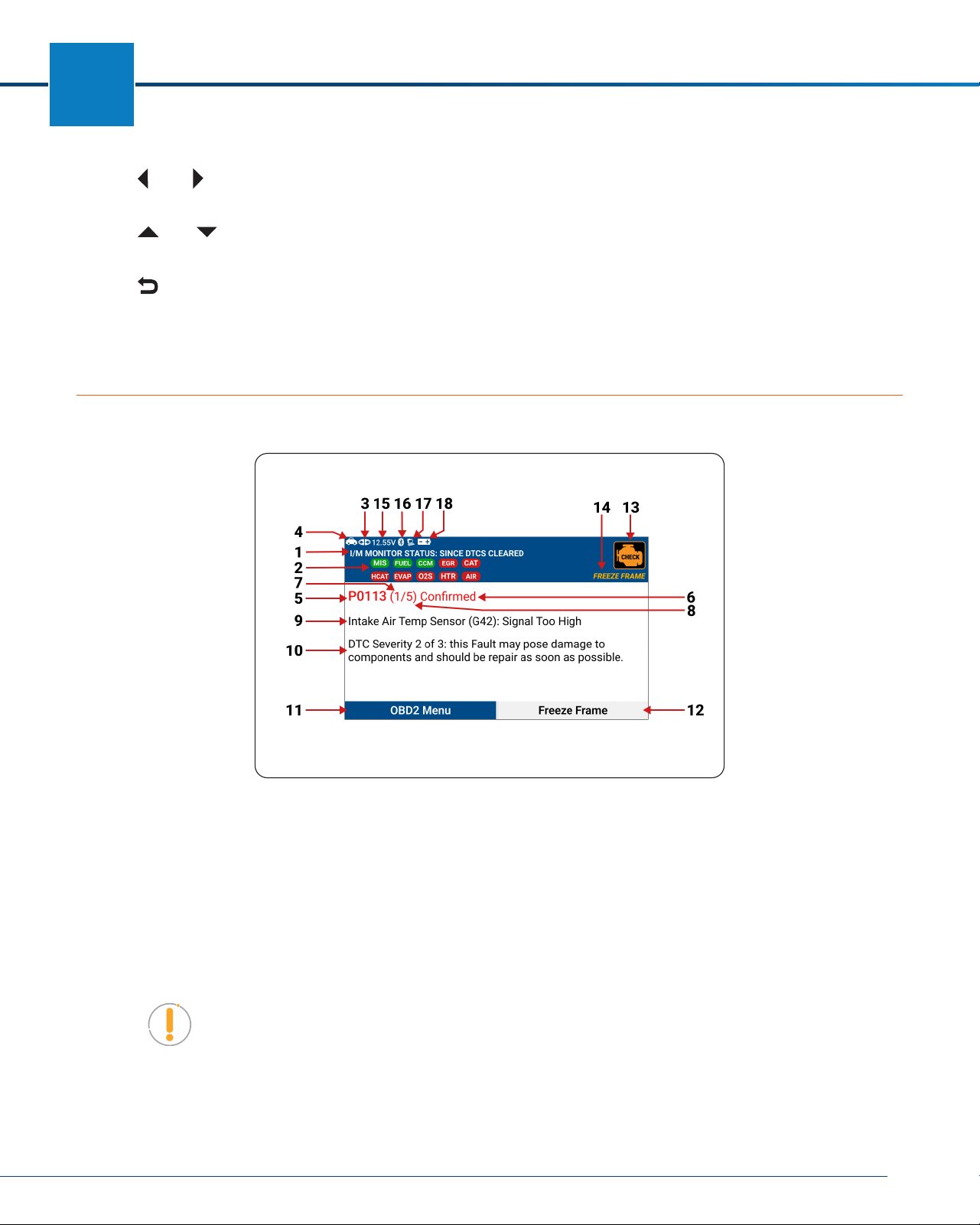

Tablet Scan Tool Display Functions � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
Technical Specifications � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
The RepairSolutions2
®
App � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
USING THE DIAGNOSTIC TABLET . . . . . . . . . . . . . . . . . . . 10

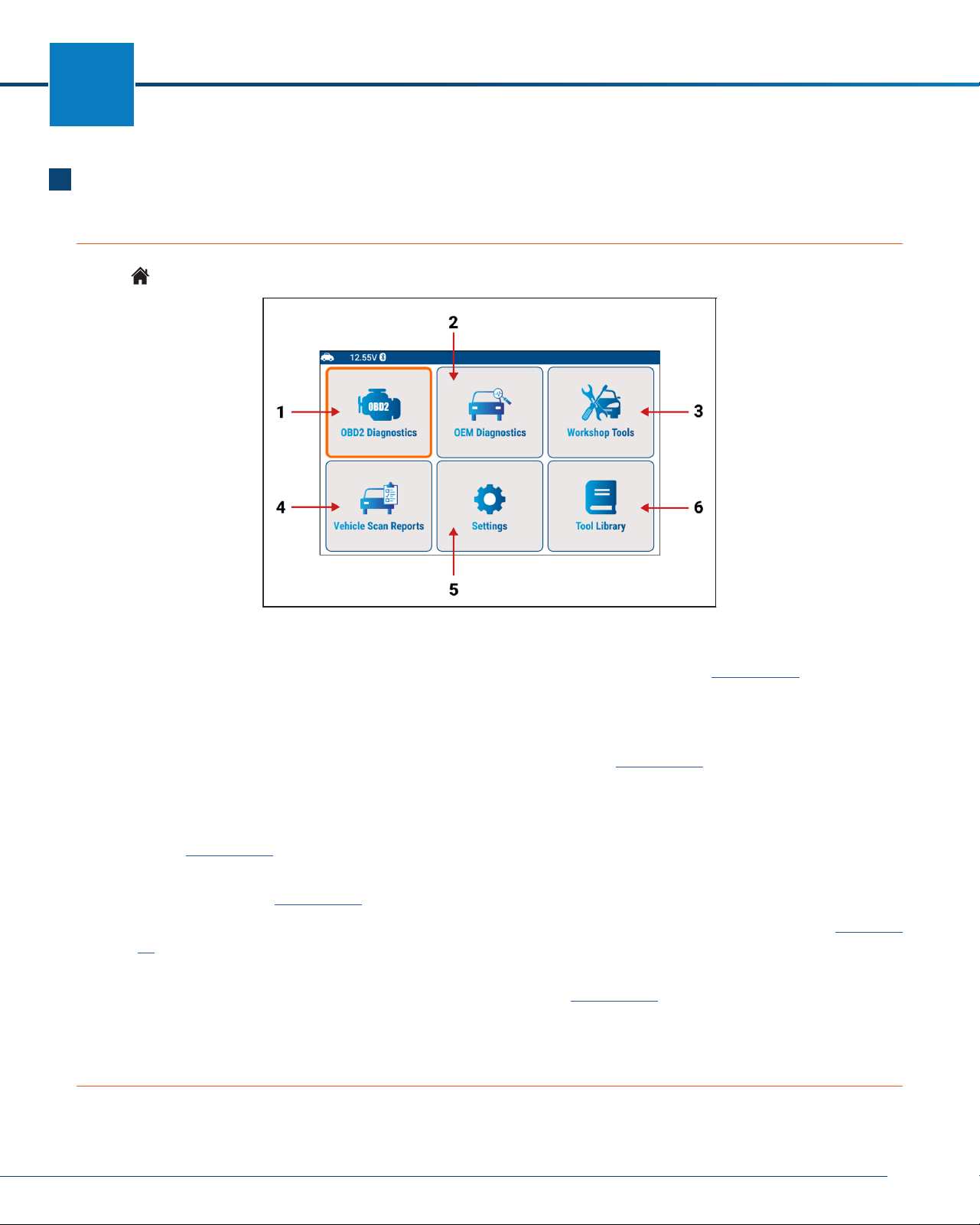

Home Screen � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10
Initial Setup (Personal Settings) � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10

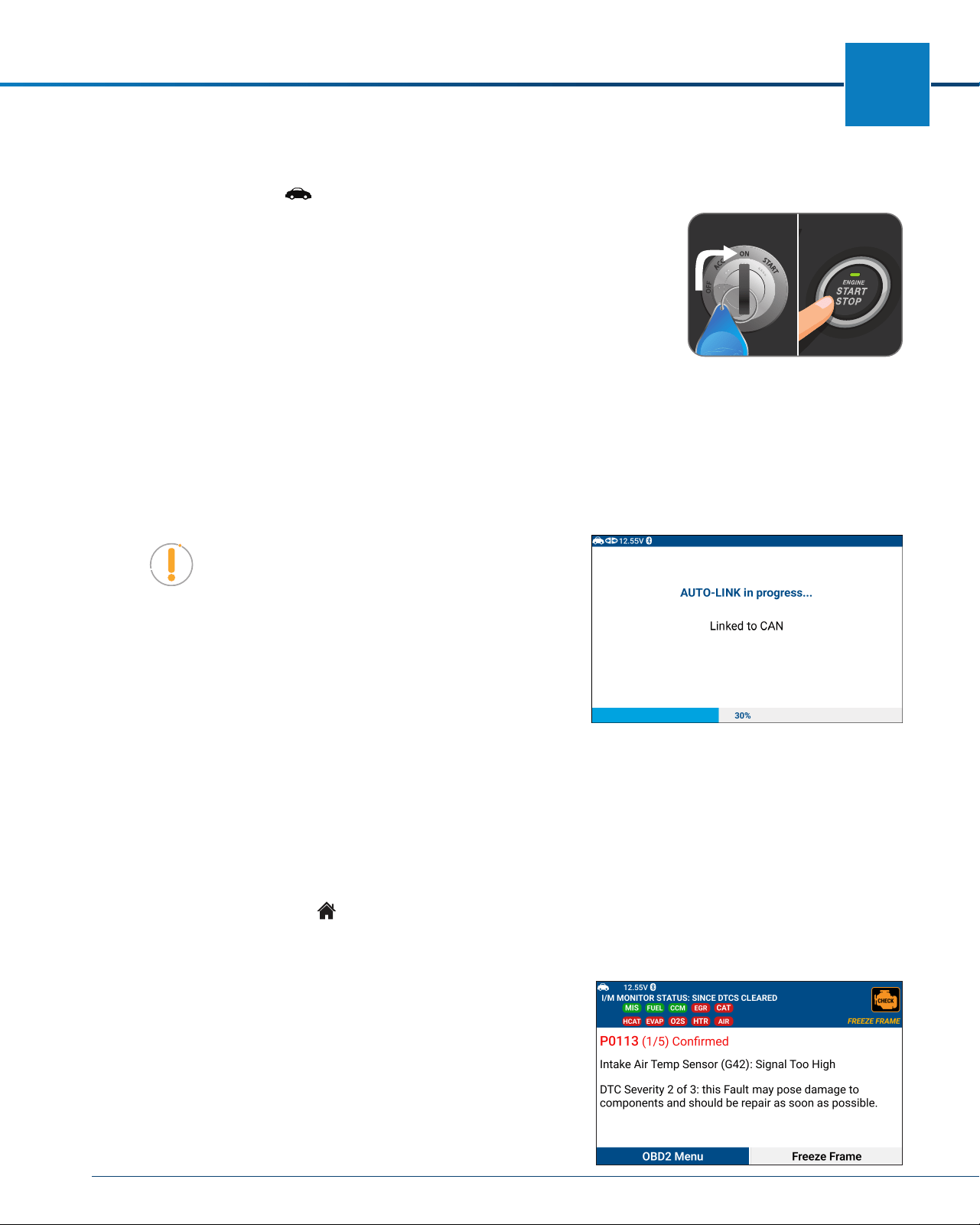

OBD2 Diagnostics � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 11

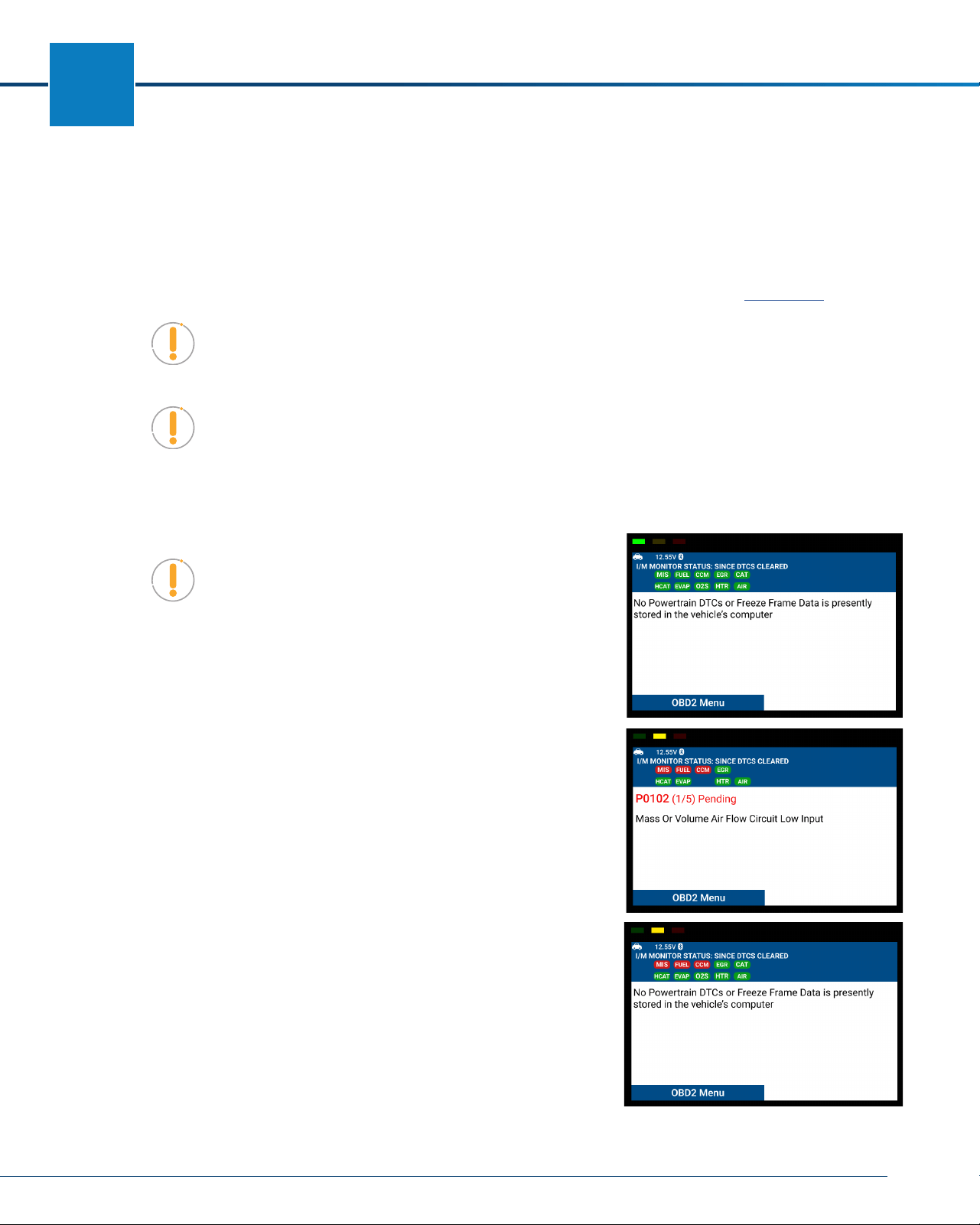

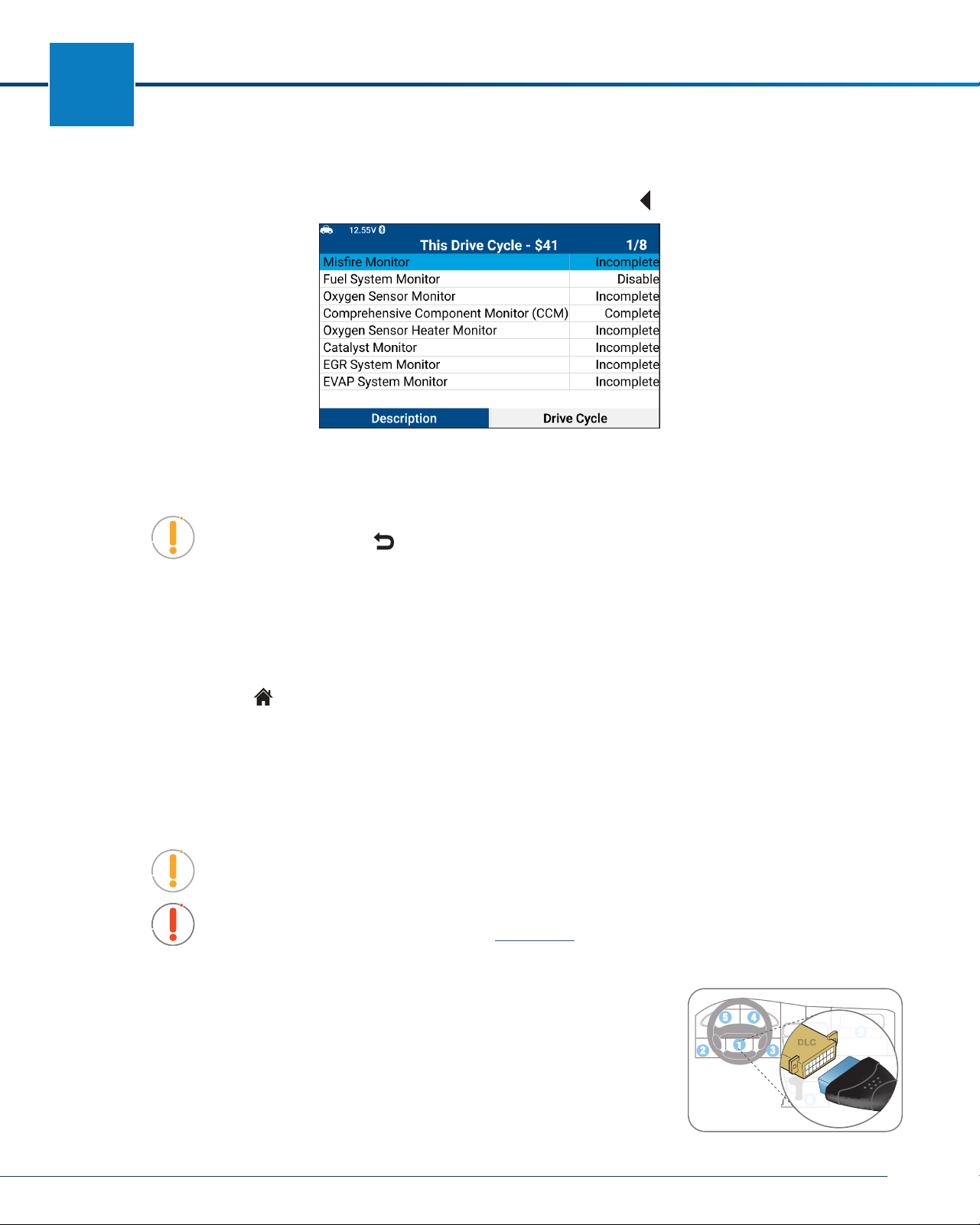

I/M Readiness Status - $01, $41 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Retrieving OBD2 Diagnostic Trouble Codes (DTCs) . . . . . . . . . . . . . . . . . . . 12

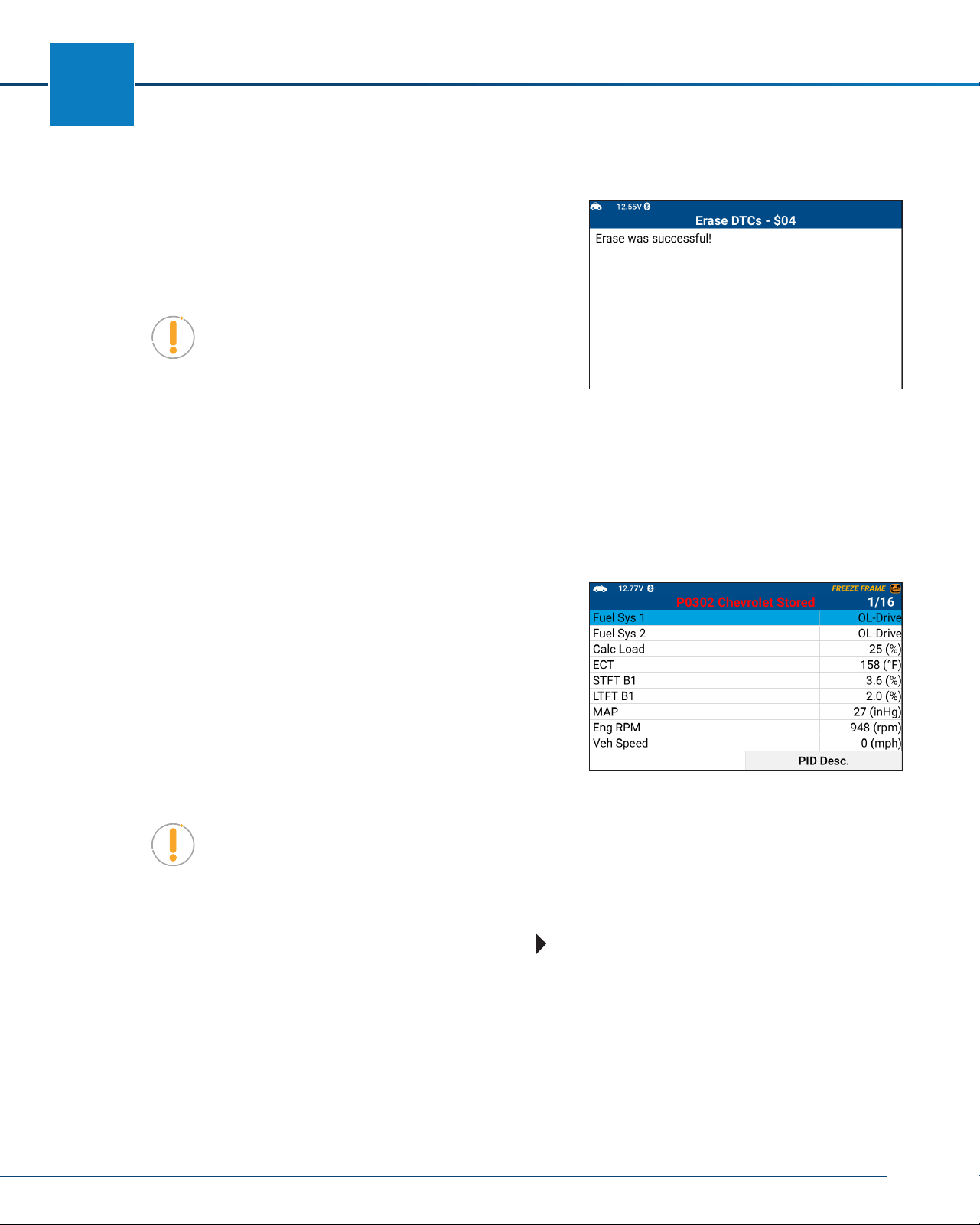

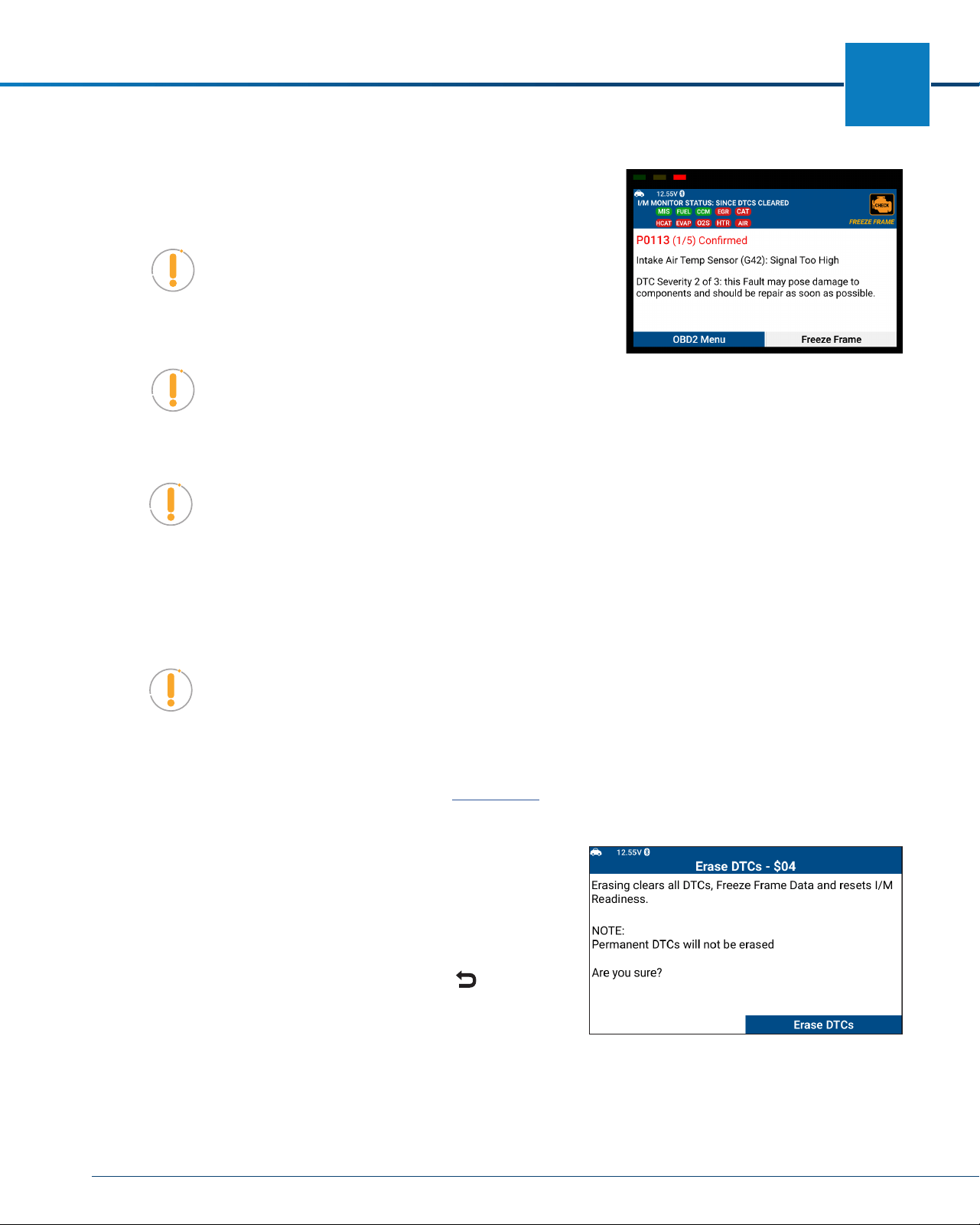

Erasing Diagnostic Trouble Codes (DTCs) - $04 . . . . . . . . . . . . . . . . . . . . . 15
Freeze Frame - $02 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Live Data - $01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

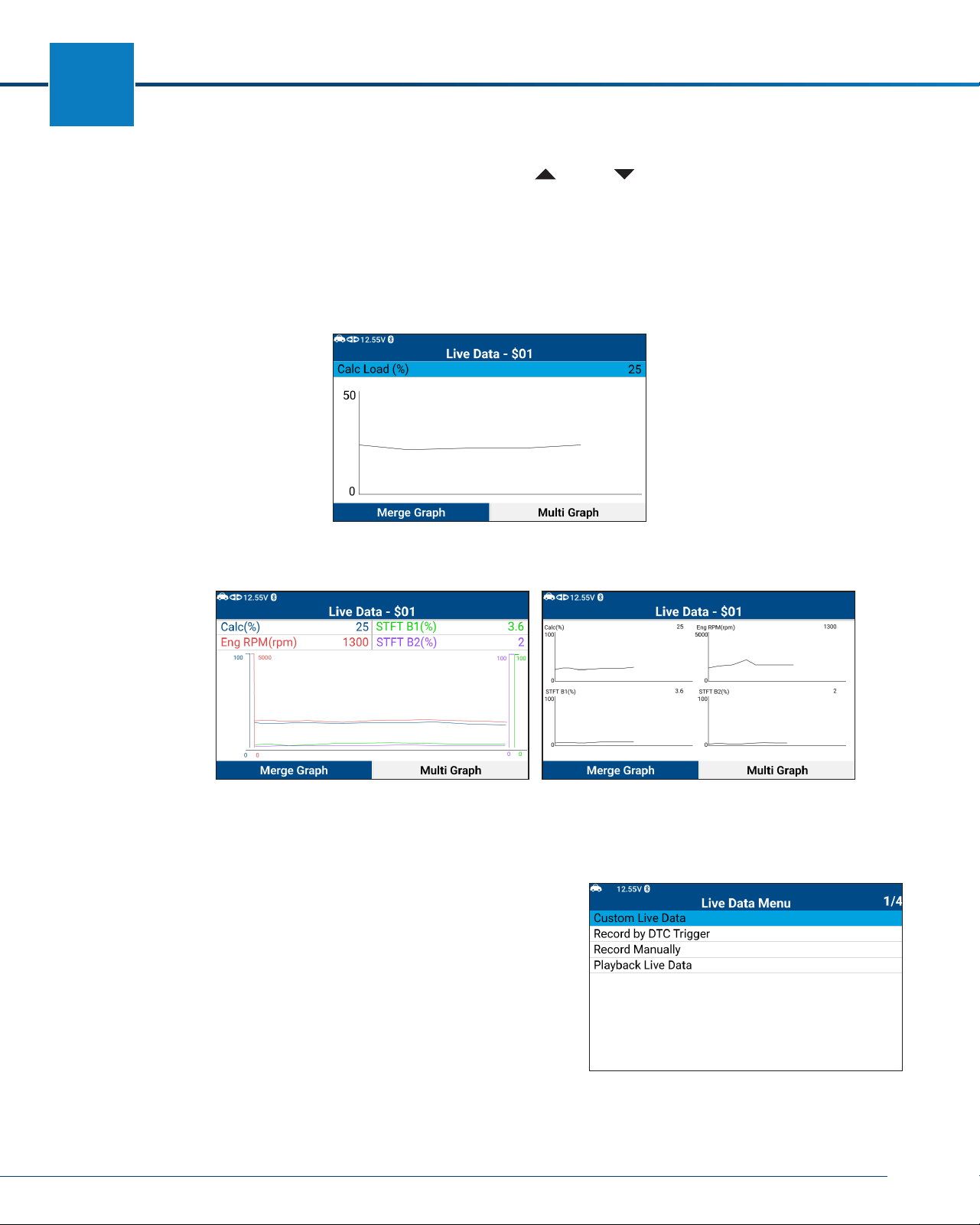

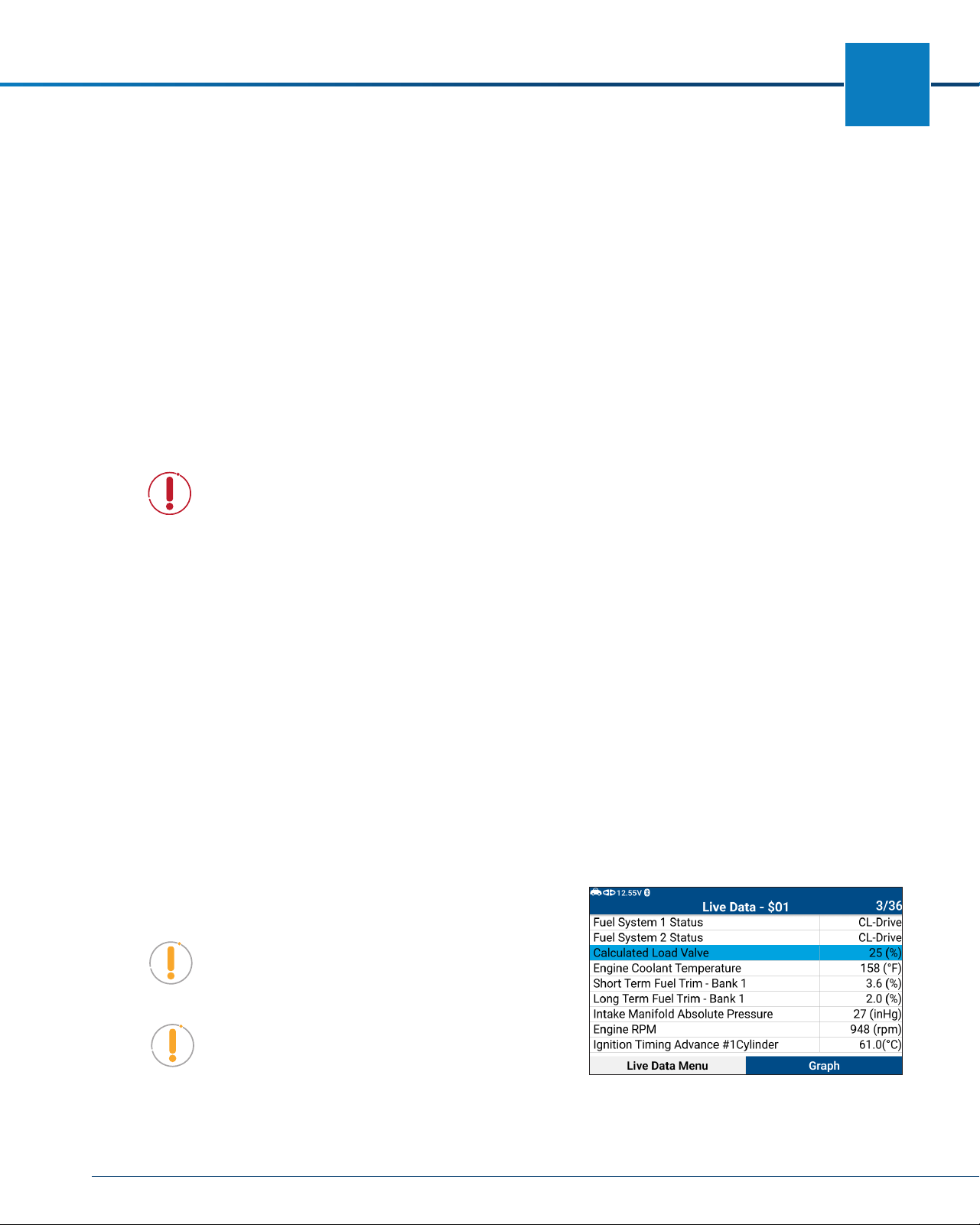

Viewing Live Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

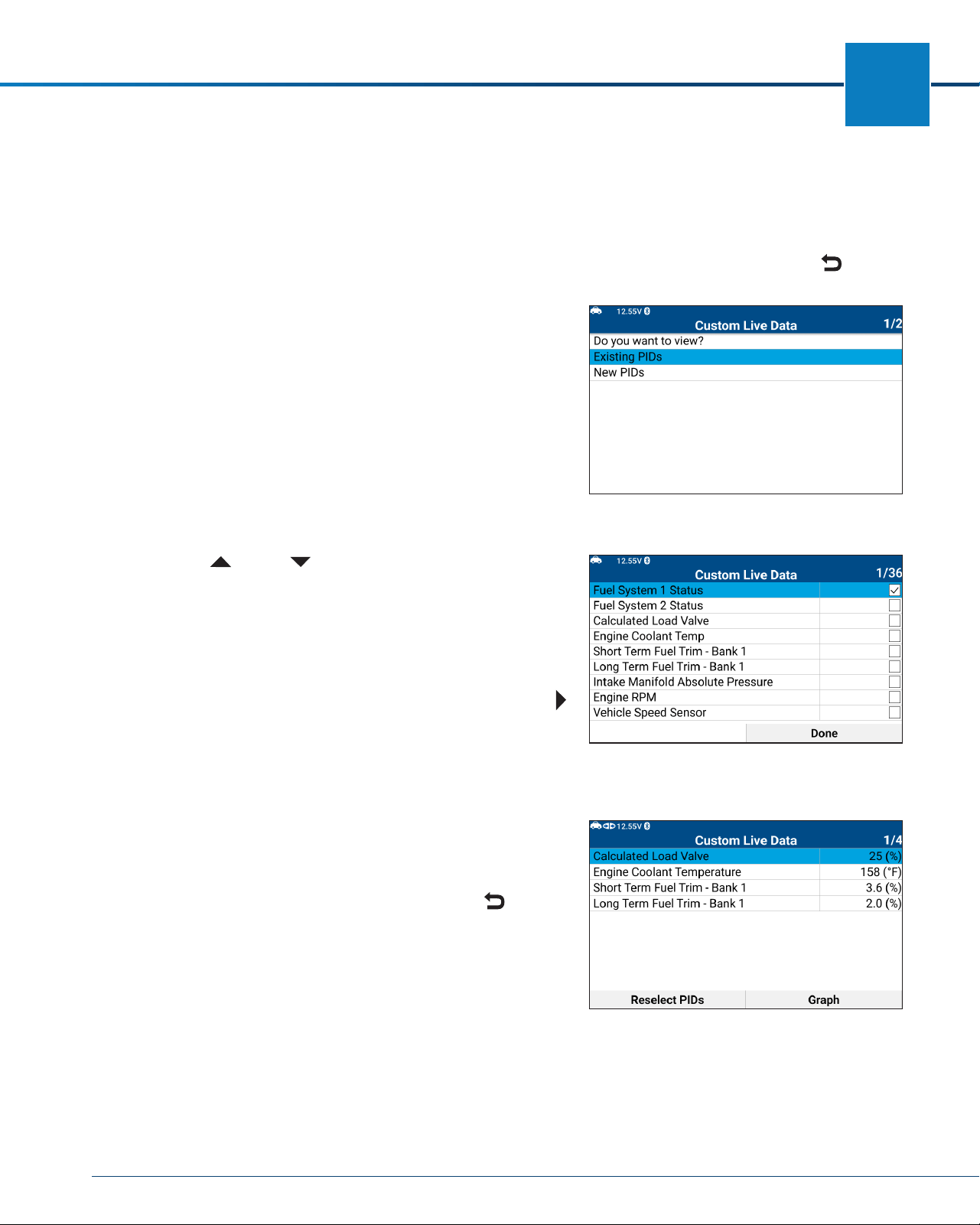

Customizing Live Data (PIDs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

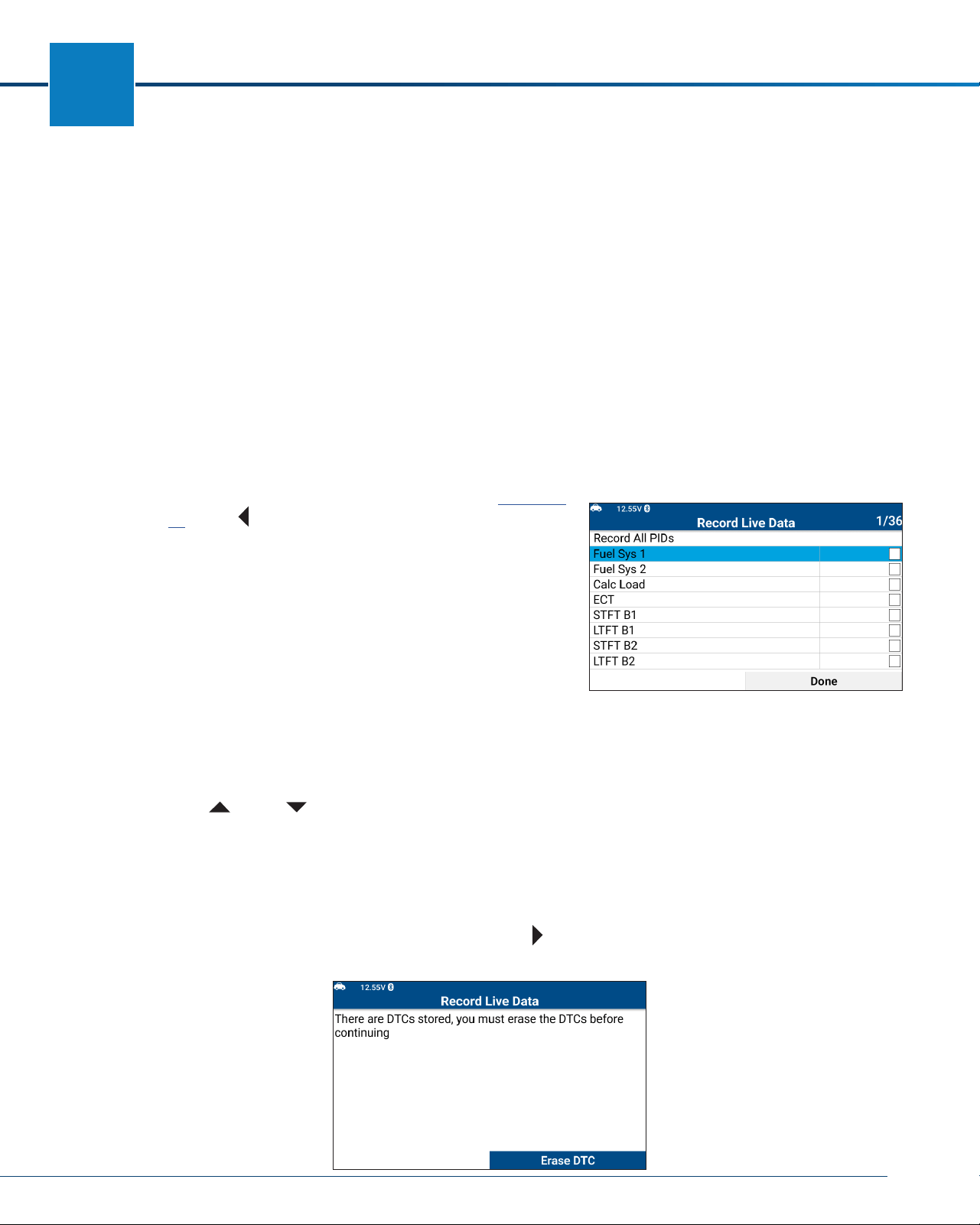

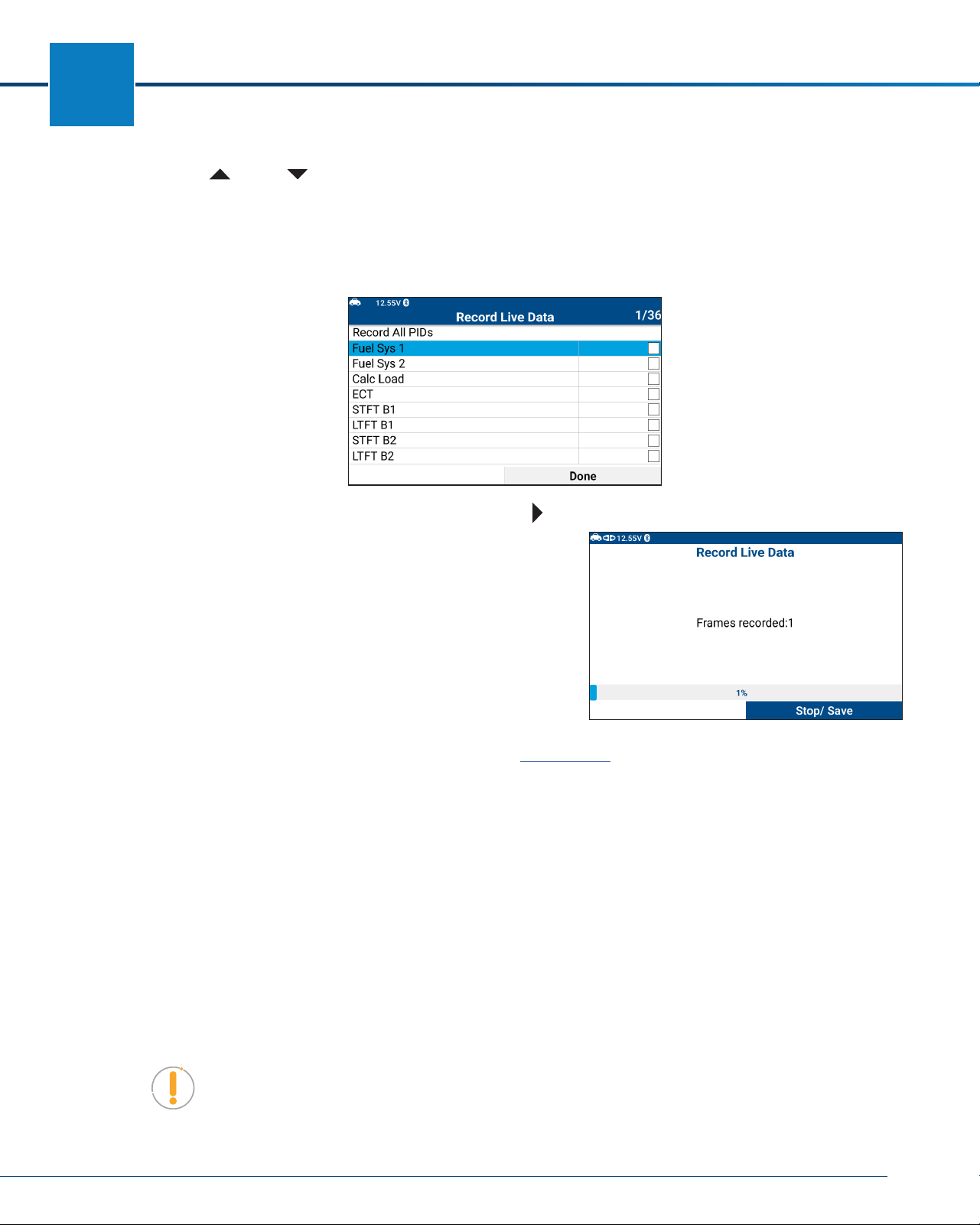

Record Live Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Record by DTC Trigger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Record Manually . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

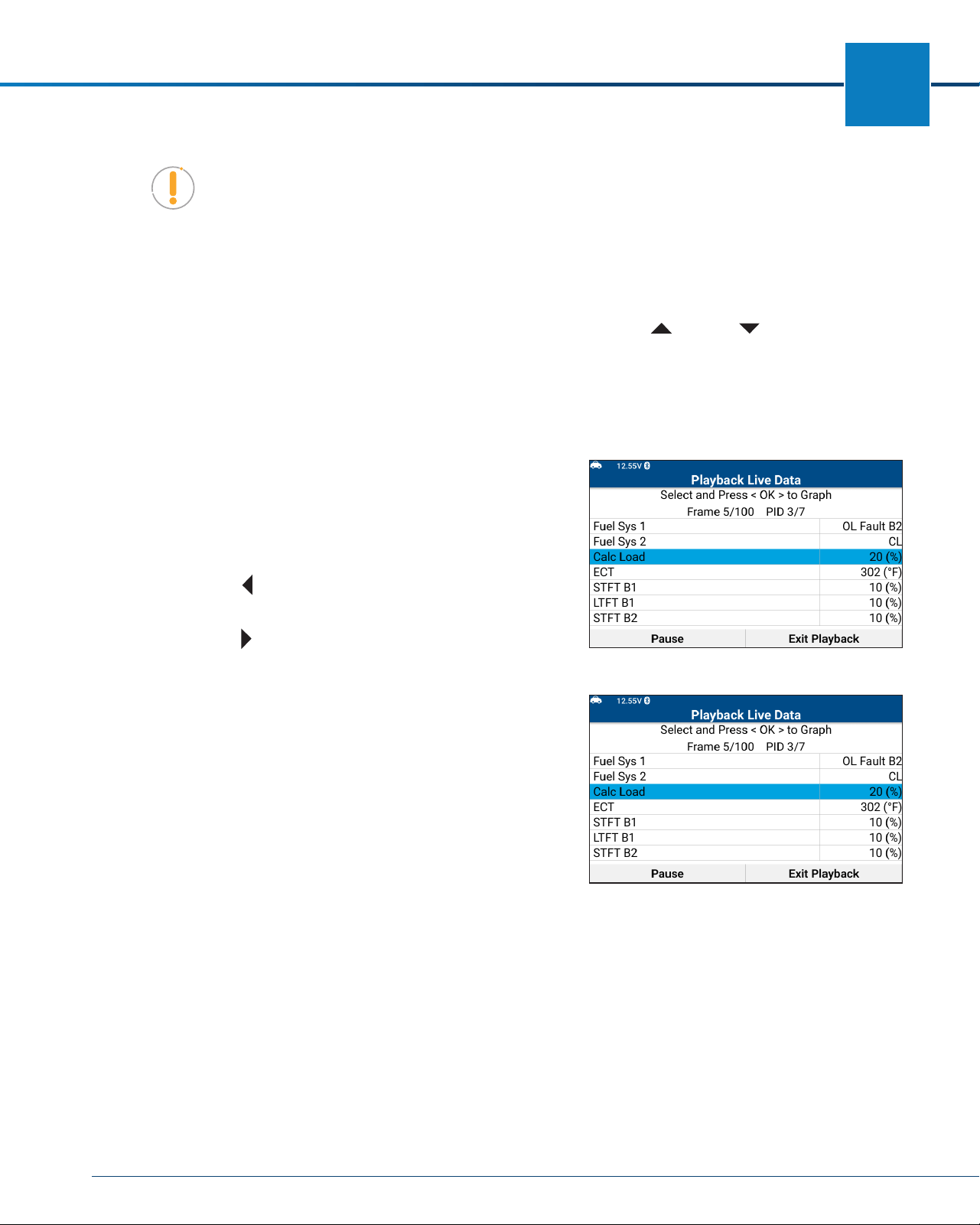

Playback Live Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

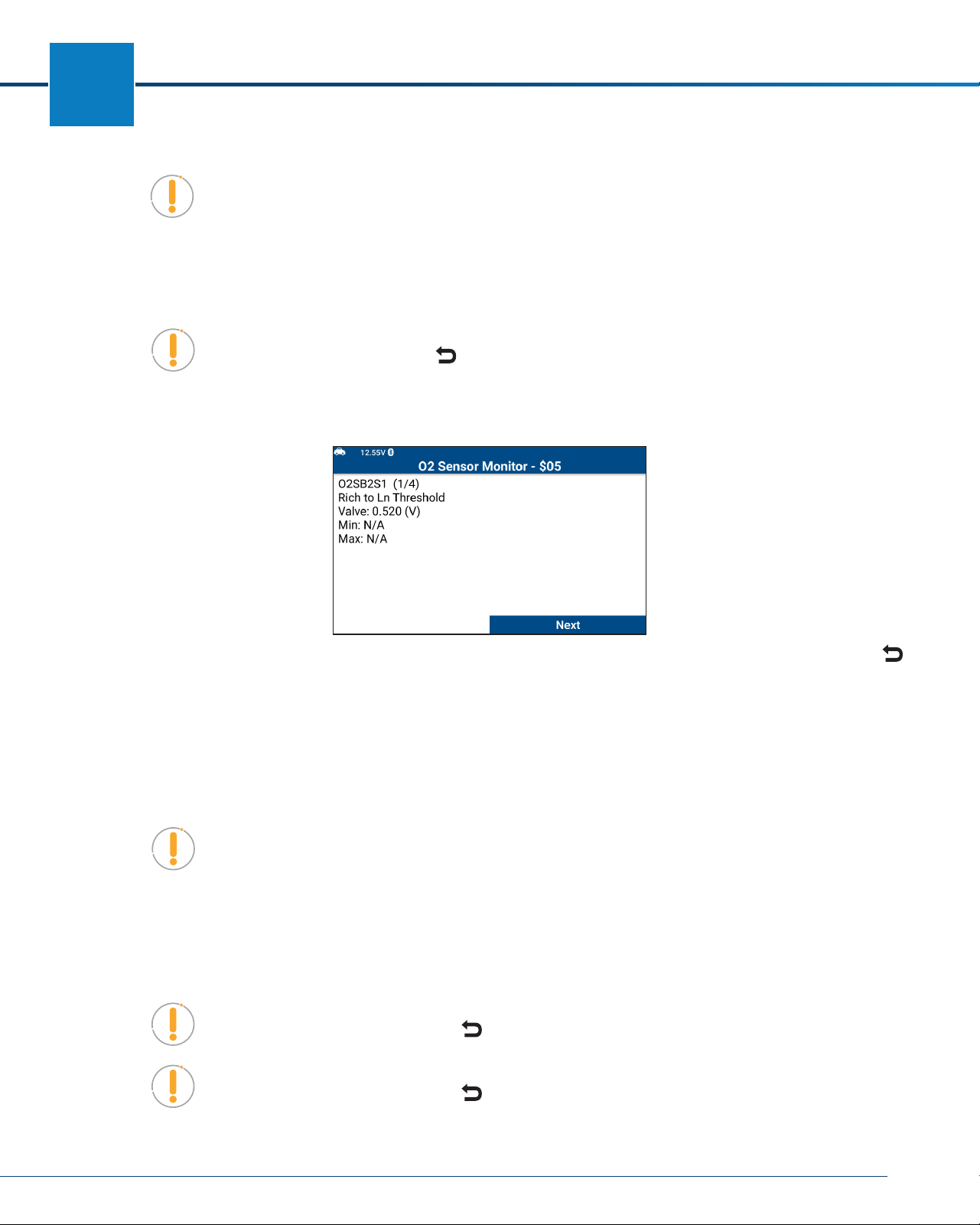

O2 Sensor Monitor - $05 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

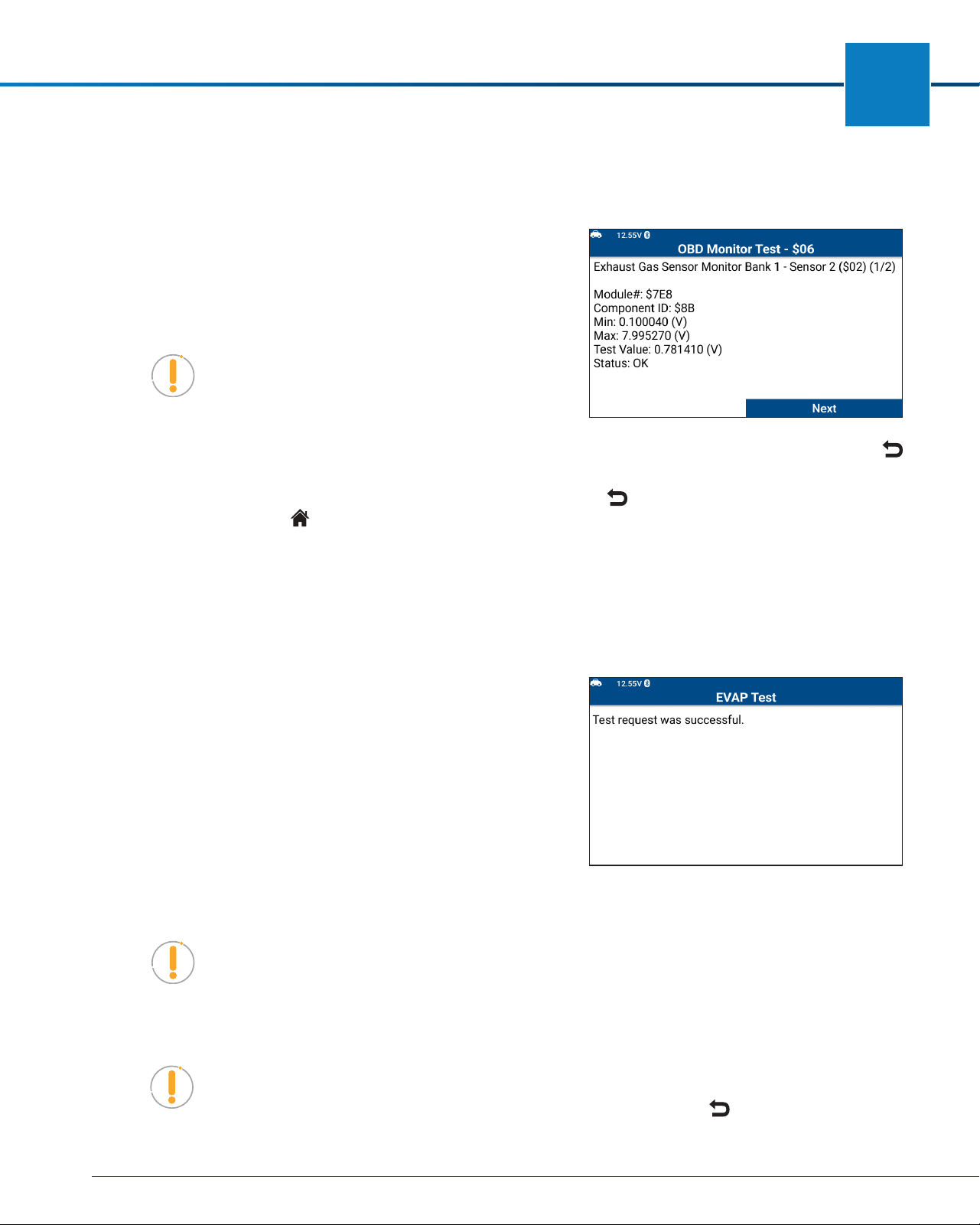

OBD Monitor Test - $06 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Request Control On-Board System - $08 . . . . . . . . . . . . . . . . . . . . . . . . . 25

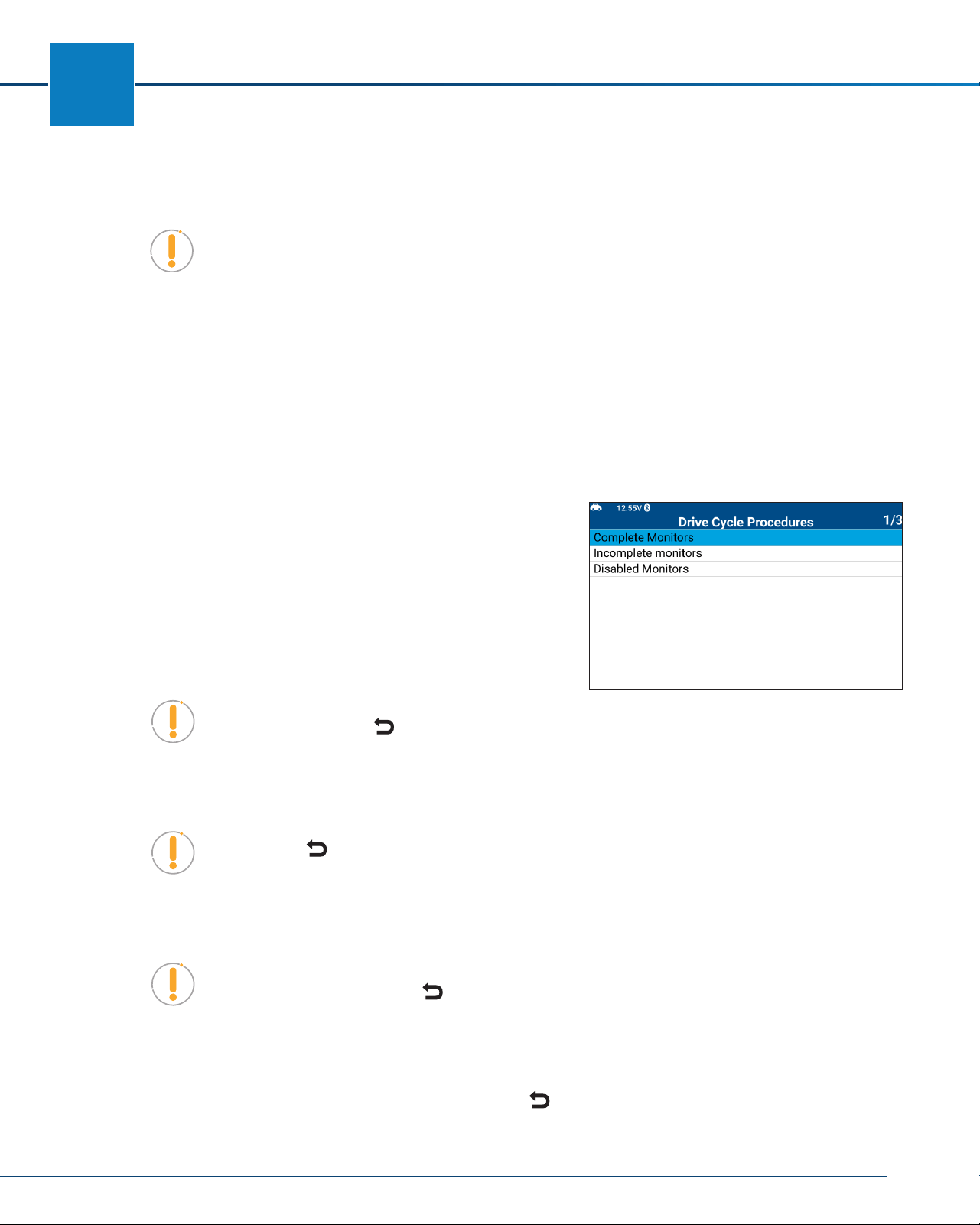

Drive Cycle Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Viewing Vehicle Information - $09 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

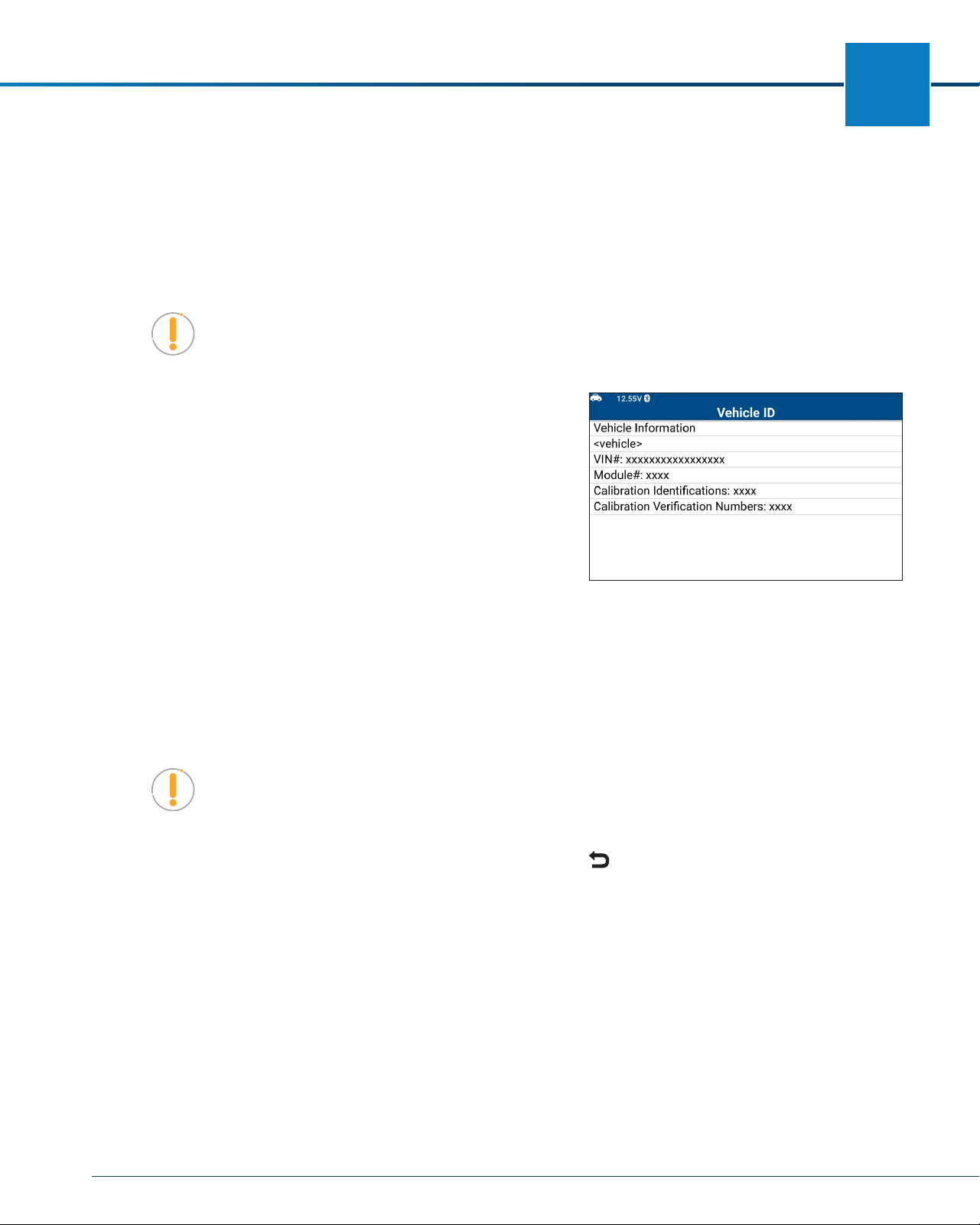

Viewing Vehicle ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

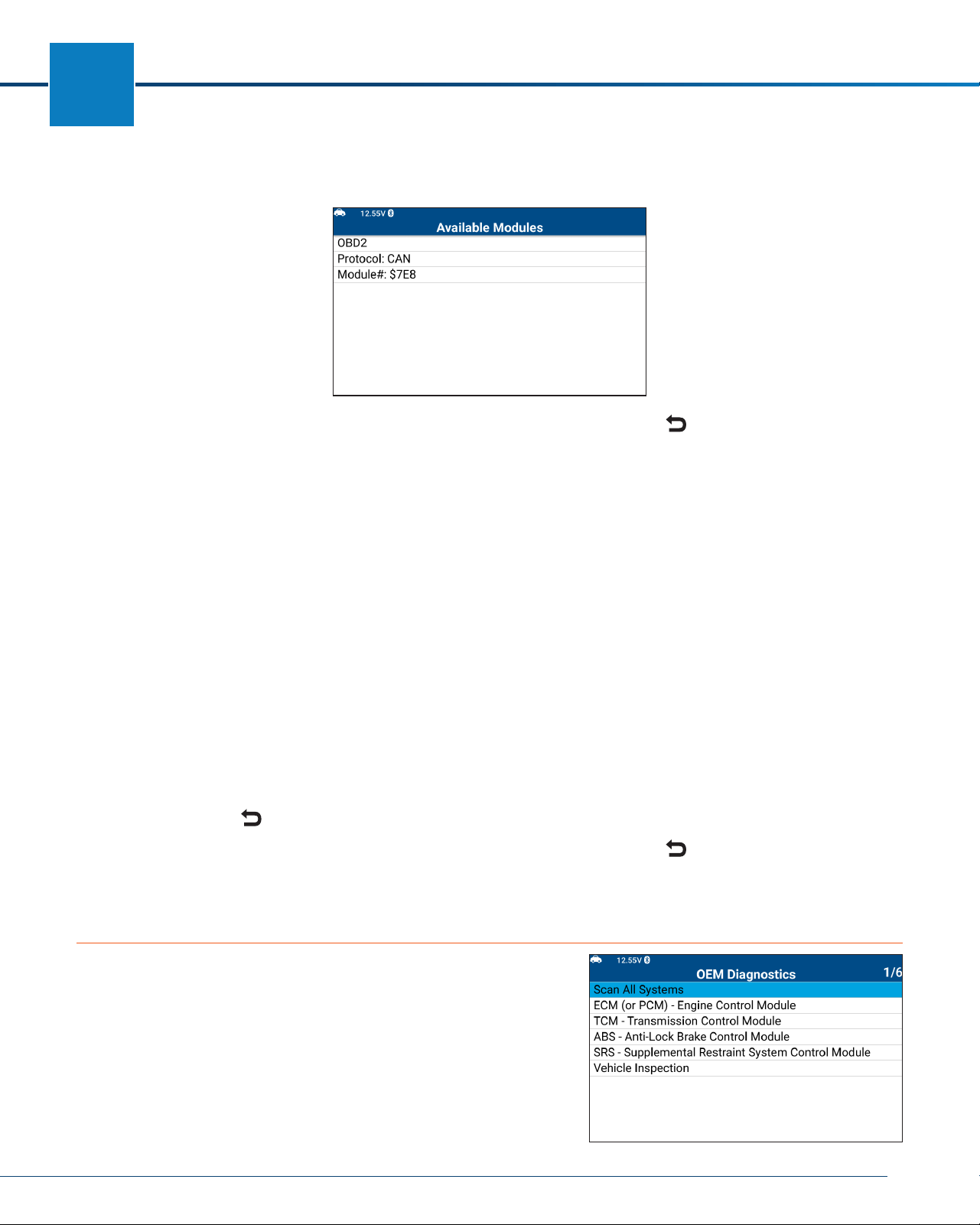

Viewing Available Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Viewing In-Use Performance Tracking . . . . . . . . . . . . . . . . . . . . . . . . 28
OEM Diagnostics� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 28

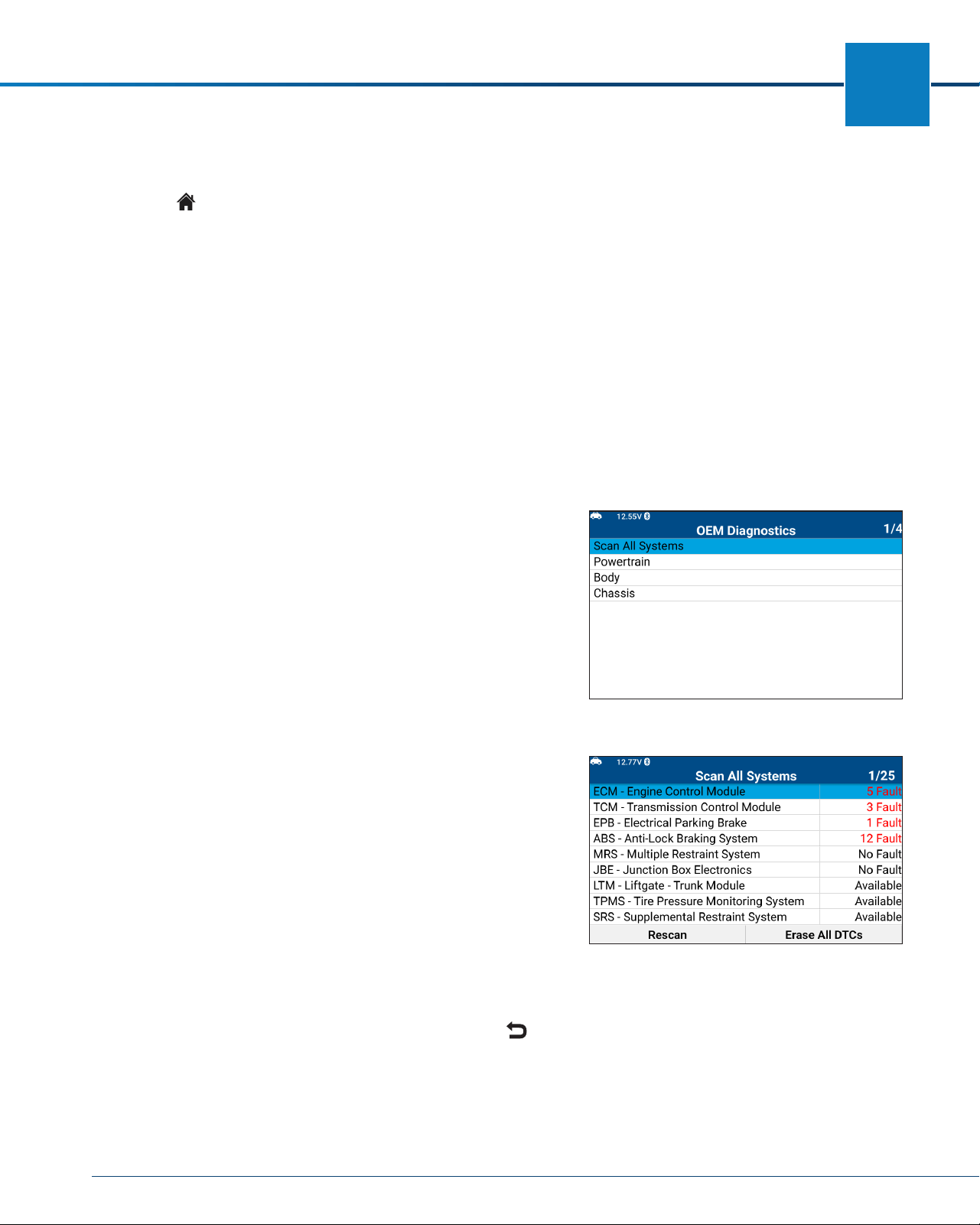

Perform a Scan - Scan All Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
TABLE OF CONTENTS
iii
Reading DTCs for a Selected Module . . . . . . . . . . . . . . . . . . . . . . . . 30
Erasing DTCs for a Selected Module . . . . . . . . . . . . . . . . . . . . . . . . . 30
Viewing Live Data for a Selected Module . . . . . . . . . . . . . . . . . . . . . . . 30

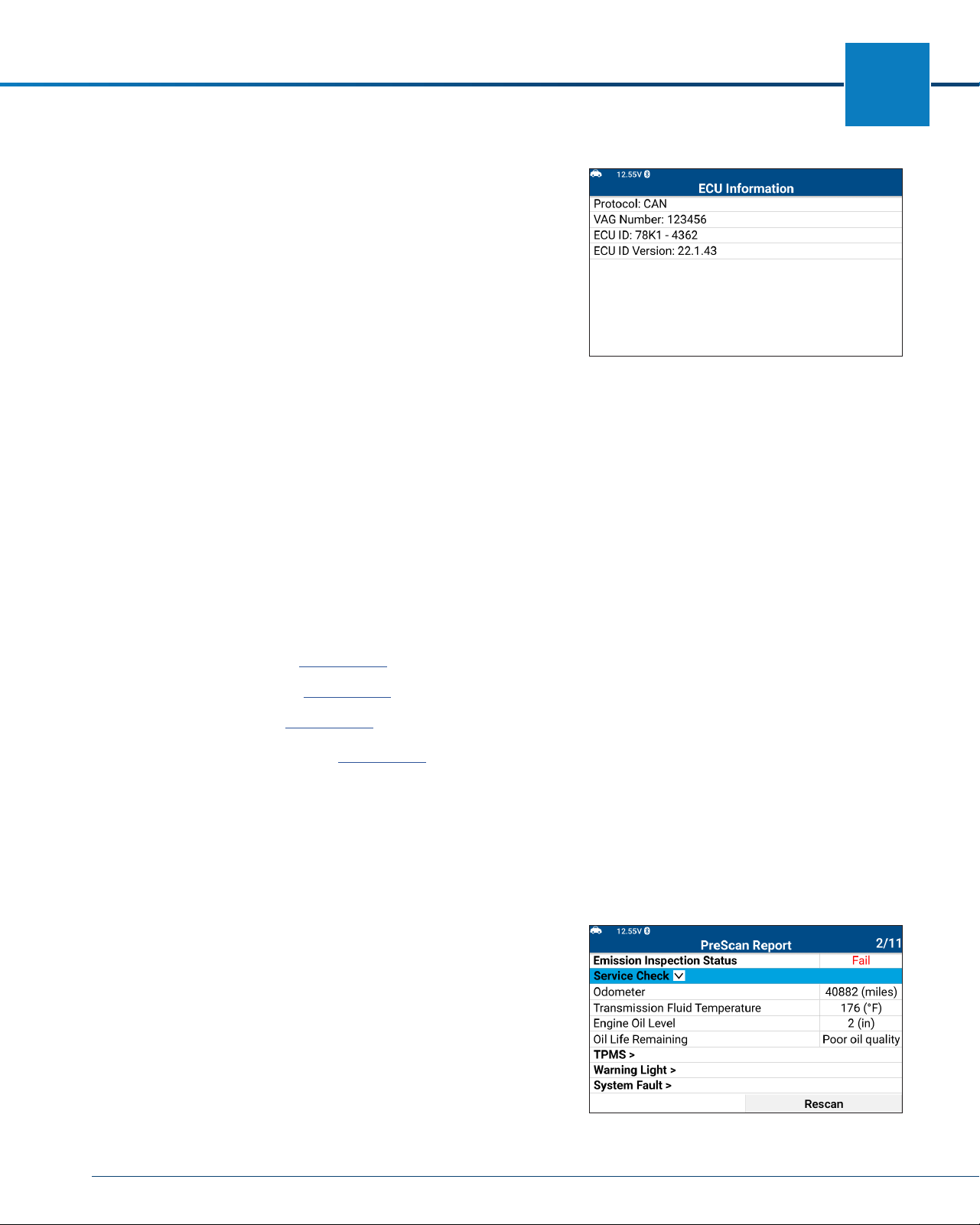

Reading ECU Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Perform a Scan for Individual Modules . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Vehicle Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
DTC Detail – to view Definitions and status DTCs of all systems. . . . . . . . . . . 32

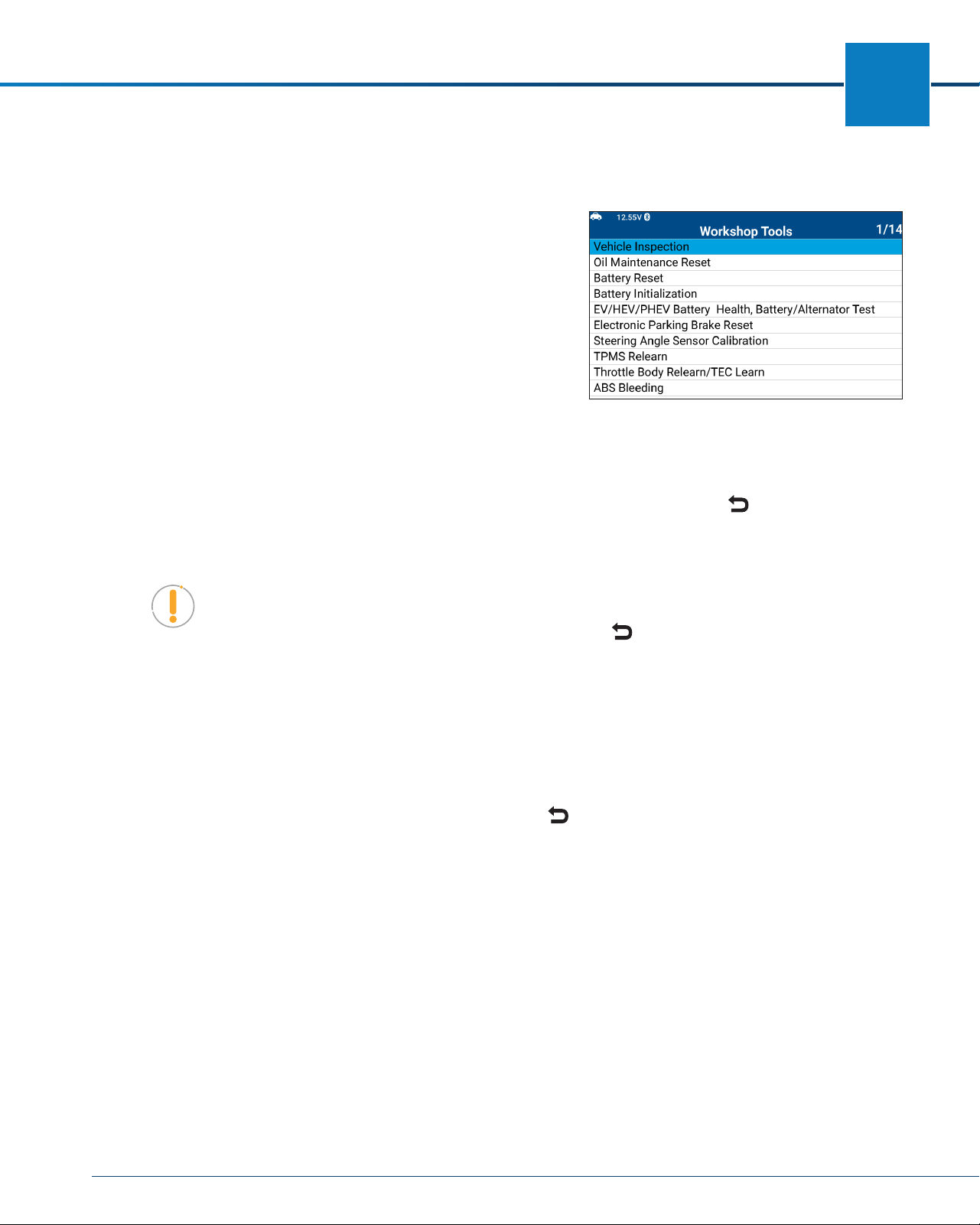

Workshop Tools � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 33
Oil Maintenance Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

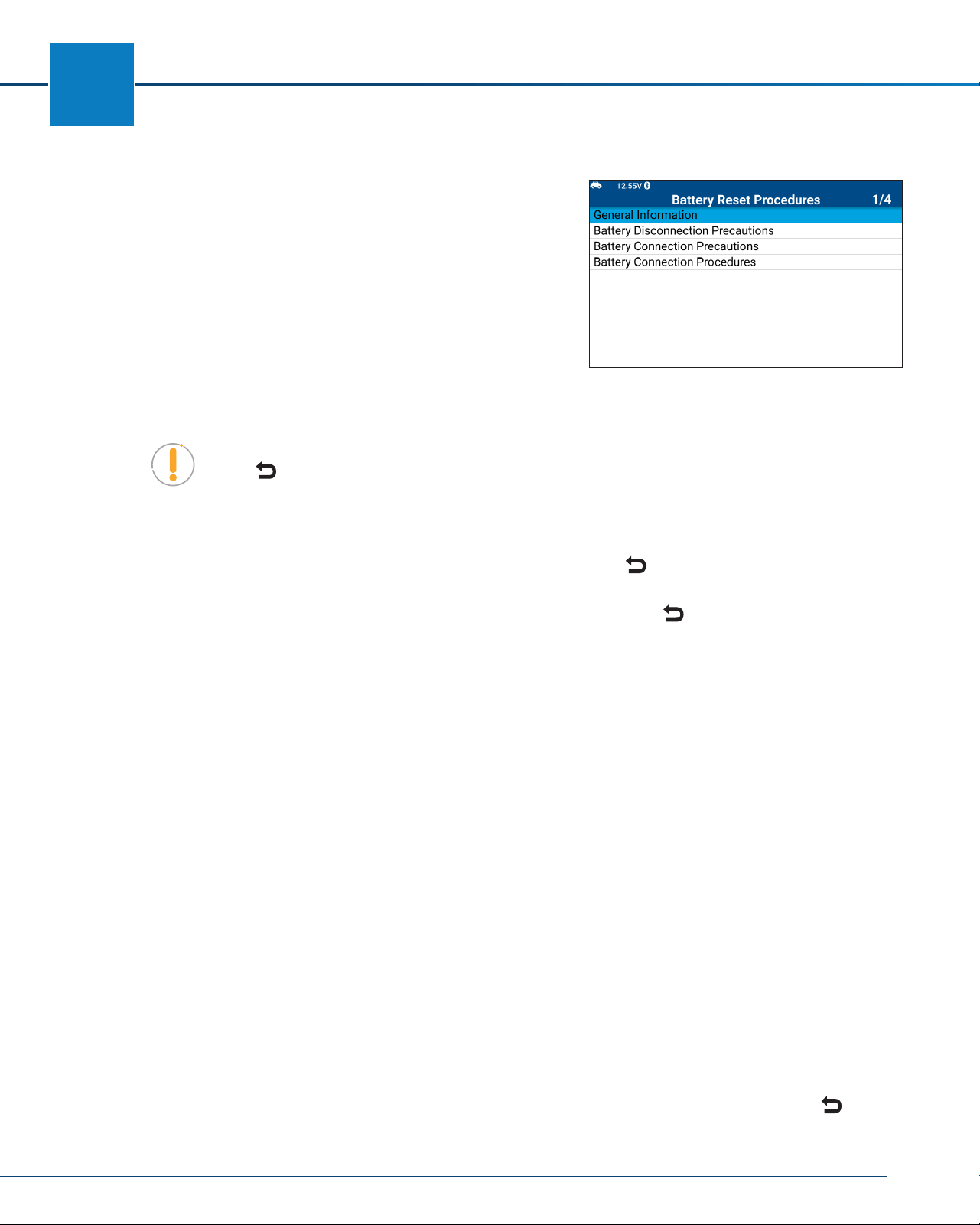

Battery Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Battery Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Steering Angle Sensor (SAS) Calibration . . . . . . . . . . . . . . . . . . . . . . . . . 35
Electronic Parking Brake (EPB) Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
DPF Reset (Except Chrysler, General Motors, Nissan, and Volkswagen) . . . . . . . . . 36
DPF Reset (Chrysler) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
DPF Reset (General Motors) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
DPF Reset (Nissan) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
DPF Reset (Volkswagen) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
ABS Bleeding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
EV/HEV/PHEV Battery Health . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Battery / Alternator Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Perform a Battery Check Only . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
View Battery Live Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Perform a Charging System Check . . . . . . . . . . . . . . . . . . . . . . . . . . 41
View Alternator Live Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

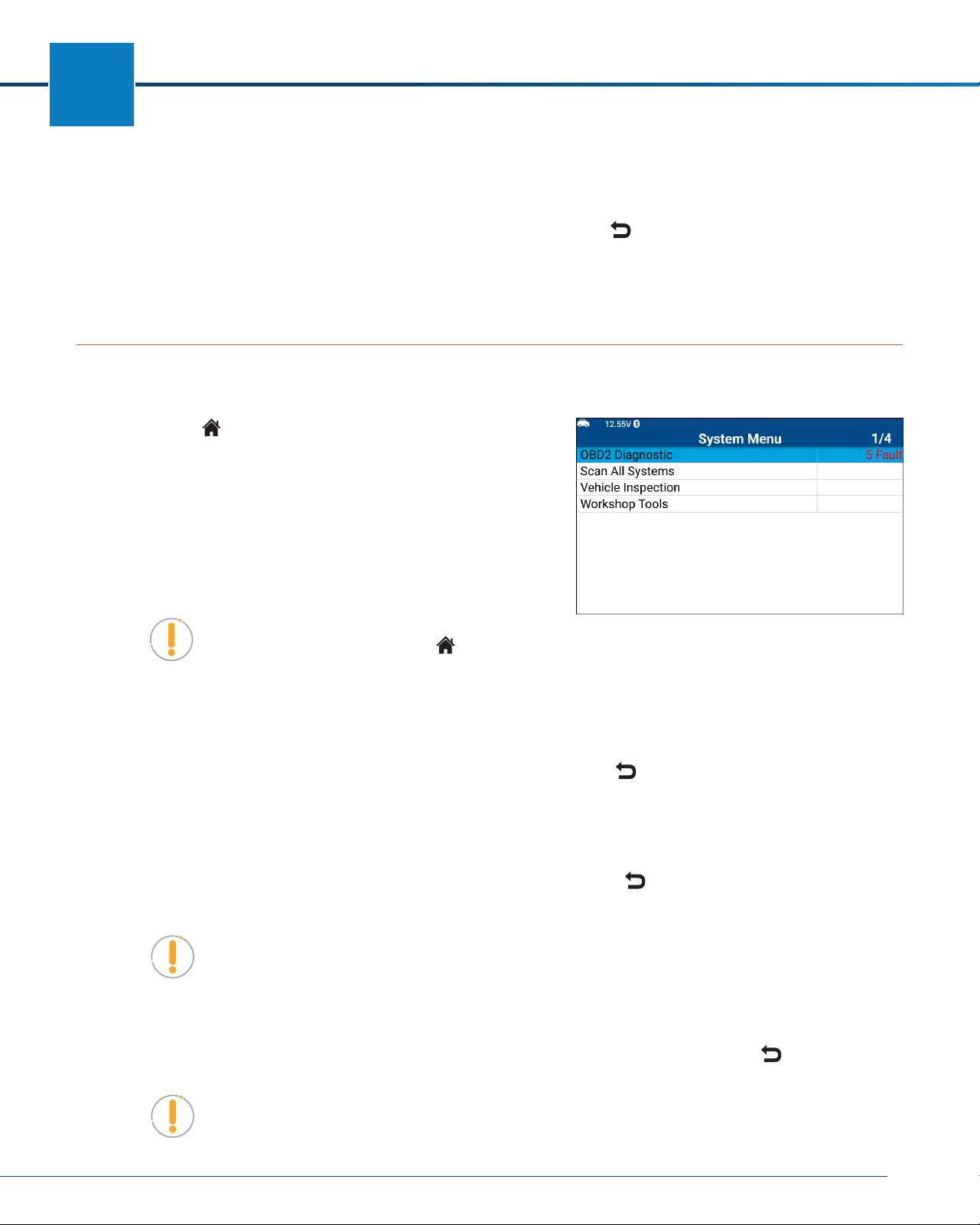

Previous Vehicles � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 42

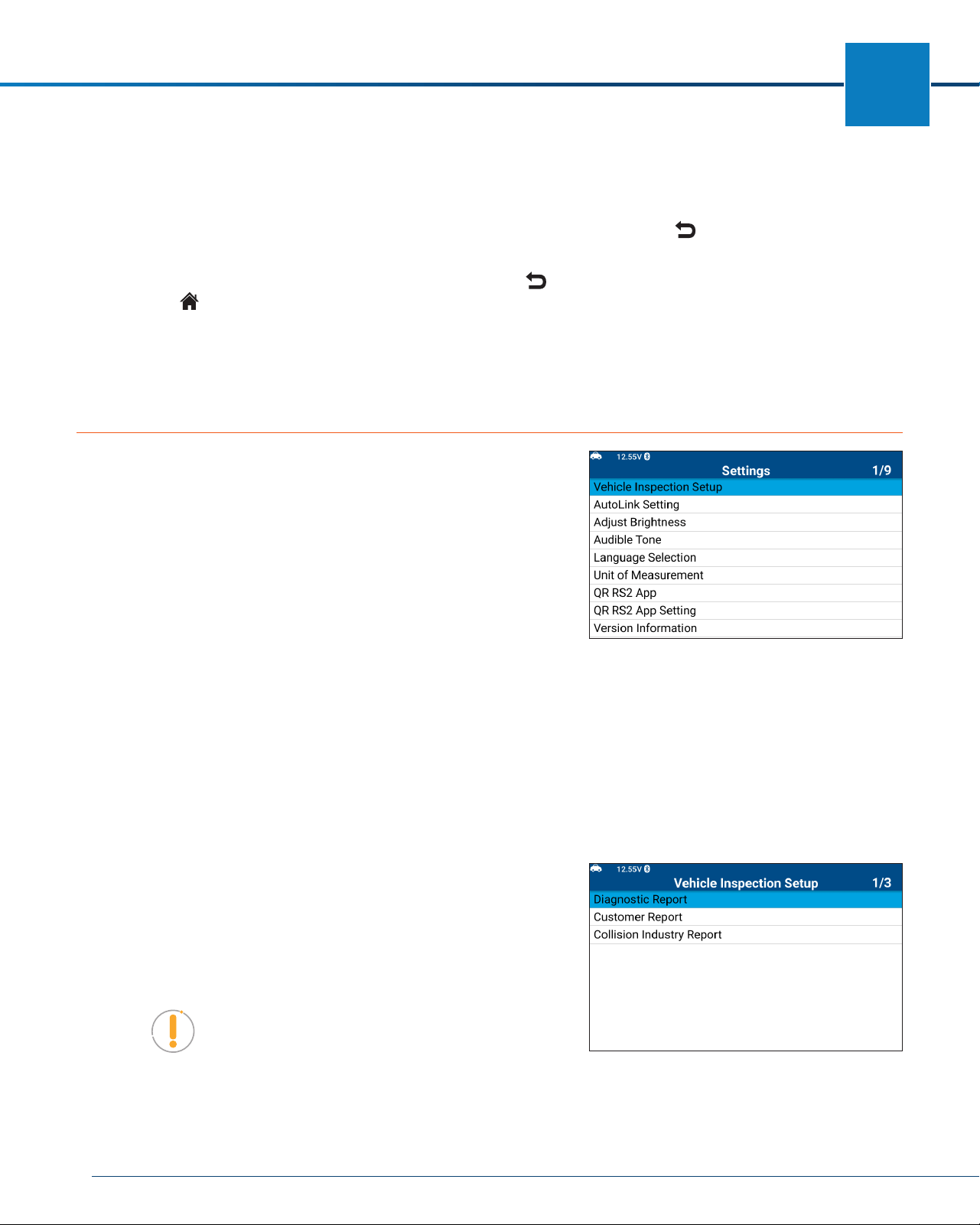

Settings � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 43
Vehicle Inspection Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
AutoLink Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Adjusting Display Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Enabling/Disabling the Audible Tone . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Selecting the Display Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Setting the Unit of Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Viewing the App QR Code - RepairSolutions2
®
. . . . . . . . . . . . . . . . . . . . . . 45
Setting the QR RepairSolutions2 App Mode . . . . . . . . . . . . . . . . . . . . . . . 45

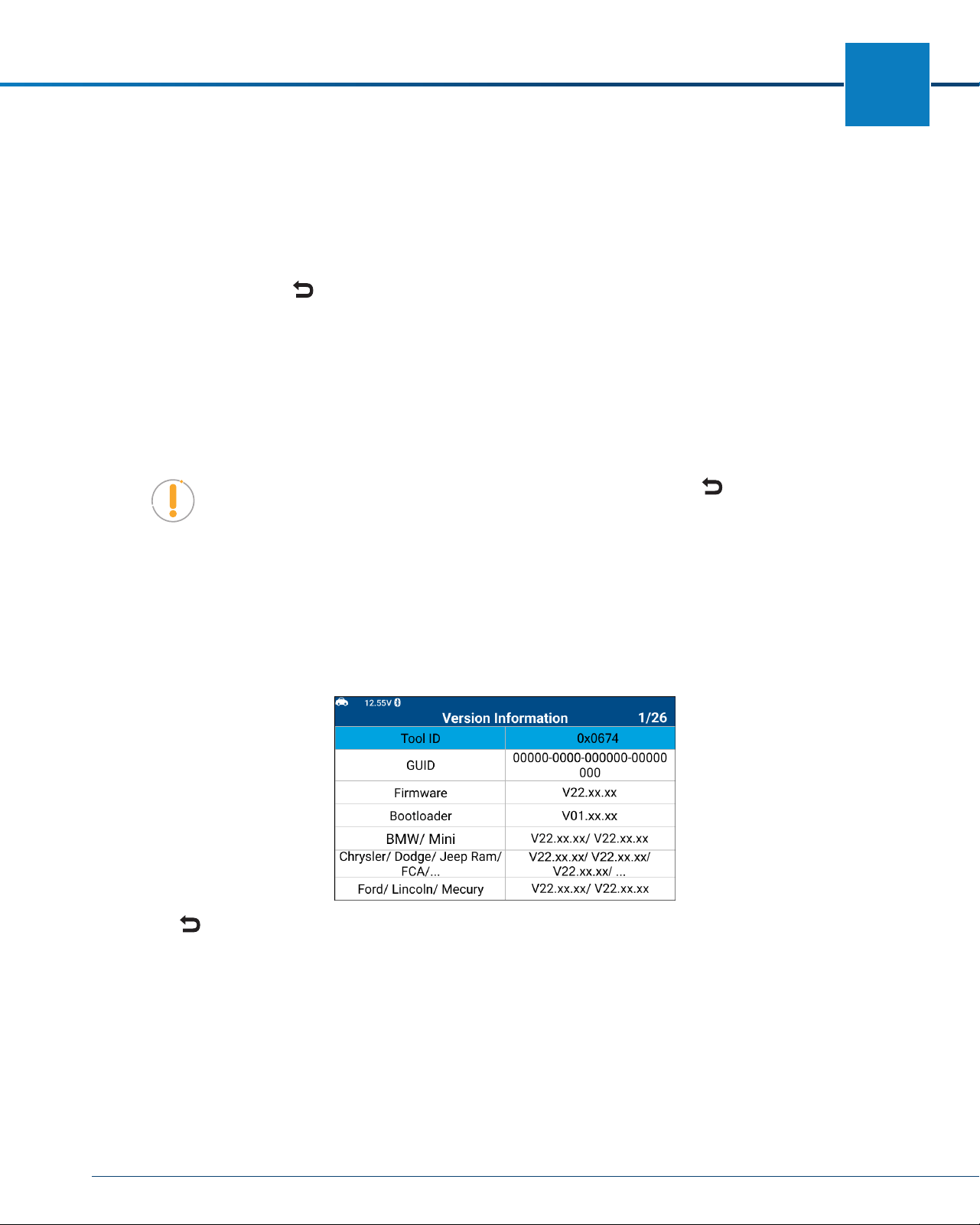

Viewing the Version Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
TABLE OF CONTENTS
iv

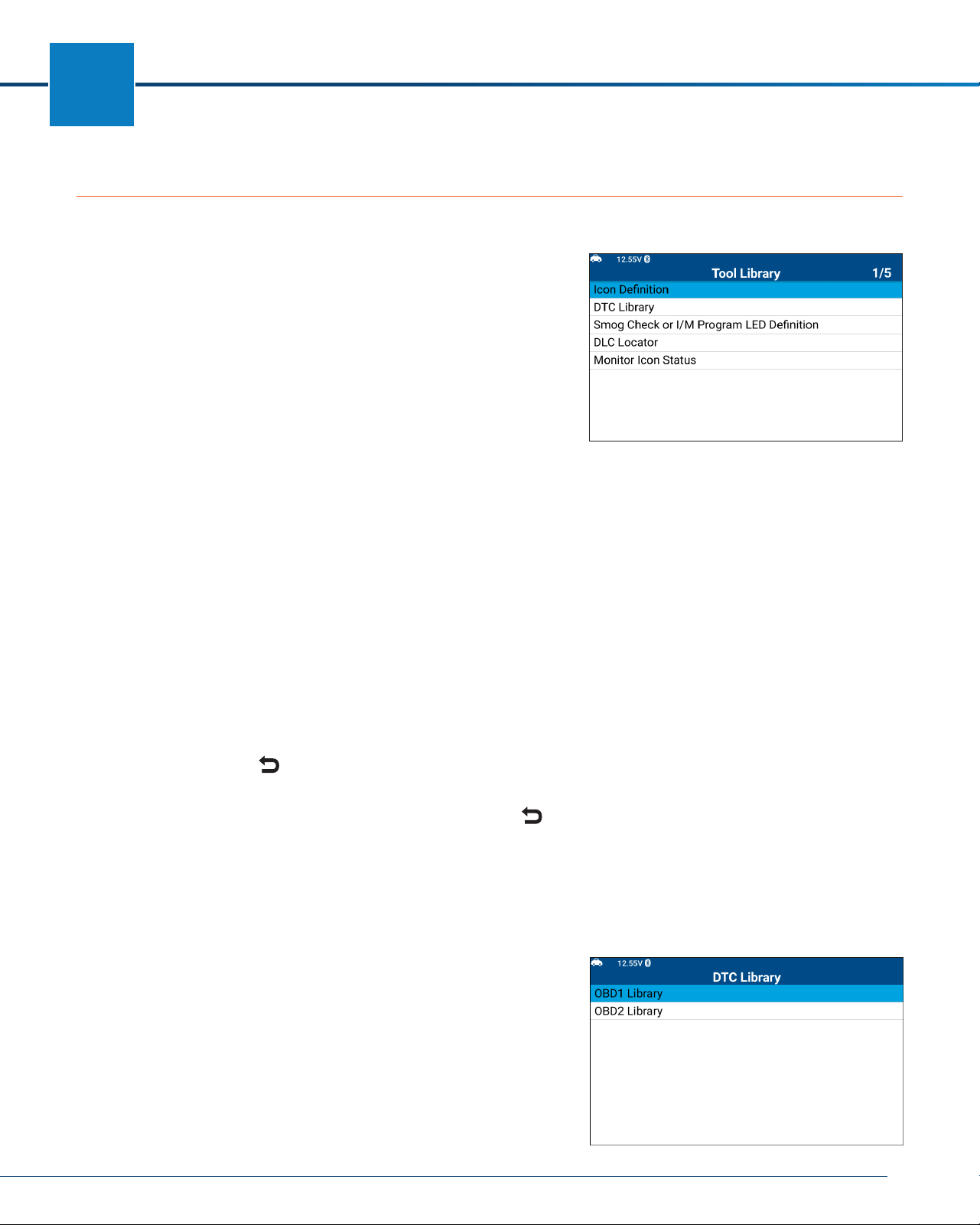

Tool Library � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 46
Icon Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

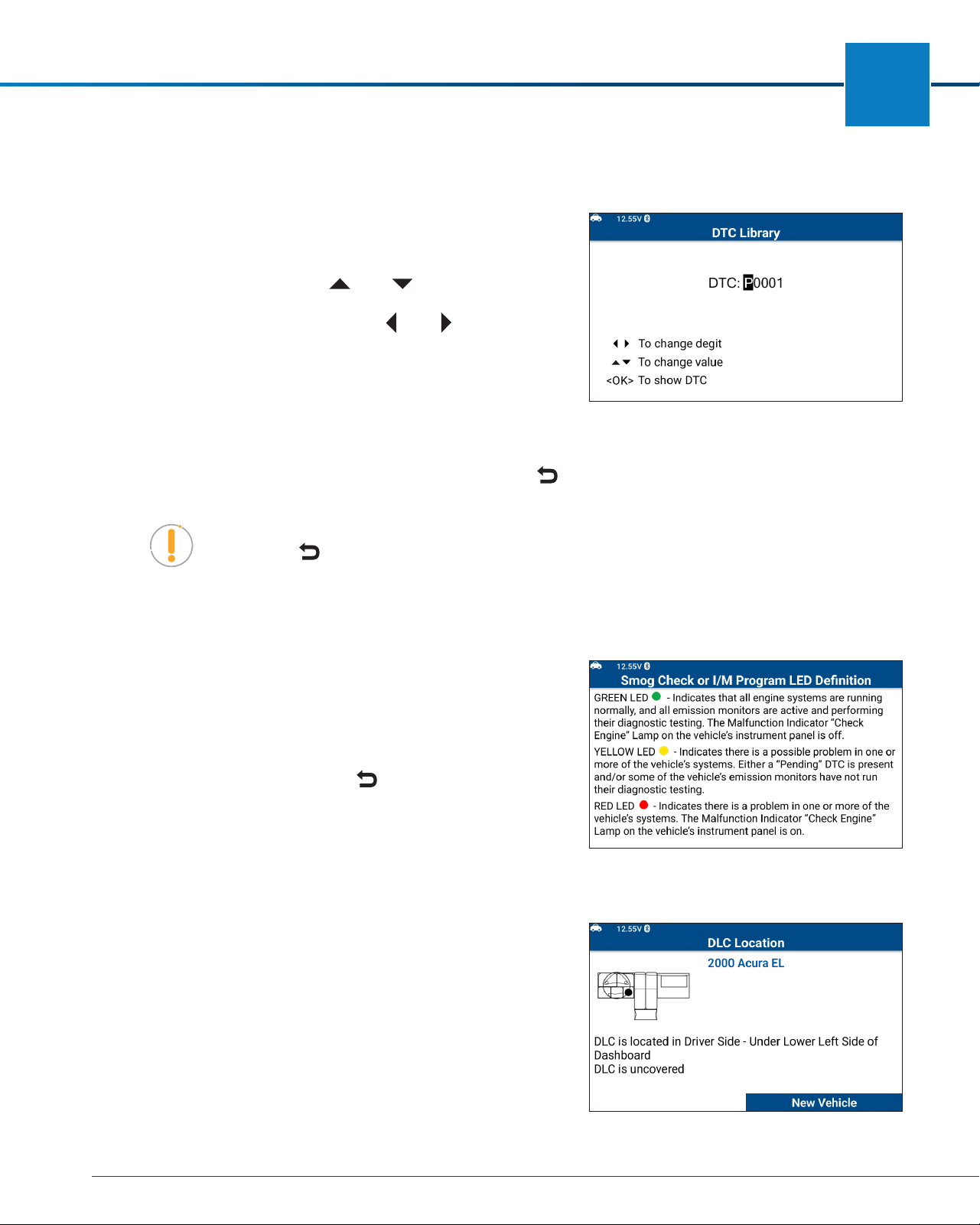

DTC Library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Smog Check or I/M Program LED Definitions . . . . . . . . . . . . . . . . . . . . . . . 47
Using the DLC Locator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

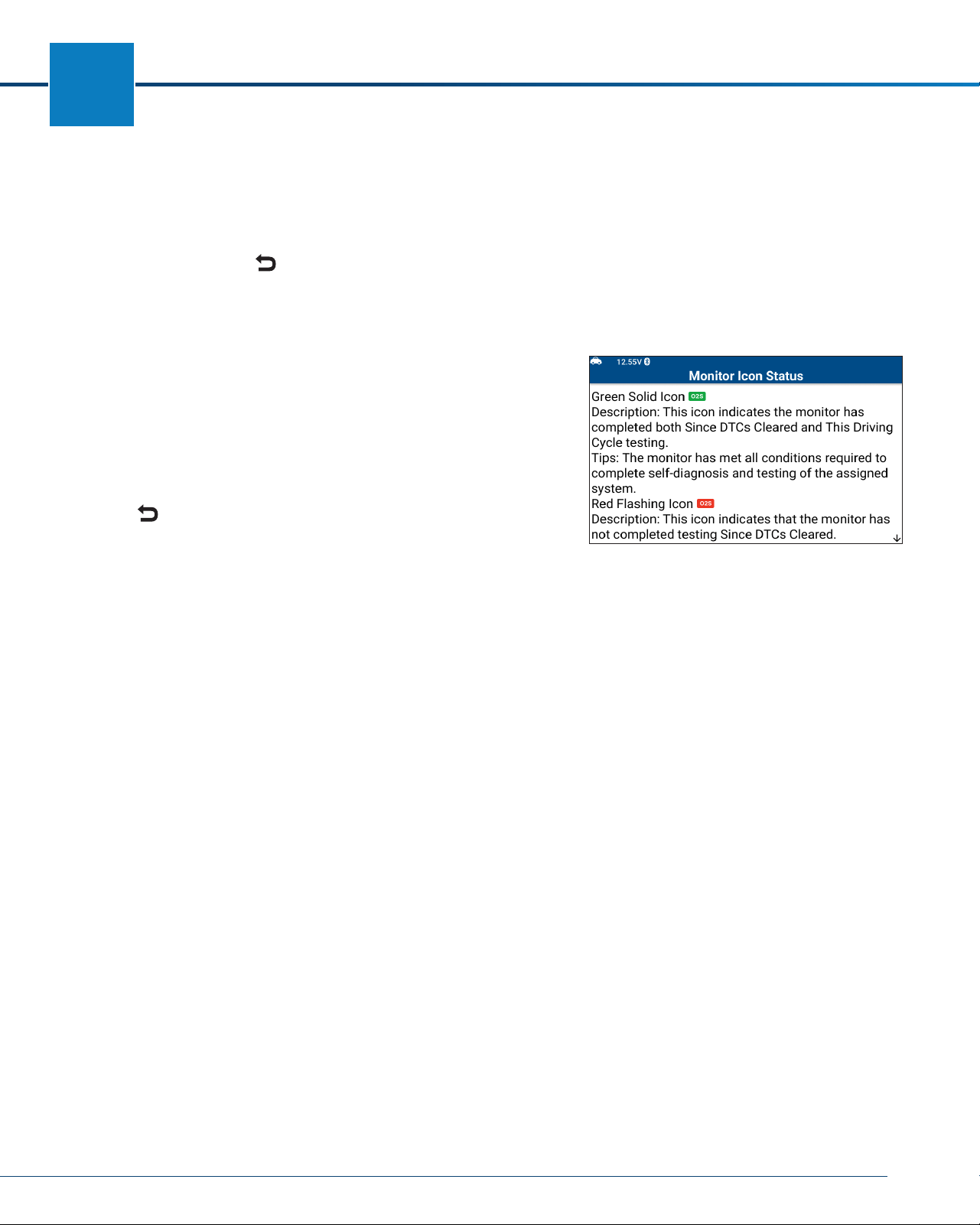

Icon Monitor Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
WARRANTY & CUSTOMER SERVICE . . . . . . . . . . . . . . . . . 64
GLOSSARY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
OBD2 Terminology � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 65
OBD2 Monitors � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 66
Continuous Monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Non-Continuous Monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Additional Terminology + Acronyms � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 67
TABLE OF CONTENTS
LEGAL INFORMATION
FCC Compliance Statement
1
LEGAL INFORMATION
FCC COMPLIANCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
FCC RF Radiation Exposure Statement
The transmitters within this device must not be co-located or operating in conjunction with any
other antenna or transmitter.
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance. To maintain with IC RF exposure compliance requirements, please follow
operation instruction as documented in this manual.
TRADEMARKS
Title, ownership rights, and intellectual property rights in the Products and Services shall remain in BLCKTEC and/or
its licensors and other suppliers. Licensee and End Users acknowledge such ownership, confidential information, and
intellectual property rights and will not take any action to jeopardize, limit or interfere in any manner with BLCKTEC’s
or its licensors’ or other suppliers’ ownership of or rights with respect to the Products and Services. The Products and
Services may be protected by Patent, Trademark, Copyright and/or other intellectual property laws and by international
treaties. All trademarks used in connection with the Products and Services are owned by BLCKTEC, its affiliates or
its licensors and other suppliers, and no license to use any such trademarks is provided hereunder. Licensee and
End Users agree that BLCKTEC may use in any manner and without limitation all comments, suggestions, complaints
and other feedback Licensee and End Users provide relating to the Products and Services. For more information and
current listing of trademarks, please visit https://www.blcktec.com/trademarks.
2
LEGAL INFORMATION
Patents
PATENTS
BLCKTEC protects its intellectual property with numerous U.S. patents, which were used to research, design and
manufacture this product. Please visit https://www.blcktec.com/patents for additional information.
FIRMWARE VERSION
Please note that the images and functions on this manual may differ based on the current Firmware Version (FW) you
have. To check your tablet’s current version and to check for updates, please see Viewing the Firmware Version [See
page 45].
CALIFORNIA PRODUCT WARNINGS
SAFETY PRECAUTIONS
Safety First!
3
SAFETY PRECAUTIONS
SAFETY FIRST!
It is important that every user utilizing this product read all instructions and warnings included within this manual
to ensure your safety, the safety of others, and to prevent damage to this product & vehicles being diagnosed and
repaired. This manual describes common test procedures used by experienced service technicians. It is inferred that
the user has a good understanding of vehicle systems before using this product.
Many test procedures require precautions to avoid accidents that can result in personal injury, and/or damage to
your vehicle or test equipment. At a minimum, the following safety standards should be followed whenever using this
product, or whenever working on a vehicle.
When an engine is running, it produces carbon monoxide, a toxic and poisonous gas. To
prevent serious injury or death from carbon monoxide poisoning, operate the vehicle ONLY in
a well-ventilated area�
To protect your eyes from propelled objects as well as hot or caustic liquids, always wear
approved safety eye protection�
When an engine is running, many parts (such as the coolant fan, pulleys, fan belt etc.) turn at
high speed. To avoid serious injury, always be aware of moving parts� Keep a safe distance
from these parts and other potentially moving objects.
Engine parts become very hot when the engine is running. To prevent severe burns, avoid
contact with hot engine parts�
Before starting an engine for testing or troubleshooting, make sure the parking brake is
engaged. Put the transmission in Park (for automatic transmission) or Neutral (for manual
transmission). Block the drive wheels with suitable tire blocks.
Connecting or disconnecting test equipment when the ignition is ON can damage test
equipment and the vehicle’s electronic components. Turn the ignition OFF before connecting
the tablet to or disconnecting the tablet from the vehicle’s Data Link Connector (DLC)�
To prevent damage to the on-board computer when taking vehicle electrical measurements,
always use a digital multimeter with at least 10 Megohms of impedance.
Fuel and battery vapors are highly flammable. To prevent an explosion, keep all sparks, heated
items, and open flames away from the battery and fuel vapors. DO NOT SMOKE NEAR THE
VEHICLE DURING TESTING�
Don’t wear loose clothing or jewelry when working on an engine� Loose clothing can
become caught in the fan, pulleys, belts, etc. Jewelry is highly conductive and can cause a
severe burn if it makes contact between a power source and ground.
4
SAFETY PRECAUTIONS
Safety Alert Icons
SAFETY ALERT ICONS
As you read this manual, color-coded icons are used throughout to identify safety alerts and warnings. These are
provided to help prevent serious injury to you, injury to bystanders, and damage to property or equipment. They are
characterized as follows:
Yellow Icon – Indicates a “NOTE:” statement that offers special
information or tips on what is being instructed.
Orange Icon – Indicates a potential hazardous situation. Provides a
“WARNING:” statement on how to proceed to avoid serious injury to the
user or bystanders, and/or damge to equipment.
Red Icon – Indicates an imminent hazardous situation. Provides a
“DANGER:” alert on what must be done to prevent serious injury or death
to the user or bystanders.
INTRODUCTION
Tool Controls and Indicators
5
INTRODUCTION
TOOL CONTROLS AND INDICATORS
See Figure 1 for the locations of items 1 through 12 below.
1� 4�3-inch LCD Screen - Color LCD display shows menus and sub-menus, test results, Tablet Scan Tool functions
and vehicle status information.
2� Power Button - Turns the Tablet Scan Tool “ON” and “OFF”. Press and hold for approximately 3 seconds to
turn ON/OFF.
3� Diagnostic Port - Connects the Tablet Scan Tool to the vehicle’s Data Link Connector (DLC).
4� USB Port - Allows connection to a PC using a standard USB-C cable.
5� GREEN LED - Indicates that all engine systems are running normally, and all emission Monitors are active and
performing their diagnostic testing. The Malfunction Indicator “Check Engine” Lamp on the vehicle’s instrument
panel is OFF.
6� YELLOW LED - Indicates there is a possible problem in one or more of the vehicle’s systems. Either a “Pending”
DTC is present and/or some of the vehicle’s emission Monitors have not run their diagnostic testing.
7� RED LED - Indicates there is a problem in one or more of the vehicle’s systems. The Malfunction Indicator “Check
Engine” Lamp on the vehicle’s instrument panel is ON.
8� Home Button - Press from any screen to return back to the Home screen (except the screen in Workshop
Tools function).
9� OK Button - Confirms the selected option or value.
Figure 1. Controls and Indicators
1
3
4
5
6
7
8
10
11
12
9
2
6
INTRODUCTION
Tablet Scan Tool Display Functions
10� Left / Right Button - Moves selection cursor left or right, or helps scroll through pages when more than one
page is displayed.
11� Up / Down Button - When in MENU mode, scrolls Up/Down through the menu options. When LINKED to
a vehicle, scrolls Up/Down through the current display screen to display additional data.
12� Back Button - Exits the current function or returns to the previous screen.
TABLET SCAN TOOL DISPLAY FUNCTIONS
See Figure 2 for the locations of items 1 through 18 below.
1� I/M MONITOR STATUS: SINCE DTCs CLEARED or THIS DRIVE CYCLE field - Identifies the I/M Monitor status
area.
2� Monitor icons - Indicate which Monitors are supported by the vehicle under test, and whether or not the
associated Monitor has completed its diagnostic testing (Monitor status). When a Monitor icon is solid Green, it
indicates that the Monitor has completed both Since DTCs Cleared and This Drive Cycle. When a Monitor icon
is flashing Red, it indicates that the Monitor has not completed testing Since DTCs Cleared. When a Monitor is
Green-Gray, it indicates that the monitor has not completed testing This Drive Cycle. When a Monitor is Red-Gray,
it indicates that the monitor has been disabled This Drive Cycle.
NOTE: The I/M Monitor Status icons are associated with INSPECTION and
MAINTENANCE (I/M) READINESS STATUS. Some states require that all vehicle
Monitors have run and completed their diagnostic testing before a vehicle can be
tested for Emissions (Smog Check). A maximum of fifteen Monitors are used on
OBD2 systems. Not all vehicles support all fifteen Monitors. When the Tablet Scan
Tool is linked to a vehicle, only the icons for Monitors that are supported by the
vehicle under test are visible on the display.
Figure 2. Tablet Scan Tool Display Functions
INTRODUCTION
Tablet Scan Tool Display Functions
7
3� Link Icon - Indicates whether or not the Tablet Scan Tool is communicating (linked) with the vehicle’s on-
board computers. When visible, the Tablet Scan Tool is communicating with the computers. If the Link icon is not
visible, the Tablet Scan Tool is not communicating with the vehicle’s computers.
4� Vehicle Icon - Indicates whether or not the Tablet Scan Tool is being properly powered through the vehicle’s
Data Link Connector (DLC). A visible icon indicates that the Tablet Scan Tool is being powered through the
vehicle’s DLC connector.
5� DTC Display Area - Displays the Diagnostic Trouble Code (DTC) number. Each fault is assigned a code number
that is specific to that fault.
6� Code Type – Indicates the type of code being displayed: Confirmed, Pending, Permanent.
7� Code Number Sequence - The Tablet Scan Tool assigns a sequence number to each DTC that is present in the
computer’s memory, starting with “1”. This helps keep track of the number of DTCs present in the computer’s
memory. Code number ”1” is always the highest priority code and the one for which “Freeze Frame” data has
been stored.
NOTE: If “1” is a “Pending” code, there may or may not be “Freeze Frame” data
stored in memory.
8� Code Enumerator - Indicates the total number of codes retrieved from the vehicle’s computer.
9� Test Data Display Area – Displays DTC definitions, Freeze Frame data and other pertinent test information
messages.
10� Severity – Indicates the level of severity for the priority code (code number “1”), as follows:
[1] This fault typically does not cause damage to components and should be serviced when convenient.
[2] This fault may pose damage to components and should be repaired as soon as possible.
[3] This fault will cause damage to components and should be repaired immediately.
11� OBD2 Menu – Displays menu to perform the 10 modes of OBD2 functions.
12� Freeze Frame – Provides quick access to the vehicle’s freeze frame data.
13� MIL Icon - Indicates the status of the Malfunction Indicator Lamp (MIL). The MIL icon is visible only when a
DTC has commanded the MIL on the vehicle’s dashboard to light.
14� FREEZE FRAME Icon - Indicates that there is Freeze Frame data stored in the vehicle’s computer memory
(Captured when Priority Code was set / Code #1).
15� 12�55V – Displays the vehicle’s current battery voltage.
16� Bluetooth Icon – Indicates communication status with a compatible mobile application. A solid blue icon
indicates an active Bluetooth connection has been established.
17� Computer Icon – When visible, indicates the Tablet is linked to a personal computer.
18� Scan Tool Internal Battery Icon – When visible, indicates the Scan Tool batteries are “low” and should be
replaced. If the batteries are not replaced when the battery icon is “on”, all 3 LEDs will light to warn that the
batteries need replacement. No data is displayed on screen when all 3 LEDs are lit.
8
INTRODUCTION
Technical Specifications
TECHNICAL SPECIFICATIONS
The following table provides the Tablet Scan Tool ’s current technical specifications*:
Display Type
4.3-Inch Panel
J1962 DLC Cable
6-foot Detachable 16-pin OBDII Compliant
Connector
Operating Temperature
23–113ºF (-5–45ºC)
Memory
4 GB Memory
Tablet Scan Tool Case
Rugged ABS Shock & Drop Resistant
Included Accessories
Molded Storage Case, Quick Start Guide, USB Cable
*Manufacturer reserves the right to change technical specifications at any time.
THE REPAIRSOLUTIONS2
®
APP
The RepairSolutions2
®
(RS2) App is a web-based
service created to assist Do-it-Yourselfers and Professional
technicians simplify their vehicle diagnostic process.
In essence, RS2 helps you decode the diagnostic data
collected by your OBD2 Tablet to arrive at a most likely fix.
RS2 leverages a comprehensive database of millions of real-
world, verified fixes collected over the past 25 years by ASE
Master Technicians across the U.S. This database is cross-referenced with your specific
vehicle’s problem to quickly provide an accurate and verified solution. Think of it as your
personalized technician to help diagnose, repair, and maintain your vehicle(s).
THE RS2 APP OFFERS…
Verified Fixes – Find the most likely fixes reported and verified by ASE
Technicians for the retrieved DTCs. Plus, quickly purchase the exact parts
you need right from the app.
Predicted Repairs – With millions of verified repair solutions, get a statistical
probability of what repairs you may need within the next 12 months.
TSBs & Recalls – Learn if there are any special NHTSA safety recalls or
Technical Service Bulletins (TSBs) issued by your vehicle’s manufacturer.
Vehicle Health Reports - Get a quick insight on how your vehicle’s vitals
are currently performing (tire pressure, battery status, etc.) and get alerts to
INTRODUCTION
The RepairSolutions2® App
9
potential problems.
Upcoming Maintenance – View your vehicle manufacturer’s recommended maintenance
intervals. Plus, conveniently purchase the correct maintenance parts right from the app.
And much more���
HARDWARE REQUIREMENTS
Certified RS2 Tablet with Bluetooth
®
/ Wi-Fi connectivity
Android or iOS Mobile Device
DOWNLOAD THE RS2 APP
Apple iOS Devices (click on the link)
Android Devices (click on the link)
From a Tablet Scan Tool
━ Scan the QR Code displayed on the tablet’s screen when pairing app with the tablet�
USING RepairSolutions2®
1� Retrieve your vehicle’s diagnostic data. [See page 12]
2� Download and install the RepairSolutions2
®
app (see above).
3� Launch the RS2 app and log in to your account.
If you have not yet established an account, you must register for a FREE RS2 account before
proceeding.
4� Follow the screen prompts to pair your Tablet Scan Tool.
Begin the pairing process by selecting your handheld tool from the list.
5� Once paired, the data from your tool is automatically transferred to the RS2 app to create a report.
NOTE: If the data does not automatically transfer, simply keep the app and tool
paired and scan your vehicle again.
10
USING THE DIAGNOSTIC TABLET
Home Screen
USING THE DIAGNOSTIC TABLET
HOME SCREEN
The Home Screen provides access to all the Tablet Scan Tool’s primary functions.
See Figure 3 for the explanation of items 1 through 6 below.
1� OBD2 Diagnostics Tab – Use to access OBD2 menu, display 10 modes of OBD2. [See page 11]
2� OEM Diagnostics Tab – Provides enhanced OEM-level diagnostics that are not available over generic OBD2.
Access ABS, Airbag, Transmission, Tire Pressure, Battery, and all modules to view and erase their DTCs. View
hundreds of additional parameters that you can access in real-time. Provides a Vehicle Inspection which shows
a Diagnostic Report, Customer Report and Collision Industry Report. [See page 28]
3� Workshop Tools Tab – Perform several OEM services, including Vehicle Inspection, Oil Maintenance Reset,
Battery Reset, Battery Initialization, EV/HEV/PHEV Battery Health, Battery/Alternator Test, Electronic Parking
Brake Reset, etc. Access dealership-level relearn procedures to complete repairs or maintenance and much
more. [See page 33]
4� Previous Vehicles Tab – Access and view reports for the 15 previous tested vehicles, including pre-recorded
Live Data streams. [See page 42]
5� Settings Tab – Setup your Tablet Scan Tool’s settings, update version, and other personal settings. [See page
43]
6� Tool Library Tab – Access the Tablet Scan Tool’s tool library for DTCs and tool icon definitions, Smog Check or
I/M Program LED Definition, DLC Locator, Monitor Icon Status. [See page 46]
INITIAL SETUP (PERSONAL SETTINGS)
The first time the Tablet Scan Tool is connected to a vehicle, it is necessary to complete your setup by performing the
following steps:
USING THE DIAGNOSTIC TABLET
OBD2 Diagnostics
11
1� The screen displays the Smog Check or I/M Program LED Definition� Press OK to continue.
2� On the next screen, a QR code to RepairSolutions2 (RS2) is provided. Using any mobile device, scan the code
to download and install the free RS2 app. The app offers additional information including Most Likely Component/
System Cause for DTC, and much more. [See page 8]
OBD2 DIAGNOSTICS
OBD2 Diagnostics provides access to all 10 modes of OBD2. The following functions are available:
I/M Readiness Status – $01, $41 [See page 11]
Read DTCs - $03, $07, $0A [See page 12]
Erase DTCs - $04 [See page 15]
Freeze Frame - $02 [See page 16]
Live Data - $01 [See page 17]
O2 Sensor Monitor - $05 [See page 23]
OBD Monitor Test - $06 [See page 24]
Request Control On-Board System - $08 [See page 25]
Drive Cycle Procedures [See page 26]
Vehicle Information - $09 [See page 27]
There are two main ways to access OBD2 Diagnostic functions:
1� From the Home Screen, select OBD2 Diagnostics and press the OK button.
2� From the OBD2 Control Display screen, select OBD2 Menu and press the OK button.
I/M READINESS STATUS - $01, $41
The vehicle’s computer stores a record of monitor status upon completion of a full diagnostic check of all monitored
components and systems since the computer’s memory was last cleared. The I/M Readiness Status - $01, $41 feature
displays which vehicle particular Monitor has or has not run and completed testing of their designated sections within
the vehicle’s emissions control system. Additionally, it also provides the descriptions for each monitor.
1� From the OBD2 Menu, select I/M Readiness Status - $01, $41, then press OK button.
2� A “One moment please. . .” message displays, followed by a selection dialog. Select Since DTCs Cleared -
$01 or This Drive Cycle - $41 as appropriate. Press OK to continue.
If the vehicle under test does not support Since DTCs Cleared - $01 or This Drive Cycle - $41,
the following warning message displays: “This vehicle does not support this monitor type.”
Press the Back button to return to the previous dialog.
12
USING THE DIAGNOSTIC TABLET
OBD2 Diagnostics
3� The Select Monitor screen displays listing all Monitors supported by the vehicle.
4� To view a Monitor description, select the desired Monitor, then press Left and OK to choose Description.
A description for the selected Monitor displays.
5� To view Drive Cycle Procedures for a Monitor, select the desired Monitor, then choose Drive Cycle.
NOTE: If Drive Cycle Procedures are not available for the vehicle, an advisory
message displays. Press Back to return to the OBD2 Menu.
The Drive Cycle Procedures screen for the Monitor display.
6� The Drive Cycle Procedure screen shows the specific set of operating procedures that ensure the vehicle is
driven in such a way that all the required “Enabling Criteria” for the Monitor to run and complete its diagnostic
testing are met.
7� When you are finished viewing the Drive Cycle Procedures, choose Other Monitors to view other monitors
or press the Home button to return to the Home Screen.
RETRIEVING OBD2 DIAGNOSTIC TROUBLE CODES (DTCS)
Never replace a part based only on the DTC definition� Each DTC has a set of testing procedures, instructions
and flow charts that must be followed to confirm the location of the problem� This information is found in the
vehicle’s service manual� Always refer to the vehicle’s service manual for detailed testing instructions.
NOTE: Check your vehicle thoroughly before performing any test.
WARNING: ALWAYS observe safety precautions whenever working on a vehicle.
See IMPORTANT SAFETY INFORMATION. [See page 3]
1� Turn the ignition OFF.
2� Locate the vehicle’s 16-pin Data Link Connector (DLC).
3� Connect the Tablet Scan Tool’s cable connector to the vehicle’s DLC. The
cable connector is keyed and will only fit one way.
If you have problems connecting the cable connector to the DLC,
rotate the connector 180° and try again. If you still have problems,
check the DLC on the vehicle and on the Tablet Scan Tool. Refer to
your vehicle’s service manual to check the proper DLC location.
USING THE DIAGNOSTIC TABLET
OBD2 Diagnostics
13
After the Tablet Scan Tool’s test connector is properly connected to the vehicle’s DLC, the
Vehicle icon should display to confirm a good power connection.
4� Turn ignition to the Key ON Engine OFF position. DO NOT start the engine.
5� When the Tablet Scan Tool is properly connected to the vehicle’s DLC, the
unit automatically turns ON.
If the unit does not power on automatically, it may indicate there is no
power present at the vehicle’s DLC connector. Check the fuse panel
and replace any burned out fuses.
If replacing the fuse(s) does not correct the problem, consult the vehicle’s repair manual to
identify the proper computer (PCM/ECM) fuse/ circuit, and perform any necessary repairs
before proceeding.
6� The Tablet Scan Tool automatically checks the vehicle’s computer to determine which communication
protocol it is using.
Tablet Scan Tool begins to “AUTO-LINK” to identify computer’s communication protocol. A
progress bar is displayed while a communication link is established.
NOTE: A PROTOCOL is a set of rules and procedures
for regulating data transmission between computers,
and between testing equipment and computers. As of
this writing, five different types of protocols (ISO 9141,
Keyword 2000, J1850 PWM, J1850 VPW and CAN)
are in use by vehicle manufacturers.
If the Tablet Scan Tool fails to link to the vehicle’s
computer, a “Communication Error” message shows.
━ Ensure your vehicle is OBD2 compliant�
━ Verify the connection at the DLC, and verify the ignition is ON�
━ Turn the ignition OFF, wait 5 seconds, then back ON to reset the computer�
━ Choose Relink to try again or select OBD2 Menu button to return to the OBD2 Menu�
If the Tablet Scan Tool cannot link to the vehicle’s computer after three attempts, the message
“Contact Technical Support” displays.
━ Choose the Home button to return to the Home Screen�
━ Turn the ignition OFF and disconnect the Tablet Scan Tool�
━ Contact Technical Support for assistance�
7� If the Tablet Scan Tool can decode the Vehicle Identification
Number (VIN) for the vehicle under test, the OBD2 results
screen displays. Proceed to Step 9.
8� If the Tablet Scan Tool cannot decode the Vehicle Identification
Number (VIN) for the vehicle under test, the Vehicle Selection
screen displays.
NO Brake Pedal
Tap Button 2 Times
14
USING THE DIAGNOSTIC TABLET
OBD2 Diagnostics
9� After approximately 2–3 seconds, the Tablet Scan Tool will retrieve and display any Diagnostic Trouble Codes
(DTCs), I/M Monitor Status and Freeze Frame Data retrieved from the vehicle’s computer memory.
The Tablet Scan Tool will display a code only if codes are present. If no codes are present,
the message “No Powertrain DTCs or Freeze Frame Data is presently stored in the vehicle’s
computer” displays.
10� Refer to Tablet Scan Tool DISPLAY FUNCTIONS for a description of display elements. [See page 6]
NOTE: In the case of long code definitions, a small arrow is shown in the upper/
lower right-hand corner of the display area to indicate the presence of additional
information. Use arrow keys as necessary to scroll through the definition.
NOTE: If a definition for the currently displayed code is not available, the following
advisory message displays: “The definition for this trouble code is not available.
Please connect your Tablet Scan Tool to the update software quarterly to see if a new
update is available.”
11� Read and interpret Diagnostic Trouble Codes/system condition using the display and the Green, Yellow, and
Red LEDs.
NOTE: The Green, Yellow, and Red LEDs are used (with
the display) as visual aids to make it easier to determine
engine system conditions.
Green LED – Indicates that all engine systems are running
normally, and all emission Monitors are active and performing
their diagnostic testing. The Malfunction Indicator “Check
Engine” Lamp on the vehicle’s instrument panel is OFF.
Yellow LED – Indicates one of the following conditions:
[A] A PENDING CODE IS PRESENT – If the Yellow LED
is illuminated, it may indicate a Pending code is present.
Check the display for confirmation. A Pending code is
confirmed by the presence of a numeric code and the word
Pending.
[B] MONITOR NOT RUN STATUS – If the display shows a
zero (indicating there are no DTCs present in the vehicle’s
computer memory), but the Yellow LED is that some of the
Monitors supported by the vehicle have not yet run and
completed their diagnostic testing. Check the display for
confirmation. All Monitor icons that are blinking have not yet
run and completed their diagnostic testing; all Monitor icons
that are solid have run and completed their diagnostic
testing.
USING THE DIAGNOSTIC TABLET
OBD2 Diagnostics
15
Red LED – Indicates there is a problem in one or more of
the vehicle’s systems. The Malfunction Indicator “Check
Engine” Lamp on the vehicle’s instrument panel is ON.
NOTE: DTCs that start with “P0”, “P2” and some “P3”
are considered Generic (Universal). All Generic DTC
definitions are the same on all OBD2-equipped vehicles.
The Tablet Scan Tool automatically displays the code
definitions (if available) for Generic DTCs.
NOTE: DTCs that start with “P1” and some “P3” are Manufacturer specific codes –
their code definitions will vary with each vehicle manufacturer.
ERASING DIAGNOSTIC TROUBLE CODES (DTCS) - $04
NOTE: When the Tablet Scan Tool’s ERASE function is used to erase the DTCs from
the vehicle’s on-board computer, “Freeze Frame” data and manufacturer-specific
enhanced data are also erased.
If you plan to take the vehicle to a Service Center for repair, DO NOT erase the codes from the vehicle’s computer. If the
codes are erased, valuable information which might help the technician troubleshoot the problem will also be erased.
Erase DTCs from the computer’s memory as follows:
NOTE: When DTCs are erased from the vehicle’s computer memory, the I/M
Readiness Monitor Status program resets status of all the Monitors to a not run
“flashing” condition. To set all the Monitors to a DONE status, an OBD2 Drive Cycle
must be performed. Refer to your vehicle’s service manual for information on how to
perform an OBD2 Drive Cycle for the vehicle under test.
1� Perform the Code Retrieval procedure. [See page 12]
Wait until the codes are displayed.
Press the OK button to access to OBD2 Menu.
2� From OBD2 Menu, select Erase DTCs - $04, then press
OK button. A confirmation message shows.
If you are sure you want to proceed, choose Erase
DTCs to continue.
If you do not want to proceed, press Back button
to back to OBD2 Menu.
3� Select Erase DTCs, then press OK button.
If the vehicle’s engine is running, an advisory message displays: “Please stop the vehicle and
place transmission in Park or Neutral, then press “Erase DTCs” to continue.”
A “One moment please…” message displays while the erase function is in progress.
9� After approximately 2–3 seconds, the Tablet Scan Tool will retrieve and display any Diagnostic Trouble Codes
(DTCs), I/M Monitor Status and Freeze Frame Data retrieved from the vehicle’s computer memory.
The Tablet Scan Tool will display a code only if codes are present. If no codes are present,
the message “No Powertrain DTCs or Freeze Frame Data is presently stored in the vehicle’s
computer” displays.
10� Refer to Tablet Scan Tool DISPLAY FUNCTIONS for a description of display elements. [See page 6]
NOTE: In the case of long code definitions, a small arrow is shown in the upper/
lower right-hand corner of the display area to indicate the presence of additional
information. Use arrow keys as necessary to scroll through the definition.
NOTE: If a definition for the currently displayed code is not available, the following
advisory message displays: “The definition for this trouble code is not available.
Please connect your Tablet Scan Tool to the update software quarterly to see if a new
update is available.”
11� Read and interpret Diagnostic Trouble Codes/system condition using the display and the Green, Yellow, and
Red LEDs.
NOTE: The Green, Yellow, and Red LEDs are used (with
the display) as visual aids to make it easier to determine
engine system conditions.
Green LED – Indicates that all engine systems are running
normally, and all emission Monitors are active and performing
their diagnostic testing. The Malfunction Indicator “Check
Engine” Lamp on the vehicle’s instrument panel is OFF.
Yellow LED – Indicates one of the following conditions:
[A] A PENDING CODE IS PRESENT – If the Yellow LED
is illuminated, it may indicate a Pending code is present.
Check the display for confirmation. A Pending code is
confirmed by the presence of a numeric code and the word
Pending.
[B] MONITOR NOT RUN STATUS – If the display shows a
zero (indicating there are no DTCs present in the vehicle’s
computer memory), but the Yellow LED is that some of the
Monitors supported by the vehicle have not yet run and
completed their diagnostic testing. Check the display for
confirmation. All Monitor icons that are blinking have not yet
run and completed their diagnostic testing; all Monitor icons
that are solid have run and completed their diagnostic
testing.
16
USING THE DIAGNOSTIC TABLET
OBD2 Diagnostics
4� If the erase was successful, a confirmation message displays. After 3 seconds, the Tablet Scan Tool
automatically re-links to the vehicle’s computer.
If the erase was not successful, an advisory message
shows indicating the erase request was sent to the
vehicle’s computer. After 3 seconds, the Tablet Scan
Tool automatically re-links to the vehicle’s computer.
NOTE: If the erase was not successful and ECU error
code $22 is present, an advisory message displays.
Start the engine and maintain vehicle speed at 0.
Choose Erase DTCs to try again.
FREEZE FRAME - $02
If more than one Diagnostic Trouble Code (DTC) was retrieved and to view Freeze Frame Data, follow the procedures
below.
1� From OBD2 Menu, select Freeze Frame - $02 and press the OK button.
The Freeze Frame data displays.
In OBD2 systems, when an emissions-related engine
malfunction occurs which causes a DTC to set, a
record or snapshot of engine conditions at the time
that the malfunction occurred is also saved in the
vehicle’s computer memory. The record saved is
called Freeze Frame data. Saved engine conditions
include, but are not limited to: engine speed, open-
or closed-loop operation, fuel system commands,
coolant temperature, calculated load value, fuel
pressure, vehicle speed, air flow rate, and intake
manifold pressure.
NOTE: If more than one malfunction is present which causes more than one DTC to
be set, only the code with the highest priority will contain Freeze Frame data. The
code designated “01” on the Tablet Scan Tool display is referred to as the PRIORITY
code and Freeze Frame data always refers to this code. The priority code is also the
one that has commanded the MIL (Check Engine) lamp ON.
To view a description of the displayed PID, press Right and OK to choose PID Desc�
USING THE DIAGNOSTIC TABLET
OBD2 Diagnostics
17
LIVE DATA - $01
The Tablet Scan Tool lets you view “real-time” Live Data. This information includes values (volts, RPM, temperature,
speed, etc.) and system status information (open loop, closed loop, fuel system status, etc.) generated by the various
vehicle sensors, switches, and actuators. These are the same signal values generated by the sensors, actuators,
switches and/or vehicle system status information used by the vehicle’s computer when calculating and conducting
system adjustments and corrections.
The real-time (Live Data) vehicle operating information (values/status) that the computer supplies to the Tablet Scan
Tool for each sensor, actuator, switch, etc. is called Parameter Identification Data (PID).
Each PID (sensor, actuator switch, status, etc.) has a set of operating characteristics and features (parameters) which
serve to identify it. The Tablet Scan Tool displays this information for each sensor, actuator, switch, or status that is
supported by the vehicle under test.
DANGER: If the vehicle must be driven in order to perform a troubleshooting
procedure, ALWAYS have a second person help you. One person should drive the
vehicle while the other person observes the Tablet Scan Tool data. Trying to drive
and operate the Tablet Scan Tool at the same time is dangerous and could cause a
serious traffic accident.
Viewing Live Data
1� From OBD2 Menu, select Live Data - $01, then press OK button.
2� A “One moment please . . .” message displays while the Tablet Scan Tool establishes communication with
the vehicle.
If the Tablet Scan Tool fails to establish communication with the vehicle, a “Communication
Error” message displays.
━ Ensure the vehicle is OBD2 compliant�
━ Verify the connection at the DLC, and verify the ignition is ON�
━ Turn the ignition OFF, wait 5 seconds, then back ON to reset the computer�
━ Press Relink to continue�
3� Real-time Live Data (PID) information supported by the
vehicle under test displays.
NOTE: The values for the various PIDs displayed
may change as the vehicle’s operating conditions
change.
NOTE: The Graph function button will stay inactive if
the selected PID does not report a numerical value.
An example is the Fuel System Status PID, which
reports either Open Loop (OL) or Closed Loop (CL).
4� Only a limited amount of PID data can be displayed on the screen at one time. If additional PID data is
18
USING THE DIAGNOSTIC TABLET
OBD2 Diagnostics
available, a small arrow is shown on the display. Press UP and DOWN, as necessary, to view available
PID data.
If communication with the vehicle is lost while viewing Live Data, an advisory message is
displayed.
5� Select Graph and press OK to view the currently selected PID in “graph” mode.
Choose Merge Graph to view more PID results on one graph.
Choose Multi Graph to view more Graphs in one screen.
6� Troubleshoot any diagnostic issues by referencing your vehicle’s repair manual to view and/or compare Live
Data (PID) information displayed on the Tablet Scan Tool against recommended vehicle specifications.
Customizing Live Data (PIDs)
You can customize the Live Data display by placing the Tablet
Scan Tool in “Custom Live Data” mode and selecting only the
PIDs that you wish to display.
1� With the Tablet Scan Tool in Live Data mode, select Live
Data Menu to access the Live Data menu, then select
Custom Live Data and press the OK button.
If the Tablet Scan Tool fails to establish communication
with the vehicle, a “Communication Error” message
displays.
━ Ensure the vehicle is OBD2 compliant�
USING THE DIAGNOSTIC TABLET
OBD2 Diagnostics
19
━ Verify the connection at the DLC, and verify the ignition is ON�
━ Turn the ignition OFF, wait 5 seconds, then back ON to reset the computer�
━ Press Relink to continue�
If Live Data is not supported by the vehicle under test, an advisory message displays. Press
Back to return to the OBD2 Menu.
If custom Live Data was previously configured, the
Select PIDs to Use screen displays.
━ To use the existing custom Live Data selections,
select Existing PIDs, then press OK� Proceed to
Step 5�
━ To configure new custom Live Data, select New
PIDs, then press OK� The Custom Live Data
menu displays� Proceed to Step 2�
If custom Live Data was not previously selected, the Custom Live Data menu displays. Proceed
to Step 2.
2� Press UP and DOWN to scroll through the available
PIDs. When a PID you wish to display is highlighted, press
OK (a “check-mark” shows to confirm your selection).
Repeat until only the PIDs you want to display are selected.
To deselect a PID, highlight the PID, then press OK.
The check-mark is removed.
3� When you are finished making your selection(s), press
Right and OK to choose Done to continue.
If no PIDs have been selected, an advisory message
displays. Press OK to return to the Custom Live Data menu.
4� The Tablet Scan Tool is now in “Custom Live Data” mode. Only the PIDs you selected are shown.
To change the current custom Live Data selections,
select Reselect PIDs, then press OK to return to the
Custom Live Data menu. Repeat Step 2.
5� To exit the “Custom Live Data” mode, press Back to
return to the Live Data Menu.
20
USING THE DIAGNOSTIC TABLET
OBD2 Diagnostics
RECORD LIVE DATA
You can record and save several frames of Live Data information for each PID supported by the vehicle in the
Tablet Scan Tool’s memory. Once recorded, each session can be played back for further analysis.
There are two ways that the Tablet Scan Tool can record Live Data:
Record by DTC Trigger
Record Manually
Record by DTC Trigger
This function automatically records Live Data information when a DTC sets and saves it in the Tablet Scan Tool’s
memory. The recorded data can be a valuable troubleshooting aid, particularly if you are experiencing a fault that
is causing a DTC to set. The Tablet Scan Tool can record approximately 100 frames of Live Data.
1� With the Tablet Scan Tool in Live Data mode, [See page
17] press Left to select Live Data Menu and press OK
to display the Live Data Menu.
2� Select Record by DTC Trigger, then press OK.
The Select PIDs to Record screen displays.
If the Tablet Scan Tool fails to establish communication
with the vehicle, a “Communication Error” message
displays.
━ Ensure the vehicle is OBD2 compliant�
━ Verify the connection at the DLC, and verify the ignition is ON�
━ Turn the ignition OFF, wait 5 seconds, then back ON to reset the computer�
━ Press Relink to continue�
3� Press UP and DOWN to scroll through the available PIDs. When a PID you wish to display is highlighted,
press OK (a “check-mark” shows to confirm your selection). Repeat until only the PIDs you want to record are
selected.
To select all PIDs, choose Record All PIDs.
To deselect a PID, highlight the PID, then press OK. The check-mark is removed.
4� When you are finished making your selections, press Right and OK to choose Done to continue.
If DTCs are presently stored in the vehicle’s computer, an advisory message displays.
USING THE DIAGNOSTIC TABLET
OBD2 Diagnostics
21
━ Choose Erase DTCs� A “One moment please…” message displays while DTCs are
erased from the vehicle’s computer�
If the erase is not successful, an advisory message displays.
━ To retry the erase process, verify that the Tablet Scan Tool is properly connected to
the vehicle’s DLC and that the ignition is ON� Choose Erase DTCs�
━ To exit the record function, press Back to return to the Record Live Data menu�
When the Erase process is complete, the Record Live Data screen displays the following
message: “Ready to record. Waiting for DTCs.”
5� Put the engine in the operating condition that causes the DTC to set.
If necessary, drive the vehicle until you reach the vehicle speed at which the problem occurs.
6� When the Tablet Scan Tool detects a fault that causes a DTC
to set, it automatically records and saves approximately
100 frames of Live Data information in its memory for each
PID selected.
A progress message shows on the display.
━ You can stop and save recorded Live Data at
any time by choosing Stop/Save�
When the recording is complete, a confirmation
screen displays. Choose Yes to Playback Live Data
[See page 22] or No to return to the Live Data menu, as desired.
If recording was not successful, an advisory message displays. Choose Continue to return
to the Live Data menu.
Record Manually
This option lets you select the precise time at which the Live Data recording will occur. Record Manually can be a
very valuable tool when troubleshooting intermittent problems that do not meet the requirements for a DTC to set.
The Tablet Scan Tool is capable of recording approximately 100 frames of Live Data.
1� With the Tablet Scan Tool in Live Data mode, [See page 17] press Left to select Live Data Menu and
press OK to display the Live Data Menu.
2� Select Record Manually, then press OK.
The Select PIDs to record screen displays.
If the Tablet Scan Tool fails to establish communication with the vehicle, a “Communication
Error” message displays.
━ Ensure your vehicle is OBD2 compliant�
━ Verify the connection at the DLC, and verify the ignition is ON�
━ Turn the ignition OFF, wait 5 seconds, then back ON to reset the computer�
━ The Tablet Scan Tool should power up once the ignition is in the ON position�
22
USING THE DIAGNOSTIC TABLET
OBD2 Diagnostics
3� Press UP and DOWN to scroll through the available PIDs. When a PID you wish to record is highlighted,
press OK (a “check-mark” shows to confirm your selection). Repeat until only the PIDs you want to record are
selected.
To select all PIDs, choose Record All PIDs.
To deselect a PID, highlight the PID, then press OK. The check-mark is removed.
4� When you are finished making your selections, press Right and OK to choose Done to continue.
The Record Live Data screen displays.
Put the engine in the operating condition where the
problem manifests itself.
━ If necessary, drive the vehicle until you reach
the vehicle speed at which the problem occurs�
5� When the problem occurs, choose Record.
A progress message shows on the display.
When recording is complete, a confirmation screen
displays. Choose Yes to Playback Live Data [See page 22] or No to return to the Live Data
menu, as desired.
If recording was not successful, an advisory message displays. Choose Continue to return to
the Live Data menu.
PLAYBACK LIVE DATA
Once Live Data has been recorded, it is saved in the Tablet Scan Tool’s memory. You can view recorded Live Data
immediately after recording by selecting Yes from the Record Live Data confirmation screen, or you can view it
later using the “Playback” function.
1� From Live Data Mode, select Live Data Menu and press OK.
2� Select Playback Live Data, then press OK.
The Playback Live Data menu displays.
NOTE: If there is no Live Data currently stored in the Tablet Scan Tool’s memory, an
advisory message shows on the display. Press View LD to return to Live Data mode.
USING THE DIAGNOSTIC TABLET
OBD2 Diagnostics
23
NOTE: When you select Yes from the Record Live Data confirmation screen, the
Tablet Scan Tool enters the “Live Data Playback” mode, and the Playback Live Data
menu displays.
3� Select Continuous Playback or Frame by Frame, as desired, then press OK.
The display shows the recorded Live Data, beginning with the “trigger” frame.
Only a limited amount of PID data can be displayed on the screen at one time. If additional PID
data is available, a small arrow is shown on the display. Press UP and DOWN, as
necessary, to view all available PID data.
When viewing recorded Live Data, look for any irregularities in any of the PID values/signal
information (LTFT %, RPM, MAP, TEMP, etc.). If any PIDs are not within specification, or
irregularities are detected, follow the procedures in the vehicle’s service repair manual to
perform additional troubleshooting and repair.
4� When you select Continuous Playback, the Tablet Scan
Tool plays recorded data at a rate of one frame per 2
seconds.
Press OK on any selected PID to open a graph view
for that PID.
Press Left to select Pause to pause the Live Data
playback. Select Play to resume the playback mode.
Press Right to select Exit Playback to exit the Live
Data Playback mode and return to the Playback Live Data menu.
Once playback finishes, the Tablet Scan Tool
automatically returns to the Playback Live Data menu.
━ To replay the data again, select Continuous
Playback or Frame by Frame, as desired, then
press OK�
5� When Frame by Frame is selected, you must scroll the
individual frames manually.
When you have viewed all PID information for the
current frame of Live Data, choose Next Frame or
Previous Frame, as desired.
Press OK on any PID to open a graph view for that PID.
To exit Live Data Playback mode, select the Exit Playback selection at the bottom of the list,
then press OK.
O2 SENSOR MONITOR - $05
The O2 Sensor Monitor lets you view the test results of the vehicle’s two or more O2 sensors. These sensors are
designed to help identify problems that can reduce fuel efficiency or increase emissions. Each O2 sensor has a unique
name which identifies its location in the exhaust system – cylinder bank location (bank 1 or bank 2) and its location in
relation to the catalytic converter (upstream or downstream). Please reference the vehicle’s service manual for further
information.
24
USING THE DIAGNOSTIC TABLET
OBD2 Diagnostics
NOTE: Service Mode $05 is not supported in ISO 15765-4 (CAN) applications
– it includes the majority of 2008 and older vehicles. For CAN applications, the
functionality of Service Mode $05 was revised and implemented in Service Mode
$06.
1� From OBD2 Menu, select O2 Sensor Monitor - $05, then press OK.
The O2 Sensor Monitor - $05 screen displays.
NOTE: If the O2 Sensor Monitor is not supported by the vehicle under test, a
notification is displayed. Press the Back button to return to the OBD2 menu.
2� Choose the item you wish to view, then press OK.
The screen will show test result.
3� When you have finished viewing the retrieved test data, press Next to view results for the next test, or press
Back to return to Select Test menu.
OBD MONITOR TEST - $06
The OBD Monitor Test function retrieves and displays test results for emission-related powertrain components and
systems that are not continuously monitored. The tests available are determined by the vehicle’s manufacturer.
NOTE: The diagnostic Tablet Scan Tool does not perform the OBD monitor test
but retrieves results from the most recently performed tests from the on-board
computer’s memory. You may retrieve OBD monitor test results for only one test at
any given time.
1� From the OBD2 Menu, select OBD Monitor Test - $06, then press OK.
2� A “One moment please…” message displays, followed by the Select Test menu screen. (Refer to the vehicle’s
service repair manual for information related to non-continuous tests.)
NOTE: If OBD Monitor Test data is not presently stored in the vehicle’s computer, an
advisory message displays. Press the Back button to return to the OBD2 Menu.
NOTE: If the OBD Monitor Test is not supported by the vehicle under test, an
advisory message displays. Press the Back button to return to the OBD2 Menu.
3� Select the desired test, then press OK to display the test results. The display shows the following information:
USING THE DIAGNOSTIC TABLET
OBD2 Diagnostics
25
Test ID number
Module ID number
Component ID number
Min or Max test limit (Only one test limit, either Min or
Max, is shown for any given test.)
Test Value and status.
NOTE: Status is calculated by the diagnostic Tablet
Scan Tool by comparing the Test Value against the
displayed test limit (either Min or Max). Status is
shown as either Low, High, or OK.
4� When you have finished viewing the retrieved test data, press Next to view results for the next test, or press
Back to return to Select Test menu.
5� When you have finished viewing test data for all desired tests, press Back from Select Test menu to return to
OBD2 Menu, or press Home button to return to Home screen.
REQUEST CONTROL ON-BOARD SYSTEM - $08
The Request Control On-Board System - $08 allows you perform an EVAP Test or Particulate Filter Regeneration
and Inducement System Reinitialization.
EVAP Test - lets you initiate a leak test for the vehicle’s
EVAP system.
Particulate Filter Regeneration – this service
requests the vehicle to initiate a PF regeneration. The
vehicle manufacturer is responsible to determine the
criteria to enable, start and stop the test, such as
engine running, vehicle speed, or engine rpm.
Inducement System Reinitialization - This service
requests the vehicle to initiate a reinitialize the
inducement system. The vehicle manufacturer is responsible to determine the criteria to enable,
start and stop the test, such as engine running, vehicle speed, or engine rpm.
NOTE: The Tablet Scan Tool does not perform the leak test, but signals to vehicle’s
on-board computer to initiate the test. The vehicle manufacturer determines the
criteria and method for stopping the test once it has been started. BEFORE using
the Request Control On-Board System function, refer to the vehicle’s service manual
to determine the procedures necessary to stop the test.
NOTE: Some vehicle manufacturers do not allow Tablet Scan Tools or other external
devices to control vehicle systems. If the Request Control On-Board System is not
supported by the vehicle under test, an advisory message displays. Press Back
to return to the OBD2 Menu.
26
USING THE DIAGNOSTIC TABLET
OBD2 Diagnostics
1� From the OBD2 Menu, select Request Control On-Board System - $08.
A Request Control On-Board System - $08 screen displays.
NOTE: The EVAP Test is used for Spark Ignition, and the Particulate Filter
Regeneration and Inducement System Reinitialization use for Compression Ignition.
2� Select the test displays on screen, then press OK.
A “One moment please…” message displays while the Tablet Scan Tool performs the test.
3� When the test has been initiated by the vehicle’s on-board computer, a confirmation message displays.
DRIVE CYCLE PROCEDURES
A Drive Cycle for a Monitor requires that the vehicle is driven in such a way that all the required “Enabling Criteria” for
the Monitor to run and complete its diagnostic testing are met. You can use the Tablet Scan Tool to view the Drive Cycle
Procedures for a selected Monitor.
1� From OBD2 Menu, select Drive Cycle Procedures, then press
OK.
A “One moment please…” message displays while
the Tablet Scan Tool retrieves Monitor status.
2� When Monitor status has been retrieved, the Drive Cycle
Procedures menu displays. Depending on the Monitor status,
you can view Drive Cycle Procedures for Complete Monitors,
Incomplete Monitors or Disable Monitors�
NOTE: If Drive Cycle Procedures are not available for the vehicle, an advisory
message displays. Press Back to return to the OBD2 Menu.
3� Select Complete Monitors, Incomplete Monitors or Disable Monitors, as desired, then press OK.
A list of the available Monitors for the selected status displays.
NOTE: If no Monitors for the selected status are detected, an advisory message
displays. Press Back to return to the OBD2 Menu.
4� Select the Monitor for which you wish to view Drive Cycle Procedures, then press OK.
A “One moment please…” message displays while the Tablet Scan Tool retrieves the requested
Drive Cycle Procedure. Once retrieved, the Drive Cycle Procedures screen displays.
NOTE: If a Drive Cycle Procedure for the selected Monitor is not available, an
advisory message shows. Press Back to return to the OBD2 Menu.
5� The Drive Cycle Procedure screen shows the specific set of operating procedures that ensure the vehicle is
driven in such a way that all the required “Enabling Criteria” for the Monitor to properly run and complete its
diagnostic testing.
6� When finished viewing the Drive Cycle Procedures, press Back to return to the Drive Cycle Procedures menu.
USING THE DIAGNOSTIC TABLET
OBD2 Diagnostics
27
VIEWING VEHICLE INFORMATION - $09
The Tablet Scan Tool offers three options for retrieving reference information for the vehicle under test: Vehicle ID,
Available Modules and In-use Performance Tracking.
Viewing Vehicle ID
NOTE: The Vehicle ID function is applicable to model year 2000 and newer OBD2-
compliant vehicles.
The Tablet Scan Tool can retrieve a list of information (provided
by the vehicle’s manufacturer), unique to the vehicle under test,
from its on-board computer. This information may include:
The vehicle’s VIN number.
The Control Module identification number.
The vehicle’s Calibration ID(s). These IDs uniquely
identify the software version(s) for the vehicle’s control
module(s).
The vehicle’s Calibration Verification Number(s)
(CVNs) are required by ODB2 regulations. CVNs are used to determine if emission-related
calibrations for the vehicle under test have been changed. One or more CVNs may be provided
by the vehicle’s computer.
1� From OBD2 Menu, select Vehicle Information, then press OK.
The Vehicle Information menu displays.
2� Select Vehicle ID, then press OK.
NOTE: The first time the Vehicle ID function is used, it may take several minutes to
retrieve the information from the vehicle’s computer.
3� When the retrieval process is completed, the vehicle ID information displays.
4� When finished viewing retrieved vehicle ID information, press Back to access Vehicle Information menu.
Viewing Available Modules
The Tablet Scan Tool can retrieve a list of modules supported by the vehicle under test.
1� From OBD2 Menu, select Vehicle Information, then press OK.
The Vehicle Information menu displays.
2� Select Available Modules, then press OK.
28
USING THE DIAGNOSTIC TABLET
OEM Diagnostics
3� When the retrieval process is completed, a complete list of modules supported by the vehicle under test
displays.
4� When you have finished viewing the list of available modules, press Back to return to the Vehicle
Information menu.
Viewing In-Use Performance Tracking
The Tablet Scan Tool can retrieve In-use Performance Tracking (IPT) statistics for Monitors supported by the
vehicle under test. Two values are returned for each Monitor; the number of times that all conditions necessary
for a specific Monitor to detect a malfunction have been encountered (XXXCOND), and the number of times
that the vehicle has been operated under the specific conditions for the Monitor (XXXCOMP). Statistics are also
provided for the number of times the vehicle has been operated in OBD-monitoring conditions (OBDCOND), and
the number of times the vehicle’s engine has been started (IGNCNTR).
1� From OBD2 Menu, select Vehicle Information, then press OK.
The Vehicle Information menu displays.
2� Select In-Use Performance Tracking, then press OK.
3� When the retrieval process is completed, the In-use Performance Tracking statistics for the vehicle under
test display.
If In-use Performance Tracking is not available for your vehicle, an advisory message displays.
Press Back to return to the Vehicle Information Menu.
4� When you have finished viewing the list of available modules, press Back to return to the Vehicle
Information menu.
OEM DIAGNOSTICS
The OEM Diagnostics function allows you to perform enhanced,
OEM-level diagnostics not available over generic OBD2. A network
scan allows you to scan all or just one vehicle module to retrieve
DTCs associated with the module(s). Get access to hundreds of
additional parameters that you can view in real-time for ABS, Airbag
(SRS), Transmission, and Engine Control Module. And provide a
comprehensive Vehicle Inspection report that shows the complete
Diagnostic Report, Customer Report, and Collision Industry Report –
USING THE DIAGNOSTIC TABLET
OEM Diagnostics
29
offering a complete overview of the vehicle’s current health status.
1� From Home Screen, select OEM Diagnostics and press OK.
2� A selection dialog is provided.
3� Select the type of test you wish to perform.
Select Scan All Systems to perform a comprehensive vehicle scan of all available network
modules.
Select the “individual” listed control module name to perform a diagnostic check on that
single module.
Select Vehicle Inspection to perform a complete vehicle health status report, including: OBD2
check, all Network system scan, service checks, warning lights, tire pressures, and more.
PERFORM A SCAN - SCAN ALL SYSTEMS
1� Select Scan All Systems from the OEM Diagnostics screen, then press OK.
The Module Selection displays.
2� Choose Scan All Systems, then press OK.
A “Linking…” message displays while the Tablet Scan
Tool scans all available modules.
When the scan is complete, the All Modules Scan
screen displays. The screen shows the number of
DTCs recorded for each available module.
The results window lists all tested Control Modules
with its corresponding result:
━ Fault - Indicates the number of reported DTCs�
━ No Fault - Indicates that no DTCs were found�
━ Available - Indicates that the module is part of
the system but does not report DTCs�
The results screen also allows you to either:
━ Erase All DTCs - Erases all the vehicle’s
retrieved Diagnostic Trouble Codes (DTC)�
━ Rescan - Performs scan of all systems again�
Select the desired system, then press OK.
3� Depending on the module selected, you can Read DTCs, Erase DTCs, view Live Data, or read ECU Information.
4� Choose the function you would like to run. Or press Back to return to the selected module screen.
Read DTCs
Erase DTCs
Live Data
ECU Information
30
USING THE DIAGNOSTIC TABLET
OEM Diagnostics
Reading DTCs for a Selected Module
1� Select the module for which you wish to read DTCs.
Select Read DTCs in the selected module screen.
2� The Tablet Scan Tool retrieves and displays DTCs stored in the vehicle’s computer for the currently selected
module.
NOTE: If no DTCs for the selected module are currently stored in the vehicle’s
computer, the message “No ‘modules’ DTCs are presently stored in the vehicle’s
computer” displays.
3� Select Erase DTCs to erase ALL retrieved DTCs.
Erasing DTCs for a Selected Module
1� Select the module for which you wish to erase its DTCs.
2� Choose Erase DTCs. A confirmation message shows.
Ensure that the ignition in the Key ON, Engine OFF position.
If you are sure you want to proceed, choose Erase DTCs for a second time.
If you do not want to proceed, press Back to cancel the erase procedure.
3� If you selected to erase its DTCs, a “One moment please…” message displays while the erase function is in
progress.
If the erase was successful, a confirmation message displays. After 3 seconds, the Tablet Scan
Tool will automatically re-scan the currently selected module.
If the erase was not successful, an advisory message displays indicating the erase request
was sent to the vehicle’s computer. After 3 seconds, the Tablet Scan Tool will automatically re-
scan the currently selected module.
Viewing Live Data for a Selected Module
Follow these steps to view Live Data for the currently selected Module.
1� Select the Module for which you wish to view the Live Data, then press OK.
The individual Module menu screen displays.
2� Select Live data, then press OK.
The results screen displays all the vehicle’s available PIDs with reported values.
Refer to OBD2 Live Data [See page 17] on how to use Live Data mode.
USING THE DIAGNOSTIC TABLET
OEM Diagnostics
31
READING ECU INFORMATION
This function retrieves and displays the specific information for the
tested control unit, including Protocol, ECU ID, version number and
other specifications. The sample ECU Information screen displays
as shown:
PERFORM A SCAN FOR INDIVIDUAL MODULES
From the OEM Diagnostics screen:
1� Select a Module from the available list of modules, then press OK. Proceed to Step 4.
2� Select Scan All Systems, then press OK.
The Module Selection displays.
3� Choose between the Powertrain, Body, or Chassis Modules you wish to scan, then press OK.
Screen shows list of available Modules. Select the system you would like to run, then press OK.
4� Depending on the Modules selected, you can Read DTCs, Erase DTCs, view Live Data, or read ECU Information.
Read DTCs - [See page 30]
Erase DTCs - [See page 30]
Live Data - [See page 30]
ECU Information - [See page 30]
VEHICLE INSPECTION
Performing a complete vehicle scan ensures peace of mind for you and your customers. Many systems do not turn on
a light or places a message on the vehicle’s Diagnostic Information Center, so following this process can help uncover
hidden issues.
A good practice is to perform a pre-scan before any work is done
to uncover all issues, then a post-scan once repairs are complete to
confirm the repairs were completed properly. Furthermore, several
manufacturers mandate a pre- and post-scan for all warranty work
and insurance carriers require it for pre- and post-collision work.
Emission Inspection Status - Indicates whether the
vehicle is ready for an Emissions Test (Smog Check)
based on DTCs present, Freeze Frame data, Monitor
Status, MIL (Check Engine Light) status, State/Region,
and Engine Type. Results are shown as “Pass”, “Fail”
or “Warning”.
32
USING THE DIAGNOSTIC TABLET
OEM Diagnostics
Service Check - provides values for Engine Oil Level, Oil Life Remaining, Brake Pad Life,
Transmission Temperature.
TPMS - shows the status of the vehicle’s Tire Pressure Monitoring System (TPMS) and the
individual tire pressures for all tires.
Warning Light - confirms the ON or OFF status for the vehicle’s ABS Dash Indicator and Airbag
Dash Indicator.
System Fault - shows number of DTCs retrieved for all of the vehicle’s systems.
System No Fault/Available – provides information on which vehicle systems are not reporting
any DTCs and/or it does not support reading DTCs.
System No Response – shows the systems that the vehicle does not support.
DTC Detail – to view Definitions and status DTCs of all systems.
1� Follow the Scan All Systems steps to connect with the vehicle. [See page 29]
2� From the OEM Diagnostics screen, select the Vehicle Inspection button.
The Select Business Report screen displays.
3� Choose the Business Report you wish to retrieve, then press OK.
Diagnostic Report - Provides a report for OBD2 Data, MIL DTC additional Information, and
Scan All Systems Data.
Customer Report / Collision Industry Report – Provides a report for OBD2 Data, Scan All
Systems Data, Service Warning Lights, and Service Check.
4� Choose the report type you wish to view, then press OK.
The PreScan - View the vehicle’s diagnostic report before making any repairs.
The PostScan - View the vehicle’s diagnostic report after completing the repairs.
5� A “One moment please...” message displays, while the Tablet Scan Tool scans all of the vehicle’s equipped
Modules.
It can take several minutes depending on the number of available systems being tested.
6� Select Rescan to get the most current diagnostic status for vehicle under test – particularly as you continue
to troubleshoot each individual control module.
7� When finished viewing all desired information, select Back to return to the OEM Diagnostics menu.
USING THE DIAGNOSTIC TABLET
Workshop Tools
33
WORKSHOP TOOLS
The WORKSHOP TOOLS tab allows you to perform several OEM /
dealership services, including Vehicle Inspection, Oil Maintenance
Reset, Battery Reset, Battery Initialization, EV/HEV/PHEV Battery
Health, Battery/Alternator Test, Electronic Parking Brake Reset,
and others. Access dealership level relearn procedures to complete
repairs or maintenance and much more.
OIL MAINTENANCE RESET
1� Select Oil Maintenance Reset on the Workshop Tools screen.
The Oil Maintenance Reset screen displays.
An “instructional” dialog displays to confirm selection.
Select Yes to continue, or No to cancel.
2� When the reset process has competed, a confirmation message displays. Select Back to return to the
Workshop Tools screen.
If the Oil Maintenance Reset was not successful, an advisory message display.
NOTE: If the Tablet Scan Tool cannot reset the Oil Maintenance Light, an
“instructional” dialog displays, showing the manual procedures for resetting the
indicator light. When finished viewing the instructions, press Back to return to the
Workshop Tools screen.
3� The Select Reset Method screen displays.
If the vehicle under test does not have an Oil Maintenance Reset command function, the service
procedures will immediately display.
4� To perform the Oil Maintenance Reset by procedure, choose Yes to View Procedure.
An “instructional” dialog displays, showing the manual procedures for resetting the indicator
light. When finished viewing the instructions, press Back to return to the Workshop Tools.
If you do not wish to perform the Oil Maintenance Reset by procedure, choose No to return to
the Workshop Tools screen.
34
USING THE DIAGNOSTIC TABLET
Workshop Tools
BATTERY RESET
You can use the Tablet Scan Tool to view the procedures for resetting
the battery monitor system following a battery replacement.
1� Select Battery Reset on the Workshop Tools screen.
The Battery Reset Procedures screen displays.
2� Select Continue, then press OK.
The Battery Reset Procedures menu displays. The
menu provides access to General Information, and
procedures to be followed Battery Disconnection Precautions, Battery Connection Precautions,
and Battery Connection Procedures.
NOTE: If battery reset procedures are not available, an advisory message displays.
Choose Back to return to the Workshop Tools screen.
3� Choose the procedure you wish to view, then press OK.
The selected procedure displays.
4� When you have finished viewing the retrieved information, choose Back to return to the Battery Reset
Procedures menu. Repeat Step 3 to view additional procedures.
When you have finished viewing all desired procedures, choose Back to return to the
Workshop Tools screen.
BATTERY INITIALIZATION
Here are a few examples on how to do battery initialization on Audi, BMW, Ford, Volkswagen, and Volvo models.
To perform battery reset OBD service (BMW / Ford / Volvo):
1� Select Battery Initialization on the Workshop Tools screen.
The Battery Reset OBD Service displays.
2� Select Next, then press OK.
An “instructional” message displays.
3� Follow the instructions provided to prepare the vehicle for battery reset OBD service. When all necessary
procedures have been performed, choose Next to continue.
A “Live Data” screen displays, if applicable.
4� Choose Next to continue.
A “One moment please…” message displays while battery reset is in process.
5� If the battery reset process is successful, a “Reset Complete” message displays.
Choose Exit to return to the Workshop Tools screen.
If the battery reset process is not successful, a “Reset Fail” message displays. Choose
Back to return to the Workshop Tools screen.
USING THE DIAGNOSTIC TABLET
Workshop Tools
35
To perform battery reset OBD service (Audi / Volkswagen):
1� Tap Battery Initialization on the Workshop Tools screen.
The Battery Reset OBD Service displays.
2� Select Battery Reset OBD Service, then press OK.
An “informational” screen displays.
3� Choose Next to continue.
A series of “instructional” screens display, directing you to enter reference information for the
battery (part number, manufacturer, serial number).
4� Choose Next as necessary to scroll the screen and enter the necessary information.
A “confirmation” screen displays.
The screen shows the previously entered Battery part number, Battery manufacturer and
Battery serial number.
5� Select the desired option:
To proceed with coding, select Carry Out Coding and press OK. Proceed to Step 6.
To re-enter battery reference information, select Repeat Input and press OK. Repeat Steps 3
and 4.
To cancel the battery reset process, select Cancel and press OK.
6� If battery coding was successful, a “confirmation” screen displays. Choose Back to return to the Workshop
Tools screen.
If battery coding was not successful, an “advisory” screen displays. Choose Exit to return to
the Workshop Tools screen.
ELECTRONIC PARKING BRAKE (EPB) RESET
EPB Reset procedures vary between vehicle makes and models�
NOTE: If an error occurs while performing calibration procedures, an “advisory”
message displays. Choose Exit to return to the Workshop Tools screen.
1� Select EPB Reset in the Workshop Tool screen, then press OK.
A “One moment please…” message displays.
For some vehicles, one or more sub-menus display. Select the desired module and/or option,
as appropriate, then press OK. Proceed to Step 2.
NOTE: If EPB reset is not supported by the vehicle under test, an “advisory”
message displays. Choose Back to return to the Workshop Tools screen.
2� One or more “informational/instructional” screens display.
Perform test procedures as directed. Choose Next, as appropriate, to scroll to the next screen.
3� For some vehicles, “status” screens display as each phase of the calibration procedure is successfully completed.
36
USING THE DIAGNOSTIC TABLET
Workshop Tools
Choose Next, as appropriate, to scroll to the next screen.
A “One moment please…” message displays while the procedure is in process.
A “results” screen displays when the calibration procedure has completed.
NOTE: If the procedure is stopped due to a communication error, an “advisory”
message displays. Choose Back to return to the Workshop Tools screen.
4� Choose Back to return to the Workshop Tools screen.
STEERING ANGLE SENSOR (SAS) CALIBRATION
The SAS Calibration function is available for BMW, Chrysler, Ford, GM, Honda, Hyundai, Mitsubishi, Nissan,
Subaru, Toyota, Volkswagen, and Volvo vehicles only� Calibration procedures vary between vehicle makes and
models�
NOTE: If an error occurs while performing calibration procedures, an “advisory”
message displays. Choose Exit to return to the Workshop Tools screen.
1� Select Steering Angle Sensor Calibration in the Workshop Tools screen, then press OK.
For some vehicles, a sub-menu displays. Select the desired option, then press OK. Proceed
to Step 2.
NOTE: If SAS calibration is not supported by the vehicle under test, an “advisory”
message displays. Choose Back to return to the Workshop Tools screen.
2� A “One moment please…” message displays, followed by one or more “informational/ instructional” screens.
Perform test procedures as directed. Choose Next, as appropriate, to scroll to the next screen.
3� For some vehicles, “status” screens display as each phase of the calibration procedure is successfully completed.
Choose Next, as appropriate, to scroll to the next screen.
A “results” screen displays when the calibration procedure has completed.
4� Choose Back to return to the Workshop Tools screen.
DPF RESET (Except Chrysler, General Motors, Nissan, and Volkswagen)
NOTE: If the vehicle under test is not a diesel vehicle, an “advisory” message
displays. Choose Back to return to the Workshop Tools screen.
1� Select Diesel Particulate Filter Reset in the Workshop Tools screen, then press OK.
A “One moment please…” message displays, followed by the DPF Reset Menu.
2� Select DPF Regeneration Procedure, then press OK.
The DPF Regeneration Procedure screen displays.
NOTE: If the vehicle under test does not support DPF Regeneration Procedure, an
“informational” screen displays the procedures for “passive” DPF regeneration.
Choose Back to return to the DPF Reset Menu.
USING THE DIAGNOSTIC TABLET
Workshop Tools
37
3� Choose Next to continue.
An “informational” screen displays the procedures for “passive” or “active” DPF regeneration,
as applicable. Choose Back to return to the DPF Reset Menu.
4� To finish, choose Back to return to the DPF Reset Menu, then choose Back to return to the Workshop Tools
screen.
DPF RESET (Chrysler)
1� Select Diesel Particulate Filter Reset in the Workshop Tools screen, then press OK.
A “One moment please…” message displays, followed by the Diesel Particulate Filter Reset
menu.
2� Select the desired option, then press OK.
An “instructional” screen displays. Prepare the vehicle for test as directed.
3� Choose Yes to continue.
A series of “status” screens display while the routine is in process.
A “confirmation” screen displays when the routine is completed.
NOTE: If the routine does not complete successfully, an “advisory” message
displays. Choose Close to return to the Diesel Particulate Filter Reset menu.
4� Choose Finish to return to the Diesel Particulate Filter Reset menu, then choose Back to return to the
Workshop Tools screen.
DPF RESET (General Motors)
1� Select Diesel Particulate Filter Reset in the Workshop Tools screen, then press OK.
A “One moment please…” message displays, followed by the Diesel Particulate Filter Reset
menu.
2� Select the desired option, then press OK.
One or more “informational/instructional” screens displays.
3� Choose Next, as appropriate, to scroll to the next screen.
For some vehicles, a “confirmation” screen displays.
4� Select Reset, as appropriate.
A “confirmation” or “results” screen displays when the routine is completed.
NOTE: If the routine does not complete successfully, an “advisory” message may
display. Choose End to return to the Diesel Particulate Filter Reset menu.
5� Choose Exit to return to the Diesel Particulate Filter Reset menu, then choose Back to return to the Workshop
Tools.
38
USING THE DIAGNOSTIC TABLET
Workshop Tools
DPF RESET (Nissan)
1� Select Diesel Particulate Filter Reset in the Workshop Tools screen, then press OK.
An “instructional” screen displays. Prepare the vehicle for test as directed.
2� Choose Next to continue.
A “status” screen displays while the routine is in process.
A “confirmation” screen displays when the routine is completed.
NOTE: If the routine does not complete successfully, an “advisory” message
displays. Choose Exit to return to the Workshop Tools screen.
3� Choose End to return to the Workshop Tools screen.
DPF RESET (Volkswagen)
1� Select Diesel Particulate Filter Reset in the Workshop Tools screen, then press OK.
A “One moment please…” message displays, followed by the Diesel Particulate Filter Reset
menu.
2� Select the desired option, then press OK.
A series of “informational/instructional” screens display. Prepare the vehicle for test as directed.
NOTE: If the selected function is not supported by the vehicle under test, an
“advisory” message may display. Choose End to return to the Diesel Particulate Filter
Reset menu.
3� Choose Next, Continue, or Start, as appropriate, to proceed.
One or more “status” screens may display while the routine is in process.
A “confirmation” or “results” screen displays when the routine is completed.
NOTE: If the routine does not complete successfully, an “advisory” message may
display. Choose End to return to the Diesel Particulate Filter Reset menu.
4� Choose End to return to the Diesel Particulate Filter Reset menu, then choose Back to return to the Workshop
Tools.
ABS BLEEDING
The ABS Bleeding function is available for BMW, Chrysler, Ford, GM, Honda, Hyundai/KIA, Mazda, Jaguar/
Landrover, Mercedes, Mitsubishi, Nissan, Subaru, Toyota, Volkswagen and Volvo� Procedures vary between
vehicle makes and models�
NOTE: If an error occurs while performing ABS bleeding procedures, an “advisory”
message displays. Choose Exit or Back, as appropriate, to return to the
Workshop Tools screen.
1� Select ABS Bleeding in the Workshop Tools screen, then press OK.
A “One moment please…” message may displays.
USING THE DIAGNOSTIC TABLET
Workshop Tools
39
Once complete a sub-menu displays. Select the desired option, then press OK. Proceed to
Step 2.
2� One or more “informational/ instructional” screens display.
Perform test procedures as directed. Choose Next or Continue, as appropriate, to scroll to the
next screen.
3� For some vehicles, “status” screens display as each phase of the calibration procedure is successfully completed.
Choose Next or Continue, as appropriate, to scroll to the next screen.
A “results” screen displays when the procedure has completed.
NOTE: If the procedure is stopped due to a communication error, an “advisory”
message display. Choose Exit or Back, as appropriate, to return to the Workshop
Tools screen.
4� Choose Exit or Back, as appropriate, to return to the Workshop Tools screen.
EV/HEV/PHEV BATTERY HEALTH
Follow these steps to check the vehicle’s battery and alternator system (or hybrid/EV battery system) to ensure the
system is operating within acceptable limits.
1� Select EV/HEV/PHEV Battery Health, Battery/Alternator Test in the Workshop Tools screen.
The EV/HEV/PHEV Battery Health, Battery/Alternator Test displays.
If the vehicle is an electric or hybrid vehicle, the EV/
HEV/PHEV Battery Health screen shows a graphic
representation of the vehicle’s current state of charge
for all battery pack cells.
NOTE: If the Hybrid/EV Battery Test is not supported
by the vehicle under test, an “advisory” message
displays. Choose Back to return to the Workshop
Tools screen.
If the vehicle is not an electric or hybrid vehicle, the Battery/Alternator Test menu displays.
2� When you have finished viewing the retrieved information, choose Back to return to the Workshop Tools
screen.
BATTERY / ALTERNATOR TEST
The Tablet Scan Tool can perform a check of the vehicle’s battery and alternator system to ensure the system is
operating within acceptable limits. Follow these steps to perform a battery check only, or an alternator system (battery
and alternator) check.
Perform a Battery Check Only
If the EV/HEV/PHEV Battery Health, Battery/Alternator Test is selected from the Workshop Tools screen and the
vehicle is not an electric or hybrid vehicle, the Battery/Alternator Test menu displays. Proceed to Step 2.
40
USING THE DIAGNOSTIC TABLET
Workshop Tools
1� Select Battery/Alternator Test, then press OK.
The Battery/Alternator Test Menu displays.
2� Select Battery Test, then press OK.
An “instructional” message displays, showing the procedures to prepare the vehicle for the
battery check.
3� Prepare the vehicle for the battery check:
Turn the engine OFF.
Place the transmission in PARK or NEUTRAL and set the parking brake.
Make a visual check of the battery’s condition. If the battery terminals are corroded or other
damage is present, clean or replace the battery as appropriate.
For “unsealed” batteries, make sure the water level in each cell is above the battery plates.
Turn the ignition to the Key ON Engine OFF position (KOEO). DO NOT start the engine.
4� Choose Continue to proceed.
NOTE: If the engine is running, an advisory message displays. Turn the engine
OFF, then turn the ignition to KOEO position. DO NOT start the engine. Press OK to
continue.
An “instructional” message displays.
5� Turn the vehicle’s headlights ON , then choose Continue to proceed.
A “countdown” message shows while the battery check is in process.
6� Turn the vehicle’s headlights OFF, then choose Continue to proceed.
An “instructional” message is displayed.
━ If battery voltage is less than 11�8 volts, an advisory message displays� Choose
Home to return to the Home Screen� Turn the ignition OFF and disconnect the Tablet
Scan Tool from the vehicle� Fully charge the battery, then repeat the battery check�
━ If the battery voltage is between 11�8 and 12�1 volts, a “Battery voltage is low, this may
affect the accuracy of the test results�” message displays�
━ If battery voltage is greater than 12�1 volts, an “instructional” message displays�
7� Start the vehicle’s engine.
NOTE: If the Tablet Scan Tool did not detect signal start of the vehicle’s engine, an
advisory message displays. Choose Retest to repeat the battery check or choose
Back to return to the Battery/Alternator Test menu.
8� When the battery check is complete, a results screen displays with the battery’s status.
9� Choose Back to return to the Battery/Alternator Test menu.
USING THE DIAGNOSTIC TABLET
Workshop Tools
41
View Battery Live Data
If the EV/HEV/PHEV Battery Health, Battery/Alternator Test is selected from the Workshop Tools screen and
the vehicle is not an electric or hybrid vehicle, the Battery/Alternator Monitor menu displays. Proceed to Step 2.
1� Select Battery/Alternator Test, then press OK.
The Battery/Alternator Test menu displays.
2� Select Battery Live Data (12 Volt), then press OK.
The Battery Live Data (12 Volt) screen displays.
3� When you are finished viewing the Battery Live Data (12 Volt), choose Back to return to the Battery/
Alternator Test menu.
Perform a Charging System Check
If the EV/HEV/PHEV Battery Health, Battery/Alternator Test is selected from the Workshop Tools screen and
the vehicle is not an electric or hybrid vehicle, the Battery/Alternator Monitor menu displays. Proceed to Step 2.
1� Select Battery/Alternator Test, then press OK.
The Battery/Alternator Test menu displays.
2� Select Alternator Test, then press OK.
An “instructional” message displays.
3� Start and warm the engine to normal operating temperature. Turn on the headlights. Choose Continue to
proceed.
An “instructional” message displays.
4� Press the accelerator pedal to raise engine speed to 2000 RPM and maintain the engine speed.
When engine speed is within the required range, the alternator test begins. A progress screen
displays.
When the “countdown” timer expires, an “instructional” message displays.
5� Turn the vehicle’s headlights OFF and return the engine to idle speed.
A “One moment please…” message displays while the test results are retrieved.
6� When the alternator check is complete, a results screen displays charging system voltage and indicates
whether the charging system is within acceptable limits.
7� Choose Back to return to the Battery/Alternator Test menu.
View Alternator Live Data
If the EV/HEV/PHEV Battery Health, Battery/Alternator Test is selected from the Workshop Tools screen and
the vehicle is not an electric or hybrid vehicle, the Battery/Alternator Monitor menu displays. Proceed to Step 2.
1� Select Battery/Alternator Test, then press OK.
The Battery/Alternator Test menu displays.
42
USING THE DIAGNOSTIC TABLET
Previous Vehicles
2� Select Alternator Live Data, then press OK.
The Alternator Live Data, screen displays.
3� When you are finished viewing the Alternator Live Data, choose Back to return to the Battery/Alternator
Test menu.
PREVIOUS VEHICLES
The Vehicle Diagnostic Tablet stores the results of the most recent vehicle scans you have performed. The Previous
Vehicles function allows you to retrieve these historical scan records and view them as needed.
1� From the Home screen, select the Vehicle Scan Reports
tab and press OK.
2� If more than one vehicle is stored in the Diagnostic Tablet’s
memory, the Vehicle Selection menu displays. Select the
desired vehicle, then press OK.
The Memory System Menu displays and includes:
OBD2 Diagnostics, Scan All Systems, Vehicle
Inspection, and Workshop Tools.
NOTE: If there are no vehicles currently stored, an
advisory message displays. Press Home to return to the Home Screen.
3� Select OBD2 Diagnostics, then press OK.
The Vehicle Diagnostic Tablet displays the System Menu Memory screen.
The Memory OBD2 Diagnostics function allows you to review the available 10 modes of OBD2.
Select the function you wish to view, then press OK. Choose Back to return to the Memory
OBD2 Menu.
4� Or, select Workshop Tools, then press OK.
The Vehicle Diagnostic Tablet displays the Memory Workshop Tools listing.
Select the procedure you wish to view, then press OK. Choose Back to return to the System
Menu Memory screen.
NOTE: The Memory Workshop Tools function allows you to review only Oil
Maintenance Reset Procedures and Battery Reset Procedures.
5� Or, select Scan All Systems, then press OK.
The Vehicle Diagnostic Tablet displays the Memory Scan All Systems listing.
Select the system for which you wish to view the DTCs, then press OK. Choose Back to
return to the Memory System Menu.
NOTE: The Tablet Scan Tool only shows systems saved in memory mode.
USING THE DIAGNOSTIC TABLET
Settings
43
6� Or, select Vehicle Inspection, then press OK.
The Vehicle Diagnostic Tablet displays the scan type report listing.
Select the scan type report you wish to view, then press OK. Choose Back to return to the
System Menu Memory screen.
7� When you have finished viewing the information, choose Back to return to the Vehicle Scan Report screen or
press Home to exit to the Home Screen.
An “advisory” confirmation message displays.
Select Yes to exit and return to the Home Screen, or No to proceed.
SETTINGS
The Tablet Scan Tool lets you make several adjustments and settings
to configure it to your particular needs. The following functions can
be performed:
Vehicle Inspection Setup
AutoLink Setting
Adjust Brightness
Audible Tone
Language Selection
Unit of Measurement
QR RS2 App
QR RS2 App Setting
Version Information
VEHICLE INSPECTION SETUP
1� Select Vehicle Inspection Setup in the Settings menu, then press OK.
The Vehicle Inspection Setup screen displays.
2� Select the type of report you wish to setup, then press OK.
The Report Selection screen displays.
Select or unselect functions as desired, then press
OK.
NOTE: The OBD2 Diagnostics (DTCs, Monitor,
Freeze Frame Data) status is always ON; this function
cannot be turned OFF.
3� Select Save to save your changes and auto-return to the Report Selection screen.
To exit and not proceed, select Cancel to return to the Report Selection screen.
44
USING THE DIAGNOSTIC TABLET
Settings
AUTOLINK SETTING
1� Select AutoLink Setting in the Settings menu, then press OK.
The AutoLink Setting screen displays.
2� Select On or Off as desired.
NOTE: To return to the Settings menu without making changes, press the Back
button.
ADJUSTING DISPLAY BRIGHTNESS
1� Select Adjust Brightness in the Settings menu, then press OK.
The Adjust Brightness screen displays.
2� Press UP and DOWN to make the display lighter or darker.
NOTE: To return to the Settings menu without making changes, press the Back
button.
ENABLING/DISABLING THE AUDIBLE TONE
1� Select Audible Tone in the Settings menu, then press OK.
The Audible Tone screen displays.
2� Select On or Off as desired, then press OK.
NOTE: To return to the Settings menu without making changes, press the Back
button.
SELECTING THE DISPLAY LANGUAGE
1� Select Language Selection in the Settings menu, then press OK.
The Language Selection screen displays.
2� Select the desired display language (English, Spanish, French) then press OK.
NOTE: To return to the Settings menu without making changes, press the Back
button.
SETTING THE UNIT OF MEASUREMENT
1� Select Unit of Measurement in the Settings menu, then press OK.
The Unit of Measurement screen displays.
2� Select the desired unit of measurement (Standard or Metric), then press OK.
NOTE: To return to the Settings menu without making changes, press the Back
button.
USING THE DIAGNOSTIC TABLET
Settings
45
VIEWING THE APP QR CODE - REPAIRSOLUTIONS2
®
1� Select QR RS2 App in the Settings menu, then press OK.
The QR RS2 App screen displays.
2� Using a mobile device, scan the QR Code to download the RepairSolutions2 App.
To exit, press Back to return to the Settings menu.
SETTING THE QR REPAIRSOLUTIONS2
®
APP MODE
1� Select QR RS2 App Setting in the Settings menu, then press OK.
The QR RS2 App Setting screen displays.
2� Select Enable or Disable as desired, then press OK.
NOTE: To return to the Settings menu without making changes, press the Back
button.
VIEWING THE VERSION INFORMATION
1� Select Version Information in the Settings menu, then press OK.
The Version Information screen displays.
The screen shows the Tablet Scan Tool’s Tool ID, GUID, current Firmware version, Bootloader
version and database version for the specific Make.
2� Press Back to return to the Settings menu.
46
USING THE DIAGNOSTIC TABLET
Tool Library
TOOL LIBRARY
Tool Library contains valuable reference information for the Tablet Scan Tool. The following functions are available:
Icon Definition - Shows the full names for the I/M
MONITOR STATUS icons shown and descriptions of
informational icons on the Tablet Scan Tool’s display.
DTC Library - Provides access to libraries of OBD1
and OBD2 DTC definitions.
Smog Check or I/M Program LED Definition -
Provides explanations of the Tablet Scan Tool SYSTEM
STATUS LEDs meanings.
DLC Locator - Use this search function to quickly find
the location of the Data Link Connector (DLC) for a specified vehicle.
Monitor Icon Status - Defines the icon monitor status’ color coding and provides tips on how
to proceed.
ICON DEFINITION
1� Select Icon Definition in the Tool Library menu, then press OK.
The Icon Definition displays.
2� Select the type of icons you wish to view - Spark Ignition Monitors, Compression Ignition Monitors, or Tool
Icons, then press OK.
The screen shows a list of Monitors for the selected category.
Choose Back to return to the Icon Definition menu. If desired, repeat Step 2 to view
additional icon definitions.
3� When you have finished viewing the descriptions, press Back to return to the Icon Definition menu.
DTC LIBRARY
1� Select DTC Library in the Tool Library menu, then press OK.
The Select Library screen displays.
2� Select OBD1 Library or OBD2 Library as needed, then press
OK.
The Select Manufacturer screen displays.
3� Select the desired vehicle manufacturer, then press OK.
A confirmation message displays.
━ If the correct manufacturer is not shown,
choose No to return to the list of vehicle
USING THE DIAGNOSTIC TABLET
Tool Library
47
manufacturers�
━ If the correct manufacturer is shown, choose Yes�
4� The Enter DTC screen displays.
The screen shows the code “P0001,” with the “P”
highlighted. Press Up / Down to scroll to the
desired DTC type (P=Powertrain, U=Network,
B=Body, C=Chassis), then Left / Right to choose
Next Digit.
The selected character displays solid, and the next
character is highlighted.
5� Select the remaining digits in the DTC in the same way. When you have selected all the DTC digits, press OK to
view the DTC definition.
6� When you have finished viewing the DTC definition, press Back, to return to the Enter DTC screen to search
for additional DTCs.
NOTE: If a definition for the DTC you entered is not available, an advisory message
show. Choose Back to return to the Enter DTC screen and enter additional DTCs.
SMOG CHECK OR I/M PROGRAM LED DEFINITIONS
1� Select Smog Check or I/M Program LED Definition in the Tool
Library menu, then press OK.
The Smog Check or I/M Program LED Definition
screen displays.
2� When you have finished viewing the Smog Check or I/M
Program LED Definition, press Back to return to the Tool
Library menu.
USING THE DLC LOCATOR
1� Select DLC Locator in the Tool Library menu, then press OK.
The Select Vehicle Model Year screen displays.
2� Select the desired vehicle model year, then press OK.
The Select Vehicle Manufacturer screen displays.
3� Select the desired vehicle manufacturer, then press OK.
The Select Vehicle Model screen displays.
4� Select the desired model, then press OK.
The DLC Location screen for the selected vehicle
displays.
48
USING THE DIAGNOSTIC TABLET
Tool Library
The DLC Location screen shows the selected vehicle year, make and model, a description of
the DLC location, whether the DLC is “covered” or “uncovered,” and includes a picture of the
DLC location.
5� When you have finished viewing the DLC location, select New Vehicle (to view the DLC location for another
vehicle) or press Back to return to the Tool Library menu.
MONITOR ICON STATUS
Defines the monitor icon status color coding and provides tips on
how to proceed.
1� Select Monitor Icon Status in the Library menu, then press
OK.
The Monitor Icon Status dialog displays.
2� When you have finished viewing the Monitor Icon Status, press
Back to return to Tool Library menu.
WARRANTY & CUSTOMER SERVICE
Limited Warranty
49
WARRANTY & CUSTOMER SERVICE
LIMITED WARRANTY
The Manufacturer warrants to the original purchaser that this unit is free of defects in materials and workmanship under
normal use and maintenance for a period of one (1) year from the date of original purchase.
If the unit fails within the one (1) year period, it will be repaired or replaced, at the Manufacturer’s option, at no charge,
when returned prepaid to the Service Center with Proof of Purchase. The sales receipt may be used for this purpose.
Installation labor is not covered under this warranty. All replacement parts, whether new or remanufactured, assume as
their warranty period only the remaining time of this warranty.
This warranty does not apply to damage caused by improper use, accident, abuse, improper voltage, service, fire,
flood, lightning, or other acts of God, or if the product was altered or repaired by anyone other than the Manufacturer’s
Service Center.
The Manufacturer, under no circumstances shall be liable for any consequential damages for breach of any written
warranty of this unit. This warranty gives you specific legal rights, and you may also have rights, which vary from state
to state. This manual is copyrighted with all rights reserved. No portion of this document may be copied or reproduced
by any means without the express written permission of the Manufacturer. THIS WARRANTY IS NOT TRANSFERABLE.
For service, send via U.P.S. (if possible) prepaid to Manufacturer. Allow 3-4 weeks for service/repair.
CUSTOMER SERVICE
Our ASE Certified technical staff is here to help if you have any questions or require service. For information on
UPDATES and OPTIONAL ACCESSORIES, please contact your local store, distributor or BLCKTEC’s Service Center.
USA & Canada: (866) 909-6777
Monday through Friday: 6:00 AM to 6:00 PM PST
Web: www.blcktec.com
50
GLOSSARY
OBD2 Terminology
GLOSSARY
OBD2 TERMINOLOGY
The following terms and their definitions are related to OBD2 systems.
Powertrain Control Module (PCM) - The PCM is the OBD2 accepted term for the vehicle’s “on-board
computer.” In addition to controlling the engine management and emissions systems, the PCM also
participates in controlling the powertrain (transmission) operation. Most PCMs also have the ability to
communicate with other computers on the vehicle (ABS, ride control, body, etc.).
Monitor - Monitors are “diagnostic routines” programmed into the PCM. The PCM utilizes these programs
to run diagnostic tests, and to monitor operation of the vehicle’s emissions-related components or
systems to ensure they are operating correctly and within the vehicle’s manufacturer specifications.
Currently, up to fifteen Monitors are used in OBD2 systems. Additional Monitors will be added as the
OBD2 system is further developed.
NOTE: Not all vehicles support all fifteen Monitors.
Enabling Criteria - Each Monitor is designed to test and monitor the operation of a specific part of the
vehicle’s emissions system (EGR system, oxygen sensor, catalytic converter, etc.). A specific set of
“conditions” or “driving procedures” must be met before the computer can command a Monitor to run
tests on its related system. These “conditions” are known as “Enabling Criteria.” The requirements and
procedures vary for each Monitor. Some Monitors only require the ignition key to be turned “ON” for them
to run and complete their diagnostic testing. Others may require a set of complex procedures, such
as, starting the vehicle when cold, bringing it to operating temperature, and driving the vehicle under
specific conditions before the Monitor can run and complete its diagnostic testing.
Complete / Incomplete - The terms “Complete” or “Incomplete” are used throughout this manual.
“Complete,” means the PCM has commanded a particular Monitor to perform the required diagnostic
testing on a system to ensure the system is operating correctly (within factory specifications). The term
“Incomplete” means the PCM has not yet commanded a particular Monitor to perform diagnostic
testing on its associated part of the emissions system.
Trip - A Trip for a particular Monitor requires that the vehicle is being driven in such a way that all the
required “Enabling Criteria” for the Monitor to run and complete its diagnostic testing are met. The “Trip
Drive Cycle” for a particular Monitor begins when the ignition is turned “ON.” It is successfully completed
when all the “Enabling Criteria” for the Monitor to run and complete its diagnostic testing are met by the
time the ignition is turned “OFF.” Since each of the fifteen monitors is designed to run diagnostics and
testing on a different part of the engine or emissions system, the “Trip Drive Cycle” needed for each
individual Monitor to run and complete varies.
OBD2 Drive Cycle - An OBD2 Drive Cycle is an extended set of driving procedures that takes into
consideration the various types of driving conditions encountered in real life. These conditions may
include starting the vehicle when it is cold, driving the vehicle at a steady speed (cruising), accelerating,
etc. An OBD2 Drive Cycle begins when the ignition is turned “ON” (when cold) and ends when the
vehicle has been driven in such a way as to have all the “Enabling Criteria” met for all its applicable
Monitors. Only those trips that provide the Enabling Criteria for all Monitors applicable to the vehicle to
run and complete their individual diagnostic tests qualify as an OBD2 Drive Cycle. OBD2 Drive Cycle
requirements vary from one model of vehicle to another. Vehicle manufacturers set these procedures.
GLOSSARY
OBD2 Monitors
51
Consult your vehicle’s service manual for OBD2 Drive Cycle procedures.
NOTE: Do not confuse a “Trip” Drive Cycle with an OBD2 Drive Cycle. A “Trip” Drive
Cycle provides the “Enabling Criteria” for one specific Monitor to run and complete
its diagnostic testing. An OBD2 Drive Cycle must meet the “Enabling Criteria” for all
Monitors on a particular vehicle to run and complete their diagnostic testing.
Warm-up Cycle - Vehicle operation after an engine off period where engine temperature rises at least
40°F (22°C) from its temperature before starting, and reaches at least 160°F (70°C). The PCM uses
warm-up cycles as a counter to automatically erase a specific code and related data from its memory.
When no faults related to the original problem are detected within a specified number of warm-up cycles,
the code is erased automatically.
OBD2 MONITORS
To ensure the correct operation of the various emissions-related components and systems, a diagnostic program was
developed and installed in the vehicle’s on-board computer. The program has several procedures and diagnostic
strategies. Each procedure or diagnostic strategy is made to monitor the operation of, and run diagnostic tests on, a
specific emissions-related component or system. These tests ensure the system is running correctly and is within the
manufacturer’s specifications. On OBD2 systems, these procedures and diagnostic strategies are called “Monitors.”
Currently, fifteen Monitors are supported by OBD2 systems. Additional monitors may be added due to Government
regulations as the OBD2 system grows and matures. Not all vehicles support all fifteen Monitors. Additionally, some
Monitors are supported by “spark ignition” vehicles only, while others are supported by “compression ignition” vehicles
only.
Monitor operation is either “Continuous” or “Non-Continuous,” depending on the specific monitor.
CONTINUOUS MONITORS
Three of these Monitors are designed to constantly monitor their associated components and/or systems for proper
operation. Continuous Monitors run constantly when the engine is running.
= Comprehensive Component Monitor
= Misfire Monitor
= Fuel System Monitor
NON-CONTINUOUS MONITORS
The other twelve Monitors are “non-continuous” Monitors. “Non-continuous” Monitors perform and complete their
testing once per trip.
= Oxygen Sensor Monitor
52
GLOSSARY
Additional Terminology + Acronyms
= Oxygen Sensor Heater Monitor
= Catalyst Monitor
= Heated Catalyst Monitor
= EGR (Exhaust Gas Recirculation) System Monitor
= EVAP System Monitor
= Secondary Air System Monitor
NOTE: The following Monitors became standard beginning in 2010. The majority of
vehicles produced before this time will not support these Monitors.
= NMHC (Non-Methane Hydrocarbon Converting) Catalyst Monitor
= NOx/SCR Aftertreatment Monitor
= Boost Pressure System Monitor
= Exhaust Gas Sensor Monitor
= PM (Particulate Matter) Filter Monitor
ADDITIONAL TERMINOLOGY + ACRONYMS
ABS = Anti-Lock Braking System
DLC = Data Link Connector (vehicle’s data port)
DTC = Diagnostic Trouble Codes
MIL = Malfunction Indicator Lamp (Check Engine Light)
OBD = On Board Diagnostics
OBD2 / OBD II = On Board Diagnostics, Second Generation
OEM = Original Equipment Manufacturer
TSBs = Technical Service Bulletins
Designed in California, U.S.A
Copyright © 2025 McGaaw LLC. All rights reserved.
U.S. Patents www.blcktec.com/patents. Other Patents Pending.
V.01.00
For additional information, support, and FAQs:
www.blcktec.com
(866) 909-6777
2 YEAR WARRANTY
American Support Team
