Diagnostic Tool
420
Powerful Diagnostics. Verified Fix Solutions. Link to Parts & Shops.
User’s Guide
i
WELCOME!
Hello...
On behalf of everyone at BLCKTEC [we say “Block Tech”], we want to welcome and thank you
for purchasing the BLCKTEC™ 420 Diagnostic Tool! We may look like the new kid on the
block, but we bring over 30 years of experience making tools for DIYers and professionals. We
also love to work on cars, so we’ve put a lot of effort to create scan tools that help maximize, and
simplify, the OBD2 diagnostic routine.
In this manual, we’ll guide you on how to tap into your tool’s powerful functions including:
Plus, gain the benet of having unlimited access to real world xes on your mobile device:
We hope you have a blast using your BLCKTEC Diagnostic Tool!
Yours sincerely,
The BLCKTEC Team
; Check Engine Light Diagnostics
; Smog / Emissions Readiness
; Code Severity Level Identier
; Code Denitions
; Battery System Check
; Stream live Data PIDs
; Erase Diagnostic Trouble Codes (DTCs)
; And More...
RepairSolutions2® seamlessly pairs with your BLCKTEC
OBD2 diagnostic tool to deliver the most complete
automotive repair database with veried xes from ASE
Certied Master Technicians. Find the right x and the right
parts instantly on your mobile device.
ii
LEGAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
FCC Compliance Statement � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 1
Trademarks � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 1
Patents � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 2
Software Version � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 2
California Product Warnings � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 2
SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety First! � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
Safety Alert Icons � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Tool Controls and Indicators � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5

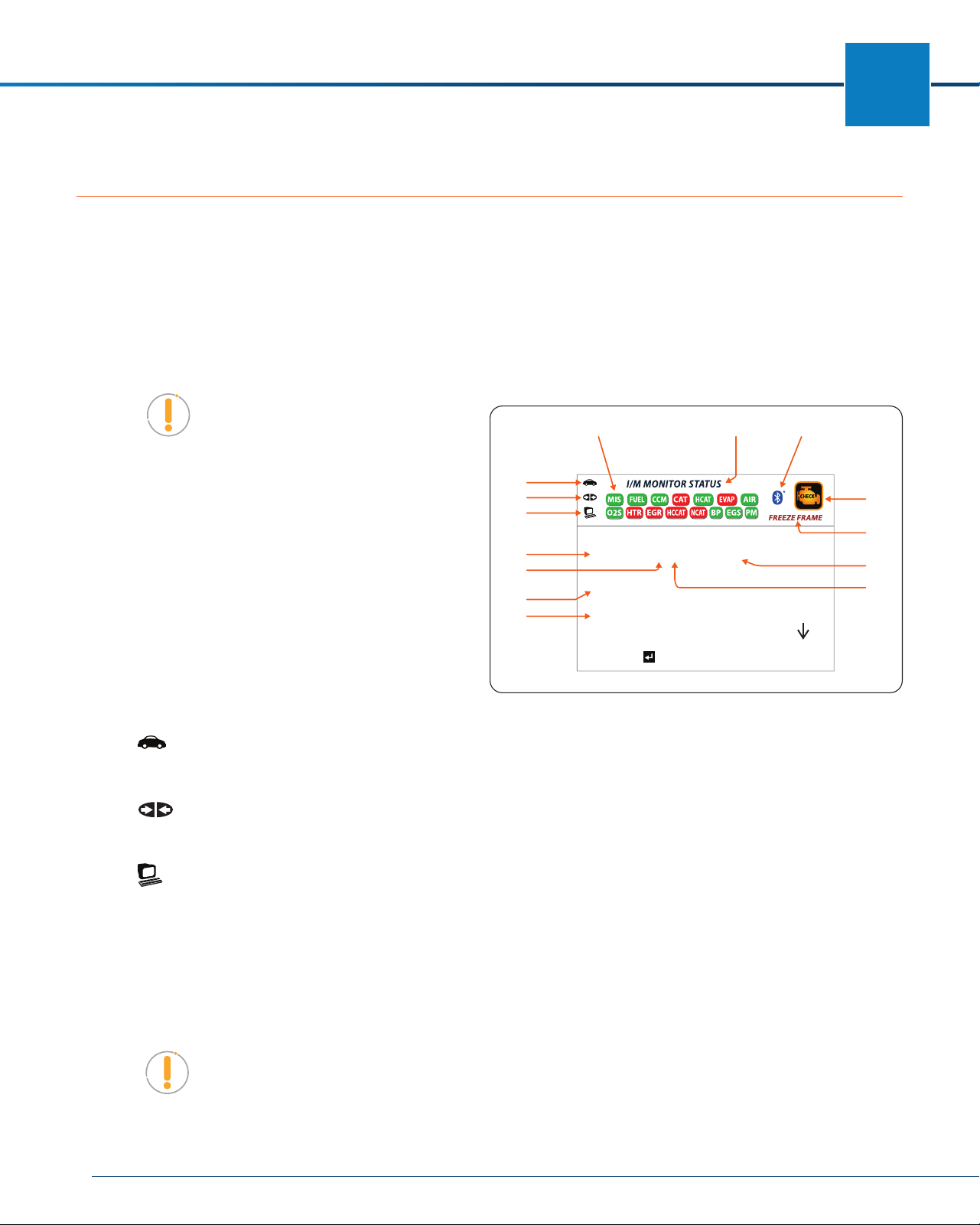

Tool Display Functions � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
Initial Setup � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7

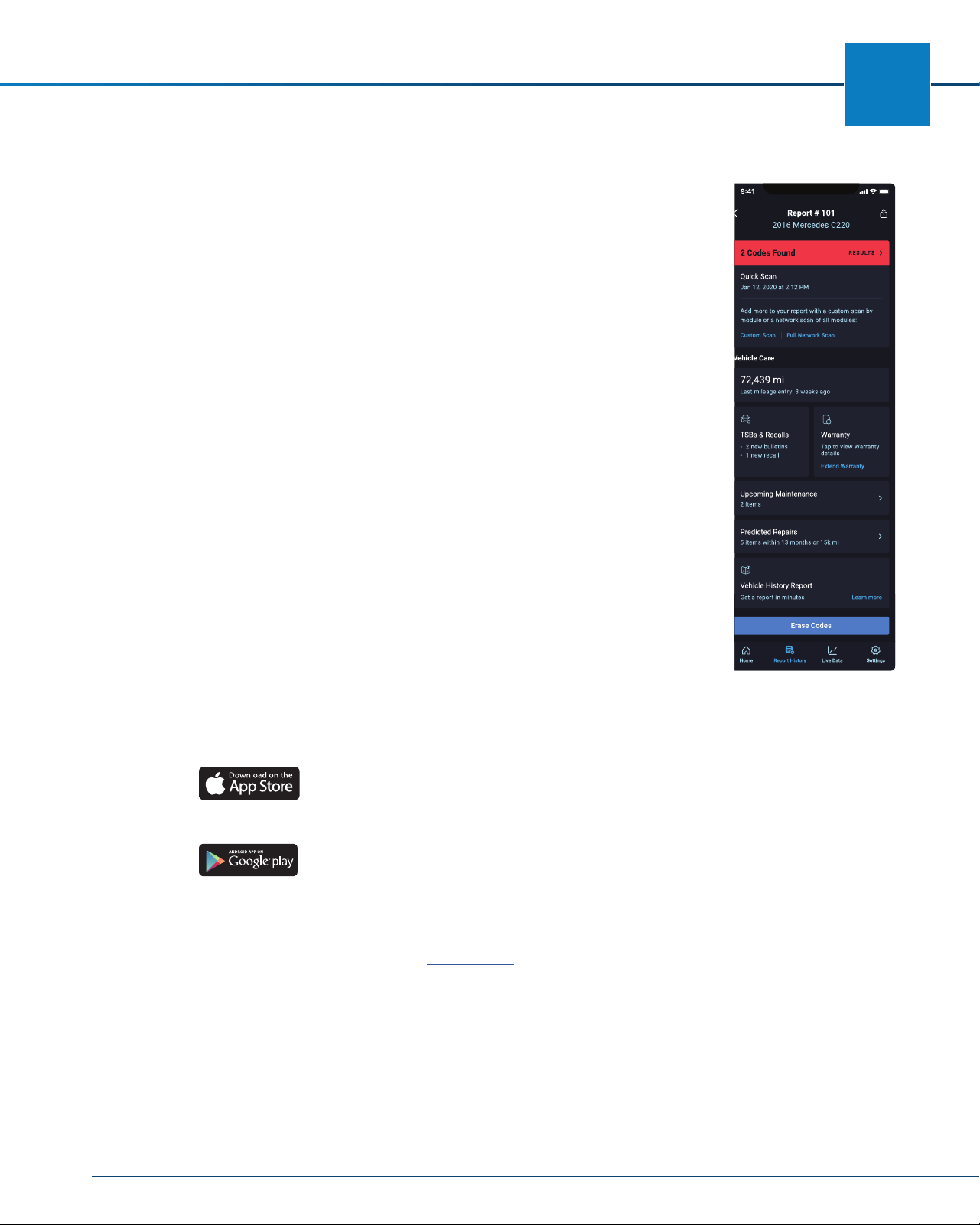

FIX For DTCs – The RepairSolutions2
®
App � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
Every RepairSolutions2
®
Report Provides... . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Hardware Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Download the App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Using the RS2
App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
USING THE DIAGNOSTIC TOOL . . . . . . . . . . . . . . . . . . . . . 10

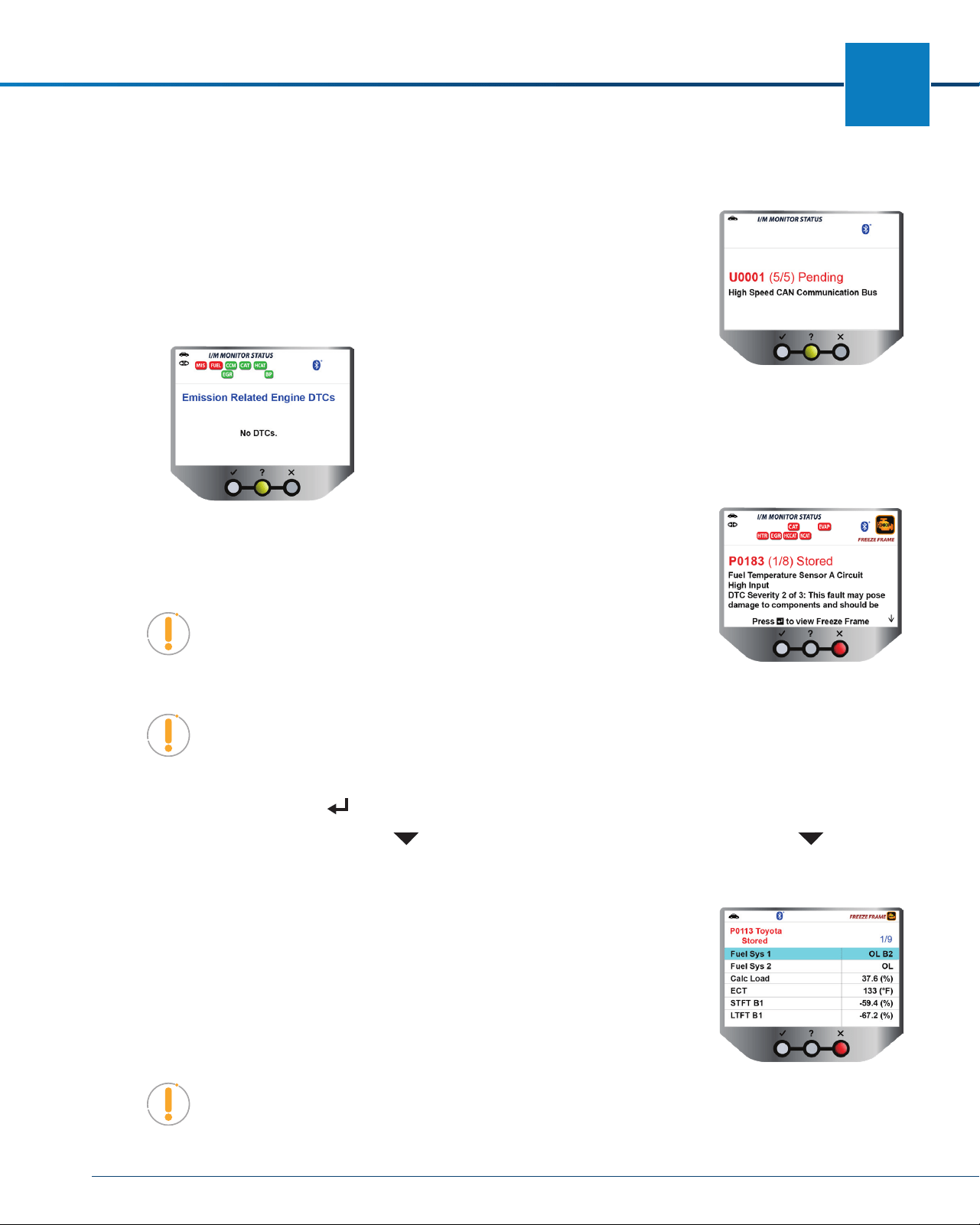

Retrieving OBD2 Diagnostic Trouble Codes � � � � � � � � � � � � � � � � � � � � � � � � � � � 10

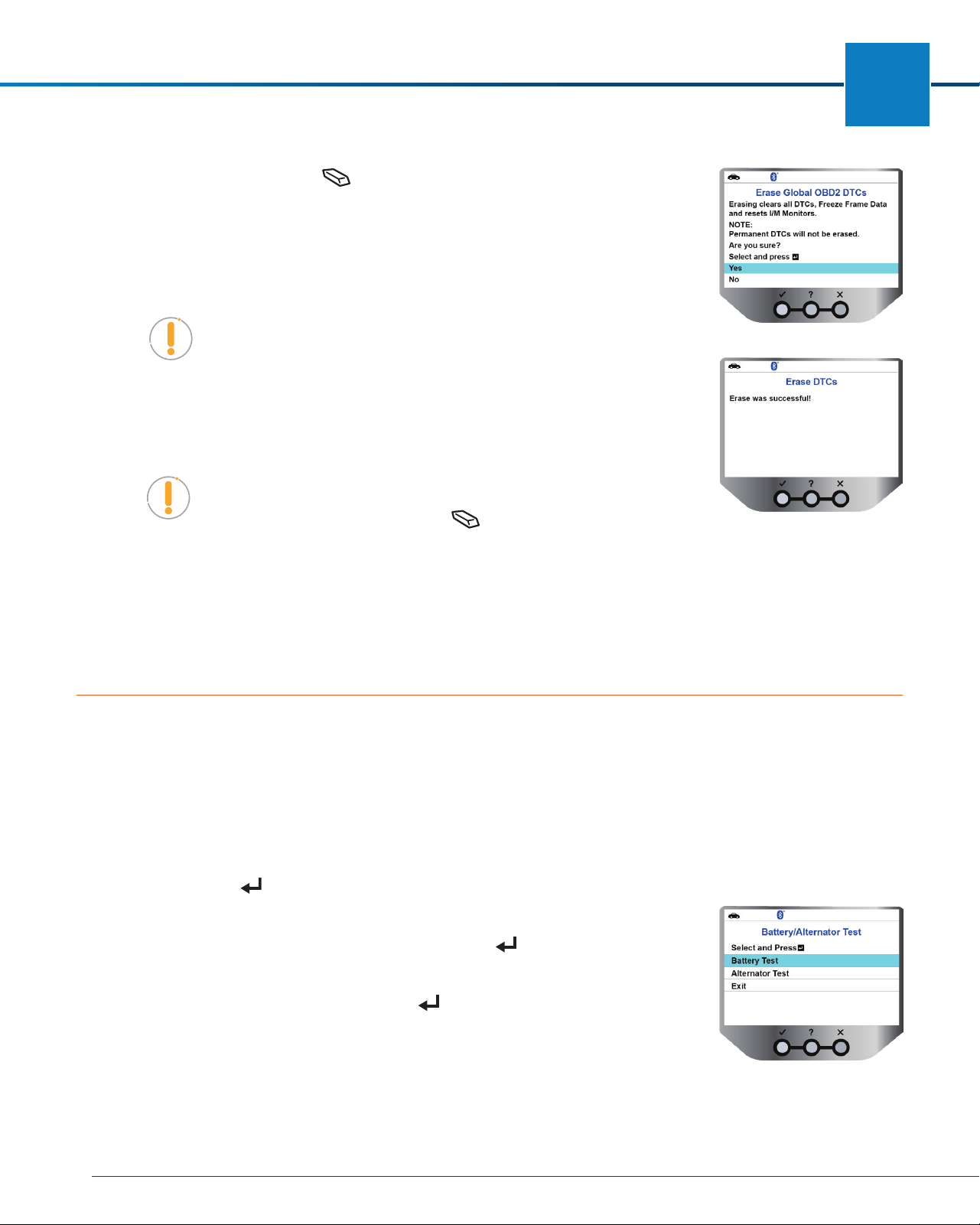

Erasing Diagnostic Trouble Codes (DTCs) � � � � � � � � � � � � � � � � � � � � � � � � � � � � 13

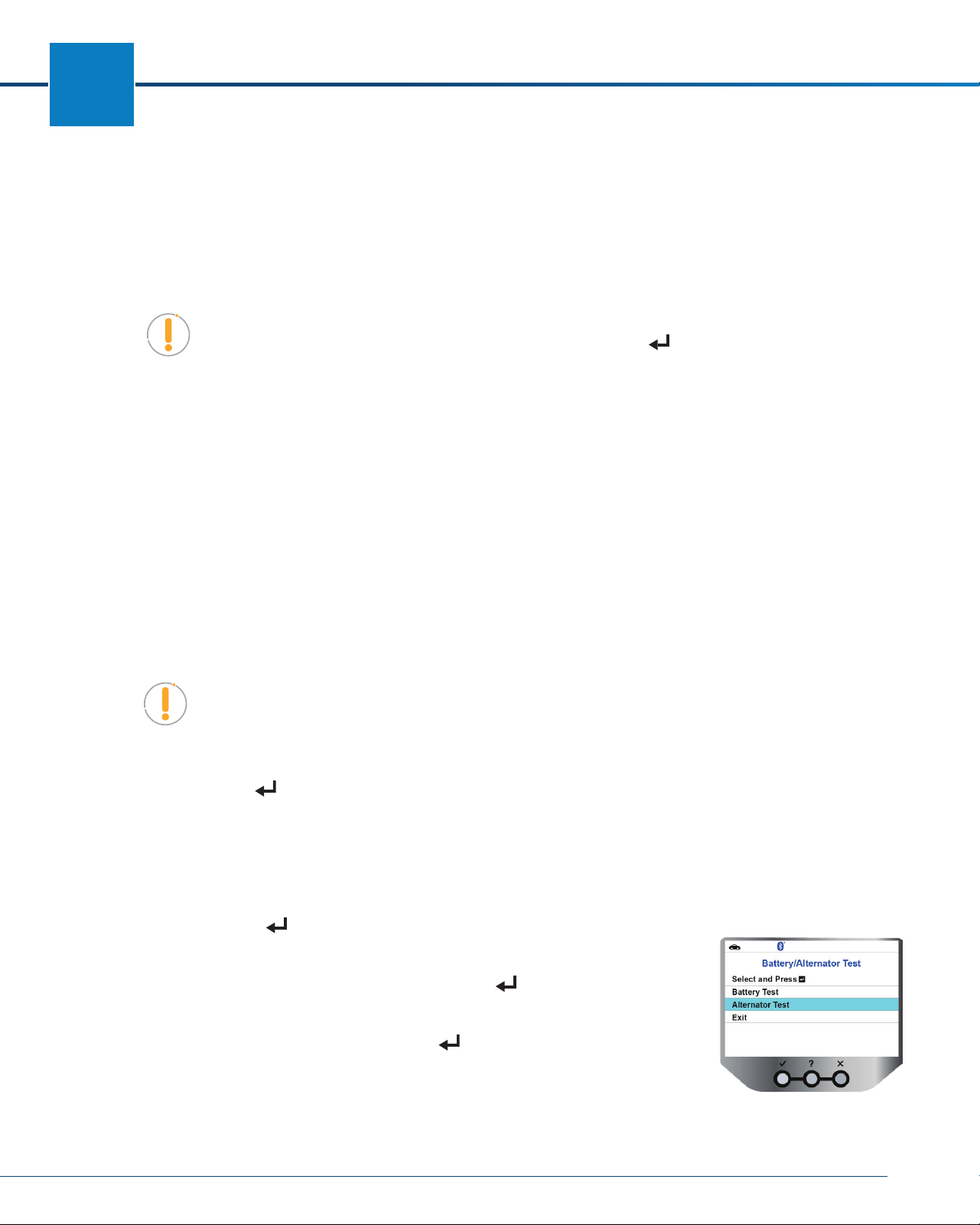

Battery Alternator Test � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 14
Perform a Battery Check Only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Perform a Charging System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

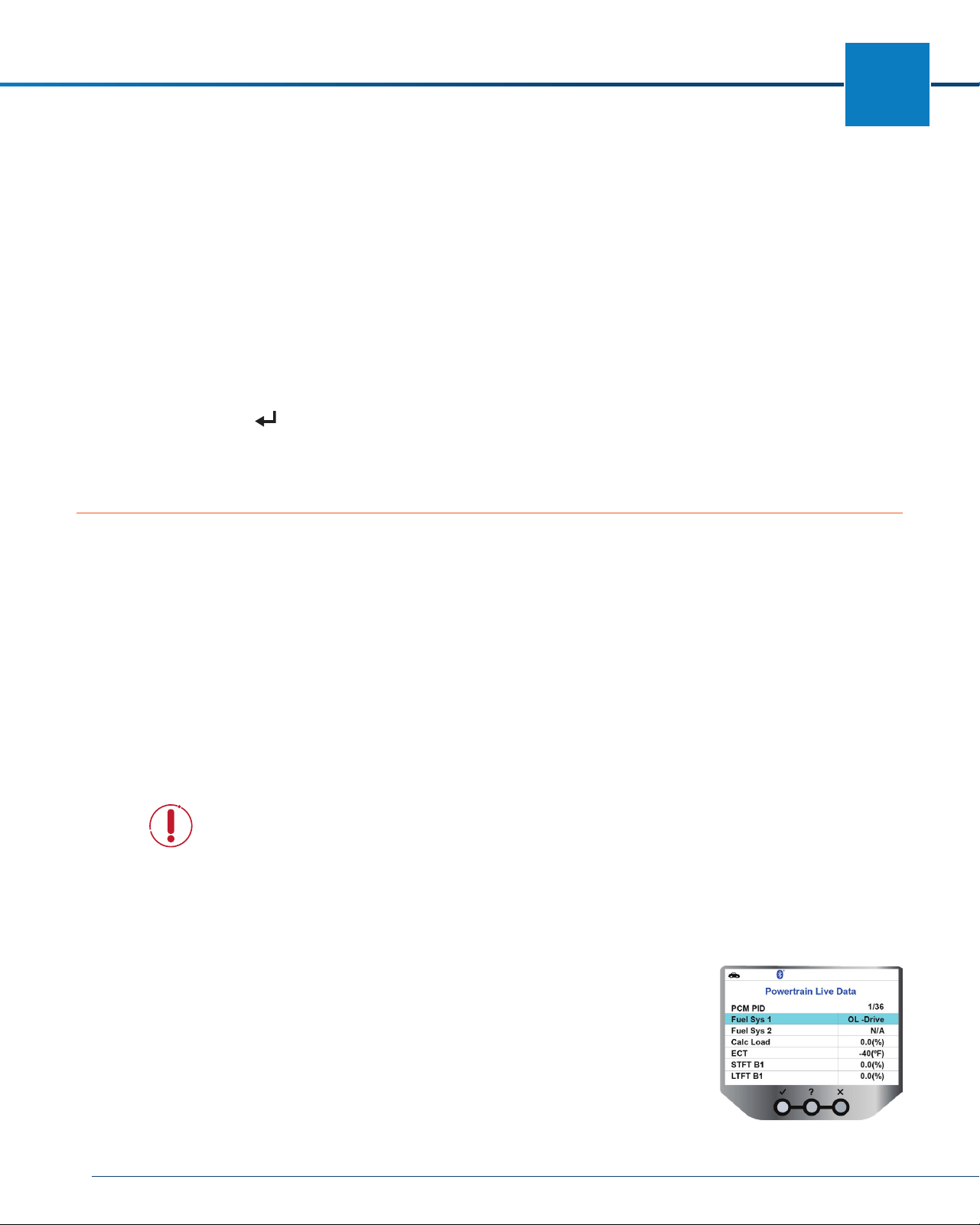

Live Data Mode � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 16
Viewing Live Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
TOOL UTILITIES & SETTINGS . . . . . . . . . . . . . . . . . . . . . . . 18

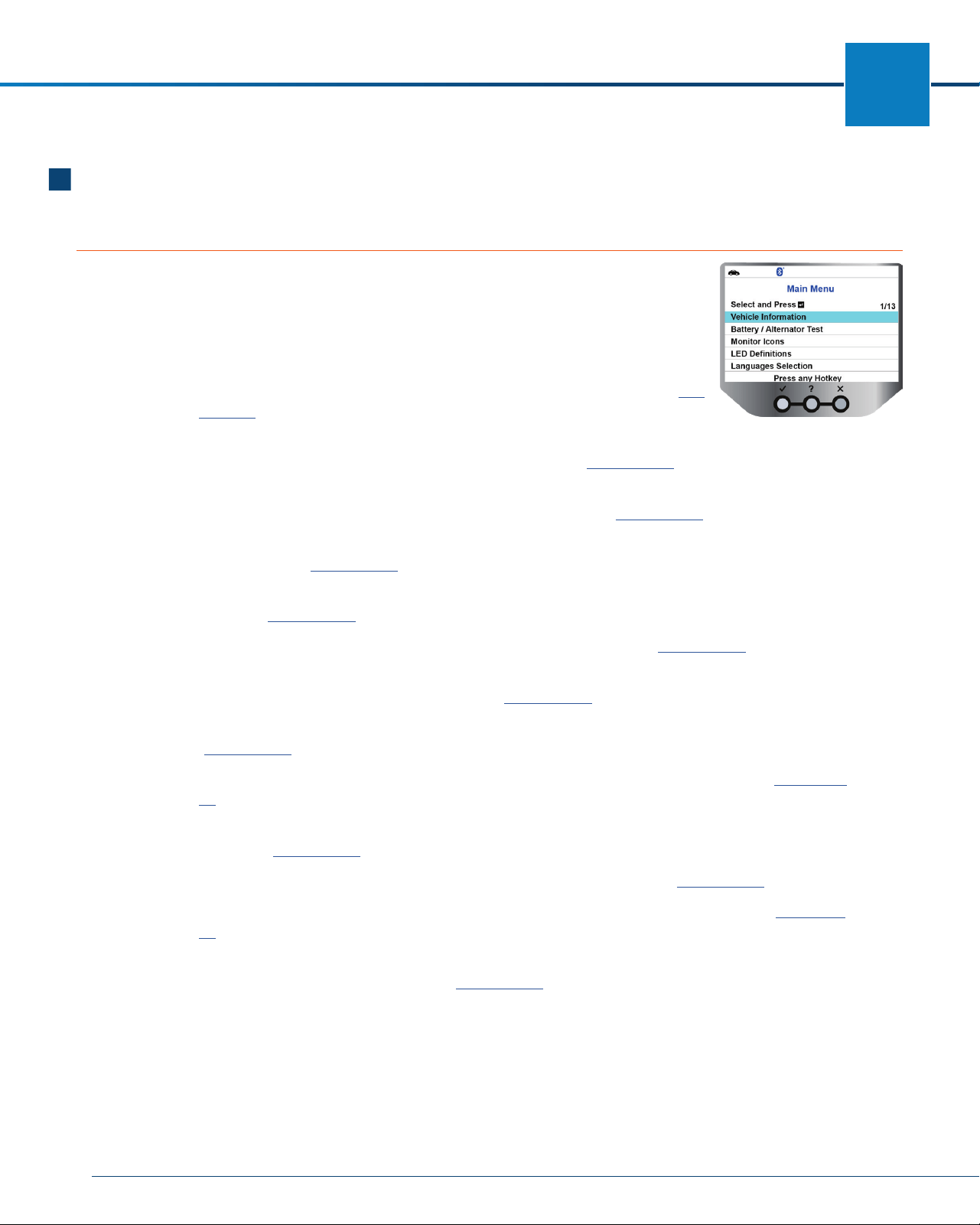

Main Menu � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 18

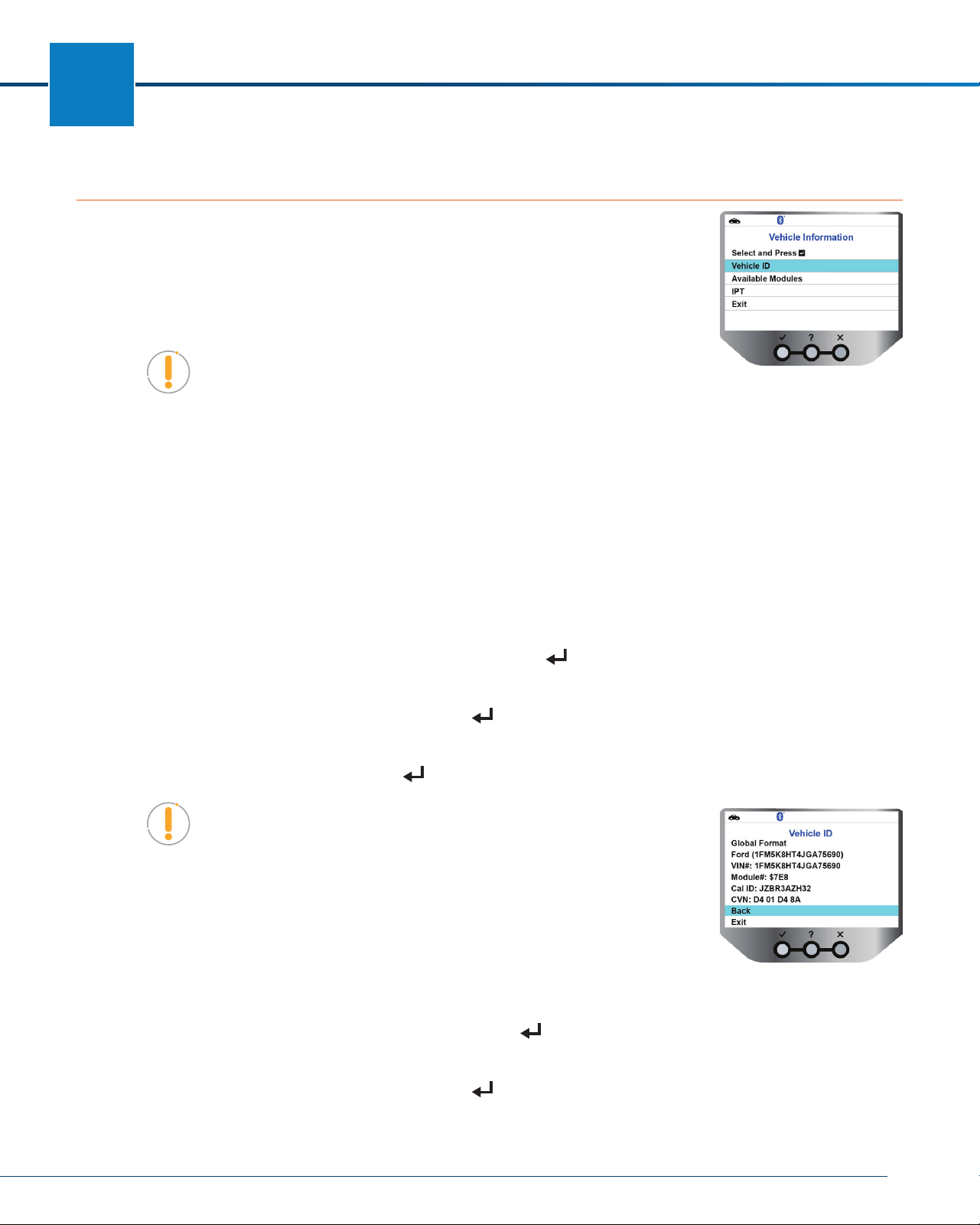

Viewing Vehicle Information � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 19
Retrieving Vehicle ID Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Viewing Available Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

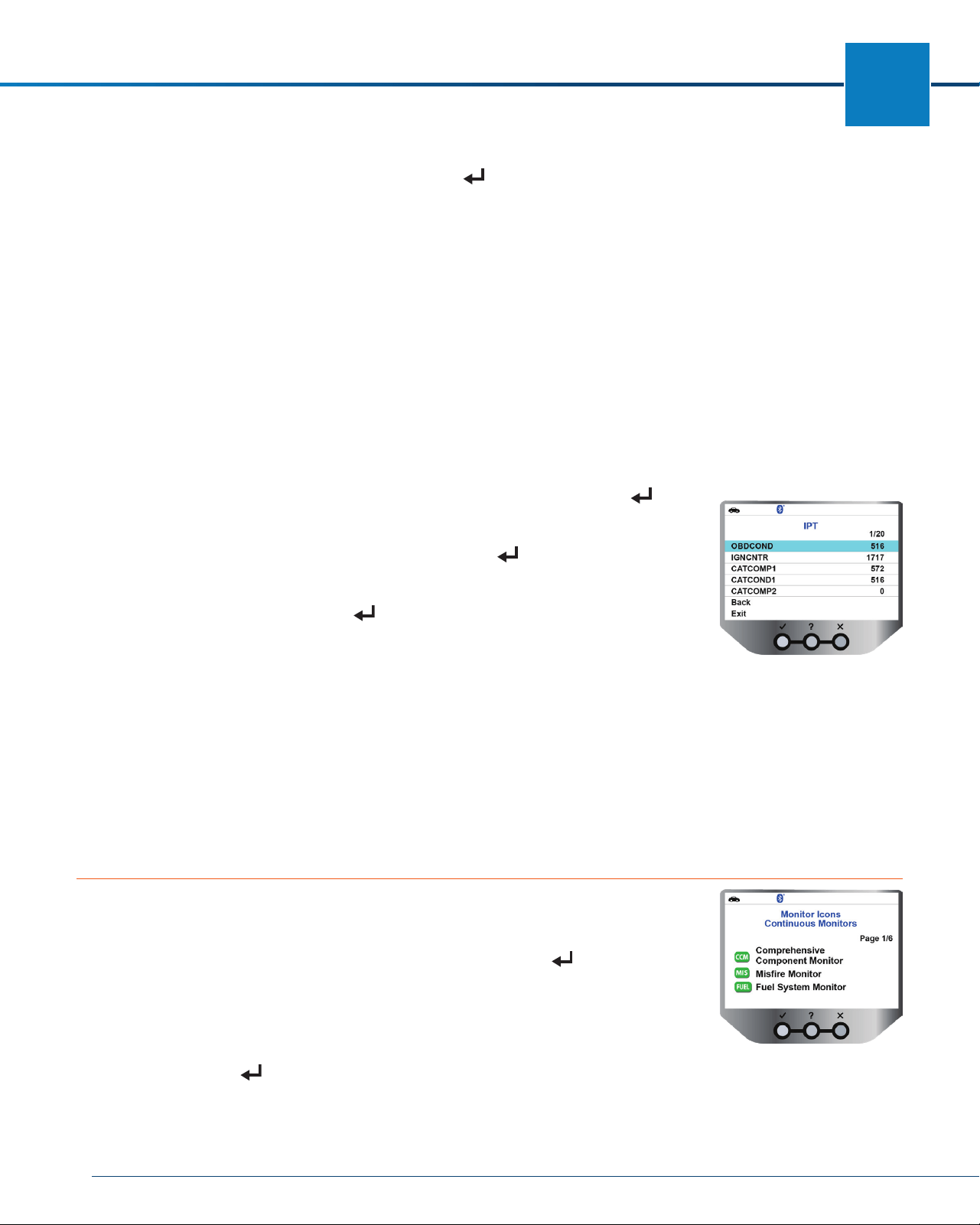

Viewing In-Use Performance Tracking (IPT) . . . . . . . . . . . . . . . . . . . . . . . . . 20
TABLE OF CONTENTS
iii
Monitor Icons � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 20

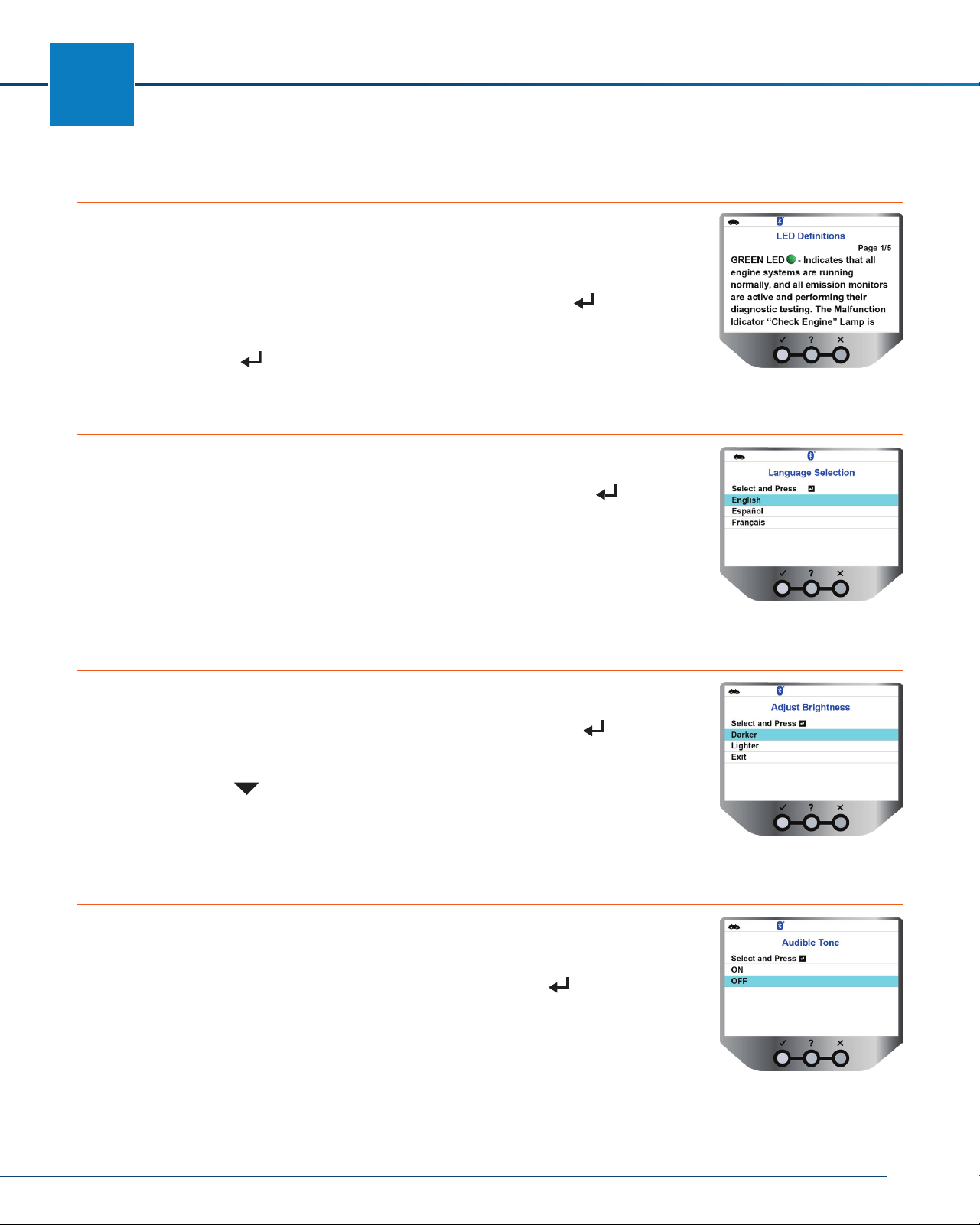

Viewing LED (System Status) Denitions � � � � � � � � � � � � � � � � � � � � � � � � � � � � 21
Setting the Display Language � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 21
Adjusting Display Brightness � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 21
Enabling/Disabling the Audible Tone � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 21

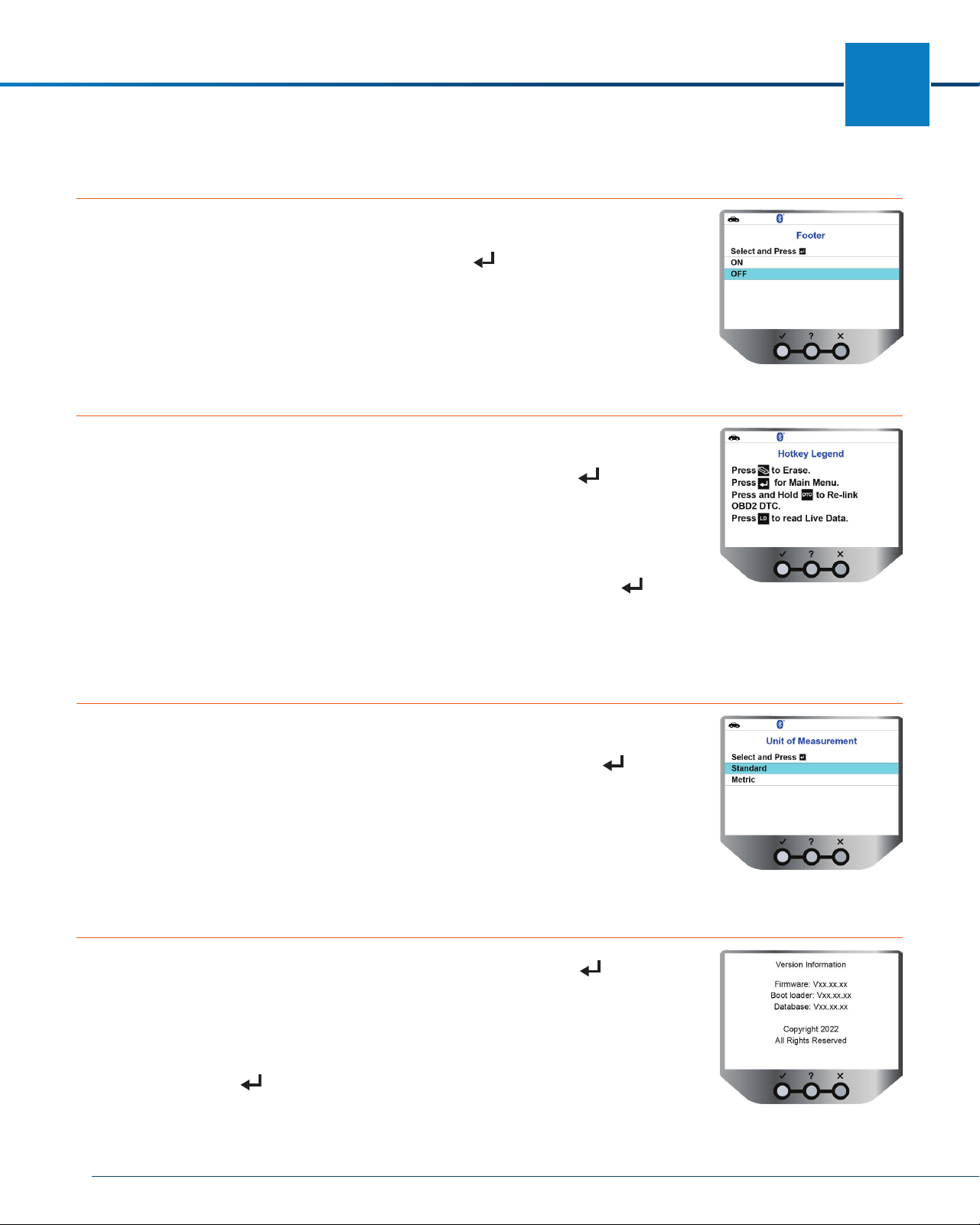

Enabling/Disabling Footer � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 22
Viewing the Hotkey Legend � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 22
Setting the Unit Of Measurement � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 22
Viewing the Firmware Version � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 22
Viewing the RepairSolutions2
®
(RS2) QR Code � � � � � � � � � � � � � � � � � � � � � � � � � 23

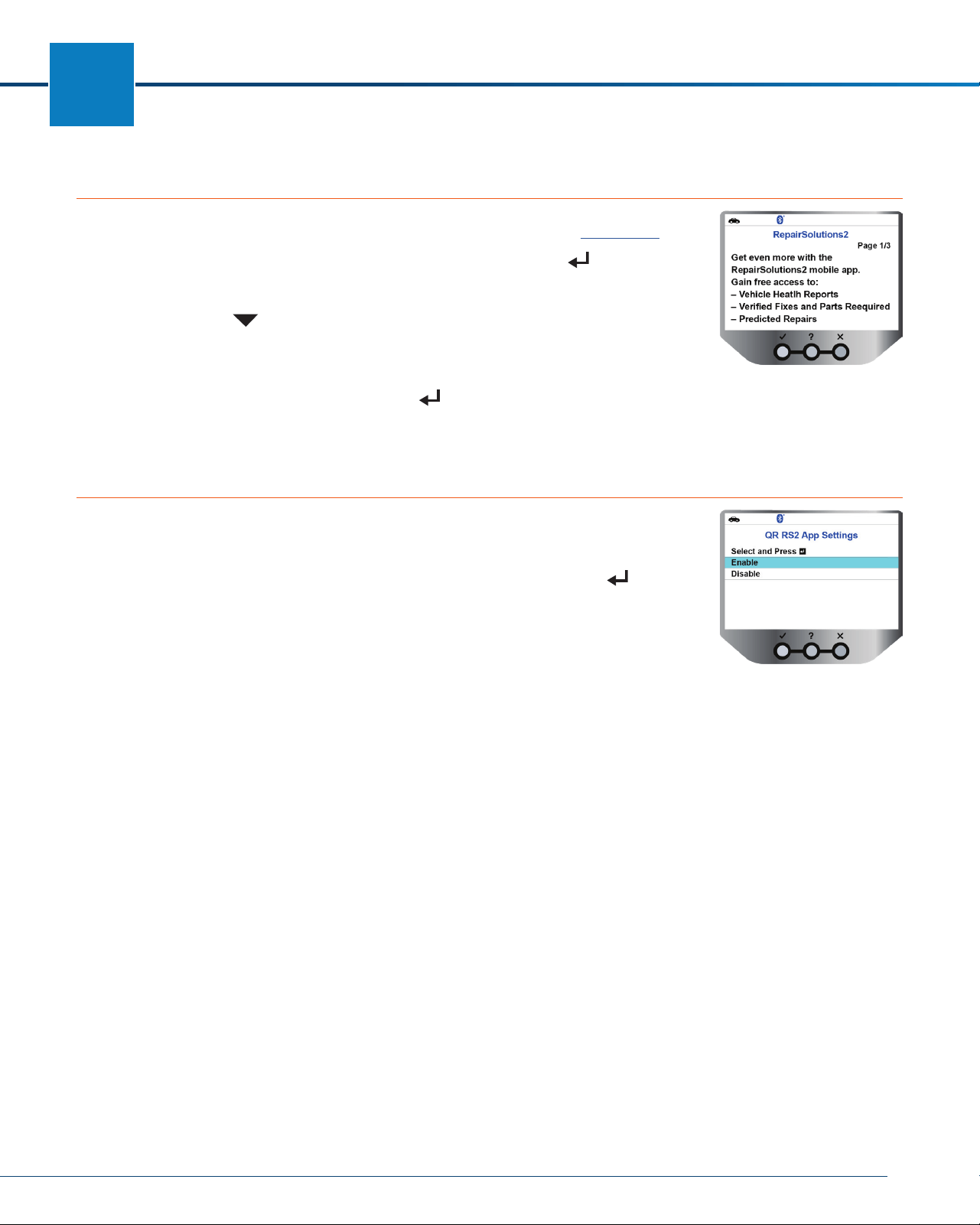

Setting the QR RS2 App Mode � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 23
WARRANTY+ CUSTOMER SERVICE . . . . . . . . . . . . . . . . . . 24
Limited Warranty � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 24
Customer Service � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 24
GLOSSARY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
OBD2 Terminology � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 25
OBD2 Monitors � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 26
Continuous Monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Non-Continuous Monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Additional Terminology + Acronyms � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 27
TABLE OF CONTENTS
1
LEGAL INFORMATION
FCC Compliance Statement
LEGAL INFORMATION
FCC COMPLIANCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
FCC ID: 2AC7Z-ESPWR00M32D
FCC RF Radiation Exposure Statement
The transmitters within this device must not be co-located or operating in conjunction with any
other antenna or transmitter.
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specic operating instructions for satisfying RF
exposure compliance. To maintain with IC RF exposure compliance requirements please follow
operation instruction as documented in this manual.
TRADEMARKS
Title, ownership rights, and intellectual property rights in the Products and Services shall remain in BLCKTEC and/or
its licensors and other suppliers. Licensee and End Users acknowledge such ownership, condential information, and
intellectual property rights and will not take any action to jeopardize, limit or interfere in any manner with BLCKTEC’s
or its licensors’ or other suppliers’ ownership of or rights with respect to the Products and Services. The Products and
Services may be protected by Patent, Trademark, Copyright and/or other intellectual property laws and by international
treaties. All trademarks used in connection with the Products and Services are owned by BLCKTEC, its afliates or
its licensors and other suppliers, and no license to use any such trademarks is provided hereunder. Licensee and
End Users agree that BLCKTEC may use in any manner and without limitation all comments, suggestions, complaints
and other feedback Licensee and End Users provide relating to the Products and Services. For more information and
current listing of trademarks, please visit https://www.blcktec.com/trademarks.
LEGAL INFORMATION
Patents
2
PATENTS
BLCKTEC protects its intellectual property with numerous U.S. patents, which were used to research, design and
manufacture this product. Please visit https://www.blcktec.com/patents for additional information.
SOFTWARE VERSION
Please note that the images and functions on this manual may differ based on the current Firmware Version (FW)
you have. To check your tablet’s current version and to check for updates, please see Viewing the Firmware Version
[See page 22].
CALIFORNIA PRODUCT WARNINGS
3
SAFETY PRECAUTIONS
Safety First!
SAFETY PRECAUTIONS
SAFETY FIRST!
It is important that every user utilizing this product read all instructions and warnings included within this manual
to ensure your safety, the safety of others, and to prevent damage to this product & vehicles being diagnosed and
repaired. This manual describes common test procedures used by experienced service technicians. It is inferred that
the user has a good understanding of vehicle systems before using this product.
Many test procedures require precautions to avoid accidents that can result in personal injury, and/or damage to
your vehicle or test equipment. At a minimum, the following safety standards should be followed whenever using this
product, or whenever working on a vehicle.
When an engine is running, it produces carbon monoxide, a toxic and poisonous gas. To
prevent serious injury or death from carbon monoxide poisoning, operate the vehicle ONLY in
a well-ventilated area.
To protect your eyes from propelled objects as well as hot or caustic liquids, always wear
approved safety eye protection.
When an engine is running, many parts (such as the coolant fan, pulleys, fan belt etc.) turn at
high speed. To avoid serious injury, always be aware of moving parts. Keep a safe distance
from these parts as well as other potentially moving objects.
Engine parts become very hot when the engine is running. To prevent severe burns, avoid
contact with hot engine parts.
Before starting an engine for testing or troubleshooting, make sure the parking brake is
engaged. Put the transmission in park (for automatic transmission) or neutral (for manual
transmission). Block the drive wheels with suitable tire blocks.
Connecting or disconnecting test equipment when the ignition is ON can damage test equipment
and the vehicle’s electronic components. Turn the ignition OFF before connecting the tablet
to or disconnecting the tablet from the vehicle’s Data Link Connector (DLC).
To prevent damage to the on-board computer when taking vehicle electrical measurements,
always use a digital multimeter with at least 10 Megohms of impedance.
Fuel and battery vapors are highly ammable. To prevent an explosion, keep all sparks, heated
items, and open ames away from the battery and fuel vapors. DO NOT SMOKE NEAR THE
VEHICLE DURING TESTING
Don’t wear loose clothing or jewelry when working on an engine. Loose clothing can
become caught in the fan, pulleys, belts, etc. Jewelry is highly conductive and can cause a
severe burn if it makes contact between a power source and ground.
SAFETY PRECAUTIONS
Safety Alert Icons
4
SAFETY ALERT ICONS
As you read this manual, color-coded icons are used throughout to identify safety alerts and warnings. These are
provided to help prevent serious injury to you, injury to bystanders, and damage to property or equipment. They are
characterized as follows:
Yellow Icon – Provides a ”NOTE:“ statement to offer special information
or tip on what is being instructed.
Orange Icon – Potential hazardous situation. Provides a “WARNING:“
statement on how to proceed to avoid serious injury to the user,
bystanders, and/or equipment.
Red Icon – Imminent hazardous situation. Provides an immediate
“DANGER:“ alert on what must be done to prevent serious injury or death
to the user or bystanders.
5
INTRODUCTION
Tool Controls and Indicators
2
3
6
8
7
9
10
4
1
5
INTRODUCTION

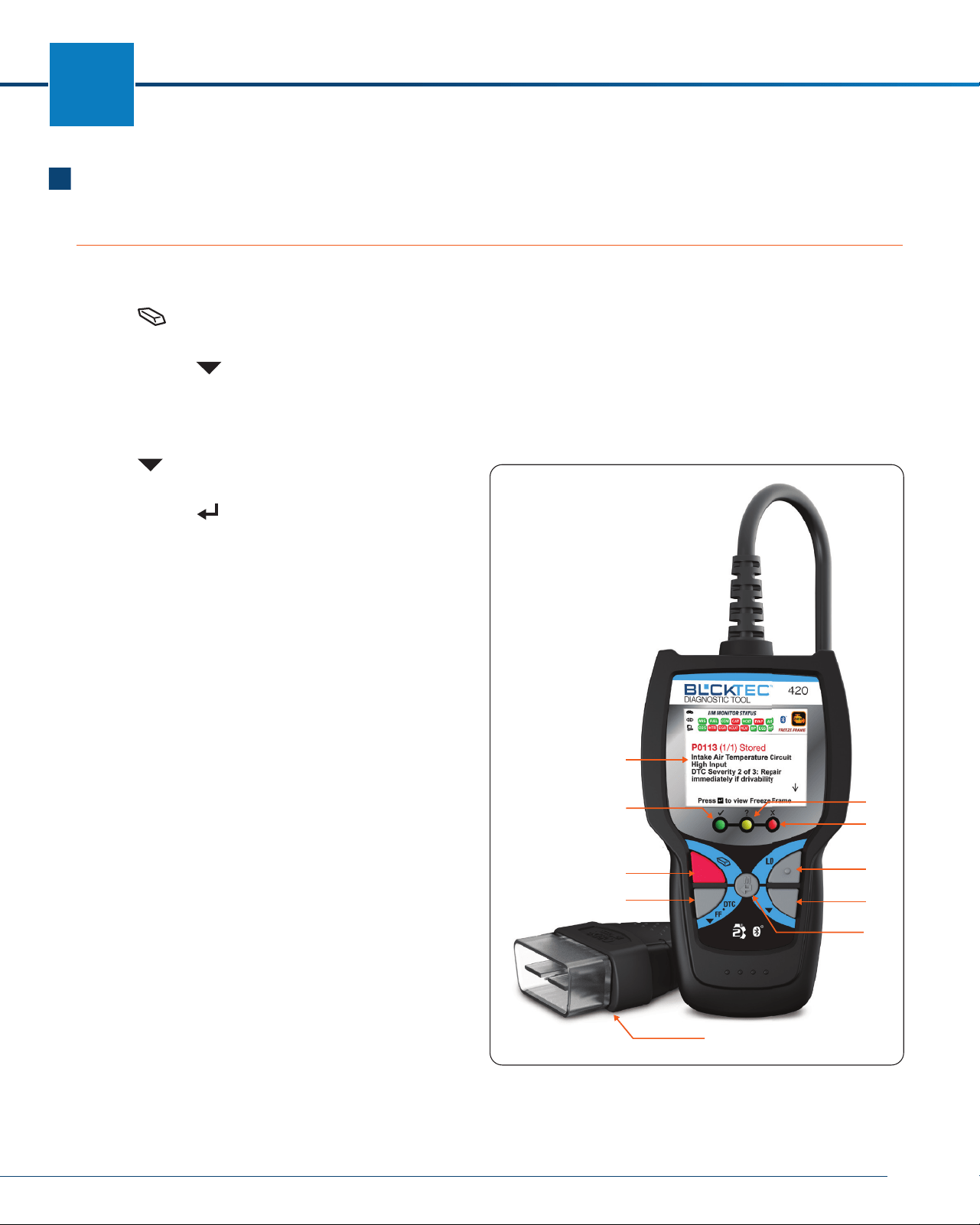

TOOL CONTROLS AND INDICATORS
See Figure 1 for the locations of items 1 through 7, below.
1.
ERASE button - Erases Diagnostic Trouble Codes (DTCs) and “Freeze Frame” data from your vehicle’s
computer, and resets Monitor status.
2. DTC/FF/
button - Displays the Diagnostic Trouble Codes View screen to view and/or scroll through Diagnostic
Trouble Codes and Freeze Frame Data. When pressed and held, the tool relinks to vehicle to retrieve its powertrain
data.
3. LD button - When pressed while linked to vehicle, places Diagnostic Tool in Live Data diagnostic mode.
4.
(DOWN) button - Scrolls through data to
navigate display
5. M/Enter
button – When viewing OBD2 results,
press to view Freeze Frame data. When viewing
other screens, press to view Main Menu or to
select other functions.
6. GREEN LED - Indicates that all engine systems
are running normally (all Monitors on the vehicle
are active and performing their diagnostic testing,
and no DTCs are present).
7. YELLOW LED - Indicates there is a possible
problem. A “Pending” DTC is present and/or
some of the vehicle’s emission monitors are in a
“Monitor Incomplete” status – monitors have not
completed their diagnostic testing routine.
8. RED LED - Indicates there is a problem in one
or more of the vehicle’s systems. The red LED is
also used to show that DTC(s) are present. DTCs
are shown on the Diagnostic Tool’s LCD display.
In this case, the Malfunction Indicator (“Check
Engine”) lamp on the vehicle’s instrument panel
will light steady on.
9. LCD Display - Displays test results, Diagnostic
Tool functions and Monitor status information. See
TOOL DISPLAY FUNCTIONS, below, for details.
10. OBD2 CABLE - Connects the Diagnostic Tool to
the vehicle’s Data Link Connector (DLC).
Figure 1. Controls and Indicators
INTRODUCTION
Tool Display Functions
6
TOOL DISPLAY FUNCTIONS
See Figure 2 for the locations of items 1 through 14 below.
1. I/M MONITOR STATUS field - Identies the I/M Monitor status area.
2. Monitor icons - Indicate which Monitors are supported by the vehicle under test, and whether or not the
associated Monitor has completed its diagnostic testing (Monitor status). When a Monitor icon is solid green, it
indicates that the associated Monitor has completed its diagnostic testing. When a Monitor icon is ashing red,
it indicates that the vehicle supports the associated Monitor, but the Monitor is “Incomplete” – monitor has not
completed its diagnostic testing routine.
NOTE: The I/M Monitor Status icons
are associated with INSPECTION and
MAINTENANCE (I/M) READINESS
STATUS. Some states require that
all vehicle Monitors have run and
completed their diagnostic testing
before a vehicle can be tested for
Emissions (Smog Check). A maximum
of fteen Monitors are used on OBD2
systems. Not all vehicles support all
fteen Monitors. When the Diagnostic
Tool is linked to a vehicle, only the icons
for Monitors that are supported by the
vehicle under test are visible on the
display.
3.
Vehicle icon - Indicates whether or not the
Diagnostic Tool is being properly powered through the vehicle’s Data Link Connector (DLC). A visible icon
indicates that the Diagnostic Tool is being powered through the vehicle’s DLC connector.
4.
Link icon - Indicates whether or not the Diagnostic Tool is communicating (linked) with the vehicle’s on-
board computers. When visible, the Diagnostic Tool is communicating with the computers. If the Link icon is not
visible, the Diagnostic Tool is not communicating with the vehicle’s computers.
5.
Computer icon – When visible, indicates the Diagnostic Tool is linked to a personal computer.
6. DTC Display Area - Displays the Diagnostic Trouble Code (DTC) number. Each fault is assigned a code number
that is specic to that fault.
7. Code Type – Indicates the type of code being displayed: Stored, Pending, Permanent, etc.
8. Code Number Sequence – The Diagnostic Tool assigns a sequence number to each DTC that is present in the
computer’s memory, starting with “1.” This number indicates which code is currently displayed. Code number “1”
is always the highest priority code, and the one for which “Freeze Frame” data has been stored.
NOTE: If “1” is a “Pending” code, there may or may not be “Freeze Frame” data
stored in memory.
9. Code Enumerator – Indicates the total number of codes retrieved from the vehicle’s computer.
Figure 2. Tool Display Functions
Press to view Freeze Frame
Intake Air Temperature Circuit
High Input
DTC Severity 2 of 3: Repair
immediately if drivability
P0113 (1/3) Stored
1
2
3
4
5
6
7
9
10
11
12
13
14
8
7
INTRODUCTION
Initial Setup
10. Test Data Display Area – Displays DTC denitions, Freeze Frame data and other pertinent test information
messages.
11. DTC Severity – Indicates the level of severity for the priority code (code number “1”), as follows:
Severity 1: This fault typically does not cause damage to components and should be serviced when
convenient.
Severity 2: This fault may pose damage to components and should be repaired as soon as possible.
Severity 3: This fault will cause damage to components and should be repaired immediately.
12.
Bluetooth icon – Indicates communication status with a compatible BLCKTEC mobile application. When ON,
indicates an active Bluetooth connection has been established. When OFF, indicates Bluetooth is not connected.
13.
MIL icon - Indicates the status of the Malfunction Indicator Lamp (MIL). The MIL icon is visible only when a
DTC has commanded the MIL on the vehicle’s dashboard to light.
14. FREEZE FRAME icon - Indicates that “Freeze Frame” data has been stored in the vehicle’s computer for the
currently displayed DTC.
INITIAL SETUP
The rst time you connect to a vehicle, perform the following steps:
1. Select the desired display language (English, Español, Français), then press M/Enter .
2. Select the desired unit of measurement (Standard or Metric), then press M/Enter
.
NOTE: You can make changes to these selections using the tool’s MAIN MENU
function [See page 18].
3. Scan the displayed QR RepairSolutions2
®
code to download the RS2 app, then press M/Enter .
The OBD2/Vehicle Selection screen displays.
FIX FOR DTCs –
The RepairSolutions2
®
APP
RepairSolutions2
®
(RS2) is a web-based service created to assist Do-it-Yourselfers and
Professional technicians simplify their vehicle diagnostic process. In essence, RS2 helps you
decode the diagnostic data collected by your BLCKTEC™ OBD2 Tool to arrive at a most likely x.
At its core, RS2 uses a database of millions of real-world veried xes–collected over the last 25
years by ASE Master Technicians across the U.S.– that is cross-referenced to your specic vehicle’s
problem to instantly arrive at a veried x. Think of RS2 as your personalized technician to help diagnose, repair, and
maintain your vehicle(s).
INTRODUCTION
FIX For DTCs – The RepairSolutions2® App
8
EVERY RepairSolutions2
®
REPORT PROVIDES���
Verified Fixes – Find the most likely xes reported and veried by ASE
Technicians for the retrieved DTCs. Plus, quickly purchase the exact parts
you need right from the app.
Predicted Repairs – With millions of veried repair solutions, get a statistical
probability of what repairs you may need within the next 12 months.
TSBs & Recalls – Learn if there are any special NHTSA safety recalls or
Technical Service Bulletins (TSBs) issued by your vehicle’s manufacturer.
Vehicle Health Reports – Get a quick insight on how your vehicle’s vitals
are currently performing (e.g., battery status, etc.) and get alerts to potential
problems.
Upcoming Maintenance – View your vehicle manufacturer’s recommended
maintenance intervals. Plus, conveniently purchase the correct maintenance
parts right from the app.
And much more...
HARDWARE REQUIREMENTS
BLCKTEC™ OBD2 Tool with Bluetooth
®
connectivity
Android or iOS Mobile Device
DOWNLOAD THE APP
Apple iOS Devices (click on the link)
Android Devices (click on the link)
USING THE RS2
APP
1. Retrieve your vehicle’s diagnostic data [See page 10].
2. Download and install the RepairSolutions2
®
app (see above)
3. Launch the RS2 app and log in to your account.
If you have not yet established an account, you must register for a FREE RS2 account before
proceeding.
4. Follow the screen prompts to pair your BLCKTEC Diagnostic Tool. Be sure your mobile device is connected to
an available Wi-Fi network.
9
INTRODUCTION
FIX For DTCs – The RepairSolutions2® App
Begin the pairing process by selecting your handheld tool from the list.
NOTE: The RS2 app can only store up to two Wi-Fi congurations.
5. Once paired, the data from your tool is automatically transferred to the RS2 app to create a report.
NOTE: If the data does not automatically transfer, simply keep the app and tool
paired and scan your vehicle again.
USING THE DIAGNOSTIC TOOL
Retrieving OBD2 Diagnostic Trouble Codes
10
USING THE DIAGNOSTIC TOOL
RETRIEVING OBD2 DIAGNOSTIC TROUBLE CODES
Never replace a part based only on the DTC definition. Each DTC has a set of testing procedures, instructions
and flow charts that must be followed to confirm the location of the problem. This information is found in the
vehicle’s service manual. Always refer to the vehicle’s service manual for detailed testing instructions.
NOTE: Check your vehicle thoroughly before performing any test.
WARNING: ALWAYS observe safety precautions whenever working on a vehicle.
See SAFETY FIRST! [See page 3] for more information.

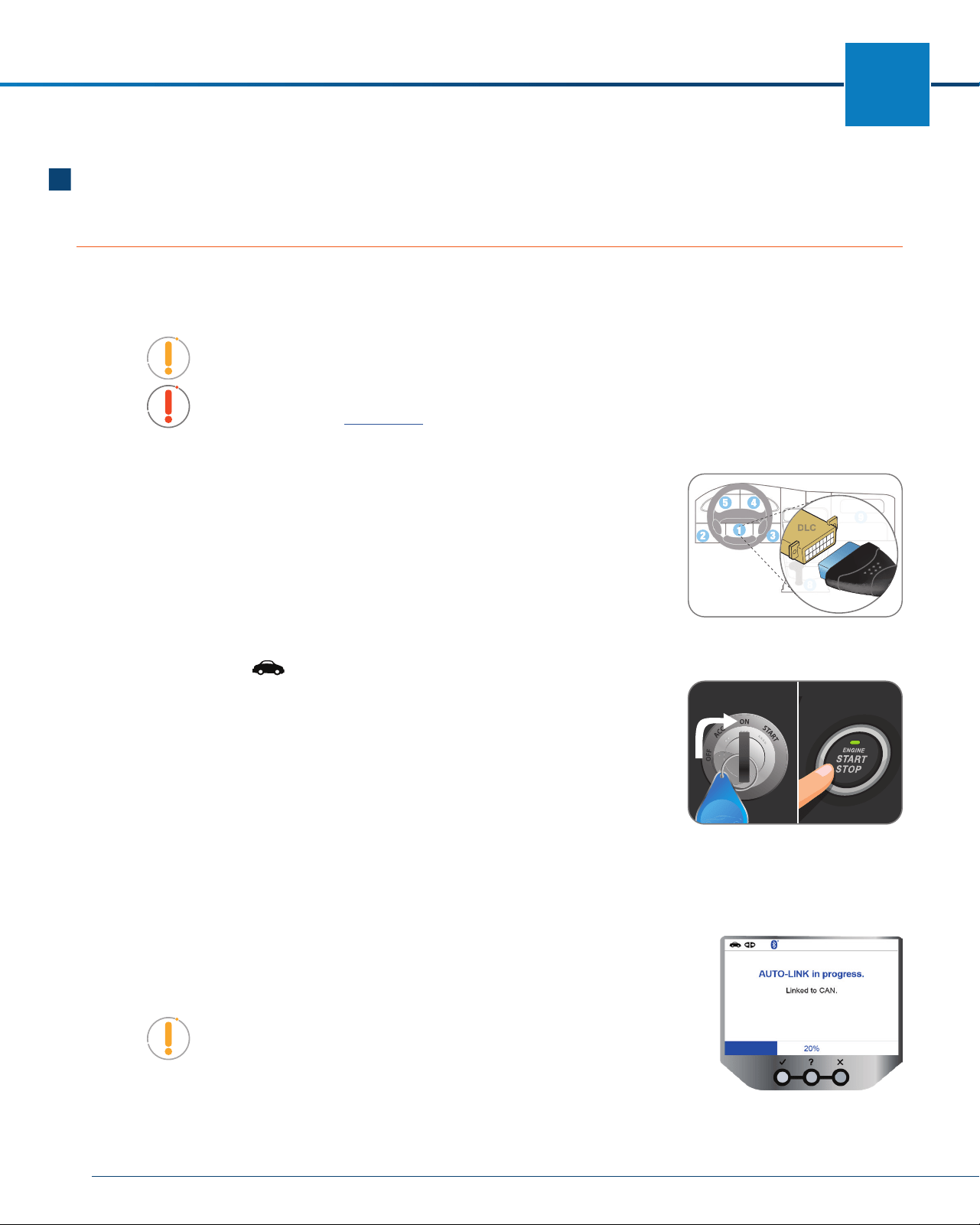

1. Turn the ignition OFF.
2. Locate the vehicle’s 16-pin Data Link Connector (DLC).
3. Connect the Diagnostic Tool’s cable connector to the vehicle’s DLC. The cable
connector is keyed and will only t one way.
If you have problems connecting the cable connector to the DLC,
rotate the connector 180° and try again. If you still have problems,
check the DLC on the vehicle and on the Diagnostic Tool. Refer to
your vehicle’s service manual to properly check the vehicle’s DLC.
After the Diagnostic Tool’s test connector is properly connected to the vehicle’s DLC, the
Vehicle
icon should display to conrm a good power connection.
4. Turn the ignition on. DO NOT start the engine.
5. The Diagnostic Tool will automatically link to the vehicle’s computer(s).
If the unit does not power on automatically, it may indicate there is no
power present at the vehicle’s DLC connector. Check the fuse panel
and replace any burned-out fuses.
If replacing the fuse(s) does not correct the problem, consult the
vehicle’s repair manual to identify the proper computer (PCM) fuse/ circuit, and perform any
necessary repairs before proceeding.
6. The Diagnostic Tool automatically checks the vehicle’s computer to determine which communication protocol it
is using.
Tool begins to “AUTO-LINK” to identify computer’s communication
protocol. A progress bar is displayed while a communication link is
established.
NOTE: A PROTOCOL is a set of rules and procedures for regulating data
transmission between computers, and between testing equipment and
computers. As of this writing, ve different types of protocols (ISO 9141,
Keyword 2000, J1850 PWM, J1850 VPW and CAN) are in use by vehicle
manufacturers.
NO Brake Pedal
Tap Button 2 Times
11
USING THE DIAGNOSTIC TOOL
Retrieving OBD2 Diagnostic Trouble Codes
If the Diagnostic Tool fails to link to the vehicle’s computer, a “Communication Error” message
shows.
━ Ensure your vehicle is OBD2 compliant.
━ Verify the connection at the DLC, and verify the ignition is ON.
━ Turn the ignition OFF, wait 5 seconds, then back ON to reset the computer.
━ Press and hold DTC/FF/
button to try again.
If Error is shown on the Diagnostic Tool’s LCD display, it indicates there is a communication
problem. This means that the Diagnostic Tool is unable to communicate with the vehicle’s
computer. Do the following:
━ Turn the ignition key OFF, wait 5 seconds, and turn the key back on to reset the computer.
7. If the Diagnostic Tool can decode the Vehicle Identication Number (VIN) for the vehicle under test, the OBD2
results screen displays. Proceed to step 9.
8. If the Diagnostic Tool cannot decode the Vehicle Identication Number (VIN) for the vehicle under test, one of the
following will result:
If the vehicle has stored OEM Diagnostic Trouble Codes (DTCs), the “Select Make” screen
displays.
━ Use the
button to select the desired vehicle, then press M/Enter . Proceed to step
9.
If the vehicle does not have OEM Diagnostic Trouble Codes, the screen displays results as
“Global OBD2”. Proceed to step 9.
9. After approximately 2~3 seconds, the Diagnostic Tool will retrieve and display any Diagnostic Trouble Codes
(DTCs), Monitor Status and Freeze Frame Data retrieved from the vehicle’s computer memory.
The Diagnostic Tool will display a code only if codes are present. If no codes are present,
the message “No Powertrain DTCs or Freeze Frame Data presently stored in the vehicle’s
computer” displays.
10. Refer to DISPLAY FUNCTIONS for a description of display elements.
NOTE: In the case of long code denitions, a small arrow is shown in the upper/
lower right-hand corner of the display area to indicate the presence of additional
information.
NOTE: If a denition for the currently displayed code is not available, an advisory
message shows.
11. Read and interpret the Diagnostic Trouble Codes using the LCD display and the green, yellow, and red LEDs.
NOTE: The green, yellow, and red LEDs are used (with the LCD display)
as visual aids to make it easier for the user to determine engine system
conditions.
Green LED - Indicates that all engine systems are ”OK” and running
normally. All monitors on the vehicle are active and are performing their
USING THE DIAGNOSTIC TOOL
Retrieving OBD2 Diagnostic Trouble Codes
12
diagnostic testing, and no trouble codes are present. The message No DTC will show on the Diagnostic
Tool’s LCD display for further conrmation.
Yellow LED - Indicates one of the following conditions:
[A] PENDING CODE PRESENT - If the yellow LED is illuminated, it may
indicate a Pending code is present. Check the display for conrmation. A
Pending code is conrmed by the presence of a numeric code and the
word Pending.
[B] MONITOR NOT RUN STATUS - If the display
shows a zero (indicating there are no DTC’s present in the vehicle’s computer
memory), but the yellow LED is illuminated, it may be an indication that some of
the Monitors supported by the vehicle have not yet run and completed their
diagnostic testing. Check the display for conrmation. All Monitor icons that are
blinking have not yet run and completed their diagnostic testing; all Monitor
icons that are solid have run and completed their diagnostic testing
Red LED - Indicates there is a problem with one or more of the vehicle’s
systems. The red LED is also used to indicate that DTC(s) are present. In
this case, the Malfunction Indicator (Check Engine) lamp on the vehicle’s
instrument panel will be illuminated.
NOTE: DTC’s that start with “P0”, “P2” and some “P3” are considered
Generic (Universal). All Generic DTC denitions are the same on all
OBD2 equipped vehicles. The Diagnostic Tool automatically displays the
code denitions (if available) for Generic DTC’s.
NOTE: DTC’s that start with “P1” and some “P3” are Manufacturer specic codes –
their code denitions will vary with each vehicle manufacturer.
12. If more than one Diagnostic Trouble Code (DTC) was retrieved:
Press the M/Enter
, as necessary, to view Freeze Frame data associated to DTC #1.
Press and release DTC/FF/ to view additional stored codes. Each time DTC/FF/ is
pressed and released, the Diagnostic Tool will scroll and display the next DTC in sequence
until all DTCs in its memory have displayed.
In OBD2 systems, when an emissions-related engine malfunction occurs
that causes a DTC to set, a record or snapshot of engine conditions
at the time that the malfunction occurred is also saved in the vehicle’s
computer memory. The record saved is called Freeze Frame data. Saved
engine conditions include, but are not limited to: engine speed, open or
closed loop operation, fuel system commands, coolant temperature,
calculated load value, fuel pressure, vehicle speed, air flow rate, and
intake manifold pressure.
NOTE: If more than one malfunction is present that causes more than one DTC to be
set, only the code with the highest priority will contain Freeze Frame data. The code
designated “01” on the Diagnostic Tool display is referred to as the PRIORITY code
13
USING THE DIAGNOSTIC TOOL
Erasing Diagnostic Trouble Codes (DTCs)
and Freeze Frame data always refers to this code. The priority code is also the one
that has commanded the MIL (Check Engine) lamp on.
NOTE: Retrieved information can be uploaded to a Personal Computer (PC) with
the use of optional software (see instructions included with the software for more
information).
13. When the last retrieved DTC has been displayed and the DTC/FF/
button is pressed, the Diagnostic Tool
returns to the “Priority” code.
14. Determine engine system(s) condition by viewing the display for any retrieved Diagnostic Trouble Codes, code
denitions and Freeze Frame data, interpreting the green, yellow, and red LEDs.
If DTCs were retrieved and you are going to perform the repairs yourself, proceed by consulting
the Vehicle’s Service Repair Manual for testing instructions, testing procedures, and ow charts
related to retrieved code(s).
NOTE: To prolong battery life, the Diagnostic Tool automatically shuts “Off”
approximately three minutes after it is disconnected from the vehicle. The DTCs
retrieved, Monitor Status and Freeze Frame data (if any) will remain in the Diagnostic
Tool’s memory, and may be viewed at any time by turning the unit “On”. If the
Diagnostic Tool’s batteries are removed, or if the Diagnostic Tool is re-linked to a
vehicle to retrieve codes/data, any prior codes/data in its memory are automatically
cleared.
ERASING DIAGNOSTIC TROUBLE CODES (DTCs)
NOTE: When the Diagnostic Tool’s ERASE function is used to erase the DTCs from
the vehicle’s on-board computer, “Freeze Frame” data and manufacturer-specic
enhanced data are also erased. “Permanent” DTCs ARE NOT erased by the ERASE
function.
If you plan to take the vehicle to a Service Center for repair, DO NOT erase the codes from the vehicle’s computer. If
the codes are erased, valuable information that might help the technician troubleshoot the problem will also be erased.
Erase DTCs from the computer’s memory as follows:
NOTE: When DTCs are erased from the vehicle’s computer memory, the I/M
Readiness Monitor Status program resets status of all the Monitors to a not run
condition. To set all of the Monitors to a DONE status, an OBD2 Drive Cycle must be
performed.
1. If not connected already, connect the Diagnostic Tool to the vehicle’s DLC, and turn the ignition “ON”, but do
not start the engine. (If the Diagnostic Tool is already connected and linked to the vehicle’s computer, proceed
directly to step 3. If not, continue to step 2).
2. Perform the Code Retrieval procedure [See page 10]:
To erase OBD2 DTCs, wait until the codes are displayed.
USING THE DIAGNOSTIC TOOL
Battery Alternator Test
14
and Freeze Frame data always refers to this code. The priority code is also the one
that has commanded the MIL (Check Engine) lamp on.
NOTE: Retrieved information can be uploaded to a Personal Computer (PC) with
the use of optional software (see instructions included with the software for more
information).
13. When the last retrieved DTC has been displayed and the DTC/FF/
button is pressed, the Diagnostic Tool
returns to the “Priority” code.
14. Determine engine system(s) condition by viewing the display for any retrieved Diagnostic Trouble Codes, code
denitions and Freeze Frame data, interpreting the green, yellow, and red LEDs.
If DTCs were retrieved and you are going to perform the repairs yourself, proceed by consulting
the Vehicle’s Service Repair Manual for testing instructions, testing procedures, and ow charts
related to retrieved code(s).
NOTE: To prolong battery life, the Diagnostic Tool automatically shuts “Off”
approximately three minutes after it is disconnected from the vehicle. The DTCs
retrieved, Monitor Status and Freeze Frame data (if any) will remain in the Diagnostic
Tool’s memory, and may be viewed at any time by turning the unit “On”. If the
Diagnostic Tool’s batteries are removed, or if the Diagnostic Tool is re-linked to a
vehicle to retrieve codes/data, any prior codes/data in its memory are automatically
cleared.
ERASING DIAGNOSTIC TROUBLE CODES (DTCs)
NOTE: When the Diagnostic Tool’s ERASE function is used to erase the DTCs from
the vehicle’s on-board computer, “Freeze Frame” data and manufacturer-specic
enhanced data are also erased. “Permanent” DTCs ARE NOT erased by the ERASE
function.
If you plan to take the vehicle to a Service Center for repair, DO NOT erase the codes from the vehicle’s computer. If
the codes are erased, valuable information that might help the technician troubleshoot the problem will also be erased.
Erase DTCs from the computer’s memory as follows:
NOTE: When DTCs are erased from the vehicle’s computer memory, the I/M
Readiness Monitor Status program resets status of all the Monitors to a not run
condition. To set all of the Monitors to a DONE status, an OBD2 Drive Cycle must be
performed.
1. If not connected already, connect the Diagnostic Tool to the vehicle’s DLC, and turn the ignition “ON”, but do
not start the engine. (If the Diagnostic Tool is already connected and linked to the vehicle’s computer, proceed
directly to step 3. If not, continue to step 2).
2. Perform the Code Retrieval procedure [See page 10]:
To erase OBD2 DTCs, wait until the codes are displayed.
3. Press and release ERASE . A conrmation message shows.
If you are sure you want to proceed, choose Yes to continue.
If you do not want to proceed, choose No to cancel the erase procedure.
4. If you chose to erase DTCs, a “One moment please…” message displays while the
erase function is in progress.
NOTE: If the vehicle’s engine is running, an advisory message shows.
Turn the engine OFF, then turn the ignition back to ON. DO NOT start the engine.
Choose Erase DTCs to continue.
If the erase was successful, a conrmation message shows. The
Diagnostic Tool automatically relinks to the vehicle’s computer after 3
seconds.
NOTE: If the erase was not successful and ECU error code $22 is
present, an advisory message displays. Start the engine and maintain
vehicle speed at 0. Choose ERASE
to try again.
If the erase was not successful, an advisory message displays indicating that the erase request
was sent to the vehicle’s computer. After 3 seconds, the Diagnostic Tool will automatically relink
to the vehicle’s computer.
BATTERY ALTERNATOR TEST
The Diagnostic Tool can perform a check of the vehicle’s battery and alternator system to ensure the system is operating
within acceptable limits. You can perform a battery check only, or an alternator system (battery and alternator) check.
PERFORM A BATTERY CHECK ONLY
When Battery/Alternator Test is selected from the Main Menu and the vehicle is not an electric or hybrid vehicle, the
Battery/Alternator Test menu displays. Proceed to step 3.
1. Press M/Enter
and release.
The Main Menu displays.
2. Select Battery/Alternator Test, then press M/Enter
.
The Battery/Alternator Test Menu displays.
3. Select Battery Test, then press M/Enter
.
An “instructional” message displays, showing the procedures to prepare
the vehicle for the battery check.
4. Prepare the vehicle for the battery check:
Turn the engine OFF.
15
USING THE DIAGNOSTIC TOOL
Battery Alternator Test
Place the transmission in PARK or NEUTRAL and set the parking brake.
Make a visual check of the battery’s condition. If the battery terminals are corroded or other
damage is present, clean or replace the battery as appropriate.
For “unsealed” batteries, make sure the water level in each cell is above the battery plates.
Turn the ignition on. DO NOT start the engine.Choose Next to proceed.
NOTE: If the engine is running, an advisory message shows. Turn the engine off,
then turn the ignition on. DO NOT start the engine. Press M/Enter
to continue.
An “instructional” message displays.
5. Turn the vehicle’s headlights on, then choose Next to proceed.
A “countdown” message shows while the battery check is in process.
If battery voltage is less than 12.1 volts, an advisory message shows. Turn the ignition OFF
and disconnect the Diagnostic Tool from the vehicle. Fully charge the battery, then repeat the
battery check.
If battery voltage is greater than 12.1 volts, an “instructional” message shows.
6. Turn the vehicle’s headlights OFF, then choose Next to proceed.
An “instructional” message shows.
7. Start the vehicle’s engine. Allow the engine to run for several seconds, then turn the engine OFF. Repeat for a
total of three “start/stop” cycles.
NOTE: If the Diagnostic Tool did not detect “cranking status” for the vehicle’s
engine, an advisory message shows. Choose Retest to repeat the battery check or
choose Exit to return to the Main Menu.
8. When the battery check is complete, a results screen displays with the battery’s status.
9. Choose M/Enter
button to return to the Main Menu.
PERFORM A CHARGING SYSTEM CHECK
When Battery/Alternator Test is selected from the Main Menu and the Battery/Alternator Monitor menu displays.
Proceed to step 3.
1. Press the M/Enter
button and release.
The Main Menu displays.
2. Select Battery/Alternator Test, then press M/Enter
.
The Battery/Alternator Test Menu displays.
3. Select Alternator Test, then press M/Enter
.
An “instructional” message shows.
4. Start and warm the engine to normal operating temperature. Turn on the headlights.
Choose Next to proceed.
USING THE DIAGNOSTIC TOOL
Live Data Mode
16
An “instructional” message shows.
5. Press the accelerator pedal to raise engine speed to 2000 RPM, and maintain the engine speed.
When engine speed is within the required range, the alternator test begins. A progress screen
shows.
When the “countdown” timer expires, an “instructional” message shows.
6. Turn the vehicle’s headlights OFF, and return the engine to idle speed.
A “One moment please…” message displays while the test results are retrieved.
7. When the alternator check is complete, a results screen shows charging system voltage and indicates whether or
not the charging system is within acceptable limits.
8. Choose M/Enter
button to return to the Main Menu.
LIVE DATA MODE
The Diagnostic Tool lets you view “real-time” Live Data. This information includes values (volts, rpm, temperature,
speed etc.) and system status information (open loop, closed loop, fuel system status, etc.) generated by the various
vehicle sensors, switches, and actuators. These are the same signal values generated by the sensors, actuators,
switches and/or vehicle system status information used by the vehicle’s computer when calculating and conducting
system adjustments and corrections.
The real time (Live Data) vehicle operating information (values/status) that the computer supplies to the Diagnostic Tool
for each sensor, actuator, switch, etc. is called Parameter Identication (PID) Data.
Each PID (sensor, actuator switch, status, etc.) has a set of operating characteristics and features (parameters) that
serve to identify it. The Diagnostic Tool displays this information for each sensor, actuator, switch, or status that is
supported by the vehicle under test.
DANGER: If the vehicle must be driven in order to perform a troubleshooting
procedure, ALWAYS have a second person help you. One person should drive the
vehicle while the other person observes the Diagnostic Tool data. Trying to drive
and operate the Diagnostic Tool at the same time is dangerous and could cause a
serious trafc accident.
VIEWING LIVE DATA
1. While linked to the vehicle, start the engine, then press LD button.
2. A “One moment please . . .” message displays while the Diagnostic Tool establishes
communication with the vehicle.
If the Diagnostic Tool fails to establish communication with the vehicle, a
“Communication Error” message displays.
━ Ensure the vehicle is OBD2 compliant.
━ Verify the connection at the DLC, and verify the ignition is ON.
17
USING THE DIAGNOSTIC TOOL
Live Data Mode
━ Turn the ignition OFF, wait 5 seconds, then back ON to reset the computer.
━ Press M/Enter to continue.
3. Real-time Live Data (PID) information supported by the vehicle under test displays.
If Live Data is not supported by the vehicle under test, an advisory message displays. Press
LD button to try again.
NOTE: The values for the various PIDs displayed may change as the vehicle’s
operating conditions change.
4. Only a limited amount of PID data can be displayed on the screen at one time. If additional PID data is available,
a small arrow is shown on the display. Press
button, as necessary, to view all available PID data.
If communication with the vehicle is lost while viewing Live Data, an advisory message displays.
TOOL UTILITIES & SETTINGS
Main Menu
18
TOOL UTILITIES & SETTINGS
MAIN MENU
You can use the Diagnostic Tool to perform additional diagnostic tests, view diagnostic
and vehicle information stored in the vehicle’s on-board computer and congure the
Diagnostic Tool for your particular needs. These functions are accessed through the Main
Menu. The following functions are available:
Vehicle Information - Displays the Vehicle Info menu, which lets you
retrieve and view reference information for the vehicle under test. [See
page 19]
Battery/Alternator Test - Performs a check of the vehicle’s battery and alternator system to
ensure the system is operating within acceptable limits. [See page 14]
Monitor Icons - Shows the full names for the I/M MONITOR STATUS icons and descriptions of
the meaning of the Diagnostic Tool SYSTEM STATUS LEDs. [See page 20]
LED Definitions - Provides descriptions of the meaning of the Diagnostic Tool SYSTEM
STATUS LEDs. [See page 21]
Language Selection - Sets the display language for the Diagnostic Tool to English, French or
Spanish. [See page 21]
Adjust Brightness - Adjusts the brightness of the display screen. [See page 21]
Audible Tone - Turns the Diagnostic Tool’s audible tone “on” and “off.” When turned “on,” a
tone sounds each time a button is pressed. [See page 21]
Footer - Turns the navigational “footers” at the bottom of most display screens “on” and “off”.
[See page 22]
Hotkey Legend - Shows functional descriptions for the Diagnostic Tool’s hotkeys. [See page
22]
Unit of Measurement - Sets the Unit of Measurement for the Diagnostic Tool’s display to USA
or metric. [See page 22]
Firmware Version - Displays the Diagnostic Tool’s rmware version. [See page 22]
QR RS2 App - Explains the benets of the RS2 App and QR code to download app. [See page
23]
QR RS2 App Setting - Sets the display of QR RS2 app for the “Enable” or “Disable” when
linking to the OBD2 Diagnostic Tool. [See page 23]
19
TOOL UTILITIES & SETTINGS
Viewing Vehicle Information
VIEWING VEHICLE INFORMATION
The Vehicle Information function offers three options for retrieving reference information
for the vehicle under test: Vehicle ID, Available Modules and IPT (In-Use Performance
Tracking).
RETRIEVING VEHICLE ID INFORMATION
NOTE: The Vehicle ID function is applicable to model year 2000 and
newer OBD2-compliant vehicles.
The Diagnostic Tool can retrieve a list of information (provided by the vehicle manufacturer), unique to the vehicle
under test, from the vehicle’s on-board computer. This information may include:
The vehicle’s VIN number.
The control module identication number.
The vehicle’s calibration ID(s). These IDs uniquely identify the software version(s) for the
vehicle’s control module(s).
The Vehicle’s Calibration Verication Number(s) (CVNs) required by ODB2 regulations. CVNs
are used to determine if emission-related calibrations for the vehicle under test have been
changed. One or more CVNs may be returned by the vehicle’s computer.
1. With the Diagnostic Tool in OBD2 mode, press the M/Enter
button.
The Main Menu displays.
2. Select Vehicle Information, then press M/Enter
.
The Vehicle Information menu displays.
3. Select Vehicle ID, then press M/Enter
.
NOTE: The rst time the Vehicle ID function is used, it may take several
minutes to retrieve the information from the vehicle’s computer.
4. When the retrieval process is completed, the vehicle ID information displays.
5. When you have nished viewing the retrieved vehicle ID information, choose Back
to return to the Vehicle Information menu, or select Exit to return to the Main Menu.
VIEWING AVAILABLE MODULES
The Diagnostic Tool can retrieve a list of modules supported by the vehicle under test.
1. With the Diagnostic Tool in OBD2 mode, press M/Enter .
The Main Menu displays.
2. Select Vehicle Information, then press M/Enter
.
The Vehicle Information menu displays.
TOOL UTILITIES & SETTINGS
Monitor Icons
20
3. Select Available Modules, then press M/Enter .
4. When the retrieval process is completed, a complete list of modules supported by the vehicle under test displays.
5. When you have nished viewing the list of available modules, choose Back to return to the Vehicle Information
menu, or select Exit to return to the Main Menu.
VIEWING IN-USE PERFORMANCE TRACKING (IPT)
The Diagnostic Tool can retrieve In-use Performance Tracking (IPT) statistics for monitors supported by the vehicle
under test. Two values are returned for each monitor; the number of times that all conditions necessary for a specic
monitor to detect a malfunction have been encountered (XXXCOND), and the number of times that the vehicle has
been operated under the specic conditions for the monitor (XXXCOMP). Statistics are also provided for the number of
times the vehicle has been operated in OBD monitoring conditions (OBDCOND), and the number of times the vehicle’s
engine has been started (IGNCNTR).
1. With the Diagnostic Tool in OBD2 mode, press and release the M/Enter
.
The Main Menu displays.
2. Select Vehicle Information, then press the M/Enter
button.
The Vehicle Information menu displays.
3. Select IPT, then press M/Enter
.
4. When the retrieval process is completed, the In-use Performance Tracking statistics
for the vehicle under test display.
If In-use Performance Tracking is not available for the vehicle, an advisory message displays.
Choose Back to return to the Vehicle Information menu, or select Exit to return to the Main
Menu.
5. When you have nished viewing the statistics, choose Back to return to the Vehicle Information menu, or select
Exit to return to the Main Menu.
MONITOR ICONS
Shows the full names for the I/M MONITOR STATUS icons and descriptions of the
meaning of the Diagnostic Tool SYSTEM STATUS LEDs.
1. Select Monitor Icons in the Main Menu, then press M/Enter
.
The Monitor Icons screen displays.
The screen displays the full names for the I/M MONITOR STATUS icons
and Diagnostic Tool’s hotkeys shown.
2. Press M/Enter
to return to the Main Menu.
21
TOOL UTILITIES & SETTINGS
Viewing LED (System Status) Denitions
VIEWING LED (SYSTEM STATUS) DEFINITIONS
The SYSTEM STATUS LEDs on the Diagnostic Tool provide a visual indication of the
I/M Readiness status of the vehicle under test. The LED Meaning function provides a
description of the meanings of the green, yellow, and red SYSTEM STATUS LEDs.
1. From the Main Menu, select LED Meaning, then press M/Enter
.
The LED Meaning screen displays.
2. Press M/Enter
to return to the Main Menu.
SETTING THE DISPLAY LANGUAGE
Sets the display language for the Diagnostic Tool to English, French or Spanish.
1. Select Language Selection in the Main Menu, then press M/Enter .
The Language Selection screen displays.
2. Select the desired display language (English, Español, Français). Once selected,
the screen will auto return to the Main Menu.
ADJUSTING DISPLAY BRIGHTNESS
Adjusts the brightness of the display screen.
1. Select Adjust Brightness in the Main Menu, then press M/Enter .
The Adjust Brightness screen displays.
2. Press DOWN
to make the display lighter or darker. Once selected, the screen
will auto return to the Main Menu, or select Exit to return to the previous screen.
ENABLING/DISABLING THE AUDIBLE TONE
Turns the Diagnostic Tool’s audible tone “on” and “off.” When turned “on,” a tone sounds
each time a button is pressed.
1. Select Audible Tone in the Main Menu, then press M/Enter
.
The Audible Tone screen displays.
2. Select On or Off as desired. Once selected, the screen will auto return to the Main
Menu.
TOOL UTILITIES & SETTINGS
Enabling/Disabling Footer
22
ENABLING/DISABLING FOOTER
Turns the navigational “footers” at the bottom of most display screens “on” and “off”.
1. Select Footer in Main Menu, then press M/Enter .
The Footer Messages screen displays.
2. Select On or Off as desired, then choose Save to save your changes.
VIEWING THE HOTKEY LEGEND
Shows functional descriptions for the Diagnostic Tool’s hotkeys.
1. From the Main Menu, select Hotkey Legend, the press M/Enter .
The Hotkey Legend screen displays.
The screen shows a functional description of each of the Diagnostic Tool’s
hotkeys.
2. When you have nished viewing the Hotkey Legend, choose M/Enter
to return
to the Main Menu.
SETTING THE UNIT OF MEASUREMENT
Sets the Unit of Measurement for the Diagnostic Tool’s display to USA or metric.
1. Select Unit of Measurement in the Main Menu, then press M/Enter .
The Unit of Measurement screen displays.
2. Select the desired unit of measurement (Standard or Metric), choose Exit to return
to the Main Menu.
VIEWING THE FIRMWARE VERSION
1. Select Firmware Version in the Main Menu, then press M/Enter .
The Firmware Version screen displays.
The screen shows the Diagnostic Tool’s current rmware version,
bootloader version, database version, and tool ID.
2. Press M/Enter
to return to the Main Menu.
23
TOOL UTILITIES & SETTINGS
Viewing the RepairSolutions2® (RS2) QR Code
VIEWING THE RepairSolutions2
®
(RS2) QR CODE
Explains the benets of the RS2 App and QR code to download app. [See page 7]
1. From the Main Menu, select QR RS2 App, then press M/Enter .
The QR RS2 App screen displays.
2. Press DOWN
button to navigate through available options.
Scan the displayed QR Code with a mobile device to download the RS2
App.
Select Back or choose M/Enter
to return to the Main Menu.
SETTING THE QR RS2 APP MODE
Sets the display of QR RS2 app for the “Enable” or “Disable” when linking to the OBD2
Diagnostic Tool.
1. Select QR RS2 App Settings in the Main Menu, then press M/Enter
.
The QR RS2 App Settings screen displays.
2. Select Enable or Disable as desired. Once selected, the screen will auto return to
the Main Menu.
WARRANTY+ CUSTOMER SERVICE
Limited Warranty
24
WARRANTY+ CUSTOMER SERVICE
LIMITED WARRANTY
The Manufacturer warrants to the original purchaser that this unit is free of defects in materials and workmanship under
normal use and maintenance for a period of one (1) year from the date of original purchase.
If the unit fails within the one (1) year period, it will be repaired or replaced, at the Manufacturer’s option, at no charge,
when returned prepaid to the Service Center with Proof of Purchase. The sales receipt may be used for this purpose.
Installation labor is not covered under this warranty. All replacement parts, whether new or remanufactured, assume
as their warranty period only the remaining time of this warranty.
This warranty does not apply to damage caused by improper use, accident, abuse, improper voltage, service, re,
ood, lightning, or other acts of God, or if the product was altered or repaired by anyone other than the Manufacturer’s
Service Center.
The Manufacturer, under no circumstances shall be liable for any consequential damages for breach of any written
warranty of this unit. This warranty gives you specic legal rights, and you may also have rights, which vary from state
to state. This manual is copyrighted with all rights reserved. No portion of this document may be copied or reproduced
by any means without the express written permission of the Manufacturer. THIS WARRANTY IS NOT TRANSFERABLE.
For service, send via U.P.S. (if possible) prepaid to Manufacturer. Allow 3-4 weeks for service/repair.
CUSTOMER SERVICE
Our ASE Certied technical staff is here to help if you have any questions or require service. For information on
UPDATES and OPTIONAL ACCESSORIES, please contact your local store, distributor or BLCKTEC’s Service Center.
USA & Canada: (866) 909-6777
Monday through Friday: 6:00 AM to 6:00 PM PST
Saturday: 6:00 AM to 3:00 PM PST
Web: www.blcktec.com
25
GLOSSARY
OBD2 Terminology
GLOSSARY
OBD2 TERMINOLOGY
The following terms and their denitions are related to OBD2 systems.
Powertrain Control Module (PCM) - The PCM is the OBD2 accepted term for the vehicle’s “on-board
computer.” In addition to controlling the engine management and emissions systems, the PCM also
participates in controlling the powertrain (transmission) operation. Most PCMs also have the ability to
communicate with other computers on the vehicle (ABS, ride control, body, etc.).
Monitor - Monitors are “diagnostic routines” programmed into the PCM. The PCM utilizes these programs
to run diagnostic tests, and to monitor operation of the vehicle’s emissions-related components or
systems to ensure they are operating correctly and within the vehicle’s manufacturer specications.
Currently, up to fteen Monitors are used in OBD2 systems. Additional Monitors will be added as the
OBD2 system is further developed.
NOTE: Not all vehicles support all fteen Monitors
Enabling Criteria - Each Monitor is designed to test and monitor the operation of a specic part of the
vehicle’s emissions system (EGR system, oxygen sensor, catalytic converter, etc.). A specic set of
“conditions” or “driving procedures” must be met before the computer can command a Monitor to run
tests on its related system. These “conditions” are known as “Enabling Criteria.” The requirements and
procedures vary for each Monitor. Some Monitors only require the ignition key to be turned “On” for them
to run and complete their diagnostic testing. Others may require a set of complex procedures, such
as, starting the vehicle when cold, bringing it to operating temperature, and driving the vehicle under
specic conditions before the Monitor can run and complete its diagnostic testing.
Complete / Incomplete - The terms “Complete” or “Incomplete” are used throughout this manual.
“Complete,” means the PCM has commanded a particular Monitor to perform the required diagnostic
testing on a system to ensure the system is operating correctly (within factory specications). The term
“Incomplete” means the PCM has not yet commanded a particular Monitor to perform diagnostic testing
on its associated part of the emissions system.
Trip - A Trip for a particular Monitor requires that the vehicle is being driven in such a way that all the
required “Enabling Criteria” for the Monitor to run and complete its diagnostic testing are met. The
“Trip Drive Cycle” for a particular Monitor begins when the ignition key is turned “On.” It is successfully
completed when all the “Enabling Criteria” for the Monitor to run and complete its diagnostic testing
are met by the time the ignition key is turned “Off.” Since each of the fteen monitors is designed to
run diagnostics and testing on a different part of the engine or emissions system, the “Trip Drive Cycle”
needed for each individual Monitor to run and complete varies.
OBD2 Drive Cycle - An OBD2 Drive Cycle is an extended set of driving procedures that takes into
consideration the various types of driving conditions encountered in real life. These conditions may
include starting the vehicle when it is cold, driving the vehicle at a steady speed (cruising), accelerating,
etc. An OBD2 Drive Cycle begins when the ignition key is turned “On” (when cold) and ends when the
vehicle has been driven in such a way as to have all the “Enabling Criteria” met for all its applicable
Monitors. Only those trips that provide the Enabling Criteria for all Monitors applicable to the vehicle to
run and complete their individual diagnostic tests qualify as an OBD2 Drive Cycle. OBD2 Drive Cycle
requirements vary from one model of vehicle to another. Vehicle manufacturers set these procedures.
GLOSSARY
OBD2 Monitors
26
Consult your vehicle’s service manual for OBD2 Drive Cycle procedures.
NOTE: Do not confuse a “Trip” Drive Cycle with an OBD2 Drive Cycle. A “Trip” Drive
Cycle provides the “Enabling Criteria” for one specic Monitor to run and complete
its diagnostic testing. An OBD2 Drive Cycle must meet the “Enabling Criteria” for all
Monitors on a particular vehicle to run and complete their diagnostic testing.
Warm-up Cycle - Vehicle operation after an engine off period where engine temperature rises at least
40°F (22°C) from its temperature before starting, and reaches at least 160°F (70°C). The PCM uses
warm-up cycles as a counter to automatically erase a specic code and related data from its memory.
When no faults related to the original problem are detected within a specied number of warm-up cycles,
the code is erased automatically.
OBD2 MONITORS
To ensure the correct operation of the various emissions-related components and systems, a diagnostic program was
developed and installed in the vehicle’s on-board computer. The program has several procedures and diagnostic
strategies. Each procedure or diagnostic strategy is made to monitor the operation of, and run diagnostic tests on, a
specic emissions-related component or system. These tests ensure the system is running correctly and is within the
manufacturer’s specications. On OBD2 systems, these procedures and diagnostic strategies are called “Monitors.”
Currently, fteen Monitors are supported by OBD2 systems. Additional monitors may be added because of Government
regulations as the OBD2 system grows and matures. Not all vehicles support all fteen Monitors. Additionally, some
Monitors are supported by “spark ignition” vehicles only, while others are supported by “compression ignition” vehicles
only.
Monitor operation is either “Continuous” or “Non-Continuous,” depending on the specic monitor.
CONTINUOUS MONITORS
Three of these Monitors are designed to constantly monitor their associated components and/or systems for proper
operation. Continuous Monitors run constantly when the engine is running.
= Comprehensive Component Monitor
= Misre Monitor
= Fuel System Monitor
NON-CONTINUOUS MONITORS
The other twelve Monitors are “non-continuous” Monitors. “Non-continuous” Monitors perform and complete their
testing once per trip.
27
GLOSSARY
Additional Terminology + Acronyms
= Oxygen Sensor Monitor
= Oxygen Sensor Heater Monitor
= Catalyst Monitor
= Heated Catalyst Monitor
= EGR (Exhaust Gas Recirculation) System Monitor
= EVAP System Monitor
= Secondary Air System Monitor
NOTE: The following Monitors became standard beginning in 2010. The majority of
vehicles produced before this time will not support these Monitors.
= NMHC (Non-Methane Hydrocarbon Converting) Catalyst Monitor
= NOx/SCR Aftertreatment Monitor
= Boost Pressure System Monitor
= Exhaust Gas Sensor Monitor
= PM (Particulate Matter) Filter Monitor
ADDITIONAL TERMINOLOGY + ACRONYMS
DLC = Data Link Connector (vehicle’s data port)
DTC = Diagnostic Trouble Codes
MIL = Malfunction Indicator Lamp (Check Engine Light)
OBD = On Board Diagnostics
OBD2 / OBD II = On Board Diagnostics, Second Generation
OEM = Original Equipment Manufacturer
TSBs = Technical Service Bulletins
Designed in California, U.S.A
Copyright © 2022 McGaaw LLC. All rights reserved.
U.S. Patents www.blcktec.com/patents. Other Patents Pending.
V.00.01
For additional information, support, and FAQs:
www.blcktec.com
ASE Certied Technicians
(866) 909-6777
1 YEAR WARRANTY
Support in U.S.A. by
