Model: 52878 Matte White
Fan weight ±2 lbs: 14.6 lbs (6.6 kg)
Installation Manual
Geisel
PG4206 r120324
Step 1: Scan QR code with smart phone or tablet
Step 2: Follow on screen instructions
Step 3: Register your product
3D INTERActive GUIDE
Our digital guided installation
takes you seamlessly from
unboxing to completion with
clear instructions and visual
aids. With the convenience
of accessing the guide on
your smartphone, tablet,
or computer, you can take
your installation experience
wherever you go.
SCAN ME
Warning
w.1 - To reduce the risk of re, electrical shock, or personal injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg)
and use the mounting screws provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch
location. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.
w.3 – To reduce the risk of electric shock, this fan must be installed with an isolating wall control/switch.
w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in
between rotating fan blades.
w.5 - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision. It is recommended that children be supervised to ensure that they are not using the appliance
improperly.
w.6 - To reduce the risk of re or electric shock or injury to persons, do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home
using a 3D printer).
Caution
c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.
c.2 - Use only Hunter replacement parts.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance
with the instructions may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: modications not approved by the party responsible for compliance could void user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Ladder Screwdriver
Pliers
Wire Strippers
9/64" Drill BitDrill
OPTIONAL
If mounting to a support structure, you will also need
these tools.

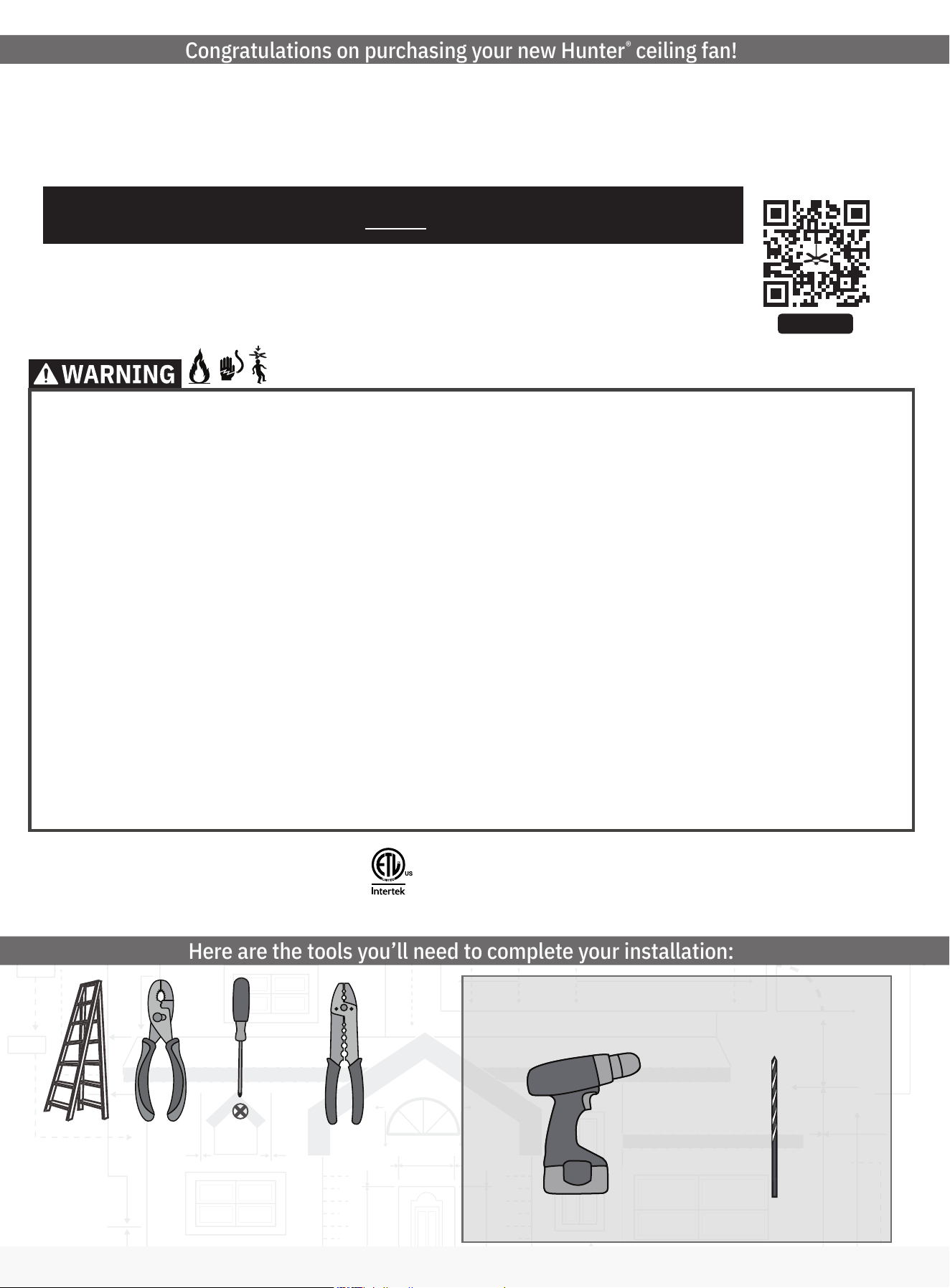

Congratulations on purchasing your new Hunter
®
ceiling fan!
Here are the tools you’ll need to complete your installation:
1
The ceiling fan you purchased will provide comfort and performance in your home or ofce for many years. This instruction manual
contains complete instructions for installing and operating your fan. We are proud of our work and appreciate the opportunity to
supply you with the best ceiling fan available anywhere in the world. This Instruction Manual is designed to make installation as
simple as possible. If you are unfamiliar or uncomfortable with wiring, contact a qualied electrician. We also provide telephone
support at 1.888.830.1326 or visit us at HunterFan.com.
To activate your free limited lifetime warranty, please scan the QR code and register your product. This will
ensure you receive exceptional service and support for years to come.
READ and SAVE These Instructions
This product conforms to
UL Standard 507.
© 2024 Hunter Fan Company
7130 Goodlett Farms Pkwy, Suite 400
Memphis TN 38016
REGISTER TODAY!
FREE Limited Lifetime Warranty
SCAN ME
2
1886
1886
Do not discard the hardware bags or mix parts from
different bags. Make note of the symbol printed on
each hardware bag. The symbols can be used to
identify the appropriate hardware for each step.
We recommend that you pull everything out of the box and lay it out. We have
grouped the drawn components below with the hardware you’ll need for those
parts. The screws below are drawn to scale to make it easier to identify what
piece of hardware is needed to install each component.
x4
x2
x2
x2
For installing the hanger bracket and wiring the fan

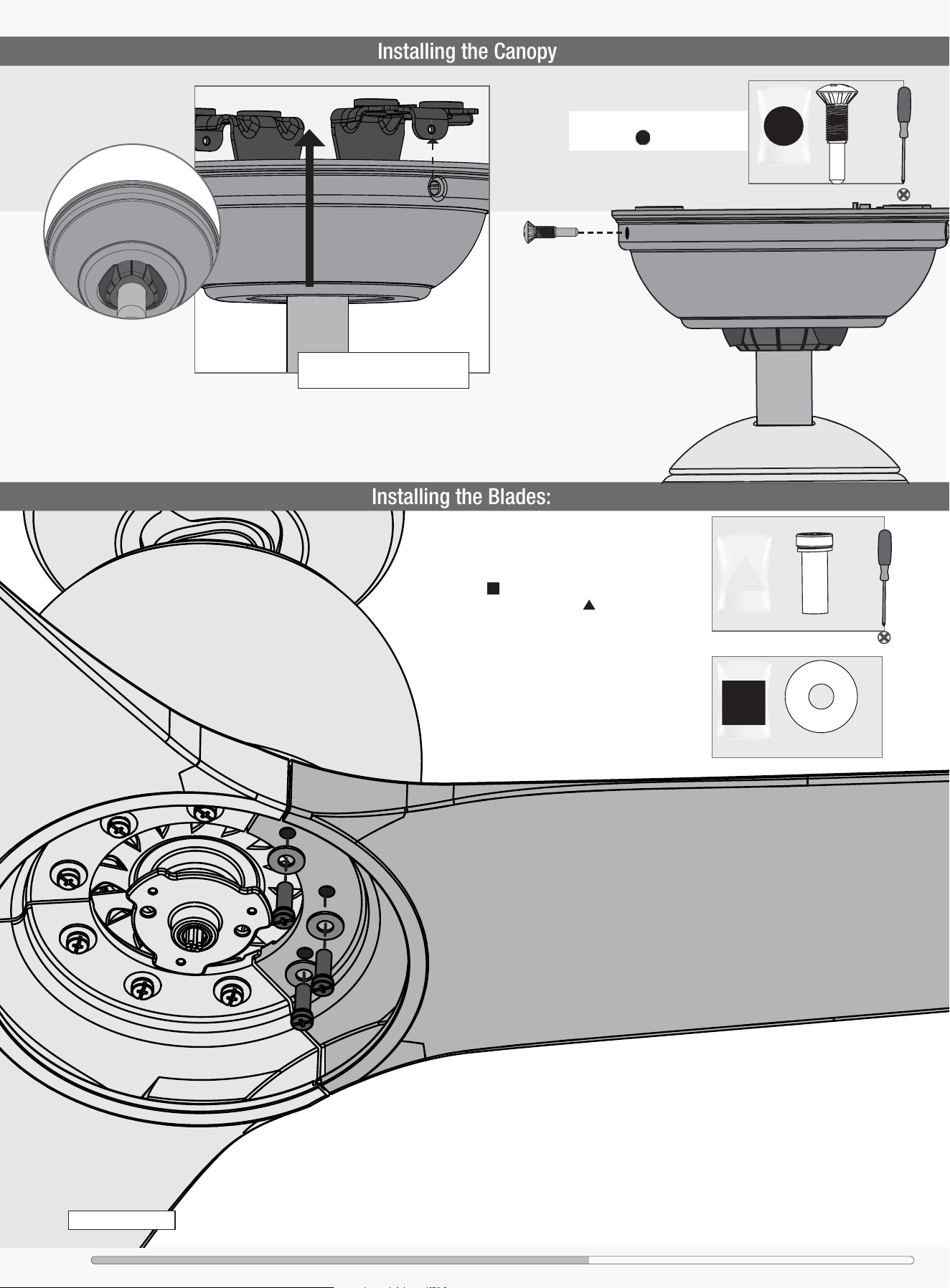

For installing the canopy
Canopy
Canopy Screw
Ceiling Bracket
Wood Screw
Wire Nut
Washer
bag
Hunter Pro Tip:
Find a part that is missing or damaged?
Don’t take it back to the store. Let us make it right. Visit us at HunterFan.com or call us at 1.888.830.1326.

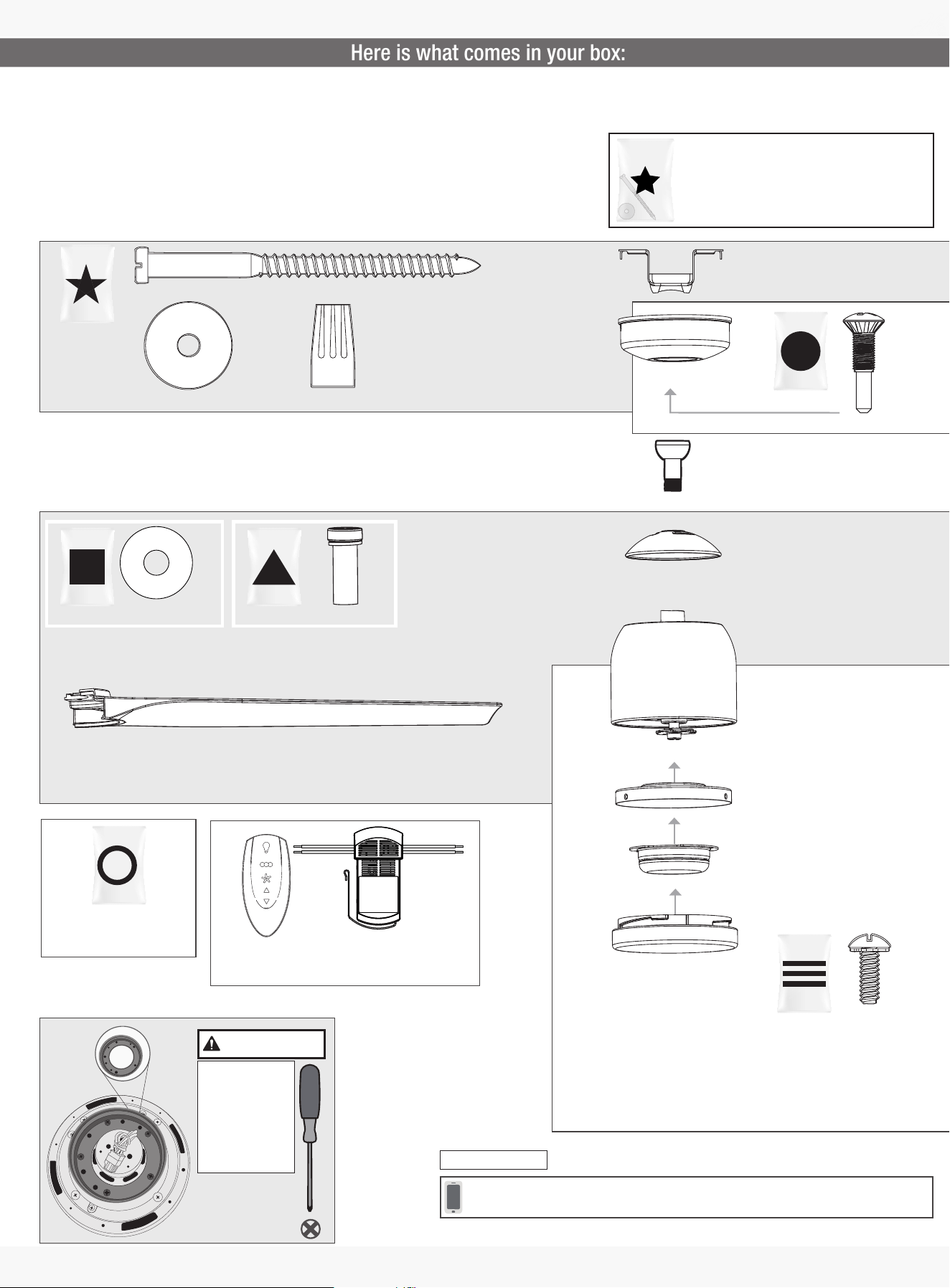

Here is what comes in your box:
bag
x9 x9
For installing the blades

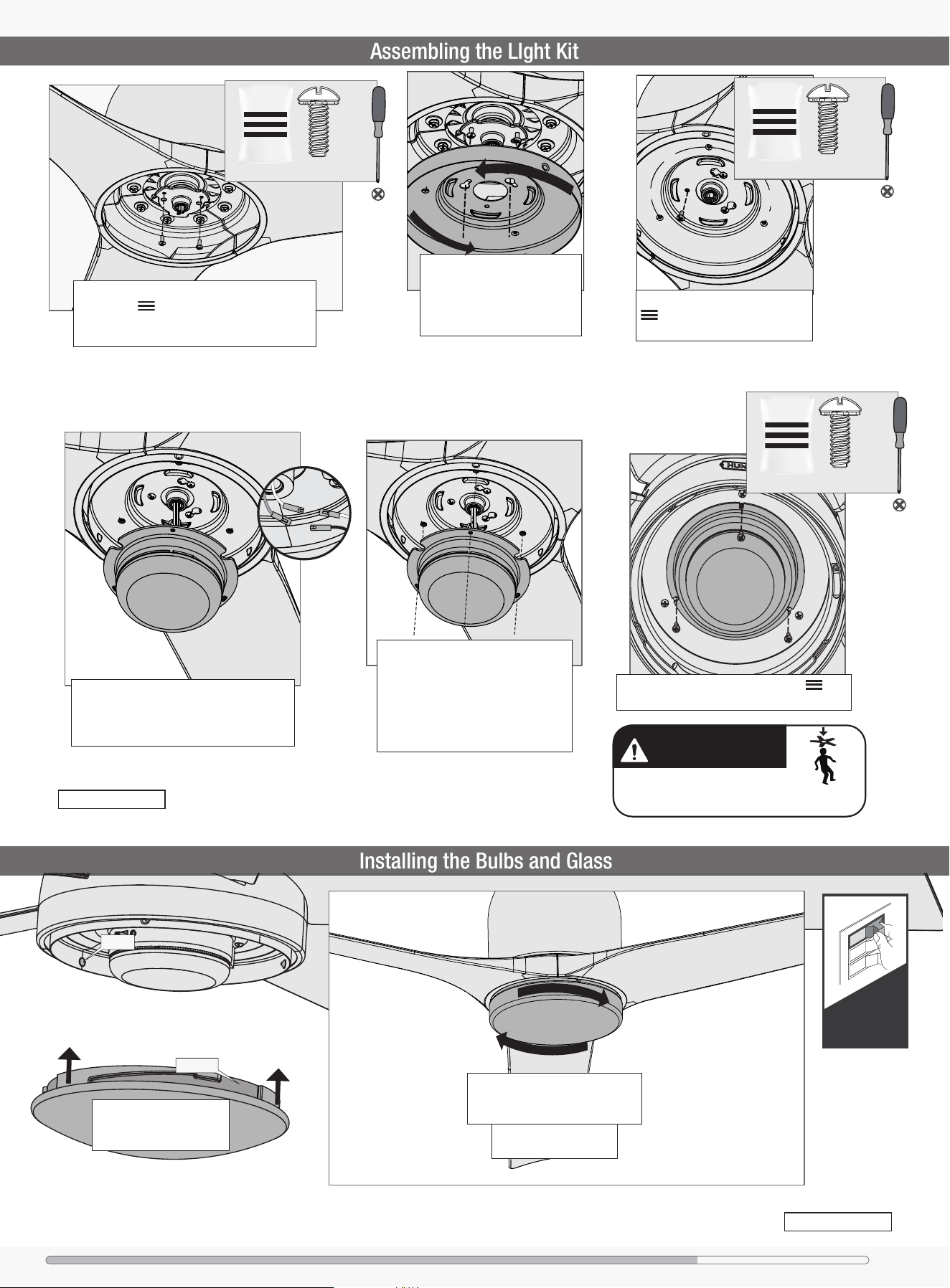

For installing the light kit
Globe
Upper Switch Housing
Motor
Blade ScrewBlade Washer
bag bag
x6
Light Kit Screw
bag
Downrod
M4093-01 r120324
x3
Blade
Fan style may vary.
Note:
LED Module
For your convenience,
you may receive extra fasteners.
bag
Remote Components
Remote Control
Remote Receiver
Adapter cover
D
I
S
C
A
R
D
Remove the
shipping ring
from the motor.
Discard the
screws.
IMPORTANT
3
1886
1886

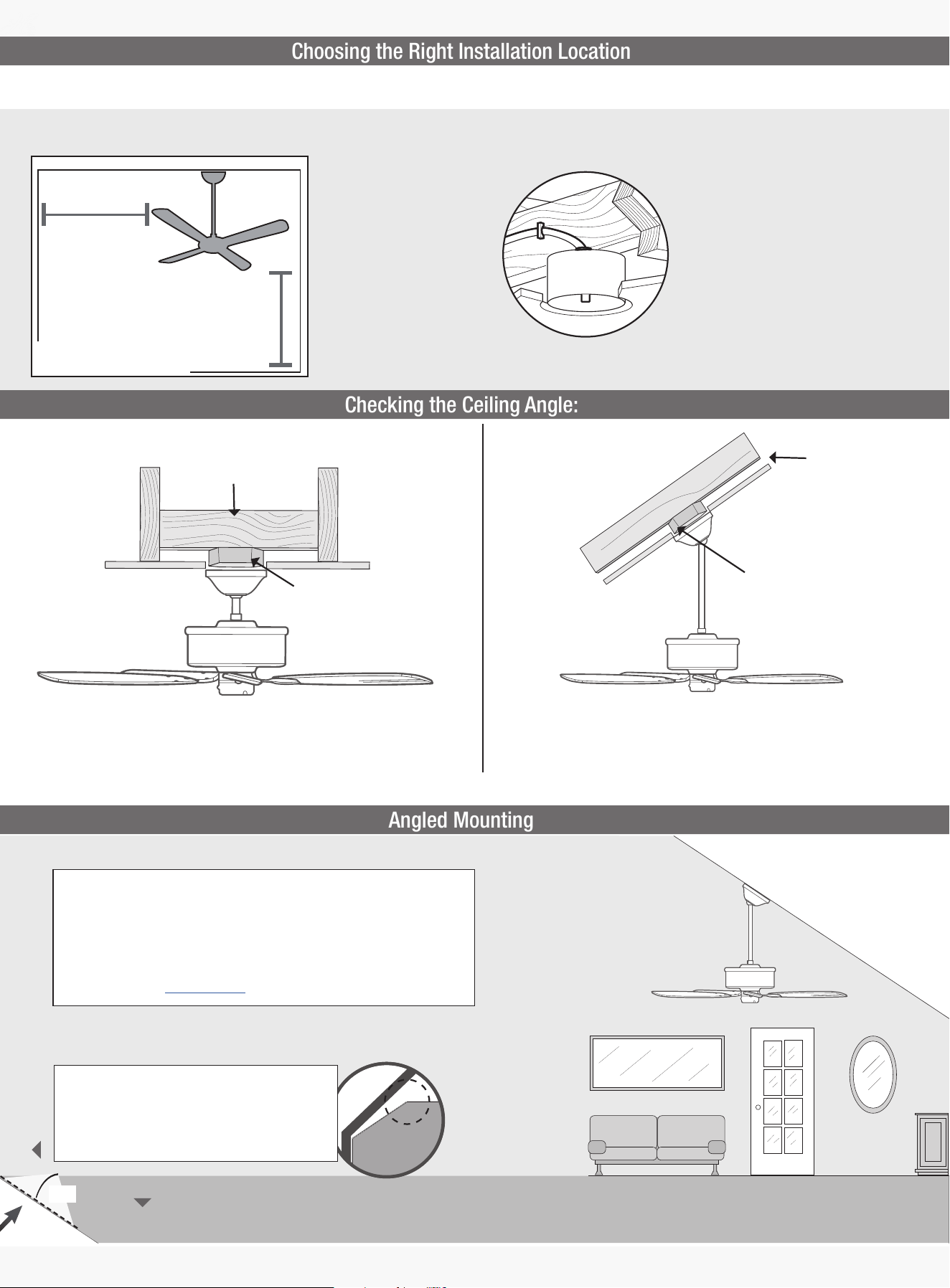

Choosing the Right Installation Location
Checking the Ceiling Angle:
Angled Mounting
You probably bought this fan with a location in mind. Let’s check below to make sure it is a good fit.
If you have an angled or vaulted ceiling:
1. You will need a longer downrod. (sold separately at HunterFan.com)
2. If your ceiling angle is greater than 34°, you will also need an
Angled Mounting Kit. (Sold separately at HunterFan.com)
Check the room dimensions: Check the outlet box:
You must be able to
secure the fan to building
structure or fan-rated
outlet box.
30 inches
from blade tip to
nearest wall or
obstruction
7 feet
from bottom edge
of blade to the
oor
Support
Structure
Ceiling
Outlet Box
(required)
Angled Mounting
If you have a at ceiling:
Hang your fan by a standard downrod. Some fans come
with a shorter downrod for a Low Profile installation.
Support Structure
Ceiling
Outlet Box
(required)
Standard Mounting
A little more information on Angled Mounting:
For optimum performance and appearance, a longer downrod should
be used with your Hunter ceiling fan when installing on high or angled
ceiling. If your ceiling is angled greater than 34° you will also need an
Angled Mounting Kit. Longer downrods and the Angled Mounting Kit are
sold separately at HunterFan.com.
Determining if you need an Angled Mounting Kit:
Fold on the dotted line. Place against edge againts
the wall. Slide towards the ceiling.
If the guide touches the wall but not the ceiling, you
need an angled mounting kit.
Hunter Pro Tip:
CEILING
WALL
34°

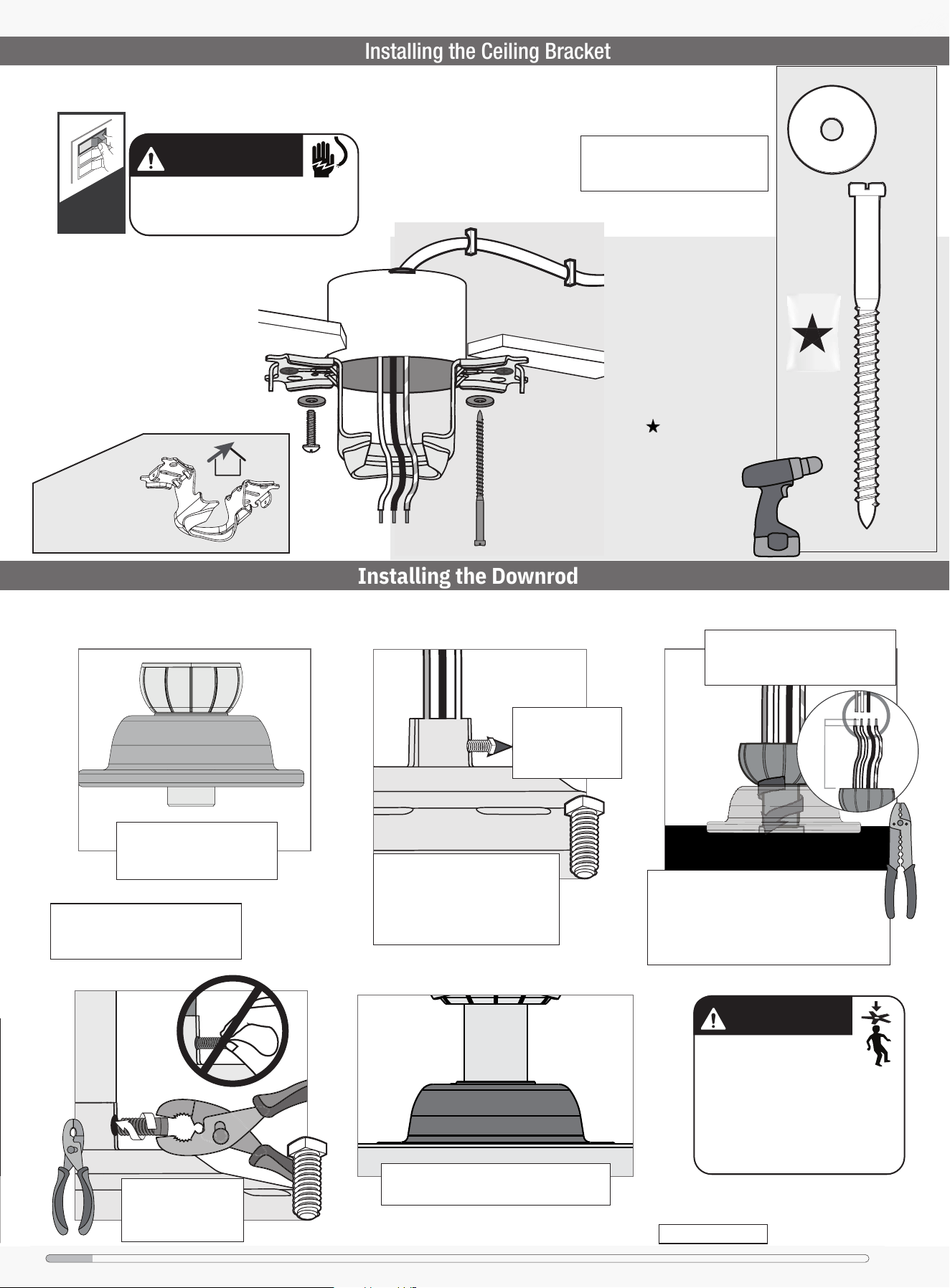

Installing the Ceiling Bracket
4
1886
1886
Check the outlet box:
Use wood screws and
washers (included) when
securing to support structure
with approved electrical
outlet box. Drill 9/64” pilot
holes in support structure
to aid in securing ceiling
bracket with hardware found
in the hardware bag.
Use machine screws (provided with
outlet box) and washers when secur-
ing to existing ceiling fan-rated outlet
box. Make sure it is securely installed
and is acceptable for fan support of
31.8 kg (70 lbs).
Option 2:
Wood Screws
Option 1:
Machine Screws
OFF
Turn Power
Do this first!
The machine screws are the ones
that came with your outlet box.
Hunter Pro Tip:
For angled ceilings,
point opening
toward peak.
ANGLE
D MOUNTING TIP
bag
Wood Screw
Washer
x2
x2
You have two options for installation. Pick which one works best for your location. Remove any existing
bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box.
Ceiling Bracket Hanging Fan Wiring Blades Light Remote
Installing the Ceiling Bracket
WARNING
To avoid possible electrical shock, before
installing your fan, disconnect the power by
turning off the circuit breakers to the outlet
box associated with the wall switch location.
1886
1886
2

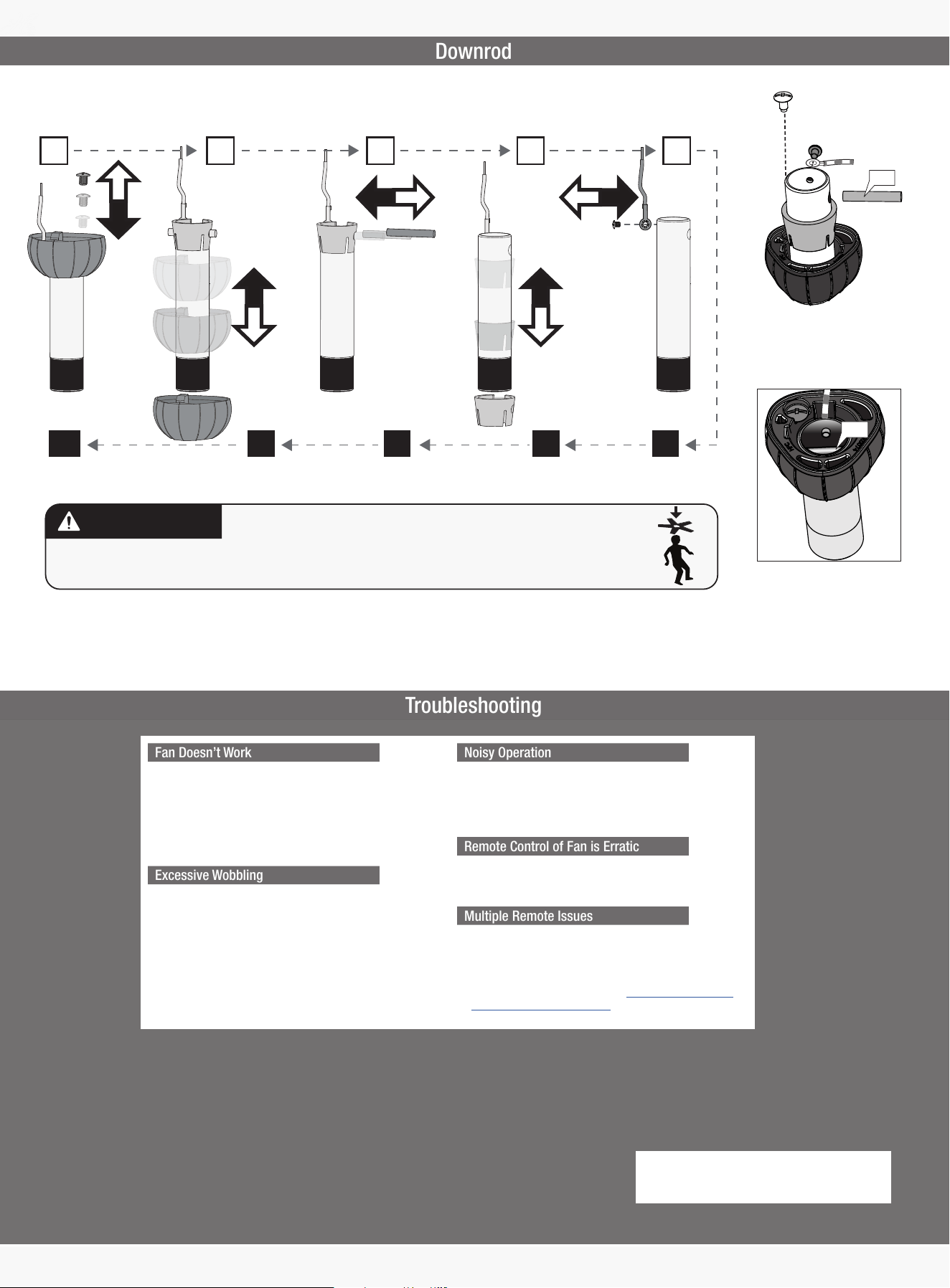

Follow below if you are using the downrod that came pre-assembled in your box. Need to install a
longer or shorter downrod? Check out the guide at the end of this manual.
Slide the adapter cover onto the
downrod until it rests against
the hanger ball.
Pass all wires to one side of horizontal bar in
downrod assembly. Hand tighten the downrod (at
least 4–5 full turns) until it stops. Trim the wires
coming from the fan so that 8-inches remain
coming from the top of the downrod.
Hunter Pro Tip:
The ground wire attached to the
downrod is approximately 8 inches.
Hunter Pro Tip:
The adapter cover is not used
for low-profi le mounting.
Installing the Downrod
Tighten the setscrew
with pliers. DO NOT
HAND TIGHTEN.
WARNING
FAN FALL HAZARD
To prevent SERIOUS INJURY or DEATH:
• ALWAYS tighten setscrew with pliers.
• DO NOT
hand tighten setscrew.
• CHECK
the setscrew is tight using pliers
each time you change fan direction.
Lower the adapter cover until it rests flush
against the motor housing.
Fan style may vary.
Note:
K
E
E
P
!
Back out the pre-installed setscrew
so that the setscrew’s threads are still
engaged while the shank does not
protrude and obstruct the insertion of
the downrod.
DO NOT REMOVE
SETSCREW
COMPLETELY
8”
3/8”
C
U
T
&
S
T
R
I
P
(not to scale)
DR-01 r101724
5
1886
1886
Ceiling Bracket Hanging Fan Wiring Blades Light Remote

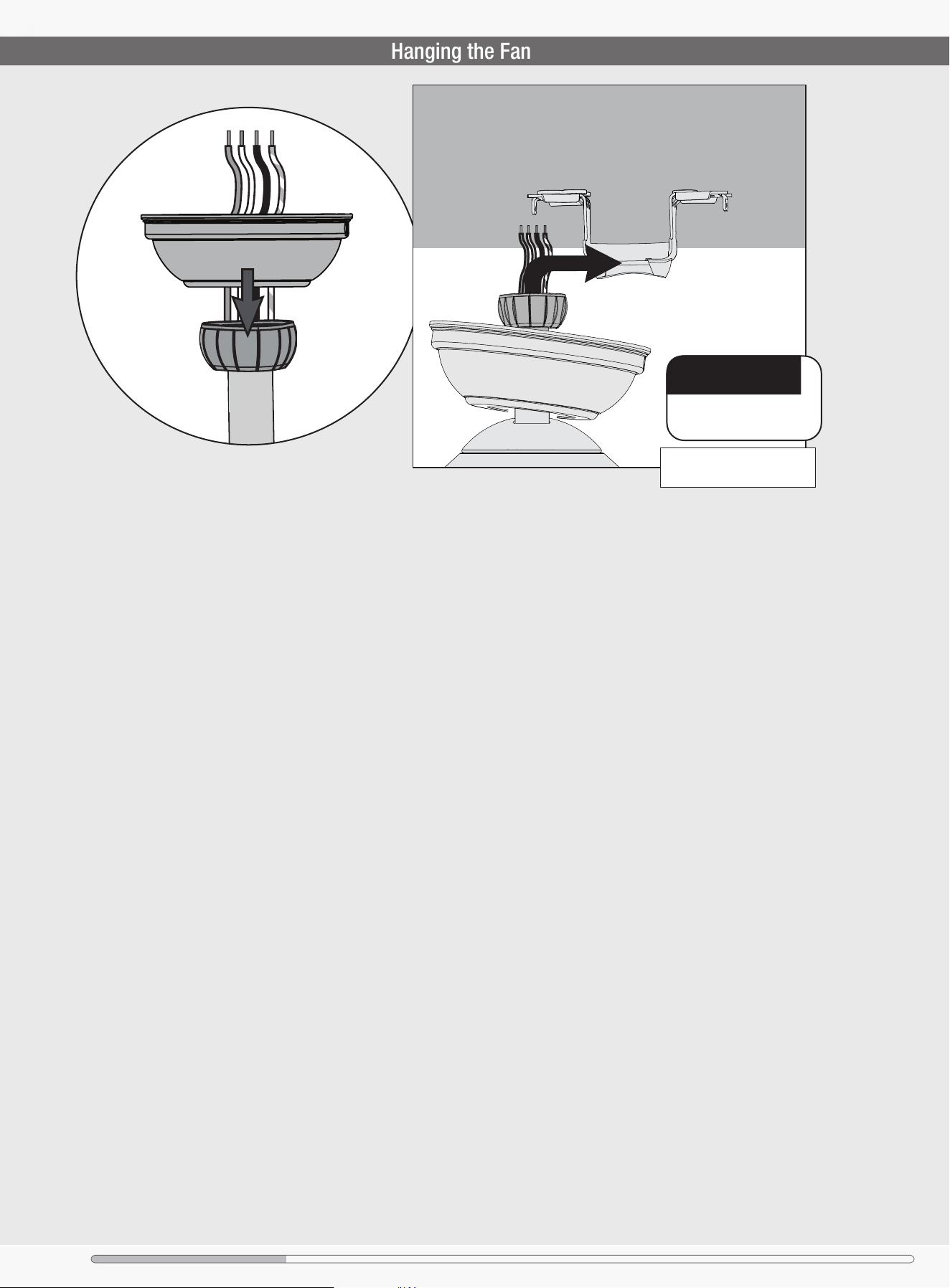

Hanging the Fan
S
l
i
d
e
c
a
n
o
p
y
o
v
e
r
d
o
w
n
r
o
d
a
n
d
w
i
r
e
s
.
Place the downrod ball into
the slot in the ceiling bracket.
NOTICE
To prevent damage to fan,
ALWAYS lift holding either the
fan housing or the downrod.
6
1886
1886
Ceiling Bracket Hanging Fan Wiring Blades Light Remote

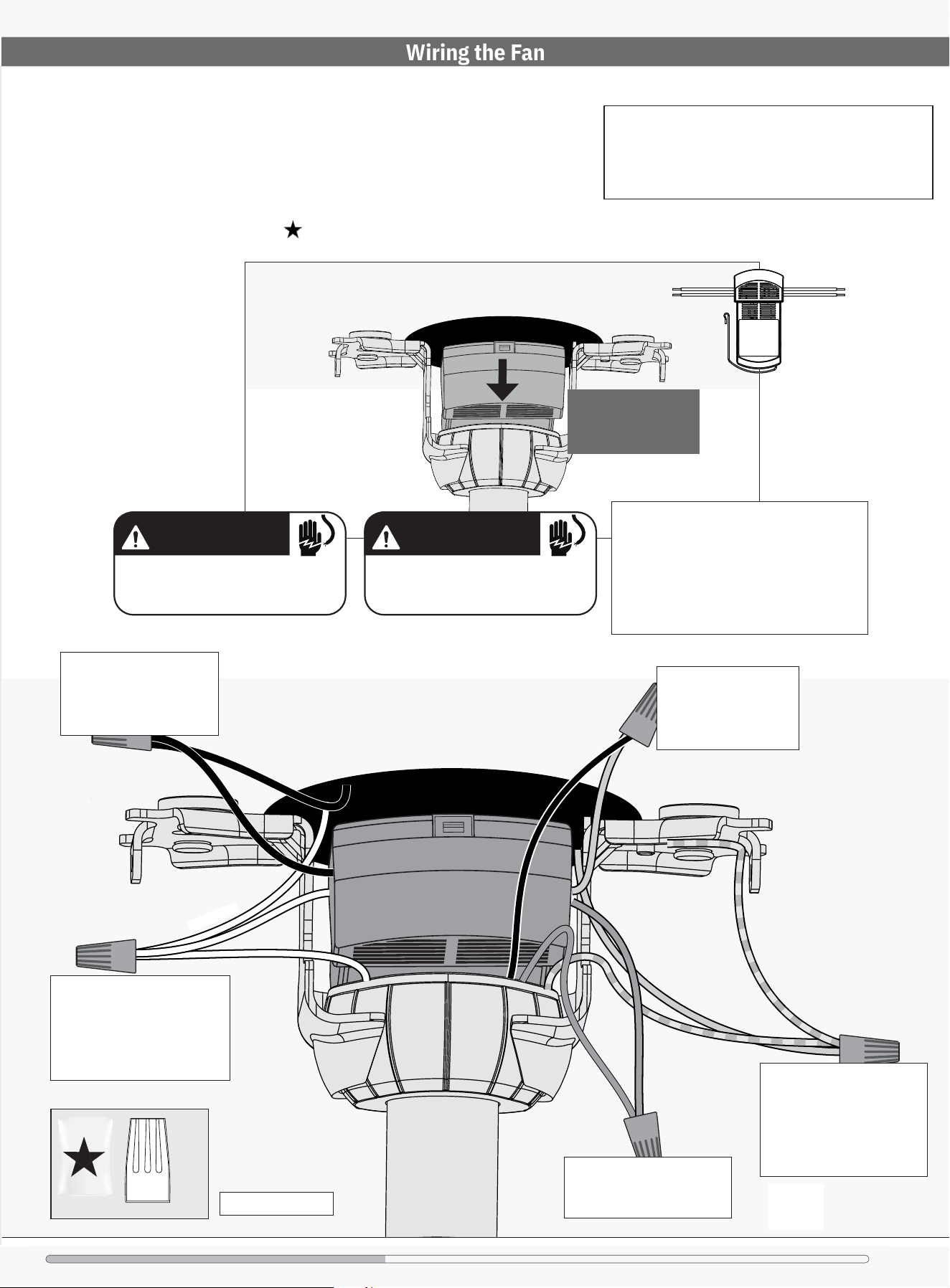

Wiring the Fan
Blue
Grounding
G
r
e
e
n
/
Y
e
l
l
o
w
S
t
r
i
p
e
Green/Yellow Stripe
Black
Black
Ungrounded
Connect the three
grounding wires (green,
green/yellow stripe, or
bare copper) coming from
the ceiling, downrod, and
hanging bracket.
Connect the yellow
wire from the receiver
to the black wire from
the fan.
Yellow
Connect the blue wire
from the receiver to the
blue wire from the fan.
Connect the white
(grounded) wire from the
ceiling to both the white
wire from the receiver and
the white wire from the fan.
White
White
Grounded
Connect the black
(ungrounded) wire from
the ceiling to the black
wire from the receiver.
Slide the remote
receiver onto the
top of the bracket.
Blue
DR19-01 r100324
Have extra wiring?
Turn the wires upward and push them care-
fully back through the hanger bracket into the
outlet box. Spread the wires apart, with the
grounded wires on one side of the outlet box
and the ungrounded wires on the other side
of the outlet box. Make sure that the wires are
still attached to the wire nuts.
Hunter Pro Tip:
Wiring the Fan
We know wiring is hard. Let’s make it easier.
Follow these steps to get your fan wired quickly and safely. Follow the route
below that best matches your wall switch setup. If you are unfamiliar with wiring
or uncomfortable doing it yourself, please contact a qualifi ed electrician.
Hunter Pro Tip:
Here is how to connect the wires:
Push the bare metal ends of the wires together and slide a
wire nut over them. Then, twist the wire nut clockwise until
tight. Give it a gentle pull to make sure none of the wires
are loose.
WARNING
All wiring must be in accordance with
national and local electrical codes ANSI/
NFPA 70. If you are unfamiliar with wiring
or in doubt, consult a qualifi ed electrician.
WARNING
The ceiling fan must be grounded. If the
ground wire for the installation site is not
present, immediately STOP installation
and consult a qualifi ed electrician.
Fan style may vary.
Note:
x4
BAG
Wire Nut
You are going to need these:
4 Wire Nuts (these are in the
bag)
7
1886
1886
Ceiling Bracket Hanging Fan Wiring Blades Light Remote
Installing the Bulbs and Glass
Installing the Canopy
x2
Lift the canopy into place so that
the screw holes are aligned.
Insert the two canopy screws
found in the
hardware bag.
F
i
t
t
h
e
c
a
n
o
p
y
i
n
p
l
a
c
e
a
s
s
h
o
w
n
.
bag
Canopy
Screw
Installing the Blades:
Repeat x3
x9
bag
Blade Screw
x9
bag
Blade Washer
Put the blade washers found in the
hardware bag onto the blade
screws found in the
hardware
bag. Then install the blade screws
to secure each blade to the fan.
Fan style may vary.
Note:
8
1886
1886
Ceiling Bracket Hanging Fan Wiring Blades Light Remote
Assembling the LIght Kit
Insert the third screw, found in the
hardware bag, into place and
then tighten all three screws.
Partially install two light kit assembly screws,
found in the hardware bag, halfway into
the motor housing as shown. It does not matter
which two screw holes you choose.
Feed the wire plug through the
center hole of the upper switch
housing, then wrap keyhole
slots around the screws and
twist counterclockwise.
2 of 6
Light Kit Screw
bag
1 of 6
Light Kit Screw
bag
Fan style may vary.
Note:
ON
Turn Power
Installing the Bulbs and Glass
Lift the globe and align the
notches in the globe with
the tabs in the light kit.
NOTE: Check to ensure
proper engagement.
Attach the globe by lifting and
turning clockwise one third of a
full turn of the globe until it stops.
Notch
Tab
WARNING
FAN FALL HAZARD
Make sure all screws are tight to secure
the light fixture.
Fan style may vary.
Note:
Connect the single-pin connectors from
the light kit to the connectors from the fan.
Connect the white wires together. Connect
the blue and black wires together.
Align the holes of LED assembly with
the holes of the upper switch housing.
Make sure all the wires from the fan
and the light kit are snug inside the
center of the light kit, not pinched in
between the upper switch housing and
the light kit or hanging out of the sides.
Insert the light kit screws, found in the
hardware bag. Tighten all three screws.
3 of 6
Light Kit Screw
bag
9
1886
1886
Ceiling Bracket Hanging Fan Wiring Blades Light Remote
NOTICE
• Always purchase the correct size and grade of battery most
suitable for the intended use.
• Clean the battery contacts and also those of the device prior
to battery installation.
• Remove and immediately recycle or dispose of used batteries
according to local regulations and keep away from children.
Do NOT dispose of batteries in household trash or incinerate.
• Even used batteries may cause severe injury or death.
• Call a local poison control center for treatment information.
• Compatible battery type is CR2032, 3 V
• Ensure the batteries are installed correctly with regard to
polarity (+ and -).
• Do not mix old and new batteries, different brands or types
of batteries, such as alkaline, carbon-zinc, or rechargeable
batteries
• Non-rechargeable batteries are not to be recharged.
Exhausted batteries are to be removed from the product.
• Do not force discharge, recharge, disassemble, heat above
(manufacturer’s specified temperature rating) or incinerate.
Doing so may result in injury due to venting, leakage or
explosion resulting in chemical burns.
• Remove and immediately recycle or dispose of batteries from
equipment not used for an extended period of time according
to local regulations.
• Always completely secure the battery compartment. If the
battery compartment does not close securely, stop using the
product, remove the batteries, and keep them away from
children.

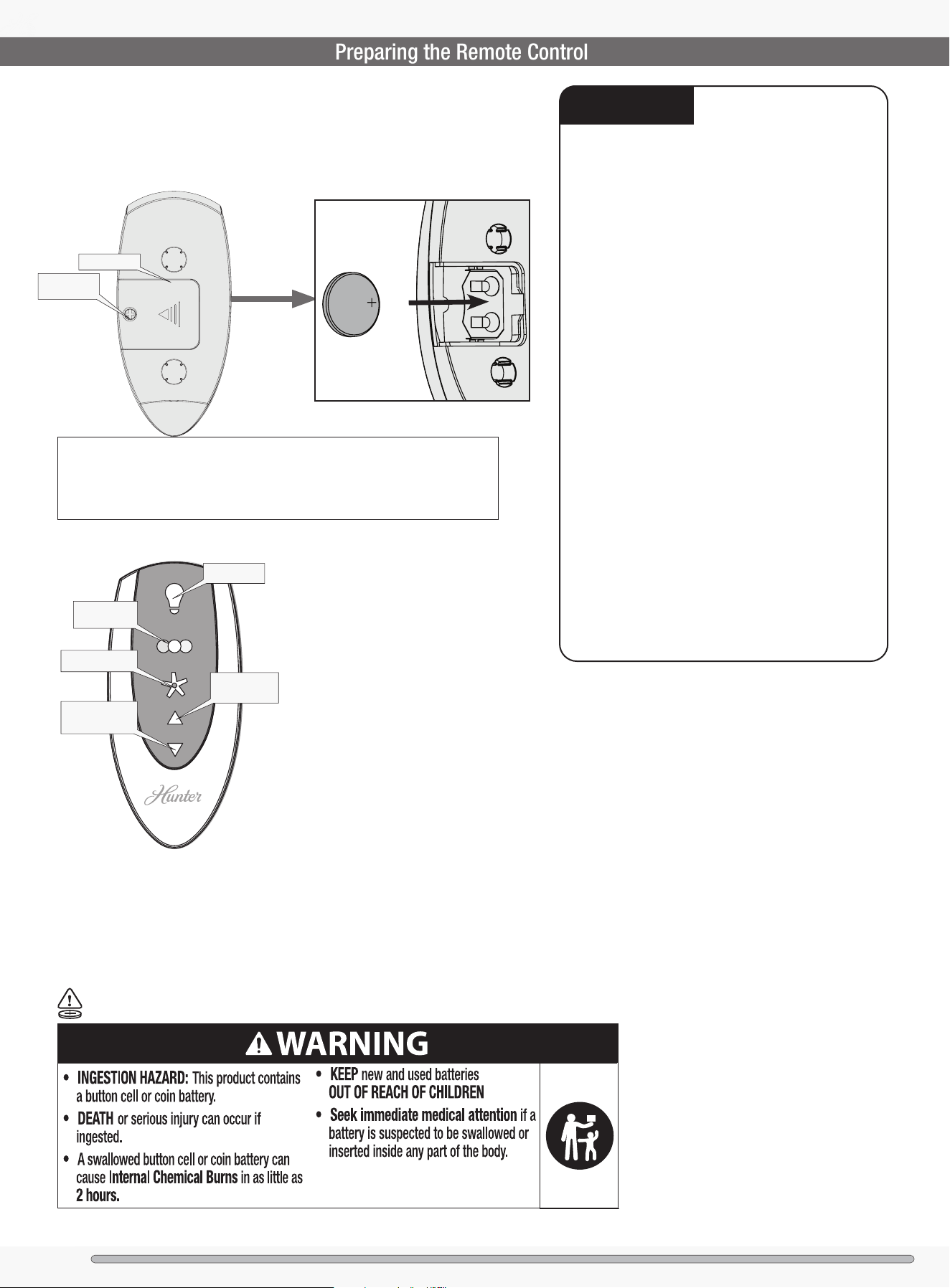

Preparing the Remote Control
The remote control is already paired for use. For your
convenience, a remote function card is packed in with your
remote.
To access the battery compartment, remove the small Phillips head screw that
secures the battery door to the transmitter assembly. Please contact your local
battery recycling center for proper battery disposal information.
Battery Door
Battery
Screw
Adjustable White LED lets you adjust through three color temperature settings to create a perfectly tailored
space, whether you are watching TV, reading a good book or completing school work. Choose between warm
white (3,000K), cool white (4,000K), and daylight (5,000K) with the easy push of a button on the exclusive
handheld remote. Create the perfect ambiance in your space with your new Hunter fan.
Adjustable
White
Light On/Off
Raise Fan
Speed
Fan On/Off
Lower Fan
Speed
Adjustable White
Warm White; 3,000 K
Cool White; 4,000 K
Daylight; 5,000 K
WARNING INGESTION HAZARD: This product contains a button cell or coin battery.
10
1886
1886
Hunter Fan Company grants this limited warranty to the original purchaser of this Hunter
ceiling fan. This document can be found at www.HunterFan.com.
Thank you for choosing Hunter!
How Can Warranty Service Be Obtained?
Proof of purchase is required when requesting warranty service. The original
purchaser must present a sales receipt or other document that establishes proof of
purchase. Hunter, at its sole discretion, may accept a gift receipt. To obtain service,
contact Hunter Fan Company online or by phone.
www.HunterFan.com/Support/Contact-Us/
1-888-830-1326
Please do not ship your fan or any fan parts to Hunter. Delivery will be refused.
What Does This Warranty Cover?
Motor — Limited Lifetime Warranty
If any part of your ceiling fan motor fails during your ownership of the fan due to a
defect in material or workmanship, as determined solely by Hunter, Hunter will provide
you with a replacement fan free of charge.* The foregoing limited warranty applies only
to the motor itself and does not apply to electronic controls – such as remote control
transmitters, remote control receivers, or capacitors – used in conjunction with the
motor. Such electronic control items are included in the one-year limited warranty below.
Other — One-Year Limited Warranty
Except as otherwise indicated throughout this warranty, if any part of your Hunter ceiling
fan fails at any time within one year of the date of purchase due to a defect in material
or workmanship, as determined solely by Hunter, Hunter will provide a replacement part
free of charge.*
Light Kits — Warranty May Vary
Light kits are included in the one-year limited warranty. However, you may qualify for
additional warranty coverage if your fan includes one of the following:
• LED Light Kits — Three-Year Limited Warranty
If your LED light kit module (not including glass components) or LED bulb
fails at any time within three years of the date of purchase due to a defect
in material or workmanship, as determined solely by Hunter, Hunter will
provide a replacement part free of charge.*
* If no replacement product/part can be provided for your fan, we will provide a comparable or
superior replacement product/part at the sole discretion of Hunter.
What Does This Warranty NOT Cover?
Labor Excluded. This warranty does not cover any costs or fees associated with the labor
(including electrician’s fees) required to install, remove, or replace a fan or any fan parts.
There is no warranty for light bulbs (except where otherwise noted); remote control
batteries; fans purchased or installed outside the United States; fans owned by
someone other than the original purchaser; fans for which proof of purchase has not
been established; fans purchased from an unauthorized dealer; ordinary wear and tear;
minor cosmetic blemishes; refurbished fans; and fans that are damaged due to any
of the following: improper installation, misuse, abuse, improper care, failure to follow
Hunter instructions, accidental damage caused by the fan owner or related parties,
modifications to the fan, improper or incorrectly performed maintenance or repair,
improper voltage supply or power surge, use of improper parts or accessories, failure to
provide maintenance to the fan, or acts of God (e.g. flood).
ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY FOR A CLAIM OF ANY KIND
WITH RESPECT TO THIS PRODUCT SHALL BE THE REMEDIES SET FORTH HEREIN.
HUNTER FAN COMPANY IS NOT RESPONSIBLE FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES, DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF BREACH OF
WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. Some States do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE APPLICABLE TO THIS PRODUCT ARE LIMITED IN DURATION TO THE PERIOD OF
COVERAGE OF THE APPLICABLE LIMITED WARRANTIES SET FORTH ABOVE. Some States
do not allow limitations on how long an implied warranty lasts, so the above limitation
may not apply to you.
How Does State Law Affect Warranty Coverage?
This warranty gives you specific legal rights. You may also have other rights which vary
from state to state.
Limited Lifetime Warranty

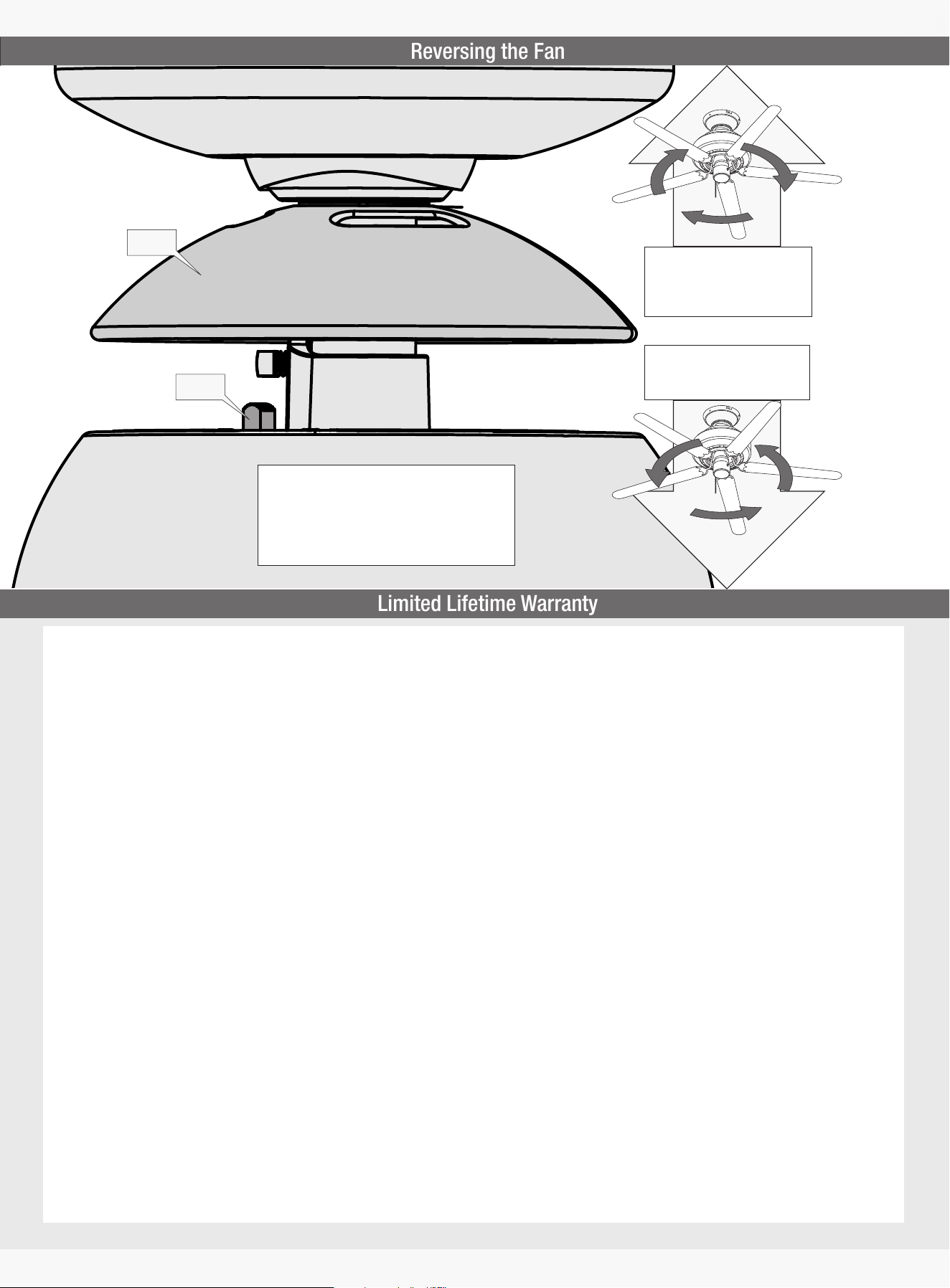

Reversing the Fan
Reverse
Switch
Adapter
Cover
Ceiling fans work in two directions: downdraft
(counterclockwise rotation) and updraft (clockwise
rotation). To change the direction of air flow, turn
the fan off and let it come to a complete stop.
Slide the reversing switch to the opposite position.
Restart the fan.
Updraft (clockwise rotation)
creates a more indirect airflow.
Updraft airflow is great for
moving warm air downward.
Downdraft (counterclockwise
rotation) creates a direct breeze
and maximum cooling effect.
Preparing the Remote Control
11
1886
1886
Downrod
If you need a different downrod length follow these steps:
Follow steps 1-5 to remove standard downrod pipe
Follow steps 6-10 to reassemble with new downrod
1 2 3 4 5
678910
1
10
9
2
7
4
8 3
65
Here is another view of
the downrod assembly
unassembled.
Pin
Assembled downrod
should look like this
Pin
WARNING
FAN FALL HAZARD
To prevent SERIOUS INJURY or DEATH:
• ALWAYS follow the
downrod assembly
instructions exactly.
• VERIFY the downrod
is assembled correctly
by firmly pulling on the
hanger ball.
• Pin must be reinserted
to secure downrod
assembly.
Troubleshooting
Cleaning the Fan
Use soft brushes or cloths to prevent scratching.
Cleaning products may damage the finishes.
Hunter Pro Tip:
Fan Doesn’t Work
• Make sure power switch is on.
• Check the circuit breaker to ensure the power is turned on.
• Make sure the blades spin freely.
• Turn off power from the circuit breaker, then loosen the canopy
and check all the connections according to the wiring diagram.
Excessive Wobbling
• Make sure the blades are properly installed on the blade iron
posts.
• Turn the power off, support the fan carefully, and check that the
hanger ball is properly seated.
Noisy Operation
• Make sure the blades are properly installed.
• Check to see if any of the blades are cracked. If so, replace all of
the blades.
Remote Control of Fan is Erratic
• Make sure the battery is installed correctly.
• Install a fresh battery.
Multiple Remote Issues
• If you have multiple remotes or multiple remote-controlled fans
installed on the same circuit breaker and you are experiencing
interference or faulty operation of your remote controls, please
go to
www.HunterFan.com/FAQs and click “How do I properly install
multiple remote-controlled fans?” for information on how to
correct this issue.
