OPERATOR'S MANUAL
MODEL #201174
POwER DiSTRibUTiON bOx
Champion Power Equipment, Inc., Santa Fe Springs, CA USA
or visit championpowerequipment.com
SAVE THESE iNSTRUCTiONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure to do
so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
REGISTER YOUR PRODUCT ONLINE
at championpowerequipment.com
4229-M-OP REV 20230330
EN
201174 - POwER DiSTRibUTiON bOx
TAbLE Of CONTENTS
2
TAbLE Of CONTENTS
introduction ................................................... 3
Safety Definitions ..........................................3
important Safety instructions .......................4
Safety and Dataplate Labels ...................................... 6
Controls and features ...................................7
Power Distribution Box ............................................ 7
Parts Included ..................................................... 8
Operation .......................................................8
GFCI ................................................................ 8
Specifications ................................................ 9
fOR PARTS bREAKDOwN
Search by model number at
championpowerequipment.com
201174 - POwER DiSTRibUTiON bOx
iNTRODUCTiON
3
SAfETY DEfiNiTiONS
The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols, and their explanations,
deserve your careful attention and understanding. The safety
warnings do not by themselves eliminate any danger. The
instructions or warnings they give are not substitutes for proper
accident prevention measures.
DANGER
DANGER indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
wARNiNG
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTiON
CAUTION indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTiCE
NOTICE indicates information considered important, but not
hazard-related (e.g., messages relating to property damage).
iNTRODUCTiON
Congratulations on your purchase of a Champion Power Equipment
(CPE) product. CPE designs, builds, and supports all of our
products to strict specifications and guidelines. With proper
product knowledge, safe use, and regular maintenance, this
product should bring years of satisfying service.
Every effort has been made to ensure the accuracy and
completeness of the information in this manual at the time of
publication, and we reserve the right to change, alter and/or
improve the product and this document at any time without prior
notice.
CPE highly values how our products are designed, manufactured,
operated, and serviced as well as providing safety to the operator
and those around the Power Distribution Box. Therefore, it is
IMPORTANT to review this product manual and other product
materials thoroughly and be fully aware and knowledgeable of
the assembly, operation, dangers and maintenance of the product
before use. Fully familiarize yourself, and make sure others who
plan on operating the product fully familiarize themselves too,
with the proper safety and operation procedures before each use.
Please always exercise common sense and always err on the
side of caution when operating the product to ensure no accident,
property damage, or injury occurs. We want you to continue to use
and be satisfied with your CPE product for years to come.
When contacting CPE about parts and/or service, you will need to
supply the complete model and serial numbers of your product.
Transcribe the information found on your product’s nameplate
label to the table below
CPE TECHNICAL SUPPORT TEAM
1-877-338-0999
MODEL NUMBER
201174
SERIAL NUMBER
DATE OF PURCHASE
PURCHASE LOCATION
201174 - POwER DiSTRibUTiON bOx
iMPORTANT SAfETY iNSTRUCTiONS
4
iMPORTANT SAfETY iNSTRUCTiONS
wARNiNG
Cancer and Reproductive Harm – www.P65Warnings.ca.gov
DANGER
Electricity is dangerous.
Contact with electric voltage can cause the electrical current
to flow through the body, which can result in electric shock,
burns and even death.
DANGER
Power Distribution Box produces powerful voltage.
DO NOT touch bare wires or receptacles.
DO NOT use electrical cords that are worn, damaged or frayed.
Use only Champion electrical cords for proper application.
DO NOT operate Power Distribution Box in wet weather.
DO NOT allow children or unqualified persons to operate or
service the Power Distribution Box.
Always use a ground fault circuit interrupter (GFCI) in damp
areas and areas containing conductive material such as metal
decking.
wARNiNG
Do not use this device for medical life support uses.
In case of emergency, call 911 immediately.
NEVER use this product to power life support devices or life
support appliances.
Inform your electricity provider immediately if you or anyone in
your household depends on electrical equipment to live.
Inform your electrical provider immediately if a loss of power
would cause you or anyone in your household to experience a
medical emergency.
wARNiNG
When servicing the Power Distribution Box:
Disconnect electrical power supply before any repair is
performed. It is recommended that any repair be performed by
a trained and licensed electrician.
DO NOT modify the internal electrical components of the
Power Distribution Box. Failure to do so could result in damage
to connected devices, void your warranty and/or cause serious
bodily injury or even death.
wARNiNG
If any parts or components of this Power Distribution Box
are missing, broken or show signs of damage, DISCONTINUE
USE IMMEDIATLEY and contact customer service at
1-877-338-0999 or visit www.championpowerequipment.com
wARNiNG
Exceeding the Power Distribution Box’s operating capacity can
damage the Power Distribution Box and/or connected electrical
devices.
DO NOT overload the Power Distribution Box.
DO NOT modify the Power Distribution Box in any way.
CAUTiON
Improper treatment or use of the Power Distribution Box can
damage it, shorten its life or void the warranty.
Always use the Power Distribution Box only for it’s intended
uses.
Always place and operate the Power Distribution Box on level
surfaces.
DO NOT expose Power Distribution Box to excessive moisture,
dust, or dirt.
If connected devices overheat, turn them off and disconnect
them from the Power Distribution Box.
DO NOT use the Power Distribution Box if:
– Electrical output is lost
– Equipment sparks, smokes or emits flames
NOTiCE
This Power Distribution Box is equipped with GFCI receptacles
to provide protection from electrocution hazards resulting from
ground faults.
GFCI receptacles provide protection against ground faults and
will not protect against electrical overloads or short circuits.
201174 - POwER DiSTRibUTiON bOx
iMPORTANT SAfETY iNSTRUCTiONS
5

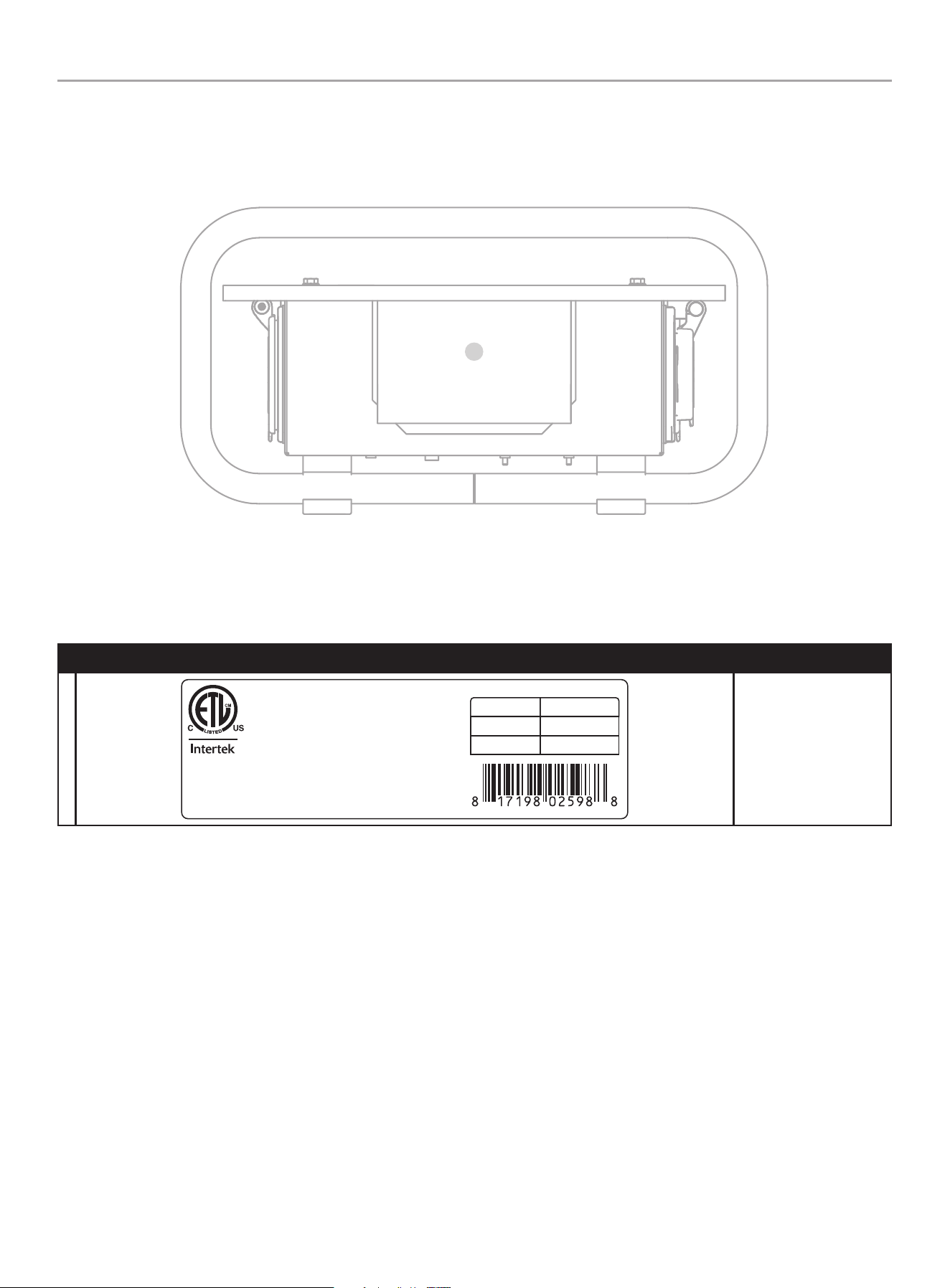

Safety and Dataplate Labels
These labels warn you of potential hazards that can cause serious injury. Read them carefully.
If a label comes off or becomes hard to read, contact Technical Support Team for possible replacement.
LABEL DESCRIPTION
A
CHAMPION POWER EQUIPMENT, INC.
12039 SMITH AVENUE
SANTA FE SPRINGS, CA 90670
USA / É.-U.
1-877-338-0999
WWW.CHAMPIONPOWEREQUIPMENT.COM
MADE IN CHINA / FABRIQUÉ EN CHINE
MANUFACTURE DATE
DATE DE FABRICATION
SERIAL NO.
N° DE SÉRIE
MODEL
MODÈLE
Construction Site Listed
Electrical Rating: 50A, 125/250V,
60 Hz, 1 Ph AC
Suitable for Continuous Use at
Full-Rated Output
Rainproof - Type 3R Enclosure
Site de construction répertorié
Caractéristiques électriques : 50 A,
125/250 V, 60 Hz, 1 Ph AC
Convient pour une utilisation continue
à pleine puissance
Étanche à la pluie - boîtier de type 3R
3715-L-PR-A
201174
5025434
Certified to
UL Std. No. 1640
Certifié selon
CAN/CSA C22.2
No. 14
XXXXXXXXXXXX
XXXX
K --- --- --- ---
ColorsAPN 3715-L-PR
Rev A
Size 142 x 45 mm
Artwork Notes
3mm corner radius; 2mm safe margin
Revision Changes
This artwork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.
Dataplate
A
Back
201174 - POwER DiSTRibUTiON bOx
CONTROLS AND fEATURES
6
CONTROLS AND fEATURES
Read this operator’s manual before operating your Power Distribution Box. Familiarize yourself with the location and function of the
controls and features. Save this manual for future reference.

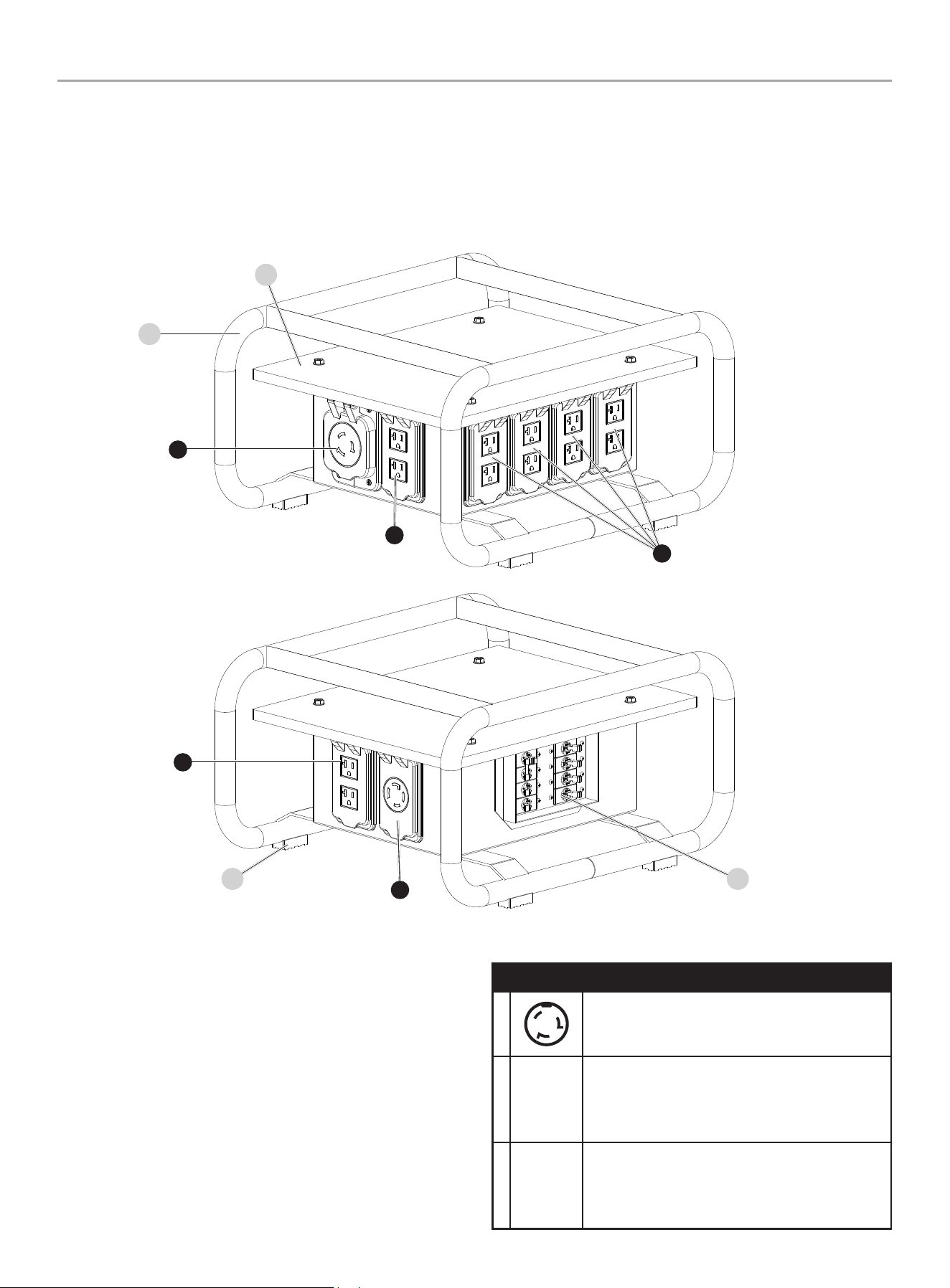

Power Distribution box
1. Frame
2. Rubber Support Foot
3. Circuit Breakers (Flip Reset) - Protects power source
against electrical overload.
4. Top Cover
RECEPTACLES
A
120/240V AC, 50A (NEMA SS2-50P) Power
Inlet Plug
B
C
(12×) 120V AC, 20A GFCI (NEMA 5-20R)
May be used to supply electrical power for
operation of 120 Volt AC, 20 Amp, single phase,
60 Hz electrical loads.
C
Y
120/240V AC, 30A Locking (NEMA L14-30R)
May be used to supply electrical power for
operation of 120/240 Volt AC, 30 Amp, single
phase, 60 Hz electrical loads.
1
2 3
4
A
b
b
C
b
201174 - POwER DiSTRibUTiON bOx
OPERATiON
7

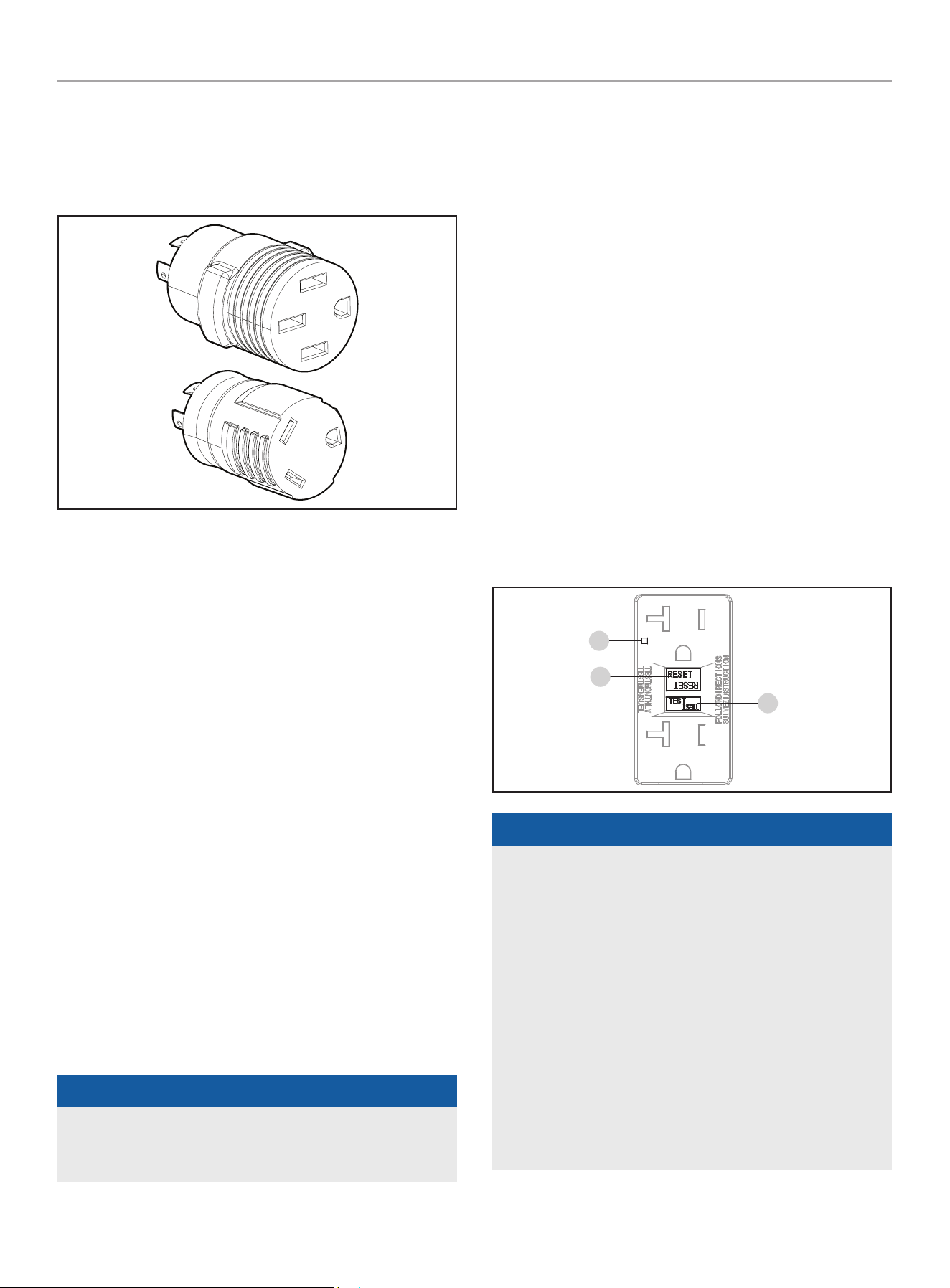

Parts included
Accessories
L14-30P x 14-50R Adapter ........................................1
L14-30P x TT-30R Adapter ........................................1
OPERATiON
The outdoor rated Power Distribution Box is used to bring
electrical power to remote locations away from a primary
power source through the use of a Champion 30-Foot 50-Amp
125/250-Volt power Cord #100828 (not included) or equivalent.
To order Power Cord 100828, please call customer service at
1-877-338-0999 or visit www.championpowerequipment.com
Power source can be a 125/250V, 50A maximum generator or
utility. The power cord plugs into the power source and into the
power inlet receptacle on the Power Distribution Box. The power
inlet feeds a split-phase circuit breaker with (6) 1-pole 20A circuit
breakers and (1) 2-pole 30A circuit breaker.
Each 20A circuit breaker powers and protects a 120V 20A GFCI
5-20R receptacle. The 30A circuit breaker powers and protects a
120/240V 30A L14-30R locking receptacle. The 30A receptacle is
NOT ground fault protected.
1. Using a power cord, connect 125/250V power source to 50A
SS2-50P inlet receptacle.
2. Confirm all circuit breakers are in the ON position.
3. Test and reset each GCFI receptacle. The green power
indicating light shall be illuminated.
4. Power Distribution Box is ready for use.
NOTiCE
The upstream circuit breaker from the Power Distribution Box
shall have an interrupting current rating of at least 10,000
amperes.
GfCi
Your Power Distribution Box is equipped with ground fault circuit
interrupter (GFCI) receptacles. In the event of a ground fault, a
GFCI trips automatically to stop the flow of electricity and prevent
serious injury. The green indicator light (A) on the receptacle will
also turn off. Press the “RESET” (B) button located on the front of
the receptacle to restore flow of electricity. The indicator light will
also turn back on. GFCI does not protect against circuit overloads.
To ensure proper operation of the GFCI duplex, perform this test
monthly:
1. With the Power Distribution Box running, plug a lamp into the
GFCI receptacle. Turn the lamp on.
2. Press the “TEST” (C) button located on the front of the
receptacle to trip the device. This should immediately stop
the flow of electricity and shut off the lamp. If the electricity
is not stopped, do not use this receptacle until it has been
serviced or replaced.
3. Press the “RESET” button located on the front of the
receptacle to restore the flow of electricity. If the indicator
light does not come back on or if the GFCI cannot be reset
then it must be replaced.
b
C
A
NOTiCE
In any electrical application, some current will flow through
the protective ground conductor to the ground, this is called
leakage current. It takes 4 mA (0.004 A) and higher of leakage
current from the hot wire to the ground to cause a GFCI to trip.
On circuits protected by GFCI’s, leakage current can cause
unnecessary and intermittent tripping.
Some stationary motors, such as a bathroom vent fan,
fluorescent lighting fixtures or some refrigerators, may produce
enough leakage to cause nuisance tripping. To avoid nuisance
tripping, a GFCI should not supply:
– Fluorescent or other types of electric-discharge lighting
fixtures.
– Permanently installed electric motors, like air conditioners,
furnaces or refrigerators.
201174 - POwER DiSTRibUTiON bOx
SPECifiCATiONS
8
SPECifiCATiONS
Model ....................................................... 201174
AC Volts ..................................................... 125/250
AC Amps .......................................................... 50
Enclosure Rating ............................... NEMA 3R (outdoor)
Weight ................................................ 22 lbs (10 kg)
Length ............................................19.1 in. (48.5 cm)
Width ............................................ 15.9 in. (40.4 cm)
Height .............................................. 9.6 in. (24.5 cm)
WARRANTY*
CHAMPION POWER EQUIPMENT
1 YEAR LIMITED WARRANTY
Warranty Qualifications
To register your product for warranty and FREE lifetime call center
technical support please visit:
https://www.championpowerequipment.com/register
To complete registration you will need to include a copy of the
purchase receipt as proof of original purchase. Proof of purchase
is required for warranty service. Please register within ten (10)
days from date of purchase.
Repair/Replacement Warranty
CPE warrants to the original purchaser that the mechanical and
electrical components will be free of defects in material and
workmanship for a period of one year (parts and labor) from
the original date of purchase and 90 days (parts and labor) for
commercial and industrial use. Transportation charges on product
submitted for repair or replacement under this warranty are the
sole responsibility of the purchaser. This warranty only applies to
the original purchaser and is not transferable.
Do Not Return The Unit To The Place Of
Purchase
Contact CPE’s Technical Service and CPE will troubleshoot any
issue via phone or e-mail. If the problem is not corrected by
this method, CPE will, at its option, authorize evaluation, repair
or replacement of the defective part or component at a CPE
Service Center. CPE will provide you with a case number for
warranty service. Please keep it for future reference. Repairs or
replacements without prior authorization, or at an unauthorized
repair facility, will not be covered by this warranty.
Warranty Exclusions
This warranty does not cover the following repairs and equipment:
Normal Wear
Products with mechanical and electrical components need
periodic parts and service to perform well. This warranty does not
cover repair when normal use has exhausted the life of a part or
the equipment as a whole.
Installation, Use and Maintenance
This warranty will not apply to parts and/or labor if the product is
deemed to have been misused, neglected, involved in an accident,
abused, loaded beyond the product’s limits, modified, installed
improperly or connected incorrectly to any electrical component.
Normal maintenance is not covered by this warranty and is not
required to be performed at a facility or by a person authorized by
CPE.
Other Exclusions
This warranty excludes:
– Cosmetic defects such as paint, decals, etc.
– Wear items such as filter elements, o-rings, etc.
– Accessory parts such as starting batteries, and storage
covers.
– Failures due to acts of God and other force majeure events
beyond the manufacturer’s control.
– Problems caused by parts that are not original Champion
Power Equipment parts.
Limits of Implied Warranty and
Consequential Damage
Champion Power Equipment disclaims any obligation to cover
any loss of time, use of this product, freight, or any incidental
or consequential claim by anyone from using this product. THIS
WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.
A unit provided as an exchange will be subject to the warranty
of the original unit. The length of the warranty governing the
exchanged unit will remain calculated by reference to the purchase
date of the original unit.
This warranty gives you certain legal rights which may change
from state to state or province to province. Your state or province
may also have other rights you may be entitled to that are not
listed within this warranty.
Contact Information
Address
Champion Power Equipment, Inc.
12039 Smith Ave.
Santa Fe Springs, CA 90670 USA
www.championpowerequipment.com
Customer Service
Toll Free: 1-877-338-0999
info@championpowerequipment.com
Fax no.: 1-562-236-9429
Technical Service
Toll Free: 1-877-338-0999
tech@championpowerequipment.com
24/7 Tech Support: 1-562-204-1188
