Refrigerator-Freezer
User Manual
HRF510BHC
HRF510BW
HRF510BS
HRF510FHC
HRF510FHS
HRF510FS
Contents
4 Intended use
5 Safety information
9 Product description
13 Control panel
21 Equipment
23 Energy saving tips
24 Care and cleaning
27 Troubleshooting
31 Installation
14 Use
36 Technical data
Before rst use 5
Installation 6
Daily use 6

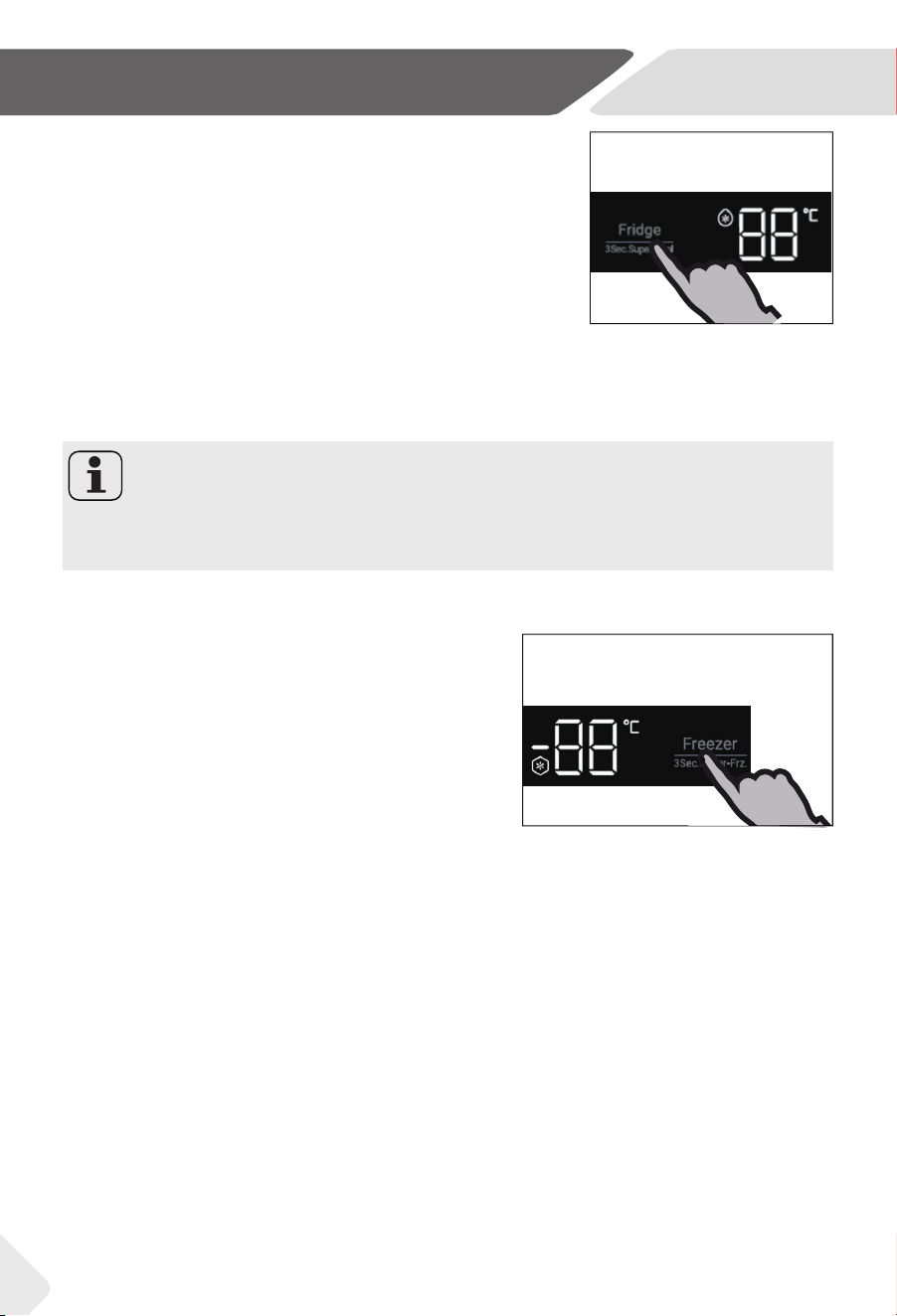

Adjust the temperature for fridge 15
Adjust the temperature for freezer 15
Super-Cool function 16
Super-Frz function 16
2
Thank you
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions
contain important information which will help you get the best out of the appliance
and ensure safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and
proper use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make
sure you also pass this manual so that the new owner can become familiar with the
appliance and safety warnings.
WARNING – Important Safety information
NOTICE-General information and tips
Environmental information
Disposal
Help protect the environment and human health. Put the
packaging in applicable containers to recycle it. Help to
recycle waste of electrical and electronic appliances. Do not
dispose appliances marked with this symbol with the house-
hold waste. Return the product to your local recycling facility
or contact your municipal oce.
WARNING!
Risk of injury or suocation!
Refrigerants and gases must be disposed of professionally. Ensure that the
tubing of the refrigerant circuit is not damaged before being properly disposed
of. Disconnect the appliance from the mains supply. Cut o the mains cable and
dispose of it. Remove the trays and drawers as well as the door catch and seals,
to prevent children and pets to get closed in the appliance.
3
Intended use
Hinge Cover
(Only
HRF510B*/
HRF510BH*)

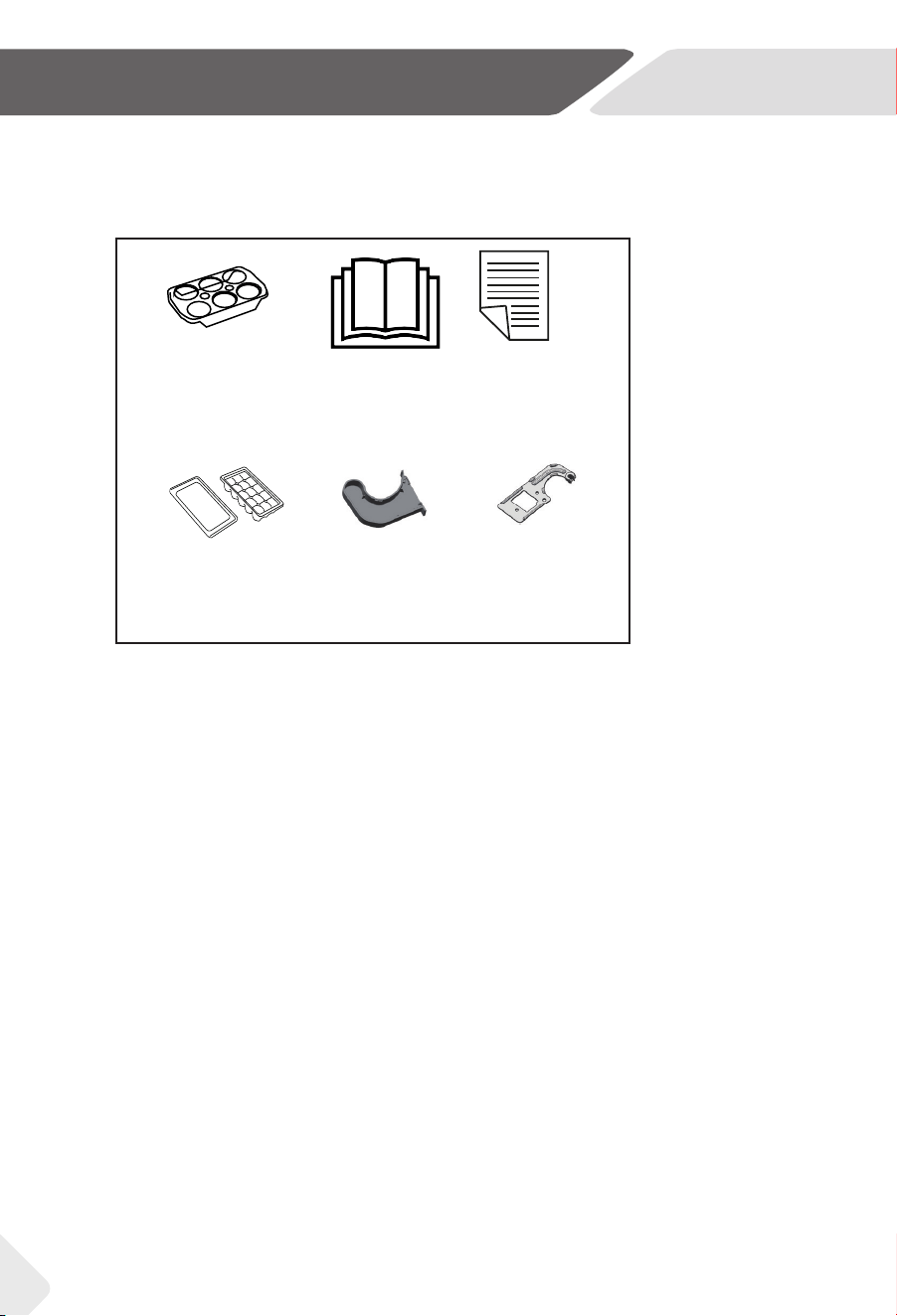

Accessories
Check the accessories and literature in accordance with this list:
User manual
Warranty
card
Ice cube tray
(Only
HRF510B*/
HRF510F*)
Egg tray
Door hinges
(Only
HRF510B*/
HRF510BH*)
Intended use
This appliance is intended to be used in household and similar applications such as
– sta kitchen areas in shops, oces and other working environments;
– farm houses and by clients in hotels, motels and other residential type environ-
ments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
4
Safety information
Before switching on the appliance for the rst time read the
following safety hints:
WARNING!
Before rst use
▶ Make sure there is no transport damage.
▶ Remove all packaging and keep out of children´s reach.
▶ Wait at least two hours before installing the appliance in order to ensure the re-
frigerant circuit is fully ecient.
▶ Install the appliance in direct sunlight or near sources of heat (egstoves, heaters)
▶ Use multi-plugadapters and extension cables.
▶ If it does become damaged, do not
▶ Handle the appliance always with at least two persons because it is heavy.
Installation
▶ The appliance should be placed in a well-ventilated place. Ensure a space of at
least 5 cm above and around the appliance.
▶ Never place the appliance in a damp area or location where it might be splashed
with water. Clean and dry water splashes and stains with a soft clean cloth.
▶ Do not install the appliance in direct sunlight or in the near of heat sources(e.g.
stoves, heaters).
▶ Install and level the appliance in an area suitable for its size and use.
▶ Keep ventilation openings in the appliance or in the in-built structure clear of
obstruction.
▶ Make sure that the electrical information on the rating plate agrees with the
power supply. If it does not, contact an electrician.
▶ The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal
voltage uctuation may cause the appliance to fail to start, or damage to the
temperature control or compressor, or there may be an abnormal noise when
operating. In such case, an automatic regulator shall be mounted.
▶ Do not use multi-plug adapters and extension cables.
▶ Do not locate multiple portable socket-outlets or portable power supplies at the
rear of the appliance.
▶ Ensure that the power cable is not trapped by the refrigerator. Do not step on
the power cable
▶ Make sure not to damage the electric cable and the plug. If damaged it must only
be re-placed by either the manufacturer or the authorised service agent.
5
Safety information
WARNING!
▶ Use a separate earthed socket for the power supply which is easy accessible.
The appliance must be earthed.
Only for UK: The appliance’s power cable is tted with 3-cord (grounding) plug
that ts a standard 3-cord (grounded) socket. Never cut o or dismount the
third pin (grounding). After the appliance is installed, the plug should be acces-
sible.
▶ Do not damage the refrigerant circuit.
Daily use
▶ This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved.
▶ Children aged from 3 to 8 years are allowed to load and unload, but not allowed
to clean or install the refrigerating appliances.
▶ Keep away children under 3 years of age from the appliance unless they are con-
stantly supervised.
▶ Children shall not play with the appliance.
▶ If cool gas or other inammable gas is leaking in the vicinity of the appliance, turn
o the valve of the leaking gas, open the doors and windows and do not unplug a
plug in the power cable of the refrigerator or any other appliance.
▶ Notice that the appliance is set for operation at a specic ambient range be-
tween 10 and 43°C. The appliance may not work properly if it is left for a long
period at a temperature above or below the indicated range.
▶ Do not place unstable articles (heavy objects, containers lled with water) on
top of the refrigerator, to ovoid personal injury caused by falling or electric shock
caused by contact with water.
▶ Do not pull on the door shelves. The door may be pulled slant, the bottle rack,
may be pulled away, or the appliance may topple.
▶ Open and close the doors only with the handles. The gap between the doors and
between the doors and the cabinet is very narrow. Do not extend your hands in
these areas to avoid pinching your ngers. Open or close the refrigerator doors
only when there are no children standing within the range of door movement.
6
Safety information
WARNING!
▶ Do not store or use inammable, explosive or corrosive materials in the appli-
ance or in the vicinity.
▶ Do not store medicines, bacteria or chemical agents in the appliance. This ap-
pliance is a household appliance. It is not recommended to store materials that
require strict temperatures.
▶ Never store liquids in bottles or cans (besides high percentage spirits) especially
carbonated beverages in the freezer, as these will burst during freezing.
▶ Check the condition of food if a warming in the freezer has taken place.
▶ Do not set unnecessarily low temperature in the refrigerator compartment. Mi-
nus temperatures may occur at high settings. Attention: Bottles can burst
▶ Do not touch frozen goods with wet hands (wear gloves). Especially do not eat
ice lollies immediately after removal from the freezer compartment. There is the
risk to freeze or the formation of frost blisters. FIRST aid: keep immediately un-
der running cold water. Do not pull away!
▶ Do not touch the inside surface of the freezer storage compartment when in
operation, especially with wet hands, as your hands may freeze onto the surface.
▶ Unplug the appliance in the event of a power interruption or before cleaning. Al-
low at least 7 minutes before restarting the appliance, as frequent starting may
damage the compressor.
▶ Do not use electrical devices inside the food storage compartments of the ap-
pliance, unless they are of the type recommended by the manufacturer.
Maintenance / cleaning
▶ Make sure children are supervised if they carry out cleaning and maintenance.
▶ Disconnect the appliance from the electrical supply before undertaking any rou-
tine maintenance. Allow at least 5 minutes before restarting the appliance, as
frequent starting may damage the compressor.
7
Safety information
WARNING!
▶ Hold the plug, not the cable, when unplugging the appliance.
▶ Do not clean the appliance with hard brushes, wire brushes, detergent powder,
petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solu-
tions. Please clean with special refrigerator detergent to avoid damage.
▶ Do not scrape o frost and ice with sharp objects. Do not use sprays, electric
heaters like heater, hair dryer, steam cleaners or other sources of heat in order
to avoid damage to the plastic parts.
▶ Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
▶ If the supply cord is damaged, it must be replaced by the manufacturer, its ser-
vice agent or similarly qualied persons in order to avoid a hazard.
▶ Do not try to repair, disassemble or modify the appliance by yourself. In case of
repair please contact our customer service.
▶ Eliminate the dust on the back of the unit at least once in the year to avoid haz-
ard by re, as well as increased energy consumption.
▶ Do not spray or ush the appliance during cleaning.
▶ Do not use water spray or steam to clean the appliance.
▶ Do not clean the cold glass shelves with hot water. Sudden temperature change
may cause the glass to break.
WARNING!
The appliance contains the ammable refrigerant ISOBUTANE (R600a). Make
sure the refrigerant circuit is not damaged during transportation or installation.
Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred,
keep away open re sources, thoroughly ventilate the room, do not plug or unplug
the power cords of the appliance or any other appliance. Inform the customer
service.
In case of eyes get into contact with the refrigerant, rinse immediately it under
running water and call immediately the eye specialist.
This product contains ammable refrigerant isobutane (R600aa).
It is hazardous for anyone other than an Authorised Service Personto service this
appliance. In Queensland-the authorized Service Person MUST holdda Gas Work
Authorisation for hydrocarbon refrigerants, to carry out Servicing orrepairs which
involve the removal of covers.
Refrigerant gas information
WARNING:Risk of re/ammable material
The symbol indicates there is a risk of re since ammable materials
are used. Take care to avoid causing a re by ingiting ammable mate-
rial.
8

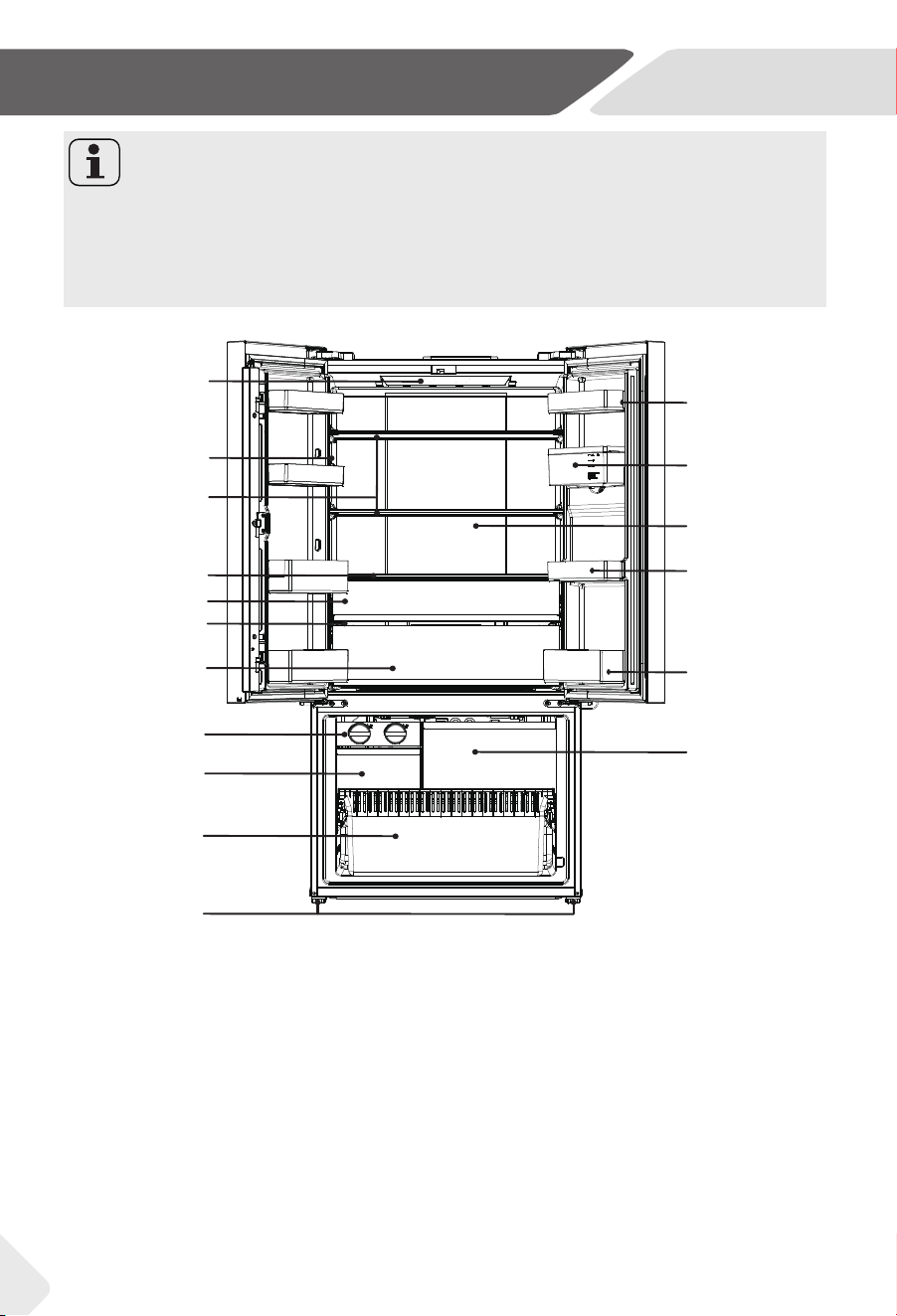

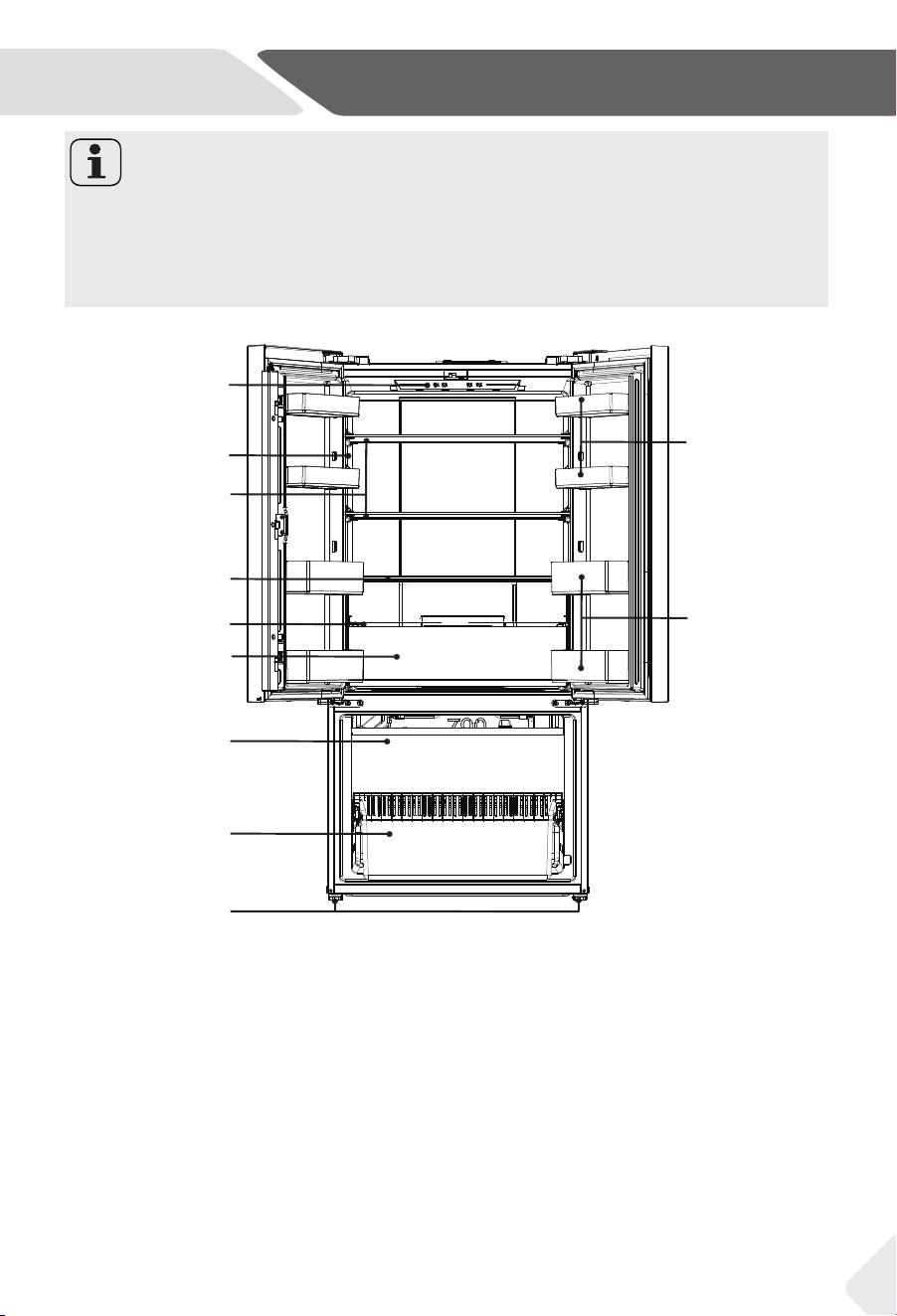

Product description
NOTICE
Due to technical changes and dierent models, some of the illustrations in
this manual may dier from model.

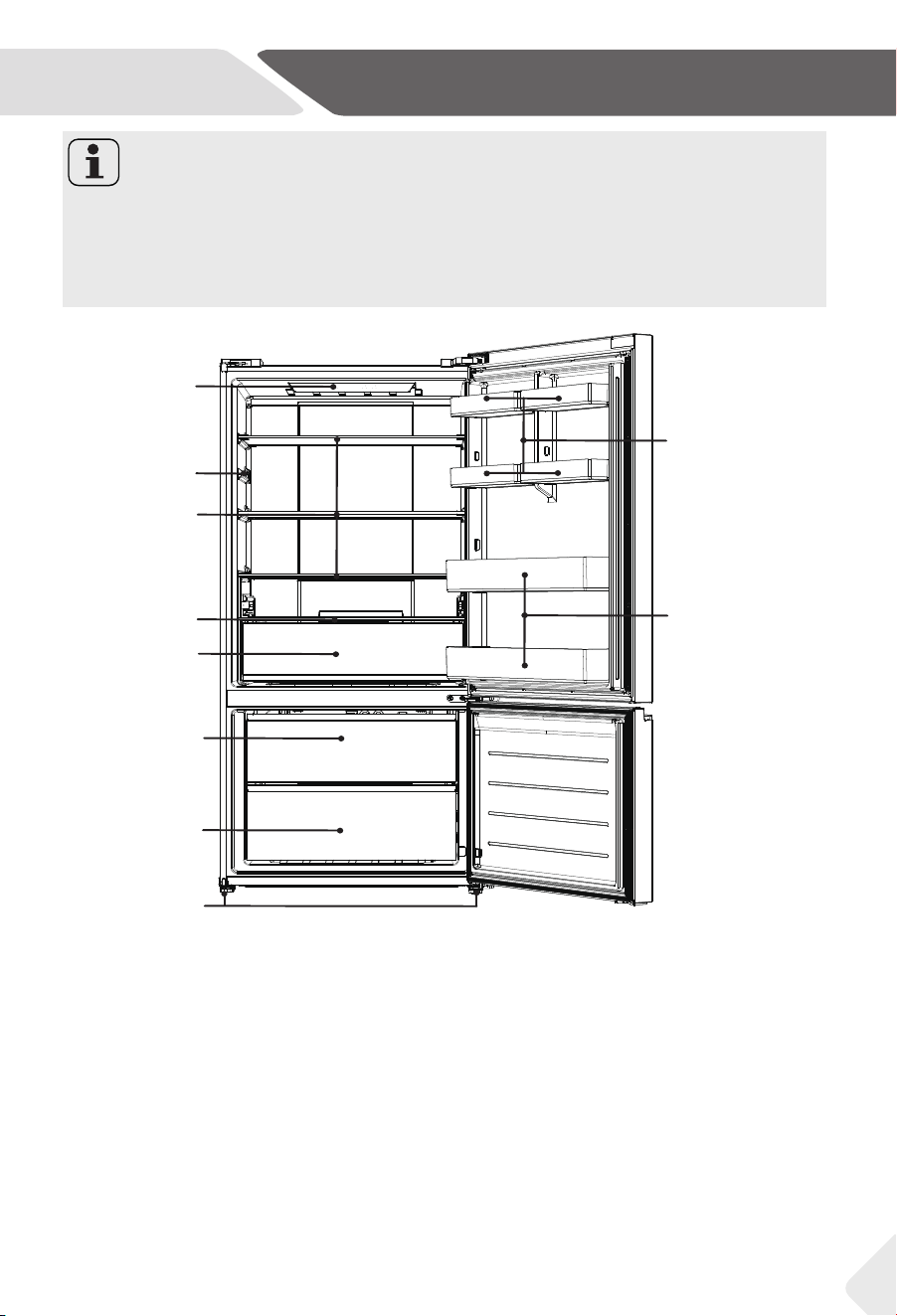

(HRF510B*)
1
6
7
2
3
4
5
8
9
10
1
6
7
2
3
4
5
8
9
10
11
1-Control panel
2-Rating plate
3-Cabinet shelf
4-Fresh Storage bin cover
5-Fresh Storage bin
6-Upper freezer storage drawer
7-Lower freezer storage drawer
8-Adjustable feet
9-Adjustable door shelf
10-Full-width door shelf
9
Product description
NOTICE
Due to technical changes and dierent models, some of the illustrations in
this manual may dier from model.

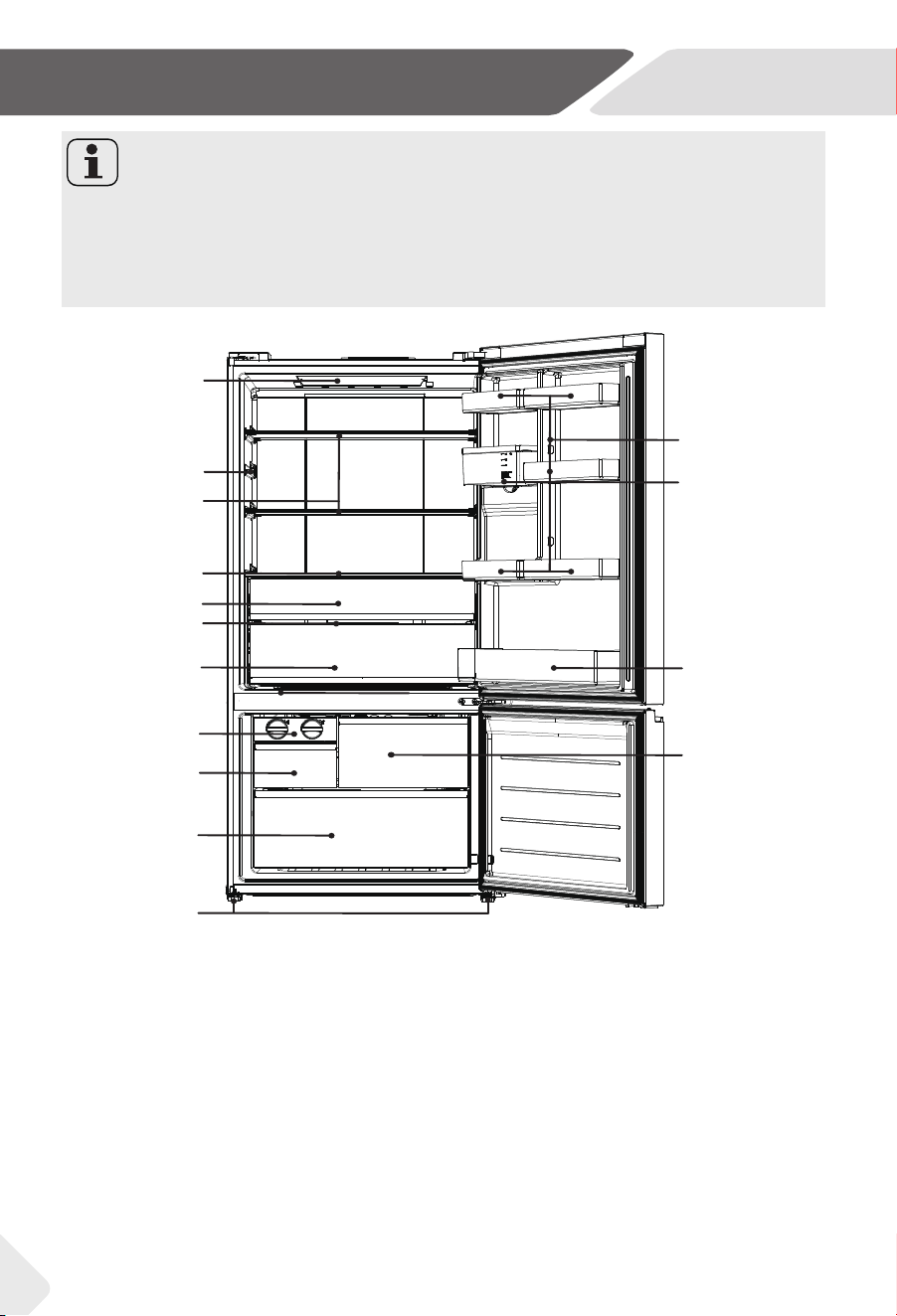

(HRF510BH*)
1
6
7
9
2
3
4
5
8
10
11
12
13
14
12
13
14
15
16
1
6
7
9
2
3
4
5
8
10
11
15
17
1-Control panel
2-Rating plate
3-Cabinet shelf
4-Fresh Storage bin cover
5-Fresh Storage bin
6-Humidity bin cover
7-Humidity bin
8-Twist ice maker
9-Ice storage drawer
10-Lower freezer storage drawer
11-Adjustable feet
12-Adjustable door shelf
13-Water tank
14-Full-width door shelf
15-Upper freezer storage drawer
10
Product description
NOTICE
Due to technical changes and dierent models, some of the illustrations in
this manual may dier from model.
(HRF510F*)
1
6
7
2
3
4
5
8
9
10
1
6
7
2
3
4
5
8
9
10
11
1-Control panel
2-Rating plate
3-Cabinet shelf
4-Cabinet shelf
5-Humidity bin cover
6-Humidity bin
7-Upper freezer storage drawer
8-Lower freezer storage drawer
9-Adjustable feet
10-Adjustable door shelf
11-Full-width door shelf
11
Product description
NOTICE
Due to technical changes and dierent models, some of the illustrations in
this manual may dier from model.
(HRF510FH*)
1
6
7
9
2
3
4
5
8
10
11
12
13
14
12
13
14
15
16
1
6
7
9
2
3
4
5
8
10
11
15
17
1-Control panel
2-Rating plate
3-Cabinet shelf
4-Fresh Storage bin cover
5-Fresh Storage bin
6-Humidity bin cover
7-Humidity bin
8-Twist ice maker
9-Ice storage drawer
10-Lower freezer storage drawer
11-Adjustable feet
12-Adjustable door shelf
13-Water tank
14-Fridge compartment light
15-Small-width door shelf
16-Full-width door shelf
17-Upper freezer storage drawer
12
Control panel
Control panel
Before rst use
Remove all packaging materials, keep them out of children’s reach and dispose
them in an environment friendly way.
Clean the inside and outside of the appliance as well as the interior and accessories
with water and a mild detergent, and dry it well with soft cloth.
After the appliance has been levelled and cleaned, please wait for at least 2 hours
before connecting it to the power supply. See Section INSTALLATION.
Precool the compartments at high settings before loading with food. The function
Super Freeze helps to cool down the freezer compartment quickly
The refrigerator temperature and freezer temperature are automatically set to 5°C
and -18°C respectively . These aer the recommended settings. If desired,you can
change these temperatures manually.Please see FUNCTIONS
K1 K2 K4K3BAE
D
C
Indicators:
A Super Cool function
B Temperature display
Fridge/Freezer
C Super Freeze function
D Panel look function
E Holiday Function
Buttons:
K1 Holiday selector
K2 Fridge selector /Surper cool function
selector (Press 3 seconds),
K3 Freezer selector /Surper freeze func-
tion selector (Press 3 seconds),
K4 Panel look selector
13
Use
NOTICE
The appliance is preset to the recommended temperature of 5℃ (refrigerator) and
-18℃(freezer). These are the recommended settings. If desired, you can change
these temperatures manually.
Switch on /o the appliance
The appliance is in operation as soon as it is connected to the power supply.
When the appliance is powered on for the rst time, temperature indicators “B”
shows the presetting values (refer to the below Notice).
Adjust the temperature
The indoor temperatures are inuenced by the following factors:
▶ Ambient temperature
▶ Frequency of door opening
▶ Amount of stored foods
▶ Installation of the appliance
Door opening alarm
When the refrigerator door is open for more than 3
minutes, the door opening alarm will sound.
The alarm can be silenced by closing the door. If the
door is open for more than 7 minutes, the light inside
the refrigerator and control panel illumination will auto-
matically turn o.
Lock/unlock panel
▶ Touch button “K4” for 3 seconds to block all panel
elements against activation. The ralated indicator “D”
is now displayed.
▶ For unlocking the control panel,press the button
for 3 seconds again.
14
Sensor keys
The buttons on the control panel are sensor keys, which already respond when
lightly touched with the nger.
Use
15
Adjust the temperature for fridge
1. Unlock the panel if it is locked.
2. Press the button “K2” (Fridge) to select the Fridge compartment.
Indicator “B” is ashing.
3. Press the button “K2” to set the fridge temperature.
The temperature reduce in sequences of 1°C, from a maximum
of 9°C to a minimum of 1°C. switching to 9°C again when pressing
further.
The optimum temperature in the refrigerator is 5°C.Colder temper-
atures mean unnecessary energy consumption.
4. Press any key except “K2” to conrm, or the setting conrms
automatically after 5 seconds. Indicator “B” stops ashing.
Adjust the temperature for freezer
1. Unlock the panel if it is locked.
2. Press the button “K3” (Freezer) to select the Freezer compart-
ment. Indicator “B” is ashing.
3. Press the button “K3”(Freezer) to set the freezer temperature.
The temperature reduce in sequences of 1°C, from a maximum of
-14°C to a minimum of -24°C. switching to -14°C again when press-
ing further.
The optimum temperature in the refrigerator is -18°C.Colder tem-
peratures mean unnecessary energy consumption.
4. Press any key except “K3” to conrm, or the setting conrms
automatically after 5 seconds. Indicator “B” stops ashing.
NOTICE
After setting the temperature, if other buttons are pressed within 5 seconds, the
current temperature setting will be conrmed immediately. If no button operation
is performed within 5 seconds, the current set temperature is displayed until the
screen extinguishes.
Use
16
Super freeze function
Fresh food should be frozen as quickly as possible
to the core.This preserved the best nutritional
value,appearance and taste. The Super freeze
function accelerates the freezing of fresh food
and protects the goods already stored from
undesirable warming. If you need to freeze a large
amount of food once, it is recommended to set
the Super-freeze function on ahead for 24h be-
fore the usage of Freezer compartment
1. Unlock the panel if it is locked.
2. Press button" K3"(Freeze) for 3 seconds
Indicator "B" illuminates and the function is
activated.
3. The same operation can exit super freeze
function.
Super cool function
Switch on the Super cool function if larger quantity of
food should be stored (forexample after the purchase).
The Super cool function accelerates the cooling of
fresh food and protects the goods already stored from
undesirable warming. The factory setting temperature
is + 1 °C.
1. Unlock the panel if it is locked.
2. Press button" K2"(Fridge) for 3 seconds Indicator
"A" illuminates and the function is activated.
3. The same operation can exit super cool function.
NOTICE
This function will be automatically disabled after 3 hours.
Use
WARNING!
During the holiday function no goods must be stored in the refrigerator compart-
ment.
The temperature of + 17°C is too high for storing food.
WARNING!
Use drinking water only.
17
Holiday function
This function sets the refrigerator temperature
permanently to 17°C.
This allows to keep the door of the empty refrig-
erator closed without causing an odour or mold
- during a long absence (e.g. during holiday). The
freezer compartment is free for your setting.
1. Unlock the panel if it is locked.
2. Press button" K1"(Holiday)
3. Indicator illuminates and the function is
activated.
4. The function can be deactivated by
pressing button K1(Holiday) again or by
setting the refrigerator temperature or by
performing any other setting
Water dispenser
(Only HRF510BH*/HRF510FH*
With the water dispenser cool drinking water can be tapped
The water tank should be cleaned before rst use (see CARE AND CLNING).

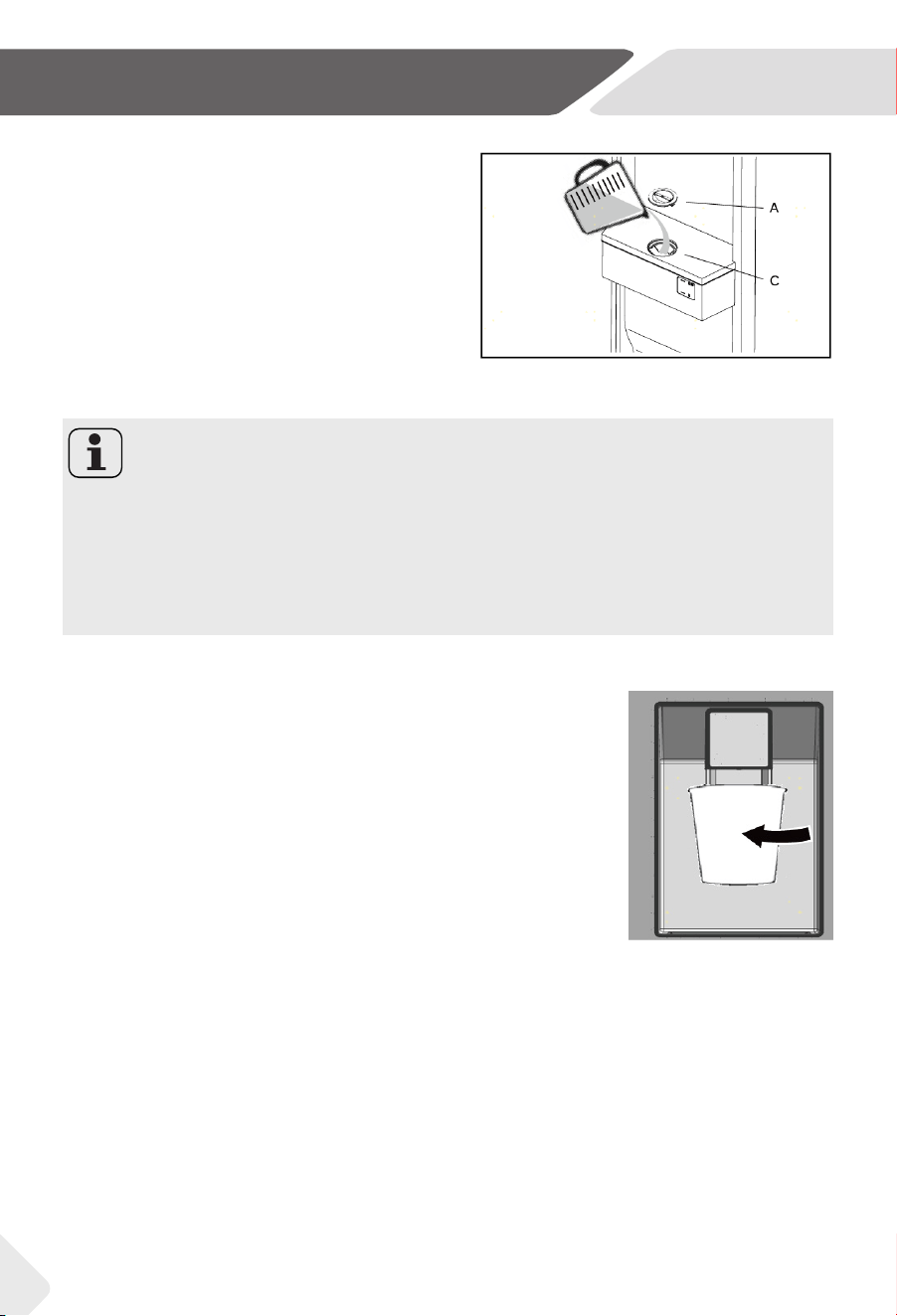

Filling the water tank
Use
18
1. Ensure that the water tank is properly
inserted (see EQUIPMENT)
2. Rotate and lift the round lid (A) and fill
the water tank up with fresh drinking
water.
3. Fill water only up to the mark (2 L); as it
could overflow when the door opens
and closes.
NOTICE
▶ Before relling dispose residual water and clean the wvater tank
▶ When you don’t need water for a long time, please emptythe water tank and insert
the cleaned tank.
▶ The cover (C) on the water tank is additionally used to save energy. If you do not
want to get water from the water dispenser for a long period, please still install the
cover because of better insulating and saving energy.
Getting water from the dispenser
1. Place a glass underneath the water outlet.
2. Push it gently against the water dispenser lever with your
glass.
Make sure the glass is in line with the dispenser to
prevent the water from splashing out.
Use
19
Storing into the refrigerator compartment
• Keep your fridge temperature below 5°C.
• Hot food must be cooled to room temperature before storing in the appliance.
• Foods stored in the refrigerator should be washed and dried before storing.
• Food to be stored should be properly sealed to avoid odor or taste alterations.
• Do not store excessive quantities of food. Leave spaces between foods to allow
cold air flowing around them, for a better and more homogeneous cooling.
• Foods eaten daily should be stored at the front of the shelf.
• Leave a gap between foods and the inner walls, allowing air flowing. In any way,
don't store foods against the rear wall: foods could freeze against the rear wall.
Avoid direct contact of food (especially oily or acidic food) with the inner liner, as
oil/acid can erode the inner liner. Clean away oily/acid dirt whenever it is found.
• Frozen food can be gently defrizzed in the refrigerator compartment. This
saves energy.
• The ageing process of fruit and vegetables such as courgettis, melons, papaya,
bananas, pineapples, etc. can be accelerated in the refrigerator. Therefore, it is
not recommended to store them in the refrigerator. However, the ripening of
strongly green fruits can be promoted for a certain period. Onions, garlic, ginger
and other root vegetables should also be stored at room temperature.
• Unpleasant odours inside the fridge are a sign that something has spilled and
cleaning is required. See Care And Cleaning.
• Different foods should be placed in different areas according to their properties.
Storage into the freezer compartment
• Keep the freezer temperature at- 18°C.
• 24 hours before freezing, switch on the Super-Freeze function. For little
quantities of food, 4-6 hours are sufficient.
• Hot food must be cooled to room temperature before storing in the freezer
compartment.
• Food cut into small portions will freeze faster and be easier to defrost and cook.
The recommended weight for each portion is less than 2.5 kg
• It is better to pack food before putting it into the freezer. The outside of the
packaging must be dry to avoid bags sticking together. Packaging materials
should be odour-free, airtight, non-poisonous and nontoxic.
• In order to avoid expiration of storage periods, please note the freezing date,
time limit and name of the food on the packaging according to the storage
periods of different foods.
Use
20
WARNING!
▶ Acid, alkali and salt etc. could erode the internal surface of the freezer.
▶ Do not place the food with these substances (e.g. sea sh) directly on the inter-
nal surface. Salt water in the freezer should be cleaned up immediately.
▶ Do not exceed the food storage time recommended by the manufacturers.
Only take the required amount of food out of the freezer.
▶ Consume defrosted food quickly. Defrosted food cannot be re-frozen unless it
is rst cooked, otherwise it may be less edible.
▶ Do not load excessive quantities of fresh food in the freezer compartment. Re-
fer to the freezing capacity of the freezer - See TECHNICAL DATA or data at
the type plate.
▶ Food can be stored in the freezer at a temperature of at least -18°C for 2 to
12 months, depending on its properties (e.g. meat: 3-12 months, vegetables:
6-12 months)
▶ While freezing fresh food, avoid bringing them in contact with already frozen
food. Risk of thawing!
When storing commercially frozen foods, please follow these guidelines:
• Always follow manufacturers’ guidelines for the length of time you should store
food for. Do not exceed these guidelines!
• Try to keep the length of time between purchase and storage as short as
possible to preserve food quality.
• Buy frozen food, which have been stored at a temperature of -18°C or below.
• Avoid buying food which has ice or frost on the packaging - This indicates that
the products might have been partially defrosted and refrozen at some point-
temperature rising affects the quality of food.
NOTICE
Ensure that all ends of a shelf are level.
NOTICE
Due to different models, your product may not have all of the following features.
Please refer to chapter Product Description.l.

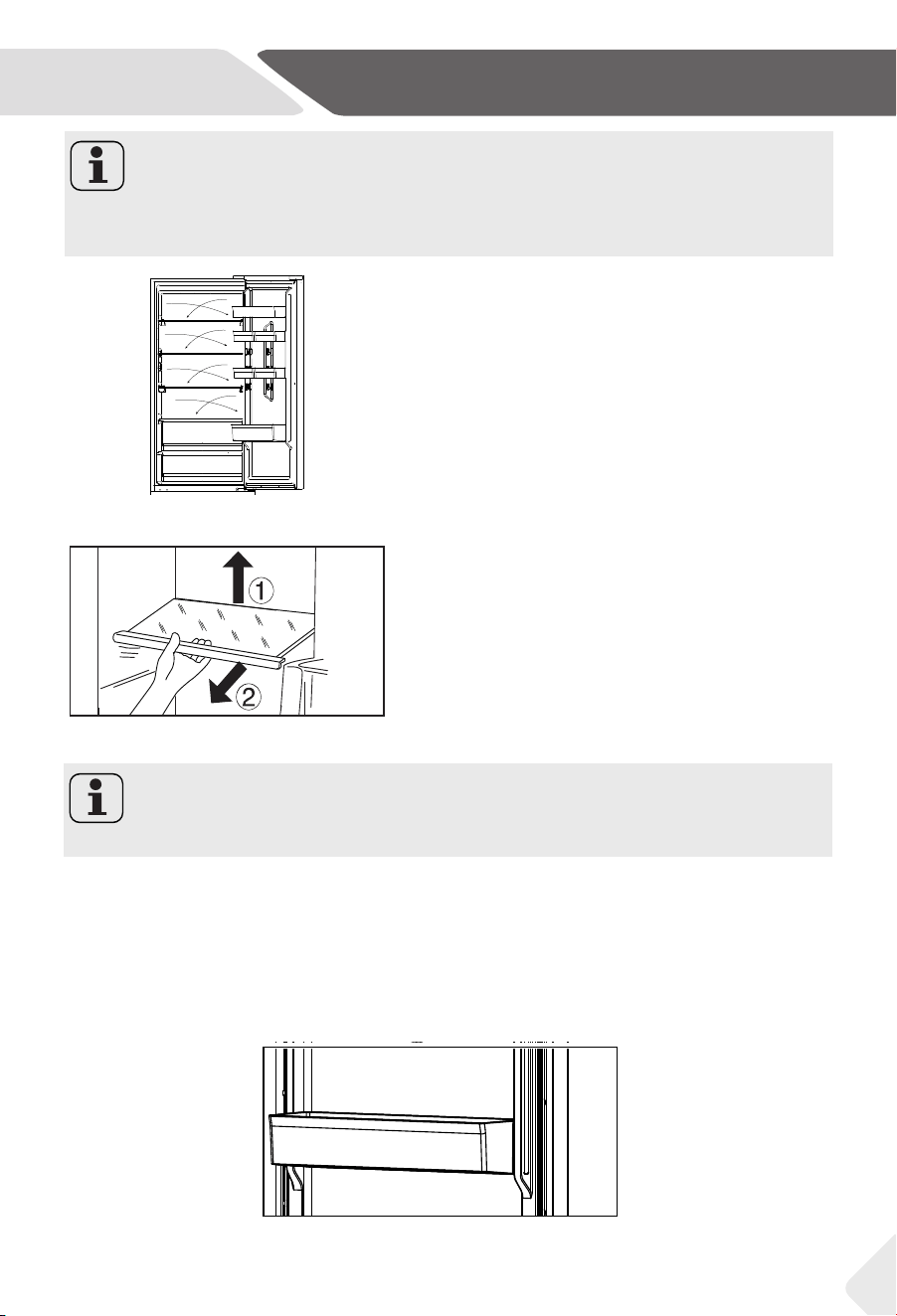

Removable door shelf
The door balcony can be removed for cleaning:
Place hands on each side of the balcony, lift it upwards (1) and pull it out (2). In order
to insert the door balcony, the above steps are carried out in a reverse order.
Adjustable shelf
1. The height of the shelves can be
adjusted to fit your storage needs.
2. To relocate a shelf, remove it first by
uplifting its hind edge ① and pulling it
out ②.
3. To reinstall it, put it on the lugs on both
sides and push it to the most rearward
position until the rear of the shelf is fixed
inside the slots in the sides
Multi-air-ow
The refrigerator is equipped with a multi-
air-flow system, with which cool air flows are
located on every shelf level. This helps to
maintain a uniform temperature to ensure
that your food is kept fresher for longer.
Equipment
21

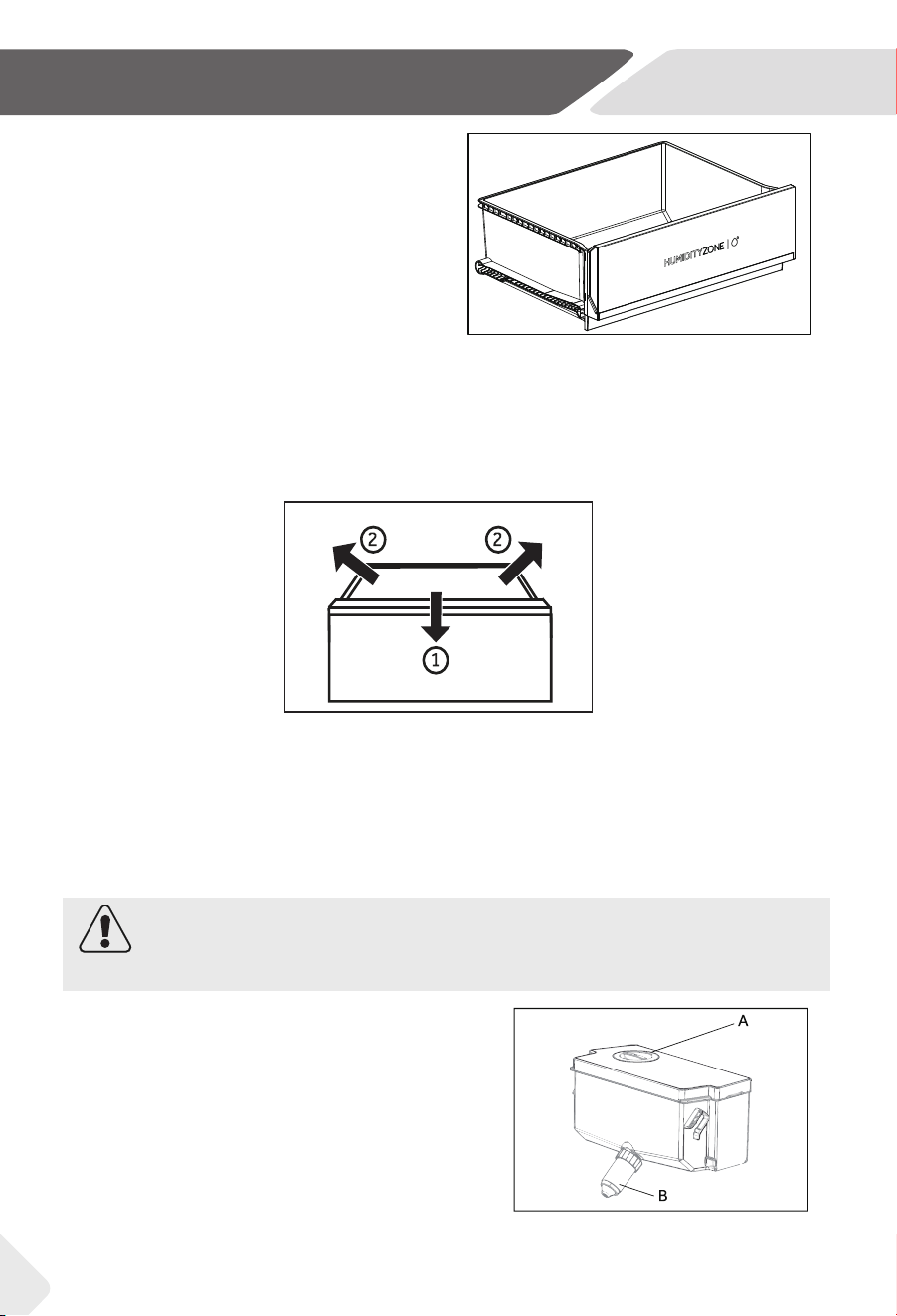

Humidity Zone drawer
In this compartment the humidity
level is controlled automatically by the
system and it is suitable to store fruits,
vegetables, salads etc.
Removable drawer
To remove the drawer out of the fridge or freezer compartment, pull out to the
maximum extent (1), lift and remove (2).
In order to insert the drawer, the above steps are carried out in a reverse order.
Freezer drawer
The freezer drawer can be extended straightly and completely. They are mounted
on easy roll telescopic rail. So that you can store and remove the freezing good
comfortably. Because of the automatic door closing mechanism, the handing is
easy and you can save energy.
WARNING!
Do not overload the drawers: Maximum load of each drawer: 35kg!
Removable water tank (Only models with
water dispenser）
The water tank can be removed and reinstalled
Insert water tank (Only models with water
dispenser）
Place the water tank in the position that the
water outlet (B) fits into the opening of the
Equipment
22
Energy saving tips
Energy saving tips
▶ Make sure the appliance is properly ventilated (see INSTALLATION).
▶ Do not install the appliance in direct sunlight or near the heat sources (eg.
stoves, heaters).
▶ Avoid unnecessarily low temperature in the appliance. The energy consump-
tion increases with the decreasing of the setting temperature in the appliance.
▶ Functions like SUPER FREEZE consume more energy.
▶ Allow warm food to cool down before placing it in the appliance.
▶ Open the appliance door as little and briey as possible.
▶ Do not overll the appliance to avoid obstructing the air ow.
▶ Avoid air within the food packaging.
▶ Keep door seals clean so that the door always closes correctly.
▶ Defroze frozen food in the fridge storage compartment
▶ The most energy-saving conguration requires drawer, food box and shelves
to be positioned in the appliance in a factory-fresh condition, and food to be
placed without blocking the air outlet of the duct.
WARNING!
Disconnect the appliance from the power supply before cleaning.
23
Care and cleaning
Cleaning
Clean the appliance when only little or no food is stored.
The appliance should be cleaned every four weeks for good maintenance and to
prevent bad stored food odors.
WARNING!
▶ Do not clean the appliance with hard brushes, wire brushes, detergent powder,
petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline so-
lutions. Please clean with special refrigerator detergent to avoid damage.
▶ Do not spray or ush the appliance during cleaning.
▶ Do not use water spray or steam to clean the appliance.
▶ Do not clean the cold glass shelves with hot water. Sudden temperature change
may cause the glass to break .
▶ Do not touch the inside surface of the freezer storage compartment, especial-
ly with wet hands, as your hands may freeze onto the surface.
▶ In case of heating check the condition of frozen goods.
24
▶ Always keep the door gasket clean.
▶ Clean the inside and housing of the applian-
ce with a sponge dampened in warm water and
neutral detergent.
▶ 1. Please scrub the interior and exterior of the
refrigerator, including door sealing, door rack,
glass shelves, boxes and so on, with a soft towel
or sponge dipped in warm water (you may add
neutral detergent into the warm water).

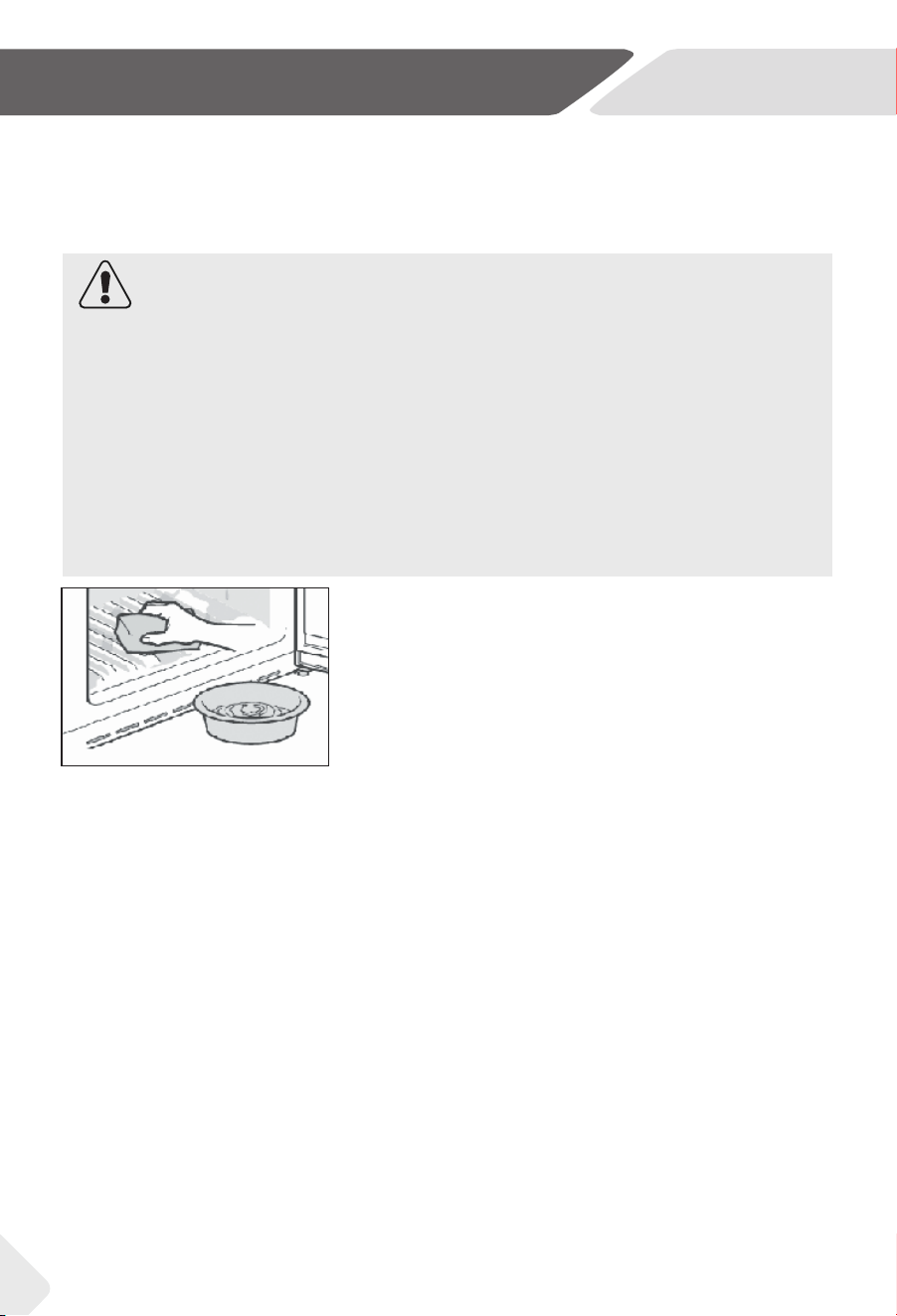

Defrosting
The defrosting of the refrigerator and the freezer compartment are done
automatically; no manual operation is needed.
▶ 2. If there is liquid spilled, remove all the contaminated parts, directly rinse
with the ow water, dry and place it back into the fridge.
▶ 3. If there is spilled cream (such as the cream, melting ice cream), please re-
move all the contaminated parts, put into the warm water with about 40 °C for
some time, then rinse with the ow water, dry and place it back into the fridge.
▶ 4. In case some small part or component gets stuck inside of the fridge (bet-
ween shelves or drawers), use small soft brush to release it. If you could not
reach the part, please contact Haier service
▶ Rinse and dry with soft cloth.
▶ Do not clean any of the parts of the appliance in a dishwasher.
▶ Allow at least 5 minutes before restarting the appliance as frequent starting
may damage the compressor.
Care and cleaning
NOTICE
Turn the appliance off only if strictly necessary.
WARNING!
Do not replace the LED lamp yourself, it must only be replaced by either the
manufacturer or the authorised service agent.
Non-use for a longer period
if the appliance is not used for an extended period of time, and you will not use the
Holiday-function for the refrigerator:
Take out the food.
Unplug the power cord.
Clean the appliance as described above.
Keep the doors open to prevent the creation of bad odours inside.
The lamps adopts LED as its light source, featuring low energy consumption and
long service life. If there is any abnormality, please contact the customer service .
See CUSTOMER SERVICE.
Parameters of the lamps:
Replacing the LED-lamps
Model
Fridge compartment
Voltage Max Power
HRF510BW
12V
2W
HRF510BS
HRF510FS
HRF510BHC
HRF510FHS
7W
HRF510FHC
25
Care and cleaning
WARNING!
▶ Do not lift the appliance by its handles.
▶ Never place the appliance horizontally on the ground.

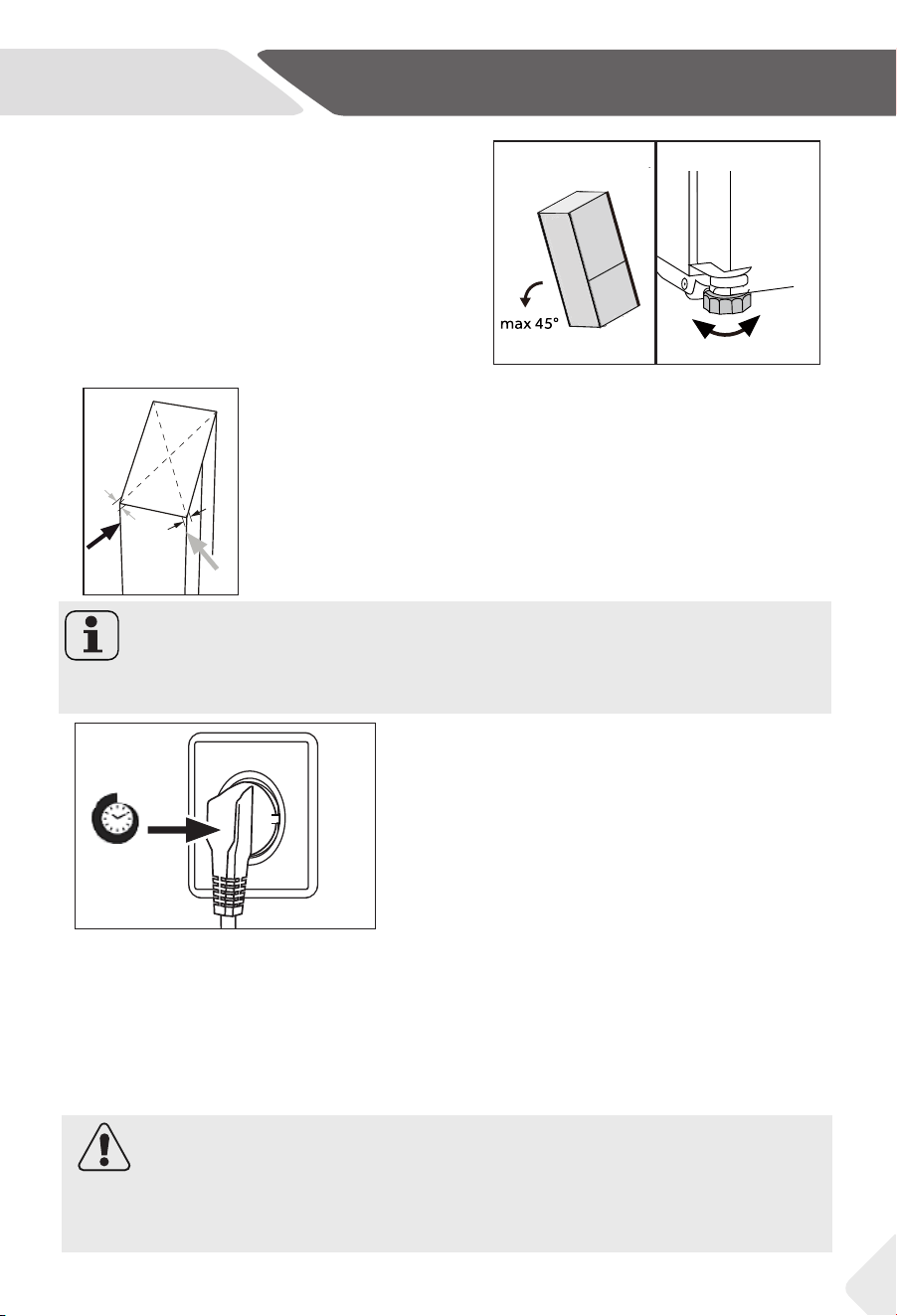

Moving the appliance
1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the fridge and the freezer with
adhesive tape.
3. Do not tilt the refrigerator more than 45° to avoid damaging the refrigeration
system.
26
Troubleshooting
27
Many occuring problems could be solved by yourself without specific expertise. In
case of a problem please check all shown possibilities and follow below instructions
before you contact an after sales service. See CUSTOMER SERVICE.
WARNING!
▶ Before maintenance, deactivate the appliance and disconnect the mains plug
from the mains socket.
▶ Electrical equipment should be serviced only by qualied electrical experts, be-
cause improper repairs can cause considerable consequential damages.
▶ A damaged supply should only be replaced by the manufacturer, its service
agent or similarly qualied persons in order to avoid a hazard.
Problem
Possible Cause Possible Solution
The
compressor
does not
work.
Mains plug is not connected in the main socket. Connect the main plug.
The appliance is in the defrosting cycle. This is normal for an automatic defrosting.
The appliance
runs
frequently or
runs for a too
long period
of time.
The indoor or outdoor temperature is too high.
In this case, it is normal for the appliance to
run longer.
The appliance has been o power for a period
of time.
Normally, it takes 8 to 12 hours for the
appliance to cool down completely.
A door/drawer of the appliance is not tightly
closed.
Close the door/drawer and ensure the
appliance is located on a levelled ground and
there is no food or container holding the door.
The door/drawer has been opened too
frequently or for too long.
Do not open the door/drawer too frequently.
The temperature setting for the freezer
compartment is too low.
Set the temperature higher until a satisfactory
fridge temperature is obtained. It takes 24
hours for the fridge temperature to become
stable.
The door/drawer gasket is dirty, worn, cracked
or mismatched.
Clean the door/drawer gasket or replace them
through the customer service.
The required air circulation is not guaranteed. Ensure adequate ventilation.
Troubleshooting table
Troubleshooting
28
Problem
Possible Cause Possible Solution
The inside of the
refrigerator is
dirty and/or with
smell.
The inside of the refrigerator needs cleaning. Clean the inside of the refrigerator.
Food with strong odour is stored in the
refrigerator.
Wrap the food thoroughly.
It is not cold
enough inside
the appliance.
The temperature is set too high. Reset the temperature
Too warm food have been stored. Always cool down food before storing them.
Too much food has been stored at one time. Always store small quantities of food.
The foods are too close to each other.
Leave a gap between several foods allowing
air owing.
A door/drawer of the appliance is not tightly
closed.
Close the door/drawer.
The door/drawer has been opened too
frequently or for too long.
Do not open the door/drawer too frequently.
It is too cold
inside the
appliance.
The temperature is set too low. Reset the temperature.
The Super Freeze function is activated or is
running too long.
Switch o the Super Freeze function.
Moisture
forming on
the inside
of the
refrigerator
compartment.
The climate is too warm and too damp. Increase the temperature.
A door/drawer of the appliance is not tightly
closed.
Close the door/drawer.
The door/drawer has been opened too
frequently or for too long.
Do not open the door/drawer too frequently.
Food containers or liquids are left open.
Let hot foods cool to room temperature and
cover foods and liquids.
Moisture
accumulates
on the
refrigerators
outside
surface or
between the
doors/door
and drawer.
The climate is too warm and too damp.
This is normal in damp climate and will
change when the humidity decreases.
The door/drawer is not closed tightly. Ensure that he door/drawer is tightly shut.
The icons
on display
ash in turn
and cooling
system does
not work.
It is in demo mode
Refrigerator is plug in power
Press and hold the “ZONE” button, and click
the “Eco Mode” button ve times, then the
icons will stop ashing in turn.
Troubleshooting
29
Problem
Possible Cause Possible Solution
Strong ice and
frost in the freezer
compartment.
The foods were not adequately packaged. Always pack the foods well.
A door/drawer of the appliance is not tightly
closed.
Close the door/drawer.
The door/drawer has been opened too
frequently or for too long.
Do not open the door/drawer too
frequently.
The door/drawer gasket is dirty, worn, cracked
or mismatched.
Clean the door/drawer gasket or replace
them by new ones.
Something on the inside prevents the door/
drawer to close property.
Reposition the shelves, door racks, or
internal containers to allow the door/
drawer to close.
The appliance
makes abnormal
sounds.
The appliance is not located on levelled
ground.
Adjust the feet to level the appliance.
The appliance touches some object around it. Remove objects around the appliance.
A slight sound is
to be heard similar
to that of owing
water.
This is normal. /
You will hear an
alarm beep.
The fridge storage compartment door is open.
Close the door or silence the alarm
manually.
You will near a
faint hum.
The anti-condensation system is working.
This prevents condensation and is
normal.
The interior
lighting or cooling
system does not
work.
Main plug is not connected in the main socket Connect the main plug.
The power supply is not intact.
Check the electrical supply to the room.
Call the local electricity company!
The LED-lamp is out of order.
Please call the service for changing the
lamp.
The sides of the
cabinet and door
strip get warm.
This is normal. /
No water is
coming out of the
water dispenser
spout
Lock is not deactivated. Deactivate the lock
Troubleshooting
30
NOTICE
Memory function during power interruption
After the recovery of power, the appliance continues with the settings that were
set before the power failure.
To contact the technical assistance, visit our website: https://corporate.haier-eu-
rope.com/en/
Under the section “website”, choose the brand of your product and your country.
You will be redirected to the specic website where you can nd the telephone
number and other ways to contact the technical assistance.
Power interruption
▶ In the event of a power cut, food should remain safely cold for about 13 hours.
Follow these tips during a prolonged power interruption, especially in summer.
▶ Open the door/drawer as few times as possible.
▶ Do not put additional food into the appliance during a power interruption.
▶ If prior notice of a power interruption is given and the interruption duration is
longer than 13 hours, make some ice cubes and put them in a container on the
top shelf of the refrigerator compartment.
▶ An inspection of the foods is required immediately after the interruption.
▶ As temperature in the refrigerator will rise during a power interruption or other
failure, the storage period and edible quality of food will be reduced. Any food
that defrosts should be either consumed, or cooked and refrozen (where suit-
able) soon afterwards in order to prevent health risks.
Installation
Unpacking
Environmental conditions
The room temperature should always be between 10° C and 43° C, since it can
inuence the temperature inside the appliance and its energy consumption. Do
not install the appliance near other heat-emitting appliances (ovens, refrigerators)
without isolation.
WARNING!
▶ The appliance is heavy. Always handle with at least two persons.
▶ Keep all packaging materials out of children´s reach and dispose them in an en-
vironmentally friendly manner.
▶ Take the appliance out of the packaging.
▶ Remove all packaging materials.
Ventilaton cross-section
To achieve sucient ventilation of the appliance for safety reasons, the information
of the required ventilation cross sections must be observed.
D2
1439
D1
626
W1
1249
W1
1020
W2
1250
D2
1039
D1
626
Space requirement
Required space when door is opened.
Model
Appliance width in mm Appliance Didth in mm
W1 W2 D1 D2
HRF510BW
1249 - 626 1439
HRF510BS
HRF510BHC
Model
Appliance width in mm Appliance Didth in mm
W1 W2 D1 D2
HRF510FS
1020 1250 626 1039
HRF510FHS
HRF510FHC
31
Installation
50 mm
50 mm
30 mm30 mm
Installation distance
Door rotation Installation distance
(HRF510F*,HRF510FH*)
50 mm
50 mm
50 mm50 mm
Door rotation Installation distance
(HRF510B*,HRF510BH*)
Environmental conditions
This appliance should be installed in a room
that is dry and well ventilated. To provide ade-
quate ventilation,make sure the refrigerator is
at least 30mm clear on all sides from kitchen
cabinetry(If HRF510B*,HRF510BH*,at least
50mm), and 50mm from the back wall. Any
units placed above the appliance must be
clear by 50mm to allow sucient ventilation.
If locating the refrigerator close to a corner,
sucient spacing must be left for opening the
doors and removing the shelves.
This appliance should be at least 100mm from
any electric or gas cooker. If this is not possi-
ble, make sure that appropriate insulation is
used (eg insulated wall).
Avoid exposing the appliance to direct sun-
light, and sources of heat (such as radiators,
heaters or cookers).
Locating this appliance in a cold environment
(such as a shed, outhouse or garage) may
compromise its performance. A consistent
room temperature of 10°C or above is rec-
ommended to ensure optimum performance
and food care.
32
Installation
NOTICE
For a free standing appliance: this refrigerating appliance is not intended to be
used as a built-in appliance
1. The stability can be checked by alternately bumping
on the diagonals. The slightly swaying should be the
same in both directions. Otherwise the frame can
warp; possible leaking door seals are the result. A
low tendency to the rear facilitates the closing of
the doors.
3.
Waiting time
To the maintenance-free lubrication oil is
located in the capsule of the compressor.
This oil can get through the closed pipe
system during slanting transport. Before
connecting the appliance to the power
supply you have to wait at least 2 hours so
that the oil runs back into the capsule.
2 h
WARNING!
To avoid risks a damaged power cord must be replaced by the customer service
(see warranty card).
Electrical connection
Before each connection check if:
▶ power supply, socket and fusing are appropriate to the rating plate.
▶ the power socket is earthed and no multi-plug or extension.
▶ the power plug and socket are strictly according.
Connect the plug to a properly installed household socket.
Aigning the appliance
The appliance should be placed on a at
and solid surface.
1. Tilt the refrigerator slightly back-
wards.
2. Set the feet to the desired level.
Make sure the distance to the wall on
the hinge side is at least 100 mm for the
door to open properly.
1. 2.
33
Installation

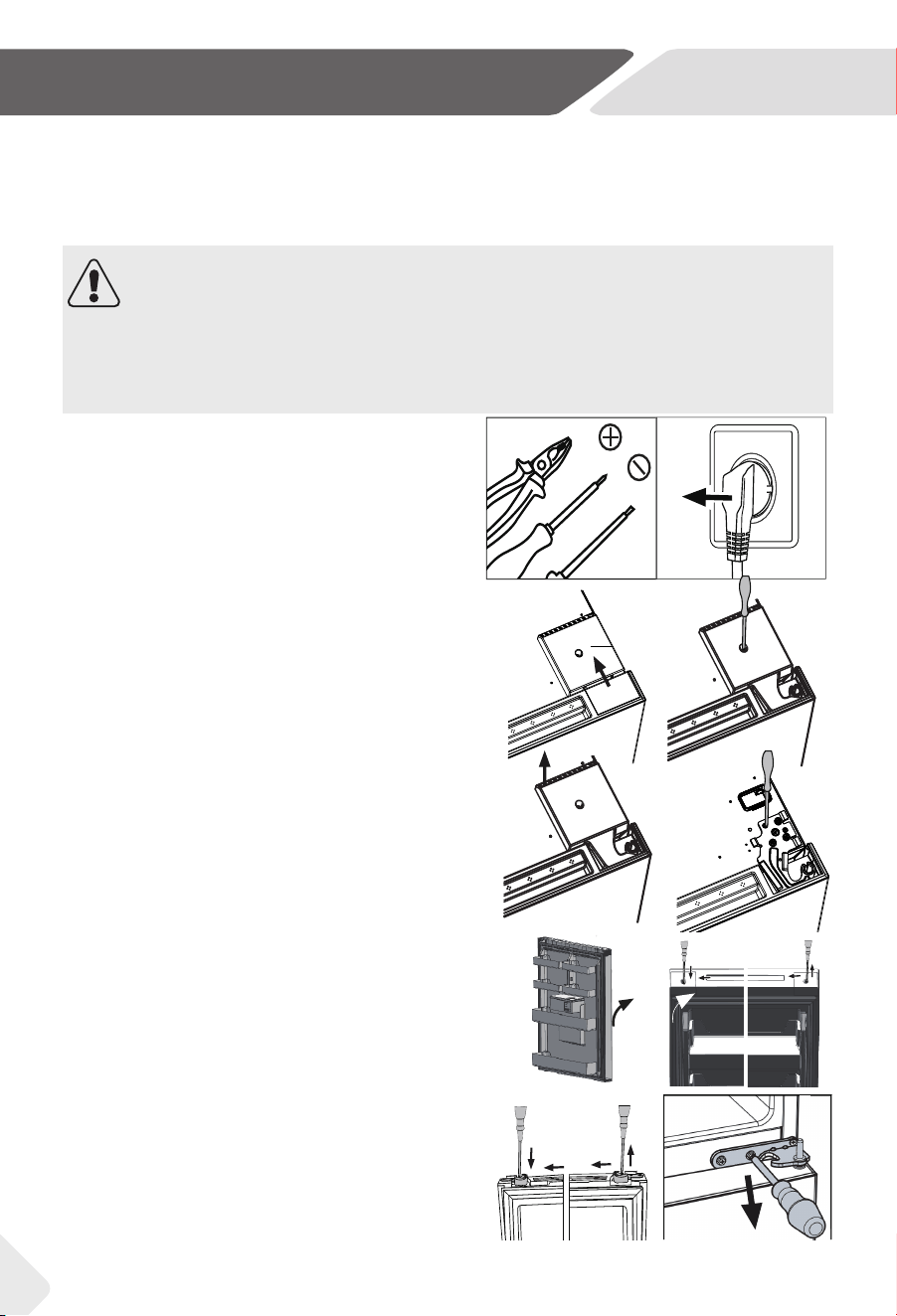

Assembly steps
1. Provide necessary tool.
2. Unplug the appliance from the main supply
rstly.
3. Remove the xation of the cover.
4. Remove the screw at the hinge
5. Remove the hinge cover.
6. Unscrew the upper hinge
7. Lift the loose upper door carefully o the
lower hinge.
8. Change the trim cover from the current
position to opposite side.
9. Change the door stop from the current
position to opposite side.
10. Remove the screws that secure the left
hinge box
11. Remove the decorative component at
the front end of the left hinge; Remove the
hook at the front end of the right hinge cover;
Install the left hinge cover decoration onto
the right hinge cover; Install the hook in the
gift bag onto the left hinge cover.
12. Fix the assembled right hinge cover onto
the refrigerator with screws.
13. Unscrew the middle hinge of the upper
door
14. Change the positions of the blanking
plugs and the screw on the side
Door Reversibility
Before connecting the appliance to the power supply, you should check whether the
door swing must be changed from right (as delivered) to left, if this is required by the
installation location and the usability.
WARNING!
▶ The appliance is heavy. You need two persons to carry out the door reversibility.
▶ Before any operation, rst unplug the appliance from the mains
▶ Do not tilt the appliance more than 45°C to prevent damage of the refrigeration
system.
34
Installation

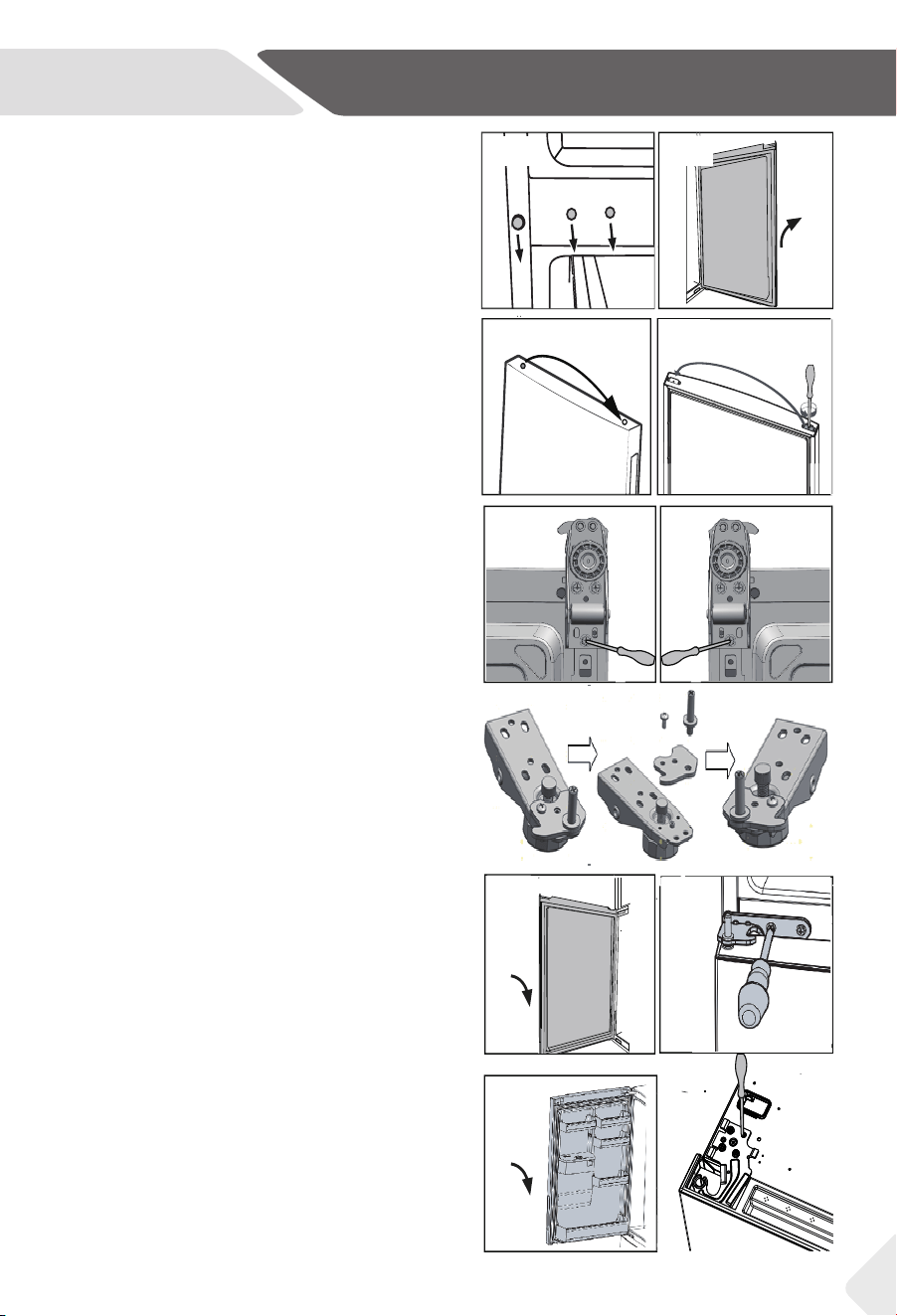

15..Rotate the middle hinge 180 ° and install it
on the left end of the middle beam .
16. Remove the hinges and corners at the
bottom of the refrigerator, and install the
corners on the right side of the bottom of the
refrigerator.
17. Install the following diagram, remove and
reassemble the lower hinge.
18. Change the positions of the blanking plug
at the top of the lower door.
19. Refer to the method of replacing the
stopper of the refrigeration door body, and
swap the stopper at the bottom of the refrig-
eration door body left and right.
20. Install the freezer door onto the refriger-
ator.
21. Install the reassembled lower hinge onto
the bottom of the left side of the refrigerator;
First x the screw at the position of the cir-
cular hole (red arrow); Then x the front two
screws (green arrows)
22. Adjust the freezing door body to ensure
good sealing.
23. Install the refrigeration door onto the
middle hinge.
Install the upper left hinge in the gift bag onto
the refrigerator and secure it with screws
After the change of the door, check if the
door seals are located properly on the hous-
ing and all screws are tightened well.
35
Technical data
Product parameters according to regulation
Based on standard test results for 24 hours. Actual energy consumption will depend
on how the appliance is used and where it is located
Trademark
Haier
Model No.
HRF510B* HRF510BH*
Category of the model
Refrigerator-freezer
Voltage/frequency
220V-240V~/50Hz
Energy Star
5.5 Star
Frost-free system
Yes
Pruduct group
5B
Total storge volume(L)
517 514
Fresh food compartment Volume(L)
379 376
Freezer compartment Volume(L)
138 138
Climate class
T
Redrigerant
R600a 70g
Insulation blowing gas
HC-C601
Dimension (DxWxH)
707x790x1725mm
Protection class
I
36
Technical data
Trademark
Haier
Model No.
HRF510F* HRF510FH*
Category of the model
Refrigerator-freezer
Voltage/frequency
220V-240V~/50Hz
Energy Star
5tar
Frost-free system
Yes
Pruduct group
5B
Total storge volume(L)
512 509
Fresh food compartment Volume(L)
375 372
Freezer compartment Volume(L)
137 137
Climate class
T
Redrigerant
R600a 70g
Insulation blowing gas
HC-C601
Dimension (DxWxH)
707x790x1725mm
Protection class
I
37
0000000000
2025 Version A
Q.C.PASSED
DESIGNATION:
REFRIGERATOR
CERTIFICATE
OF QUALITY
CHECKER No:
