18W AC Aapter x1
(Note: 60W AC adapter is not included)

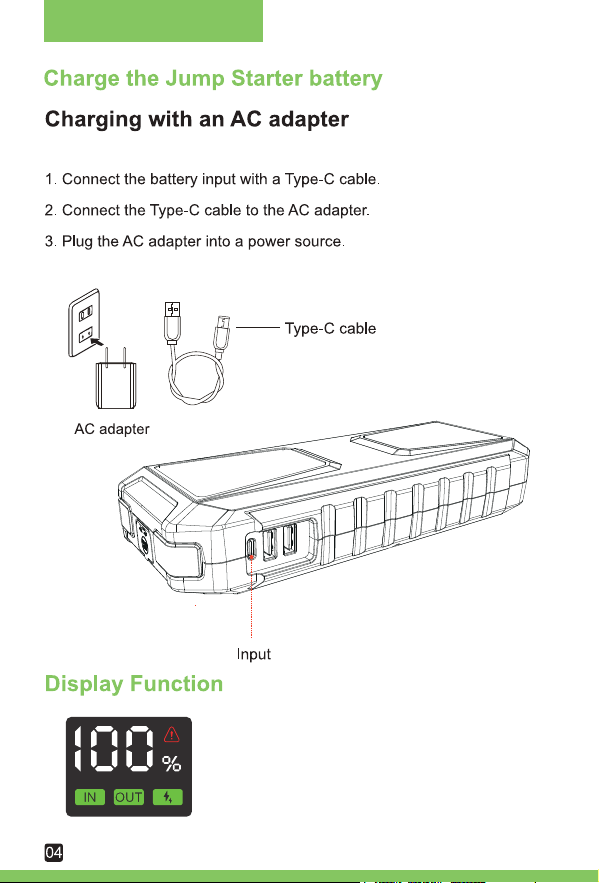

TYPE-C PD60W Port
for all gas or up to 10L diesel.
Connect the jumper
cable to jump starter.
lf the indicator light
of jumper cable flash
green, the clamp
cable is in stand-by
status. Now the jump
starter is ready for
jump-starting.
Connect the red
clamp cable to
positive and the black
clamp cable to
negative. Please
avoid reverse
connection.
When the indicator
light of jumper cable is
solid green, you can
try to start your vehicle.
After jump-starting the
engine, remove the
battery clamp from the
car battery, then
remove the red and
black clamp from the
jump starter.
After the car has been started, the green light is strobing , please remove
the jumper cable.
PROTECTION FUNCTION: THE RED LIGHT IS ON, AND
THE BEEPS WILL BE GOING ON FOR A LONG TIME.
Connect the clamps to the vehicle battery. Red clamp is connected to
the positive polarity (+), black clamp is connected to the negative
polarity (-).
Press the car start button or turn the ignition switch to the START
position.
Fully insert the plug into the jump starter
This means that the jumper cable is correctly connected to
the jump starter.
THE GREEN LIGHT IS BLINKING
THE GREEN LIGHT IS ALWAYS ON
All connections are right, try to start the engine.(lf there is
no operation within 30 seconds after the connection is
successful, the current is turned off, the green light is
flashing, the jump start function is invalid, please reconnect
to the car battery.)
HOW TO USE THE JUMPER CABLE?
1. Please connect the jumper cable correctly according to the require-
ments of the manual.
2. Do not jump start the car at high frequency continuously.
3. This jumper cable is not allowed to be heated or used near fire.
4. This jumper cable is not allowed to be put into water or disassembled or
modified without authorization.
5. The jumper cable needs to be connected to the jump starter first, and
then connected to the car battery for ignition to avoid misjudgment.
6. When the car is not connected to the battery, the cable clip does not
support the reverse connection protection; if you remove the power cord
from the car battery, do not connect it in reverse when starting the car.
PRECAUTIONS
Jump starter power is low, please recharge.
Reverse polarity connection, please reconnect
correctly.
The red and black clamps are short-circuited,
please reconnect correctly.(It is strictly
forbidden to short-circuit the positive and
negative poles after the clamp is energized.)
When the temperature of the jumper cable is
high (≥65 ± 5
°C), waiting to cool down (≤55 ±
5
°C)before the next start.
Type-C
Plug the USB-A/
Type-Cport of the charging
cable into the product
USB-A/Type-C interface
Insert the other side into
the input port of the mobile
phone
Press the power button
then you can use it to
charge now
