• Before attempting to connect or install this product, please read these instructions carefully and
save this manual for future use.
• The external appearance and other parts shown in this manual may differ from the actual product
within the scope that will not interfere with normal use due to improvement of the product.
Refer installation work to the dealer.
Installation work requires technique and experience. Failure to observe this may cause fire, electric
shock, injury, or damage to the product.
Be sure to consult the dealer.
Install the product securely on an installation surface in accordance with the installation
instructions.
Failure to observe this may cause injury or accidents.
The screws and bolts must be tightened to the specied torque.
Failure to observe this may cause a drop resulting in injury or accidents.
Do not use this bracket except with suitable cameras.
Failure to observe this may cause a drop resulting in injury or accidents.
Do not rub the edges of metal parts with your hand.
Failure to observe this may cause injury.
When using this product, also read the “Precautions” described in the operating
instructions for the camera to be attached.
Precautions
i-PRO Co., Ltd. assumes no responsibility for injuries or property damage resulting
from failures arising out of improper installation or operation inconsistent with this
documentation.
Caution:
• Before attempting to connect or operate this
product, please read these instructions care-
fully.
Notice:
• This product is not suitable for use in loca-
tions where children are likely to be present.
• Do not install this product in locations where
ordinary persons can easily reach.
• For information about screws and other parts
required for installation, refer to the corre-
sponding section of this document.
Step 4

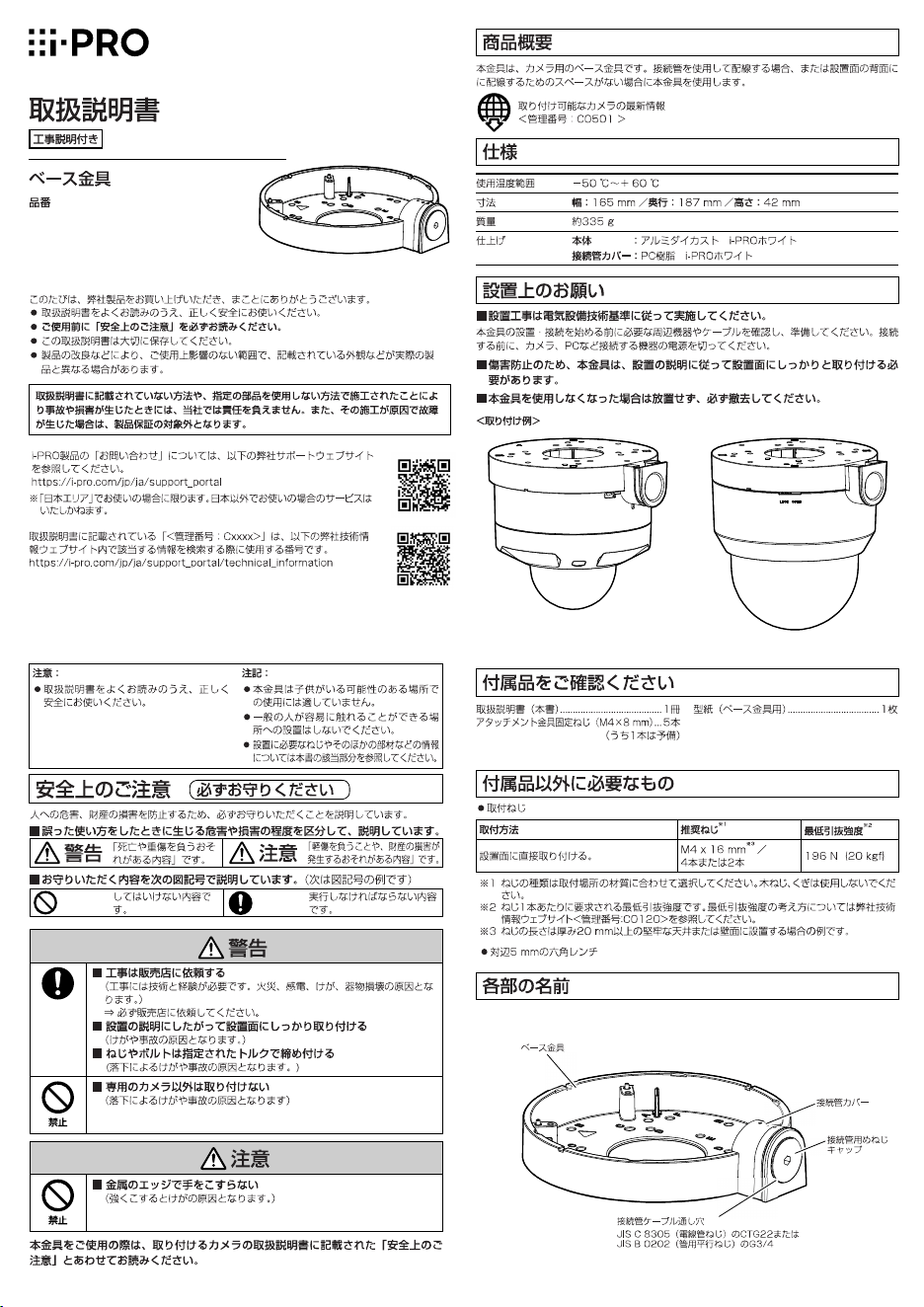

Base Bracket
Model No. WV-QJB504
Operating Instructions
Included Installation Instructions
Other items that are needed (not included)
• Fixing screw
Installation method Recommended screw*
1
Minimum
pull-out strength*
2
Directly mount the camera onto the installation
surface.
M4 × 16 mm {5/8 inches}
4 pcs. or 2 pcs.*
3
196 N {44 lbf}
*1 Select screws according to the material of the location that the camera will be mounted to. In
this case, wood screws and nails should not be used.
*2 This value indicates the minimum pull-out strength required value per screw. For information
about the minimum pull-out strength, refer to our technical information website <Control No.:
C0120>.
*3 The screw length is an example when installing the camera on a robust ceiling or wall with a
thickness of 20 mm {25/32 inches} or more.
• 5 mm (distance between two parallel sides of a hexagon) hex wrench
Parts and functions
Preface
This product is a base bracket for a camera.
Use this product when using a conduit to make wiring or when there is no enough space to make
wiring behind the inatallation surface.
The latest information about the supported cameras
<Control No.: C0501>
Specifications
In order to prevent injury, this product must be securely mounted to the installation
surface according to Installation Guide.
Make sure to remove this product if it will no longer be used.
<Example of mounting>
Precautions for installation
Standard Accessories
Operating Instructions (this document) ....... 1 pc.
Fixing screw for attachment plate (M4 x 8 mm)
... 5 pcs.
(of them, 1 for spare)
Template (for mouting base) ........................1 pc.
Ambient operating temperature: –50 °C to +60 °C {–58 °F to +140 °F}
Dimensions: 165 mm (W) × 187 mm (D) × 42 mm (H)
{6-1/2 inches (W) × 7-3/8 inches (D) × 1-21/32 inches (H)}
Mass:
Approx. 335 g {0.74 lbs}
Finish: Main body: Aluminum die cast, i-PRO white
Conduit cover: PC resin, i-PRO white
Mounting base
Conduit cover
Female thread
cap for conduit
Conduit cable access hole
Compliant with ANSI NPSM (parallel pipe threads) 3/4 or
ISO 228-1 (parallel pipe threads) G3/4
Refer to the instructions of how to fix the camera and of how to
make connection in the installation guide or the installation
procedure leaflet of each camera

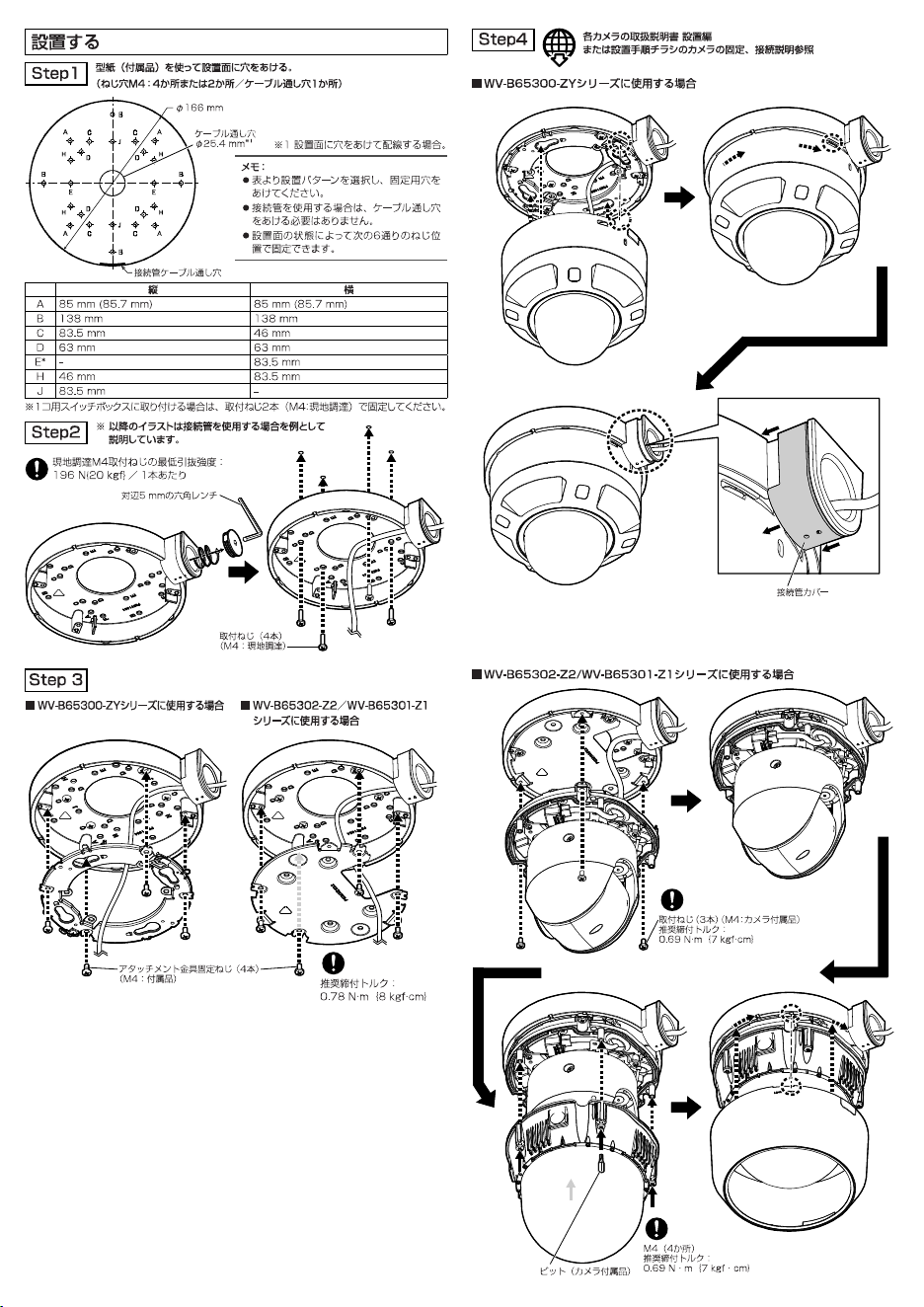

Installation
Step 1
Make a hole on the installation surface using template (accessory).
(Screw holes M4 (4 places or 2 places) / Cable access hole (1 place))
Cable access hole
ø25.4 mm {ø1 inch}*
1
ø166 mm
{ø6-17/32 inches}
Conduit cable
access hole
Note:
• Select an installation pattern referring to the
table and make fixing screw holes.
• When using a conduit, it is unnecessary to
prepare a cable access hole.
• Depending on the condition of the installa-
tion surface, the following six patterns of
screw positions are available for fixation.
Vertical Horizontal
A
85 mm {3-11/32 inches} (85.7 mm {3-3/8 inches}) 85 mm {3-11/32 inches} (85.7 mm {3-3/8 inches})
B 138 mm {5-7/16 inches} 138 mm {5-7/16 inches}
C 83.5 mm {3-9/32 inches} 46 mm {1-13/16 inches}
D 63 mm {2-15/32 inches} 63 mm {2-15/32 inches}
E* – 83.5 mm {3-9/32 inches}
H 46 mm {1-13/16 inches} 83.5 mm {3-9/32 inches}
J 83.5 mm {3-9/32 inches} –
* When mounting to a single-gang junction box, fix with two fixing screws (M4: locally procured).
Step 2
* The following illustrations are provided to explain the case when using
a conduit as an example.
Mounting screws (4 pcs.)
(M4: locally procured)
Step 3
When using for WV-U65300-ZY series
When using for WV-U65302-Z2/
WV-U65301-Z1 series
Fixing screw for attachment plate (4 pcs.)
(M4: accessory)
Recommended tightening torque:
0.78 N·m {0.58 lbf·ft}
Mounting screw (3 pcs.)
(M4: accessory of the camera)
Recommended tightening torque:
0.69 N·m {0.51 lbf·ft}
M4 (4 positions)
Recommended tightening torque:
0.69 N·m {0.51 lbf·ft}
When using for WV-U65300-ZY series
When using for WV-U65302-Z2/WV-U65301-Z1 series
Conduit cover
Bit (camera accessory)
“<Control No.: C****>” used in these documents should be used to search for information
on our technical information website (https://i-pro.com/global/en/surveillance/training-
support/support/technical-information) and will guide you to the right information.
© i-PRO Co., Ltd. 2022
i-PRO Co., Ltd.
https://www.i-pro.com/
Minimum pull-out strength of mounting screw
(M4: locally procured): 196 N {44 lbf} / per 1 pc.
5 mm (distance between
two parallel sides of a
hexagon) hex wrench
