• Before attempting to connect or install this product, please read these instructions carefully and
save this manual for future use.
• The external appearance and other parts shown in this manual may differ from the actual product
within the scope that will not interfere with normal use due to improvement of the product.
Do not use this bracket except with suitable cameras.
Failure to observe this may cause a drop resulting in injury or accidents.
Refer installation work to the dealer.
Installation work requires technique and experience.
Failure to observe this may cause fire, electric shock, injury, or damage to the product.
Be sure to consult the dealer.
Install the product securely on the bracket by following the installation
instructions.
Failure to observe this may cause injury or accidents.
The screws and bolts must be tightened to the specied torque.
Failure to observe this may cause a drop resulting in injury or accidents.
The measures of protection against a fall of this product shall be taken.
QSR501F
QSR 501M
QSR50 1F1
QSR 501M1
Failure to observe this may cause a drop resulting in injury or accidents.
Be sure to install the safety wire.
Do not rub the edges of metal parts with your hand.
Failure to observe this may cause injury.
When using this product, also read the “Precautions” described in the operating
instructions for the camera to be attached.
Precautions
i-PRO Co., Ltd. assumes no responsibility for injuries or property damage resulting
from failures arising out of improper installation or operation inconsistent with this
documentation or through use of parts other than this product, such as locally
procured parts.
Caution:
• Before attempting to connect or operate this
product, please read these instructions care-
fully.
Notice:
• This product is not suitable for use in loca-
tions where children are likely to be present.
• Do not install this product in locations where
ordinary persons can easily reach.
• For information about screws and other parts
required for installation, refer to the corre-
sponding section of this document.

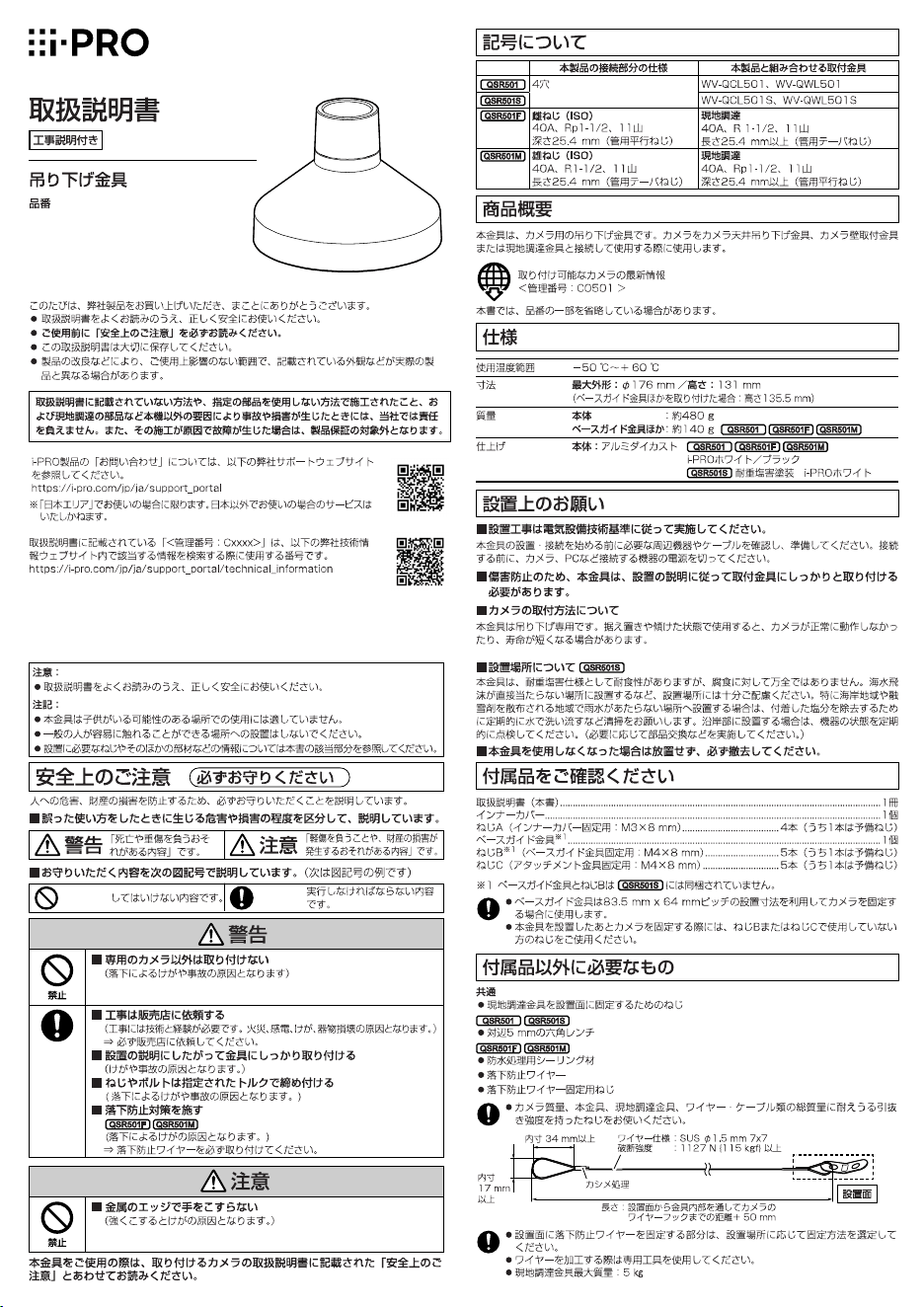

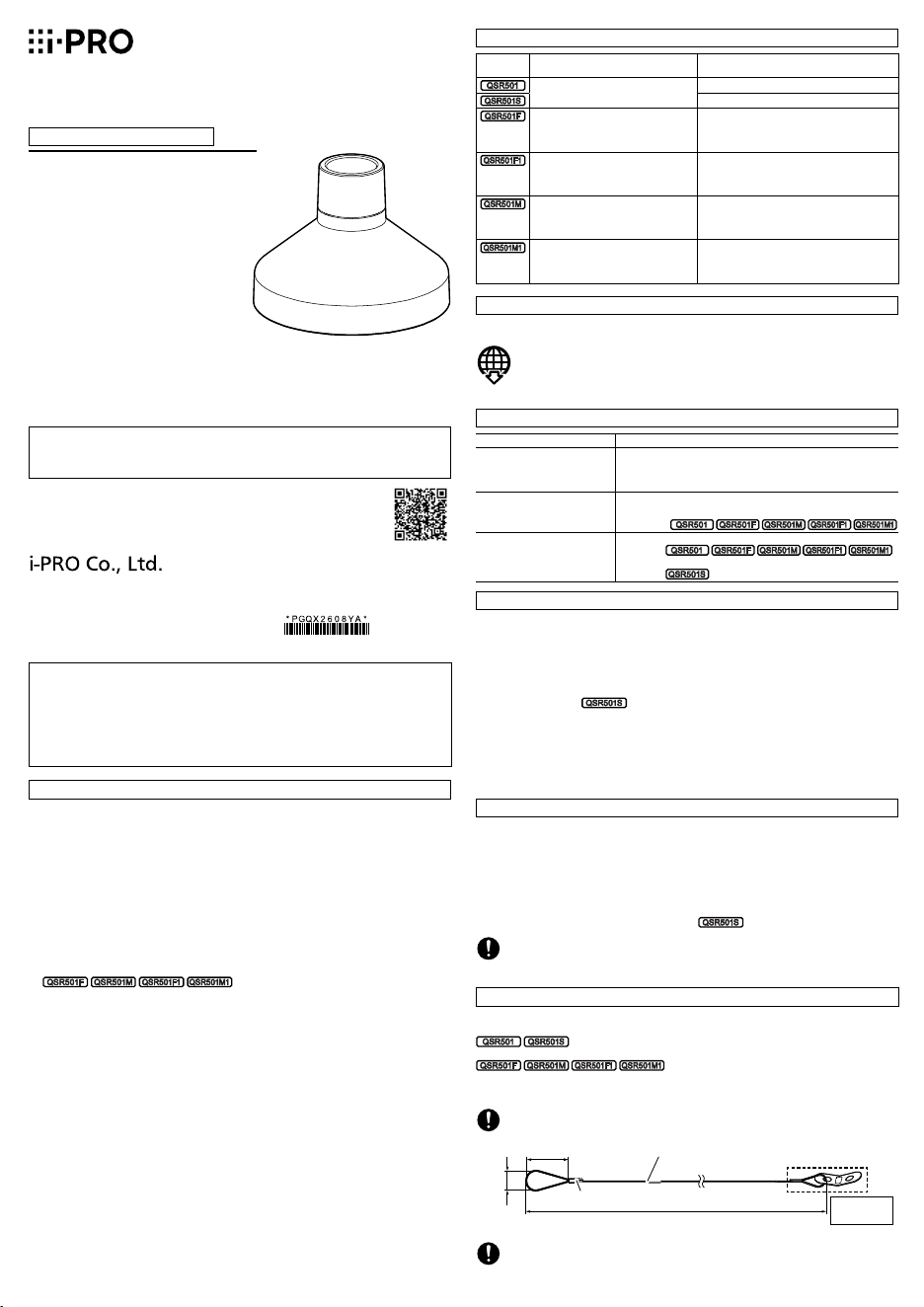

Mount Bracket
Model No. WV-QSR501
Operating Instructions
Included Installation Instructions
Other items that are needed (not included)
Common
• Screws to fix a locally procured bracket on the installation surface
QSR501
QSR501S
• 5 mm (distance between two parallel sides of a hexagon) hex wrench
QSR501F
QSR 501M
QSR50 1F1
QSR 501M1
• Sealant for waterproof treatment
• Safety wire
• Safety wire fixing screw
• Use a screw having a pull-out strength that is enough to hold the sum of weight of the
camera, this bracket, locally procured bracket, wire and cables.
Preface
This product is a mount bracket for a camera. Use this product when connecting a camera to a
ceiling mount bracket, wall mount bracket or a locally procured bracket.
The latest information about the supported cameras
<Control No.: C0501>
The model number is abbreviated in some descriptions in this manual.
Specifications
In order to prevent injury, this product must be securely mounted to a bracket
according to Installation Guide.
Mounting method for this product
This product is designed to be used as a pendant mount camera. If it is mounted on a desktop or at
a slant, the camera may not work correctly and its lifetime may be shortened.
Installation place
QSR501S
Salt damage prevention is applied to this product. However, it is not completely anti-corrosive.
Therefore, consider a place for installation where direct splash of seawater can be avoided.
Especially when installing this product in a seashore area or a place where a snow-melting agent is
applied, and also where rainwater is avoided, it is recommended to regularly clean and rinse off salt
with water. In case of installing this product in a seashore area, regularly check the status of equipment.
(Replace the parts as required.)
Make sure to remove this product if it will no longer be used.
Precautions for installation
Standard Accessories
Operating Instructions (this document) ....................................................................................... 1 pc.
Inner cover ................................................................................................................................ 1 pc.
Screw A (Fixing screw for the inner cover: M3 x 8 mm {5/16 inches}) .......................................4 pcs.
(of them, 1 for spare)
Base guide plate*
1
..................................................................................................................... 1 pc.
Screw B*
1
(Fixing screw for the base guide plate: M4 x 8 mm {5/16 inches}) ............................5 pcs.
(of them, 1 for spare)
Screw C (Fixing screw for attachment plate: M4 x 8 mm {5/16 inches}) ....................................5 pcs.
(of them, 1 for spare)
*1 Base guide plate and screw B are not included in
QSR501S
.
Ambient operating temperature: –50 °C to +60 °C {–58 °F to +140 °F}
Dimensions: Maximum diameter: ø176 mm {6-15/16 inches}
Height: 131 mm {5-5/32 inches}
(When base guide plate and other components installed:
Height 135.5 mm {5-11/32 inches})
Mass:
Main body: Approx. 480 g {1.06 lbs}
Base guide plate and others: Approx. 140 g {0.31 lbs}
QSR501
QSR501F
QSR 501M
QSR50 1F1
QSR 501M1
Finish:
Main body: Aluminum die cast,
QSR501
QSR501F
QSR 501M
QSR50 1F1
QSR 501M1
i-PRO white/black
QSR501S
Heavy salt damage prevention coating, i-PRO white

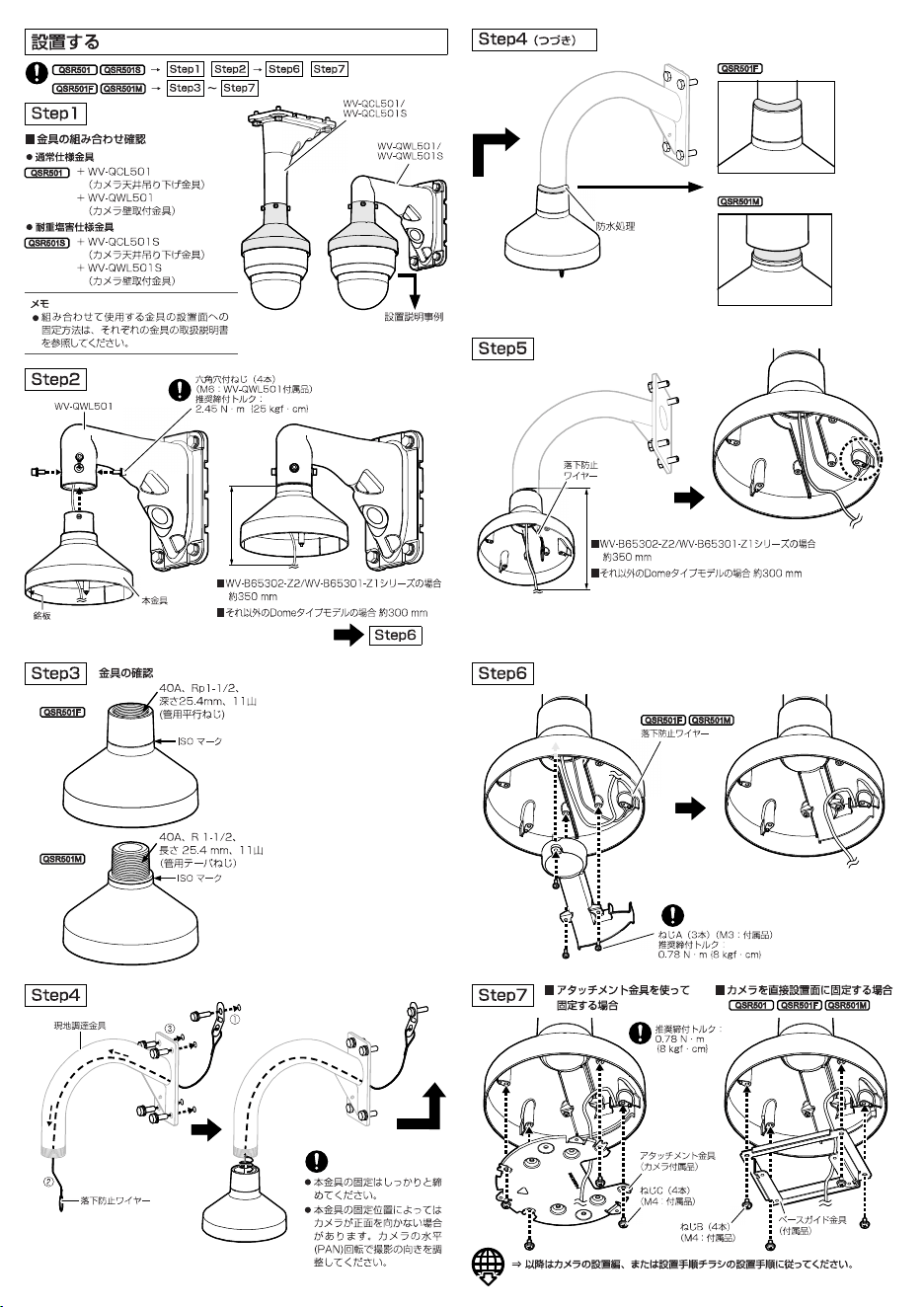

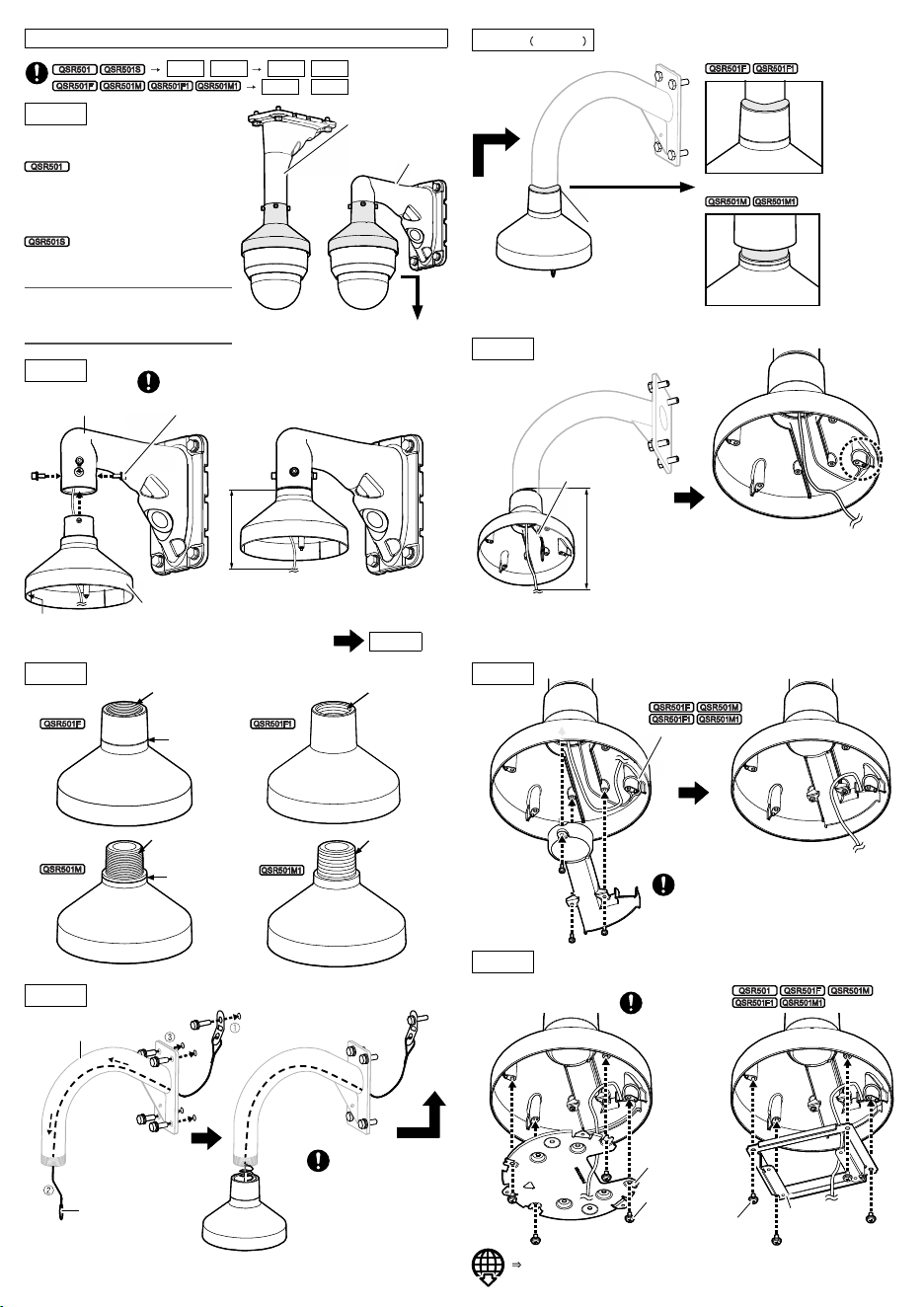

Installation
Check of combination of brackets
• Brackets with normal specification
QSR501
+ WV-QCL501
(Ceiling mount bracket)
+ WV-QWL501
(Wall mount bracket)
• Brackets with heavy salt damage resistance
specification
QSR501S
+ WV-QCL501S
(Ceiling mount bracket)
+ WV-QWL501S
(Wall mount bracket)
Note:
• Refer to the operating instructions of each
bracket for how to fix the brackets to be used
with to the installation surface.
Waterproof treatment
Step 1
Step 2
Step 5
QSR501
QSR501S
→
QSR501F
QSR 501M
QSR50 1F1
QSR 501M1
→
Step 3
Step 4
Check of brackets
Step 4 （Continued）
Step 6
Step7
Hexagon screw (4 pcs.)
(M6: WV-QWL501 accessory)
Recommended tightening torque:
2.45 N·m {1.81 lbf·ft}
WV-QWL501
Example of explanation
for installation
Step3 Step7
• Select a fixing method in accordance with the installation place surface for a part where the
safety wire is to be fixed.
• Use the dedicated tool when processing the wire.
• Maximum weight of locally procured bracket: 5 kg {11 lbs}
• Use the base guide plate when fixing the camera by utilizing the installation dimension of
83.5 mm x 64 mm {3-9/32 inches x 2-17/32 inches}.
• When fixing the camera after installing this bracket, use the screw that is yet unused
among screw B and screw C.
WV-QCL501/
WV-QCL501S
WV-QWL501/
WV-QWL501S
QSR501F
QSR50 1F1
QSR 501M
QSR 501M1
Nameplate
Safety wire
⇒ Follow the installation procedure described in the installation guide or in the
installation procedure leaflet of the camera for the subsequent procedures.
①
③
②
Safety wire
When xing with the
attachment plate
When xing the camera directly
onto the installation surface
Attachment plate
(camera accessory)
Screw C (4 pcs.)
(M4: accessory)
Base guide plate
(accessory)
Screw B (4 pcs.)
(M4: accessory)
Recommended
tightening torque:
0.78 N·m {0.58 lbf·ft}
For WV-U65302-Z2/WV-U65301-Z1 series
Approx. 350 mm {13-25/32 inches}
For dome type models other than the above
Approx. 300 mm {11-13/16 inches}
For WV-U65302-Z2/WV-U65301-Z1 series
Approx. 350 mm {13-25/32 inches}
For dome type models other than the above
Approx. 300 mm {11-13/16 inches}
Step6
• Securely fasten when fixing
this product.
• Depending on the fixing posi-
tion of this product, the cam-
era may not face the front.
Perform an adjustment of the
camera direction by panning
this product.
This bracket
Screw A (3 pcs.) (M3: accessory)
Recommended tightening torque:
0.78 N·m {0.58 lbf·ft}
WV-QSR501F-W
About notations
Connection part
specifications of this product
Mount bracket
corresponding with this product
QSR501
4 holes
WV-QCL501, WV-QWL501
QSR501S
WV-QCL501S, WV-QWL501S
QSR501F
Female screw (ISO)
40A, Rp 1-1/2, 11crest
depth 25.4mm {1 inch}
(parallel thread)
Locally procured
40A, R 1-1/2, 11crest
length 25.4mm {1 inch} or more
(
taper pipe thread
)
QSR50 1F1
Female screw (ANSI)
40A, NPSC 1-1/2, 11.5 crest
depth 25.4mm {1 inch}
(parallel thread)
Locally procured
40A, NPT 1-1/2, 11.5 crest
length 25.4mm {1 inch} or more
(taper pipe thread)
QSR 501M
Male screw (ISO)
40A, R 1-1/2, 11 crest
length 25.4mm {1 inch}
(
taper pipe thread
)
Locally procured
40A, Rp 1-1/2, 11 crest
depth 25.4mm {1 inch} or more
(parallel thread)
QSR 501M1
Male screw (ANSI)
40A, NPT 1-1/2, 11.5 crest
length 25.4mm {1 inch}
(
taper pipe thread
)
Locally procured
40A, NPSC 1-1/2, 11.5 crest
depth 25.4mm {1 inch} or more
(parallel thread)
Wire specification: SUS ø1.5 mm {1/16 inches}, 7x7
Rupture strength: 1127 N {253 lbf} or higher
Inside dimension
34 mm {1-11/32 inches} or more
Crimping process
Inside
dimension
17 mm {21/32 inches}
or more
Installation
surface
Length: Distance to the wire hook on the camera through the
inside of the bracket + 50 mm {1-31/32 inches}
40A, Rp 1-1/2,
11 crest
depth 25.4 mm
{1 inch}
(parallel thread)
40A, NPT 1-1/2,
11.5 crest
length 25.4 mm
{1 inch}
(taper pipe thread)
40A, NPSC 1-1/2,
11.5 crest
depth 25.4 mm
{1 inch}
(parallel thread)
ISO mark
ISO mark
QSR501F
QSR50 1F1
QSR 501M
QSR 501M1
40A, R 1-1/2, 11 crest
length 25.4 mm
{1 inch}
(taper pipe thread)
“<Control No.: C****>” used in these documents should be used to search for information
on our technical information website (https://i-pro.com/global/en/surveillance/training-
support/support/technical-information) and will guide you to the right information.
Step1 Step2 Step6
→
https://www.i-pro.com/
© i-PRO Co., Ltd. 2022
Step7
–
QSR501F
QSR 501M
QSR50 1F1
QSR 501M1
QSR501
QSR501F
QSR 501M
QSR50 1F1
QSR 501M1
Locally procured bracket
Safety wire (locally procured)
