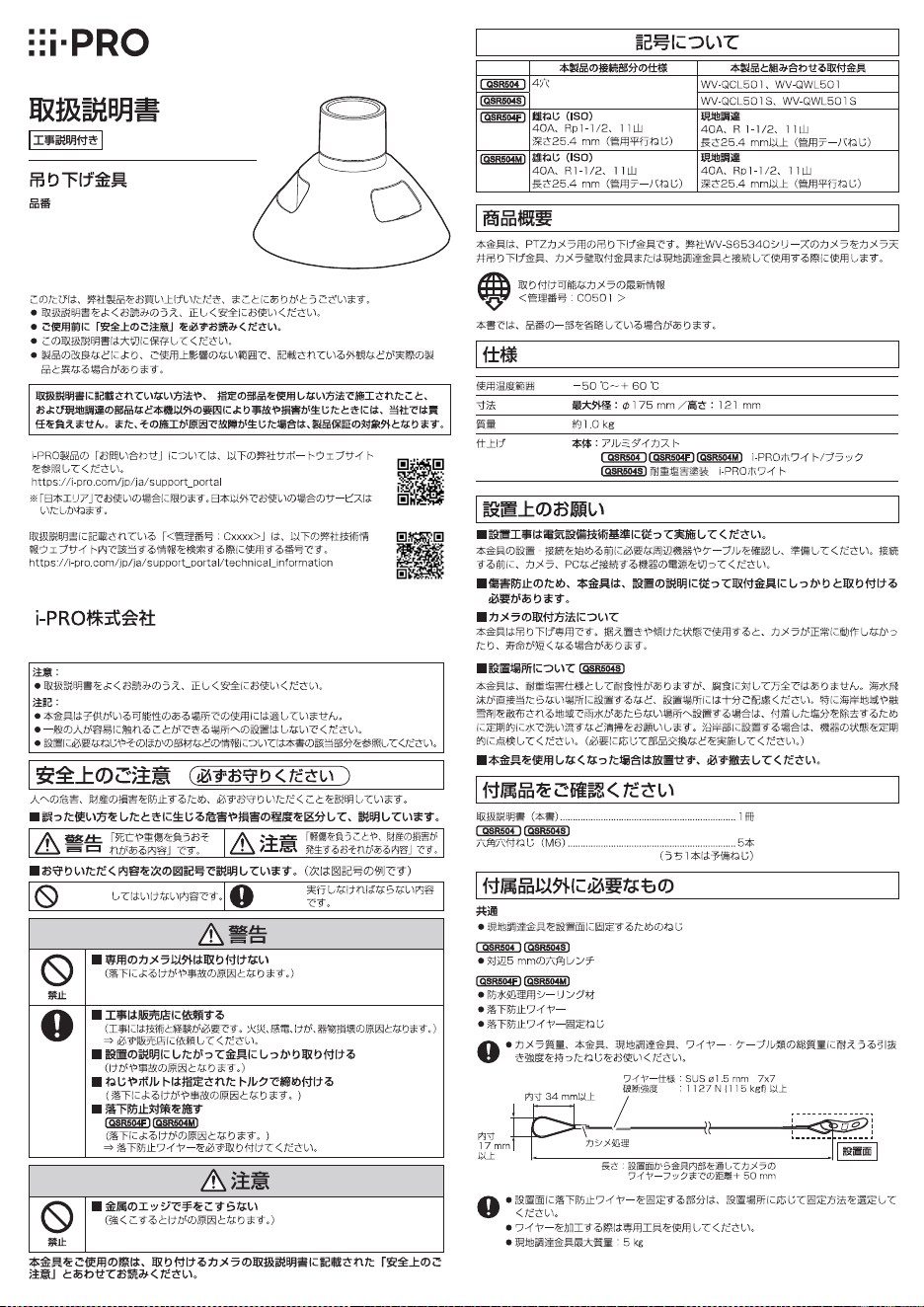

• Before attempting to connect or install this product, please read these instructions carefully and
save this manual for future use.
• The external appearance and other parts shown in this manual may differ from the actual product
within the scope that will not interfere with normal use due to improvement of the product.
Do not use this bracket except with suitable cameras.
Failure to observe this may cause a drop resulting in injury or accidents.
Refer installation work to the dealer.
Installation work requires technique and experience.
Failure to observe this may cause fire, electric shock, injury, or damage to the product.
Be sure to consult the dealer.
Install the product securely on the bracket by following the installation
instructions.
Failure to observe this may cause injury or accidents.
The screws and bolts must be tightened to the specied torque.
Failure to observe this may cause a drop resulting in injury or accidents.
The measures of protection against a fall of this product shall be taken.
QSR5 04F
QSR504M
QSR504F1
QSR504M1
Failure to observe this may cause a drop resulting in injury or accidents.
Be sure to install the safety wire.
Do not rub the edges of metal parts with your hand.
Failure to observe this may cause injury.
When using this product, also read the “Precautions” described in the operating
instructions for the camera to be attached.
Precautions
i-PRO Co., Ltd. assumes no responsibility for injuries or property damage resulting
from failures arising out of improper installation or operation inconsistent with this
documentation or through use of parts other than this product, such as locally
procured parts.
Caution:
• Before attempting to connect or operate this
product, please read these instructions care-
fully.
Notice:
• This product is not suitable for use in loca-
tions where children are likely to be present.
• Do not install this product in locations where
ordinary persons can easily reach.
• For information about screws and other parts
required for installation, refer to the corre-
sponding section of this document.
https://www.i-pro.com/
© i-PRO Co., Ltd. 2022

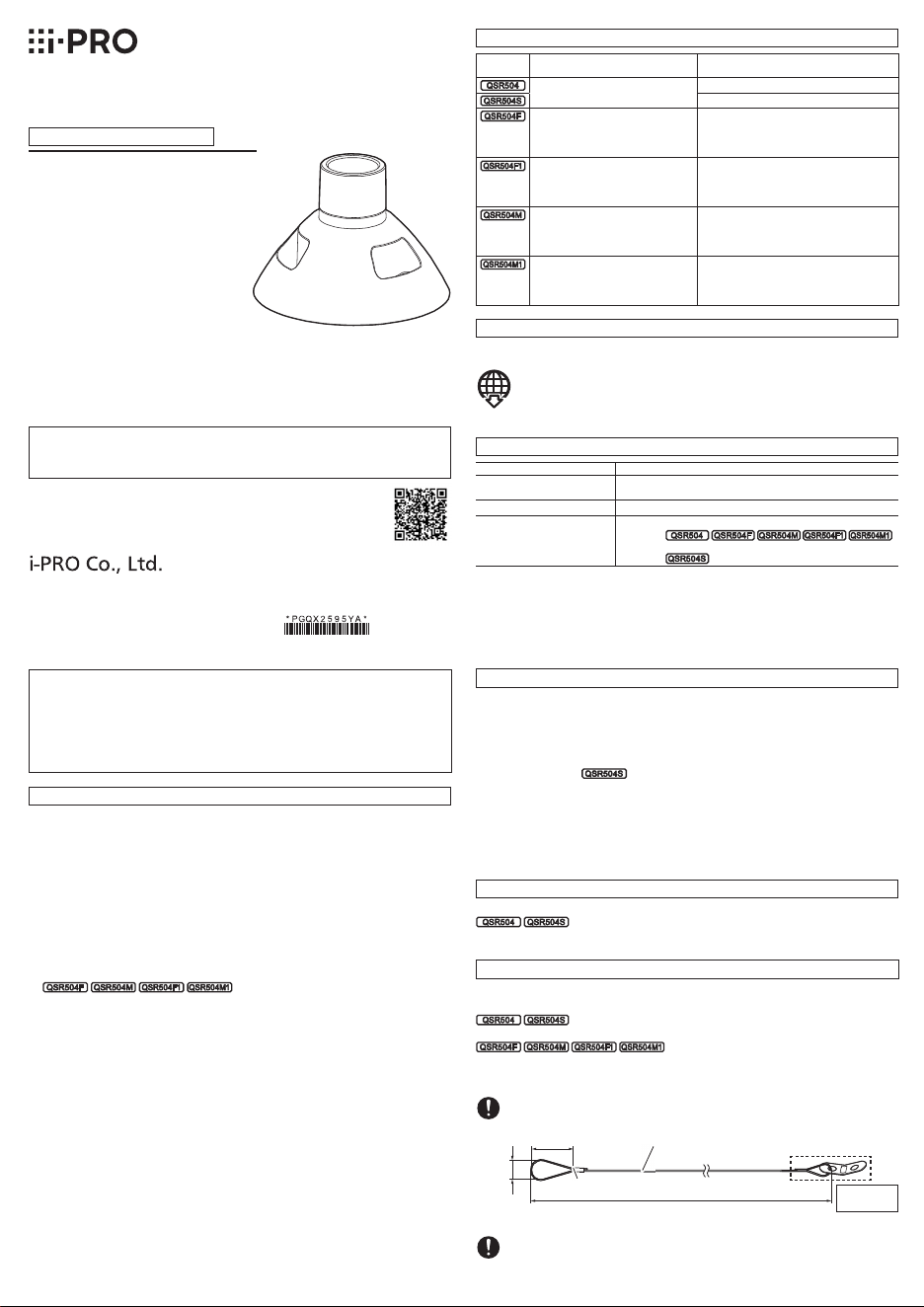

Mount Bracket
Model No. WV-QSR504
Operating Instructions
Included Installation Instructions
Other items that are needed (not included)
Common
• Screws to fix a locally procured bracket on the installation surface
QSR504
QSR504S
• 5 mm (distance between two parallel sides of a hexagon) hex wrench
QSR5 04F
QSR504M
QSR504F1
QSR504M1
• Sealant for waterproof treatment
• Safety wire
• Safety wire fixing screw
• Use a screw having a pull-out strength that is enough to hold the sum of weight of the
camera, this bracket, locally procured bracket, wire and cables.
Preface
This product is a mount bracket for PTZ camera. Use this product when connecting the WV-S65340
series camera to a ceiling mount bracket, wall mount bracket or a locally procured bracket.
The latest information about the supported cameras
<Control No.: C0501>
The model number is abbreviated in some descriptions in this manual.
Specifications
In order to prevent injury, this product must be securely mounted to a bracket
according to Installation Guide.
Mounting method for this product
This product is designed to be used as a pendant mount camera. If it is mounted on a desktop or at
a slant, the camera may not work correctly and its lifetime may be shortened.
Installation place
QSR504S
Salt damage prevention is applied to this product. However, it is not completely anti-corrosive.
Therefore, consider a place for installation where direct splash of seawater can be avoided.
Especially when installing this product in a seashore area or a place where a snow-melting agent is
applied, and also where rainwater is avoided, it is recommended to regularly clean and rinse off salt
with water. In case of installing this product in a seashore area, regularly check the status of equip-
ment. (Replace the parts as required.)
Make sure to remove this product if it will no longer be used.
Precautions for installation
Standard Accessories
Operating Instructions (this document) ...................................1 pc.
QSR504
QSR504S
Hexagon screw (M6) ............................................................ 5 pcs.
(of them, 1 for spare)
Ambient operating temperature: –50 °C to +60 °C {–58 °F to +140 °F}
Dimensions: Maximum diameter: ø175 mm {6-7/8 inches}
Height: 121 mm {4-3/4 inches}
Mass:
Approx. 1.0 kg {2.21 lbs}
Finish:
Main body: Aluminum die cast,
QSR504
QSR5 04F
QSR504M
QSR504F1
QSR504M1
i-PRO white/black
QSR504S
Heavy salt damage prevention coating, i-PRO white

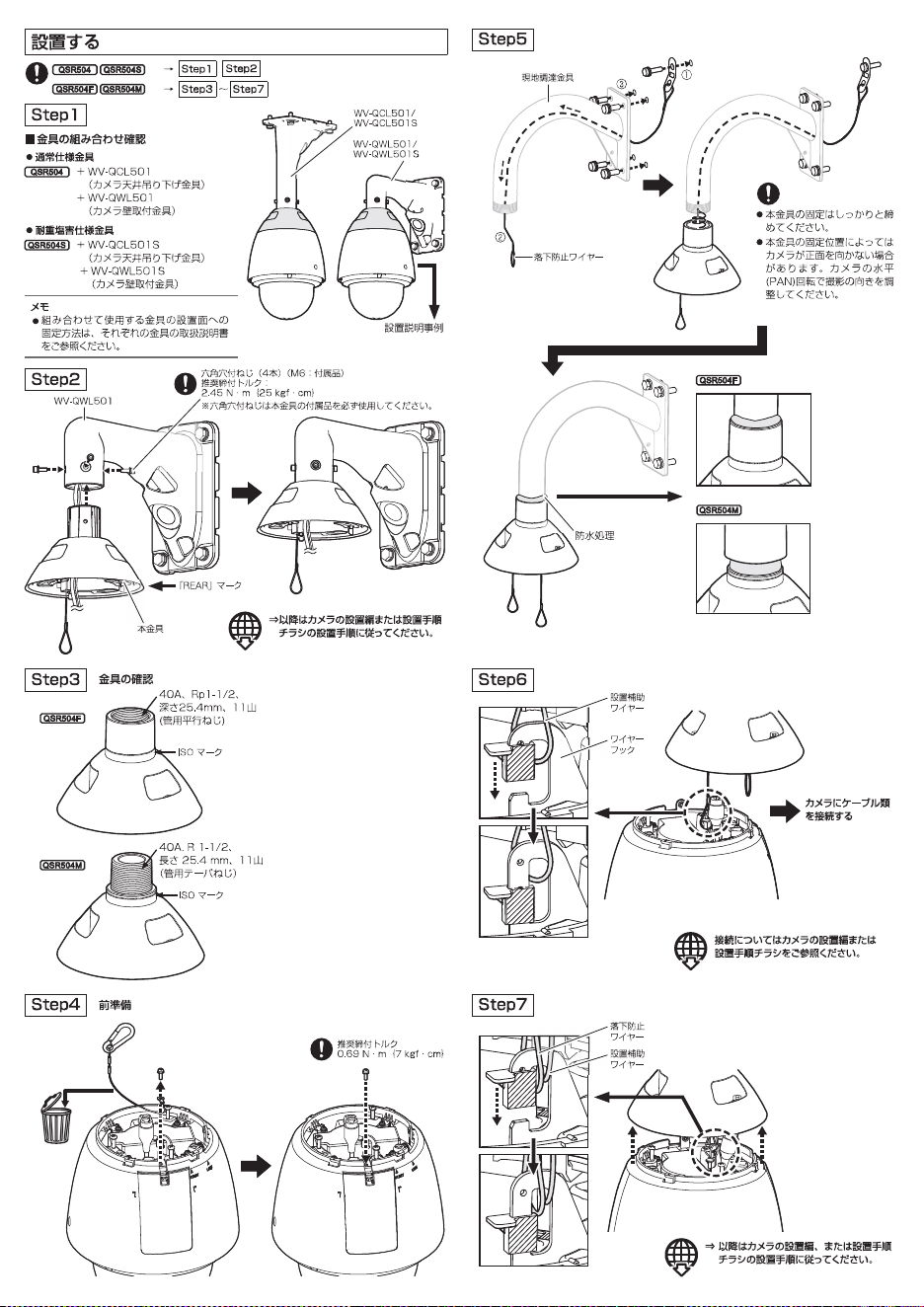

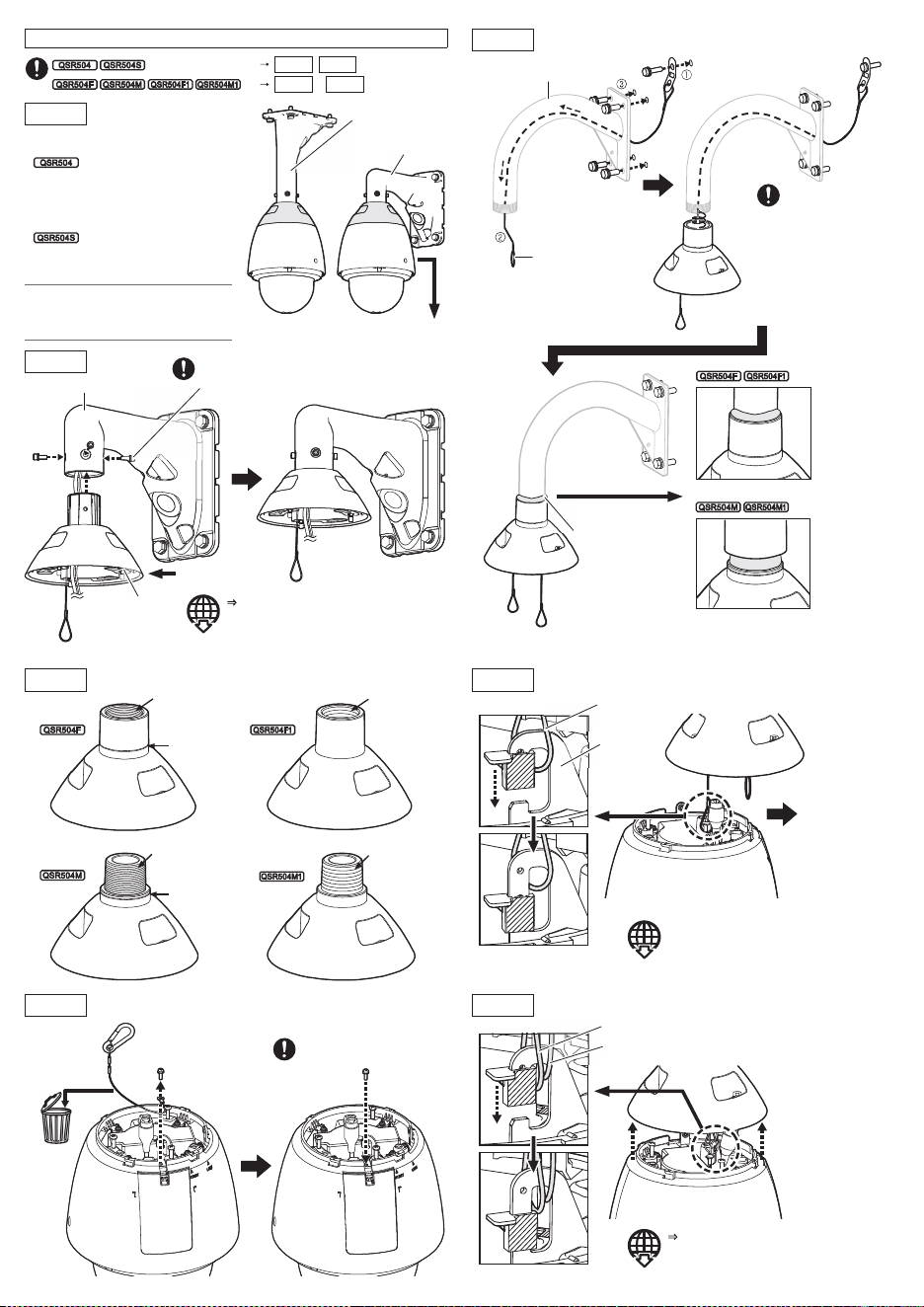

Installation
Check of combination of brackets
• Brackets with normal specification
QSR504
+ WV-QCL501
(Ceiling mount bracket)
+ WV-QWL501
(Wall mount bracket)
• Brackets with heavy salt damage resistance
specification
QSR504S
+ WV-QCL501S
(Ceiling mount bracket)
+ WV-QWL501S
(Wall mount bracket)
Note:
• Refer to the operating instructions of each
bracket for how to fix the brackets to be used
with to the installation surface.
Step1
Step2
Step3
Step4
Check of brackets
40A, Rp 1-1/2,
11 crest
depth 25.4 mm
{1 inch}
(parallel thread)
40A, NPT 1-1/2,
11.5 crest
length 25.4 mm
{1 inch}
(taper pipe thread)
40A, NPSC 1-1/2,
11.5 crest
depth 25.4 mm
{1 inch}
(parallel thread)
ISO mark
ISO mark
Step5
Step6
Step7
Hexagon screw (4 pcs.) (M6: accessory)
Recommended tightening torque:
2.45 N·m {1.81 lbf·ft}
* Be sure to use the hexagon screw included with this product.
• Securely fasten when fixing
this product.
• Depending on the fixing posi-
tion of this bracket, the cam-
era may not face the front.
Perform an adjustment of the
camera direction by panning
the camera.
Recommended tightening torque:
0.69 N·m {0.5 lbf·ft}
This bracket
REAR mark
⇒ Follow the installation procedure described
in the installation guide or in the installation
procedure leaflet of the camera for the
subsequent procedures.
Refer to the installation guide or the installation
procedure leaflet of the camera for connection.
WV-QWL501
QSR5 04F
QSR504F1
QSR504M
QSR504M1
Waterproof treatment
Installed auxiliary wire
Wire hook
Connect the cables
to the camera
Safety wire
Installed auxiliary wire
WV-QCL501/
WV-QCL501S
WV-QWL501/
WV-QWL501S
Example of explanation
for installation
Preparations
⇒ Follow the installation procedure described
in the installation guide or in the installation
procedure leaflet of the camera for the
subsequent procedures.
①
③
②
• Select a fixing method in accordance with the installation place surface for a part where the
safety wire is to be fixed.
• Use the dedicated tool when processing the wire.
• Maximum weight of locally procured bracket: 5 kg {11 lbs}
“<Control No.: C****>” used in these documents should be used to search for information
on our technical information website (https://i-pro.com/global/en/surveillance/training-
support/support/technical-information) and will guide you to the right information.
WV-QSR504F-W
About notations
Connection part
specifications of this product
Mount bracket
corresponding with this product
QSR504
4 holes
WV-QCL501, WV-QWL501
QSR504S
WV-QCL501S, WV-QWL501S
QSR5 04F
Female screw (ISO)
40A, Rp 1-1/2, 11crest
depth 25.4mm {1 inch}
(parallel thread)
Locally procured
40A, R 1-1/2, 11crest
length 25.4mm {1 inch} or more
(
taper pipe thread
)
QSR504F1
Female screw (ANSI)
40A, NPSC 1-1/2, 11.5 crest
depth 25.4mm {1 inch}
(parallel thread)
Locally procured
40A, NPT 1-1/2, 11.5 crest
length 25.4mm {1 inch} or more
(taper pipe thread)
QSR504M
Male screw (ISO)
40A, R 1-1/2, 11 crest
length 25.4mm {1 inch}
(
taper pipe thread
)
Locally procured
40A, Rp 1-1/2, 11 crest
depth 25.4mm {1 inch} or more
(parallel thread)
QSR504M1
Male screw (ANSI)
40A, NPT 1-1/2, 11.5 crest
length 25.4mm {1 inch}
(
taper pipe thread
)
Locally procured
40A, NPSC 1-1/2, 11.5 crest
depth 25.4mm {1 inch} or more
(parallel thread)
Wire specification: SUS ø1.5 mm {1/16 inches}, 7x7
Rupture strength: 1127 N {253 lbf} or higher
Inside dimension
34 mm {1-11/32 inches} or more
Crimping process
Inside
dimension
17 mm {21/32 inches}
or more
Installation
surface
Length: Distance to the wire hook on the camera through the
inside of the bracket + 50 mm {1-31/32 inches}
QSR5 04F
QSR504F1
QSR504M
QSR504M1
40A, R 1-1/2,
11 crest
length 25.4 mm
{1 inch}
(taper pipe thread)
QSR504
QSR504S
→
Step1
QSR5 04F
QSR504M
QSR504F1
QSR504M1
→
Step3
–
Step7
Step2
Locally procured bracket
Safety wire (locally procured)
