Operating Instructions
Included Installation Instructions
Mount Bracket
Model No. WV-QSR501-W
© i-PRO Co., Ltd. 2022
This product is designed to be used to install a outdoor or indoor dome type camera for use in the
following ways.
• When installing to the ceiling in combination with WV-QCL501-W (Ceiling Mount Bracket)
• When installing on a wall using together with WV-QWL501-W (Wall Mount Bracket)
• When installing to a bracket locally procured in combination with WV-QAT500-W (Attachment
Pipe Bracket)
For the latest information on cameras and brackets which can be installed, refer to our support
website (https://i-pro.com/global/en/surveillance/training_support/support/technical_information
<Control No.: C0501 and C0112>).
• Before attempting to connect or install this product, please read these instructions carefully and
save this manual for future use.
• The external appearance and other parts shown in this manual may differ from the actual product
within the scope that will not interfere with normal use due to improvement of the product.
Do not use this bracket except with specified cameras and brackets.
Failure to observe this may cause a drop resulting in injury or accidents.
Refer installation work to the dealer.
Installation work requires technique and experiences. Failure to observe this may cause fire, electric
shock, injury, or damage to the product.
Be sure to consult the dealer.
Install the product securely on the bracket in accordance with the installation
instructions.
Failure to observe this may cause injury or accidents.
The measures of protection against snowfall shall be taken.
Weight of snow may cause a fall of the product resulting in injury or accidents.
Protect the product against snowfall by installing under eaves.
Do not rub the edges of metal parts with your hand.
Strong rubbing may cause injury.
When using this product, also read the “Precautions” described in the
operating instructions for the camera to be attached.
In order to prevent injury, this product must be securely mounted to a
specialized bracket in according to the Installation Guide of this bracket.
Mounting method for this product
This product is designed to be used as a pendant mount camera. If the product is mounted on a
desktop or at a slant, it may not work correctly and its lifetime may be shortened.
Screw tightening
• Do not use an impact driver. Use of an impact driver may damage the screws or cause tightening
excessively.
When installing to a bracket locally procured in combination with WV-QAT500-W
• Procure an M6 eye bolt (stainless steel) locally.
(Recommended tightening torque: 2.45 N·m {1.81 lbf·ft})
• The bracket locally procured must be the one to which the safety wire can be attached in order to
prevent the camera from dropping.
• Connect the M6 eye bolt and the bracket locally procured with the safety wire.
• Check that WV-QAT500-W and the mounting surface of the bracket tolerate the loads of this
product and the camera to be connected.
Make sure to remove this product if it will no longer be used.
i-PRO Co., Ltd. assumes no responsibility for injuries or property damage
resulting from failures arising out of improper installation or operation
inconsistent with this documentation.
Ls0520-1042
Printed in China
Caution:
• Before attempting to connect or operate
this product, please read these
instructions carefully
Notice:
• This product is not suitable for use in locations
where children are likely to be present.
• Do not install this product in locations where
ordinary persons can easily reach.
• For information about screws and brackets
required for installation, refer to the corresponding
section of this document.
Ambient operating temperature: –50 °C to +60 °C {–58 °F to 140 °F}
Dimensions: Maximum diameter: ø176 mm {6-15/16 inches}
Height: 131 mm {5-5/32 inches}
When base guide bracket and other components installed: Height
135.5 mm {5-11/32 inches}
Mass:
Main body: Approx.480 g {1.06 lbs}
Base guide plate and others: Approx.140 g {0.31 lbs}
Finish:
Main body: Aluminum die cast i-PRO White
Specifications
For U.S. and Canada:
i-PRO Americas Inc.
For Europe and other countries:
i-PRO EMEA B.V.
https://www.i-pro.com/
Standard accessories
Operating Instructions (this document) ......................................................................................... 1 set
Inner cover ..................................................................................................................................1 pc.
Screw A (Fixing screw for the inner cover: M3×8 mm {5/16 inches}) ......... 4 pcs. (of them, 1 for spare)
Base guide plate ..........................................................................................................................1 pc.
Screw B (Fixing screw for the base guide bracket: M4×8 mm {5/16 inches}) ............................. 5 pcs.
(of them, 1 for spare)
Screw C (Fixing screw for the attachment plate: M4×8 mm {5/16 inches}) ................................. 5 pcs.
(of them, 1 for spare)
Precautions
Preface
Precautions for installation
WV-QCL501-W
WV-QSR501-W

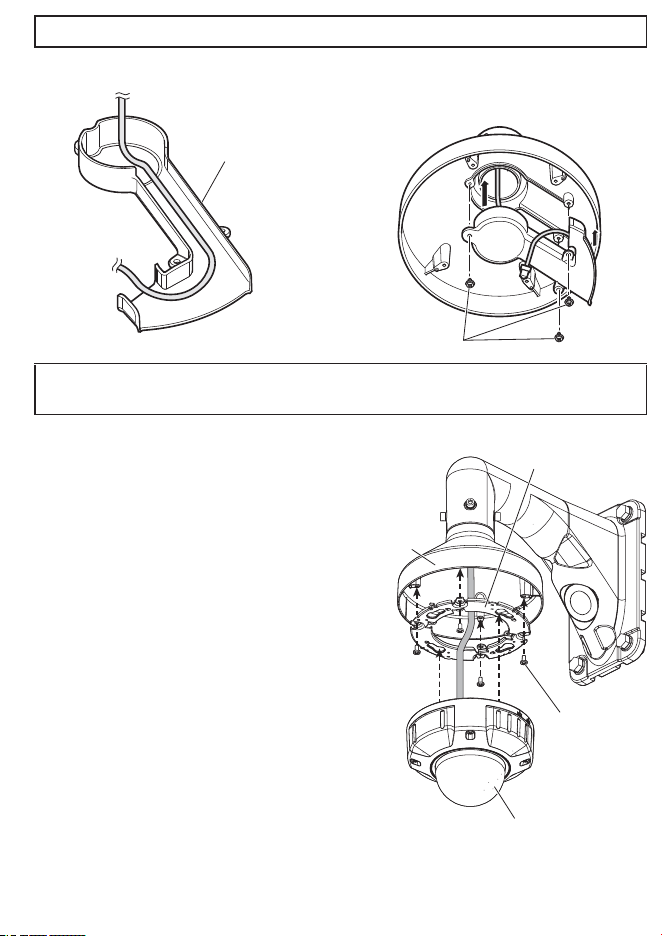

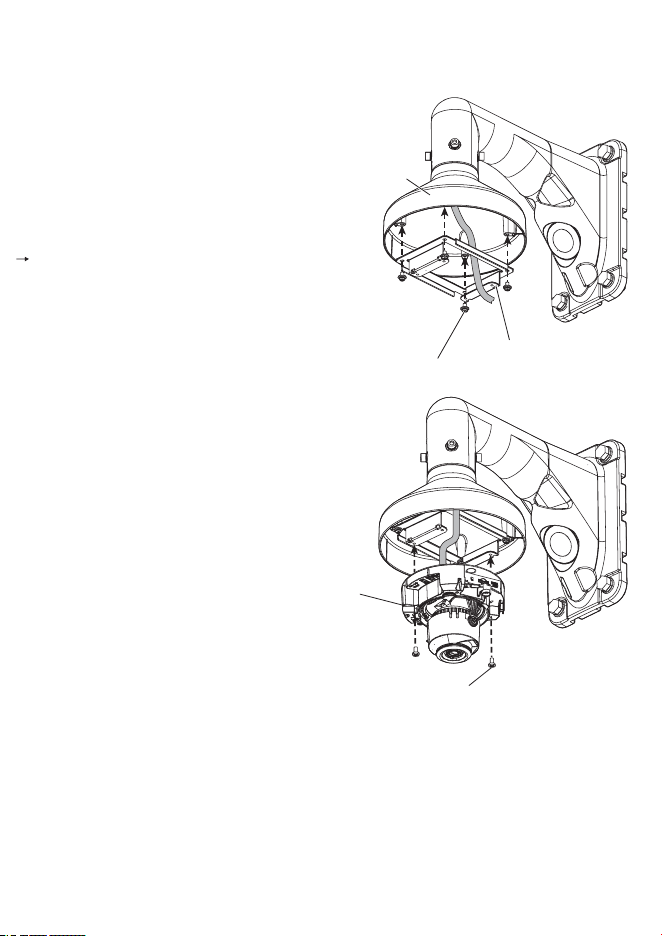

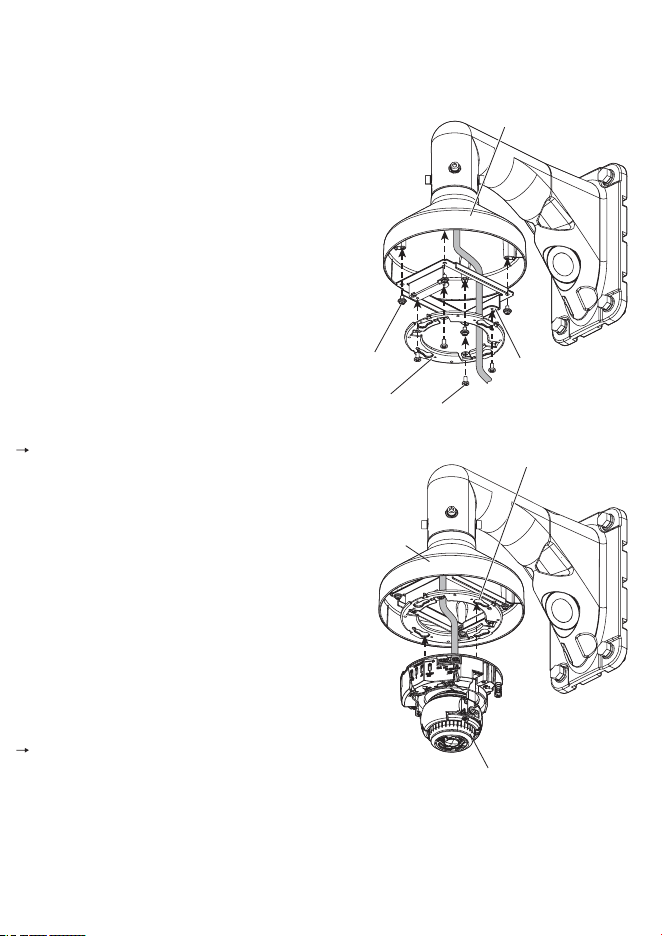

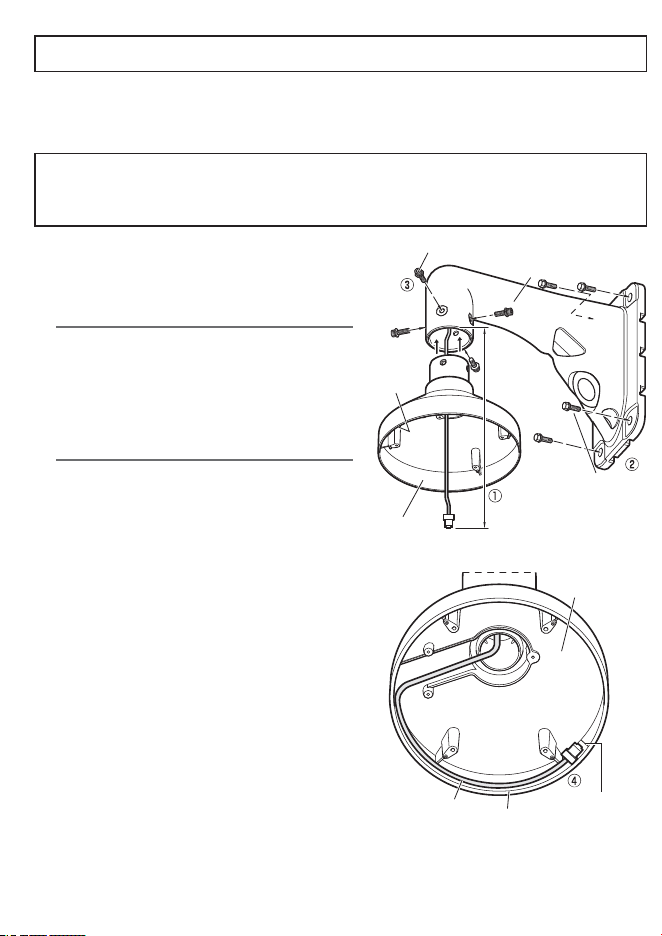

WV-QWL501-W
WV-QSR501-W
WV-QAT500-W
Mount bracket
(locally procured)
Safety wire
(locally procured)
M6 eye bolt
(Stainless steel,
locally procured)
WV-QSR501-W
