Sealey SAC15WM Wall Mounting Oil Free Air Compressor 1.5hp

WALL MOUNTED OIL FREE 1.5HP AIR COMPRESSOR

WITH 7M RETRACTABLE HOSE REEL

MODEL NO: SAC15WM

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,

and properly maintained, give you years of trouble free performance.

9 Keep work area clean and well lit. Cluttered or dark area invites accidents.

8 DO NOT operate power tools in explosive atmospheres, such as in the presence of ammable liquids, gases or dust. Power tools

create sparks which may ignite the dust or fumes.

9 Keep children and bystanders away whilst operating a power tool. Distractions can cause you to lose control.

1.3. ELECTRICAL SAFETY

9 Power tool plugs must match the outlet. Never modify the plug in any way. DO NOT use any adaptor plugs with earthed (grounded)

power tools. Unmodied plugs and matching outlets will reduce risk of electric shock.

9 Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of

electric shock if your body is earthed or grounded.

8 DO NOT expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

9 The compressor is equipped with double insulation and does not require an earth connection. Any repairs must be carried out by a

qualied electrician.

1.4. PERSONAL SAFETY

 WARNING! Avoid electric shock hazards. Never use this compressor with a damaged or frayed electrical cord or extension cord. Inspect

the plug and electrical cord before each use. Never use in or near water or in any environment where electric shocks are possible.

 WARNING! Always wear ear defenders before turning on the compressor. Ensure they are tted correctly and inspected for

serviceability. Replace immediately if damaged.

9 Stay alert, watch what you are doing and use common sense when operating a power tool.

8 DO NOT use a power tool whilst you are tired or under the inuence of drugs, alcohol, or medication. A moment inattention whilst

operating power tools may result in serious injury.

action can cause severe injury within a fraction of a second.

9 Perform a risk assessment to identify safety measures to protect the operator. These must be based on an estimation of exposure in

the actual condition of use.

1.5. POWER TOOL USE AND CARE

8 DO NOT use the power tool if the switch does not turn it on and o󰀨. Any power tool that cannot be controlled with the switch is

dangerous and must be repaired.

9 Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any

adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool

accidentally.

9 Store idle power tools out of the reach of children and do not allow persons unfamiliar with these power tools or these instructions to

WARNING!

Hot surfaces

WARNING!

Electricity

WARNING!

Automatic

Start-up

9 Use the power tool, accessories and tool bits etc, in accordance with these instructions, taking into account the working conditions and

the work to be performed. Use of the power tool for operations di󰀨erent from those intended could results in a hazardous situation.

9 Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for

safe handling and control of the tool in unexpected situation.

1.6. INSPECT BEFORE USE

Check the compressor for damaged parts and air leaks before each use. Check all screws, bolts and plates are secured. Ensure the

motor air vent is clean and free from obstruction. Clean when required as per these instructions. DO NOT use the compressor if it

1.8. INTENDED USE

This product has been designed and manufactured for intermittent use with a maximum service factor of 15%, i.e. 1.5mins of work,

8.5mins of rest, in optimal environmental conditions (max. temp. 35

o

C). DO NOT expose the compressor to high or low ambient

temperatures DO NOT modify the compressor. Ensure the compressor is operated at the rated voltage specied on the rating plates.

2. INTRODUCTION

Compact air compressor unit with integral 7m hose reel and blow gun. 180° Swivel wall bracket for maximum flexibility. (Fixings included).

Fitted with quick release coupling. Versatile and portable lightweight unit can be easily detached from the wall bracket and taken to the job

in hand. Quick Start function with a simple on/off switch, and the unit is ready for action. Ideal for use where an oil free air delivery is

required.

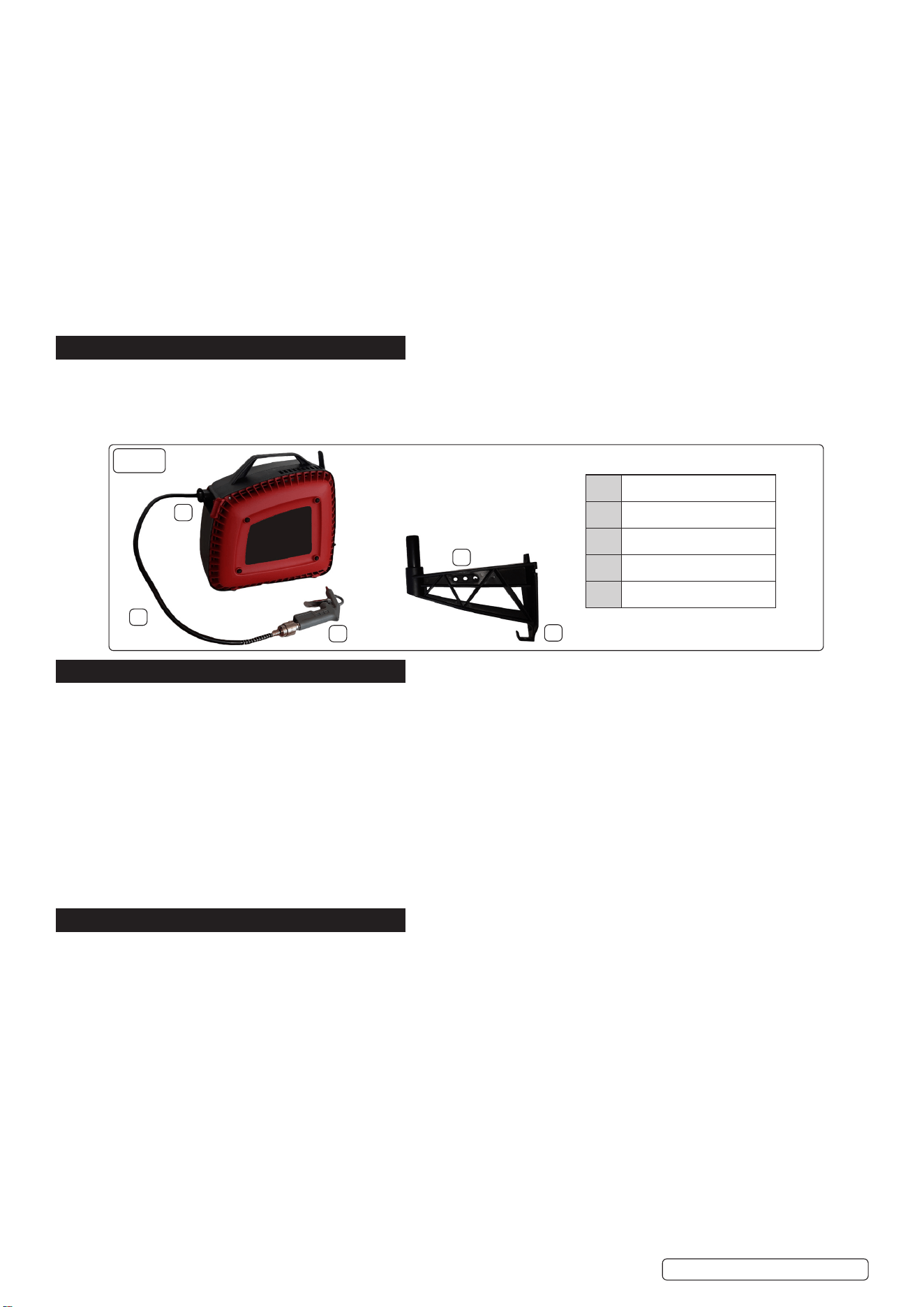

FIG.1

3. SPECIFICATION

Model No: ..................................................... SAC15WM

Air Displacement cfm(L/min): ............................ 5.65/160

Bore: .................................................................... Ø5mm

Electrical Class: ............................................................2

Motor Output: ......................................................... 1.5hp

Noise Level: ................................................... 99.8dB (A)

Outlet: .......................................Quick Release Coupling

Phase: ...................................................................... 1PH

Pressure and Flow Rate: 8 bar +/-0.5bar, ow, 75l/min (@8bar +/-0.3bar)

Noise Test Code: EN ISO 2151:2008

4. OPERATION

NOTE: This compressor can be operated as a standalone unit, or attached to a wall using the mount provided.

9 Ensure the operation is with covers in place.

9 Ensure the concentration of processed gases that can displace breathing air shall be kept within acceptable levels.”

4.1. INSTALLATION TO A WALL

Remove the compressor from the packaging. Ensure there is no damage or missing parts. Fasten using an electric drill, a 10mm drill

bit and a screwdriver. Use a spirit level to ensure the support is positioned correctly. To install to brick or cement, use the screws and

plugs supplied. To fasten to any other surface, purchase the appropriate screws and plugs. If attaching to a wall, the wall must be

4.3. TURNING ON/OFF

Insert the plug into the supply and turn on at the main supply. Turn on the compressor using the ON/OFF switch. Always turn o󰀨

after use.

4.4. HOSE WINDER

The winder includes an automatic locking mechanism that allows the user to lock the length. Pull the hose out to the desired length,

then reduce the tension until you here a click. Always handle the hose with care. Rewind the hose after use.

4.5. MOTOR PROTECTION DEVICE

WEEE REGULATIONS

Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic

Equipment (WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact

ENVIRONMENT PROTECTION

Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be

sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment. When

the product becomes completely unserviceable and requires disposal, drain any uids (if applicable) into approved

containers and dispose of the product and uids according to local regulations.

The compressor is tted with an internal automatically rearming thermal protection switch to prevent overheating. If the compressor

trips, switch the compressor o󰀨 using the ON/OFF switch. Remove from the electrical power supply and wait a few minutes. Once

cooled, plug the power cord back in and restart work. If the compressor trips out again, switch o󰀨, detach from the electrical power

supply and contact an authorised service centre. Note: the duty cycle for the compressor is 1.5 minutes work, 8.5 minutes rest.

5. MAINTENANCE

 WARNING! DISCONNECT BEFORE SERVICING

6. TROUBLESHOOTING
