Distributed Elevator Controller
User Manual
Distributed Elevator Controller User Manual
i
©2020 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.
About this Manual
The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other
information hereinafter are for description and explanation only. The information contained in the Manual is subject to
change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the
Hikvision website (https://www.hikvision.com/).
Please use this Manual with the guidance and assistance of professionals trained in supporting the Product.
Trademarks
and other Hikvision’s trademarks and logos are the properties of Hikvision in various jurisdictions.
Other trademarks and logos mentioned are the properties of their respective owners.
Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT DESCRIBED, WITH ITS
HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED “AS IS” AND “WITH ALL FAULTS AND ERRORS”. HIKVISION
MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY
QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO
EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,
INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF
DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT
(INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT,
EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND HIKVISION
SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES
RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS;
HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE
FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING
THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT
LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY
RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR
PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR
BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR
FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.
Data Protection
During the use of device, personal data will be collected, stored and processed. To protect data, the
development of Hikvision devices incorporates privacy by design principles. For example, for device with facial
recognition features, biometrics data is stored in your device with encryption method; for fingerprint device,
only fingerprint template will be saved, which is impossible to reconstruct a fingerprint image.
As data controller, you are advised to collect, store, process and transfer data in accordance with the applicable
data protection laws and regulations, including without limitation, conducting security controls to safeguard
personal data, such as, implementing reasonable administrative and physical security controls, conduct
periodic reviews and assessments of the effectiveness of your security controls.
Distributed Elevator Controller User Manual
ii
Regulatory Information
Please take attention that changes or modification not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE" and comply
therefore with the applicable harmonized European standards listed under the EMC Directive
2014/30/EU, LVD Directive 2014/35/EU, the RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper recycling, return this product to your local
supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection
points. For more information see: www.recyclethis.info
2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union. See the product documentation for specific battery
information. The battery is marked with this symbol, which may include lettering to indicate cadmium
(Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated
collection point. For more information see: www.recyclethis.info
Distributed Elevator Controller User Manual
iii
Safety Instruction
These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss.
The precaution measure is divided into Warnings and Cautions:
Warnings: Neglecting any of the warnings may cause serious injury or death.
Cautions: Neglecting any of the cautions may cause injury or equipment damage.
Warnings
All the electronic operation should be strictly compliance with the electrical safety regulations, fire prevention
regulations and other related regulations in your local region.
Please use the power adapter, which is provided by normal company. The power consumption cannot be less than
the required value.
Do not connect several devices to one power adapter as adapter overload may cause over-heat or fire hazard.
Please make sure that the power has been disconnected before you wire, install or dismantle the device.
When the product is installed on wall or ceiling, the device shall be firmly fixed.
If smoke, odors or noise rise from the device, turn off the power at once and unplug the power cable, and then
please contact the service center.
If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to
disassemble the device yourself. (We shall not assume any responsibility for problems caused by unauthorized repair
or maintenance.)
Cautions
Do not drop the device or subject it to physical shock, and do not expose it to high electromagnetism radiation.
Avoid the equipment installation on vibrations surface or places subject to shock (ignorance can cause equipment
damage).
Do not place the device in extremely hot (refer to the specification of the device for the detailed operating
temperature), cold, dusty or damp locations, and do not expose it to high electromagnetic radiation.
The device cover for indoor use shall be kept from rain and moisture.
Exposing the equipment to direct sun light, low ventilation or heat source such as heater or radiator is forbidden
(ignorance can cause fire danger).
Do not aim the device at the sun or extra bright places. A blooming or smear may occur otherwise (which is not a
malfunction however), and affecting the endurance of sensor at the same time.
Please use the provided glove when open up the device cover, avoid direct contact with the device cover, because
the acidic sweat of the fingers may erode the surface coating of the device cover.
Please use a soft and dry cloth when clean inside and outside surfaces of the device cover, do not use alkaline
detergents.
Please keep all wrappers after unpack them for future use. In case of any failure occurred, you need to return the
device to the factory with the original wrapper. Transportation without the original wrapper may result in damage on
the device and lead to additional costs.
Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or equivalent
type only. Dispose of used batteries according to the instructions provided by the battery manufacturer.
Warnings Follow these
safeguards to prevent
serious injury or death.
Cautions Follow these
precautions to prevent
potential injury or material
damage.
Distributed Elevator Controller User Manual
iv
Contents
Overview.................................................................................................................................1
1.1 Introduction ....................................................................................................................................... 1
1.2 Main Features .................................................................................................................................... 1
Appearance .............................................................................................................................2
2.1 Device Appearance Introduction ....................................................................................................... 2
2.2 Indicator Introduction ........................................................................................................................ 3
2.3 DIP Switch Introduction ..................................................................................................................... 3
Installation ..............................................................................................................................4
Device Wiring ..........................................................................................................................5

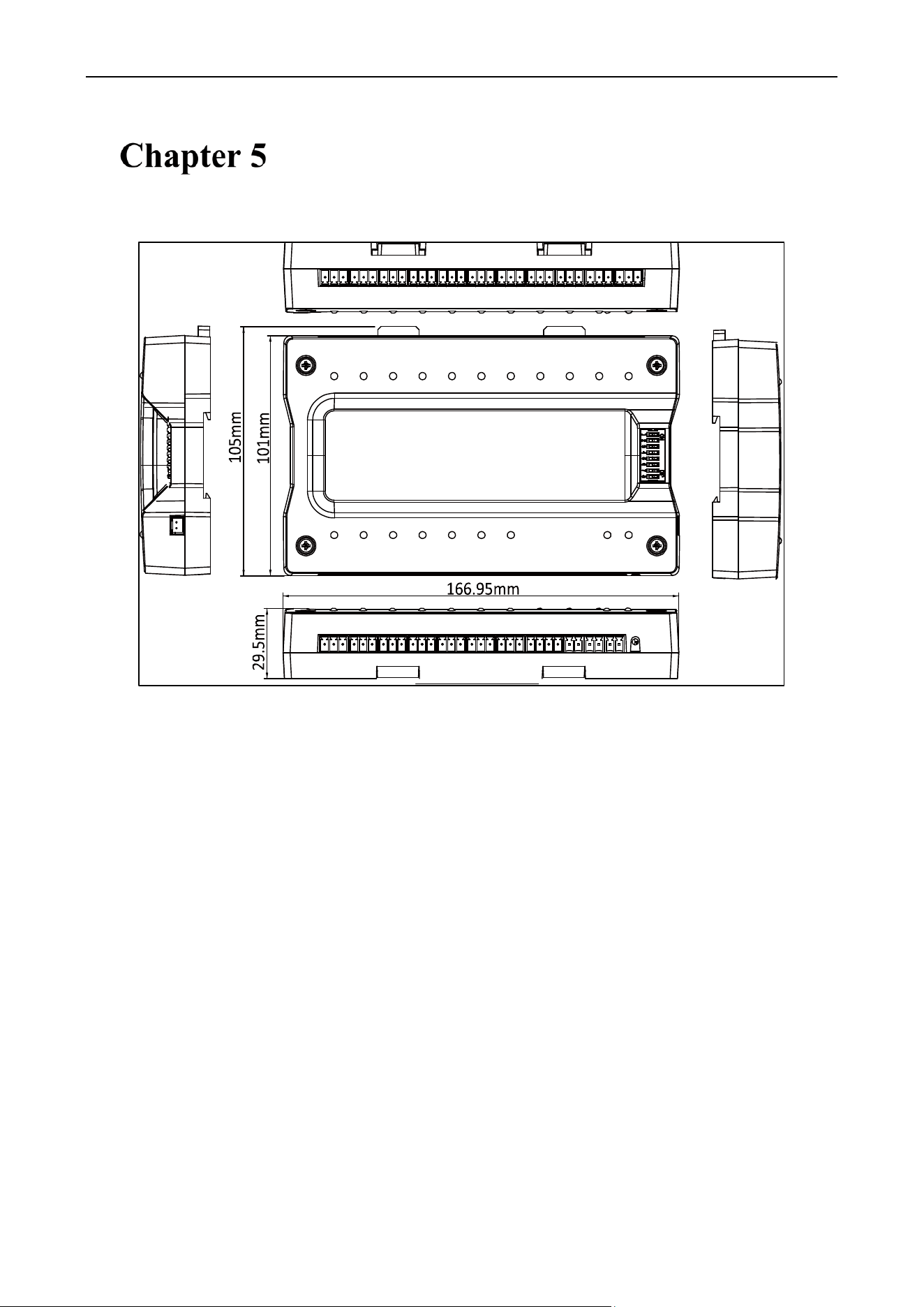

Appendix：Device Dimensions ................................................................................................7
Distributed Elevator Controller User Manual
1
Overview
1.1Introduction
The elevator controller contains main elevator controller and distributed elevator controller. It can be applied to
buildings, public areas and so on. The distributed elevator controller can communicate with the main elevator
controller and the relay via RS-485. You can also control the distributed elevator controller by the web client,
iVMS-4200 client software and other systems through the main elevator controller.
1.2Main Features
RS-485 communication with the main elevator controller.
DIP switch settings for device address.
Connectable with up to 16 relays to control the floor buttons in the elevator. Three types of relays are
supported: Button Relay, Call Elevator Relay and Auto Button Relay.
Remote control of the distributed elevator controlling via the web client, the iVMS-4200 client software, or
other systems through the main elevator controller.
Linkage of the main elevator controller to report the event to the system.
Distributed Elevator Controller User Manual
2
Appearance
2.1Device Appearance Introduction
The device appearance introduction is shown as follows:
Table 2. 1 Device Appearance Description
No.
Description
1
Tamper-Proof Interface
2
Indicator
3
Relay Terminal
4
DIP Switch
5
GND Thread Interface
6
Power Input (12VDC)
7
Linkage Output Terminal
8
Alarm Input Terminal
9
RS-485 Terminal
10
Relay Terminal
Distributed Elevator Controller User Manual
3
2.2Indicator Introduction
The indicator information is as follows:
Table 2. 2 Indicator Description
Description
Indicator
Relay NC Closed
Off
Relay NO Closed
Solid Green
Serial Port Not Communicating
Off
Serial Port Communicating
Solid Green
Power On
Solid Green
Running Properly
Flashing Green
Running Exception
Solid Red
2.3DIP Switch Introduction
The DIP switch module is shown below. The No. of DIP switch from left to right is 1 to 8.
Table 2. 3 Description of DIP Switch
Icon
Description
Represent 1 in binary mode
Represent 0 in binary mode
For example, binary value of the following status is: 0011 0000.
DIP Switch Module
Table 2. 4 Description of DIP Switch Address
No.
Description
1 to 6
Address of Distributed Elevator Controller
7
Reserved
8
NO/NC Status Reversal
Distributed Elevator Controller User Manual
4
Installation
Before your start:
The minimum bearing weight of the wall or other places should be three times heavier than the device weight.
Dial-up before you install. For details, see Section 2.3 DIP Switch Introduction.
Steps:
1. Drill holes on the wall or other places according to the holes on the guide rail.
2. Insert the screw sockets of the setscrews (supplied) in the drilled holes.
3. Secure the guide rail on the wall or other places with the screws (supplied).
4. Push the device to the guide rail and fix it.
Distributed Elevator Controller User Manual
5
Device Wiring
The wiring of the device upper side is as follows:
Notes:
Relay NO Wiring: Wire the call elevator distributed controller and the call elevator relay, or wire the auto button
distributed controller and the auto button relay to make sure the call elevator control and the auto button
elevator control is invalid when powering off. The elevator will not stay between floors.
Relay NC Wiring: Wire the button distributed controller and the button relay to make sure all buttons are valid
when powering off.
Cautions
The maximum power supply for the relay is DC 30 V, 2 A or AC 125 V, 0.5A.
Confirm with elevator manufacturers on wiring methods to avoid faults caused by wrong wiring.
The wiring of the device lower side is displayed as follows:
Distributed Elevator Controller User Manual
6
Notes:
Up to 16 relays can be connected.
Relay No. = Distributed Controller Dial-up No. + Relay Serial No.
Cautions
The maximum power supply for the relay is DC 30 V, 2 A or AC 125 V, 0.5A.
Confirm with elevator manufacturers on wiring methods to avoid faults caused by wrong wiring.
Distributed Elevator Controller User Manual
7
Appendix：Device Dimensions
The device dimensions are as follows:
0100001070113
UD03830-A
