01 02 03 04 05 06 07 08
Choose a Location
The camera can be placed on a table or shelf, or can be
installed on a wall or ceiling. Select a location and height
that achieves your desired view and is within reach of a
power outlet.
Note: Keep the camera at least 0.7ft/0.2m away from any
objects or walls to avoid infrared reflection, which may
impact night vision performance.
Camera Field of View
On a Table or Shelf
QUICK START GUIDE
Indoor Cam S350
AT A GLANCE
①
④
⑤
⑥
SYNC
⑦
⑧
③
②
①
Wide-Angle Lens
⑤
Status LED
②
Telephoto Lens
⑥
Speaker
③
Microphone
⑦
SYNC Button
④
microSD Slot
Insert a microSD card*
(not included) to store recordings
⑧
Power Input
*Use at least a Class 10 microSD card with a maximum of 128 GB.
LED LIGHT GUIDE
Solid Violet System is initializing
Solid Blue
Working normally or
ready for setup
Blinking Red
Not connected to the
internet
Solid Red
Recording or the live
stream is being viewed
Flashing Blue
and Red
Firmware upgrade in
progress
Note: Keep the camera
connected to a power source
SETTING UP THE SYSTEM
1. Download and install the eufy Security app, and sign
up for an account.
2. Connect the camera to a power source and wait until
the status LED turns solid blue.
3. Tap
+
in the app and follow the in-app instructions to
add your camera.
My Devices
INSTALLING YOUR
CAMERA
Telephoto Lens Focusing Distance
To ensure an optimal zoom experience from the
telephoto lens, place the camera at least 8 ft (2.5 m) away
from the area to be monitored.
On the Wall
On the Ceiling
2 ft
3.3 ft
2.6 ft
8ft
8 ft
9 ft
5.6 ft
Telephoto Lens in Focus
Telephoto Field of View

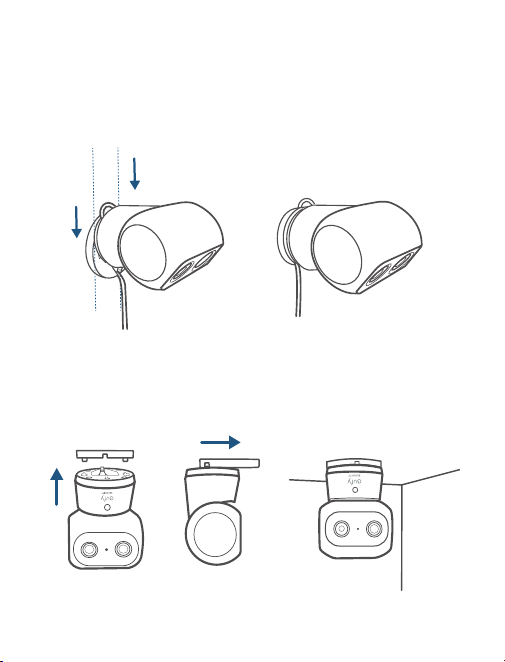

Install on a Wall or Ceiling

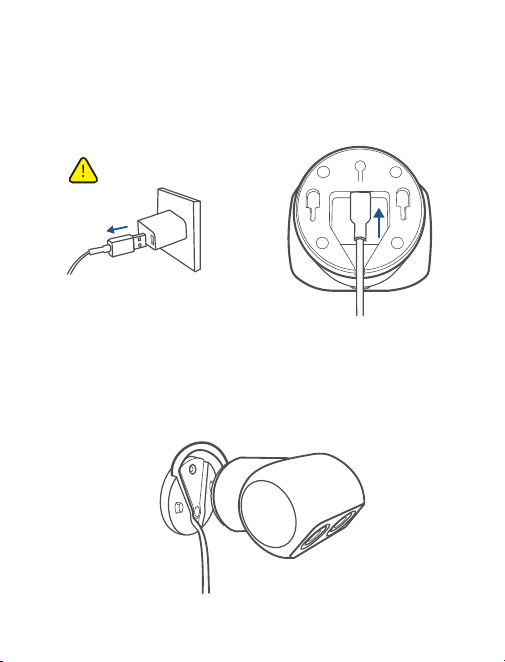

Note: Disconnect
the camera from the
power outlet before
mounting.
1. Mark the screw positions on the wall or ceiling with the
positioning sticker and drill a pilot hole.
WHAT’S INCLUDED
You may need a screwdriver, drill, and ladder.
Quick Start Guide
Screw PackPositioning StickerWall Mount
Indoor Cam S350
USB Cable
Power Adapter
2.6 ft
10 ft
6 ft
