QUICK START GUIDE
S220 SoloCam
PRODUCT OVERVIEW
①
④
⑤
⑥
⑦
②
⑧
⑨
③
⑩
T8134 S220 SoloCam
①
Solar Panel
⑥
Motion Sensor
②
Photosensitive Sensor
⑦
Speaker
③
Microphone
⑧
SYNC Button
④
Camera Lens
⑨
USB-C Charging Port
⑤
LED Indicator
⑩
Mounting Hole
CHARGING SOLOCAM
LED Indicator
SETTING UP SOLOCAM
Download the App and Set Up the Device
1. Download and install the eufy Security app, and sign up for an
account.
2. Follow the on-screen instructions to add your SoloCam.
Charging Solid Blue
Fully Charged Off
MOUNTING SOLOCAM
Select a Location
S220 SoloCam can be mounted on a wall. Select a location where
it achieves the desired view. We recommend mounting it 7-10 ft
(2-3 m) above ground level.
To maximize the solar panel efficiency, select a location
where S220 SoloCam receives plenty of sunlight.
Motion
Detection
Zone
Camera Field
of View
Up to 26 ft (8 m)
7-10 ft
(2 - 3 m)
10°
Mount S220 SoloCam
S220 SoloCam can be mounted both indoors and outdoors.

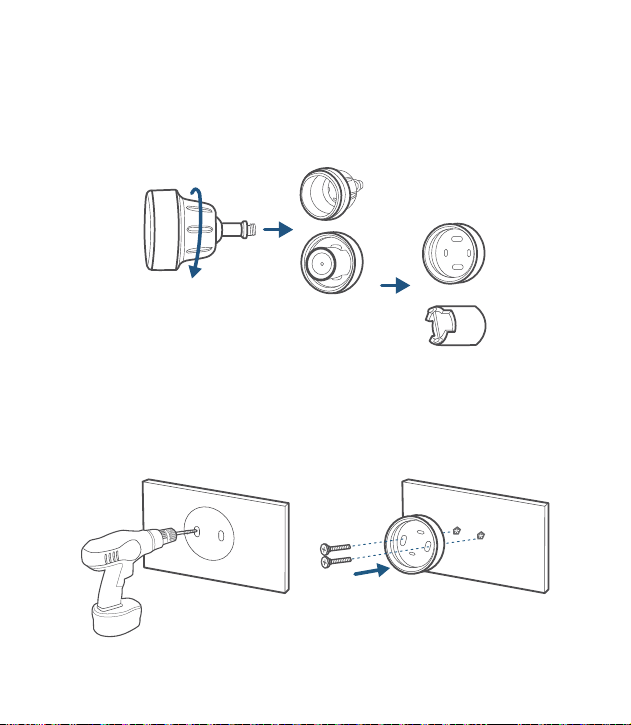

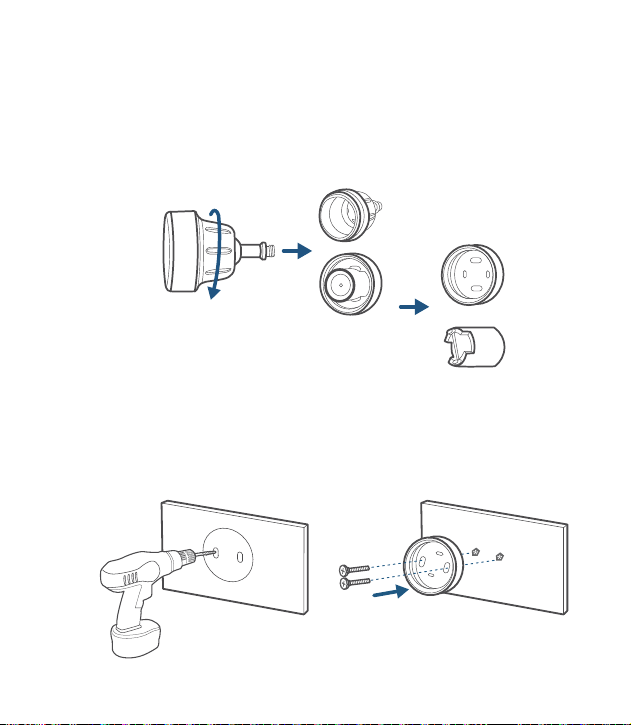

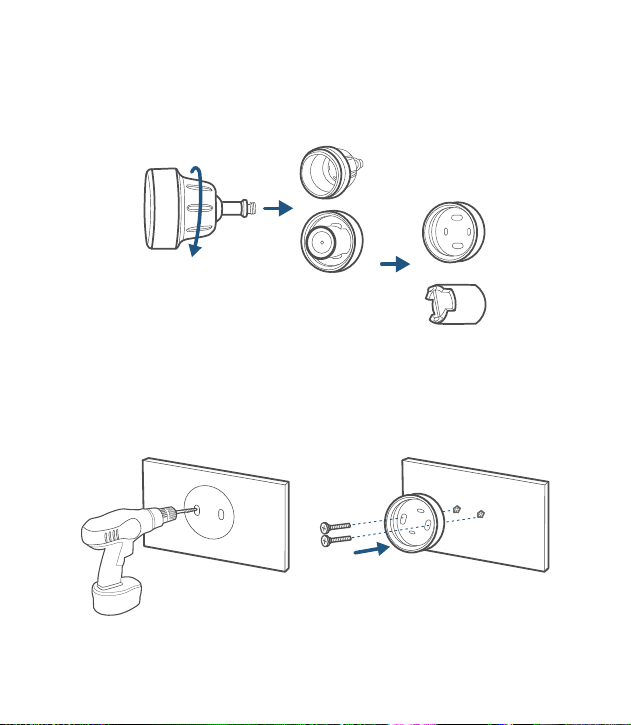

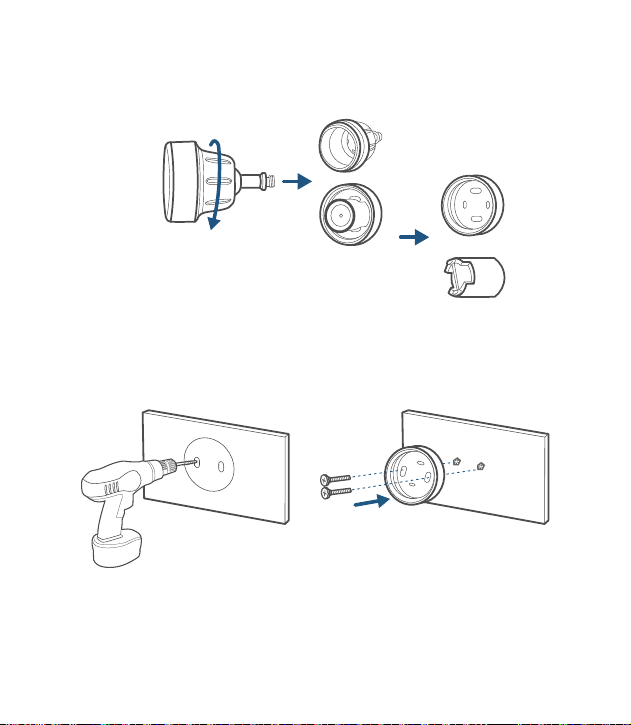

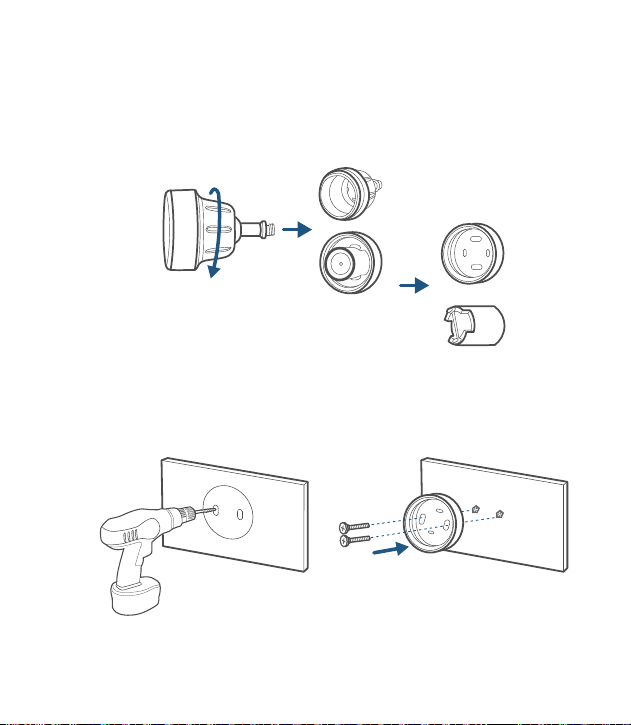

1. Loosen the cover of the mount by turning it counterclockwise
and disassemble the mount.
2. This step applies if mounting onto hard surfaces such as brick
or concrete. For soft surfaces such as wood, skip this step.
Drill holes with a 15/64 in (6 mm) drill bit, then insert the anchors
into the holes.

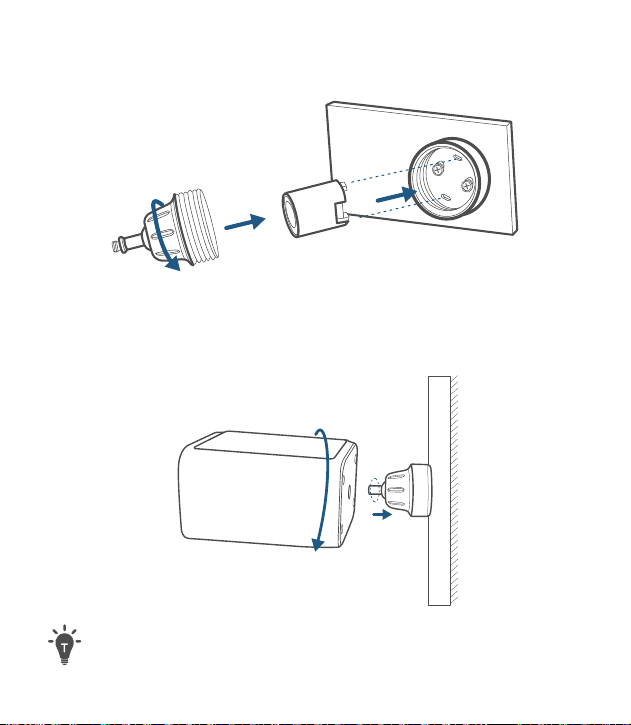

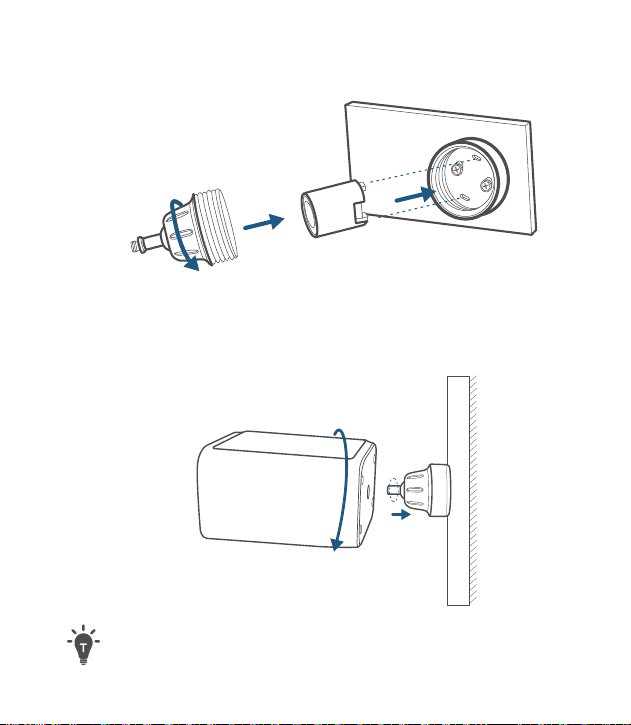

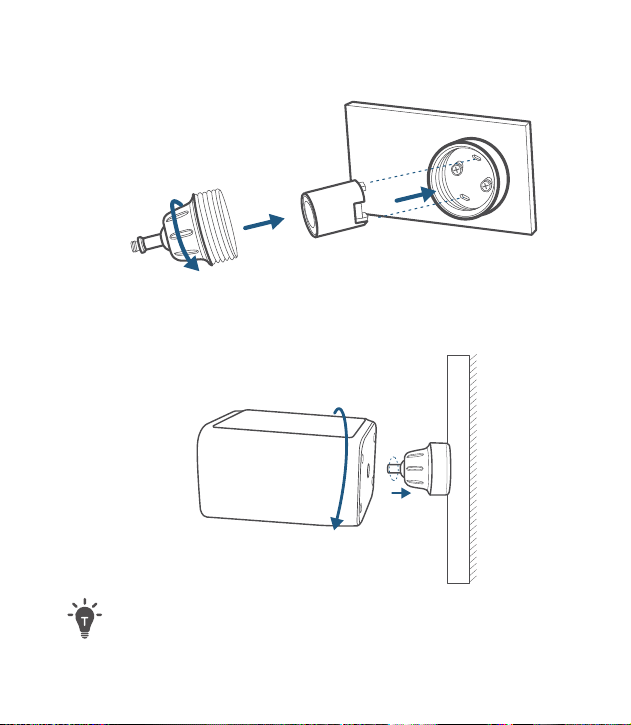

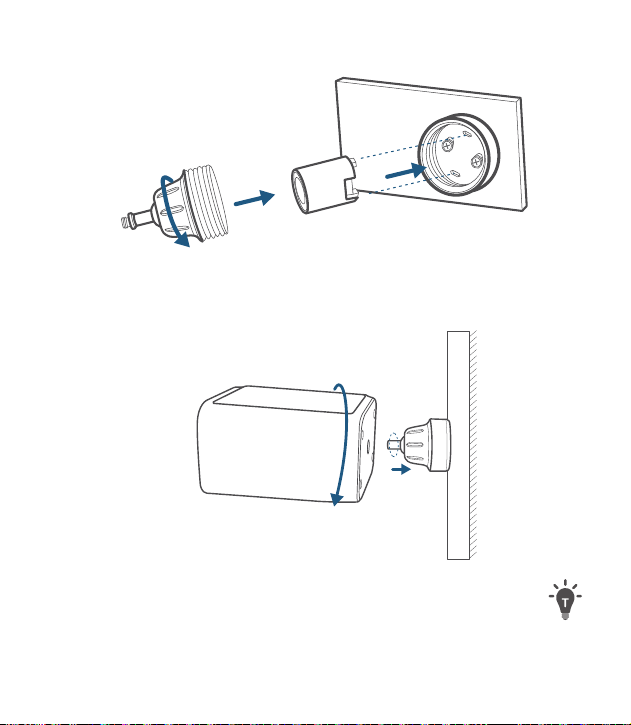

3. Firmly screw the base of the mount onto the wall. Reassemble
the mount.
4. Screw SoloCam onto the mount. Ensure the solar panel is
facing the sky. Position SoloCam to achieve the desired view,
checking it using the live stream in the eufy Security app.
For troubleshooting, check the Help section in the eufy
Security app.
CUSTOMER SERVICE
12-month limited warranty
(US) +1 (800) 988-7973
(UK) +44 (0) 1604 936200
(DE) +49 (0) 69 9579 7960
(
中国
) +86 400 0550 036
(
日本
) +81 03 4455 7823
(AU) +61 3 8331 4800
(Egypt) +20 8000000826
(UAE) +971 8000320817
(Kuwait) +965 22069086
(Saudi Arabia) +966 8008500030
(Middle East & Africa) +971 42428633
Anker Innovations Limited
Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok,
Kowloon, Hong Kong
