BAUMR-AG MTACBKBM08MA Sheet Metal Shear and Brake User Manual

User Manual

[Revision 1.0]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY

VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in

appearance, assembly, inclusions, specifications, description, and packaging.

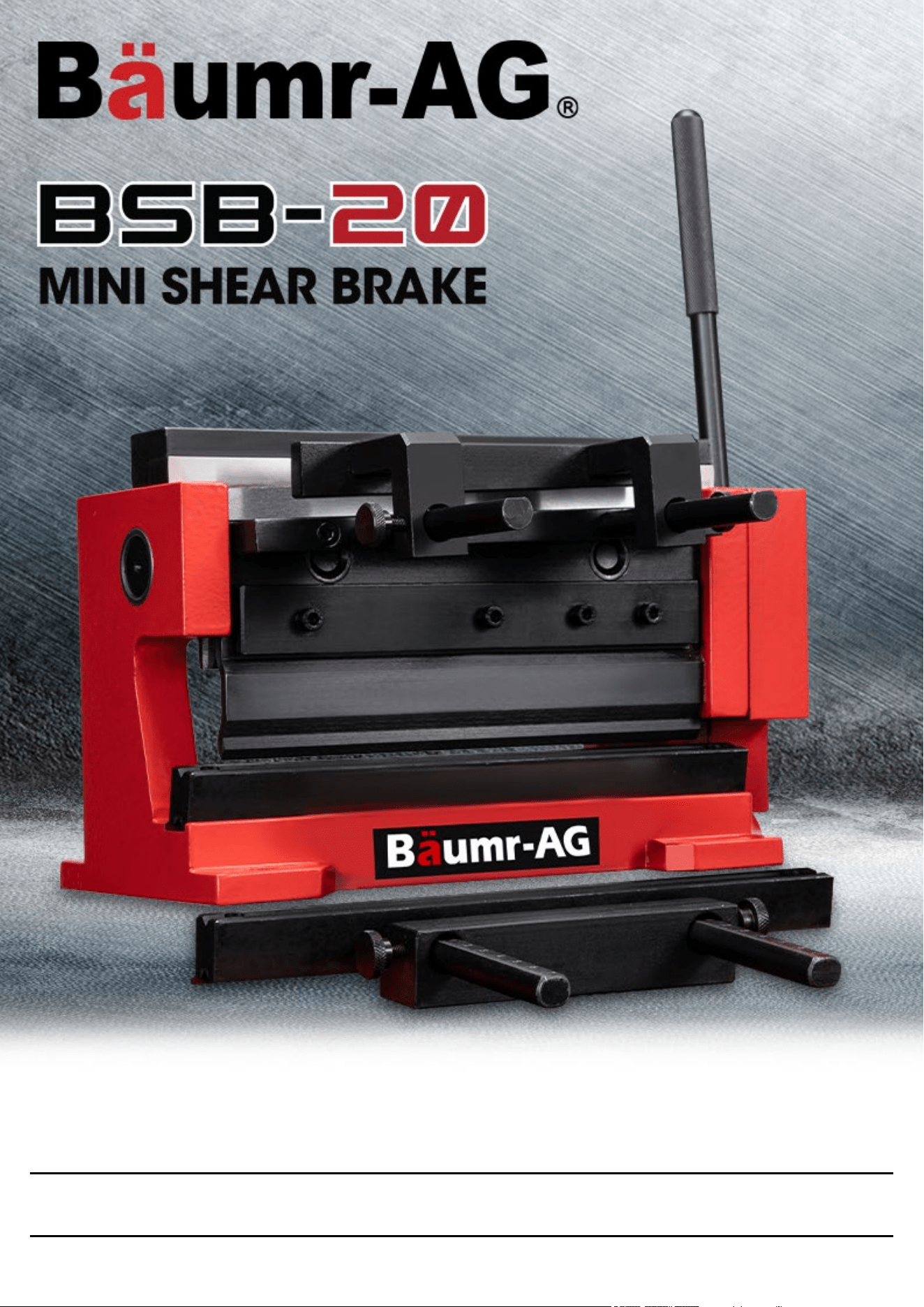

BSB-20 8” Mini Shear Brake

E&OE © Baumr-AG 2

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be INJURED if you do

not follow instructions or equipment

damage may occur.

It is vital that you read and understand this

user manual before using the product,

including safety warnings, and any assembly

and operating instructions. Keep the manual

for future reference.

Safety precautions and recommendations

detailed here must be fully understood and

followed to reduce the risk of injury, fire,

explosion, electrical hazard, and/or property

damage.

Safety information presented here is generic

in nature – some advice may not be

applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered or

combustion engine powered.

• Before Use - If you are not familiar with the

safe operation/handling of the equipment or

are in any way unsure of any aspect of

suitability or correct use for your

application, you should complete training

conducted by a person or organization

qualified in safe use and operation of this

equipment, including fuel/electrical handling

and safety.

• Do NOT operate the equipment in

flammable or explosive environments, such

as in the presence of flammable liquids,

gases, or dust. The equipment may create

sparks or heat that may ignite flammable

substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

• Do NOT allow others to use the equipment

unless they have read this manual and are

adequately trained.

• Keep packaging away from children - risk

of suffocation! Operators must use the

equipment correctly. When using the

equipment, consider conditions and pay

due care to persons and property.

General Work Area Safety

•

Work areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

• If devices are provided for connecting dust

extraction / collection facilities, ensure

these are connected and used properly.

Dust collection can reduce dust-related

hazards.

General Personal Safety

•

Wear appropriate protective equipment

when operating, servicing, or when in the

operating area of the equipment to help

protect from eye and ear injury, poisoning,

burns, cutting and crush injuries. Protective

equipment such as safety goggles,

respirators, non-slip safety footwear, hard

hat, hearing protection etc should be used

for appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective equipment.

Do not wear loose clothing or jewellery,

which can be caught in moving parts. Keep

hair and clothing away from the equipment.

• Stay alert and use common sense when

operating the equipment. Do not over-

reach. Always maintain secure footing and

balance.

• Do not use the equipment if tired or under

the influence of drugs, alcohol, or

medication.

• This equipment is not intended for use by

persons with reduced physical, sensory, or

mental capabilities.

General Fuel Safety

•

Petrol/fuel/gasoline is extremely flammable

– keep clear of naked flames or other

ignition sources.

• Do not spill fuel. If you spill fuel, wipe it off

the equipment immediately – if fuel gets on

your clothing, change clothing.

• Do NOT smoke near fuel or when

refuelling.

• Always shut off the engine before

refuelling.

• Do NOT refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well-ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start, or run the

engine until all leaks are fixed.

General Carbon-Monoxide Safety

•

Using a combustion engine indoors CAN

KILL IN MINUTES. Engine exhaust

contains carbon-monoxide – a poison you

cannot smell or see.

• Use combustion engines OUTSIDE only,

and far away from windows, doors, and

vents.

General Equipment Use and Care

•

The equipment is designed for domestic

use only.

• Handle the equipment safely and carefully.

• Before use, inspect the equipment for

misalignment or binding of moving parts,

loose components, damage, or any other

condition that may affect its operation. If

damaged, have the equipment repaired by

an authorised service centre or technician

before use.

• Prevent unintentional starting of the

equipment - ensure equipment and power

switches are in the OFF position before

connecting or moving equipment. Do not

carry equipment with hands or fingers

touching any controls. Remove any tools or

other items that are not a part of the

equipment from it before starting or

switching on.

• Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be safer

when used within its design and usage

parameters.

• Use the equipment and accessories etc. in

accordance with these instructions,

considering working conditions and the

work to be performed. Using the equipment

for operations different from those intended

could result in hazardous situations.

• Always keep equipment components

(engines, hoses, handles, controls, frames,

housings, guards etc) and accessories

(cutting tools, nozzles, bits etc) properly

maintained. Keep the equipment clean and,

where applicable, properly lubricated.

• Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the equipment

near flammable materials, combustible

gases, or liquids etc.

• The equipment is not weather-proof, and

should not be stored in direct sunlight, at

high ambient temperatures or locations that

are damp or humid.

• Do not clean equipment with solvents,

flammable liquids, or harsh abrasives.

• For specific equipment safety use and care,

see Equipment Safety.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BSB-20 8” Mini Shear Brake

E&OE © Baumr-AG 3

General Electrical Safety

•

Inspect electrical equipment, extension

cords, power bars, and electrical fittings for

damage or wear before each use. Repair or

replace damaged equipment immediately.

• Ensure all power sources conform to

equipment voltage requirements and are

disconnected before connecting or

disconnecting equipment.

• When wiring electrically powered

equipment, follow all electrical and safety

codes.

• Always use a Residual Current Device

(RCD) (GFCI) / Earth Leakage Circuit

Breaker / Safety Switch when operating this

item (electrical items only).

• High voltage / high current power lines may

be present. Use extreme caution to avoid

contact or interference with power lines.

Electrical shock can be fatal.

General Electrical Safety

•

Electrically grounded equipment must have

an approved cord and plug and be

connected to a grounded electrical outlet.

• Do NOT bypass the ON/OFF switch and

operate equipment by connecting and

disconnecting the electrical cord.

• Do NOT use equipment that has exposed

wiring, damaged switches, covers or

guards.

• Do NOT use electrical equipment in wet

conditions or in damp locations.

• Do NOT use electrical cords to lift, move or

carry equipment.

• Do NOT coil or knot electrical cords, and

ensure electrical cords are not trip hazards.

General Service Information

•

The equipment must be serviced or

repaired at authorised service centres by

qualified personnel only.

• Replacement parts must be original

equipment manufacturer (OEM) to ensure

equipment safety is maintained.

• Do NOT attempt any maintenance or repair

work not described in this manual.

• After use, the equipment and components

may still be hot – allow the equipment to

cool and disconnect spark plugs and/or

electrical power sources and/or batteries

from it before adjusting, changing

accessories, or performing repair or

maintenance.

• Do NOT adjust while the equipment is

running.

• Perform service-related activities in suitable

conditions, such as a workshop.

• Replace worn, damaged or missing

warning/safety labels immediately.

Child Choking Hazard!

• W

ARNING: CHOKING HAZARD - CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT

SUPERVISION REQUIRED.

• Carefully inspect anything a baby or child could gain access to, including this product & packaging.

• Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.

• Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts,

hard lollies and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys,

buttons, keys, and coins. But there are also many more.

• Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces

of packaging, staples, tape etc.

• In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

Product Safety

• W

ARNING: When using electric tools, machines, or equipment, basic safety precautions should always be followed to reduce the risk

of fire, electric shock, and personal injury. READ ALL INSTRICTIIONS BEFORE USING THIS TOOL!

• CAUTION! PINCH POINTS! Keep Hands Clear.

• KEEP WORK AREA CLEAN. Cluttered areas invite injuries.

• OBSERVE WORK AREA CONDITIONS. Do not use machines or powered tools in damp, wet, or poorly lit locations. Don’t expose to rain. Keep

work area well lit. Do not use electrically powered tools in the presence of flammable gases or liquids.

• KEEP CHILDREN AWAY. Children must never be allowed in the work area. Do not let them handle machines, tools, or extension cords.

• STORE IDLE EQUIPMENT. When not in use, tools must be locked up in a dry location to inhibit rust. Always lock up tools and keep out of reach

of children.

• DO NOT FORCE THE TOOLS. It will do the job better and more safety at the rate for which it was intended. Do not use inappropriate

attachments in an attempt to exceed the tool’s capacities.

• USE THE RIGHT TOOL FOR THE JOB. Do not attempt to force a small tool or attachment to do the work of a large industrial tool. Do not use a

tool for purpose for which it was not intended.

• DRESS PROERLY. Do not wear loose clothing of jewellery as they can be caught in moving parts. Protective, electrically non-conductive clothes

and non-skid footwear are recommended when working. Wear restrictive hair covering to contain long hair.

• USE EYE AND EAR PROTECTION. Always wear ANSI approved chemical splash goggles when working with chemicals. Always wear ANSI

approved impact safety goggles at other times. Wear a full-face shield if you are producing metal filings or wood chips. Wear an ANSI approved

dust mask or respirator when working around metal, and chemical dusts and mists.

• DO NOT ABUSE THE POWER CORD. Do not yank it to disconnect it from the receptacle. Do not carry tools by the cord.

• DO NOT OVERREACH. Keep proper footing and balance at all times. Do not reach over or across running machines.

• MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and safer performance. Follow instructions for lubricating and changing

accessories. The handles must be kept clean, dry, and free from oil and grease at all times.

• DISCONNECT POWER. Unplug when not in use, before servicing, and when changing accessories.

• REMOVE ADJUSTING KEYS AND WRENCHES. Make it a habit to check that keys and adjusting wrenches are removed from the tools or

machine work surface before plugging it in.

• AVOID UNINTENTIONAL STARTING. Be sure the switch is in the OFF position when not in use and before plugging in. Do not carry any tool

with your finger on the trigger, whether it is plugged in or not.

• OUTDOORS EXTENSIONS CORDS. When the equipment is operated outdoors, use only extension cords intended for outside use. See chart

under “Extension Cords” for the proper AWG rating depending on the length of the cord(s) being used.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BSB-20 8” Mini Shear Brake

E&OE © Baumr-AG 4

• STAY ALERT. Watch what you are doing; use common sense. Do not operate any tool when you are tried.

• CHECK DAMAGED PARTS. Before using any tool, any part that appears damaged should be carefully checked to determine that it would

operate properly and perform its intended function. Check for alignment and binding of moving parts; any broken parts or mounting fixtures; and

any other condition that may affect proper operation. Any part that is damaged should be properly repaired or replaced by a qualified technician.

Do not use the tool if any switch does not turn on and off properly.

• GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded surfaces such as pipes, radiators, ranges, and refrigerator

enclosures.

• REPLACEMENT PARTS AND ACCESSORIES. When servicing, use only identical replacement parts. Use of any other parts will void the

warranty. Only use accessories intended for use with this tool. Approved accessories are available from the distributor.

• DO NOT OPERATE TOOL IF UNDER THE INFLUENCE OF ALCOHOL OR DRUGS. Read warning labels on prescriptions to determine if your

judgment of reflexes are impaired while taking drugs. If there is any doubt, do not operate the tool.

• Note: The warning and instructions contained in this instruction manual cannot cover all possible conditions and situation that may occur when

using this product. It must be understood that common sense and caution are factors, which cannot be built into this product. These factors must

be supplied by the person whom operating this piece of equipment.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BSB-20 8” Mini Shear Brake

E&OE © Baumr-AG 5

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your

product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material Hazard

Flammable liquids, gases, or

substances etc may present.

Avoid ignition sources and open

flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc before

using the product.

Use Hand Protection

Wear appropriate hand protection

and take due care as the product

or use of the product may present

hand hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Electrocution / Electrical Shock

Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling electrical

products, cables, plugs and

leads. Electrical shock can be

fatal.

Toxic Fumes / Dust Hazard

Using the product or by-products

from use may produce fumes,

smoke or particles that could be

harmful if inhaled. Wear

appropriate breathing protection

and have adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases, or

substances etc may be present.

Avoid ignition sources and open

flames. Danger of explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices that

can cause severe cut injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Crush Hazard

The product may have blades,

edges or mechanical devices that

can cause severe crush injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Single Operator Only

The product must be operated by

a single person only. More than

one person operating the product

may introduce additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care as

the product or use of the product

may present face and eye

hazards.

Use Foot Protection

Wear appropriate foot protection

and take due care as the product

or use of the product may present

foot hazards.

Use Eye / Ear / Head Protection

Wear appropriate eye and / or

ear and / or head protection and

take due care as the product or

use of the product may present

eye, hearing, and head hazards.

Running Hazard

Do not run on or near the product

as doing so may present a fall

hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or objects

that can cause severe injury to

fingers, limbs, blood etc. Take

due care when handling and

using the product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures and

hot surfaces that can cause burn

injuries.

Flying Debris Hazard

Be aware that the product or use

of the product may present

hazards produced by flying

debris. Wear appropriate clothing

and protective devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts to

stop fully before handling the

product, adjusting, maintenance

etc.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BSB-20 8” Mini Shear Brake

E&OE © Baumr-AG 6

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Slope / Fall Injury Hazard

Be aware that using the product

on sloping surfaces or in slippery

conditions may present additional

dangers from falls and contact

with blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

manoeuvres as this may result in

severe injury due to falling,

product breakage or collapse etc.

Electrocution / Electrical Shock

Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do NOT

use in rain, damp, or wet

conditions. Electrical shock can

be fatal.

Electrocution / Electrical Shock

Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product. Always

disconnect the product from the

electrical supply before handling

the product, adjusting,

maintenance etc.

Power Line Electrocution

Hazard

High voltage / high current power

lines may be present. Use

extreme caution to avoid contact

or interference with power lines.

Electrical shock can be fatal.

"Kick-Back" Hazard

High level of "kick-back" hazard

that can cause the machine to

suddenly rotate towards operator.

Kick-back injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch to

move people.

Winch Lift Hazard

Do NOT LIFT load vertically. Use

machine to PULL only.

Cable Hazard

Ensure that load bearing cable is

not kinked or knotted.

Winch Cable Hazard

Ensure that there is a minimum

number of cable coils on

winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Flash / Blinding Hazard

Wear appropriate eye protection

for welding. Direct exposure to

weld arcs may cause permanent

eye injury.

Laser Hazard

Laser may be in use – do NOT

look directly at laser or allow

others to.

Choking Hazard

Children under 8 yrs. Can choke

or suffocate on small parts. Adult

supervision required.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BSB-20 8” Mini Shear Brake

E&OE © Baumr-AG 7

Table of Contents

Safety ............................................................................................................................................................. 2

Safety Symbols ........................................................................................................................................................... 5

Parts Identification ....................................................................................................................................... 8

Assembly ..................................................................................................................................................... 10

Mounting to a Wood Workbench .............................................................................................................................. 10

Mounting to a Metal Workbench ............................................................................................................................... 10

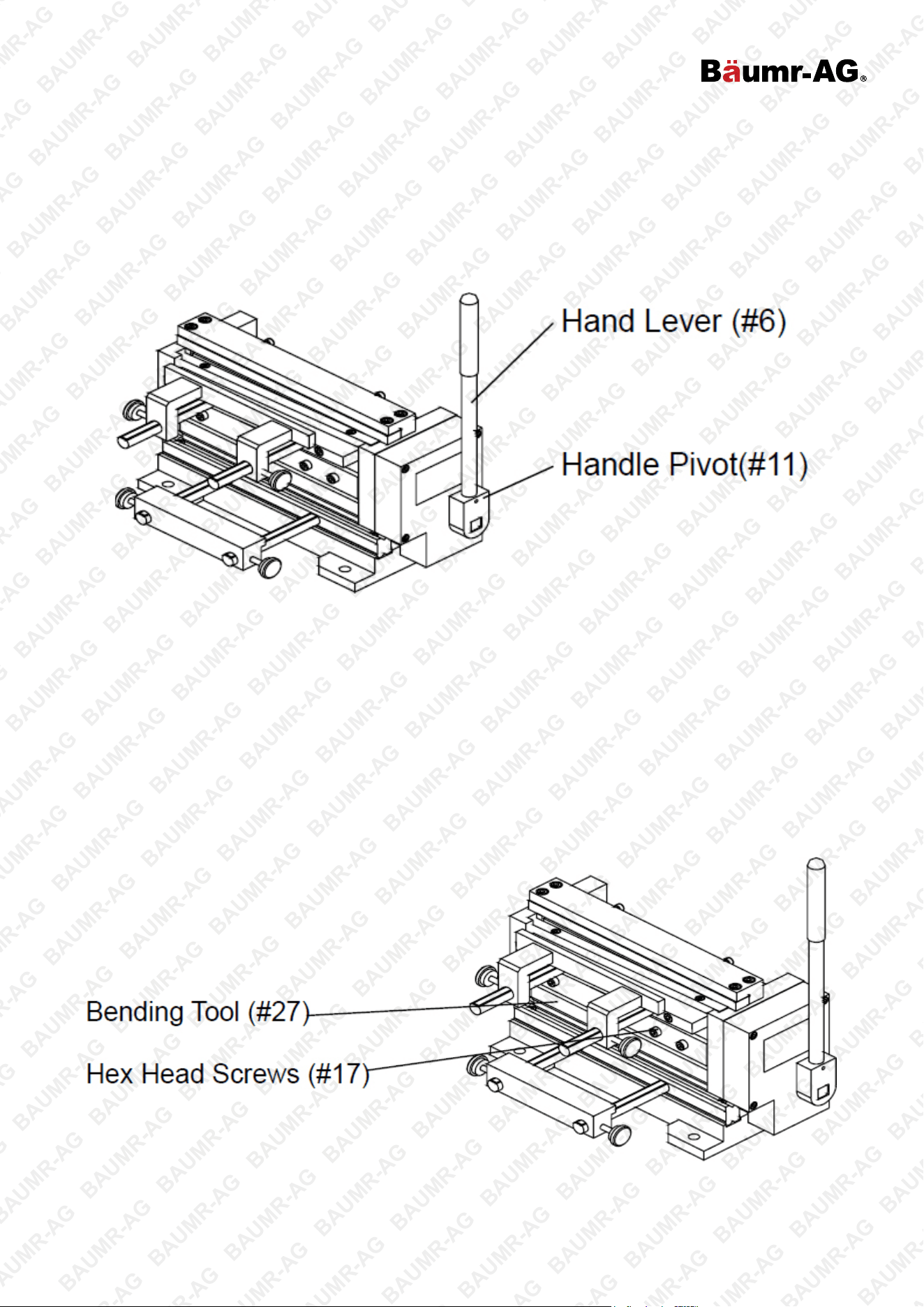

Handle Assembly ...................................................................................................................................................... 11

Bending Tool Adjustment and Removal ................................................................................................................... 11

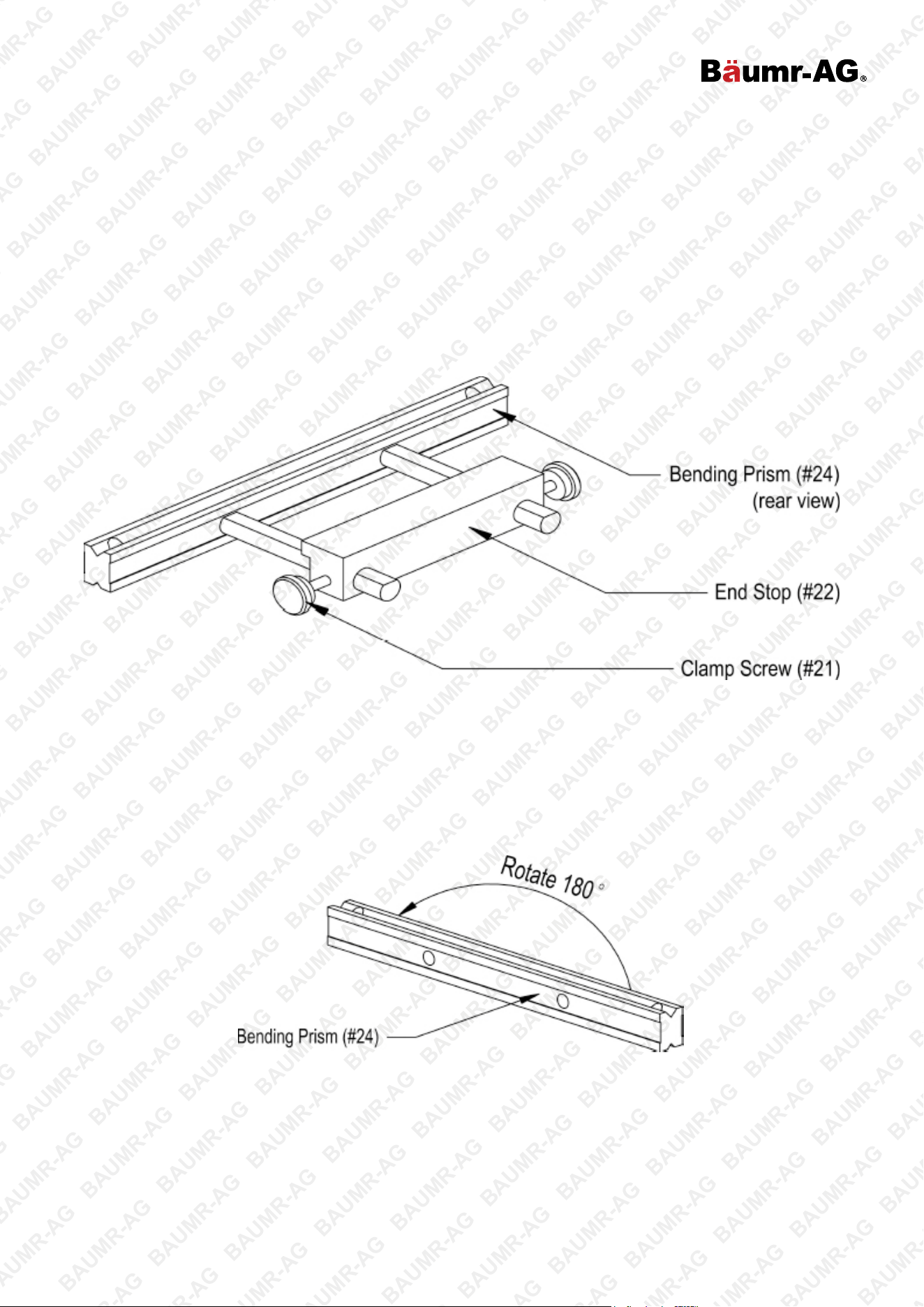

Bending Prism Adjustment ....................................................................................................................................... 12

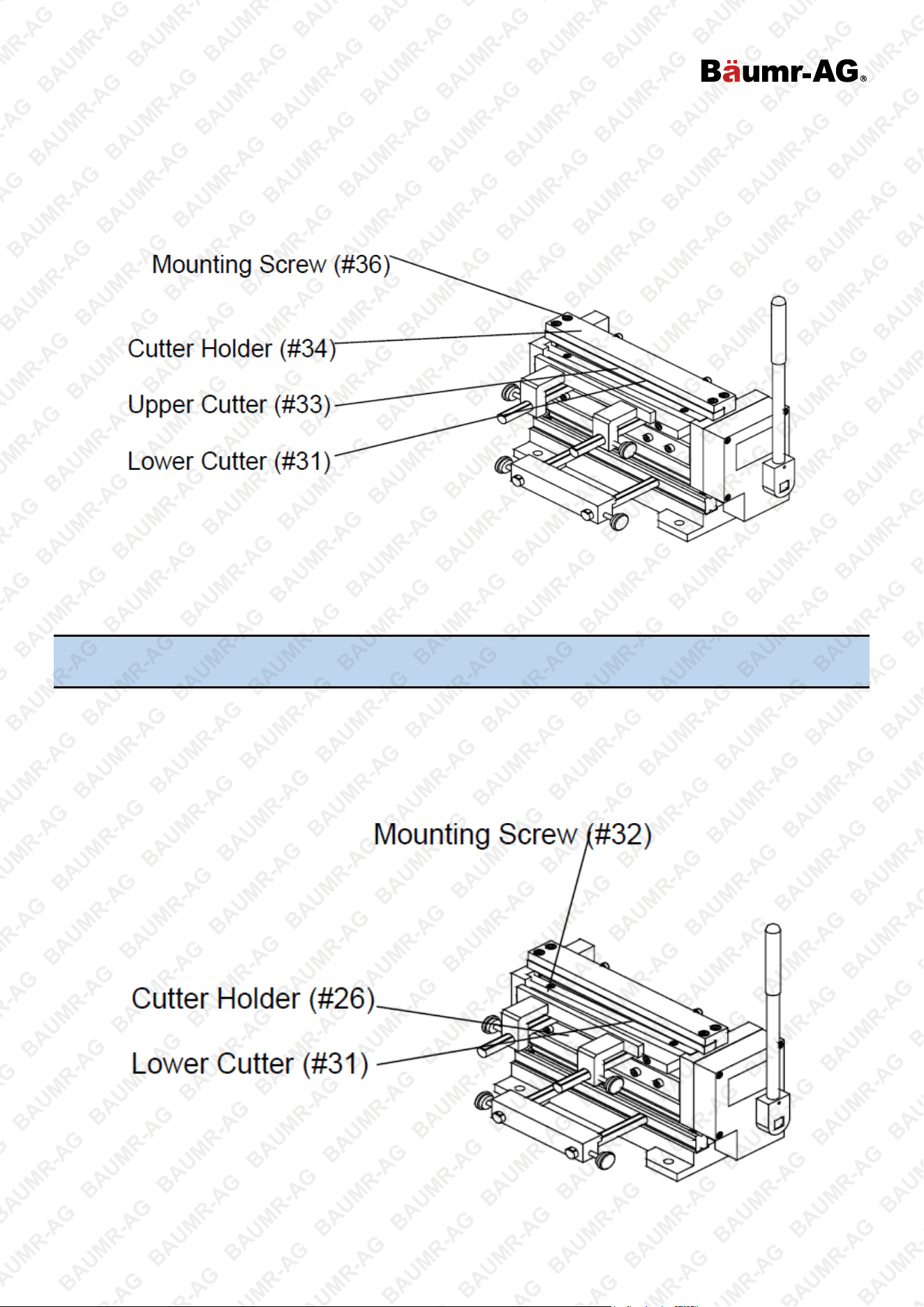

Removal and Installation of Upper Cutter................................................................................................................. 13

Removal and Installation of Lower Cutter................................................................................................................. 13

Operation ..................................................................................................................................................... 15

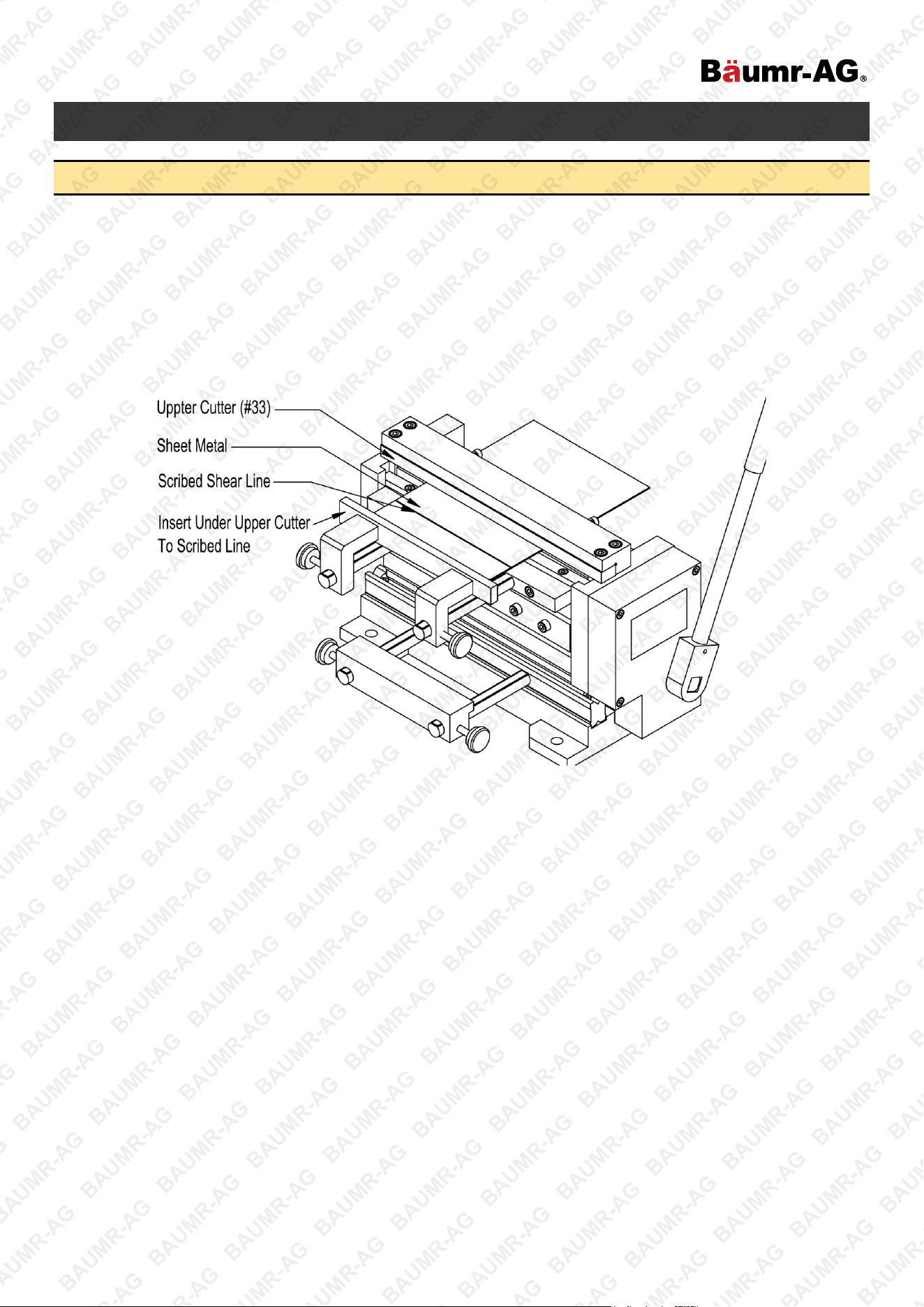

Shearing ................................................................................................................................................................... 15

Angle Bending .......................................................................................................................................................... 15

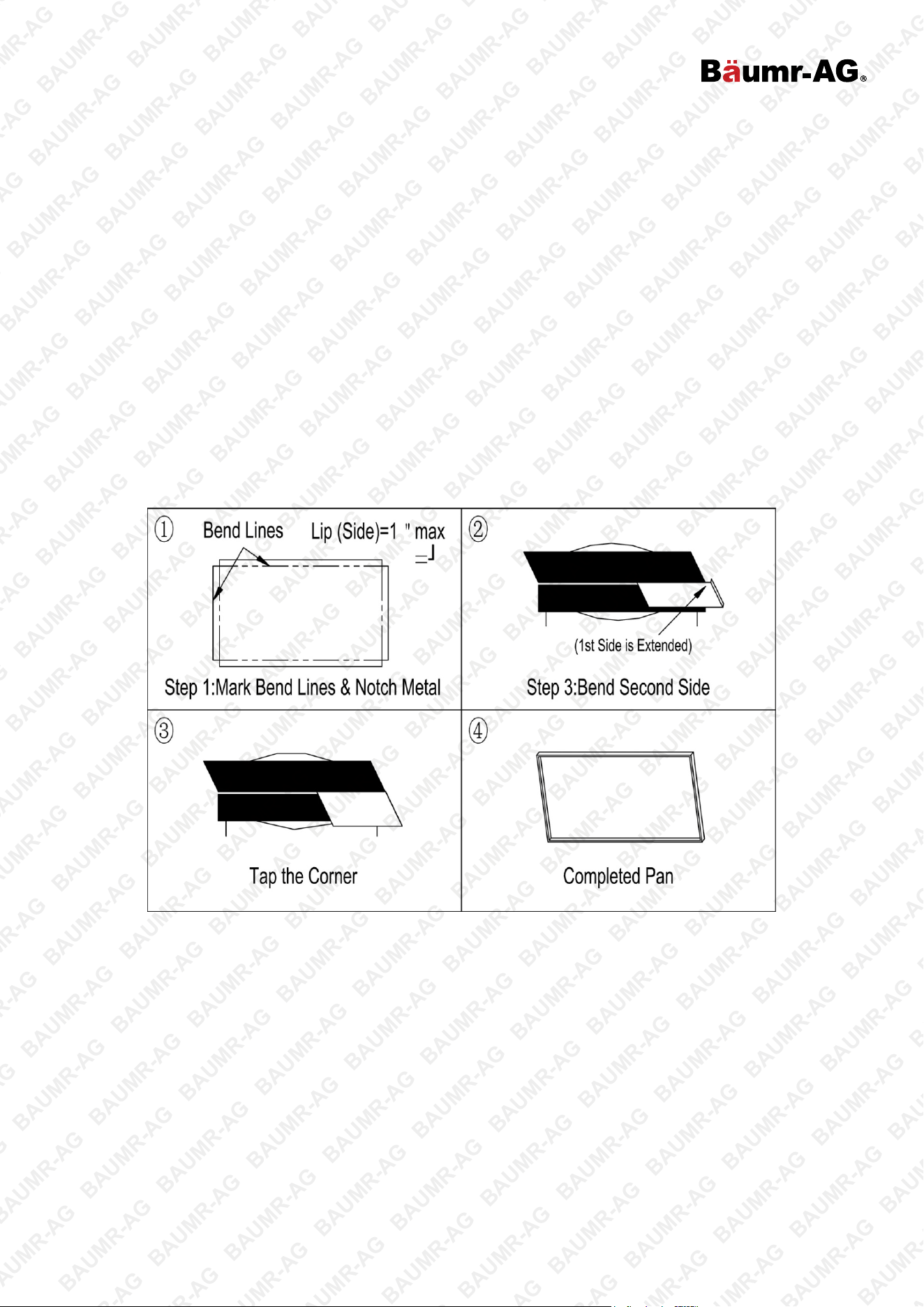

Pan forming .............................................................................................................................................................. 16

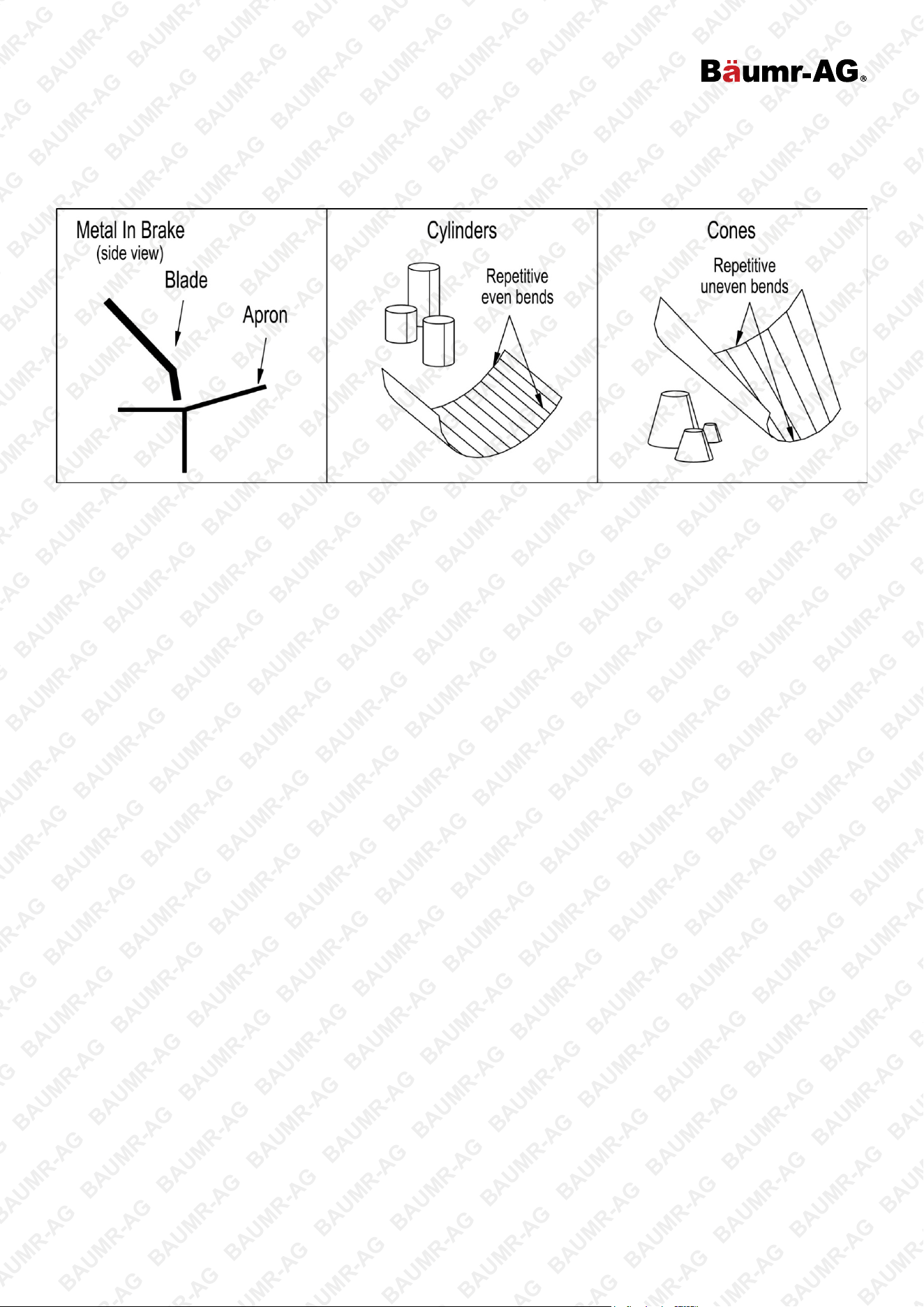

Radius Bending ........................................................................................................................................................ 17

Specifications ............................................................................................................................................. 18

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BSB-20 8” Mini Shear Brake

E&OE © Baumr-AG 8

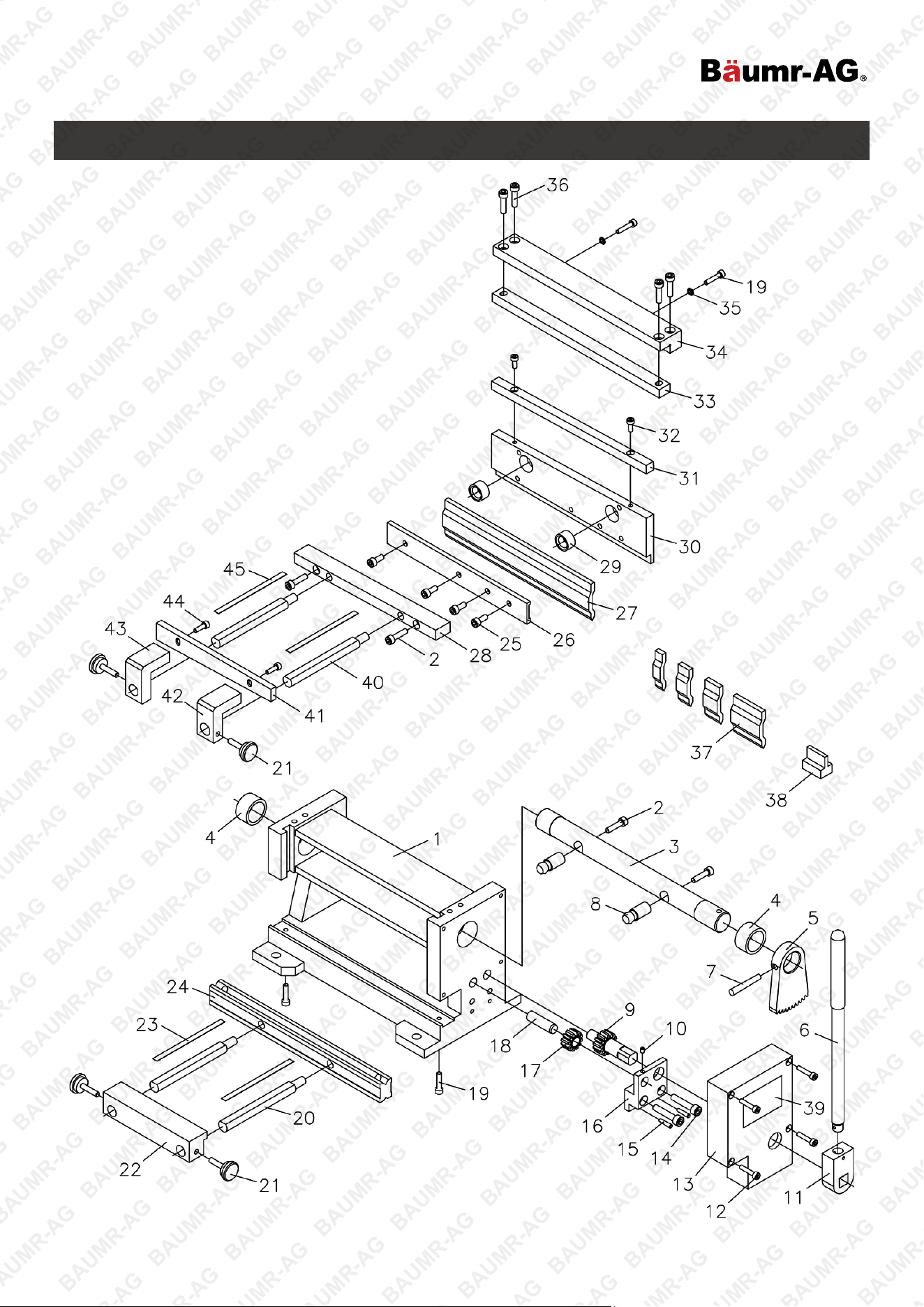

Parts Identification

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BSB-20 8” Mini Shear Brake

E&OE © Baumr-AG 9

No. Description Q’ty

1 Base 1 26 Press plate 1

2 Screw M5*20 4 27 Bending tool (I) 1

3 Driver shaft 1 28 Lower cutter end block 1

4 Bush 2 29 Sleeve 2

5 Fan gear 1 30 Move Hammer 1

6 Hand Lever 1 31 Lower cutter 1

7 Round pin 5*40 1 32 Screw M4*12 2

8 Driver shaft 2 33 Upper cutter 1

9 Gear 1 34 Upper cutter press plate 1

10 Set screw M4*6 1 35 Nut M4 2

11 Handle Pivot 1 36 Screw M5*25 4

12 Screw M4*35 4 37 Bending tool (II) 1

13 Gear Cover 1 38 T -block 1

14 Screw M6*30 2 39 Label 1

15 Taper pin 4*16 2 40 Small shaft (A) 2

16 Gear Support 1 41 End block 1

17 Gear 1 42 Move block (right) 1

18 Round pin 10*35 1 43 Move block (left) 1

19 Screw M4*25 4 44 Screw M4*10 2

20 Small shaft 2 45 Upper cutter label 2

21 Lock Screw 4

22 Orientation block 1

23 Staff gauge 2

24 Worktable 1

25 Screw M5*12 4

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BSB-20 8” Mini Shear Brake

E&OE © Baumr-AG 10

Assembly

Your Shear/Brake comes assembled with the BENDING TOOL (#27) already installed. To complete assemble

and prepare your Shear/Brake for use, follow the Steps below.

Mounting to a Wood Workbench

1. Measure the thickness of your workbench. It is suggested that to securely mount your Shear/Brake to a

wooden workbench, you mount lengths of wood underneath the mounting points.

2. Check if you need to purchase four bolts, nuts, and flat washers (these items are not included) for the

appropriate length for your workbench plus 1″ of length for the Shear/Brake.

3. Mark and drill holes through the workbench, using the Base (#1) as a template, for the four Mounting Holes

on the BASE of the Shear/Brake.

4. Position the Shear/Brake on your workbench and line up the holes you drilled in Step 3 with the Mounting

Holes in the BASE.

5. Insert the BOLT & NUT SET (user needs to supply these) into the Mounting Holes and through the

workbench as shown in Figure 1 below.

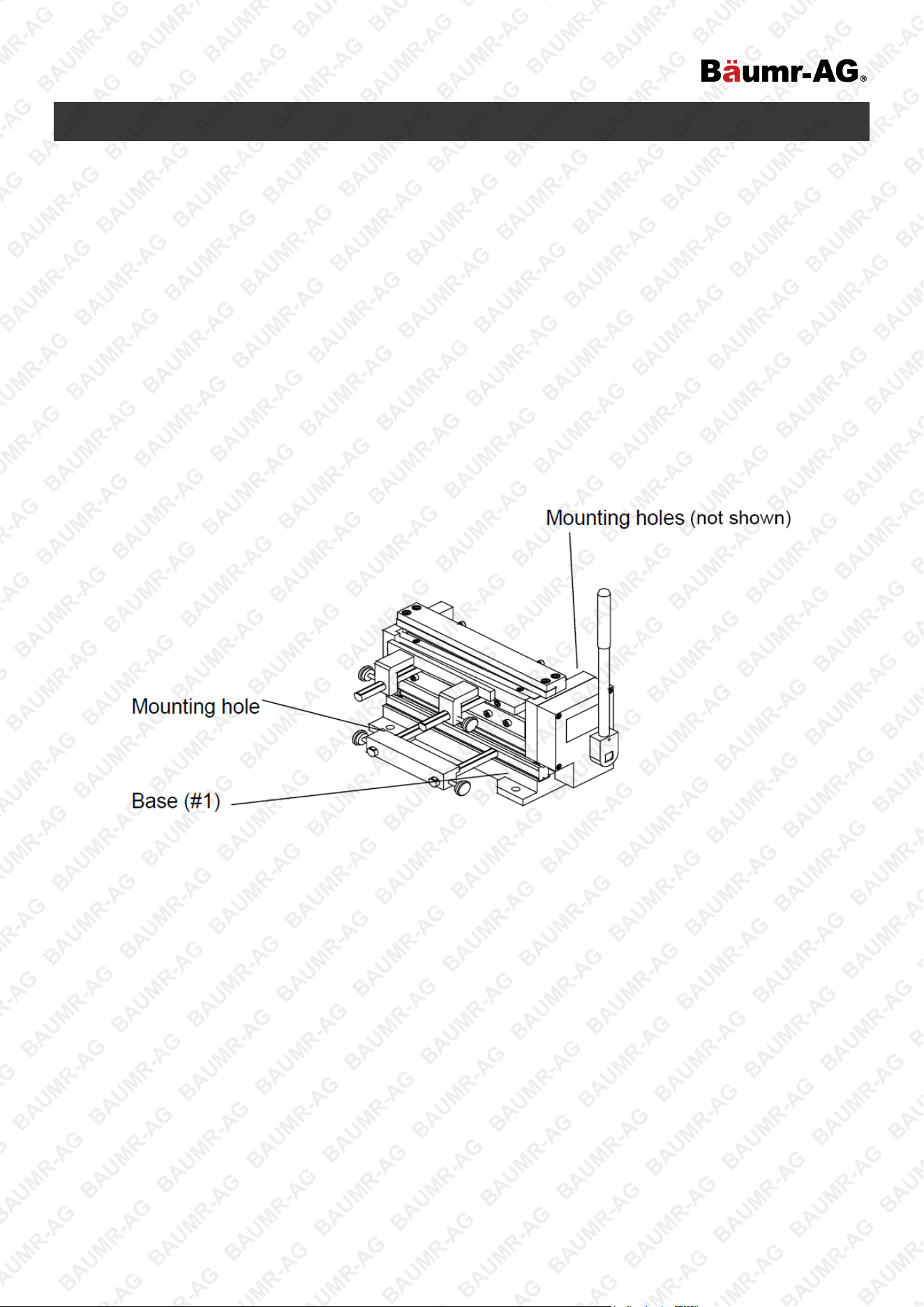

Figure 1 – Mounting shear/brake to a wood workbench

6. Tighten the bolts.

Mounting to a Metal Workbench

1. Measure the thickness of your workbench. It is suggested that a metal reinforcing plate should be cut and

ready to mount beneath the workbench for step 7.

2. Check if you need to purchase four bolts, nuts, and flat washers (these items are not included) for the

appropriate length for your workbench plus 1″ of length for the Shear/Brake.

3. Mark and drill holes through the workbench, using the BASE as a template, for the four Mounting Holes on

the Base of the Shear/Brake.

4. Mark and drill the reinforcing plate, using the BASE of the Shear/Brake as a template, for the four Mounting

Holes on the BASE of the Shear/Brake.

5. Position the Shear/Brake on your workbench and line up the holes you drilled in Step 3 with the holes in the

BASE.

6. Mount the Shear/Brake to the workbench. Refer to Figure 1.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BSB-20 8” Mini Shear Brake

E&OE © Baumr-AG 11

7. Remember to attach the reinforcing plate underneath the workbench then thread on the nuts and tighten the

bolts.

Handle Assembly

1. Loosen the Knob located at the Handle Pivot on the right side of the Shear/Brake.

2. Insert the HAND LEVER (#6) into the Handle Pivot, grooved end first. When the groove in the HAND LEVER

is centred in the Handle Pivot, tighten the Knob as shown in Figure 2.

Figure 2 – Hand lever installation

Bending Tool Adjustment and Removal

The BENDING TOOL (#27, #37) come in various widths and can be used for varying sizes of box and pan

forming. When forming a smaller box or pan, choose the desired size BENDING TOOL finger, centre it and

remove the others. See the Steps below for adjustment instructions.

1. Loosen the HEX HEAD SCREWS (#25) holding the BENDING TOOL Fingers in place.

2. Remove any unneeded BENDING TOOL fingers by sliding them out the left of the Shear/Brake as shown in

figure 3.

Figure 3 – Bending tool removal

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BSB-20 8” Mini Shear Brake

3. Insert any needed BENDING TOOLS appropriate for the job you will be doing behind the CLAMPING BAR

(#26).

4. lower the HAND LEVER (#6) to lower the installed BENDING TOOLS. This will adjust the alignment of the

BENDING TOOLS.

5. Tighten the HEX HEAD SCREWS.

Bending Prism Adjustment

You can adjust the radius of the bend you will make by changing the BENDING PRISM (#24) as described

below.

1. Loosen the CLAMP SCREW (#21) located on the backside of the Shear/Brake as shown in figure 4.

Figure 4 – Loosening the clamp screw

2. Raise the HAND LEVER to raise the Bending Assembly.

3. Lift the BENDING PRISM OUT OF THE GROOVE IN THE base (#1). Pull the BENDING PRISM forward out

of the END STOP (#22).

4. Rotate the BENDING PRISM 180 ° to use the optional radius as shown in Figure 5. Fit the BENDING PRISM

back into the groove.

Figure 5 – Rotating the bending prism

5. Slide the END STOP (#22) back onto the BENDING PRISM (#24). Tighten the CLAMP SCREW (#21).

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BSB-20 8” Mini Shear Brake

Removal and Installation of Upper Cutter

1. Lower the HAND LEVER to lower the LOWER CUTTER (#31).

2. Loosen the four MOUNTING SCREWS (#36) holding the UPPER CUTTER (#33) in place.

3. Remove the UPPER CUTTER. If you have not used all four cutting edges, you can rotate the UPPER

CUTTER to expose a sharp edge and reinstall without purchasing a replacement UPPER CUTTER.

Figure 6 – Removing the upper cutter

4. Align the UPPER CUTTER (#33) so that it is flush with the LOWER CUTTER (#31) and secure with its

MOUNTING SCREWS (#36).

NOTE: The screws that hold the UPPER CUTTER (#33) must be tightened before tightening the CUTTER

HOLDER Screws; otherwise, the cutter will jam.

Removal and Installation of Lower Cutter

1. Raise the HAND LEVER to raise the LOWER CUTTER.

2. Loosen and remove the two MOUNTING SCREWS (#32) for the Move Hammer (#30) as shown in Figure 7.

Figure 7 – Removing the lower cutter

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BSB-20 8” Mini Shear Brake

3. Press the flat of the LOWER CUTTER against the UPPER CUTTER with your thumb and lower the HAND

LEVER. This will separate the LOWER CUTTER from the CUTTER HOLDER (#26).

4. Remove and replace the LOWER CUTTER. There are four cutting edges on the LOWER CUTTER. If you

have not used all four cutting edges, you can rotate the LOWER CUTTER to expose a sharp edge and

reinstall without purchasing a replacement LOWER CUTTER.

5. Press the LOWER CUTTER down against the CUTTER HOLDER.

6. Raise the HAND LEVER. Insert and tighten the MOUNTING SCREWS.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BSB-20 8” Mini Shear Brake

Operation

CAUTION! PINCH POINTS! Keep Hands Clear.

Shearing

1. Make sure the material you will be shearing is within the capacity of the tool. Do not use material that is

thicker than the rated capacity for your Shear/Brake.

2. Scribe the cutting mark on the material.

3. Slide the material between the UPPER CUTTER (#33) and the LOWER CUTTER (#31) so that the UPPER

CUTTER is positioned directly above the mark as shown in Figure 8.

Figure 8 – Inserting scribed sheet metal

4. While holding the material steady, lower the HAND LEVER (#6) until the material has been cut.

Angle Bending

1. Make sure the material you will be bending is within the capacity of the tool. Do not use material that is

thicker than the rated capacity for your Shear/Brake.

2. Use the appropriate BENDING TOOLS and BENDING PRISM radius for your needs. Refer to the

ASSEMBLY Step for adjustment.

3. Mark the workplace where you want to bend the material.

4. Place material above the BENDING PRISM (#24).

5. Align the bending mark with the front edge of the BENDING TOOL (S).

6. Lower the HAND LEVER (#6) until the desired angle has been formed. Use a protractor or other measuring

tool to ensure accuracy.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BSB-20 8” Mini Shear Brake

Pan forming

The Hand Brake Roll can used to make various sizes of pans.

1. Pre-measure and cut your material before bending. Notch the corners according to the desired lip height as

shown in Figure 9.1.

2. Insert material between the BENDING TOOL (S) and BENDING PISM. Bend the material until a 90-degree

angle has been formed as shown in Figure 9.

3. Rotate the material 90-degree counterclockwise. Allow the completed side to extend just beyond the dies.

Bend the second side.

4. Repeat Step 3 for the third side.

5. Rotate to the final side and insert work piece between the dies. Your formed sides will be on the outside of

the dies.

6. Before bending tap one corner nearer to the middle of the machine as shown in Figure 9.3. This will allow

the material to clear the UPPER DIE when raised.

7. Bend the fourth side.

8. Using a block or piece of wood, tap the comer of material back into place.

Figure 9 – Pan forming

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BSB-20 8” Mini Shear Brake

Radius Bending

Radius Bending is most used to make cylinders and cones, as shown in Figure 10. Both shapes are formed by

making a series of small, closely spaced bends in the work piece.

Figure 10 – Radius bending

For cylinders, the bends are evenly spaced, i.e. every bend is identical. For cones, simply move one side of your

stock out further than the other every time you make a head.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BSB-20 8” Mini Shear Brake

Specifications

Max Cutting Width 200mm / 8"

Cutting Capacity

Max half-width sheet metal thickness: 20-gauge

Max full-width sheet metal thickness: 22-gauge

Hard copper: 20-gauge

Aluminium: 18-gauge

Soft brass: 18-gauge

Bending Capacity 20-gauge

Max Bending Angle 90°

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Some experts believe that the incorrect or prolonged use of almost any

product may cause serious injury or death. To help reduce your risk of

serious injury or death, refer to the information below. For more information,

see www.datastreamserver.com/safety



Consult all documentation, packaging,

and product labelling before use. Note

that some products feature

documentation available online. It is

recommended to print and retain the

documentation.



Before each use, check the product for

loose/broken/damaged/missing parts,

wear, or leaks (if applicable). Never use a

product with

loose/broken/damaged/missing parts,

wear, or leaks.



Products must be inspected and serviced

(if applicable) by a qualified technician

every 6 months. This is based on

average residential use by persons of

average size and strength, and on a

property of average metropolitan size.

Use beyond these recommendations may

require more frequent

inspections/servicing.



Ensure that all users of the product have

completed a suitable industry recognised

training course before being allowed

access to the product.



The product has been supplied by a general merchandise

retailer that may not be familiar with your specific

application or description of application. Be sure to attain

third-party approval from a qualified specialist for your

application before use, regardless of any assurances from

the retailer or its representatives.



This product is not intended for use where fail-safe

operation is required. As with any product (for example,

automobile, computer, toaster), there is the possibility of

technical issues that may require the repair or

replacement of parts, or the product itself. If the possibility

of such failure and the associated time it may take to

rectify could in any way inconvenience the user, business,

or employee, or financially affect the user, business, or

employee, then the product is not suitable for your

requirements. This product is not intended for use where

incorrect operation or a failure of any kind, including but

not limited to, a condition requiring product return,

replacement, parts replacement, or service by a

technician may cause financial loss, loss of employee

time or an inconvenience requiring compensation.



If this product has been purchased in error when

considering the information presented here, contact the

retailer directly for details of their returns policy, if

required.

diagrams, or images may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying, scanning, or recording, or any information storage and retrieval system,

without express permission or consent from the publisher.

BAUMR-AG MTACBKBM08MA Sheet Metal Shear and Brake

Product's Documents

Product manual

Specifications

BAUMR-AG MTACBKBM08MA Questions and Answers
