1

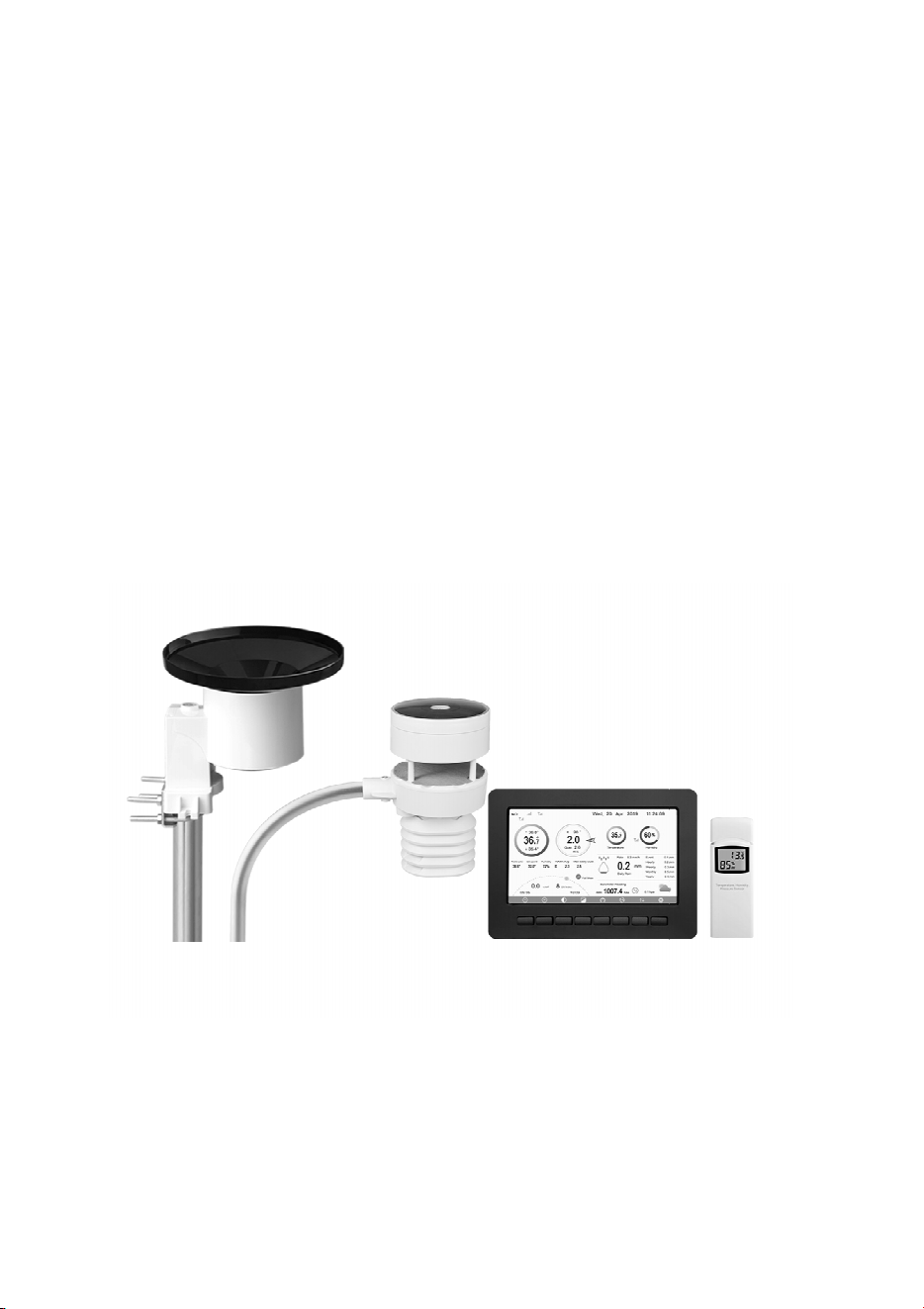

TFT Large Display Wi-
Fi Weather Station
With Ultrasonic Anemometer Sensor Package and Rain Gauge Sensor
Operation Manual
Model: HP2553
Thank you for purchasing this HP2553
TFT Large Display
Station, a complete weather station with ultrasonic
anemometer
independent self-emptying rain gauge.
This manual will guide you, step-by-
step, through setting up your weather
station and base unit, and understanding the
operation of your weather
station.
Note: The mounting pole for anemometer sensor and rain guage
package
included.
Fi Weather Station
With Ultrasonic Anemometer Sensor Package and Rain Gauge Sensor
TFT Large Display
Wi-Fi Weather
anemometer
and
step, through setting up your weather
operation of your weather
package
is not
2
1 Table of Contents
1 Table of Contents ........................................................................................ 2
2 Unpacking ................................................................................................... 4
3 Overview ..................................................................................................... 6
3.1 Display Console ................................................................................... 6
3.2 Indoor sensor ........................................................................................ 7
3.3 Ultrasonic anemometer with 6-in-1 sensors ......................................... 8
3.4 Rain Sensor .......................................................................................... 8
3.5 Optional sensor .................................................................................... 9
3.6 Features .............................................................................................. 11
4 Set up Guide .............................................................................................. 13
4.1 Site Survey ......................................................................................... 13
4.2 Ultrasonic Anemometer package assembly ....................................... 14
4.2.1 Install batteries in sensor package ............................................... 15
4.2.2 Mount ultrasonic anemometer assembly ..................................... 16
4.2.3 Reset Button and Transmitter LED ............................................. 21
4.3 Rain Gauge Sensor Set Up and Installation ....................................... 21
4.3.1 Install rain gauge filter ................................................................ 22
Figure 14: Rain gauge filter in/un-installation diagram ....................... 22
4.3.2 Install rain collector top .............................................................. 22
4.3.3 Install Batteries in rain gauge sensor .......................................... 23
4.3.4 Mounting ..................................................................................... 24
4.4 Indoor Sensor Set Up ......................................................................... 26
4.4.1 Sensor Placement ........................................................................ 26
4.5 Best Practices for Wireless Communication ...................................... 27
4.6 Console Display ................................................................................. 29
4.6.1 Initial Display Console Set Up .................................................... 31
4.6.2 Key functions .............................................................................. 32
4.6.3 Main interface icons explain ....................................................... 33
4.7 Multiple Channel Selection and Scroll Mode .................................... 35
4.8 History Mode ..................................................................................... 36
4.8.1 View and Reset MAX/MIN ........................................................ 36
4.8.2 History Record Mode .................................................................. 37
3
4.8.3 Graph Mode ................................................................................ 40
4.8.4 Channel Data Mode .................................................................... 41
4.9 Setting Mode ...................................................................................... 42
4.9.1 Date and Time setting ................................................................. 43
4.9.2 Time Format setting .................................................................... 45
4.9.3 Date Format setting ..................................................................... 45
4.9.4 Temperature unit setting ............................................................. 45
4.9.5 Barometric unit ........................................................................... 46
4.9.6 Wind speed unit .......................................................................... 46
4.9.7 Rainfall unit................................................................................. 46
4.9.8 Solar Rad. Unit ............................................................................ 46
4.9.9 Multi Channel Sensor .................................................................. 46
4.9.10 Backlight setting ....................................................................... 49
4.9.11 Longitude: Latitude setting ....................................................... 50
4.9.12 Reset Weekly Rain .................................................................... 51
4.9.13 Rainfall season (default: January) ............................................. 51
4.9.14 Storing Interval (1-240minutes Selectable) .............................. 52
4.9.15 Weather Server .......................................................................... 52
4.9.16 Connect Console to Your Router: Wi-Fi scan .......................... 69
4.9.17 Reset Daily Rain ....................................................................... 71
4.9.18 More .......................................................................................... 72
4.9.19 Alarm Setting Mode .................................................................. 75
4.9.20 Calibration Mode ...................................................................... 76
4.9.21 Factory reset .............................................................................. 81
5 Other Console Functions ........................................................................... 85
5.1 Beaufort Wind Force Scale ................................................................ 85
5.2 UVI Range ......................................................................................... 85
5.3 Weather Forecasting .......................................................................... 86
5.4 Lightning Alert ................................................................................... 87
5.5 Weather Forecasting Description and Limitations ............................. 87
5.6 Moon Phase ........................................................................................ 88
6 Maintenance .............................................................................................. 90
7 Troubleshooting Guide ............................................................................. 92
8 Specifications ............................................................................................ 95
4
2 Unpacking
Open your weather station box and inspect that the contents are intact
(nothing broken) and complete (nothing missing). Inside you should find the
following:
QTY
Item Description
1 Display Console
1 Indoor sensor unit(temp/humidity/pressure)
1 Solar powered ultrasonic anemometer with Light and UV, air
temperature/humidity sensor integrated( optional heater for
climate with snow/ice conditions available)
1 Rain gauge
2 U-Bolts set for mounting on a pole (2pcs/set)
2 Threaded nuts for U-Bolts set (M6 size) (4pcs/set)
1 Metal mounting plate set to be used with U-Bolts (1pcs/set)
1 Mounting arm for ultrasonic anemometer
1 Mounting bracelet for ultrasonic anemometer
1 Mini wrench for M6 bolts
1 Stainless steel filter for rain gauge collector
1 AC adapter
1 User manual (this manual)
1 3M extension cord
Table 1: Package content
If any component is missing from the package, or broken, please contact our
Customer Service department to resolve the issue.
Note: The console operates using an AC adapter. The included adapter is a
switching-type adapter and can generate a small amount of electrical
interference with the RF reception in the console, when placed too close to
the console. Please keep the console display at least 2 ft. or 0.5 m away
5
from the power adapter to ensure best RF reception from the outdoor
sensor package.
Note: The console can store historical data on a memory card. This memory card
is not included. If you want to use one you will need a microSD memory
card. The supported max capacity of the card is 32G(Format: FAT32). A
1GB card will store more than 10 years’ data. There is also no requirement
on the speed class of this card as data writing happens infrequently and is
not speed critical.
Note: Batteries for the ultrasonic anemometer and the rain gauge sensor are not
included. You will need 2 AA size Lithium battery for the ultrasonic
anemometer, which is primarily for startup and backup purpose. After
setup and during normal operation, the unit is getting its power from solar
cell. One AA size battery, alkaline or Lithium (recommended for colder
climates) is required for the rain gauge. Two AA size alkaline batteries are
required for the indoor sensor.
Note: There are two sets of U-bolts in the box, one is for the ultrasonic
anemometer sensor and the other one is for the rain gauge sensor. There’s a
short stainless-steel tube included for the rain gauge sensor installation.
Note: The rain gauge can also be mounted to a surface using two screws, so the
included stainless-steel tube is not always necessary!
6
3 Overview
3.1 Display Console

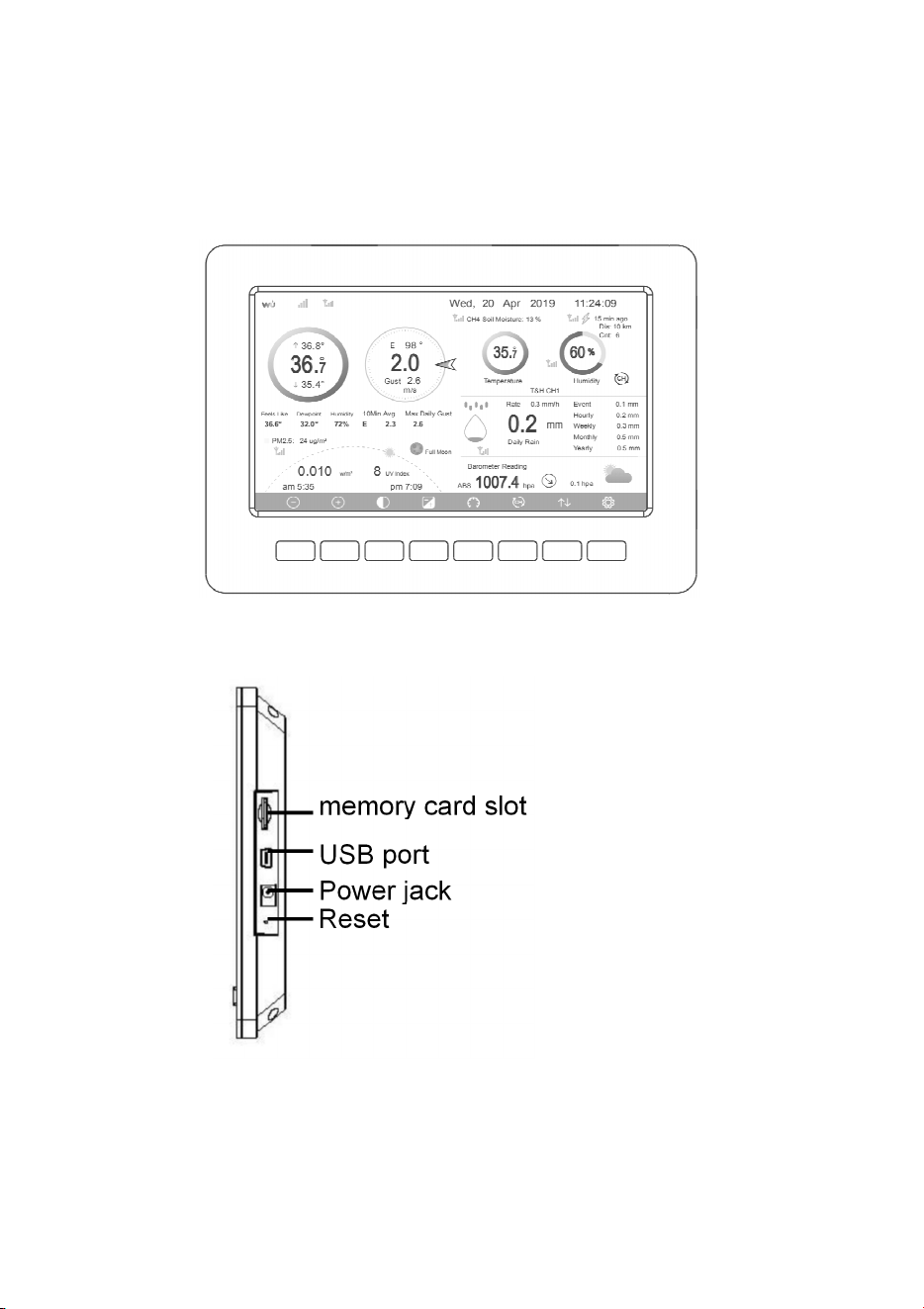

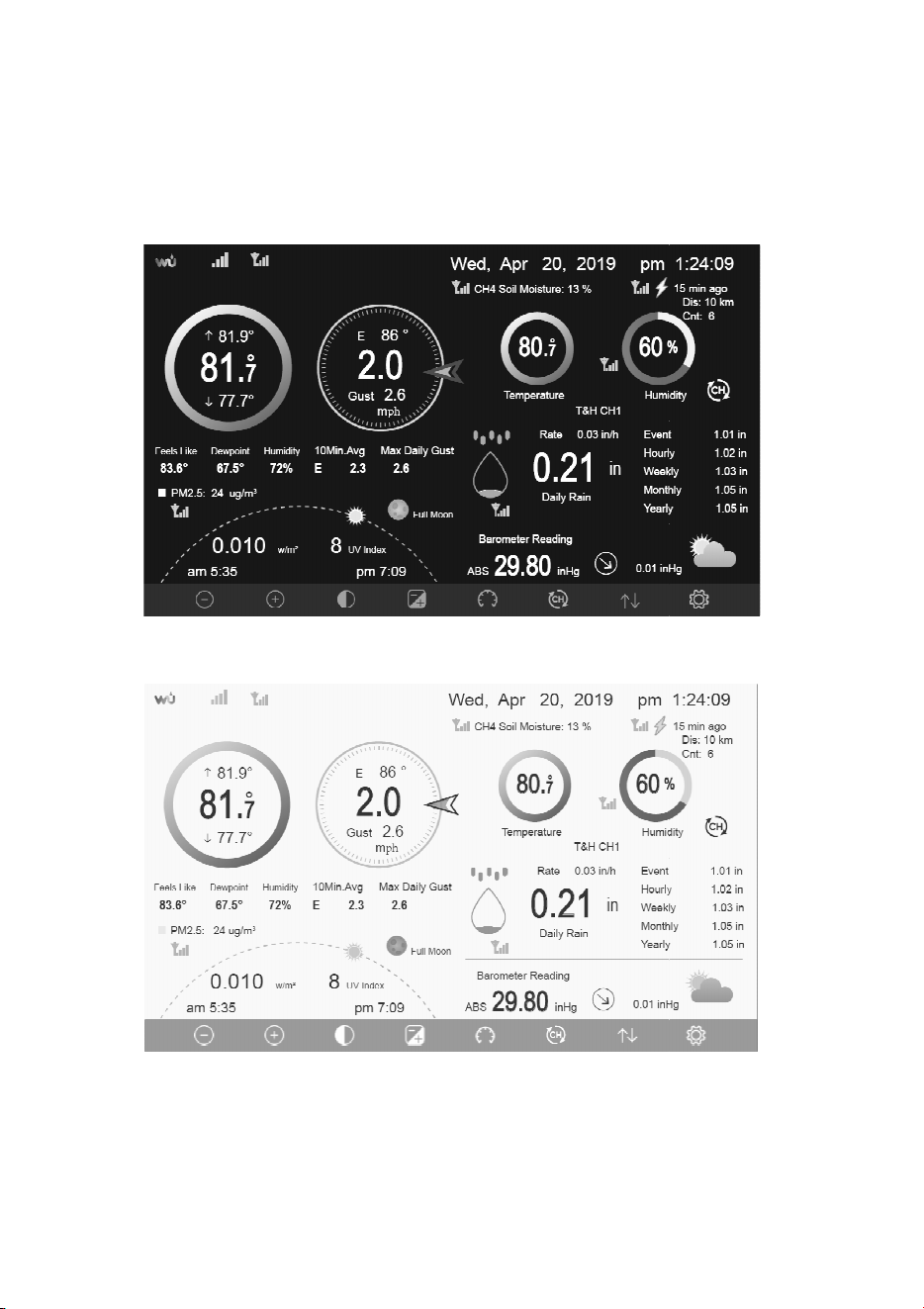

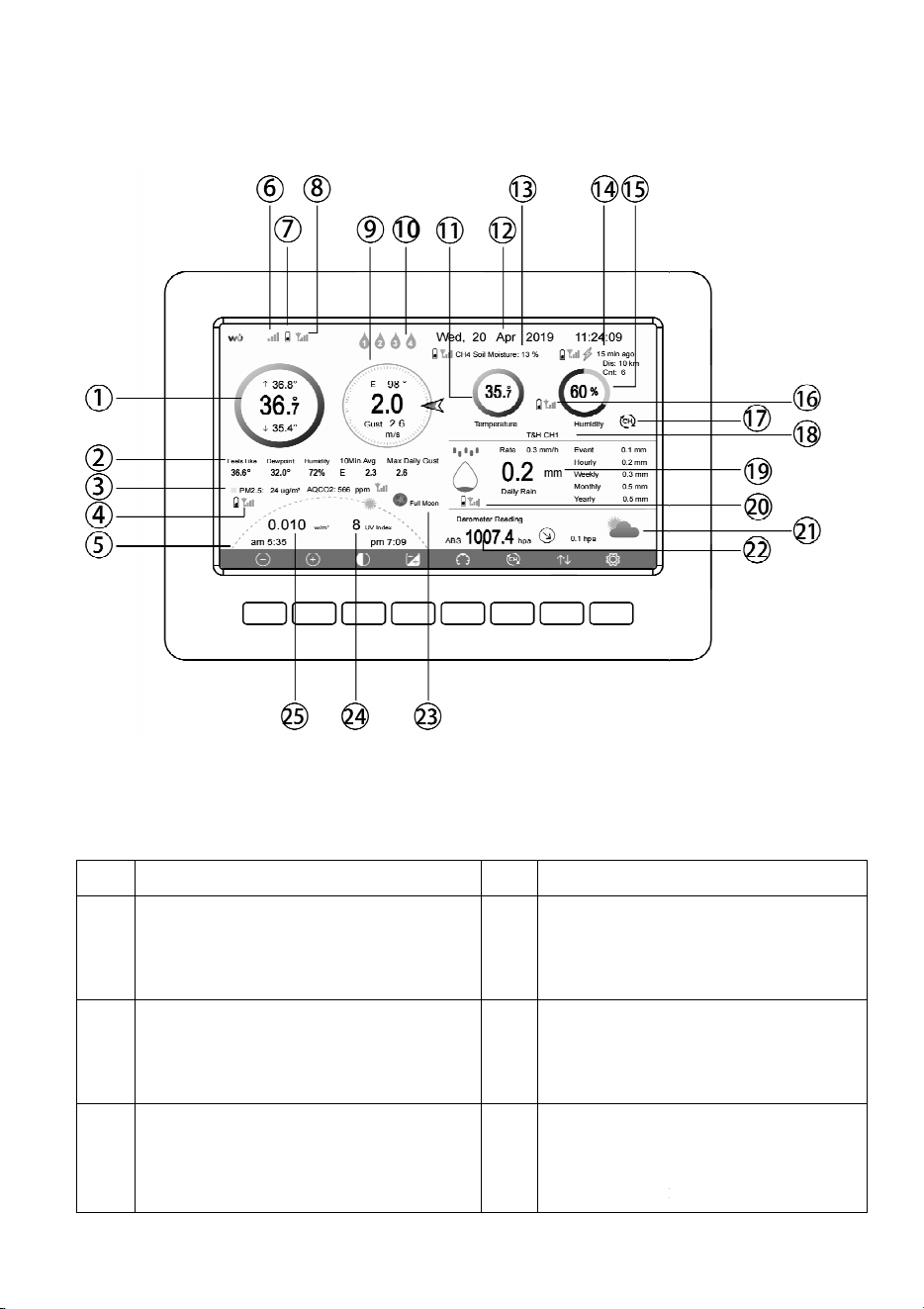

Figure 1: Display console screen
Figure 2 Display console side views
Note: The USB port in the console is only for factory
internal use, not
available for users.
internal use, not
7
You can use a micro SD card (max 32G, Fat 32) for the firmware
update.(micro SD card not included,
cards of reputable make should be
used).
Update firmware process:
1. Visit www.ecowitt.com for available update
2. On the navigation bar, select Manual & Firmware under Support
3. Search "HP2551" - find the firmware option and download it on your
computer
4. Take out your micro SD card from the console
5. Drag the unzipped file (user.bin) under the root directory of your micro
SD card.
6. Insert the card into the console - power off the console - power on the
console - update the program.
3.2 Indoor sensor

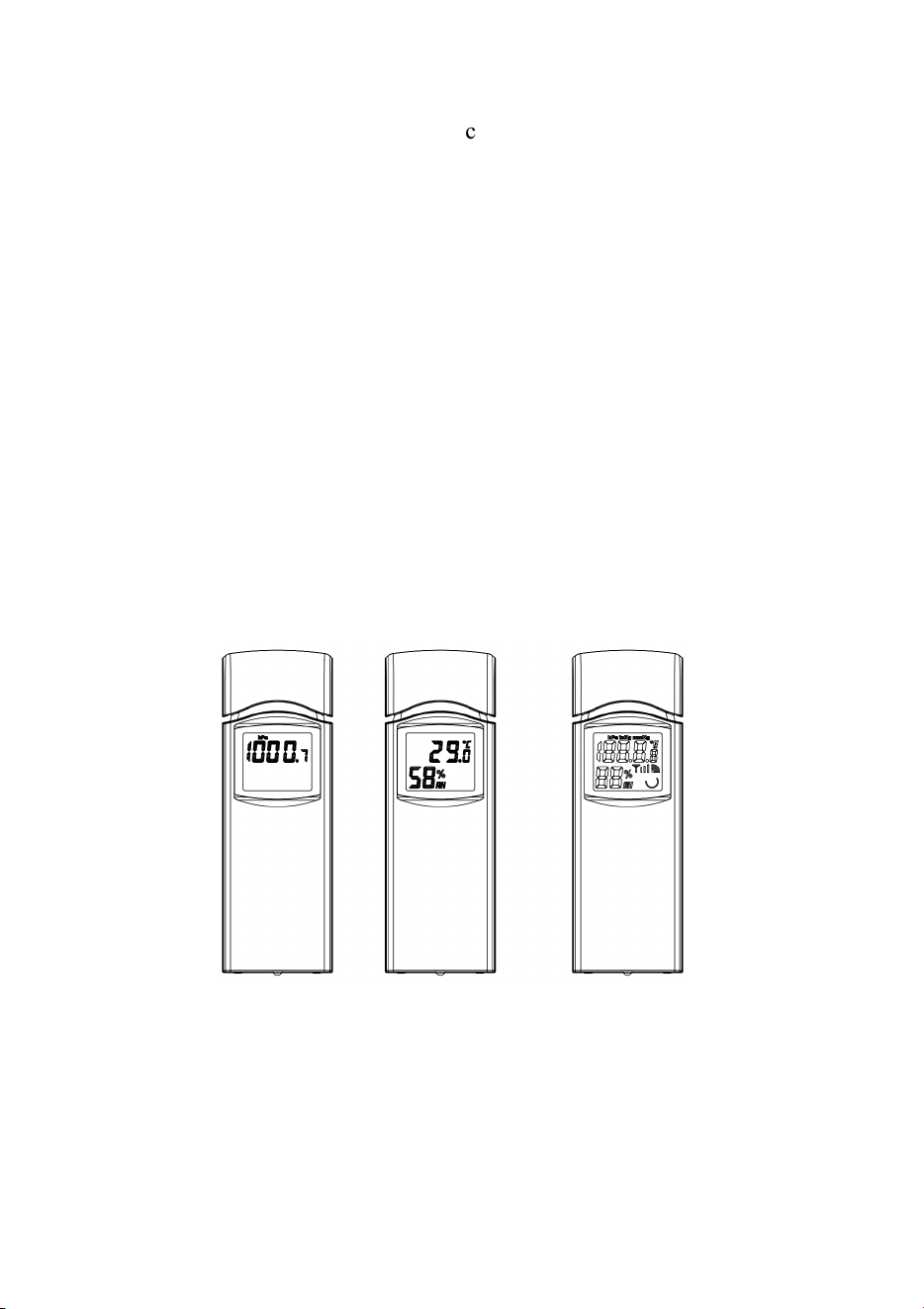

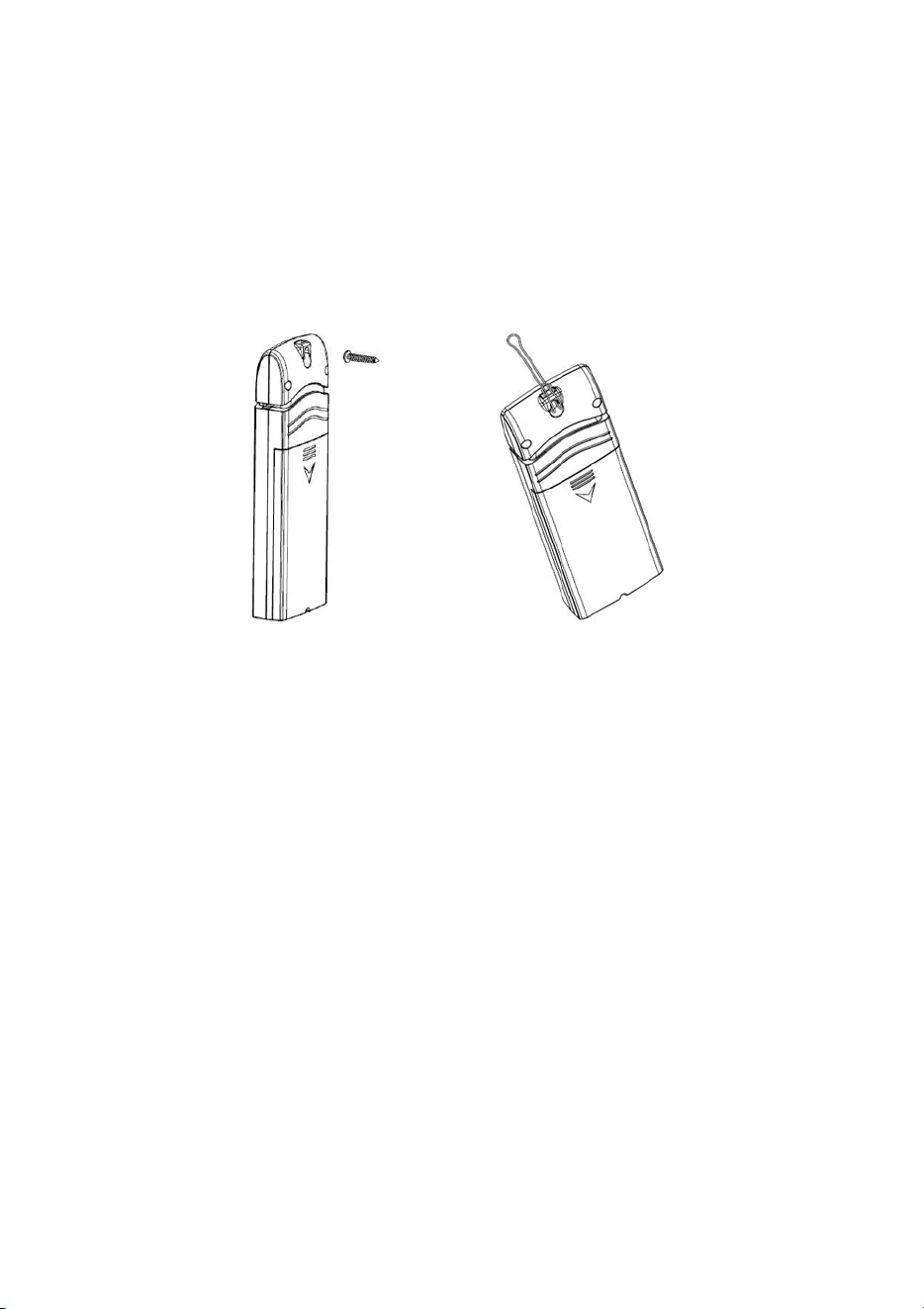

Figure 3: Indoor sensor 2 display variations
The indoor sensor will display indoor temperature, humidity and barometric
pressure alternately.
8
3.3 Ultrasonic anemometer with 6-in-1 sensors

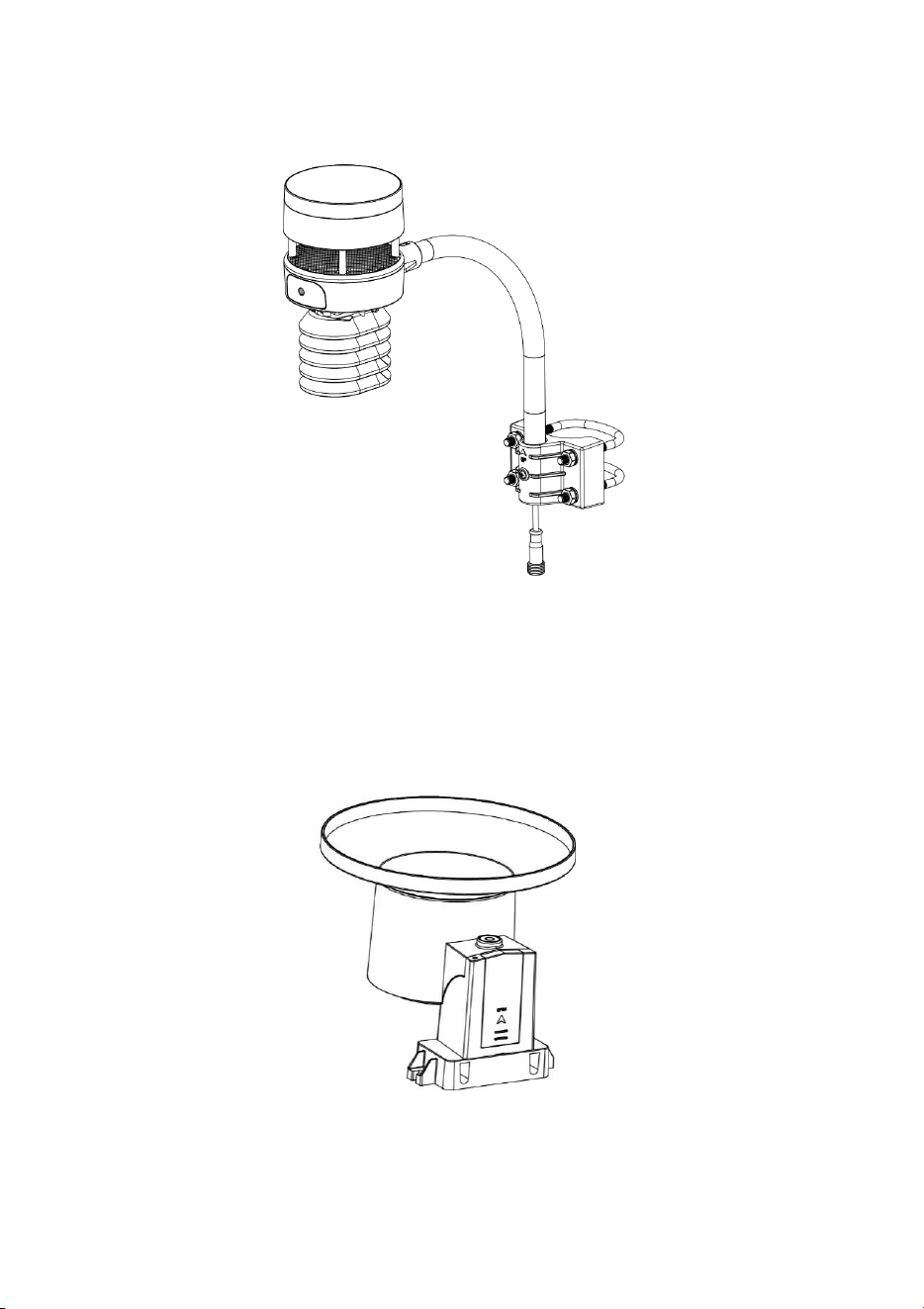

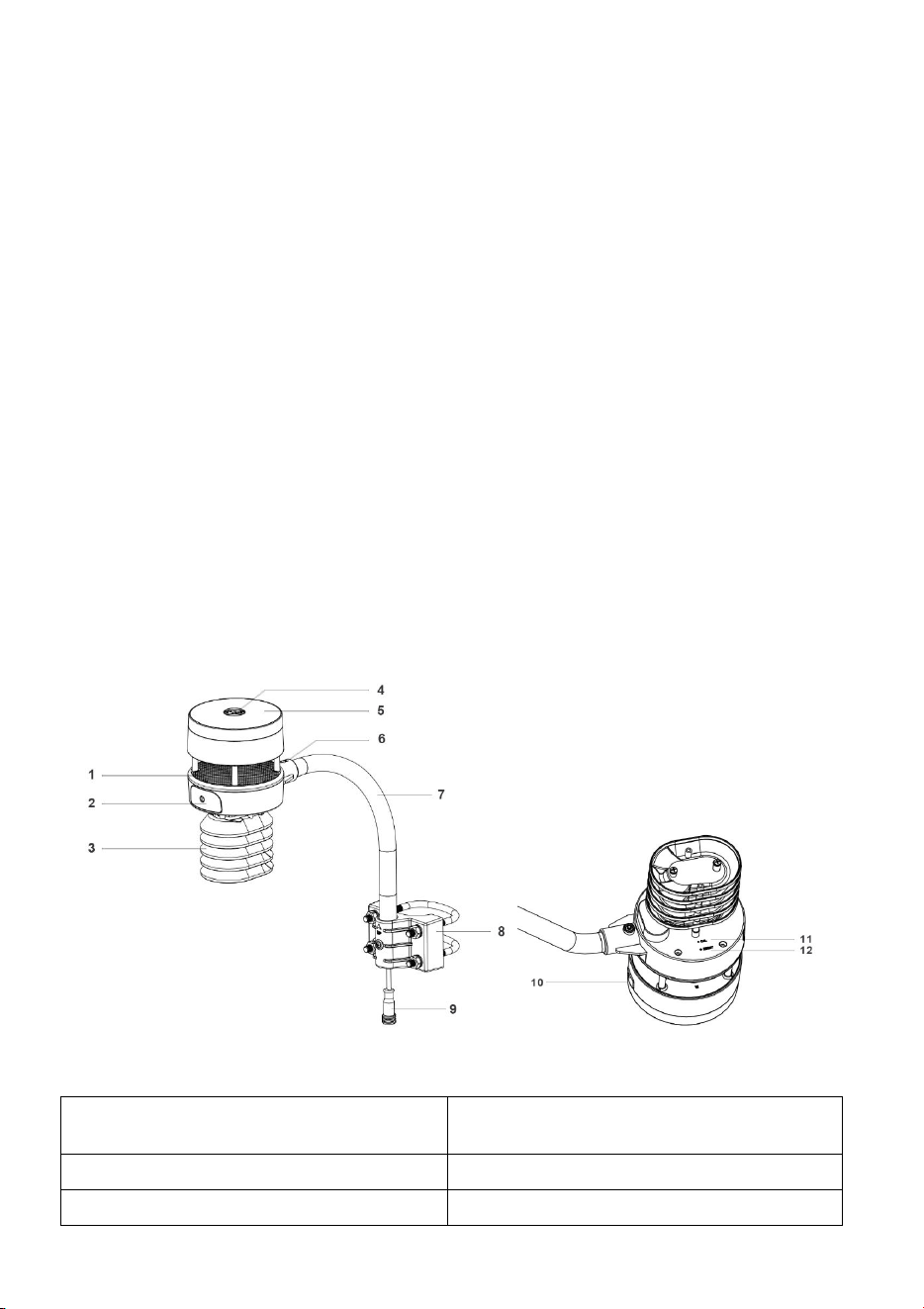

Figure 4: Solar powered ultrasonic anemometer with integrated solar & uv,
thermo-hygrometer sensor
3.4 Rain Sensor

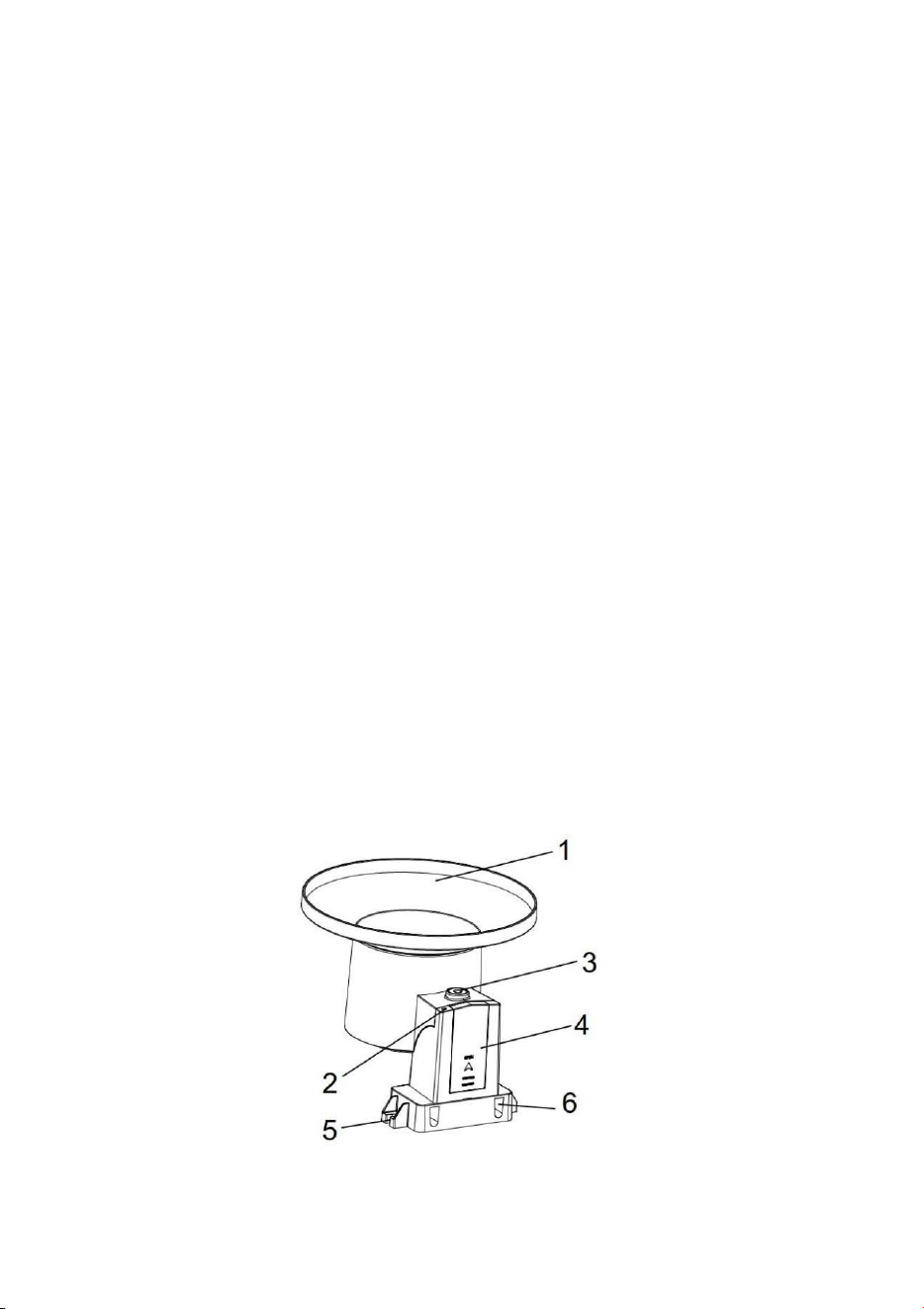

Figure 5: Self emptying rain gauge
9
3.5 Optional sensor
The following optional sensors (purchased separately) can
be used with
HP2553 console display.
If you have purchase extra sensors, just simple power up, the display
console will receives the data automatically. If sensor not reporting in to
console, the display console will re-
search the data after one hour or re
the console to search the data. Please refer to the sensor manual (provided
separately with sensor) for details.
This table shows the maximum number of each type of sensor that can be
worked with console display

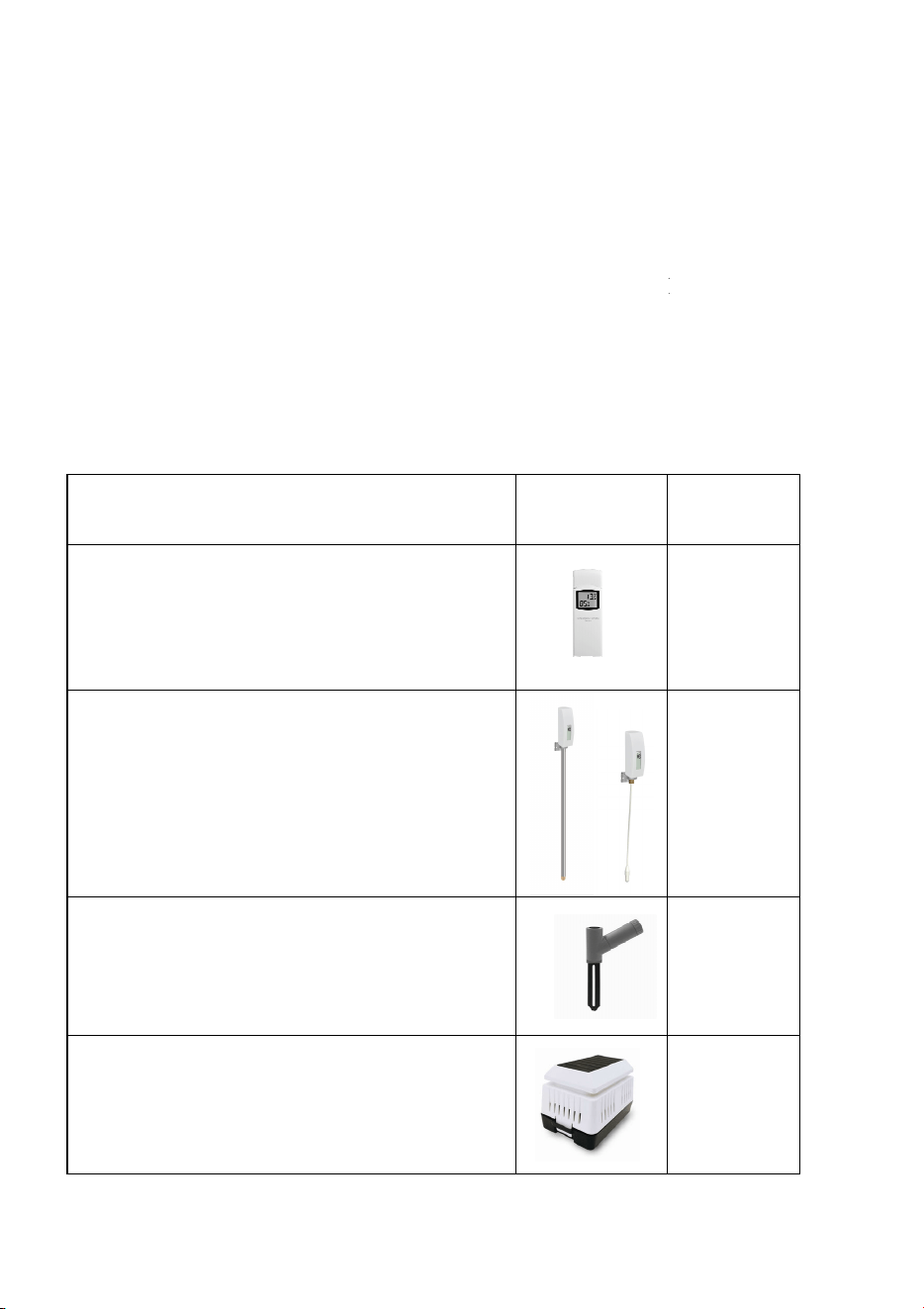

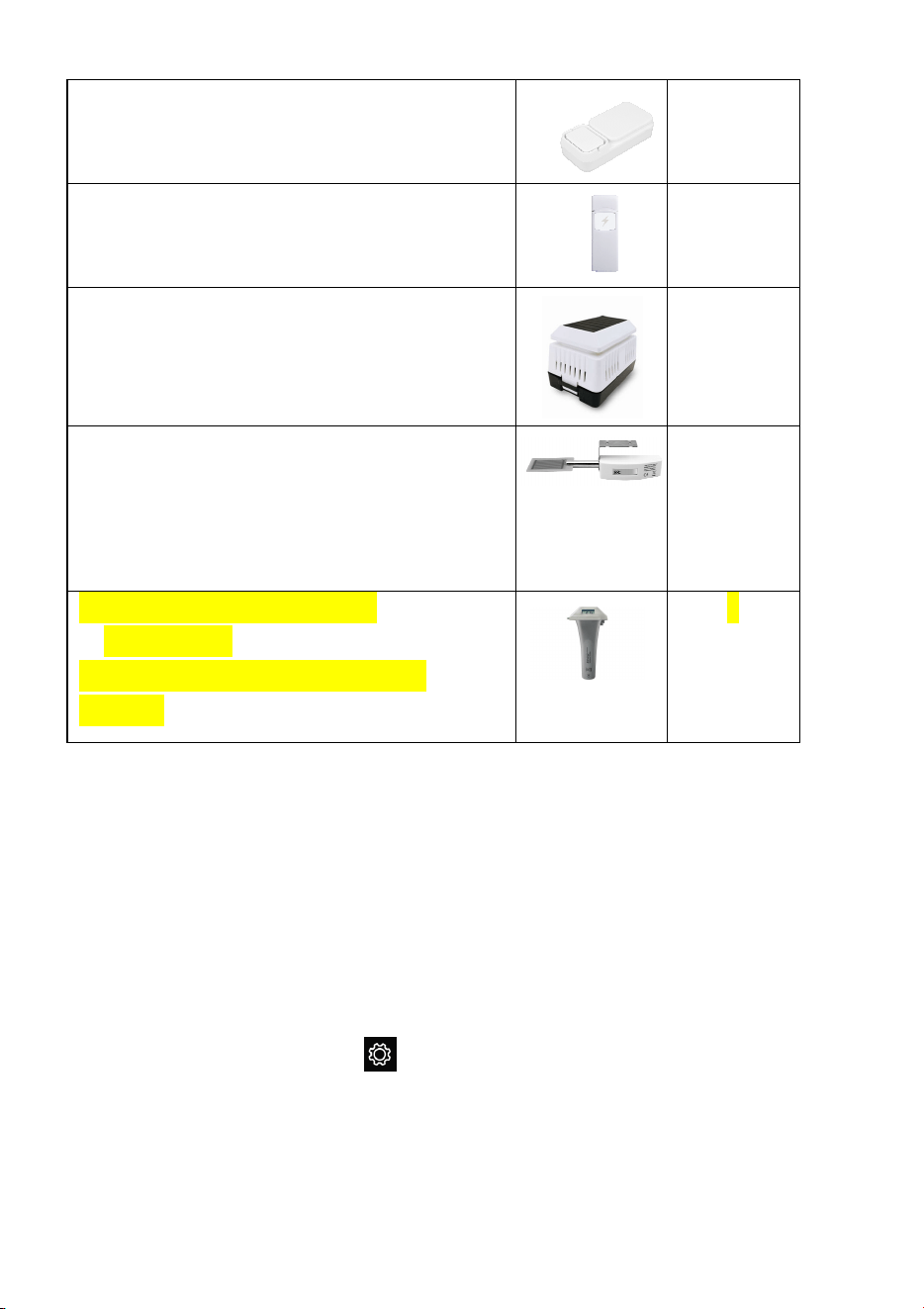

Sensor Image
WH31 Multi-channel temperature and
humidity sensor
Or WN30 temperature sensor with wire
WN34S Stainless-steel probe thermometer
for soil and water
WN34L Wire probe thermometer for water
WN34S and WN34L share the 8 channels
WH51 Soil moisture sensor
WH41 outdoor PM2.5 air quality sensor
WH43 indoor PM2.5 air quality sensor
WH41 and WH43 share the channels
be used with
If you have purchase extra sensors, just simple power up, the display
console will receives the data automatically. If sensor not reporting in to
search the data after one hour or re
start
the console to search the data. Please refer to the sensor manual (provided
This table shows the maximum number of each type of sensor that can be
Maximum
Number
8
8
8
4
10
WH55 Water leak alarm
WH57 Thunder and lightning
WH45 Indoor PM2.5/PM10 CO2 air
quality sensor
WN35 leaf wetness sensor
* the data won’t be displayed on the main
screen, it will show its data on the Channel
Data page.
WN36 Wireless Floating Pool
thermometer
* WN36 and WH31 share the eight
channels
To pair the optional sensors with the HP2553
console, please follow the
below operations:
1. Place the optional sensor next to the console (keep 5-
10ft away from each
other).
2. Install batteries on the sensor and wait for 1-2 minutes.
3. Check whether the console will pick up the sensor data automat
display it on the screen.

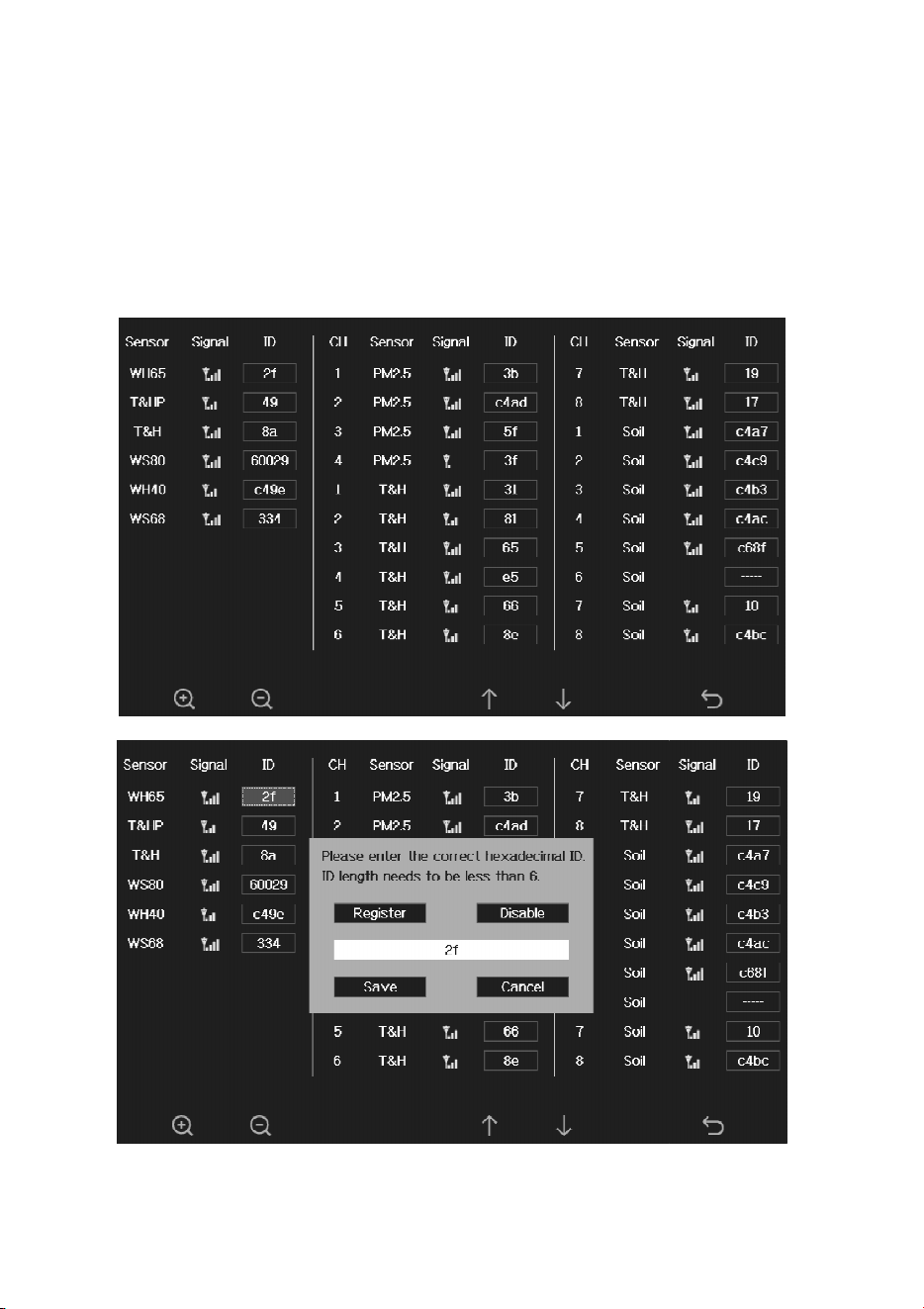

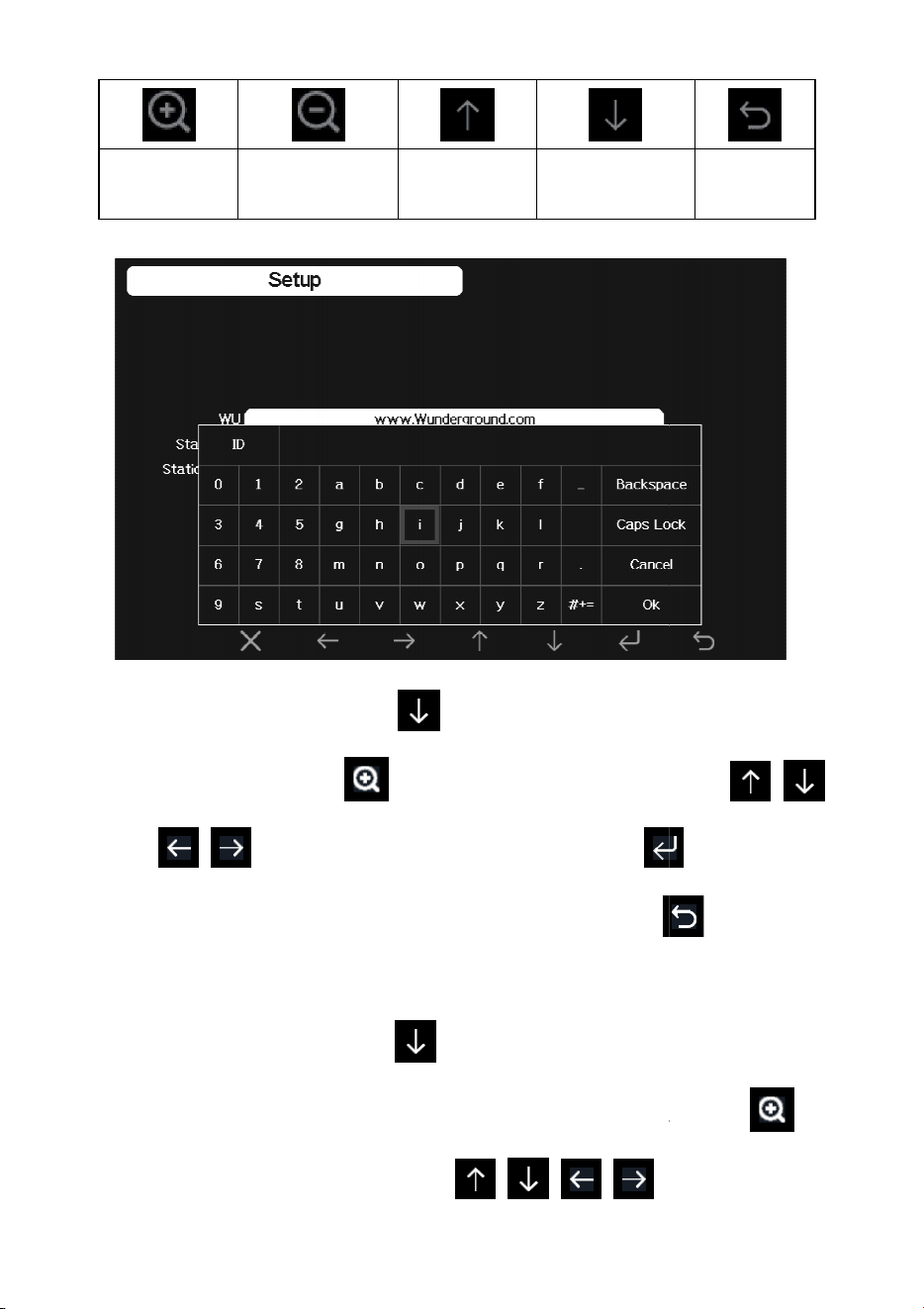

4. If not, press the gear icon and go to Setup page -
find More and
enter its Setup page -
find Sensors ID and enter its Setup page.
5. In the Sensors ID Setup page, find the sensor you want to pair
ID number box and register it.
4
1
1
8
8
console, please follow the
10ft away from each
3. Check whether the console will pick up the sensor data automat
ically and
find More and
find Sensors ID and enter its Setup page.
5. In the Sensors ID Setup page, find the sensor you want to pair
- select the
11
6. Once successfully, you may return to the main interface to check the data.
3.6 Features
• 7" large TFT (high resolution) colored display console
• Two background (dark/light) themes selectable
• Indoor temperature, humidity
• Absolute and Relative barometric pressure
• Wind speed, wind direction, rainfall, outdoor temperature and humidity,
solar radiation and UV.
• Calculates dew point, wind chill, heat index, moon phase and
sunset/sunrise time
• Weather forecast & alarm
• View historical records of sensors and graph directly on the console
• Collects sensor data from various supported wireless sensors.
• Pushes sensor data to cloud weather services:
• https://www.ecowitt.net
• https://www.wunderground.com
• https://www.weathercloud.com/
• https://www.wow.com
• Custom own server data hosting possible when server data exchange
is compatible with either Wunderground or Ecowitt protocol.
• Manage sensor calibration setup.
• Manage sensor via sensor ID.
• Data storage service on Ecowitt server: https://ecowitt.net
• Data storing interval:
• by day: 5 minutes
• by week: 30 minutes
• by month: 4 hours
•
by year: 1 day
• Stores data for past three months at 5-minute intervals
12
• Stores data for past one year at 30-minute intervals
• Stores data for past two year at 4-hour intervals
Note:
There’s a built-in heat plate in the 6-in-1 sensor package body, if the
lowest temperature at your place is below -3°C, or 26.6°F, and the
weather is mostly snowy or rainy, then you may need to
activate the heater by supplying an 12V/1A power (sold separately)
to the sensor heating element for melting accumulated snow or ice,
which can influence wind measurement accuracy significantly.
There’s a built-in thermostat inside the anemometer sensor
to control the power supply for the heat plate, which will automatica
lly turn on below 0
℃
(30 )
℉
and automatically turn off above 10
℃
(50 ).
℉
13
4 Set up Guide
Before you start, you will need a Philips screwdriver (size PH0, not
provided) and find the wrench (size M6) included in package.
Note: We suggest you assemble all components of the weather station, including
base unit in one location so you can easily test functionality. After testing,
place the outdoor sensors in the desired location. Note, however, that
movement during assembly, and movement after assembly can cause the
rain sensor to “falsely” register rain. It is possible to reset the rain total to 0
via WS View Plus app.
Attention:
• Follow the suggested order for battery installation (outdoor sensor(s)
first, indoor sensor(s) second, optional base unit last).
• Ensure batteries are installed with correct polarity (+/-).
• Only use new batteries for all battery-operated sensors.
• Avoid rechargeable batteries being used.
• If outdoor temperature may go below 32 F or 0 C for prolonged periods,
Lithium based batteries are suggested over alkaline type batteries for
any outdoor sensor.
4.1 Site Survey
Location of various sensors is paramount to good data collection.
Abbreviated instructions follow, but for a detailed reference, see:
https://www.weather.gov/media/epz/mesonet/CWOP-Siting.pdf.
Perform a site survey before installing the weather station. Consider the
following:
Anemometer
• Ideally mounted at least 32 feet, or 10 meters above ground level.
14
• Try to make the anemometer the highest object around. 7 feet, or 2.75
meters) or more above the surrounding obstructions is best.
Rain Gauge
• Ideally mounted at a height of 4 to 6 feet, or 1.5 to 2 meters above the
ground.
• Ideally located at a horizontal distance of 4 times the height, above the
rain gauge, of the nearest obstruction.
• Ensure the rain gauge is mounted level to the ground, away from any
horizontal surface that can introduce rain-splashing or surrounding snow
buildup.
4.2 Ultrasonic Anemometer package assembly
See Figure 6 to locate and understand all the parts of the ultrasonic
anemometer package with UV & light, thermo-hygrometer sensors, once
fully assembled.
Figure 6: Sensor package assembly components
1. Surface tension conditioner layer
( patent pending)
7. Mounting arm
2. Battery compartment 8. Mounting bracelet and U-bolt set
3. Temperature & humidity sensor 9. Power cord for built-in heater
15
4. Light & UV sensor, LED indicator
10. USB port (factory use only )
5. Solar Panel 11.Calibration button (factory use
only )
6. NORTH alignment indicator 12. Reset button
Table 2: Sensor package assembly component list
4.2.1 Install batteries in sensor package
Open the battery compartment with a screwdriver and insert 2 AA Lithium
batteries in the battery compartment, and press “Reset” button, the LED
indicator on the back of the sensor package (item 4) will turn on for 3
seconds and then flash once every 4.8 seconds indicating sensor data
transmission. If you did not pay attention, you may have missed the initial
indication. You can always press the reset button to start over. Make sure
you see the flash once every 4.8 seconds.
If sensor has been put outside for some time, and solar panel has charged up
the internal accumulator fully or partially, if you install the 2 AA backup
Lithium battery, the system might not start up properly. So you can always
make a system reset by press the “Reset” button.

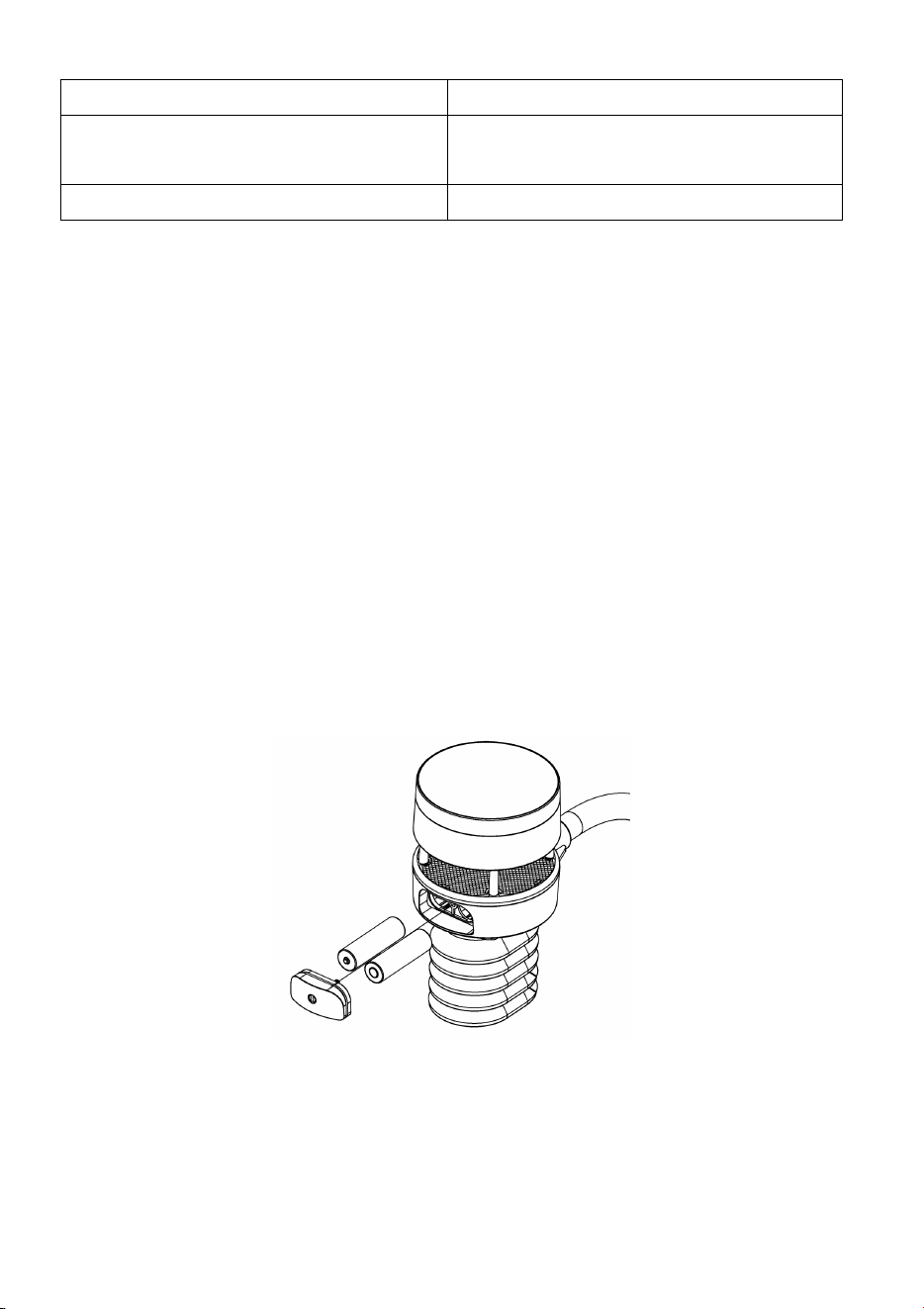

Figure 7: Battery installation diagram
Note:
Please make sure the battery is inserted correctly for its polarity as
the system needs its initial power from this backup battery to start
up the system before solar panel charges up the accumulator and
16
supply system power afterwards. When in high altitude area, during
wintertime, sunshine time is short, thus system needs to be powered
from this backup battery, we recommend Lithium batteries to be
used for cold weather climates. Please avoid alkaline batteries,
especially when internal heater is to be activated during cold and
wet weather conditions as when heater activated, the trapped heat
inside will warm up internally, and alkaline batteries are extremely
susceptible to leakage when temperature is over certain limits. So
Alkaline batteries are forbidden to be used with this anemometer
when heater function is activated.
4.2.2 Mount ultrasonic anemometer assembly
4.2.2.1 Before you mount
Before installing your outdoor sensor in the permanent location, we
recommend operating the device for one week in a temporary location with
easy access. This will allow you to check out all of the functions, ensure
proper operation and familiarize you with the weather station performance.
4.2.2.2 Mounting

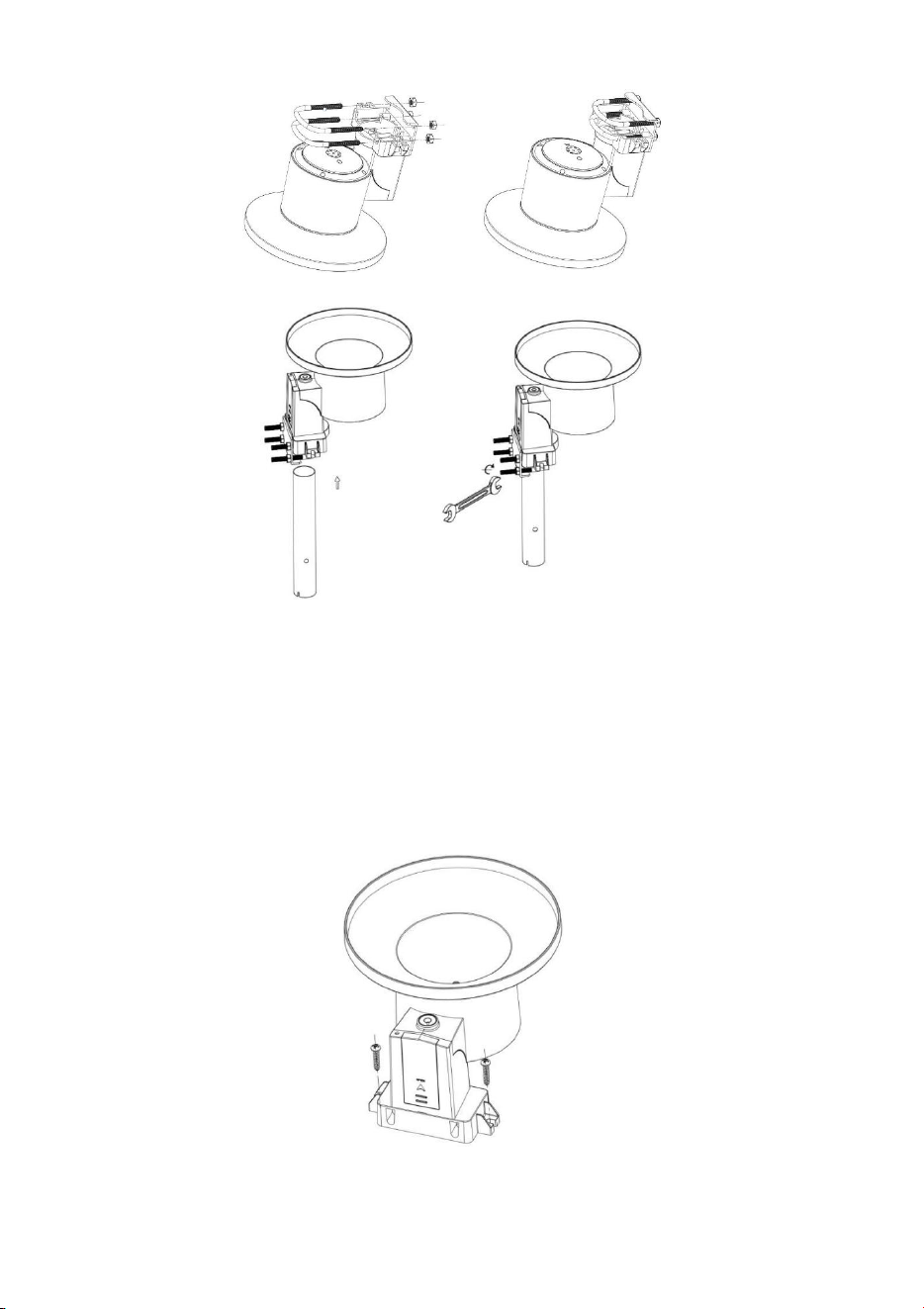

• You can attach a pole(not included) to a permanent structure and then
attach the sensor package to it (see Figure 8-12).
• The U-Bolts will accommodate a pole diameter of 1.25-2 inches (pole
not included).

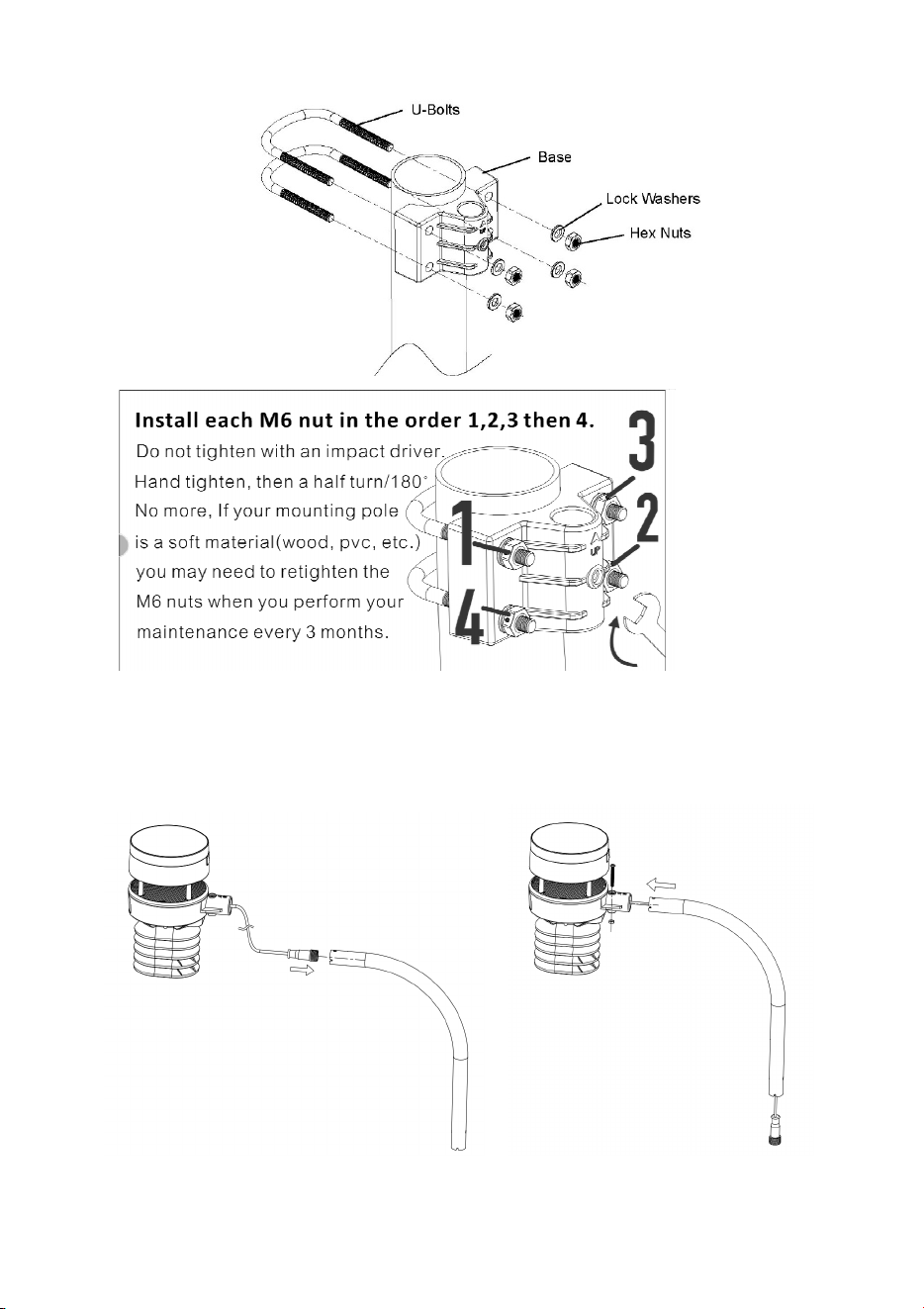

1. Install the base on a pole (1.25inch~2inch) as Figure 8.
17

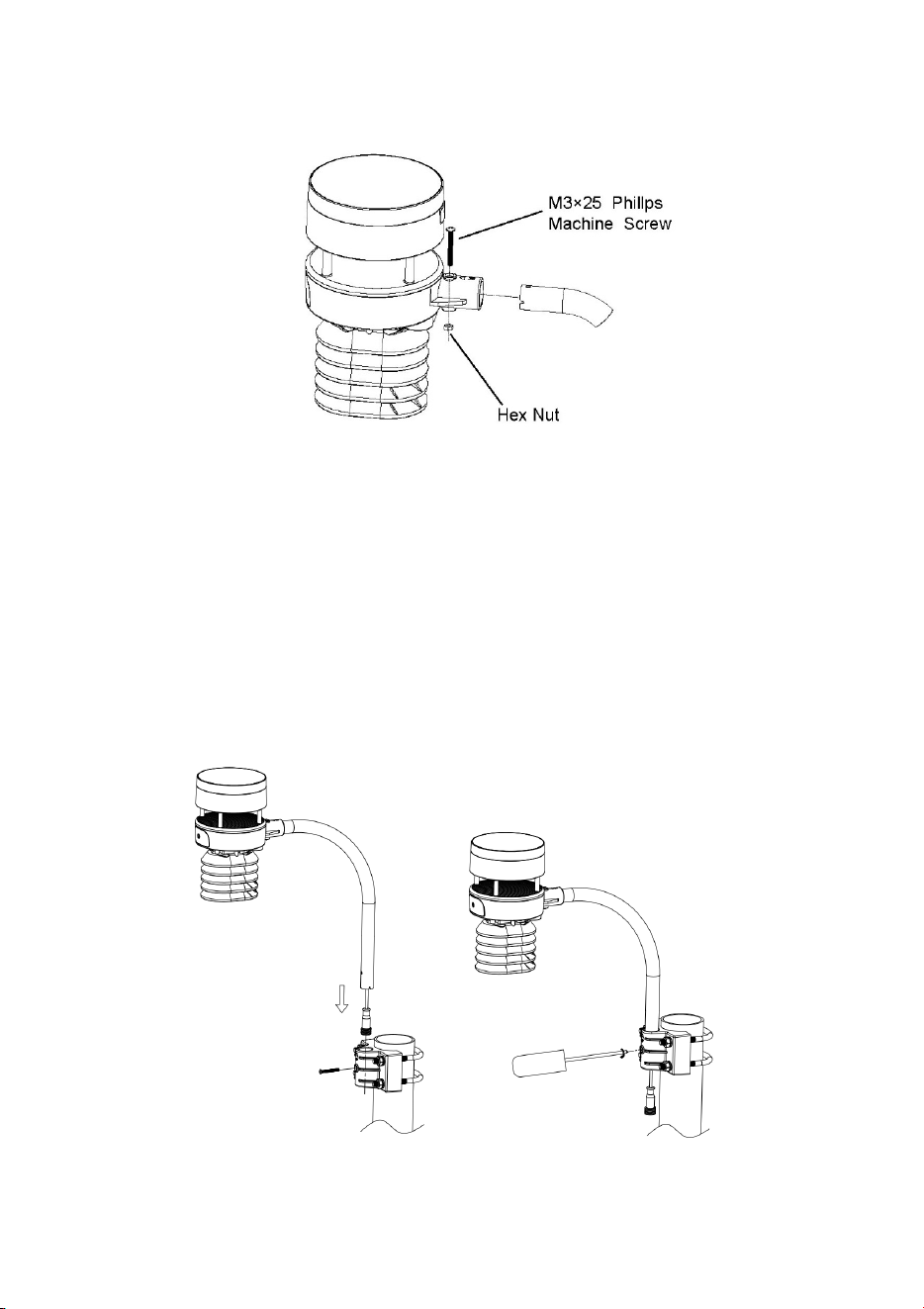

Figure 8: Sensor package mounting diagram 5-
1
2.
Pass the connector cord through the arm tube as Figure 9:
Figure 9: Sensor package mounting diagram 5-
2
1
Pass the connector cord through the arm tube as Figure 9:
2
18
3. Attaching the arm tube to the Ultrasonic Sensor as Figure 10.
Figure 10: Sensor package mounting diagram 5-3
4. Insert the arm tube into the base as Figure 11. Be sure to line up the
small hole in the arm with the holes in the base. Insert the machine
screw through the holes in the base and arm. ( if you don’t need to
power up the heater, you should keep the power cord terminal inside
the mounting arm and this can make the installation looks neat and tidy.
You may take it out when needed.)
Figure 11: Sensor package mounting diagram 5-4
19
Make sure the mounting pole is vertical, or very close to it. Use a level as
needed.
5. During wintertime, to prevent ice formed on the reflection surface, the
optional extension cord be connected to a 12v/1.0A outdoor type power
adapter as Figure 12-1 showed below. The outdoor rated adapter and
extended power cable can be purchased separately:

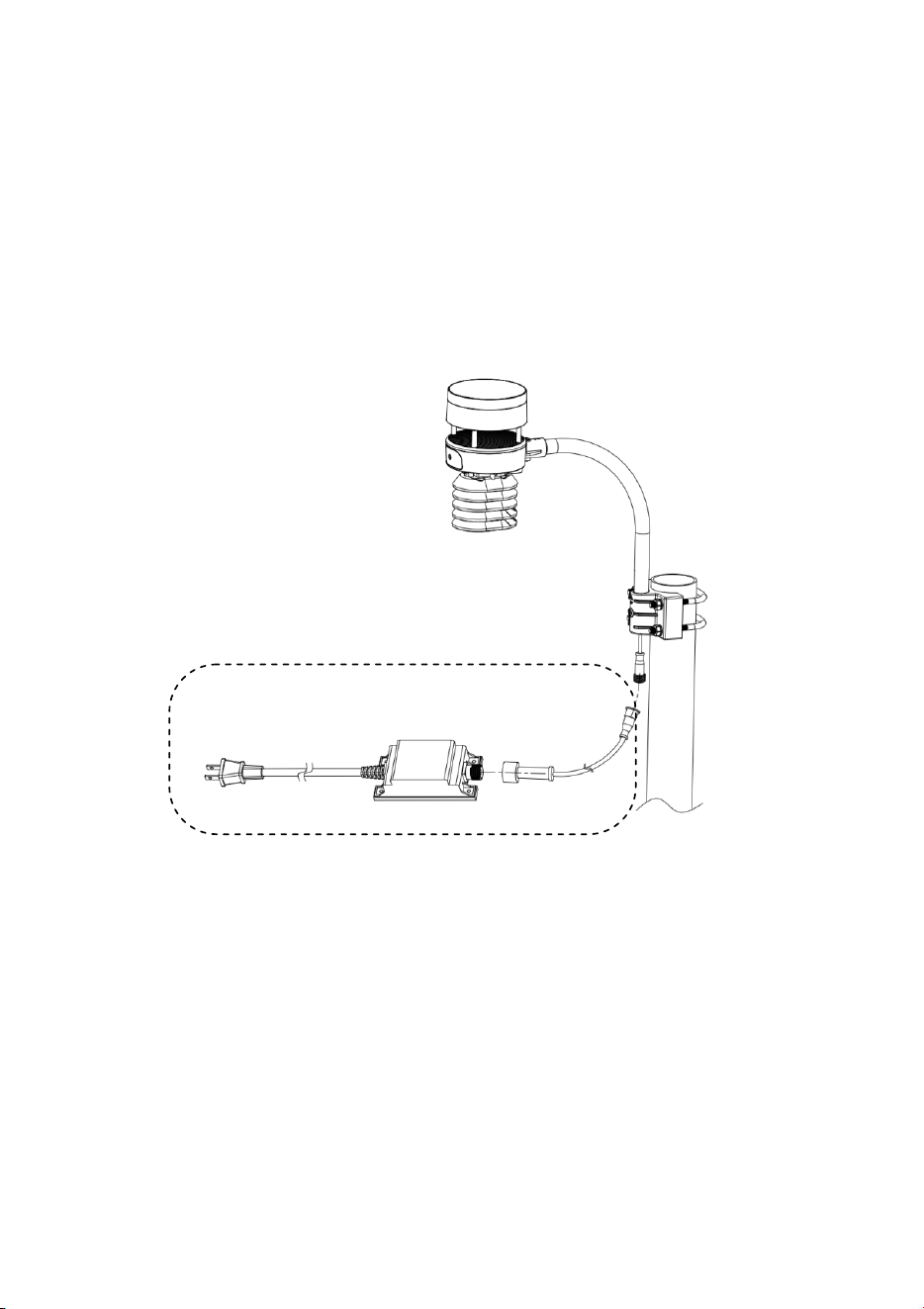

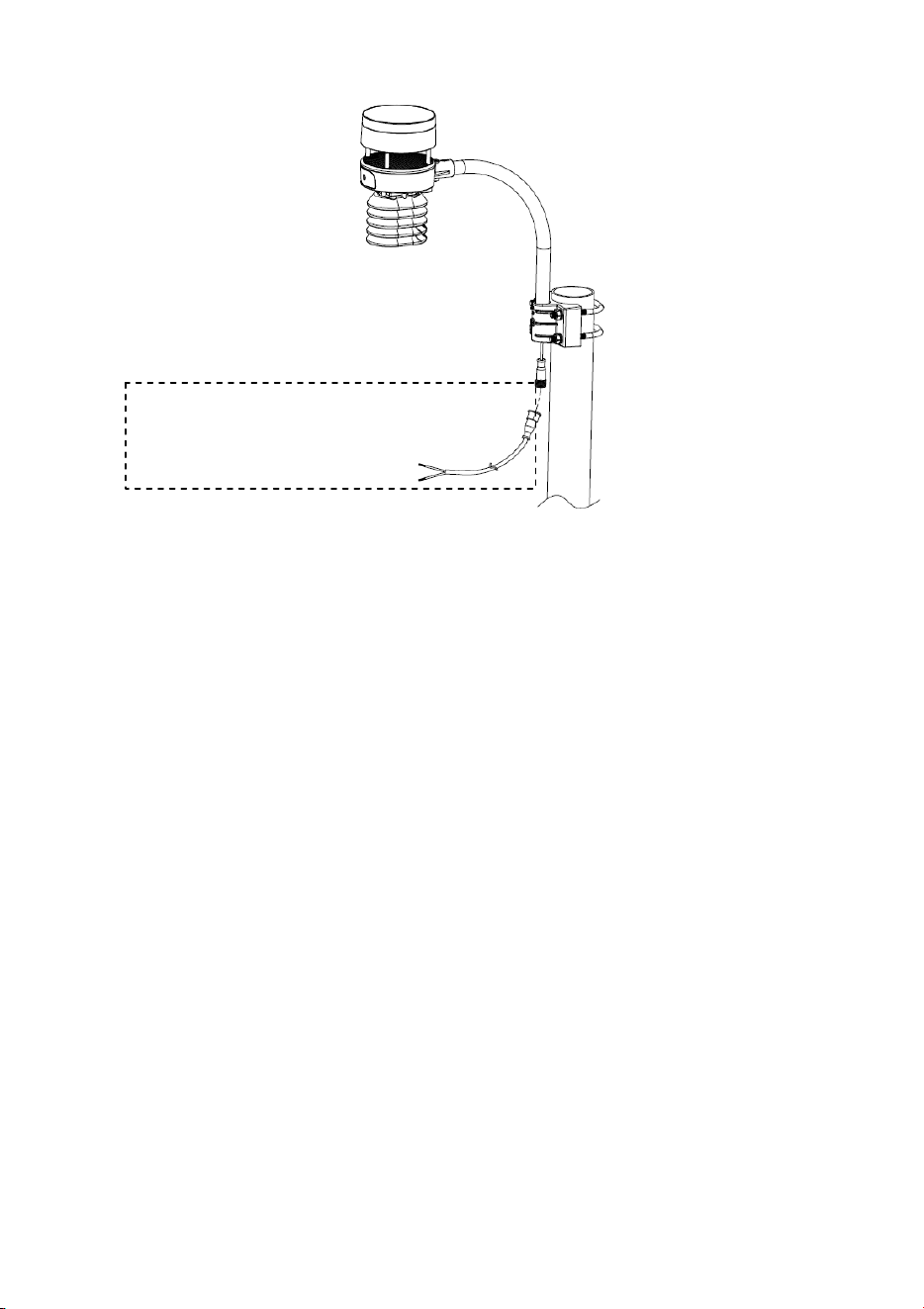

Figure 12-1
Figure 12-1: Sensor package mounting diagram 5-5
As an option, the package includes a 3M extension cable that users can
connect to a 12V / 1.0A outdoor power adapter by themselves.
Accessory Part only, not included!
20
Figure 12-2
Finally, place the sensor package on top of the prepared mounting pipe. The
U-Bolts should be loose enough to allow this but loosen the nuts as
necessary. Once placed, hand tighten all four nuts, taking care to do so
evenly. Do not use a wrench yet!
Now you will need to align the whole package in the proper direction by
rotating it on top of the mounting pipe as needed. Locate the arrow labeled
“NORTH” that you will find on top of the connector tube of the sensor
package (item 6). You must rotate the whole sensor package until this arrow
points due north. To achieve proper alignment, it is helpful to use a compass
(many cell phones have a compass application). Once rotated in the correct
orientation, lightly tighten the bolts a little more (use a wrench) to prevent
further rotation.
Note: In Southern hemisphere, it is not necessary to change the orientation to
SOUTH as its solar panel is a rounded type and it is orientation free for its
charging capability.
Accessory: 3M extension cord
included
21
Make sure the mounting tube for the sensor package is installed vertically
(use a level at 90-degree offsets around the tube). Adjust the mounting pipe
as necessary. Next also make sure the mounting of the anemometer body on
the pipe is level. If it is not, wind direction and speed readings may not
operate correctly or accurately. Adjust the mounting assembly as necessary.
Make sure you check, and correct if necessary, the north orientation again,
as the final installation step, and now tighten the bolts with a wrench. Do not
over tighten, but make sure strong wind and/or rain cannot move the sensor
package.
4.2.3 Reset Button and Transmitter LED
In the event the sensor package is not transmitting, reset the sensor.
Using a bent-open paperclip, press and hold the RESET BUTTON (item 12)
to affect a reset: the LED turns on while the RESET button is depressed, and
you can now let go. The LED should then resume as normal, flashing
approximately once every 4.8 seconds.
4.3 Rain Gauge Sensor Set Up and Installation
See Figure 13 to locate and understand all the parts of the rain gauge sensor
once fully assembled.
Figure 13: Sensor assembly components
22
1 Rain collector funnel 4 Battery compartment door
2 LED Indicator 5 Surface installation screw
3 Bubble level 6 U-bolt installation hole
Table 3: Sensor assembly detailed items
4.3.1 Install rain gauge filter
There’s a stainless steel filter included in the package. It’s aimed to stop
leaves or bird's dropping to avoid the obstruction of the cone hole. The
installation is simple: press the filter until t
he hook is inside the outlet hole
and self -
locked. The spring tension will keep the filter sit tight on the funnel.

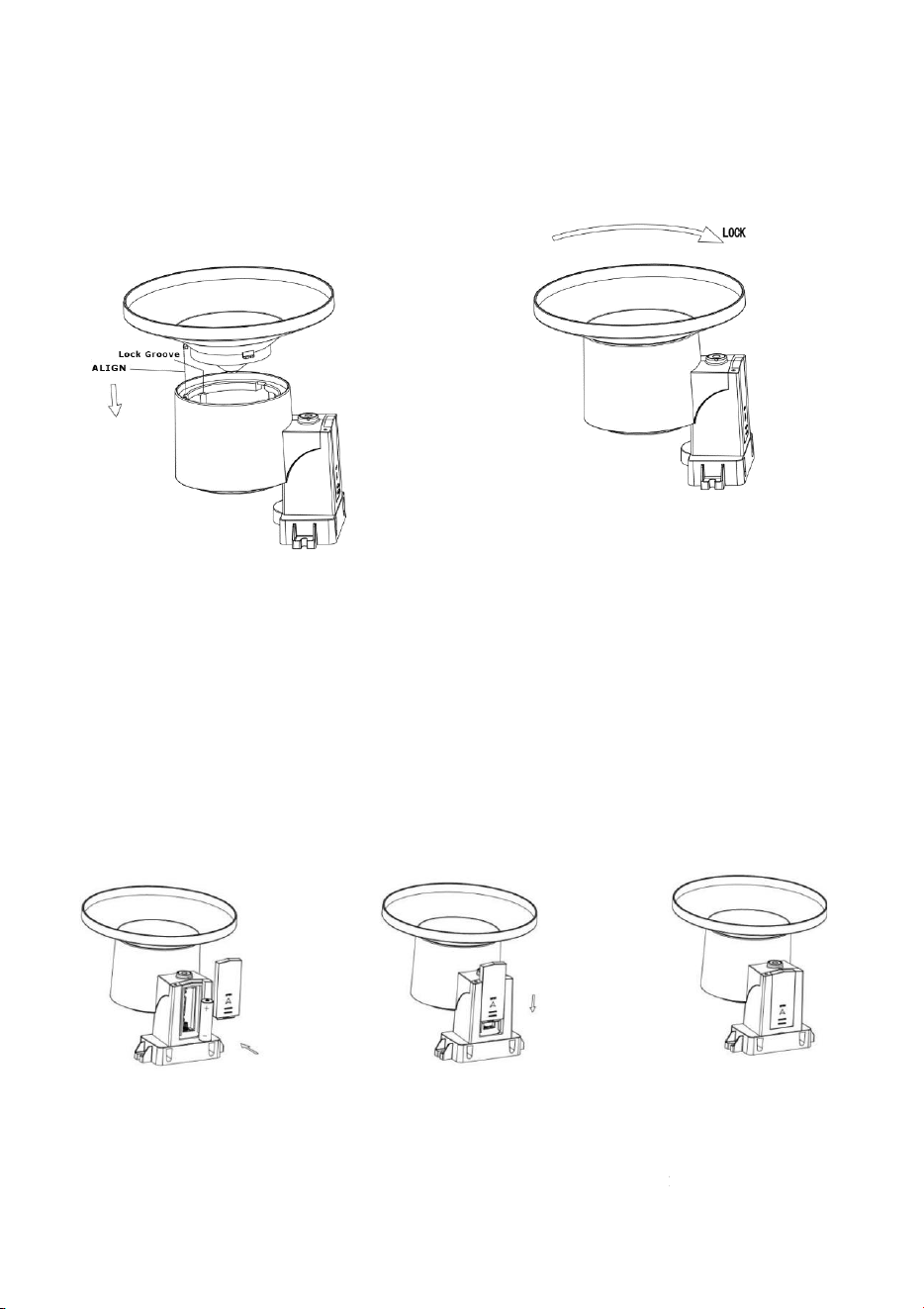

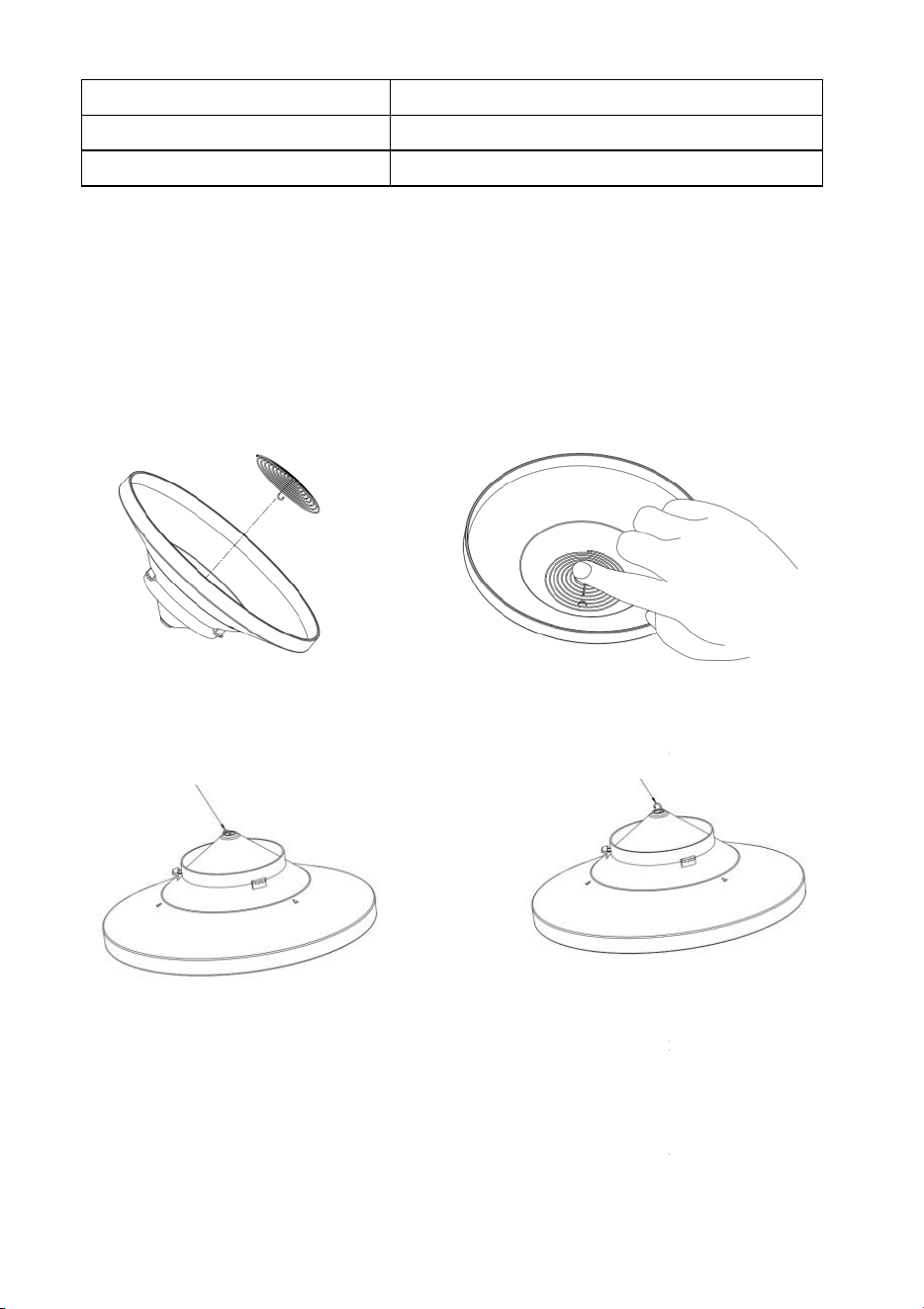

Figure 14: Rain gauge filter in/un-
installation diagram
4.3.2 Install rain collector top
Align the rain collector top with the rain bucket,
pay attention to the lock
groove position as shown on the left side in Figure 13
. Next,
clockwise to the lock groove position
, as shown on the right side of the
Hook the filter hook on the edge to install.
Take out the filter hook from the edge to uninstall.
hole
There’s a stainless steel filter included in the package. It’s aimed to stop
leaves or bird's dropping to avoid the obstruction of the cone hole. The
he hook is inside the outlet hole
locked. The spring tension will keep the filter sit tight on the funnel.

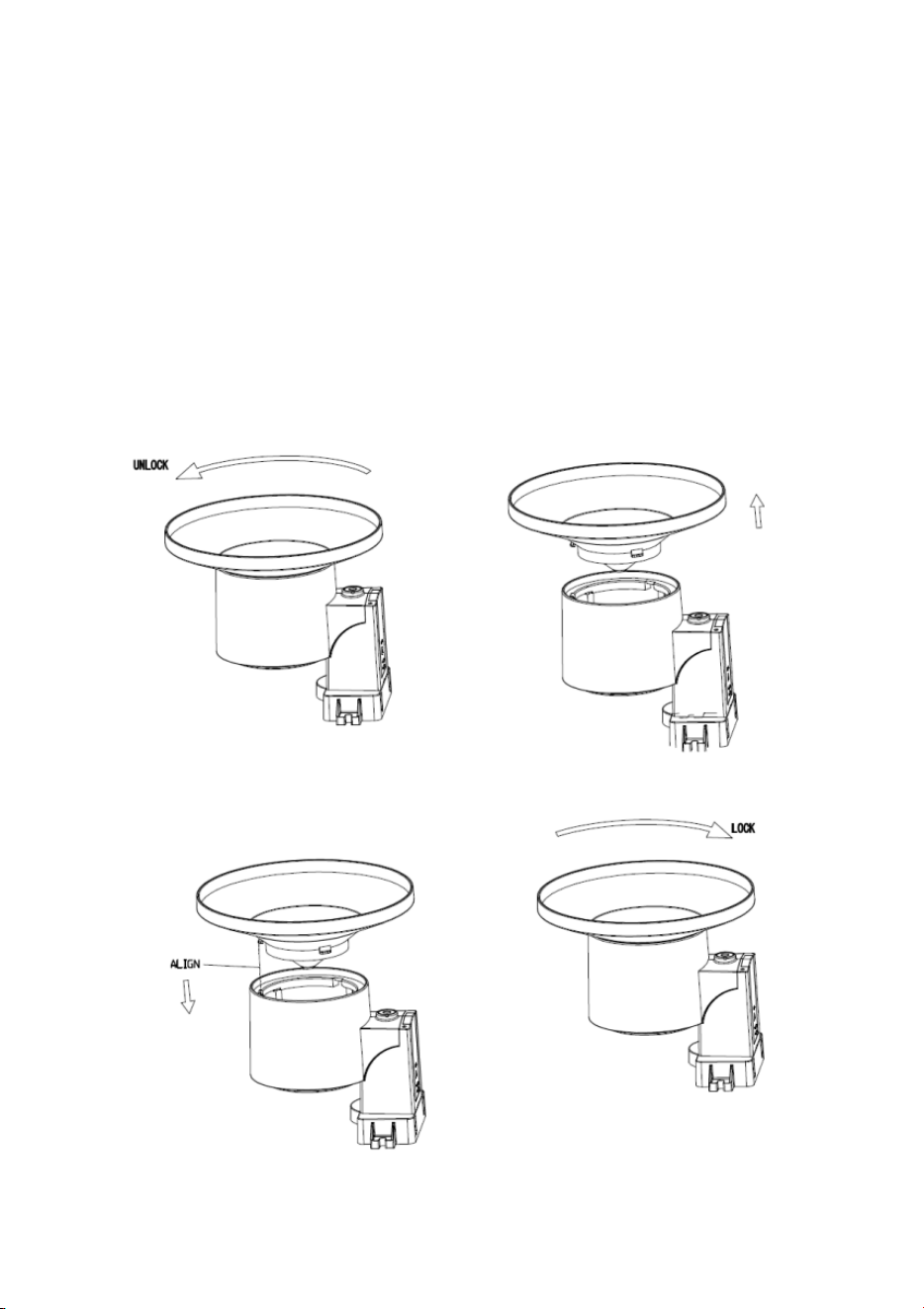

installation diagram
pay attention to the lock
. Next,
lock the top
, as shown on the right side of the
Take out the filter hook from the edge to uninstall.
23
figure, until it comes to a stop and the top
cannot be removed from the
bucket
. Failure to do this may cause the collector top to blow away in strong
winds!
Figure 15
: Rain collector top installation diagram
4.3.3 Install Batteries in rain gauge sensor
Remove the battery door on the back of the sensor by sliding it in the
direction of the arrow. Insert one AA battery
as described and put
compartment door back and slide it in the opposite direction to lock.
sure battery d
oor is firmly press and closed properly, which is
extremely important in preventing any water entering inside.
Figure 16
: Rain gauge sensor battery installation diagram
The LED indicator on the top of the battery door (item 2
) will turn on for
seconds and then flash once every 49
seconds indicating sensor data
transmission. If you did not pay attention, you may have missed the initial
cannot be removed from the
. Failure to do this may cause the collector top to blow away in strong
: Rain collector top installation diagram
Remove the battery door on the back of the sensor by sliding it in the
as described and put
compartment door back and slide it in the opposite direction to lock.
Make
oor is firmly press and closed properly, which is
extremely important in preventing any water entering inside.
: Rain gauge sensor battery installation diagram
) will turn on for
4
seconds indicating sensor data
transmission. If you did not pay attention, you may have missed the initial
24
indication. You can always remove the batteries and start over, but if you
see the flash once every 49 seconds, everything should be OK.
Note: If no LED light up or is lighted permanently, make sure the battery is
inserted the correct way or a proper reset is happened. Do not install the
battery backwards. You can permanently damage the outdoor sensor.
We recommend lithium batteries for cold weather climates, but alkaline
batteries are sufficient for most climates.
4.3.4 Mounting
4.3.4.1 Before you mount
Before proceeding with the outdoor mounting detailed in this section, you
may want to skip to setup instructions in section 4.5 and onwards first, while
you keep the assembled rain gauge sensor nearby (although preferably not
closer than 5 ft. from the gateway). This will make any troubleshooting and
adjustments easier and avoids any distance or interference related issues
from the setup.
After setup is complete and everything is working, return here for outdoor
mounting. If issues show up after outdoor mounting they are almost
certainly related to distance, obstacles etc.
4.3.4.2 Mounting with U-bolts
The mounting assembly includes two U-Bolts and a bracket that tightens
around a 1-2" diameter pole(not included) using the four U-Bolt and nuts.
Note: Use the bubble level on the side of the rain gauge as a guide to verify that
the sensor is leveled (for proper measurements).
25
Figure 17: Rain gauge installation with U-bolts
4.3.4.3 Mounting with screws
The mounting assembly also includes two screws for installation on a flat
surface.
Figure 18: Rain gauge sensor mounting with screws installation diagram
26
Note: Use the bubble level beside the
rain sensor as a guide to verify that the
sensor is leveled. Use shims as necessary to achieve level installation.
4.4 Indoor Sensor Set Up
Note:
To avoid permanent damage, please take note of the battery polarity before
inserting the batteries. Looking at Figure 4
from left to right the left
(or bottom) battery is to be installed with its + terminal pointing down, and
the other battery with its + terminal pointing up.
Remove the battery door on the back of the sensor by sliding it in the
direction of the arrow. Insert two AA batteries as described and put
compartment door back and slide it in the opposite direction to lock.
to select temperature display in Celsius or Fahrenheit

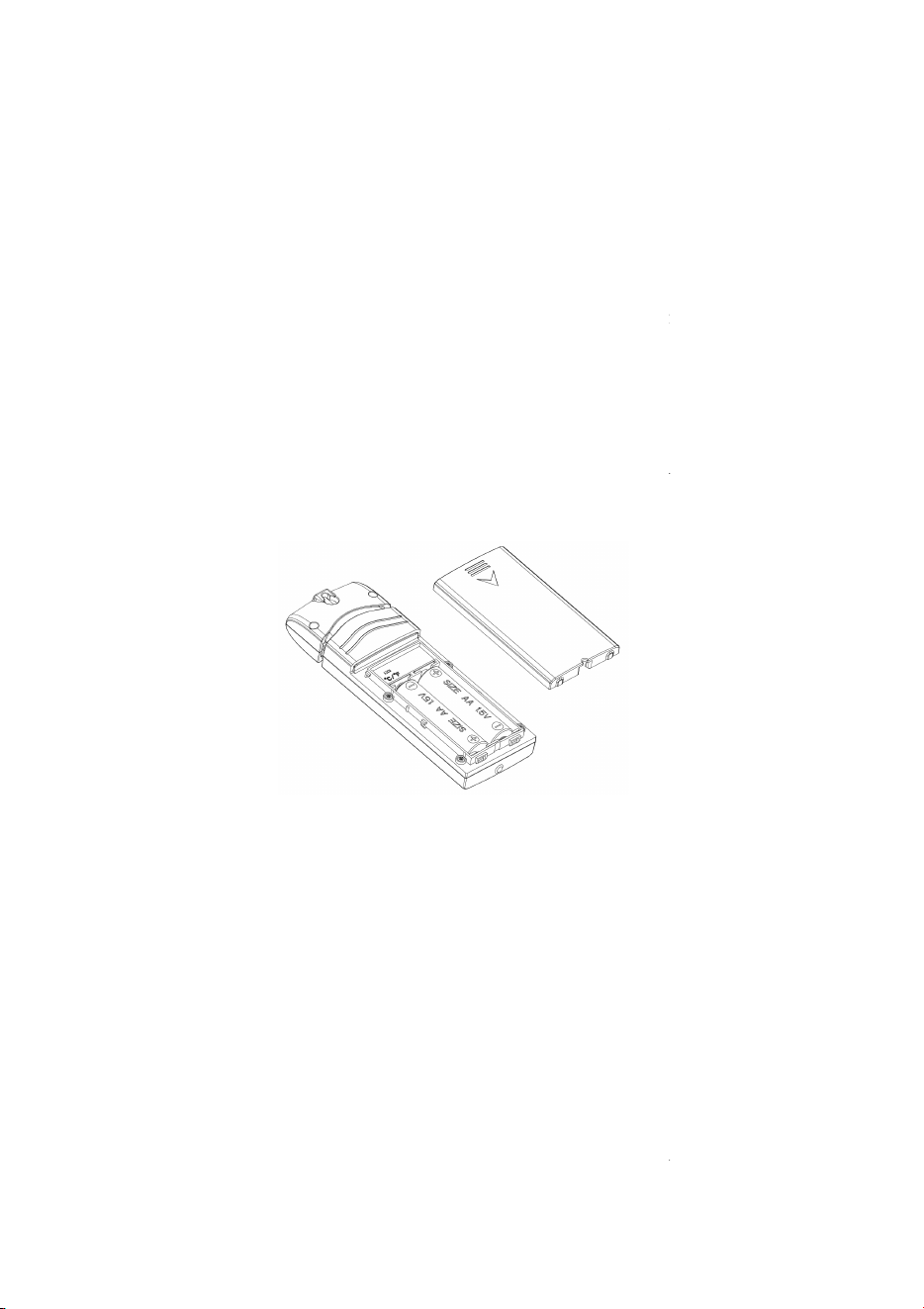

Figure 4: Indoor sensor battery installation
4.4.1 Sensor Placement
The best mounting location for the indoor sensor is in a location that never
receives direct sunlight, not even through windows.
Also, do not install in a
location where a nearby radiant heat source (radiator, heaters, etc.) will
affect it. Direct sunlight and radiant heat sources will result in inaccurate
temperature readings.
The sensor is meant to provide indoor conditions for di
splay on the console,
but if you would rather have a second source for outdoor conditions instead,
you can mount this unit outside. The unit is weatherproof, but beside
rain sensor as a guide to verify that the
sensor is leveled. Use shims as necessary to achieve level installation.
To avoid permanent damage, please take note of the battery polarity before
from left to right the left
-most
(or bottom) battery is to be installed with its + terminal pointing down, and
Remove the battery door on the back of the sensor by sliding it in the
direction of the arrow. Insert two AA batteries as described and put
compartment door back and slide it in the opposite direction to lock.
Switch
The best mounting location for the indoor sensor is in a location that never
Also, do not install in a
location where a nearby radiant heat source (radiator, heaters, etc.) will
affect it. Direct sunlight and radiant heat sources will result in inaccurate
splay on the console,
but if you would rather have a second source for outdoor conditions instead,
you can mount this unit outside. The unit is weatherproof, but beside
s
27
heeding the placement instructions above, you should also attempt to mount
the unit under cover (eve or awning or similar).
To mount or hang the unit on a wall or wood beam:
• Use a screw or nail to affix the remote sensor to the wall, as shown on
the left side of Figure , or
• Hang the remote sensor using a string, as shown in right side of Figure
Figure 20: Indoor sensor mounting
Note: Make sure the sensor is mounted vertically and not lying down on a flat
surface. This will insure optimum reception. Wireless signals are impacted
by distance, interference (other weather stations, wireless phones, wireless
routers, TVs and computer monitors), and transmission barriers, such as
walls. In general, wireless signals will not penetrate solid metal and earth
(down a hill, for example).
4.5 Best Practices for Wireless Communication
Wireless (RF) communication is susceptible to interference, distance, walls
and metal barriers. We recommend the following best practices for trouble
free wireless communication between both sensor packages and the base
unit:
• Indoor/outdoor sensor placement: The sensor will have the longest
reach for its signal when mounted or hung vertically. Avoid laying it
down on a flat surface.
28
• Electro-Magnetic Interference (EMI). Keep the base unit several feet
away from computer monitors and TVs.
• Radio Frequency Interference (RFI). If you have other devices
operating on the same frequency band as your indoor and/or outdoor
sensors and experience intermittent communication between sensor
package and base unit, try turning off these other devices for
troubleshooting purposes. You may need to relocate the transmitters or
receivers to avoid the interference and establish reliable communication.
The frequencies used by the sensors are one of (depending on your
location): 433, 868, or 915 MHz (915 MHz for United States, 868 MHz
for European, 433 MHz for other area)
• Line of Sight Rating. This device is rated at 300 feet line of sight
(under ideal circumstances; no interference, barriers or walls), but in
most real-world scenarios, including a wall or two, you will be able to
go about 100 feet.
• Metal Barriers. Radio frequency will not pass through metal barriers
such as aluminum siding or metal wall framing. If you have such metal
barriers and experience communication problems, you must change the
placement of sensor package and or base unit.
The following table shows different transmission media and expected signal
strength reductions. Each “wall” or obstruction decreases the transmission
range by the factor shown below.
Medium RF Signal Strength Reduction
Glass (untreated) 5-15%
Plastics 10-15%
Wood 10-40%
Brick 10-40%
Concrete 40-80%
Metal 90-100%
Table 4: RF Signal Strength reduction
29
4.6 Console Display
See Figure
to help you identify elements of the console’s display screen.
Figure 21: Display Console Screen Layout
No
Description No
Description
1 Outdoor temperature 14
Last lightning strikes
time / distance; daily counts
(optional sensor)
2 Outdoor Feels Like/Dew
point/Humidity/10Min. Average
Wind Direction/Max Daily Gust
15 Indoor
humidity
3 PM2.5 concentration display,
WH41/WH43/WH45 particle det
ection sensor cycle display(optio
16
RF signal bar for multi
temperature and humidity
sensor(optional sensor)
to help you identify elements of the console’s display screen.
Last lightning strikes
detected
time / distance; daily counts
(optional sensor)
humidity
RF signal bar for multi
-channel
temperature and humidity
sensor(optional sensor)
30
Table: Display console detailed items
Note: If you have purchased the optional WH55 water leak sensor, please
check the following instructions for the display color:
Green - normal
Red & Flash - leaking
Yellow - low battery alert
Orange - offline over 10 minutes
nal sensor)
4 RF signal bar for PM2.5
sensor(optional sensor)
17 Multi-channel temperature and
humidity sensor cycle display
mode icon(optional sensor)
5 Sunrise / Sunset Time 18 Multi-channel temperature and
humidity sensor channel
number (optional sensor)
6 Wi-Fi signal bar 19 Rain fall
Daily/Event/Hourly/Weekly/
Monthly/Yearly
7 Low battery power indicator for
each sensor
20 RF signal bar for Rain fall
sensor(optional sensor)
8 RF signal bar for outdoor sensor
array
21 Weather forecast
9 Wind direction/Wind speed/Gust
22 ABS/REL Barometer
10 Water Leak Alarm (optional
Sensor)
23 Moon Phase
11 Indoor temperature 24 UV
12 Date and time 25 Solar Radiation
13 Soil moisture(optional sensor)
31
4.6.1 Initial Display Console Set Up
Immediately after power up (inserting power adapter), the unit will turn on
the display, and the unit will start to look for reception of the indoor and
outdoor sensor data. This may take up to 3 minutes.
Dark Background Display
Light Background Display
Note:
Sunrise/sunset time display will only work properly when GEO
location has been set up correctly. GEO setup can be carried out under setup
menu.
Immediately after power up (inserting power adapter), the unit will turn on
the display, and the unit will start to look for reception of the indoor and
Sunrise/sunset time display will only work properly when GEO
location has been set up correctly. GEO setup can be carried out under setup
32
4.6.2 Key functions

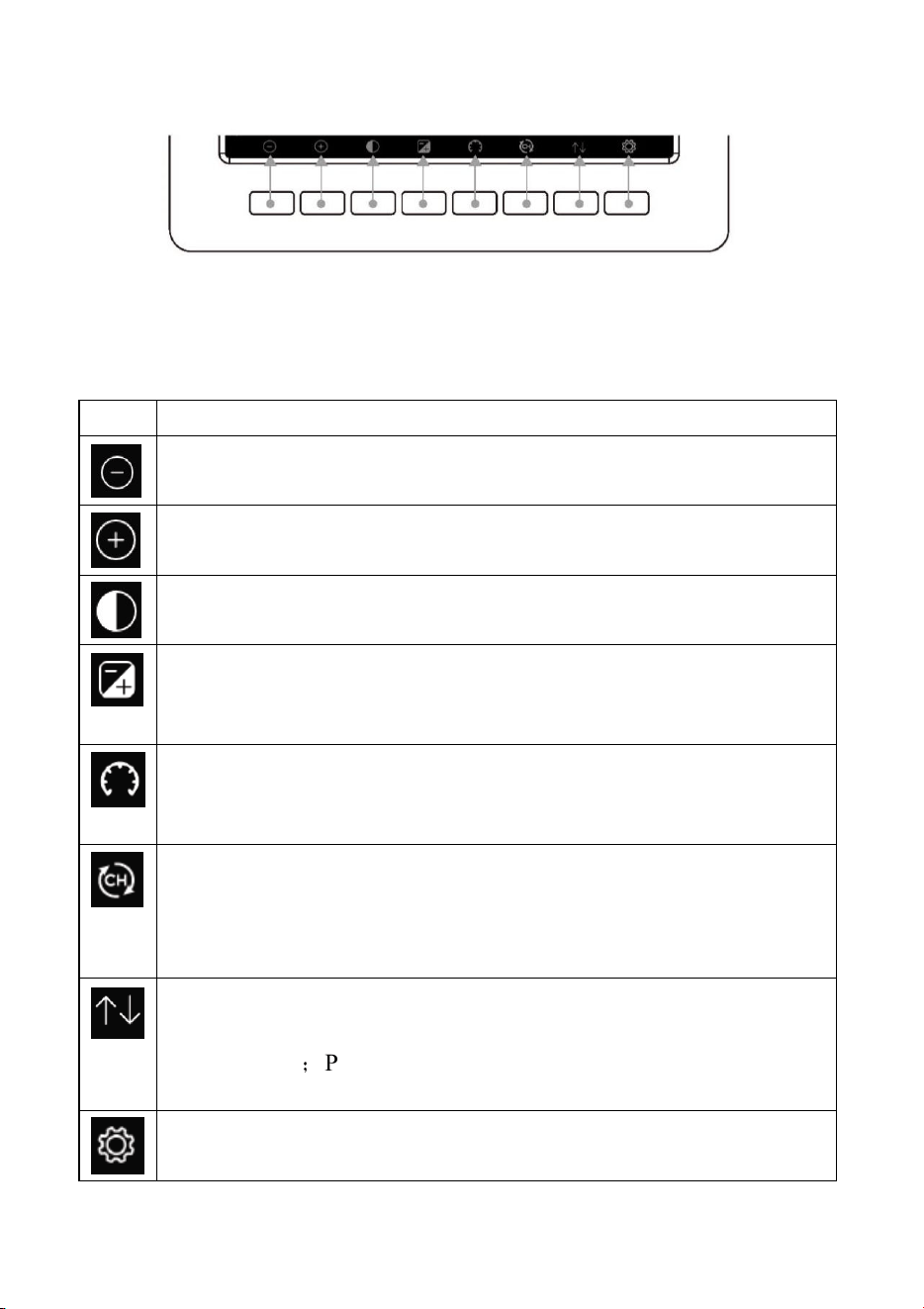

Figure: Buttons around the display
There is a set of eight keys on the bottom of the display console. The
following tables briefly explains the function of these keys.
Icon
Description
Brightness control key
Press this key to decrease the brightness
Brightness control key
Press this key to enhance the brightness
Backlight on/off key
Press this key to on/off the backlight
Background key
Press this key to choose between dark background display and light
background display
Pressure display key
Press this key to choose the display between Absolute pressure and
Relative pressure.
Channel key
Press this key to Shift the display between indoor temp &
humidity, Multiple Channel temp& humidity and scroll
automatically mode
History key
Press this key once to view Max/Min record; Press twice to enter
History mode
；
Press three times to enter Graph Mode; Press four
times to enter optional Multi-channel Sensors Display Mode
Setting key
Press this key to enter Setting Mode
Table: Console buttons
33
4.6.3 Main interface icons explain
4.6.3.1 Temperature Icon
Temperature Range
(degF)
Color
Ring
Temperature Range
(degF)
< -10
50-60
-10 to 0
60-70
0 to 10
70-80
10-20
80-90
20-30
90-100
30-40
100-110
40-50
> 110
Note: please refer to the online manual for colorful display.
Temperature Range
Color
Ring
34

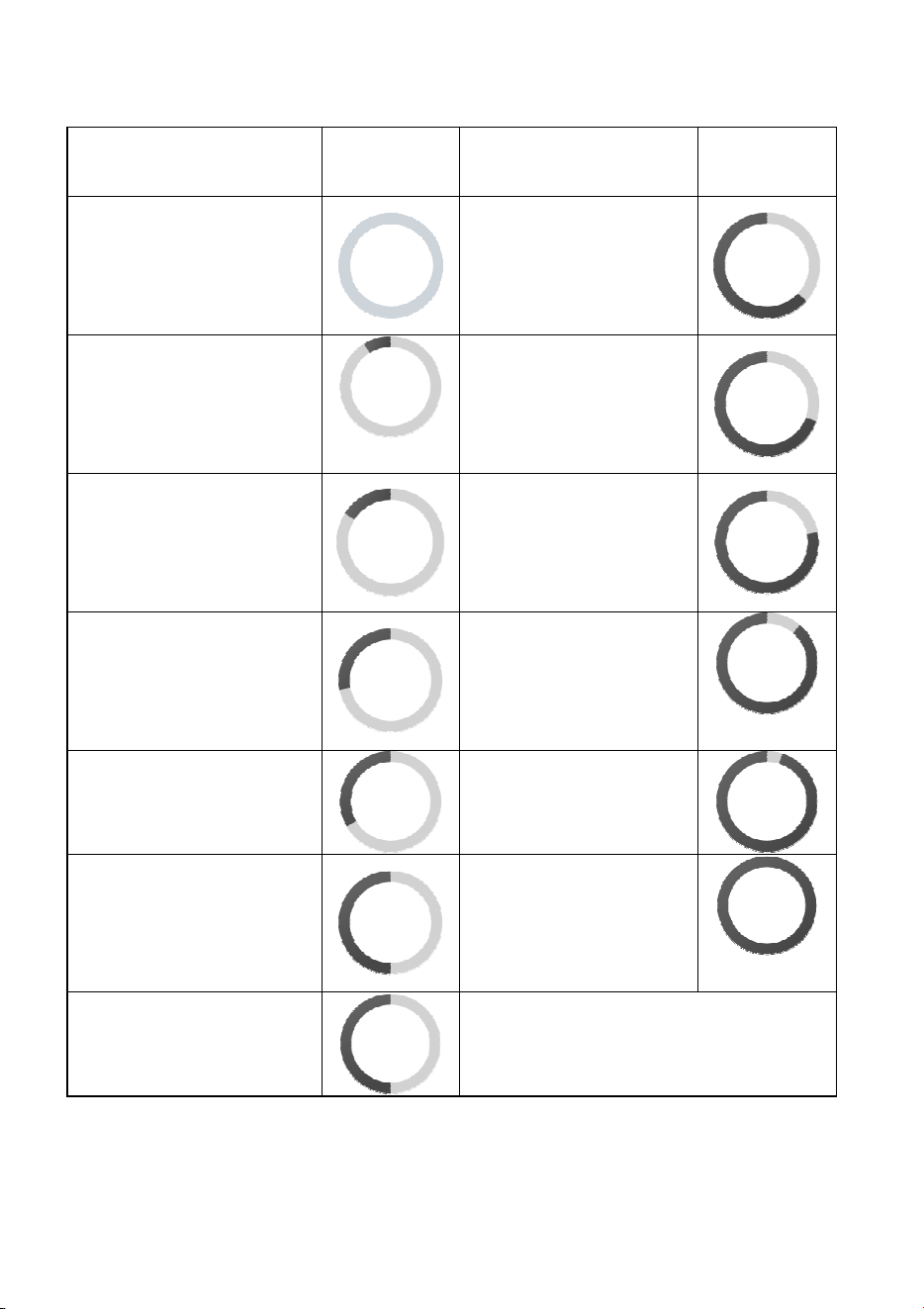

4.6.3.2 Humidity Icon
Humidity Range (%)
Color
Ring
Humidity Range
(%)
0%, No signal or
dashes
50 to 60
1 to 10
60 to 70
10 to 20
70 to 80
20 to 30
80 to 90
30 to 40
90 to 99
40 to 50
100%
50 to 60
Humidity Range
Color
Ring
35
4.6.3.3 Current wind direction indication , 10-
minute average
wind direction indication .

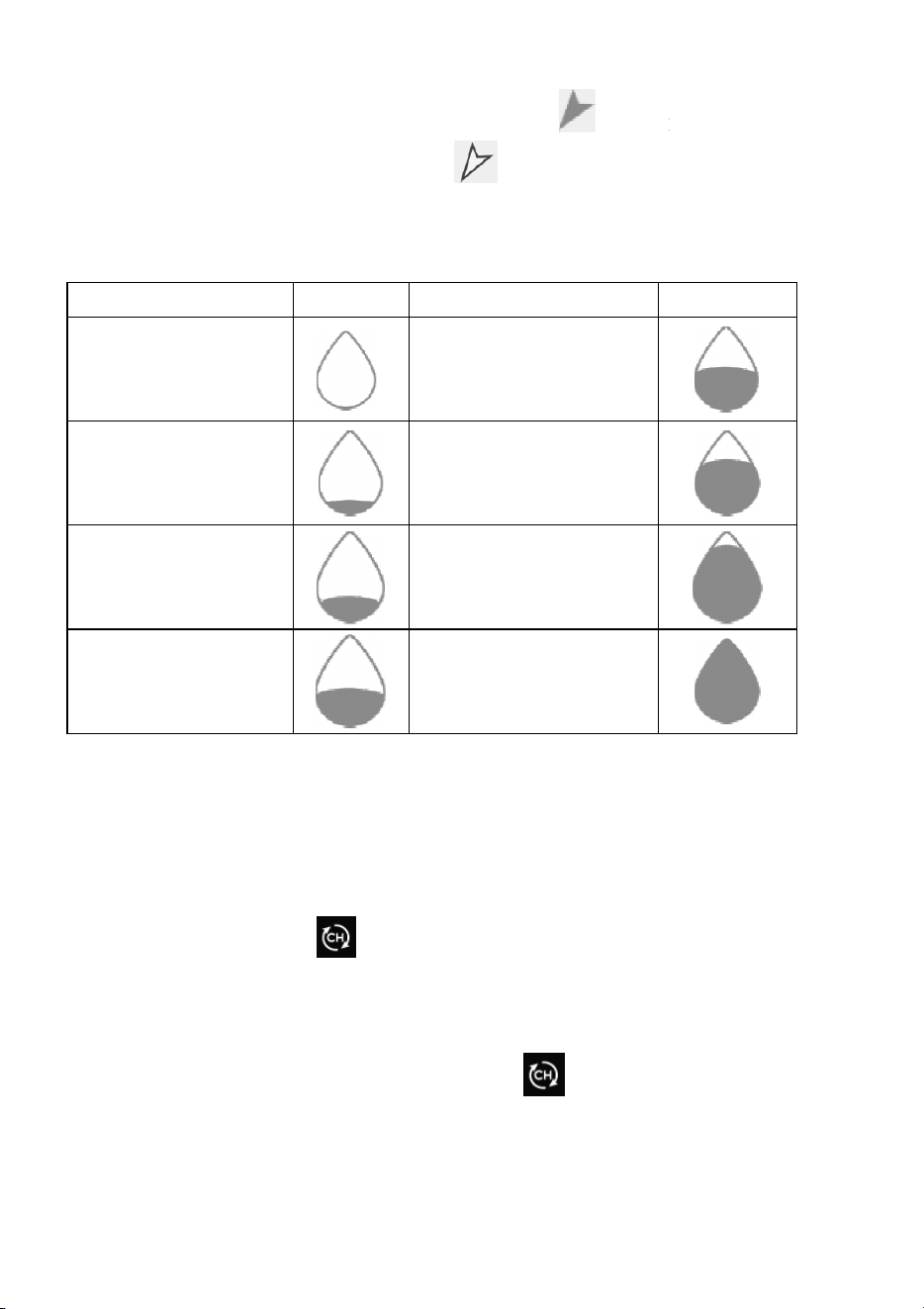

4.6.3.4 Hourly Rainfall Icon
Hourly Rain (in) Icon Hourly Rain (in)
0.0
0.6 to 0.8
0 to 0.2
0.8 to 1
0.2 to 0.4
1 to 1.2
0.4 to 0.6
1.2 to 1.4
4.7 Multiple Channel Selection and Scroll Mode
The multi-channel temp and humidity sensor is an
optional sensor, not
included in the package. If you have multiple wireless sensors, while in
normal mode, press the
key to toggle display in sequence of indoor,
ch1, ch2….ch8, scroll display. Please note if only CH2 is received, it will
skip CH1, and to
ggle only between indoor and already learned sensors.
While in Scroll display mode, the scroll icon
will be displayed next to
the indoor humidity, and will scroll every 5 seconds.
minute average
Color Ring
optional sensor, not
included in the package. If you have multiple wireless sensors, while in
key to toggle display in sequence of indoor,
ch1, ch2….ch8, scroll display. Please note if only CH2 is received, it will
ggle only between indoor and already learned sensors.
will be displayed next to
36
Note: For all optional sensor(s), the history data will be saved to a microSD
card (not included).
4.8 History Mode
4.8.1 View and Reset MAX/MIN
While in normal display, press the key once to view and reset
minimum and maximums.

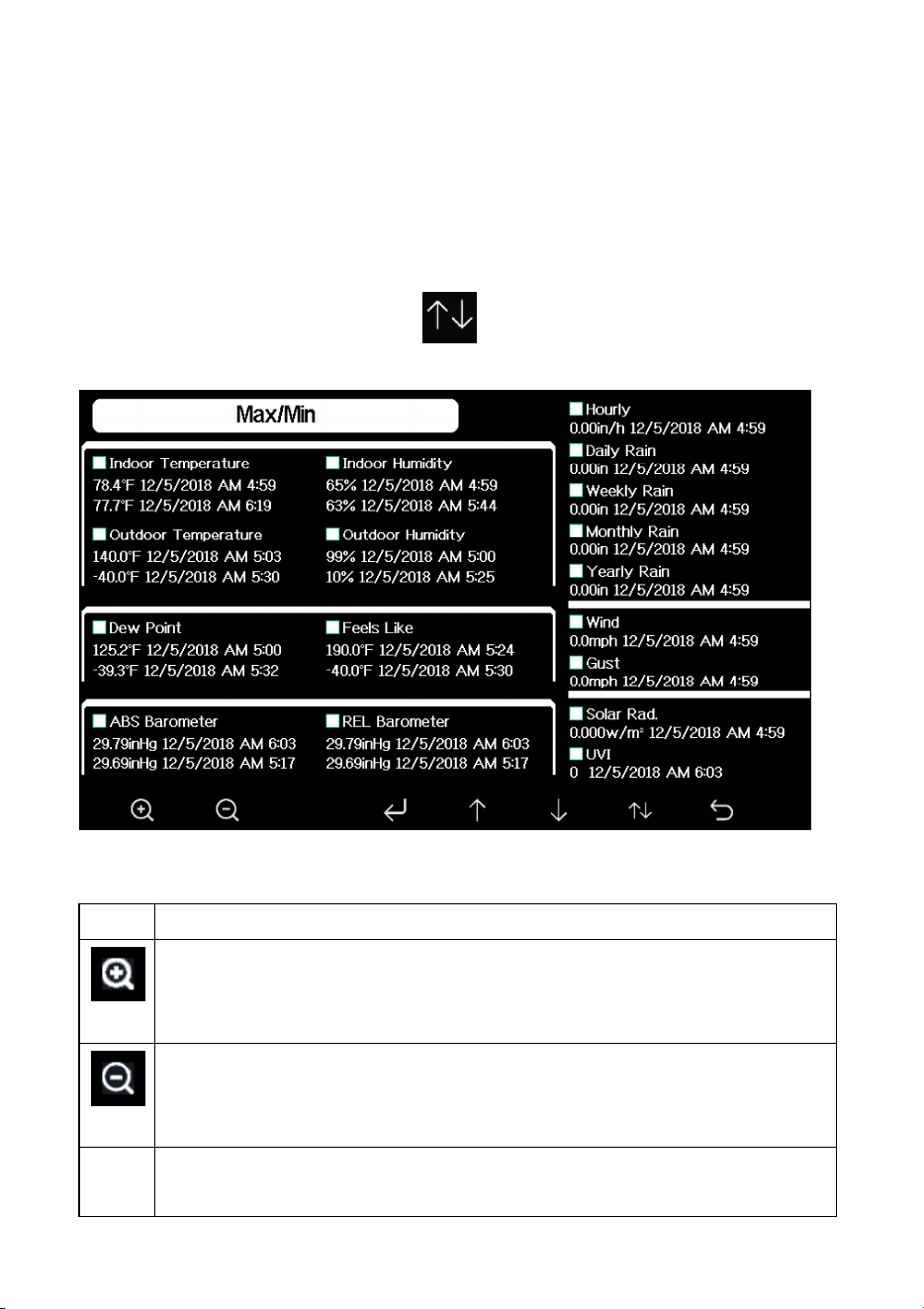

Figure: Max/Min Screen
Icon
Description
Selection key
Press this key to select the weather MAX/MIN record which need
to clear
Selection key
Press this key to select the weather MAX/MIN record which need
to clear
Enter key
While the desired weather MAX/MIN record selected , press this
37
key to popup Message Box
”Clear the Max/Min record?”. Press
key or
key to select YES or NO. Press the
key to confirm the selection.
Up arrow key
Press this key to change the activated option field
Down arrow key
Press this key to change the activated option field
History key
Press this key to select History data display.
Return key
Press this key to return to normal display mode
4.8.2 History Record Mode
While in normal display, press the
key twice to enter History Record
Mode.

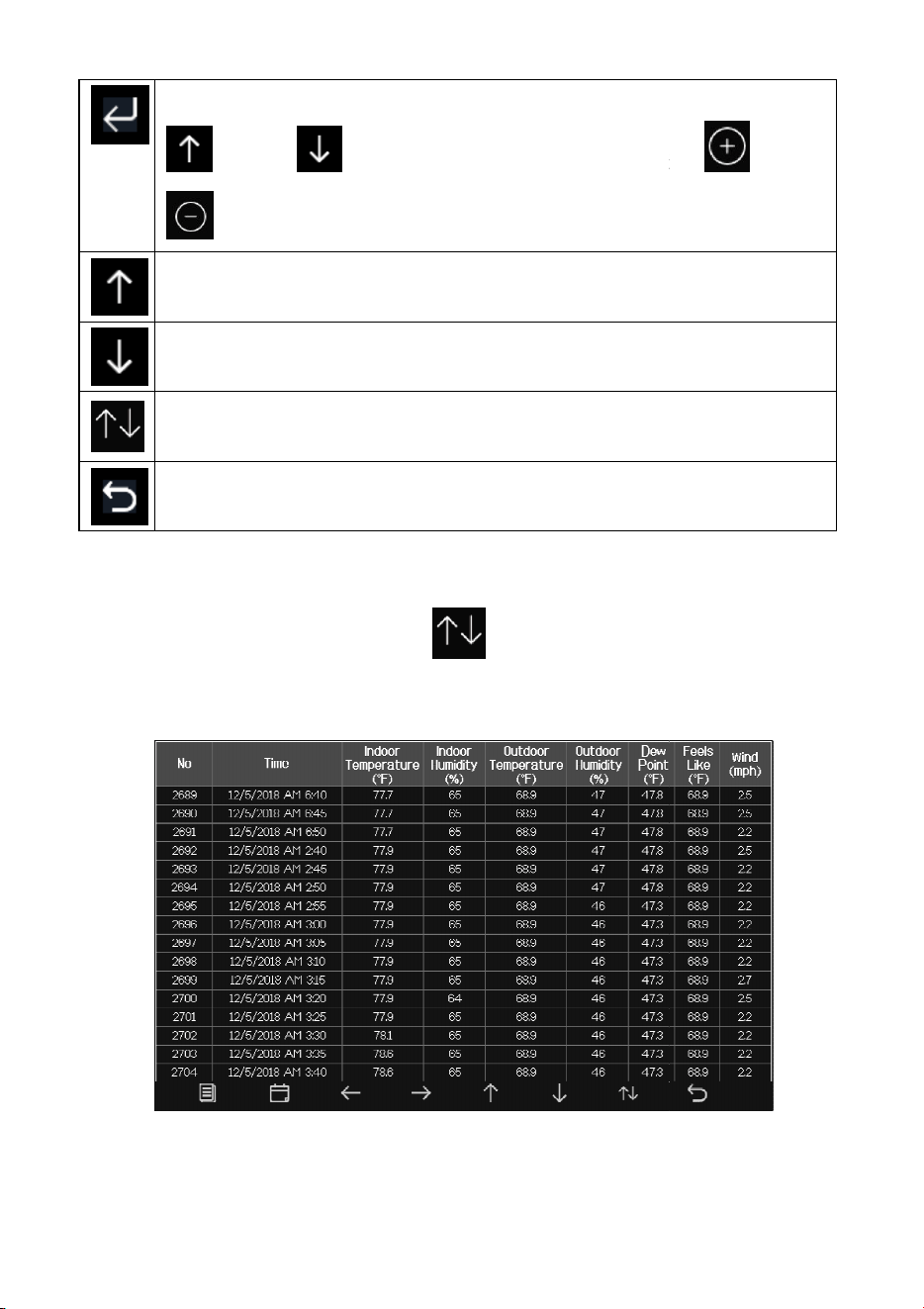

Figure : History record Screen
”Clear the Max/Min record?”. Press
key to select YES or NO. Press the
key or
key twice to enter History Record
38
Icon Description
File Select key
Press this key to clear all history record
Page Select key
Press this key to enter particular page of the history data. Each
page contains 16sets data.
Scroll left key
Press this key to view the left of the scrollable area.
Scroll right key
Press this key to view the right of the scrollable area.
Page up key
Press this key to scroll up the page you are viewing
Page down key
Press this key to scroll down the page you are viewing
History key
Press this key to select the Max/Min record or History.
Return key
Press this key to return to previous mode

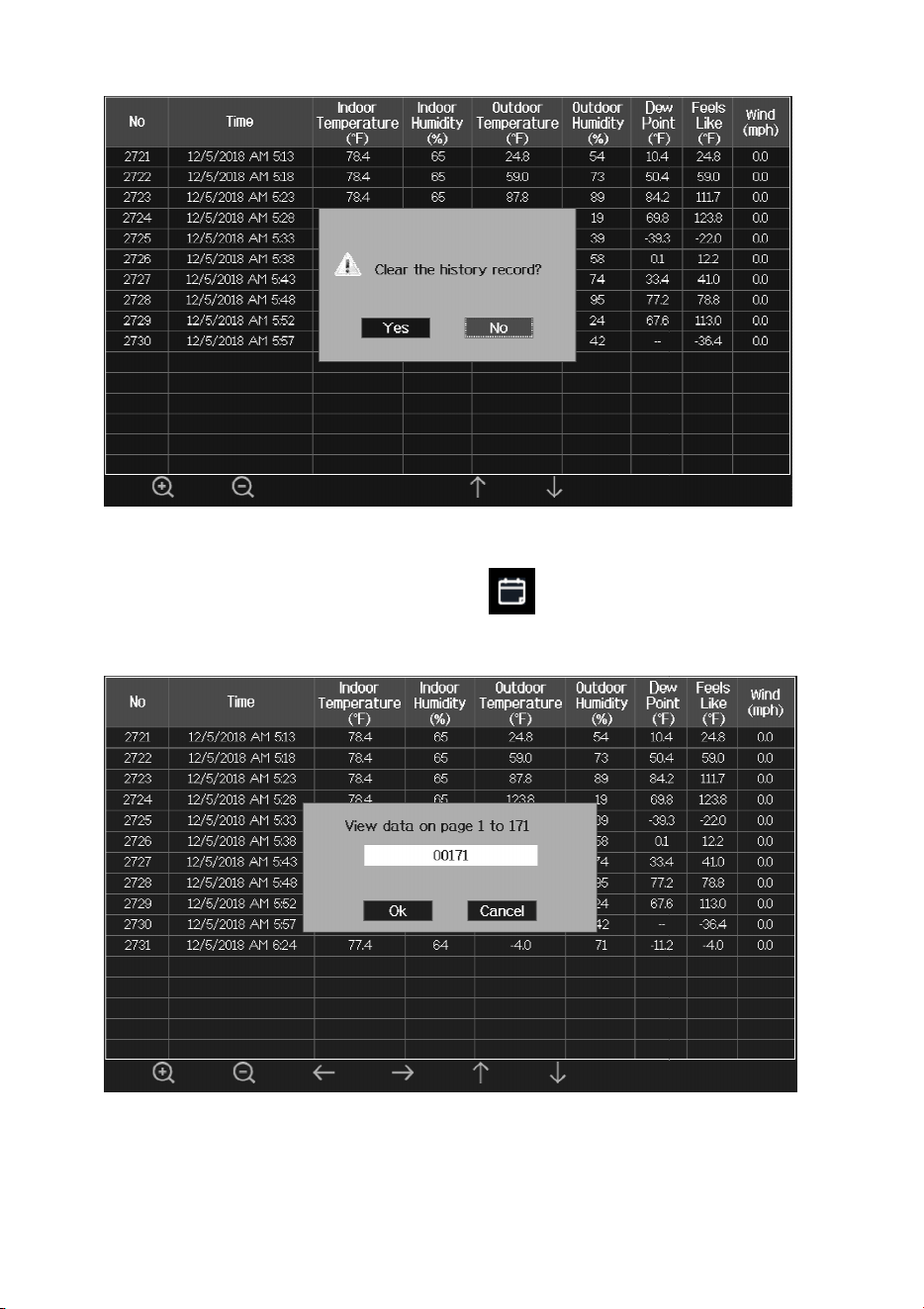

While in History Record Mode, press key to popup the Message Box:
“Clear the history record?” Press “Yes” to clear all history records saved on
console. Press or key to return to History record Mode.
39
Figure : Clear History Record Screen
While in History Record Mode, press the
key to enter the page
selection mode:
Figure :
view a specific page of history Screen
key to enter the page
view a specific page of history Screen
40
Press or to select a digit in a number, press
to change the number. Press or to
change the activated option
field, toggle OK or Cancel then press or
key to confirm.

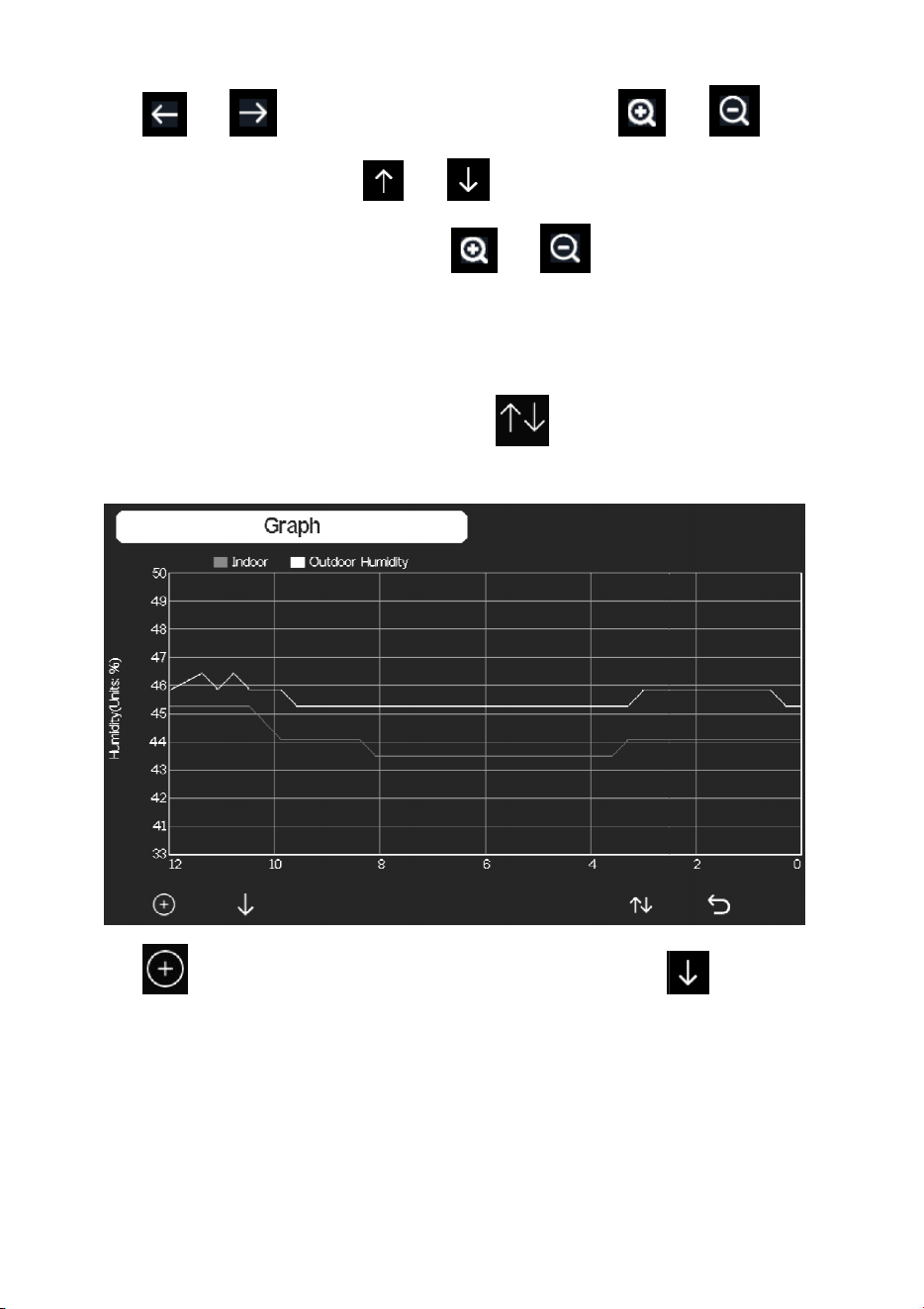

4.8.3 Graph Mode
While in History Record Mode, press the key once
to enter
Mode.
Press to shift the data display of 12/24/48/72H. Press
the graph of the following data:
• Indoor outdoor humidity
• Dew Point and Feels like
• Indoor outdoor temperature
• Wind speed and Gust
or key
change the activated option
key to confirm.
to enter
Graph
to view
41
• Wind Direction
• UVI
• Solar radiation
• Rainfall hourly and daily
• Barometer(REL & ABS)
4.8.4 Channel Data Mode
While in normal display, press the key four times to enter Channel Data
Mode.
If you purchase the optional sensor, soil moisture sensor or PM2.5 sensor or
multi-channel temperature and humidity sensor, their data can be showed on
Channel Data screen.
While in Graph Mode, press the key once to enter Optional Sensor
Display Mode.
Channel names can be edited on this page. Press or key to select
Name setting field, the name on focus turns green, press
the or key to pop up the keyboard to enter the sensor name.
Press to scroll to the character and press to select
the character. Press to return to the Channel Data page.
Press key to page down.
42
4.9 Setting Mode
While in normal display, press the
key to enter Setting Mode. You can
select the below sub-mode by pressing the key
Figure : Setup Menu Screen
key to enter Setting Mode. You can
43
Icon Description
Select key
Press this key to select the unit or scrolls the value
Select key
Press this key to select the unit or scrolls the value.
Left key
Press this key to select the set value.
Right key
Press this key to select the set value.
Up arrow key
Press this key to change the activated option field
Down arrow key
Press this key to change the activated option field
Set key
Press this key to select the Setting sub-Mode
Return key
Press this key to return to previous mode

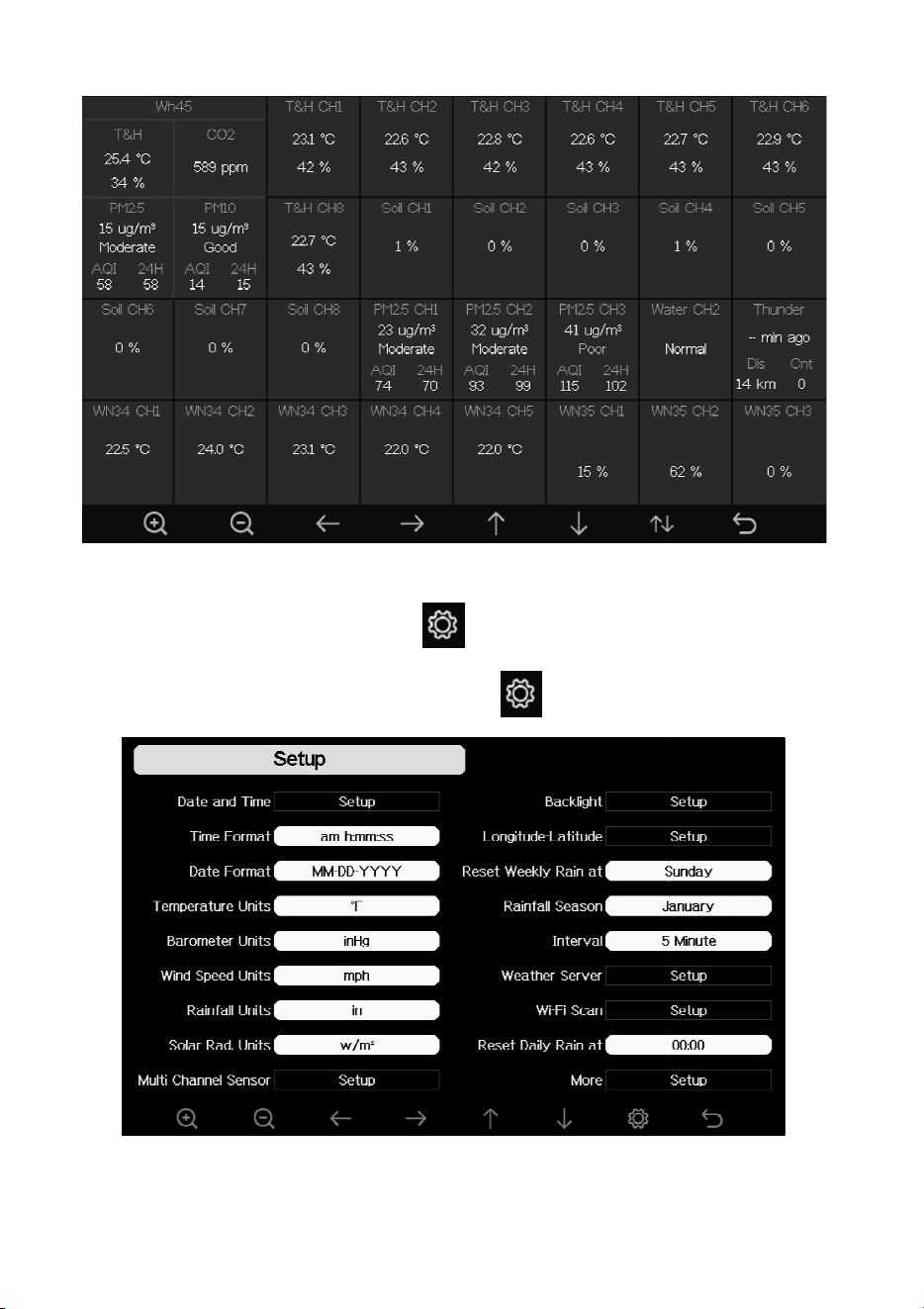

4.9.1 Date and Time setting
While in Menu Setting Mode, press key to select Date and Time
Setup field, press or key to enter Date and Time Setup mode:
44

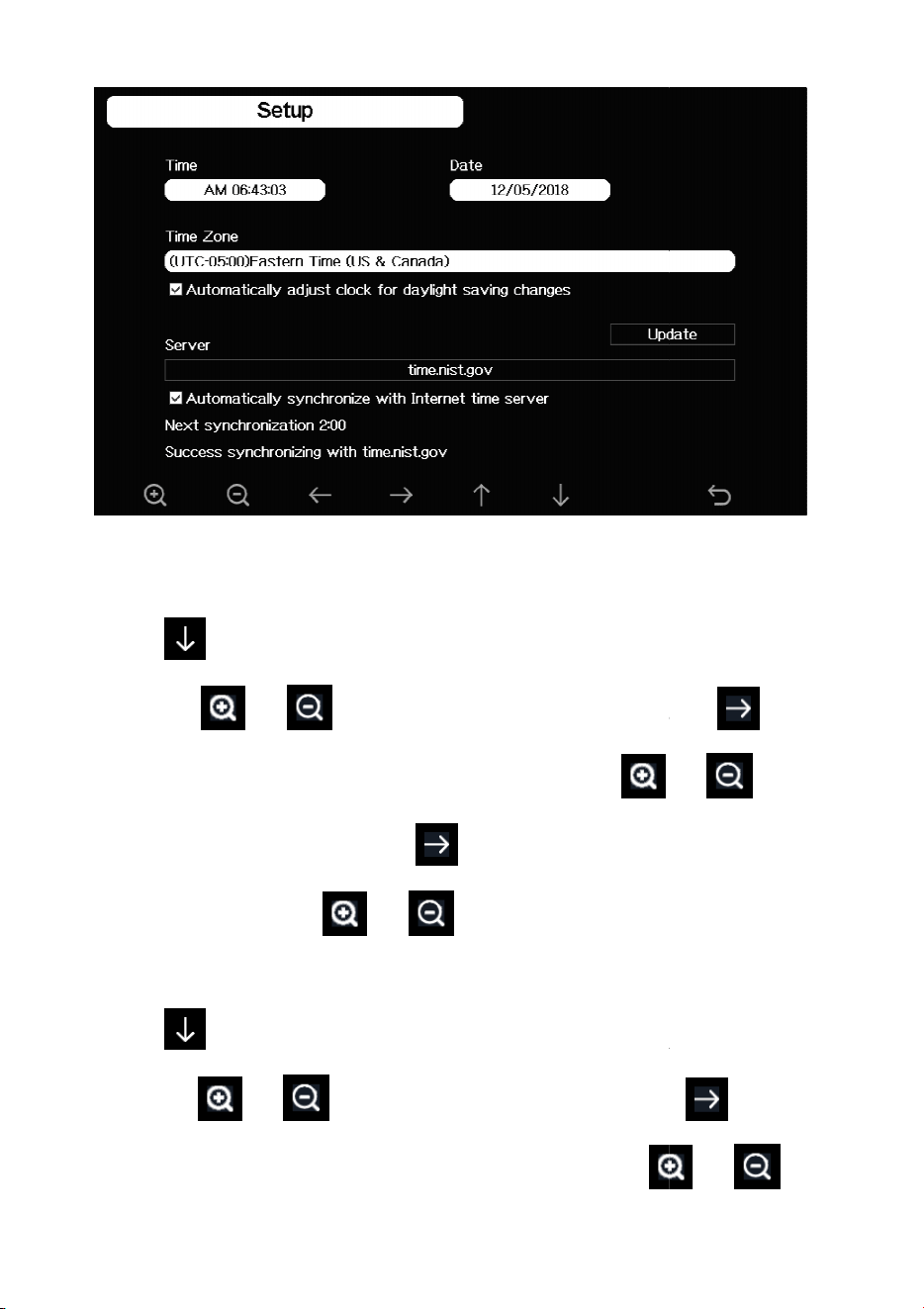

Figure : Time and date Setup Screen
1) Time setting (hour/minute/second)
Press
key to select time setting field, and the hour digit will turn red,
press the or
key to change the hour setting. Press
the minute, the minute digit will turn red, press the
change the minute setting. Press
to set the second, and the second digit
will turn red, press the or
key to change the second settin
2) Date setting
Press
key to select Date setting field, the day digit on focus turns red,
press the or
key to change the day setting. Press
month, then month digit focused will turn red, press the
key to select time setting field, and the hour digit will turn red,
key to change the hour setting. Press
to set
or key to
to set the second, and the second digit
key to change the second settin
g
key to select Date setting field, the day digit on focus turns red,
key to change the day setting. Press
to set the
or key
45
to change the month setting. Press to set the year, the year digit on
focus will turn red, press the or key to change the year setting
3) Time zone setting
Press key to select Time zone setting field, press the or
key to change the time zone setting. Press key to select Update field,
press the or key to update the time immediately.
4) Automatically synchronize with internet time server
The time server is time.nist.gov. Press the or key to tick”
Automatically synchronize with internet time server” and press” update” to
synchronize with time server immediately. Console time will be updated at
2:01am automatically when internet access is possible.
4.9.2 Time Format setting
Press to change the time format between hour: minute: second
(h:mm:ss), hour: minute: second AM (h:mm:ss AM) and AM hour:
minute: second (AM h:mm:ss).
4.9.3 Date Format setting
Press to change the time format between DD-MM–YYYY,
YYYY-MM- DD and MM-DD-YYYY
4.9.4 Temperature unit setting
Press to change the temperature units of measure between °F and °C.
46
4.9.5 Barometric unit
Press to change the temperature units of measure between inHg,
mmHg and hPa
4.9.6 Wind speed unit
Press to change the wind speed units of measure between mph, bft
(Beaufort scale), ft/s, m/s, km/h and knot.
4.9.7 Rainfall unit
Press to change the rainfall units of measure between in and mm
4.9.8 Solar Rad. Unit
Press to change the solar radiation units of measure between W/m^2,
lux and fc.
4.9.9 Multi Channel Sensor

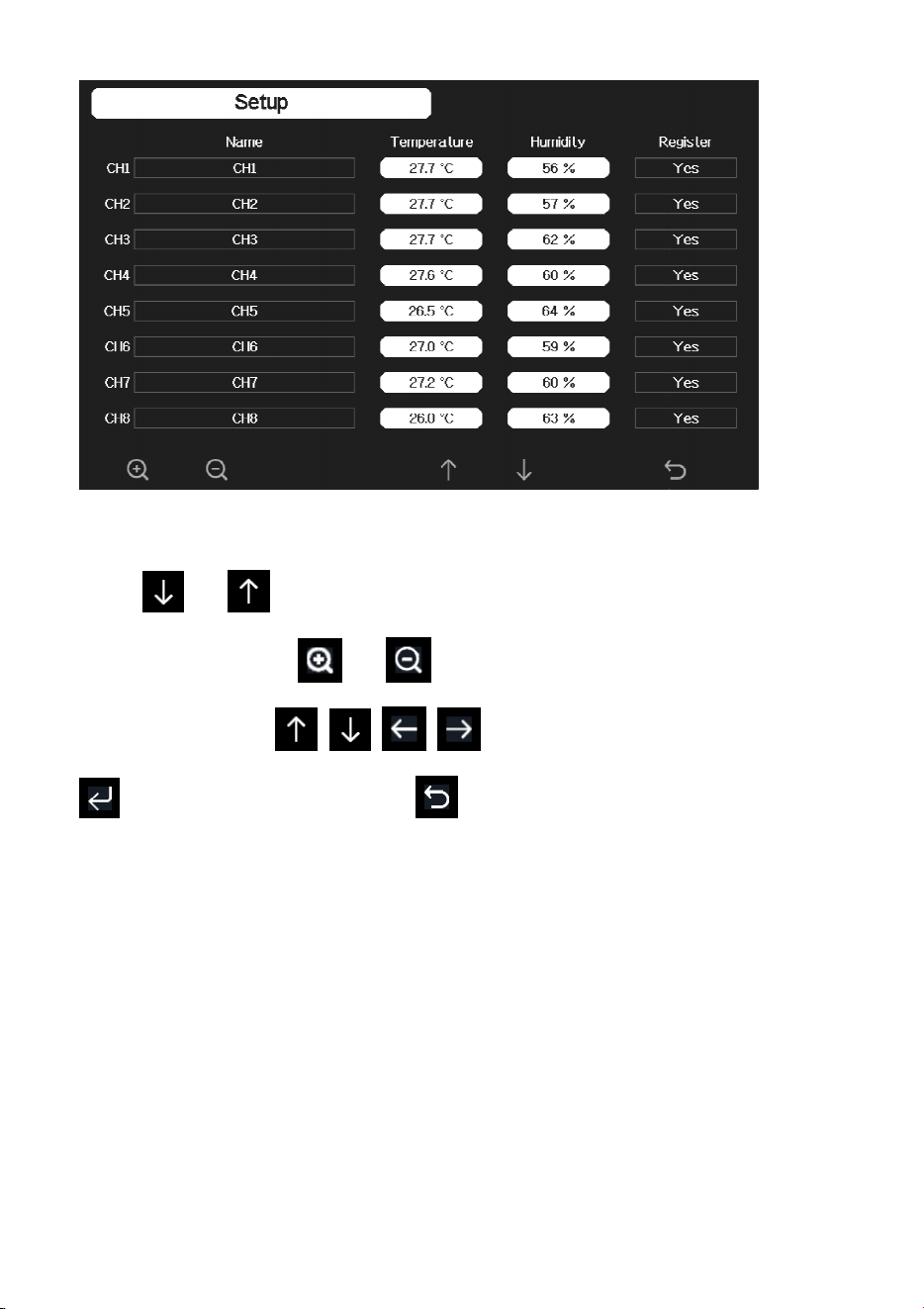

In Multi channel sensor Setup Screen, you can rename the Multi-channel
temperature and humidity sensor or register the Multi-channel temperature
and humidity sensor again while the sensor lost connection to console
display.
47
Figure : Multi channel sensor Setup Screen

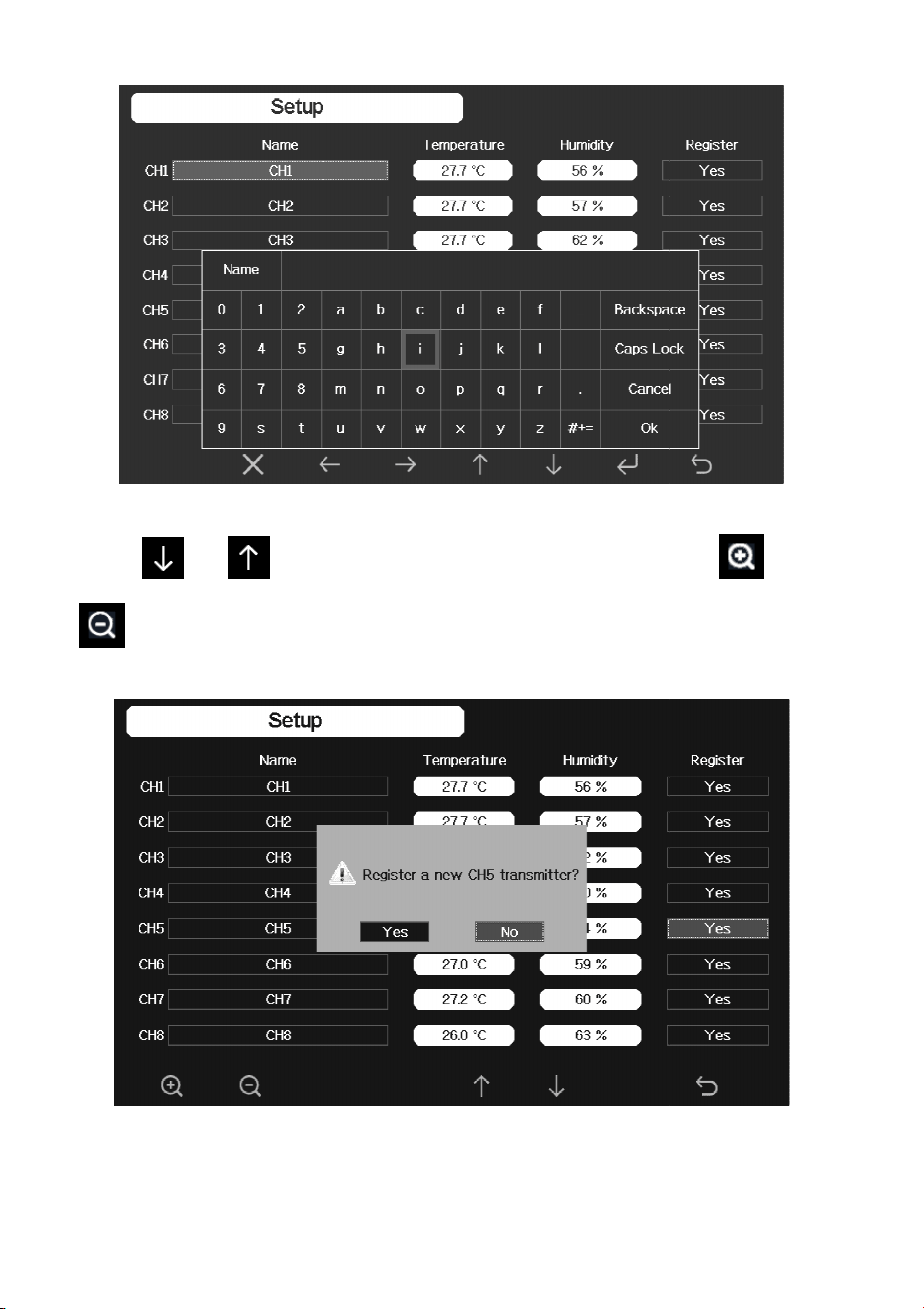

Press or
key to select Name setting field, the name on focus
turns green, press the or
key to pop up the keyboard to enter the
sensor name. Press
to scroll to the character and press
to select the character. Press
to return to the setup page.
Figure : Multi channel sensor Setup Screen
key to select Name setting field, the name on focus
key to pop up the keyboard to enter the
to scroll to the character and press
to return to the setup page.
48
Figure : rename the sensor Screen
Press or
key to select Register setting field, press the
key to register the selected sensor
key to select Register setting field, press the
or
49

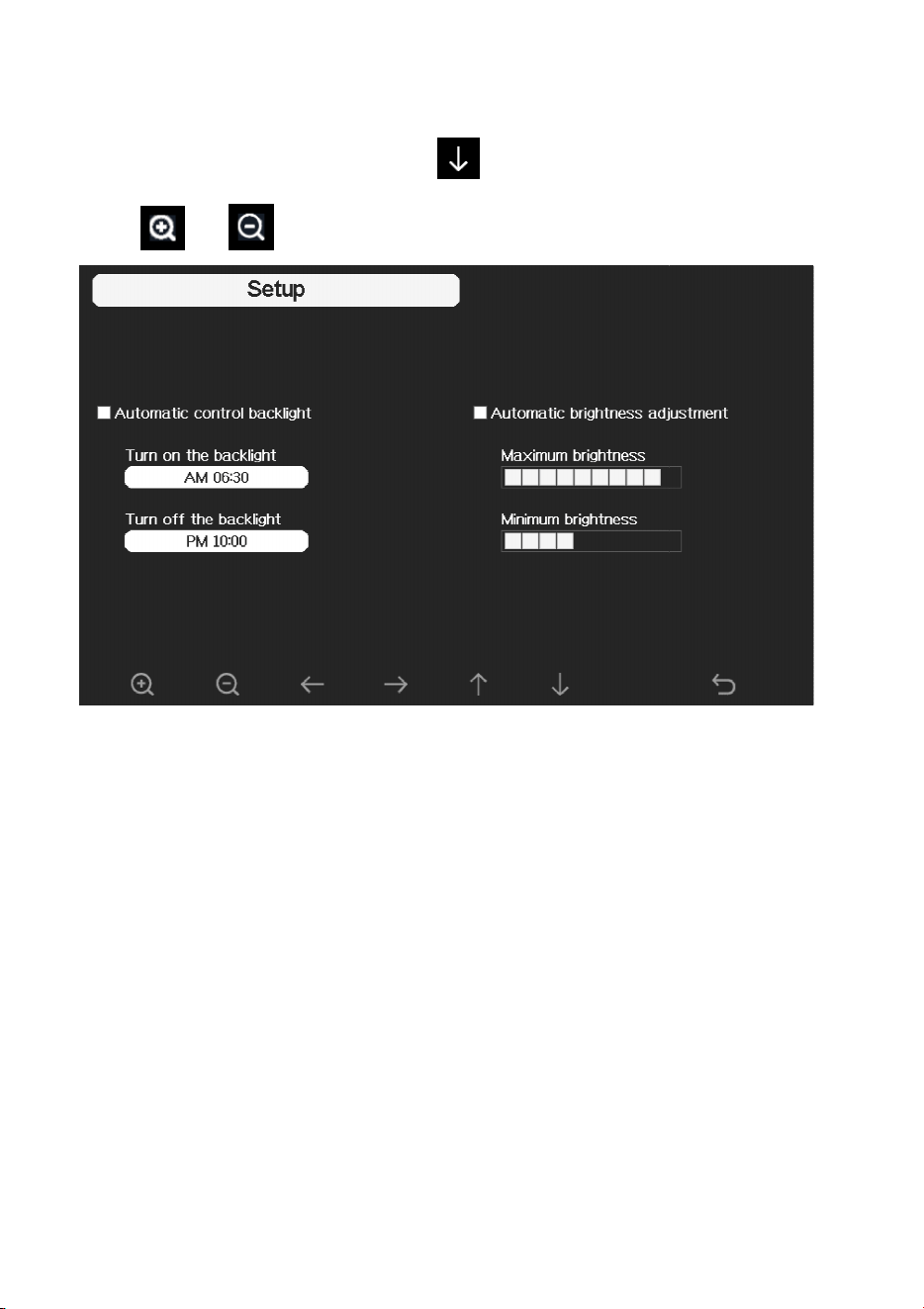

4.9.10 Backlight setting
While in Menu Setting Mode, press
key to select Backlight Setup field,
press or key to enter backlight Setup mode:
Figure : Backlight Setting Screen
Automatic control backlight: select this option, the backlight will auto turn
on and off according the set time
Turn on the backlight: set the time of turning on backlight
Turn off the backlight: set the time of turning off backlight
Automatic brightness adjustment: select this option, the brightness will
change according to the light intensity measured from outdoor sensor
Maximum brightness: set the maximum brightness while it is
light intensity
Minimum brightness: set the minimum brightness while it is
light intensity
key to select Backlight Setup field,
Automatic control backlight: select this option, the backlight will auto turn
Automatic brightness adjustment: select this option, the brightness will
change according to the light intensity measured from outdoor sensor
Maximum brightness: set the maximum brightness while it is
the highest
Minimum brightness: set the minimum brightness while it is
the weakest
50
Icon Description
Select key
Press this key to select the unit or scrolls the value
Select key
Press this key to select the unit or scrolls the value.
Left key
Press this key to select the set value.
Right key
Press this key to select the set value.
Up arrow key
Press this key to change the activated option field
Down arrow key
Press this key to change the activated option field
Return key
Press this key to return to previous mode
If the auto backlight turn-on time has been set, you can press key to
turn off the backlight within the turn on time. Backlight will turn on again
automatically at next turn on time.
4.9.11 Longitude: Latitude setting
While in Menu Setting Mode, press key to select Longitude: Latitude
Setup field, press or key to enter Longitude Latitude Setup
mode:
51
Figure : Longitude and Latitude Setting Screen
The sunrise/sunset times will be calculating
automatically base on the
Longitude and Latitude. Your location GEO info can be found on mobile
compass page. Two digits after decimal should be enough for this feature to
be working correctly.
4.9.12 Reset Weekly Rain
Press to change the reset weekly Rain at Monday or
Sunday
at Sunday
4.9.13 Rainfall season (default: January)
Press
to change the beginning of the rainfall yearly season month. The
default is January. Rainfall season influence the annual rainfall maximum,
minimum and total value. When one mo
nth was selected, the annual rainfall
and annual max/min rainfall were zero clearing at 0:00 of the first day of the
selected month.
Figure : Longitude and Latitude Setting Screen
automatically base on the
Longitude and Latitude. Your location GEO info can be found on mobile
compass page. Two digits after decimal should be enough for this feature to
Sunday
, Default
to change the beginning of the rainfall yearly season month. The
default is January. Rainfall season influence the annual rainfall maximum,
nth was selected, the annual rainfall
and annual max/min rainfall were zero clearing at 0:00 of the first day of the
52
4.9.14 Storing Interval (1-240minutes Selectable)
4.9.15 Weather Server
You may jump to section 4.9.16 now to have your console connected with
your Wi-Fi network first. Then back to section 4.9.15 to have cloud data
hosting setup completed.
Your console is capable of sending your sensor data to select internet-based
weather services. The supported services are shown in the table below:
Service Description
Weather Underground Site: https://wunderground.com
provides local & long-range weather forecasts, weather
reports, maps & tropical weather conditions for locations
worldwide.
WOW Site: https://wow.metoffice.gov.uk
A UK based weather observation website.
Weather Cloud Site: https://weathercloud.net
A large network of weather stations reporting data in real
time from all over the world.
Ecowitt Weather Site: https://www.ecowitt.net
Ecowitt’s new weather server that can host a bunch of
sensors that other services don’t support at this time.
Table: Supported weather services
Note: If you are testing the setup with the outdoor sensor package nearby
and indoor, you may want to consider connecting to Wi-Fi, but not yet
configuring any of the weather services. The reason is that while indoor the
temperatures and humidity recorded by the outdoor sensor, and as reported
to the weather service(s) will reflect indoor conditions, and not outdoor
conditions. Therefore, they will be incorrect. Furthermore, the rainfall
bucket may be tripped during handling, causing rain to register while it may
not actually have been raining. One way to prevent this is to follow all
instructions, except to use an incorrect password, on purpose! Then, after
53
final outdoor installation, come back and change the password after clearing
console history. That will start uploading to the services with a clean slate.
Press or
key to enter Weather Server set up mode. The devic
can be configured to send real-
time data to wunderground.com®. Enter the
Station ID and Password obtained from Wunderground.com.

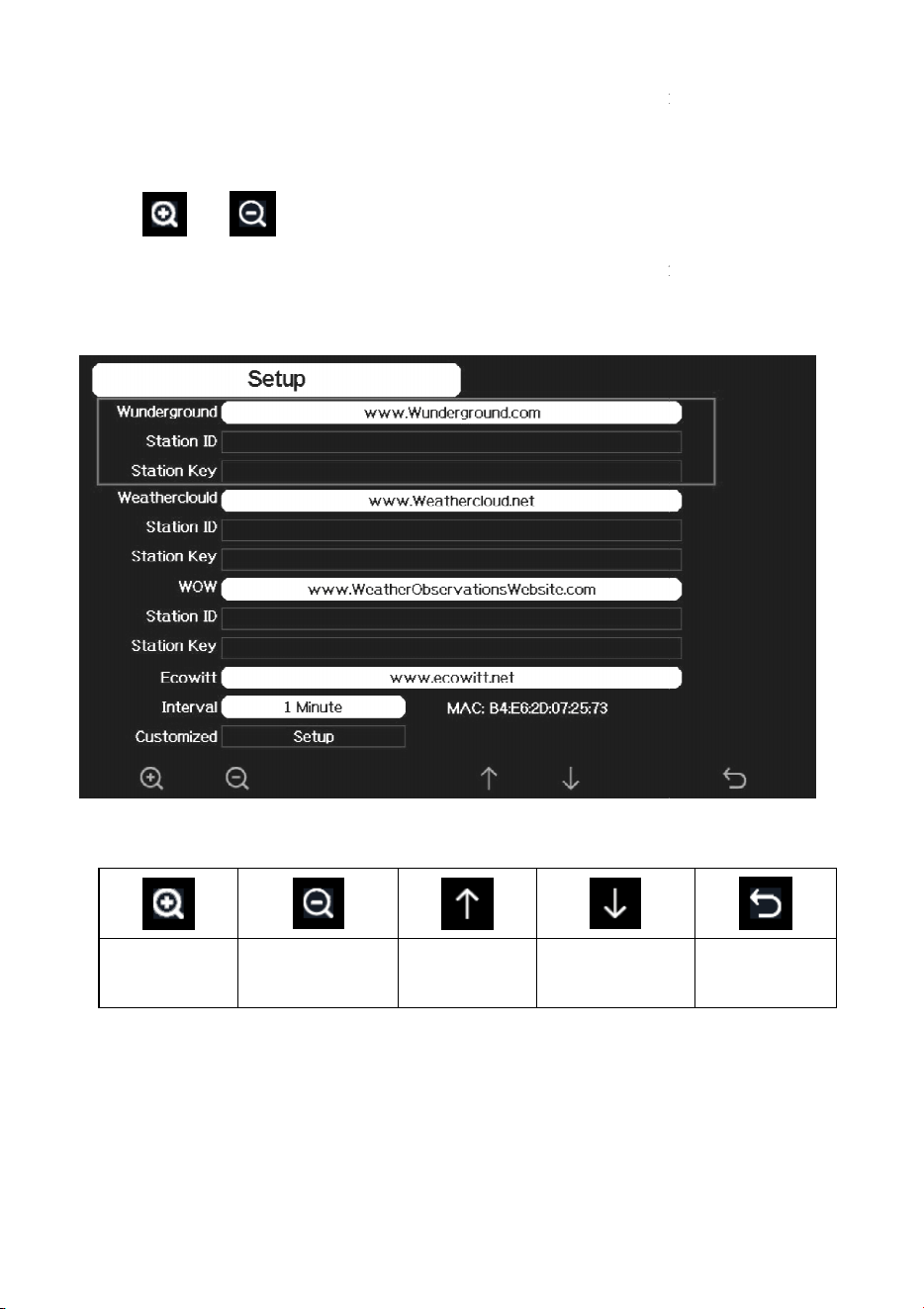

Figure : Weather Server setup screen
scroll value
up
scroll value
down
Scroll field
up
Scroll field
down
final outdoor installation, come back and change the password after clearing
console history. That will start uploading to the services with a clean slate.
key to enter Weather Server set up mode. The devic
e
time data to wunderground.com®. Enter the
Station ID and Password obtained from Wunderground.com.
return to
Setup
54

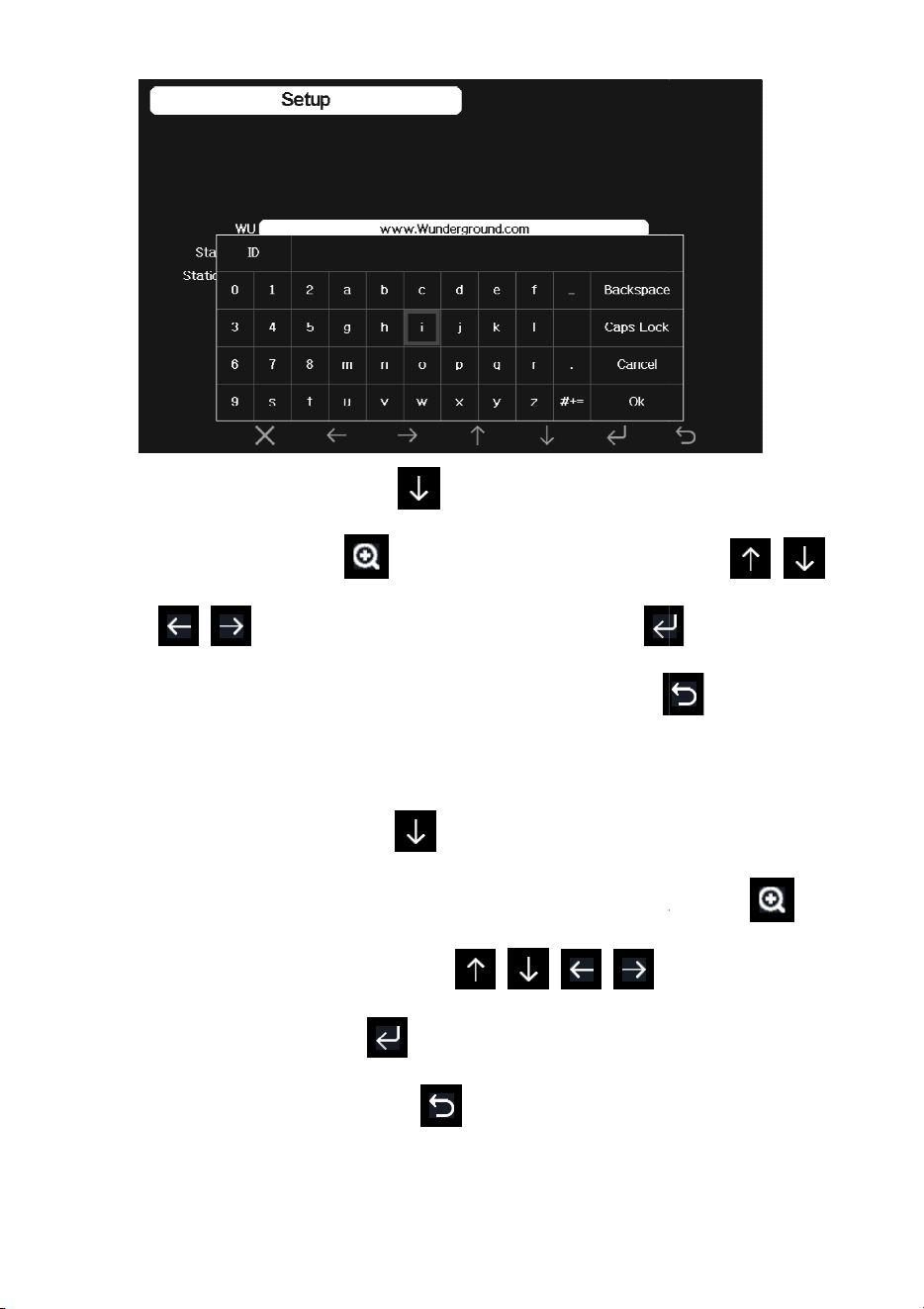

1) Set Station ID. Press
to highlight the Station ID. Enter your
station ID. Press
to display the keyboard. Press
to scroll to the character and press
character. Press the “OK” button to confirm. Press
the setup page.
2) Set Station Key. Press
to highlight the station key. Enter your
password obtained from according weather server. Press
display the keyboard. Press
to scroll to the
character and press to select the character.
Press
button to confirm. Press
to return to the setup page.
to highlight the Station ID. Enter your
to display the keyboard. Press
to select the
to return to
to highlight the station key. Enter your
password obtained from according weather server. Press
to
to scroll to the
Press
the “OK”
to return to the setup page.
55
4.9.15.1
Registering with and using wunderground.com
Perform the following steps to
get the Station ID and Password
wunderground.com:

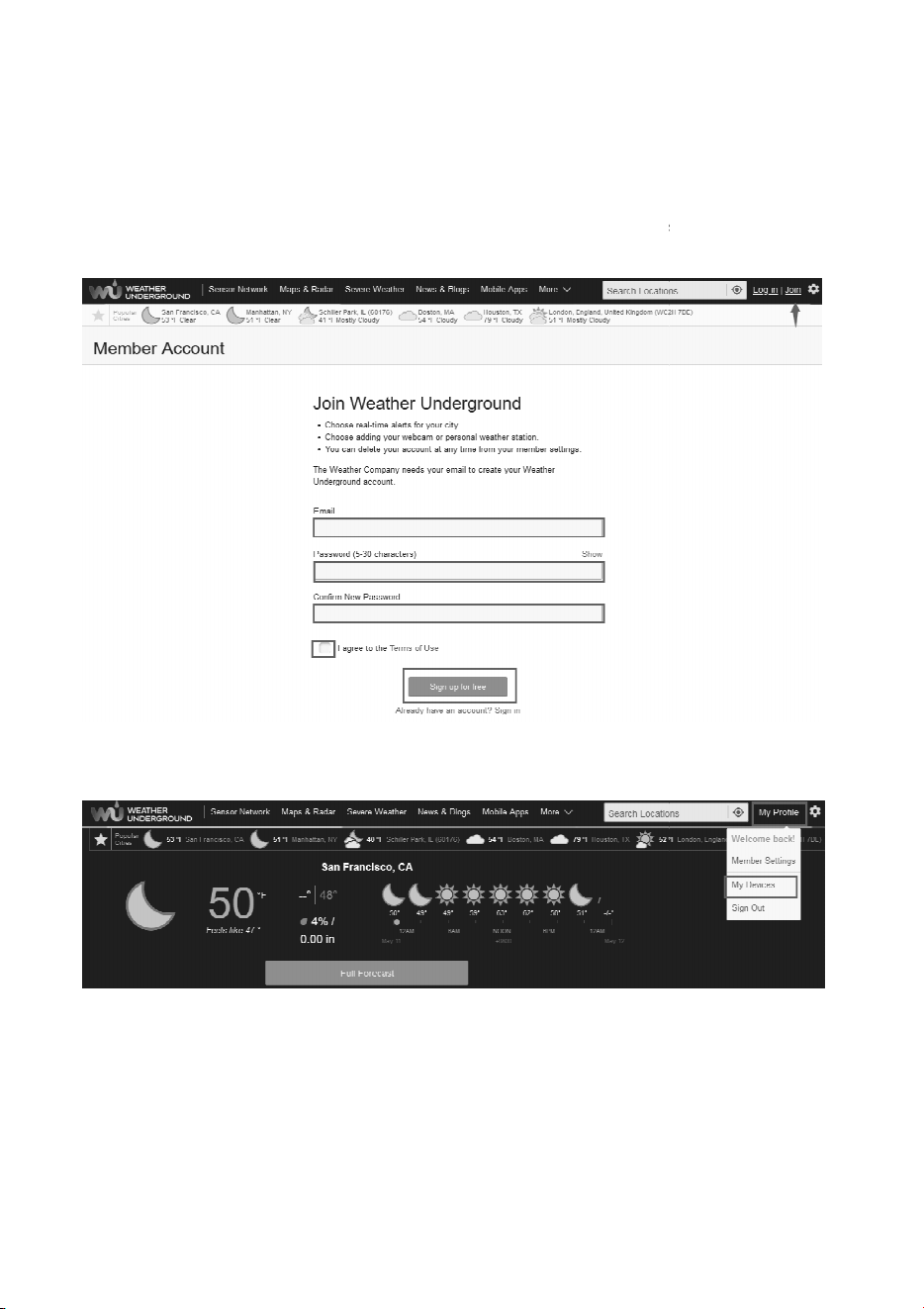

1. Visit Wunderground.com and select the Join link
at the top of the page
and sign up.

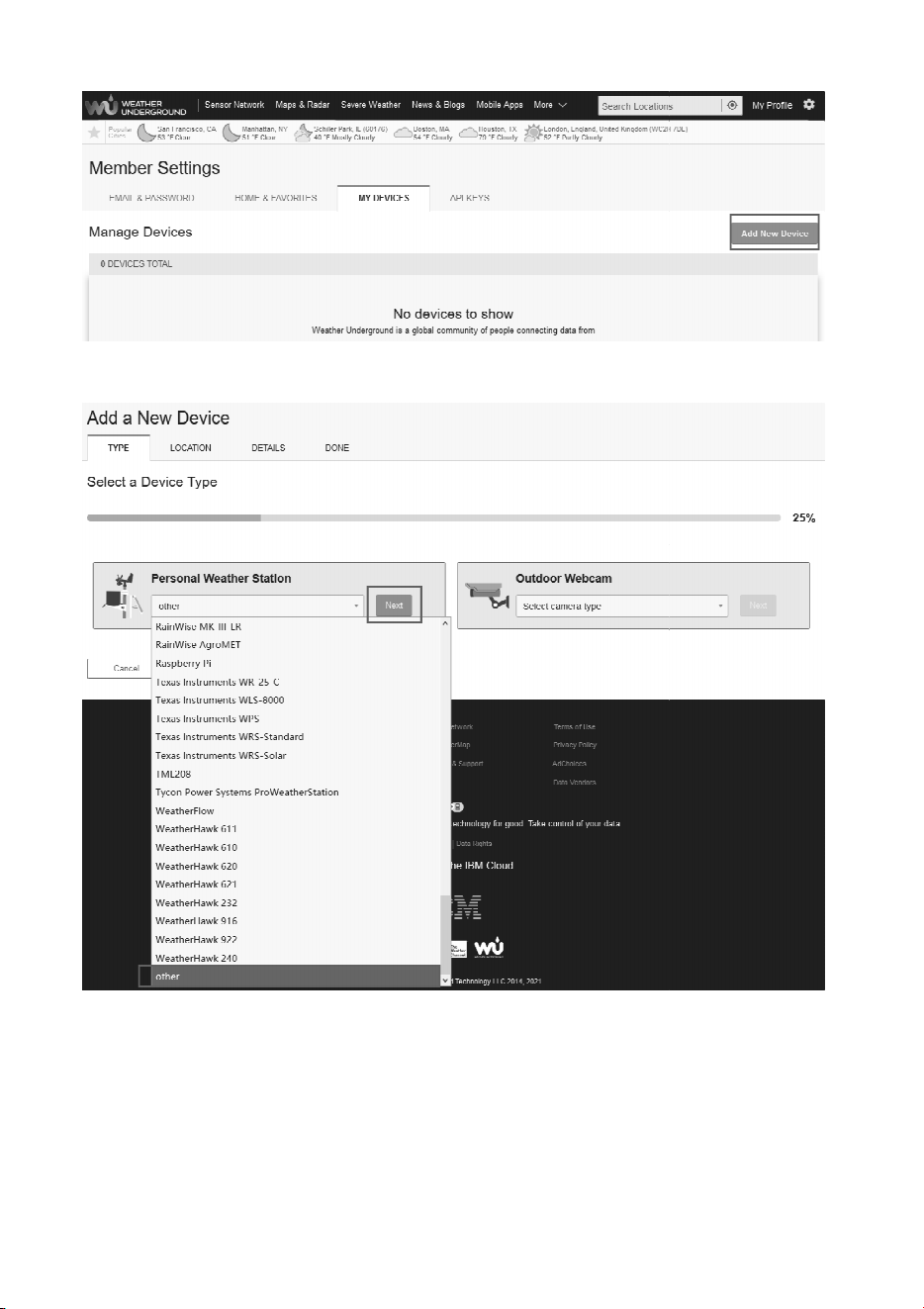

2. Click My Profile and select My Devices
to register your station
3. Select Add New Device.
Registering with and using wunderground.com
get the Station ID and Password
on
at the top of the page
to register your station
56
4. Find Personal Weather Station. Select ‘other’ and click
‘
‘
Next’.
57

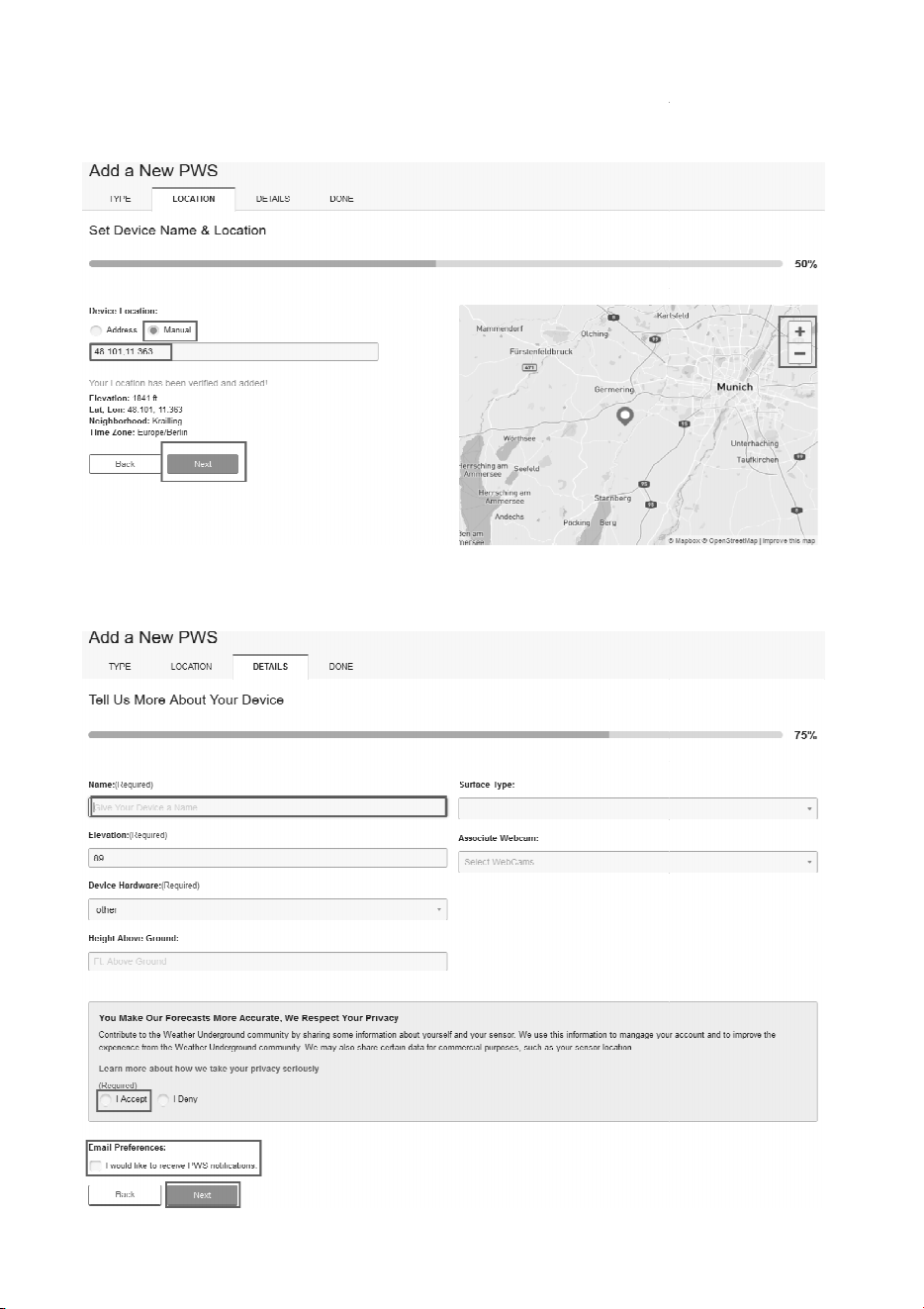

5. Select ‘Address’ or ‘Manual’
option, and find your local position. Press
‘Next’.
6.
This time you will be asked details about your weather station. Go
ahead and fill out the form.
option, and find your local position. Press
This time you will be asked details about your weather station. Go
58

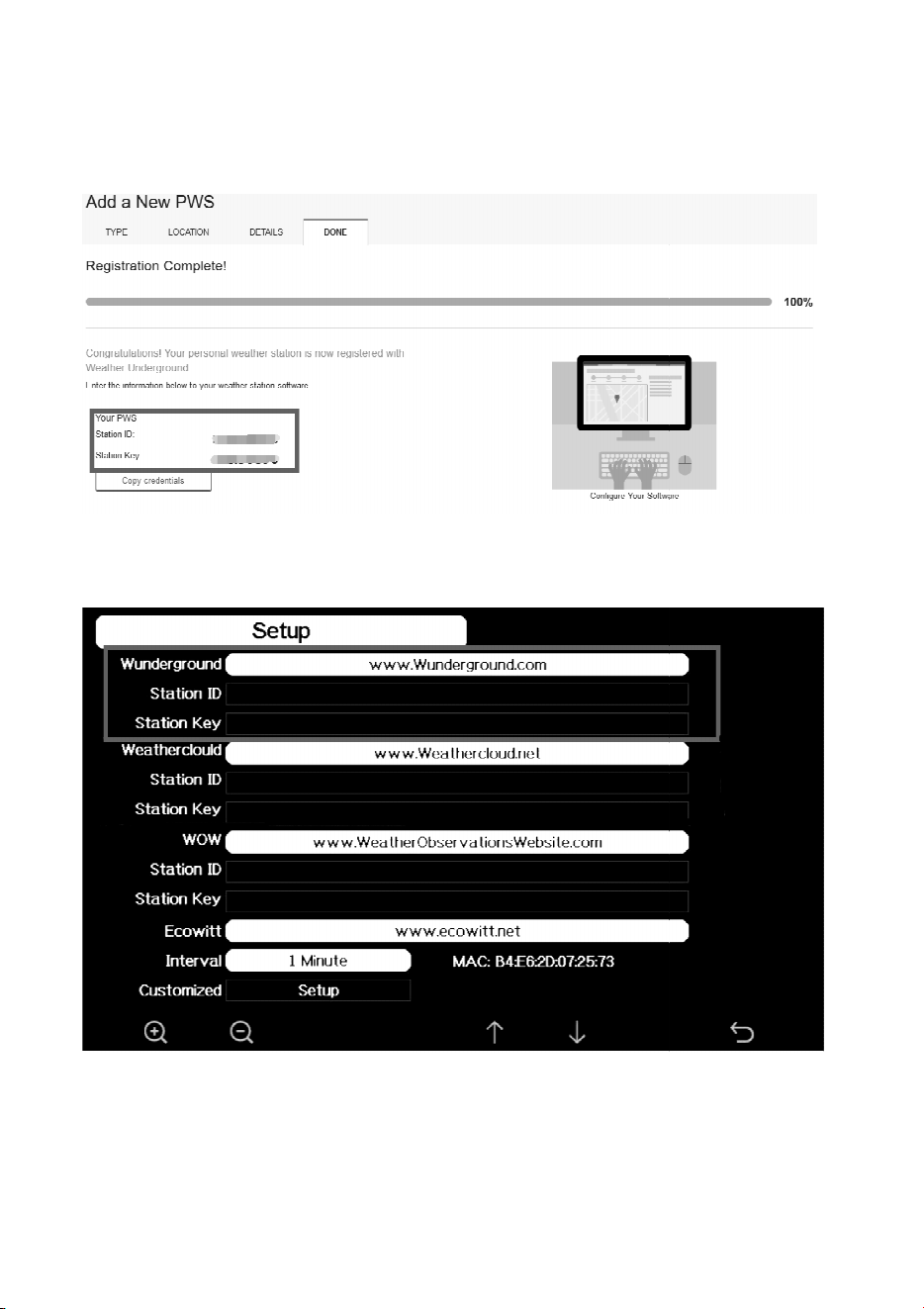

7.
After completing the weather station, you will see station ID and
key/password.
8. Take note of the sta
tion ID and key/password and enter it in the
Weather Server:
Figure 31: Weather Server setup screen
After completing the weather station, you will see station ID and
tion ID and key/password and enter it in the
59
scroll value
up
scroll value
down
Scroll field
up
Scroll field
down
1) Set Station ID. Press
to highlight the Station ID. Enter your
station ID. Press
to display the keyboard. Press
to scroll to the character and press
character. Press the “OK” button to confirm. Press
the setup page.
2) Set Station Key. Press
to highlight the station key. Enter your
password obtained from according weather server. Press
display the keyboard. Press
to scroll to the
return to
Setup
to highlight the Station ID. Enter your
to display the keyboard. Press
to select the
to return to
to highlight the station key. Enter your
password obtained from according weather server. Press
to
to scroll to the
60
character and press to select the character.
Press
button to confirm. Press
to return to the setup page.

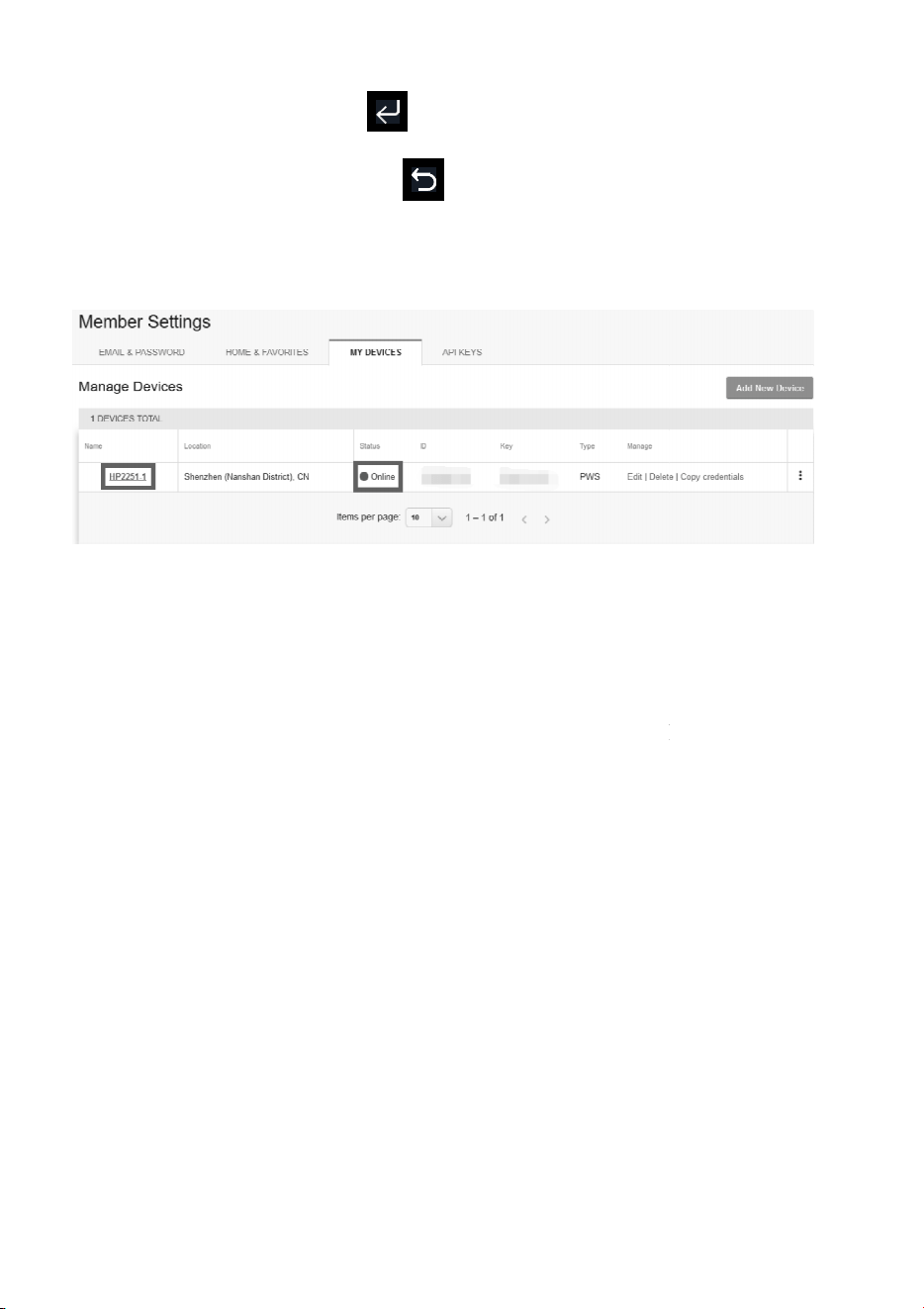

9.
Refresh the page, you may have to wait about a few minutes until the
status becomes ‘Online’
. Then you can click device name to view data.
4.9.15.2 Viewing data on wunderground.com
The most basic way to observe your weather station’s
data is by using the
wunderground.com web site. You will use a URL like this one, where your
station ID replaces the text “STATIONID”:
http://www.wunderground.com/personal-weather-
station/dashboard?ID
IONID

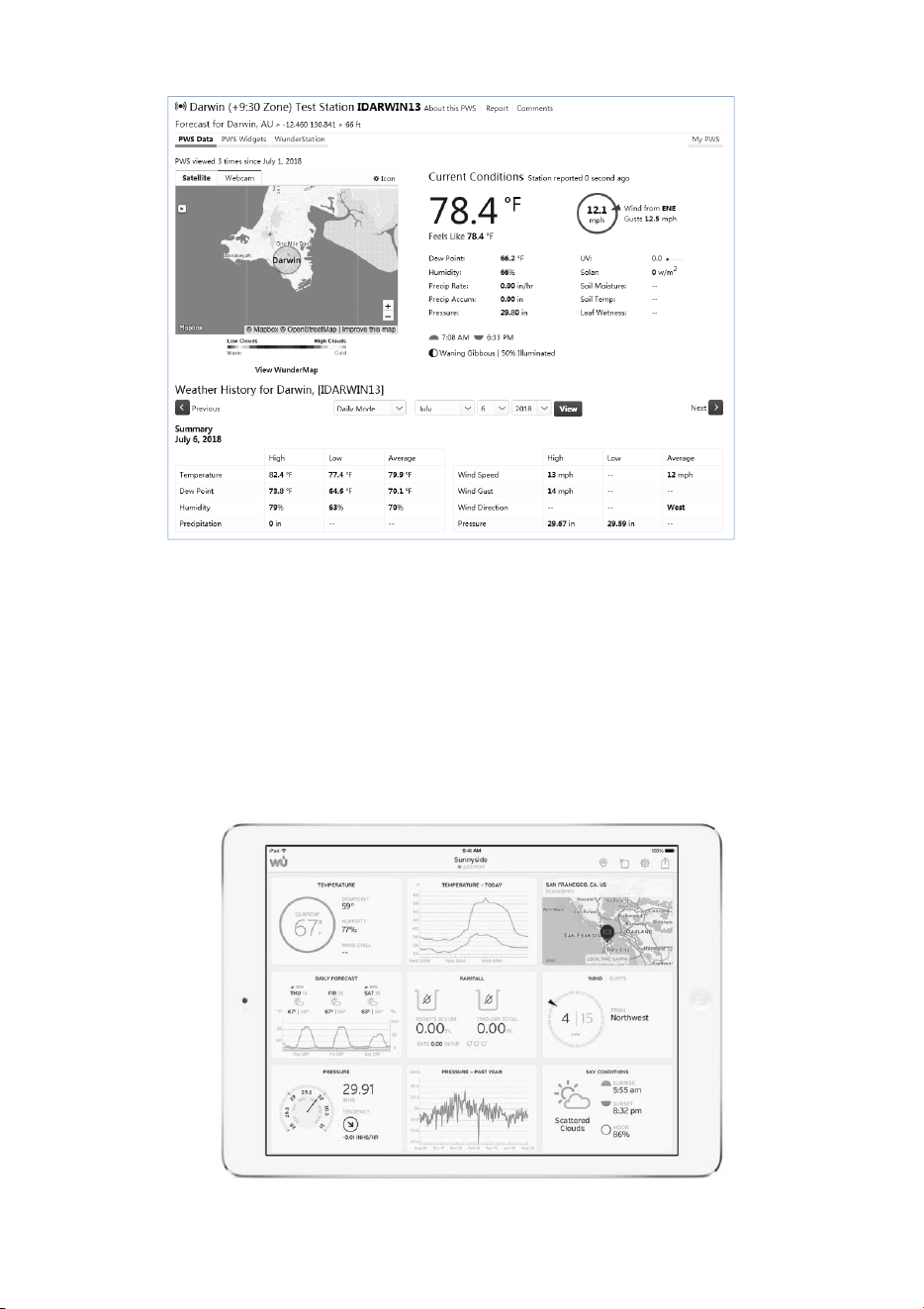

It will show a page such a
s this, where you can look at today’s data and
historical data as well:
Press
the “OK”
to return to the setup page.
Refresh the page, you may have to wait about a few minutes until the
. Then you can click device name to view data.
data is by using the
wunderground.com web site. You will use a URL like this one, where your
station/dashboard?ID
=STAT
s this, where you can look at today’s data and
61
There are also some very useful mobile apps. The URLs provided here go to
the Web version of the application pages. You can also find them directly
from the iOS or Google Play stores:
• WunderStation: iPad application for viewing your station’s data and
graphs
https://itunes.apple.com/us/app/wunderstation-weather-from-your-neigh
borhood/id906099986
62

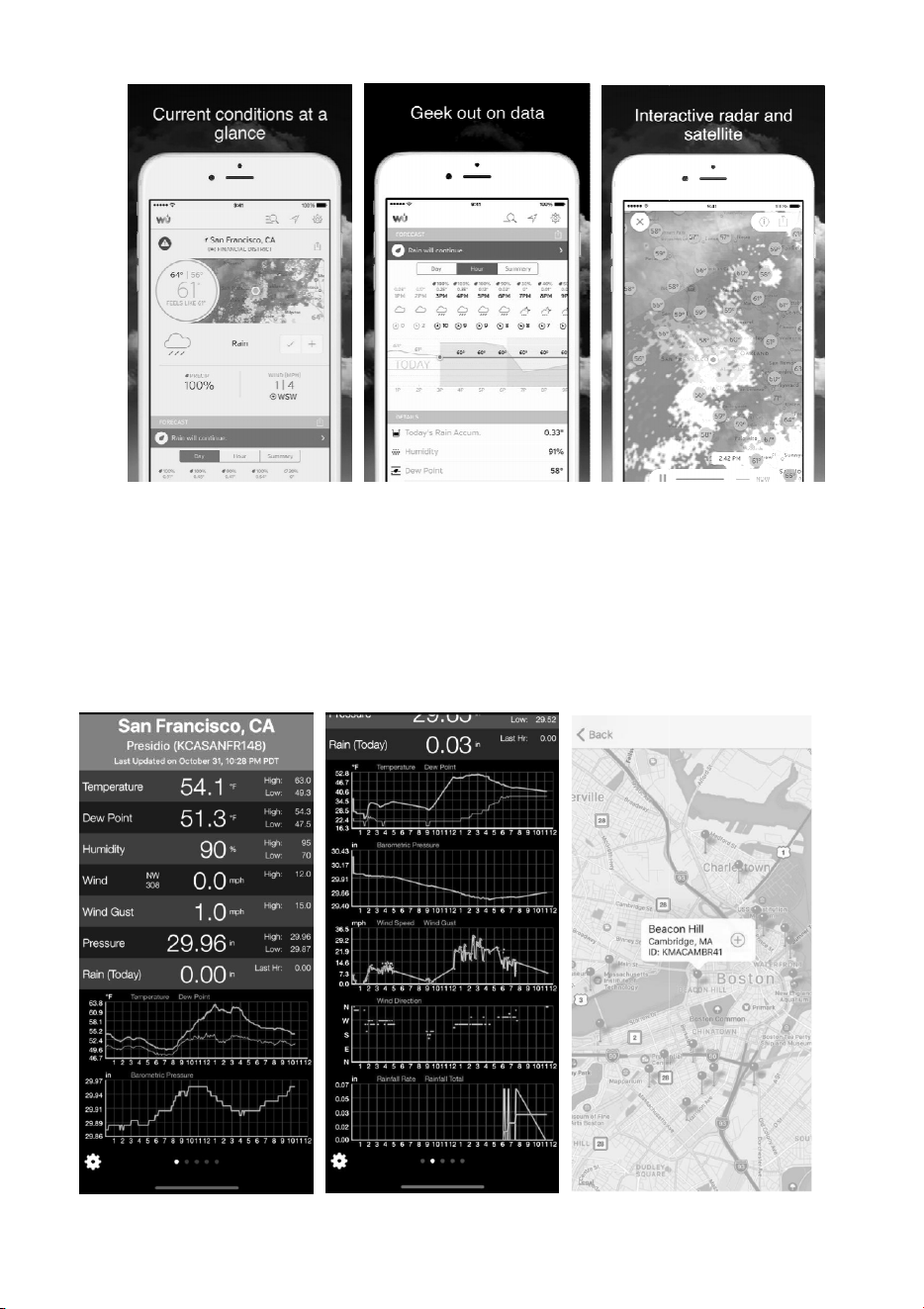

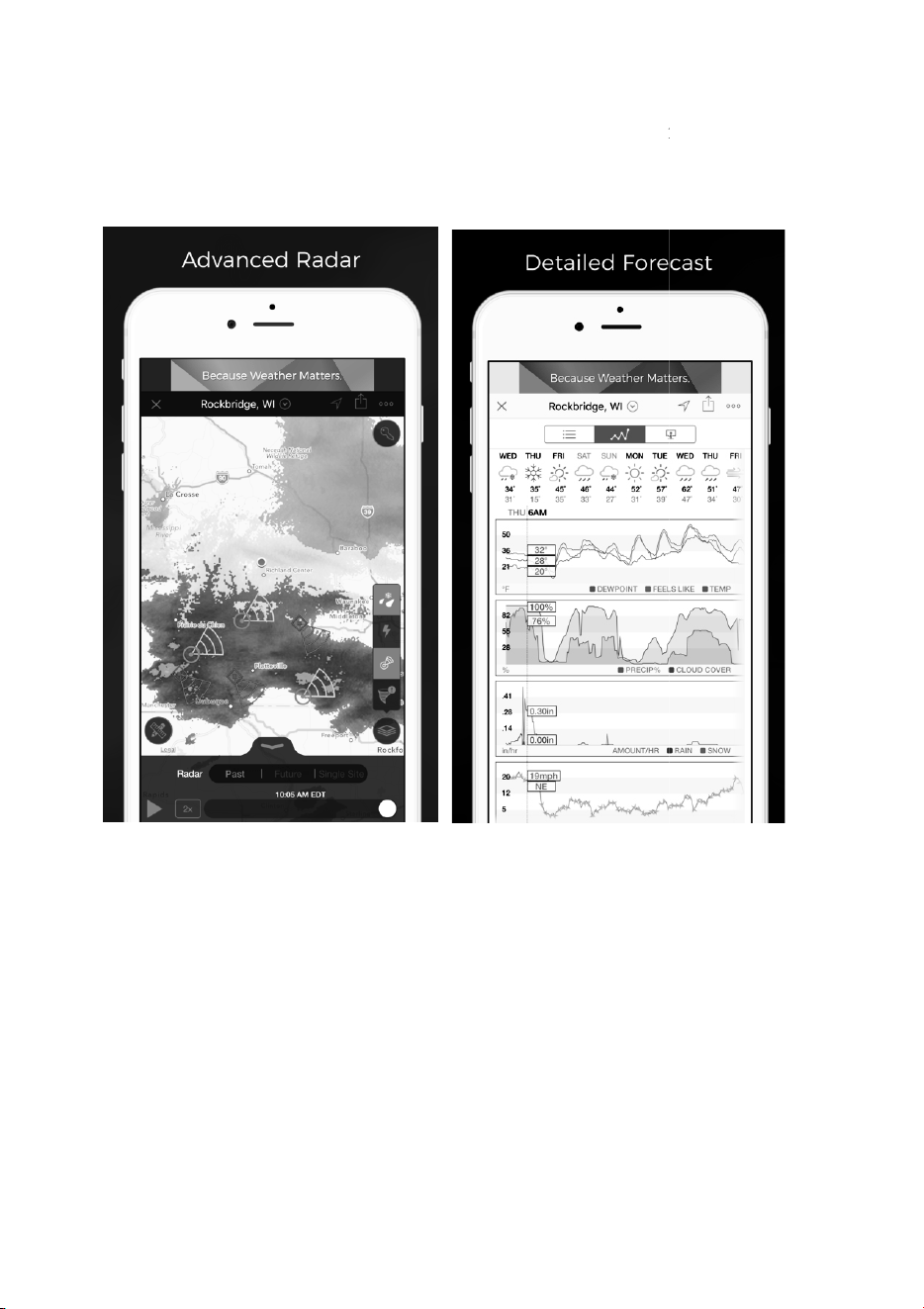

• WU Storm: iPad and iPhone
application for viewing radar images,
animated wind, cloud coverage and detailed forecast, and PWS station
data
https://itunes.apple.com/us/app/wu-storm/id955957721
• Weather Underground: Forecast
: iOS and Android application for
forecasts
https://itunes.apple.com/us/app/weather-underground-
forecast/id486154808
https://play.google.com/store/apps/details?id=com.wunderground.android.weat
her&hl=en
application for viewing radar images,
animated wind, cloud coverage and detailed forecast, and PWS station
: iOS and Android application for
forecast/id486154808
https://play.google.com/store/apps/details?id=com.wunderground.android.weat
63
•
PWS Weather Station Monitor
: View weather conditions in your
neighborhood, or even right in your ow
n backyard. Connects to
wunderground.com
https://itunes.apple.com/us/app/pws-weather-station-
monitor/id7137059
•
: View weather conditions in your
n backyard. Connects to
monitor/id7137059
29
64
4.9.15.3 Registering with and using Ecowitt Weather
You can also use the Ecowitt Weather server to monitor and record all your
sensors’ data. Configure as follows:
• On the Weather Server page, set the reporting interval time(default: 1
minute).
• Visit the website: https://www.ecowitt.net on your computer and finish
the registration on the page.
• Press the upper left menu button and select Devices.
• Press Add Device and input all the information needed(The MAC
address can be found on the Weather Server page).
• Press Save.
• Press Dashboard on the menu. Your sensor data would be available
on the dashboard within several minutes.
Note: When select device address on map, please wait until the map displays
before selecting your address.
You may add a shortcut to the ecowitt.net website on the home page of your
phone so that you can visit it just like opening an app.
4.9.15.4 Viewing data on ecowitt.net
You can observe your sensor’s data by using the ecowitt.net web site. You
will use a URL like this one, where your station ID replaces the text
“STATIONID”.
https://www.ecowitt.net/home/index?id=STATIONID
Note: If you want to share your station data with other users, you’ll need to
set your data to be public. Other users need to log in the ecowitt.net first to
view your data.
It will show a page such as this, where you can look at today’s data and
historical data as well.
65

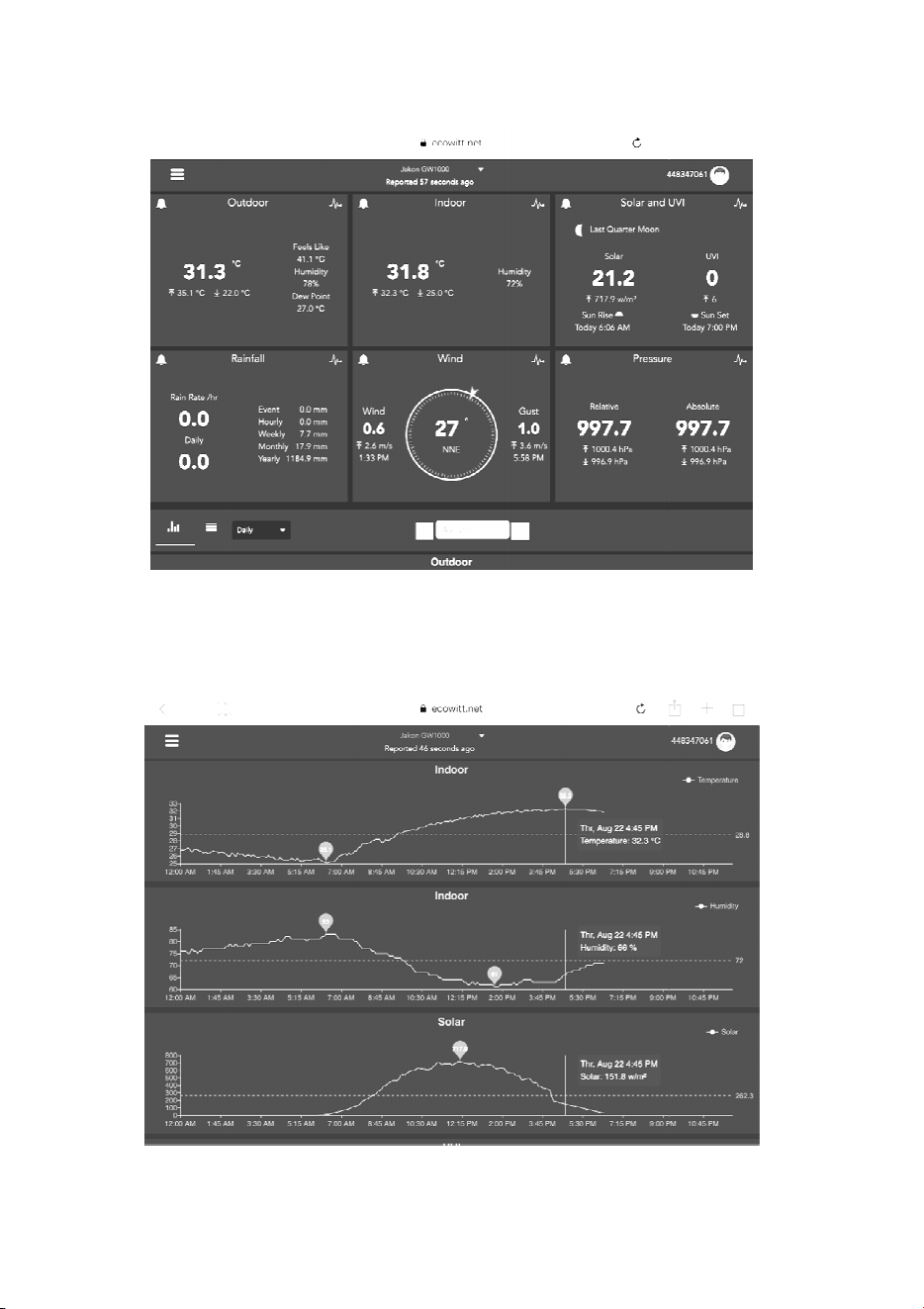

Dashboard
Graph display
66

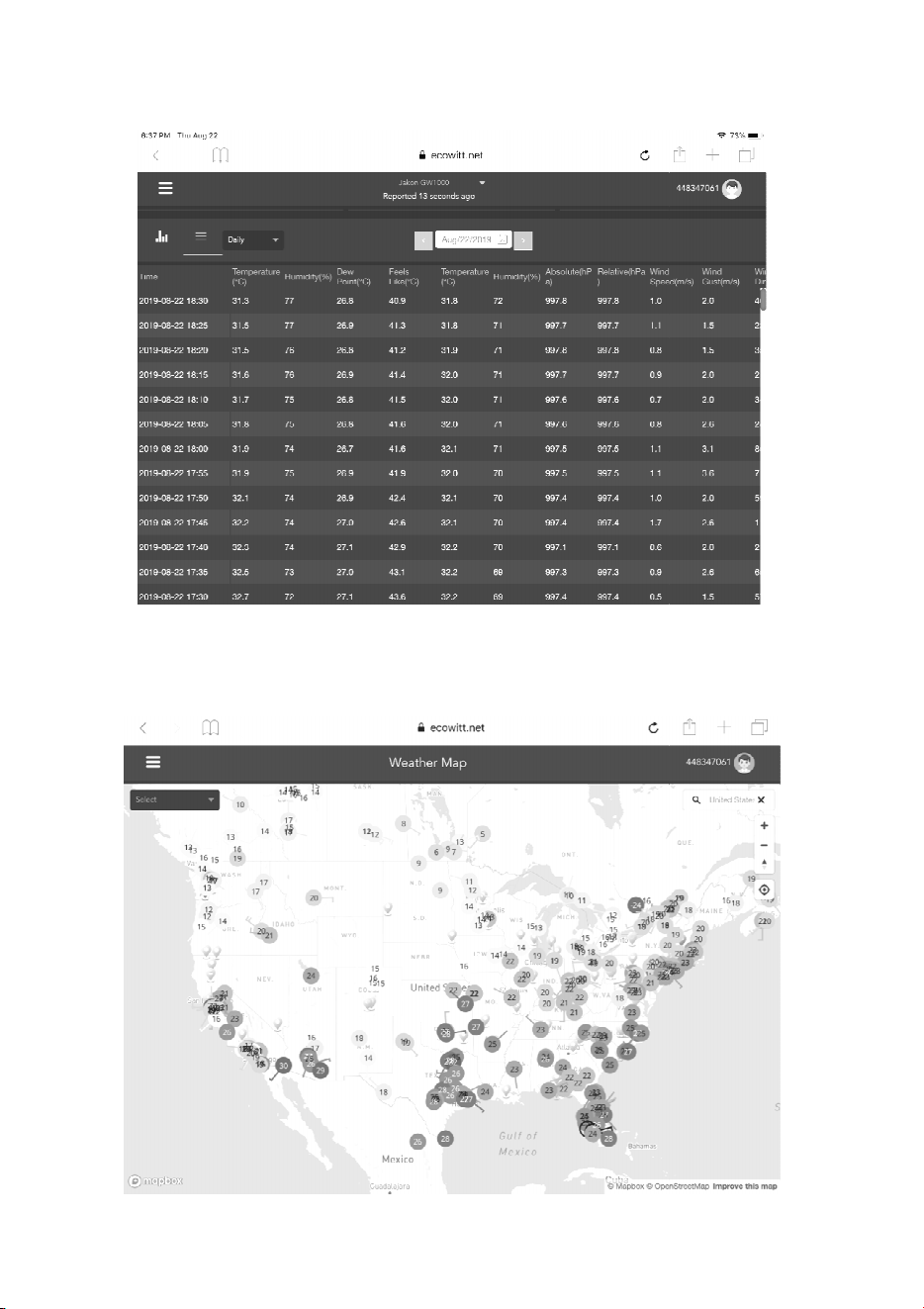

List display
Weather Map
67

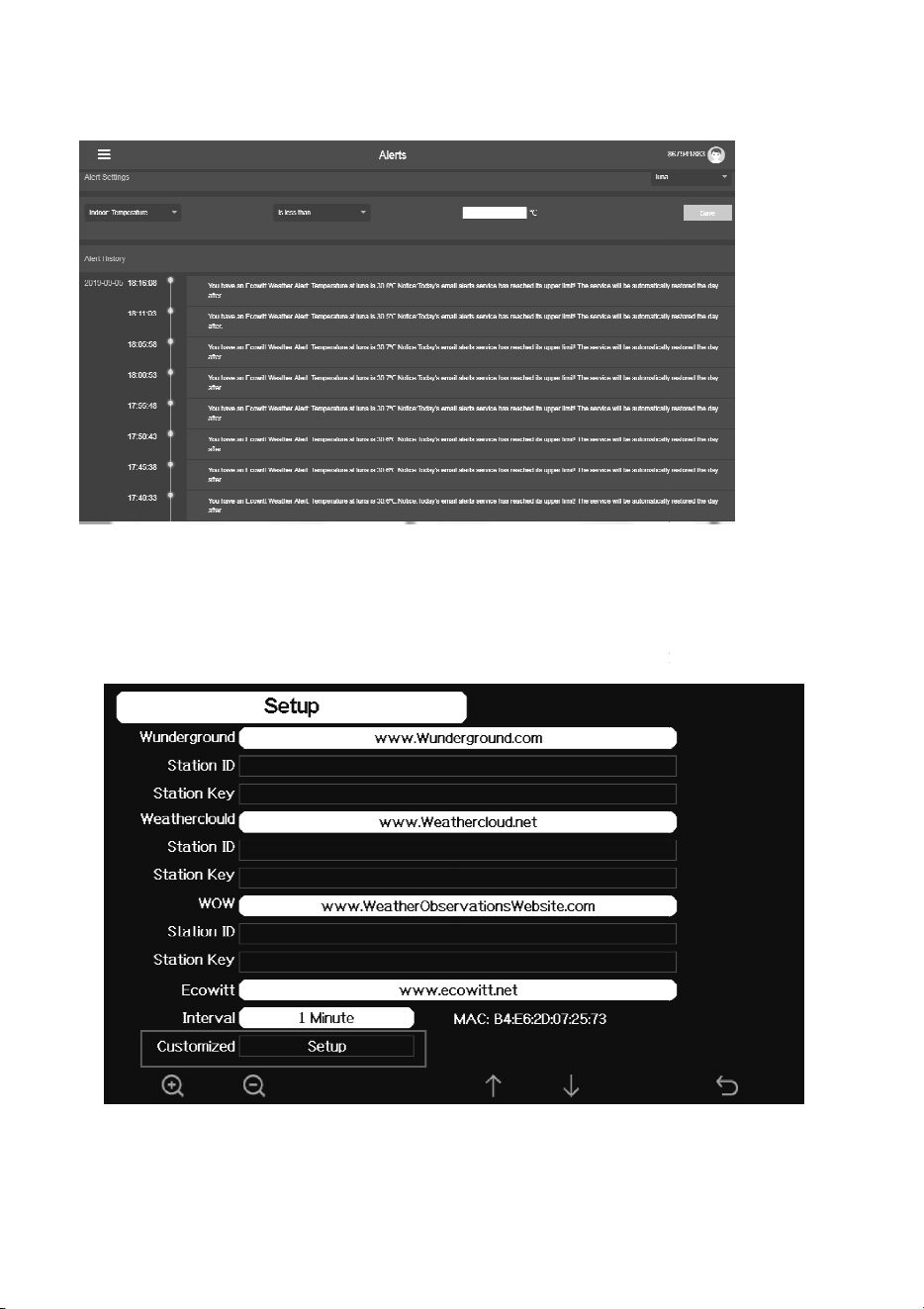

Email Alerts
4.9.15.5 Customized server setup
For
highly experienced users, it offers the option to send data to the user
server. Press the “setup” button to enter Customized
setup screen,

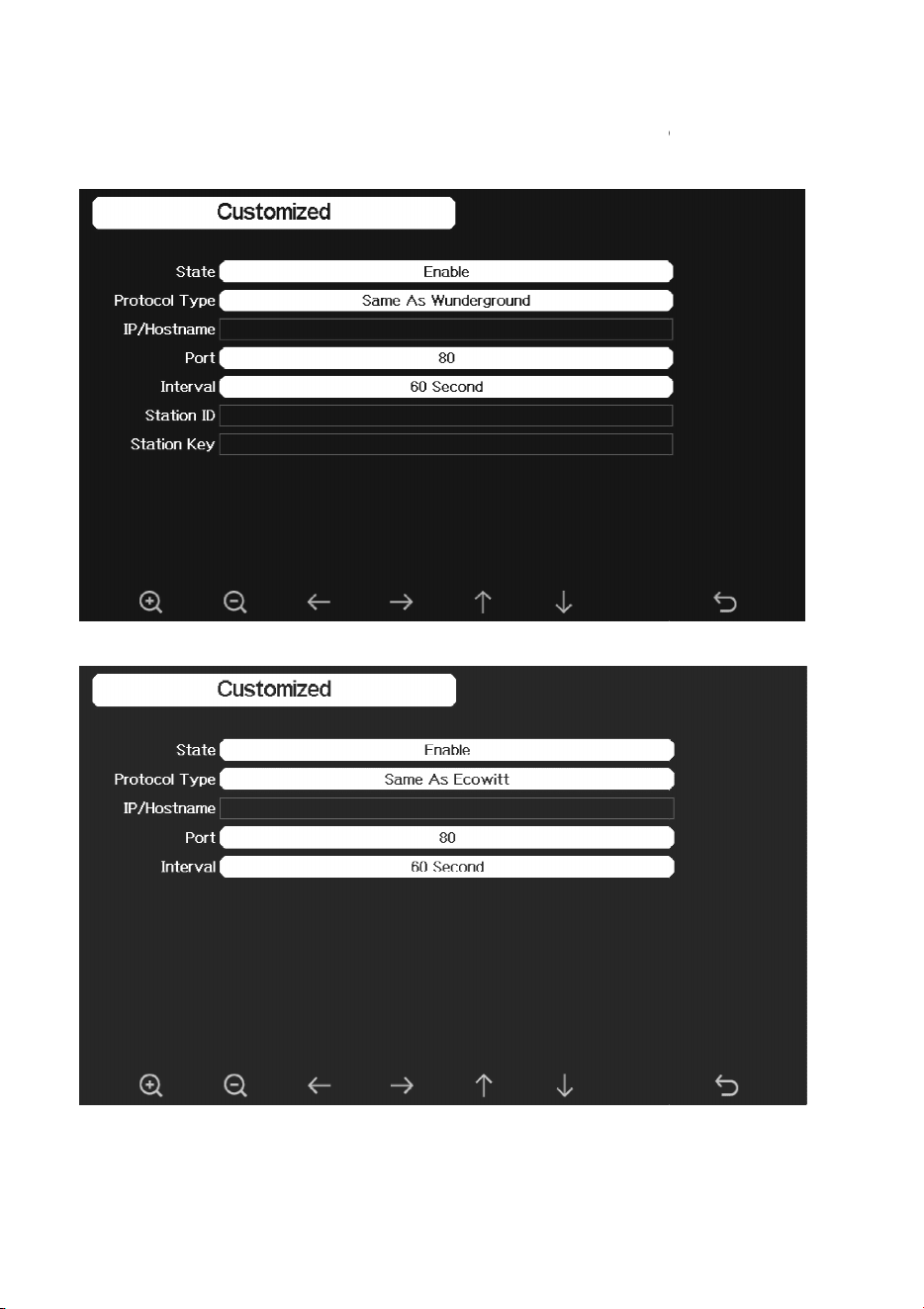

Figure : Server setup screen
highly experienced users, it offers the option to send data to the user
’s own
setup screen,
68
Select Enable button and select the protocol type. T
he website
same protocol with Wunderground or Ecowitt. I
nput all the information needed.
he website
should has the
nput all the information needed.
69

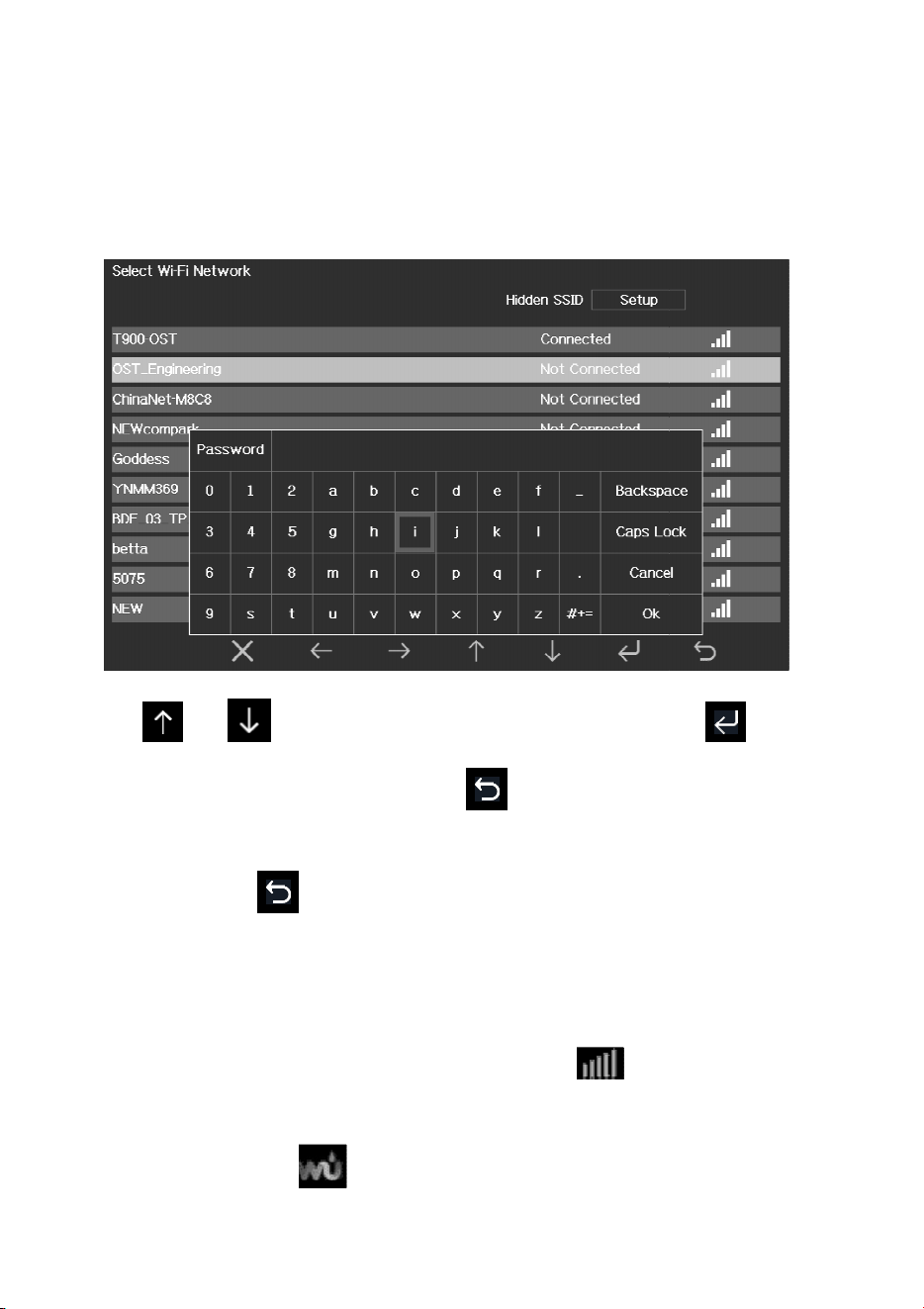

4.9.16 Connect Console to Your Router: Wi-Fi scan
Entering this mode, system will display all the available Wi
Select the SSID that you want console to be connected with
2.4GHz band Wi-Fi network )
, and enter passer word as required.
Press or key to select the Wi-
Fi network. Press
confirm and enter the password. Press
key to return to normal display
mode. It is possible that your network is not listed when Wi
performed. Press button and restart Wi-
Fi Scan, this will usually solve
the problem.
Only after connect to WLAN you can upload the data to weather website. If
the Wi-Fi network connects successfully, the icon
will show on the left
top of the console display. If the data upload to
Wunderground
successfully, the icon will show on the
left top of the console display
Entering this mode, system will display all the available Wi
-Fi networks.
Select the SSID that you want console to be connected with
(only supports
, and enter passer word as required.
Fi network. Press
key to
key to return to normal display
mode. It is possible that your network is not listed when Wi
-Fi Scan is
Fi Scan, this will usually solve
Only after connect to WLAN you can upload the data to weather website. If
will show on the left
Wunderground
.com
left top of the console display
.
70

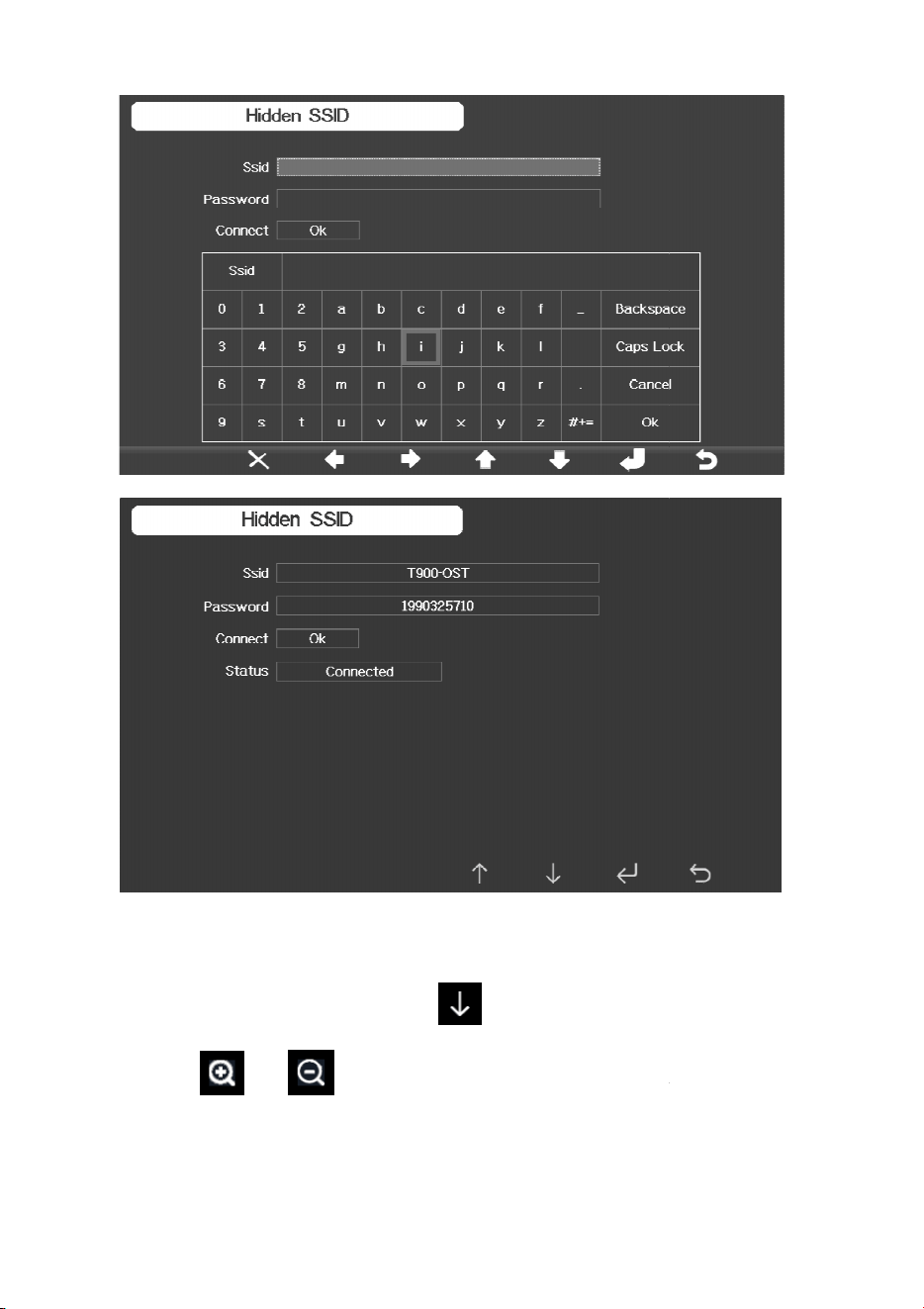

If the Wi-Fi network you would like to connect is with a hidden SSID,
please follow below steps to connect:
1) Press to select Hidden SSID setup, and press key
directly to enter.
2).Press to highlight the SSID. Press to display the keyboard and
enter your SSID. Press to scroll to the character and
press to enter the character. Press to return to the setup page.
3). Press to highlight the Password. Press to display the
keyboard and start to enter your password.. Press to
scroll to the character and press to enter the character. Press to
return to the setup page.
4).Press to highlight the “OK” button beside “Connect ” to start
connecting.
After connected successfully, the status will display” Connected”.
71
4.9.17 Reset Daily Rain
While in Menu Setting Mode, press key to select
Reset Daily Rain Set
field, press or key to
Reset Daily Rain begin it from 00:00 to
23:00 ,Default in 00:00
Reset Daily Rain Set
Reset Daily Rain begin it from 00:00 to
72

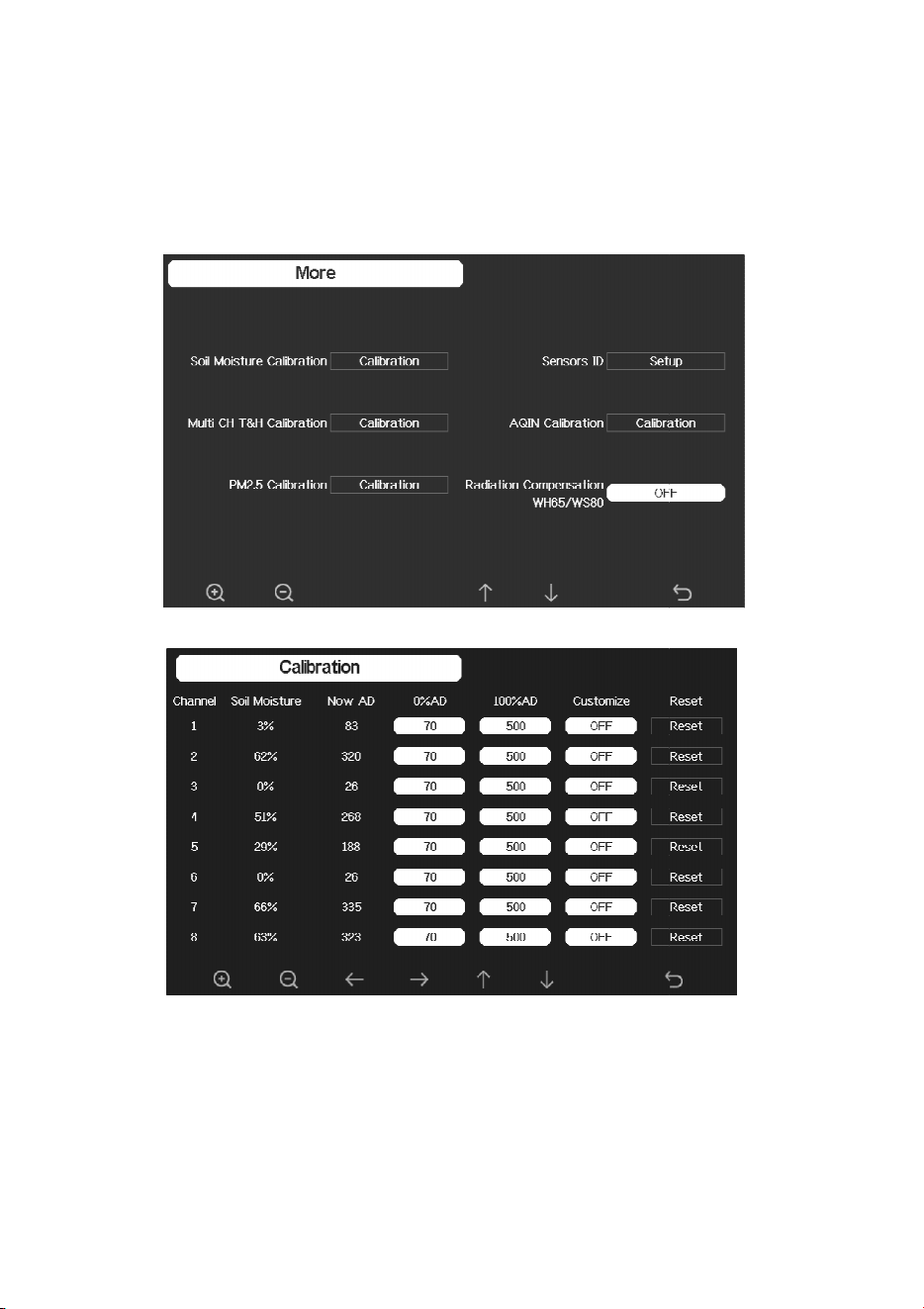

4.9.18 More

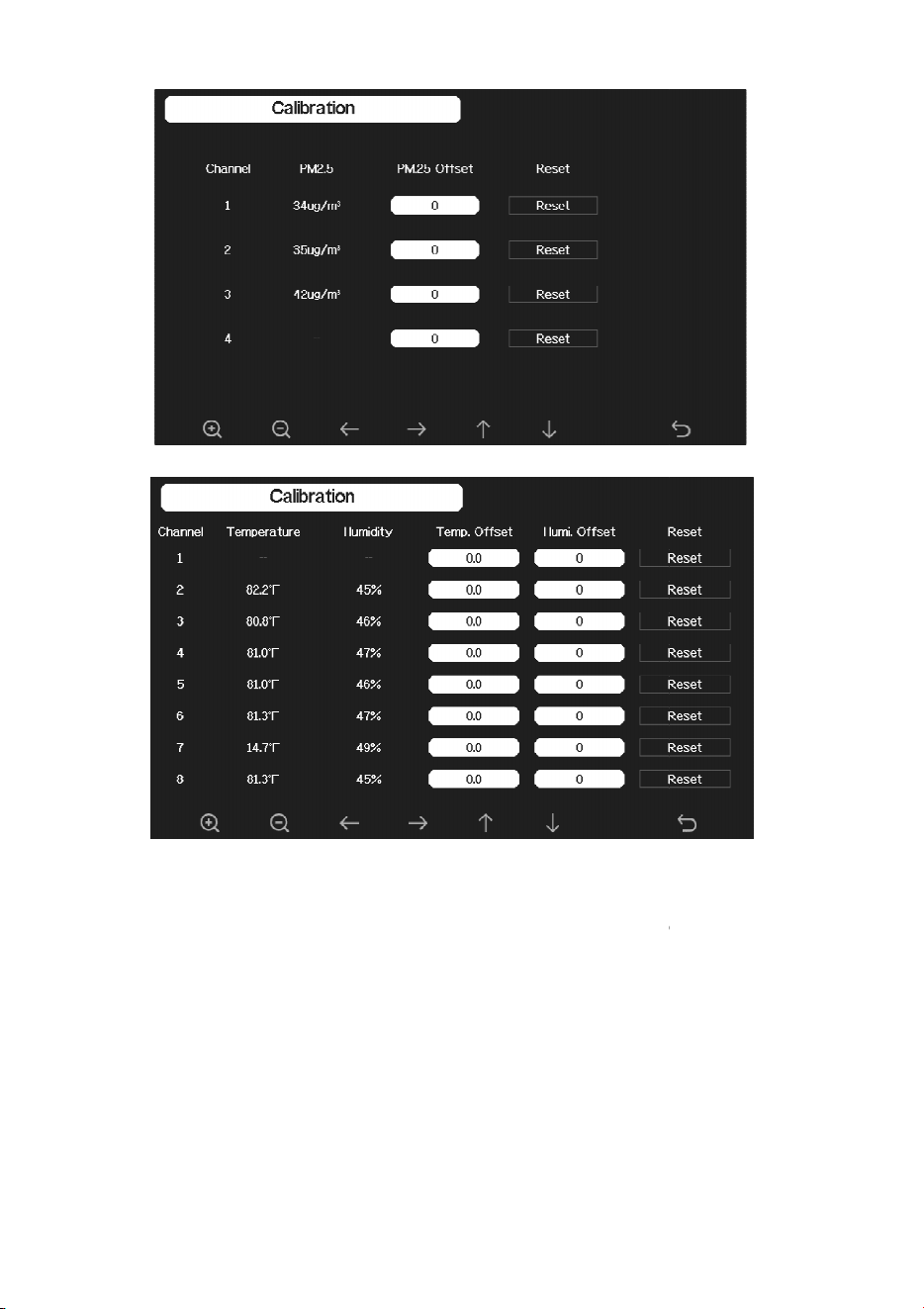

On the More page, you can set the Calibration
for the optional multi
soil moisture/PM2.5/temp and humidity sensor. You can also view or
manage all the sensors ID on the Sensors ID Setup page.
for the optional multi
-channel
soil moisture/PM2.5/temp and humidity sensor. You can also view or
73
Note:
To calibrate the optional soil moisture
sensor, please refer to the manual of
the WH51 soil moisture senor.
To calibrate the PM2.5 sensor, you’
ll need to find a reliable source, such as
professional devices from your local air quality service.
To calibrate the temp and humidity sensor, please r
efer to section 4.9.19.

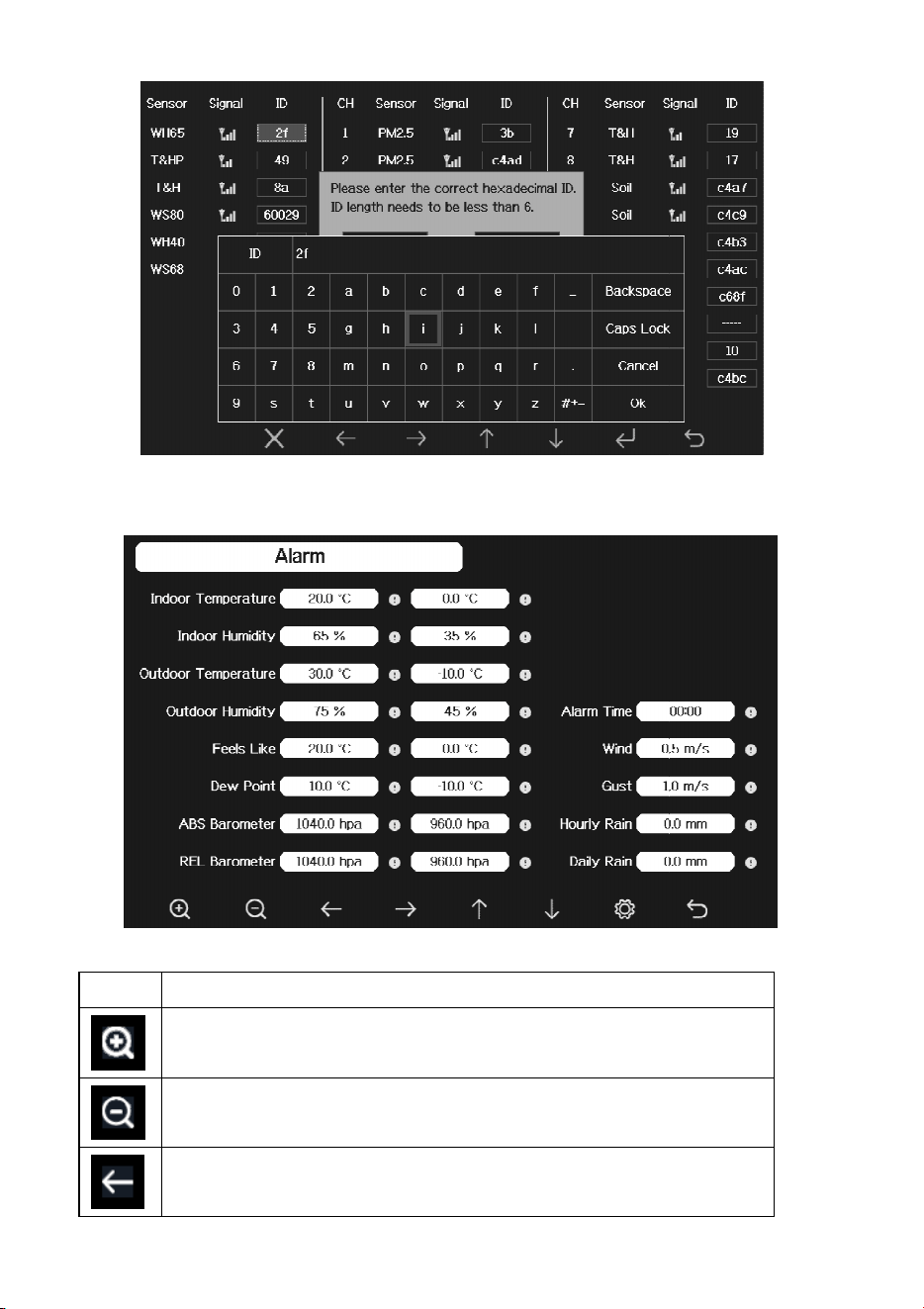

Sensor ID Setup
sensor, please refer to the manual of
ll need to find a reliable source, such as
efer to section 4.9.19.
74
On this page you can set the following:
•
View sensor ID, signal strength and battery power condition. 1
means 1-
4 successful successive signal receptions without missed ones.
• Register the sensor when offline.
• Enable or disable the sensor.
• Input the Sensor ID when offline.
View sensor ID, signal strength and battery power condition. 1
-4 bars
4 successful successive signal receptions without missed ones.
75
4.9.19 Alarm Setting Mode
Icon Description
Select key
Press this key to select the unit or scrolls the value
Select key
Press this key to select the unit or scrolls the value.
Left key
Press this key to select the set value.
76
Right key
Press this key to select the set value.
Up arrow key
Press this key to change the activated option field
Down arrow key
Press this key to change the activated option field
Set key
Press this key to select the Setting sub-Mode
Return key
Press this key to return to previous mode
The first row is high alarm value and the second row is low alarm value.
When weather alarm condition has been triggered, that particular
alarm will sound for
120 second and the corresponding icon will flash
until the weather condition doesn’t meet the user set level. Press any
key to mute the alarm.

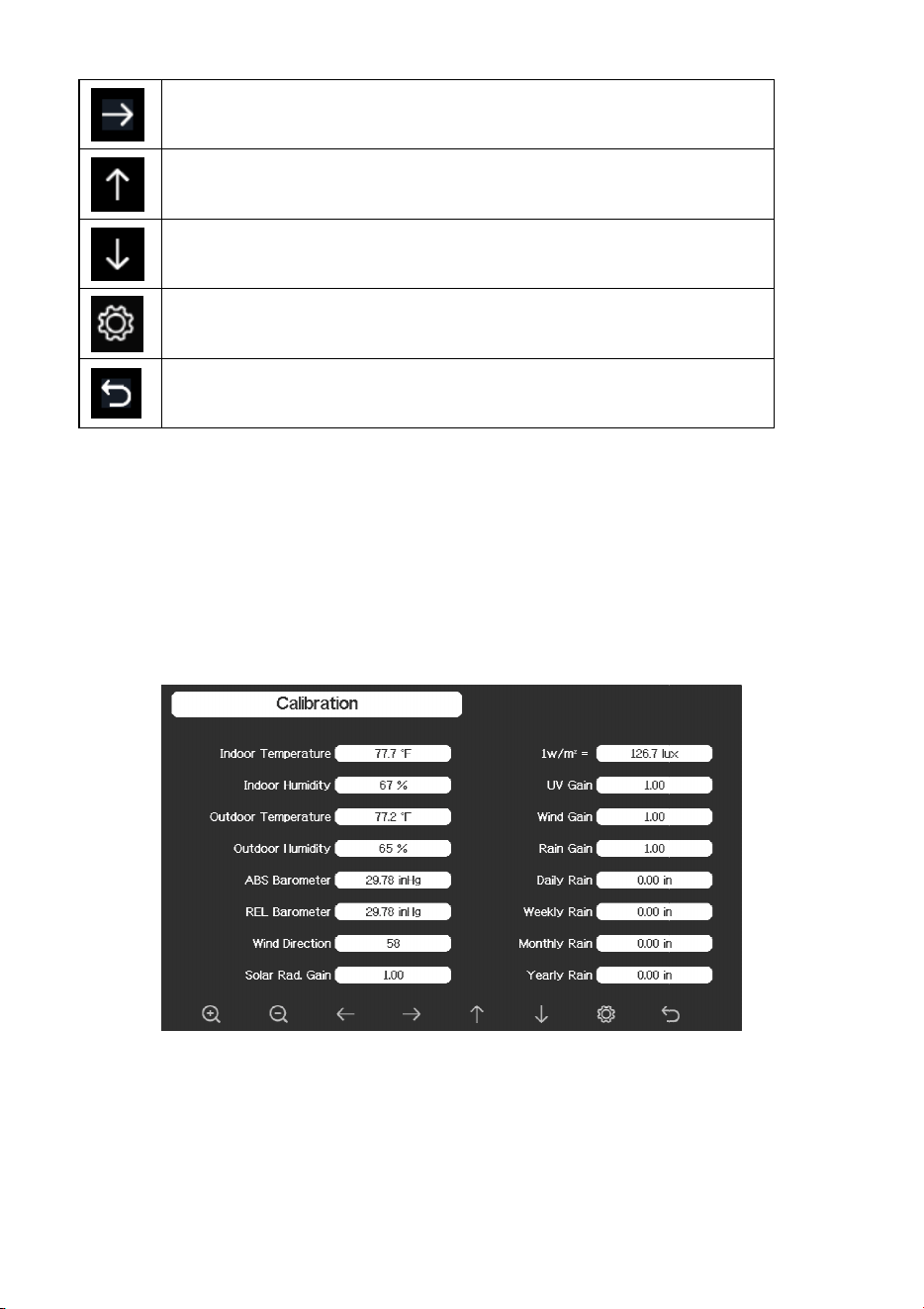

4.9.20 Calibration Mode
The first row is high alarm value and the second row is low alarm value.
When weather alarm condition has been triggered, that particular
120 second and the corresponding icon will flash
until the weather condition doesn’t meet the user set level. Press any
77
Icon Description
Select key
Press this key to select the unit or scrolls the value
Select key
Press this key to select the unit or scrolls the value.
Left key
Press this key to select the set value.
Right key
Press this key to select the set value.
Up arrow key
Press this key to change the activated option field
Down arrow key
Press this key to change the activated option field
Set key
Press this key to select the Setting sub-Mode
Return key
Press this key to return to previous mode
To adjust the parameter, press to scroll to the parameter you wish to
change. Press to highlight the sign (positive vs. negative, if applicable)
and significant digit. Press or to change the calibrated value.
Parameter Type of
Calibration
Default
Typical Calibration Source
Temperature
Offset Current
Value
Red Spirit or Mercury Thermometer (1)
Humidity Offset Current
Value
Sling Psychrometer (2)
ABS
Barometer
Offset Current
Value
Calibrated laboratory grade barometer
REL
Barometer
Offset Current
Value
Local airport (3)
78
Wind
Direction
Offset Current
Value
GPS, Compass (4)
Solar
Radiation
Gain 1.00 Calibrated laboratory grade solar radiation
sensor
1 w/m
2
Gain 126.7
lux
Solar radiation conversion from lux to
w/m
2
for wavelength correction (5)
UV Gain 1.00 Calibrated laboratory grade UV sensor
Wind Gain 1.00 Calibrated laboratory grade wind meter (6)
Rain Gain 1.00 Sight glass rain gauge with an aperture of
at least 4” (7)
Daily Rain Offset Current
Value
Apply an offset if the weather station was
not operating for the entire day.
Weekly
Rain
Offset Current
Value
Apply an offset if the weather station was
not operating for the entire week.
Monthly
Rain
Offset Current
Value
Apply an offset if the weather station was
not operating for the entire month.
Yearly Rain
Offset Current
Value
Apply an offset if the weather station was
not operating for the entire year.
(1) Temperature errors can occur when a sensor is placed too close to a
heat source (such as a building structure, the ground or trees).
To calibrate temperature, we recommend a mercury or red spirit
(fluid) thermometer. Bi-metal (dial) and digital thermometers (from
other weather stations) are not a good source and have their own
margin of error. Using a local weather station in your area is also a
poor source due to changes in location, timing (airport weather
stations are only updated once per hour) and possible calibration
errors (many official weather stations are not properly installed and
calibrated).
Place the sensor in a shaded, controlled environment next to the
fluid thermometer, and allow the sensor to stabilize for 3 hours.
Compare this temperature to the fluid thermometer and adjust the
console to match the fluid thermometer.
(2) Humidity is a difficult parameter to measure electronically and drifts
over time due to contamination. In addition, location has an adverse
affect on humidity readings (installation over dirt vs. lawn for
79
example).
Official stations recalibrate or replace humidity sensors on a yearly
basis. Due to manufacturing tolerances, the humidity is accurate to
± 5%. To improve this accuracy, the indoor and outdoor humidity
can be calibrated using an accurate source, such as a sling
psychrometer.
(3) The display console displays two different pressures: absolute
(measured) and relative (corrected to sea-level).
To compare pressure conditions from one location to another,
meteorologists correct pressure to sea-level conditions. Because the
air pressure decreases as you rise in altitude, the sea-level corrected
pressure (the pressure your location would be at if located at sea-
level) is generally higher than your measured pressure.
Thus, your absolute pressure may read 28.62 inHg (969 mb) at an
altitude of 1000 feet (305 m), but the relative pressure is 30.00 inHg
(1016 mb).
The standard sea-level pressure is 29.92 in Hg (1013 mb). This is
the average sea-level pressure around the world. Relative pressure
measurements greater than 29.92 inHg (1013 mb) are considered
high pressure and relative pressure measurements less than 29.92
inHg are considered low pressure.
To determine the relative pressure for your location, locate an
official reporting station near you (the internet is the best source for
real time barometer conditions, such as Weather.com or
Wunderground.com), and set your weather station to match the
official reporting station.
(4) Only use this if you improperly installed the weather station sensor
array, and did not point the direction reference to true north.
80
(5) The default conversion factor based on the wavelength for bright
sunlight is 126.7 lux / w/m
2
. This variable can be adjusted by
photovoltaic experts based on the light wavelength of interest, but
for most weather station owners, is accurate for typical applications,
such as calculating evapotransporation and solar panel efficiency.
(6) Wind speed is the most sensitive to installation constraints. The rule
of thumb for properly installing a wind speed sensor is 4 x the
distance of the tallest obstruction. For example, if your house is 20’
tall and you mount the sensor on a 5’ pole:
Distance = 4 x (20 – 5)’ = 60’ or =4 x (6.10-1.52)=18.32m.
Many installations are not perfect and installing the weather station
on a roof can be difficult. Thus, you can calibrate for this error with
a wind speed multiplier.
In addition to the installation challenges, wind cup bearings (moving
parts) wear over time.
Without a calibrated source, wind speed can be difficult to measure.
We recommend using a calibrated wind meter (not included) and a
constant speed, high speed fan.
(7) The rain collector is calibrated at the factory based on the funnel
diameter. The bucket tips every 0.01” or 0.1m of rain (referred to as
resolution). The accumulated rainfall can be compared to a sight
glass rain gauge with an aperture of at least 4” or 0.1m.
Make sure you periodically clean the rain gauge funnel.
Note: The purpose of calibration is to fine tune or correct for any sensor
error associated with the devices margin of error. Errors can occur due to
electronic variation (example, the temperature sensor is a resistive thermal
device or RTD, the humidity sensor is a capacitance device), mechanical
variation, or degradation (wearing of moving parts, contamination of
sensors).
81
Calibration is
only useful if you have a known calibrated source you can
compare it against, and is optional. This section discusses practices,
procedures and sources for sensor calibration to reduce manufacturing and
degradation errors. Do not compare your readings obta
ined from sources
such as the internet, radio, television or newspapers. The purpose of your
weather station is to measure conditions of your surroundings, which vary
significantly from location to location.
Note: UV Calibration MUST
be performed every 2 to 3 months to improve
results. Over time, UV Index may alter results based on bright and strong
sunlight conditions. This is why diligent UV Calibration is recommended.

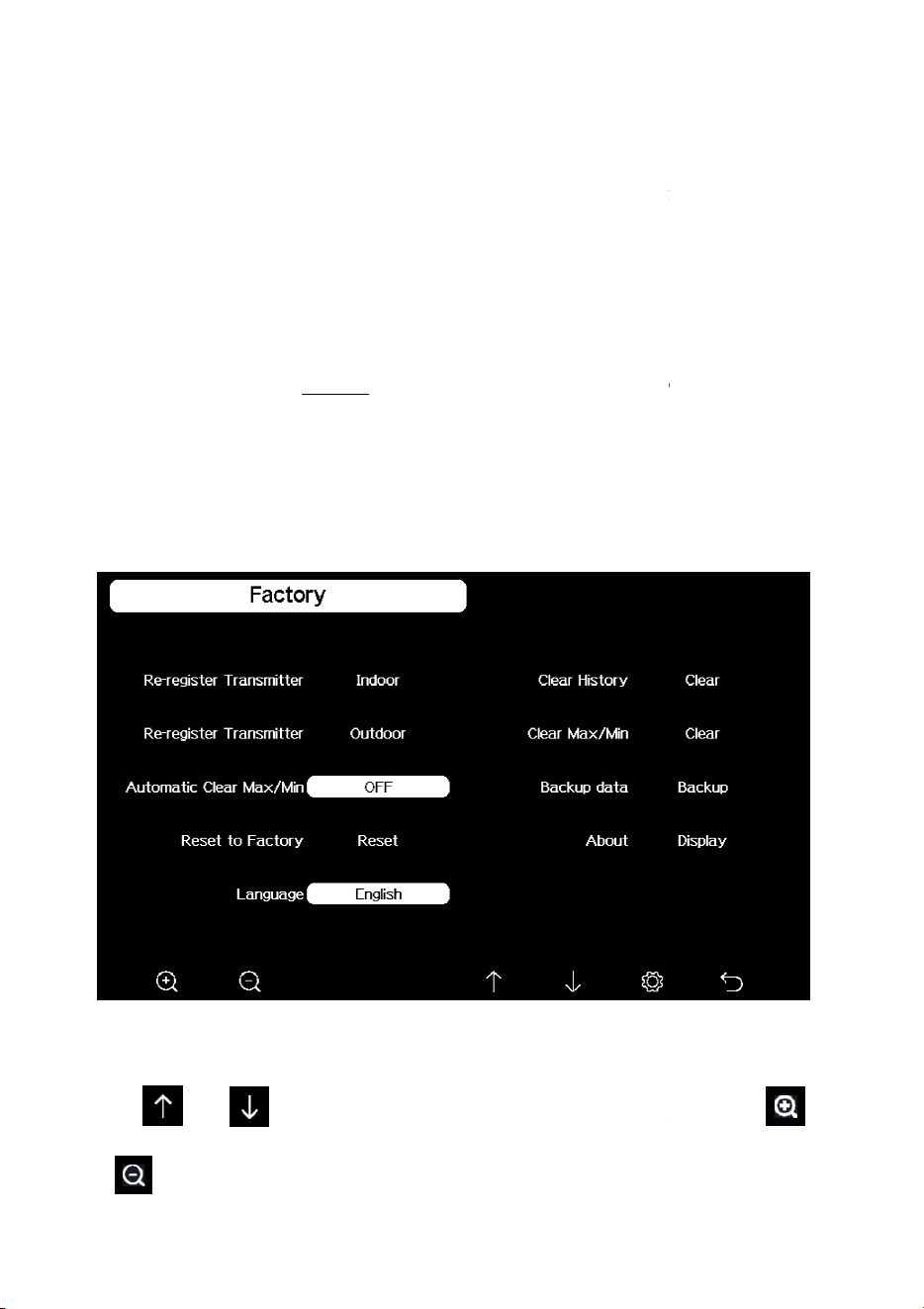

4.9.21 Factory reset
4.9.21.1 Re-register indoor transmitter
Press or key to select re-
register indoor transmitter. Press
or key to popup the Message Box ”
Register a new indoor transmitter?”
only useful if you have a known calibrated source you can
compare it against, and is optional. This section discusses practices,
procedures and sources for sensor calibration to reduce manufacturing and
ined from sources
such as the internet, radio, television or newspapers. The purpose of your
weather station is to measure conditions of your surroundings, which vary
be performed every 2 to 3 months to improve
results. Over time, UV Index may alter results based on bright and strong
sunlight conditions. This is why diligent UV Calibration is recommended.
register indoor transmitter. Press
Register a new indoor transmitter?”
82
Press or to select Yes or No. Press the or key to
confirm the selection.
4.9.21.2 Re-register outdoor transmitter
Please reference section 5.13.1. Procedures and settings are similar to re-
register indoor transmitter.
4.9.21.3 Automatic Clear Max/Min
To turn on/off automatically clear Max/Min record at 0:00hr every day.
Press or key to select Automatic clear Max/Min. Press or
key to switch on/off.
When it is selected with ON option, min/max will be presented as daily
min/max, and with OFF option selected, it is for history min/max record.
4.9.21.4 Reset to Factory
Press or key to select Reset to Factory. Press or key
to popup the Message Box ”Reset to factory default?” Press or
to select Yes or No. Press the or key to confirm the selection.
4.9.21.5 Clear History
Press or key to select Clear History. Press or key to
popup the
Message Box ”Clear the history record?” Press or to
select Yes or No. Press the or key to confirm the selection.
83
4.9.21.6 Clear Max/Min
Press or key to select Clear Max/Min. Press or key
to popup the Message Box ”Clear the max/min record?” Press or
to select Yes or No. Press the or key to confirm the selection.
4.9.21.7 Backup data
Press or key to select Backup data. Press or key to
popup the Message Box ”Copy history data to SD card?” Press or
to select OK or Cancel. Press the or key to confirm the
selection.
Note: You need to insert a SD card(not included) into the console before
using this function.
84
4.9.21.8 About information
Note: This figure is just for reference(model and frequency will change
according to different market). The actual display console may be with
higher firmware version than this manual described because we will update
the firmware occasionally.
85
5 Other Console Functions
5.1 Beaufort Wind Force Scale
If you have selected the use of Beaufort wind speed units, you can use the
table below for reference. The Beaufort scale is based on qualitative wind
conditions and how they would affect a ship’s (frigate) sails (so yes, it is an
“old” standard). It is therefore less precise than the other scales but is still in
use in various locales.
Wind speed Beaufort
number
Description
0 - 1 mph, or 0 - 1.6 km/h 0 Calm
1 - 3 mph, or 1.6 - 4.8 km/h 1 Light air
3 - 7 mph, or 4.8 - 11.3 km/h 2 Light breeze
7 - 12 mph, or 11.3 -1 9.3 km/h 3 Gentile breeze
12 - 18 mph, or 19.3 - 29.0 km/h 4 Moderate breeze
18 - 24 mph, or 29.0 - 38.6 km/h 5 Fresh breeze
24 - 31 mph, or 38.6 - 49.9 km/h 6 String breeze
31 - 38 mph, or 49.9 - 61.2 km/h 7 Near gale
38 - 46 mph, or 61.2 - 74.1 km/h 8 Gale
46 - 54 mph, or 74.1 - 86.9 km/h 9 Strong gale
55 - 63 mph, or 88.5 - 101.4 km/h
10 Storm
64 - 73 mph, or 103 - 117.5 km/h
11 Violent storm
74 mph and above, or 119.1 km/h
and above
12 Hurricane
Table 3: Beaufort wind force scale
5.2 UVI Range
The UV-index is a value that gives an indication of the strength of harmful UV
radiation and can be helpful to know when protection from the sun is advised.
86
UV Radiation UVI
Description
0 - 99 uW/cm
2
0
99 - 540 uW/cm
2
1
540 - 1000 uW/cm
2
2
1000 -1400 uW/cm
2
3
Moderate
1400 - 1843 uW/cm
2
4
Moderate
1843 - 2292 uW/cm
2
5
2292 - 2734 uW/cm
2
6
2734 - 3138 uW/cm
2
7
3138 - 3648 uW/cm
2
8
Very high
3648 - 4196 uW/cm
2
9
Very high
4196 - 4707 uW/cm
2
10
Very high
4707 - 5209 uW/cm
2
11
Extreme
5209 - 5735 uW/cm
2
12
Extreme
5735 - 6276 uW/cm
2
13
Extreme
6276 - 6778 uW/cm
2
14
Extreme
6778 uw/cm
2
and above 15
Extreme
5.3 Weather Forecasting
The seven weather icons are Sunny, Partly Cloudy, Cloudy, Rainy, Stormy,
Snowy and Storm Snowy.
The forecast icon is based on the rate of change of barometric pressure. Please
allow at least one month
for the weather station to learn the barometric pressure
over time.
Sunny
Partly Cloudy
Cloudy
Description
Low
Low
Low
Moderate
Moderate
High
High
high
Very high
Very high
Very high
Extreme
Extreme
Extreme
Extreme
Extreme
The seven weather icons are Sunny, Partly Cloudy, Cloudy, Rainy, Stormy,
The forecast icon is based on the rate of change of barometric pressure. Please
for the weather station to learn the barometric pressure
Cloudy
87
5.4 Lightning Alert
The lightning icon
will appear if the Dew Point exceeds 70
means there is a chance of lightning storms forming.
5.5 Weather Forecasting Description and
Limitations
In general, if the rate of change of pressure increases, the weather is
generally improving (sunny to partly cloudy). If the rate of change of
pressure decreases, the weather is generally degrading (cloudy, rainy or
stormy). If the rate of chan
ge is relatively steady, it will read partly cloudy.

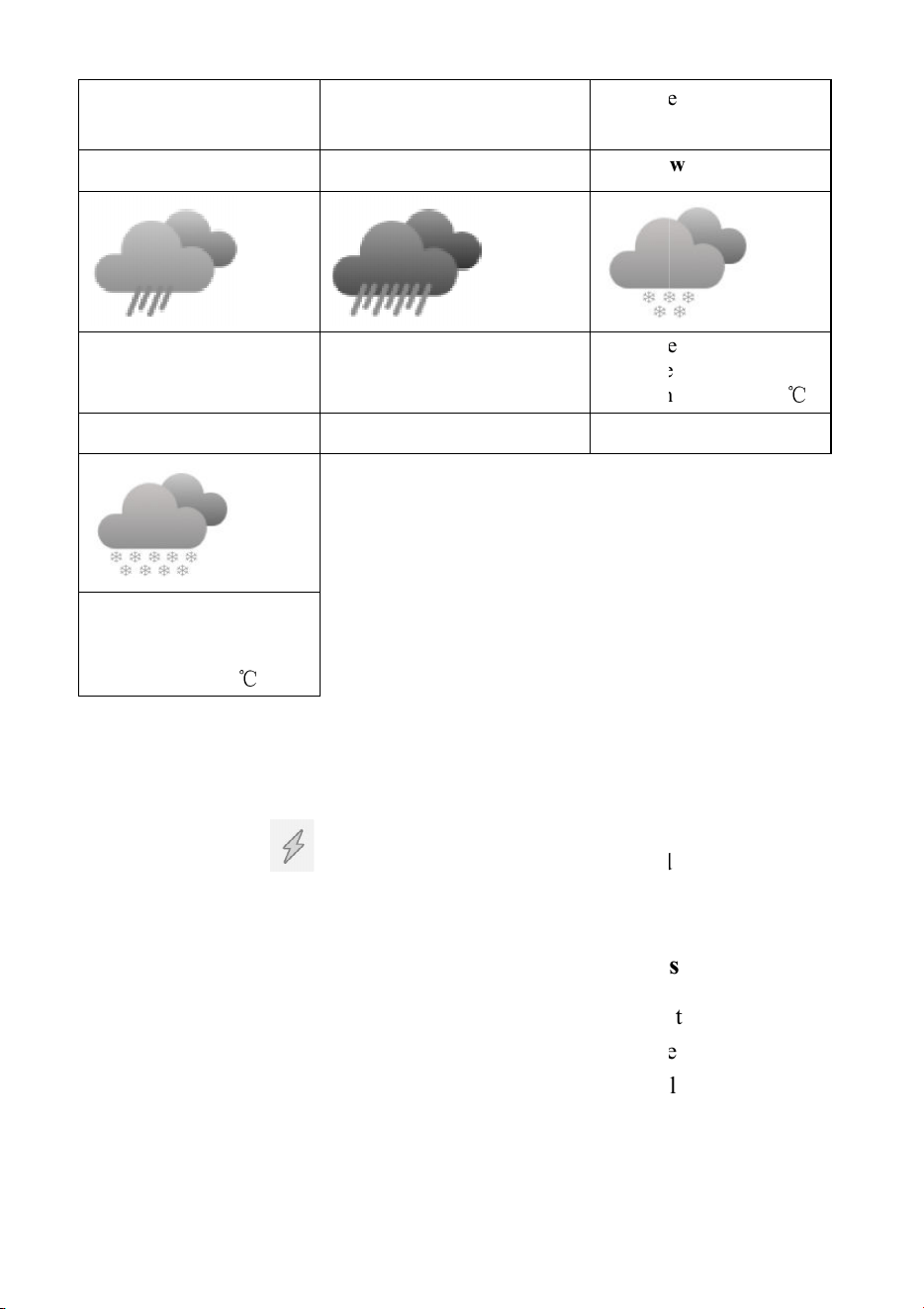

Pressure increases for a
sustained period of time
Pressure increases slightly
or initial power up
Pressure
slightly
Rainy
Stormy
Snowy
Pressure decreases for a
sustained period of time
Pressure rapidly
decreases
Pressure decreases for a
sustained period of time
and temperature
Storm Snowy
Pressure rapidly
decreases
,
and
temperature ≤0
℃
will appear if the Dew Point exceeds 70
F. This
Limitations
In general, if the rate of change of pressure increases, the weather is
generally improving (sunny to partly cloudy). If the rate of change of
pressure decreases, the weather is generally degrading (cloudy, rainy or
ge is relatively steady, it will read partly cloudy.
Pressure
decreases
Snowy
Pressure decreases for a
sustained period of time
,
and temperature
≤0
℃
88
The reason the current conditions do not match the forecast icon is because
the forecast is a prediction 24-
48 hours in advance. In most locations, this
prediction is only 70% accurate and it is a good
idea to consult the National
Weather Service for more accurate weather forecasts. In some locations, this
prediction may be less or more accurate. However, it is still an interesting
educational tool for learning why the weather changes.
The National Weat
her Service (and other weather services such as
Accuweather and The Weather Channel) have many tools at their disposal to
predict weather conditions, including weather radar, weather models, and
detailed mapping of ground conditions.

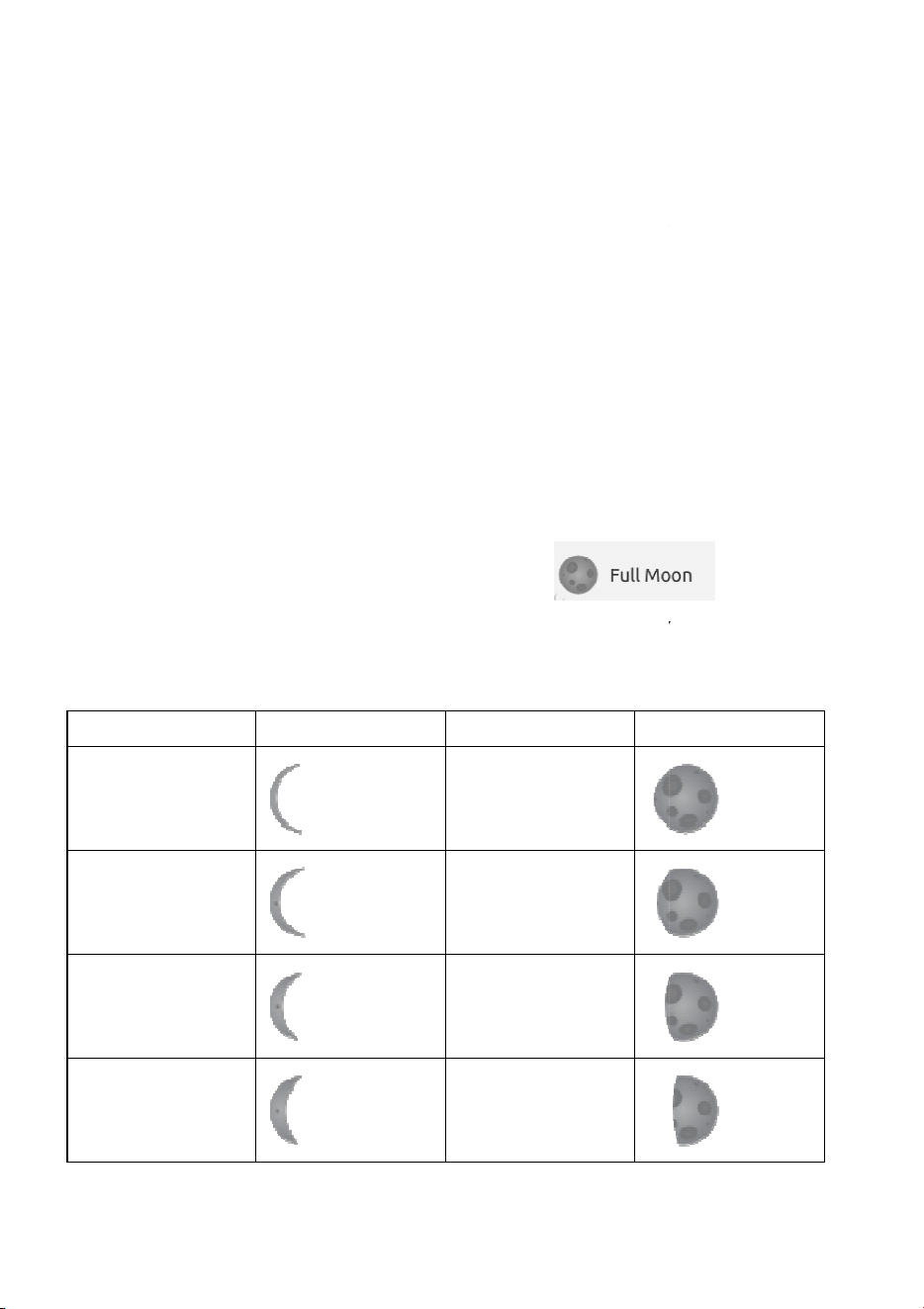

5.6 Moon Phase
In the event the moon phase is 100%, the icon
in its place. In the event of 0%, the word “New Moon” will appear in its
place.
Moon Phase Image Moon Phase
Day 1
Day 14
Day 2
Day 15
Day 3
Day 16
Day 4
Day 17
The reason the current conditions do not match the forecast icon is because
48 hours in advance. In most locations, this
idea to consult the National
Weather Service for more accurate weather forecasts. In some locations, this
prediction may be less or more accurate. However, it is still an interesting
her Service (and other weather services such as
Accuweather and The Weather Channel) have many tools at their disposal to
predict weather conditions, including weather radar, weather models, and
will appear
in its place. In the event of 0%, the word “New Moon” will appear in its
89

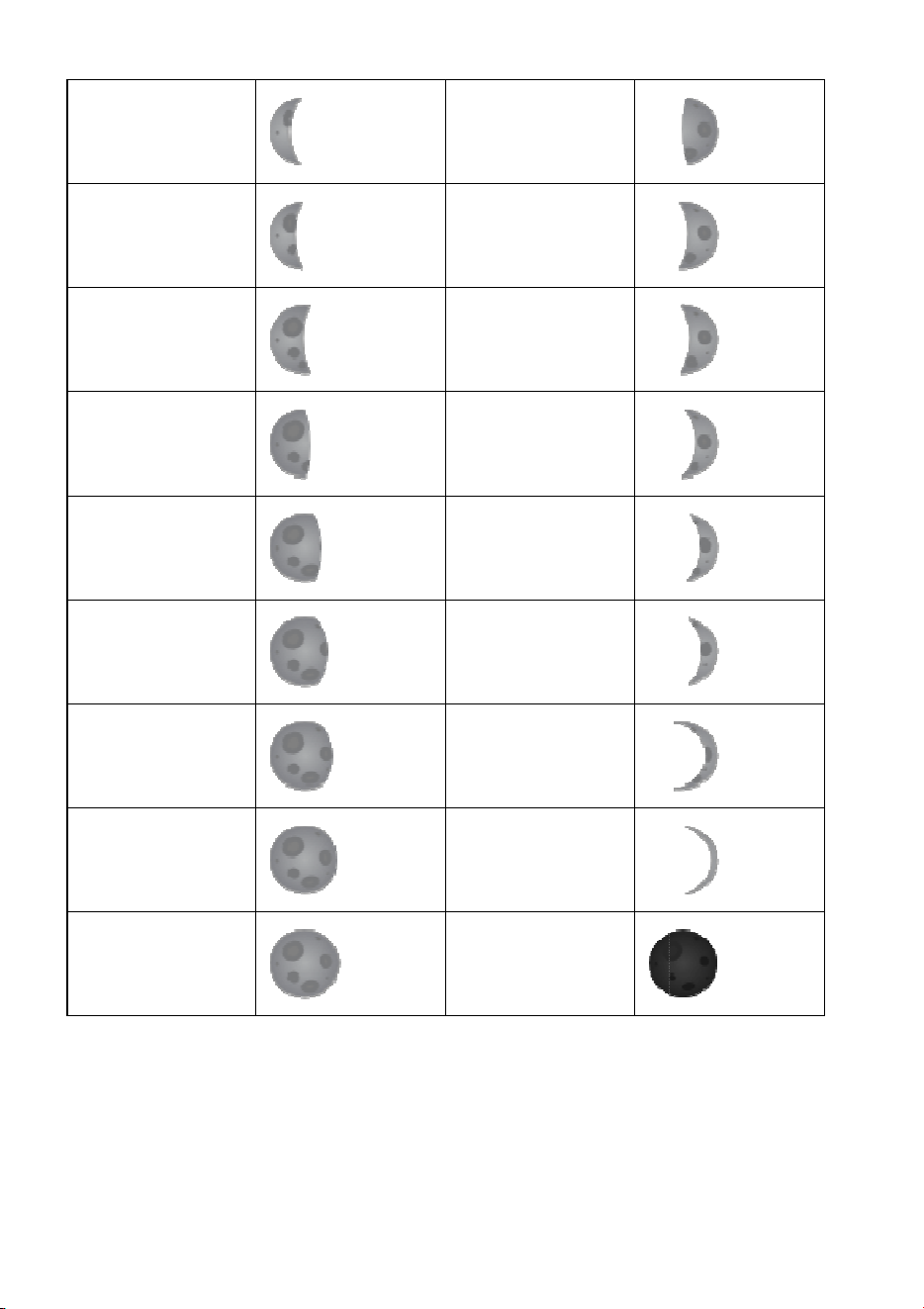

Day 5
Day 18
Day 6
Day 19
Day 7
Day 20
Day 8
Day 21
Day 9
Day 22
Day 10
Day 23
Day 11
Day 24
Day 12
Day 25
Day 13
Full Moon
Day 26
New Moon
90
6 Maintenance
The following steps should be taken for proper maintenance of your station
Clean Rain Gauge
Check the rain gauge every 3 months. Rotate the funnel counterclockwise
and lift it up. Clean the funnel and bucket with a damp cloth to remove any
dirt, debris and insects. Spray the array lightly with insecticide, if there’s a
bug infestation.
Figure 5: Rain gauge maintenance
91
Clean solar radiation sensor and solar panel
The solar radiation sensor and solar panel of the outdoor sensor array need
to be cleaned with a non-abrasive slightly damp cloth every 3 months.
Replacing batteries regularly
Batteries of the outdoor sensor array should be replaced every 1-2 years. In
applications where data dropouts cannot be tolerated, check the batteries
every 3 months and apply a corrosion preventing compound (not included)
on the battery terminals for protection.
Prevent snow build up
In snowy environments, use anti-icing silicon spray on the top of the
weather station, and rain collection top, to prevent snow build up.
Rain Gauge Accuracy Cross Check
To tell if the rain gauge is accurate or not, it is not correct to compare to a
rain meter nearby around. Because it is not necessary having a same rain
intensity, even I they are not far from each other. To judge if your rain meter
is correct or not, you may do the following:
1. Use a narrowed neck bottle that can sit under the rain gauge water
outlet holes. Collect the water during a rain event and measure its
weight. E.g. 353 g.
2. 353 g equals 353 ml, divided by rain collector size of 250 cm2, you get
353/250 = 1.412 cm = 14.1 mm.
3. Compare the rain readings from your gateway to your local rain event
reading, or a reading from a calibrated manual gauge, to see if they are
matching or not.
4. Since there may be some water left in the tip bucket, and also some on
the rain collector itself, the observed rain is normally slightly less than
the actual rainfall, but his is normally within 5%. If the deviation is
larger than this, then you can change rain calibration settings
accordingly, or contact the customer service for replacement.
92
7 Troubleshooting Guide
Look through the following table and locate an issue or problem you are
experiencing in the left column and read possible solutions in the right
column.
Problem Solution
Wireless remote (thermo-
hygrometer) not reporting
in to console.
There are dashes on the
display console.
The maximum line of sight communication range
is about 600’. Move the sensor assembly closer to
the display console.
Resynchronize the remote sensor(s).
Install a fresh set of batteries in the remote
sensor(s).
Make sure the remote sensors are not transmitting
through solid metal (acts as an RF shield), or earth
barrier (down a hill).
Radio Frequency (RF) Sensors cannot transmit
through metal barriers (example, aluminum siding)
or multiple, thick walls.
Move the display console around electrical noise
generating devices, such as computers, TVs and
other wireless transmitters or receivers.
Outdoor sensor does not
communicate to the
display console.
The sensor may have initiated properly and the
data is registered by the console as invalid, and the
console must be reset. Press the reset button as
described in Section Installation.
With an open ended paperclip, press the reset
button for 3 seconds to completely discharge the
voltage.
Take out the batteries and wait one minute, while
covering the solar panel to drain the voltage.
Put batteries back in and resync with console by
powering down and up the console with the sensor
array about 10 feet away.
93
Problem Solution
Bring the sensor array inside the house (you can
disconnect it from the rest of the sensors). The
LED next to the battery compartment will flash
according to the reporting time on the
specifications. If the LED is not flashing as
that…
Replace the batteries in the sensor.
If the batteries were recently replaced, check the
polarity. If the sensor is flashing normally, proceed
to the next step.
There may be a temporary loss of communication
due to reception loss related to interference or
other location factors,
or the batteries may have been changed in the
sensor and the console has not been reset. The
solution may be as simple as powering down and
up the console.
Replace the batteries in the sensor.
With the sensor and console 10 feet away from
each other, remove AC power from the display
console and
wait 10 seconds. Re
-
connect power.
Temperature sensor reads
too high in the day time.
Make certain that the sensor is not too close to heat
generating sources or strictures, such as buildings,
pavement, walls or air conditioning units.
Use the calibration feature to offset installation
issues related to radiant heat sources.
Absolute pressure does
not agree with official
reporting station
You may be viewing the relative pressure, not the
absolute pressure.
Select the absolute pressure. Make sure you
properly calibrate the sensor to an official local
weather station. Reference Section 4.9.19 for
details.
Rain gauge reports rain
when it is not raining
An unstable mounting solution (sway in the
mounting pole) may result in the tipping bucket
incorrectly i
ncrementing rainfall. Make sure you
94
Problem Solution
have a stable, level mounting solution.
Data not reporting to
Wunderground.com
1.
Confirm your password is correct. It is the
password you registered on
Wunderground.com.
Your Wunderground.com
password cannot begin with a
alphanumeric character (a limitation of
Wundeground.com, not the station). Example,
$oewkrf is not a valid password, but oewkrf$ is
valid.
2.
Confirm your station ID is correct.
ID is all caps, and the most common issue is
substituting an O fo
r a 0 (or visa versa).
Example, KAZPHOEN11, not KAZPH0EN11
3. If there's a number “1" on the
station
try to input the
lower case of letter
replace it.
4.
Make sure the date and time is correct on the
console. If incorrect, you may be reporting old
data, not real time data.
5.
Make sure your time zone is set properly. If
incorrect, you may be reporting old data, not
real time data.
6.
Check your router firewall settings. The
console sends data via Port 80.
No WiFi connection
1. Check for WiFi
signal strength symbol on the
display .
If wireless connectivity is
successful and reporting to
Wunderground.com, the WiFi icon
be displayed the home page.
2.
Make sure your modem WiFi
correct (network name, password and security
settings).
have a stable, level mounting solution.
Confirm your password is correct. It is the
password you registered on
Your Wunderground.com
password cannot begin with a
non-
alphanumeric character (a limitation of
Wundeground.com, not the station). Example,
$oewkrf is not a valid password, but oewkrf$ is
Confirm your station ID is correct.
The station
ID is all caps, and the most common issue is
r a 0 (or visa versa).
Example, KAZPHOEN11, not KAZPH0EN11
station
key,
lower case of letter
“L” to
Make sure the date and time is correct on the
console. If incorrect, you may be reporting old
Make sure your time zone is set properly. If
incorrect, you may be reporting old data, not
Check your router firewall settings. The
signal strength symbol on the
If wireless connectivity is
Wunderground.com, the WiFi icon
will
Make sure your modem WiFi
settings are
correct (network name, password and security
95
8 Specifications
Note: Out of range values will be displayed using “---”
Outdoor sensor Specification
Transmission distance in
open field
200 m (600 ft.)
RF Frequency 433/ 868/ 915MHz depending on location
Temperature range -40°C – 60°C (-40°F - 140°F)
Temperature accuracy ± 1°C, or ± 2°F
Temperature resolution 0.1°C, or 0.1°F
Humidity range 1% ~ 99%
Humidity accuracy ±4%
Humidity resolution 1%
Rain volume display range 0 – 6000 mm
Rain volume accuracy ± 5%
Rain volume resolution 0.1mm/0.01inch
Wind speed range 0 – 40 m/s (0 ~ 89mph)
Wind speed accuracy <10m/s, +/-0.5m/s
≥10m/s, +/-5%
Wind direction accuracy <10m/s, ±10°
≥10m/s, ±15°
UV-Index range 0 - 15
Light range 0 – 120 kLux
Light accuracy ± 15%
Sensor reporting interval Anemometer sensor : 4.8s
(wind speed sampling:
4s when less than 3m/s;
2s when wind speed > 3m/s but < 5m/s
1s when wind speed > 5m/s )
rain gauge sensor: 49s
Table 7: Outdoor sensor specification
96
Note:
• When the maximum wind speed of the last 4s is >=5m/s, the wind speed is
detected by 1s; when the maximum wind speed of the last 4s is >=3m/s and
less than 5m/s, the wind speed is detected by every 2s; when the maximum
wind speed of the last 4s is less than 3m/ s, the wind speed is detected by
every 4s for saving energy.
• The wind speed reading will be a real-time value (The latest sampling data
will be reporting to the receiver).
• The wind gust reading will be the max wind speed in the past 28s.
• When the wind speed is lower than 5m/s, the dispersion of wind direction
will increase.
Indoor sensor Specification
Temperature range -10°C – 60°C (14°F - 140°F)
Temperature resolution 0.1°C, or 0.1°F
Humidity range 10% ~ 99%
Humidity resolution 1%
Barometric pressure range 300 – 1,100 hPa (8.85 – 32.5 inHg)
Barometric pressure accuracy ± 3 hPa in 700 – 1,100 hPa range
Barometric pressure resolution 0.1 hPa (0.01 inHg)
Sensor reporting interval 60 seconds
Alarm Duration 120 seconds
Table 8: Indoor sensor specification
Power Specification
Base station/console 5V DC Adapter (included)
Indoor sensor 2 x AA 1.5 Alkaline batteries (not included)
Rain gauge sensor 1 x AA 1.5V LR6 Alkaline (not included), or
1 x AA 1.5V Lithium battery (not included)
Anemometer sensor Solar panel (built-in): 6.5V/4mA
Anemometer sensor
(backup)
2 x AA 1.5V Lithium battery (not included)
97
Table 9: Power specification
Note: The primary power source for the outdoor sensor is the solar panel.
When available solar power (light over recent period) is insufficient, the
batteries will be used. In outdoor climates that frequently have sustained
temperatures below 0°C (or 32°F) the use of Lithium batteries is strongly
suggested as these are performing better than Alkaline batteries under such
circumstances.
