User Manual
Refrigerator-Freezer
HRF57
5XHC
HRF575XHS
HRF575XC
HRF575XS
Thank You
2
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions contain
important information which will help you get the best out of the appliance and ensure safe
and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper
use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure you
also pass this manual so that the new owner can become familiar with the appliance and safty
warnings.
Legend
Warning – Important Safety information
General information and tips
Environmental information
Disposal
Help protect the environment and human health. Put
the packaging in applicable containers to recycle it.
Help to recycle waste of electrical and electronic appli-
ances.marked with this symbol with the household
waste. Return the product to your local recycling facility
or contact your municipal office.
Risk of injury or suffocation!
Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the
refrigerant circuit is not damaged before being properly disposed of. Disconnect the
appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the
trays and drawers as well as the door catch and seals, to prevent children and pets to get
closed in the appliance.
The symbol indicates there is a risk of fire since flamma-ble materials are
used. Take care to avoid causing a fire by igniting flammable material.
Accessories
Check the accessories and literature in accordance with this list:
User manual*1
Warranty car
d*1
Safety information .............................................................................................................................. 4
Intended use ......................................................................................................................................... 9
Product description ..........................................................................................................................10
Use ........................................................................................................................................................11
Equipment ..........................................................................................................................................21
Care and cleaning ..............................................................................................................................23
Troubleshooting ................................................................................................................................26
Installation ...........................................................................................................................................30
Technical data ....................................................................................................................................34
Content
3
Egg tray*2
Ice shovel*1
Spacer*3
Safety information
4
Before switching on the appliance for the first time read the following safety hints!
Before first use
Make sure there is no transport damage.
Remove all packaging and keep out of children´s reach.
Wait at least two hours before installing the appliance in order to ensure the
refrigerant circuit is fully efficient.
Handle the appliance always with at least two persons because it is heavy.
Installation
The appliance should be placed in a well-ventilated place. Ensure a space of at
least 2 cm above and around the appliance.
Never place the appliance in a damp area or location where it might be splashed
with water. Clean and dry water splashes and stains with a soft clean cloth.
Do not install the appliance in direct sunlight or in the near of heat sources(e.g.
stoves, heaters).
Install and level the appliance in an area suitable for its size and use.
WARNING:Keep ventilation openings in the appliance or in the in-built structure
clear of obstruction.
Make sure that the electrical information on the rating plate agrees with the power
supply. If it does not, contact an electrician.
Connect the appliance to the electrical supply （220V-240V 50Hz) with the fitted
plug and lead .
Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to
the temperature control or compressor, or there may be an abnormal noise when
operating. In such case, an automatic regulator shall be mounted.
Do not use multi-plug adapters and extension cables.
WARNING:Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the appliance.
WARNING:When positioning the appliance, ensure the supply cord is not trapped
or damaged.
Safety information
5
Use a separate earthed socket for the power supply which is easy accessible.
The appliance must be earthed.
WARNING:Do not damage the refrigerant circuit.
Daily use
This appliance is not intended for use by persons (including children) with
reduced physical,sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children aged from 3 to 8 years are allowed to load and unload, but not allowed
to clean or install the refrigerating appliances.
Keep away children under 3 years of age from the appliance unless they are
constantly supervised.
Children should be supervised to ensure that they do not play with the appli-
ance.
If cool gas or other inflammable gas is leaking in the vicinity of the appliance,
turn off the valve of the leaking gas, open the doors and windows and do not
unplug a plug in the power cable of the refrigerator or any other appliance.
Notice that the appliance is set for operation at a specific ambient range
between 16 and 38℃. The appliance may not work properly if it is left for a long
period at a temperature above or below the indicated range.
Do not place unstable articles (heavy objects, containers filled with water) on
top of the refrigerator, to avoid personal injury caused by falling or electric shock
caused by contact with water.
Do not pull on the door shelves. The door may be pulled slant, the bottle rack,
may be pulled away, or the appliance may topple.
Open and close the doors only with the handles. The gap between the doors
and between the doors and the cabinet is very narrow.
Do not extend your hands in these areas to avoid pinching your fingers. Open or
close the refrigerator doors only when there are no children standing within the
range of door movement.
Do not store or use inflammable, explosive or corrosive materials in the appli-
ance or in the vicinity.
Safety information
6
Do not store explosive substances such as aerosol cans with a flamma-ble
propellant in this appliance.
Do not store medicines, bacteria or chemical agents in the appliance. This
appliance is a household appliance. It is not recommended to store materials
that require strict temperatures.
Never store liquids in bottles or cans (besides high percentage spirits) especially
carbonated beverages in the freezer, as these will burst during freezing.
Check the condition of food if a warming in the freezer has taken place. Do not
set unnecessarily low temperature in the refrigerator compart-ment. Minus
temperatures may occur at high settings.
Attention: Bottles can burst
Do not touch frozen goods with wet hands (wear gloves).
Especially do not eat ice lollies immediately after removal from the freezer
compartment. There is the risk to freeze or the formation of frost blisters. FIRST
aid: keep immediately under running cold water. Do not pull away!
Do not touch the inside surface of the freezer storage compartment when in
operation, especially with wet hands, as your hands may freeze onto the surface.
Unplug the appliance in the event of a power interruption or before cleaning.
Allow at least 5 minutes before restarting the appliance, as frequent starting may
damage the compressor.
WARNING: Do not use electrical devices inside the food storage com-partments
of the appliance, unless they are of the type recommended by the manufacturer.

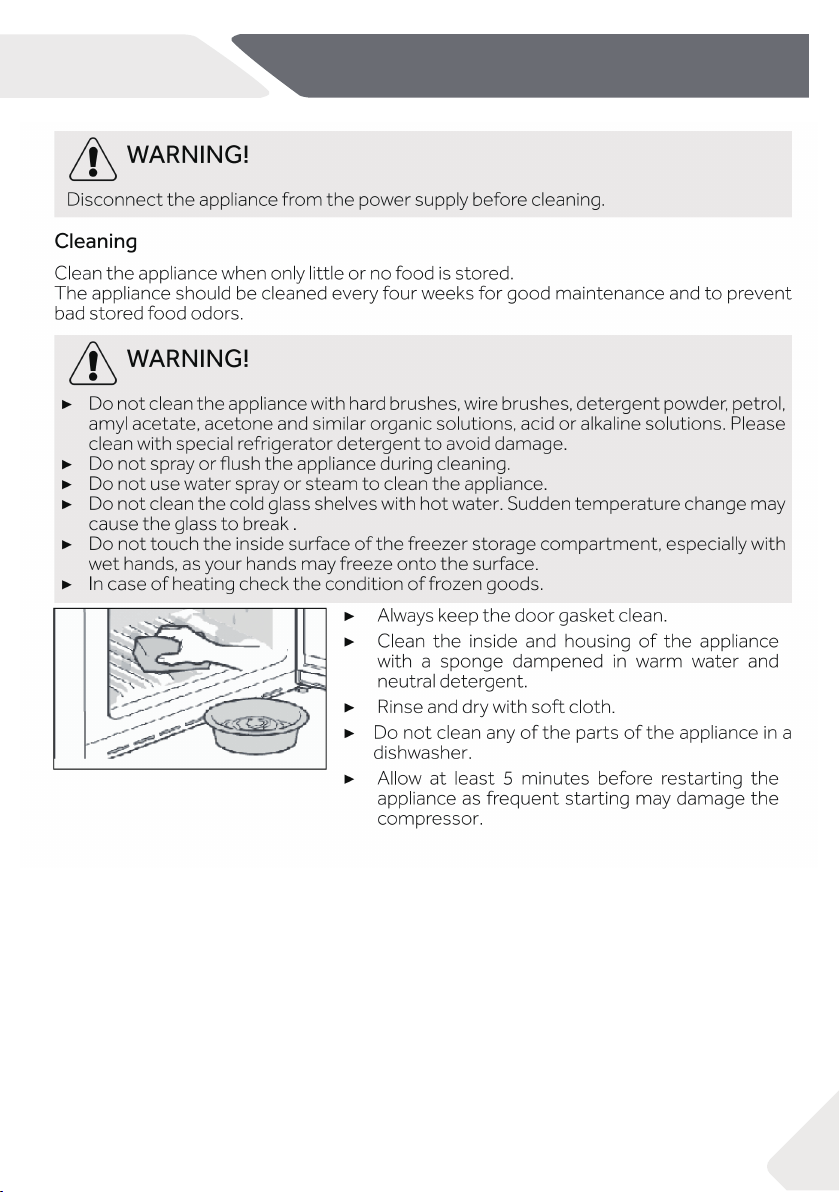

Maintenance / cleaning
Make sure children are supervised if they carry out cleaning and main-tenance.
Disconnect the appliance from the electrical supply before undertaking any
routine maintenance. Allow at least 5 minutes before restarting the appliance, as
frequent starting may damage the com-pressor.
7
Safety information
Hold the plug, not the cable, when unplugging the appliance.
Do not clean the appliance with hard brushes, wire brushes, detergent powder,
petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline
solutions. Please clean with special refrigerator detergent to avoid damage.
Do not scrape off frost and ice with sharp objects. Do not use sprays, electric
heaters like heater, hair dryer, steam cleaners or other sources of heat in order to
avoid damage to the plastic parts.
WARNING:Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer. If the
supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard. Do not try
to repair, disassemble or modify the appliance by yourself.
In case of repair please contact our customer service.
Eliminate the dust on the back of the unit at least once in the year to avoid hazard
by fire, as well as increased energy consumption.
Do not spray or flush the appliance during cleaning.
Do not use water spray or steam to clean the appliance.
Do not clean the cold glass shelves with hot water. Sudden temperature change
may cause the glass to break.
Refrigerant gas information
The appliance contains the flammable refrigerant ISOBUTANE(R600a). Make sure
the refrigerant circuit is not damaged during transportation or installation. Leaking
refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away
open fire sources, throughly ventilate the room, do not plug or unplug the power
cords of the appliance or any other appli-ance.Inform the customer service. In case
of eyes get into contact
with the refrigerant, rinse immediately it under running water and call imme -diately
the eye specialist.
Safety information
8
This product contains flammable refrigerant isobutane (R600a).
It is hazardous for anyone other than an Authorised Service Person to service this
appliance. In Queensland – the authorized Service Person MUST hold a Gas Work
Authorisation for hydrocarbon refrigerants, to carry out Servicing or repairs which
involve the removal of covers .
Intended use
9
Intended use
This appliance is intended to be used in household and similar applic-
ations such as
-staff kitchen areas in shops, offices and other working environments;
-farm houses and by clients in hotels, motels and other residential type
environments;
-bed and breakfast type environments;
-catering and similar non-retail applications;
Changes or modifications to the device are not allowed. Unintended
use may cause hazards and loss of warranty claims.

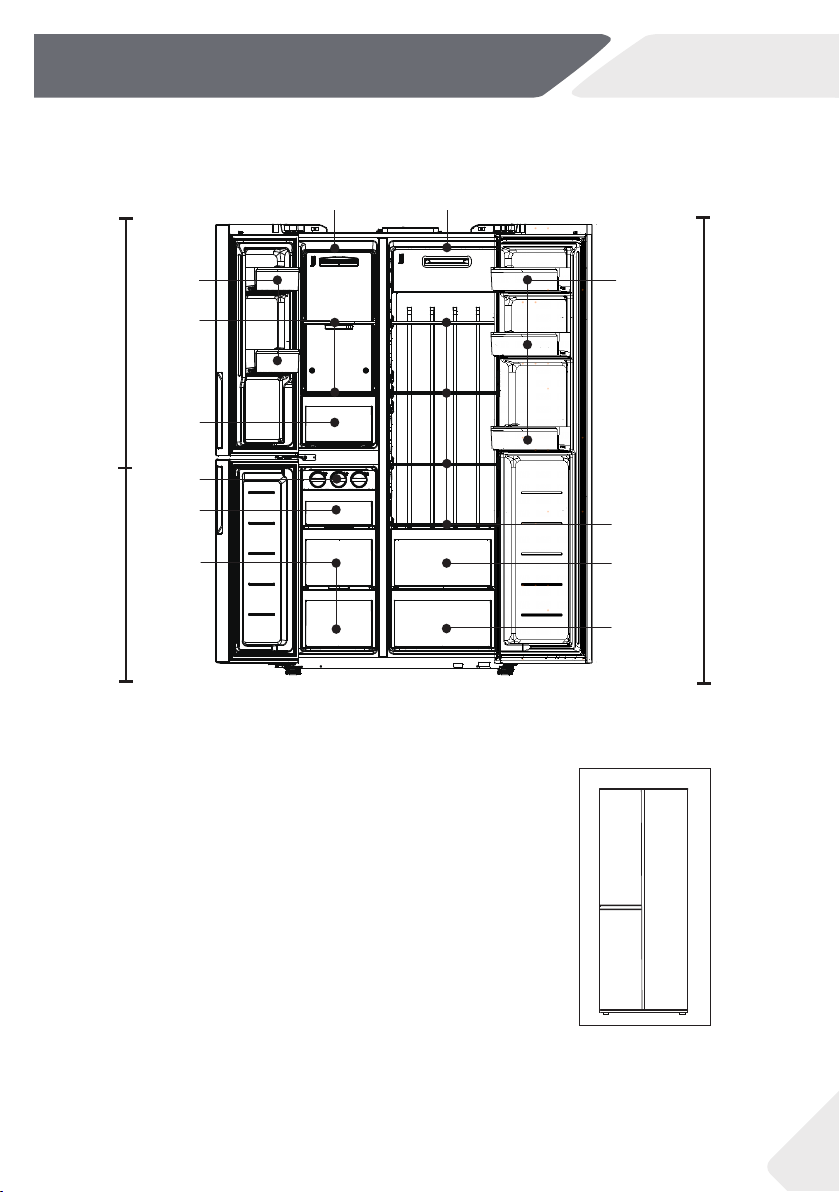

Product description
10
B
A
9
1
2
3
7
8
5
4
6
13
12
10
Due to technical changes and different models,the illustrations in this chapter may differ
(HRF575XHC/HRF575XHS)
11
14
A: Switch Zone Compartment
1 Ceiling Lamp
2 Door shelf
3 Cabinet Shelves
4 Switch Zone Storage Drawer
B: Freezer Compartment
5 Ice Maker
6 Ice Storage Bin
7 Storage Drawers
C: Fridge Compartment
8 Ceiling Lamp
9 Door shelf
10 Water Tank
11 Door shelf
12 Cabinet Shelves
13 Humidity Zone Drawer
14 Storage Drawer
15 Water dispenser
C
Product description
B
A
1
2
3
7
8
5
4
6
Due to technical changes and different models,the illustrations in this chapter may differ
(HRF575XC/HRF575XS)
A: Switch Zone Compartment
1 Ceiling Lamp
2 Door shelf
3 Cabinet Shelves
4 Switch Zone Storage Drawer
B: Freezer Compartment
5 Ice Maker
6 Ice Storage Bin
7 Storage Drawers
C: Fridge Compartment
8 Ceiling Lamp
9 Door shelf
10 Cabinet Shelves
11 Humidity Zone Drawer
12 Storage Drawer
C
11
9
11
10
12
Use
Remove all packaging materials, keep them out of children`s reach and
dispose them in an environmentally friendly manner.
Clean the inside and outside of the appliance with water and a mild detergent
before putting any food in it.
After the appliance has been levelled and cleaned, wait for at least 2 hours
before connecting it to the power supply. See Section INSTALLATION.
Pecool the compartments at high settings before loading with food. The function
Super Cool and Super Freeze helps to cool down the compartments quickly.
Sensor keys
The buttons on the control panel are sensor keys, which already respond when lightly
touched with the finger.
Control panel
Indicators:
A Fridge Compartment
B Switch Zone
C Freezer Compartment
D Temperature Display
E Super Cool Function
F Super Freeze Function
G Holiday Mode
H
Auto Set Mode
I Panel Lock
Buttons:
J Temperature Control “-”
K Compartment Selection
L Temperature Control “+”
M Super Cool Function Selector
N Super Freeze Function Selector
O Holiday Mode Selector
P Auto Set Mode Selector
Q Panel Lock Selector
A
C
B
D
E
F
G
H
I
J
L
K
M
N
O
P
Q
Use a separate earthed socket for the power supply which is easy accessible.
The appliance must be earthed.
WARNING:Do not damage the refrigerant circuit.
Daily use
This appliance is not intended for use by persons (including children) with
reduced physical,sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children aged from 3 to 8 years are allowed to load and unload, but not allowed
to clean or install the refrigerating appliances.
Keep away children under 3 years of age from the appliance unless they are
constantly supervised.
Children should be supervised to ensure that they do not play with the appli-
ance.
If cool gas or other inflammable gas is leaking in the vicinity of the appliance,
turn off the valve of the leaking gas, open the doors and windows and do not
unplug a plug in the power cable of the refrigerator or any other appliance.
Notice that the appliance is set for operation at a specific ambient range
between 16 and 38℃. The appliance may not work properly if it is left for a long
period at a temperature above or below the indicated range.
Do not place unstable articles (heavy objects, containers filled with water) on
top of the refrigerator, to avoid personal injury caused by falling or electric shock
caused by contact with water.
Do not pull on the door shelves. The door may be pulled slant, the bottle rack,
may be pulled away, or the appliance may topple.
Open and close the doors only with the handles. The gap between the doors
and between the doors and the cabinet is very narrow.
Do not extend your hands in these areas to avoid pinching your fingers. Open or
close the refrigerator doors only when there are no children standing within the
range of door movement.
Do not store or use inflammable, explosive or corrosive materials in the appli-
ance or in the vicinity.
Fridge
S-Zone Freezer
12
Use
Notice
The control panel is automatically blocked against
activation if 30 seconds no button is pressed. For any
settings the control panel must be unlocked.
Lock/unlock panel
Switch on /off the appliance
The appliance is in operation as soon as it is connected to the power supply.
When the refrigerator is powered on for the first time, the display panel is active, the
temperature of the fridge compartment is 5 °C, the temperature of the switch zone
compartment is -18 °C, and the temperature of the freezer compartment is - 18 °C.
Empty the appliance before switching off.To switch off the appliance,pull the power cord out
of the power socket.
Standby-mode
The display screen turns off automatically 30 seconds after pressing a key or if one of the
doors is open longer than 30 seconds. The display will be automatically locked. It lights up
automatically when pressing any key or opening one of the doors.
Door opening alarm
When the fridge compartment or Switch Zone compartment door is opened for more
than 3 minutes,the door opening alarm will sound.The alarm can be silenced by closing
the door. If the door is left open for more than 7 minutes,the light inside the compartment
will automatically switch off.
Select the working mode
You may need to select one of the following two ways to set the appliance:
1) Auto Set mode
Under Auto Set mode, the appliance can automatically adjust the temperature setting
according to the ambient temperature and temperature change in the appliance.
Notice
When the appliance is switched on after disconnection from the main power supply, it
may take up to 12 hours for the correct temperatures to be reached.
13
Touch button “Q” for 3 seconds to block all panel
elements against activation. An acoustic signal
sounds .The related indicator “I” is now displayed
and the lightening of the panel is switched off. The
icon flashes if a button is pressed, when the panel
lock is activated. The change is not running.
For unlocking press again the button.
Use
Ambient temperature
Frequency of door opening
Amount of stored foods
Installation of the appliance
If you do not have any special requirements, we recommend that you use Auto
Set Mode (refer to Auto Set FUNCTION).
2) Manual adjusting mode:
If you want to manually adjust the temperature of the appliance in order to store a par
ticular food, you can set the temperature via a temperature adjusting button (refer to
ADJUST THE TEMPERATURE).
Adjust the temperature
The indoor temperatures are influenced by the following factors.
Adjust the temperature for fridge
Unlock the settings by long pressing button “Q” for 3 seconds.
Under unlock state, press button “K” (Temperature zone
selector) to toggle across compartments. When indicator
“A” (Fridge compartment indicator) lights up, press button “J”
(Temperature control “-”) or button “L” (Temperature control
“+”) to adjust the fridge compartment temperature. Value
displayed on indicator “D” decreases by 1 ℃when button “J” is
pressed each time. The display flashes and turns solid with the
set temperature, then goes off after 5 seconds.
Accordingly,value displayed on indicator “D” increases by
1 °C when button “L” is pressed each time. The display
flashes and turns solid with the set temperature, then goes
off after 5 seconds. Fridge compartment temperature can be
adjusted from 1 ℃ to 9 ℃ with 1 ℃ incremental.
Adjust the temperature for Freezer
Unlock the settings by long pressing button “Q” for 3
seconds.Under unlock state, press button “K” (Tempe-
rature zone selector) to toggle across compartments. When
indicator “C” (Freezer Compartment indicator) lights up,
press button “J” (Temperature control “-”) or button
“L”(Temperature control “+”) to adjust Freezer
compartment temperature.
Notice
Fridge temperature cannot be adjusted under Super Cool,Holiday and lock state.
14
Use
Value displayed on indicator “D” decreases by 1 ℃ when button
“J” is pressed each time. The display flahes and turns solid with
the set temperature, then goes off after 5 seconds.
Accordingly, value displayed on indicator “D” increases by 1 ℃
when button “L” is pressed each time. The display flahes and
turns solid with the set tempera-ture, then goes off after 5
seconds.Freezer compartment temperature can be adjusted
from -14 ℃ to -24 ℃ with 1 ℃ incremental.
Notice
Freezer temperature cannot be adjusted under Super Freeze
and lock state.
Notice
Switch Zone temperature cannot be adjusted under lock state.
Adjust Switch Zone temperature
Unlock the settings by long pressing button “Q” for 3 se-
conds.Under unlock state, press button “K” (Temperature zone
selector) to toggle across compartments.When indicator “B”
(Switch Zone indicator) lights up, press button “J” (Temperatu-
re control “-”) or button “L” (Temperature control “+”) to adjust
Freezer compartment temperature. Value displayed on indicator
“D” decreases by 1 ℃ when button “J” is pressed each time. The
display flashes and turns solid with the set temperature, then
goes off after 5 seconds. Accordingly, value displayed on indica-
tor“D” increases by 1 ℃ when button “L” is pressed each time.
The display flashes and turns solid with the set temperat- ure,
then goes off after 5 seconds.Switch Zone compartment temp-
erature can be adjusted from 5 ℃ to -18 ℃with 1 ℃ incremental.
15
Use

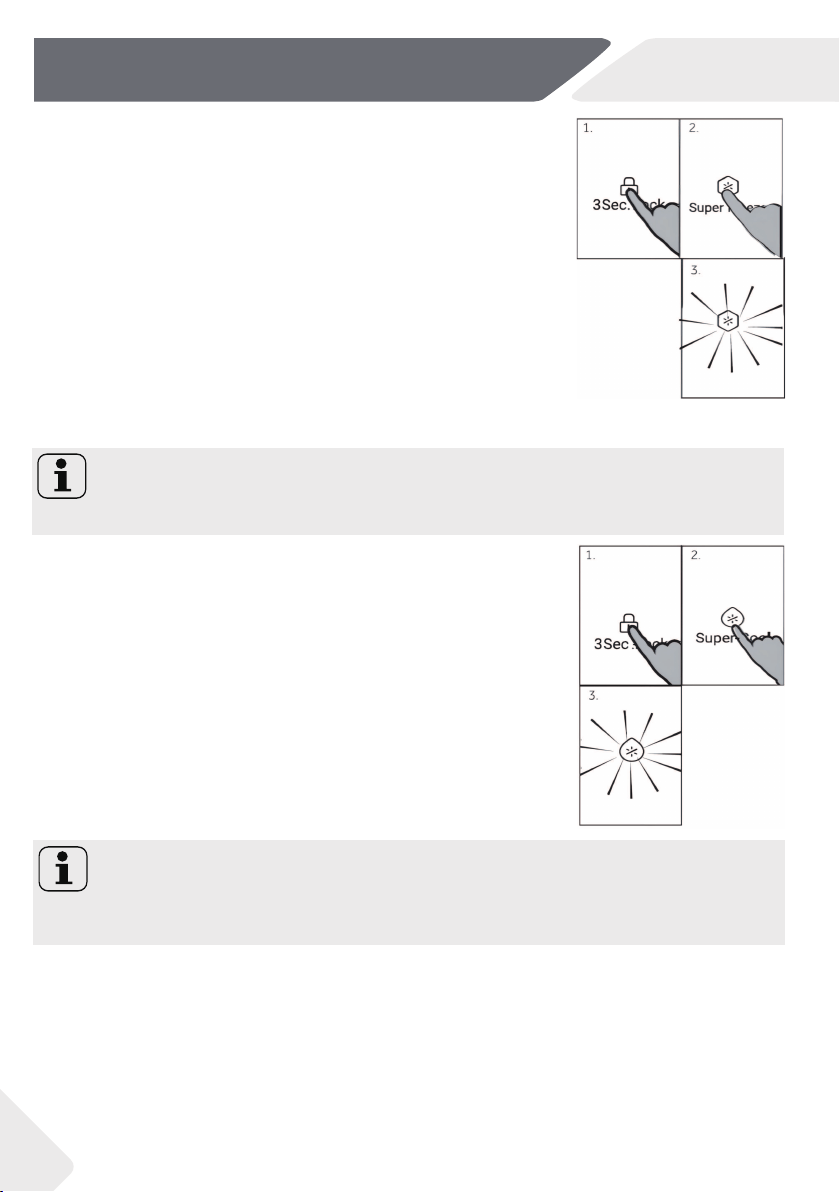

Super Freeze function
Super Freeze function can freeze the fresh food as soon as
possible to the core by accelerating the freezing to preserve
the best nutritional value, appearance and taste of food.
Unlock the settings by long pressing button “Q” for 3 seconds.
Under unlock state, press button “N” (Super Freeze function
selector), indicator “F” (Super Freeze function indicator) lights
up, product enters Super Freeze funtion. Product automatically
exits Super Freeze funtion after 12 hours of activation. For
manually exiting Super Freeze mode, press button “N” (Super
Freeze function selector) under unlock state, indicator
"F" (Super Freeze function indicator) goes off, product exits
Super Freeze mode.
Notice
Freezer temperature cannot be adjusted under Super Freeze and lock state.
Super Cool function
After putting food into fridge compartment, if you want to cool
it down quickly, you can enable the Super Cool function.
Unlock the settings by long pressing button “Q” for 3 seconds.
Under unlock state, press button “M” (Super Cool function
selector), indicator “E” (Super Cool function indicator) lights up,
product enters Super Cool funtion. Product automatically exits
Super Cool mode after 6 hours of activation. For manually
exiting Super Cool funtion, press button “M” (Super Cool
function selector) under unlock state, indicator “E” (Super Cool
function indicator) goes off, product exits Super Cool mode.
Notice
Under Super Cool function,fridge compartment temperature cannot be adjusted.Super
Cool function de-activates automatically when Holiday mode is selected.

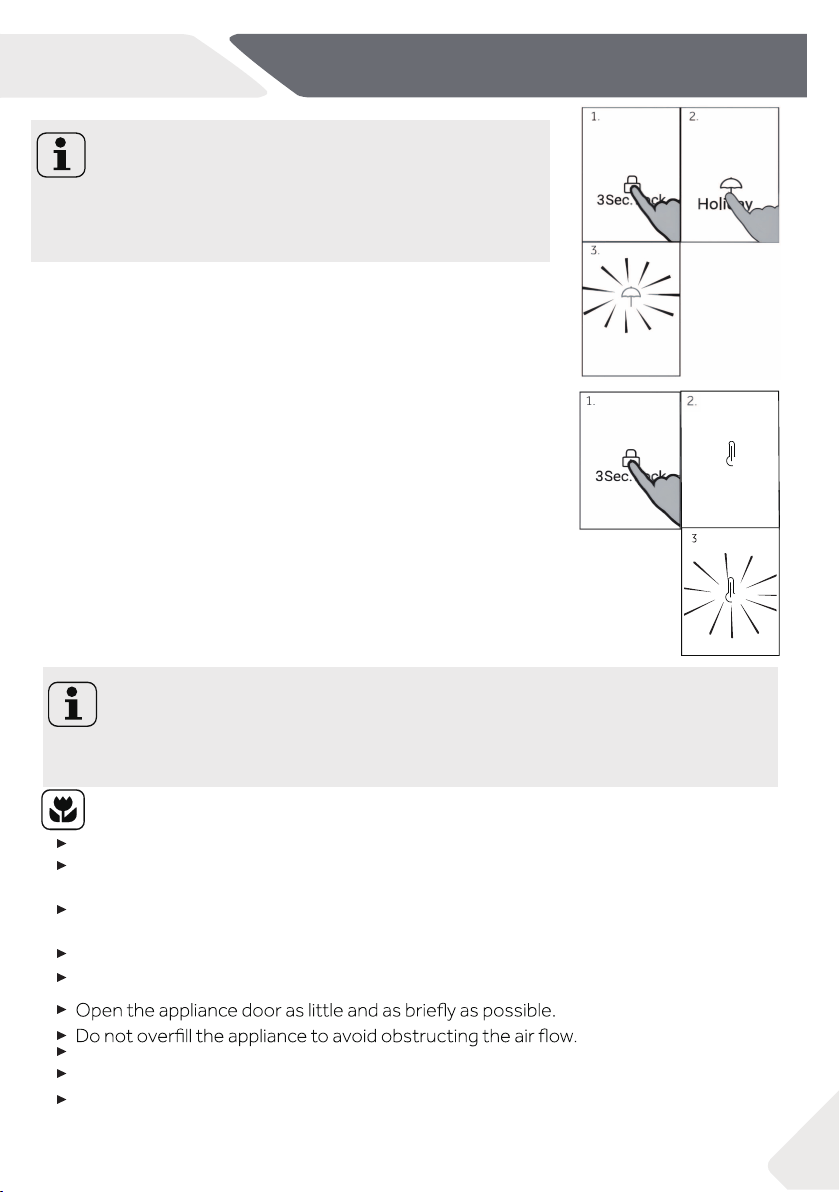

Holiday Mode
Unlock the settings by long pressing button “Q” for 3 seconds. Under unlock state, press
button “O” (Holiday mode selector), indicator “G” (Holiday mode indicator) lights up,
product enters Holiday mode; to exit, press button “O” (Holiday mode selector), indicator
“G” goes off, and the product exits Holiday mode.Under Holiday mode, fridge compartm-
ent automatically sets to 17℃.
16
Use
Notice
Under Holiday mode,fridge compartment temperature
cannot be adjusted. Holiday mode exits automatically when
Super Cool function is activated.
Auto Set Mode
Unlock the settings by long pressing button “Q” for 3 seconds.
Under unlock state, press button “P” (Auto Set mode selector),
indicator “H” (Auto Set mode indicator) lights up, product
enters Auto Set mode; to exit, press button “P” (Auto Set
mode selector), indicator “H” goes off, and the product exits
Auto Set mode.Under Auto Set mode, fridge compartment
automatically sets to 5℃a nd freezer compartment
autmatically sets to -18℃.
A
Auto Set
A
Notice
Under Auto Set mode,fridge compartment temperature and freezer compartment
temperature cannot be adjusted.
Energy saving tips
Make sure the appliance is properly ventilated (see INSTALLATION).
Do not install the appliance in direct sunlight or in the near of heat sources(e.g.
stoves, heaters).
Avoid unnecessarily low temperature in the appliance. The energy consumption in
creases the lower the temperature in the appliance is set.
Functions like Super Cool or Super Frezee consume more energy.
Allow warm food to cool down before placing it in the appliance.
Avoid air within the food packaging.
Keep door seals clean so that the door always closes correctly.
Defreeze frozen food in the fridge storage compartment.
17
1.Place a glass underneath the water outlet.
2.Push it gently against the water dispenser lever with
your glass.
Make sure the glass in line with the dispenser to
prevent the water from splashing out.
3. Water in the tray (B) should be removed in time,as it
could overflow when the door opens and closes.
Use
Water dispenser(HRF575XHC/HRF575XHS)
Putting water into the water tank
B
1
8
With the water dispenser cool drinking water can be tapped.
The water tank should be cleaned before first use(see Care and cleaning).
WARNING!
Use drinking water only.
1.Ensure that the water tank is properly inserted(see
Equipment).
2.Open the cap (A) and pour fresh drinking water into
the water tank.
3.Water poured into the water tank is not allowed to e
-xceed the MAX water level, as it could overflow when
the door opens and closes.
4.Close the cap (A) completely to shut the water tank.
Notice
Before refilling dispose residual water and clean the water tank.
When you don't need water for a long time, please empty the water tank and insert the cle
aned tank.
The cover (C) on the water tank is additionlly used to save energy. If you do not want to get
water from the water dispenser for a long period, please still install the cover because of b
-etter insulating and saving energy.
Getting water from the dispenser
Use
Tips on storing fresh food
Storing into the refrigerator compartment
Keep your fridge temperature below 5°C.
Hot food must be cooled to room temperature before storing in the appliance.
Foods stored in the refrigerator should be washed and dried before storing
Food to be stored should be properly sealed to avoid odour or taste alterations.
Do not store excessive quantities of food. Leave spaces between foods to allow cold
Foods eaten daily should be stored at the front of the shelf.
don’t store foods against the rear wall: foods could freeze against rear wall. Avoid di-
rect contact of food (especially oily or acidic food) with the inner liner, as oil/acid can
erode the inner liner. Clean away oily/acid dirt whenever it is found.
Defreeze frozen food in the fridge storage compartment. This way, you can use the
frozen food to decrease the temperature in the compartment and save energy.
The ageing process of fruit and vegetables such as courgettes, melons, papaya, ba-
nana, pineapple, etc. can be accelerated in the refrigerator. Therefore, it is not advis-
able to store them in the refrigerator. However, the ripening of strongly green fruits
can be promoted for a certain period. Onions, garlic, ginger and other root vegeta-
bles should also be stored at room temperature.
Unpleasant odours inside the fridge are a sign that something has spilled and clean-
ing is required. See CARE AND CLEANING.
Keep the freezer temperature at- 18°C.
24 hours before freezing switch on the Super Freeze function; -for small quantities
of food 4-6 hours are sufficient.
Hot food must be cooled to room temperature before storing in the freezer com-
partment.
1
2
3
4
5
6
7
8
9
10
1.Butter, cheese, etc.
3.Water, etc.
2. Pickled foodscanned food, etc.
4. fruits, vegetables, salad, etc.
5.Drinks and bottled foods. 6. Meat products, snack foods. etc.
Notice
Please keep the distance more than 10mm between the food
placed and air duct or sensors to ensure the cooling effect.
19
Different foods should be placed in different areas according to their properties.
7. Pasta, canned food, milk, tofu, dairy etc.
8. Cooked meat, sauages, etc.
9. Fruits, vegetables, salad, etc.
10. Cans, canned food, spices, etc.
Storage into the freezer compartment
Use
Food cut into small portions will freeze faster and be easier to defrost and cook. The
recommended weight for each portion is less than 2.5 kg
It is better to pack food before putting it into the freezer. The outside of the pack-
aging must be dry to avoid bags sticking together. Packaging materials should be
odour-free, airtight, non-poisonous and nontoxic.
In order to avoid expiration of storage periods, please note the freezing date, time
limit and name of the food on the packaging according to the storage periods of dif-
ferent foods.
WARNING!: Acid, alkali and salt etc. could erode the internal surface of the freezer.
surface. Salt water in the freezer should be cleaned up immediately.
Do not exceed the food storage times recommended by the manufacturers. Only
take the required amount of food out of the freezer.
3
1 Ice maker is used to make ice
2
Ice Storage Bin is used to store ice
Large/heavier portions of food, such as mea
-ts joints for roasting
Storage into the Switch Zone compartment
Switch Zone compartment allows you to adjust the temperature between -18℃
to 5 ℃a ccording to the demand of food storage and provide you with further
flexibility in storage options for your convenience.
20
Different foods should be placed in different areas according to their properties.
Use
When storing commercially frozen foods, please follow these guidelines:
Always follow manufacturers’ guidelines for the length of time you should store food
for. Do not exceed these guidelines!
Try to keep the length of time between purchase and storage as short as possible to
preserve food quality.
Buy frozen foods, which have been stored at a temperature of –18 °C or below.
Avoid buying food which has ice or frost on the packaging – This indicates that the
products might have been partially defrosted and refrozen at some point – temper
Notice
Please
keep the distance
more than 10 mm between the food placed and the sensor
The food with ice (like ice cream etc.) should be stored inside the freezer compart-
ment instead of on the bottle holder, for the temperature changes at bottle holder
caused by door opening and closing may thaw the food
Consume defrosted food quickly. Defrosted food cannot be refrozen unless it is first
Do not load excessive quantities of fresh food in the freezer compartment. Refer to
the freezing capacity of the freezer – See TECHNICAL DATA or data at the type plate.
Food can be stored in the freezer at a temperature of at least -18°C for 2 to 12
months, depending on its properties (e.g., meat: 3-12 months, vegetables: 6-12
months)
21
ature rises affect the quality of food.
When freezing fresh food, avoid bringing it in contact with already frozen food. Risk of
thawing!
Defreeze frozen food in the fridge. This way, you can use the frozen food to decrease
the temperature in the compartment and save energy.
cooked, otherwise it may be edible.
to ensure the cooling effect.Please be caraful not to place food beyond the shelf and
touch the back.
Please keep the lowest drawer when the appliance working in order to ensure the cooli
-ng effect.
Equipment
Notice
Ensure that all ends of a shelf are level.
Notice
Humidity zone drawer
Adjustable shelves
22
1.Do not remove the plastic cover inside the zone. They
maintain the humidity.
2.Cold-sentive fruits like pineapple ,avocado,bananas,
grapefruits and vegetables such as potatoes, suber-
gines,beans,cucumbers,zucchini and tomatoes and
cheese should not be stored in the humidity zone
drawer.
The height of the shelves can be adjusted to fit your
storage needs.
1. To relocate a shelf, remove it first by uplifting its
hind edge(1) and pulling it out(2).
2. To reinstall it, put it on the lugs on both sides and
push it to the most rearward position until the re-
ar of the shelf is fixed inside the slots in the sides.
In this compartment the humidity level is around 85%. It is controlled automatically
by the system and is suitable to store fruits, vegetables, salads etc.
Removable door shelves
The door shelves can be removed for cleaning.
Place hands on each side of the shelf,lift it
upwards(1) and pull it out(2)
In order to insert the door shelf, the above steps are
carried out in reverse order.
Equipment

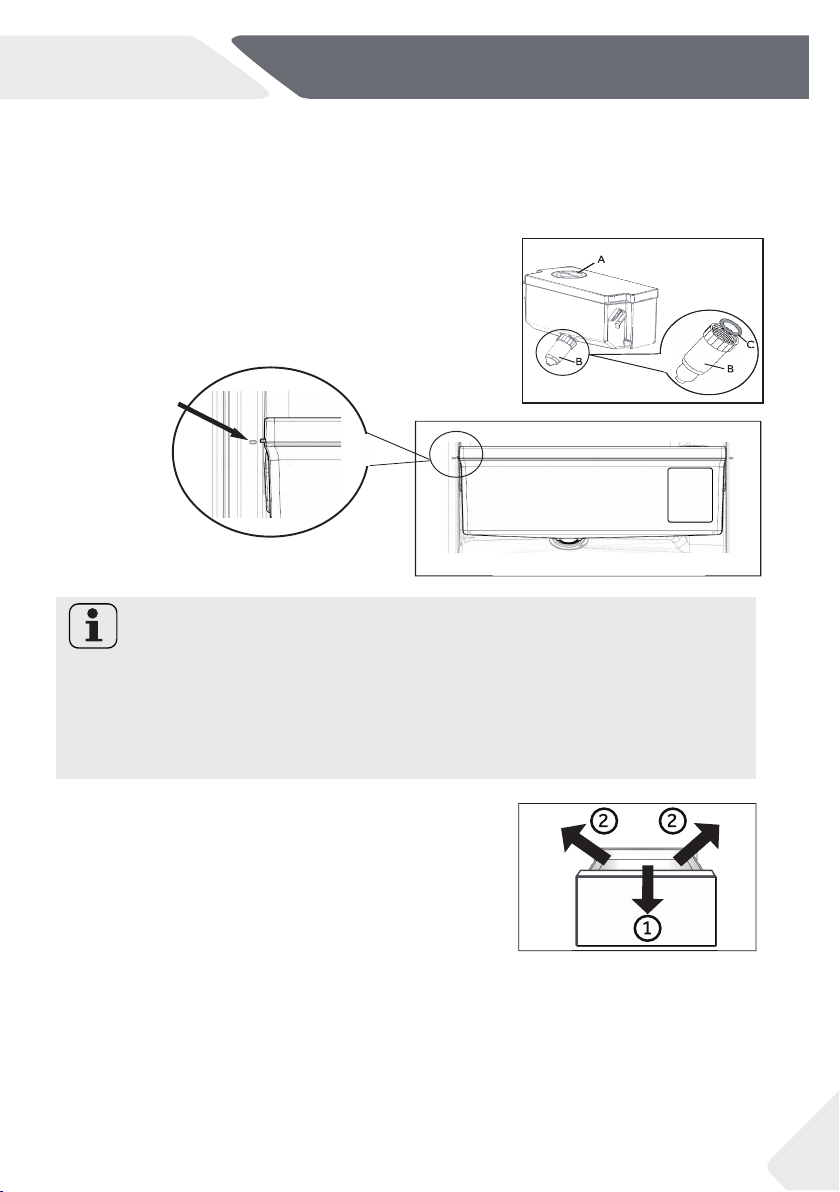

Make sure water tank lid is locked before installing the
water tank!
Locate and insert water outlet section (B) into the hole
on fridge door. Push fit water tank and align water tank
location indicator to the reference marking on door
side (as shown in graph).
Notice: Water tank
If the water tank is not properly inserted, water can drip from the connection.
Do not use excessive force when removing or installing the water tank, to
avoid damaging the tank.
Removable Drawer
To remove the drawer out, pull out to the maximum
extent(1),lift and remove(2).
In order to insert the drawer,the above steps are carr
-ied out in reverse order.
The Light
The LED interior light comes on when the door is opened and it will automatically
goes off if the door is left open for more than 7 minutes. The performance of the
lights is not affected by any of the appliances other settings.
23
Make sure the spout is firmly screwed to the water tank and the white O-ring
(C) is in position.
Removable water tank(HRF575XHC/HRF575XHS)
Water tank can be removed for cleaning.
Install water tank(HRF575XHC/HRF575XHS)
Alignment
Equipment
Ice Maker
1. Pull the door Ice Maker out (1)
2. Pour fresh drinking water into each ice tray as
per the scale mark inside the measuring cup, do not
exceed the scale mark.
3. Put the ice maker into the freezer compartment.
4. After water becomes ice, rotate the knob by
hand. Then ice blocks will fall into the ice storage bin
automatically. Remove the drawer and fetch the ice
cubes(2)
Notice:
1.The formation of ice will make it difficult to turn the knob. You can rotate it back
and forth for several times to remove ice, so as to avoid damage to parts.
2.For ice-makers not intended to be connected to the water supply.(
WARNING:fill
with potable water only)
24
Care and cleaning
25
Care and cleaning

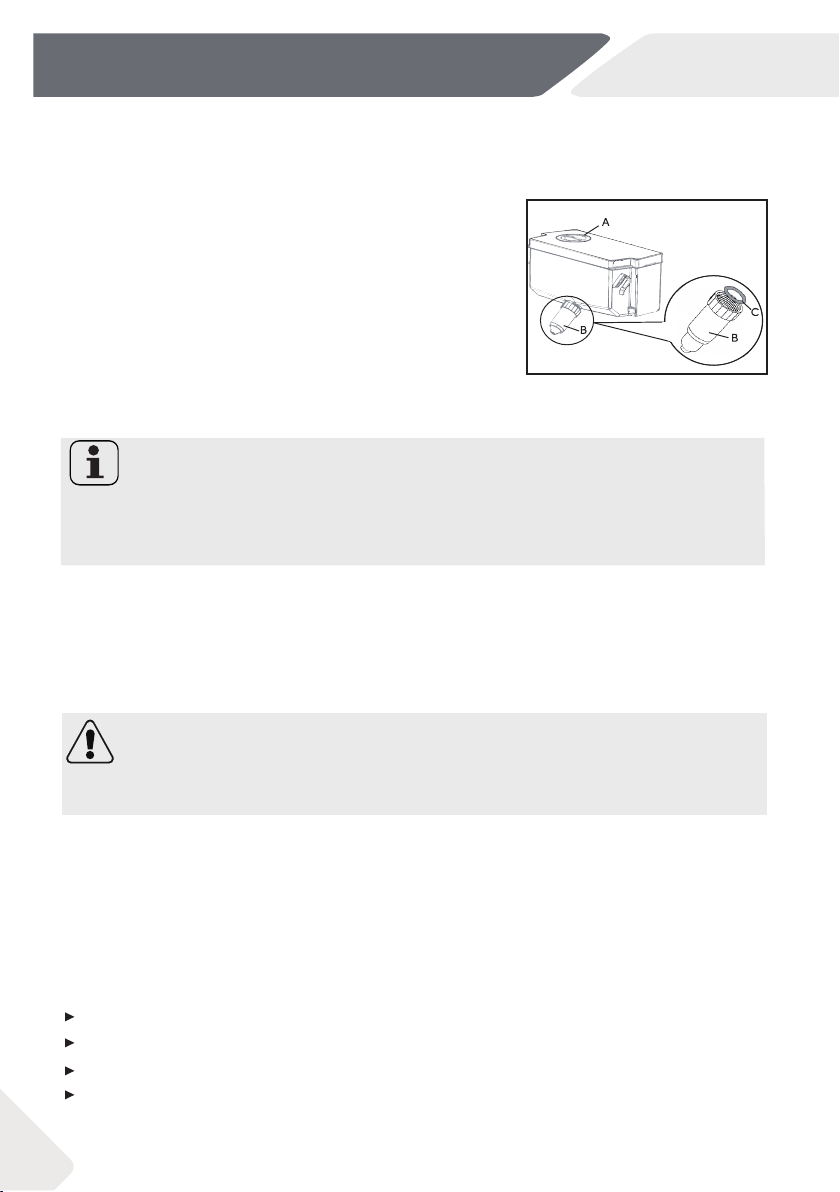

Water Tank(for HRF575XHC/HRF575XHS)
1.Take off the water tank out of the appliance
2.Remove the cover （A）.
3.Unscrew the dispenser spout（B）.
4.Clean the tank and dispenser spout with warm
water and liquid dishwashing detergent. Make sure all
soap is rinsed off.
5.Mount the dispenser out （B）and take care that
it is firmly screwed to the water tank and the white
O-ring (C) is in position.
6.Close the cover （A）and replace the tank inside
the appliance.
.
Notice：Water tank
If the water tank is not properly inserted, water can drip from the connection.
Do not use excessive force when removing or installing the water tank, to avoid
damaging.
Defrosting
The defrosting of the refrigerator and the freezer compartment are done
automatically; no manual operation is needed.
Replacing the LED-lamps
WARNING!
Do not replace the LED lamp yourself, it must only be replaced by either the manu
-facturer or the authorised service agent.
The lamps adopts LED as its light source, featuring low energy consumption and
long ser-vice life. If there is any abnormality, please contact the customer service .
See CUSTOMER SERVICE.
Parameters of the lamps: : 12 V max 3 W.
Non-use for a longer period
If the appliance is not used for an extended period of time, and you will not use the
holiday-function for the refrigerator.
Take out the food.
Unplug the power cord.
Clean the appliance as described above.
Kep the doors open to prevent the creation of bad odours inside.
26
Care and cleaning
Notice
WARNING!
Moving the appliance
1.Remove all food and unplug the appliance.
2.Secure shelves and other moveable parts in the fridge and the freezer with
adhesive tape.
3.Do not tilt the refrigerator more than 45° to avoid damaging the refrigerating
system.
Do not lift the appliance by its handles.
Never place the appliance horizontally on the ground.
27
Turn the appliance off only if strictly necessary.
Troubleshooting
28
Troubleshooting
29
Troubleshooting
30
Troubleshooting
Power interruption
In the event of a power cut, food should remain safely cold for about 12 hours. follow
these tips during a prolonged power interruption, especially in summer:
Open the door/drawer as few times as possible.
Do not put additional food into the appliance during a power interruption.
If aprior notice of a power interruption is given and the interruption duration is
longer than 12 hours,make some ice and put it in a container in the top of the
refrigerator conpartment .
An inspection of the goods is required immediately after the the interruption.
As temperature in the refrigerator will rise during a power interruption or other
failure ,the storage period and edible quality of food will be reduced. Any food that
defrosts sh -ould be either consumed, or cooked and refrozen (where suitable)
soon afterwards in order to prevent health risks.
Memory function during power interruption
After restoration of power the appliance continues with the settings thats were set
before the power failure.
31
Installation
WARNING!
Ventilaton cross-section
safety reasons, the information of the required ventil-
ation cross sections must be observed.
Aligning the appliance
The appliance should be placed on a flat and solid sur
-face.
1. Tilt the refrigerator slightly backwards.
2. Set the feet to the desired level.
Make sure the distance to the wall on the hinge
sides is at least 20 mm.
The appliance is heavy. Always handle with at least two persons.
Keep all packaging materials out of children´s reach and dispose them in an
environ-
mentally friendly manner.
20 mm20 mm
20mm
25mm
50mm
32
Unpacking
Take the appliance out of the packaging.
Remove all packaging materials including the transparent protective film.
Environmental conditions
The room temperature should always be between 16℃ and 38℃, since it can influence
the temperature inside the appliance and its energy consumption. Do not install the appli-
ance near other heat-emitting appliances (ovens, refrigerators) without isolation.
Space requirement
Required space when door is opened:
Appliance width: 946 mm
Appliance depth:1164 mm
Installation

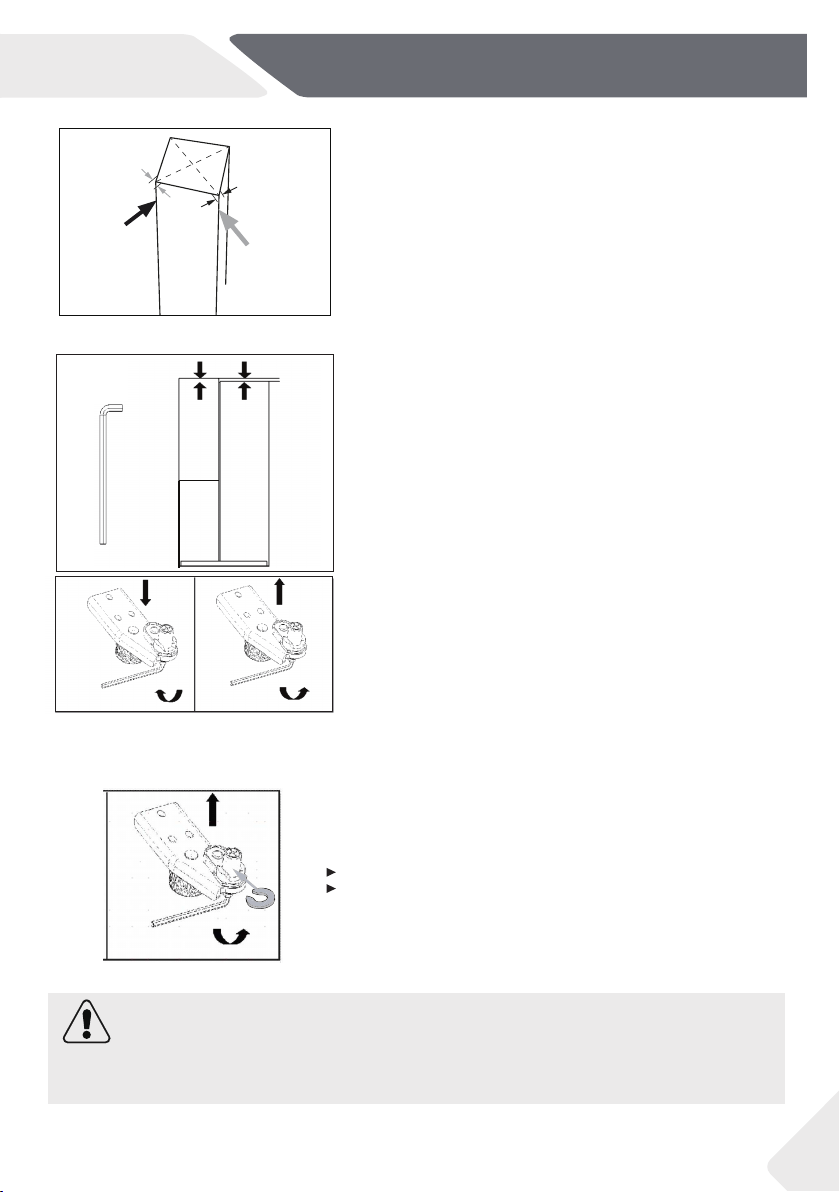

3. The stability can be checked by alternately bump-
ing on the diagonals. The slightly swaying should
be the same in both directions. Otherwise the
frame can warp; possible leaking door seals are
the result. A low tendency to the rear facilitates
the closing of the doors.
3.
Notice
In the future use of refrigerator, doors uneven phenomenon may occur to the weight
of stored food. Then please adjust according to the above methods.
Fine tuning of the doors
If the doors are not in one level, this mismatch can
be remadied by following:
A)Using adjustable foot
Rotate the adjustable foot according to the direction
of arrow to turn up or down foot.
A
B)Using spacers
Open the upper door and life it.
Carefully clip the spacer(enclosed in the accessory
bag) in the white plastic ring of the right bottom
hinge by hand or using tools like pliers. Do not
scratch or bruise the door.
33
Installation
Waiting time
To the maintenance-free lubrication oil is located in
the capsule of the compressor. This oil can get
through the closed pipe system during slanting
transport. Be-fore connecting the appliance to the
power supply you have to wait at least 2-5 hours
so that the oil runs back into the capsule.
2-5 h
Electrical connection
Before each connection check if:
Power supply, socket and fusing are appropriate to the rating plate.
The power socket is earthed and no multi-plug or extension.
The power plug and socket are strictly according.
Connect the plug to a properly installed household socket.
WARNING!
To avoid risks a damaged power cord must be replaced by the customer service(see
warranty card.
Removing and installing the doors
In the event that you need to remove the appliance doors,please follow the door
removal and installation instructions below.
WARNING!
Before and operation, deactivate the appliance and disconnect the mains plug
from the mains socket.
The appliance is heavy.Always handle with at least two persons.
Do not tilt the appliance more than 45° or place it horizontally on the ground.
1.Undo the hinge cover screw and remove the
cover. Release the cable connector.
34
Installation
2.Undo the screws holding the upper hinge in
posi-tion and then remove the hinge.
3.Lift the freezer conpartment door to remove it.
4.Refit the door by reversing the removal steps.
Ensure that the grounding cable will be fixed by
the screw.
35
Technical data
Trade mark Haier Haier
Model No.
HRF575XHC
HRF575XHS
HRF575XC
HRF575XS
Category of the model
Cooled Appliance Cooled Appliance
Voltage / Frequency
220-240V~/ 50Hz 220-240V~/ 50Hz
Energy Star 4 star 4 star
Frostfree system Yes Yes
Product group
5T 5T
Total product volume
574L 574L
Fresh food compartment volume
385L 385L
Convertible compartment volume
103L 103L
Freezer compartment volume 86L 86L
Climate class
T T
Rrefrigerant R600a 75g R600a 75g
Insulation blowing gas HC-C601 HC-C601
Dimension (DxWxH)
707x905x1775mm 707x905x1775mm
Protection class I I
36
I
Haie,
2022 Version A
