USER MANUAL
VERSION A0
Core
RENOGY ONE
RSHGWSN-W02W-G1
Before Getting Started
The user manual provides important operation and maintenance instructions for Renogy ONE Core
(hereinafter referred to as Core).
Read the user manual carefully before operation and save it for future reference. Failure to observe the
instructions or precautions in the user manual can result in electrical shock, serious injury, or death, or
can damage the Renogy ONE Core, potentially rendering it inoperable.
z
Renogy ensures the accuracy, sufficiency, and the applicability of information in the quick guide at
the time of printing due to continual product improvements that may occur.
z
Renogy assumes no responsibility or liability for personal and property losses, whether directly and
indirectly, caused by the user’s failure to install and use the product in compliance with the user
manual.
z
Renogy is not responsible or liable for failures, damages, or injuries resulting from repair attempted
by unqualified personnel, improper installation and operation.
z
The illustrations in the user manual are for demonstration purposes only. Details may appear
slightly different depending on product revision and market region.
z
Renogy reserves the right to change the information in the quick guide without notice. For the
latest user manual, visit
renogy.com.
Disclaimer
Renogy ONE Core User Manual © 2023 Renogy. All rights reserved.
RENOGY
and
are registered trademarks of Renogy.
z
All information in the user manual is subject to copyright and other intellectual property rights of
Renogy and its licensors. The user manual may not be modified, reproduced, or copied, in whole or
in part, without the prior written permissions of Renogy and its licensors.
z
The registered trademarks in the user manual are the property of Renogy. The unauthorized use of
the trademarks is strictly prohibited.
Online Manual
User ManualQuick Guide
DC Home App
DC Home App
Download on the
1. General Information ........................................................................................................................... 1
1.1. Symbols Used .............................................................................................................................................. 1
1.2. Introduction .................................................................................................................................................1
1.3. Key Features ................................................................................................................................................1
1.4. SKU ................................................................................................................................................................. 1
2. Get to Know RENOGY ONE Core .........................................................................................................2
2.1. What
’
s In the Box? ..................................................................................................................................... 2
2.2. Required Tools ............................................................................................................................................ 2
2.3. Product Overview ....................................................................................................................................... 3
2.4. System Setup ............................................................................................................................................. 4
3. Preparation .........................................................................................................................................5
3.1. Installation Site and Environment .......................................................................................................... 5
3.2. Checking Renogy ONE Core ..................................................................................................................... 5
3.3. Checking DC Power ................................................................................................................................... 6
3.4. Extend the Power Cable ........................................................................................................................... 6
3.5. How to connect RS-485 Communication Devices (Optional) ...........................................................7
4. Installation ..........................................................................................................................................9
4.1. Place Renogy ONE Core on a Table......................................................................................................... 9
4.2. Mount Renogy ONE Core on a Wall ........................................................................................................10
5. Configure RENOGY ONE Core ........................................................................................................... 13
5.1. Power On/Off .............................................................................................................................................13
5.2. Pairing with DC Home ..............................................................................................................................13
5.3. Add Devices ...............................................................................................................................................13
5.4. RV Leveling .................................................................................................................................................14
6. Troubleshooting................................................................................................................................ 15
7. Interoperability Matrix ..................................................................................................................... 17
8. FAQ ...................................................................................................................................................... 19
9. Dimensions and Specifications ....................................................................................................... 21
9.1. Dimensions ................................................................................................................................................. 21
9.2. Technical Specifications ..........................................................................................................................21
Maintenance ..............................................................................................................................................23
Inspection ............................................................................................................................................................. 23
Cleaning ................................................................................................................................................................23
Storage .................................................................................................................................................................. 23
Table of Contents
Emergency Responses .............................................................................................................................24
Fire ..........................................................................................................................................................................24
Flooding .................................................................................................................................................................24
Smell ......................................................................................................................................................................24
Noise ......................................................................................................................................................................24
Renogy Support ........................................................................................................................................25
FCC & RSS ..................................................................................................................................................26
FCC Statement ....................................................................................................................................................26
FCC Radiation Exposure Statement ................................................................................................................ 26
RSS Standard ....................................................................................................................................................... 26
Privacy Policy ............................................................................................................................................27
Definitions ............................................................................................................................................................. 27
Types of Data Collected ..................................................................................................................................... 27
Disclosure of Data ............................................................................................................................................... 29
Service Providers ................................................................................................................................................30
Analytics ...............................................................................................................................................................30
Changes to This Privacy Policy .........................................................................................................................30
Contact Us ............................................................................................................................................................30
— 1 —
1. General Information
1.1. Symbols Used
The following symbols are used throughout the user manual to highlight important information.
WARNING: Indicates a potentially dangerous condition which could result in injury or death.
CAUTION: Indicates a critical procedure for safe and proper installation and operation.
NOTE: Indicates an important step or tip for optimal performance.
1.2. Introduction
Renogy ONE Core provides a comprehensive solution for energy monitoring and analysis, enabling users
to monitor and analyze energy data at any time.
Thanks to the ONE Connect 2.0 technology, Renogy ONE Core allows energy monitoring both locally
through the in-built screen and remotely via Renogy ONE Portal and DC Home app.
Additionally, the ONE Core features an RV leveling system for optimal stability and can function as a
smart home hub, seamlessly connecting with other smart home appliances.
1.3. Key Features
z
24/7 Energy Analysis
Monitor and analyze energy data anytime.
z
Worldwide Monitoring
Remote energy monitoring anywhere through ONE Connect 2.0
z
Built-in RV Leveling
Effortlessly adjust your RV’s position to achieve optimal stability and comfort.
z
Smart Home Integration
Function as a central hub for your smart home, seamlessly connecting and controlling all your smart
home appliances.
z
Easy Installation
Simple setup process that ensures the device is perfectly level, eliminating the need for repeated
adjustments.
z
Over-the-Air (OTA) Updates
Stay up to date with the latest features and improvements through continuous over-the-air updates.
1.4. SKU
RENOGY ONE Core RSHGWSN-W02W-G1
— 2 —
2. Get to Know RENOGY ONE Core

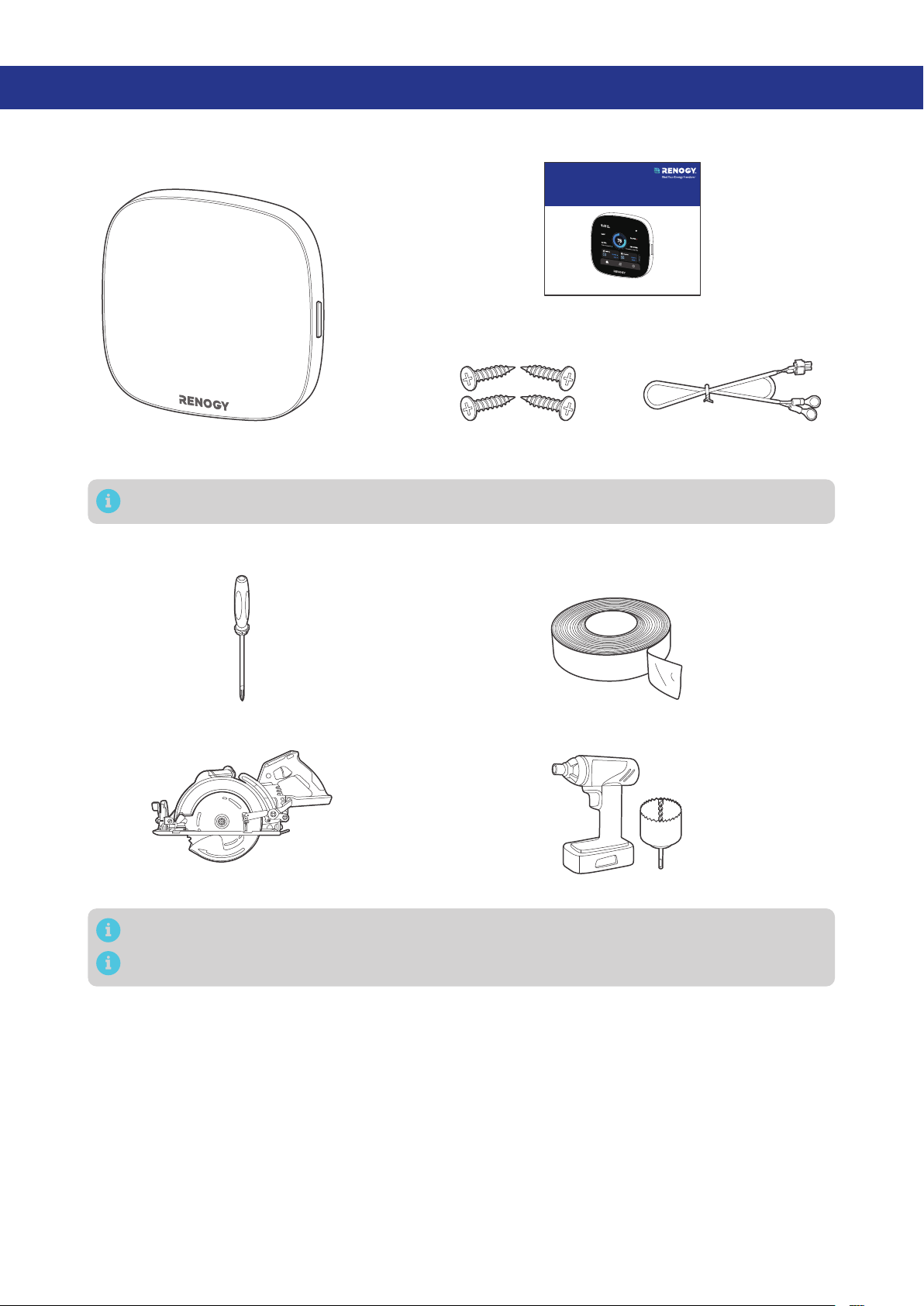

2.1. What’s In the Box?
RENOGY ONE Core × 1
Mounting Screws × 4
(1 extra)
Power Cable (5 m) × 1
M3.5*14 mm
VERSION A0
Core
RSHGWSN-W02W-G1
RENOGY ONE
QUICK GUIDE
Quick Guide × 1
Make sure that all accessories are complete and free of any signs of damage.
2.2. Required Tools
Phillips Screwdriver (#1)
Insulation Tape
Skill Saw Impact Drill with Hole Saw, 2.17 in/55 mm
Tools are required only when the Core is flush mounted on a wall.
You can use either a skill saw or an electric drill with a hole saw.
— 3 —

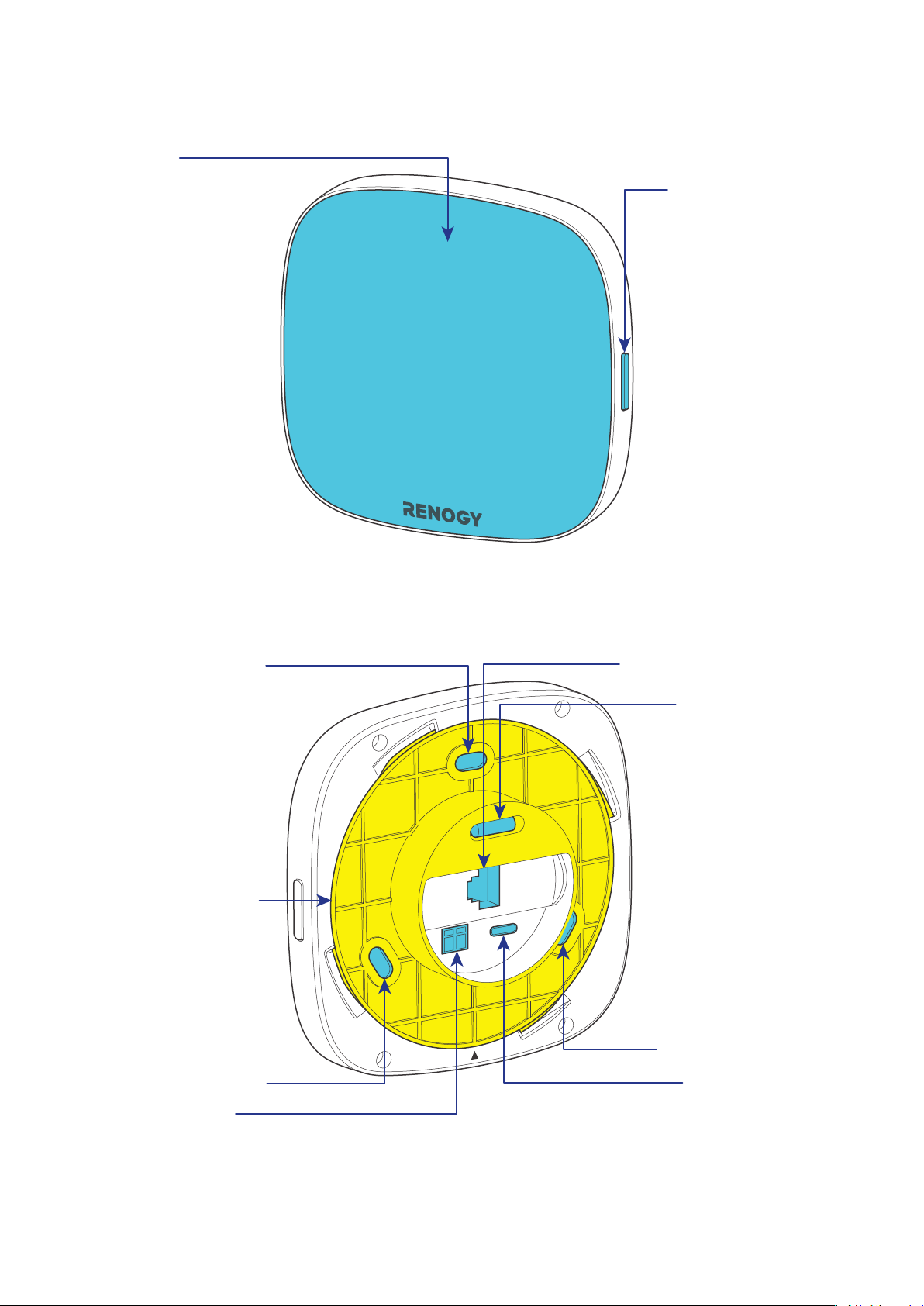

2.3. Product Overview
█
Front
LCD
█
Rear
Mounting Holes
Mounting Holes
Power Port
Mounting Holes
Type-C Port
Bubble Level
Communication Port
Mounting Base
— 4 —
2.4. System Setup
Negative
Positive
DC
Communication
+
-
DC Power (8V to 60V) Devices (RS-485)5V, DC
+
-
HUB
You can choose either the Power Port or the Type-C port to supply Renogy ONE Core.
— 5 —
3. Preparation
3.1. Installation Site and Environment

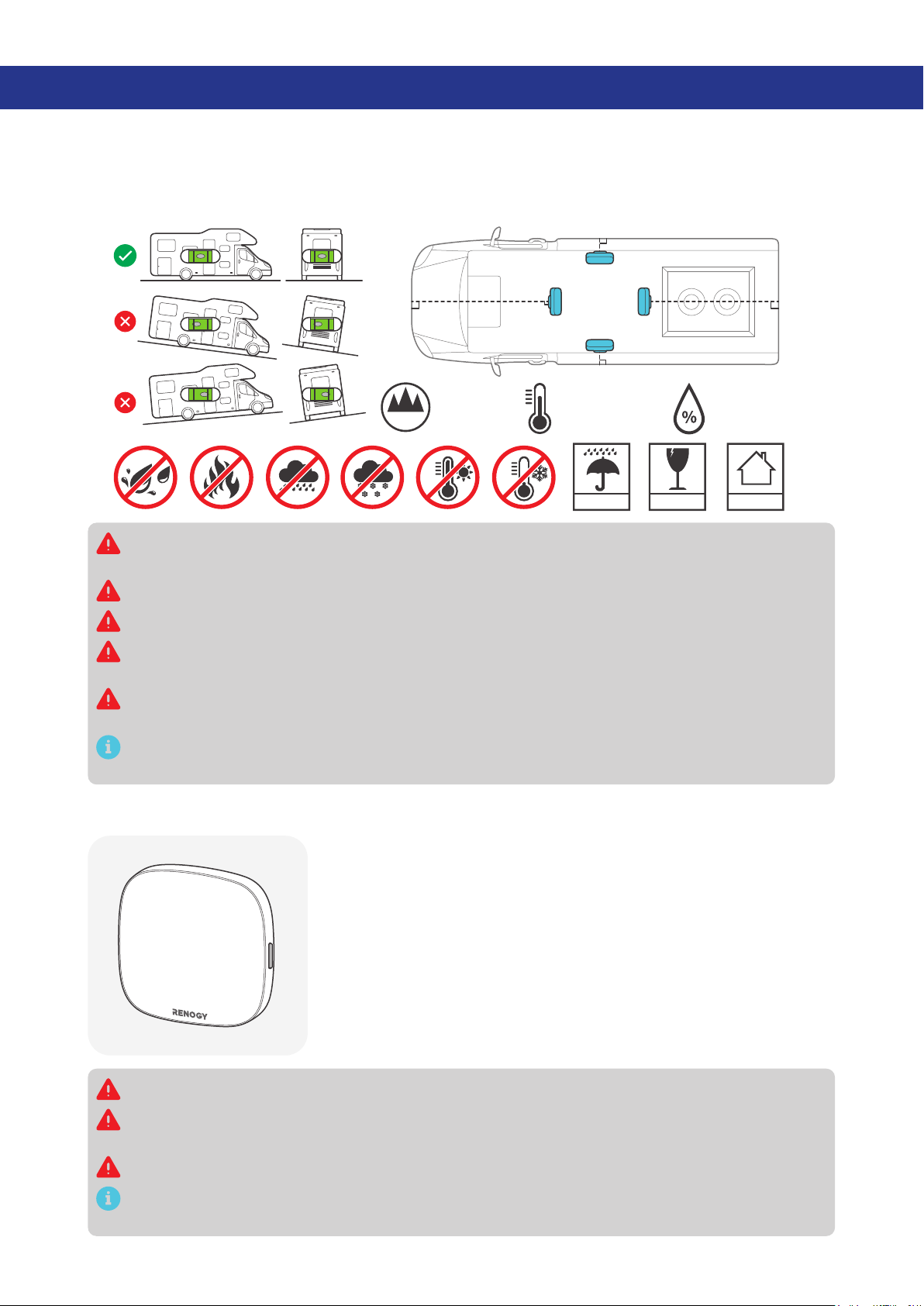

To ensure proper running of the RV leveling function on Renogy ONE Core, ensure it is installed in a
spot with the screen pointing to the front, rear, left, or right side of the RV, vertically to the RV floor. It is
recommended that RV leveling blocks should be used during the leveling process.
90°
90°
90°
90°
-4°F to 158°F
-20°C to 70°C
0% to 95% RH
Altitude
KEEP DRY FRAGILE
INDOOR
Install the Renogy ONE Core indoors and prevent its components from being exposed to direct
sunlight.
Do not expose Renogy ONE Core to flammable or harsh chemicals or vapors.
Keep Renogy ONE Core out of the reach of children.
Make sure that the Renogy ONE Core is installed with ambient temperature range from -4°F to
158°F or -20°C to 70°C.
Make sure that the Renogy ONE Core is installed in an environment with relative humidity
between 0% and 95% and no condensation.
To ensure quality wireless communication for Renogy ONE, keep it away from metal objects at a
minimum distance of 200 mm or 7.9 inches.
3.2. Checking Renogy ONE Core
Inspect the Renogy ONE Core for any visible damage including
cracks, dents, deformation, and other visible abnormalities. All
connector contacts shall be clean, dry, and free of dirt and corrosion.
Do not use Renogy ONE Core if it appears to be damaged.
There are no serviceable parts in Renogy ONE Core. Do not open, dismantle, repair, tamper with,
or modify it.
Wear proper protective equipment and use insulated tools during installation.
Do not dispose of Renogy ONE Core as household waste. Comply with local, state, and federal
laws and regulations and use recycling channels as required.
— 6 —
3.3. Checking DC Power
8V to 60V
Ensure that the connected DC power supply rates at 8V to 60V.
Connecting the Core to a power source beyond the range results in
a power-on failure or permanent damage to the Core.
Confirm the polarities of the devices before connecting Renogy ONE Core to a power supply. A
reverse polarity contact can result in damage to the Core, thus voiding the warranty.
Risk of electrical shock! Ensure the connected DC power is turned off before connecting it to the
Renogy ONE Core.
3.4. Extend the Power Cable

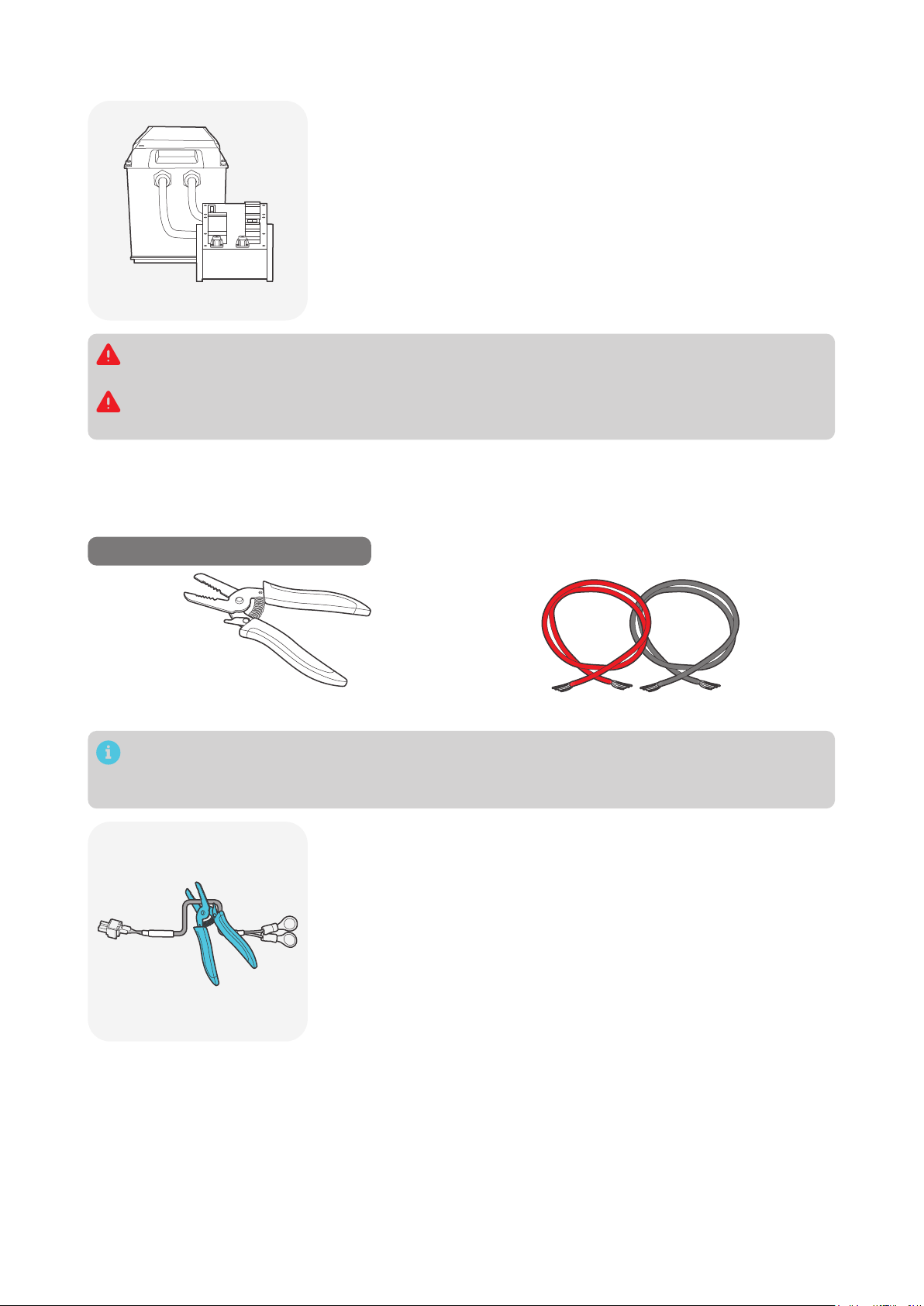

If the included power cable is not long enough for connecting Renogy ONE Core to your DC power
Recommended Tools & Accessories
Wire stripper
Confirm the polarities of the included cable and the extension one before connecting them. A
reverse polarity contact will result in abnormal operations. The extension cable should not exceed
10 meters (32.8 feet).

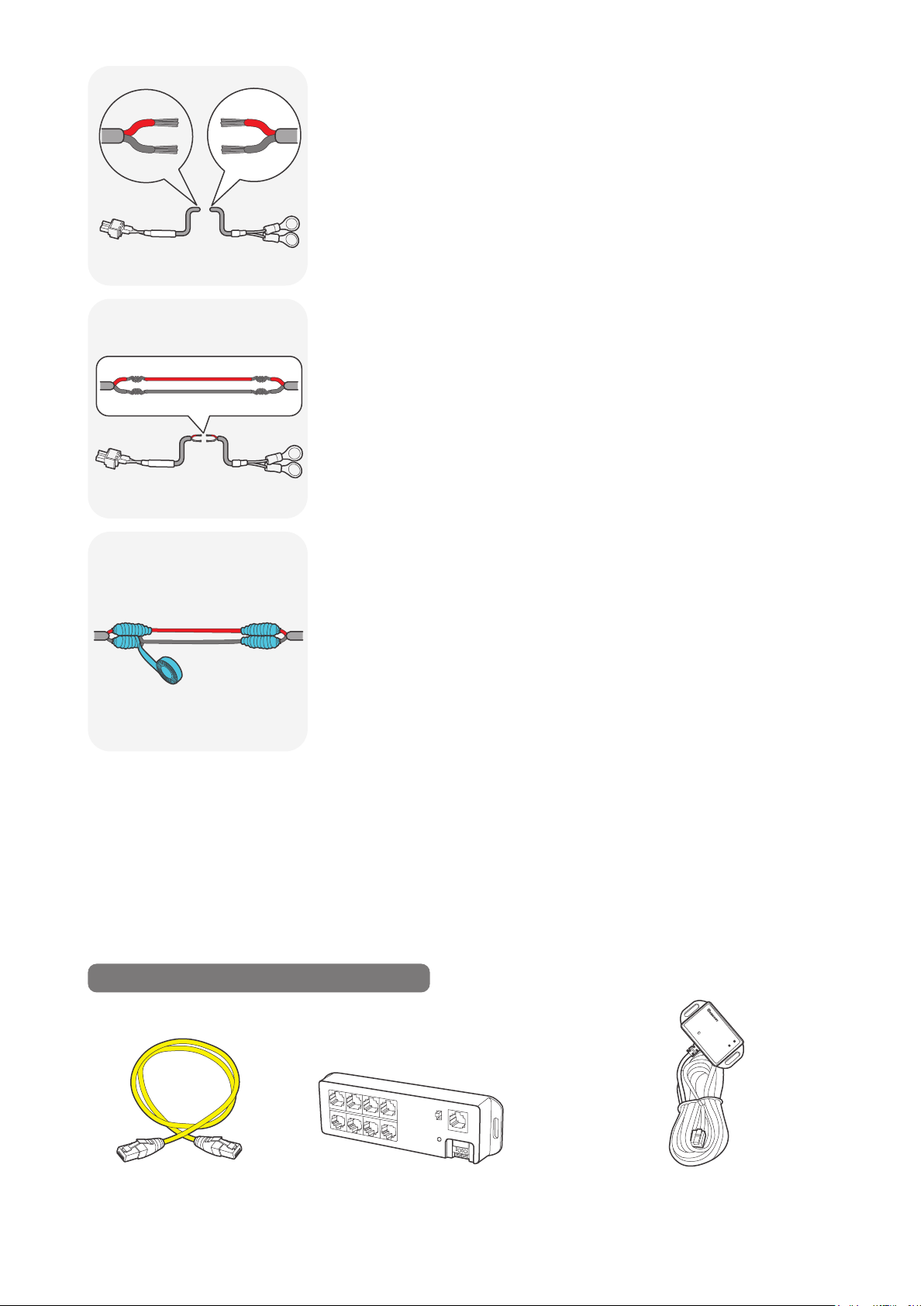

1. Cut the included power cable.
— 7 —
2. Strip off some of the insulation.
3. Strip some insulation off the extension cable, and connect the
cable to the included power supply cable.
4. Tape over the cutoff areas.
3.5. How to connect RS-485 Communication Devices (Optional)
Renogy ONE Core can communicate with Renogy energy devices in several ways:
1. Bluetooth wireless communication;
2. Wired communication based on RS-485 protocol;
You can choose an appropriate communication method according to the actual situation.
z
For Bluetooth wireless communication, communication wiring is not required.
z
For RS-485 communication, you need to wire Renogy ONE Core with energy devices.
Recommended Components & Accessories
RJ45 Ethernet Cable(s)
(CAT5 or above)
Renogy Communication Hub
(For Multiple Devices)
HUB
Renogy BT-1/BT-2 Bluetooth Module
(For Multiple Devices)
Bluetooth Module
LINK
POWER
2
— 8 —

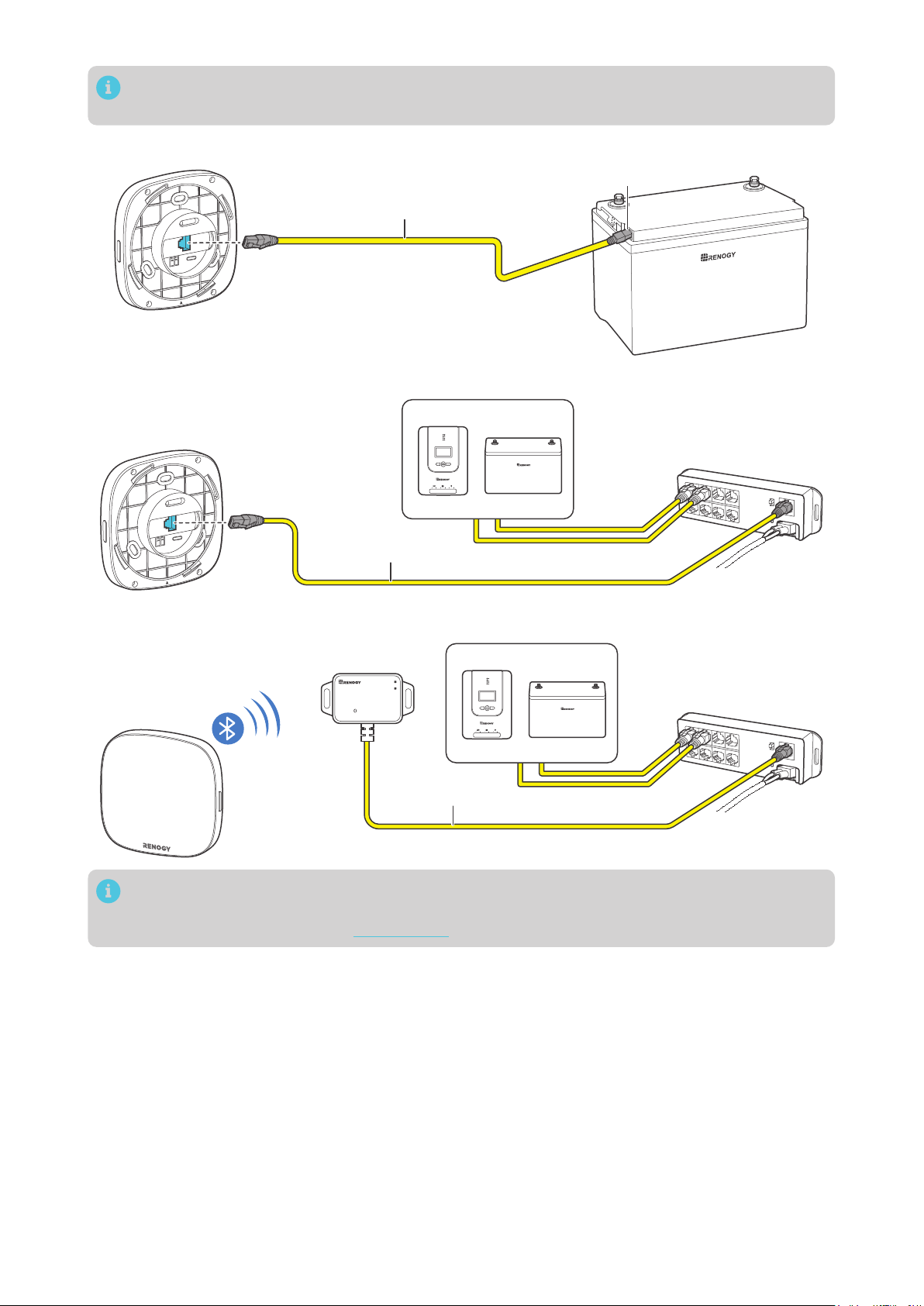

Select the appropriate communication cable (sold separately) according to the distance between
devices. The communication cable should be less than 6 meters (19.6 feet).
█
Only One Device
+
-
RS-485 port
RJ45 Ethernet Cable
█
Multiple Devices (Wired Connection)
HUB
+
-
RJ45 Ethernet Cable
█
Multiple Devices (Wireless Connection)
Renogy BT-1/BT-2
Bluetooth Module
HUB
+
-
RJ45 Ethernet Cable
POWER
LINK
BT-2
Bluetooth Module
When adding multiple devices to Renogy ONE Core through the Communication Hub, connect
every single device to Renogy ONE Core individually through the hub first, and then reconnect all
devices to the hub. Turn to the hub’s manual for more details.
— 9 —
4. Installation
You can place Renogy ONE Core on a table or mount it on a wall.

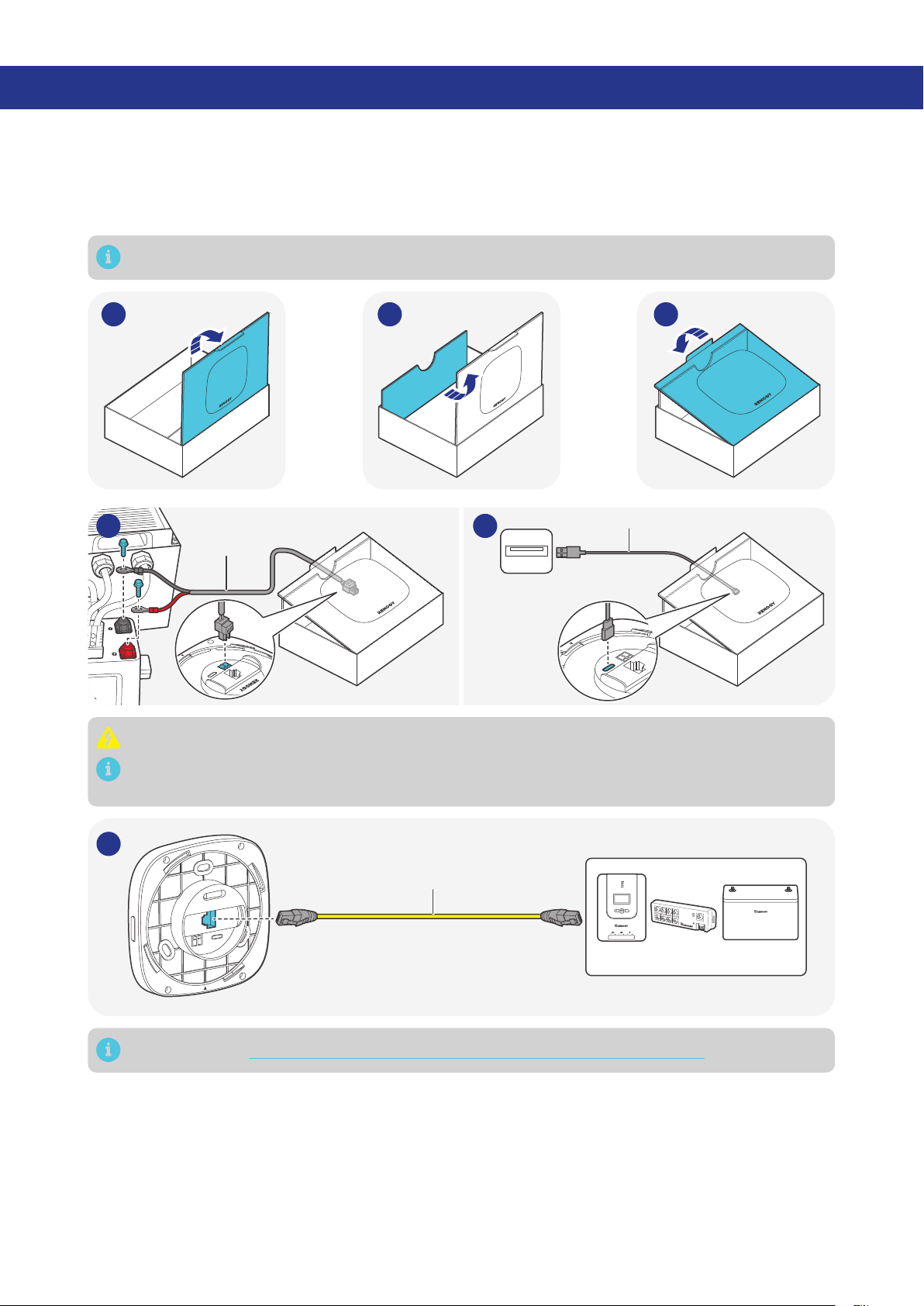

4.1. Place Renogy ONE Core on a Table
The package box is environmentally friendly. You can use it as a bracket to hold the Core when installing
it on the wall is not required.
The RV leveling function is unavailable on Core when it is placed on a table.
31 2
ombiner Box
Power Cable
(included)
5V, DC
Type-C Cable (optional)
4A 4B
When installing the power cable, always connect the negative first, and then the positive.
You can connect Renogy ONE Core to a power supply through the included power cable or a
Type-C cable (not included).
Devices (RS-485)
+
-
HUB
RJ45 Ethernet Cable
(Max length: 6 m)
5

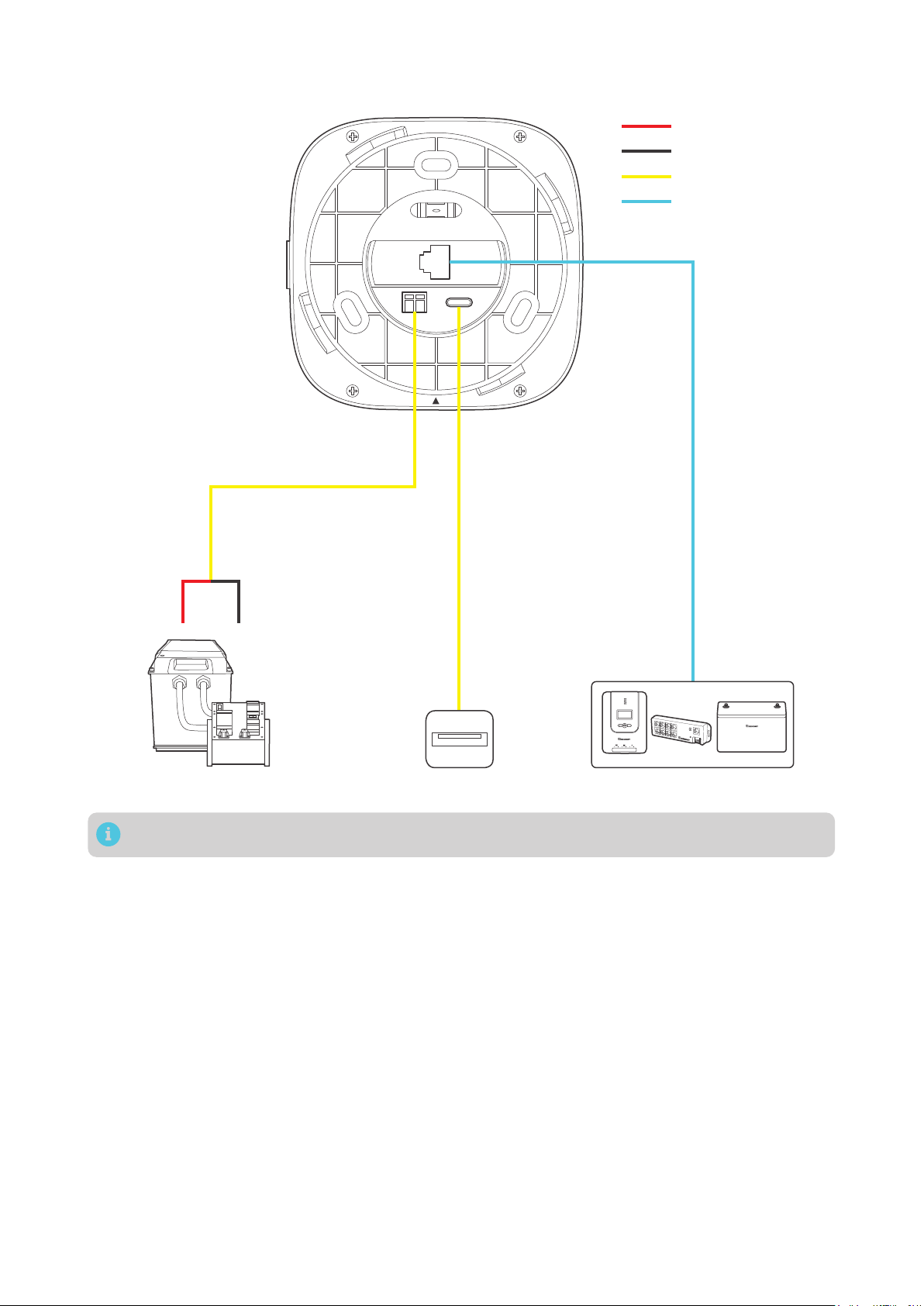

For details, see “3.5. How to connect RS-485 Communication Devices (Optional)”.
— 10 —

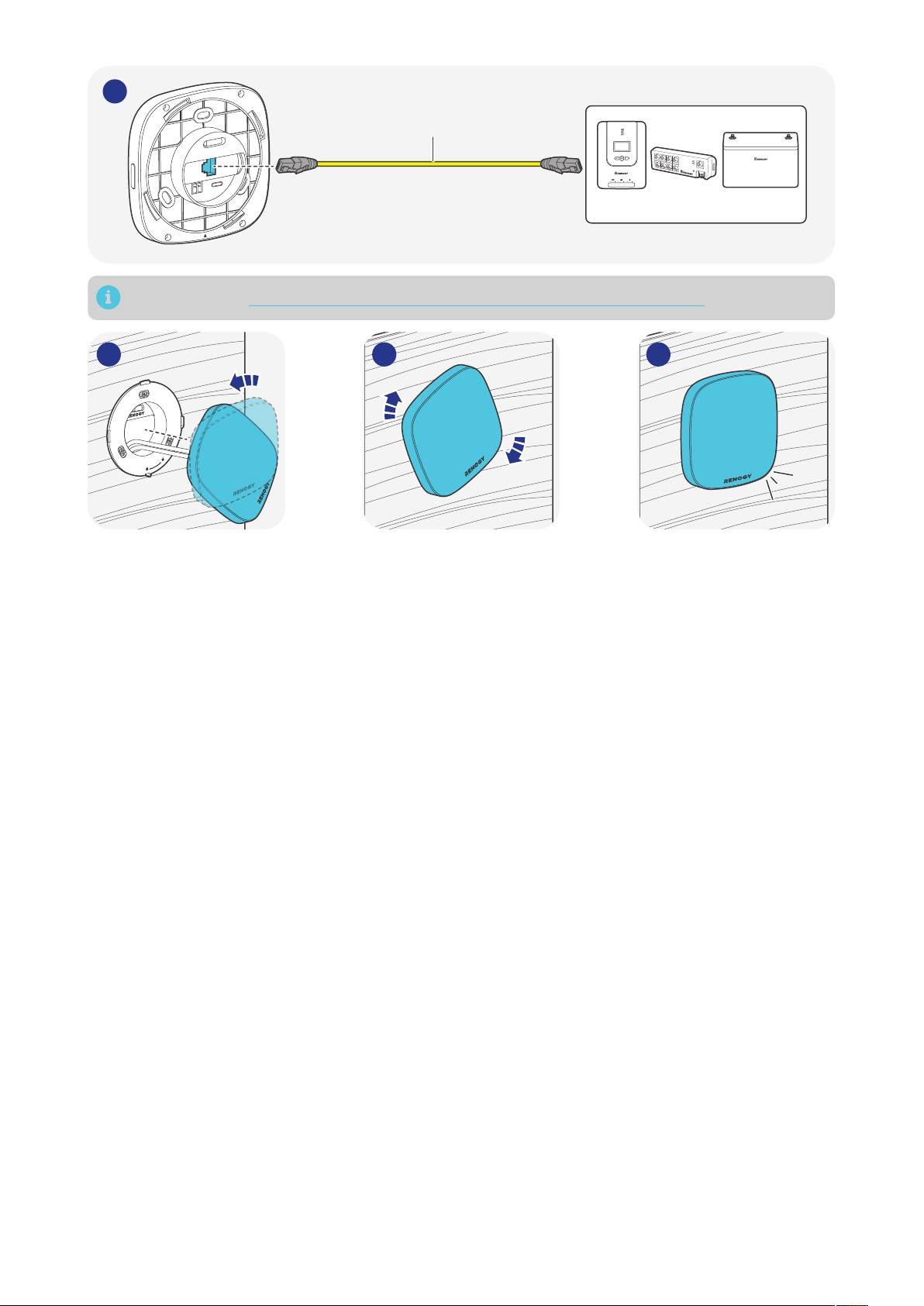

4.2. Mount Renogy ONE Core on a Wall
Please tear off quick guide mounting template or print this piece of paper, and paste it to the
mounting location for drilling holes. You can also draw your own Mounting Template based on the
dimensions indicated in the following image.
█

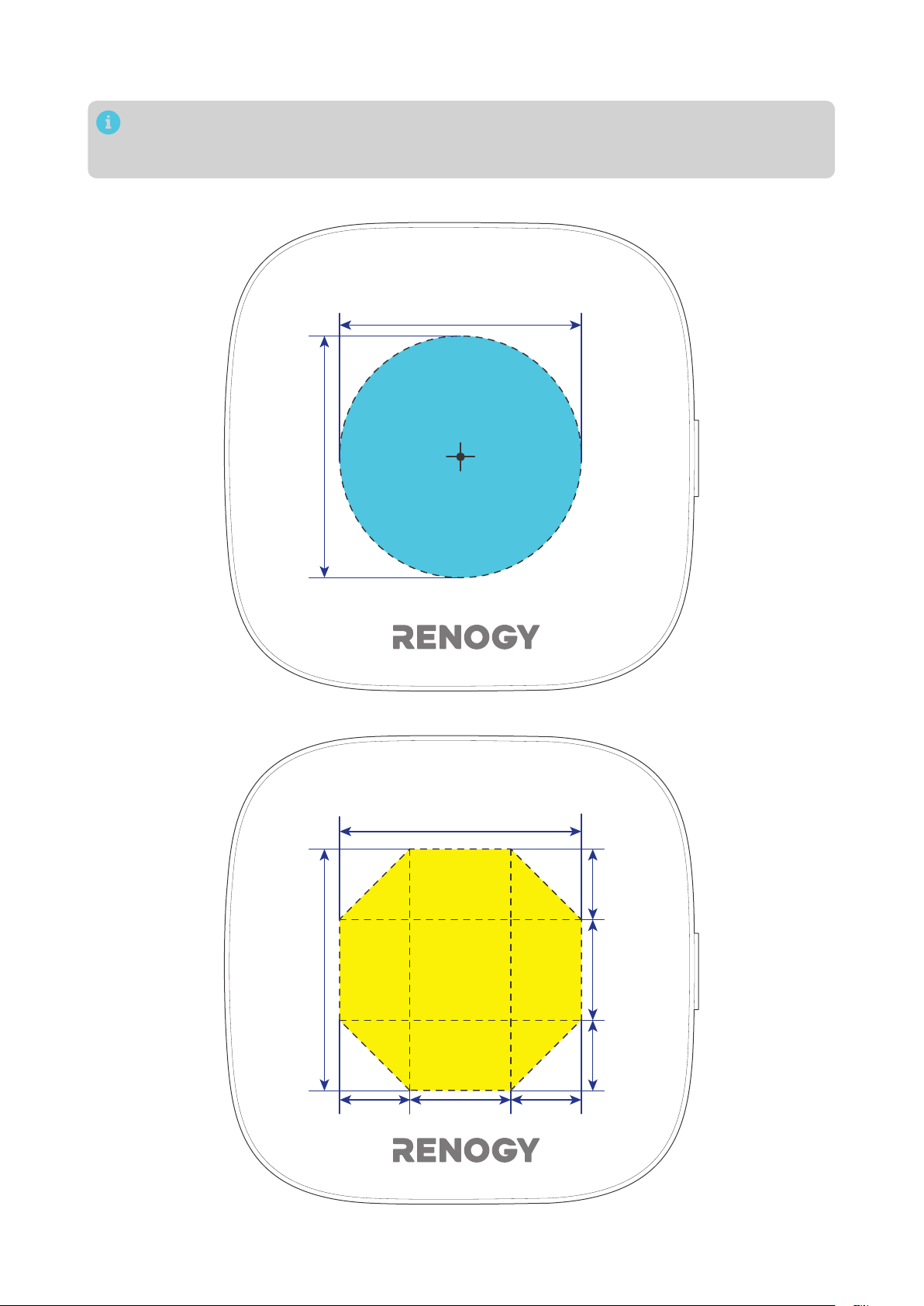

Mounting Template #1 (Use an Impact Drill with a Hole Saw, 2.17 in/55 mm)
2.17 in (55 mm)
2.17 in
(55 mm)
█
Mounting Template #2 (Use a Skill Saw)
2.17 in (55 mm)
0.9 in
(23 mm)
0.635 in
(16 mm)
0.635 in
(16 mm)
0.9 in
(23 mm)
0.635 in
(16 mm)
0.635 in
(16 mm)
2.17 in
(55 mm)
— 11 —
Mounting Screws
7 8
64 5
Tools are required only when the Core is flush mounted on a wall.
NOTE
The RV leveling function is unavailable on Core when it is placed on a table.
NOTE

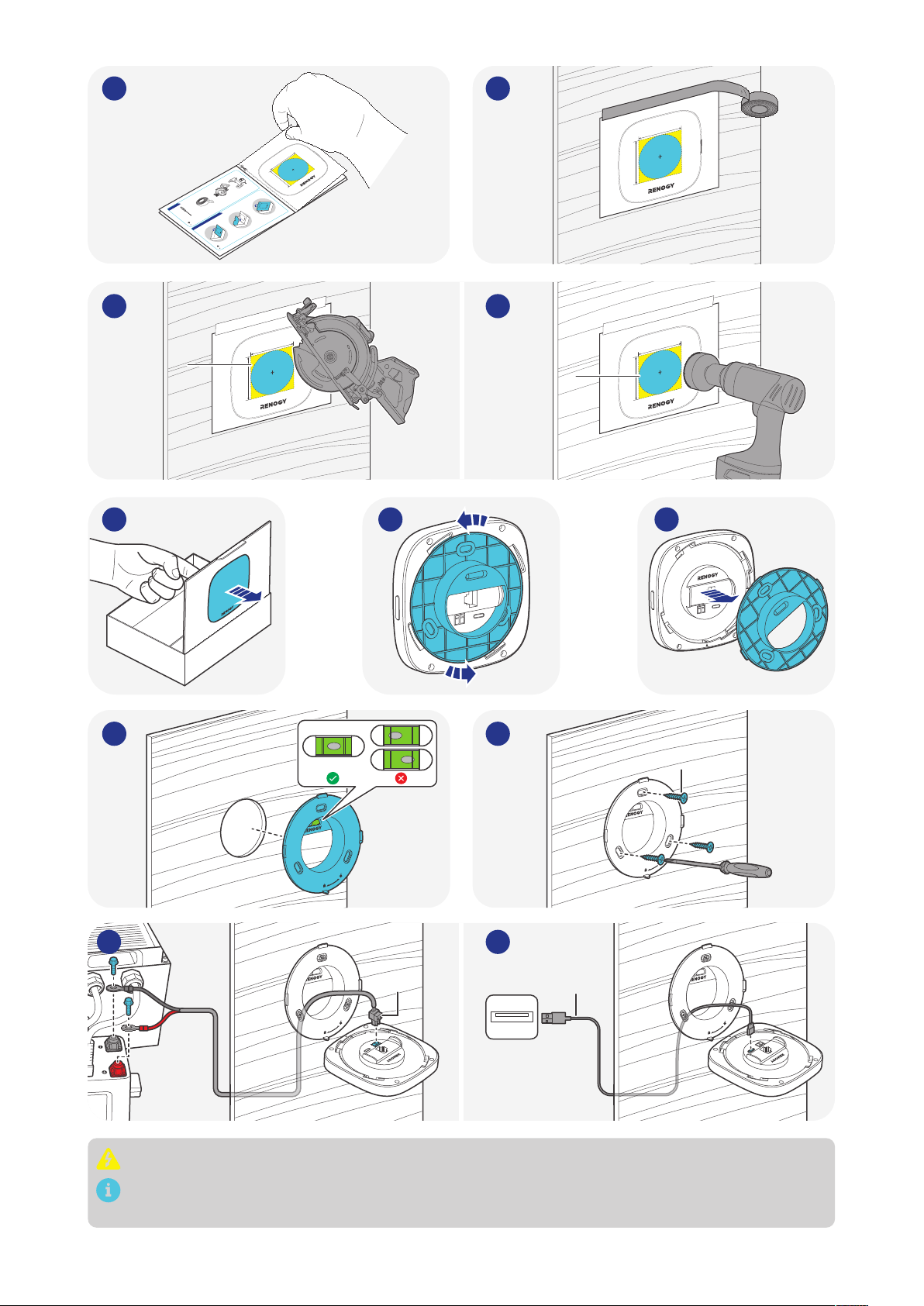

Step 1 (A). Place Renogy ONE Core on a Table
1
2
3
The package box is environmentally friendly. You can use it as a bracket to hold the Core when installing it on the wall is
not required.
Required Tools
Phillips Screwdriver (#1) Insulation Tape
Skill Saw or Electric Drill and Hole Saw (55mm)
Please tear off this piece of paper and paste it to the mounting location for drilling holes.
Mounting Template
2.17in (55mm)
2.17in
(55mm)
Please tear off this piece of paper and paste it to the mounting location for drilling holes.
Mounting Template
2.17in (55mm)
2.17in
(55mm)
Yellow Area
Please tear off this piece of paper and paste it to the mounting location for drilling holes.
Mounting Template
2.17in (55mm)
2.17in
(55mm)
Blue Area
Please tear off this piece of paper and paste it to the mounting location for drilling holes.
Mounting Template
2.17in (55mm)
2.17in
(55mm)
3A 3B
1 2
er Box
Power Cable
(included)
5V, DC
Type-C Cable
(optional)
9A 9B
When installing the power cable, always connect the negative first, and then the positive.
You can connect Renogy ONE Core to a power supply through the included power cable or a
Type-C cable (not included).
— 13 —

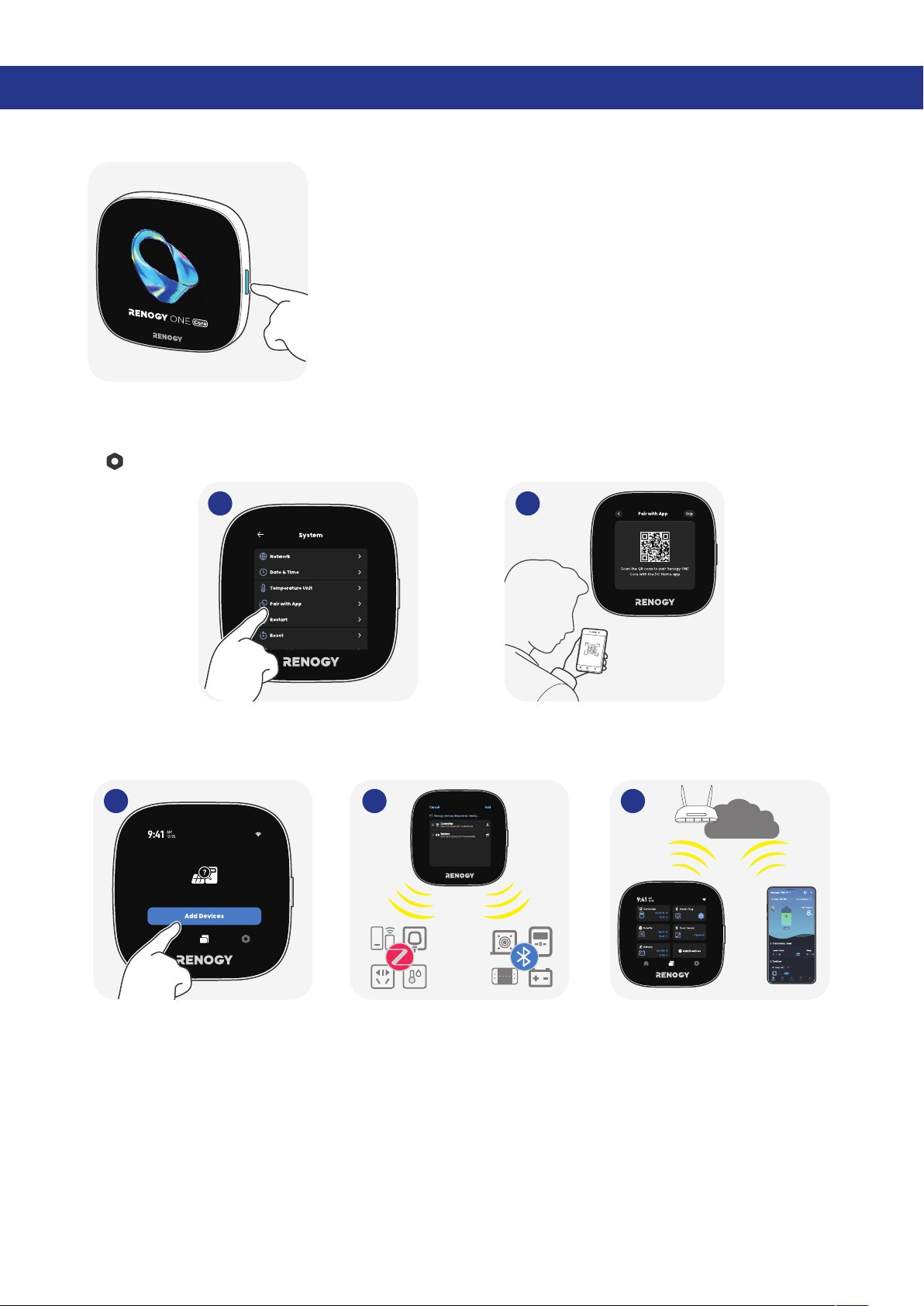

5. Configure RENOGY ONE Core
5.1. Power On/Off
5s
Long press the On/Off Button for 5s to power the Core on or off.
5.2. Pairing with DC Home
For initial startup, follow the startup wizard on the Core to pair it with the DC Home app. Alternatively, go
to
> System > Pair with App.
1 2
5.3. Add Devices
Renogy ONE Core can connect to Bluetooth, Bluetooth mesh, and Zigbee Renogy devices concurrently.
Internet
1 2 3
— 14 —

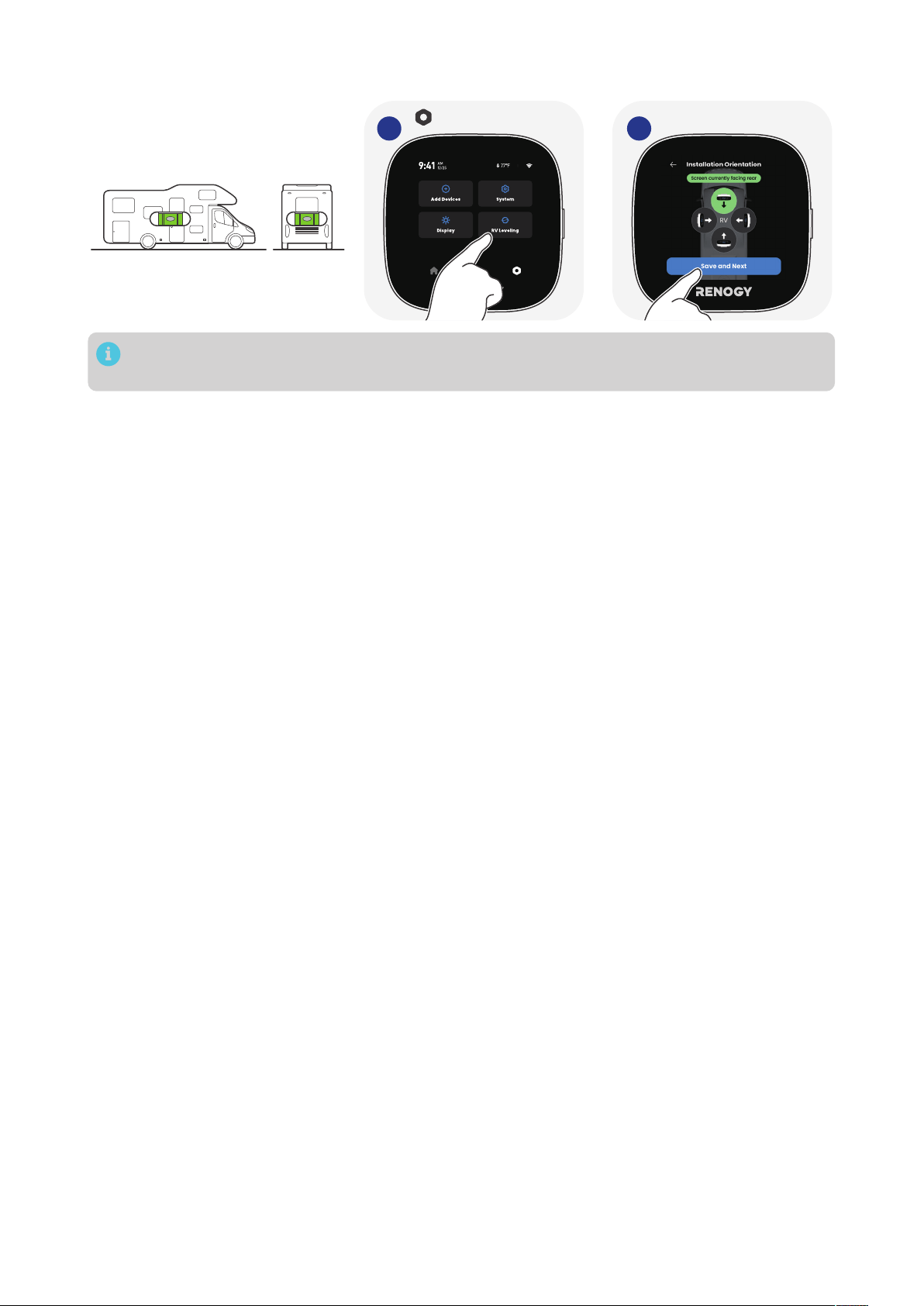

5.4. RV Leveling
> RV Leveling
1 2
RV leveling calibration on Renogy ONE Core is required each time the installation site for the Core
is changed.
— 15 —
6. Troubleshooting
Issue Possible Cause Solution
Power on failure
Reverse polarity contact
Check whether the positive and
negative polarities of the power
terminals are normally connected.
Renogy ONE Core damaged
Contact our customer service
through renogy.com/contact-us/.
Failure to add devices
or smart accessories
The device is too far away from
Renogy ONE Core.
Move the device closer to Renogy
ONE Core.
z
Bluetooth: within 10 m in an open
environment.
z
Zigbee: within 50 m in an open
environment.
The smart accessories have been
connected to other devices.
Reset the smart accessories, and
redo adding. For details, see the user
manuals of specific accessories at
renogy.com/support/downloads.
The device or smart accessory is
incompatible with Renogy ONE
Core.
Use Renogy devices and smart
accessories.
Wi-Fi connection
failure
Unsupported Wi-Fi frequency band
Ensure the Wi-Fi router is working on
the 2.4 GHz band.
WPA3 encryption
Disable WPA3 encryption on the Wi-Fi
router.
Wrong password
Enter the correct Wi-Fi SSID and
password.
Signal shielding
Ensure that there is no metal object
around Renogy ONE Core and the Wi-
Fi router because it may undermine
the wireless communication.
BT-1 or BT-2
communication failure
Unstable communication quality
Unplug the BT-1 or BT-2 Bluetooth
module from the devices, and then
plug it to the devices again. Redo
device scanning on Renogy ONE Core
if necessary.
Laggy and
unresponsive
operations on the LCD
Improper power supply
Check the voltage of the power
supply. Make sure the voltage is 8V to
60V DC for the Power Port or 5V DC
for the Type-C port, and the voltage
should be stable.
Failure to find
Bluetooth devices
1. The Bluetooth device is powered
off.
2. The Bluetooth device has been
paired with DC Home app.
3. Bluetooth on the device is
turned off.
1. Power on the Bluetooth device.
2. Unpair the device from the app
first and then redo on Renogy ONE
Core.
3. Turn on Bluetooth on the device.
— 16 —
Issue Possible Cause Solution
Inaccurate or delayed
RV level data on both
the Core and DC Home
The RV is not parked on a level
surface during initial installation of
Renogy ONE Core.
Park the RV on a level surface, and
redo RV leveling on Renogy ONE Core.
The bubble is not centered in the
bubble level when you install the
base.
Park the vehicle on a level surface,
rotate and remove the Core from its
base. Readjust the base to ensure the
bubble is centered before redoing RV
leveling on the Core.
The performance of the built-
in 6-axis sensor is affected by
environmental factors such as
temperature.
Install the Renogy ONE Core in a well-
ventilated location to prevent RV
leveling data discrepancies due to
extreme temperatures.
Inaccurate or delayed
RV level data on DC
Home
Renogy ONE Core is placed too
far away from your phone or there
are obstacles around Renogy ONE
Core to affect normal Bluetooth
communication between the Core
and your DC Home app.
z
Ensure there is no metal object
around Renogy ONE Core.
z
Reinstall Renogy ONE Core at a
site which is within a range of 10
meters of the driver’s cabin.
— 17 —
7. Interoperability Matrix
Product SKU
With a Built-in Bluetooth Module
REGO 12V 400Ah Lithium Iron Phosphate Battery RBT12400LFPL-SHBT
REGO 12V 60A MPPT Solar Charge Controller RCC60REGO
REGO 12V 60A DC-DC Battery Charger RCB1260DO-100506PR
REGO 12V 3000W Pure Sine Wave Inverter Charger w/ LCD Display RIV1230RCL-1SS
12V 100Ah Lithium Iron Phosphate Battery w/ Bluetooth RBT100LFP12-BT
12V 200Ah Lithium Iron Phosphate Battery w/ Bluetooth RBT200LFP12-BT
When Connected to a BT-1 Module
Adventurer Li- 30A PWM Flush Mount Charge Controller w/ LCD
Display
RNG-CTRL-ADV30-LI
Wanderer 10A PWM Charge Controller RNG-CTRL-WND10
Wanderer Li 30A PWM Charge Controller RNG-CTRL-WND30-LI
Rover Li 20 Amp MPPT Solar Charge Controller RNG-CTRL-RVR20
Rover Li 30 Amp MPPT Solar Charge Controller RNG-CTRL-RVR30
Rover Li 40 Amp MPPT Solar Charge Controller RNG-CTRL-RVR40
400 Watt 12 Volt Solar RV Kit RNG-KIT-RV400D-ADV30
600W 12V/24V Monocrystalline Solar Premium Kit w/Rover 60A
Charger Controller
RKIT600DPM-RVR60
800W 12V/24V Monocrystalline Solar Premium Kit w/Rover 60A
Charger Controller
RKIT800DPM-RVR60
New 400 Watt 12 Volt Solar Premium Kit RNG-KIT-PREMIUM400D-RVR40
400 Watt 12 Volt Solar RV Kit RNG-KIT-RV400D-ADV30
600W 12V/24V Monocrystalline Solar Premium Kit w/Rover 60A
Charger Controller
RKIT600DPM-RVR60
800W 12V/24V Monocrystalline Solar Premium Kit w/Rover 60A
Charger Controller
RKIT800DPM-RVR60
When Connected to a BT-2 Module
Rover Elite 20A MPPT Solar Charge Controller RCC20RVRE
Rover Elite 40A MPPT Solar Charge Controller RCC40RVRE
36V/48V Rover Boost 10A MPPT Solar Charge Controller RCC10RVRB
48V 3500W Solar Inverter Charger RIV4835CSH1S
DCC30S 12V 30A Dual Input DC-DC On-Board Battery Charger
with MPPT
RBC30D1S
DCC30S 12V 50A Dual Input DC-DC On-Board Battery Charger with
MPPT
RBC50D1S
— 18 —
Product SKU
When Connected to a BT-2 Module
1000W 12V Pure Sine Wave Inverter with Power Saving Mode (New
Edition)
R-INVT-PGH1-10111S
2000W 12V Pure Sine Wave Inverter with Power Saving Mode (New
Edition)
R-INVT-PGH1-20111S
48V 50Ah Smart Lithium Iron Phosphate Battery RBT50LFP48S
12V 100Ah Smart Lithium Iron Phosphate Battery w/ Self-Heating
Function
RBT100LFP12SH
12V 100Ah Smart Lithium Iron Phosphate Battery (back-order) RBT100LFP12S
LYCAN 5000 Power Box RPB4835OA-48LFPA12S
When Connected to a BT-1 or BT-2 Module
Rover 60 Amp MPPT Solar Charge Controller RNG-CTRL-RVR60
Rover 100 Amp MPPT Solar Charge Controller RNG-CTRL-RVR100
RS-485
12V 30A Dual Battery Charging 100W Solar Flex Bundle RKIT100DB-30D1S
12V 50A Dual Battery Charging 200W Solar Flex Bundle RKIT200DB-50D1S
350 Watt Solar Flexible Kit RKIT350DB-RVRE40
Zigbee
Motion Sensor RSHMSZ03P-US
Door & Window Sensor RSHDWZ03P-US
Smart Plug RSHPGZ01P-US
Smart Relay RSHSRZ02P-US
For the latest products that are compatible with Renogy ONE Core, visit renogy.com.
— 19 —
8. FAQ
█

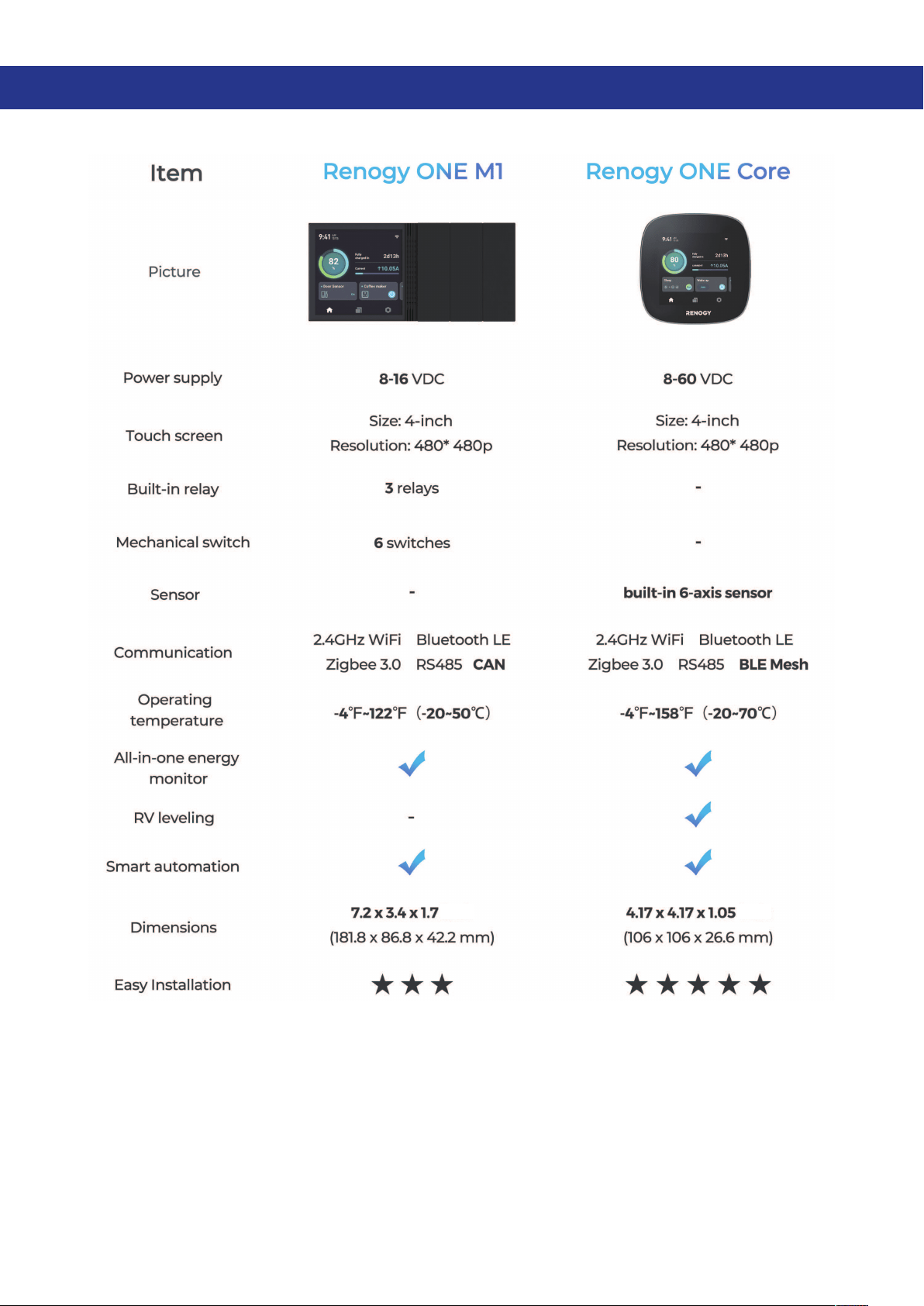

What are the differences between Renogy ONE Core and Renogy ONE M1?
inches inches
█
How to connect Renogy ONE Core with different types of batteries to set up a battery
monitoring system?
The Renogy ONE Core can function as a power monitor when it is connected to Renogy batteries that
support Bluetooth (built-in or with external BT-1/BT-2 modules) and RS-485.
█
Does Renogy ONE Core support RV-C?
No, the Renogy ONE Core does not support RV-C communication.
█
How can I check the RV leveling status?
You can check it locally on Renogy ONE Core or remotely on the DC Home app when the app is paired
with the Core via Bluetooth.
— 20 —
█
What is the operational altitude range for the Renogy ONE Core?
It can work normally at altitudes below 5000 meters.
█
Does Renogy ONE Core come with a shunt?
No, it does not come with a shunt. Visit renogy.com for further updates.
█
Does Renogy ONE Core support 5 GHz Wi-Fi network?
No. It supports 2.4 GHz Wi-Fi only.
█
Does Renogy ONE Core support WPA3 encrypted Wi-Fi networks?
No. It does not support WPA3.
█
Is Renogy ONE Core compatible with third-party Zigbee 3.0 devices?
We cannot guarantee the compatibility between Renogy ONE Core and third-party Zigbee 3.0 smart
home devices. Therefore, it is recommended to use smart accessories that have been authorized by
Renogy with your Renogy ONE Core, such as Smart Plug, Motion Sensor, Door & Window Sensor, and
Smart Relay.
█
Do the configured smart scenes in Renogy ONE Core still work when it is offline?
Yes, the configured smart scenes in Renogy ONE Core will still work when it is offline. Renogy ONE Core
utilizes the Zigbee 3.0 protocol to establish wireless connections with smart accessories. When you set
up a smart scene for home automation, the configuration is saved within the system of Renogy ONE
Core. This means that even if the Wi-Fi network is unavailable, Renogy ONE Core can still communicate
with and control smart accessories through Zigbee 3.0.
█
What kind of power systems can Renogy ONE Core work with?
Renogy ONE Core can be supplied by a 5V DC source via Type-C or an 8V to 60V DC source via the power
cable.
As for energy monitoring, Renogy ONE Core allows you to monitor power devices rated at 12V DC, 24V
DC, or 48V DC.
█
How long will Renogy ONE Core store the data locally?
Renogy ONE Core can store data locally for 30 days
█
How to install Renogy ONE Core on a table?
It is recommended to install Renogy ONE Core on a table when it is supplied by a Type-C cable. You can
just put it in the package box.
█
What are the leveling requirements for the initial installation of Renogy ONE Core in an RV?
During the initial installation, it is important to park your RV on a level surface. Ensure that the Renogy
ONE Core’s bubble level is positioned in the center during the installation process. This will help to
achieve proper leveling and ensure optimal performance.
█
Is it normal for the RV leveling data in Renogy ONE Core to have minor fluctuations when the
vehicle’s engine is running but the vehicle is not moving?
Yes. This is because the built-in 6-axis sensor in the Core is capable of detecting vibrations caused by
the vehicle’s engine. Therefore, slight variations in the RV leveling data can occur under such conditions.
As long as the fluctuations are small and do not affect the overall accuracy of the leveling calibration, it
is considered normal operation.
— 21 —
9. Dimensions and Specifications

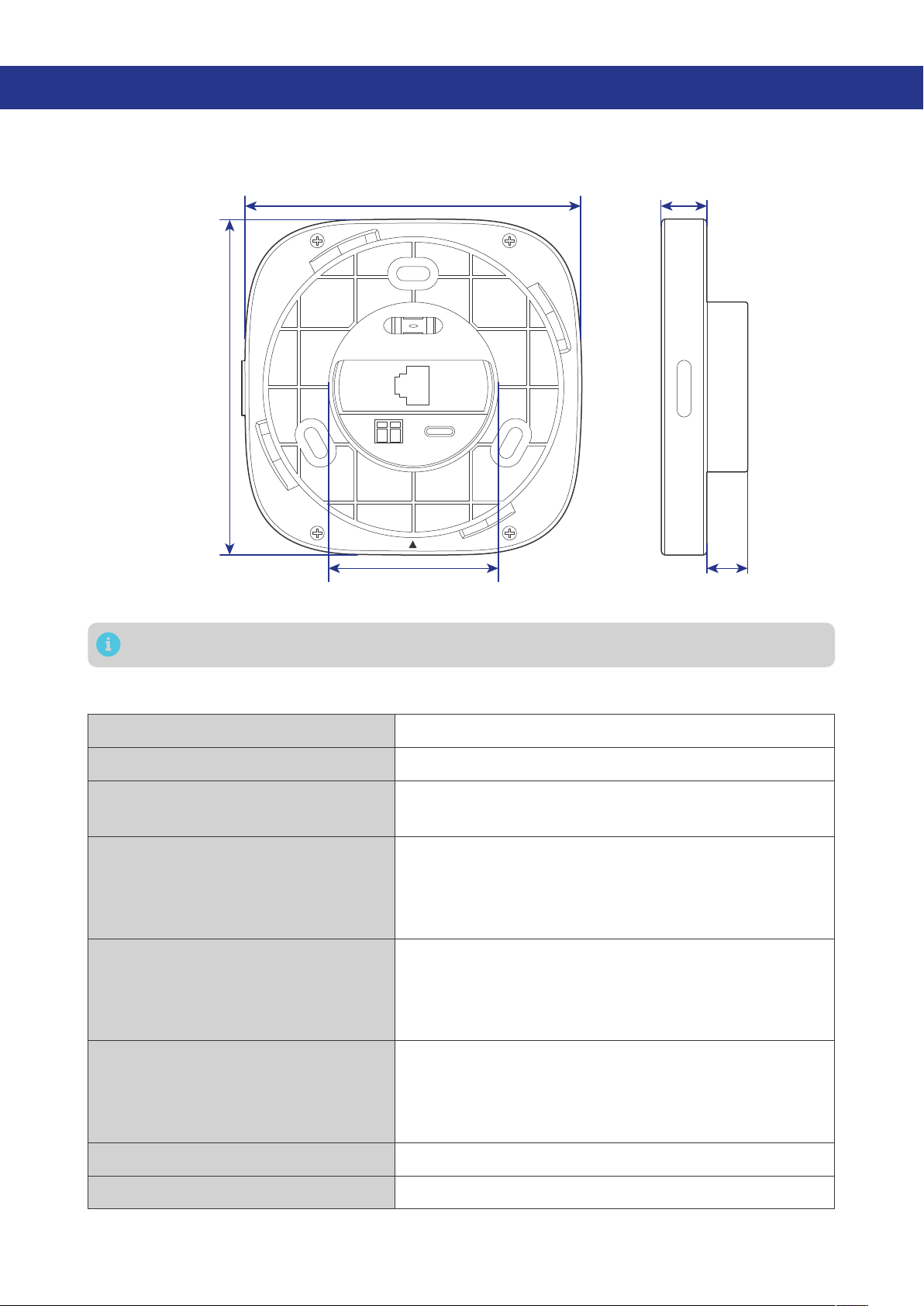

9.1. Dimensions
4.17 in (106 mm)
4.17 in
(106 mm)
2.09 in (53 mm)
0.50 in
(12.6 mm)
0.55 in
(14 mm)
Dimension tolerance: ±0.5 mm (0.2 in)
9.2. Technical Specifications
Product Name Renogy ONE Core
Model Name RSHGWSN-W02W-G1
Operating Voltage
z
Power Port: 8 to 60 VDC
z
USB Type-C: 5 VDC
Power Consumption at 12 V
z
Operating, Wi-Fi On, 100% illumination: 3.2 W
z
Operating, Wi-Fi On, 50% illumination: 2.4 W
z
Operating, Wi-Fi On, 0% illumination: 1.9 W
z
Screen off, Wi-Fi Off, logs still active: 1.5 W
Power Consumption at 5 V
z
Operating, Wi-Fi On, 100% illumination: 2.9 W
z
Operating, Wi-Fi On, 50% illumination: 2.3 W
z
Operating, Wi-Fi On, 0% illumination: 1.7 W
z
Screen off, Wi-Fi Off, logs still active: 1.3 W
Communication
z
z
Bluetooth LE and Bluetooth Mesh
z
Zigbee 3.0 (IEEE 802.15.4)
z
RS-485
Touch Screen 4 in (480 x 480p)
Leveling Range and Accuracy ±89°, 0.1°
— 22 —
Operating Temperature -4°F to 158°F(-20°C to 70°C)
Operating Humidity 0% to 95% RH
Operating Altitude Less than 16,404 ft (5000m)
Installation Flush mount or place on a table
Dimensions 4.17 x 4.17 x 1.05 in (106 x 106 x 26.6 mm)
Weight 0.28 lb (128g)
Certifications CE, FCC, RoHS, TSCA, BQB, and IC-ID
Warranty 2 years
— 23 —
Maintenance
Inspection
For optimum performance, it is recommended to perform these tasks regularly.
z
Check the appearance of the Renogy ONE Core to make sure it is clean and dry.
z
Ensure the Renogy ONE Core is installed in a clean, dry and ventilated area.
z
Ensure there is no damage or wear on the cables.
z
connections.
z
Ensure that the Battery indicator and Fault indicator are in normal state.
z
Ensure there is no any corrosion, insulation damage, or discoloration marks of overheating or
burning.
Risk of electric shock! Make sure that all power is turned off before touching the terminals on the
Renogy ONE Core.
In some applications, corrosion may exist around the contacts inside the connector. Corrosion
can loosen springs and increase resistance, leading to premature connection failure. Please
apply dielectric grease to each connector contact periodically. Dielectric grease repels moisture
and protects the connector contacts from corrosion.
Cleaning
Follow the steps below to clean the Renogy ONE Core regularly.
z
Shut down Renogy ONE Core. If you clean the inside of the device, you need to disconnect the power
supply.
z
Wipe the charger housing and connector contacts with a damp cloth or non-metallic brush. If it is
not clean after wiping, use a household cleaner.
z
Dry the Renogy ONE Core with a clean cloth and keep the area around the Renogy ONE Core clean
and dry.
z
Make sure the Renogy ONE Core is completely dry before reconnecting the connector to the Renogy
ONE Core.
Storage
Follow the tips below to ensure that the Renogy ONE Core is stored well.
z
Disconnect all connectors that are connected to the Renogy ONE Core.
z
By applying dielectric grease to each connector contact, the dielectric grease repels moisture and
protects the connector contacts from corrosion.
— 24 —
Emergency Responses
In the event of any threat to health or safety, always begin with the steps below before addressing other
suggestions.
z
z
Notify all people who might be affected and ensure that they can evacuate the area.
Only perform the suggested actions below if it is safe to do so.
Fire
1. Disconnect all cables connected to the Renogy ONE Core.
, and ABC.
Flooding
1. If the Renogy ONE Core is submerged in water, stay away from the water.
2. Disconnect all cables connected to the Renogy ONE Core.
Smell
1. Disconnect all cables connected to the Renogy ONE Core.
2. Make sure nothing is in contact with the Renogy ONE Core.
3. Ventilate the room.
Noise
1. Disconnect all cables connected to the Renogy ONE Core.
2. Make sure no foreign objects are stuck in the Renogy ONE Core connector.
— 25 —
Renogy Support
To discuss inaccuracies or omissions in this quick guide or user manual, visit or contact us at:
renogy.com/support/downloads
contentservice@renogy.com
To explore more possibilities of solar systems, visit Renogy Learning Center at:
renogy.com/learning-center
For technical questions about your product in the U.S., contact the Renogy technical support team
through:
renogy.com/contact-us
1(909)2877111
For technical support outside the U.S., visit the local website below:
Canada ca.renogy.com China www.renogy.cn
Australia au.renogy.com Japan renogy.jp
South Korea kr.renogy.com Germany de.renogy.com
United Kingdom uk.renogy.com Other Europe eu.renogy.com
— 26 —
FCC & RSS
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Warning: Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
(1) Reorient or relocate the receiving antenna.
(2) Increase the separation between the equipment and receiver.
(3) Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
(4) Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
RSS Standard
This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the
following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
The device is compliance with RF exposure guidelines, users can obtain Canadian information on RF
exposure and compliance. The minimum distance from body to use the device is 20cm.
— 27 —
Privacy Policy
RENOGY (“us”, “we”, or “our”) operates on RENOGY ONE device (hereinafter referred to as the “Service”).
This page informs you of our policies regarding the collection, use and disclosure of personal data when
you use our Service and the choices you have associated with that data.
We use your data to provide and improve the Service. By using the Service, you agree to the collection
and use of information in accordance with this policy. Unless otherwise defined in this Privacy
Policy, the terms used in this Privacy Policy have the same meanings as in our Terms and Conditions,
accessible from
www.renogy.com.
Definitions
█
Service
Service includes but not limited to, serving as a central control panel for your RENOGY ONE system,
enabling you to control your entire system from one single touchscreen, connecting energy devices and
smart accessories, and synchronizing this data to your RENOGY server and mobile App.
█
Personal Data
Personal Data means data about a living individual who can be identified from those data (or from those
and other information either in our possession or likely to come into our possession).
█
Usage Data
Usage Data is data collected automatically, either generated by the use of the Service or from the
Service infrastructure itself (for example, your IP address and user log).
█
Data Controller
Data Controller means the natural or legal person who (either alone or jointly or in common with other
persons) determines the purposes for which and the manner in which any personal information are, or
are to be, processed.
For the purpose of this Privacy Policy, we are a Data Controller of your Personal Data.
█
Data Processors (or Service Providers)
Data Processor (or Service Provider) means any natural or legal person who processes the data on
behalf of the Data Controller.
We may use the services of various Service Providers in order to process your data more effectively.
█
Data Subject (or User)
Data Subject is any living individual who is using our Service and whose Personal Data is collected by
us.
█
Information Collection and Use
We collect several different types of information for various purposes to provide and improve our
Service to you.
Types of Data Collected
█
Personal Data
While using our Service, we may ask you to provide us with certain personally identifiable information
that can be used to contact or identify you (“Personal Data”). Personally identifiable information may
include, but is not limited to:
z
Email address
z
First name and last name
z
Address, State, Province, ZIP/Postal code, City
We may use your Personal Data to contact you with newsletters, marketing or promotional materials
and other information that may be of interest to you. You may opt out of receiving any, or all, of these
communications from us by following the unsubscribe link or the instructions provided in any email we
send.
— 28 —
█
Usage Data
We may also collect information on how the Service is accessed and used (“Usage Data”). This Usage
Data may include information such as your Renogy ONE Internet Protocol address (e.g. IP address),
4G/5G and Wi-Fi access information, power usage, sensor history, user log, unique device identifiers
and other diagnostic data.
█
Location Data
We may use and store information about your location if you give us permission to do so (“Location
Data”). We use this data to provide features of our Service, to improve and customise our Service.
You can enable or disable location services when you use our Service at any time by way of your device
settings.
█
Use of Data
RENOGY uses the collected data for various purposes:
z
To provide and maintain our Service
z
To notify you about changes to our Service
z
To allow you to participate in interactive features of our Service when you choose to do so
z
To provide customer support
z
To gather analysis or valuable information so that we can improve our Service
z
To monitor the usage of our Service
z
To detect, prevent and address technical issues
z
To provide you with news, special offers and general information about other goods, services and
events which we offer that are similar to those that you have already purchased or enquired about
unless you have opted not to receive such information
█
Legal Basis for Processing Personal Data under the General Data Protection Regulation (GDPR)
If you are from the European Economic Area (EEA), UK or Switzerland, RENOGY’s legal basis for
collecting and using the personal information described in this Privacy Policy depends on the Personal
Data we collect and the specific context in which we collect it.
RENOGY may process your Personal Data because:
z
We need to perform a contract with you
z
You have given us permission to do so
z
The processing is in our legitimate interests and it is not overridden by your rights
z
To comply with the law
█
Retention of Data
RENOGY will retain your Personal Data only for as long as is necessary for the purposes set out in this
Privacy Policy. We will retain and use your Personal Data to the extent necessary to comply with our
legal obligations (for example, if we are required to retain your data to comply with applicable laws),
resolve disputes and enforce our legal agreements and policies.
RENOGY will also retain Usage Data for internal analysis purposes. Usage Data is generally retained
for a shorter period of time, except when this data is used to strengthen the security or to improve the
functionality of our Service, or we are legally obligated to retain this data for longer periods.
█
Transfer of Data
Your information, including Personal Data, may be transferred to - and maintained on - computers
located outside of your state, province, country or other governmental jurisdiction where the data
protection laws may differ from those of your jurisdiction.
If you are located outside the United States and choose to provide information to us, please note that
we transfer the data, including Personal Data, to the United States and process it there.
RENOGY will take all the steps reasonably necessary to ensure that your data is treated securely and
in accordance with this Privacy Policy and no transfer of your Personal Data will take place to an
organization or a country unless there are adequate controls in place including the security of your data
and other personal information.
— 29 —
Disclosure of Data
█
Disclosure for Law Enforcement
Under certain circumstances, RENOGY may be required to disclose your Personal Data if required to do
so by law or in response to valid requests by public authorities (e.g. a court or a government agency).
█
Legal Requirements
RENOGY may disclose your Personal Data in the good faith belief that such action is necessary to:
z
To comply with a legal obligation
z
To protect and defend the rights or property of RENOGY
z
To prevent or investigate possible wrongdoing in connection with the Service
z
To protect the personal safety of users of the Service or the public
z
To protect against legal liability
█
Security of Data
The security of your data is important to us but remember that no method of transmission over the
Internet or method of electronic storage is 100% secure. While we strive to use commercially acceptable
means to protect your Personal Data, we cannot guarantee its absolute security.
█
Your Data Protection Rights under the General Data Protection Regulation (GDPR)
If you are a resident of the European Economic Area (EEA), the UK or Switzerland, you have certain data
protection rights. RENOGY aims to take reasonable steps to allow you to correct, amend, delete or limit
the use of your Personal Data.
If you wish to be informed about what Personal Data we hold about you and if you want it to be removed
from our systems, please contact us.
In certain circumstances, you have the following data protection rights:
z
The right to access, update or delete the information we have on you. Whenever made possible, you
can access, update or request deletion of your Personal Data directly within your account settings
section. If you are unable to perform these actions yourself, please contact us to assist you.
z
The right of rectification. You have the right to have your information rectified if that information is
inaccurate or incomplete.
z
The right to object. You have the right to object to our processing of your Personal Data, in certain
circumstances including where we are processing your Personal Data on the basis of our legitimate
interests.
z
The right of restriction. You have the right to request that we restrict the processing of your personal
information.
z
The right to data portability. You have the right to be provided with a copy of the information we have
on you in a structured, machine-readable and commonly used format.
z
The right to erasure. You have the right to request that your Personal Data be deleted in its entirety
from our systems. We will comply with your request unless we are required to retain your Personal
Data due to legal or regulatory requirements, as stated in this policy.
z
The right to withdraw consent. You also have the right to withdraw your consent at any time where
RENOGY relied on your consent to process your personal information.
Please note that we may ask you to verify your identity before responding to such requests.
You have the right to complain to a Data Protection Authority about our collection and use of your
Personal Data. For more information, please contact your local data protection authority in the European
Economic Area (EEA), the ICO in the UK or the Federal Data Protection and Information Commissioner in
Switzerland.
— 30 —
█
Your Privacy Rights under the California Consumer Privacy Act (CCPA)
If you are a California resident, you have certain privacy rights as specified under California law,
including the CCPA. These include:
z
The right to know what personal information we collect
z
The right to know who we share your data with. We do not sell your data, but we do share your
information with others for legitimate business purposes, as described above.
z
The right to request deletion of your data, unless an exception applies. Examples of exceptions
include when we need to keep data to meet legal obligations or fix security issues. Upon your verified
request, we will delete your personal information unless an exception applies, and will direct our
service providers to do the same.
z
Get a timely response. You have the right to make two free requests in any 12 month period. We will
respond to your request within 45 days, and in more difficult cases we may extend our response time
by another 45 days.
z
Non-discrimination. We will not hold it against you when you exercise any of your rights, and we
encourage you to review your privacy settings closely and reach out to us with your questions.
Under the CCPA, we are required to inform you of the data we may collected in the last 12 months:
z
Identifiers, such as your name, email address and IP address
z
Internet or other electronic network activity information
We may share your personal information with a third party for business purposes or at your direction.
We enter into agreements with our service providers in which they can only use your information
for specific purposes and are required to ensure its confidentiality. In the past 12 months, we have
disclosed the above categories of personal information for a business purpose or at your direction with
our affiliates, services providers and third parties. For more details on third parties we share data with,
please see the Service Providers section below.
Please contact us at support@
renogy.com if you have any questions about data protection or if you
wish to exercise any of your rights described above.
Service Providers
We may employ third party companies and individuals to facilitate our Service (“Service Providers”),
provide the Service on our behalf, perform Service-related services or assist us in analyzing how our
Service is used.
These third parties have access to your Personal Data only to perform these tasks on our behalf and are
obligated not to disclose or use it for any other purpose.
Analytics
We may use third-party Service Providers to monitor and analyze the use of our Service.
Changes to This Privacy Policy
We may update our Privacy Policy from time to time. We will notify you of any changes by posting the
new Privacy Policy on this page.
We will let you know via email and/or a prominent notice on our Service, prior to the change becoming
effective and update the “effective date” at the top of this Privacy Policy.
You are advised to review this Privacy Policy periodically for any changes. Changes to this Privacy Policy
are effective when they are posted on this page.
Contact Us
If you have any questions about this Privacy Policy, please contact us via renogy.com/contact-us.
RENOGY.COM
Renogy aims to empower people around the world through education and distribution of DIY-friendly
renewable energy solutions.
Renogy Power Plus allows you to stay in the loop with upcoming solar energy innovations, share your
experiences with your solar energy journey, and connect with like-minded people who are changing
the world in the Renogy Power Plus community.
We intend to be a driving force for sustainable living and energy independence.
footprint by reducing the need for grid power.
Renogy Empowered
Live Sustainably with Renogy
Did you know? In a given month, a 1kW solar energy system will...
Save 170 pounds of coal from being burned
Save 300 pounds of CO from being released into the atmosphere
Save 105 gallons of water from being consumed
@Renogy Solar @Renogy
Renogy Power
PLUS
Renogy reserves the right to change the contents of this manual without notice.
FCC ID: 2ANPBGWSN-W02W
IC: 23590-RSHGWSNW02W
eVatmaster Consulting GmbH
60325 Frankfurt am Main, Germany
Battinastr. 30
EC REP
Manufacturer: RENOGY New Energy Co.,Ltd
Address: No.66, East Ningbo Road Room 624-625
Taicang German Overseas Students Pioneer Park
JiangSu 215000 CN
EVATOST CONSULTING LTD
Centre, Taffs Well, Cardiff, Wales, CF15 7QR
Suite 11, First Floor, Moy Road Business
UK REP
Manufacturer: RENOGY New Energy Co.,Ltd
Address: No.66, East Ningbo Road Room 624-625
Taicang German Overseas Students Pioneer Park
JiangSu 215000 CN
