English
2
Features 3
Bluelab pH Controller 3
What’s in the box? 4
IMPORTANT - Bluelab pH
Probe care 5
Installing the pH controller 6
Connect the Bluelab pH Probe 6
Connect the Bluelab
Temperature Probe 6
SAFETY - Handling pH up or
pH down solution 6
Set up inlet dosing tube 7
Set up outlet dosing tube 7
Connect power adaptor 8
Display menu and buttons 8
Factory settings 9
Change the display language 9
pH calibration 10
Placement of the probes 12
Set the required pH 12
Set the dose direction -
for pH up or down solution 12
Set the dosing OnTime
and O Time 13
Set alarms (optional) 14
View current settings 14
Priming the pump 15
Set the mode 15
Change the screen backlight
and/or contrast 16
Hydrating the pH probe 16

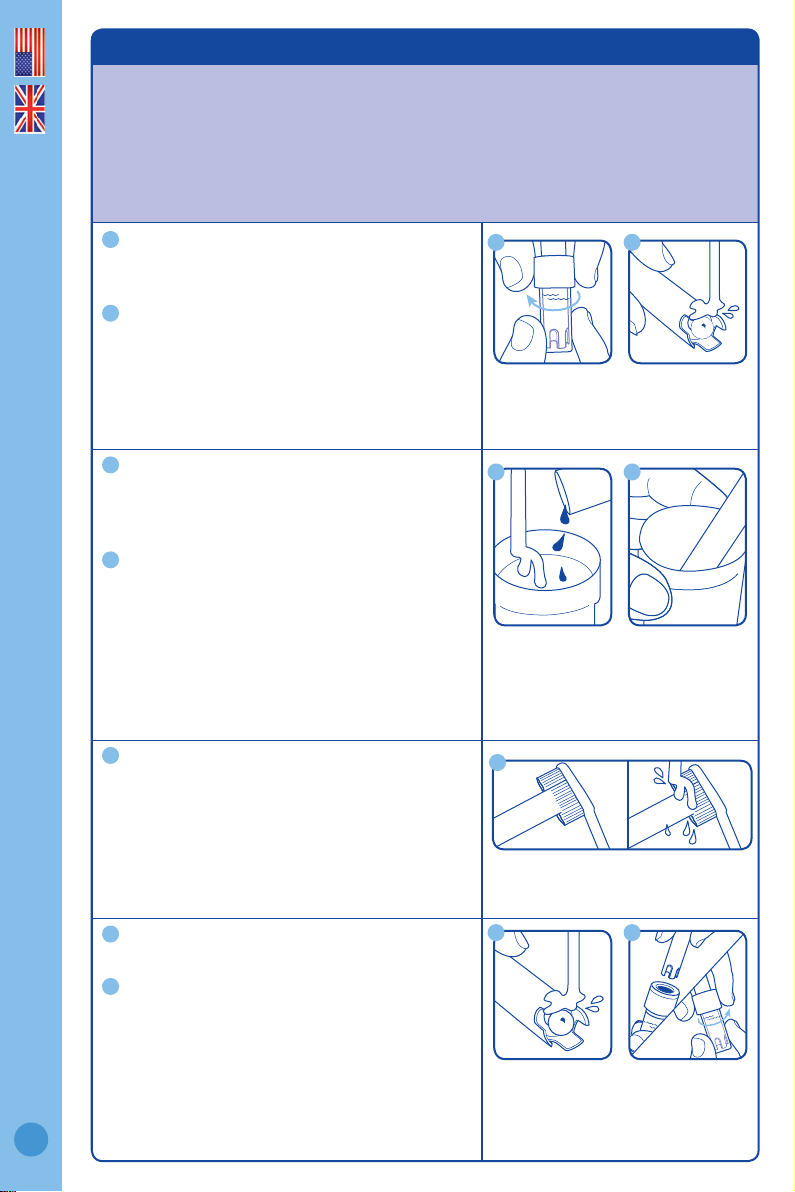

Cleaning the pH probe 17
Troubleshooting guide 18
Frequently Asked Questions
(FAQs) 19
Technical specications 20
Bluelab pH Controller
accessories and spare parts 21
Bluelab limited warranty 23
Contact details 23
page page
Contents
English
3
Features
Automatic control and monitoring of system pH with
reservoirs up to 200 US Gallons / 760 Liters
Auto resume dosing on restart after
power loss
Large, easy to read display Water resistant, wall mount design
Simple push button pH calibration with on screen
instructions
13 foot (4 meter) acid/alkaline resistant
tubing supplied
Easy to navigate menu to program and adjust settings International power supply
Flashing high and low alarm with safety control
lockouts
Replaceable double junction pH probe
‘Plant-safe’ green back lit LCD with adjustable
brightness and contrast
Separate Bluelab Temperature Probe
(for pH ATC)
Dosing lockouts to protect from over-dosing Replaceable peristaltic pump and tubing
Bluelab pH Controller
What is Plant Safe? Green lights are safe for continued growth during a plant’s fruiting
stage when hours of darkness are required.
What are Dosing Lockouts for? They are a built-in safety feature that stops pH dosing if
an error is detected in the system (see FAQs for more detail).
Alarm on
symbol
Control dosing
up or down
symbols
pH display successful pH calibration symbol
pH calibration
button
Peristaltic
pump with
cover
Inlet tube
Outlet tube
pH controller
status
Power input
pH probe BNC
connector
Bluelab Temperature
Probe (for pH ATC)
Bluelab
pH Probe
ATC symbol
Temperature probe input
Up button
Menu button
Enter button
Down button
pH probe
storage cap
Keep your pH probe tip wet
at all times to avoid permanent damage
English
4
PLEASE FOLLOW THE MANUAL STEP BY STEP BEFORE FIRST USE BEGINS
1.0 What’s in the box?
Please verify the box contents from the information below.
1
Bluelab pH Controller
2
Bluelab pH Probe with storage cap
3
Bluelab Temperature Probe
4
Bluelab pH Probe holder with suction cup
5
24V DC 0.4Amp power supply
6
Europe plug adaptor
7
UK plug adaptor
8
North American plug adaptor
9
NZ / Australia plug adaptor
10
13 foot (4 meter) Acid/Alkali
resistant dosing tube with connectors
11
4 x mounting fasteners
12
20ml pH 7.0 and pH 4.0 single-use
calibration solution sachets
13
Inlet tube cap for pH stock solution
14
Replaceable peristaltic pump with cover
5
6 7 8 9
2
4
11
13
12
10
3
1
14
English
5
2.0 IMPORTANT - Bluelab pH Probe care
pH probes DO NOT last forever. They age through normal use and will eventually fail.
The life time of a pH probe depends on the environment it is used in and the way
that it is treated. To receive a long life from your Bluelab pH Probe, please ensure you
follow the guide below.
pH probe holder
suction cup
pH probe
storage cap
pH probe KCl
storage solution
pH probe tip
BNC connector
Glass tube inside
plastic barrel
Glass bulb
DO NOT let the pH probe tip dry. IF IT DRIES IT DIES!
DO NOT bend the probe; this will break its internal glass tube.
DO NOT knock the probe; this will break its internal glass tube or external glass bulb.
DO NOT plunge a cold pH probe into a hot liquid, or a hot probe into cold liquid. Sudden
temperature changes can crack the glass and permanently damage the probe.
DO NOT immerse in oils, proteins or suspended solids that will leave a coating on the glass bulb.
DO NOT ‘kink’ or bend the lead sharply.
DO NOT attempt to lengthen the lead on the pH probe.
DO NOT wet the BNC connector at the end of the lead.
Bluelab pH Probe
pH probes contain glass and are therefore FRAGILE. With good care, they will
give a long service life.
Always remove pH probe storage cap before use
1. Grip the top of the cap and gently twist the base one rotation
clockwise to loosen slightly.
2. Next slowly slide the cap off the pH probe. DO NOT completely
remove the base of the cap from the top of the cap.
3. Store the storage cap in a safe place.
Storing the pH probe
When storing the pH probe, the pH probe tip must be kept moist.
To prepare the pH probe for storage, add enough Bluelab pH Probe KCl Storage
Solution to the storage cap so the probe tip is covered. Then replace the cap
and store in a secure place. DO NOT use RO (Reverse Osmosis), Distilled or
De-ionized water. Pure water changes the chemistry in the reference, causing
the probe to die.
If the pH probe has been accidentally allowed to dry out;
The pH probe must be ‘hydrated’ for 24 hours in KCl storage solution (never use
RO, Distilled or De-ionized water). Following this; carry out a calibration to check if
the probe has already suffered permanent damage.
Removing pH probe
storage cap
Ensure probe tip is covered by
the KCl storage solution in cap
English
6
5.0 Connect the Bluelab Temperature Probe
Insert the temperature probe connector to
the base of the pH controller where ‘ATC’
is labelled. Ensure the connector is fully
inserted.

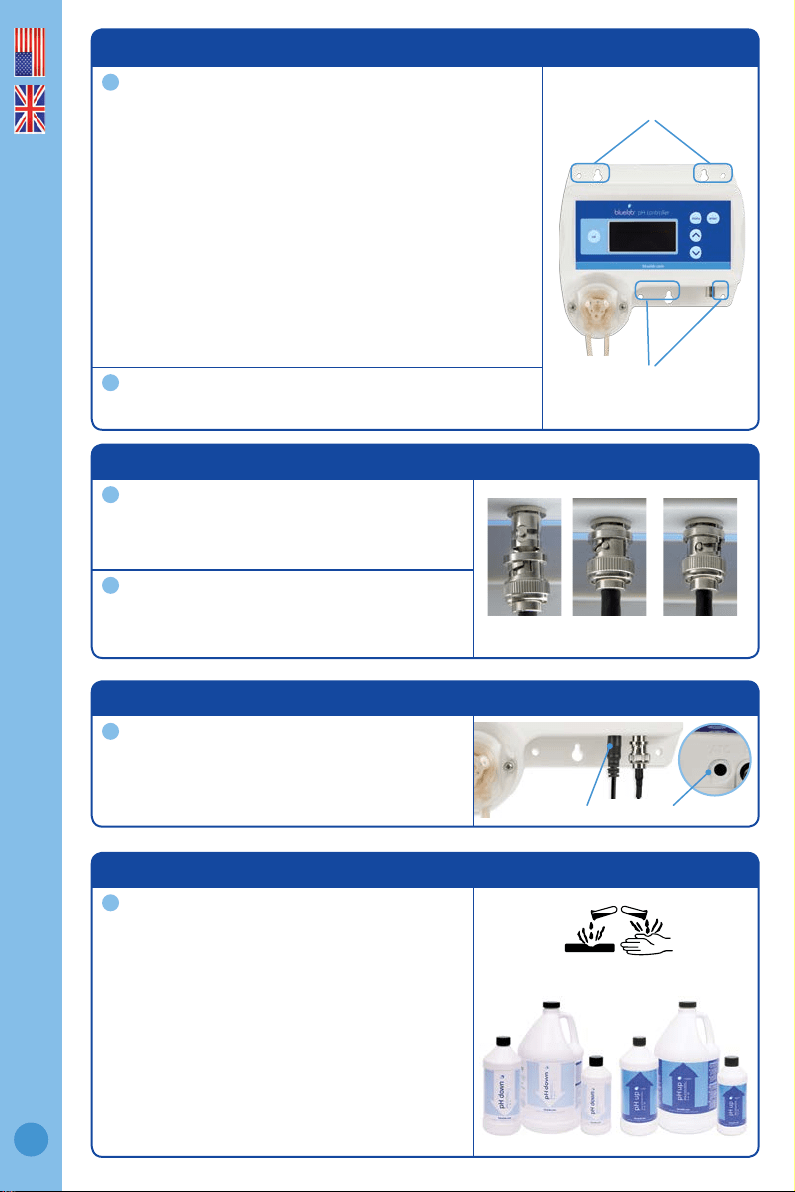

3.0 Installing the pH controller
Select a suitable location that is:
• Less than 5.65 feet / 2 meters from your reservoir.
The probes must be immersed in solution at all times.
• Less than 4.9 feet / 1.5 meters from an electrical
mains outlet.
• Less than 5.56 feet / 2 meters from pH Up or Down
solution. The inlet tube must reach the bottom of the
container.
• At a suitable height to see the display and for easy
operation (recommend slightly below eye level
when standing).
NOTE: Avoid placing the pH controller where it can
be damaged by direct sunlight, water, nutrient salts
or pH adjuster.
Fix the fasteners through the desired mounting holes in
the top and bottom of the case.
Mounting holes at top
Mounting holes at bottom
1
2
4.0 Connect the Bluelab pH Probe
Connect the pH probe to the pH controller by
lining up the lugs of the BNC ttings.
Fasten securely by pushing the pH probe
connector on and twisting one quarter turn.
1
2
Inserting Twisting Attached
6.0 SAFETY - Handling pH up and down solutions
Bluelab pH Up or pH Down Solutions are
available in North America. They can be used
undiluted with the pH controller.
Always follow the manufacturer’s instructions
for use and handling.
CAUTION: Wear eye protection and gloves
when handling this product. Harmful if
swallowed. Keep out of the reach of children.
Store under cool and dry conditions. Not for
food, drug or household use.
Read MSDS before use.
1
1
temperature probe connection
English
7

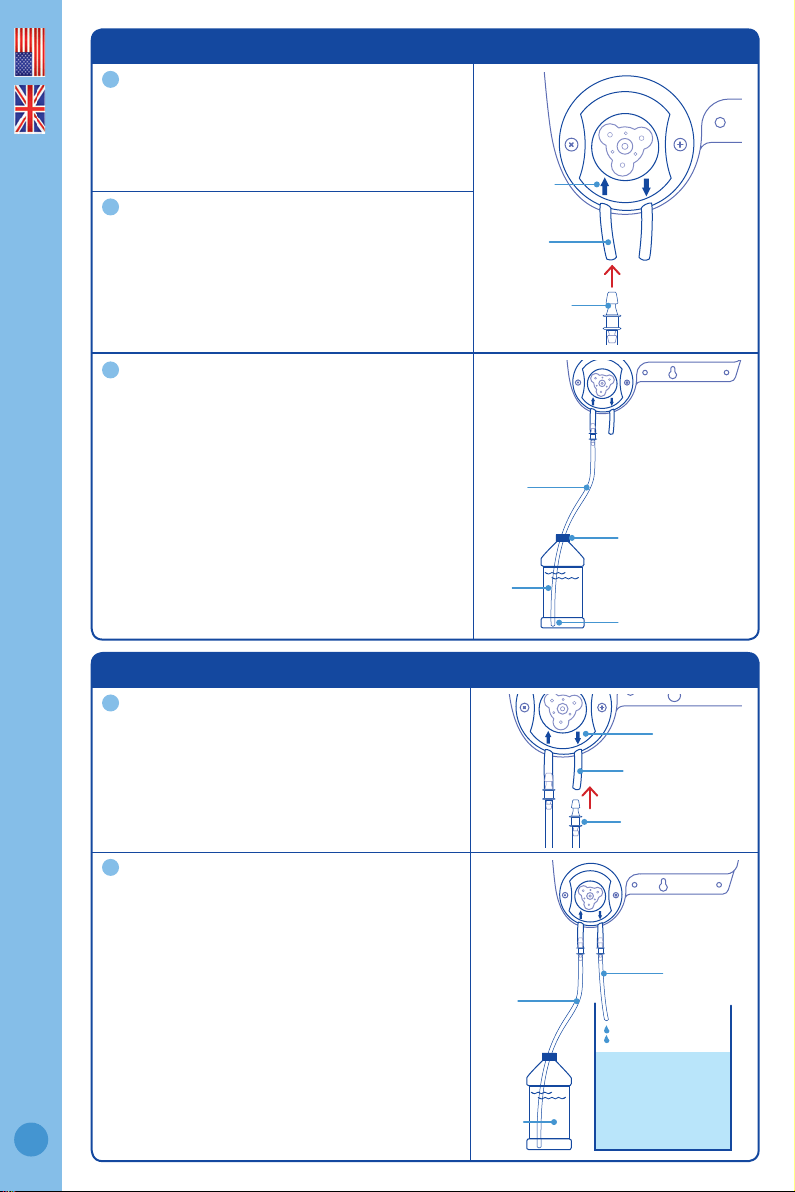

8.0 Set up outlet dosing tube
Insert the remaining dosing tube with
connector into the RIGHT peristaltic pump
tube. This is the ‘outlet dosing tube’.
Cut the outlet dosing tube so that the tube
sits above the maximum solution level of the
reservoir/tank. The pH stock solution must
drip into the nutrient reservoir/tank.
Note: If the outlet dosing tube is immersed
in reservoir/tank solution, it could create
a syphon. This would cause the pH stock
solution to overow.
7.0 Set up inlet dosing tube
To straighten tube:
Bend tube in the opposite direction and
straighten by running through closed ngers.
Insert one end of the dosing tube with
connector into the LEFT peristaltic pump tube.
This is the ‘inlet dosing tube’.
Ensure the inlet dosing tube will reach the
bottom of the pH stock solution container.
There also needs to be enough tube left for the
outlet dosing tube to go into the reservoir/tank.
Cut the inlet dosing tube to the desired length.
Use inlet tube cap supplied to place on
Bluelab Up or Down 500ml or 1 Liter bottles.
This will hold the tube in position. Insert the
inlet dosing tube through the hole in the cap
and pierce the induction seal on the bottle.
1
2
1
2
3
Inlet ‘’
arrow on
pump cover
Connector
Connector
Left pump
tube
Inlet dosing
tube
Inlet dosing
tube
Outlet dosing
tube
Nutrient solution
reservoir / tank
Outlet ‘’ arrow
on pump cover
Dosing tube reaches
bottom of container
Inlet tube cap
pH stock
solution
Right pump tube
pH stock
solution
English
8
10.0 Display menu and buttons
One press of the ‘menu’ button will take you into the
menu. To exit the menu, press ‘menu’ again. Changes
will not be saved.
The ‘∧’ (up arrow) button allows you to move up the
menu items or increase a value shown.
The ‘∨’ (down arrow) button allows you to move down
the menu items or decrease a value shown.
The ‘enter’ button allows you to select the desired option
shown on the display, or save a chosen value.
The ‘cal’ button is used to calibrate your pH probe. A
long press enters the calibration sequence.
The following symbols, numbers or characters will show on the display to indicate:
To use the ‘Auto-repeat’ feature: Press and hold the ‘∧’
(up arrow) or ‘∨’ (down arrow) button to scroll through
options. Release when you see the desired option or
value on the screen.
1
2
4
3
5
6
7
Alarm is on
pH controller status, menu options
or instructions
Succesful pH
calibration
indicators
Reading display
Automatic
Temperature
Compensation if
Temperature Probe
is connected
pH control
direction -
up OR down
9.0 Connect power adaptor
Select and connect the appropriate mains plug
adaptor for your country to the power supply unit.
Connect the power adaptor into the base of the
pH controller where ‘PWR’ is labelled. Plug the
adaptor into mains power supply.
Switch on power adaptor at the mains. The pH
controller will complete a display test sequence.
The default setting, when the unit is rst
powered up, is ‘monitoring’ mode.
Note: pH calibration must be completed before
the rst use, see section 13.0.
1
2
3
4
connect
power
adaptor
English
9

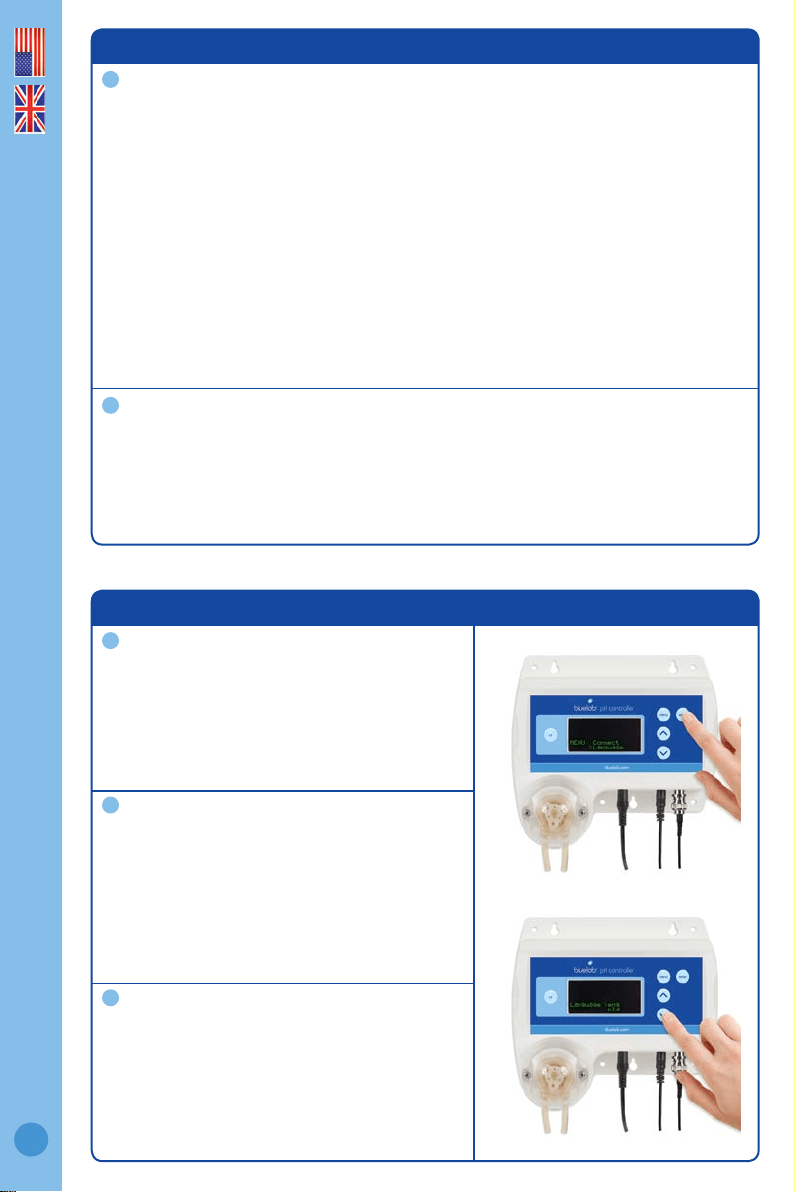

11.0 Factory settings
The pH controller is set to the following values by default:
Note: ‘Pump runtime’ [HH:MM:SS] is the time the pump has dosed for. ‘Product
runtime’ [Hrs] is the duration of time the pH controller has been in use for. Pump
runtime and product runtime are never reset, even after pump replacement.
To restore the pH controller to the above factory settings at any stage:
• Disconnect the power
• Press and hold the ‘cal’ button then reconnect the power.
• When ‘Restored Factory Defaults’ is displayed on the screen, release the ‘cal
button’.
1
2
• Mode Monitor
• Set pH 5.8
• Alarm On
• HighAlarm 6.5
• LowAlarm 5.6
• Dose Up/Dn Down/Acid
• OnTime 1Sec
• OffTime 10Min
• Backlight 100% On
• Contrast 16
• 2/3pt Cal 2
• EarthLink Off
• Language eng
• pH Calibration none
12.0 Change the display language
Press ‘menu’. Press ‘∨’ to nd language. Press
‘enter’ to select.
Press ‘∨’ or ‘∧’ to nd the required language.
Press ‘enter’ to save the language selection.
Press ‘menu’ to exit the menu.
1
2
3
English
10
13.0 pH calibration
pH calibration is important before rst use. It ensures pH measurements and/or
pH stock solution dosing is accurate. The Bluelab Temperature Probe DOES NOT
require calibration.
For accurate pH readings the pH probe is cleaned and recalibrated when:
• It has been 30 days since the last pH calibration, and the successful calibration
indicators are not showing.
• The reading is different to what you were expecting.
• The pH controller is reset to factory default.
• The pH probe is replaced with a new one.
If the pH probe has been in use it must be cleaned before pH calibration. See pH probe
cleaning in section 24.0. New pH probes do not need to be cleaned.
For best pH calibration
pH reading accuracy is dependant on the accuracy and age of the calibration
solutions used, and use and cleanliness of the pH probe tip.
• Ensure the pH probe has been cleaned and rinse with clean water between
calibration solutions to reduce contamination of the pH solutions.
• Only fresh uncontaminated solutions should be used.
• Calibrate the pH at the same temperature as the solution to be measured.
• ALWAYS calibrate the pH probe with pH 7.0 then to pH 4.0 and/or pH 10.0.
• Place the temperature probe into the calibration solution with the pH probe during
calibration.
The pH calibration involves cleaning the pH probe tip and then calibrating in TWO or
THREE SOLUTIONS.
If you are calibrating to TWO solutions, remember:
If a reading below pH 7.0 is expected, use pH 7.0 and pH 4.0 calibration solutions.
If a reading above pH 7.0 is expected, use pH 7.0 and pH 10.0 calibration solutions.
You would require calibration in THREE solutions if:
Readings above and below pH 7.0 are expected, use pH 7.0, pH 4.0 then pH 10.0
calibration solutions. You will need to enable 3 point calibration in the settings menu.
Follow the steps on the next page for pH calibration.
Storage and use of calibration solutions
• Always place the lid back onto the bottle after use or
evaporation will occur rendering the solution useless.
• DO NOT measure directly into the bottle. Tip a small
amount into a clean container and discard after use.
• Never add water to solutions.
• Store in a cool place.
English
11

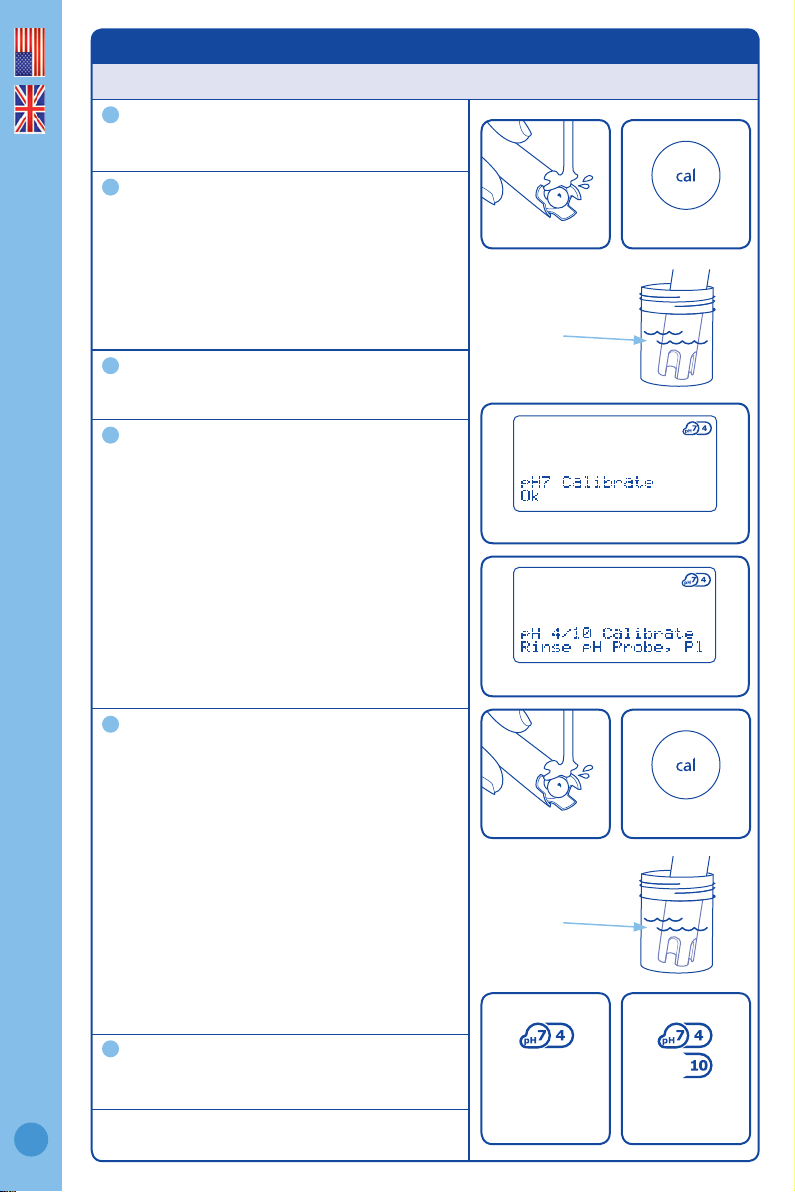

13.0 pH calibration cont.
To calibrate the pH
Clean pH probe tip.
See section 24.0 (the pH probe does not
require cleaning before the rst use).
The calibration default is set at two point
calibration. If a three point calibration is
required:
a) Press ‘menu’.
b) Press ‘∨’ to nd ‘2/3 point cal’. Press ‘enter’.
c) Press ‘∨’ to select ‘3’. Press ‘enter’. When
‘saved’ is displayed on screen, three point
calibration is now available.
In separate plastic containers, prepare a
small amount of: fresh tap water, pH 7.0, pH
4.0 and/or pH 10.0 calibration solutions.
pH 7.0 calibration
a) Ensure the pH controller is plugged in.
b) Press and hold ‘cal’ for three seconds. ‘pH 7
Calibrate’ will be displayed.
c) Place the clean pH probe tip in the pH 7.0
calibration solution. Press ‘cal’.
d) Calibration is complete when all the ‘’s
on the screen become solid. The screen
will display ‘OK’ and the ‘pH 7’ indicator
will appear to indicate successful pH 7.0
calibration.
e) Now you can calibrate to pH 4.0 and/or pH
10.0
pH 4.0 and/or pH 10.0 calibration
a) Rinse the probe tip in fresh tap water,
shake off excess water. Place the clean
pH probe tip in either pH 4.0 or pH 10.0
calibration solution. Press ‘cal’.
b) Calibration is complete when all the ‘’s
on the screen become solid. The screen
will display ‘OK’ and the ‘pH 4’ or ‘pH 10’
indicator will appear to indicate successful
pH calibration.
c) If you require three point calibration, repeat
‘5a’ and ‘5b’ using the pH 4.0 or pH 10.0,
whichever solution was not used.
d) The pH controller is now calibrated, and
ready for use.
After pH calibration, the pH controller
reverts to ‘Monitor’ mode.
Change to ‘Control’ mode if required.
NOTE: If ‘Failed <e>’ is displayed on the screen during
calibration, see section 25.0 Troubleshooting.
1
2
3
4
5
6
press cal button
press cal button
successful
pH 7, 4 and pH 10
calibration
successful pH 7 calibration
ready for pH 4 or pH 10 calibration
pH 7.0
calibration
solution
pH 4.0 or
pH 10.0
calibration
solution
clean the pH probe
rinse in tap water
successful
pH 7 and pH 4
calibration
English
12
14.0 Placement of the probes
The tip of the Bluelab pH Probe must be submerged in the liquid for a measurement to
occur. It is optional to use the Bluelab Temperature Probe, but required for automatic
temperature compensation (ATC) to occur, or to enable ‘Earthlink’.
• Do not pour concentrated nutrient solution or pH adjuster directly onto probes when
in the reservoir. Strong acids, alkali and nutrients damage the probes, trigger the
alarms (if on), cause the pump to accidentally dose or stop dosing, or interfer with
the control program.
• For accuracy, ensure the probes are in an area where the reservoir/tank solution is
well mixed.
• pH and temperature probes can be fully submerged in the solution.
Fit the (optional) pH probe holder to the stem of the
pH probe using a gentle twisting motion.
Place the pH probe into the reservoir/tank and push
the suction cup onto the side of the reservoir but far
enough down so the pH probe tip is always in the
solution. This prevents damage to the probe from any
movement in the reservoir/tank.
Place the temperature probe alongside the pH probe.
1
2
3
15.0 Set the required pH
Press ‘menu’.
Press ‘∨’ to nd ‘Set pH’. Press ‘enter’ to
select.
Press ‘∨’ or ‘∧’ until the required pH is shown
in the main display. Press ‘enter’ to save the
value.
Note: If you have already set high and low
alarm values, you may see the values change
depending on the pH value being set.
1
2
3
16.0 Set the dosing direction - for pH up or down solution
Press ‘menu’.
Press ‘∨’ to nd ‘Dose Up/Dn’. Press the enter
button to select.
Press ‘∨’ or ‘∧’ to select the dosing direction
that matches the pH stock solution being
used in the system. Press ‘enter’ to save.
Note: Select ‘Dn/Acid’ for acid (pH down
solution). Select ‘Up/Alkali’ for alkali (pH up
solution).
1
2
3
English
13
17.0 Set the dosing OnTime and OTime
A dosing cycle includes the OnTime and the OffTime that the peristaltic pump
doses the system for. The arrow symbol on the display will ash during the dose
cycle. Adjustments for OnTime and OffTime will be required so that three dosing
cycles only change the pH value by 0.1 pH.
• ‘OnTime’ is the length of time the peristaltic pump will dose for. The ‘OnTime’
can be set from 1 to 60 seconds.
• ‘OffTime’ is the delay time between each dose. This gives the system time to
mix the pH stock solution thoroughly, so the pH controller can measure the
changes being made before needing to dose again. The ‘OffTime’ can be set
from 1 to 60 minutes.
• Start with a long ‘OffTime’ and adjust back as you go. The more thorough the
mixing in the tank, the shorter the ‘OffTime’ can be.
To set the OnTime value:
Press ‘menu’.
Press ‘∨’ to nd ‘OnTime’. Press ‘enter’.
Press ‘∨’ or ‘∧’ to select the dosing on time in
seconds. Press ‘enter’ to save.
To set the OffTime value:
Press ‘∨’ to nd ‘OffTime’. Press ‘enter’.
Press ‘∨’ or ‘∧’ to select the dosing off time in
minutes. Press ‘enter’ to save.
1
1
2
2
3
English
14
18.0 Set alarms (optional)
The alarm function alerts you when the solution deviates too far from the desired pH.
When an alarm condition is present, the pH value and the alarm symbol will ash on
the screen. This is an ‘alarm lockout’ state. All dosing will stop.
If the measurement changes back to within the limits you have chosen, the
ashing will stop and dosing will start.
To set the ‘High Alarm’ value:
Press ‘menu’.
Press ‘∨’ to select ‘Alarm High’. Press ‘enter’.
Press ‘∨’ or ‘∧’ to select the desired value.
Press ‘enter’ to save.
To set the ‘Low Alarm’ value:
Press ‘∨’ to select ‘Alarm Low’. Press ‘enter’.
Press ‘∨’ or ‘∧’ to select the desired value.
Press ‘enter’ to save.
To turn on the alarm:
Press ‘∨’ to nd ‘Alarm’. Press ‘enter’.
Press ‘∨’ or ‘∧’ to select ’On’. Press ‘enter’ to
save the value and turn on the alarm. Press
‘menu’ to exit back to the main display.
1
1
1
2
2
2
3
19.0 View current settings / status
Use this option to view your programmed settings at any time.
Press ‘∨’ or ‘∧’ while in ‘monitor’ or ‘control’
mode. The setting for each value is displayed
at the bottom of the screen.
The display will revert to displaying ‘Required
pH’ if no button is pressed after 1 minute.
1
2
English
15

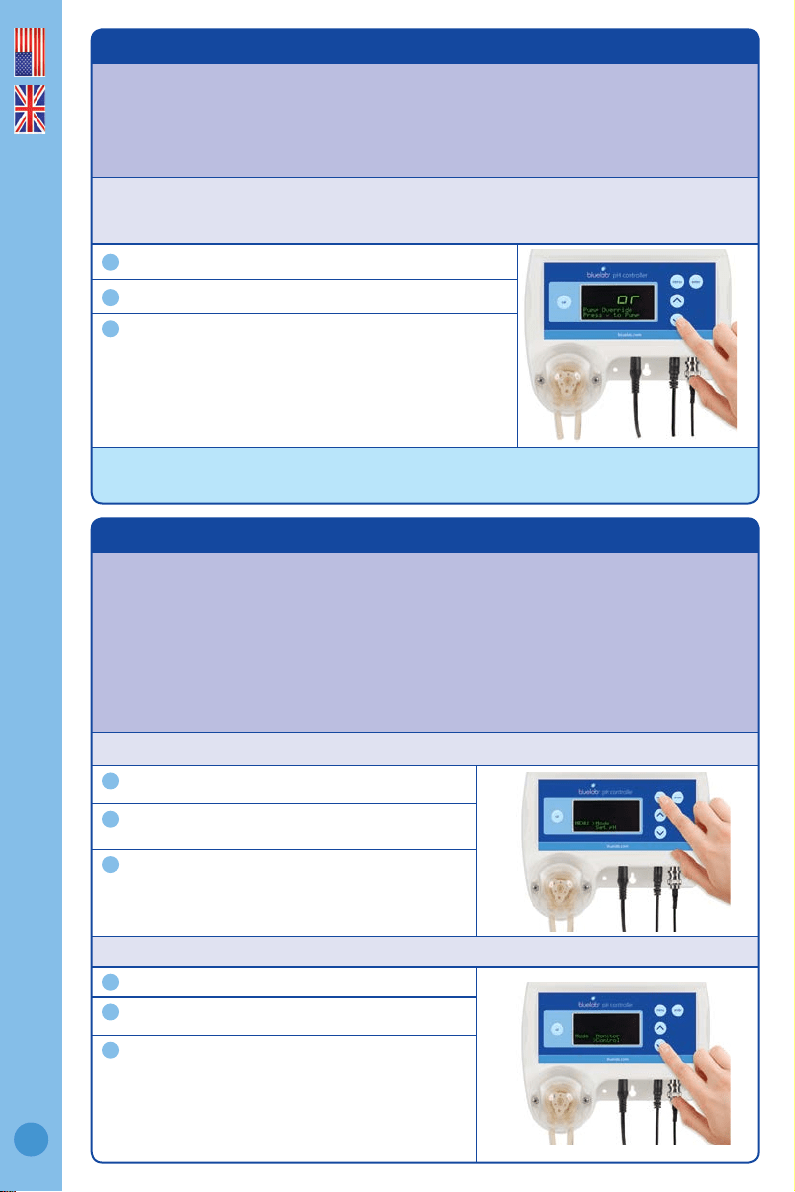

20.0 Priming the pump / manual dosing
‘Pump Ovrde’ allows you to ll the inlet and outlet tubes with dosing solution before
rst use (removing any air in the tubes), and to manually dose the tank if required.
Always ensure the inlet dosing tube reaches to the bottom of the pH stock solution
container. Ensure the outlet dosing tube is above the highest water line so that pH
stock solution drips into the tank/reservoir.
NOTE: If priming the pump, temporarily move the outlet dosing tube so it runs into the
pH stock solution container (if not already xed in place). This will avoid adding pH stock
solution to your tank/reservoir unintentionally.
Press ‘menu’.
Press ‘∨’ to nd ‘Pump Ovrde’. Press ‘enter’ to select.
Press ‘∨’ to manually operate the pump. Release
the button to stop the pump when you see the stock
solution begins to drip from the outlet dosing tube
into the tank. Press ‘menu’ to exit.
If the outlet dosing tube was temporarily moved in step 1,
place it back, so pH solution will drip into the tank/reservoir.
CHANGING STOCK SOLUTION: If you are changing from pH Up to pH Down, or vice versa, you
MUST ush the dosing tube with water FIRST to avoid a chemical reaction in the tube.
1
2
3
21.0 Set the mode
Use ‘mode’ to select the pH controller function. ‘Monitor’ mode shows the current
solution pH reading. It is the factory default setting. ‘Control’ mode allows the pH
controller to dose pH stock solution to the set values. Dosing will NOT occur when:
• The pH controller is in ‘monitor’ mode
• The pH controller is in an alarm state
• If the pH controller senses dosing is not having an effect on the system (after
15 dose cycles)
• The solution temperature is above 50 °C / 122 °F, or below 0 °C / 32 °F
To set ‘monitor’ mode:
Press ‘menu’.
Press ‘∨’ to select ‘Mode’. Press ‘enter’.
Press ‘∨’ or ‘∧’ to select ‘monitor’, then press
‘enter’ to save the mode. Press ‘menu’ to exit.
To set ‘control’ mode:
Press ‘menu’.
Press ‘∨’ to select ‘Mode’. Press ‘enter’.
Press ‘∨’ or ‘∧’ to select ‘control’, then press
‘enter’ to save the mode. Press ‘menu’ to exit.
The display will show a countdown before the pump
can start. This is the ‘Pump start delay’, which is set
to these times: 15Sec when exiting the menu with
control mode enabled; 60Sec if power off/on occurs.
1
1
2
2
3
3
English
16
22.0 Change the screen backlight and/or contrast
These can be adjusted to best suit the light levels of the environment the pH
controller is being used in.
Backlight can be set at 0%, 25%, 50%, 75% or 100%.
Contrast can be set between 0 and 30.

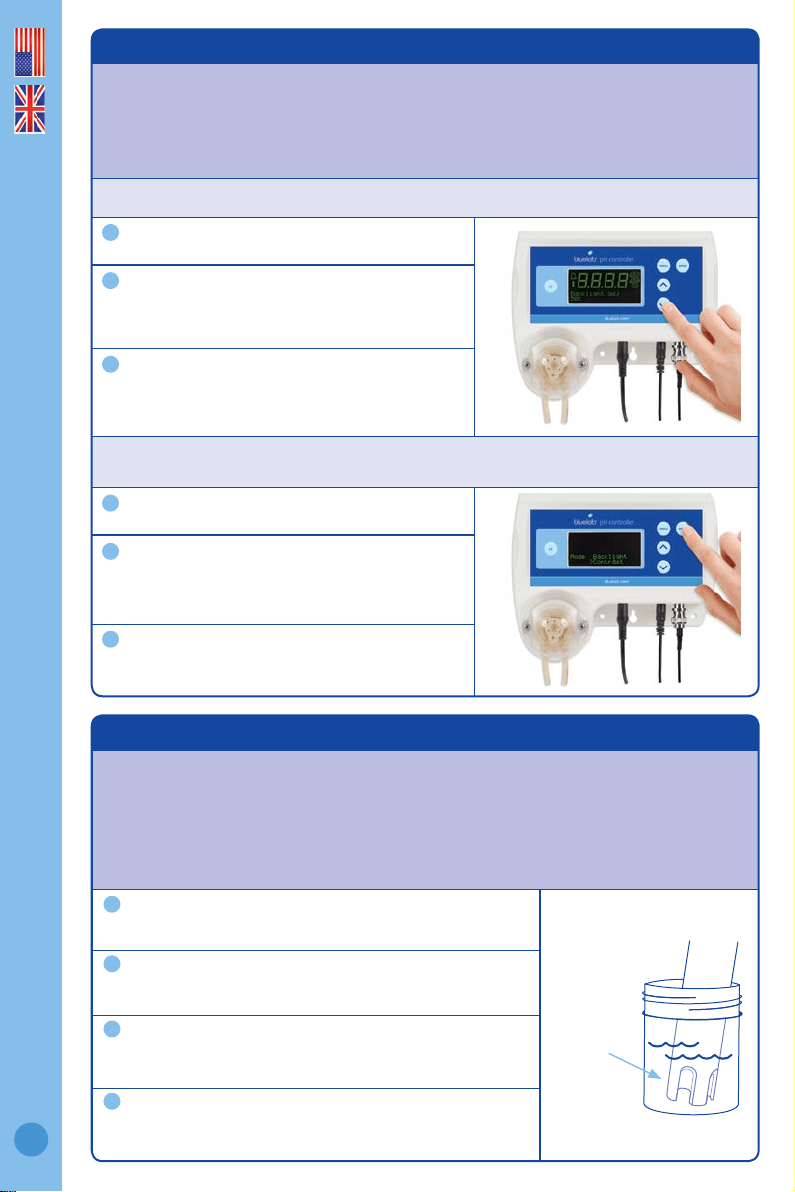

To change the screen backlight:
Press ‘menu’.
Press ‘∨’ to nd ‘Backlight’. Press ‘enter’.
Press ‘∨’ or ‘∧’ to select the desired value.
Press ‘enter’ to save, then ‘menu’ to exit back
to the main display.
To change the screen contrast:
Press ‘menu’.
Press ‘∨’ to nd ‘Contrast’. Press ‘enter’.
Press ‘∨’ or ‘∧’ to select the desired value.
Press ‘enter’ to save. Press ‘menu’ to exit.
1
1
2
2
3
3
23.0 Hydrating the pH probe
Hydrate the pH probe in Bluelab pH Probe KCl Storage Solution when:
• the probe tip has not always been stored in KCl storage solution, to improve the
reading response speed.
• the probe tip has been accidentally allowed to dry out.
Never store the pH probe in RO (Reverse Osmosis), De-ionized or Distilled water. Pure water changes the chemistry
in the reference, causing the probe to die.
Clean the pH probe tip. Ensure the probe tip is cleaned
before hydrating. See section 24.0 for instructions.
Add enough Bluelab pH Probe KCl Storage Solution to
a plastic container to submerge the pH probe tip.
Loosen, then remove the storage cap (if required).
Place the pH probe upright in a the KCl solution.
Leave to soak for up to 24 hours. After hydration,
always calibrate the pH probe to ensure accuracy, see
section 13.0.
Bluelab pH
Probe KCl
Storage
Solution
1
3
2
4
English
17
24.0 Cleaning the Bluelab pH Probe
To ensure accurate readings the pH probe tip needs to be rinsed in water and cleaned
prior to calibration using the following instructions.
After cleaning, use the probe straight away, or place the storage cap on the probe tip.
Always ensure the cap contains enough Bluelab pH Probe KCl Storage Solution to cover
the probe tip.
Remove storage cap from pH probe.
Hold the top of the storage cap, twist the cap to
loosen then remove.
Rinse pH probe tip under fresh tap water.
Fill a small plastic container with clean tap
water.
Add a small amount of Bluelab pH Probe
Cleaner or mild detergent (dishwashing liquid).
Gently stir the probe tip in the mixture.
Ensure that you do not ‘knock’ the pH probe
on the side of the container as this may cause
damage to the probe.
Rinse well under fresh running water to remove
all traces of the detergent mixture.
If the probe tip requires removal of heavy
contamination:
Gently brush around the glassware with a few
drops of Bluelab pH Probe Cleaner or mild
detergent (dishwashing liquid) and a soft
toothbrush.
Rinse well under fresh running tap water to
remove all traces of the detergent mixture.
Calibrate pH probe after cleaning, see
section 13.0. After calibration use straight
away or store pH probe in the storage cap,
ensuring there is enough KCl Storage Solution
to cover the probe tip.
1
3
2
4
5
6
7
6
5
3
1
4
2
7
English
18
25.0 Troubleshooting guide
Trouble Reason Correction
pH reading
inaccurate
pH probe not plugged in.
Connect pH probe. Check pH probe
connection.
Using factory default calibration. Calibrate pH probe.
Contaminated pH probe /
glassware not clean.
Clean pH probe, then calibrate.
Calibration old. Calibrate pH probe.
Broken glass bulb, tube or
connector.
Replace pH probe.
pH probe damaged or old. Replace pH probe.
Bad grounding (noisy/jumpy pH
readings).
Earthlink required. Attach temperature
probe. Go to Menu, turn Earthlink on.
Display shows
‘Failed <e>’
during
calibration
Old or contaminated solutions used
for calibration.
Use fresh calibration solutions.
Dirty or contaminated pH probe. Clean pH probe.
pH probe tip been allowed to dry. Hydrate pH probe.
pH probe damaged or old. Replace pH probe.
No display
Mains not switched on. Switch mains power on.
Power adaptor not plugged in.
Plug power adaptor into the power
socket marked ‘PWR’.
Mains on, power adaptor plugged in. Replace power adaptor.
No display after
initial LCD test,
when plugged in
Backlight set to minimum.
Increase Backlight setting in MENU, or
hold <cal> button down while applying
power, to restore Factory Defaults.
pH displays
‘or’, ‘ur’, ‘-.-‘
‘or’ Over range pH.
‘ur’ Under range pH.
Check pH probe connection. pH probe
could be faulty. Clean pH probe, then
calibrate.
‘-.-’ Temperature over/under range.
Solution <0°C / 32°F or >51°C / 122°F.
Check solution temperature. Ensure
temperature probe plug is fully inserted.
Temperature
displays
‘or’, ‘ur’, ‘- -‘
‘or’ Over range temperature.
‘ur’ Under range temperature.
‘- -’ Temperature probe not
connected.
Solution >51 °C / 122 °F.
Solution <0 °C / 32 °F.
Ensure temperature probe plug is fully
inserted. Temperature probe is faulty,
replace.
pH symbols
ashing
It has been more than a month
since last pH calibration.
Clean pH probe, then calibrate.
‘HELP’ ashing
[Ineffective
control detected]
Dosing solution container empty. Rell dosing solution container.
Dose direction setting incorrect for
your system.
Ensure setting reects dosing solution in
use. i.e. For Acid select Down.
Dose on/off times incorrect.
See section 17.0 for setting Dose On/Off
times correctly.
Output from tube not dripping into
solution.
Ensure tube output drips into tank.
Solution is not mixing.
Ensure pH correction solution is being
mixed in tank.
pH probe not seeing pH changes,
after dosing
Ensure pH probe is in tank/reservoir
solution with adequate mixing.
English
19
26.0 Frequently asked questions
Question Answer
Why is the ‘’ or ‘’
ashing but the pump
is not turning?
The ‘’ or ‘’ will ash when ever the pH controller is in a dose cycle. This
includes the ‘OnTime’ and ‘OffTime’. The pump does not turn during the
‘OffTime’.
What are dosing
lockouts?
A feature that stops the pH controller from dosing if:
• The temperature probe measures a solution temperature of less
than 0 °C / 32 °F or more than 50 °C / 122 °F.
• The pH reading does not change after 15 dose cycles.
Do I need to use the
temperature probe
with ATC for pH?
You can omit use of the ATC probe if:-
1) You do not use EarthLink On setting to stabilise the pH value
2) Your solution temperature is stable and you calibrate the pH probe
in calibration solutions at the same temperature as the reservoir /
tank solution.
3) Your pH is close to 7.0 pH
Why should I use
earthlink?
To remove/reduce any “mains earthloop” issues affecting the pH value’s
stability.
How do I use Earthlink?
Ensure the ATC probe is installed and in the same solution as the pH
probe.
Press ‘∨’ to view status of pH mV value behaviour. Change the Earthlink
setting in MENU and watch the pH mV value again.
Select the Earthlink option that gives the least pH mV noise/variation.
If neither option improves pH stability:
1) Calibrate pH probe, see section 13.0.
2) Suspect Mains electrical problems. Obtain Electrician assistance.
How do I determine
the best Dose OnTime/
OffTime values?
Adjust OnTime such that 3 to 5 doses shifts the pH by only 0.1pH.
If <= 2 doses moves pH more than 0.1pH, you risk overdosing. (pH
changes past Required Value).
If it takes >=5 doses you will have a slow response to any changes. You
may also get “HELP” displayed if pH hasn’t moved enough if 15 dose
cycles.
If < 3 doses at 1 sec OnTime shifts the pH more than 0.1pH, you will need
to dilute the dosing solution to a lower concentration.
Adjust OffTime such that the last dose is fully mixed before the next
dose cycle starts.
If OffTime is too short, you risk overdosing (pH changes past Required
Value).
If OffTime is too long, correction to pH changes will take longer than
necessary.
How do I reset the
pH controller to “as
Shipped Defaults”?
Hold <cal> button down and apply power. Release button when “Restored
Factory Defaults” appears on screen.
How do I reset
pH calibration to
“Defaults”?
You shouldn’t need to. The pH probe can be calibrated anytime to the pH
controller. Follow the calibration steps in section 13.0.
English
20
27.0 Technical specications
pH
Control parameter
pH - user selectable single direction
(up or down)
Control range
0.1 – 13.9 pH
Dose rate
10 ml per minute
Resolution
0.1 pH
Accuracy at 25°C/77°F
±0.1 pH
Calibration
Two or three point
(pH 7.0 and pH 4.0, and/or pH 10.0)
Temperature compensation
Yes
(if temperature probe is in the
same solution as pH probe)
Operating environment
0 - 50°C / 32 - 122°F
Power source
Input: 100-240 Vac, 50-60 Hz, 5 VA,
4 interchangeable plug types
(USA, Euro, UK, NZ/AUS)
Output: 24VDC 0.4Amp
Screen display languages
English, Deutsch, Español,
Français, Nederlands
English
21
If your pH isn’t in the right range – and that’s 5.5-6.5 for most
plant varieties – your nutrients are likely wasted.
We say that’s a problem you don’t need. At Bluelab, we want our customers
to have optimum growth and the best plants possible. So we’ve made it
easy to raise or lower pH levels, whenever you need, and keep them just
where they should be.
Bluelab’s pH Up and pH Down are formulated to the highest standards.
Just add what’s required to lift or reduce growing solution acidity. Your
plants will thank you for it. The main thing is, you’ll see the difference in
your harvest. Optimum inputs. Optimum results. Simple.
Bluelab pH Up and pH Down Solutions
Optimum growth needs optimum pH. And we make optimum simple.
› Bluelab pH Up 500ml
› Bluelab pH Up 1 Liter
› Bluelab pH Up 1 Gallon
› Bluelab pH Down 500ml
› Bluelab pH Down 1 Liter
› Bluelab pH Down 1 Gallon
Available in:
Bluelab Probe Care Kits
The instrument is only as accurate as the probe is clean!
Probe cleaning is one of the most important parts of owning and operating any
Bluelab meter, monitor or controller.
If the probe is contaminated (dirty) it affects the accuracy of the reading displayed.
Bluelab Probe Care Kit range is available for:
• pH probe care
• pH & conductivity probe care
• Conductivity probe care
All the tools you need are included in each kit.
To re-stock your care kit, choose from the
Bluelab Solutions range.
› Probe care instructions
› 3 x plastic cups
› 20ml single-use Bluelab Solution
Sachets, 2 each of: pH 7.0 & pH 4.0, KCl
› Bluelab pH Probe Cleaner
› Toothbrush (pH probe cleaning
instrument)
Bluelab Probe Care Kit - pH contains:
They age through normal use and will
eventually fail.
To ensure you receive a long life from your pH
probe, please read the instructions provided with it.
When the time comes to replace your Bluelab pH Probe
all you have to do is order a replacement from your supplier!
Bluelab pH Probe replacement
pH probes do not last forever.
English
22
Bluelab pH Probe KCl Storage
Solution
The perfect solution to store and hydrate
your Bluelab pH products.
Bluelab pH Probe KCl Storage Solution is designed to increase
response time and maximize the life of Bluelab pH pens and
pH probes.
For best results, use the KCl solution to store the pH pen/probe after
use and hydrate monthly. Instructions are on the label of the bottle.
› Bluelab pH Pen
› Bluelab Soil pH Pen
› Bluelab pH Probes
› Bluelab Soil pH Probes
Use Bluelab pH Probe KCl Storage Solution with:
Bluelab Acid/Alkali Resistant
Dosing Tube with Connectors
Replacement inlet/outlet tube -
13 foot / 4 meters.
For use with Bluelab pH Controllers and stock solution.
Dosing tube comes with connectors, so replacement is easy.
Bluelab Dosing Tube can be used with undiluted Bluelab pH
Up or Bluelab pH Down.
Bluelab Peristaltic Pump
Replacement pump motor, cover and
tubing for Bluelab pH Controllers.
Quick and simple to replace when required.
All you have to do is order a replacement from your
supplier!
English
23
Bluelab
®
limited warranty
Bluelab
®
Corporation Limited (Bluelab) provides a warranty on its products
(Bluelab
®
pH Controller) under the following terms and conditions:
How Long Does Coverage Last?
Bluelab
®
warrants the Bluelab
®
pH Controller (Product) for a period of 24-months from date of purchase by
original purchaser or consumer. Proof of purchase, to Bluelab’s sole satisfaction, is required for the warranty
to be effective (store sales receipt for Product showing model number, payment and date of purchase). This
warranty is non-transferable and terminates if the original purchaser/consumer sells or transfers the Product a
third party.
What is Covered?
Bluelab
®
warrants the Product against defects in material and workmanship when used in a normal manner, in
accordance with Bluelab
®
instruction manuals. If Bluelab
®
is provided with valid proof of purchase (as dened
above) and determines the Product is defective, Bluelab
®
may, in its sole discretion either (a) repair the Product
with new or refurbished parts, or (b) replace the Product with a new or refurbished Product.
Any part or Product that is replaced by Bluelab
®
shall become its property. Further, if a replacement part or Product
is no longer available or is no longer being manufactured, Bluelab
®
may at its sole discretion replace it with a
functionally-equivalent replacement part or product, as an accommodation in full satisfaction of the warranty.
What is NOT covered?
This warranty does not apply to equipment, component or part that was not manufactured or sold by Bluelab
®
,
and shall be void if any such item is installed on a Product. Further, this warranty does not apply to replacement of
items subject to normal use, wear and tear and expressly excludes:
• Cosmetic damage such as stains, scratches and dents
• Damage due to accident, improper use, negligence, neglect and careless operation or handling of Product not
in accordance with Bluelab
®
instruction manuals, or failure to maintain or care for Product as recommended by
Bluelab
®
• Damage caused by use of parts not assembled/installed as per Bluelab
®
instructions
• Damage caused by use of parts or accessories not produced or recommended by Bluelab
®
• Damage due to transportation or shipment of Product
• Product repaired or altered by parties other than Bluelab
®
or its authorised agents
• Product with defaced, missing or illegible serial numbers
• Products not purchased from Bluelab
®
or a Bluelab
®
-authorised distributor or reseller.
How Do You Get Service?
To begin a warranty claim you must return the Product to the point of purchase with valid proof of purchase (as
dened above). In California, you can also return the Product to any Bluelab-authorised distributor or reseller, with
valid proof of purchase.
Limitation of Liability & Acknowledgments
TO THE MAXIMUM EXTENT PERMITTED BY LAW, THIS WARRANTY AND THE REMEDIES SET OUT ABOVE ARE EXCLUSIVE AND IN LIEU
OF ALL OTHER WARRANTIES, GUARANTEES AND REMEDIES (ORAL OR WRITTEN, EXPRESS OR IMPLIED).
EXCEPT AS PROVIDED IN THIS WARRANTY AND TO THE MAXIMUM EXTENT PERMITTED BY LAW, BLUELAB IS NOT RESPONSIBLE FOR
SPECIAL, INCIDENTIAL OR CONSEQUENTIAL LOSS OR DAMAGES, OR ANY OTHER LOSS OR DAMAGES RESULTING FROM SALE OR USE
OF THE PRODUCT, OR BREACH OF WARRANTY, HOWEVER CAUSED, INCLUDING DAMAGES FOR LOST PROFITS, PERSONAL INJURY OR
PROPERTY DAMAGE.
IT IS UNDERSTOOD AND AGREED BY CONSUMER UPON PURCHASE OF A PRODUCT THAT, EXCEPT AS STATED IN THIS WARRANTY,
BLUELAB IS NOT MAKING AND HAS NOT MADE ANY EXPRESS OR IMPLIED WARRANTY OR OTHER REPRESENTATION REGARDING
THE PRODUCT, AND DISCLAIMS ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE TO THE EXTENT
PERMITTED BY LAW. ANY WARRANTIES WHICH ARE IMPOSED BY LAW AND CANNOT BE DISCLAIMED ARE HEREBY LIMITED IN
DURATION TO THE PERIOD AND REMEDIES PROVIDED IN THIS WARRANTY.
SOME JURISDICTIONS (STATES OR COUNTRIES) DO NOT ALLOW EXCLUSION OR LIMITATION FOR INCIDENTIAL OR
CONSEQUENTIAL DAMAGES, OR LIMITATION ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT BE APPLICABLE.
IF ANY PROVISION OF THIS WARRANTY IS JUDGED TO BE ILLEGAL, INVALID OR UNENFORCEABLE, THE REMAINING PROVISIONS OF
THE WARRANTY SHALL REMAIN IN FULL FORCE AND EFFECT.
Governing Law; Authority
This warranty is governed by the laws of the state of country where Product is purchased, without regard to its
choice of law principles. Except as allowed by law, Bluelab does not limit or exclude other rights a consumer may
have with regard to the Product. No Bluelab distributor, employee or agent is authorised to modify, extend or
otherwise change the terms of this warranty.
Register your guarantee online at bluelab.com
guarantee.
The Bluelab
®
pH Controller comes with a 2 year limited written
guarantee. Proof of purchase required.
lets talk.
If you need assistance or advice - we’re here to help you.
North America Ph: 909 599 1940 NZ Ph: +64 7 578 0849
Fax: +64 7 578 0847 Email: [email protected]
get online.
Looking for specications or technical advice?
Visit us online at bluelab.com or facebook.com/getbluelab
post.
Bluelab
®
Corporation Limited
8 Whiore Avenue, Tauriko Business Estate
Tauranga 3110, New Zealand
Instruction Manual English CONTPH_V01_220916
© Copyright 2014, all rights reserved, Bluelab
®
Corporation Limited
