English
DMH-WT3800NEX
DMH-WT38NEX
RDS AV RECEIVER
Important (Serial number)
The serial number is located on the bottom of this unit. For your own security and convenience, be
sure to record this number on the enclosed warranty card.
Operation Manual
010COV_KB045_UC(EN)_A6.fm Page 1 Thursday, July 14, 2022 11:31 AM
Contents
Thank you for buying this Pioneer product.
Please read through these instructions so you will know how to operate your model
pr
operly. After you have finished reading the instructions, keep this document in a safe
place for future reference.
The screen shown in the examples may differ from actual screens, which may be
changed without notice for performance and function improvements.
- 2 -
English
Important
■Precaution ................................................................................... 4
■Parts and controls....................................................................... 9
■Basic operation ......................................................................... 10
■Bluetooth®................................................................................. 18
■Wi-Fi®.......................................................................................... 27
■CarAVAssist................................................................................ 32
■Source/application ................................................................... 35
■Radio.......................................................................................... 38
■USB............................................................................................. 41
■iPhone........................................................................................ 48
■Smartphone (Android™)........................................................... 52
■WebLink™ .................................................................................. 54
■Apple CarPlay............................................................................ 56
■Android Auto™ .......................................................................... 60
■Weather ..................................................................................... 64
■SiriusXM® Satellite Radio ......................................................... 65
■AUX ............................................................................................ 73
■External component ................................................................. 75
■iDatalink® .................................................................................. 76
Pioneer MNR.book Page 2 Friday, December 16, 2022 3:25 PM
English
- 3 -
■Metra Axxess ............................................................................. 81
■Settings...................................................................................... 84
Displaying the setting screen ..................................................................................................................... 84
System settings................................................................................................................................................ 84
Theme settings................................................................................................................................................. 93
Audio settings................................................................................................................................................... 95
Video settings................................................................................................................................................... 99
Communication settings............................................................................................................................ 100
■Favorite menu ........................................................................ 102
■Other functions...................................................................... 103
■Appendix ................................................................................ 105
Pioneer MNR.book Page 3 Friday, December 16, 2022 3:25 PM
Precaution
Important safety information
- 4 -
English
WARNING
• Do not attempt to install or service this product by yourself. Installation or servicing of this product by
persons without training and experience in electronic equipment and automotive accessories may
be dangerous and could expose you to the risk of electric shock, injury or other hazards.
• Do not allo
w this product to come into contact with liquids. Electrical shock could result. Also,
damage to the product, smoke, and overheating could result from contact with liquids.
• I
f liquid or foreign matter should get inside this product, park your vehicle in a safe place, turn the
ignition switch off (ACC OFF) immediately and consult your dealer or the nearest authorized Pioneer
Service Station. Do not use this product in this condition because doing so may result in a fire, electric
shock, or other failure.
• I
f you notice smoke, a strange noise or odor from this product, or any other abnormal signs on the
LCD screen, turn off the power immediately and consult your dealer or the nearest authorized
Pioneer Service Station. Using this product in this condition may result in permanent damage to the
system.
• Do not disassemble or modify this pr
oduct, as there are high-voltage components inside which may
cause an electric shock. Be sure to consult your dealer or the nearest authorized Pioneer Service
Station for internal inspection, adjustments or repairs.
Before using this product, be sure to read and fully understand the following
safety information:
• Do not oper
ate this product, any applications, or the rear view camera option (if
purchased) if doing so will divert your attention in any way from the safe operation of
your vehicle. Always observe safe driving rules and follow all existing traffic
regulations. If you experience difficulty in operating this product, pull over, park your
vehicle in a safe location and apply the parking brake before making the necessary
adjustments.
• Nev
er set the volume of this product so high that you cannot hear outside traffic and
emergency vehicles.
• T
o promote safety, certain functions are disabled unless the vehicle is stopped and the
parking brake is applied.
• Keep this manual handy as a r
eference for operating procedures and safety
information.
• Do not install this pr
oduct where it may (i) obstruct the driver’s vision, (ii) impair the
performance of any of the vehicle’s operating systems or safety features, including air
bags or hazard lamp buttons or (iii) impair the driver’s ability to safely operate the
vehicle.
• P
lease remember to fasten your seat belt at all times while operating your vehicle. If
you are ever in an accident, your injuries can be considerably more severe if your seat
belt is not properly buckled.
• Nev
er use headphones while driving.
Pioneer MNR.book Page 4 Friday, December 16, 2022 3:25 PM
English
- 5 -
• Rear visibility systems (backup cameras) are required in certain new vehicles sold in
the U.S. and Canada. U.S. regulations began according to a two year phase-in on May
1, 2016, and both the U.S. and Canada require that all such vehicles manufactured on
or after May 1, 2018 have rear visibility systems. Owners of vehicles equipped with
compliant rear visibility systems should not install or use this product in a way
that alters or disables that system's compliance with applicable regulations. If
you are unsure whether your vehicle has a rear visibility system subject to the U.S. or
Canadian regulations, please contact the vehicle manufacturer or dealer.
If your vehicle has a compliant backup camera that displays the backup view through
the fac
tory receiver, do not use the Pioneer receiver unless it is connected to and
displays the same view as the factory backup camera. Connection to the factory
backup camera will require an adaptor, sold separately. Not all vehicles may be able to
connect. Please check with a qualified professional installer for installation options
specific to your vehicle.
To ensure safe driving
WARNING
• LIGHT GREEN LEAD AT POWER CONNECTOR IS DESIGNED TO DETECT PARKED STATUS AND
MUST BE CONNECTED TO THE POWER SUPPLY SIDE OF THE PARKING BRAKE SWITCH.
IMPROPER CONNECTION OR USE OF THIS LEAD MAY VIOLATE APPLICABLE LAW AND MAY
RESULT IN SERIOUS INJURY OR DAMAGE.
• To avoid the risk of damage and injury and the potential violation of applicable laws, this
pr
oduct is not for use with a video image that is visible to the driver.
• I
n some countries the viewing of video image on a display inside a vehicle even by persons other
than the driver may be illegal. Where such regulations apply, they must be obeyed.
If you attempt to watch video image while driving, the warning “Viewing of front seat
video source while driving is strictly prohibited.” will appear on the screen. To watch
video image on this display, stop the vehicle in a safe place and apply the parking brake.
Please keep the brake pedal pushed down before releasing the parking brake.
When using a display connected to V OUT
The video output terminal (V OUT) is for connection of a display to enable passengers in
the rear seats to watch video images.
WARNING
NEVER install the rear display in a location that enables the driver to watch video images while driving.
To avoid battery exhaustion
Be sure to run the vehicle engine while using this product. Using this product without
running the engine can drain the battery.
Pioneer MNR.book Page 5 Friday, December 16, 2022 3:25 PM
- 6 -
English
WARNING
Do not install this product in a vehicle that does not have an ACC wire or circuitry available.
Camera function
With an optional rear view camera, you are able to use this product as an aid to keep an
eye on trailers, or backing into a tight parking spot.
WARNING
• SCREEN IMAGE MAY APPEAR REVERSED.
• USE INPUT ONL
Y FOR REVERSE OR MIRROR IMAGE REAR VIEW CAMERA. OTHER USE MAY RESULT IN
INJURY OR DAMAGE.
CAUTION
The rear view mode is to use this product as an aid to keep an eye on the trailers, or while backing up.
Do not use this function for entertainment purposes.
Handling the USB connector
CAUTION
• To prevent data loss and damage to the storage device, never remove it from this product while data
is being transferred.
• P
ioneer cannot guarantee compatibility with all USB mass storage devices and assumes no
responsibility for any loss of data on media players, iPhone, smartphone, or other devices while using
this product.
• I
t may not be recognized properly by this product if a USB device that had been incorrectly
disconnected from the computer is connected.
Failure to operate
After-sales service for Pioneer products
Please contact the dealer or distributor from which you purchased the product for after-sales service
(including warranty conditions) or any other information. In case the necessary information is not
available, please contact the companies listed below.
Please do not ship your product to the companies at the addresses listed below for repair without
mak
ing advance contact.
–USA&CANADA
Pioneer Electronics (USA) Inc.
CUSTOMER SUPPORT DIVISION
P.O. Box 1760 Long Beach, CA 90801-1760, U.S.A
800-421-1404
For warranty information, please see the Limited Warranty sheet included with your product.
Pioneer MNR.book Page 6 Friday, December 16, 2022 3:25 PM
English
- 7 -
• When taking this product to the dealer or authorized Pioneer Service Station, make
sure to bring both the unit and LCD display.
Visit our website
Visit us at the following site:
https://www.pioneerelectronics.com/PUSA/
https://www.pioneerelectronics.ca/POCEN/
1 Register your product.
2 Receive updates on the latest products and technologies.
3 Download owner’s manuals, order product catalogs, research new products, and
much more.
4 Receive notices of software upgrades and software updates.
Protecting the LCD panel and screen
• Do not expose the LCD screen to direct sunlight when this product is not used. This
may result in LCD screen malfunction due to the resulting high temperatures.
• W
hen using a cellular phone, keep the antenna of the cellular phone away from the
LCD screen to prevent disruption of the video in the form of spots, colored stripes, etc.
• T
o protect the LCD screen from damage, be sure to touch the touch panel keys only
with your finger and do so gently.
• A shatt
erproof film is attached to the unit's display. This film cannot be taken off or
replaced with an alternative film. There may be glue on the edge of the film. However,
this does not affect the usability of this unit.
Notes on internal memory
• The information will be erased by disconnecting the yellow lead from the battery (or
removing the battery itself).
• S
ome of the settings and recorded contents will not be reset.
About this manual
• This manual uses diagrams of actual screens to describe operations. However, the
screens on some units may not match those shown in this manual depending on the
model used.
Pioneer MNR.book Page 7 Friday, December 16, 2022 3:25 PM
This indicates to touch the appropriate soft key on the touch screen.
This indicates to touch and hold the appropriate soft key on the touch screen.
This indicates to swipe in the direction of the arrow on the touch screen.
This indicates to drag in the direction of the arrow on the touch screen.
- 8 -
English
Meanings of symbols used in this manual
Pioneer MNR.book Page 8 Friday, December 16, 2022 3:25 PM
Parts and controls
Main unit
Touch to display the home menu screen.
Touch and hold to power off. To power back on, touch any button.
When the home menu screen is displayed, touch to display the previously
used A
V source screen.
Touch to activate the voice recognition mode such as Siri when the iPhone is
connected to the unit via Bluetooth or USB.
Touch and hold to display mobile device search or select screen.
/ Volume
LCD screen
English
- 9 -
NOTE
Pioneer MNR.book Page 9 Friday, December 16, 2022 3:25 PM
Basic operation
Starting up the unit
- 10 -
English
1 Start the engine to boot up the system.
The [Select Program Language] screen appears.
NOTE
From the second time on, the screen shown will differ depending on the previous conditions.
2 Select the language.
3 Touch .
The [Speaker Mode Settings] screen appears.
4 Select the speaker mode.
[S
tandard Mode]
4-speaker system with front and rear speakers, or a 6-speaker system with front and
r
ear speakers and subwoofers.
[Netw
ork Mode]
3-way system with a high range speaker, middle range speaker and subwoofer (low
r
ange speaker) for reproduction of high, middle and low frequencies (bands).
WARNING
Do not use the unit in Standard Mode when a speaker system for 3-way Network Mode is
connected to the unit. This may cause damage to the speakers.
5 Touch [OK].
Initial Legal Disclaimer screen appears.
6 Touch [OK].
The home menu screen appears.
NOTE
Once the speaker mode is set, the setting cannot be changed unless this product is restored to the
default settings. Restore the default settings to change the speaker mode setting (page 104).
To change the speaker mode, you need to restore this product to the default settings.
1 Restore the default setting (page 104).
Switching the speaker mode
Pioneer MNR.book Page 10 Friday, December 16, 2022 3:25 PM
Using the touch panel
English
- 11 -
You can operate this product by touching the keys on the screen directly with your
fingers.
NOTE
To protect the LCD screen from damage, be sure to touch the screen only with your finger gently.
: Returns to the previous screen.
: Close the screen.
Songs
Rad
Pla
y
Arti
s
Alb
u
Son
#
A
I
R
Z
:
:
:
abcdefghi
abcdefghi
・・・
abcdefghi
abcdefghi
abcdefghi
Touching an item on the list allows you to narrow down the options and
proceed to the next operation.
Drag the list to view any hidden items.
Appears when all characters are not displayed on the display area.
If you touch the key, the rests are scrolled for display.
This function is available only when you stop your vehicle in a safe place and apply
the parking brake.
Appears when items cannot be displayed on a single page.
Drag the side bar or the initial search bar to view any hidden items.
Common touch panel keys
Operating list screens
NOTE
Pioneer MNR.book Page 11 Friday, December 16, 2022 3:25 PM
You can change the playback point by dragging the key.
The playback time corresponding to the position of the key is displayed while
dr
agging the key.
Displays the characters that are entered.
Enters the characters in the text box.
Confirms the entry and proceeds to the next step.
Deletes the input text to the left of the cursor one letter at a time.
Enters a space.
Switches between alphabet and numbers/symbols.
Switches between capital and lower case letters.
- 12 -
English
Operating the time bar
Operating the on-screen keyboard
Pioneer MNR.book Page 12 Friday, December 16, 2022 3:25 PM
Home menu screen
23
Your Location
USB
Apple CarPlay
AUX Phone
Android Auto
Settings
12:48
6/10
Sun
Abcdefgh
Abcdef - Abcdefghi
Widget (page 16)
Touch to see the selected source/application.
Customizing the widget (page 16)
When you finish customizing, touch
.
Favorite source/application area
Touch to see the selected source/application.
Customizing the home menu screen (page 13)
The following items can be customized.
• Changing the home menu screen layout (page 14)
• Rearranging the icons in the favorite source/application area (page 14)
• Rearranging the displayed icons in the favorite source/application area
(page 14)
When you finish customizing, touch
.
Notification (page 16)
Source/application (page 35)
Favorite radio stations (page 14)
English
- 13 -
NOTES
• You can synchronize the layout of the widgets and favorite icons displayed on the home menu screen
between the mobile device and the unit that are connected via Bluetooth. You need to install
CarAVAssist on the device to use this function (page 32).
• T
his function is available only when you stop your vehicle in a safe place and apply the parking brake.
Customizing the home menu screen
Pioneer MNR.book Page 13 Friday, December 16, 2022 3:25 PM
- 14 -
English
• The [Apple CarPlay] icon and the [Android Auto] icon cannot be removed from the favorite source/
application area.
▶Changing the home menu screen layout
1 Touch and hold the favorite source/application area.
2 Touch .
3 Select [Lower Dock Area] or [Upper Dock Area].
▶Rearranging the icons in the favorite source/application area
1 Touch and hold the favorite source/application area.
2 Drag the icon to the desired position.
When you finish rearranging, touch
.
▶Rearranging the displayed icons in the favorite source/application area
1 Touch and hold the favorite source/application area.
The source/application list area appears on the screen.
2 Drag unneeded icon in the favorite source/application area to the source/
application list area if the favorite source/application area is full.
3 Drag the icon to the desired location in the favorite source/application area.
When you finish rearranging, touch
.
Favorite radio stations
Registering your favorite radio stations allows you to quickly jump to the registered
radio stations.
For details on how to register the radio stations, refer to Registering your favorite radio
stations (page 39).
1 Touch then swipe up on the screen.
Swipe down on the screen when you finish.
Displaying the favorite radio stations screen
Pioneer MNR.book Page 14 Friday, December 16, 2022 3:25 PM
Abcdefgh
XX Radio
Abcdefgh
XX Radio
Abcdefgh
XX Radio
Favorites
Favorite radio stations screen
Favorite radio stations
Touch to make changes to the selected radio station.
List of favorite radio stations
Touch to select the favorite radio station from the list screen (page 15).
Updates the favorite radio stations.
The next 3 stations on the favorites list are displayed.
This function is only available when there are more than 4 favorite radio stations
on the list.
List screen
Adds/removes a favorite.
Available radio stations
Touch to tune in to the selected radio station.
English
- 15 -
NOTE
Pioneer MNR.book Page 15 Friday, December 16, 2022 3:25 PM
Notification
- 16 -
English
Notification displays the notifications from the connected iPhone or smartphone
(Android) registered on CarAVAssist.
NOTE
To enable this function, establish a Bluetooth connection between this product and an iPhone or a
smartphone with CarAVAssist installed (page 32). For iPhone, connection is made with Bluetooth Low
Energy. For details on Bluetooth connection, refer to Bluetooth connection (page 18).
1 Touch then swipe right on the screen.
When you finish, swipe left on the screen.
Notifications
ABCD
Abcdefghi
2023/11/11 12:34
2023/11/11 12:34
2023/11/11 12:34
ABCD
Abcdefghi
ABCD
Abcdefghi
Received notifications
Touch to display the details of the notification.
Widget
Widgets enable you to see your favorite sources and application information on the
home menu screen and access shortcuts to them.
NOTE
This function is available only when you stop your vehicle in a safe place and apply the parking brake.
1 Touch .
2 Touch and hold the widgets area.
3 Touch the widget that you want to customize.
When you finish customizing, touch
.
Displaying the notification screen
Customizing the widget
Pioneer MNR.book Page 16 Friday, December 16, 2022 3:25 PM
12:48
6/10
Sun
Abcdefgh
Abcdef - Abcdefghi
Abcdefghijk AbcdefgAbcdefg
23
Your Location
Widget area
To rearrange the widgets, drag them to the desired locations.
To remove a widget, drag the widget to .
Available source/application lists for the widgets
Flick left/right to switch between widget lists.
Adjusts the size of the widgets
Touch a corner of the selected widget and drag it to adjust the size.
You can fit up to four widgets in the widgets area by adjusting their size.
The size can only be adjusted for widgets that display an adjustment key.
English
- 17 -
▶Switching the widgets
1 Touch .
2 Touch and hold the widgets area.
3 Drag unwanted source/application widgets to the source/application list area.
A maximum of four widgets can fit in the widgets area.
4 Drag the desired source/application to the widgets area.
When you finish switching, touch
.
NOTE
Some widgets cannot be placed together in the widgets area. Also, some widget functions may be
limited due to the combination of widgets.
TIP
NOTE
Pioneer MNR.book Page 17 Friday, December 16, 2022 3:25 PM
Bluetooth®
Bluetooth connection
- 18 -
English
1 Turn on the Bluetooth function on the device.
2 Display the connected Bluetooth device list screen on the device.
3 Touch then swipe left on the screen.
4 Touch then .
5 Touch [Connection].
6 Touch .
The unit starts to search for available devices, then displays them in the device list.
7 Touch in the list.
TIP
If you touch the device name, a connection with Apple CarPlay, Android Auto, or CarAVAssist may
be established
.
8 Touch [Yes] to pair with the device.
9 Perform the pairing operation by operating the device.
After the device is successfully registered, a Bluetooth connection is established by
the sy
stem. Once the connection is established, the device name is displayed on the
list.
NOTES
• If five devices are already paired, the message confirming whether to delete the registered device is
displayed. If you want to delete the device, touch [Agree]. If you want to delete other device, touch
[Go to DeviceList] and delete the devices manually on the mobile device select screen.
• I
f your device supports SSP (Secure Simple Pairing), a six-digit number appears on the display of this
product. Make sure that the six-digit number matches the one that is displayed on the mobile device
before touching [Yes] to pair the device.
• I
f you try to connect an unconnected cellular phone while two cellular phones are already connected,
the first one of the two connected cellular phones will be disconnected and the unconnected cellular
phone will be connected instead.
TIPS
• The Bluetooth connection can also be made by detecting this product from the Bluetooth device.
Before registration, make sure that [Visibility] in the [Bluetooth Settings] menu is set to [On] (page 19).
For details on Bluetooth device operations, refer to the operating instructions supplied with the
Bluet
ooth device.
Pioneer MNR.book Page 18 Friday, December 16, 2022 3:25 PM
English
- 19 -
• Two cellular phones can be connected to this product at the same time (page 19).
Bluetooth settings
1 Touch then swipe left on the screen.
2 Touch then .
3 Touch [Bluetooth Settings].
CAUTION
Never turn this product off and disconnect the device while the Bluetooth setting operation is being
processed.
Menu Item Description
[Auto Connect]
[On] [Off]
Select [On] to connect the last connected Bluetooth device
automatically when using the hands-free phone function.
If two Bluetooth devices were connected the last time, the two
devices are connected to this product automatically in the order
that they are registered in the device list.
[Visibility]
[On] [Off]
Select [On] to make this product visible to the other device.
[PIN Code Input] Change the PIN code for Bluetooth connection.
The default PIN code is “0000”.
1 T
ouch [0] to [9] to input the pin code (up to 8 digits).
2 T
ouch
.
[Device Information] Displaying the device name and address of this product.
[Bluetooth Memory Clear] Touch [Clear] then [OK] to clear the Bluetooth memory.
[Sound Quality Settings]
[Quality] [Connectivity]
Select [Quality] to prioritize the Bluetooth sound quality.
Select [Connectivity] to prioritize the Bluetooth
c
onnection.
Switching the connected Bluetooth device
After registering and connecting the Bluetooth devices to this product, you can switch
among the devices using the switch devices key in the phone function and some audio
sources.
• Y
ou can register up to five Bluetooth devices on this product (page 18).
• Y
ou can connect one of the registered devices to this product. In cases where the
registered device is equipped with a phone function, a total of two devices can be
connected at the same time when using the phone function. If two of the five
NOTE
Pioneer MNR.book Page 19 Friday, December 16, 2022 3:25 PM
- 20 -
English
registered devices are already connected, you can connect the remaining third device
to use the audio function only from the switch devices key on the audio source screen.
• T
he icon for the cellular phone currently being used is displayed on the phone menu
screen. If you connect two cellular phones to this product at the same time, you can
switch between the cellular phones using the switch devices key. The contents of the
phone menu are memorized for each connected cellular phone (page 20).
• T
he switch devices key will appear for some audio sources. The audio source may
automatically switch to another source depending on the selected device.
Hands-free phoning
To use this function, you need to connect your cellular phone to this product via
Bluetooth in advance (page 18).
CAUTION
For your safety, avoid talking on the phone as much as possible while driving.
1 Touch then swipe left on the screen.
2 Touch [Phone].
The phone menu screen appears.
3 Touch one of the call icons on the phone menu screen.
Making a phone call
Pioneer MNR.book Page 20 Friday, December 16, 2022 3:25 PM
The following items are displayed.
• Name of the curr
ent cellular phone
• List number of the curr
ent cellular phone
• Rec
eption status of the current cellular phone
• Ba
ttery status of the current cellular phone
If you connect two cellular phones to this product at the same time, you can
swit
ch between the cellular phones using the switch devices key.
When you switch the connected cellular phone, the following items are also
swit
ched:
• W
idgets on the home menu screen
• F
avorite icons on the home menu screen
• Notification settings
• [Backg
round] settings for the home menu screen and AV operation screen
For details, refer to CarAVAssist (page 32).
Switches the search language to English or system language.
It may not appear depending on the system language setting.
Using the preset dial lists (page 22)
Using phone book
Select a contact from the phone book. Touch the desired name on the list then
selec
t the phone number.
• The contacts on your phone will be automatically transferred to this product.
• Upda
te the phone book manually.
• [V
isibility] of the [Bluetooth Settings] screen should be on (page 19).
• I
f two cellular phones are automatically connected to this product with the
Bluetooth device auto connect function, the phone book of the first phone is
displayed.
Using call history
Make a phone call from the received call
, dialed call , or missed call .
Direct phone number input
Touch the number keys to enter the phone number then touch
to make a call.
English
- 21 -
▶To end the call
1 Touch .
TIP
NOTE
NOTE
TIPS
NOTES
Pioneer MNR.book Page 21 Friday, December 16, 2022 3:25 PM
- 22 -
English
▶Registering a phone number
You can easily store up to six phone numbers per device as presets.
1 Touch then swipe left on the screen.
2 Touch [Phone].
3 Touch or .
On the [Phone Book] screen, touch the desired name to display the contact’s phone
number
.
4 Touch .
▶Dialing from the preset dial list
1 Touch then swipe left on the screen.
2 Touch [Phone].
3 Touch .
4 Touch the desired entry on the list to make a call.
The dial screen appears and dialing starts.
▶Deleting a phone number
1 Touch then swipe left on the screen.
2 Touch [Phone].
3 Touch .
4 Touch .
5 Touch [Yes].
1 Touch to answer the call.
Touch
to end the call.
TIPS
• T
ouch
while getting a call waiting, switch to the talking person.
• T
ouch
while getting a call waiting to reject the call.
Using the preset dial lists
Receiving a phone call
Pioneer MNR.book Page 22 Friday, December 16, 2022 3:25 PM
English
- 23 -
NOTE
When two phones are connected at the same time, if an incoming call is received on the second phone
while you are talking on the first phone, the dial confirmation screen for the second phone will be
displayed.
By connecting your iPhone to this product, you can use the voice recognition function
(Siri Eyes Free Mode) on this product.
NOTE
When an iPhone is used, Siri Eyes Free Mode is available with this product.
1 Touch then swipe left on the screen.
2 Touch [Phone].
3 Touch .
The voice recognition function launches and the voice control screen appears.
TIPS
• You can also launch the voice recognition function by touching
button.
• I
f two cellular phones are automatically connected to this product with the Bluetooth device auto
connect function, the voice recognition function (Siri Eyes Free Mode) will be set on the first phone.
• I
f you want to use the voice recognition function (Siri Eyes Free Mode) on another connected iPhone,
touch
with numbered to the other iPhone. The iPhone that you switch to will be set as the
current device.
1 Touch then swipe left on the screen.
2 Touch then .
3 Touch [Bluetooth Settings].
Menu Item Description
[Auto Answer]
[On] [Off]
Select [On] to answer an incoming call automatically.
[Ring Tone]
[On] [Off]
Select [Off] to use the ring tone of the paired device, or
select [On] to use the ring tone of this unit.
[Invert Name] Select [Yes] to change the order of the first and last names
in the phone book.
Voice recognition function (for iPhone)
Phone settings
Pioneer MNR.book Page 23 Friday, December 16, 2022 3:25 PM
- 24 -
English
During a conversation, you can switch to private mode (talk directly on your cellular
phone).
1 Touch or to turn private mode on or off.
NOTES
• If two cellular phones are connected to this product and the first phone is set to private mode, you
can receive incoming calls on the second phone while maintaining the call in progress on the first
phone.
• W
hen two cellular phones are connected to this product and private mode of the first phone is
turned off, if an incoming call on the second phone is answered while a call is in progress on the first
phone or while dialing or receiving a call on the first phone, the call, dialing, or receiving on the first
phone is ended.
This product can be adjusted to the other party’s listening volume.
1 Touch to switch between the three volume levels.
▶General notes
• Connection to all cellular phones featuring Bluetooth wireless technology is not
guaranteed.
• T
he line-of-sight distance between this product and your cellular phone must be 10
meters or less when sending and receiving voice and data via Bluetooth technology.
• W
ith some cellular phones, the ring sound may not be output from the speakers.
• I
f private mode is selected on the cellular phone, hands-free phoning may be disabled.
▶Registration and connection
• Cellular phone operations vary depending on the type of cellular phone. Refer to the
instruction manual that came with your cellular phone for detailed instructions.
• W
hen phone book transfer does not work, disconnect your phone and then perform
pairing again from your phone to this product.
▶Making and receiving calls
• You may hear a noise in the following situations:
– When you answer the phone using the button on the phone.
– When the person on the other end of the line hangs up the phone.
• If the person on the other end of the line cannot hear the conversation due to an echo,
decrease the volume level for hands-free phoning.
• W
ith some cellular phones, even after you press the accept button on the cellular
phone when a call comes in, hands-free phoning may not be performed.
Setting the private mode
Adjusting the other party’s listening volume
Notes for hands-free phoning
Pioneer MNR.book Page 24 Friday, December 16, 2022 3:25 PM
English
- 25 -
• The registered name will appear if the phone number is already registered in the
phone book. When multiple names are registered for the same phone number, the
names are displayed in the same order as in the phone book.
▶The received call and dialed number histories
• You cannot make a call to the entry of an unknown user (no phone number) in the
received call history.
• I
f calls are made by operating your cellular phone, no history data will be recorded in
this product.
▶Phone book transfers
• If there are more than 1 000 phone book entries on your cellular phone, not all entries
may download completely.
• Depending on the phone
, this product may not display the phone book correctly.
• I
f the phone book in the phone contains image data, the phone book may not be
transferred correctly.
• Depending on the c
ellular phone, phone book transfer may not be available.
Bluetooth audio
Before using the Bluetooth audio player, register and connect the device to this product
(page 18).
NOTES
• Depending on the Bluetooth audio player connected to this product, the available operations with
this product may be limited to the following two levels:
– A2DP (Advanced Audio Distribution Profile): Only playing back songs on your audio player is
possible
.
– A2DP and AVRCP (Audio/Video Remote Control Profile): Playing back, pausing, selecting songs, etc.,
ar
e possible.
• Depending on the Bluet
ooth device connected to this product, the available operations with this
product may be limited or differ from the descriptions in this manual.
• W
hile you are listening to songs on your Bluetooth device, refrain from operating the phone function
as much as possible. If you try operating, the signal may cause noise for song playback.
• W
hen you are talking on the Bluetooth device connected to this product via Bluetooth, it may pause
playback.
1 Touch then swipe left on the screen.
2 Touch then .
The system setting screen appears.
3 Touch [AV Source Settings].
4 Confirm that [Bluetooth Audio] is turned on.
5 Touch then swipe left on the screen.
The source/application screen appears.
Pioneer MNR.book Page 25 Friday, December 16, 2022 3:25 PM
- 26 -
English
6 Touch [Bluetooth Audio].
The Bluetooth audio playback screen appears.
Track number indicator
Switches between playback and pause.
Skips files forward or backward.
Sets a repeat play range.
Switches between random and normal file playback order.
Selects a file or folder from the list to playback.
This function is available only when the AVRCP version of the Bluetooth device is
1.4 or higher.
Switches among the Bluetooth devices when the devices are connected to
this product via Bluetooth (page 19).
Basic operation
NOTE
Pioneer MNR.book Page 26 Friday, December 16, 2022 3:25 PM
Wi-Fi®
English
- 27 -
By connecting this unit to a Wi-Fi network, you can display the weather information on
the unit and use Apple CarPlay or Android Auto via the wireless connection.
See the following chapters for the procedure on how to use Apple CarPlay or Android
A
uto wirelessly.
• Apple C
arPlay (page 56)
• Andr
oid Auto (page 61)
Wi-Fi connection
The following procedure describes how to connect manually to a Wi-Fi network.
1 Turn on the Wi-Fi function on the device.
2 Touch then swipe left on the screen.
3 Touch then .
4 Touch [Select Wi-Fi] then [Hotspot].
5 Touch [Wi-Fi Settings: Hotspot].
6 Touch [Hotspot setting].
7 Touch .
The available Wi-Fi networks appear on the list.
8 Touch one of the listed Wi-Fi networks on the list.
The network password input screen appears if a password is required.
9 Input the network password then touch [Connect].
Important
When you connect this unit to the Internet via Wi-Fi for the first time, the Internet Communication
Service the Terms of Use and Privacy Policy is displayed. To use the Internet service, you need to accept
the policy. Otherwise, most of the applications that use the Internet are not available. You can select to
accept or withdraw from the policy at any time in
[Terms of Use / Privacy] (page 93).
1 Touch then swipe left on the screen.
2 Touch then .
3 Touch [Wi-Fi Settings: Hotspot].
Setting the Wi-Fi access point
Pioneer MNR.book Page 27 Friday, December 16, 2022 3:25 PM
- 28 -
English
4 Touch [Hotspot setting].
Access point setting screen
Available network SSIDs
Touch to connect selected network.
Automatic connection status
Touch to switch between the network automatically or manually.
Network connection priority
Drag the network upward to prioritize the connection by touching
.
Searches for existing networks.
Touch to go to Adding access point screen (page 28).
Deletes the networks.
Hotspot setting
abcdefg
abcdefg
abcdefg
abcdefg
Other (Add network)
WPA2
WPA2
WPA2
None
Adding access point screen
Wi-Fi network type
Pioneer MNR.book Page 28 Friday, December 16, 2022 3:25 PM
English
- 29 -
1 Touch then swipe left on the screen.
2 Touch then .
3 Touch [Wi-Fi Settings: Hotspot].
NOTE
This setting is available only when you stop your vehicle in a safe place and apply the parking brake.
The menu items vary according to the source/application.
Menu Item Description
[Hotspot setting] Set up the Wi-Fi access point (page 27).
[MAC Address] Displays the MAC address.
[IP Address] Displays the IP address.
Access point via Wi-Fi
This unit can be an access point of the infrastructure mode network. Use this unit as an
access point to use Apple CarPlay or Android Auto via Wi-Fi network.
1 Touch then swipe left on the screen.
2 Touch then .
3 Touch [Wi-Fi Settings: Smartphone].
Connects Wi-Fi network.
Touch to select desired network then enter the password if required.
TIP
If you want to connect to a network that is not listed on the screen, touch [Other
(
Add network)] and enter the required information.
Searches again for existing networks.
Wi-Fi settings
Access point settings
Menu Item Description
[Device Information] Displays this unit's infrastructure mode network
information.
[Password] Displays the infrastructure mode network password.
Pioneer MNR.book Page 29 Friday, December 16, 2022 3:25 PM
- 30 -
English
Using the CarAVAssist app and wireless data from your connected mobile device, you
can use the weather function that require an internet connection.
– C
ompatible Pioneer receiver, compatible mobile device with CarAVAssist app, and
wireless services data plan required.
– NO
TE: This function uses data from the mobile device that you connect to this unit.
Data usage will depend on the functions used on this unit.
NOTE
This function may not be available depending on your smartphone or the OS version.
NOTES
• You need to install CarAVAssist on your device to use this function (page 32).
• F
or details of the CarAVAssist operation in the following steps, refer to “Help” in the CarAVAssist
application.
1
Turn on the Wi-Fi and Bluetooth functions on your iPhone or smartphone.
2
Touch then swipe left on the screen.
3
Touch then .
4
Touch [Select Wi-Fi] then [Smartphone].
5
Touch [Connection].
6
Touch .
The unit starts to search for available devices, then displays them in the device list.
7
Touch in the list.
A connection confirmation message appears on the screen.
8
Touch [Yes] on the pop-up message.
Transfer mode screen is displayed.
9
Open CarAVAssist on the connected iPhone or smartphone then add this product
on the top menu screen of the application.
10
Activate the [Receiver Internet Access] setting in the application.
[Password reset] Touch [OK] to reset the infrastructure mode network
password.
Using Receiver Internet Access
Starting procedure
Menu Item Description
Pioneer MNR.book Page 30 Friday, December 16, 2022 3:25 PM
English
- 31 -
11
Follow the message displayed on the connected iPhone or smartphone to make a
Wi-Fi connection with this unit.
Receiver Internet Access connection is successfully established.
NOTE
If Receiver Internet Access connection is not established, try the followings:
• Activate the Wi-Fi setting on your mobile device.
• Deactivate the Wi-Fi connection via mobile device tethering.
• Confirm that [Select Wi-Fi] is set to [Smartphone] (page 101).
• For Android OS 10, turn off the Wi-Fi function on the smartphone and then turn it on, if the
infrastructure mode network password is reset in the [Password reset] setting after the previous
connection (page 30).
TIPS
• The second and subsequent Receiver Internet Access connections are automatically made if the
following conditions are met:
– For Android device, the connection between this product and CarAVAssist app is established.
– For iPhone, the Bluetooth Low Energy connection between this product and iPhone is established.
• Android Auto and Receiver Internet Access can be used at the same time. If Android Auto connection
is not established, put the CarAVAssist app in the background. And touch the Android Auto icon on
Home menu screen (page 13) or touch the name of device at a list of mobile devices (page 100) for an
Android Auto connection.
• If iPhone connection is not established, the Bluetooth Low Energy registration may have failed. In that
case, delete the unit's information registered via Bluetooth Low Energy in the Bluetooth setting on
your iPhone, and then try your iPhone registration on CarAVAssist app again.
Pioneer MNR.book Page 31 Friday, December 16, 2022 3:25 PM
CarAVAssist
- 32 -
English
CarAVAssist is an application that allows you to configure and transfer various settings of
this unit. You can also update this unit's firmware wirelessly by using this application.
Before you start
WARNING
Do not attempt to operate the application while driving. Make sure to pull off the road and park your
vehicle in a safe location before attempting to use the controls on the application.
For iPhone users
This function is compatible with iOS 12.0 or later.
You can download CarAVAssist on the App Store.
For smartphone (Android) users
This function is compatible with devices that have Android OS 6.0 or later installed.
You can download CarAVAssist on Google Play.
Promoting the use of the unit
The interface of the unit can be changed by using your iPhone/smartphone (Android).
Examples
• Customizing the home menu screen including the widget
• C
ustomizing the wallpaper
• Or
ganizing notifications on your smartphone (Android) for displaying on the unit
• Do
wnloading the latest firmware
What kind of functions does the application have?
Pioneer MNR.book Page 32 Friday, December 16, 2022 3:25 PM
English
- 33 -
For details, refer to “Help” in the CarAVAssist application.
Transferring the data
1 Connect your iPhone or smartphone with CarAVAssist installed on it to this
product via Bluetooth (page 18).
2 Touch then swipe left on the screen.
3 Touch .
4 Open CarAVAssist on the connected iPhone or smartphone then touch the
connection button on the top menu screen of the application.
5 Touch one of the transfer modes.
iPhone/smartphone to main unit
Main unit to iPhone/smartphone
Updating the firmware wirelessly
CAUTION
• Never turn this product or your iPhone/smartphone off while the firmware is being updated.
• Y
ou can only update the firmware when the vehicle is stopped and the parking brake is engaged.
• Y
ou cannot update the old firmware version once the latest firmware is updated.
1 Download the firmware update files into your iPhone or smartphone through
CarAVAssist.
2 Connect your CarAVAssist-installed iPhone or smartphone to this unit via Wi-Fi
network (page 27).
3 Touch then swipe left on the screen.
4 Touch then .
5 Touch [System Information].
6 Touch [Firmware Update].
7 Touch [CarAVAssist].
Follow the on-screen instructions to finish updating the firmware.
Pioneer MNR.book Page 33 Friday, December 16, 2022 3:25 PM
- 34 -
English
NOTES
• This product will reset automatically after the firmware update is completed if the update is
successful.
• If an error message appears on the screen, touch the display and perform the above steps again.
Pioneer MNR.book Page 34 Friday, December 16, 2022 3:25 PM
Source/application
Supported source and application
English
- 35 -
You can play or use the following sources or application with this product.
• Radio (page 38)
• USB (page 41)
The following sources or applications can be played back or used by connecting an
auxiliar
y device.
• Bluetooth audio (page 25)
• W
i-Fi audio (iPhone (page 48) or Smartphone (Android) (page 52))
• SiriusXM® Satellite Radio (page 65)
• AUX (page 73)
• C
ar Sources (iDatalink® (page 76))
• C
ar Features (iDatalink® (page 76) or Metra Axxess (page 81))
• Weather (page 64)
• Camera view (page 75)
Displaying the source/application list screen
1 Touch then swipe left on the screen.
The source/application screen appears.
abcdefg
abcdefg
USB
Wi-Fi Audio
SiriusXM
Car Sources
Car Features
Camera View
Settings
Weather
Dimmer
AUX
Bluetooth
Audio
CarAVAssist
Disp OFF
Source OFF
WebLink
Radio
Phone
Apple CarPlay Android Auto
Pioneer MNR.book Page 35 Friday, December 16, 2022 3:25 PM
Source list
Touch to see the selected source.
Selecting [Power OFF] will turn off most of the functions on this unit. The [Power
OFF] mode is released in the following cases:
• F
ootage from the rear view camera is input when the vehicle is in reverse.
• A butt
on on this unit is touched.
• T
he ignition switch is turned off (ACC OFF), then turned on (ACC ON).
Displays the connected Wi-Fi network when [Hotspot] is selected in the
[Select Wi-Fi] setting.
Displays the device connected via Receiver Internet Access when
[Smar
tphone] is selected in the [Select Wi-Fi] setting.
Touch to go to the Communication settings (page 100).
Connected mobile device
Touch to start searching screen when the device is not connected.
Touch to go to the device select screen when the device is already connected.
Application list
Touch to see the selected application.
Displays the next items in the list if there are more.
Displays the previous screen.
Displaying the AV operation screen
- 36 -
English
1 Touch then touch the AV operation key.
The AV operation screen appears.
Abcdefghi
Abcdefghijk
Abcdef
USB
6/10
12
:
48
MP3
9999’99”
Sun
99999/99999
TIP
Displays the source/application list.
Pioneer MNR.book Page 36 Friday, December 16, 2022 3:25 PM
English
- 37 -
NOTE
[Source OFF] is only available for AV sources.
1 Touch then swipe left on the screen.
2 Touch the source/application icon.
When you select [Source OFF], the AV source is turned off.
1 Touch when the AV source is in use.
2 Touch the source/application key.
When you select [Source OFF], the AV source is turned off.
Rearranging the display order of source
NOTE
This function is available only when you stop your vehicle in a safe place and apply the parking brake.
1 Touch when the AV source is in use.
2 Touch .
3 Drag the source/application key to the desired position.
Settings (page 84) and Favorite menu (page 102)
Selects or customizes the equalizer curve (page 97).
Hands-free phoning (page 20)
Selecting a source/an application
Source/application selection screen
Source/application list
Pioneer MNR.book Page 37 Friday, December 16, 2022 3:25 PM
Radio
Starting procedure
- 38 -
English
1 Touch then swipe left on the screen.
2 Touch [Radio].
The radio screen appears.
Basic operation
Radio
6/10
12
:
48
Sun
Abcdefghi
Abcdefghi
Abcdefghi
FM1 AM
999.9
MHz
BSM
Radio screen
Recalls the preset channel stored to a key from memory.
Stores the current broadcast frequency to a key.
Displays the preset channel list.
Select an item on the list ([1] to [6]) to switch to the preset channel.
Selects the FM1, FM2, FM3 or AM band.
Performs BSM (best stations memory) function (page 39).
Pioneer MNR.book Page 38 Friday, December 16, 2022 3:25 PM
English
- 39 -
The BSM (best stations memory) function automatically stores the six strongest
broadcast frequencies under the preset channel keys [1] to [6].
NOTES
• Storing broadcast frequencies with BSM may replace those you have already saved.
• P
reviously stored broadcast frequencies may remain stored if the number of frequencies stored has
not reached the limit.
1 Touch and hold to begin search.
The six strongest broadcast frequencies will be stored under the preset channel keys
in the or
der of their signal strength.
1 Touch [Cancel].
Registering your favorite radio stations
Register your favorite radio stations to quickly receive these stations by a single touch on
the favorite radio stations screen (page 14).
1 Tune the radio to the station you want to register.
2 Touch .
3 Touch ( ) in the widget area.
The icon color changes to pink.
Manual tuning
Seek tuning or non stop seek tuning
Releasing the key in a few seconds skips to the nearest station from the
curr
ent frequency. Keep holding the key for long seconds to perform non
stop seek tuning.
Storing the strongest broadcast frequencies (BSM)
To cancel the storage process
Pioneer MNR.book Page 39 Friday, December 16, 2022 3:25 PM
23
Your Location
12:48
6/10
Sun
XX.XMHz
USB
Apple CarPlay
AUX Phone
Android Auto
Settings
Radio settings
- 40 -
English
1 Touch then swipe left on the screen.
2 Touch then .
The system setting screen appears.
3 Touch [AV Source Settings].
4 Touch [Radio settings].
Menu Item Description
[Local]
[Off]
FM: [L
evel1] [Level2] [Level3] [Level4]
AM: [L
evel1] [Level2]
Local seek tuning allows you to only tune into
r
adio stations with sufficiently strong signals.
• The FM [Level4] (AM [Level2]) setting allows
reception of only stations with the strongest signals.
• T
his setting is available only when [Radio] is
selected as the source.
NOTES
Pioneer MNR.book Page 40 Friday, December 16, 2022 3:25 PM
USB
Plugging/unplugging a USB storage device
English
- 41 -
You can play audio, video, or still image files stored in a USB storage device.
1 Pull out the plug from the USB port of the USB cable.
2 Plug a USB storage device into the USB cable.
NOTES
• This product may not achieve optimum performance with some USB storage devices.
• C
onnection via a USB hub is not possible.
• A USB cable is r
equired for connection.
USB cable
USB storage device
1 Pull out the USB storage device from the USB cable.
NOTES
• Check that no data is being accessed before pulling out the USB storage device.
• T
urn off (ACC OFF) the ignition switch before unplugging the USB storage device.
Starting procedure
1 Plug the USB storage device into the USB cable.
2 Touch then swipe left on the screen.
Plugging a USB storage device
Unplugging a USB storage device
Pioneer MNR.book Page 41 Friday, December 16, 2022 3:25 PM
- 42 -
English
3 Touch [USB].
Playback is performed in order of folder numbers. Folders are skipped if they contain
no pla
yable files.
Basic operation
TIP
You can set the screen size for the video and image files (page 103).
Abcdefghi
Abcdefghijk
Abcdef
USB
6/10
12
:
48
MP3
9999’99”
Sun
99999/99999
Audio source screen 1
Audio source
Displays the link search screen.
Touch the song to play back followed by touching the song information, after
swit
ching to Music Browse mode (page 44).
TIP
If you touch the artwork, the list of songs in the album is displayed.
NOTE
This function is available for the USB storage device only.
Switches between playback and pause.
Skips files forward or backward.
Sets a repeat play range for all files/the current folder/the current file.
Switches between random and normal file playback order.
Pioneer MNR.book Page 42 Friday, December 16, 2022 3:25 PM
English
- 43 -
Audio source screen 2
Displays the hidden function bar.
TIP
You can also display the hidden function bar by flicking the bar from the right to
the lef
t.
Switches the following media file types.
[Music]: A
udio files
[Video]: V
ideo files
[Photo]: I
mage files
Selects a file from the list.
Touch a file on the list to playback.
TIP
Touching a folder on the list shows its contents. You can play a file on the list by
t
ouching it.
NOTE
When you play audio files stored in a USB storage device, you can search for a file
using Music Br
owse (page 44).
USB
6/10
12
:
48
MP3
9999’99”
Abcdefghi
Abcdefghijk
Abcdef
Sun
99999/99999
Displays the hidden function bar.
You can also display the hidden function bar by flicking the bar from the left to the
right.
Selects the previous folder or the next folder.
Constructs the database for using the Music Browse mode (page 44).
Switches the current music information display.
TIP
Pioneer MNR.book Page 43 Friday, December 16, 2022 3:25 PM
- 44 -
English
▶Selecting a file using Music Browse mode
You can select files to play back using the category list if the files contain tag
information.
NOTE
This function is available for the USB storage device only.
1 Touch to create a database.
Music Browse mode will be available after the database has been created.
2 Touch .
3 Touch the desired category to display the file list.
4 Touch the item.
Refine the item until the desired song title or file name is displayed on the list.
5 Touch the desired song title or file name to play back.
If the selection made with Music Browse has been canceled, you can switch to Music
Br
owse mode again by touching the [Tag] tab on the file/folder list screen and
touching the desired track.
TIP
Once the database is created in this unit, there is no need to create the database again as long as the
same c
ontents are saved. To enter the Music Browse mode directly, touch
and then touch [Tag]
before selecting the song.
CAUTION
For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video
images, stop in a safe place and apply the parking brake.
Video source
Hides the touch panel keys.
To display the keys again, touch anywhere on the screen.
Pioneer MNR.book Page 44 Friday, December 16, 2022 3:25 PM
English
- 45 -
TIP
Image files are not displayed in the rear display.
Switches between playback and pause.
Performs fast reverse or fast forward.
Touch again to change the playback speed.
Stops playback.
Touch again to start from the beginning next time.
Performs frame-by-frame playback.
Performs slow-motion playback.
Sets a repeat play range for all files/the current folder/the current file.
Switches the audio language.
Switches the following media file types.
[Music]: A
udio files
[Video]: V
ideo files
[Photo]: I
mage files
Selects a file from the list.
Touch a file on the list to playback.
TIP
Touching a folder on the list shows its contents. You can play a file on the list by
touching it.
Skips files forward or backward.
Still image source
Pioneer MNR.book Page 45 Friday, December 16, 2022 3:25 PM
- 46 -
English
Hides the touch panel keys.
To display the keys again, touch anywhere on the screen.
Switches between playback and pause.
Skips files forward or backward.
Selects the previous folder or the next folder.
Saves the current images as the wallpaper.
Touch the following items to overwrite the image.
[As AVScreen]: Saves the image as the wallpaper for the AV screen.
[As HomeS
creen]: Saves the image as the wallpaper for the home menu screen.
[As B
oth]: Saves the image as the wallpaper for both the AV screen and home
menu screen.
NOTE
If you save the new image, the current wallpaper is overwritten except for the
pr
eset image.
Rotates the displayed picture 90° clockwise.
Sets a repeat play range for all files/the current folder.
Switches between random and normal playback order of the files that are
currently selected for repeat playback.
Switches the following media file types.
[Music]: A
udio files
[Video]: V
ideo files
[Photo]: I
mage files
Pioneer MNR.book Page 46 Friday, December 16, 2022 3:25 PM
English
- 47 -
Selects a file from the list.
Touch a file on the list to playback.
TIP
Touching a folder on the list shows its contents. You can play a file on the list by
t
ouching it.
Pioneer MNR.book Page 47 Friday, December 16, 2022 3:25 PM
iPhone
- 48 -
English
Connect your iPhone to this product to play music in your iPhone or listen to the radio
on Apple Music.
NOTE
Before connecting your iPhone, make sure that Apple CarPlay is enabled (page 56).
Connecting your iPhone
When connecting an iPhone to this product, the settings are automatically configured
according to the device to be connected. For details of the compatibility, refer to
Compatible iPhone models (page 117).
1 Connect an Apple CarPlay compatible device to this product via USB.
2 Touch then swipe left on the screen.
3 Touch [Apple CarPlay] displayed in place of [USB] in the source list (page 36).
The playback screen appears.
NOTES
• [Apple CarPlay] is displayed instead of [USB] when the Apple CarPlay is enabled.
• For USB connection, refer to the Quick start guide.
1 Connect an Apple CarPlay compatible device to this product wirelessly (page 57).
2 Touch then swipe left on the screen.
3 Touch [Apple CarPlay] displayed in place of [Wi-Fi Audio] in the source list
(page 36).
The playback screen appears.
NOTE
[Apple CarPlay] is displayed instead of [Wi-Fi Audio] when the Apple CarPlay is enabled.
Wired connection
Wireless connection
Pioneer MNR.book Page 48 Friday, December 16, 2022 3:25 PM
Basic operation
Apple CarPlay
6/10
12
:
48
Abcdefghi
Abcdefghijk
Abcdef
9999/9999
9999’99”
Sun
English
- 49 -
Audio source
Displays the link search screen.
Select a song from the list related to the song currently playing.
TIP
If you touch the artwork, the list of songs in the album is displayed.
NOTE
This function is not available while playing Apple Music radio.
Switches between playback and pause.
Skips files forward or backward.
Sets a repeat play range for all in the selected list/the current song.
Plays songs within the selected list/album randomly.
Pioneer MNR.book Page 49 Friday, December 16, 2022 3:25 PM
- 50 -
English
You can also play and control the music application in your iPhone in the iPhone source.
Apple CarPlay
App
6/10
12
:
48
Abcdefghi
Abcdefghijk
Abcdef
Sun
Switches between playback and pause.
Skips files forward or backward.
Important
Apple Music radio may not be available in your country or region. For details about Apple Music radio,
visit the following site: https://www.apple.com/music/
Selects a song from the list.
Touch the category then the title of the list to playback of the selected list.
TIPS
• I
f you use English as the system language, the alphabet search function is
available. Touch the initial search bar to use this function.
• W
hen you touch an Apple Music radio station in the list screen, the Apple Music
radio screen appears (page 50).
NOTE
Only 15 000 songs in the iPhone are available in the list if the iPhone has more
than 15 000 songs. Available songs depend on the iPhone.
iPhone application screen
Apple Music radio source
Pioneer MNR.book Page 50 Friday, December 16, 2022 3:25 PM
6/10
12
:
48
Abcdefghi
Abcdefghijk
Abcdef
9999’99”
Sun
Apple CarPlay
Switches between playback and pause.
Displays the radio pop-up menu for Apple Music.
• T
ouch [Play More Like This] to play back songs similar to the current song.
• T
ouch [Play Less Like This] to set it not to play back the current song again.
• T
ouch [Add to iTunes Wish List] to add the current song to the iTunes wish list.
This function may not be used depending on your Apple Music account status.
Skips tracks forward.
English
- 51 -
NOTE
Pioneer MNR.book Page 51 Friday, December 16, 2022 3:25 PM
Smartphone (Android™)
- 52 -
English
Connect your smartphone to this product to play music in your smartphone.
NOTE
Before connecting your Android device, make sure that Android Auto is enabled (page 60).
Connecting your Android device
1 Connect an Android Auto compatible device to this product via USB.
2 Touch then swipe left on the screen.
3 Touch [Android Auto] displayed in place of [USB] in the source list (page 36).
The playback screen appears.
NOTES
• [Android Auto] is displayed instead of [USB] when the Android Auto is enabled.
• For USB connection, refer to the Quick start guide.
1 Connect an Android Auto compatible device to this product wirelessly (page 61).
2 Touch then swipe left on the screen.
3 Touch [Android Auto] displayed in place of [Wi-Fi Audio] in the source list
(page 36).
The playback screen appears.
NOTE
[Android Auto] is displayed instead of [Wi-Fi Audio] when the Android Auto is enabled.
Wired connection
Wireless connection
Pioneer MNR.book Page 52 Friday, December 16, 2022 3:25 PM
Basic operation
Android Auto
App
6/10
12
:
48
Abcdefghi
Abcdefghijk
Abcdef
Sun
Switches between playback and pause.
Skips files forward or backward.
English
- 53 -
Pioneer MNR.book Page 53 Friday, December 16, 2022 3:25 PM
WebLink™
- 54 -
English
You can operate WebLink compatible applications with finger gestures such as tapping,
dragging, scrolling, or flicking on the screen of this product.
NOTES
• The supported finger gestures may vary depending on the WebLink compatible application.
• T
o use WebLink, you must first install the WebLink Host app on the iPhone or smartphone. For details
about the WebLink Host app, visit the following site: https://www.abaltatech.com/weblink/
• Be sur
e to read Using app-based connected content (page 117) before you perform this operation.
• C
opyright protected files such as DRM cannot be played.
WARNING
Certain uses of the iPhone or smartphone may not be legal while driving in your jurisdiction, so you
must be aware of and obey any such restrictions. If in doubt as to a particular function, only perform it
while the car is parked. No feature should be used unless it is safe to do so under the driving conditions
you are experiencing.
Using WebLink
Important
• Pioneer is not responsible for content or functions accessed via WebLink, which are the responsibility
of the application and content providers.
• Availability of non-Pioneer content and services, including apps and connectivity, may change or
discontinue without notice.
• W
hen using WebLink with the Pioneer product, available content and functions will be limited while
driving.
Starting procedure
WebLink Supported iPhone Operating Systems
iOS 14 or higher
1 Unlock your iPhone and connect it to this product via USB.
2 Touch then swipe left on the screen.
3 Touch [WebLink].
NOTE
For USB connection, refer to the Quick start guide.
For iPhone users
Pioneer MNR.book Page 54 Friday, December 16, 2022 3:25 PM
English
- 55 -
WebLink Supported Smartphone Operating Systems
Android 7.0 or higher
NOTES
• [USB MTP] must be set to [Off] to use WebLink (page 85).
• T
he video playback capability depends on the connected Android device.
1 Unlock your smartphone and connect it to this product via USB.
2 Touch then swipe left on the screen.
3 Touch [WebLink].
Basic operation
NOTES
• For USB connection, refer to the Quick start guide.
• Make sure that file transfer mode for USB connection is enabled on your smartphone if WebLink
does not start automatically.
Touch the desired application icon after the WebLink app is launched. The desired
application is launched, and the application operation screen appears.
Displays the main menu of the WebLink source screen.
TIPS
• If you connect your device to this product while a WebLink compatible application is already running,
the application operation screen will appear on this product.
• Check the Bluet
ooth connection between the mobile device and this unit if there is no sound output
from this unit (page 18).
For smartphone (Android) users
Pioneer MNR.book Page 55 Friday, December 16, 2022 3:25 PM
Apple CarPlay
- 56 -
English
You can operate iPhone applications with finger gestures such as tapping, dragging,
scrolling, or flicking on the screen of this product.
Compatible iPhone models
For details about compatibility of iPhone models, refer to the following website.
https://www.apple.com/ios/carplay
NOTES
• The compatible finger gestures vary depending on the application for the iPhone.
• T
o use the Apple CarPlay function, first turn off the CarAVAssist function.
WARNING
Certain uses of the iPhone may not be legal while driving in your jurisdiction, so you must be aware of
and obey any such restrictions. If in doubt as to a particular function, only perform it while the car is
parked. No feature should be used unless it is safe to do so under the driving conditions you are
experiencing.
Using Apple CarPlay
Important
Apple CarPlay may not be available in your country or region.
For details about Apple CarPlay, visit the following site:
https://www.apple.com/ios/carplay
• T
he content and functionality of the supported applications are the responsibility of the App
providers.
• I
n Apple CarPlay, usage is limited while driving, with availability of functions and content determined
by the App providers.
• A
pple CarPlay allows access to applications other than those listed that are subject to limitations
while driving.
• PIONEER IS NO
T RESPONSIBLE AND DISCLAIMS LIABILITY FOR THIRD PARTY (NON-PIONEER) APPS
AND CONTENT, INCLUDING WITHOUT LIMITATION ANY INACCURACIES OR INCOMPLETE
INFORMATION.
• Bef
ore using Apple CarPlay, make sure the GPS antenna and speed cable are properly connected and
installed, and the unit angle is properly set. For details on the installation, refer to the Quick start
guide.
Setting the driving position
To achieve optimum usability of Apple CarPlay, set the driving position setting correctly
according to the vehicle. The setting will be applied the next time an Apple CarPlay
compatible device is connected to this product.
1 Touch then swipe left on the screen.
Pioneer MNR.book Page 56 Friday, December 16, 2022 3:25 PM
English
- 57 -
2 Touch then .
The communication setting screen appears.
3 Touch [Driving Position].
4 Select the item.
[Le
ft]
Select for a left-hand drive vehicle.
[R
ight]
Select for a right-hand drive vehicle.
Starting procedure
1 Connect an Apple CarPlay compatible device to this unit via USB.
2 Touch the Apple CarPlay icon.
The Apple CarPlay home screen appears.
TIP
You can also start the Apple CarPlay from the source/application list screen by swiping the screen to
the lef
t on the home menu screen.
Before using Apple CarPlay wirelessly, perform the following:
• A
ttach the GPS antenna to this product.
• T
urn on Apple CarPlay in the setting menu of your iPhone.
NOTE
[Select Wi-Fi] needs to be set to [Smartphone] to use the wireless connection (page 101).
1 Turn on the Wi-Fi function and the Bluetooth function on the device.
2 Display the Bluetooth setting menu on the device.
3 Touch .
4 Touch the Apple CarPlay icon.
The device search screen appears.
NOTE
You can also display the device search screen by touching and holding .
5 Touch if the device that you want to connect does not appear.
Wired connection
Wireless connection
Pioneer MNR.book Page 57 Friday, December 16, 2022 3:25 PM
- 58 -
English
The available devices appear on the list.
6 Touch the desired device on the screen.
TIP
If the device that you want to connect does not appear, touch
on the screen again.
You can also start Apple CarPlay with the desired device by opening the Bluetooth or Apple
C
arPlay setting menu while displaying the device search or device list screen.
7 Touch [Yes] to pair with the device.
8 Perform the pairing operation by operating the device.
The unit configures the connection then starts the application.
TIP
You can use Siri function by touching
button once Apple CarPlay is activated.
NOTES
• For details on USB connection, refer to the Quick start guide.
• W
hen the device for Apple CarPlay is connected to this unit, the device is also connected via
Bluetooth at the same time. If five devices are already paired, the message confirming whether to
delete the registered device is displayed. If you want to delete the device, touch [Agree]. If you want
to delete other device, touch [Go to DeviceList] and delete the devices manually on the mobile device
select screen.
• I
f an Apple CarPlay compatible device has been connected and another screen is displayed, touch
Apple CarPlay icon on the source/application screen to display the Application menu screen.
• T
he Bluetooth connection with the Apple CarPlay compatible device will be terminated automatically
if Apple CarPlay is turned on. While Apple CarPlay is turned on, only a Bluetooth audio connection will
be possible for devices other than the device connected via Apple CarPlay.
• Hands-fr
ee phoning via Bluetooth wireless technology is not available while Apple CarPlay is on. If
Apple CarPlay is turned on during a call on a cellular phone other than an Apple CarPlay compatible
device, the Bluetooth connection will be terminated after the call ends.
Adjusting the volume
You can adjust the enhanced Siri (if available on your device) or guidance volume
separately from the main sound volume when Apple CarPlay is used.
1 While Apple CarPlay is activated, touch VOL (+/-).
The volume menu will be displayed on the screen.
Pioneer MNR.book Page 58 Friday, December 16, 2022 3:25 PM
Touch to mute. Touch again to cancel mute.
The mute function is not available while the enhanced Siri function is used.
Touch [+]/[-] to adjust the guidance volume.
Displays the main sound volume. To adjust the main sound volume, touch
VOL (+/-) on the unit or touch [+]/[-].
English
- 59 -
NOTE
The volume menu is displayed for four seconds. If the menu disappears, touch VOL (+/-) again. The
menu reappears.
Using the split screen
You can display the screen of Apple CarPlay and of the unit at the same time on one
screen if the split screen function is available on your iPhone.
This function is useful such as when you want to operate the radio source while
displa
ying the map screen.
1 Touch to switch to the split screen view.
TIP
Touch
if you want to return to the full screen.
TIP
The screen positions of the Apple CarPlay and of the unit depend on the [Driving Position] setting
(page 56).
Displays the source list.
Touch to see the selected source.
*
Displays the control panel corresponding to the selected source.
The control panel is not displayed according to the source.
*
Displays the selected source information or function key.
* This button is displayed when iDatalink or Metra is available.
NOTE
NOTE
Pioneer MNR.book Page 59 Friday, December 16, 2022 3:25 PM
Android Auto™
- 60 -
English
You can operate Android applications with finger gestures such as tapping, dragging,
scrolling, or flicking on the screen of this product.
Compatible Android devices
For details about compatibility of Android models, refer to the following website.
https://support.google.com/androidauto
For wireless connections
To wirelessly use Android Auto on your car display, you need a compatible Android
smar
tphone with an active data plan. You can check which smartphones are compatible
at g.co/androidauto/requirements.
NOTES
• [USB MTP] must be set to [Off] to use Android Auto (page 85).
• T
he compatible finger gestures vary depending on the application for the smartphone.
WARNING
Certain uses of the smartphone may not be legal while driving in your jurisdiction, so you must be
aware of and obey any such restrictions. If in doubt as to a particular function, only perform it while the
car is parked. No feature should be used unless it is safe to do so under the driving conditions you are
experiencing.
Using Android Auto
Important
Android Auto may not be available in your country or region.
For details about Android Auto, please refer to the Google support site:
https://support.google.com/androidauto
• T
he content and functionality of the supported applications are the responsibility of the App
providers.
• I
n Android Auto, usage is limited while driving, with availability of functions and content determined
by the App providers.
• A
ndroid Auto allows access to applications other than those listed that are subject to limitations
while driving.
• PIONEER IS NO
T RESPONSIBLE AND DISCLAIMS LIABILITY FOR THIRD PARTY (NON-PIONEER) APPS
AND CONTENT, INCLUDING WITHOUT LIMITATION ANY INACCURACIES OR INCOMPLETE
INFORMATION.
• Bef
ore using Android Auto, make sure the GPS antenna and speed cable are properly connected and
installed, and the unit angle is properly set. For details on the installation, refer to the Quick start
guide.
Pioneer MNR.book Page 60 Friday, December 16, 2022 3:25 PM
Setting the driving position
English
- 61 -
To achieve optimum usability of Android Auto, set the driving position setting correctly
according to the vehicle. The setting will be applied the next time an Android Auto
compatible device is connected to this product.
1 Touch then swipe left on the screen.
2 Touch then .
The communication setting screen appears.
3 Touch [Driving Position].
4 Select the item.
[Le
ft]
Select for a left-hand drive vehicle.
[R
ight]
Select for a right-hand drive vehicle.
Starting procedure
1 Connect an Android Auto compatible device to this product via USB.
2 Touch the Android Auto icon.
The Android Auto home screen appears.
NOTE
[Select Wi-Fi] needs to be set to [Smartphone] to use the wireless connection (page 101).
1 Turn on the Wi-Fi function and the Bluetooth function on the device.
2 Display the connected Bluetooth devices list screen on the device.
3 Touch .
4 Touch the Android Auto icon then [Yes] to display the device search screen.
The device search screen appears.
TIP
You can also display the device search screen by touching and holding
.
5 Touch if the device that you want to connect does not appear.
Wired connection
Wireless connection
Pioneer MNR.book Page 61 Friday, December 16, 2022 3:25 PM
- 62 -
English
The available devices appear on the list.
6 Touch the desired device on the screen.
TIP
If the device that you want to connect does not appear, touch
on the screen again.
7 Touch [Yes] to pair with the device.
8 Perform the pairing operation by operating the device.
The unit configures the connection then starts the application.
TIP
You can use voice recognition function by touching
button once Android Auto is activated.
NOTES
• For details on USB connection, refer to the Quick start guide.
• W
hen the device for Android Auto is connected to this unit, the device is also connected via
Bluetooth at the same time. If five devices are already paired, the message confirming whether to
delete the registered device is displayed. If you want to delete the device, touch [Agree]. If you want
to delete other device, touch [Go to DeviceList] and delete the devices manually on the mobile device
select screen.
• I
f Android Auto is turned on during a call on a cellular phone other than the Android Auto compatible
device, the Bluetooth connection will switch to the Android Auto compatible device after the call.
Adjusting the volume
You can adjust the voice recognition or guidance volume separately from the main
sound volume when Android Auto is used.
1 While Android Auto is activated, touch VOL (+/-).
The volume menu will be displayed on the screen.
Touch to mute. Touch again to cancel mute.
Touch [+]/[-] to adjust the guidance volume.
Displays the main sound volume. To adjust the main sound volume, touch
VOL (+/-) on the unit or touch [+]/[-].
Pioneer MNR.book Page 62 Friday, December 16, 2022 3:25 PM
English
- 63 -
NOTE
The volume menu is displayed for four seconds. If the menu disappears, touch VOL (+/-) again. The
menu reappears.
Setting the auto-launch function
If this function is set to on, the Android Auto screen is displayed automatically when an
Android Auto compatible device is connected to this unit.
NOTE
The Android Auto screen is displayed automatically only when an Android Auto compatible device is
correctly connected to this product.
1 Touch then swipe left on the screen.
2 Touch then .
3 Touch [Android Auto Auto-launch] to switch [On] or [Off].
Using the split screen
You can display the screen of Android Auto and of the unit at the same time on one
screen.
This function is useful such as when you want to operate the radio source while
displa
ying the map screen.
NOTE
[Android Auto split screen] must be set to [On] to use the split screen function (page 101).
1 Touch or to toggle whether to display the screen of the unit.
TIP
The screen positions of the Android Auto and of the unit depend on the [Driving Position] setting
(page 61).
Displays the source list.
Touch to see the selected source.
*
Displays the control panel corresponding to the selected source.
The control panel is not displayed according to the source.
*
Displays the selected source information or function key.
* This button is displayed when iDatalink or Metra is available.
NOTE
Pioneer MNR.book Page 63 Friday, December 16, 2022 3:25 PM
Weather
- 64 -
English
Display the current temperature and daily or hourly forecast in your current location. The
weather function uses a location service to determine your current location.
Using weather
Important
• To use the weather function, you need to connect this unit to the Internet via a Wi-Fi network (page 27).
• To use the weather function, you need to accept the Internet Communication Service the Terms of
Use and Privacy Policy (page 93).
• Bef
ore connecting this unit to the Internet, make sure that the GPS antenna is installed properly so
that your correct location and time can be used for the weather service and location service. For
details on GPS antenna installation, refer to the Quick start guide.
Starting procedure
1 Touch then swipe left on the screen.
2 Touch [Weather].
11
Your Location
20:00 22:00 0:00 2:00 4:00 6:00
11/28 11/29
Tue Wed Th u Fr i Sat Sun
29 30 31 1 2 3
F
Current temperature
Switches the temperature unit between Fahrenheit and Celsius.
Current hourly forecast
Current daily forecast
NOTE
If a data item is unknown or missing, “-” is displayed.
Pioneer MNR.book Page 64 Friday, December 16, 2022 3:25 PM
SiriusXM® Satellite Radio
English
- 65 -
Only SiriusXM® brings you more of what you love to listen to, all in one place. Get over
140 channels, including commercial-free music plus the best sports, news, talk, comedy,
and entertainment. Welcome to the world of satellite radio. A SiriusXM Connect Vehicle
Tuner and Subscription are required. For more information, visit the website
(www.siriusxm.com).
To take full advantage of all the SiriusXM capabilities, such as TuneMix™, SportsFlash™
and T
raffic & Weather Now™, please use the SXV300 tuner or one of the newer SiriusXM
tuners (sold separately). Other tuners are compatible but may limit the features.
Subscribing to the SiriusXM Satellite Radio service
1 Touch then swipe left on the screen.
2 Touch [SiriusXM].
You should be able to tune in to Channel 1. If you cannot get Channel 1, ensure that
y
our SiriusXM Connect Vehicle Tuner is installed correctly.
3 Switch to Channel 0 and check the Radio ID.
The SiriusXM Radio ID can be found by tuning in to Channel 0. In addition, the Radio
ID is locat
ed on the bottom of the SiriusXM Connect Vehicle Tuner and its packaging.
You will need this number to activate your subscription.
NOTE
The SiriusXM Radio ID does not include the letters I, O, S, or F.
4 Activate the service either online or by phone.
TIP
In the USA, you can activate online or by calling SiriusXM Listener care:
• V
isit www.siriusxm.com/activatenow
• Call SiriusXM Listener Care at
1-866-635-2349
For Canadian Subscriptions, please contact:
• Visit www.siriusxm.ca/activate
• Call SiriusXM Customer Care at
1-888-539-7474
NOTES
• The SiriusXM satellites will send an activation message to your tuner. When the tuner has received the
message, [Subscription Updated Press Enter to Continue] is displayed.
• T
he activation process usually takes 10 to 15 minutes, but it may take up to an hour. Do not turn off
this product while the activation message is displayed.
Pioneer MNR.book Page 65 Friday, December 16, 2022 3:25 PM
Listening to SiriusXM
- 66 -
English
1 Touch then swipe left on the screen.
2 Touch [SiriusXM].
Basic operation
TIPS
• On the Featured Favorites™ Band, the current broadcast frequency cannot be stored to a key
(page 70).
• I
f fewer than two music channels are stored as presets, you cannot use the TuneMix function.
• [RADIO ID] is displa
yed when Channel 0 is selected.
Current channel display (Live broadcast mode)
Selects a channel directly.
Recalls the preset channel stored to a key from the memory.
Stores the current channel to a key.
Displays the preset channels.
Select an item on the list ([1] to [6]) to switch to the preset channel.
SXM1
Selects a band.
There are 3 bands and a Featured Favorites. You can store 6 channels per band for
a t
otal of 18 presets.
Pioneer MNR.book Page 66 Friday, December 16, 2022 3:25 PM
tune
mix
English
- 67 -
Switches TuneMix to on or off.
You can use TuneMix from each of the music channels stored as presets on the
curr
ent band.
NOTES
• W
hen fewer than two music channels are stored as presets, you cannot use
TuneMix.
• L
ocked channels will not be used by TuneMix until the channels are unlocked by
entering the parental control passcode.
tune
scan
Performs TuneScan™ (page 68).
Performs channel number up/down.
Performs fast channel number up/down.
Switches to the channel broadcasting the traffic and weather information for
the selected city (Traffic & Weather Now).
Touch the desired city to access the latest Traffic & Weather report for your favorite
market.
To cancel Traffic & Weather Now, touch
.
TIPS
• Grayed out: Traffic and weather broadcast for your market is not yet available.
• W
ith green dot: Latest report available, but not listened to yet.
• W
hite: Latest report available to hear again.
• T
o listen to the information again, touch
on the current channel display.
• I
f you have not selected the city, touch
to select the city. You can also select
the city in advance (page 71).
• I
f you have already selected the city, you can listen to the information only by
touching
.
NOTES
• To use this function, select the city in advance (page 71).
• T
he selected city can be changed in the SiriusXM settings (page 71).
Switches to Replay Mode.
Pioneer MNR.book Page 67 Friday, December 16, 2022 3:25 PM
- 68 -
English
Replay Mode (Time bar display)
When you activate the TuneScan feature, you will hear a few seconds of the songs which
have not been listened to from each of the music channels stored as presets on the
current band.
Selects a channel from the list.
Select the category name or the list of all channels then touch the desired channel.
To switch the display list, touch
.
TIPS
• T
he displayed list switches in the following order.
Channel Name—Artist Name—Song Title—Content Info
• I
f you touch
Scan
, you can scan each channel in the selected category.
• W
hen there is no category, you can select the channel from [Others].
NOTES
• The types of categories available depend on the types of channels available.
• I
t may take time to display the channel list depending on the SiriusXM reception
condition.
Switches between playback and pause.
Performs content forward or backward.
Performs fast forward or rewind.
The operation stops if the icon is touched and held for more than 30
seconds. To resume the operation, touch and hold the icon again.
Switches to live broadcast mode.
TuneScan
NOTE
Pioneer MNR.book Page 68 Friday, December 16, 2022 3:25 PM
English
- 69 -
NOTES
• When fewer than two music channels are stored as presets, you cannot use TuneScan.
• T
uneScan may take a few minutes to become available after the product is turned on or the preset
band is changed.
1 Touch
tune
scan
to display the following display.
Continues playing the current scanning song or channel.
Skips to the previous/next song during TuneScan or to the previous/next
channel during category scan.
Cancels scan play and returns to the previous channel.
SportsFlash
SportsFlash will notify you when a big play happens during a game with one of your
favorite sports teams.
Choose to tune in and hear the play unfold like it was live. Continue listening to the
game
, or you can return to your previous channel.
For details, see [SportsFlash] (page 71) and [SportsFlash List] (page 71) in SiriusXM
settings.
SmartFavorites
All preset channels will buffer the content to be used for Replay, TuneStart™, TuneScan
and TuneMix features.
Pioneer MNR.book Page 69 Friday, December 16, 2022 3:25 PM
Using Featured Favorites Band
- 70 -
English
Featured Favorites are groups of channels that are created by the SiriusXM Programming
department allowing you to discover new channels. Featured Favorite channels are
dynamic and can change often, allowing you to discover new channels.
For details, see [Featured Favorites] (page 71) and [Featured Band Update Message]
(page 71) in SiriusXM settings.
When there is a Featured Favorite, access it with the band key.
1 Touch the band key.
SXM1—SXM2—SXM3—FF
When there are multiple Featured Favorites, access them from the category list.
It is displayed at the bottom of the category list (page 68).
Parental lock
The Parental Control feature allows you to limit access to any SiriusXM channels,
including those with mature content. When enabled, the Parental Control feature
requires you to enter a passcode to tune to the locked channels.
For details, see [Parental Control] (page 71) in SiriusXM settings.
SiriusXM settings
1 Touch then swipe left on the screen.
2 Touch then .
The system setting screen appears.
3 Touch [AV Source Settings].
4 Touch [SiriusXM settings].
The menu items vary depending on whether SiriusXM is selected as the source.
How to access
Menu Item Description
[Tune Start]
[On] [Off]
Start songs automatically from the beginning when you tune to
one of your preset channels in the current preset band when
TuneStart is turned on.
Pioneer MNR.book Page 70 Friday, December 16, 2022 3:25 PM
English
- 71 -
[Parental Control] Enter the current passcode then touch to set this function
(the default passcode is 0000).
• T
o edit the passcode, touch [Edit Code] then touch
followed by entering the new passcode.
• T
o lock the channel, touch the appropriate channel.
appears and the channel is locked.
TIPS
• W
hen you touch the locked channel, the channel is unlocked.
• W
hen you touch [Clear All], all locked channels are unlocked.
[Featured Favorites]
[On] [Off]
Set to [On] to allow you to discover new channels created by
the SiriusXM Programming department.
NOTE
When [Featured Band Update Message] is set to [On] and the Featured
Favorite Band is updated, the Featured Band Update message will
appear.
[Featured Band
Update Message]
[On] [Off]
Set to [On] to be notified when the featured seasonal theme is
updated.
TIP
To display [Featured Band Update Message] at all times, [Featured
Favorites] needs to be set to [On].
[SportsFlash]
[On] [Off]
Set to [On] to activate the SportsFlash function.
• T
ouch [Play] to listen to the notified channel.
• T
ouch [Ignore] to stay tuned to the current channel.
• Touch [Cancel] to cancel notifications regarding the game.
[SportsFlash List] Select favorite teams for SportsFlash.
• T
ouch [Edit List] then select a league and team to set the
favorite.
TIPS
• Y
ou can touch an item again to deselect it.
• I
f you want to remove all the teams you have set, touch [Clear All].
Setting of priorities
If you set many Favorite Teams, up to 5 Favorite Teams can be
r
eceived at once. Set the priorities if more than six teams are set
as Favorite Teams.
1 T
ouch [Prioritize] on the team selection screen.
2 S
elect the five high priority teams from the selected
favorite teams.
[City List] Select the city for the latest traffic and weather report in Traffic
& Weather Now.
Menu Item Description
Pioneer MNR.book Page 71 Friday, December 16, 2022 3:25 PM
- 72 -
English
[SiriusXM Reset] Set to restore to the default SiriusXM settings by touching
[Restore].
CAUTION
Do not turn off the engine while restoring the settings.
NOTE
The source is turned off before the process starts.
Menu Item Description
Pioneer MNR.book Page 72 Friday, December 16, 2022 3:25 PM
AUX
English
- 73 -
You can display the video image output by the device connected to video input.
CAUTION
For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video
images, stop in a safe place and apply the parking brake.
NOTE
A Mini-jack AV cable (sold separately) is required for connection. For details, refer to the Quick start
guide.
Starting procedure
1 Touch then swipe left on the screen.
2 Touch then .
3 Touch [Input/Output settings].
4 Confirm that [AUX Input] is turned on.
5 Touch then swipe left on the screen.
6 Touch [AUX].
The AUX screen appears.
Basic operation
Pioneer MNR.book Page 73 Friday, December 16, 2022 3:25 PM
External component
Camera view
English
- 75 -
You can display the video image output using the device connected to the back camera
input or 2nd camera input.* For details, refer to the Quick start guide.
* The 2nd camera input is available only for DMH-WT3800NEX.
1 Touch then swipe left on the screen.
2 Touch [Camera View].
Video footage is displayed on the screen.
1 Touch then swipe left on the screen.
2 Touch then .
3 Touch [Input/Output settings].
4 Touch [AV Input].
5 Touch [2nd Camera].
6 Touch then swipe left on the screen.
7 Touch [Camera View].
8 Touch to switch the camera view.
The 2nd camera video footage is displayed on the screen.
Starting procedure
Displaying 2nd camera view
Pioneer MNR.book Page 75 Friday, December 16, 2022 3:25 PM
iDatalink®
Using iDatalink
- 76 -
English
You can access the satellite radio source provided for the vehicle. The vehicle
information and many OEM systems such as steering wheel controls, warning chimes,
driver safety systems, and etc. can be displayed on this product by connecting the
optional iDatalink adaptor. It is also possible to add visual screens such as gauges,
vehicle information, climate control, and parking assist. However, an extra interface
module is required to access these features.
NOTE
Since the type of module varies depending on the vehicle model, search for your vehicle via the
following URL to determine which features are available for each module. Remember to select the
correct radio model for accurate results.
https://www.idatalinkmaestro.com/en
Important
• For details about vehicle models that are compatible with the iDatalink adaptor, refer to the
information on our website.
• After installing the iDatalink adaptor, be sure to check that it operates properly.
• F
unctions and displays vary depending on the vehicle model. For details on the functions available
for each model, refer to the information on our website.
• F
or troubleshooting information about iDatalink functions, visit the following website:
https://www.idatalinkmaestro.com/en/support/faq
Limitations
• T
he data is transmitted to this product from your vehicle system via the connected
iDatalink adaptor. Therefore, the actual data contents displayed on your product may
differ from the contents on the screen described in this manual.
• W
hen information on your vehicle or on the devices in your vehicle is sent from the
iDatalink Maestro® module, a screen notifying you of such information may pop up.
TIP
The operating buttons, text information, etc. overlaid on the camera view screen may not appear
immediat
ely after turning on the ignition switch.
Activating iDatalink Maestro
Before using and/or connecting the iDatalink Maestro adaptor, you will need to first flash
the Maestro RR module with the appropriate vehicle and head unit firmware.
1 Find the device number (12 alphanumeric characters) on the label on the
packaging of this product or on the product itself.
Pioneer MNR.book Page 76 Friday, December 16, 2022 3:25 PM
English
- 77 -
2 Access the following website and follow the on-screen instructions to configure
the desired firmware.
https://www.idatalinkmaestro.com/en
NOTE
When the serial number input is required, input the device number of this product.
3 Install the vehicle/head unit-specific firmware on your iDatalink Maestro module.
4 Connect this product to the iDatalink Maestro and install this product to the
vehicle.
The iDatalink function will be active.
NOTES
• For details on installing the firmware, refer to iDatalink Maestro website.
• F
or details on connecting this product to iDatalink Maestro, refer to the Quick start guide.
• Y
ou can also check the device number on the [Firmware Information] screen of this product
(page 90).
Starting procedure
1 Connect the iDatalink Maestro adaptor to this product.
For details, refer to the Quick start guide.
2 Touch then swipe left on the screen.
3 Touch then .
4 Touch [Input/Output settings].
5 Touch [AV Input].
6 Confirm that [Maestro] is selected.
7 Touch then swipe left on the screen.
8 Touch [Car Sources] or [Car Features].
The menu screen you touched appears.
NOTE
The iDatalink function is available only when the input signal is received by the iDatalink Maestro
adaptor.
[Car Sources] is operated almost the same way as the built-in AV sources on this product
is operated. For details on the operation, refer to the following relevant pages.
Using the functions on [Car Sources]
Pioneer MNR.book Page 77 Friday, December 16, 2022 3:25 PM
- 78 -
English
• Operating via USB/iPhone (page 41) (page 48)
• Oper
ating via SiriusXM (page 65)
• Oper
ating via Bluetooth audio (page 25)
• Oper
ating via Hands-free phone (page 20)

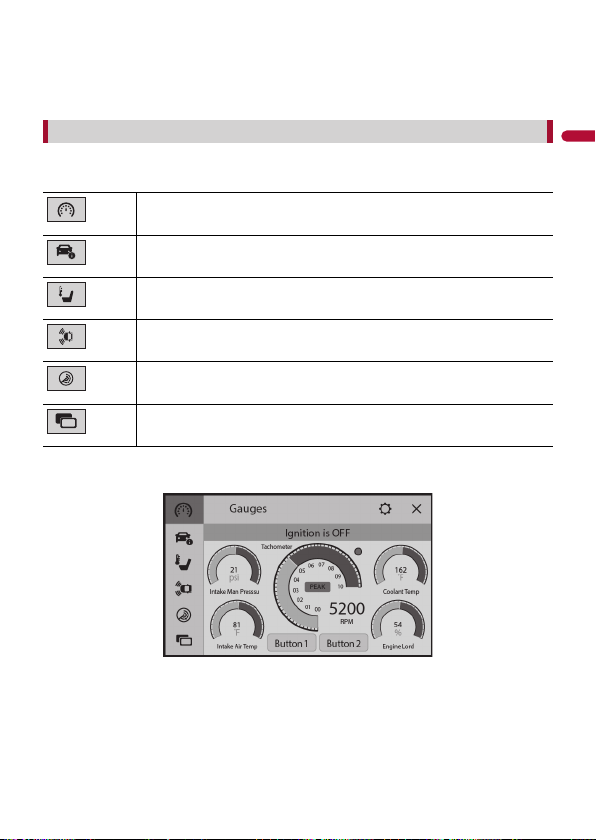

You can check and use the following screens after selecting [Car Features] in the starting
procedure. Touch one of the icons on the left side of the screen to change a feature.
Displays the Gauge screen.
Displays the Vehicle Information screen.
Displays the Climate screen.
Displays the Parking Assist screen.
Displays the Speed Radar Detector screen.
Displays rear monitor mirroring when the rear monitor is connected via
iDatalink.
Gauges screen

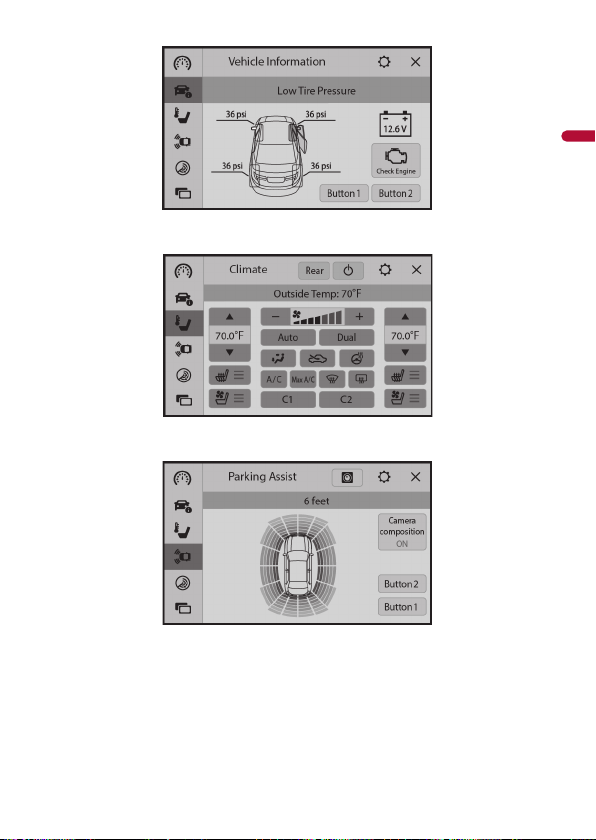

Vehicle Information screen
Using the functions on [Car Features]
Pioneer MNR.book Page 78 Friday, December 16, 2022 3:25 PM
English
- 79 -
Climate screen
Parking Assist screen
Pioneer MNR.book Page 79 Friday, December 16, 2022 3:25 PM
Displaying obstacle detection information
- 80 -
English
Speed Radar Detector screen
CAUTION
This function is intended solely to assist the driver’s vision. It does not detect all dangers and obstacles
and is not a substitute for your attentiveness, judgement, and care while parking your vehicle.
NOTE
This function is only available for vehicles equipped with a parking sensor system.
iDatalink settings
1 Touch then swipe left on the screen.
2 Touch then .
3 Touch [OEM Settings] or [OEM Volume Settings].
The setting screen for iDatalink appears.
Menu Item Description
[OEM Settings] Setting for iDatalink function when the iDatalink adaptor is
connected to the unit.
[OEM Volume Settings] Setting for iDatalink function volume when the iDatalink
adaptor is connected to the unit.
Pioneer MNR.book Page 80 Friday, December 16, 2022 3:25 PM
Metra Axxess
Using Metra
English
- 81 -
Access the vehicle information and many of the OEM systems such as climate control,
driver safety systems, etc. and display them on this product by replacing the Metra parts
kit with interface conversion.
NOTE
Since the type of module varies depending on the vehicle model, search for your vehicle via the
following URL to determine which features are available for each module.
http://metraonline.com/
Important
• For details about vehicle models that are compatible with the Metra interface conversion unit, refer to
the information on Metra website.
• After installing the Metra interface conversion unit, be sure to check that it operates properly.
• F
unctions and displays vary depending on the vehicle model. For details on the functions available
for each model, refer to the information on our website.
• F
or troubleshooting information about the Metra interface conversion functions, visit the following
website. http://www.metraonline.com/contact-us
Limitations
• T
he data is transmitted to this product from your vehicle system via the connected
Metra interface conversion unit. Therefore, the actual data contents displayed on your
product may differ from the contents on the screen described in this manual.
Starting procedure
1 Connect the Metra interface conversion unit to this product.
For details, refer to the Quick start guide.
2 Touch then swipe left on the screen.
3 Touch [Car Features].
The menu screen appears.
You can check and use the following screens after selecting [Car Features] in the starting
procedure. Touch one of the icons on the left side of the screen to change a feature.
Using the functions on [Car Features]
Pioneer MNR.book Page 81 Friday, December 16, 2022 3:25 PM
Displays the Vehicle Information screen.
Displays the Climate screen.
Displays the Radio ID screen.
Vehicle information screen
Outside Temp: 70°F
Climate
Sync DualAuto
A/C
MaxA/C
Rear
Front
Climate screen
- 82 -
English
Pioneer MNR.book Page 82 Friday, December 16, 2022 3:25 PM
Radio ID screen
English
- 83 -
Pioneer MNR.book Page 83 Friday, December 16, 2022 3:25 PM
Settings
- 84 -
English
You can adjust various settings in the main menu.
Displaying the setting screen
1 Touch then swipe left on the screen.
2 Touch .
3 Touch one of the following categories, then select the options.
System settings (page 84)
Theme settings (page 93)
Audio settings (page 95)
Video settings (page 99)
Communication settings (page 100)
System settings
The menu items vary according to the source.
Menu Item Description
[Radio settings] (page 40)
[SiriusXM settings] (page 70)
[Bluetooth Audio]
[On] [Off]
Setting Bluetooth audio source activation.
Menu Item Description
[Beep Tone]
[On] [Off]
Select [Off] to disable the beep sound when the button or
the screen is touched.
[AV Source Settings]
[Beep Tone]
Pioneer MNR.book Page 84 Friday, December 16, 2022 3:25 PM
Menu Item Description
[USB MTP]
[Off] [On]
Select [On] to use the USB MTP (Media Transfer Protocol)
connection.
Select [Off] to use Android Auto or WebLink.
[AV Input]
[2nd Camera]* [Maestro]
[O
ff]
Select AV input source.
[2nd Camera view]*
[Normal] [Reverse]
Select the way the screen image of a camera appears.
[AUX Input]
[On] [Off]
Set to [On] for AUX source (page 73).
English
- 85 -
* DMH-WT3800NEX
A separately sold rear view camera (e.g. ND-BC8) is required for utilizing the rear view
camera function. (For details, consult your dealer.)
▶Rear view camera
This product features a function that automatically switches to the full-screen image of the
rear view camera installed on your vehicle when the shift lever is in the REVERSE (R) position.
Camera View mode also allows you to check what is behind you while driving.
TIP
The parking assist guidelines can be displayed temporarily on the rear view camera screen by touching
the ic
on at the top left of the screen. The guidelines can be adjusted. For details on how to adjust the
guidelines, see [Parking Assist Guide Adjust] (page 87).
▶Camera for Camera View mode
Camera View can be displayed at all times. Note that with this setting, the camera image
is not resized to fit, and that a portion of what is seen by the camera is not viewable.
To display the camera image, touch [Camera View] on the source/application selection
scr
een (page 37).
NOTES
• To set the rear view camera as the camera for Camera View mode, set [Back-up Camera Input] to [On]
(page 86).
• W
hen using the 2nd camera, set [AV Input] to [2nd Camera] (page 85).*
• W
hen the camera view of both the rear view camera and 2nd camera are available, the key to switch
the display appears. Touch this key to switch the display between the rear view image and 2nd
camera image.*
* DMH-WT3800NEX
[Input/Output settings]
[Camera settings]
Pioneer MNR.book Page 85 Friday, December 16, 2022 3:25 PM
- 86 -
English
CAUTION
Pioneer recommends the use of a camera which outputs mirror reversed images, otherwise the screen
image may appear reversed.
• I
mmediately verify whether the display changes to the rear view camera image when the shift lever is
moved to REVERSE (R) from another position.
• W
hen the screen changes to full-screen rear view camera image during normal driving, switch to the
opposite setting in [Camera Polarity].
• I
f you touch
while the camera image is displayed, the displayed image turns off temporarily.
Menu Item Description
[Back-up Camera Input]
[Off] [On]
Setting rear view camera activation.
[Camera Polarity] Setting the polarity of the rear view camera.
[Battery] The polarity of the connected lead is positive.
[Ground] The polarity of the connected lead is negative.
NOTE
This function is available when [Back-up Camera Input] is set to
[On].
Pioneer MNR.book Page 86 Friday, December 16, 2022 3:25 PM
English
- 87 -
* This setting may not be available according to the connected camera if the iDatalink adaptor is
connected to the unit.
Menu Item Description
[Demo Mode]
[On] [Off]
Setting the demo mode.
[Parking Assist Guide
Adjust]*
Adjusting the guidelines by dragging or touching / /
/ / / on the screen.
Touch [Default] to reset the settings.
CAUTION
• When adjusting the guidelines, park the vehicle in a safe place
and apply the parking brake; this setting is available only when
the vehicle is parked with the parking brake applied.
• T
urn the vehicle off before getting out to place the markings.
• T
he range projected by the rear view camera is limited. Also, the
vehicle width and distance guidelines displayed on the rear view
camera image may differ from the actual vehicle width and
distance. (The guidelines are straight lines.)
• T
he image quality may deteriorate depending on the usage
environment, such as at night or in dark surroundings.
NOTES
• Use painter's tape or similar tape to place markings as shown
below before setting up the guidelines.
• A
djust the guidelines so that they overlay the tape markings as
closely as possible.
• I
nstall the rear view camera as near the center of the vehicle as
possible, and do not install it too low. Otherwise, the guideline
comes on the edge of the screen, preventing the guideline from
being adjusted.
50 cm (1.67 ft)
Markings
Markings
Rear bumper
2 m (6.67 ft)
25 cm (0.83 ft)
25 cm (0.83 ft)
MAX 2.7 m (9 ft)
[Demo Mode]
Menu Item Description
Pioneer MNR.book Page 87 Friday, December 16, 2022 3:25 PM
Menu Item Description
[System Language] Select the system language.
• If the embedded language and the selected language setting are
not the same, the text information may not display properly.
• S
ome characters may not be displayed properly.
Menu Item Description
[Restore Settings] Touch [Restore] to restore the settings to the default
settings.
Do not turn off the engine while restoring the settings.
• T
his setting is available only when you stop your vehicle in a safe
place and apply the parking brake.
• T
he source is turned off and the Bluetooth connection is
disconnected before the process starts.
• Bef
ore starting the restore process, disconnect any device that is
connected to the USB port. Otherwise, some settings may not be
restored correctly.
Menu Item Description
[Clock Settings] Setting or adjusting the following time and clock display.
• Dat
e display format:
day-month-year, month-day-year, or year-month-day
• T
ime display format:
[12hour] or [24hour]
• UT
C (Universal Time Coordinated) time zone difference:
[UTC-12h] to [UTC+14h]
• Da
y-light saving time:
[On] or [Off]
- 88 -
English
[System Language]
NOTES
[Restore Settings]
CAUTION
NOTES
[Clock Settings]
Pioneer MNR.book Page 88 Friday, December 16, 2022 3:25 PM
English
- 89 -
NOTE
This setting is available only when you stop your vehicle in a safe place and apply the parking brake.
Menu Item Description
[Dimmer Trigger] Setting the dimmer brightness.
When [Dimmer] is selected in the [Appearance] setting
(page 95), the Light mode or the Dark mode is switched
automatically according to the following settings.
[Auto] Switches the dimmer to on or off automatically according
to your vehicle’s headlight turning on or off.
[Manual] Switches the dimmer to on or off manually.
[Time] Switches the dimmer to on or off at the time you adjusted.
[Day/Night] Setting the dimmer duration by day or night.
You can use this function when [Dimmer Trigger] is set to
[Manual].
[Day] Turns the dimmer function to off.
[Night] Turns the dimmer function to on.
[Dimmer Duration] Adjust the time that the dimmer is turned on or off by
dragging the cursors or touching
or .
You can use this function when [Dimmer Trigger] is set to
[T
ime].
• Each touch of
or moves the cursor backward or forward
in the 15 minute width.
• W
hen the cursors are placed on the same point, the dimmer
available time is 0 hours.
• W
hen the cursor for off time setting is placed on the left end and
the cursor for on time setting is placed on the right end, the
dimmer available time is 0 hours.
• W
hen the cursor for on time setting is placed on the left end and
the cursor for off time setting is placed on the right end, the
dimmer available time is 24 hours.
The time display of the dimmer duration adjusting bar depends on
the clock displa
y setting (page 103).
You can adjust the picture for each source, rear view camera.
[Dimmer Settings]
TIPS
NOTE
[Picture Adjustment]
Pioneer MNR.book Page 89 Friday, December 16, 2022 3:25 PM
- 90 -
English
CAUTION
For safety reasons, you cannot use some of these functions while your vehicle is in motion. To enable
these functions, you must stop in a safe place and apply the parking brake.
To adjust following menu, touch
, , , to adjust.
Menu Item Description
[Brightness]
[-24] to [+24]
Adjust the black intensity.
[Contrast]
[-24] to [+24]
Adjust the contrast.
[Color]*
[-24] to [+24]
Adjust the color saturation.
[Hue]*
[-24] to [+24]
Adjust the tone of color (which color is emphasized, red, or
green).
[Dimmer]
[+1] to [+48]
Adjust the brightness of the display.
[Temperature]
[-3] to [+3]
Adjust the color temperature, resulting in a better white
balance.
* With some pictures, you cannot adjust [Hue] and [Color].
NOTES
• The adjustments of [Brightness], [Contrast], and [Dimmer] are stored separately when your vehicle's
headlights are off (daytime) and on (nighttime).
• [Brigh
tness] and [Contrast] are switched automatically depending on the setting of [Dimmer
Settings].
• [Dimmer] can be changed the setting or the time t
o switch it to on or off (page 89).
• T
he picture adjustment may not be available with some rear view cameras.
• T
he setting contents can be memorized separately.
[System Information]
Menu Item Description
[Firmware Information] Displaying the firmware version.
Pioneer MNR.book Page 90 Friday, December 16, 2022 3:25 PM
English
- 91 -
[Firmware Update] Update to the latest version of the firmware by using a USB
storage device or wireless connection. To update the
firmware via wireless connection, CarAVAssist is required.
For details on performing the wireless update, refer to
Updating the firmware wirelessly (page 33).
CAUTION
• The USB storage device for updating must contain only the
correct update file.
• Never turn this product off, disconnect the USB storage device
while the firmware is being updated.
• You can only update the firmware when the vehicle is stopped
and the parking brake is engaged.
1 Download the firmware update files into your
computer.
2 Connect a blank (formatted) USB storage device to
your computer then locate the correct update file and
copy it onto the USB storage device.
3 Connect the USB storage device to this product
(page 41).
4 Turn the source off (page 37).
5 Display the [System Settings] screen (page 84).
6 Touch [System Information].
7 Touch [Firmware Update].
8 Touch [USB].
9 Touch [Continue].
Follow the on-screen instructions to finish updating the
firmware.
NOTES
• This product will reset automatically after the firmware
update is completed if the update is successful.
• If an error message appears on the screen, touch the
display and perform the above steps again.
Menu Item Description
Pioneer MNR.book Page 91 Friday, December 16, 2022 3:25 PM
- 92 -
English
[3D Calibration Status] Check the sensor learning status, such as the degree of
learning. You can also check the current sensor values and
the total number of speed pulses.
To delete the learned results stored in the sensor, follow
the below instructions.
1 Touch [Distance] or [Speed Pulse], and then touch
[Yes].
2 Touch [Learning status] and then touch [Reset All].
TIP
Touch [Reset All] to reset the sensor after changing the
installation position or angle.
NOTE
If you touch [Reset Distance], all learned results stored in
[Distance] are cleared.
[Connection Status] Check that the leads are properly connected between this
product and vehicle.
[GPS Antenna] Displays the connection status of the GPS antenna ([OK] or
[NOK]) and the reception sensitivity.
NOTE
If reception is poor, change the installation position of the GPS
antenna.
[Positioning Status] Displays the positioning status (3D positioning, 2D
positioning, or no positioning), the number of satellites
used for positioning (orange), and the number of satellites
that have received signals (yellow). If signals from more
than three satellites are received, the current location can
be measured.
[Installation] Indicates whether the installation position of this product
is correct or not. If installed correctly, [OK] appears. When
this product is installed at an extreme angle exceeding the
limitation of the installing angle, [NOK(Inst. Angle)] is
displayed. If the installation of this product is continually
changed and it is not firmly fixed into place,
[NOK(Vibration)] is displayed.
[Speed Pulse] The speed pulse value detected by this product is shown.
[Back Signal] When the shift lever is shifted to “R” (reverse position), the
signal switches to [High] or [Low]. The signal displayed
varies depending on the vehicle.
[License] Displays the open source license for this unit.
Menu Item Description
Pioneer MNR.book Page 92 Friday, December 16, 2022 3:25 PM
Menu Item Description
[OEM Settings] (page 80).
Menu Item Description
[OEM Volume Settings] (page 80).
Menu Item Description
[Terms of Use / Privacy] Select to accept or withdraw from the Internet
Communication Service the Terms of Use and Privacy
Policy.
Weather function is not activated unless you agree to the Internet
Communication Service the Terms of Use and Privacy Policy.
Theme settings
English
- 93 -
The menu items vary according to the source.
[OEM Settings]
[OEM Volume Settings]
[Terms of Use / Privacy]
NOTE
Menu Item Description
[Background] Select the wall paper from the preset items in this product
or original pictures via the external device.
The wall paper can be set from selections for the home
menu scr
een and AV operation screen.
TIP
You can preview how each wallpaper will appear in [Light mode]
or [Dark mode].
NOTE
The [Background] settings are saved for each cellular phone
c
onnected via Bluetooth. The settings change depending on the
cellular phone that is connected to this unit. If two cellular phones
are connected to this unit at the same time, the settings of the first
phone are applied.
Pioneer MNR.book Page 93 Friday, December 16, 2022 3:25 PM
- 94 -
English
Preset Display Select the desired preset background display.
TIP
When the preset background display image with the
icon (for
the AV operation screen only) is selected, the color changes to
mat
ch the color of the artwork image.
(custom)*1 Displays the background display image imported from the
USB storage device.
TIP
Depending on the selected background image, the characters on
the displa
y may be difficult to see. In that case, try to set
[Background filter On].
(off) Hides the background display.
[Illumination]*2 Select an illumination color from the color list or create a
defined color.
Colored Keys Select the desired preset color.
(custom) Displays the screen to customize the illumination color.
To customize the defined color, touch
then touch
or
to adjust the brightness and the level of red, green
and blue to create favorite color.
To store the customized color in the memory, touch and
hold [M
emo], and the customized color will be available at
the next illumination setting by touching
.
TIP
You can also adjust the color tone by dragging the color bar.
(rainbow) Shifts gradually between the preset colors in sequence.
[Theme]*2 Select the theme color.
NOTE
This function is not available when Light mode is activated.
[Clock] Select the style of the clock from the preset image for the
[Home] or [AV] screen.
Preset Images Select the desired preset style for the clock.
(off) Hides the clock display on the [AV] screen.
[Home Custom Setting] Customize the home menu screen of the following items.
• S
witch the favorite source/application area
• C
ustomize the displayed favorite source/application
• Rearrange the displayed favorite source/application
Menu Item Description
Pioneer MNR.book Page 94 Friday, December 16, 2022 3:25 PM
English
- 95 -
*1 Refer to Still image source (page 45).
*2 You can preview the home menu screen or the AV operation screen by touching [Home] or [AV]
r
espectively.
Audio settings
The menu items vary according to the source. Some of the menu items become
unavailable when the volume is set to mute.
[Appearance] Switches the screen appearance to Light mode or Dark
mode. (This setting is also applied to the screen of Apple
CarPlay or Android Auto.)
[Dimmer] Switches to the Light mode or the Dark mode
automatically according to the [Dimmer Settings]
(page 89)
.
[Light] Sets the Light mode to see the screen clearly under strong
sunlight.
[Dark] Sets the Dark mode when the inside of your vehicle is dark.
[Splash screen]
[Import] [Restore]
Select [Import] to change the image on the opening screen
to the one imported from the connected USB device.
Select [Restore] to restore the default image.
NOTES
• T
he image files that can be imported are as follows:
– Format: BMP and JPEG
– Data size: 3.5 MB or less (for both BMP and JPEG)
– Image size (W×H): 1 024 × 600 pixels
• I
f multiple image files are stored on the USB device, the desired
image file may not be imported from the USB device. Store only
one desired image file on the USB device.
Menu Item Description
[Fader/Balance] Touch or to adjust the front/rear speaker balance.
Set [Front] and [Rear] to [0] when using a dual speaker
sy
stem.
Touch
or to adjust the left/right speaker balance.
TIP
You can also set the value by dragging the point on the displayed
table
.
NOTE
This function is available when [Standard Mode] is selected as the
speaker mode and [Rear] is selec
ted in [Rear Speaker Output].
Menu Item Description
Pioneer MNR.book Page 95 Friday, December 16, 2022 3:25 PM
- 96 -
English
[Loudness]
[Off] [Low] [Mid] [High]
Compensates for deficiencies in the low-frequency and
high-frequency ranges at low volume.
[Source Level Adjuster]
[-4] to [+4]
Adjust the volume level of each source to prevent radical
changes in volume when switching between sources other
than FM.
Touch
or to adjust the source volume after
comparing the FM tuner volume level with the level of the
sour
ce.
TIP
If you directly touch the area where the cursor can be moved, the
SLA (sour
ce level adjustment) setting will be changed to the value
of the touched point.
NOTES
• Settings are based on the FM tuner volume level, which remains
unchanged.
• T
his function is not available when the FM tuner is selected as
the AV source.
[Sound Retriever]
[Off] [Mode1] [Mode2]
Enhances compressed audio and restores rich sound
automatically.
TIP
[Mode2] has a stronger effect than [Mode1].
[Speaker Level]
Listening Position*1*2
[Off] [Front Left]
[Front Right] [Front] [All]
Standard Mode*3
[Front Left] [Front Right]
[Rear L
eft] [Rear Right]
[Subwoofer]
Network Mode*3
[High Left] [High Right]
[M
id Left] [Mid Right]
[Subwoofer]
Speaker output level
[-24] to [10]
Adjust the speaker output level of the listening position.
1 T
ouch
or to select the listening position then
select the output speaker.
2 T
ouch
or to adjust the selected speaker output
level.
NOTE
You can adjust the subwoofer output level if the [Subwoofer]
setting is set to [On].
[Listening Position]*1
[Off] [Front Left]
[Front Right] [Front] [All]
Select a listening position that you want to make as the
center of sound effects.
Menu Item Description
Pioneer MNR.book Page 96 Friday, December 16, 2022 3:25 PM
English
- 97 -
[Balance] Touch or to adjust the left/right balance.
NOTE
This function is available when [Network Mode] is selected as the
speaker mode
, or when [Standard Mode] is selected as the speaker
mode and [Subwoofer] is selected in [Rear Speaker Output].
[Time Alignment]
[On] [Off]
Listening Position*1*2
[Off] [Front Left]
[Front Right] [Front] [All]
Standard Mode*3*4
[Front Left] [Front Right]
[Rear L
eft] [Rear Right]
[Subwoofer]
Network Mode*3*4
[High Left] [High Right]
[M
id Left] [Mid Right]
[Subwoofer]
Distance
[0] to [150]
Select or customize the time alignment settings to reflect
the distanc
e between the listener’s position and each
speaker. You need to measure the distance between the
head of the listener and each speaker unit.
1 T
ouch
or to select the listening position then
select the alignment speaker.
2 T
ouch
or to input the distance between the
selected speaker and listening position.
TIP
If you touch [TA On], the time alignment is turned off mandatorily.
NOTE
This function is available only when the listening position setting
is set t
o [Front Left] or [Front Right].
[Graphic EQ]
[Super Bass (S.Bass)]
[P
owerful] [Natural]
[Vocal] [Flat] [Custom1]
[Custom2]
Select or customize the equalizer curve.
Select a curve that you want to use as the basis of
customizing then touch the frequency that you want to
adjust.
TIPS
• I
f you make adjustments when a curve [Super Bass (S.Bass)],
[Powerful], [Natural], [Vocal] or [Flat] is selected, the equalizer
curve settings will be changed to [Custom1] mandatorily.
• I
f you make adjustments when the [Custom2] curve is selected
for example, the [Custom2] curve will be updated.
• [C
ustom1] and [Custom2] curves can be created common to all
sources.
• I
f you trail a finger across the bars of multiple equalizer bands,
the equalizer curve settings will be set to the value of the
touched point on each bar.
[Subwoofer]
[On] [Off]
Select enable or disable rear subwoofer output from this
product.
[Crossover]*5 Select a speaker unit (filter) to adjust the HPF or LPF cutoff
frequency and the slope for each speaker unit (page 98)
.
[Bass Boost]
[0] to [+6]
Adjust the bass boost level.
Menu Item Description
Pioneer MNR.book Page 97 Friday, December 16, 2022 3:25 PM
- 98 -
English
*1 [All] is not available when [Network Mode] is selected as the speaker mode.
*2 If you change the listening position setting, the set values for all speakers will change in
c
onjunction with this setting.
*3 To use this function, the vehicle’s acoustics must be measured in advance.
*4 This function is available only when the listening position setting is set to [Front Left] or [Front
R
ight].
*5 This function is not available when adjusting the High speaker in [Network Mode].
You can adjust the cutoff frequency value of each speaker.
The following speakers can be adjusted:
[S
tandard Mode]: Front, Rear, Subwoofer.
[Netw
ork Mode]: High, Mid, Subwoofer.
NOTE
[Subwoofer Settings] is available only when [Subwoofer] is [On].
1 Touch then swipe left on the screen.
[Rear Speaker Output]
[Rear] [Subwoofer]
Select the rear speaker output.
NOTE
This function is available when [Standard Mode] is selected as the
speaker mode and the sour
ce is off.
[Mute Level] If an interruption caused by an audio signal occurs while
Apple CarPlay or Android Auto is being used, select mute
or attenuate the volume of the AV source and iPhone/
smartphone application.
[ATT] The volume becomes 10 dB lower than the current volume.
[Mute] The volume becomes 0.
[Off] The volume does not change.
[Subwoofer Settings]*5 Select the subwoofer phase (page 98).
[Save Settings] Save to recall the following current sound settings by
touching [OK]: slope, subwoofer phase, speaker level,
Graphic EQ, HPF/LPF, listening position, crossover, time
alignment.
TIP
When you touch [Cancel], return to the [Audio Settings] screen.
[Load Settings]
[Initial Settings]
[Sound Setting]
Load the sound settings.
NOTE
[Sound Setting] is available only when you have already saved the
sound settings (page 98).
Adjusting the cutoff frequency value
Menu Item Description
Pioneer MNR.book Page 98 Friday, December 16, 2022 3:25 PM
English
- 99 -
2 Touch then .
3 Touch [Crossover] or [Subwoofer Settings].
4 Touch or to switch the speaker.
5 Drag the graph line to set the cutoff position.
6 Drag the lowest point of the graph to set the cutoff slope.
The following items can also be set.
Switches the subwoofer phase between normal and reverse position.
You can also adjust the [High] and [Mid] phase in [Network Mode].
[LPF]/[HPF]
Switches the [LPF]/[HPF] setting to [On] or [Off]. When it is turned off, the high-
pass filt
er or low-pass filter of each speaker can also be turned on by touching the
graph lines.
Video settings
The menu items vary according to the source.
Menu Item Description
[Time Per Photo Slide]
[5sec] [10sec] [15sec]
[M
anual]
Select the interval of image file slideshows on this product.
TIP
[Time Per Photo Slide]
[Video Signal Setting]
Menu Item Description
[AUX]
[Auto] [PAL] [NTSC]
[PAL-M] [PAL-N] [SECAM]
Select the suitable video signal setting when you connect
this product to an AUX equipment.
[Back-up Camera]
[Auto] [PAL] [NTSC]
[PAL-M] [PAL-N] [SECAM]
Select the suitable video signal setting when you connect
this product to a rear view camera.
[2nd Camera]*
[Auto] [PAL] [NTSC]
[PAL-M] [PAL-N] [SECAM]
Select the suitable video signal setting when you connect
this product to a 2nd camera.
Pioneer MNR.book Page 99 Friday, December 16, 2022 3:25 PM
- 100 -
English
* DMH-WT3800NEX
Communication settings
Menu Item Description
[Connection] Displaying a list of mobile devices that have been
connected via Bluetooth or USB.
Connect, disconnect, or delete registered mobile device
manually
.
Touch
to delete registered device.
To connect a registered device manually, perform the
f
ollowing:
• F
or an Apple CarPlay or Android Auto connection, touch
the name of the device.
• F
or a Bluetooth connection, touch
.
To disconnect the device, touch
in the list.
When there is not device in the list, the device search list screen
appears then you can connect selected device.
• C
onnect the Bluetooth device manually in the following cases:
– Two or more Bluetooth devices are registered, and you want to
manually selec
t the device to be used.
– You want to reconnect a disconnected Bluetooth device.
– Connection cannot be established automatically for some
r
eason.
• I
f you have deleted the registered Bluetooth device from the
unit, also delete the registered unit’s information from your
iPhone or smartphone.
Setting the Bluetooth (page 19) and Hands-free phone (page 23).
[RSE]
[Auto] [PAL] [NTSC]
[PAL-M] [PAL-N] [SECAM]
Select the suitable video signal setting when you connect
this product to a rear monitor via iDatalink.
[Connection]
TIP
NOTES
[Bluetooth Settings]
Menu Item Description
Pioneer MNR.book Page 100 Friday, December 16, 2022 3:25 PM
Menu Item Description
[Select Wi-Fi] Select the following Wi-Fi mode.
[Smartphone] Enable if you want to use this unit as an access point of the
infrastructure mode network to connect your device to the
unit wirelessly.
[Hotspot] Enable if you want to connect this unit to a Wi-Fi network.
[Off] Disable the Wi-Fi function.
English
- 101 -
Setting the infrastructure mode network (page 29).
Setting the Wi-Fi connection and network (page 29).
Menu Item Description
[Driving Position]
[Right] [Left]
Setting the driving position.
• Apple CarPlay (page 56)
• Android Auto™ (page 60)
Menu Item Description
[Android Auto Auto-
launch]
[On] [Off]
Select [On] to display the Android Auto screen
automatically when an Android device is connected to the
unit.
Menu Item Description
[Android Auto split screen]
[On] [Off]
Select [On] to display the button for switching to the split
screen view on the Android Auto screen.
[Select Wi-Fi]
[Wi-Fi Settings: Smartphone]
[Wi-Fi Settings: Hotspot]
[Driving Position]
[Android Auto Auto-launch]
[Android Auto split screen]
Pioneer MNR.book Page 101 Friday, December 16, 2022 3:25 PM
Favorite menu
- 102 -
English
Registering your favorite menu items in shortcuts allows you to quickly jump to the
registered menu screen by a simple touch on the [Favorites] screen.
NOTE
Up to 12 menu items can be registered in the favorite menu.
Creating a shortcut
1 Touch then swipe left on the screen.
2 Touch .
3 Touch the star icon of the menu item for which to create a shortcut.
The star icon for the selected menu is filled in.
TIP
To cancel the registration, touch the star icon in the menu column again.
Selecting a shortcut
1 Touch then swipe left on the screen.
2 Touch .
3 Touch .
4 Touch the desired menu item.
Removing a shortcut
1 Touch then swipe left on the screen.
2 Touch .
3 Touch .
4 Touch and hold the menu item that you want to remove.
The selected menu item is removed from the [Favorites] screen.
Pioneer MNR.book Page 102 Friday, December 16, 2022 3:25 PM
Other functions
Setting the clock display
English
- 103 -
You can set the time format, time zone, daylight saving, and the date format.
However, the time and date are automatically adjusted by the GPS antenna and cannot
be adjust
ed by the user.
1 Touch the current time on the screen.
2 Set the following items in the settings.
• T
he date display format:
day-month-year, month-day-year, or year-month-day
• T
he time display format:
[12hour] or [24hour]
• T
he UTC (Universal Time Coordinated) time zone difference:
[UTC-12h] to [UTC+14h]
• Da
y-light saving time:
[On] or [Off]
You can also configure these items in [Clock Settings] (page 88).
Changing the wide screen mode
You can set the screen mode for AV screen and image files.
1 Touch the screen display mode key.
Screen display mode key
Pioneer MNR.book Page 103 Friday, December 16, 2022 3:25 PM
- 104 -
English
2 Touch the desired mode.
[Full] Displays images across the entire screen.
Some images may not be displayed across the entire screen.
[Zoom] Displays the images enlarging them vertically.
[Normal] Displays images without changing the ratio.
[Trimming] An image is displayed across the entire screen with the horizontal-to-vertical ratio
lef
t as is. If the screen ratio differs from the image, the image may be displayed
partly cut off either at the top/bottom or sides.
[Trimming] is for image files only.
TIPS
• Diff
erent settings can be stored for each video source.
• W
hen a video is viewed in wide screen mode that does not match its original aspect ratio, it may
appear different.
• T
he video image will appear coarser when viewed in [Zoom] mode.
NOTES
• Image files can be set to either [Normal] or [Trimming] in wide screen mode.
• Depending on the sof
tware version of this unit, this function may vary.
Restoring this product to the default settings
You can restore settings or recorded content to the default settings from [Restore
Settings] in
(page 88).
NOTE
NOTE
Pioneer MNR.book Page 104 Friday, December 16, 2022 3:25 PM
Appendix
Troubleshooting
English
- 105 -
If you have problems operating this
product, refer to this section. The most
common problems are listed below, along
with likely causes and solutions. If a
solution to your problem cannot be found
here, contact your dealer or the nearest
authorized Pioneer service facility.
A black screen is displayed, and
operation is not possible using the touch
panel keys.
[Power OFF] mode is on.
– Touch any button on this product to
r
elease the mode.
Bluetooth operation does not work.
The power failed for the Bluetooth
module of this product.
– Turn the ignition switch to OFF and
then t
o ON.
If the error message is still displayed
af
ter performing the above action,
please contact your dealer or an
authorized Pioneer Service Station.
The screen is covered by a caution
message and the video cannot be shown.
The parking brake lead is not connected
or the parking brake is not applied.
– Connect the parking brake lead
c
orrectly, and apply the parking brake.
T
he speed sensor detects that the
vehicle is moving.
– Park your vehicle in a safe place and
apply the park
ing brake.
No video output from the connected
equipment.
The [AV Input] or [AUX Input] setting is
incorrect.
– Correct the settings.
The audio or video skips.
This product is not firmly secured.
– Secure this product firmly.
No sounds are produced. The volume
level will not rise.
Cables are not connected correctly.
– Connect the cables correctly.
The icon is displayed, and operation is
impossible.
The operation is not compatible with
the video configuration.
– The operation is not possible.
The picture is stretched, with an incorrect
aspect ratio.
The aspect setting is incorrect for the
display.
– Select the appropriate setting for that
.
iPhone cannot be operated.
The iPhone is frozen.
– Reconnect the iPhone with the USB
int
erface cable for iPhone.
– Update the iPhone software version.
An err
or has occurred.
– Reconnect the iPhone with the USB
int
erface cable for iPhone.
– Park your vehicle in a safe place, and
then turn off the ig
nition switch (ACC
OFF). Subsequently, turn the ignition
switch to on (ACC ON) again.
Common problems
Problems with the AV screen
Pioneer MNR.book Page 105 Friday, December 16, 2022 3:25 PM
English
- 106 -
– Update the iPhone software version.
– Reconnect the iPhone via the Wi-Fi
connection.
Cables are not connected correctly.
– Connect the cables correctly.
Sound from the iPhone cannot be heard.
The audio output direction may switch
automatically when the Bluetooth and
USB connections are used at the same
time.
– Use the iPhone to change the audio
output direction.
No back camera image when the vehicle
is in reverse.
The back camera input setting on the
receiver is set to Off.
– Change the back camera setting to On
in the settings menu. (Refer to the
System Settings section of this manual
to adjust.)
The camera input may be loose or not
connected.
– Check the connection and make sure
the male end of the camera is
connected to the brown input on the
back of the receiver. (Refer to the
Quick start guide.)
The reverse lead on the receiver may
not be connected to the proper wire at
the reverse lamp.
– Check the connection and make sure
that the violet/white lead of the
receiver is connected to the lead
whose voltage changes when the shift
lever is put in reverse. (Refer to the
Quick start guide.)
Black screen displayed when the vehicle
is in reverse, with no camera installed.
Back camera input is set to On.
– Turn the setting to Off in the settings
menu. (Refer to the System Settings
section of this manual to adjust.)
Back image displayed when vehicle is not
in reverse.
The camera polarity is not set properly
in the Camera settings menu.
– Review System Settings section of this
manual for steps to switch the camera
polarity. Park in a safe place, then
while keeping your foot firmly on the
brake, put the vehicle in reverse,
access the System Settings menu, and
change the camera polarity setting.
Put vehicle back in park. (Refer to the
System Settings section of this manual
to adjust.)
Dialing is impossible because the touch
panel keys for dialing are inactive.
Your phone is out of range for service.
– Retry after re-entering the range for
service.
The connection between the cellular
phone and this product cannot be
established.
– Perform the connection process.
Of the two cellular phones connected
to this product at the same time, if the
first phone is dialing, ringing or a call is
in progress, dialing cannot be
performed on the second phone.
– When the operation on the first of the
two cellular phones is completed, use
the switch devices key to switch to the
second phone and then dial.
A black screen is displayed.
While operating an application, the
application was ended on the
smartphone side.
Problems with the phone screen
Problems with Application
screen
Pioneer MNR.book Page 106 Friday, December 16, 2022 3:25 PM
English
- 107 -
– Touch
to display the home menu
screen.
T
he smartphone OS may be awaiting
screen operation.
– Stop the vehicle in a safe place and
check the scr
een on the smartphone.
The screen is displayed, but operation
does not work at all.
An error has occurred.
– Park your vehicle in a safe place, and
then turn off the ig
nition switch (ACC
OFF). Subsequently, turn the ignition
switch to on (ACC ON) again.
– When an Android device is connected,
disc
onnect the Bluetooth connection
from this product and then reconnect
it.
The smartphone was not charged.
Charging stopped because the
temperature of the smartphone rose
due to prolonged use of the
smartphone during charging.
– Disconnect the smartphone from the
cable
, and wait until the smartphone
cools down.
Mor
e battery power was consumed
than was gained from charging.
– This problem may be resolved by
st
opping any unnecessary services on
the smartphone.
Error messages
When problems occur with this product, an
error message appears on the display.
Refer to the table below to identify the
problem, then take the suggested
corrective action. If the error persists,
record the error message and contact your
dealer or your nearest Pioneer service
center.
AMP Error
This product fails to operate or the
speaker connection is incorrect; the
protective circuit is activated.
– Check the speaker connection. If the
message fails t
o disappear even after
the engine is switched off/on, contact
your dealer or an authorized Pioneer
Service Station for assistance.
Product overheat. System will be shut
down automatically in 15 seconds.
Restart the product by ACC-Off/On may
fix this problem. If this message keeps
showing up, it is possible that some
problem occurred in the product.
The temperature of the main unit is too
high.
– Turn off the ignition switch (ACC OFF)
then wait until the main unit
t
emperature reaches low.
Check Antenna
The antenna connection is incorrect.
– Check the antenna connection. If the
message fails t
o disappear even after
the engine is switched off/on, contact
your dealer or the nearest authorized
Pioneer service center for assistance.
Check Tuner
The SiriusXM Connect Vehicle Tuner
connection is incorrect.
– Check the tuner connection and
batt
ery voltage. If the message fails to
disappear even after the engine is
switched off/on, contact your dealer
or the nearest authorized Pioneer
service center for assistance.
Common
SiriusXM® Satellite Radio
Pioneer MNR.book Page 107 Friday, December 16, 2022 3:25 PM
English
- 108 -
No Signal
The SiriusXM Connect Vehicle Tuner is
having difficulty receiving the SiriusXM
satellite signal.
– Verify that your vehicle is outdoors
with a clear view of the southern sky.
– Verify that the SiriusXM magnetic
mount antenna is mounted on a metal
surface on the outside of the vehicle.
– Move the SiriusXM antenna away from
any obstructions.
No Content
TuneScan is not available.
– Perform the operation with another
preset channel.
Channel Not Available
The channel that you have requested is
not a valid SiriusXM channel.
– Visit www.siriusxm.com for more
information about the SiriusXM
channel lineup.
Subscription Updated Press Enter to
Continue
This product has detected a change in
your SiriusXM subscription status.
– Touch [Enter] to clear the message.
In the U.S.A., visit www.siriusxm.com
or call 1-866-635-2349 if you have
questions about your subscription. In
Canada, visit www.siriusxm.ca or call
1-888-539-7474 if you have questions
about your subscription.
Channel Not Subscribed. Call SiriusXM to
Subscribe.
The channel that you have requested is
not included in your SiriusXM
subscription package.
– Check the content of your SiriusXM
subscription package.
In the U.S.A., visit www.siriusxm.com
or call 1-866-635-2349 if you have
questions about your subscription
package or would like to subscribe to
this channel. In Canada, visit
www.siriusxm.ca or call 1-888-539-
7474.
Channel Locked Please Enter the Lock
Code
Locked by the radio Parental Control
feature.
– Release the channel lock.
Memory Full
The memory has become full while
playback was paused.
– Resume playback.
Memory Nearly Full
The memory has become nearly full
while playback was paused.
– Resume playback.
There are no qualified TuneMix music
channels in this band.
There are no qualified TuneMix
channels in this band.
– Requires two or more qualified music
channels to be stored as presets in the
current band.
Error-02-9X/-DX
Communication failed.
– Turn the ignition switch OFF and back
ON.
– Disconnect the USB storage device.
– Change to a different source. Then,
return to the USB storage device.
Unplayable File
There is no playable file in the USB
storage device.
– Check that the files in the USB storage
device are compatible with this
product.
Security for the connected USB storage
device is enabled.
USB storage device
Pioneer MNR.book Page 108 Friday, December 16, 2022 3:25 PM
English
- 109 -
– Follow the USB storage device
instructions to disable security.
Skipped
The connected USB storage device
contains DRM protected files.
– The protected files are skipped.
Protect
All the files on the connected USB
storage device are embedded with
DRM.
– Replace the USB storage device.
Incompatible USB
The connected USB storage device is
not supported by this product.
– Disconnect your device and replace it
with a compatible USB storage device.
Check USB
The USB connector or USB cable has
short-circuited.
– Check that the USB connector or USB
cable is not caught in something or
damaged.
The connected USB storage device
consumes more than maximum
allowable current.
– Disconnect the USB storage device
and do not use it. Turn the ignition
switch to OFF, then to ACC or ON and
then connect a compliant USB storage
device.
HUB Error
The connected USB hub is not
supported by this product.
– Directly connect the USB storage
device to this product.
No Response
This product cannot recognize the
connected USB storage device.
– Disconnect the device and replace it
with another USB storage device.
The USB connector or USB cable has
short-circuited.
– Check that the USB connector or USB
cable is not caught in something or
damaged.
The connected USB storage device
consumes more than maximum
allowable current.
– Disconnect the USB storage device
and do not use it. Turn the ignition
switch to OFF, then to ACC or ON and
then connect a compliant USB storage
device.
The USB interface cable for iPhone has
short-circuited.
– Confirm that the USB interface cable
for iPhone or USB cable is not caught
in something or damaged.
Your device is not authorized to play this
DivX protected video.
This product cannot play copy-
protected DivX files.
– Select a file that can be played.
Audio Format not supported
This type of file is not supported on this
product.
– Select a file that can be played.
There was a problem communicating
with your iPhone. Please reconnect.
iPhone failure.
– Disconnect the cable from the iPhone.
Once the iPhone’s main menu is
displayed, reconnect the iPhone and
reset it.
The iPhone firmware version is old.
– Update the iPhone version.
Connection failed.
Communication failed and the system is
trying to connect.
iPhone
Apple CarPlay
Pioneer MNR.book Page 109 Friday, December 16, 2022 3:25 PM
English
- 110 -
Wait for a while. Then, perform the
actions below if the error message is still
displayed.
– Restart the iPhone.
– Disconnect the cable from the iPhone,
and then connect the iPhone again
after a few seconds.
– Turn the ignition switch to OFF and
then to ON.
Please attach the GPS antenna in order to
use Apple CarPlay over Wireless.
This unit cannot properly detect the
GPS signal from the GPS antenna.
– Check the GPS antenna installation
and connection. For details about the
connection and installation, refer to
the Quick start guide.
The speed sensor is disconnected. Please
attach it.
The speed sensor cannot detect any
signal.
– Check the speed signal cable
connection. For details about the
connection, refer to the Quick start
guide.
Please attach the GPS antenna and the
speed sensor in order to use Apple
CarPlay over Wireless.
This unit cannot detect the GPS signal
from the GPS antenna and the speed
signal from the speed sensor.
– Check the connection and installation
for both. For details about the
connection and installation, refer to
the Quick start guide.
If the error message is still displayed after
performing the above action, please
contact your dealer or an authorized
Pioneer Service Station.
Android Auto has stopped.
The connected device is not compatible
with Android Auto.
– Check if the device is compatible with
Android Auto.
The startup of Android Auto failed for
some reasons.
– Disconnect the cable from the
smartphone, and then connect the
smartphone again after a few seconds.
– Restart the smartphone.
– Turn the ignition switch to OFF and
then to ON.
Android Auto has stopped. Please check
the screen of your Android phone when it
is safe to do so.
The time set in the smartphone is not
correct.
– Set the correct time.
If the error message is still displayed after
performing the above action, please
contact your dealer or an authorized
Pioneer Service Station.
Bluetooth pairing failed.
The Bluetooth pairing failed for some
reasons.
– Pair this product with the device
manually.
To use Android Auto, please stop your car
and check your Android phone.
The default settings are displayed on
the screen of the Android Auto
compatible device or images are not
output from the Android Auto
compatible device.
– Park your vehicle in a safe place, and
follow the instructions displayed on
the screen. If the error message is still
displayed after performing on-screen
instructions, please reconnect the
device.
Android Auto
Pioneer MNR.book Page 110 Friday, December 16, 2022 3:25 PM
Detailed information
for playable media
English
- 111 -
Common notes about the USB storage
device
• Do not leave the USB storage device in
any location with high temperatures.
• D
epending on the kind of the USB
storage device you use, this product may
not recognize the storage device or files
may not be played back properly.
• T
he text information of some audio and
video files may not be correctly
displayed.
• F
ile extensions must be used properly.
• T
here may be a slight delay when starting
playback of files on an USB storage
device with complex folder hierarchies.
• Oper
ations may vary depending on the
kind of an USB storage device.
• I
t may not be possible to play some music
files from USB because of file
characteristics, file format, recorded
application, playback environment,
storage conditions, and so on.
USB storage device compatibility
• For details about USB storage device
compatibility with this product, refer to
Specifications (page 119).
• P
rotocol: bulk
• Y
ou cannot connect a USB storage device
to this product via a USB hub.
• P
artitioned USB storage device is not
compatible with this product.
• F
irmly secure the USB storage device
when driving. Do not let the USB storage
device fall onto the floor, where it may
become jammed under the brake or gas
pedal.
• T
here may be a slight delay when starting
playback of audio files encoded with
image data.
• S
ome USB storage devices connected to
this product may generate noise on the
radio.
• Do not c
onnect anything other than the
USB storage device.
The sequence of audio files on USB storage
devic
e.
For USB storage device, the sequence is
diff
erent from that of USB storage device.
Handling guidelines and supplemental
information
• Copyright protected files cannot be
played back.
Common notes about DivX files
Notes specific to DivX files
• Only DivX files downloaded from DivX
partner sites are guaranteed for proper
operation. Unauthorized DivX files may
not operate properly.
• T
his product corresponds to a DivX file
display of up to 1 590 minutes 43
seconds. Search operations beyond this
time limit are prohibited.
• F
or details on the DivX video versions
that can be played on this product, refer
to Specifications (page 119).
• F
or more details about DivX, visit the
following site: https://www.divx.com/
General
• Maximum playback time of audio file
stored on an USB storage device: 8 h (480
minutes)
Compatibility
Media compatibility chart
Pioneer MNR.book Page 111 Friday, December 16, 2022 3:25 PM
CODEC FORMAT MP3, WMA,
WAV, AAC,
FLAC, DSD, AVI,
MPEG-PS,
MPEG-TS, MP4,
3GP, MKV,
MOV, ASF, FLV,
M4V
English
- 112 -
USB storage device
MP3 compatibility
• Ver. 2.x of ID3 tag is prioritized when both
Ver. 1.x and Ver. 2.x exist.
• T
his product is not compatible with the
following: MP3i (MP3 interactive), mp3
PRO, m3u playlist
SAMPLING FREQUENCY 8 kHz to 48 kHz
TRANSMISSION RATE 8 kbps to 320
kbps (CBR)/VBR
ID3 TAG Folder Browse
mode
ver.1.0/1.1/2.2/
2.3/2.4
Music Browse
mode
ver.2.2/2.3/2.4
WMA compatibility
• This product is not compatible with the
following: Windows Media™ Audio 9.2
Professional, Lossless, Voice
SAMPLING FREQUENCY 32 kHz to 48
kHz
TRANSMISSION RATE 8 kbps to 320
k
bps (CBR)/VBR
WAV compatibility
• The sampling frequency shown in the
display may be rounded.
• I
f the sampling frequency of the file
exceeds 48 kHz, the sampling frequency
is reduced automatically to 48 kHz when
the file is played.
SAMPLING FREQUENCY 16 kHz to 192
kHz
QUANTIZATION BIT RATE 8 bit/16 bit/24
bit/32 bit (int
only)
AAC compatibility
• This product plays back AAC files
encoded by iTunes.
SAMPLING FREQUENCY 8 kHz to 48 kHz
TRANSMISSION RATE 16 kbps to 320
kbps (CBR)
FLAC compatibility
• If the sampling frequency of the file
exceeds 48 kHz, the sampling frequency
is reduced automatically to 48 kHz when
the file is played.
SAMPLING FREQUENCY 8 kHz to 192
kHz
QUANTIZATION BIT RATE 8 bit/16 bit/24
bit
DSD compatibility
• If the sampling frequency of the file
exceeds 48 kHz, the sampling frequency
is reduced automatically to 48 kHz when
the file is played.
SAMPLING FREQUENCY DSD64:
2.8 MHz
DSD128:
5.6 MHz
QUANTIZATION BIT RATE 1 bit
DivX compatibility
• This product is not compatible with the
following: DivX Ultra format, DivX files
without video data, DivX files encoded
with LPCM (Linear PCM) audio codec.
• S
ome special operations may be
prohibited because of the composition of
DivX files.
EXTENSION .divx, .avi
MAX RESOLUTION 720 × 576
USB storage device
Pioneer MNR.book Page 112 Friday, December 16, 2022 3:25 PM
English
- 113 -
Video files compatibility
• Files may not be played back properly
depending on the environment in which
the file was created or on the contents of
the file.
• T
his product is not compatible with
packet write data transfer.
• T
his product can recognize up to 32
characters, beginning with the first
character, including extension for the file
and folder name. Depending on the
display area, this product may try to
display them with a reduced font size.
However, the maximum number of the
characters that you can display varies
according to the width of each character,
and of the display area.
• F
older selection sequence or other
operations may be altered, depending on
the order in which files are saved to the
USB storage device.
• Regar
dless of the length of blank section
between the songs of original recording,
compressed audio files play with a short
pause between songs.
• F
iles may not be able to be played back
depending on the bit rate.
• T
he maximum resolution depends on the
compatible video codec.
• T
his product's display does not have Full
HD rendering capability.
Compatible video codec MPEG4, DivX,
H.264, H.263
Maximum resolution 1 920 × 1 080
Maximum frame rate 30 fps
Compatible video codec MPEG2
Maximum resolution 720 × 576
Maximum frame rate 30 fps
Compatible video codec DivX
Maximum resolution 720 × 576
Maximum frame rate 30 fps
Compatible video codec MPEG4, H.264,
H.263
Maximum resolution 1 920 × 1 080
Maximum frame rate 30 fps
Compatible video codec H.263
Maximum resolution 1 920 × 1 080
Maximum frame rate 30 fps
Compatible video codec MPEG4, H.264,
VC-1
Maximum resolution 1 920 × 1 080
Maximum frame rate 30 fps
Compatible video codec MPEG4, H.264,
H.263
Maximum resolution 1 920 × 1 080
Maximum frame rate 30 fps
Compatible video codec H.264
Maximum resolution 1 920 × 1 080
Maximum frame rate 30 fps
Compatible video codec VC-1
Maximum resolution 1 920 × 1 080
Maximum frame rate 30 fps
Compatible video codec MPEG4, H.264,
H.263
Maximum resolution 1 920 × 1 080
Maximum frame rate 30 fps
.avi
.mpg/.mpeg
.divx
.mp4
.3gp
.mkv
.mov
.flv
.wmv/.asf
.m4v
Pioneer MNR.book Page 113 Friday, December 16, 2022 3:25 PM
Compatible video codec MPEG4, H.264,
MPEG2
Maximum resolution 1 920 × 1 080
Maximum frame rate 30 fps
English
- 114 -
.ts/.m2ts/.mts
Example of a hierarchy
NOTE
This product assigns folder numbers. The
user cannot assign folder numbers.
Bluetooth
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth SIG,
Inc. and any use of such marks by Pioneer
Corporation is under license. Other trademarks
and trade names are those of their respective
owners.
SiriusXM® Satellite
Radio
SiriusXM and all related marks and logos are
trademarks of Sirius XM Radio, Inc. All rights
reserved.
Wi-Fi
Wi-Fi® is a registered trademark of Wi-Fi
Alliance®.
The Wi-Fi CERTIFIED™ Logo is a registered
trademark of Wi-Fi Alliance®.
Dolby®
Manufactured under license from Dolby
Laboratories. Dolby, Dolby Audio and the
double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
WMA
Windows Media is either a registered trademark
or trademark of Microsoft Corporation in the
United States and/or other countries.
• This product includes technology owned
by Microsoft Corporation and cannot be
used or distributed without a license
from Microsoft Licensing, Inc.
FLAC
Copyright © 2000-2009 Josh Coalson
Pioneer MNR.book Page 114 Friday, December 16, 2022 3:25 PM
English
- 115 -
Copyright © 2011-2013 Xiph.Org
Foundation
Redistribution and use in source and
binar
y forms, with or without modification,
are permitted provided that the following
conditions are met:
– Redistributions of source code must
r
etain the above copyright notice, this list
of conditions and the following
disclaimer.
– Redistributions in binary form must
r
eproduce the above copyright notice,
this list of conditions and the following
disclaimer in the documentation and/or
other materials provided with the
distribution.
– Neither the name of the Xiph.org
F
oundation nor the names of its
contributors may be used to endorse or
promote products derived from this
software without specific prior written
permission.
THIS SOFTWARE IS PROVIDED BY THE
C
OPYRIGHT HOLDERS AND
CONTRIBUTORS “AS IS” AND ANY EXPRESS
OR IMPLIED WARRANTIES, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE
LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
DivX
DivX® Home Theater Certified devices have been
tested for high-quality DivX Home Theater video
playback (including .avi, .divx). When you see
the DivX logo, you know you have the freedom
to play your favorite videos.
DivX®, DivX Certified® and associated logos are
tr
ademarks of DivX, LLC and are used under
license.
This DivX Certified® device can play DivX® Home
T
heater video files up to 576p (including .avi,
.divx).
Download free software at www.divx.com to
cr
eate, play and cast digital videos.
AAC
AAC is short for Advanced Audio Coding
and refers to an audio compression
technology standard used with MPEG-2
and MPEG-4. Several applications can be
used to encode AAC files, but file formats
and extensions differ depending on the
application which is used to encode. This
unit plays back AAC files encoded by
iTunes.
WebLink
WebLink™ is a trademark of Abalta
Technologies, Inc.
Google, Android,
Google Play
Google, Android and Google Play are
trademarks of Google LLC.
Pioneer MNR.book Page 115 Friday, December 16, 2022 3:25 PM
English
- 116 -
Android Auto is a trademark of Google LLC.
This Product uses the Source Code of T-
Kernel 2.0 under T-License 2.2 granted by
TRON Forum (www.tron.org).
• Pioneer accepts no responsibility for data
lost from an iPhone, even if that data is
lost while using this product. Please back
up your iPhone data regularly.
• Do not leave the iPhone in direct sunlight
for extended amounts of time. Extended
exposure to direct sunlight can result in
iPhone malfunction due to the resulting
high temperature.
• Do not leave the iPhone in any location
with high temperatures.
• Firmly secure the iPhone when driving.
Do not let the iPhone fall onto the floor,
where it may become jammed under the
brake or gas pedal.
• For details, refer to the iPhone manuals.
Use of the Made for Apple badge means
that an accessory has been designed to
connect specifically to the Apple
product(s) identified in the badge and
has been certified by the developer to
meet Apple performance standards.
Apple is not responsible for the
operation of this device or its
compliance with safety and regulatory
standards.
Please note that the use of this
accessory with an Apple product may
affect wireless performance.
Apple, the Apple logo, iPhone, Siri, and
Lightning are trademarks of Apple Inc.,
registered in the U.S. and other
countries.
Works with Siri through the microphone.
App Store is a service mark of Apple
Inc., registered in the U.S. and other
countries.
IOS is a trademark or registered
trademark of Cisco in the U.S. and other
countries and is used under license.
iTunes is a trademark of Apple Inc.,
registered in the U.S. and other
countries.
Android Auto
T-Kernel 2.0
Detailed information
regarding connected
iPhone devices
iPhone, Siri, and Lightning
App Store
iOS
iTunes
English
- 117 -
Apple Music is a trademark of Apple
Inc., registered in the U.S. and other
countries.
Apple CarPlay is a trademark of Apple
Inc.
Use of the Apple CarPlay logo means
that a vehicle user interface meets
Apple performance standards. Apple is
not responsible for the operation of this
vehicle
or its compliance with safety and
regulatory standards. Please note that
the use of this product with iPhone or
iPod may affect wireless performance.
• iPhone 13 Pro Max
• iP
hone 13 Pro
• iP
hone 13
• iP
hone 13 mini
• iP
hone 12 Pro Max
• iP
hone 12 Pro
• iP
hone 12
• iP
hone 12 mini
• iP
hone SE (2nd generation)
• iP
hone 11 Pro Max
• iP
hone 11 Pro
• iP
hone 11
• iP
hone XR
• iP
hone XS Max
• iP
hone XS
• iP
hone X
• iP
hone 8
• iP
hone 8 Plus
• iPhone 7
• iP
hone 7 Plus
• iP
hone SE (1st generation)
• iP
hone 6s
• iP
hone 6s Plus
Depending on the iPhone models, it may
not be c
ompatible with some AV sources.
For details about iPhone compatibility with
this product, refer to the information on
our website.
iDatalink
iDatalink, Maestro and iData are registered
trademarks of Automotive Data Solutions
Inc.
METRA
Using app-based
connected content
Important
Requirements to access app-based
connected content services using this
product:
• Latest version of the Pioneer compatible
connected content application(s) for the
smartphone, available from the service
provider, downloaded to your
smartphone.
• A curr
ent account with the content
service provider.
• Smar
tphone Data Plan.
Note: if the Data Plan for your
smar
tphone does not provide for
Apple Music
Apple CarPlay
Compatible iPhone models
®
Pioneer MNR.book Page 117 Friday, December 16, 2022 3:25 PM
English
- 118 -
unlimited data usage, additional charges
from your carrier may apply for accessing
app-based connected content via 3G,
EDGE and/or LTE (4G) networks.
• C
onnection to the Internet via 3G, EDGE,
LTE (4G) or Wi-Fi network.
• Optional P
ioneer adaptor cable
connecting your iPhone to this product.
Limitations:
• Access to app-based connected content
will depend on the availability of cellular
and/or Wi-Fi network coverage for the
purpose of allowing your smartphone to
connect to the Internet.
• Ser
vice availability may be
geographically limited to the region.
Consult the connected content service
provider for additional information.
• Abilit
y of this product to access
connected content is subject to change
without notice and could be affected by
any of the following: compatibility issues
with future firmware versions of
smartphone; compatibility issues with
future versions of the connected content
application(s) for the smartphone;
changes to or discontinuation of the
connected Content application(s) or
service by its provider.
• P
ioneer is not liable for any issues that
may arise from incorrect or flawed app-
based content.
• T
he content and functionality of the
supported applications are the
responsibility of the App providers.
• I
n WebLink, Apple CarPlay and Android
Auto, functionality through the product
is limited while driving, with available
functions determined by the App
providers.
• A
vailability of WebLink, Apple CarPlay
and Android Auto functionalities is
determined by the App provider, and not
determined by Pioneer.
• W
ebLink, Apple CarPlay and Android
Auto allow access to applications other
than those listed (subject to limitations
while driving), but the extent to which
content can be used is determined by the
App providers.
• C
onnected services require connection
to a wireless network via a compatible
iPhone or Android smartphone device,
which is subject to your wireless carrier’s
terms of service and data plan. Review
your wireless service and data plan terms
for any applicable restrictions, limitations
and charges. Ability to use such services
will depend on network availability and
carrier terms of service. Availability of
non-Pioneer content and services,
including apps and connectivity, may
change without notice due to changes in
operating systems, firmware or app
versions; changes to, restrictions on or
discontinuation of the service or service
plans; non-Pioneer hardware changes; or
other events.
Notice regarding video
viewing
Remember that use of this system for
commercial or public viewing purposes
may constitute an infringement on the
author’s rights as protected by the
Copyright Law.
Using the LCD screen
correctly
• When the LCD screen is subjected to
direct sunlight for a long period of time, it
will become very hot, resulting in
Handling the LCD screen
Pioneer MNR.book Page 118 Friday, December 16, 2022 3:25 PM
English
- 119 -
possible damage to the LCD screen.
When not using this product, avoid
exposing it to direct sunlight as much as
possible.
• T
he LCD screen should be used within
the temperature ranges shown in
Specifications on page 119.
• D
o not use the LCD screen at
temperatures higher or lower than the
operating temperature range, because
the LCD screen may not operate normally
and could be damaged.
• T
he LCD screen is exposed in order to
increase its visibility within the vehicle.
Please do not press strongly on it as this
may damage it.
• D
o not push the LCD screen with
excessive force as this may scratch it.
• Nev
er touch the LCD screen with
anything besides your finger when
operating the touch panel functions. The
LCD screen can scratch easily.
• If the LCD screen is near the vent of an air
conditioner, make sure that air from the
air conditioner is not blowing on it. Heat
from the heater may break the LCD
screen, and cool air from the cooler may
cause moisture to form inside this
product, resulting in possible damage.
• Small black dots or white dots (bright
dots) ma
y appear on the LCD screen.
These are due to the characteristics of the
LCD screen and do not indicate a
malfunction.
• T
he LCD screen will be difficult to see if it
is exposed to direct sunlight.
• W
hen using a cellular phone, keep the
antenna of the cellular phone away from
the LCD screen to prevent disruption of
the video in the form of disturbances
such as spots or colored stripes.
• When removing dust from or cleaning
the LCD screen, first turn this product off
and then wipe the screen with a soft dry
cloth.
• W
hen wiping the LCD screen, take care
not to scratch the surface. Do not use
harsh or abrasive chemical cleaners.
A light emitting diode is used inside the
display to illuminate the LCD screen.
• A
t low temperatures, using the LED
backlight may increase image lag and
degrade the image quality because of the
characteristics of the LCD screen. Image
quality will improve with an increase in
temperature.
• T
he product lifetime of the LED backlight
is more than 30 000 hours. However, it
may decrease if used in high
temperatures.
• I
f the LED backlight reaches the end of its
product lifetime, the screen will become
dimmer and the image will no longer be
visible. In that case, please consult your
dealer or the nearest authorized Pioneer
Service Station.
Specifications
General
Rated power source:
14.4 V DC (10.8 V to 15.1 V allowable)
Grounding system:
Negative type
Maximum current consumption:
10.0 A
Dimensions (W × H × D):
(Floating style)
Liquid crystal display (LCD)
screen
Maintaining the LCD screen
LED (light-emitting diode)
backlight
Pioneer MNR.book Page 119 Friday, December 16, 2022 3:25 PM
English
- 120 -
Body:
178 mm × 50 mm × 153 mm (7 in. × 2
in. × 6 in.)
Nose:
170 mm × 46 mm × 10.5 mm (6-3/4 in.
× 1-3/4 in. × 3/8 in.)
Monitor:
234.5 mm × 136.5 mm × 35.5 mm (9-1/
4 in. × 5-3/8 in. × 1-3/8 in.)
(Modular style)
Body:
178 mm × 50 mm × 131 mm (7 in. × 2
in. × 5-1/8 in.)
Monitor:
234.5 mm × 136.5 mm × 31 mm (9-1/4
in. × 5-3/8 in. × 1-1/4 in.)
Weight:
(Floating style)
Body:
0.97 kg (2.1 lbs)
Monitor:
0.75 kg (1.7 lbs)
(Modular style)
Body:
0.76 kg (1.7 lbs)
Monitor:
0.71 kg (1.6 lbs)
Display
Screen size/aspect ratio:
9.0 inch wide/16:9 (effective display area:
196.608 mm × 114.15 mm)
Pixels:
1 024 (Width) × 600 (Height) × 3 (RGB)
Display method:
TFT Active matrix driving
Color system:
PAL/NTSC/PAL-M/PAL-N/SECAM
compatible
Temperature range:
-10 ˚C to +60 ˚C (+14 ˚F to +140 ˚F)
Audio
Maximum power output:
• 50 W × 4
• 50 W × 2 ch/4 Ω + 70 W × 1 ch/2 Ω (for
subwoofer)
Continuous power output:
22 W × 4 (50 Hz to 15 kHz, 5 %THD, 4 Ω
LOAD, Both Channels Driven)
Load impedance:
4 Ω (4 Ω to 8 Ω [2 Ω for 1 ch] allowable)
Preout output level (max): 2.0 V
Equalizer (13-Band Graphic Equalizer):
Frequency:
50 Hz/80 Hz/125 Hz/200 Hz/315 Hz/
500 Hz/800 Hz/1.25 kHz/2 kHz/3.15
kHz/5 kHz/8 kHz/12.5 kHz
Gain: ±12 dB (2 dB/step)
<Standard Mode>
HPF: ON/OFF
Frequency:
25 Hz/31.5 Hz/40 Hz/50 Hz/63 Hz/80
Hz/100 Hz/125 Hz/160 Hz/200 Hz/250
Hz
Slope:
-6 dB/oct, -12 dB/oct, -18 dB/oct, -24
dB/oct
LPF (Subwoofer): ON/OFF
Frequency:
25 Hz/31.5 Hz/40 Hz/50 Hz/63 Hz/80
Hz/100 Hz/125 Hz/160 Hz/200 Hz/250
Hz
Slope:
-6 dB/oct, -12 dB/oct, -18 dB/oct, -24
dB/oct, -30 dB/oct, -36 dB/oct
Phase: Normal/Reverse
Time alignment:
0 to 150 inch (0.6 inch/step)
Speaker level:
+10 dB to -24 dB (1 dB/step)
<Network Mode>
HPF (High):
Frequency:
1.25 kHz/1.6 kHz/2 kHz/2.5 kHz/3.15
kHz/4 kHz/5 kHz/6.3 kHz/8 kHz/10 kHz/
12.5 kHz
Slope:
-6 dB/oct, -12 dB/oct, -18 dB/oct, -24
dB/oct
Phase (High): Normal/Reverse
HPF (Mid): ON/OFF
Pioneer MNR.book Page 120 Friday, December 16, 2022 3:25 PM
English
- 121 -
Frequency:
25 Hz/31.5 Hz/40 Hz/50 Hz/63 Hz/80
Hz/100 Hz/125 Hz/160 Hz/200 Hz/250
Hz
Slope:
-6 dB/oct, -12 dB/oct, -18 dB/oct, -24
dB/oct
LPF (Mid): ON/OFF
Frequency:
1.25 kHz/1.6 kHz/2 kHz/2.5 kHz/3.15
kHz/4 kHz/5 kHz/6.3 kHz/8 kHz/10 kHz/
12.5 kHz
Slope:
-6 dB/oct, -12 dB/oct, -18 dB/oct, -24
dB/oct
Phase (Mid): Normal/Reverse
LPF (Subwoofer): ON/OFF
Frequency:
25 Hz/31.5 Hz/40 Hz/50 Hz/63 Hz/80 Hz/
100 Hz/125 Hz/160 Hz/200 Hz/250 Hz
Slope:
-6 dB/oct, -12 dB/oct, -18 dB/oct, -24
dB/oct, -30 dB/oct, -36 dB/oct
Phase (Subwoofer): Normal/Reverse
Time alignment:
0 to 150 inch (0.6 inch/step)
Speaker level:
+10 dB to -24 dB (1 dB/step)
USB
USB standard spec:
USB 1.1, USB 2.0 full speed, USB 2.0 high
speed
Max current supply: 1.5 A
USB Class:
MSC (Mass Storage Class), MTP (Media
Transfer Protocol)
File system: FAT16, FAT32, NTFS
<USB audio>
MP3 decoding format:
MPEG-1 & 2 & 2.5 Audio Layer 3
WMA decoding format:
Ver. 7, 7.1, 8, 9, 10, 11, 12 (2 ch audio)
(Windows Media Player)
AAC decoding format:
MPEG-4 AAC (iTunes encoded only) (Ver.
12.5 and earlier)
FLAC decoding format (MSC Mode only):
Ver. 1.3.0
WAV signal format (MSC Mode only):
Linear PCM
Sampling frequency:
16 kHz/22.05 kHz/24 kHz/32 kHz/44.1
kHz/48 kHz/96 kHz/192 kHz
DSD64, DSD128 format (MSC Mode only):
.dff, .dsf
<USB image>
JPEG decoding format (MSC Mode only):
.jpeg, .jpg, .jpe
Pixel Sampling: 4:2:2, 4:2:0
Decode Size:
MAX: 7 680 (H) × 8 192 (W)
MIN: 32 (H) × 32 (W)
PNG decoding format (MSC Mode only):
.png
Decode Size:
MAX: 576 (H) × 720 (W)
MIN: 32 (H) × 32 (W)
BMP decoding format (MSC Mode only):
.bmp
Decode Size:
MAX: 936 (H) × 1 920 (W)
MIN: 32 (H) × 32 (W)
<USB video>
H.264 video decoding format:
Base Line Profile, Main Profile, High
Profile
H.263 video decoding format:
Base Line Profile 0/3
VC-1 video decoding format:
Simple Profile, Main Profile, Advanced
Profile
DivX:
Home Theater
MPEG4 video decoding format:
Simple Profile, Advanced Simple Profile
MPEG2 video decoding format:
Main Profile
Pioneer MNR.book Page 121 Friday, December 16, 2022 3:25 PM
English
- 122 -
Bluetooth
Version:
Bluetooth 5.2 certified
Output power:
+4 dBm Max. (Power class 2)
Bluetooth Low Energy output power:
+5 dBm Max.
Frequency band(s):
2 402 MHz to 2 480 MHz
Bluetooth profiles:
HFP (Hands Free Profile) 1.7.2
PBAP (Phone Book Access Profile) 1.2.3
A2DP (Advanced Audio Distribution
Profile) 1.3.2
AVRCP (Audio/Video Remote Control
Profile) 1.6.2
SPP (Serial Port Profile) 1.2
AVCTP (Audio/Video Control Transport
Protocol) 1.4
AVDTP (Audio/Video Distribution
Transport Protocol) 1.3
DIP (Device ID Profile) 1.3
GAVDP (Generic Audio/Video
Distribution Profile) 1.3
IOP (Interoperability Test Specification)
OPP (Object Push Profile) 1.2.1
RFCOMM (RFCOMM with TS 07.10) 1.2
FM tuner
Frequency range:
87.9 MHz to 107.9 MHz
Usable sensitivity:
12 dBf (1.1 μV/75 Ω, mono, S/N: 30 dB)
Signal-to-noise ratio:
65 dB (IHF-A network)
AM tuner
Frequency range:
530 kHz to 1 710 kHz
Usable sensitivity:
25 μV (S/N: 20 dB)
Signal-to-noise ratio:
60 dB (IHF-A network)
Wi-Fi
Version:
IEEE 802.11 b/g/n (2.4 GHz)
IEEE 802.11 a/n/ac (5 GHz)
Frequency channel:
1 to 11 ch (2.4 GHz)
149, 151, 155 ch (5 GHz)
Security:
OPEN/WPA (Personal)/WPA2 (Personal)/
WPA3 (Personal)
Output power:
+16.5 dBm Max (2.4 GHz)
+17.5 dBm Max (5 GHz)
GPS
GNSS receiver
System:
GPS L1C/Ac, SBAS L1C/A, GLONASS
L1OF, Galileo E1B/C
SPS (Standard Positioning Service)
Reception system:
72 channel Multi-channel reception
system
Reception frequency:
1 575.42 MHz/1 602 MHz
Sensitivity:
-140 dBm (typ)
Frequency:
Approx. once per second
GPS antenna
Antenna:
Micro strip flat antenna/right-handed
helical polarization
Antenna cable:
3.55 m (11ft. 7in.)
Dimensions (W × H × D):
33 mm × 14.7 mm × 36 mm (1-1/4 in. ×
1/2 in. × 1-3/8 in.)
Weight:
73.7 g (0.2 lbs)
Pioneer MNR.book Page 122 Friday, December 16, 2022 3:25 PM
English
- 123 -
CTA2006 Specifications
Power output:
14 W RMS × 4 Channels (4 Ω and 1 %
THD+N)
S/N ratio:
90 dB (IHF-A) (reference: 1 W into 4 Ω)
NOTE
Specifications and design are subject to possible
modifications without notice due to
improvements.
<
=
© 2022 PIONEER CORPORATION
<OPM_DMHWT3800NEXUC_EN_A> UC
030BCO_KB045_UC(EN)_A6.fm Page 1 Wednesday, July 13, 2022 1:29 PM
