Pioneer DMH-1700NEX 6.8" Capacitive Glass Touchscreen User Manual

English

DMH-1770NEX

DMH-1700NEX

RDS AV RECEIVER

Important (Serial number)

The serial number is located on the bottom of this unit. For your own security and convenience, be

sure to record this number on the enclosed warranty card.

Operation Manual

- 2 -

English

Important

■Precaution ................................................................................... 4

■Parts and controls ....................................................................... 9

■Basic operation ......................................................................... 11

■Bluetooth®................................................................................. 15

■AV source................................................................................... 20

■Radio.......................................................................................... 21

■Compressed files....................................................................... 23

■iPhone........................................................................................ 28

■USB Mirroring............................................................................ 30

■Apple CarPlay............................................................................ 32

■Android Auto™ .......................................................................... 34

■SiriusXM® Satellite Radio ......................................................... 36

■AUX ............................................................................................ 39

■Camera....................................................................................... 40

■Settings...................................................................................... 41

Displaying the setting screen ..................................................................................................................... 41

System Settings................................................................................................................................................ 41

Display Settings ............................................................................................................................................... 43

Audio & EQ Settings ....................................................................................................................................... 43

Camera settings............................................................................................................................................... 44

Phone Connectivity Settings....................................................................................................................... 47

Contents

Thank you for buying this Pioneer product.

Please read through these instructions so you will know how to operate your model

properly. After you have finished reading the instructions, keep this document in a safe

place for future reference.

The screen shown in the examples may differ from actual screens, which may be

changed without notice for performance and function improvements.

English

- 3 -

■Other functions......................................................................... 48

■Appendix ................................................................................... 49

- 4 -

English

WARNING

• Do not attempt to install or service this product by yourself. Installation or servicing of this product by

persons without training and experience in electronic equipment and automotive accessories may

be dangerous and could expose you to the risk of electric shock, injury or other hazards.

• Do not allow this product to come into contact with liquids. Electrical shock could result. Also,

damage to the product, smoke, and overheating could result from contact with liquids.

• If liquid or foreign matter should get inside this product, park your vehicle in a safe place, turn the

ignition switch off (ACC OFF) immediately and consult your dealer or the nearest authorized Pioneer

Service Station. Do not use this product in this condition because doing so may result in a fire, electric

shock, or other failure.

• If you notice smoke, a strange noise or odor from this product, or any other abnormal signs on the

LCD screen, turn off the power immediately and consult your dealer or the nearest authorized

Pioneer Service Station. Using this product in this condition may result in permanent damage to the

system.

• Do not disassemble or modify this product, as there are high-voltage components inside which may

cause an electric shock. Be sure to consult your dealer or the nearest authorized Pioneer Service

Station for internal inspection, adjustments or repairs.

• Do not ingest the battery, Chemical Burn Hazard.

(The remote control supplied or sold separately with) This product contains a coin/button cell

battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours

and can lead to death.

Keep new and used batteries away from children.

If the battery compartment does not close securely, stop using the product and keep it away from

children.

If you think batteries might have been swallowed or placed inside any part of the body, seek

immediate medical attention.

Before using this product, be sure to read and fully understand the following safety

information:

• Do not operate this product, any applications, or the rear view camera option (if

purchased) if doing so will divert your attention in any way from the safe operation of

your vehicle. Always observe safe driving rules and follow all existing traffic

regulations. If you experience difficulty in operating this product, pull over, park your

vehicle in a safe location and apply the parking brake before making the necessary

adjustments.

• Never set the volume of this product so high that you cannot hear outside traffic and

emergency vehicles.

• To promote safety, certain functions are disabled unless the vehicle is stopped and the

parking brake is applied.

• Keep this manual handy as a reference for operating procedures and safety

information.

Precaution

Important safety information

English

- 5 -

• Do not install this product where it may (i) obstruct the driver’s vision, (ii) impair the

performance of any of the vehicle’s operating systems or safety features, including air

bags or hazard lamp buttons or (iii) impair the driver’s ability to safely operate the

vehicle.

• Please remember to fasten your seat belt at all times while operating your vehicle. If

you are ever in an accident, your injuries can be considerably more severe if your seat

belt is not properly buckled.

• Never use headphones while driving.

• Rear visibility systems (backup cameras) are required in certain new vehicles sold in

the U.S. and Canada. U.S. regulations began according to a two year phase-in on May

1, 2016, and both the U.S. and Canada require that all such vehicles manufactured on

or after May 1, 2018 have rear visibility systems. Owners of vehicles equipped with

compliant rear visibility systems should not install or use this product in a way

that alters or disables that system's compliance with applicable regulations. If

you are unsure whether your vehicle has a rear visibility system subject to the U.S. or

Canadian regulations, please contact the vehicle manufacturer or dealer.

If your vehicle has a compliant backup camera that displays the backup view through

the factory receiver, do not use the Pioneer receiver unless it is connected to and

displays the same view as the factory backup camera. Connection to the factory

backup camera will require an adaptor, sold separately. Not all vehicles may be able to

connect. Please check with a qualified professional installer for installation options

specific to your vehicle.

Certain functions (such as viewing of video image and certain touch panel key

operations) offered by this product could be dangerous (possibly resulting in serious

injury or death) and/or unlawful if used while driving. To prevent such functions from

being used while the vehicle is in motion, there is an interlock system that senses when

the parking brake is set and when the vehicle is moving. If you attempt to use the

functions described above while driving, they will become disabled until you stop the

vehicle in a safe place, and (1) apply the parking brake, (2) release the parking brake, and

then (3) apply the parking brake again. Please keep the brake pedal pushed down before

releasing the parking brake.

WARNING

• LIGHT GREEN LEAD AT POWER CONNECTOR IS DESIGNED TO DETECT PARKED STATUS AND

MUST BE CONNECTED TO THE POWER SUPPLY SIDE OF THE PARKING BRAKE SWITCH.

IMPROPER CONNECTION OR USE OF THIS LEAD MAY VIOLATE APPLICABLE LAW AND MAY

RESULT IN SERIOUS INJURY OR DAMAGE.

Parking brake interlock

To ensure safe driving

- 6 -

English

• Do not take any steps to tamper with or disable the parking brake interlock system which is in

place for your protection. Tampering with or disabling the parking brake interlock system

could result in serious injury or death.

• To avoid the risk of damage and injury and the potential violation of applicable laws, this

product is not for use with a video image that is visible to the driver.

• In some countries the viewing of video image on a display inside a vehicle even by persons other

than the driver may be illegal. Where such regulations apply, they must be obeyed.

If you attempt to watch video image while driving, the warning “Viewing of front seat

video source while driving is strictly prohibited.” will appear on the screen. To watch

video image on this display, stop the vehicle in a safe place and apply the parking brake.

Please keep the brake pedal pushed down before releasing the parking brake.

The video output terminal (V OUT) is for connection of a display to enable passengers in

the rear seats to watch video images.

WARNING

NEVER install the rear display in a location that enables the driver to watch video images while driving.

Be sure to run the vehicle engine while using this product. Using this product without

running the engine can drain the battery.

WARNING

Do not install this product in a vehicle that does not have an ACC wire or circuitry available.

With an optional rear view camera, you are able to use this product as an aid to keep an

eye on trailers, or backing into a tight parking spot.

WARNING

• SCREEN IMAGE MAY APPEAR REVERSED.

• USE INPUT ONLY FOR REVERSE OR MIRROR IMAGE REAR VIEW CAMERA. OTHER USE MAY RESULT IN

INJURY OR DAMAGE.

CAUTION

The rear view mode is to use this product as an aid to keep an eye on the trailers, or while backing up.

Do not use this function for entertainment purposes.

When using a display connected to V OUT

To avoid battery exhaustion

Rear view camera

English

- 7 -

CAUTION

• To prevent data loss and damage to the storage device, never remove it from this product while data

is being transferred.

• Pioneer cannot guarantee compatibility with all USB mass storage devices and assumes no

responsibility for any loss of data on media players, iPhone, smartphone, or other devices while using

this product.

• It may not be recognized properly by this product if a USB device that had been incorrectly

disconnected from the computer is connected.

After-sales service for Pioneer products

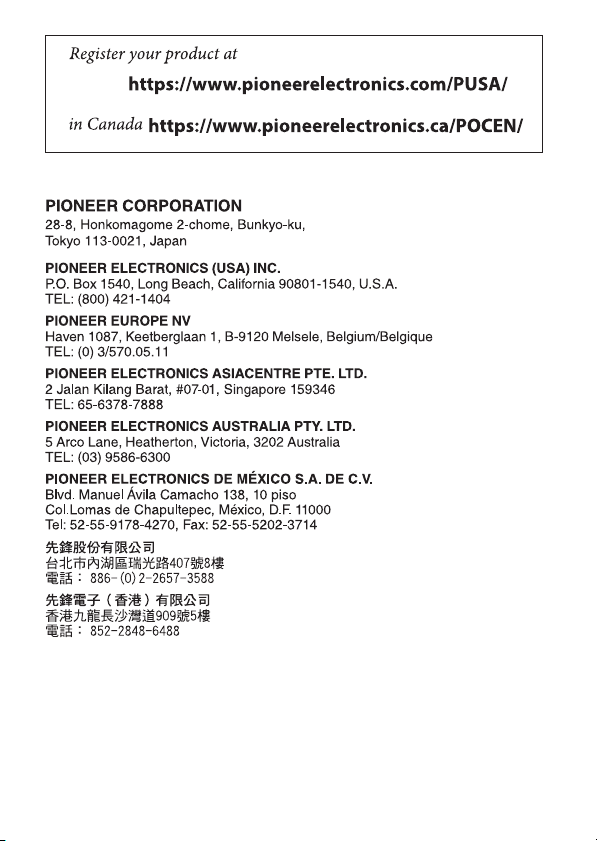

Visit us at the following site:

https://www.pioneerelectronics.com/PUSA/

https://www.pioneerelectronics.ca/POCEN/

1 Register your product.

2 Receive updates on the latest products and technologies.

3 Download owner’s manuals, order product catalogs, research new products, and

much more.

4 Receive notices of software upgrades and software updates.

• Do not expose the LCD screen to direct sunlight when this product is not used. This

may result in LCD screen malfunction due to the resulting high temperatures.

Handling the USB connector

Failure to operate

Please contact the dealer or distributor from which you purchased the product for after-sales service

(including warranty conditions) or any other information. In case the necessary information is not

available, please contact the companies listed below.

Please do not ship your product to the companies at the addresses listed below for repair without

making advance contact.

–USA&CANADA

Pioneer Electronics (USA) Inc.

CUSTOMER SUPPORT DIVISION

P.O. Box 1760 Long Beach, CA 90801-1760

800-421-1404

For warranty information, please see the Limited Warranty sheet included with your product.

Visit our website

Protecting the LCD panel and screen

- 8 -

English

• When using a cellular phone, keep the antenna of the cellular phone away from the

LCD screen to prevent disruption of the video in the form of spots, colored stripes, etc.

• To protect the LCD screen from damage, be sure to touch the touch panel keys only

with your finger and do so gently.

• The information will be erased by disconnecting the yellow lead from the battery (or

removing the battery itself ).

• Some of the settings and recorded contents will not be reset.

• This manual uses diagrams of actual screens to describe operations. However, the

screens on some units may not match those shown in this manual depending on the

model used.

• When an iPhone is connected to the unit, the source name on the unit appears as

[iPod]. Please note that this unit only supports iPhone regardless of the source name.

For details of iPhone compatibility, refer to Compatible iPhone models (page 58).

Notes on internal memory

About this manual

Meanings of symbols used in this manual

This indicates model names that are supported by the described operations.

This indicates to touch the appropriate soft key on the touch screen.

This indicates to touch and hold the appropriate soft key on the touch screen.

0000NEX

English

- 9 -

* This function is available only when Apple CarPlay or Android Auto is activated.

Parts and controls

Main unit

Touch to turn off the display information. To turn on the display information,

touch again.

Touch and hold to power off. To power back on, touch again.

TIP

If you power the unit off, you can turn off almost all functions. The unit turns

on by operating the following functions:

• An incoming call is received (only for hands-free phoning via Bluetooth).

• A rear view camera image is input when the vehicle is in reverse.

• A button on this unit is touched.

• The ignition switch is turned off (ACC OFF), then turned on (ACC ON).

Touch to display the top menu screen.

Touch and hold to mute or unmute.

* Touch to activate the voice recognition mode such as Siri when the iPhone is

connected to the unit via USB.

VOL (+/-)

RESET Press to reset the microprocessor (page 11).

LCD screen

Remote control

1770NEX

- 10 -

English

The remote control is sold separately. For details concerning operations, see the remote

control manual.

Volume (+/-)

MODE Not used.

SRC Press to cycle through all the available sources.

Press and hold to turn the power off.

TOP MENU Not used.

MENU Not used.

Thumb pad Not used.

MUTE

AUDIO

SUBTITLE

ANGLE

Not used.

BAND/ESC Press to select the tuner band when tuner is selected as a source.

RETURN Not used.

Press to pause or resume playback or play from the beginning when resume is

off.

or Press to return to the previous track (chapter) or go to the next track (chapter).

Press and hold to perform fast reverse or fast forward.

or Press to return to the previous track (chapter) or go to the next track (chapter).

Press to answer or end a call.

For USB audio: No action.

For USB image: Press to stop playback.

For USB video: Press to stop playback.

FOLDER/P.CH Press to select the next or previous title or folder.

Press to recall radio station frequencies assigned to preset channel keys.

Press to answer or end a call.

1700NEX

English

- 11 -

CAUTION

• Pressing the RESET button resets settings and recorded contents to the factory settings.

– Do not perform this operation when a device is connected to this product.

– Some of the settings and recorded contents will not be reset.

• The microprocessor must be reset under the following conditions:

– Prior to using this product for the first time after installation.

– If this product fails to operate properly.

– If there appears to be problems with the operation of the system.

1 Turn the ignition switch OFF.

2 Press RESET with a pen tip or other pointed tools.

Settings and recorded contents are reset to the factory settings.

Remove the insulation sheet before use.

WARNING

Batteries (battery pack or batteries installed) must not be exposed to excessive heat such as sunshine,

fire or the like.

Basic operation

Resetting the microprocessor

Preparing the remote control

1770NEX

How to replace the battery

Insert the CR2025 (3 V) battery with the plus (+) and

minus (-) poles orientated properly.

- 12 -

English

CAUTION

• Remove the battery if the remote control is not used for a month or longer.

• There is a danger of explosion if the battery is incorrectly replaced. Replace only with the same or

equivalent type.

• Do not expose a battery to high or low extreme temperatures during use, storage or transportation.

• Do not dispose of a battery into fire or a hot oven, or crush mechanically or cut a battery, that can

result in an explosion.

• Do not handle the battery with metallic tools.

• Do not store the battery with metallic objects.

• If the battery leaks, wipe the remote control completely clean and install a new battery.

• When disposing of used batteries, please comply with governmental regulations or environmental

public institution’s rules that apply in your country/area.

• “Perchlorate Material – special handling may apply. See www.dtsc.ca.gov/hazardouswaste/

perchlorate. (Applicable to California, U.S.A.)”

Point the remote control in the direction of the front panel to operate.

NOTE

The remote control may not function properly in direct sunlight.

Important

• Do not store the remote control in high temperatures or direct sunlight.

• Do not let the remote control fall onto the floor, where it may become jammed under the brake or gas

pedal.

You can operate this product by touching the keys on the screen directly with your

fingers.

NOTE

To protect the LCD screen from damage, be sure to touch the screen only with your finger gently.

: Returns to the previous screen.

: Close the screen.

Using the remote control

Using the touch panel

Common touch panel keys

English

- 13 -

Operating list screens

Touching an item on the list allows you to narrow down the options and

proceed to the next operation.

Appears when items cannot be displayed on a single page.

Drag the side bar, the initial search bar or the list to view any hidden items.

Operating the time bar

You can change the playback point by dragging the key.

The playback time corresponding to the position of the key is displayed while

dragging the key.

- 14 -

English

Top menu screen

Source icons

TIP

You can display the hidden source icon(s) by swiping left on the screen.

Setting the time and date (page 48)

Settings (page 41)

English

- 15 -

1 Turn on the Bluetooth function on the device.

2 Touch .

3 Touch then [Bluetooth Settings].

The Bluetooth screen appears.

4 Touch [Search].

The unit starts to search for available devices, then displays them in the device list.

To search for available devices again, touch .

5 Touch the Bluetooth device name.

After the device is successfully registered, a Bluetooth connection is established by

the system. Once the connection is established, the device name is displayed on the

list.

NOTES

• If five devices have already been paired, the first paired device will be deleted, and the new device

will be registered (page 16).

• If your device supports SSP (Secure Simple Pairing), a six-digit number appears on the display of this

product. Touch [Yes] to pair the device.

1 Touch .

2 Touch then [Bluetooth Settings].

CAUTION

Never turn this product off and disconnect the device while the Bluetooth setting operation is being

processed.

Bluetooth®

Bluetooth connection

Bluetooth Settings

Menu Item Description

[Connection] Activate to connect the last connected Bluetooth device

automatically.

[Auto Answer] (page 17)

[Search] Search for available devices.

- 16 -

English

To use this function you need to connect your cellular phone to this product via

Bluetooth in advance (page 15).

CAUTION

For your safety, avoid talking on the phone as much as possible while driving.

1 Touch .

2 Touch .

The phone menu screen appears.

3 Touch one of the call icons on the phone menu screen.

▶To end the call

1 Touch .

[Bluetooth Memory Clear] Touch [OK] to clear the Bluetooth memory.

[Bluetooth Paired Device

List]

Display the paired device list.

Touch to delete registered device.

[Bluetooth Device Info] Displaying the device name of this product.

Hands-free phoning

Making a phone call

The following items are displayed.

• Reception status of the current cellular phone

• Battery status of the current cellular phone

Synchronizes the contacts on this product's phone book with the contacts on

your phone manually.

Using phone book

Select a contact from the phone book. Touch the desired name on the list then

select the phone number.

TIPS

• The contacts on your phone will be automatically transferred to this product.

• Update the phone book manually.

Using call history

Make a phone call from the received call , dialed call , or missed call .

Direct phone number input

Touch the number keys to enter the phone number then touch to make a call.

Menu Item Description

English

- 17 -

Touch to answer the call.

Touch to end the call.

TIPS

• Touch while getting a call waiting, switch to the talking person.

• Touch while getting a call waiting to reject the call.

By connecting your iPhone to this product, you can use the voice recognition function

on this product.

TIP

You can also launch the voice recognition function by touching button.

1 Touch .

2 Touch then [Bluetooth Settings].

This product can be adjusted to the other party’s listening volume.

1 Touch to switch between the three volume levels.

▶General notes

• Connection to all cellular phones featuring Bluetooth wireless technology is not

guaranteed.

• The line-of-sight distance between this product and your cellular phone must be 10

meters or less when sending and receiving voice and data via Bluetooth technology.

• With some cellular phones, the ring sound may not be output from the speakers.

• If private mode is selected on the cellular phone, hands-free phoning may be disabled.

Receiving a phone call

Voice recognition function (for iPhone)

Phone settings

Menu Item Description

[Auto Answer] Activate to answer an incoming call automatically.

Adjusting the other party’s listening volume

Notes for hands-free phoning

- 18 -

English

▶Registration and connection

• Cellular phone operations vary depending on the type of cellular phone. Refer to the

instruction manual that came with your cellular phone for detailed instructions.

• When phone book transfer does not work, disconnect your phone and then perform

pairing again from your phone to this product.

▶Making and receiving calls

• You may hear a noise in the following situations:

– When you answer the phone using the button on the phone.

– When the person on the other end of the line hangs up the phone.

• If the person on the other end of the line cannot hear the conversation due to an echo,

decrease the volume level for hands-free phoning.

• With some cellular phones, even after you press the accept button on the cellular

phone when a call comes in, hands-free phoning may not be performed.

• The registered name will appear if the phone number is already registered in the

phone book. When the same phone number is registered under different names, only

the phone number will be displayed.

▶The received call and dialed number histories

• You cannot make a call to the entry of an unknown user (no phone number) in the

received call history.

• If calls are made by operating your cellular phone, no history data will be recorded in

this product.

▶Phone book transfers

• If there are more than 1 000 phone book entries on your cellular phone, not all entries

may download completely.

• Depending on the phone, this product may not display the phone book correctly.

• If the phone book in the phone contains image data, the phone book may not be

transferred correctly.

• Depending on the cellular phone, phone book transfer may not be available.

Before using the Bluetooth audio player, register and connect the device to this product

(page 15).

NOTES

• Depending on the Bluetooth audio player connected to this product, the available operations with

this product may be limited to the following two levels:

– A2DP (Advanced Audio Distribution Profile): Only playing back songs on your audio player is

possible.

– A2DP and AVRCP (Audio/Video Remote Control Profile): Playing back, pausing, selecting songs, etc.,

are possible.

• Depending on the Bluetooth device connected to this product, the available operations with this

product may be limited or differ from the descriptions in this manual.

Bluetooth audio

English

- 19 -

• While you are listening to songs on your Bluetooth device, refrain from operating the phone function

as much as possible. If you try operating, the signal may cause noise for song playback.

• When you are talking on the Bluetooth device connected to this product via Bluetooth, it may pause

playback.

1 Touch .

2 Touch [Bluetooth Audio].

The Bluetooth audio playback screen appears.

Basic operation

Switches between playback and pause.

Skips files forward or backward.

Performs fast forward or fast reverse.

Sets a repeat play range.

Plays files in random order.

- 20 -

English

You can play or use the following sources with this product.

• Radio

• USB

The following sources can be played back or used by connecting an auxiliary device.

• iPhone

• Bluetooth® audio

• SiriusXM® Satellite Radio

• Camera

• AUX

1 Touch .

2 Touch the source icon.

TIP

You can display the hidden source icon(s) by swiping left on the screen.

AV source

Supported AV source

Selecting a source

English

- 21 -

1 Press .

2 Touch [Radio].

The Radio screen appears.

Radio

Starting procedure

Basic operation

Recalls the preset channel stored to a key from memory.

Stores the current broadcast frequency to a key.

Selects the FM1, FM2, FM3, AM1 or AM2 band.

Performs BSM (best stations memory) function (page 22).

Manual tuning

Seek tuning

Releasing the key in a few seconds skips to the nearest station from the

current frequency.

XX.XX

FM1

BSM

- 22 -

English

The BSM (best stations memory) function automatically stores the six strongest

broadcast frequencies under the preset channel keys [1] to [6].

NOTES

• Storing broadcast frequencies with BSM may replace those you have already saved.

• Previously stored broadcast frequencies may remain stored if the number of frequencies stored has

not reached the limit.

1 Touch to begin search.

While the message is displayed, the six strongest broadcast frequencies will be

stored under the preset channel keys in the order of their signal strength.

Activates/deactivates the local seek mode.

Displays a preset channel for 10 seconds and switches to the next channel

automatically.

Storing the strongest broadcast frequencies (BSM)

Local

BSM

English

- 23 -

You can play compressed audio, compressed video, or still image files stored in an

external storage device.

1 Pull out the plug from the USB port of the USB cable.

2 Plug a USB storage device into the USB cable.

NOTES

• This product may not achieve optimum performance with some USB storage devices.

• Connection via a USB hub is not possible.

• A USB cable is required for connection.

1 Pull out the USB storage device from the USB cable.

NOTES

• Check that no data is being accessed before pulling out the USB storage device.

• Turn off (ACC OFF) the ignition switch before unplugging the USB storage device.

1 Touch .

Compressed files

Plugging/unplugging a USB storage device

Plugging a USB storage device

USB cable

USB storage device

Unplugging a USB storage device

Starting procedure

- 24 -

English

2 Plug the USB storage device into the USB cable (page 23).

3 Touch [USB].

Playback is performed in order of folder numbers. Folders are skipped if they contain

no playable files.

Basic operation

Audio source

Switches between playback and pause.

Skips files forward or backward.

Performs fast forward or fast reverse.

Sets a repeat play range for all files/the current folder/the current file.

Plays files or does not play in random order.

English

- 25 -

CAUTION

For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video

images, stop in a safe place and apply the parking brake.

Selects a file from the list.

Touch a file on the list to playback.

TIPS

• Touching a folder on the list shows its contents. You can play a file on the list by

touching it.

• You can switch the following media file types.

– : Compressed audio files

– : Compressed video files

– : Image files

Video source

Switches between playback and pause.

Skips files forward or backward.

Performs fast forward or fast reverse.

Sets a repeat play range for all files/the current folder/the current file.

- 26 -

English

Selects a file from the list.

Touch a file on the list to playback.

TIPS

• Touching a folder on the list shows its contents. You can play a file on the list by

touching it.

• You can switch the following media file types.

– : Compressed audio files

– : Compressed video files

– : Image files

You can adjust [Brightness]/[Contrast]/[Color] by touching [+]/[-].

Still image source

Switches between playback and pause.

Skips files forward or backward.

Rotates the displayed picture 90° clockwise.

Sets a repeat play range for all files/the current folder/the current file.

English

- 27 -

Selects a file from the list.

Touch a file on the list to playback.

TIPS

• Touching a folder on the list shows its contents. You can play a file on the list by

touching it.

• You can switch the following media file types.

– : Compressed audio files

– : Compressed video files

– : Image files

- 28 -

English

NOTE

iPhone may be referred to as iPod in this manual.

When connecting an iPhone to this product, the settings are automatically configured

according to the device to be connected. For details of the compatibility, refer to

Compatible iPhone models (page 58).

1 Connect your iPhone.

• iPhone via USB

2 Touch .

3 Touch [iPod].

NOTE

For USB connection, refer to the Installation Manual.

iPhone

Connecting your iPhone

Basic operation

Audio source

Switches between playback and pause.

English

- 29 -

* This function is available only on the songs list.

Skips files forward or backward.

Performs fast forward or fast reverse.

Sets a repeat play range for all in the selected list/the current song.

Plays songs within the selected list/album randomly.

Selects a song from the list.

Touch the category then the title of the list to playback of the selected list.

TIP

If you use English as the system language, the alphabet search function is

available. Touch the initial search bar to use this function.*

NOTES

• Depending on the generation or version of the iPhone, some functions may not

be available.

• Only 16 000 songs in the iPhone are available in the list if the iPhone has more

than 16 000 songs. Available songs depend on the iPhone.

- 30 -

English

USB Mirroring lets you enjoy compatible smartphones apps in the car. You can operate

USB Mirroring compatible applications with finger gestures such as tapping, dragging,

scrolling, or flicking on the screen of this product.

NOTES

• The supported finger gestures may vary depending on the USB Mirroring compatible application.

• To use USB Mirroring, you must first install the USB Mirroring compatible applications on the

smartphone.

• Be sure to read Using app-based connected content (page 58) before you perform this operation.

WARNING

Certain uses of the smartphone may not be legal while driving in your jurisdiction, so you must be

aware of and obey any such restrictions. If in doubt as to a particular function, only perform it while the

car is parked. No feature should be used unless it is safe to do so under the driving conditions you are

experiencing.

Important

• Pioneer is not responsible for content or functions accessed via USB Mirroring, which are the

responsibility of the application and content providers.

• Availability of non-Pioneer content and services, including apps and connectivity, may change or

discontinue without notice.

• When using USB Mirroring with the Pioneer product, available content and functions will be limited

while driving.

When connecting a smartphone to this product, the settings are automatically

configured according to the device to be connected.

TIPS

• Touch the desired application icon after the USB Mirroring app is launched.

• If you connect your device to this product while a USB Mirroring compatible application is already

running, the application operation screen will appear on this product.

• The desired application is launched, and the application operation screen appears.

USB Mirroring

Using USB Mirroring

Starting procedure

English

- 31 -

System requirement

Android 5.0 or higher (up to Android 10)

NOTES

• [Android Phone MSC] is deactivated to enable use of this function (page 47).

• The video playback capability depends on the connected Android device.

1 Touch .

2 Touch then [Phone Connectivity Settings].

3 Touch [Mirroring] in the [Priority of Connectivity] setting.

4 Unlock your smartphone and connect it to this product via USB.

Refer to the Installation Manual.

5 Touch then swipe left on the screen.

6 Touch [Mirroring].

The USB Mirroring app is launched.

Displays the main menu of the USB Mirroring source screen.

For smartphone (Android™) users

- 32 -

English

You can operate iPhone applications with finger gestures such as tapping, dragging,

scrolling, or flicking on the screen of this product.

Compatible iPhone models

For details about compatibility of iPhone models, refer to the following website.

https://www.apple.com/ios/carplay

NOTE

The compatible finger gestures vary depending on the application for the iPhone.

WARNING

Certain uses of the iPhone may not be legal while driving in your jurisdiction, so you must be aware of

and obey any such restrictions. If in doubt as to a particular function, only perform it while the car is

parked. No feature should be used unless it is safe to do so under the driving conditions you are

experiencing.

Important

Apple CarPlay may not be available in your country or region.

For details about Apple CarPlay, visit the following site:

https://www.apple.com/ios/carplay

• The content and functionality of the supported applications are the responsibility of the App

providers.

• In Apple CarPlay, usage is limited while driving, with availability of functions and content determined

by the App providers.

• Apple CarPlay allows access to applications other than those listed that are subject to limitations

while driving.

• PIONEER IS NOT RESPONSIBLE AND DISCLAIMS LIABILITY FOR THIRD PARTY (NON-PIONEER) APPS

AND CONTENT, INCLUDING WITHOUT LIMITATION ANY INACCURACIES OR INCOMPLETE

INFORMATION.

1 Connect an Apple CarPlay compatible device to this product via USB.

2 Touch .

3 Touch [Apple CarPlay].

The application screen appears.

TIP

You can use Siri function by touching button once Apple CarPlay is activated.

Apple CarPlay

Using Apple CarPlay

Starting procedure

English

- 33 -

NOTES

• For details on USB connection, refer to the Installation Manual.

• If an Apple CarPlay compatible device has been connected and another screen is displayed, touch

[Apple CarPlay] on the top menu screen to display the Application menu screen.

• Hands-free phoning via Bluetooth wireless technology is not available while Apple CarPlay is on. If

Apple CarPlay is turned on during a call on a cellular phone other than an Apple CarPlay compatible

device, the Bluetooth connection will be terminated after the call ends.

- 34 -

English

You can operate Android applications with finger gestures such as tapping, dragging,

scrolling, or flicking on the screen of this product.

Compatible Android devices

For details about compatibility of Android models, refer to the following website.

https://support.google.com/androidauto

NOTES

• [Android Phone MSC] is deactivated to enable use of this function (page 47).

• The compatible finger gestures vary depending on the application for the smartphone.

WARNING

Certain uses of the smartphone may not be legal while driving in your jurisdiction, so you must be

aware of and obey any such restrictions. If in doubt as to a particular function, only perform it while the

car is parked. No feature should be used unless it is safe to do so under the driving conditions you are

experiencing.

Important

Android Auto may not be available in your country or region.

For details about Android Auto, please refer to the Google support site:

http://support.google.com/androidauto

• The content and functionality of the supported applications are the responsibility of the App

providers.

• In Android Auto, usage is limited while driving, with availability of functions and content determined

by the App providers.

• Android Auto allows access to applications other than those listed that are subject to limitations

while driving.

• PIONEER IS NOT RESPONSIBLE AND DISCLAIMS LIABILITY FOR THIRD PARTY (NON-PIONEER) APPS

AND CONTENT, INCLUDING WITHOUT LIMITATION ANY INACCURACIES OR INCOMPLETE

INFORMATION.

1 Touch .

2 Touch then [Phone Connectivity Settings].

3 Touch [Android Auto] in the [Priority of Connectivity] setting.

4 Connect an Android Auto™ compatible device to this product via USB.

The application screen appears.

Android Auto™

Using Android Auto

Starting procedure

English

- 35 -

TIP

You can use voice recognition function by touching button once Android Auto is activated.

NOTES

• For details on USB connection, refer to the Installation Manual.

• When the device for Android Auto is connected to this unit, the device is also connected via

Bluetooth at the same time. If five devices are already paired, the message confirming whether to

delete the registered device is displayed. If you want to delete the device, touch [Agree]. If you want

to delete other device, touch [Bluetooth Settings] and delete the devices manually (page 16).

• If Android Auto is turned on during a call on a cellular phone other than the Android Auto compatible

device, the Bluetooth connection will switch to the Android Auto compatible device after the call.

- 36 -

English

Only SiriusXM® brings you more of what you love to listen to, all in one place. Get over

140 channels, including commercial-free music plus the best sports, news, talk, comedy,

and entertainment. Welcome to the world of satellite radio. A SiriusXM Connect Vehicle

Tuner and Subscription are required. For more information, visit the website

(www.siriusxm.com).

1 Touch .

2 Touch [SiriusXM].

You should be able to tune in to Channel 1. If you cannot get Channel 1, ensure that

your SiriusXM Connect Vehicle Tuner is installed correctly.

3 Switch to Channel 0 and check the Radio ID.

The SiriusXM Radio ID can be found by tuning in to Channel 0.

You will need this number to activate your subscription.

NOTE

The SiriusXM Radio ID does not include the letters I, O, S, or F.

4 Activate the service either online or by phone.

TIP

In the USA, you can activate online or by calling SiriusXM Listener Care:

• Visit the website

www.siriusxm.com/activatenow

• Call SiriusXM Listener Care at

1-866-635-2349

For Canadian subscriptions, please contact:

• Visit the website

www.xmradio.ca

and click on “ACTIVATE RADIO” at the top right corner of the page, or call (1-877-438-9677).

NOTES

• The SiriusXM satellites will send an activation message to your tuner. When the tuner has received the

message, [Subscription Updated] is displayed.

• The activation process usually takes 10 to 15 minutes, but it may take up to an hour. Do not turn off

this product while the activation message is displayed.

SiriusXM® Satellite Radio

Subscribing to the SiriusXM Satellite Radio service

English

- 37 -

1 Touch .

2 Touch [SiriusXM].

TIP

[RADIO ID] is displayed when Channel 0 is selected.

Current channel display (Live broadcast mode)

Listening to SiriusXM

Basic operation

Tunes a channel directly.

Recalls the preset channel stored to a key from the memory.

Stores the current channel to a key.

Selects a band.

There are 3 bands. You can store 6 channels per band for a total of 18 presets.

Performs channel number up/down.

Performs fast channel number up/down.

Tune

Pre1

Pre6

- 38 -

English

The Parental Control feature allows you to limit access to any SiriusXM channels,

including those with mature content. When enabled, the Parental Control feature

requires you to enter a passcode to tune to the locked channels.

For details, see [Parental Control] in SiriusXM settings (page 38).

1 Touch .

2 Touch [SiriusXM] then touch .

The menu items vary depending on whether SiriusXM is selected as the source.

Selects a channel from the list.

Scroll through the list of all channels then touch the desired channel to tune to

that channel.

TIP

When is selected, the channel list will be shown according to different

categories.

Touch or to select other Category.

NOTES

• The types of categories available depend on the types of channels available.

• It may take time to display the channel list depending on the SiriusXM reception

condition.

Parental Control

SiriusXM settings

Menu Item Description

[Change Passcode] Edit the passcode.

1 Enter the current passcode and then touch [OK].

2 Enter the new passcode and then touch [OK].

3 Enter the confirm passcode and then touch [OK].

[Parental Control] Enter the current passcode then touch [OK] to set this function

(the default passcode is 0000).

• To lock the channel, touch the appropriate channel.

appears and the channel is locked.

TIP

When you touch the locked channel, the channel is unlocked.

[Clear Locked All] Touch the switch, enter the current passcode then touch [OK],

all locked channels are unlocked.

[Version] Displaying the firmware version and the model number, etc.

English

- 39 -

You can display the video image output by the device connected to video input.

CAUTION

For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video

images, stop in a safe place and apply the parking brake.

NOTE

A Mini-jack AV cable (sold separately) is required for connection. For details, refer to the Installation

Manual.

1 Touch then swipe left on the screen.

2 Touch [AUX].

The AUX screen appears.

AUX

Starting procedure

Basic operation

- 40 -

English

You can display the video image output by the device connected to video or camera

input. For details, refer to the Installation Manual.

CAUTION

For safety reasons, video images cannot be viewed while your vehicle is in motion. To view video

images, stop in a safe place and apply the parking brake.

1 Touch then swipe left on the screen.

2 Touch [Camera] for connected camera view.

The video image is displayed on the screen.

Camera

Starting procedure

English

- 41 -

You can adjust various settings in the main menu.

1 Touch .

2 Touch .

3 Touch one of the following categories, then select the options.

System Settings (page 41)

Display Settings (page 43)

Audio & EQ Settings (page 43)

Bluetooth Settings (page 15)

Camera settings (page 44)

Phone Connectivity Settings (page 47)

The menu items vary according to the source.

Settings

Displaying the setting screen

System Settings

Menu Item Description

[Choose Language] Select the system language.

NOTES

• If the embedded language and the selected language setting are

not the same, the text information may not display properly.

• Some characters may not be displayed properly.

[Date & Time] Set the clock by touching or .

You can operate the following items: Year, month, date,

hour, minute.

TIPS

• You can change the time display format to [AM], [PM] or [24H].

• You can change the order of the month/date display format:

[DD/MM/YY], [MM/DD/YY].

[Beep Tone] Set off to disable the beep sound when the button is

touched or the screen is touched.

[SiriusXM settings] (page 38)

- 42 -

English

[Factory Reset] Touch [OK] to restore the settings to the default settings.

CAUTION

Do not turn off the engine while restoring the settings.

NOTES

• This setting is available only when you stop your vehicle in a safe

place and apply the parking brake.

• The source is turned off and the Bluetooth connection is

disconnected before the process starts.

• Before starting the restore process, disconnect any device that is

connected to the USB port. Otherwise, some settings may not be

restored correctly.

[System Information] Displaying and updating the firmware version.

CAUTION

• The USB storage device for updating must contain only the

correct update file.

• Never turn this product off, disconnect the USB storage device

while the firmware is being updated.

• You can only update the firmware when the vehicle is stopped

and the parking brake is engaged.

1 Download the firmware update files into your

computer.

2 Connect a blank (formatted) USB storage device to

your computer then locate the correct update file and

copy it onto the USB storage device.

3 Connect the USB storage device to this product

(page 23).

4 Display the [System Settings] screen (page 41).

5 Touch [System Information].

6 Touch [Update].

New firmware version information is displayed.

7 Touch [Update].

Follow the on-screen instructions to finish updating the

firmware.

NOTES

• This product will reset automatically after the firmware

update is completed if the update is successful.

• If an error message appears on the screen, touch the display

and perform the above steps again.

[License] Displaying the open source license.

Menu Item Description

English

- 43 -

The menu items vary according to the source.

The menu items vary according to the source. Some of the menu items become

unavailable when the volume is set to mute.

Display Settings

Menu Item Description

[Lighting Detect] Activate to set the dimmer function on automatically when

the head lamps of the vehicle are lit.

[Day Illumination] Touch [+]/[-] to adjust the brightness of the display in the

day time.

[Night Illumination] Touch [+]/[-] to adjust the brightness of the display in the

night time.

[Illumination] Select an illumination color from the preset list.

[Wallpaper] Touch the wall paper from the preset items in this product

or original pictures via the external device and touch

[Apply].

The wall paper can be set from selections for the top menu

screen and AV operation screen.

Preset Display Select the desired preset background display.

Select the background display image of the connected USB

storage device.

1 Connect the USB storage device to this product

(page 23).

2 Touch .

3 Select the desired image.

(custom) Displays the background display image imported from the

USB storage device.

(off) Hides the background display.

Audio & EQ Settings

Menu Item Description

[Fader/Balance] Touch or to adjust the front/rear speaker balance.

Set [Front] and [Rear] to [0] when using a dual speaker

system.

Touch or to adjust the left/right speaker balance.

TIP

You can also set the value by dragging the point on the displayed

table.

- 44 -

English

The menu items vary according to the source.

A separately sold rear view camera is required for utilizing the rear view camera function.

(For details, consult your dealer.)

[Cutoff]

[Subwoofer] Select enable or disable rear subwoofer output from this

product.

[Front HPF] Adjust the speaker output level of the listening position by

touching [+]/[-].

[Rear HPF]

[Subwoofer LPF]

[EQ]

[Super Bass] [Powerful]

[Natural] [Vocal] [Flat]

[Custom]

Select or customize the equalizer curve.

Select a curve that you want to use as the basis of

customizing then touch the frequency that you want to

adjust.

TIPS

• If you make adjustments when a curve [Super Bass], [Powerful],

[Natural], [Vocal], or [Flat] is selected, the equalizer curve settings

will be changed to [Custom] mandatorily.

• [Custom] curves can be created common to all sources.

• If you trail a finger across the bars of multiple equalizer bands,

the equalizer curve settings will be set to the value of the

touched point on each bar.

[Volume]

[Main Volume] [Ring

Volume] [Talking Volume]

[Navi Volume] [Voice

Volume] [TA Volume]

Adjust the volume level by touching [+]/[-].

[Speaker Level]

Types of speaker

[Front Left] [Front Right]

[Rear Left] [Rear Right]

[Subwoofer]

Adjust the speaker output level of the listening position.

1 Touch or to adjust the selected speaker output

level.

NOTE

[Subwoofer] is available when [Subwoofer] in the [Cutoff] setting is

activated.

[Loudness]

[Off] [Low] [Mid] [High]

Compensates for deficiencies in the low-frequency and

high-frequency ranges at low volume.

[Bass Boost]

[0] to [6]

Adjust the bass boost level.

Camera settings

Menu Item Description

English

- 45 -

▶Rear view camera

This product features a function that automatically switches to the full-screen image of

the rear view camera installed on your vehicle when the shift lever is in the REVERSE (R)

position.

Camera View mode also allows you to check what is behind you while driving.

TIP

The parking assist guidelines can be displayed temporarily on the rear view camera screen by touching

the icon at the top left of the screen. The guidelines can be adjusted. For details on how to adjust the

guidelines, see [Parking Assist Guide Adjust] (page 46).

▶Camera for Camera View mode

Camera View can be displayed at all times. Note that with this setting, the camera image

is not resized to fit, and that a portion of what is seen by the camera is not viewable.

To display the camera image, touch [Camera] on the top menu screen (page 14).

NOTE

To set the rear view camera as the camera for Camera View mode, activate [Back-up Camera Input]

(page 45).

CAUTION

Pioneer recommends the use of a camera which outputs mirror reversed images, otherwise the screen

image may appear reversed.

• Immediately verify whether the display changes to the rear view camera image when the shift lever is

moved to REVERSE (R) from another position.

Menu Item Description

[Back-up Camera Input] Setting rear view camera activation.

[Camera View]

[Normal] [Reverse]

Select the way the screen image of a camera appears.

[Parking Assist Guide] You can set whether to display the parking assist

guidelines on the rear view camera images when backing

up your vehicle.

- 46 -

English

[Parking Assist Guide

Adjust]

1 Adjusting the guidelines by dragging or touching /

/ / on the screen.

2 Touch [OK] to finish the settings.

Touch [Reset] to reset the settings.

CAUTION

• When adjusting the guidelines, park the vehicle in a safe place

and apply the parking brake; this setting is available only when

the vehicle is parked with the parking brake applied.

• Turn the vehicle off before getting out to place the markings.

• The range projected by the rear view camera is limited. Also, the

vehicle width and distance guidelines displayed on the rear view

camera image may differ from the actual vehicle width and

distance. (The guidelines are straight lines.)

• The image quality may deteriorate depending on the usage

environment, such as at night or in dark surroundings.

NOTES

• Use painter's tape or similar tape to place markings as shown

below before setting up the guidelines.

• Adjust the guidelines so that they overlay the tape markings as

closely as possible.

[Rear View Camera

Adjustment]

Adjust following menu, touch [+]/[-] to adjust.

[Brightness]

[-10] to [+10]

Adjust the black intensity.

[Contrast]

[-10] to [+10]

Adjust the contrast.

[Color]

[-10] to [+10]

Adjust the color saturation.

Menu Item Description

30 cm (1 ft)

Markings

Rear bumper

Vehicle Longitudinal

Centerline

3.05 m

(10 ft)

6.1 m

(20 ft)

1.52 m (5 ft)

25 cm (9-7/8 in.)

English

- 47 -

The settings are not available when the USB storage device is connected.

Phone Connectivity Settings

Menu Item Description

[Priority of Connectivity]

[Android Auto] [Mirroring]

Select the function that is prioritized when your

smartphone (Android) is connected to the unit.

[Android Phone MSC] Set the USB connection mode for your smartphone

(Android) to MSC (Mass Storage Class).

- 48 -

English

1 Touch the current time on the screen.

2 Touch or to set the correct time and date.

You can operate the following items: Year, month, date, hour, minute.

TIPS

• You can change the time display format to [AM], [PM] or [24H].

• You can change the order of the month/date display format: [DD/MM/YY], [MM/DD/YY].

You can restore settings or recorded content to the default settings from [Factory Reset]

in the [System Settings] menu (page 42).

Other functions

Setting the time and date

Restoring this product to the default settings

English

- 49 -

If you have problems operating this

product, refer to this section. The most

common problems are listed below, along

with likely causes and solutions. If a

solution to your problem cannot be found

here, contact your dealer or the nearest

authorized Pioneer service facility.

A black screen is displayed, and

operation is not possible using the touch

panel keys.

→ Power off mode is on.

– Touch any button on this product to

release the mode.

The screen is covered by a caution

message and the video cannot be shown.

→ The parking brake lead is not connected

or the parking brake is not applied.

– Connect the parking brake lead

correctly, and apply the parking brake.

→ The parking brake interlock is activated.

– Park your vehicle in a safe place and

apply the parking brake.

The audio or video skips.

→ This product is not firmly secured.

– Secure this product firmly.

No sounds are produced. The volume

level will not rise.

→ Cables are not connected correctly.

– Connect the cables correctly.

iPhone cannot be operated.

→ The iPhone is frozen.

– Reconnect the iPhone with the USB

interface cable for iPhone.

– Update the iPhone software version.

→ An error has occurred.

– Reconnect the iPhone with the USB

interface cable for iPhone.

– Park your vehicle in a safe place, and

then turn off the ignition switch (ACC

OFF). Subsequently, turn the ignition

switch to on (ACC ON) again.

– Update the iPhone software version.

→ Cables are not connected correctly.

– Connect the cables correctly.

Sound from the iPhone cannot be heard.

→ The audio output direction may switch

automatically when the Bluetooth and

USB connections are used at the same

time.

– Use the iPhone to change the audio

output direction.

No back camera image when the vehicle

is in reverse.

→ The back camera input setting on the

receiver is set to Off.

– Change the back camera setting to On

in the settings menu. (Refer to the

System Settings section of this manual

to adjust.)

→ The camera input may be loose or not

connected.

– Check the connection and make sure

the male end of the camera is

connected to the brown input on the

back of the receiver. (Refer to the

installation manual.)

→ The reverse lead on the receiver may

not be connected to the proper wire at

the reverse lamp.

Appendix

Troubleshooting

Common problems

Problems with the AV screen

English

- 50 -

– Check the connection and make sure

that the violet/white lead of the

receiver is connected to the lead

whose voltage changes when the shift

lever is put in reverse. (Refer to the

installation manual.)

Black screen displayed when the vehicle

is in reverse, with no camera installed.

→ Back camera input is set to On.

– Turn the setting to Off in the settings

menu. (Refer to the System Settings

section of this manual to adjust.)

Dialing is impossible because the touch

panel keys for dialing are inactive.

→ Your phone is out of range for service.

– Retry after re-entering the range for

service.

→ The connection between the cellular

phone and this product cannot be

established.

– Perform the connection process.

A black screen is displayed.

→ While operating an application, the

application was ended on the

smartphone side.

– Touch to display the top menu

screen.

→ The smartphone OS may be awaiting

screen operation.

– Stop the vehicle in a safe place and

check the screen on the smartphone.

The screen is displayed, but operation

does not work at all.

→ An error has occurred.

– Park your vehicle in a safe place, and

then turn off the ignition switch (ACC

OFF). Subsequently, turn the ignition

switch to on (ACC ON) again.

The smartphone was not charged.

→ Charging stopped because the

temperature of the smartphone rose

due to prolonged use of the

smartphone during charging.

– Disconnect the smartphone from the

cable, and wait until the smartphone

cools down.

→ More battery power was consumed

than was gained from charging.

– This problem may be resolved by

stopping any unnecessary services on

the smartphone.

When problems occur with this product, an

error message appears on the display.

Refer to the table below to identify the

problem, then take the suggested

corrective action. If the error persists,

record the error message and contact your

dealer or your nearest Pioneer service

center.

Check Antenna

→ The antenna connection is incorrect.

– Check the antenna connection. If the

message fails to disappear even after

the engine is switched off/on, contact

your dealer or the nearest authorized

Pioneer service center for assistance.

Check Tuner

→ The SiriusXM Connect Vehicle Tuner

connection is incorrect.

– Check the tuner connection and

battery voltage. If the message fails to

disappear even after the engine is

switched off/on, contact your dealer

Problems with the phone screen

Problems with Application

screen

Error messages

SiriusXM® Satellite Radio

English

- 51 -

or the nearest authorized Pioneer

service center for assistance.

No Signal

→ The SiriusXM Connect Vehicle Tuner is

having difficulty receiving the SiriusXM

satellite signal.

– Verify that your vehicle is outdoors

with a clear view of the southern sky.

– Verify that the SiriusXM magnetic

mount antenna is mounted on a metal

surface on the outside of the vehicle.

– Move the SiriusXM antenna away from

any obstructions.

Channel Not Available

→ The channel that you have requested is

not a valid SiriusXM channel.

– Visit www.siriusxm.com for more

information about the SiriusXM

channel lineup.

Subscription Updated Press Enter to

Continue

→ This product has detected a change in

your SiriusXM subscription status.

– Touch [Yes] to clear the message.

In the U.S.A., visit www.siriusxm.com

or call 1-866-635-2349 if you have

questions about your subscription. In

Canada, visit www.siriusxm.ca or call

1-877-438-9677 if you have questions

about your subscription.

Channel Not Subscribed Call SiriusXM to

→ The channel that you have requested is

not included in your SiriusXM

subscription package.

– Check the content of your SiriusXM

subscription package.

In the U.S.A., visit www.siriusxm.com

or call 1-866-635-2349 if you have

questions about your subscription

package or would like to subscribe to

this channel. In Canada, visit

www.siriusxm.ca or call 1-877-438-

9677.

Channel Locked Please Enter the Lock

Code

→ Locked by the radio Parental Control

feature.

– Release the channel lock.

Incorrect Pass Code entered

→ The pass code is incorrect.

– Enter the correct pass code.

Unsupport usb hub device

→ The connected USB hub is not

supported by this product.

– Directly connect the USB storage

device to this product.

This content cannot be played.

→ There is no playable file in the USB

storage device.

– Check that the files in the USB storage

device are compatible with this

product.

→ Security for the connected USB storage

device is enabled.

– Follow the USB storage device

instructions to disable security.

→ This product cannot recognize the

connected USB storage device.

– Disconnect the device and replace it

with another USB storage device.

Audio Format not supported

→ This type of file is not supported on this

product.

– Select a file that can be played.

No Data

→ There is no playable file in the USB

storage device.

– Check that the files in the USB storage

device are compatible with this

product.

USB storage device

English

- 52 -

→ Security for the connected USB storage

device is enabled.

– Follow the USB storage device

instructions to disable security.

Autolink can't connect right now. When

it's safe to do so, check your Android

phone.

→ The connection is not successfully

established.

– Stop your vehicle in a safe place and

apply the parking brake. Perform the

operations according to the following

situations.

– When the pop-up message appears

on your mobile device, follow the

message.

– When the pop-up message does not

appear on your mobile device, forcibly

cancel download of the application,

and then perform the connection with

the unit again.

Mobile phone is standby,any touch wake

up!

→ The screen of the mobile device

connected to the unit is turned off.

–Unlock your mobile device.

To use Android Auto,please stop your car

and follow the instructions on your

phone

→ The default settings are displayed on

the screen of the Android Auto

compatible device or images are not

output from the Android Auto

compatible device.

– Park your vehicle in a safe place, and

follow the instructions displayed on

the screen. If the error message is still

displayed after performing on-screen

instructions, please reconnect the

device.

No devices available Connect a Android

phone with USB cable

→ The screen of the mobile device

connected to the unit is turned off.

–Unlock your mobile device.

No Video Signal

→ There is no video signal input.

– Confirm whether the connection with

the unit is established and there is an

output from the external device.

Handsfree device is not connected

→ The phone’s Bluetooth HFP is not

connected and cannot make calls.

– Make a Bluetooth connection

(page 15).

Phone book access is not authorized

→ The Bluetooth PBAPC of the mobile

phone is not connected and the phone

book cannot be downloaded.

– Make a PBAPC connection. You need

to operate your phone and allow the

unit to access the contact information

on your phone. When the related

information pops up on your phone,

follow the pop-up message.

Caution! USB Overcurrent

→ Overcurrent is detected.

– Check the USB connection. Perform

one of the following operations to fix

the situation.

USB Mirroring

Android Auto

Camera & AUX

Bluetooth

Others

English

- 53 -

– Turn off the ignition switch (ACC OFF)

and then turn the ignition switch to on

(ACC ON) again.

– Power the unit off and then power it

on again.

– Disconnect the (+) battery cable and

then connect it again.

Caution! AMP Overload

→ An amplifier overload is detected.

– Check the amp connection. Perform

one of the following operations to fix

the situation.

– Turn off the ignition switch (ACC OFF).

After 9 seconds or more, turn the

ignition switch to on (ACC ON) again.

– Disconnect the (+) battery cable and

then connect it again.

Common notes about the USB storage

device

• Do not leave the USB storage device in

any location with high temperatures.

• Depending on the kind of the USB

storage device you use, this product may

not recognize the storage device or files

may not be played back properly.

• The text information of some audio and

video files may not be correctly

displayed.

• File extensions must be used properly.

• There may be a slight delay when starting

playback of files on an USB storage

device with complex folder hierarchies.

• Operations may vary depending on the

kind of an USB storage device.

• It may not be possible to play some music

files from USB because of file

characteristics, file format, recorded

application, playback environment,

storage conditions, and so on.

USB storage device compatibility

• For details about USB storage device

compatibility with this product, refer to

Specifications (page 60).

• Protocol: bulk

• You cannot connect a USB storage device

to this product via a USB hub.

• Partitioned USB storage device is not

compatible with this product.

• Firmly secure the USB storage device

when driving. Do not let the USB storage

device fall onto the floor, where it may

become jammed under the brake or gas

pedal.

• There may be a slight delay when starting

playback of audio files encoded with

image data.

• Some USB storage devices connected to

this product may generate noise on the

radio.

• Do not connect anything other than the

USB storage device.

The sequence of audio files on USB storage

device.

For USB storage device, the sequence is

different from that of USB storage device.

Handling guidelines and supplemental

information

• Copyright protected files cannot be

played back.

General

• Maximum playback time of audio file

stored on an USB storage device: 7.5 h

(450 minutes)

Detailed information

for playable media

Compatibility

Media compatibility chart

English

- 54 -

USB storage device

MP3 compatibility

• Ver. 2.x of ID3 tag is prioritized when both

Ver. 1.x and Ver. 2.x exist.

• This product is not compatible with the

following: MP3i (MP3 interactive), mp3

PRO, m3u playlist

WMA compatibility

• This product is not compatible with the

following: Windows Media™ Audio 9.2

Professional, Lossless, Voice

WAV compatibility

• The sampling frequency shown in the

display may be rounded.

AAC compatibility

• This product plays back AAC files

encoded by iTunes.

FLAC compatibility

USB storage device

Video files compatibility

• Files may not be played back properly

depending on the environment in which

the file was created or on the contents of

the file.

• This product is not compatible with

packet write data transfer.

• This product can recognize up to 32

characters, beginning with the first

character, including extension for the file

and folder name. Depending on the

display area, this product may try to

display them with a reduced font size.

However, the maximum number of the

characters that you can display varies

according to the width of each character,

and of the display area.

• Folder selection sequence or other

operations may be altered, depending on

the encoding or writing software.

• Regardless of the length of blank section

between the songs of original recording,

compressed audio files play with a short

pause between songs.

• Files may not be able to be played back

depending on the bit rate.

• The maximum resolution depends on the

compatible video codec.

.avi

CODEC FORMAT MP3, WMA,

WAV, AAC,

FLAC, AVI,

MPEG-PS, MP4,

3GP, MKV,

MOV, ASF, FLV,

M4V, MPEG-TS

SAMPLING FREQUENCY 8 kHz to 48 kHz

TRANSMISSION RATE CBR (8 kbps to

320 kbps)/VBR

ID3 TAG ver.1.0/1.1/2.2/

2.3/2.4

SAMPLING FREQUENCY 32 kHz to 48

kHz

TRANSMISSION RATE CBR (8 kbps to

320 kbps)/VBR

SAMPLING FREQUENCY 16 kHz to 48

kHz

QUANTIZATION BIT RATE 8 bit, 16 bit

SAMPLING FREQUENCY 8 kHz to 48 kHz

TRANSMISSION RATE CBR (16 kbps to

320 kbps)

SAMPLING FREQUENCY 8 kHz to 192

kHz

QUANTIZATION BIT RATE 8 bit, 16 bit, 24

bit

EXTENSION .avi

MAX RESOLUTION 720 × 576

Compatible video codec MPEG4, H.264

Maximum resolution 1 920 × 1 080

Maximum frame rate 30 fps

English

- 55 -

.mpg/.mpeg

.mp4

.3gp

.mkv

.mov

.flv

.wmv/.asf

.m4v

.ts

.m2ts

.mts

Example of a hierarchy

NOTE

This product assigns folder numbers. The

user cannot assign folder numbers.

The Bluetooth® word mark and logos are

registered trademarks owned by Bluetooth SIG,

Inc. and any use of such marks by Pioneer

Corporation is under license. Other trademarks

and trade names are those of their respective

owners.

Compatible video codec MPEG2

Maximum resolution 720 × 576

Maximum frame rate 30 fps

Compatible video codec MPEG4, H.264

Maximum resolution 1 920 × 1 080

Maximum frame rate 30 fps

Compatible video codec H.264

Maximum resolution 1 920 × 1 080

Maximum frame rate 30 fps

Compatible video codec MPEG4, H.264,

VC-1

Maximum resolution 1 920 × 1 080

Maximum frame rate 30 fps

Compatible video codec MPEG4, H.264

Maximum resolution 1 920 × 1 080

Maximum frame rate 30 fps

Compatible video codec H.264, H.263

Maximum resolution 1 920 × 1 080

Maximum frame rate 30 fps

Compatible video codec VC-1

Maximum resolution 1 920 × 1 080

Maximum frame rate 30 fps

Compatible video codec H.264

Maximum resolution 1 920 × 1 080

Maximum frame rate 30 fps

Compatible video codec MPEG4, H.264,

MPEG2

Maximum resolution 1 920 × 1 080

Maximum frame rate 30 fps

Compatible video codec H.264, MPEG2

Maximum resolution 1 920 × 1 080

Maximum frame rate 30 fps

Compatible video codec H.264

Maximum resolution 1 920 × 1 080

Maximum frame rate 30 fps

Bluetooth

English

- 56 -

Sirius, XM and all related marks and logos are

trademarks of Sirius XM Radio, Inc. All rights

reserved.

Windows Media is either a registered trademark

or trademark of Microsoft Corporation in the

United States and/or other countries.

• This product includes technology owned

by Microsoft Corporation and cannot be

used or distributed without a license

from Microsoft Licensing, Inc.

Foundation

Redistribution and use in source and

binary forms, with or without modification,

are permitted provided that the following

conditions are met:

– Redistributions of source code must

retain the above copyright notice, this list

of conditions and the following

disclaimer.

– Redistributions in binary form must

reproduce the above copyright notice,

this list of conditions and the following

disclaimer in the documentation and/or

other materials provided with the

distribution.

– Neither the name of the Xiph.org

Foundation nor the names of its

contributors may be used to endorse or

promote products derived from this

software without specific prior written

permission.

THIS SOFTWARE IS PROVIDED BY THE

CONTRIBUTORS “AS IS” AND ANY EXPRESS

OR IMPLIED WARRANTIES, INCLUDING, BUT

NOT LIMITED TO, THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE ARE

DISCLAIMED. IN NO EVENT SHALL THE

FOUNDATION OR CONTRIBUTORS BE

LIABLE FOR ANY DIRECT, INDIRECT,

INCIDENTAL, SPECIAL, EXEMPLARY, OR

CONSEQUENTIAL DAMAGES (INCLUDING,

BUT NOT LIMITED TO, PROCUREMENT OF

SUBSTITUTE GOODS OR SERVICES; LOSS OF

USE, DATA, OR PROFITS; OR BUSINESS

INTERRUPTION) HOWEVER CAUSED AND

ON ANY THEORY OF LIABILITY, WHETHER

IN CONTRACT, STRICT LIABILITY, OR TORT

(INCLUDING NEGLIGENCE OR OTHERWISE)

ARISING IN ANY WAY OUT OF THE USE OF

THIS SOFTWARE, EVEN IF ADVISED OF THE

POSSIBILITY OF SUCH DAMAGE.

AAC is short for Advanced Audio Coding

and refers to an audio compression

technology standard used with MPEG-2

and MPEG-4. Several applications can be

used to encode AAC files, but file formats

and extensions differ depending on the

application which is used to encode. This

unit plays back AAC files encoded by

iTunes.

Google, Android and Google Play are

trademarks of Google LLC.

SiriusXM® Satellite

Radio

WMA

FLAC

AAC

Google, Android,

Google Play

English

- 57 -

Android Auto is a trademark of Google LLC.

• Pioneer accepts no responsibility for data

lost from an iPhone, even if that data is

lost while using this product. Please back

up your iPhone data regularly.

• Do not leave the iPhone in direct sunlight

for extended amounts of time. Extended

exposure to direct sunlight can result in

iPhone malfunction due to the resulting

high temperature.

• Do not leave the iPhone in any location

with high temperatures.

• Firmly secure the iPhone when driving.

Do not let the iPhone fall onto the floor,

where it may become jammed under the

brake or gas pedal.

• For details, refer to the iPhone manuals.

Use of the Made for Apple badge means

that an accessory has been designed to

connect specifically to the Apple

product(s) identified in the badge and

has been certified by the developer to

meet Apple performance standards.

Apple is not responsible for the

operation of this device or its

compliance with safety and regulatory

standards.

Please note that the use of this

accessory with an Apple product may

affect wireless performance.

iPhone and Lightning are trademarks of

Apple Inc., registered in the U.S. and

other countries.

App Store is a service mark of Apple

Inc., registered in the U.S. and other

countries.

IOS is a trademark or registered

trademark of Cisco in the U.S. and other

countries and is used under license.

iTunes is a trademark of Apple Inc.,

registered in the U.S. and other

countries.

Apple Music is a trademark of Apple

Inc., registered in the U.S. and other

countries.

Android Auto

Detailed information

regarding connected

iPhone devices

iPhone and Lightning

App Store

iOS

iTunes

Apple Music

Apple CarPlay

English

- 58 -

Apple CarPlay is a trademark of Apple

Inc.

Use of the Apple CarPlay logo means

that a vehicle user interface meets

Apple performance standards. Apple is

not responsible for the operation of this

vehicle or its compliance with safety and

regulatory standards. Please note that

the use of this product with iPhone or

iPod may affect wireless performance.

Works with Siri through the microphone.

• iPhone SE (2nd generation)

• iPhone 11 Pro Max

• iPhone 11 Pro

• iPhone 11

• iPhone XR

• iPhone XS Max

• iPhone XS

• iPhone X

• iPhone 8

• iPhone 8 Plus

• iPhone 7

• iPhone 7 Plus

• iPhone SE (1st generation)

• iPhone 6s

• iPhone 6s Plus

• iPhone 6

• iPhone 6 Plus

• iPhone 5s

Depending on the iPhone models, it may

not be compatible with some AV sources.

For details about iPhone compatibility with

this product, refer to the information on

our website.

Important

Requirements to access app-based

connected content services using this

product:

• Latest version of the Pioneer compatible

connected content application(s) for the

smartphone, available from the service

provider, downloaded to your

smartphone.

• A current account with the content

service provider.

• Smartphone Data Plan.

Note: if the Data Plan for your

smartphone does not provide for

unlimited data usage, additional charges

from your carrier may apply for accessing

app-based connected content via 3G,

EDGE and/or LTE (4G) networks.

• Connection to the Internet via 3G, EDGE,

LTE (4G) or Wi-Fi network.

• Optional Pioneer adapter cable

connecting your iPhone to this product.

Limitations:

• Access to app-based connected content

will depend on the availability of cellular

and/or Wi-Fi network coverage for the

purpose of allowing your smartphone to

connect to the Internet.

• Service availability may be

geographically limited to the region.

Consult the connected content service

provider for additional information.

• Ability of this product to access

connected content is subject to change

without notice and could be affected by

any of the following: compatibility issues

with future firmware versions of

smartphone; compatibility issues with

future versions of the connected content

application(s) for the smartphone;

changes to or discontinuation of the

Siri

Compatible iPhone models

Using app-based

connected content

English

- 59 -

connected Content application(s) or

service by its provider.

• Pioneer is not liable for any issues that

may arise from incorrect or flawed app-

based content.

• The content and functionality of the

supported applications are the

responsibility of the App providers.

• In USB Mirroring, Apple CarPlay and

Android Auto, functionality through the

product is limited while driving, with

available functions determined by the

App providers.

• Availability of USB Mirroring, Apple

CarPlay and Android Auto functionalities

is determined by the App provider, and

not determined by Pioneer.

• USB Mirroring, Apple CarPlay and

Android Auto allow access to applications

other than those listed (subject to

limitations while driving), but the extent

to which content can be used is

determined by the App providers.

Remember that use of this system for

commercial or public viewing purposes

may constitute an infringement on the

author’s rights as protected by the

• When the LCD screen is subjected to

direct sunlight for a long period of time, it

will become very hot, resulting in

possible damage to the LCD screen.

When not using this product, avoid

exposing it to direct sunlight as much as

possible.

• The LCD screen should be used within

the temperature ranges shown in

Specifications on page 60.

• Do not use the LCD screen at

temperatures higher or lower than the

operating temperature range, because

the LCD screen may not operate normally

and could be damaged.

• The LCD screen is exposed in order to

increase its visibility within the vehicle.

Please do not press strongly on it as this

may damage it.

• Do not push the LCD screen with

excessive force as this may scratch it.

• Never touch the LCD screen with

anything besides your finger when

operating the touch panel functions. The

LCD screen can scratch easily.

• If the LCD screen is near the vent of an air

conditioner, make sure that air from the

air conditioner is not blowing on it. Heat

from the heater may break the LCD

screen, and cool air from the cooler may

cause moisture to form inside this

product, resulting in possible damage.

• Small black dots or white dots (bright

dots) may appear on the LCD screen.

These are due to the characteristics of the

LCD screen and do not indicate a

malfunction.

• The LCD screen will be difficult to see if it

is exposed to direct sunlight.

• When using a cellular phone, keep the

antenna of the cellular phone away from

the LCD screen to prevent disruption of

the video in the form of disturbances

such as spots or colored stripes.

Notice regarding video

viewing

Using the LCD screen

correctly

Handling the LCD screen

Liquid crystal display (LCD)

screen

English

- 60 -

• When removing dust from or cleaning

the LCD screen, first turn this product off

and then wipe the screen with a soft dry

cloth.

• When wiping the LCD screen, take care

not to scratch the surface. Do not use

harsh or abrasive chemical cleaners.

A light emitting diode is used inside the

display to illuminate the LCD screen.

• At low temperatures, using the LED

backlight may increase image lag and

degrade the image quality because of the

characteristics of the LCD screen. Image

quality will improve with an increase in

temperature.

• The product lifetime of the LED backlight

is more than 10 000 hours. However, it

may decrease if used in high

temperatures.

• If the LED backlight reaches the end of its

product lifetime, the screen will become

dimmer and the image will no longer be

visible. In that case, please consult your

dealer or the nearest authorized Pioneer

Service Station.

General

Rated power source:

14.4 V DC (10.8 V to 15.1 V allowable)

Grounding system:

Negative type

Maximum current consumption:

10.0 A

Dimensions (W × H × D):

Chassis (D):

178 mm × 100 mm × 125 mm (7 in. × 3-

7/8 in. × 4-7/8 in.)

Nose:

171 mm × 97 mm × 2 mm (6-3/4 in. ×

3-7/8 in. × 1/8 in.)

Weight:

1.1 kg (2.4 lbs)

Display

Screen size/aspect ratio:

6.75 inch wide/16:9 (effective display

area: 151.8 mm × 79.68 mm) (6 in. × 3-1/8

in.)

Pixels:

800 (Width) × 480 (Height) × 3 (RGB)

Display method:

TFT Active matrix driving

Color system:

PAL/NTSC/PAL-M/PAL-N/SECAM

compatible

Temperature range:

-10 ˚C to +60 ˚C (+14 ˚F to +140 ˚F)

Audio

Maximum power output:

• 50 W × 4

Continuous power output:

22 W × 4 (50 Hz to 15 kHz, 5 %THD, 4 Ω

LOAD, Both Channels Driven)

Load impedance:

4 Ω (4 Ω to 8 Ω allowable)

Preout output level (max): 2.0 V

Equalizer (13-Band Graphic Equalizer):

Frequency:

50 Hz/80 Hz/125 Hz/200 Hz/315 Hz/

500 Hz/800 Hz/1.25 kHz/2 kHz/3.15

kHz/5 kHz/8 kHz/12.5 kHz

Gain: ±12 dB (2 dB/step)

HPF:

Frequency:

25 Hz/32 Hz/40 Hz/50 Hz/63 Hz/80 Hz/

100 Hz/125 Hz/160 Hz/200 Hz/250 Hz

Subwoofer/LPF:

Frequency:

25 Hz/32 Hz/40 Hz/50 Hz/63 Hz/80 Hz/

100 Hz/125 Hz/160 Hz/200 Hz/250 Hz

Phase: Normal/Reverse

Bass boost:

Gain: +12 dB to 0 dB (2 dB/step)

Maintaining the LCD screen

LED (light-emitting diode)

backlight

Specifications

English

- 61 -

Speaker level:

+10 dB to -24 dB (1 dB/step)

USB

USB standard spec:

USB 1.1, USB 2.0 full speed, USB 2.0 high

speed

Max current supply: 1.5 A

USB Class:

MSC (Mass Storage Class)

File system : FAT16, FAT32, NTFS

MP3 decoding format:

MPEG-1 & 2 & 2.5 Audio Layer 3

WMA decoding format:

Ver. 7, 8, 9, 9.1, 9.2 (2 ch audio)

AAC decoding format:

MPEG-4 AAC (iTunes encoded only) (Ver.

12.5 and earlier)

FLAC decoding format:

Ver. 1.3.0 (Free Lossless Audio Codec)

WAV signal format:

Linear PCM

Sampling frequency:

Linear PCM:

16 kHz/22.05 kHz/24 kHz/32 kHz/44.1

kHz/48 kHz

JPEG decoding format:

.jpeg, .jpg

Pixel Sampling: 4:2:2, 4:2:0

Decode Size:

MAX: 5 000 (H) × 5 000 (W)

MIN: 32 (H) × 32 (W)

(Maximum file size: 6 MB)

PNG decoding format:

.png

Decode Size:

MAX: 576 (H) × 720 (W)

MIN: 32 (H) × 32 (W)

BMP decoding format:

.bmp

Decode Size:

MAX: 936 (H) × 1 920 (W)

MIN: 32 (H) × 32 (W)

H.264 video decoding format:

Base Line Profile, Main Profile, High

Profile

H.263 video decoding format:

Base Line Profile 0/3

VC-1 video decoding format:

Simple Profile, Main Profile, Advanced

Profile

AVI video decoding format

MPEG4 video decoding format:

Simple Profile, Advanced Simple Profile

MPEG1, 2 video decoding format:

Main Profile

Quick Time video decoding format

Matroska video decoding format

TS Stream video decoding format

Bluetooth

Version:

Bluetooth 5.0 certified

Output power:

+4 dBm Max. (Power class 2)

Frequency band(s):

2 402.0 MHz to 2 480.0 MHz

FM tuner

Frequency range:

87.9 MHz to 107.9 MHz

Usable sensitivity:

13 dBf (1.1 μV/75 Ω, mono, S/N: 30 dB)

Signal-to-noise ratio:

50 dB (analog broadcasting) (IHF-A

network)

AM tuner

Frequency range:

530 kHz to 1 710 kHz

Usable sensitivity:

28 μV (S/N: 20 dB)

Signal-to-noise ratio:

45 dB (analog broadcasting) (IHF-A

network)

English

- 62 -

CTA2006 Specifications

Power output:

14 W RMS × 4 Channels (4 Ω and 1 %

THD+N)

S/N ratio:

91 dBA (reference: 1 W into 4 Ω)

NOTE

Specifications and design are subject to possible

modifications without notice due to

improvements.
