CE900 ELLIPTICAL TRAINER
OWNER’S MANUAL
Spirit Fitness
www.spirittness.com
2
Spirit Fitness
Congratulations on your new elliptical trainer and welcome to the Spirit Fitness family!
Thank you for your purchase of this quality elliptical trainer from Spirit Fitness. Your new elliptical
trainer was manufactured by one of the leading tness manufacturers in the world and is backed by
one of the most comprehensive warranties available. Through your dealer, Spirit Fitness will do all
we can to make your ownership experience as pleasant as possible for many years to come. If not
purchased direct from Spirit Fitness, the local dealership where you purchased this elliptical trainer is
your administrator for all Spirit Fitness warranty and service needs. Their responsibility is to provide
you with the technical knowledge and service personnel to make your experience more informed and
any difculties easier to remedy.
Please take a moment at this time to record the name of the dealer, their telephone number, and the
date of purchase below to make any future, needed contact easy. We appreciate your support and we
will always remember that you are the reason that we are in business.
Yours in Health,
Spirit Fitness
NAME OF DEALER _____________________________________
DEALER PHONE # _____________________________________
PURCHASE DATE _____________________________________
3
www.spirittness.com
IMPORTANT SAFETY
INSTRUCTIONS
WARNING
• Before beginning this or any exercise program,
consult a physician. This is especially important for
persons over the age of 35 or persons with pre-
existing health conditions.
• Keep children away from the elliptical trainer. There
are obvious pinch points and other caution areas that
can cause harm.
• Keep hands away from all moving parts.
• Never drop or insert any object into any openings.
• Do not use outdoors.
• Do not attempt to use your elliptical trainer for any
purpose other than for the purpose it is intended.
• The hand pulse sensors are not medical devices.
Various factors, including the user’s movement, may
affect the accuracy of heart rate readings. The
pulse sensors are intended only as exercise aids in
determining heart rate trends in general.
• Wear proper shoes. High heels, dress shoes, sandals
or bare feet are not suitable for use on your elliptical.
Quality athletic shoes are recommended to avoid leg
fatigue.
• This appliance is not intended for use by persons with
reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Keep children under the age of 13 away from
this machine.
• Maximum User Weight: 450 lb
SAVE THESE INSTRUCTIONS - THINK SAFETY!
IMPORTANT ELECTRICAL
INSTRUCTIONS
WARNING
Be aware that the generator is producing AC power
while the elliptical trainer is being used. Do not
service the elliptical trainer while the generator is
spinning; serious electric shock could occur.
NEVER expose this elliptical trainer to rain or
moisture. This product is NOT designed for use
outdoors, near a pool or spa, or in any other high
4
Spirit Fitness
WARNING
This product can expose you to chemicals including
Toluene and Acrylamide which are known to the
State of California to cause Cancer and birth
defects or other reproductive harm. For more
information, go to www.P65Warnings.ca.gov
humidity environment. The operating temperature
specication is 40 to 120 degrees Fahrenheit, and
humidity is 95% non-condensing (no water drops
forming on surfaces).
IMPORTANT OPERATION
INSTRUCTIONS
• NEVER operate this elliptical trainer without reading
and completely understanding the results of any
operational change you request from the computer
console.
• Understand that changes in resistance do not occur
immediately. Set your desired resistance level on the
computer console and release the adjustment button.
The computer will obey the command gradually.
• Use caution while participating in other activities
while pedaling on your elliptical trainer; such as
watching television, reading, etc. These distractions
may cause you to lose balance which
may result in serious injury.
• Do not use excessive pressure on console control
buttons. They are precision set to function properly
with little nger pressure.
5
www.spirittness.com
RECORD YOUR SERIAL NUMBER
Please record the serial number of this tness product in the space provided below. The serial number is
located on the front of the elliptical trainer.
SERIAL NUMBER:
REGISTER YOUR PURCHASE
The self-addressed product registration card must be completed in full and returned to Spirit Fitness. You can
also go to www.spirittness.com/warranty under the Support tab to register online.
6
Spirit Fitness

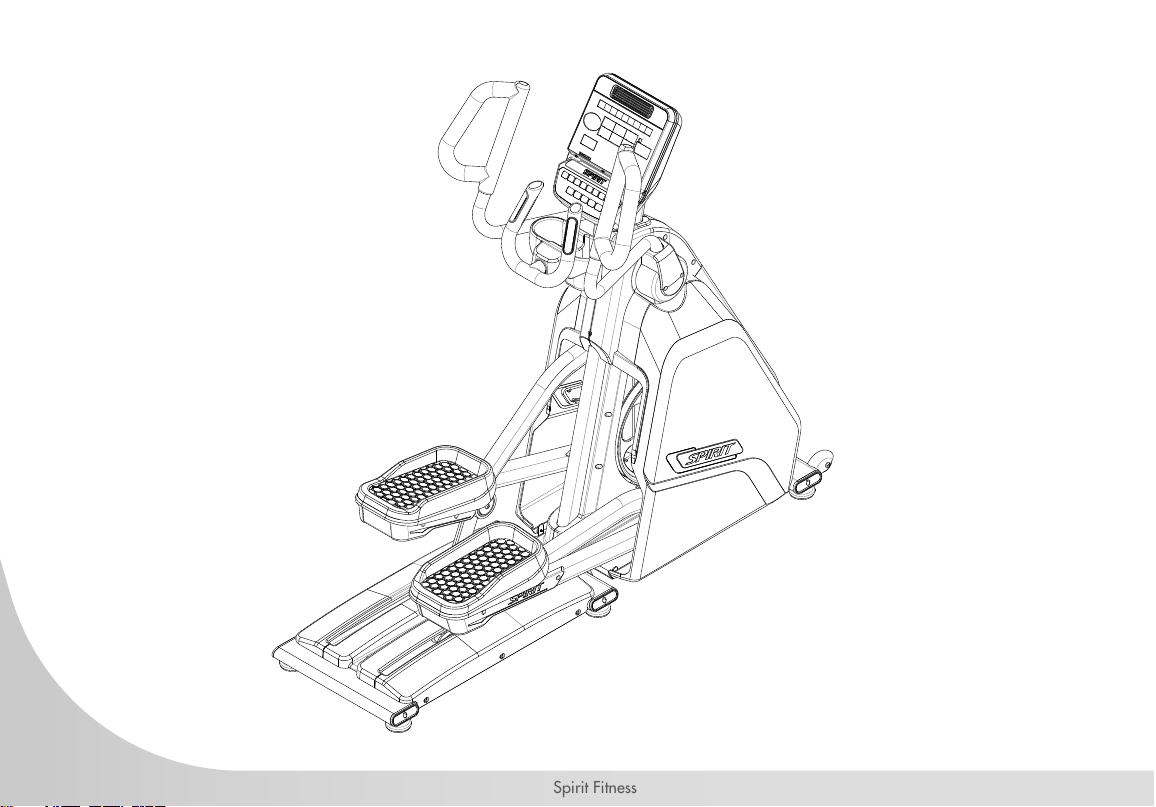

CE900 PRE-ASSEMBLY
TOOLS INCLUDED:
17mm Wrench (2)
Phillips Screwdriver
5mm Allen Wrench
6mm Allen Wrench
8mm Allen Wrench
PARTS INCLUDED:
1 Main Frame
1 Console
1 Console Mast
1 Center Handle Bar
2 Side Handle Bars
1 Handle Bar Bracket
1 Cup Holder
2 Console Mast Covers
2 Console Bracket Covers
1 Hardware Kit
2 Swing Arm Hinge
Covers
UNPACKING
1. Cut the straps, then along the dotted line on the bottom of the box; lift the box over
the unit and unpack.
2. Locate the hardware package. The hardware is separated into four steps. Remove
the tools rst. Remove the hardware for each step as needed to avoid confusion.
The numbers in the instructions that are in parenthesis (#) are the item number from
the assembly drawing for reference.
7
www.spirittness.com
CE900 STEP ONE
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
46 SELF-TAPPING SCREW
3.5X12L
2
54 BOLT
M10Xp1.5X20L
12
57 LOCK WASHER
Ø10XØ16.5X2T
4
58 WASHER
Ø4XØ14X1.0T
2
65 WASHER
Ø10.2XØ19X1.5T
4
1. Unwind wiring harness and run wires up through
CONSOLE MAST (9). Bolt CONSOLE MAST (9)
to MAIN FRAME (1) using 4 BOLTS (54), 4 LOCK
WASHERS (57), and 4 WASHERS (65). Do not
pinch wires.
2. Run wires from CENTER HANDLEBARS (11)
through HANDLEBAR BRACKET (10), into
CONSOLE MAST (9) and out the top.
3. Install CENTER HANDLEBARS (11) to
HANDLEBAR BRACKET (10) using 4 BOLTS (52).
4. Install HANDLEBAR BRACKET (10) to CONSOLE
MAST (9) using 4 BOLTS (54).
5. Attach CUP HOLDER (99) to HANDLEBAR
BRACKET (10) using 2 SELF-TAPPING SCREWS
(46) and 2 WASHERS (58).
11
10
9
99
8
Spirit Fitness
CE900 STEP TWO
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
47 SELF-TAPPING SCREW
5X16L
2
49 SCREW
M5X12L
6
78 U-NUT
M5
2
1. Install 2 U-NUTS (78) to LEFT CONSOLE MAST
COVER (100).
2. Attach CONSOLE MAST COVERS (100 & 101) to
MAIN FRAME (1) using 2 SELF-TAPPING SCREWS
(47). Use 2 SCREWS (49) to connect covers to
each other.
3. Plug in all wires from wiring harness to CONSOLE
(111).
4. Install CONSOLE (111) to CONSOLE MAST (9)
using 4 SCREWS (49). Be careful not to pinch any
wires.
100
101
111
9
9
www.spirittness.com
CE900 STEP THREE
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
43 BOLT
M10X55L
2
44 BOLT
M10X60
4
63 WASHER
Ø10X25X1.5T
10
68 CURVED WASHER
Ø10XØ23X1.5T
2
71 NUT
M10X8T
6
1. Install LEFT SIDE HANDLEBAR (2) to SWING ARM
(12).
a) First install 2 longer BOLTS (44) with a WASHER
(63) on both sides of SWING ARM (12) and a
NUT (71). Do not tighten yet.
b) Then install 1 SHORTER BOLT (43) with a
WASHER (63) through the SWING ARM (12)
and CROSSTRAINING HANDLEBAR (2), using
a CURVED WASHER (68) and a NUT (71) on
the back side.
c) Tighten after all hardware is installed.
2. Repeat process for RIGHT SIDE HANDLEBAR (3).
2
3
10
Spirit Fitness
CE900 STEP FOUR
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
46 SELF-TAPPING SCREW
3.5X12L
2
49 SCREW
M5X12L
6
1. Attach CONSOLE BRACKET COVERS (91 & 92)
to CONSOLE MAST (9) using 2 SCREWS (49).
Connect covers together using 2 SELF-TAPPING
SCREWS (46).
2. Attach left SWING ARM HINGE COVER (93) to
SWING ARM (12) using 2 SCREWS (49). Repeat
for right side.
91
93
93
98
92
11
www.spirittness.com

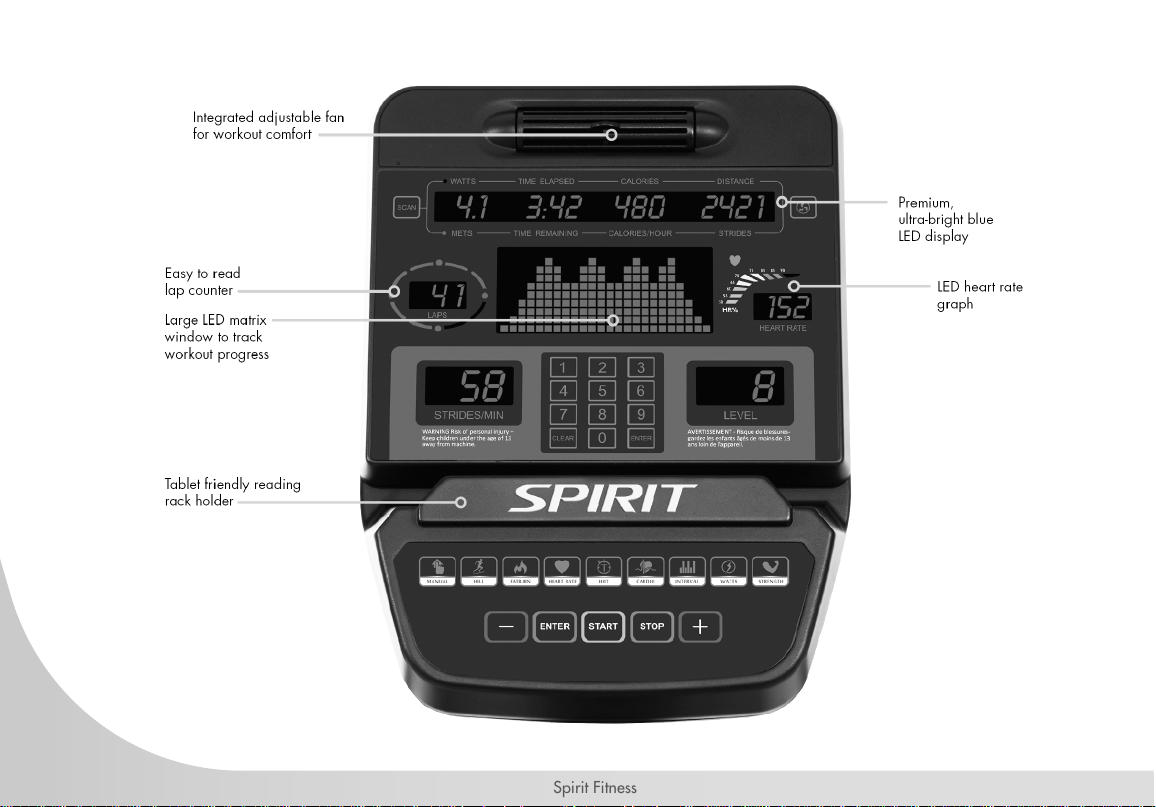

CE900 CONSOLE OPERATION
12
Spirit Fitness
13
www.spirittness.com
POWER
Spirit Fitness commercial elliptical trainers have a built-in generator for power and do not need to be
plugged into an AC outlet. To power up the elliptical trainer simply start to pedal, the console will turn on
automatically.
When initially powered on, the console will perform an internal self-test. During this time the display may
not light up for a few seconds. Continue pedaling and the display will light up. Once powered on, the
Message Window will be scrolling the start-up message. You may now begin your
workout program.

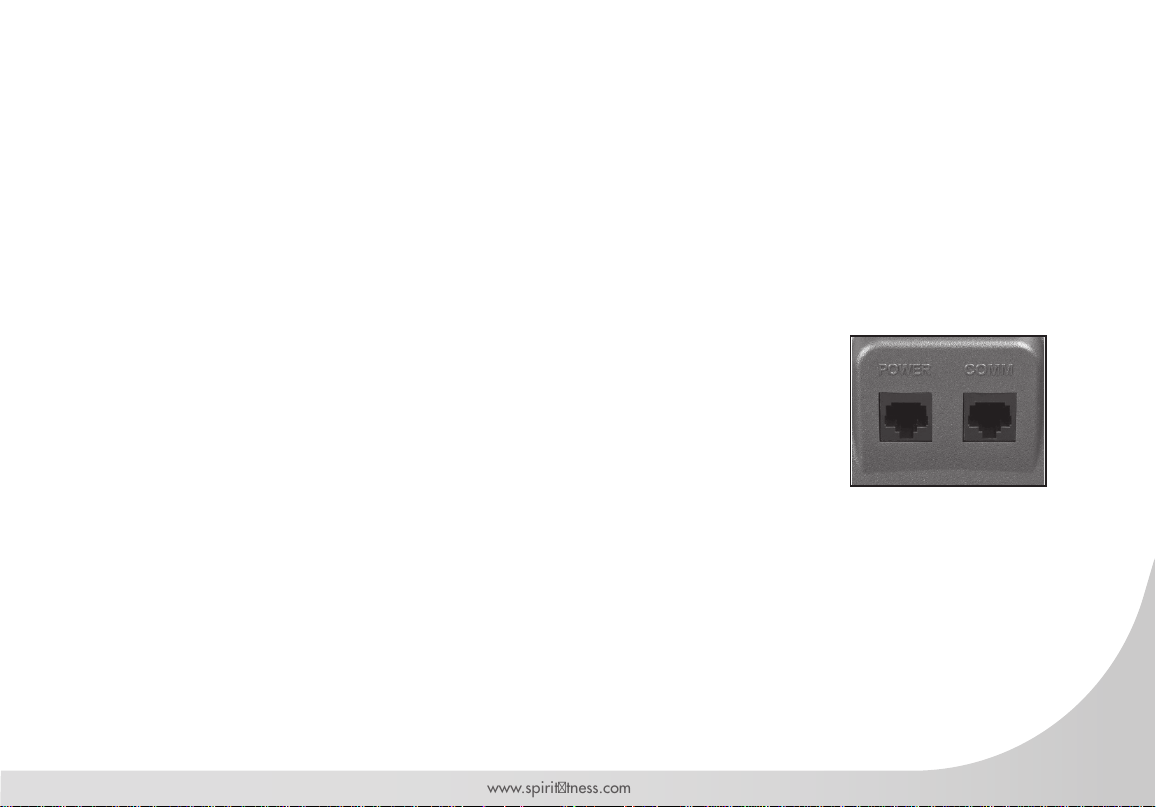

C-SAFE FEATURE
Your console is equipped with a C-SAFE feature. The Power (POWER) port can be
used for powering a remote controlled audio-visual system by connecting a cable
from the remote to the Power port at the back of the console. The Communication
port (COMM) can be used to interact with tness software applications.
14
Spirit Fitness
QUICK START
This is the quickest way to start a workout. After the console powers up you just press the Start button
to begin. This will initiate the Quick Start mode. In Quick Start the Time will count up from zero, all
workout data will start to accrue and the workload may be adjusted manually by pressing the Up and
Down buttons. The dot matrix display will show just the bottom row lit. As you increase the workload
more rows will light indicating a harder workout. The elliptical trainer will get harder to pedal as the
rows increase. The dot matrix has 24 columns of lights and each column represents 1 minute. At the
end of the 24th column (or 24 minutes of work) the display will wrap around and start at the rst
column again.
There are 40 levels of resistance – displayed as 10 rows of lights – available for plenty of variety.
The rst 10 levels are very easy workloads, and the changes between levels are set to a good
progression for de-conditioned users. Levels 10-20 are more challenging but the increases from one
level to the next remain small. Levels 20-30 start getting tough as the levels jump more dramatically.
Levels 30-40 are extremely hard and are good for short interval peaks and elite athletic training.
BASIC INFORMATION
The Dot Matrix, or Prole Window, will display the workout Prole. The Message window displays
pertinent exercise data. There is a Strides Per Minute window for pedal speed and a Level window
indicating machine resistance. A Heart Rate data window and bar graph show how hard you are
working and a lap counter provides distance information.
The Message Window will initially be displaying Watts, Time Elapsed, Calories and Distance
information. On the left of the Message Window is a button labeled Scan. When the Scan button is
pressed the next set of information will appear: METs, Time Remaining, Calories/Hour and Strides
15
www.spirittness.com
(total stride count). Pressing the Scan button, the Scan mode is activated and the Message Window will
show each set of data for four seconds then switch to the next set of data in a continuous loop. Pressing
the Scan button again will bring you back to the beginning.
To the right of the Prole Window is a Heart Icon, Heart Rate number display and a Bar Graph. The
elliptical trainer has a built-in heart rate monitoring system. Simply grasping the hand pulse sensors,
or wearing a heart rate chest belt transmitter, will start the Heart Icon blinking (this may take a few
seconds). The Heart Rate window will display your heart rate, or Pulse, in beats per minute. The Bar
Graph represents the percentage of your maximum heart rate you are currently achieving.
NOTE: You must enter your age during program setup for the Bar Graph to be accurate..
16
Spirit Fitness
The Stop button button actually has several functions. Pressing the Stop button once during a program
will pause the program for 5 minutes (when you stop pedaling without AC power the display will turn
off but the memory will be saved for 5 minutes just like the pause mode). If you need to get a drink,
answer the phone, or any of the many things that could interrupt your workout, this is a great feature.
To resume your workout during Pause just press the Start button or start pedaling. If the Stop button
is pressed twice during a workout, the program will end and the console will return to the start-up
screen. If the Stop button button is held down for 3 seconds, the console will perform a complete
Reset. During data entry for a program the Stop button performs a Previous Screen function. This
allows you to go back one step in the programming each time you press the Stop button button.
The Program Buttons are used to preview each program. When you rst turn the console on, you may
press each program button to preview what the program prole looks like. If you decide that you want
to try a program, press the corresponding program button and then press the Enter button to select the
program and enter into the data set-up mode.
17
www.spirittness.com
NUMBER KEY PAD
When you are in the data set-up mode setting new data such as age, weight etc., you can use these
buttons to enter the numbers quickly.
The console includes a built-in fan to help keep you cool. To turn the fan on, press the button on the upper
right side of the console. This is a 3-speed fan and each time you press the button the airow will increase
accordingly. After the third setting the fan will turn off when the button is pressed again.
PROGRAMMING THE CONSOLE
Each of the programs can be customized with your personal information and changed to suit your needs.
Some of the information asked for is necessary to ensure the readouts are correct. You will be asked for
your Age and Weight. Entering your Age ensures that the Heart Rate bar graph shows the correct number.
Your Age is also necessary during the Heart Rate control program to ensure the correct settings are in the
program for your Age. Otherwise the work settings could be too high or low for you; entering your Weight
aides in calculating a more correct Calorie reading. Although we cannot provide an exact calorie count we
do want to be as close as possible.
CALORIE NOTE: Calorie readings on every piece of exercise equipment, whether it is in a gym or at home,
are not accurate and tend to vary widely. They are meant only as a guide to monitor your progress from
workout to workout. The only way to measure your calorie burn accurately is in a clinical setting connected
to a host of machines. This is because every person is different and burns calories at a different rate. Some
good news is that you will continue to burn calories at an accelerated rate for at least an hour after you
have nished exercising!
18
Spirit Fitness
ENTERING A PROGRAM & CHANGING SETTINGS
When you enter a program (by pressing a program button then Enter button) you have the option of
entering your own personal settings. If you want to work out without entering new settings, then just
press the Start button. This will bypass the programming of data and take you directly to the start
of your workout. If you want to change the personal settings, then just follow the instructions in the
Message Window. If you start a program without changing the settings, the default, or pre-saved
settings will be used.
MANUAL
The Manual program works as the name implies, manually. This means that you control the workload
yourself and not the computer. To start the Manual program, follow the instructions below or just press the
Manual button then the Enter button and follow the directions in the Message Window.
1. Press the Manual button then press the Enter button.
2. The Message Window will ask you to enter your Age. You may enter your Age, using the Up and Down buttons or
the numeric button pad, then press the Enter button to accept the new number and proceed on to the next screen.
3. You are now asked to enter your Weight. You may adjust the Weight number using the Up and Down buttons, or
the numeric button pad, then press enter to continue.
4. The next setting is Time. You may adjust the Time and press enter to continue.
5. Now you are nished editing the settings and can begin your workout by pressing the Start button. You can also
go back and modify your settings by pressing the Enter button. NOTE: At any time during the editing of data you
can press the Stop button to go back one level, or screen.
6. The program automatically starts you at level one. This is the easiest level and it is a good idea to stay at level one
for a while to warm up. If you want to increase the work load at any time press the Up button; the Down button
will decrease the workload.
7. When the program ends you may press Start to begin the same program again or Stop to exit the program.
19
www.spirittness.com
PRESET PROGRAMS
The elliptical trainer has ve different programs that have been designed for a variety of workouts.
These ve programs have factory preset work level proles for achieving different goals.
HILL
This program follows a triangle or pyramid type of gradual progression
from approximately 10% of maximum effort (the level that you chose
before starting this program) up to a maximum effort which lasts for
10% of the total workout time, then a gradual regression of resistance
back to approximately 10% of maximum effort.
FAT BURN
This program follows a quick progression up to the maximum
resistance level (default or user input level) that is sustained for 2/3 of
the workout. This program will challenge your ability to sustain your
energy output for an extended period of time.
CARDIO
This program presents a quick progression up to near maximum
resistance level (default or user input level). It has slight uctuations
up and down to allow your heart rate to elevate, and then recover
repeatedly, before beginning a quick cool down. This will build up
your heart muscle and increase blood ow and lung capacity.
20
Spirit Fitness
STRENGTH
This program has a gradual progression of resistance up to 100% of maximum effort that is sustained for
25% of workout duration. This will help build strength and muscular endurance in the lower body and
glutes. A brief cool down follows.
INTERVAL
This program takes you through high levels of intensity followed
by recovery periods of low intensity. This program utilizes and
develops your “Fast Twitch” muscle bers which are used when
performing tasks that are intense and short in duration. These
deplete your oxygen level and spike your heart rate, followed by
periods of recovery and heart rate drop to replenish oxygen.
Your cardiovascular system gets programmed to use oxygen
more efciently.
PROGRAMMING PRESET PROGRAMS
1. Select the desired program button then press the Enter button.
2. The Message Window will ask you to enter your Age. You may adjust the age setting, using the Up and
Down buttons,then press the Enter button to accept the new number and proceed on to the next screen.
3. You are now asked to enter your Weight. You may adjust the weight number using the Up and Down buttons,
then press Enter to continue.
4. Next is Time. You may adjust the Time and press Enter to continue.
5. Now you are asked to adjust the Max Level. This is the peak exertion level you will experience during the
program (at the top of the hill). Adjust the level and then press Enter.
6. Now you are nished editing the settings and can begin your workout by pressing the Start button. You can
also go back and modify your settings by pressing the Stop button to go back one level, or screen.
21
www.spirittness.com
7. If you want to increase or decrease the workload at any time during the program press the Up or Down
button. This will change the workload settings of the entire prole, although the prole picture on the screen
will not change. The reason for this is so that you can see the entire prole at all times. If the prole picture
is changed it will look distorted and not a true representation of the actual prole. When you make a
change to the workload, the Message Window will show both the current column and program maximum
levels of work.
8. During the program you will be able to scroll through the data in the Message Window by pressing the
Scan button next to the Message Window.
9. When the program ends the Message Window and data windows will show a summary of your workout.
The summary will be displayed for a short time then the console will return to the start-up display.
HIIT PROGRAM
The HIIT, or High Intensity Interval Training, program takes
advantage of the latest trend in tness. During the program you will
perform short bursts of high intensity sprinting followed by short rest
periods. HIIT is a fully customizable interval training program. You
can enter the number of intervals, time of each interval Sprint and
Rest periods and the work intensity of the levels.
1. Press the HIIT button then Enter. The Message Window will ask you to enter your Age. You may enter your Age,
using the Up and Down buttons or the numeric button pad, then press the Enter button to accept the new number
and proceed on to the next screen.
2. You are now asked to enter your Weight. You may adjust the Weight number using the Up and Down buttons or
the numeric button pad then press enter to continue.
3. Next you are asked for the number of intervals you want to do. The default is 10 and the range available is
3 to 15. One interval equals 1 Sprint and 1 Rest segment.
4. Now you are asked to adjust the Sprint Level. This is the resistance level you will experience during the Sprint
segments of the program. Adjust the level and then press Enter.
22
Spirit Fitness
5. Now you are asked to adjust the Rest Level. This is the resistance level you will experience during the Rest
segments of the program. Adjust the level and then press Enter.
6. Next is entering the Interval time. The Message window shows: Sprint :30 | Rest :30. The Sprint time will be
blinking. You may use the + - buttons to adjust the Sprint time from 20 to 60 seconds then press Enter. The time
for the Rest period will blink and you can adjust the time using the +- buttons and press Enter.
7. The Message window will now display the total time for the HIIT workout; now press Start to begin. There is a
3-minute warm-up period before the rst Sprint begins. The resistance level during warm-up is set to 5 but can be
adjusted manually.
8. The dot matrix display in the HIIT program is a speed indication display, not a power or resistance display.
During the Sprint the dot matrix display will show a blinking LED at the rst Sprint segment. That is the target
speed LED and indicates 90 pedal rpm. As you pedal faster the lights below the target speed LED light up the
faster you go. When you exceed 90 rpm the target LED will move up showing you are past the target speed.
You should maintain at least 90 rpm throughout the Sprint segments. The rest segments of the HIIT program are set
to resistance level 5 and you can pedal at any speed you choose as your heart rate recovers. You can manually
adjust the resistance levels during the Sprint and Rest segments.
9. At the end of the last Sprint there is a 3-minute cool-down period. You can bypass this by pressing the Stop
button and the workout summary will be displayed.
23
www.spirittness.com
HEART RATE PROGRAM OPERATION
To start the HR program, follow the instructions below or just press the HR button then the Enter button
and follow the directions in the Message Window.
1. Press the HR button then press the Enter button.
2. The message window will ask you to enter your Age. You may enter your Age, using the Up/Down buttons or
the numeric button pad, then press the Enter button to accept the new number and proceed on to the next screen.
3. You are now asked to enter your Weight. You may adjust the Weight number using the Up/Down buttons or
the numeric button pad, then press Enter to continue.
4. Next is Time. You may adjust the Time and press Enter to continue.
5. Now you are asked to adjust your target Heart Rate. This is the heart rate level you will try to maintain
during the program. Adjust the value and then press Enter.
6. Now you are nished editing the settings and can begin your workout by pressing the Start button. You can
also go back and modify your settings by pressing the Enter button. Note: At any time during the editing of
data you can press the Stop button to go back one level, or screen.
7. If you want to increase or decrease the resistance at any time during the program press the Up/Down button.
This will allow you to change your target heart rate at any time during the program.
8. The program will automatically increase or decrease the amount of resistance, depending on whether your
heart rate is above or below your target.
9. During the HR program you will be able to scroll through the data in the Message Window by pressing the
adjacent Display button.
24
Spirit Fitness
CONSTANT WATT PROGRAM
The Watts program maintains a constant workload. The resistance Level adjusts when the speed is
changed. To start the Constant Watt program, follow the instructions below or just press the Watt
button then the Enter button and follow the directions in the Message Window.
1. Press the Watt button then press the Enter button.
2. The Message Window will ask you to enter your Age. Input your Age, using the Up/Down buttons or the numeric
button pad, then press the Enter button to accept the new age and proceed on to the next screen.
3. You are now asked to enter your Weight. Adjust Weight using the Up/Down buttons or the numeric button pad,
then press Enter to continue.
4. Next is Time. Adjust the Time then press Enter to continue.
5. Now you are asked to adjust the Target Watt Level. This is the constant power you will experience during the
program. Adjust using the Up/Down buttons, then press Enter.
6. Now you are nished editing the settings and can begin your workout by pressing the Start button. You can also
go back and modify your settings by pressing the Enter button. NOTE: At any time during the editing of data,
you can press the Stop button to go back one level, or screen.
7. If you want to increase or decrease the workload at any time during the program, press the Up/Down button.
This will allow you to change your target Watt level at any time during the program.
8. During the Constant Power program you will be able to scroll through the data in the Message Window by
pressing the adjacent Scan button.
9. When the program ends, you may press Start to begin the same program again or Stop to exit the program.
25
www.spirittness.com
GENERAL MAINTENANCE
Wipe down all areas in the sweat path with a damp cloth after each workout. If a squeak, thump, clicking or
rough feeling develops the main cause is most likely one of two reasons:
1. The hardware was not sufciently tightened during assembly. All bolts that were installed during assembly need
to be tightened as much as possible. It may be necessary to use a larger wrench than the one provided if you
cannot tighten the bolts sufciently. It is important to note that 90% of calls to the service department for noise issues
can be traced to loose hardware.
2. Dirt build-up on the rear rails and polyurethane wheels are also a source of noise. Noise from build-up on the
aluminum tracks can cause a thumping sound that you would think is coming from inside the main body of the
machine because noise travels, and is amplied, in the tubing of the frame. Clean the tracks and wheels with a lint
free cloth and rubbing alcohol. Stubborn build-up can be removed with your thumbnail or a non-metallic scraper, like
the back edge of a plastic knife.
If squeaks or other noises persist, check that the unit is properly leveled. There are 6 leveling pads on the bottom of the
machine, use a 14mm wrench (or adjustable wrench) to adjust the levelers.
SANITIZING YOUR SPIRIT FITNESS EQUIPMENT
• Unupholstered high-contact surfaces (hard plastics) can be sanitized using a 75% isopropyl alcohol solution and a
clean, dry cloth.Spray surfaces to be sanitized, and use the dry cloth to wipe clean. Allow surfaces to dry before
using.
• For upholstered or soft-plastic surfaces, use a conditioner after sanitizing.Be sure to follow the instructions provided
by the conditioner manufacturer to ensure proper use of the conditioner.
• Alternatively, you can make your own spray by mixing the proper ratio of isopropyl alcohol and distilled water to
reach a 75% solution.
• For more details on sanitization, or to learn how to make your own spray solution, please visit https://support.
spirittness.com/hc/en-us/articles/4406787148564 .
26
Spirit Fitness
MAINTENANCE MODE MENU
The console has built-in maintenance/diagnostic software. The software will allow you to change the
console settings from English to Metric and turn off the beeping of the speaker when a button is pressed
for example. To enter the Maintenance Mode, pedal the elliptical and press and hold down the Start,
Stop and Enter buttons. Keep holding the buttons down for about 5 seconds and the Message Center will
display Maintenance Mode. Press the Enter button to access the menu below:
1. Button Test (Will allow you to test all the buttons to make sure they are functioning)
2. Display Test (Tests all the display functions)
3. Sleep Mode (Turn on to have the console power down automatically after 20 minutes of inactivity)
4. Odometer Reset (Resets the odometer)
5. Units (Sets the display to read out in English or Metric display measurements)
6. Speaker (Turns off the speaker so no beeping sound is heard)
7. Brake Test (Tests the brake resistance)
8. Sensor Test (Tests the speed sensor function)
9. Unit Type (Sets machine type; Bike or Elliptical)
27
www.spirittness.com
NORMAL RESPONSIBILITIES OF THE FACILITY
The facility is responsible for the items listed below:
1. The warranty registration card must be completed and returned to the address listed on the card within 10 days
of the original purchase, or completed online to validate the manufacturer’s limited warranty.
2. Proper use of the tness equipment in accordance with the instructions provided in this manual
3. Proper installation in accordance with instructions provided with the tness equipment and with all local electric
codes.
4. Expenses for making the tness equipment accessible for servicing, including any item that was not part of the
tness equipment at the time it was shipped from the factory.
5. Damages to the tness equipment nish during shipping, installation or following installation.
6. Routine maintenance of this unit as specied in this manual.
WARRANTY
Commercial
FRAME
Lifetime
GENERATOR BRAKE
5 Years
PARTS
3 Year
LABOR
3 Years
ELLIPTICAL TRAINER WARRANTY EFFECTIVE NOVEMBER 08, 2021
Spirit Fitness warrants this elliptical trainer for a period of time listed below from the date of sale, as determined
by sale receipt, or in the absence of a sales receipt eighteen (18) months from the original factory shipping
date. Spirit Fitness’ responsibilities include providing new or remanufactured parts, at Spirit Fitness’ option, and
technical support to our independent dealers and servicing organizations. In the absence of a dealer or service
organization, these warranties will be administered by Spirit Fitness directly. The warranty period applies to the
following components:
*Prisons and correctional facilities are excluded from warranty coverage.
28
Spirit Fitness
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND
INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this
limitation or exclusion may not apply to you.
2. Service call reimbursement to the facility. Service call reimbursement to the dealer that does not involve malfunction
or defects in workmanship or material, for units that are beyond the warranty period, for units that are beyond the
service call reimbursement period, for tness equipment not requiring component replacement, or tness equipment
not in non-dues paying facility or household use.
3. Damages caused by services performed by persons other than authorized Spirit Fitness service companies; use of
parts other than original Spirit Fitness parts; or external causes such as corrosion, discoloration of paint or plastic,
alterations, modications, abuse, misuse, accident, improper maintenance, inadequate power supply, or acts of
God.
4. Products with original serial numbers that have been removed or altered.
5. Products that have been: sold, transferred, bartered, or given to a third party.
6. Products that do not have a warranty registration card on le at Spirit Fitness. Spirit Fitness reserves the right to
request proof of purchase if no warranty record exists for the product.
7. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
8. Product used in prisons and correctional facilities
Warranties outside of the United States may vary. Please contact your local dealer for details.
29
www.spirittness.com
SERVICE
Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the
date of factory shipping as determined by the serial number establishes the labor warranty period should
service be required. If service is performed, it is in your best interest to obtain and keep all receipts. This
written warranty gives you specic legal rights. You may also have other rights that vary from state to state.
Service under this warranty must be obtained by following these steps, in order:
1. Contact your selling authorized Spirit Fitness dealer. OR
2. Contact your local authorized Spirit Fitness service organization.
3. If there is a question as to where to obtain service, contact our service department at (870) 935-1107.
4. Spirit Fitness’ obligation under this warranty is limited to repairing or replacing, at Spirit Fitness’ option, the product
through one of our authorized service centers. All repairs must be preauthorized by Spirit Fitness.
5. The owner is responsible for adequate packaging upon return to Spirit Fitness. Spirit Fitness is not responsible for
damages in shipping. Make all freight damage claims with the appropriate freight carrier. DO NOT SHIP ANY
UNIT TO OUR FACTORY WITHOUT A RETURN AUTHORIZATION NUMBER. All units arriving without a return
authorization number will be refused.
6. For any further information, or to contact our service department by mail, send your correspondence to:
SPIRIT FITNESS, INC.
P.O. Box 2037
Jonesboro, AR 72402-2037
Product features or specications as described or illustrated are subject to change without notice. All warranties are made by Spirit Manufacturing, Inc.
This warranty applies only in the 48 contiguous United States. NOTE: This does not apply to Alaska or Hawaii.
800.258.4555
spiritservice@spirittness.com
www.spirittness.com
Spirit Fitness
3000 Nestle Road
Jonesboro, AR 72401
CE900 Owners Manual
© 2021 All Rights Reserved
Revision: 11.08.2021
