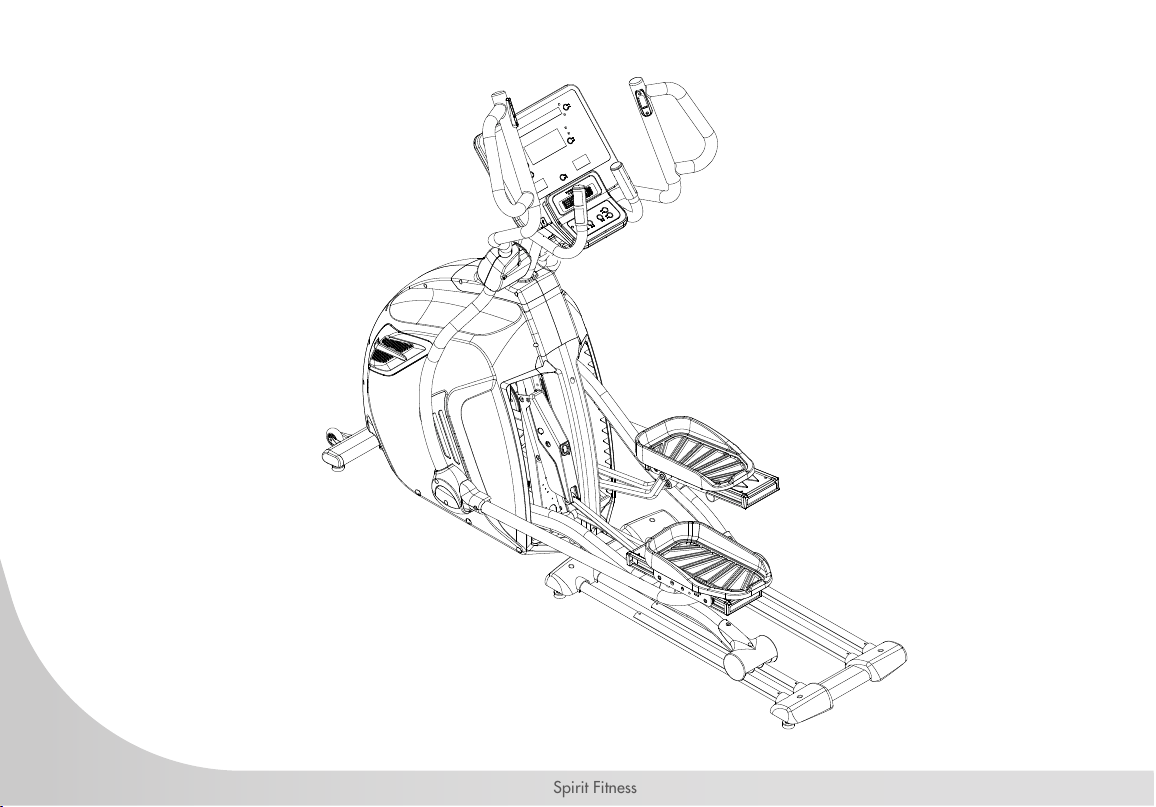

CE850 ELLIPTICAL TRAINER
OWNER’S MANUAL
Spirit Fitness
3
www.spirittness.com
TABLE OF CONTENTS
5 PRODUCT REGISTRATION
6 IMPORTANT SAFETY INSTRUCTIONS
7 IMPORTANT ELECTRICAL INSTRUCTIONS
8 IMPORTANT OPERATION INSTRUCTIONS
10 CE850 ASSEMBLY INSTRUCTIONS
18 CONSOLE OPERATION
23 PROGRAMMABLE FEATURES
34 HEART RATE PROGRAMS
39 GENERAL MAINTENANCE
42 MANUFACTURER’S LIMITED WARRANTY

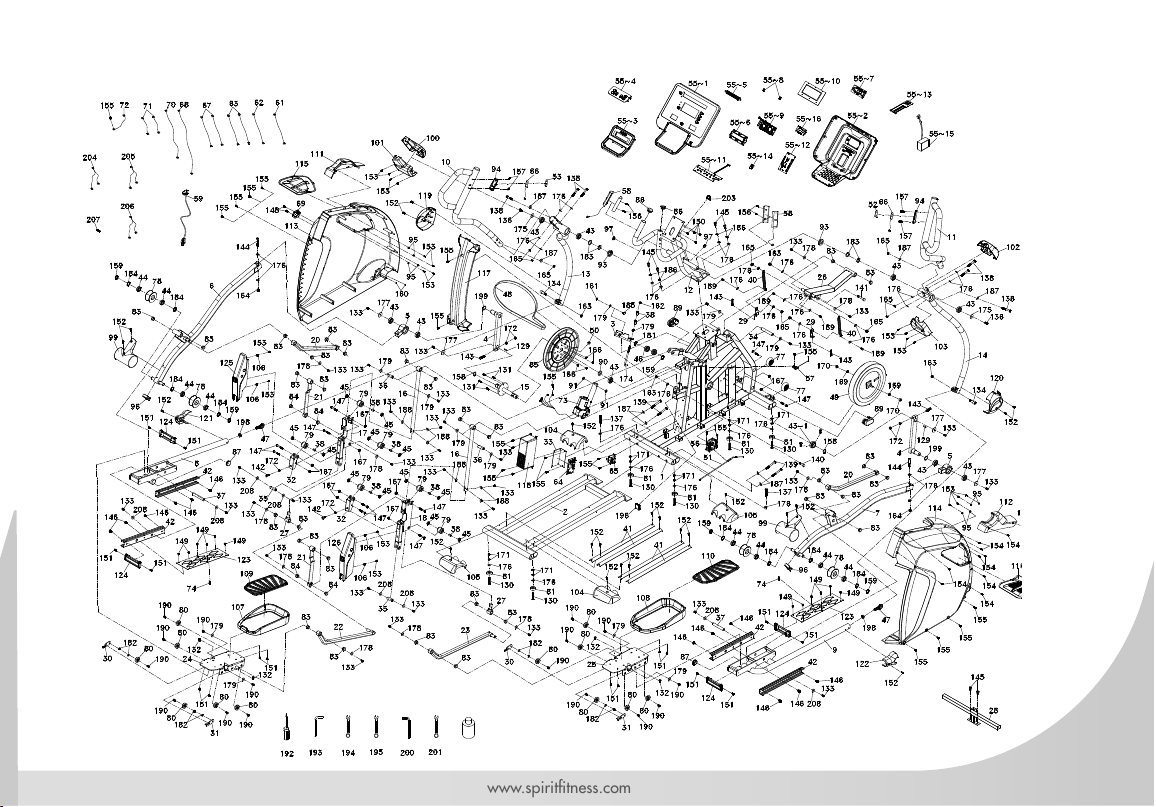

45 EXPLODED VIEW
46 PARTS LIST
Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any
customizing, adjustments, repair or maintenance that is not described in this manual.
4
Spirit Fitness

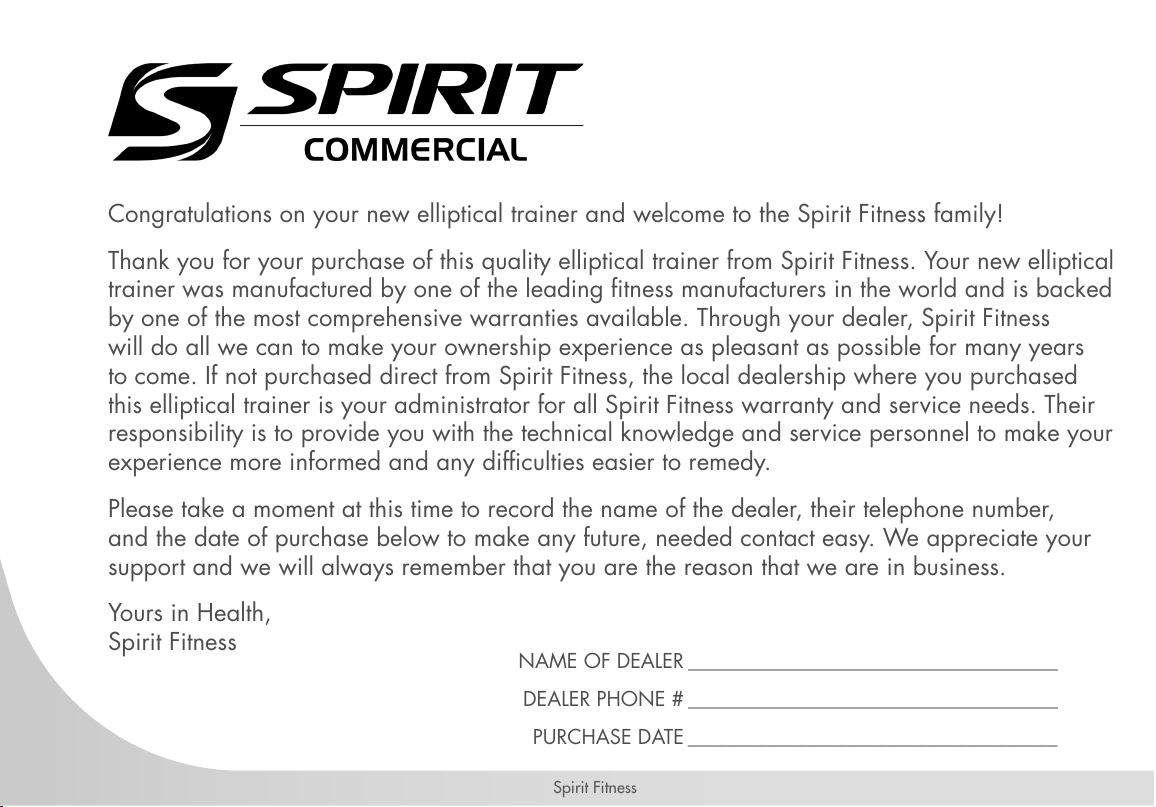

Congratulations on your new elliptical trainer and welcome to the Spirit Fitness family!
Thank you for your purchase of this quality elliptical trainer from Spirit Fitness. Your new elliptical
trainer was manufactured by one of the leading tness manufacturers in the world and is backed
by one of the most comprehensive warranties available. Through your dealer, Spirit Fitness
will do all we can to make your ownership experience as pleasant as possible for many years
to come. If not purchased direct from Spirit Fitness, the local dealership where you purchased
this elliptical trainer is your administrator for all Spirit Fitness warranty and service needs. Their
responsibility is to provide you with the technical knowledge and service personnel to make your
experience more informed and any difculties easier to remedy.
Please take a moment at this time to record the name of the dealer, their telephone number,
and the date of purchase below to make any future, needed contact easy. We appreciate your
support and we will always remember that you are the reason that we are in business.
Yours in Health,
Spirit Fitness
NAME OF DEALER _____________________________________
DEALER PHONE # _____________________________________
PURCHASE DATE _____________________________________
5
www.spirittness.com
RECORD YOUR SERIAL NUMBER
Please record the serial number of this tness product in the space provided below.
Serial Number:
REGISTER YOUR PURCHASE
The self-addressed product registration card must be completed in full and returned to Spirit Fitness. You
can also go to http://www.spirittness.com/warranty under the Support tab to register online.
6
Spirit Fitness
IMPORTANT SAFETY
INSTRUCTIONS
WARNING
When using an electrical appliance, basic
precautions should always be followed, including
the following:
Read all instructions before using this appliance.
DANGER – To reduce the risk of electric shock:
Always unplug this appliance from the electrical
outlet immediately after using and before cleaning.
WARNING – To reduce the risk of burns, re,
electric shock, or injury to persons, install the
elliptical on a at level surface with access to a
110-volt, 5-amp grounded outlet with only the
elliptical plugged into the circuit.
DO NOT USE AN EXTENSION CORD UNLESS
IT IS A 14AWG OR BETTER, WITH ONLY ONE
OUTLET ON THE END:
• Do not operate elliptical on deeply padded, plush or
shag carpet. Damage to both carpet and elliptical
may result.
• Keep children away from the elliptical. There are
obvious pinch points and other caution areas that
can cause harm.
• Keep hands away from all moving parts.
• Never operate the elliptical if it has a damaged cord
or plug. If the elliptical is not working properly, call
your dealer.
• Keep the cord away from heated surfaces.
• Do not operate where aerosol spray products are
being used or where oxygen is being administered.
Sparks from the motor may ignite a highly gaseous
environment.
• Never drop or insert any object into any openings.
• Do not use outdoors.
• To disconnect, turn all controls to the off position,
then remove the plug from the outlet.
• Do not attempt to use your elliptical for any purpose
other than for the purpose it is intended.
• The hand pulse sensors are not medical devices.
Their purpose is to provide you with an approximate
measurement in relation to your target heart rate. Use
of a chest transmitter strap (sold separately) is a much
more accurate method of heart rate analysis. Various
factors, including the user’s movement, may affect the
7
www.spirittness.com
accuracy of heart rate readings. The pulse sensors
are intended only as exercise aids in determining
heart rate trends in general.
• Wear proper shoes. High heels, dress shoes,
sandals or bare feet are not suitable for use on your
elliptical. Quality athletic shoes are recommended to
avoid leg fatigue.
• This appliance is not intended for use by persons
with reduced physical, sensory or metal capabilities,
or lack of experience and knowledge, unless
they have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
• Keep children under the age of 13 away from
this machine.
• User Weight Limit: 450 lb
SAVE THESE INSTRUCTIONS - THINK SAFETY!
IMPORTANT ELECTRICAL
INSTRUCTIONS
WARNING
NEVER remove any cover without rst disconnecting AC
power. If voltage varies by ten percent (10%) or more,
the performance of your Elliptical may be affected.
Such conditions are not covered under your warranty.
If you suspect the voltage is low, contact your local
power company or a licensed electrician for proper
testing. NEVER expose this elliptical to rain or moisture.
This product is NOT designed for use outdoors, near a
pool or spa, or in any other high humidity environment.
The operating temperature specication is 40 to 120
degrees Fahrenheit, and humidity is 95% non-condensing
(no water drops forming on surfaces).
Circuit Breakers: Some circuit breakers used in homes
are not rated for high inrush currents that can occur
when a elliptical is rst turned on or even during use. If
your elliptical is tripping the house circuit breaker (even
though it is the proper current rating) but the circuit
breaker on the elliptical itself does not trip, you will need
to replace the home breaker with a high inrush type.
This is not a warranty defect. This is a condition we
as a manufacture have no ability to control. This part is
available through most electrical supply stores. Examples:
Grainger part # 1D237, or available online at www.squared.
8
Spirit Fitness
com part #QO120HM. The electrical outlet used should have
a dedicated 5 amp circuit breaker.
GROUNDING INSTRUCTIONS
This product must be grounded. If the elliptical
should malfunction or breakdown, grounding
provides a path of least resistance for electric
current, reducing the risk of electric shock. This
product is equipped with a cord having an
equipment-grounding plug. The plug must be
plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local
codes and ordinances.
DANGER – Improper connection of the equipment-
grounding conductor can result in a risk of electric
shock. Check with a qualied electrician or
serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify the
plug provided with the product if it will not t the
outlet; have a proper outlet installed by a qualied
electrician.

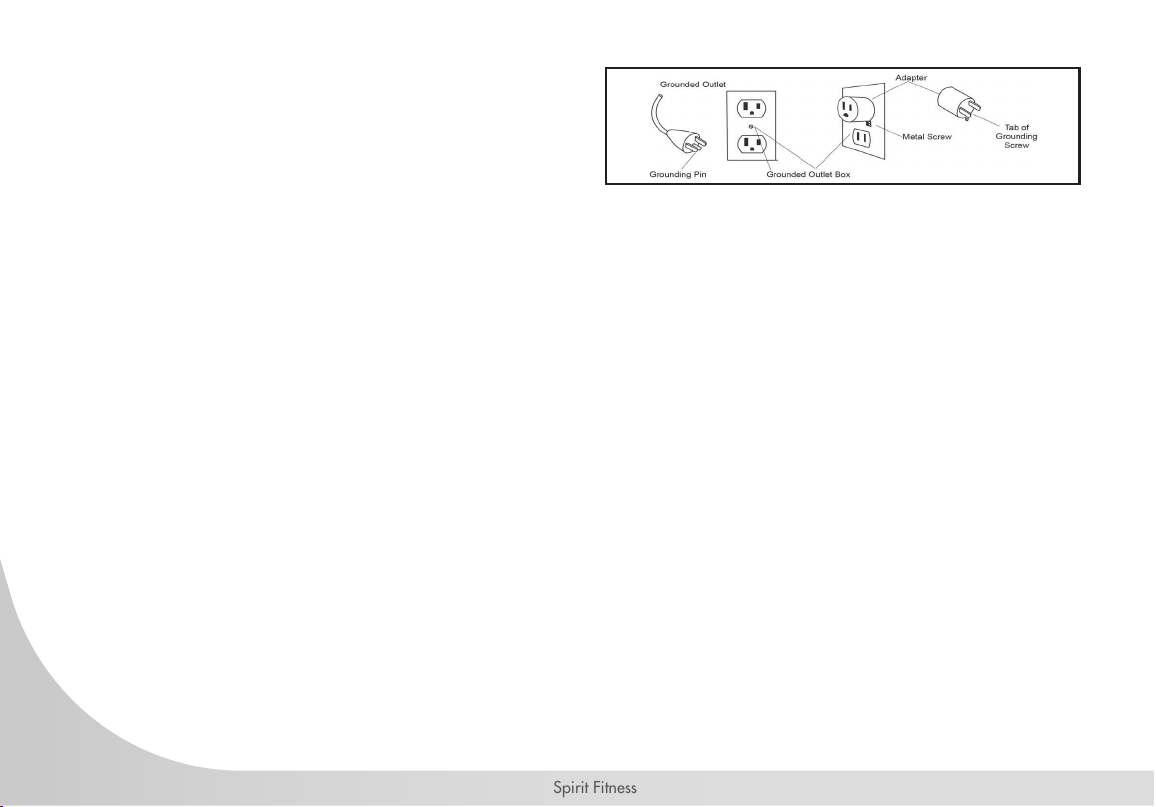

This product is for use on a nominal 110-volt/5
amp dedicated circuit, and has a grounding plug
that looks like the plug illustrated below. A temporary
adapter that looks like the adapter illustrated below
may be used to connect this plug to a 2-pole
receptacle as shown below if a properly grounded
outlet is not available. The temporary adapter should
be used only until a properly grounded outlet, (shown
below) can be installed by a qualied electrician.
The green colored rigid ear-lug, or the like, extending
from the adapter, must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used, it must be held in
place by a metal screw.
IMPORTANT OPERATION
INSTRUCTIONS
• NEVER operate this elliptical trainer without reading
and completely understanding the results of any
operational change you request from the computer.
• Understand that changes in resistance do not occur
9
www.spirittness.com
immediately. Set your desired resistance level on the computer console and release the adjustment key. The
computer will obey the command gradually.
• Use caution while participating in other activities while pedaling on your elliptical trainer; such as watching
television, reading, etc. These distractions may cause you to lose balance which may result in serious injury.
• Do not use excessive pressure on console control keys. They are precision set to function properly with little
nger pressure.
WARNING
This product can expose you to chemicals including Toluene and Acrylamide which are known to the State
of California to cause Cancer and birth defects or other reproductive harm. For more information, go to
www.P65Warnings.ca.gov
10
Spirit Fitness
CE850 PRE-ASSEMBLY
UNPACKING
1. Cut the straps, then lift the box over the unit and unpack.
2. Carefully remove all parts from the carton and inspect for any dam-
age or missing parts. If parts are damaged or missing, contact your
dealer immediately.
3. Locate the hardware package. Remove the tools rst. Remove the
hardware for each step as needed to avoid confusion. The numbers
in the instructions that are in parenthesis (#) are the item number from
the assembly drawing for reference.
TOOLS INCLUDED:
13/14mm Wrench
12/14mm Wrench
Phillips Screwdriver
8mm L Allen Wrench
PARTS INCLUDED:
1 Main Frame
1 Console Mast
1 Console Mast Cover
2 Swing Arms
2 Connecting Arms
6 Levelers
1 Console
2 Foot Pedals
1 Power Cord
1 Audio Cable
2 Transport Wheels
1 Hardware Kit
11
www.spirittness.com

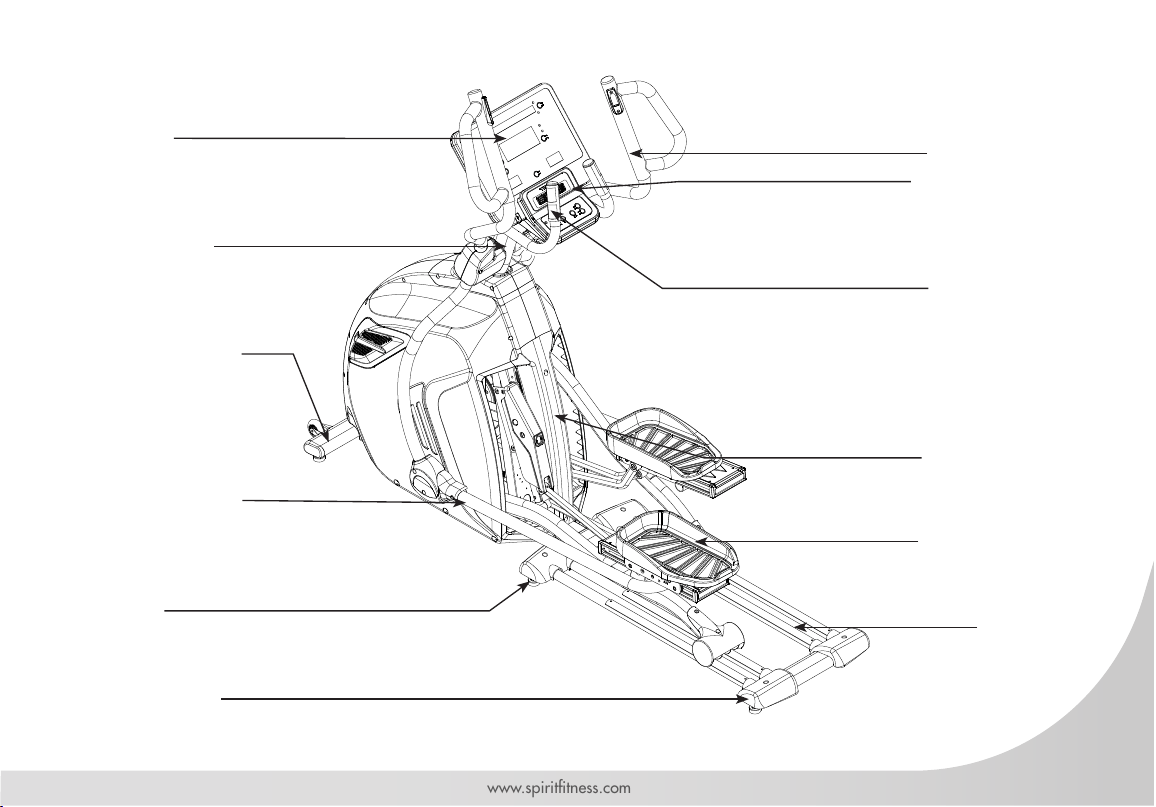

CONSOLE
CONSOLE MAST
(Beneath Console)
CONNECTING ARM
LEVELERS
FRONT STABILIZER
REAR STABILIZER
FOOT PEDALS
MAIN FRAME
RAILS
PULSE SENSORS
SWING ARM
CONSOLE FAN
12
Spirit Fitness

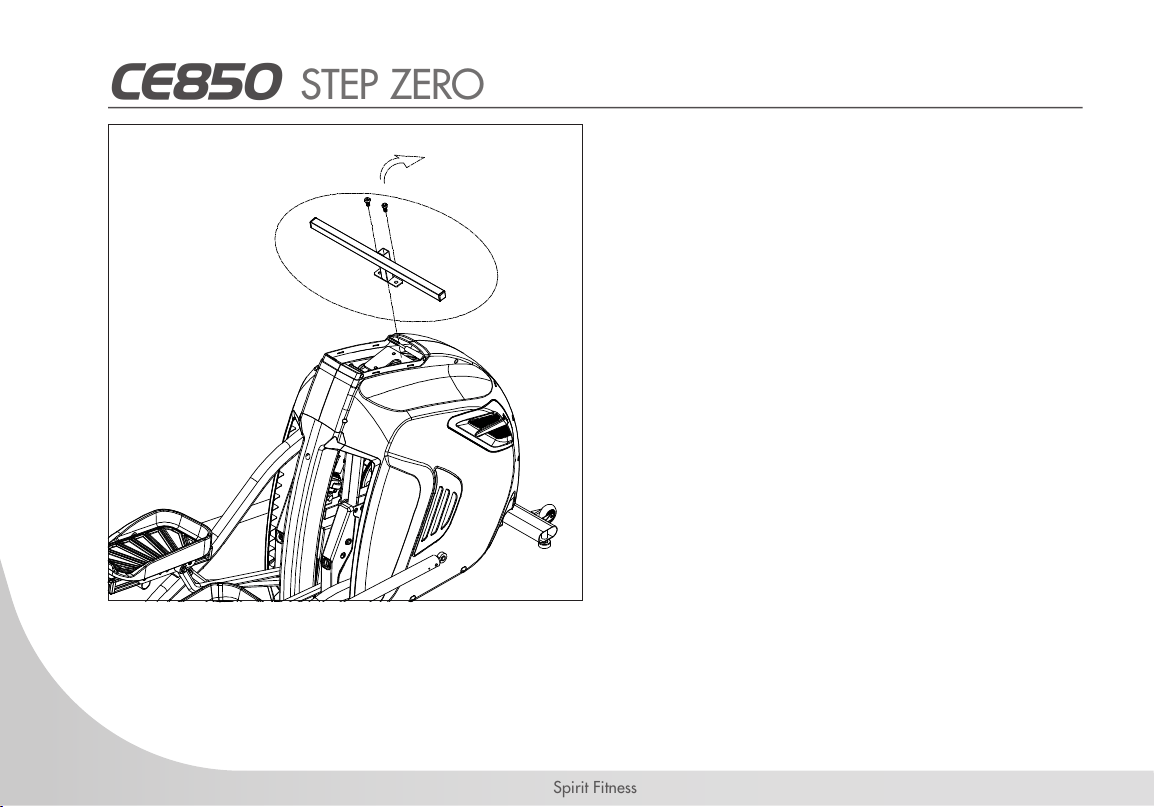

CE850 STEP ZERO
1. Use the Allen Wrench (No.193) to release 2
Socket Head Cap Bolts (No.145), which are
attached to the Main Frame for securing the
Mast Tube, to remove and dispose the Side
Back (No.28).
28
145
13
www.spirittness.com
CE850 STEP ONE
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
137 HEX HEAD BOLT
3/8” X 2-1/4”
2
139 HEX HEAD BOLT
3/8” X 3-3/4”
4
145 SOCKET HEAD CAP BOLT
3/8”X3/4”
4
150 SCREW
M5X10
4
176 FLAT WASHER
3/8”X19X1.5T
6
186 SPRING WASHER
3/8”X2T
4
187 CURVED WASHERS
3/8” X 23 X 2T
4
1. Place 2 Flat Washers (No.176) against 2
Hex Head Bolts (No.137) and hand-tighten them
through the top of the Rear Stabilizer Tube (Main
Frame), into the Rear Rail Assembly (No.2) by
using the Wrench (No.194).
2. Place 4 Curved Washers (No.187) against 4
Hex Head Bolts (No.139) and hand-tighten them
through the Front of the Rear Stabilizer Tube, into
the Rear Rail Assembly (No.2) by using Wrench
(No.194).
3. Pierce 14P Computer Cable (No.68) from
bottom of the console mast tube through it and
pull out of the top. Use 4 Socket Head Cap Bolts
(No.145), 4 Spring Washers (No.186) and 4
Flat Washers (No.176) to secure.
4. Untie the Computer Cable (No.68) , connect 2 Handpulse W/Cable Assembly (No.58) and Handle Wire
(Upper), Resistance/ Incline (White/Red) (No.61/62) with the Console Assembly (No.55) respectively. Then
place the Console on top of the Mast and use Phillips Head Screw Driver (No.192) to tighten 4 Phillips Head
Screws (No.150) to secure.
14
Spirit Fitness

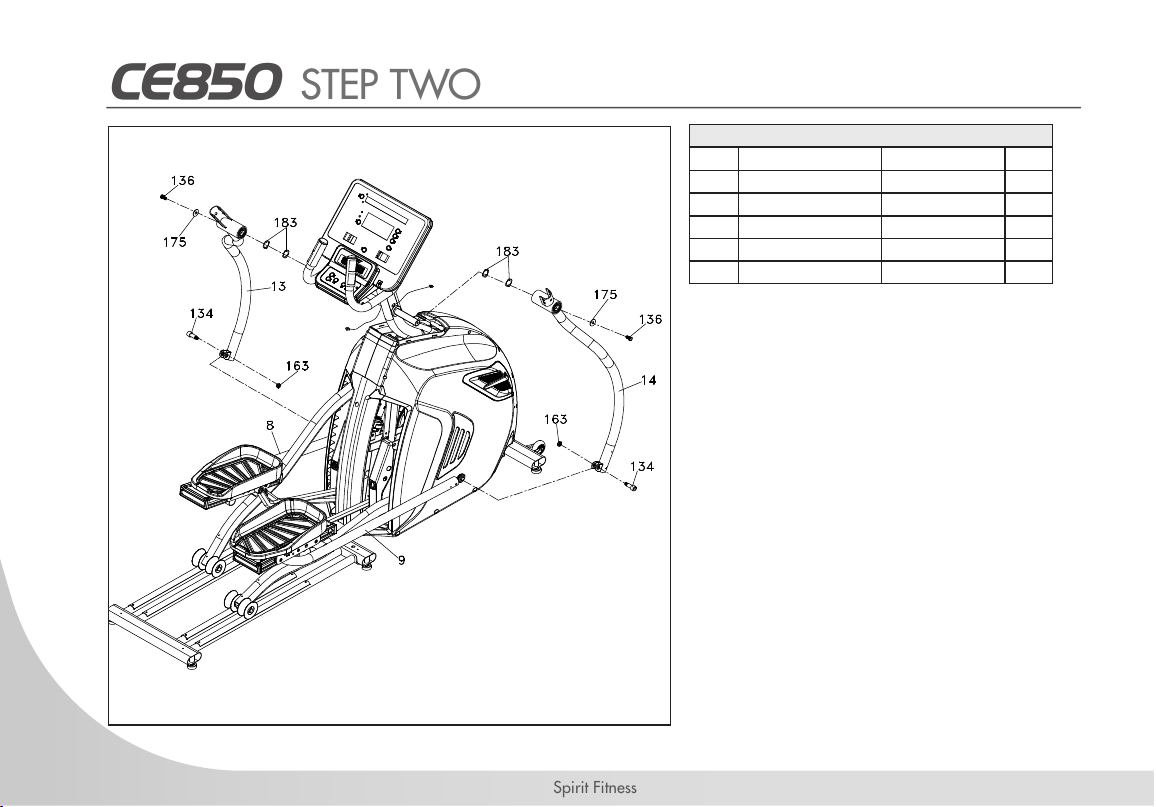

CE850 STEP TWO
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
134 HEX HEAD BOLT
M10 x 1.5
2
136 HEX HEAD BOLT
3/8” x 3/4”
2
163 NYLOC NUT
M10 x 8T
2
175 FLAT WASHER
3/8”x 30 x 2.0T
2
183 WAVE WASHER
ø25
4
1. Locate Left and Right Lower Swing Arms
(No.13, 14) together with 4 Wave Washers
(No. 183) onto Left and Right Shafts of the
console mast tube then tighten with 2 Hex
Head Bolts (No.136) and two Flat Washers
(No.175) by using the Wrench (No.194).
2. Untie the Rod End Bearing on Left
Connecting Arm (No.8) and pierce a Hex
Head Bolt (No.134) through the rod end
holes and rod end bearing then tighten
with and Nyloc Nut (No.163) by using the
Wrench (No.200) and Wrench (No.201).
Repeat for the Right Connecting Arm (No.9)
and right Lower Handle Bar (No.14).
15
www.spirittness.com

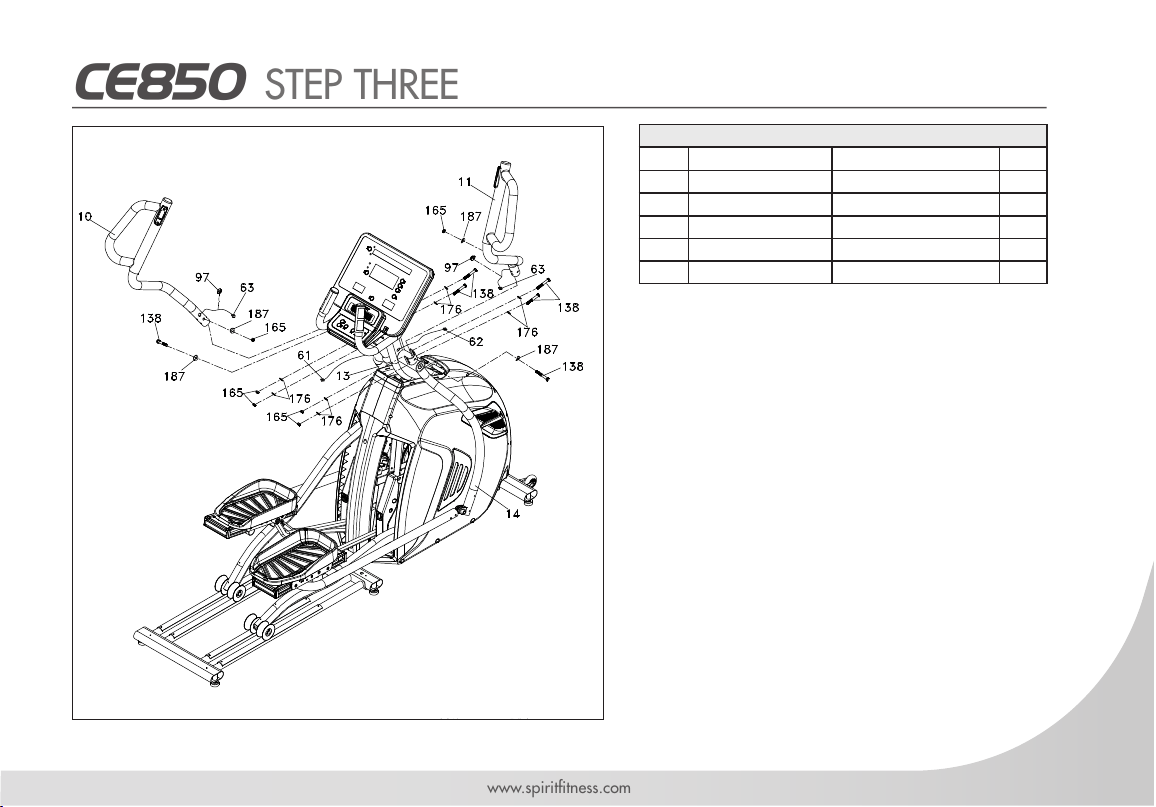

CE850 STEP THREE
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
97 SWITCH WIRE CAP
-
2
138 HEX HEAD BOLT
3/8”X2-1/4”
6
165 NYLOC NUT
3/8”X7T
6
176 FLAT WASHER
3/8”X19X1.5T
8
187 CURVED WASHER
3/8”X23X2T
4
1. Insert Left Upper Swing Arm (No.10) onto Left
Lower Swing Arm (No.13) and secure with 3
Hex Head Bolts (No.138), 4 Flat Washers
(No.176), 2 Curved Washers (No.187) and
3 Nyloc Nuts (No.165) by using Wrench
(No.194) and Wrench (No.195). Repeat
for the Right Upper Swing Arm (No.11) and
Right Lower Swing Arm (No.14).
2. Connect Handle Wire (Upper), Resistance
(White, 61) and Handle Wire (Upper),
Incline (Red, 62) to 2 Handle Wires (Lower),
Resistance/Incline (No.63) respectively and
shove the excessive wires into the console
mast tube. Finally, plug the Switch Wire Caps
(No.97) onto the console mast tube to secure
the wires.
16
Spirit Fitness

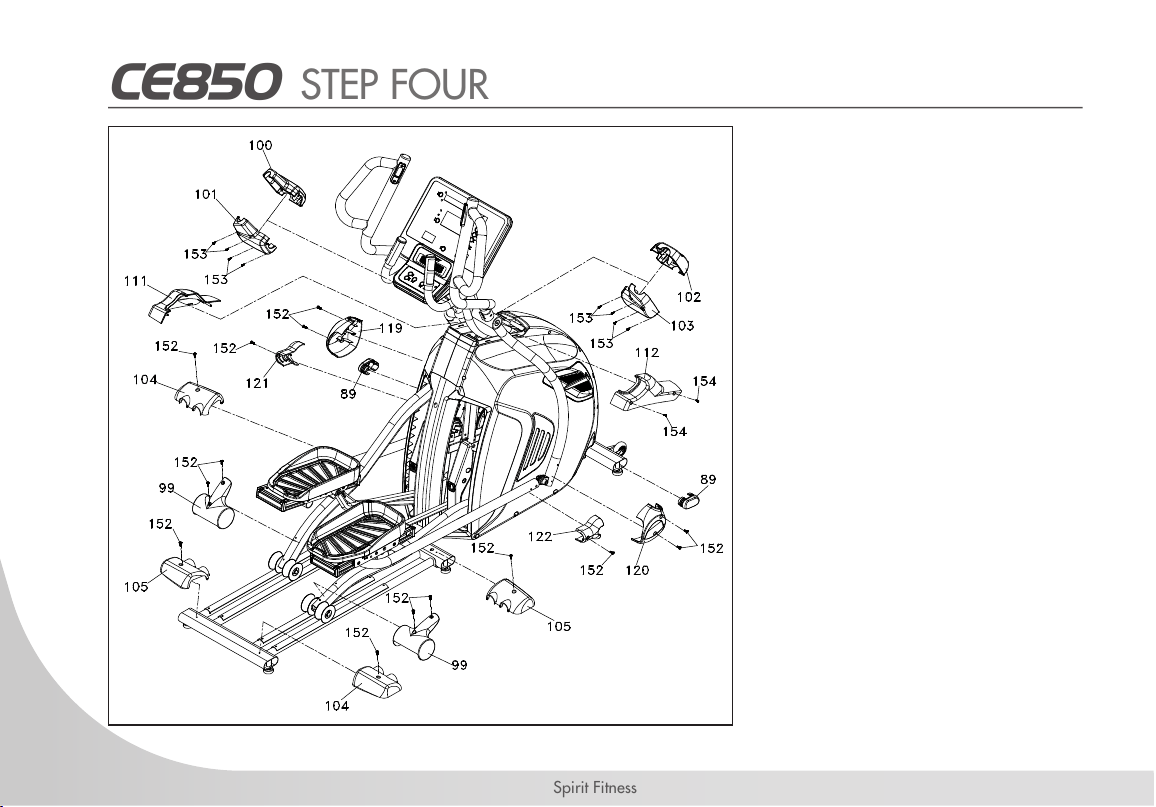

CE850 STEP FOUR
17
www.spirittness.com
CE850 STEP FOUR
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
152 PHILLIPS HEAD SCREW
M5 x 15L
14
153 SHEET METAL SCREW
3.5 x 12L
8
154 SHEET METAL SCREW
4 x 15mm
2
1. Secure the Left Connecting Arm Cover B (No.121) onto the Left Connecting Arm with Phillips Head
Screw (No.152) by using the Phillips Head Screw Driver (No.192) then secure the Left Connecting Arm
Cover A (No.119) with 2 Phillips Head Screws (No.152) onto the Lower Handle Bar. Repeat the same
way for the Right Connecting Arm Cover B (No.122) and Right Connecting Arm Cover A (No.120)
onto the Right Connecting Arm and Right Lower Handle Bar, respectively.
2. Secure 2 Slide Wheel Covers (No.99) on both left and right Pedal arms with 4 Phillips Head Screws
(No.152) by using Phillips Head Screw Driver (No.192).
3. Use Phillips Head Screw Driver (No.192) with 4 Phillips Head Screws (No.152) to secure 2 Rear
Stabilizer Covers (A) (No.104) and 2 Rear Stabilizer Cover (B) (No.105) on both left and right
sides of rear tube of rear rail assembly.
4. Match the Left and Right Console Mast Covers (No.111, 112) with Left and Right side cases respectively and
secure with 2 Sheet Metal Screws (No.154) by using the Phillips Head Screw Driver (No.192).
5. Match the Front Handle Bar Cover (No.100) and Rear Handle Bar Cover (No.101) with each other on Left Lower
Handle Bar and use Phillips Head Screw Driver to tighten 4 Sheet Metal Screws (No.153). Do the same for Right
Front Handle Bar Covers (No.102) and Rear Handle Bar Cover (No.103). (Be carefeul not to pinch the wire)
6. Plug in both Oval End Caps (No.89) onto both ends of the front stabilizer tube.
18
Spirit Fitness
CE850 CONSOLE OPERATION
19
www.spirittness.com
Fan
Scan Button for
LED Windows
Scan Button for
Dot Matrix
Dot Matrix
Message Center
Start, Stop, Level
Controls
Up, Down,
Program Controls
LED Data Display
Windows
USB
Charger
20
Spirit Fitness
POWER
When initially powered on the console will perform an internal self-test. During this time all the lights will turn
on. When the lights go off, the Dot Matrix Message Center will show the software version (i.e.: VER 1.0).
The LED Data Display Windows show the distance in miles and shows the total hours of use. The odometer
will remain displayed for only a few seconds then the console will go to the start up display. The Dot Matrix
Message Center will be scrolling through the different proles of the programs and will be scrolling the start
up message. You may now begin to use the console.
C-SAFE FEATURE
Your console is equipped with a C-SAFE feature. The Power (POWER) port can be used for powering a
remote controlled audio-visual system by connecting a cable from the remote to the Power port at the back of
the console. The Communication port (COMM) can be used to interact with tness software applications.
QUICK START
This is the quickest way to start a workout. After the console powers up you just press the Start key to begin.
This will initiate the Quick Start mode. In Quick Start the Time will count up from zero, all workout data will
start to accrue and the workload may be adjusted manually by pressing the Up and Down buttons. The Dot
Matrix Message Center will show a ¼ mile (0.4km) track display or just the bottom row lit at rst, depending
on how the display button has been set (see Basic information below). As you increase the workload, more
rows will light indicating a harder workout. The elliptical will get harder to pedal as the rows increase. The
Dot Matrix Message Center has 24 columns of lights and each column represents 1 minute. At the end of
the 24th column (or 24 minutes of work) the display will wrap around and start at the rst column again.
There are 20 levels of resistance – displayed as 10 rows of lights - available for plenty of variety. The rst
5 levels are very easy workloads, and the changes between levels are set to a good progression. for de-
21
www.spirittness.com
BASIC INFORMATION
The Dot Matrix Message Center, or Prole Window, will display the workout Prole. The LED Data
Display Windows displays pertinent exercise data. There is a Stride window for pedal speed and a Level
window indicating machine resistance.
The LED Data Display Window will initially be displaying Distance, Calories, Pulse and Time Elapsed
information. When the Up/Down Scan key is pressed the next set of information will appear: Speed,
Watts, METs, Time Remaining. Pressing the Up/Down Scan button, the Scan mode is activated and the
LED Data Display Window will show each set of data for four seconds then switch to the next set of data
in a continuous loop. Pressing the Up/Down Scan button again will bring you back to the beginning.
The Stop key button actually has several functions. Pressing the Stop key once during a program will pause
the program for 5 minutes. If you need to get a drink, answer the phone, or any of the many things that
could interrupt your workout, this is a great feature. To resume your workout during Pause just press the
Start key. If the Stop key is pressed twice during a workout, the program will end and the console will
return to the start-up screen. If the Stop key button is held down for 3 seconds, the console will perform a
complete Reset. During data entry for a program the Stop key performs a Previous Screen function. This
allows you to go back one step in the programming each time you press the Stop key button.
The Program Key is used to preview each program. When you rst turn the console on, you may press
Program key to preview what the program prole looks like. If you decide that you want to try a program,
press the Enter key to select the program and enter into the data set-up mode.
conditioned users. Levels 5-10 are more challenging but the increases from one level to the next remain
small. Levels 10-15 start getting tough as the levels jump more dramatically. Levels 15-20 are extremely
hard and are good for short interval peaks and elite athletic training.
22
Spirit Fitness
1/4 MILE TRACK
The 1/4-mile track (0.4 km) will be displayed around the dot matrix window. The ashing dot indicates
your progress. In the center of the track there is a lap counter for reference.
HEART RATE WINDOW
The Pulse (Heart Rate) window will display your current heart rate in beats per minute during the workout.
You must use both left and right stainless steel sensors to pick up your pulse. Pulse values are displayed
anytime the computer is receiving a Grip Pulse signal. You may use the Grip Pulse feature while in Heart
Rate Control. The CE850 will also pick up wireless heart rate transmitters that are Polar compatible,
including coded transmissions.
TO TURN ELLIPTICAL OFF
The display will automatically turn off (go to sleep) after 30 minutes of inactivity. This function is called
sleep mode. In sleep mode, the elliptical will power down most everything except for a minimum of
circuitry for detecting button presses and the safety button so it will start up again if these are activated.
There is only a tiny amount of current used in sleep mode (about the same as your TV when it is turned off)
and it is perfectly ne to leave the main power switch on in sleep mode. Of course you may also remove
the safety button or turn off the main power switch to power down the elliptical.
23
www.spirittness.com
PROGRAMMABLE FEATURES
Each of the programs can be customized with your personal information and changed to suit your needs.
Some of the information asked for is necessary to ensure the readouts are correct. You will be asked for
your Age and Weight. Entering your Age ensures that the Heart Rate bar graph shows the correct number.
Your Age is also necessary during the Heart Rate control program to ensure the correct settings are in the
program for your Age. Otherwise the workout settings could be too high or low for you; entering your
Weight aides in calculating a more correct calorie reading. Although we cannot provide an exact calorie
count we do want to be as close as possible.
CALORIE NOTE: Calorie readings on every piece of exercise equipment, whether it is in a gym or at
home, are not accurate and tend to vary widely. They are meant only as a guide to monitor your prog-
ress from workout to workout. The only way to measure your calorie burn accurately is in a clinical setting
connected to a host of machines. This is because every person is different and burns calories at a different
rate. Some good news is that you will continue to burn calories at an accelerated rate for at least an hour
after you have nished exercising!
STRIDE LENGTH ADJUSTMENT
The CE850 has a unique adjustable stride length feature that will further increase the variety of your
workouts. When the stride setting is at its lowest (shortest) position the stride length will be 18 inches. This
setting is used when pedaling slowly, during quick bursts at very high resistance, and to closely simulate
a walking motion. The highest (longest) setting is 24 inches and closely simulates the longer stride of a
running motion. The stride adjustment can also be used to select a stride length that is comfortable for you.
The stride length can also be computer controlled in some programs. The stride length can be controlled by
buttons on the left swing arm and also can be automatically adjusted during the built-in workout programs.
24
Spirit Fitness
MANUAL
The Manual program works as the name implies, manually. This means that you control the workload
yourself and not the computer. To start the Manual program follow the instructions below.
1. Using the Program button select Manual then press the Enter key.
2. The Dot Matrix Message Center will ask you to enter your Age. You may enter your Age, using the Up and Down
keys, then press the Enter key to accept the new number and proceed on to the next screen.
3. You are now asked to enter your Weight. You may adjust the Weight number using the Up and Down keys, then
press Enter to continue.
4. The next setting is Time. You may adjust the Time and press Enter to continue.
5. Now you are nished editing the settings and can begin your workout by pressing the Start key. You can also go
back and modify your settings by pressing the Enter key.
NOTE: At any time during the editing of data you can press the Stop key to go back one level, or screen.
6. The program automatically starts you at level one. This is the easiest level and it is a good idea to stay at level
one for a while to warm up. If you want to increase the work load at any time press the Up key; the Down key
will decrease the workload. At the same time, you can to control stride length at any time press the stride up/
down keys.
7. When the program ends you may press Start to begin the same program again or Stop to exit the program.
25
www.spirittness.com
PRESET PROGRAMS
The elliptical trainer has seven different programs that have been designed for a variety of workouts. These
seven programs have factory preset work level proles for achieving different goals.
HILL
This program follows a triangle or pyramid type of gradual progression from approximately 10% of
maximum effort (the level that you chose before starting this program) up to a maximum effort which lasts
for 10% of the total workout time, then a gradual regression of resistance back to approximately 10% of
maximum effort
FAT BURN
This program follows a quick progression up to the maximum resistance level (default or user input level)
that is sustained for 2/3 of the workout. This program will challenge your ability to sustain your energy
output for an extended period of time.
RESISTANCE LEVEL
RESISTANCE LEVEL
26
Spirit Fitness
CARDIO
This program presents a quick progression up to near maximum resistance level (default or user input level). It
has slight uctuations up and down to allow your heart rate to elevate, and then recover repeatedly, before
beginning a quick cool down. This will build up your heart muscle and increase blood ow and lung capacity
INTERVAL
This program takes you through high levels of intensity followed by recovery periods of low intensity. This
program utilizes and develops your “Fast Twitch” muscle bers which are used when performing tasks that are
intense and short in duration. These deplete your oxygen level and spike your heart rate, followed by periods
of recovery and heart rate drop to replenish oxygen. Your cardiovascular system gets programmed to use
oxygen more efciently.
RESISTANCE LEVEL
RESISTANCE LEVEL
27
www.spirittness.com
PROGRAMMING PRESET PROGRAMS
1. Using the Program button select your desired program then press the Enter button.
2. The Dot Matrix Message Center will ask you to enter your Age. You may adjust the age setting, using the Up and
Down keys, then press the Enter key to accept the new number and proceed on to the next screen.
3. You are now asked to enter your Weight. You may adjust the Weight number using the Up and Down keys, then
press Enter to continue.
4. Next is Time. You may adjust the Time and press Enter to continue.
5. Now you are asked to adjust the Max Level. This is the peak exertion level you will experience during the
program (at the top of the hill). Adjust the level and then press Enter.
6. Now you are nished editing the settings and can begin your workout by pressing the Start key. You can also go
back and modify your settings by pressing the Stop key to go back one level, or screen.
7. If you want to increase or decrease the workload at any time during the program press the Up or Down key. This
will change the workload settings of the entire prole, although the prole picture on the screen will not change.
The reason for this is so that you can see the entire prole at all times. If the prole picture is changed it will look
distorted and not a true representation of the actual prole. When you make a change to the workload, the
Dot Matrix Message Center will show the current column, and program maximum, levels of work.
8. During the program you will be able to scroll through the data in the LED Data Display Windows by pressing the
Up/Donw Scan key next to the LED Data Display Windows.
9. When the program ends the LED Data Display Window will show a summary of your workout. The summary will
be displayed for a short time then the console will return to the start-up display.
HIIT PROGRAM
The HIIT, or High Intensity Interval Training, program takes advantage of the latest trend in tness. During
the program you will perform short bursts of high intensity sprinting followed by short rest periods. HIIT is
a fully customizable interval training program. You can enter the number of intervals, time of each interval
Sprint and Rest periods and the work intensity of the levels.
28
Spirit Fitness
1. Using the Program button choose the HIIT program then press Enter. The Dot Matrix Message Center will ask you to
enter your Age. You may enter your Age, using the Up and Down keys, then press the Enter key to accept the new
number and proceed on to the next screen.
2. You are now asked to enter your Weight. You may adjust the Weight number using the Up and Down keys then
press enter to continue.
3. Next you are asked for the number of Intervals you want to do. The default is 10 and the range available is 3 to
15. One interval equals 1 Sprint and 1 Rest segment.
4. Now you are asked to adjust the Sprint Level. This is the resistance level you will experience during the Sprint
segments of the program. Adjust the level and then press Enter.
5. Now you are asked to adjust the Rest Level. This is the resistance level you will experience during the Rest segments
of the program. Adjust the level and then press Enter.
6. Next is entering the Interval time. The Dot Matrix Message Center shows: Sprint Time:30 and Rest Time:30. The
Sprint Time will be blinking. You may use the Up and Down keys to adjust the Sprint time from 20 to 60 seconds
then press Enter. The time for the Rest period will blink and you can adjust the time using the up and down keys and
press Enter.
7. The LED Data Display Window will now display the total time for the HIIT workout; now press Start to begin. There
is a 3-minute warm-up period before the rst Sprint begins. The resistance level during warm-up is set to 5 but can be
adjusted manually.
8. The Dot Matrix Message Center in the HIIT program is a speed indication display, not a power or resistance display.
During the Sprint the Dot Matrix Message Center will show a blinking LED at the rst Sprint segment. That is the
target speed LED and indicates 90 pedal rpm. As you pedal faster the lights below the target speed LED light up
the faster you go. When you exceed 90 rpm the target LED will move up showing you are past the target speed.
You should maintain at least 90 rpm throughout the Sprint segments. The
rest segments of the HIIT program are set to resistance level 5 and you
can pedal at any speed you choose as your heart rate recovers. You can
manually adjust the resistance levels during the Sprint and Rest segments.
9. At the end of the last Sprint there is a 2-minute cool-down period. You can
bypass this by pressing the Stop key and the workout summary will be
displayed.
29
www.spirittness.com
FITNESS TEST PROGRAM
The VO2 program is based on the YMCA protocol and is a sub-maximal test that uses pre-determined,
xed work levels that are based on your heart rate readings as the test progresses. The test will take
anywhere between 6 to 15 minutes to complete, depending on your level of tness. The test ends when
your heart rate reaches 85% of maximum at any time during the test or your heart rate is between 110
bpm and 85% at the end of two consecutive stages. At the end of the test a VO2max score will be given.
VO2max stands for Volume of Oxygen uptake which is a measurement of how much oxygen you need
to perform a known amount of work. The YMCA protocol uses two to four, 3 minute stages of continuous
exercise (see charts below). You will be asked to choose either, “Male” or “Female” at the beginning of
the test. This choice determines which test parameters will be used during the test as shown in the charts
below. If you are a de-conditioned male, you may want to choose the option for “Female” to assist in the
correct calculations. Similarly, if you are a very conditioned female, you may want to choose the option for
“Male.”

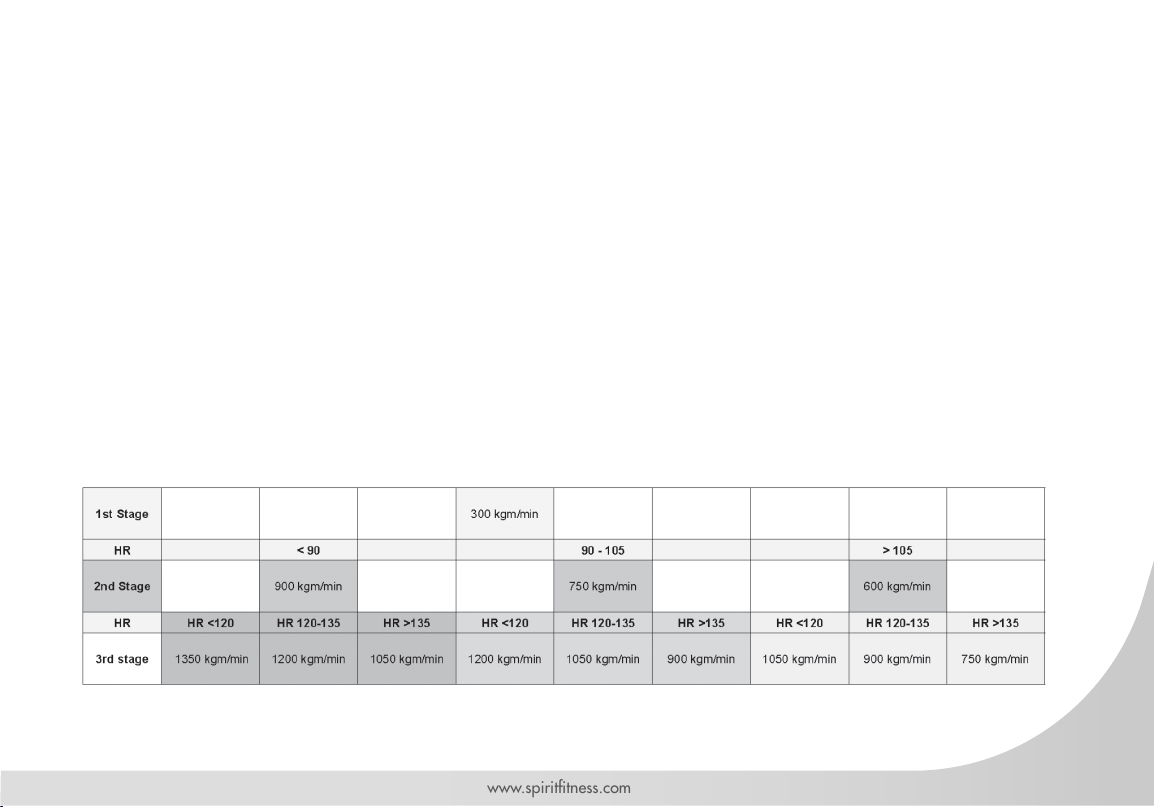

Workload Chart For Male Or Very Fit Female:
30
Spirit Fitness

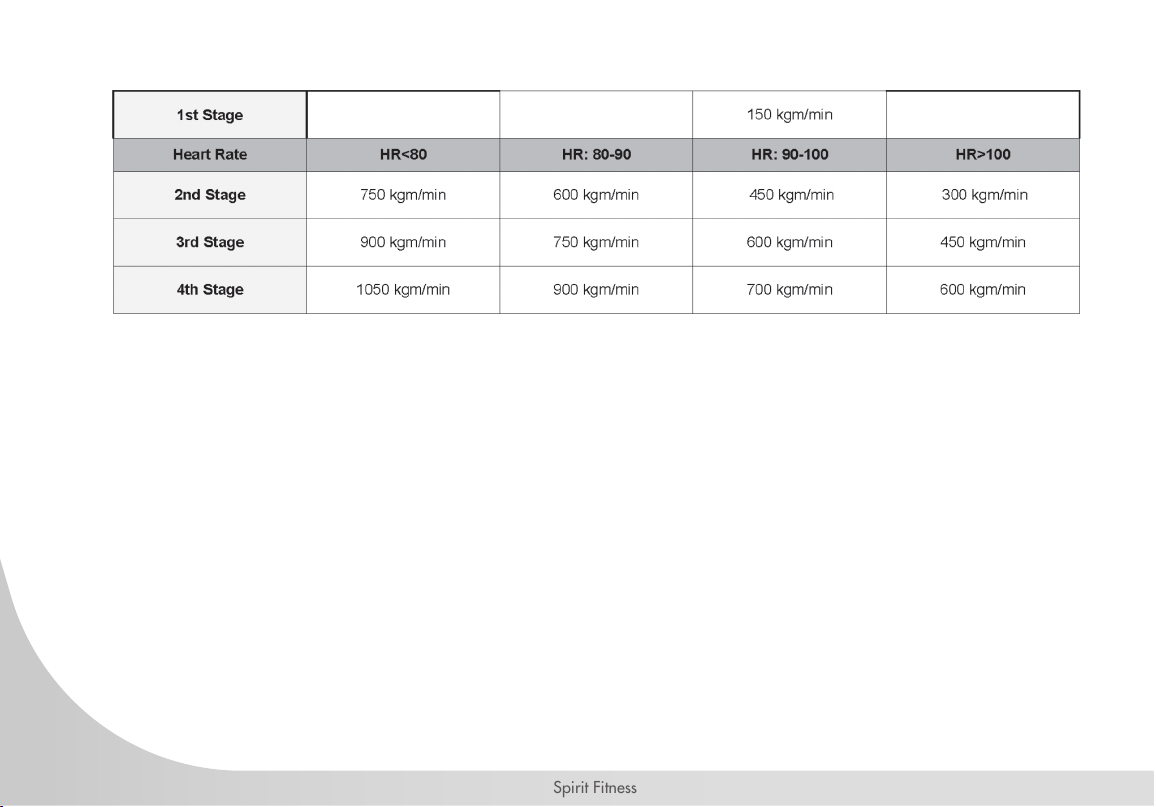

Workload Chart For Female Or De-Conditioned Male
FITNESS TEST PROGRAMMING
1. Using the Program button choose Fitness Test and press Enter.
2. The Dot Matrix Message Center will display Gender. Use the Up and Down arrows if you need to change, then
press Enter. The choice of gender determines which workload chartwillbeused for the test.
3. The Dot Matrix Message Center will ask you to enter your Age. You may adjust the age setting, using the Up and
Down buttons then press the Enter button to accept the new number and proceed on to the next screen.
4. You are now asked to enter your Weight. You may adjust the weight number using the Up and Down buttons then
press Enter to continue.
5. Now press Start to begin the test.
31
www.spirittness.com
Before The Test:
Make sure you are in good health; check with your physician before beginning a new exercise routine, especially if
you are over the age of 35 or persons with pre-existing health conditions.
Make sure you have warmed up and stretched before taking the test.
Do not take in caffeine before the test.
Hold the hand grips gently, do not tense up.
During The Test:
The console must be receiving a steady heart rate for the test to begin. You may use the hand pulse sensors or wear a
heart rate chest strap transmitter.
You must maintain a steady 50 RPM pedal speed. If your pedal speed drops below 48 RPM or goes above 52 RPM
the console will emit a steady beeping sound until you are within this range.
You may scroll through the various data readings in the LED Data Display Windows by pressing the Up/Down Scan
button nex to the LED Data Display Windows.
The LED Data Display Windows will always display your pedal speed on the right side to help you maintain 50RPM.
The data shown during the test is:
a. Work in KGM is actually an abbreviated form of kg-m/min. which is a work measurement of kilogram-force meter/minute
b. Work in Watts (1 watt is equal to 6.11829727787 kg-m/min.)
c. HR is your actual heart rate; TGT is the target heart rate to reach to end the test.
d. Time is the total elapsed time of the test.
After The Test:
• Cool down for about one to three minutes.
• Take note of your score because the console will automatically return to the start-up mode after a few minutes.
32
Spirit Fitness
What Your Score Means:
VO2MAX CHART FOR FEMALES AND DE-CONDITIONED MALES
18-25 26-35 36-45 46-55 56-65 65+
years
old
years
old
years
old
years
old
years
old
years
old
excellent 56 52 45 40 37 32
good 47-56 45-52 38-45 34-40 32-37 28-32
above
average 42-46 39-44 34-37 31-33 28-31 25-27
average 38-41 35-38 31-33 28-30 25-27 22-24
below
average 33-37 31-34 27-30 25-27 22-24 19-22
poor 28-32 26-30 22-26 20-24 18-21 17-18
very poor <28 <26 <22 <20 <18 <17
18-25 26-35 36-45 46-55 56-65 65+
years
old
years
old
years
old
years
old
years
old
years
old
excellent >60 >56 >51 >45 >41 >37
good 52-60 49-56 43-51 39-45 36-41 33-37
above
average 47-51 43-48 39-42 35-38 32-35 29-32
average 42-46 40-42 35-38 32-35 30-31 26-28
below
average 37-41 35-39 31-34 29-31 26-29 22-25
poor 30-36 30-34 26-30 25-28 22-25 20-21
very poor <30 <30 <26 <25 <22 <20
VO2MAX CHART FOR MALES AND VERY FIT FEMALES
33
www.spirittness.com
CUSTOM USER DEFINED PROGRAMS
The Custom Program allows you to build and save a custom program.
1. Using the Program button choose Custom program then press the Enter button to begin programming
2. Enter your name in the Dot Matrix Message Center, the letter “A” will be blinking. Use the Up/Down buttons to
select the appropriate rst letter of your name (pressing the Up button will switch to the letter “B”; pressing the
Down button will switch to letter “Z”). Press Enter when the desired letter is displayed. Repeat this process until all
of the characters of your name have been programmed (maximum 7 characters). When nished press Stop.
3. If there is a program already stored you will have an option to run the program as it is or delete the program and
build a new one. The Dot Matrix Message Center will ask: Run Program? Use the Up/Down arrows to select
“Yes” or “No”. If you select No, you will then be asked if you want to delete the currently saved program. It is
necessary to delete the current program if you want to build a new one.
4. The Dot Matrix Message Center will ask you to enter your Age. You may enter your age, using the Up/Down
buttons, then press the Enter button to accept the new value and proceed on to the next screen.
5. You are now asked to enter your Weight. You may adjust the Weight value using the Up/Down buttons, then
press Enter to continue.
6. Next is Time. You may adjust the Time and press Enter to continue.
7. Now you are asked to adjust the Max Level and Max Stride. This is the peak exertion level you will experience
during the program. Adjust the level and then press Enter.
8. Now the rst column will be blinking and you are asked to adjust the resistance level for the rst segment
(SEGMENT > 1) of the workout by using the Up button. When you nish adjusting the rst segment, or if you
don’t want to change, then press Enter to continue to the next segment.
9. The next segment will show the same workload resistance level as the previously adjusted segment. Repeat the
same process as the last segment then press Enter. Continue this process until all twenty-four segments have been
set.
10. After saving the program the Dot Matrix Message Center says “New Program Saved” then will give you the
option to start or modify the program. Pressing Stop will exit to the start up screen.
34
Spirit Fitness
HEART RATE PROGRAMS
The old motto, “no pain, no gain”, is a myth that has been overpowered by the benets of exercising
comfortably. A great deal of this success has been promoted by the use of heart rate monitors. With the
proper use of a heart rate monitor, many people nd that their usual choice of exercise intensity was either
too high or too low and exercise is much more enjoyable by maintaining their heart rate in the desired benet
range.
To determine the benet range in which you wish to train, you must rst determine your Maximum Heart
Rate. This can be accomplished by using the following formula: 220 minus your age. This will give you the
Maximum Heart Rate (MHR)for someone of your age. To determine the effective heart rate range for specic
goals you simply calculate a percentage of your MHR. Your heart rate training zone is 50% to 90% of your
maximum heart rate. 60% of your MHR is the recommended for burning fat while 85% is recommended for
strengthening the cardio vascular system. This 60% to 85% is the zone to stay in for maximum benet.
For someone who is 40 years old their
target heart rate zone is calculated:
220 – 40 = 180 (maximum heart rate)
180 x .6 = 108 beats per minute (60% of maximum)
180 X .85 = 153 beats per minute (85% of maximum)
So for a 40 year old the training zone would
be 108 to 153 beats per minute.
35
www.spirittness.com
If you enter your age during programming the console will
perform this calculation automatically. Entering your age is used
for the Heart Rate programs. After calculating your MHR you
can decide upon which goal you would like to pursue.
The two most popular reasons for, or goals, of exercise are
cardiovascular tness (training for the heart and lungs) and

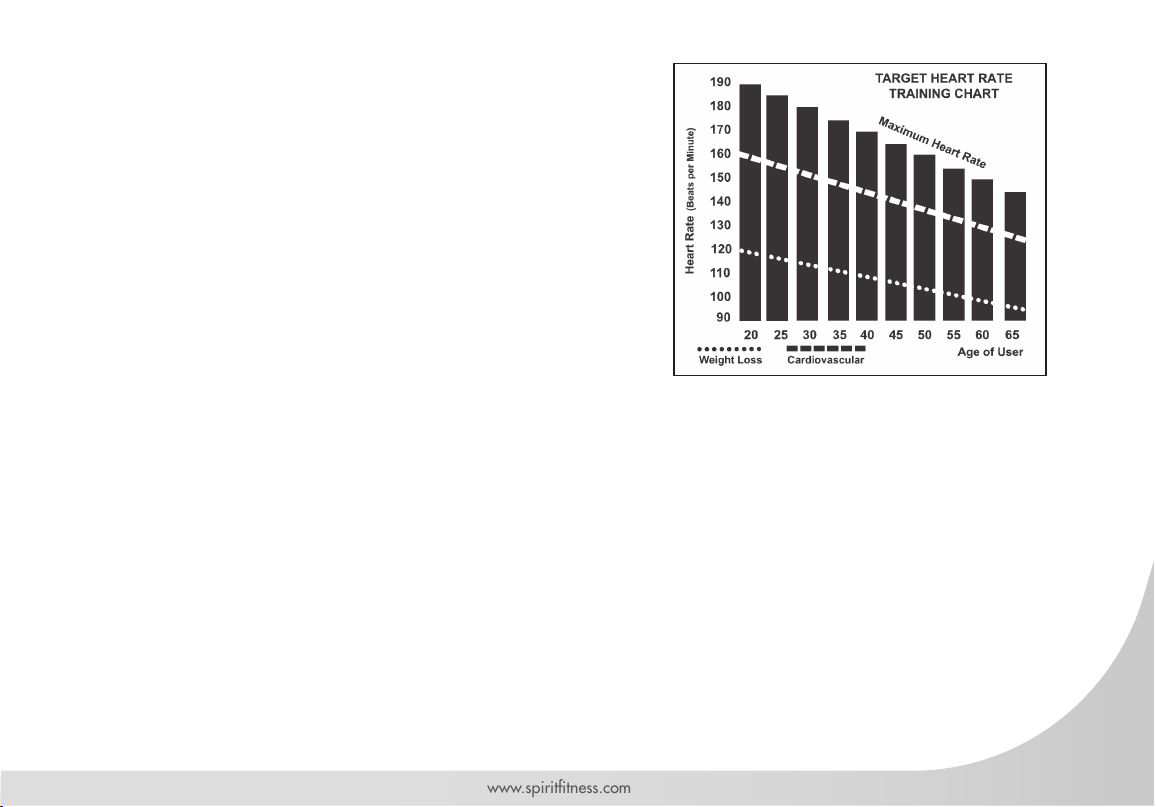

weight control. The black columns on the chart represent the
MHR for a person whose age is listed at the bottom of each
column. The training heart rate, for either cardiovascular tness
or weight loss, is represented by two different lines that cut
diagonally through the chart. A denition of the lines’ goal
is in the bottom left-hand corner of the chart. If your goal is
cardiovascular tness or if it is weight loss, it can be achieved by training at 85% or 60%, respectively, of
your MHR on a schedule approved by your physician. Consult your physician before participating in any
exercise program.
With all Spirit Fitness machines you may use the heart rate monitor feature without using the Heart Rate
program. However, when using the heart rate monitor feature in conjunction with the Heart Rate programs,
the machine will automatically adjust speed or incline to maintain the desired heart rate.
36
Spirit Fitness
HEART RATE PROGRAM OPERATION
To start the HR program follow the instructions below.
1. Using the Program button select the HR program (65% or 80%) then press the Enter key.
2. The Dot Matrix Message Center will ask you to enter your Age. You may enter your Age, using the Up/Down
keys, then press the Enter key to accept the new number and proceed on to the next screen.
3. You are now asked to enter your Weight. You may adjust the Weight number using the Up/Down keys, then
press Enter to continue.
4. Next is Time. You may adjust the Time and press Enter to continue.
5. Now you are asked to adjust your target Heart Rate. This is the heart rate level you will try to maintain during the
program. Adjust the value and then press Enter.
6. Now you are nished editing the settings and can begin your workout by pressing the Start key. You can also go
back and modify your settings by pressing the Enter key. Note: At any time during the editing of data you can
press the Stop key to go back one level, or screen.
7. If you want to increase or decrease the resistance at any time during the program, press the Level Up/Down key.
This will allow you to change your target heart rate at any time during the program.
8. The program will automatically increase or decrease the amount of resistance, depending on whether your heart
rate is above or below your target.
37
www.spirittness.com
RATE OF PERCEIVED EXERTION
There are more variables involved in how hard you should workout than just heart rate. Your stress level,
physical health, emotional health, temperature, humidity, the time of day, the last time you ate and what
you ate, all contribute to the intensity at which you should workout.
The rate of perceived exertion (RPE), also know as the Borg scale, was developed by Swedish physiologist
G.A.V. Borg. The scale helps users determine an approximate heart rate level when a heart rate monitor
was not in use. Using the scale below, rate the level of intensity of your workout, or the perception of your
effort during your workout. Once the rating has been determined, simply add a “0” to the rating to get
your approximate heart rate. For example, if your workout felt comfortable, you would rate it a “12”. Then
add a “0” to get an approximate heart rate during your workout of 120 beats per minute. The scale is as
follows:
Rating Perception of Effort:
6 Minimal
7 Very,very light
8 Very,very light +
9 Very light
10 Very light +
11 Fairly light
12 Comfortable
13 Somewhat hard
14 Somewhat hard +
15 Hard
16 Hard +
17 Very hard
18 Very hard +
19 Very,very hard
20 Maximal
38
Spirit Fitness
WEARING THE CHEST STRAP (SOLD SEPARATELY)
1. Attach the transmitter to the elastic strap using the interlocking button.
2. Adjust the strap as tightly as possible while ensuring it is still comfortable.
3. Position the transmitter with the logo centered in the middle of your torso facing
away from your chest (some people must position the transmitter slightly left of
center). Attach the nal end of the elastic strap by inserting the round end and,
using the locking parts, secure the transmitter and strap around your chest.
4. Position the transmitter directly below the pectoral muscles.
5. Sweat is the best conductor to measure very minute heart beat electrical signals.
However, plain water can also be used to pre-wet the electrodes (2 ribbed oval areas on the reverse side of the
belt and both sides of the transmitter). It’s also recommended that you wear the transmitter strap a few minutes
before your work out. Some users, because of body chemistry, have a more difcult time in achieving a strong,
steady signal at the beginning. After “warming up”, this problem lessens.
6. Your workout must be within range - distance between transmitter/receiver – to achieve a strong steady signal.
The length of range may vary somewhat but generally stay close enough to the console to maintain good, strong,
reliable readings. Wearing the transmitter directly on bare skin assures you of proper operation. If you wish, you
may wear the transmitter over a shirt. To do so, wet the areas of the shirt that the electrodes will rest upon.
Note: The transmitter is automatically activated when it detects activity from the user’s heart. Additionally, it
automatically deactivates when it does not receive any activity. Although the transmitter is water resistant,
moisture can have the effect of creating false signals, so you should take precautions to completely dry the
transmitter after use to prolong battery life (estimated transmitter battery life is 2500 hours). The replacement
battery is CR2032. The chest strap is sold separately. Chest straps that operate using Bluetooth or ANT+
should also work with this machine.
39
www.spirittness.com
ERRATIC OPERATION
Caution! Do not use this elliptical for Heart Rate programs unless a steady, solid Actual Heart Rate value
is being displayed. High, wild, random numbers being displayed indicate a problem. Areas to look for
interference which may cause erratic heart rate:
1. Microwave ovens, TV’s, small appliances, etc.
2. Fluorescent lights.
3. Some household security systems.
4. Electric fence for a pet.
5. Some people have problems with the transmitter picking up a signal from their skin. If you have problems try
wearing the transmitter upside down. Normally the transmitter will be oriented so the Spirit Fitness logo is right
side up.
6. The antenna that picks up your heart rate is very sensitive. If there is an outside noise source, turning the whole
machine 90 degrees may de-tune the interference.
7. Another Individual wearing a transmitter within 3’ of your machine’s console.
If you continue to experience problems contact your dealer.
GENERAL MAINTENANCE
1. Wipe down all areas in the sweat path with a damp cloth after each workout.
2. If a squeak, thump, clicking or rough feeling develops the main cause is most likely one of two reasons:
a. The hardware was not sufciently tightened during assembly. All bolts that were installed
during assembly need to be tightened as much as possible. It may be necessary to use a larger wrench than the
one provided if you cannot tighten the bolts sufciently. I cannot stress this point enough; 90% of calls to the service
department for noise issues can be traced to loose hardware.
40
Spirit Fitness
b. The crank arm nut needs to be retightened
c. If squeaks or other noises persist, check that the unit is properly leveled. There are 2 leveling pads on the bottom of
the rear stabilizer, use a 14mm wrench (or adjustable wrench) to adjust the levelers.
SANITIZING YOUR SPIRIT FITNESS EQUIPMENT
• Unupholstered high-contact surfaces (hard plastics) can be sanitized using a 75% isopropyl alcohol solution and a
clean, dry cloth.Spray surfaces to be sanitized, and use the dry cloth to wipe clean. Allow surfaces to dry before
using.
• For upholstered or soft-plastic surfaces, use a conditioner after sanitizing.Be sure to follow the instructions provided
by the conditioner manufacturer to ensure proper use of the conditioner.
• Alternatively, you can make your own spray by mixing the proper ratio of isopropyl alcohol and distilled water to
reach a 75% solution.
• For more details on sanitization, or to learn how to make your own spray solution, please visit https://support.
spirittness.com/hc/en-us/articles/4406787148564 .
41
www.spirittness.com
ENGINEERING MODE
Maintenance Menu in console software: To enter the Maintenance Mode, press and hold down the Start,
Stop and Enter keys. Keep holding the keys down for about 5 seconds. Press the Enter key to access the
menu below:
1. Key Test (Will allow you to test all the keys to make sure they are functioning)
2. Display Test (Tests all the display functions)
3. Function
- Units - Sets the display to read out in Imperial (miles, pounds, feet, etc.) or Metric (kilometers, kilograms,
meters, etc.) display measurements
- Pause mode (have ve minutes)
- Odometer Reset (Resets the odometer)
- Sleep mode
- Beep sound (Control Beep)
- CAB Protocol or CSAFE Protocol
4. Service
- Motor test
- Stride test
- Csafe test
- Sensor test
5. Exit
42
Spirit Fitness
ELLIPTICAL TRAINER WARRANTY EFFECTIVE NOVEMBER 08,2021
Spirit Fitness, Inc. (Spirit Fitness) warrants all its elliptical trainer parts for a period of time listed below from the date of retail
sale, as determined by sale receipt, or in the absence of a sales receipt eighteen (18) months from the original factory
shipping date. Spirit Fitness’ responsibilities include providing new or remanufactured parts, at Spirit Fitness’ option,
and technical support to our independent dealers and servicing organizations. In the absence of a dealer or service
organization, these warranties will be administered by Spirit Fitness directly to a consumer. The warranty period applies to
the following components:
NORMAL RESPONSIBILITIES OF THE CONSUMER
This warranty applies only to products in ordinary household or Light Commercial use (see restrictions above), and the
consumer/facility is responsible for the items listed below:
1. The warranty registration card must be completed and returned to the address listed on the card within 10 days
of the original purchase to validate the manufacturer’s limited warranty.
2. Proper use of the elliptical trainer in accordance with the instructions provided in this manual
3. Proper installation in accordance with instructions provided with the elliptical trainer and with all local electric
codes.
4. Expenses for making the elliptical trainer accessible for servicing, including any item that was not part of the
elliptical trainer at the time it was shipped from the factory.
5. Damages to the elliptical trainer nish during shipping, installation or following installation.
6. Routine maintenance of this unit as specied in this manual.
Warranty
Commercial (Non-Dues Paying Facilities)
Residential
Frame
Lifetime
Lifetime
Brake
5 Years
10 Years
Parts
5 Years
10 Years
Labor
2 Years
2 Years
*Prisons and correctional facilities are excluded from warranty coverage.
4343
43
www.spirittness.com
43
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL
EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or
exclusion may not apply to you.
2. Service call reimbursement to the consumer. Service call reimbursement to the dealer that does not involve malfunction
or defects in workmanship or material, for units that are beyond the warranty period, for units that are beyond the
service call reimbursement period, for elliptical trainer not requiring component replacement, or elliptical trainer not in
ordinary household or light commercial use.
3. Damages caused by services performed by persons other than authorized Spirit Fitness service companies; use of
parts other than original Spirit Fitness parts; or external causes such as corrosion, discoloration of paint or plastic,
alterations, modications, abuse, misuse, accident, improper maintenance, inadequate power supply, or acts of God.
4. Products with original serial numbers that have been removed or altered.
5. Products that have been: sold, transferred, bartered, or given to a third party.
6. Products that do not have a warranty registration card on le at Spirit Fitness. Spirit Fitness reserves the right to request
proof of purchase if no warranty record exists for the product.
7. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
8. Product use in any environment other than a residential setting or non-dues paying facility with 5 hours use or
less per day.
9. Prisons and correctional facilities are excluded from warranty coverage.
10. Warranties outside of the United States may vary. Please contact your local dealer for details.
43
45
www.spirittness.com
SERVICE
Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the date of factory
shipping as determined by the serial number establishes the labor warranty period should service be required. If service is
performed, it is in your best interest to obtain and keep all receipts. This written warranty gives you specic legal rights. You
may also have other rights that vary from state to state. Service under this warranty must be obtained by following these
steps, in order:
1. Contact your selling authorized Spirit Fitness dealer. OR
2. Contact your local authorized Spirit Fitness service organization.
3. If there is a question as to where to obtain service, contact our service department at (870) 935-1107.
4. Spirit Fitness’ obligation under this warranty is limited to repairing or replacing, at Spirit Fitness’ option, the product
through one of our authorized service centers. All repairs must be preauthorized by Spirit Fitness. If the product is
shipped to a service center freight charges to and from the service center will be the customer’s responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for shipping and
handling charges. For in-home service, the customer will be responsible for a trip charge. There will be an additional
trip charge if the customer is located over 100 miles from the nearest service center.
5. The owner is responsible for adequate packaging upon return to Spirit Fitness. Spirit Fitness is not responsible for
damages in shipping. Make all freight damage claims with the appropriate freight carrier. DO NOT SHIP ANY UNIT
TO OUR FACTORY WITHOUT A RETURN AUTHORIZATION NUMBER. All units arriving without a return authorization
number will be refused.
6. For any further information, or to contact our service department by mail, send your correspondence to:
SPIRIT FITNESS, INC.
P.O. Box 2037
Jonesboro, AR 72402-2037
Product features or specications as described or illustrated are subject to change without notice. All warranties are made by Spirit Manufacturing, Inc.
This warranty applies only in the 48 contiguous United States. NOTE: This does not apply to Alaska or Hawaii.
45
www.spirittness.com
45
46
Spirit Fitness
CE850-XE898D-SE028-01_Part List_SPIRIT
1 Main Frame 1
2 Rear Rail Assembly 1
3 Idler Wheel Assembly 1
4 Crank Arm Assembly 2
5 Bushing Housing, Pedal Arm 2
6 Pedal Arm (L) 1
7 Pedal Arm (R) 1
8 Connecting Arm (L) 1
9 Connecting Arm (R) 1
10 Seat Handle Bar (L) 1
11 Swing Arm (R) 1
12 Console Mast 1
13 Lower Handle Bar (L) 1
14 Lower Handle Bar (R) 1
15 Crank Axle 1
16 Swing Assembly 2
17 Slider Adjustment (L) 1
18 Slider Adjustment (R) 1
20 Joint Assembly 2
21 Adjusting Lever 2
22 Left Driving Assembly 1
23 Right Driving Assembly 1
24 Left Pedal Base 1
25 Right Pedal Base 1
26 Moving Range Adjusting Assembly 1
27 connecting Component 2
28 Side Back 1
29 Fixing Piece 2
30 Adjustment Wheel Fixing Plate(L) 2
31 Adjustment Wheel Fixing Plate(R) 2
32 Wheel Base 2
33 Control Fixing Plate 1
34 Incline Rotate Axle 1
35 Ø17 × 34L_Rotate Axle A 2
36 Ø17 × 41L_Rotate Axle B 2
37 Pedal Axle 2
38 Ø11.9 × Ø8.5 × 15m/m_Rod End Sleeve 8
40 Spring 2
41 32 × 11 × 2.5T × 625m/m_Aluminum Rail 4
42 Aluminum Track 4
43 6005_Bearing 9
43-1 6005-2RS_Bearing 1
44 6003_Bearing 8
45 608ZZ_Bearing 12
46 6203-C3_Bearing 2
47 Rod End Bearing 2
48 Drive Belt 1
49 Flywheel 1
50 Magnet 1
51 Steel Cable(250L) 1
52 Handgrip Resistance Label (STRIDE) 1
53 Handgrip Resistance Label (LEVEL) 1
55 Console Assembly 1
55~1 Console Top Cover 1
55~2 Console Bottom Cover 1
55~3 Console Inner Cover 1
55~4 Key Board 1
55~5 Deector Fan Grill 1
55~6 Wind Duct 1
55~7 End Cap 1
55~8 Fan Grill Anchor 2
55~9 500m/m_Fan Assembly 1
55~10 Console Display Board 1
55~11 Main Key Board 1
55~12 Interface Board 1
55~13 Bluetooth 1
55~14 USB charging module 1
55~15 W/Receiver, HR 1
55~16 CASFE Board 1
56 Gear Motor 1
57 850m/m_Sensor W/Cable 1
58 850m/m_Handpulse W/Cable Assembly 2
59 Power Cord 1
61 450m/m_Handle Wire (Upper), Resistance(White) 1
62 450m/m_Handle Wire (Upper), Incline(Red) 1
63 900m/m_Handle Wire (Lower), Resistance/Incline 2
64 Incline Controller 1
65 Adaptor 1
47
www.spirittness.com
66 Resistance Button W/Cable 2
67 1250m/m_Connecting Wire, Controller(Red) 2
68 2250m/m_Computer Cable 1
69 AC Electronic Module 1
70 650m/m_Computer Cable 1
71 80m/m_Connecting Wire (White) 2
72 200m/m_Ground Wire 1
73 Incline Motor 1
74 Conductive Terminal 2
77 Ø65_Transportation Wheel 2
78 Ø78_Slide Wheel , Urethane 4
79 Ø40_Adjustment Transportation Wheel 6
80 Ø38_Slide Wheel , Urethane 12
81 Ø35 × 10m/m_Rubber Foot 6
83 WFM-1719-12_Bushing 30
84 J4FM-1719-09_Bushing 4
85 Ø330_Drive Pulley 1
86 Ø32(1.8T)_Button Head Plug 2
87 Ø38 × 2.5T_Pedal End Cover 2
89 Ø40 × Ø80_Oval End Cap 2
90 Spacer Bushing 1
91 Ø25 × Ø10 × 3T_Nylon Washer (A) 2
93 Ø45 × Ø35 × Ø26 × 10T_Isolator 2
94 Handle Switch Bracket 2
95 Speaker Grill Anchor 8
96 Oval End Cap 2
97 Switch Wire Cap 2
99 Slide Wheel Cover 2
100 Front Handle Bar Cover (L) 1
101 Rear Handle Bar Cover (L) 1
102 Front Handle Bar Cover (R) 1
103 Rear Handle Bar Cover (R) 1
104 Rear Stabilizer Cover (A) 2
105 Rear Stabilizer Cover (B) 2
106 End Cap Stopper 4
107 Pedal (L) 1
108 Pedal (R) 1
109 Pedal Foam (L) 1
110 Pedal Foam (R) 1
111 Console Mast Cover(L) 1
112 Console Mast Cover(R) 1
113 Side Case(L) 1
114 Side Case(R) 1
115 Side Case Plate(L) 1
116 Side Case Plate(R) 1
117 Side Case Rear Shroud 1
118 Circuit Cover 1
119 Connecting Arm Cover (L)(A) 1
120 Connecting Arm Cover (R)(A) 1
121 Connecting Arm Cover (L)(B) 1
122 Connecting Arm Cover (R)(B) 1
123 Frame Cover 2
124 Aluminum Axle End Cap 4
125 Left Slider Cover 1
126 Right Slider Cover 1
129 7 × 7 × 19L_Woodruff Key 2
130 3/8" × 2"_Flat Head Socket Bolt 6
131 1/4" × 3/4"_Hex Head Bolt 4
132 1/4" × 1/2"_Hex Head Bolt 4
133 5/16" × 1/2"_Hex Head Bolt 34
134 M10 × P1.5 × 14L_Bolt 2
136 3/8" × 3/4"_Hex Head Bolt 2
137 3/8" × 2-1/4"_Hex Head Bolt 2
138 3/8" × 2-1/4"_Hex Head Bolt 6
139 3/8" × 3-3/4"_Hex Head Bolt 4
140 Ø10 × 40L_Incline Set Screws 1
141 Ø10 × 62L_Incline Set Screws 1
142 M8 × 20L_Socket Head Cap Bolt 2
143 M8 × 40L_Socket Head Cap Bolt 4
144 3/8" × 2-1/4"_Socket Head Cap Bolt 2
145 3/8" × 3/4"_ Socket Head Cap Bolt 6
146 5/16" × 1/2"_Button Head Socket Bolt 12
147 5/16" × 1-3/4"_Button Head Socket Bolt 10
148 M4 × 12L_Phillips Head Screw 2
149 M5 × 6L_Phillips Head Screw 12
150 M5 × 10L_Phillips Head Screw 4
48
Spirit Fitness
151 M5 × 10L_Phillips Head Screw 16
152 M5 × 15L_Phillips Head Screw 22
153 Ø3.5 × 12L_Sheet Metal Screw 20
154 Ø4 × 15L_Sheet Metal Screw 10
155 5 × 19L_Tapping Screw 23
156 Ø3 × 20L_Tapping Screw 4
157 M5 × 20L_Flat Head Socket Screw 4
158 Ø25_C Ring 2
159 Ø17_C Ring 5
160 M4 × 5T_Nyloc Nut 2
161 M8 × 7T_ Nyloc Nut 1
162 M8 × 9T_Nyloc Nut 1
163 M10 × 8T_Nyloc Nut 4
164 3/8" × 11T_Nyloc Nut 2
165 3/8" × 7T_Nyloc Nut 10
166 1/4" × 8T_Nyloc Nut 4
167 5/16" × 7T_Nyloc Nut 10
169 3/8" × UNF26 × 4T_ 2
170 3/8" × UNF26 × 11T_ 2
171 3/8" × 7T_Nut 12
172 M8 × 6.3T_Nut 6
174 M8 × 155L_J Bolt 1
175 3/8" × 30 × 2.0T_Flat Washer 2
176 Ø3/8" × Ø19 × 1.5T_Flat Washer 34
177 Ø5/16" × Ø35 × 1.5T_Flat Washer 4
178 Ø8.5 × Ø26 × 2.0T_Flat Washer 10
179 Ø5/16" × Ø23 × 1.5T_Flat Washer 12
181 Ø17 × Ø23.5 × 1T_Flat Washer 1
182 Ø8 × Ø16 × 2T_Flat Washer 8
183 Ø25_Wave Washer 4
184 Ø17 × 0.5T_Wave Washer 8
185 M8 × 20L_Carriage Bolt 1
186 Ø10 × 2T_Spring Washer 4
187 Ø3/8" × 23 × 2T_Curved Washer 8
188 Ø5/16" × 23 × 1.5T_Curved Washer 6
189 3/8'' × 19L_Hex Head Bolt 4
190 5/16" × 15L_Hex Head Bolt 16
192 Phillips Head Screw Driver 1
193 L Allen Wrench 1
194 13/14m/m_Double Open-End Wrench 1
195 12/14m/m_Double Open-End Wrench 1
196 38 × 38L_Square End Cap 1
198 M14 × 7m/m_Luck Nut 2
199 Rubber Pad 2
200 M12_L Allen Wrench 1
201 Open End Combination Spanner Wrench 1
203 Bolt Access Cap 1
204 100m/m_Connecting Wire (White) 1
205 100m/m_Connecting Wire (Black) 1
206 100m/m_Connecting Wire (Green) 1
207 TV Adapter 1
208 Ø5/16" × Ø23 × 3T_Flat Washer 8
200304
49
www.spirittness.com
NOTES
50
Spirit Fitness
NOTES
51
www.spirittness.com
800.258.4555
spiritservice@spirittness.com
www.spirittness.com
Spirit Fitness
3000 Nestle Road
Jonesboro, AR 72401
CE850 Owners Manual
© 2021 All Rights Reserved
Revision 4: 11.08.2021
