A231 / A230
WHERE TO USE
MODEL PART DIAGRAM
12~18 in
12~18 in
Allow 12 ~ 18 in. of space between TVs, radios, and other electronics
Electromagnetic interference from certain electronics may cause
product malfunction.
Place indoors away from direct sunlight
Direct exposure may cause product malfunction or failure.
Only place on hard, flat surfaces
Flimsy or slanted surfaces may result in abnormal noise and vibrations.
Allow 12 ~ 18 in. from walls
For maximum air flow.
01
02
03
04
06
07
08
05
01. Filter Replacement Indicator
LED light indicates when it is time to change the filter.
02. Filter Reset Button
After replacing the 360º All-in-One True HEPA Filter, use a small object such as a paper clip, to press and hold the
Filter Reset Button for at least 5 seconds until the Filter Replacement Indicator turns off.
03. Auto Mode Button
The unit will default to Auto with PlasmaWave
®
enabled when first powered on.
•
Auto Mode automatically adjusts fan speeds according to your indoor air quality. The fan speed will adjust
to low when air quality is good, medium when fair, and to high when poor.
CONTROL PANEL
04. Air Quality Indicator
Color coded LED light indicates one of three levels of Air Quality:
Red (poor), Amber (fair), and Blue (good).
05. Sleep Mode Button
When Sleep Mode is activated, the Air Quality Indicator LED light is disabled.
•
Fan speed will automatically set to minimum speed (lower than 'Low') which will be nearly silent.
•
When Sleep Mode is active, PlasmaWave
®
will be disabled, but it can be turned back on.
06. PlasmaWave
®
Button
Enables or disables PlasmaWave
®
"When the unit is running, you may hear a chirping or buzzing sound. The sound is from large particles passing
through PlasmaWave
®
, it is normal and does not signify product failure."
Press the PlasmaWave
®
Technology button when the unit is on to enable or disable this feature.
07. Fan Speed Indicator Buttons
Indicates the current fan speed.
•
Use the Fan Speed arrow buttons to set the desired fan speed. Fan speeds cycle over in this sequence:
Auto, Low, Medium, High, Auto.
Low Medium High
08. Power Button
Turns the unit on or off. During the first 30 seconds of power, the Air Quality Indicator will cycle through
Blue, Amber and Red colors.
•
Odor Sensor takes approximately 4 minutes to detect the air quality in the environment before normal
operation begins.
When to Replace Filters
Filter Indicator Light When to service When to replace
360º All-in-One
True HEPA Filter
Clean once every 14 days Lasts Approx. 12 months
•
When the Check Filter indicator LED is on, it is time to replace the All-in-One True HEPA Filter.
•
Intervals between filter replacement may vary depending on environment.
MAINTENANCE
Activated Carbon Filter
Fine Mesh Pre-Filter
True HEPA Filter
PlasmaWave

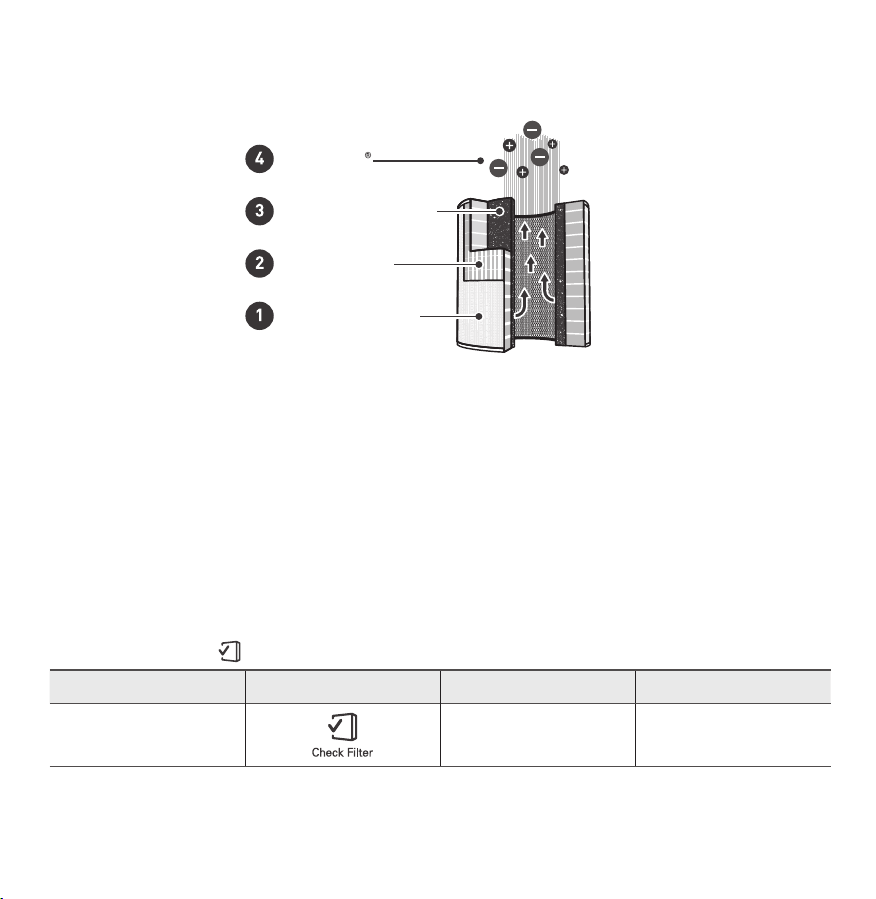

4-STAGE AIR PURIFICATION
01. Fine Mesh Pre-Filter
Designed to catch larger airborne particles found
indoors.
02. True HEPA Filter
Captures 99.97%* of airborne allergens including; pollen,
mold spores, dust, pet dander, microbes, and smoke
(*Particles as small as 0.3 microns in size).
03. Activated Carbon Filter
Reduces VOCs and household odors from cooking,
pets, and smoke.
04. PlasmaWave
®
PlamaWave creates Hydroxyls which can help to
reduce the presence of airborne Bacteria, Viruses*
(*Based on independent laboratory test conducted on
Influenza A Virus H3N2, E. coli, Pseudomonas aeruginosa,
Staphylococcus aureus, Salmonella typhimurium).

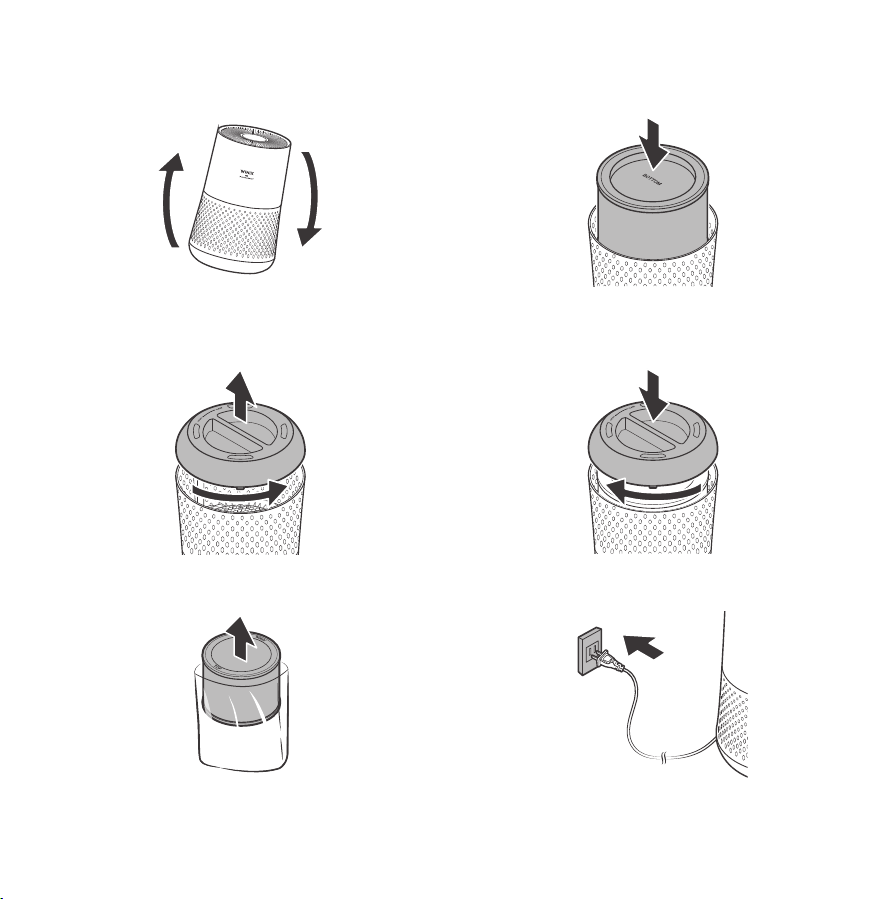

INITIAL OPERATION
1.
Turn the product upside down.
2.
Grab the handle at the bottom of the product, turn
counter-clockwise, and pull out the filter cover.
3.
Remove the protective vinyl from the filter
installed inside the product.
4.
Install the filter top side down into the bottom of unit
until it is fully inserted. The top of the filter shows the
opening and the bottom of the filter is solid.
5.
After installing the filter, turn the handle clockwise
to close the filter cover.
6.
Return the product to an upright position and
resume normal operation.
O
1712-0110-00
FILTER
After replacing a filter,
press the Filter Reset Button
for at least 5 seconds.
REPLACING FILTERS
CLEANING CARE

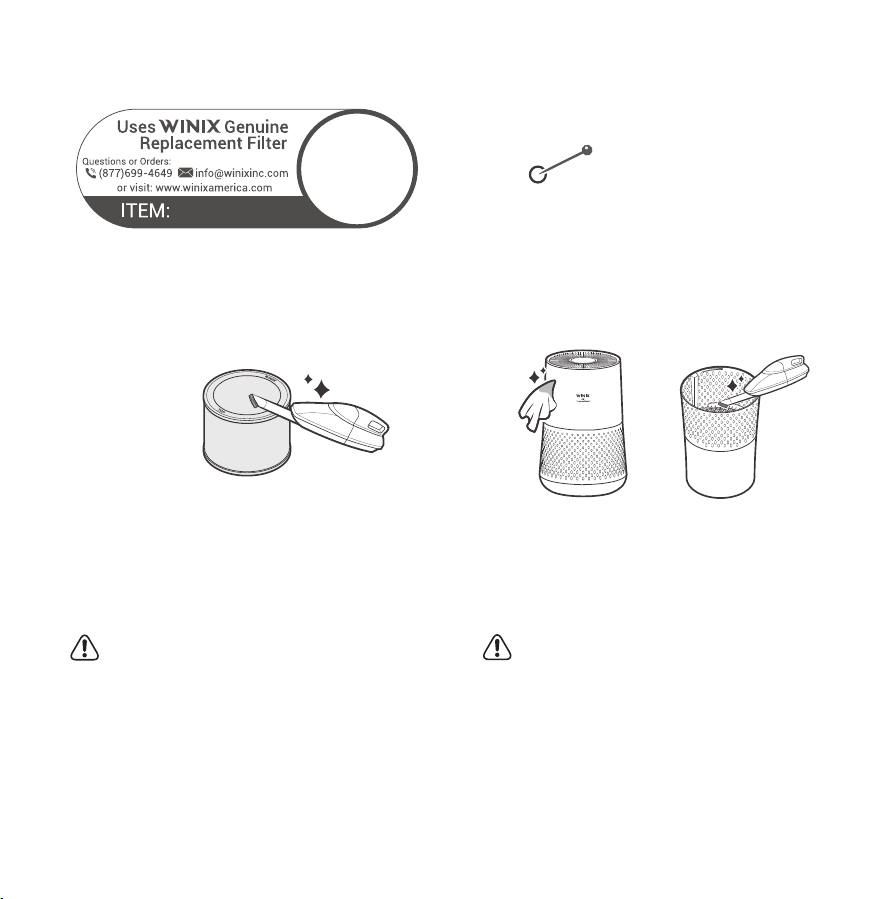

Cleaning the Filters:
Clean with a vacuum or a soft brush.
•
Only clean the Pre-Filter.
•
This filter CAN NOT be washed.
•
Intervals between filter cleaning may vary
depending on the air quality.
NOTICE
Do not use benzene, alcohol, or other volatile fluids,
which may cause damage or discoloration.
Cleaning the Exterior & Interior:
Wipe with a soft damp cloth using room temperature
water. Afterwards, wipe it down with a clean dry cloth.
After turning the product upside down, remove the filter
cover and clean the interior with a vacuum cleaner.
•
For optimal performance, clean every 14 days.
NOTICE
•
When cleaning the unit, always unplug the power cord
first and then wait until the unit has cooled down.
•
Never disassemble, repair, or modify this unit yourself.
•
Do not use flammable sprays or liquid detergents.
•
Do not allow children to clean or maintain the unit.
•
Before cleaning or maintaining, ensure unit is unplugged.
