WINIX AIR CLEANER
HR900
2
English HR900
CONTENTS
5-STAGE AIR PURIFICATION
············································································
3
CONTROLS
······································································································
4
WHERE TO USE
·······························································································
5
INSTALLING THE FILTERS
················································································
6
SAFETY AND CAUTIONS
·················································································
8
INITIAL OPERATION
························································································
9
AUTO AND SLEEP
·························································································
10
MANUAL MODE, TIMER AND PLASMAWAVE
®
··············································
11
CHILD LOCK, AIR QUALITY LED
····································································
12
FILTER CARE
··································································································
13
CLEANING THE DUST SENSOR
······································································
17
CLEANING CARE
···························································································
18
FREQUENTLY ASKED QUESTIONS
·································································
19
UNIT SPECIFICATIONS
··················································································
21
SAFETY INSTRUCTIONS
················································································
22
PRODUCT WARRANTY
··················································································
23
•
This product is suitable for 120 V only.
French
··········································································································
24
Spanish
·········································································································
49
3
English HR900

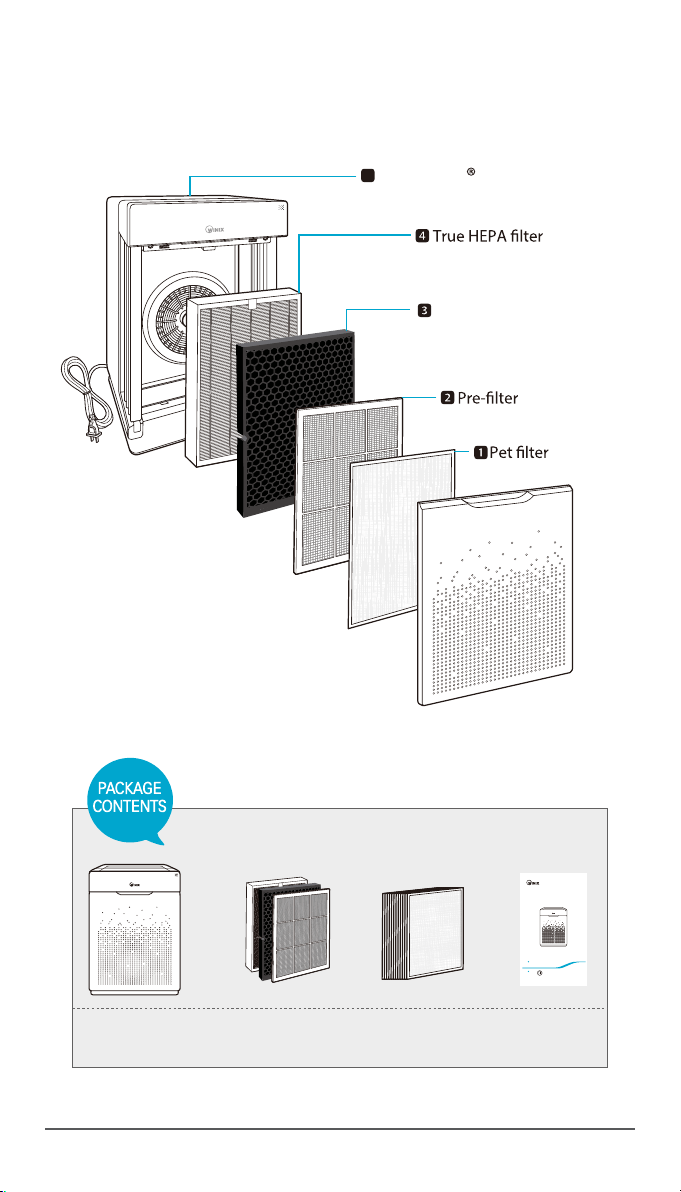

5-STAGE AIR PURIFICATION
PlasmaWave
Advanced Odor Control
(AOC
TM
) Carbon Filter
replaceable
washable
replaceable
5
replaceable
Product User ManualPre-filter / AOC
TM
Carbon filter
/ True HEPA filter
12 Pet Filter
User Manual
Model
Use & Care
Guide
•
•
•
Please read and follow all safety rules and instructions
in this manual before operating.
The product warranty is printed on the back of this
guide, so please keep it in a safe place for future use.
This product is manufactured for use only in USA/CA.
WINIX AIR CLEANER
HR900
4
English HR900

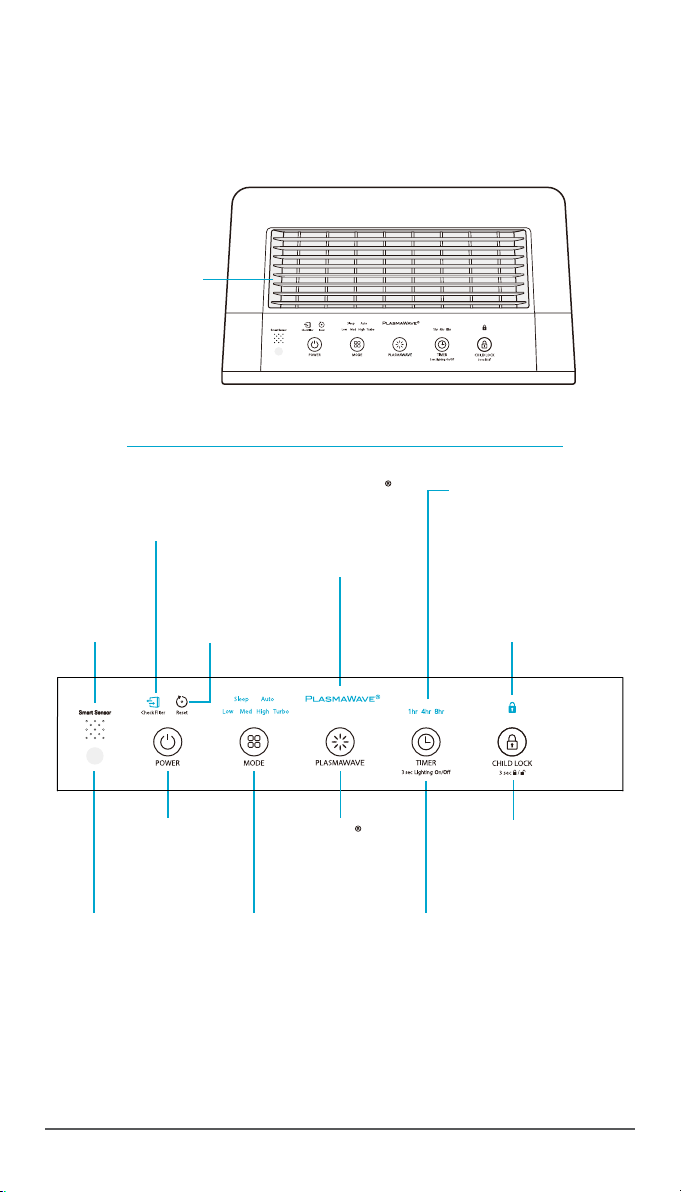

CONTROLS
Air Outlet Vent
Light Sensor
Detects the amount
of ambient light within
the environment,
to adjust the brightness
of the LED indicators.
Mode / Fan Speed Button
Every time the Mode button
is pressed, the Mode LED light
will cycle through the settings.
(Auto, Sleep, Low, Medium,
High, Turbo)
Child Lock Button
Press and hold for 3 seconds
to enable or disable
the Child Lock mode.
Timer Indicator
If timer has been set,
the LED light indicates
the set time of operation.
Timer / Air Quality Light Button
Press to cycle through and set
desired length of operation
(1hr, 4hr, 8hr, [NO TIMER]).
Press and hold for 3 seconds
to enable or disable the
Air Quality light.
Smart Sensor
Automatically
detects indoor
air quality.
Reset Button
After replacing a filter,
press the RESET button
for at least 5 seconds.
Power Button
Turns the unit on
or off.
Child Lock Indicator
LED light indicates whether
Child Lock mode is
enabled or disabled.
Check Filter Indicator
LED light indicates when it is
time to change the filter.
PlasmaWave
Indicator
Indicates whether
PlasmaWave
®
is
enabled or disabled.
PlasmaWave Button
Enables or disables
PlasmaWave
®
.
5
English HR900
WHERE TO USE

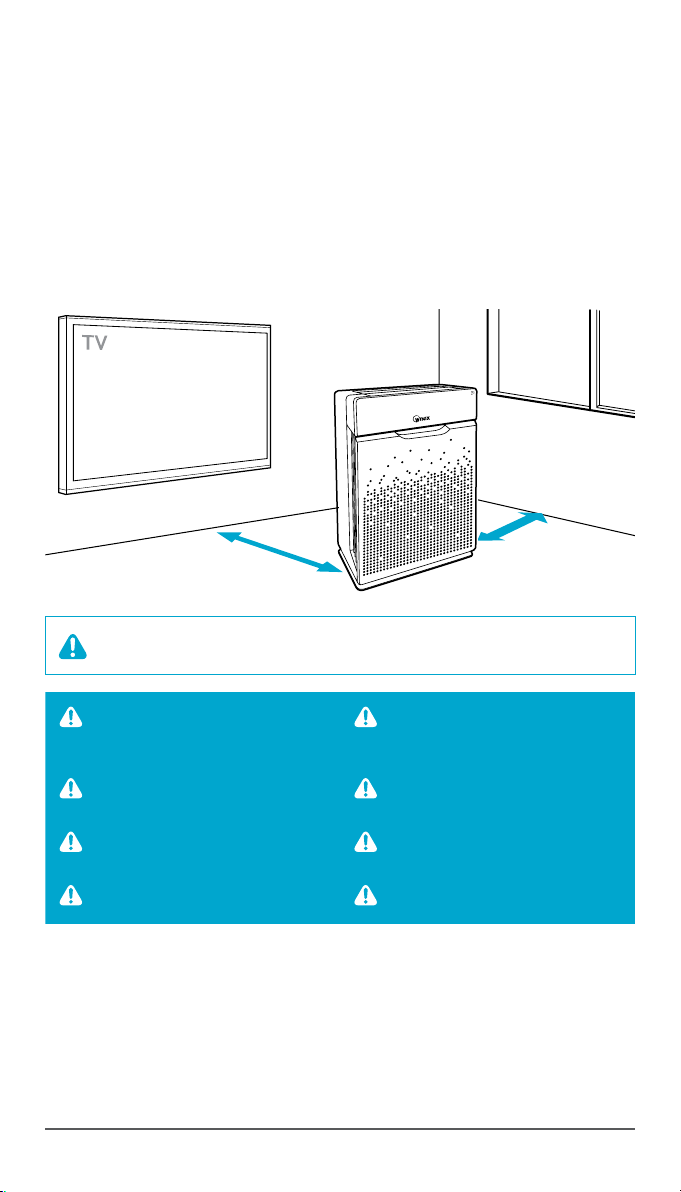

Allow 12 ~ 18 in. of space between TVs, radios, and other electronic products
electromagnetic interference from certain electronics may cause product malfunction.
Place indoors away from direct sun light
direct exposure may cause product malfunction or failure.
Only place on hard, flat surfaces
flimsy or slanted surfaces may result in abnormal noise and vibrations.
12~18 in
4 in
WARNING
Follow these instructions to reduce the risk of serious injury
or death and to reduce risk of damaging the unit.
Do not use around mist or fumes from
industrial oil or around large quantities of
metallic dust
Do not place around heating elements
Do not install in any sort of motor or
transport vehicle (trucks, boats, ships, etc.)
Do not place in an area with excessive
amounts of noxious gases
Do not place near any flammable
materials (aerosols, fuel, gases etc.)
Do not have unit facing into wind or draft
Do not place below any electrical outlet
Do not place in excessively humid areas
where unit may become wet
•
This unit is not intended to be used to preserve documents or in art conservation.
6
English HR900
This product comes with all of the required filters. The protective plastic wrap must be
removed from the filters before use.
•
Operating the unit without removing the plastic wrap may result in product failure.
•
Unplug and make sure the unit is turned off before installing filters.
•
The unit will automatically power off when front panel is opened.

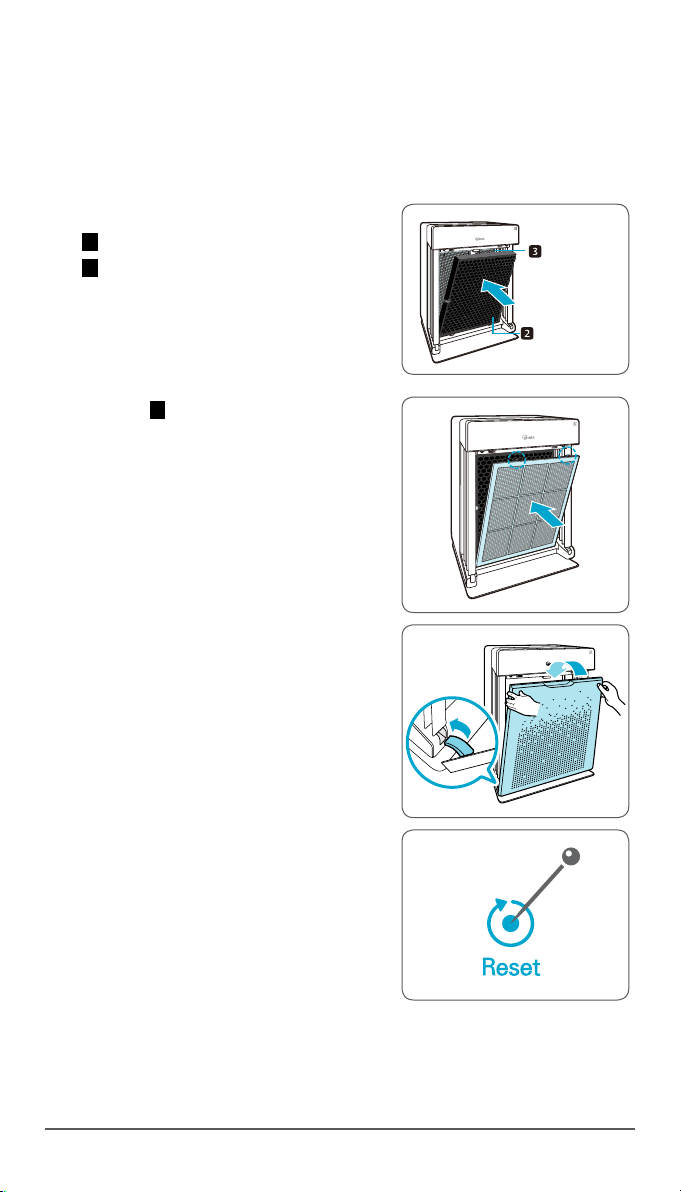

1

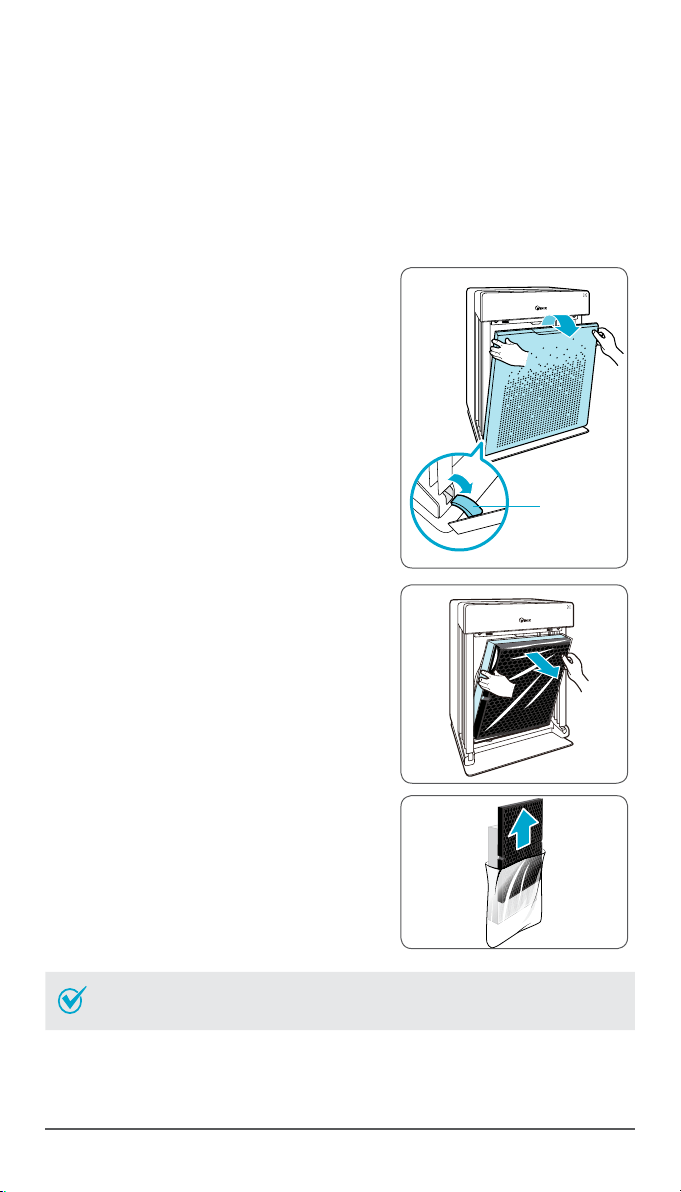

Remove the front panel by grasping its
upper edge and gently pulling towards
yourself.
•
To remove the front panel, the latch at
the lower edge of the panel must be
released from its position.
Latch
2

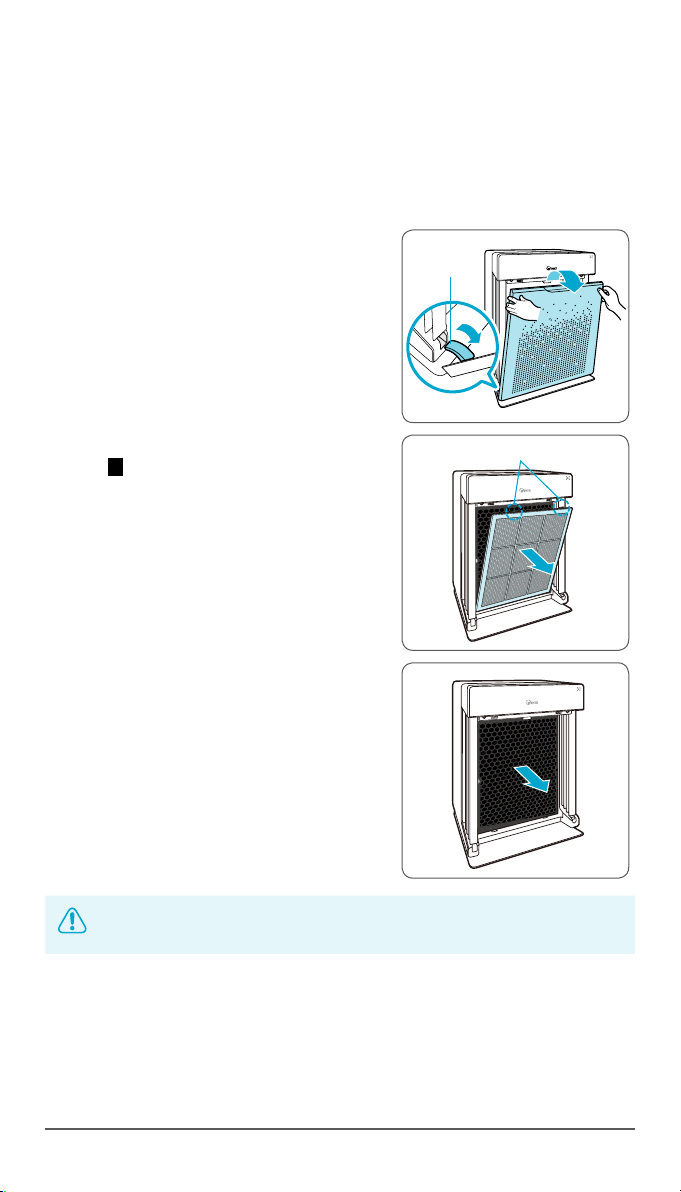

Remove the filters from the unit, they are
protected inside a plastic wrap.
3
Remove filters from protective plastic wrap.
•
Operating the unit without removing
filters from plastic may cause abnormal
noise, deformation, or fire as a result of
overheating.
NOTE
•
Refer to pages 13 - 16 for detailed information on filter care
and how to replace them.
INSTALLING THE FILTERS
7
English HR900
INSTALLING THE FILTERS

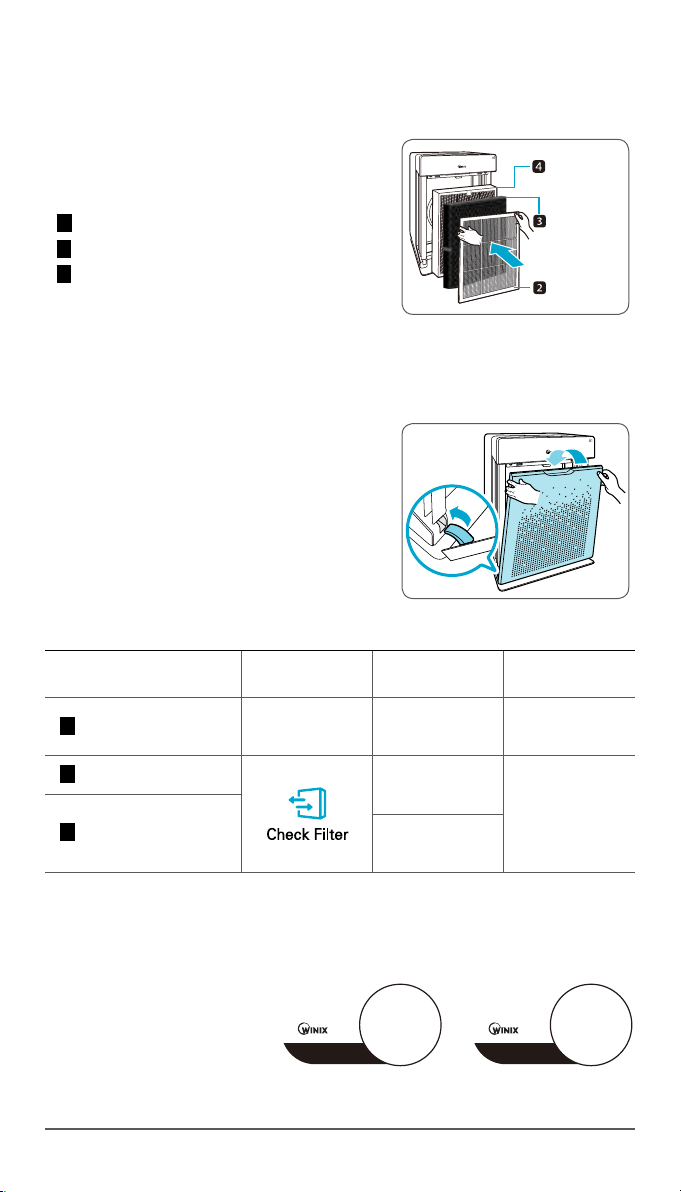

1
Install the filters until they fit securely in
place.
Filters must be installed in this order:
True HEPA filter (rear)
AOC
TM
Carbon Filter (middle)
Pre-filter (front)
•
To install the pre-filter, insert bottom tabs
into the slots on either side of the lower part
of the unit, then rotate upward to insert the
upper tabs into the slots at the top part of
the unit until both sides audibly click into
place.
Pre-filter
AOC
TM
Carbon
Filter
True HEPA
filter
2
Replace the front panel by first inserting
the latch at the bottom edge into the
base of the unit, then rotate the panel
upward toward the top of the unit until it
magnetically snaps closed.
•

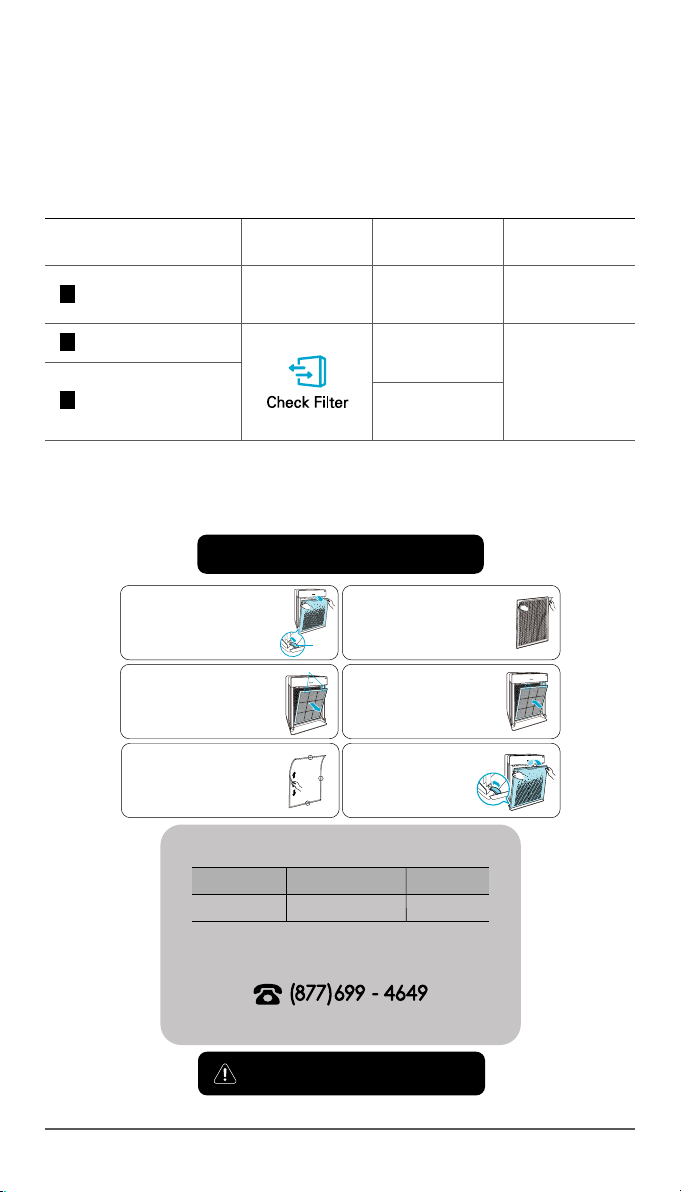

When to service and replace filters :
Filter Indicator Light When to service When to replace
2 Pre-filter none
Clean once every
14days
Permanent
3 AOC™ Carbon Filter Clean once every
3 months
Lasts up to
12months
4 True HEPA filter Can NOT be
WASHED
•
Intervals between filter replacement may vary depending on environment.
•
For optimal use, Pre-filter can be cleaned every 14 days which can extend the life of
other filters.
To purchase replacement
Winix filters:
(877)-699-4649
www.winixamerica.com
FILTER
Item: 1712-0094-00
U
This unit
is compatible
with
filter
FILTER
Item: 1712-0093-00
T
This unit
is compatible
with
filter
&
8
English HR900
SAFETY AND CAUTIONS
Before operating this equipment, carefully read and follow these safety cautions and
instructions to avoid damage and ensure safe use.
Ensure filters are inserted before running unit
running unit without filters can shorten the units life and cause electric shock or injury.
Be sure foreign objects are NOT inserted into the vents on the unit
objects can include pins, rods, and coins.
Do not touch any part of the interior of the unit with wet hands
the high voltage may cause electric shock.
Ensure unit intake and outlet vents do not become blocked
blockage may lead to increased internal temperatures causing product failure and
deformation.
Do not use the unit as a step stool or place heavy objects on it
personal injury may occur or product failure and deformation.
WARNING
Follow these instructions to reduce the risk of serious
injury or death and to reduce risk of damaging the unit.
Do not pull on the power cord when
unplugging the unit
Do not tie or knot power cord when unit
is in operation
If the unit becomes submerged in water,
unplug it and contact customer service
Do not unplug or move the unit while in
operation
Do not plug additional appliances into
the same outlet or power supply
Do not touch the plug with wet hands
Unplug unit when not in operation for
extended periods of time
Cord can become damaged by forcefully
bending, pulling, twisting, bundling,
pinching or placing heavy objects on it
9
English HR900
INITIAL OPERATION

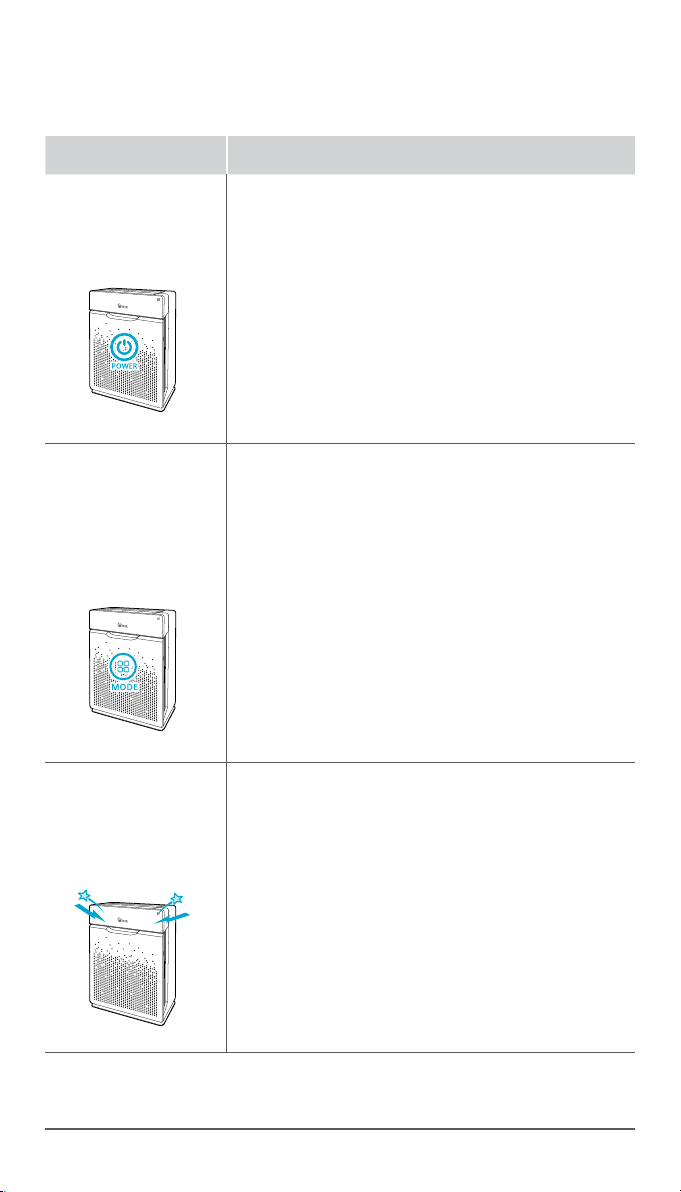

1
Insert the unit plug into an electrical outlet.
•
The Control Panel lights will turn on and
off.
2
Press the 'Power' button.
NOTE
•
During the first 4 minutes of power up, the Air Quality light
will flash as the Smart Sensors measure the air quality in the
environment, after which normal operation will begin.
•
By default, when the unit first powers on, the
mode will be set to Auto with PlasmaWave
®
enabled.
•
When in Auto Mode the fan speed will
be automatically adjusted according to
the environments air quality.
•
PlasmaWave
®
works to remove harmful
airborne contaminants.
NOTE
•
In Auto mode, as the indoor air quality improves, the fan
speed will automatically be reduced to Low.
•
When the unit is running, you may hear a chirping or buzzing
sound. The sound is from large particles passing through
PlasmaWave
®
, it is normal and does not signify product
failure. To disable PlasmaWave
®
, see page 11.
10
English HR900
AUTO AND SLEEP
Every time the Mode button is pressed, the Mode LED light will cycle through the
settings. (Auto, Sleep, Low, Medium, High, Turbo)
1. Auto Mode
Enables Auto operation based on the unit's air quality Smart Sensors.
Press the Mode button to select Auto mode.
•
The mode LED light will indicate when
‘Auto’ mode has been selected, and
operation will begin.
•
Each time the Mode button is pressed,
the modes will be cycled. (Auto, Sleep,
Low, Medium, High, Turbo).
NOTE
•
When in Auto Mode the fan speed is automatically adjusted
according to the indoor air quality. As the indoor air quality
improves, the fan speed will automatically be reduced. If the
indoor air quality decreases the fan speed will automatically
be increased.
•
When the unit is first started, Auto Mode is enabled and set
to Low fan speed.
2. Sleep Mode
Press the Mode button to select Sleep mode.
•
The mode LED light will indicate when
‘Sleep’ mode has been selected, and
operation in that mode will begin.
NOTE
•
When Sleep mode is selected, the fan speed is automatically
set to Low. Fan speed can be changed by pressing the Fan
Speed (Mode) Button.
•
When Sleep Mode is enabled, the Air Quality light is disabled.
11
English HR900
MANUAL MODE, TIMER AND PLASMAWAVE
®
Every time the Mode button is pressed, the Mode LED light will cycle through the
settings. (Auto, Sleep, Low, Medium, High, Turbo)

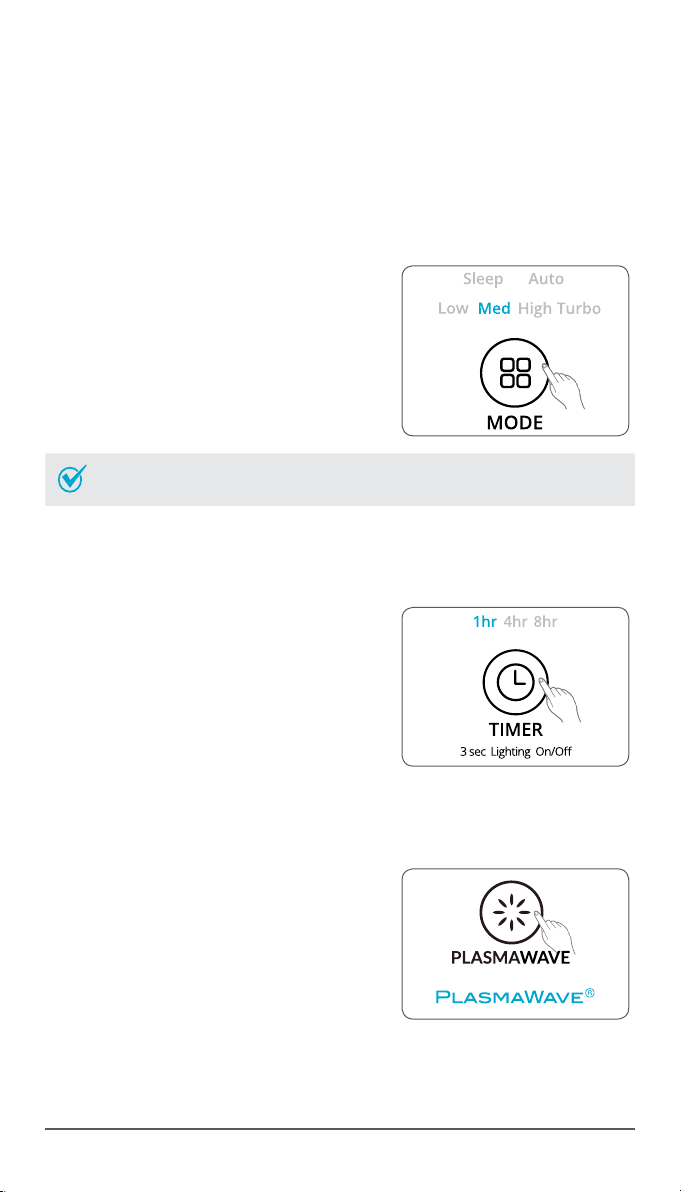

3. Manual Mode (setting fan speed)
Users can opt to manually set the fan speed to Low, Medium, High, or Turbo.
Press the Mode button to select the desired
fan speed.
•
The mode LED light will indicate the
selected fan speed, and operation will
begin.
NOTE
•
When Manual Mode is in use, Auto and Sleep modes are
automatically disabled.
4. Timer
The timer can be set for when you want the unit to run for a specified period of time.
Select the desired period by pressing the
Timer button.
•
The Timer LED light will indicate the
selected length of operation.
•
Every time the Timer button is pressed
the Timer LED light will cycle through
the settings. (1hr, 4hr, 8hr, [NO TIMER]).
5. PlasmaWave
®
By default, PlasmaWave
®
is enabled whenever the unit is powered on.
Press the Plasmawave® button when the
power is on to enable or disable this feature.
12
English HR900
CHILD LOCK, AIR QUALITY LED
6. Child Lock
This feature prevents children from tampering with the control panel.
Press and hold the Child Lock button for
3seconds to enable or disable the feature.
•
When the Child Lock indicator is lit, the
feature is enabled.
•
When Child Lock is enabled, the
control panel is locked and the settings
cannot be changed.
•
To disable, press and hold the Child
Lock button again for 3seconds.
3 seconds
7. Air Quality LED Light
The Air Quality LED light may be turned on or off.
To turn the Air Quality LED light on or
off, press and hold the Timer button for
3seconds.
•
When on, the LED light will indicate
the current indoor air quality according
to three levels
BLUE (good), AMBER (fair), RED (poor)
3 seconds
Air Quality Indicator
NOTE
•
When Auto Mode is enabled the Air Quality LED light may or
may not be on, depending on the amount of ambient light
in the room.
•
When Sleep Mode is activated, the Air Quality Indicator light
is turned off.
13
English HR900
FILTER CARE
1. Changing Filters
When the Check Filter indicator LED is on, it is time to replace both the
True HEPA and AOC™ Carbon Filters.
Filter Indicator light When to service When to replace
2 Pre-filter none
Clean once every
14days
Permanent
3 AOC™ Carbon filter Clean once every
3 months
Lasts up to
12months
4 True HEPA filter Can NOT be
WASHED
•
Intervals between filter replacement may vary depending on environment.
•
For optimal use, Pre-filter can be cleaned every 14 days which can extend the life of
other filters.
1. Installing the Pet Filter
Latch
Filter Replacement Period
Filter Type
Replacement Period
Quantity
Pet-filter
1 Month
12 Per Pack
The Replacement Period may be different depending on the surrounding environment
Customer Service and Purchase Inquiry
www.winixamerica.com | [email protected]
For optimal performance, only genuine Winix filters
should be used with your Winix Air Purifier
1. Remove the front panel by grasping
the upper edges and gently pulling the
front panel toward yourself.
The latch at the lower edge of the panel
must be released from its position
.
2. Press the tabs on the top edge of
the pre-filter to remove it.
3. Remove the liner around the outside
of the pet filter to reveal the adhesive
tape.
4. Attach the Pet-filter to the front of the
Pre-filter.
Press the adhesive tape around the edge
of the pre-filter to adhear it to the pre-filter.
5. Insert the Pre-filter
Insert the bottom tabs into the slots on
both sides of the lower part of the unit.
Rotate the top of the filter upward and snap
the upper tabs into the slots securing the
pre-filter in place.
6. Replace the front panel by first
inserting the latch at the bottom
edge into the base of the unit,
then rotate the panel upward
toward the top of the unit until it
magnetically snaps closed.
Tabs
14
English HR900
FILTER CARE
2. Removing Filters
Ensure the unit is turned off and unplugged before removing filters.
•
The unit will automatically power off when front panel is opened.
1
Remove the front panel by grasping its
upper edge and gently pulling towards
yourself.
•
To remove the front panel, the latch at
the lower edge of the panel must be
released from its position.
Latch
2
Press the tabs on the top edge to remove
the
2 Pre-filter.
Tabs
3
First remove the AOC™ Carbon filter.
4
Then remove the True HEPA filter by pulling
on the tag at the top of the filter.
NOTICE
•
For optimal performance, only genuine Winix filters should
be used with this unit.
15
English HR900
FILTER CARE
3. Filter Assembly and Replacement
Filters should be re-installed in the reverse order of their removal.
1
Insert the replacement filters
4 True HEPA filter (rear)
3 AOC™ Carbon filter (middle)
•
Remove the protective plastic wrap from
new filters. Operating the unit without
removing the protective plastic wrap
may cause abnormal noise, deformation,
or fire as a result of overheating.
AOC
TM
Carbon Filter
True
HEPA filter
2
Insert the
2 Pre-filter (front).
•
To install the pre-filter, insert bottom
tabs into the slots on either side of
the lower part of the unit, then rotate
upward to insert the upper tabs into
the slots at the top part of the unit until
both sides audibly click into place.
3
Replace the front panel by first inserting
the latch at the bottom edge into the
base of the unit, then rotate the panel
upward toward the top of the unit until it
magnetically snaps closed.
4
After replacing the filters, power on the unit.
Once the unit running, press and hold the
RESET button for 5seconds.
16
English HR900
FILTER CARE

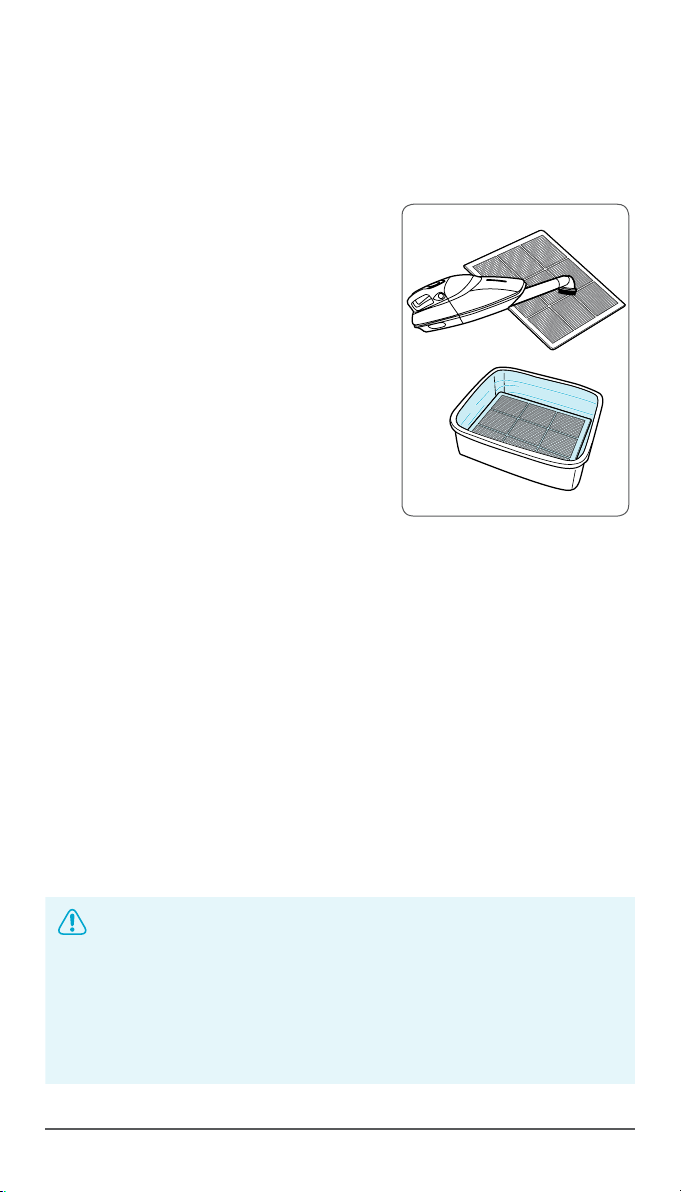

4. Cleaning the Pre-filter
Intervals between filter cleanings may vary depending on the air quality.
Use a vacuum cleaner or soft brush to clean
the Pre-filter. If it is excessively dirty, wash
with room temperature water.
•
Use only water, do not use volatile
substances such as alcohol or acetone.
NOTICE
•
Do not use benzene, alcohol, or other volatile fluids, which
may cause damage or discoloration.
•
The Pre-filter is reusable after cleaning, ensuring it has
completely dried.
•
Do not use hot water over 104°F or volatile fluids such as
paint thinner.
•
After washing the pre-filter, allow it to dry completely in a
wellventilated area. Otherwise, it may develop a bad odor.
•
If the pre-filter becomes damaged
or in any way needs replacement:
Please contact Winix
(877)-699-4649
w
ww.winixamerica.com
17
English HR900
CLEANING THE DUST SENSOR
Cleaning the Dust Sensor
For optimal performance of the Dust Sensor, which detects airborne dust and ultrafine
particles, clean it every two months. Clean it more frequently when the unit is running
in a place with high dust levels.

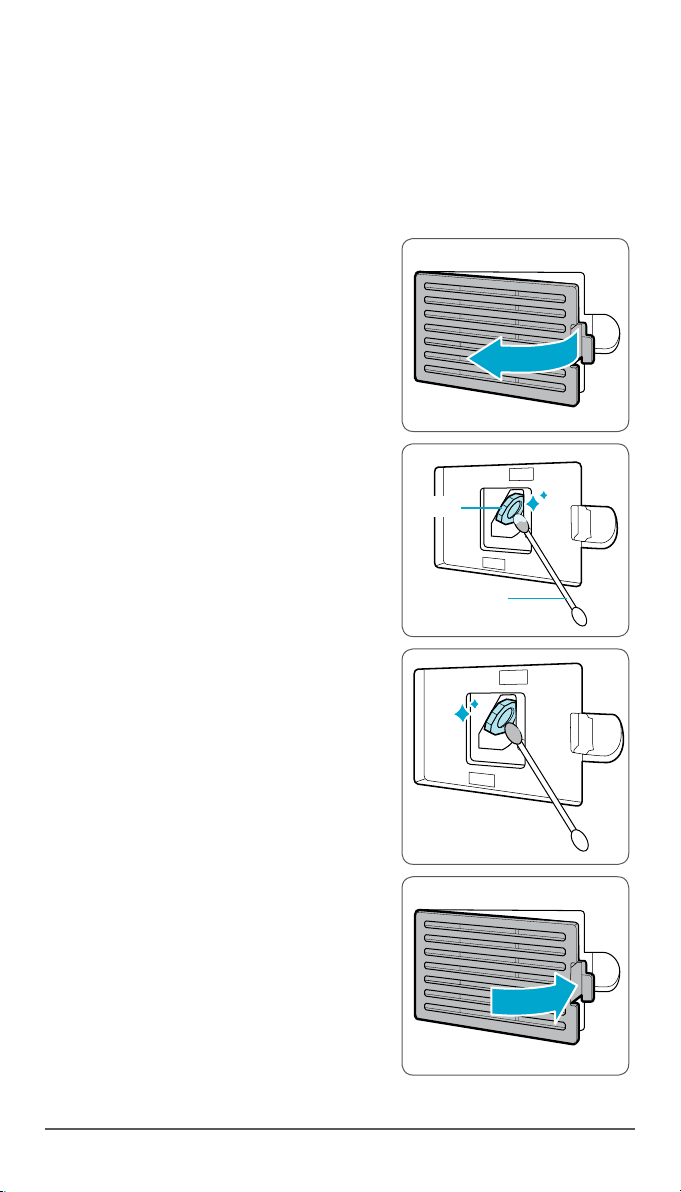

1
Open the Dust Sensor cover.
2
Use a damp cotton swab to wipe the lens
and intake area of the Dust Sensor.
•
To clean the sensor area, use only water.
Do not use volatile substances such as
alcohol or acetone.
Lens
Cotton swab
3
Wipe away any remaining moisture with a
dry cotton swab.
4
Close the Dust Sensor cover.
•
The Dust Sensor cover may be cleaned
using a vacuum cleaner.
18
English HR900
CLEANING CARE

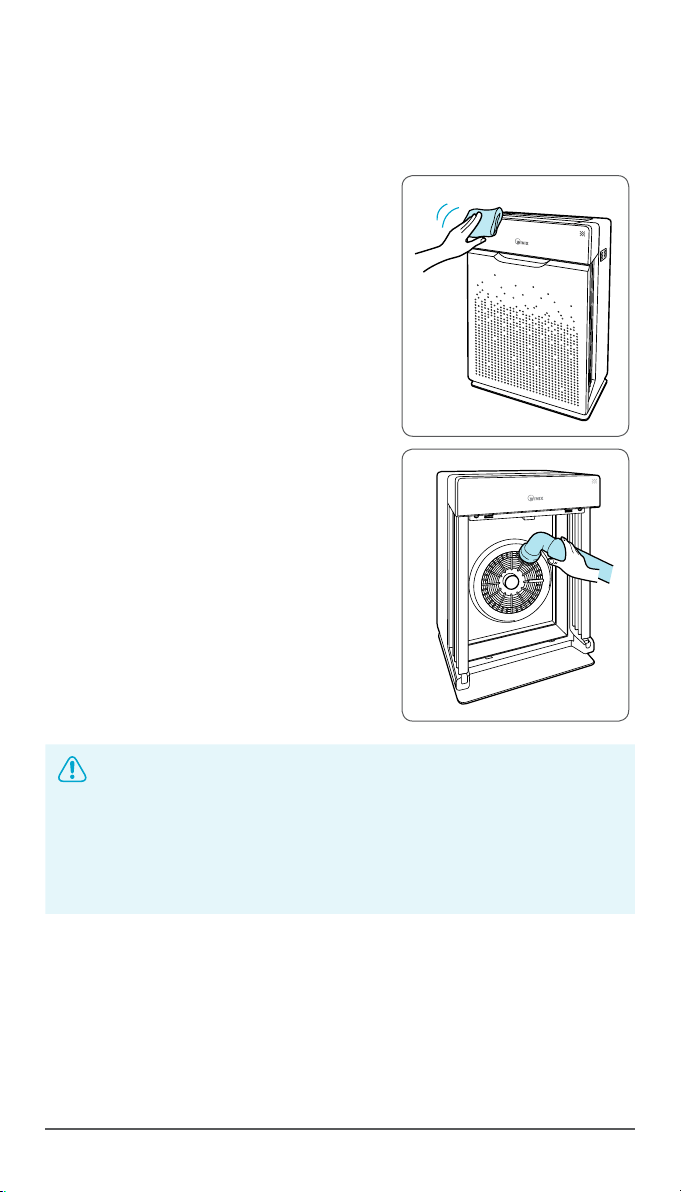

Cleaning the exterior and interior
Cleaning the exterior
Wipe with a soft damp cloth using room
temperature water. Afterwards, wipe it down
with a clean dry cloth.
•
For optimal performance, clean the front
panel 1-2times a month.
Cleaning the interior
Open the front panel and clean the interior with
a vacuum cleaner.
•
For optimal performance, clean the interior
1-2times a month.
NOTICE
•
When cleaning the unit, always unplug the power cord first
and then wait until the unit has cooled off
•
Never disassemble, repair or modify this unit yourself
•
Do not use flammable sprays or liquid detergents
•
Do not allow children to clean or maintain the unit
•
Before cleaning or maintaining, ensure unit is off and
unplugged
19
English HR900
FREQUENTLY ASKED QUESTIONS

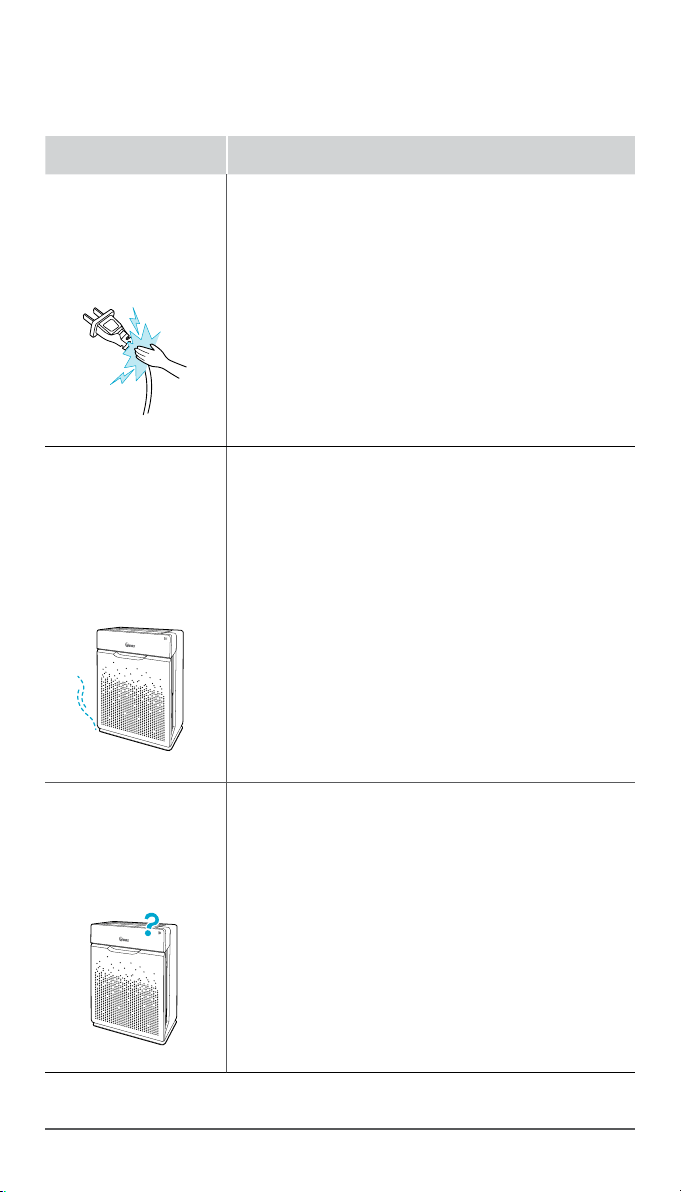

Problem Check / Actions to take
It does not turn on
at all.
•
Is there a power outage?
-
Check to see if other lights and electrical
equipment are working and try again.
It doesn’t work in
Auto mode.
•
Has Auto mode been selected?
-
Press the Mode button until Auto mode is
selected.
•
Is the sensor blocked or clogged?
-
Clear the sensor using a vacuum cleaner.
View page 17.
It vibrates and
makes a lot of
noise.
•
Is it running on a slanted surface?
-
Move the unit to a hard, flat area of the floor.
20
English HR900
FREQUENTLY ASKED QUESTIONS
Problem Check / Actions to take
The power plug
and outlet feel
hot.
•
Is the plug securely plugged in?
-
Make sure the plug is properly plugged into the
outlet.
There is a strange
smell.
•
Is it being used in a place with a lot of smoke, dust,
or odors?
-
Clean the air intakes on the front sides of the
unit and clean the pre-filter.
-
Contact customer service to confirm the exact
cause.
-
Replace the AOC™ Carbon Filter and True HEPA
filter.
The product is not
purifying the air
enough.
•
Is the Check Filter indicator light on?
-
Replace the filters as required.
21
English HR900
UNIT SPECIFICATIONS
Model Name HR900
Power Voltage AC120 V, 60 Hz
Power Rate 90 W
Room, Capacity in Sq. Ft. 300 sq. ft.
Weight 18.7 lbs
Dimensions 16.3 in(W) x 9.6 in(D) x 23.6 in(H)
Replacement Filter
Filter T / item:
1712-0093-00
&
Filter U / item:
1712-0094-00
•
The exterior, design, and product specifications may be changed to improve product
performance without prior notice.
Warning : Change or modifications to this unit not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
Note : This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, and may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures.
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Industry Canada's license-exempt RSSs. Operation is subject to the
following two conditions:
•
This device may not cause interference and
•
This device must accept any interference, including interference that may cause undesired
operation of the device.
22
English HR900
SAFETY INSTRUCTIONS
Thank you for purchasing a Winix air purifier. This product is for household use only.
IMPORTANT CAUTIONS FOR
USING YOUR AIR PURIFIER
WARNING : Follow the instructions in this
manual to reduce the risk of electric shock,
short circuit, and/or fire.
•
Do not repair or modify the unit unless
specifically recommended in this manual.
All other repairs should be completed by a
qualified technician.
•
The plug for this unit is polarized with one
blade wider than the other. Do not force
the plug into an electrical outlet. Do not
alter the plug in any way. If the does not fit
into the outlet, reverse the plug.
If it still does not fit, contact a qualified
technician to install a proper outlet.
•
Do not use if the power cord or plug is
damaged or the connection to the wall
outlet is loose.
•
Use AC 120V only.
•
Do not damage, break, forcefully bend, pull,
twist, bundle, coat, pinch, or place heavy
objects on the power cord.
•
Periodically remove dust from the power
plug. This will reduce the risk of shock due
to humidity build up.
•
If the power plug is damaged, it must be
replaced by the manufacturer or a qualified
technician.
•
Remove the power plug from the outlet
before cleaning the unit. When removing
the power plug, grasp by holding the plug
itself, never hold by the cord.
•
Remove the power plug from the outlet
when not in use.
•
Do not handle the power plug with wet
hands.
•
Do not operate the unit when using indoor
smoke-generating insecticides.
•
Do not clean unit with benzene or paint
thinner. Do not spray insecticides on the unit.
•
Do no
t use the unit where it is humid or
where the unit may become wet, such as
the bathroom.
•
Do not insert fingers or foreign objects into
air intake or outlet.
•
Do not use the unit near flammable gases.
Do not use near cigarettes, incense, or
other spark-creating items.
•
Unit will not remove carbon monoxide
emitted from heating appliances or other
sources.
IMPORTANT PRECAUTIONS FOR
USING YOUR AIR PURIFIER
•
Do not block the intake or outlet vents.
•
Do not use near hot objects, such as a
stove.
•
Do not use where the unit may come into
contact with steam.
•
Do not use the unit on its side.
•
Keep away from products that generate
oily residue, such as a deep fryer.
•
Do not use detergent to clean the unit.
•
Do not operate without a filter.
•
Do not wash and reuse the True HEPA Filter
or the AOC™ Carbon Filter.
•
Hold the handle on the back of the unit to
transport.
•
Do not hold by the front panel.
WARNING
This product contains chemicals
known to the State of California to
cause cancer and birth defects or
other reproductive harm.
23
English HR900
PRODUCT WARRANTY
The terms of the warranty are as follows.
1
This product is manufactured under stringent quality control and inspections.
2
Warranty void if product failure is a result of negligence or misuse by the consumer,
shipping and service fees may be incurred even during the warranty period.
3
The warranty must be presented upon bringing the product for service.
4
Store the warranty in a safe place, as it cannot be reissued.
5
This warranty is valid only in the USA and Canada.
Product Name
Air Purifier
Model Name
HR900
Purchase Date
Warranty period
Two (2) years
Place of purchase
Place of purchase Tel.
Customer
Address
Name
Tel.
•
After purchase, be sure to complete all of the above information.
