aaxa
TECHNOLOGIES
User Guide
SLC450 SHORT THROW
MINI PROJECTOR
Caution!
WARNING: Please use this product as instructed. Misuse may cause
injury or death.
DO NOT use while driving
DO NOT expose to water or wet surfaces. Electric shock may occur
DO NOT expose the projected LED image to your eyes or the eyes of others
projector to overheat
Keep the projector, battery, or
charger away from any heat sources
Table of Contents
Chapter 1: SLC450 at a Glance
SLC450 Introduction
Remote & Keypad
Accessories
Chapter 2 : Getting Started
Powering On / Off
Focus Adiustment Throw Distance
Connecting to Speaker / Headphones
Loading External Content
Chapter 3 : Menu Screens
Main Menu
Brightness Menu
Wifi Menu
Mirroring Menu
Streaming Services Menu

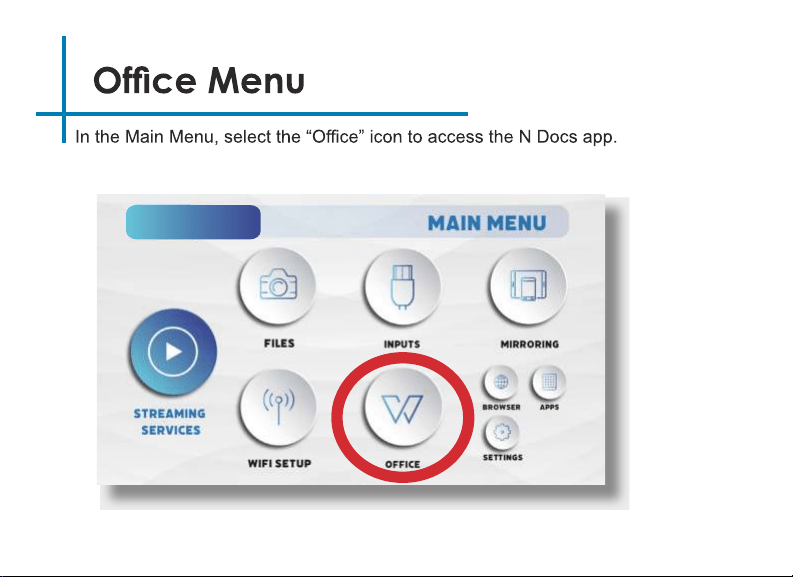

Office Menu
Files Menu
1
2
3
4
5
6
7
11
12
13
14
17
18
21
Browser Menu
Apps Menu
Connecting to Digital Input
Chapter 4 : Settings Menu
Advanced Settings
Language
Display Settings
Keystone & Projection Direction
Keystone Correction

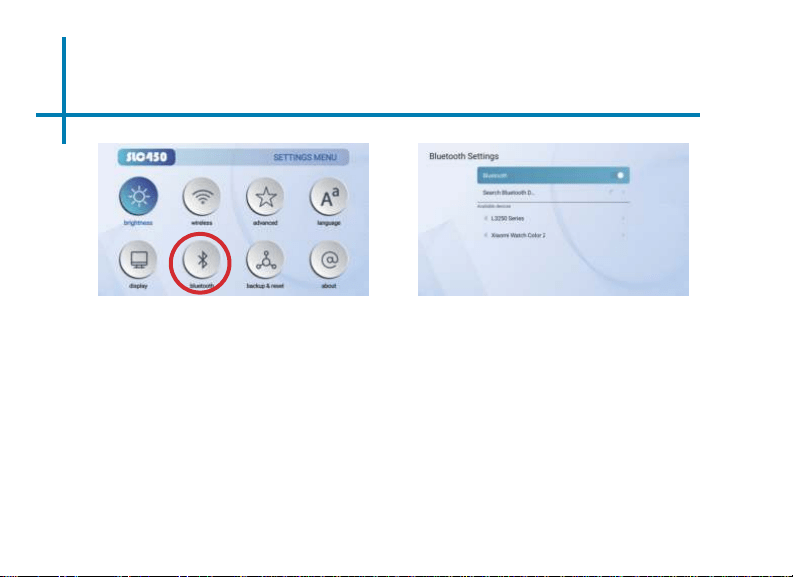

Bluetooth Menu
Backup/Reset Menu

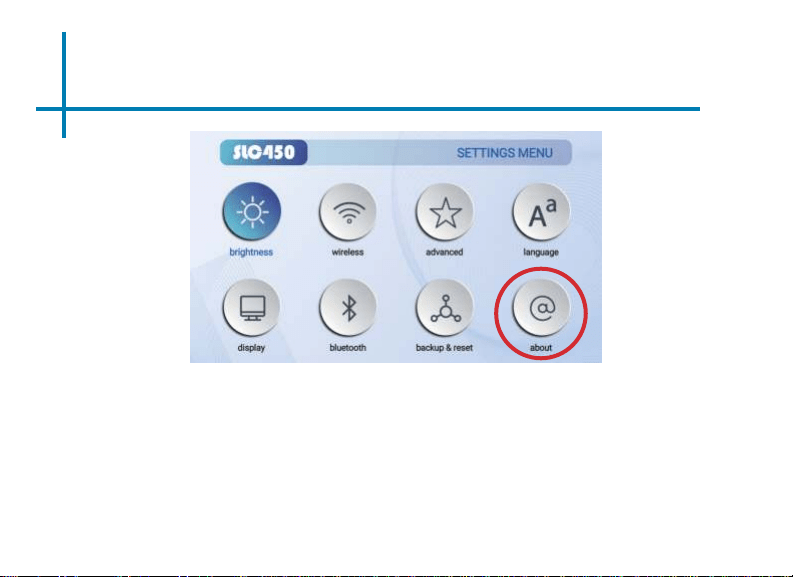

About Menu
Chapter 5 : Technical Details
Troubleshooting
Specifications
Notes
22
23
24
27
28
29
30
31
32
34
35
36
37
41
42
SLC450 at a Glance
1
Chapter 1
Main Unit
Power Button
19V D/C Power
Focus Adjustment
Working indicator light
(power on: green;
power off: red)
Headphone Out
Digital AV
(HDMI Compatible)
Navigation Pad
TF Card
Standard USB 2.0
Compatible
Enter
Remote & Keypad
2
Menu Exit/Back
Direction Pad
Both the keypad and remote can be used to navigate through the menus. The Main Menu
Navigation on the remote functions exactly the same as the directional pad on the SLC450 unit.
Right
Volume U
p
keystone +
OK
Short press:OSD
Long press:
Homepage
Play
／Pause
Power On／Off
Previous
Up
Left
Down
Volume Down
keystone -
Return
Simulate Mouse
Next

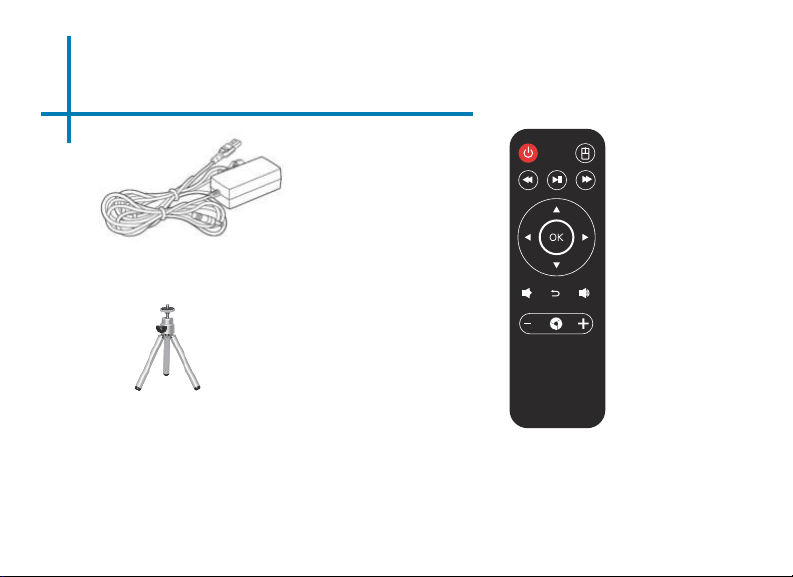

Accessories
3
Power Adapter
Remote Control
Mini Tripod
*Under various circumstances, the actual accessories may be different from those shown in the pictures above.
Additional accessories are available for purchase at www.aaxatech.com
Getting Started
4
Chapter 2

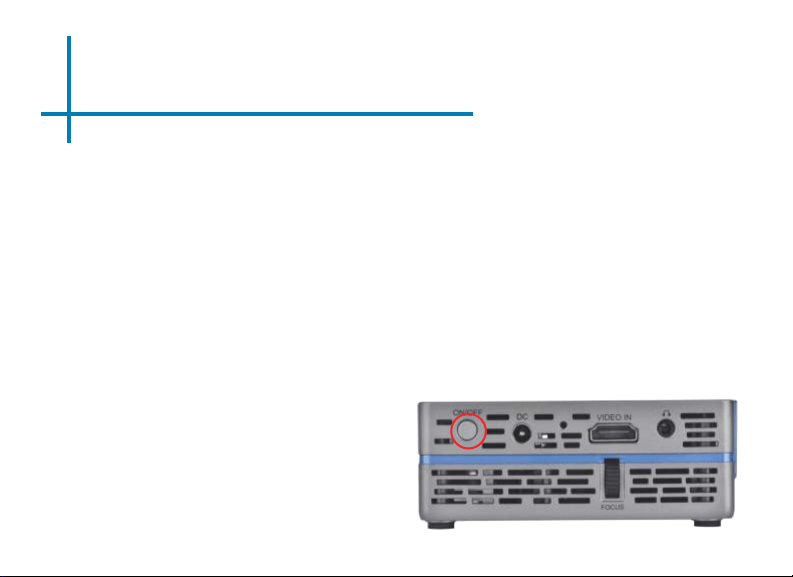

Powering ON the projector
1. Connect the power cord to the SLC450.
2. Connect the other end of the power cord into the wall power source.
3. Press the switch on the back of the projector and the projector will turn on automatically.
Standby Mode
1. To transition to “STANDBY” mode, press the power button on the remote control.
2. The optical engine should power off and the fan should stop spinning. The projector is now
in “STANDBY” mode and can be turned on using the remote control.
*Note: Standby mode will still consume a small amount of power.
Powering OFF the projector
1. To turn off the projector, press the
"Power Switch" twice. This will turn off
the projector completely.
Focus Adjusment / Throw Distance
5
• Spin the focus wheel up or down until the image becomes
clear.
Focus Adjustment
DIAGONA
L
SCREEN SIZE
16:9 Aspect Ratio
Throw Distance
Units: Inches
20
30
40
50
60
70
80
90
100
Diagonal Size
Units: Inches
32
48
64
80
96
112
128
144
160
Throw Distance Chart
Throw Ratio 0.7:1
*minimum throw distance: 10 inches

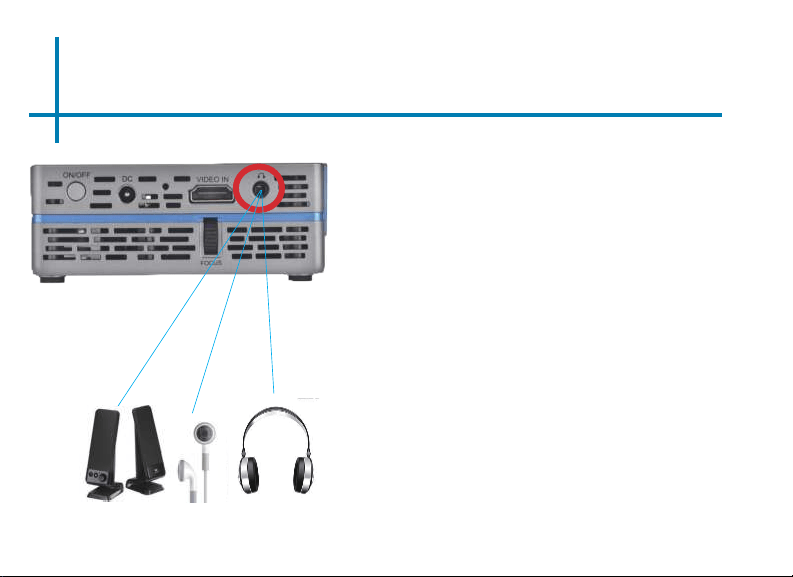

Connecting Speakers / Headphones
Connect your speakers/headphones to
the projector’s audio port.
Step 1:
Step 2:
*CAUTION: Prolonged use of headphones at a high
volume may impair hearing.
Ensure that the projector and/or the
headphones are powered on.
Step 3:
Place the headphones on and enjoy!
6
7
Loading External Content
(up to 64 GB)
The SLC450 can read files directly from
both a TF Card and USB drive.
Supported file types include:MP3 / WMA
/ OGG / WAV / AVI / MP4/JPG /
GIF/PDF / DOC/XLS / PPT
(up to 64 GB)
Loading External Content Cont.

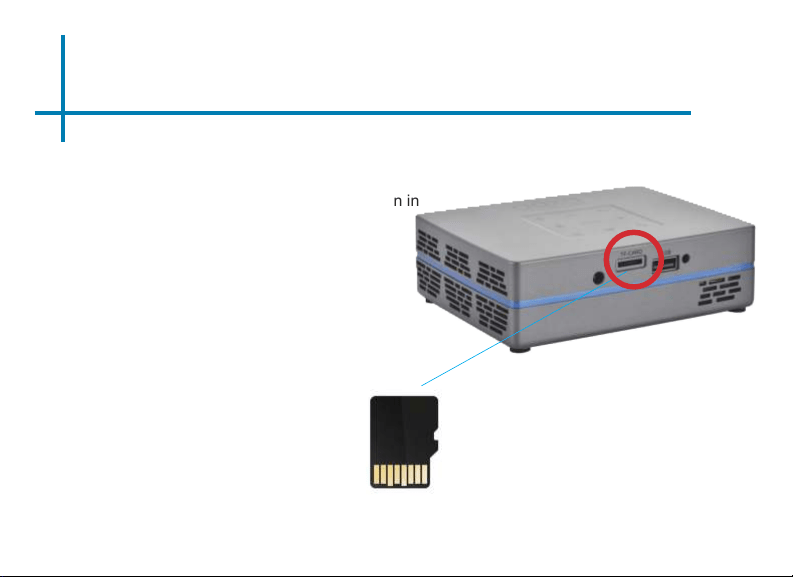

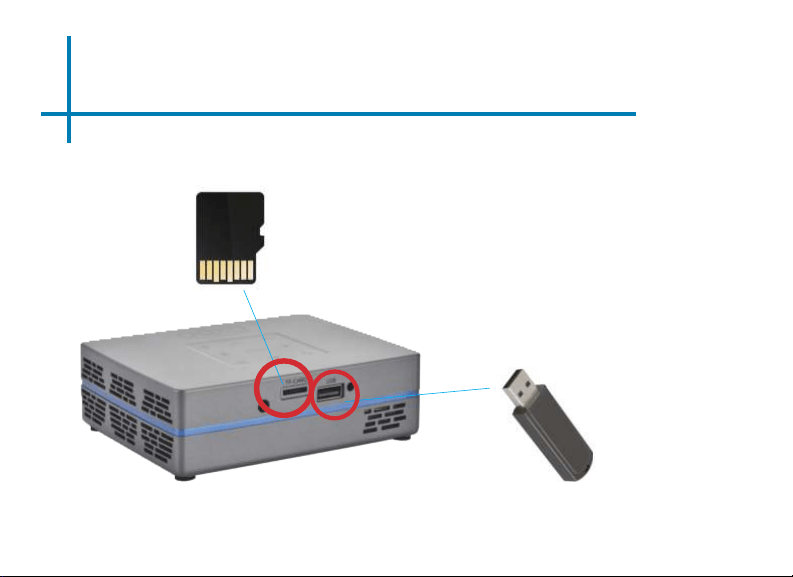

How to insert your TF Card
• Slide in your TF card into the TF card
slot on the side of the SLC450 (as shown in
picture).
• Gently slide the TF card until it clicks
into place.
8
(up to 64 GB)
Loading External Content Cont.

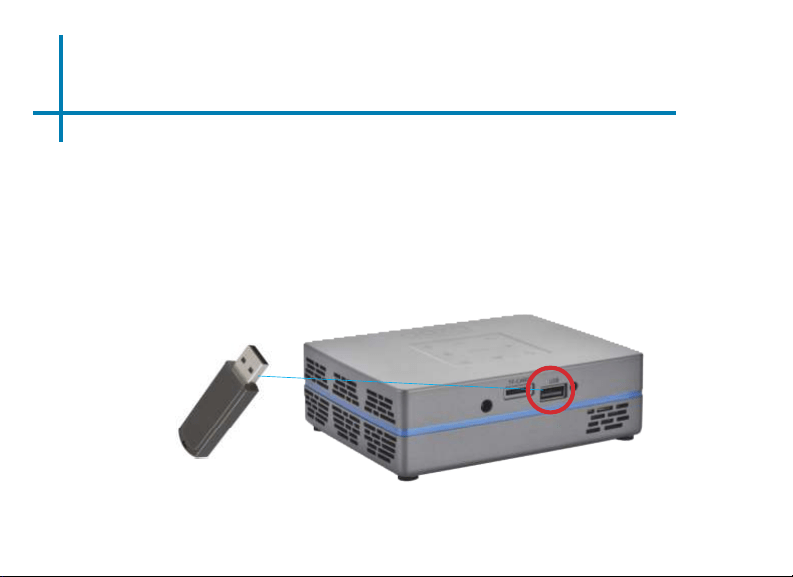

How to insert your USB Drive
• Slide your USB Drive into the USB port.
• Gently slide the drive until it cannot go in any further.
9
(up to 64 GB)
Loading External Content Cont.
10
Once your TF Card or USB Drive is inserted into the projector, the TF Card or
USB Drive Storage will be loaded automatically and the content can be found
through the Files icon on the Main Menu ( See Page 21 for File Viewer Sub-
menu).
To load Text documents, select the Office icon.(See Page 18 to learn more)
Enter
Menu Screens
11
Chapter 3
Main Menu
The SLC450 features Android 9.0 Onboard and an Onboard Media Player.
your connected devices.
• Press the left and right directional buttons to choose an icon from the main menu.
• To select a menu option, press the “OK” button in the middle of the navigation pad.
• To go back to the previous screen, press the “Back” button.
• To Jump back to the submenu, press the “Menu” button once.
• To return to the main menu, press the “Return” button twice.
Menu Exit/Back
Brightness Menu
To change the brightness on your SLC450:
• Select the “Settings” icon (Fig. 3.1) in the Main Menu then choose
“Brightness” (Fig. 3.2)
• Select the brightness you wish (Fig. 3.3):
Eco Mode/ Standard Mode/ Boost Mode
12
Fig. 3.2
Fig. 3.3
“Boost mode” should only be used in low temperature, low
altitude environments with adequate clearance of exhaust/
intake vents. A tripod is highly recommended. DO NOT
block vents while operating in Boost mode.
Fig. 3.1
13

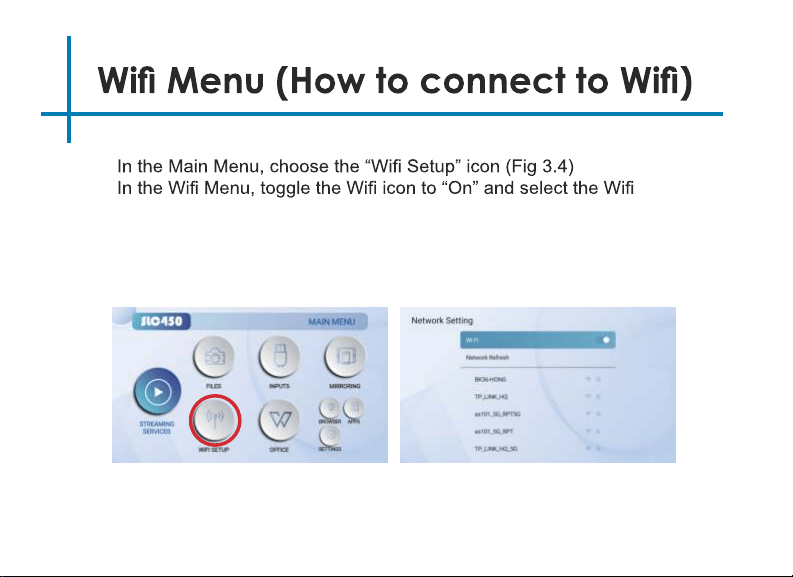

How To Connect to Wifi:
•
• network you
desire. Enter password and connect. (Fig 3.5)
Fig. 3.4 Fig. 3.5
14
Mirroring Menu
How To Screen Mirror Smartphone:
•
(Fig 3.6)
• In the Mirroring Menu, choose Android or iOS (Fig 3.7)
• Use built-in AirPlay, AirPinCast, AirPinPCSender to screen mirror from your
iOS devices, Android portable devices or Windows PC
Fig. 3.6 Fig. 3.7
SLC450
After connecting the SLC450 to wifi,in the main menu,choose
“
mirroring”icon
15
Mirroring Menu
To screen mirror, your devices and the SLC450 have to be connected to the same
. DMCA (copyright) content cannot be wirelessly mirrored. This
AAXA SLC450
16
Mirroring Menu
To screen mirror Android device,
after connecting the SLC450 and your
device to the same WiFi network,
please use “Smart View”.
To screen mirror iOS device, after
connecting the SLC450 and your
device to the same WiFi network,
please select “AAXA SLC450” in the
Screen Mirroring menu.
AAXA SLC450
17
Streaming Services Menu
After connecting the SLC450 to Wifi , select the “streaming Services " icon in the Main Menu.
Select the streaming service you wish to open.
Streaming Services require subscription including paid subscription. Users are responsible
for their own subscriptions. Not all streaming apps are compatible in all regions.
SLC450
Note: Different regions will feature different streaming apps.
• Additional Streaming Apps can be downloaded via the App Store.The App store
can be found under Apps and App Store.
Note: Not all regions support the App Store or the downloadable apps.Some regions
may not include App Store on the device.
18
SLC450
19

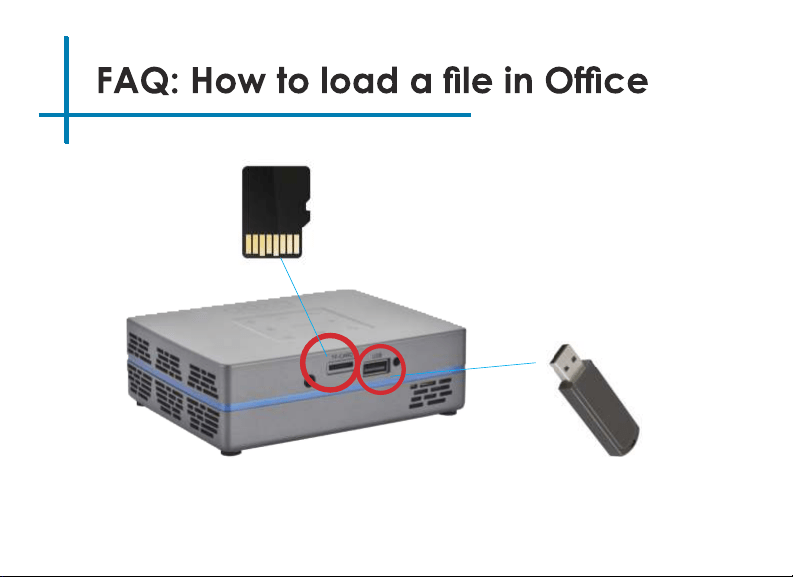

Load your external content to the SLC450
by using a USB stick or a Micro SD/ TF
Card.
20

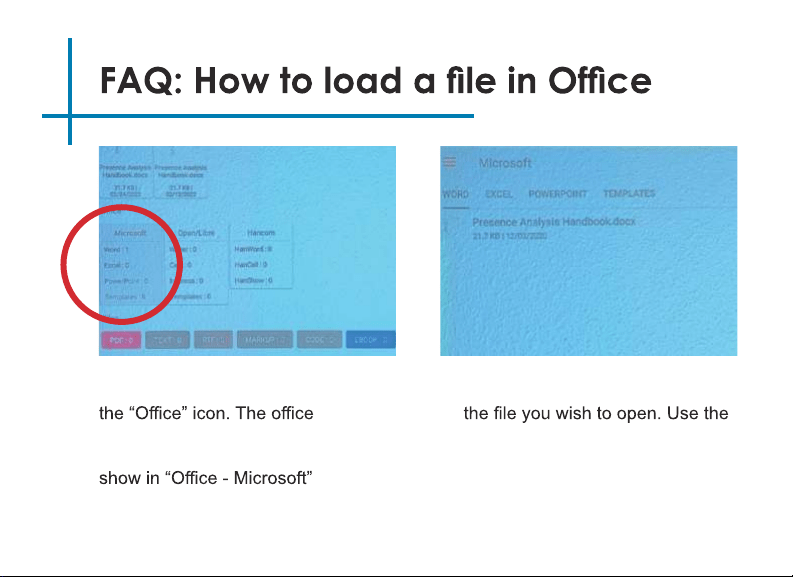

In the main menu, select
documents (Word, Excel,
PowerPoint or Templates) should
Select “Microsoft” and choose
keypad on the top of the SLC450 or
the remote control to nagivate.
21

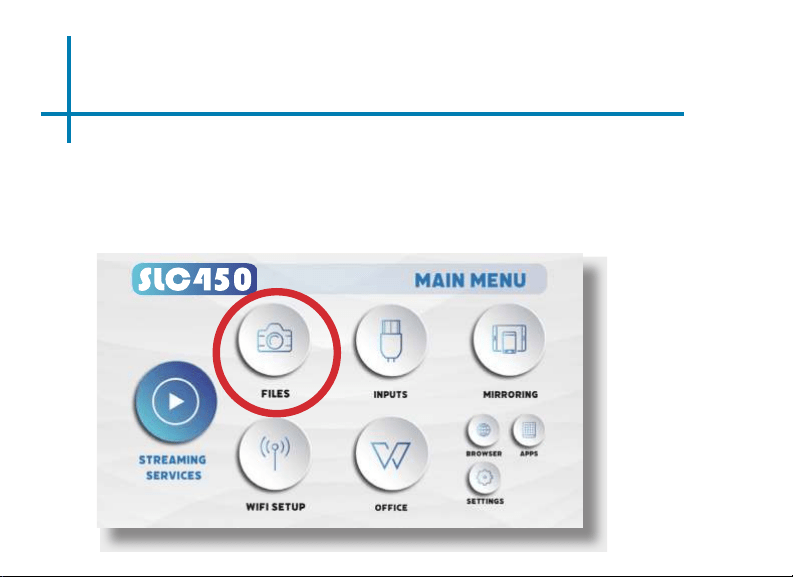

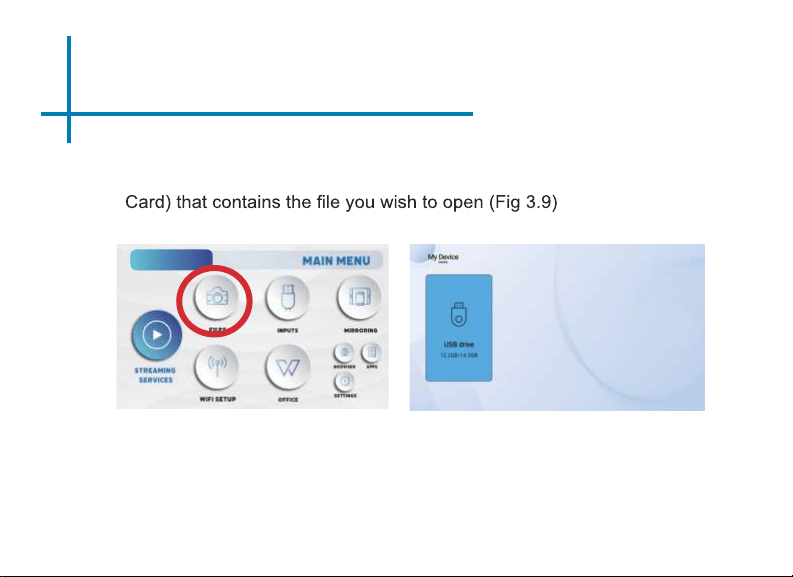

Opening A File:
• Select the “Files” icon in the Main Menu ( Fig 3.8)
• In the Files Menu, select the external content device (USB/ Micro SD - TF
Fig. 3.8
Fig. 3.9
Files Menu
The SLC450 will show all folders and files you have on your USB or TF Card drive.Use
the navigation buttons to select folders or files.
SLC450
22

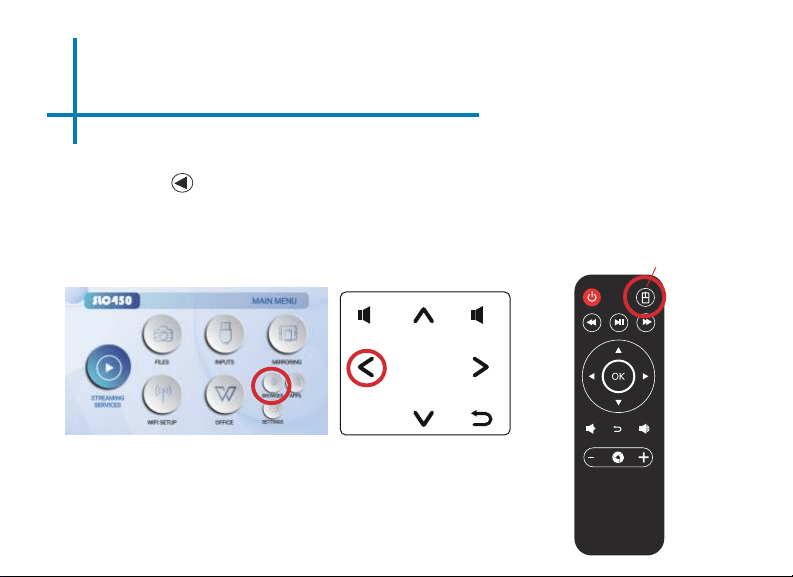

Browser Menu
How to open an internet browser in the SLC450
In the Main Menu, select the “Browser” icon. Once the Chrome browser opens,
press the button on the navigation pad or the remote control to search or type
web address, You also use the “Simulate Mouse” on the remote control to
switch between mouse mode.
Simulate Mouse
OK
menu
Simulate Mouse
23

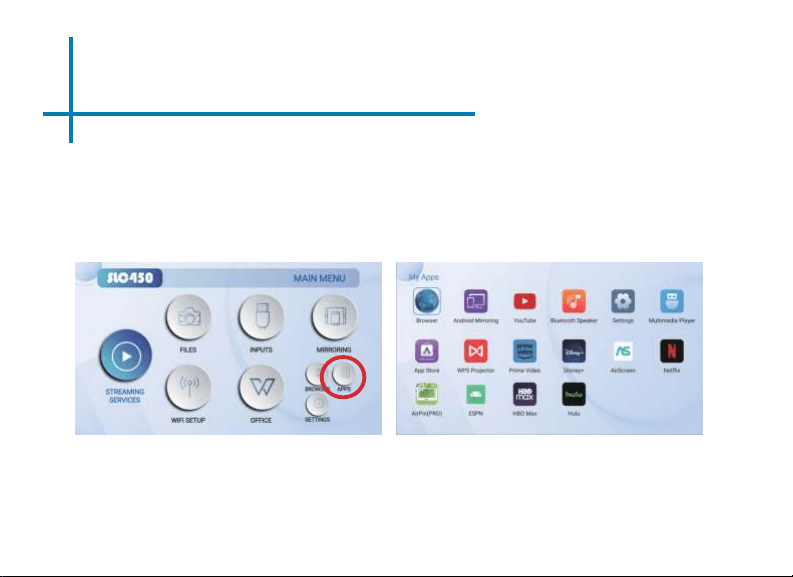

To access more apps in the SLC450:
• In the Main Menu, select the “Apps” icon (Fig 3.10)
• In the Apps Menu, select the app you wish to open (Fig 3.11)
Apps Menu
Fig. 3.10 Fig. 3.11
Note: It is not recommended that users load their own apps onto the SLC450
SLC450
Connecting to Device via Digital Input
24
Connectivity to Multimedia Devices
The SLC450 can connect to many media devices including: computers, laptops,
iPhones, iPads, DVD players, smart phones, cameras, video game consoles and
other peripherals with ease. The SLC450’s digital input is compatible with HDMI inter
face. The connection type is “full sized”.
*Some smartphones require video out capabilities to be displayed with the SLC450. Check with your phone manufacturer.

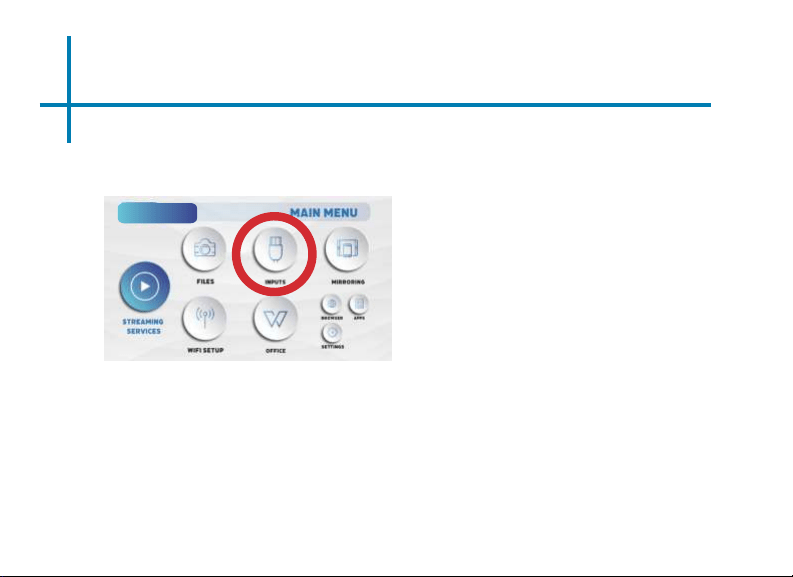

In the Main Menu
Select the “Inputs” Icon
First, a digital input cable is required from your SLC450 to your other device.

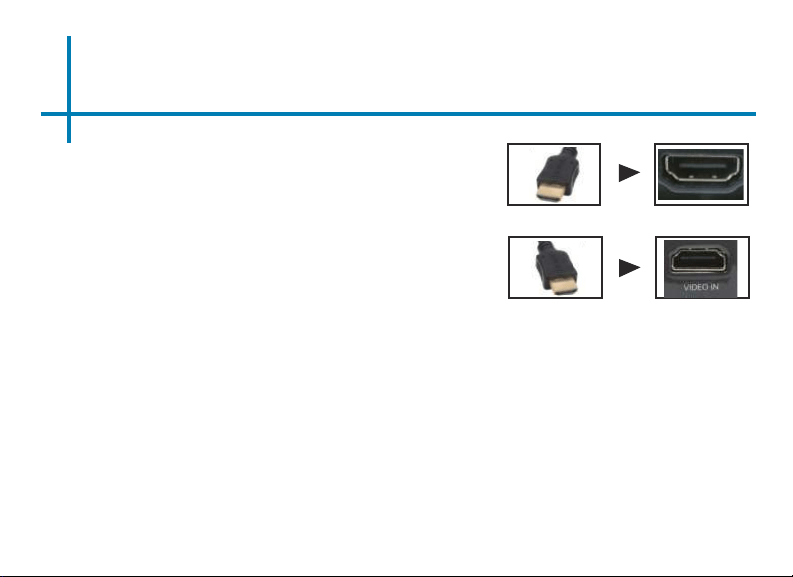

Connecting to Digital Input Video Devices
25
Connect one end of the Digital Input Cable to
your device’s Digital Input port.
Step 1:
Step 2:
Step 3:
In the Main Menu, select the “HDMI” Icon. Your SLC450 should
now be mirroring the content from your device.
Connect the other end of the Digital Input
Cable to your SLC450’s Digital Input port.
If you’re connecting to a computer or laptop and the projector does not
automatically mirror it, read onto the next page for more information.
Note:
26

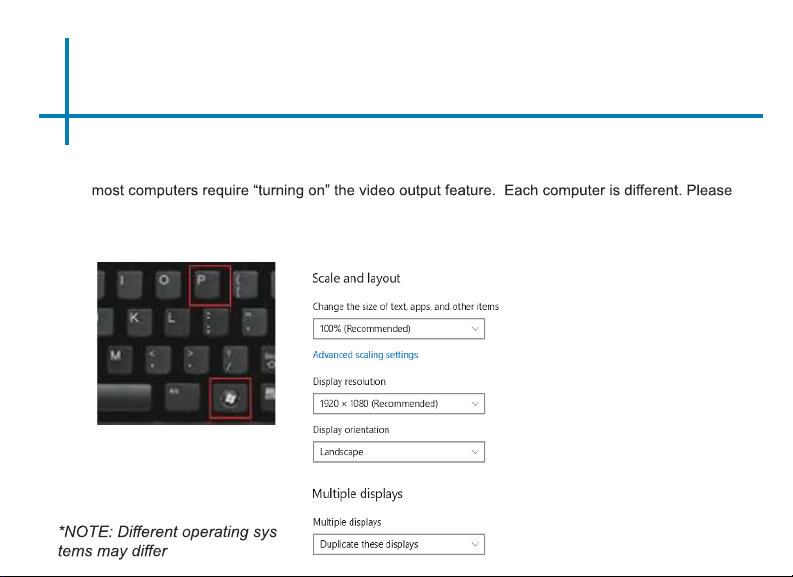

Connecting to a Computer via Digital Input
After connecting your projector to your computer or laptop via a digital input cable, you may need
to enabe Digital Video output on your computer. To enable Digital Video output on your computer
consult your owner’s manual for instructions to enable Digital Video output. Below are standard
instructions for a Windows 10 computer – not all systems are the same.
Press Windows+P to toggle
through display settings. Select
either “Duplicate” or “Extend” de-
pending on your viewing option.
-
Step 5:
1. Right click on computer
desktop and select “Screen
Resolution.”
2. Display Properties window
will pop up and select the
Advance Display Settings.
3. Please make sure the “Mul-
tiple displays” has the “Dupli-
cate these displays” option
selected and the Resolution
is 1920 x 1080 or below as
pictured in the red box.
4. If the image is blurry or the
text is not legible, adjust the
screen resolution.
Step 6:
Step 4:
SLC450
27

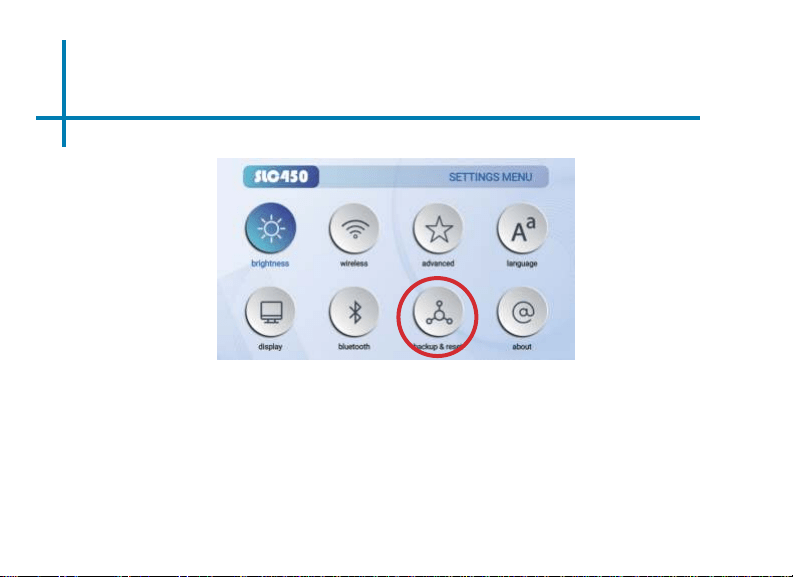

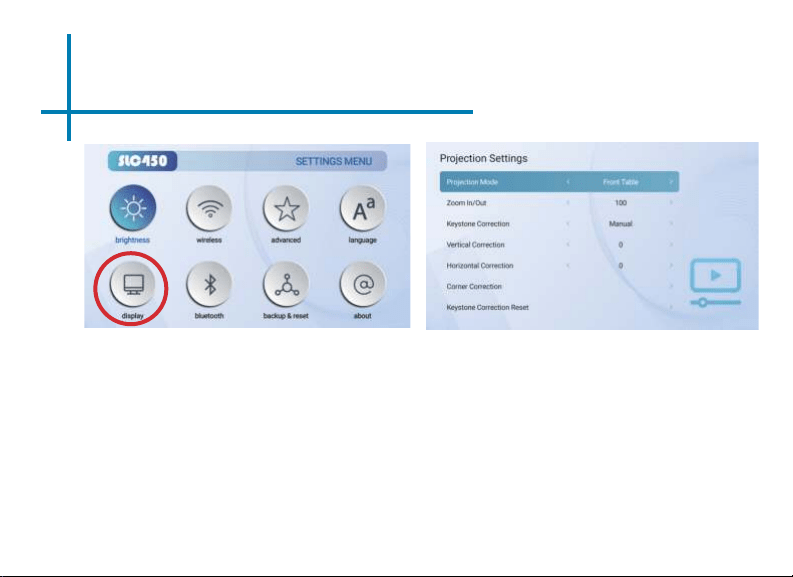

Settings Menu
The Settings Menu can be accessed by selecting “Settings” on the Main Menu.
Advanced
Language
Display
Bluetooth
Backup/Reset
About
Within the settings menu, there are
eight more submenus that allow you
to customize your SLC450 to the settings
you want:
Brightness
• Eco
• Standard
• Boost
Chapter 4
• Boot Signal Input
• Boot APP
• Power-on Mode
• Key Tone
• Screen Saver
• Screensaver Timeout Shutdown
• HDMI control

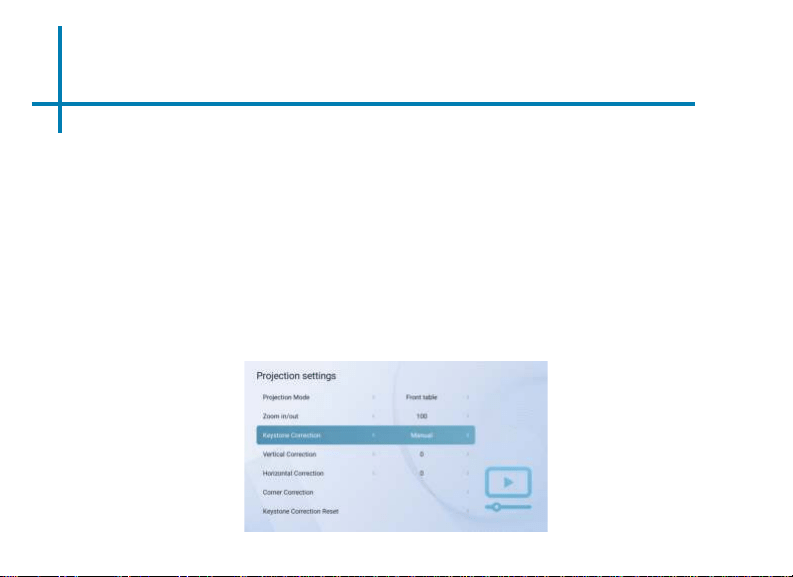

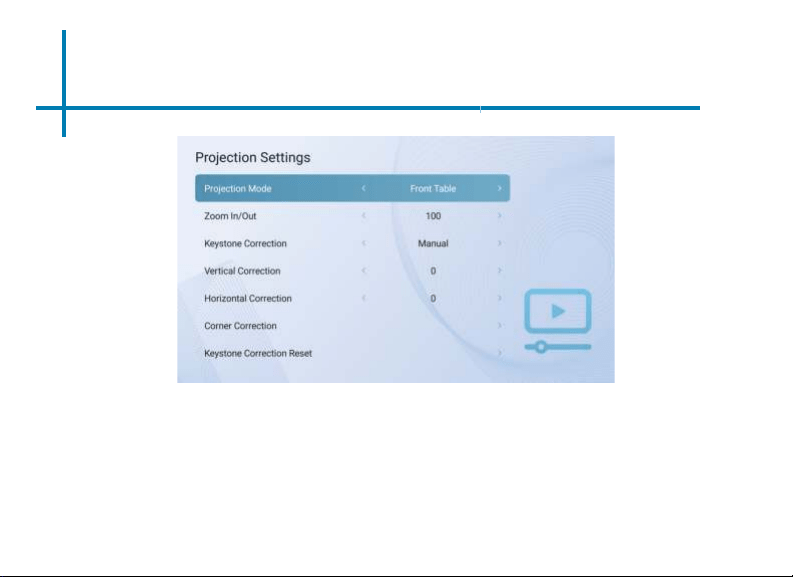

• Projection Mode
• Zoom In / Out
• Keystone Correction
• Vertical Correction
• Horizontal Correction
• Corner Correction
• Keystone Correction Reset

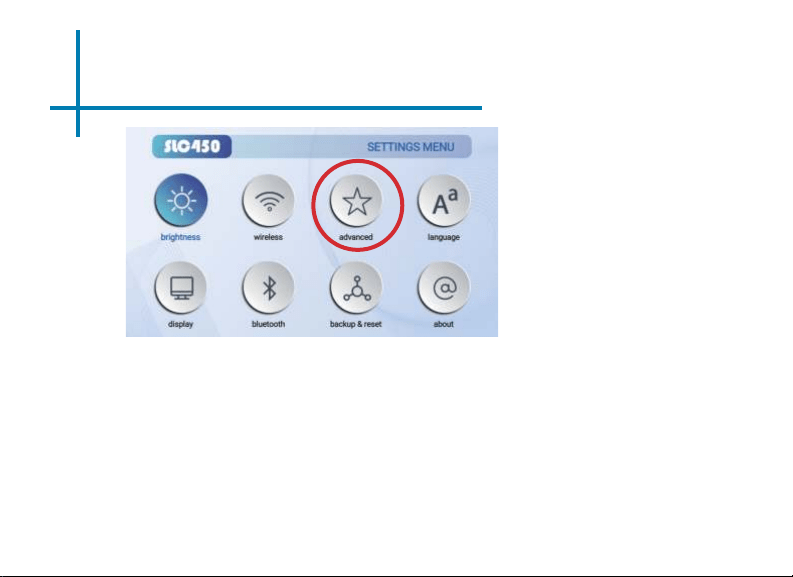

Advanced Settings
In the Advanced setting menu, you can set up:
28
• Boot Signal Input:Off,USB,HDMI
• Boot APP:Off,AirPin(PRO),Netflix,AirScreen,Disney+,Prime Video,WPS Projector,App
Store,Multimedia Player,Settings,Bluetooth Speaker,YouTube,Android Mirroring,Browser
• Power-on Mode:Power-on Standby,Power-on
• Key Tone:Off,On
• Screen Saver:5 mins,10 mins, 20 mins, 30 mins, 45 mins, 1 hour, Off
• Screensaver Timeout Shutdown:Off, 15 mins, 30 mins,45 mins,60 mins,75 mins,90
mins,120 mins
• HDMI Control
Language
29
In the Language Settings menu, you can select your preferred language
Display Settings
30
In the Display setting menu, you can set up:
• Projection Mode
• Zoom In / Out
• Keystone Correction
• Vertical Correction
• Horizontal Correction
• Corner Correction
• Keystone Correction Reset
31
Keystone & Projection Direction
• Front Table
• Rear Table
• Rear Ceiling
• Front Ceiling
32
Keystone Correction
Keystone Correction
① The SLC450 features 4-way adjustable keystone.
② To adjust Keystone go to Settings→Display→Keystone Correction.
• Basic Keystone correction can be done by adjusting “Vertical Correction” or “Horizontal
Correction”.
• For Complex Keystone Correction, select “Corner Correction”. Corner Correction is
adjusted by selecting each corner of the screen and adjusting the X or Y coordinate. The
adjustments will push or pull the screen at each corner along the X or Y axis.
33
Keystone Correction
Corner Correction Instructions：Press the OK key to navigate to the four corners. Then use the
Up, Down, Left, and Right keys to make adjustments. Press the OK key to move to the next
corner and continue the process.
34
Bluetooth Menu
How to connect the SLC450 to bluetooth for audio out
• In the Settings Menu, go to the Bluetooth menu by selecting the blue-
tooth icon
•
• Select the desired bluetooth device. Make sure that your device is not
connected to any other devices and it is placed near the SLC450.
• Note: Bluetooth is for audio output only – does not accept audio input or
video streaming
In the Bluetooth submenu, toggle the " On / off " switch to " On”
35
Backup/Reset Menu
How to reset the SLC450
•
In the Settings Menu, go to the Backup/Reset menu by selecting the
Backup/Reset icon
•
In the Backup/Reset menu, you can Reset the SLC450.
36
About Menu
How to view SLC450 “About” information
• In the Settings Menu, go to the About Menu by selecting the about icon
• In the About menu, you can see Model,System Version,Android
Version,RAM,ROM,MAC Address,WiFi MAC Address,System
Temperature,Online Update,Local Upgrade.
37
Technical Details
I cannot connect my iOS devices to the SLC450
Possible Causes Solution
(For wired connection) Incorrect cables or con-
nectors
To connect your iOS devices to the SLC450, please
Adapter and connect via the Digital AV port.
Troubleshooting
Possible Causes Solution
For wireless connection, DMCA content including
sharable wirelessly).
Please use the built-in apps to stream DMCA
Content or connect your devices to the SLC450
using the proper cables/ converters.
AIRPLAY DOES NOT WORK
Be sure to connect your iOS device and the SLC450 Projector to the same WiFi network.
Choose “AAXA SLC450” as the device you wish to screen mirror from your iOS device, unless
you have changed the SLC450’s nickname.
38
Technical Details
IMAGE IS BLURRED
Possible Causes Solution
The Projector is not in focus. Adjust the focus with the focus adjustment but-
tons on the remote control until the image comes
into focus, or use the focus adjustment buttons on
the side of the projector
-
tion.
Move the projector so that it is both 180 degrees
and on an evern plane with the screen or adjust
the keystone through the remote, keypad or Set-
tings Menu
NO SYNC, NO SIGNAL
Troubleshooting
Be sure to setup the computer to enable a video signal output. On some laptops this is
done by pressing and holding Function F5 key. If using the SLC450 as an external monitor on
Windows based systems, this can be done by selecting “extend my desktop to this moni-
output.
39
Technical Details
THE PROJECTOR DOES NOT TURN ON
Possible Causes Solution
There is no power. Check to ensure the power outlet source is good.
Check the power adapter to ensure a proper con-
.rotcejorp eht sa llew sa teltuo llaw eht htiw noitcen
Cannot power on the projector from the remote
control.
NO PICTURE / FILE NOT SUPPORTED
Possible Causes Solution
The video source is not properly connected or
selected
Check the video source signal to ensure that it
is properly connected. Select the current input
source by choosing the input desired from the
main menu
incorrect codec
Troubleshooting
To power on the projector , Press the switch on
the back of the projector. Next , if the projector is
not powered on , press the Power button on the
remote control.
40
Technical Details
Projector not charging
Possible Causes Solution
There is no power. Check to ensure the power outlet source is good.
Check the power adapter to ensure a proper con-
.rotcejorp eht sa llew sa teltuo llaw eht htiw noitcen
The projector is not set to the “OFF” Mode.
Troubleshooting
Connect the power cord to the SLC450 . Connect
the other end of the power cord into the wall power
source .Press the switch on the back of the
projector.
41
Brightness:
Native Resolution:
Contrast Ratio:
Aspect Ratio:
Projection Lens:
Image Size:
Light Source:
Video in:
File Play Back
Audio Output:
USB Power Output:
Operating System:
USB:
Power Consumption:
Dimensions:
Weight:
Supported File Formats:
Wireless Mirroring:
Bluetooth Output:
Wirless (WiFi)
450 LED Lumens (Boost Mode)
1920x1080 (1080p)
1000:1
16:9
Manual Focus
10 - 180 inches"
Luminus 30,000 Hour LEDs
HDMI 1080P & 4K 30 FPS Supported
iOS and Android wireless mirroring (MiraCast)
USB Memory Stick Reader (up to 64GB)
Micro SD/TF Card Reader (up to 64GB)
Network Drive (with WIFI)
Stereo speaker / headphone mini-jack
Bluetooth 5.0 Compatible
5V 1A
Android 9.0
Full Sized USB A (2.0)
30 Watts (Boost)
5 in x 4 in x 1.5 in
12 oz
XLS, PDF, DOC, PPT, MP3, WMA, OGG, WAV, JPG, AVI, BMP, GIF, JPG, TXT
Supports iOS, Android
5.0 Supported
2.4ghz/ 5 ghz
42
Notes
Please direct all customer service inquiries to:
AAXA Technologies, Inc.
17781 Sky Park Circle, Suite #F
Irvine, CA 92614
(714) 957-1999
