SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
Please take note of the safety instructions to prevent any potential accident or
misuse of the projector.
Safety precautions are given in two forms, i.e. WARNING and CAUTION as detailed
below.
WARNING Failure to follow the instructions may cause serious injury and even death.
CAUTION Failure to follow the instructions may cause personal injury or product
damage.
Read the owner's manual carefully and keep it on hand.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.

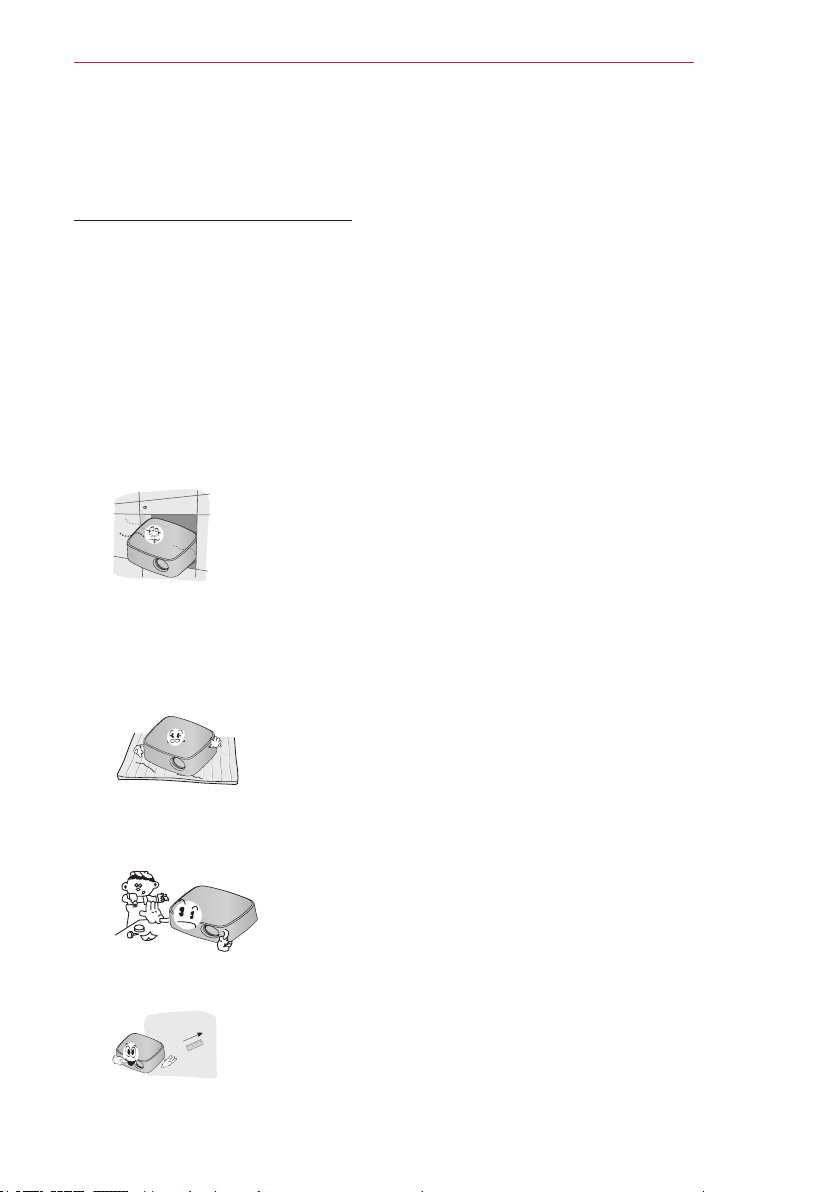

Indoor Installation
WARNING
Do not use the projector outside and
do not expose the product to any
humidity or water.
- Since the product is not waterproof,
this may result in a fire or electric
shock.
Do not place the projector in direct
sunlight or near heat sources such as
radiators, fires, stoves, etc
.
- This may result in fire.
Do not place flammable materials
such as aerosols near the projector.
- This may result in fire.
Do not allow children to cling to or
climb up to the projector.
- This may cause the projector to fall,
causing injury or death.
Do not install the product in a place
with no ventilation (e.g., on a book-
shelf or in a closet) or on a carpet or
cushion.
- This may result in fire due to the
increase in internal temperature.
Do not place the projector close to
sources of steam or oil mist, such as
humidifiers and kitchen counters.
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning ash with
arrowhead symbol, within
an equilateral triangle, is
intended to alert the user to the
presence of uninsulated dangerous
voltage within the product’s enclosure
that may be of sufcient magnitude to
constitute a risk of electric shock to
persons.
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The exclamation point within
an equilateral triangle is
intended to alert the user to
the presence of important
operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
WARNING/CAUTION
- TO REDUCE THE RISK OF FIRE
AND ELECTRIC SHOCK, DO NOT
EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
4
SAFETY INSTRUCTIONS
- Failure to do so may result in fire,
electric shock, or corrosion.
Do not install the product onto a wall
or ceiling that is close to sources of
steam or oil mist.
- The product may be damaged and
fall, resulting in serious injury.
Do not place the projector where it
might be exposed to dust.
- This may result in fire.
Do not use the projector in a damp
place such as a bathroom where it is
likely to get wet.
- This may result in fire or electric
shock.
Do not allow a tablecloth or curtain to
block the air vent.
- This may result in fire due to the
increase in the internal temperature.
Ensure good ventilation around the
projector. The distance between the
projector and the wall should be
at
least 30 cm (11.8 inches)
.
- This will prevent fire due to the
increase in the internal temperature.
CAUTION
When placing the projector on a table
or shelf, be careful not to put it near
the edge.
- The projector could fall due to balance
problems, which may cause personal
injury or damage to the product. Make
sure to use the projector cabinet or
stand that fits the projector.
When moving the projector
, make
sure to switch it off
and remove the
power plug and cords.
- The power cord may be damaged,
resulting in fire or electric shock.
Do not place the projector on an
unstable or vibrating surface such as
a wobbly shelf or a slope.
- It may fall and cause injury.
Be careful not to tip the projector over
when connecting external devices to
the projector.
- This may cause personal injury or
damage to the projector.
Power
WARNING
The appliance coupler is used as the
disconnect device.
- Please make sure the device is
installed near the wall outlet to which
it is connected and that the outlet is
easily accessible.
The grounding wire should be con-
nected.
- Ensure that you connect the ground-
ing cable to avoid electric shock.
If it is not possible to ground the unit,
have a qualied electrician install a
separate circuit breaker.
Do not try to ground the projector
by connecting it to telephone wires,
lightning rods or gas pipes.
The power plug should be inserted
fully into the power outlet.
- An unstable connection may cause
a fire.
Do not place heavy objects on the
power cord.
- This may result in fire or electric
shock.
Never touch the power plug with wet
hands.
- This may result in electric shock.
Do not plug too many devices into
one multi-power outlet.
- This may result in fire due to the
power outlet overheating.
Prevent dust from collecting on the
power plug pins or outlet.
- This may result in fire.
To turn off the main power, remove
the power plug, which should be
positioned so it is easy to access for
operation.
5
SAFETY INSTRUCTIONS
CAUTION
Hold the plug firmly when unplugging.
- A damaged wire may create a fire
hazard.
Ensure the power cord and plug are
not damaged, modified, severely
bent, twisted, pulled, sandwiched
or hot. Do not use the product if the
power outlet is loose.
- This may result in fire or electric shock.
Keep the power cord away from heating
devices.
-
The wire's sheath may melt, which
may result in fire or electric shock
.
Place the projector where people will
not trip over or step on the power
cord to protect the power cord and
plug from any damage.
- This may result in fire or electric shock.
Do not turn the projector on or off
by
plugging in the power plug or unplug-
ging it from the power outlet.
(Do not use the power plug as a switch.)
- This may result in electric shock or
damage to the product.
Do not insert a conductor into the other
side of the wall outlet while the power
plug is inserted into the wall outlet.
In addition, do not touch the power
plug immediately after it is disconnected
from the wall outlet.
- This may result in electric shock.
Only use the official power cord pro-
vided by LG Electronics. Do not use
other power cords.
- This may result in fire or electric
shock.
When In Use
WARNING
Do not place anything containing
liquid on top of the projector such as
a vase, flower pot, cup, cosmetics, or
medicine; or ornaments, candles, etc.
- This may result in fire or electric
shock, or cause injury due to falling.
In the event that there is a heavy
impact or the cabinet is damaged,
switch it off, unplug it from the power
outlet and contact an authorized ser-
vice
center
.
- This may result in electric shock.
Do not insert pieces of metal such as
coins, hairpins or metal debris, nor
flammable materials such as paper or
matches into the projector.
- This is to prevent electric shock or fire.
In the event that liquid or a foreign
object falls into the projector, switch it
off and unplug it from the power outlet
and contact our service center.
- This may result in fire or electric
shock.
Make sure that a child does not swal-
low the batteries when you replace
the old remote control batteries with
new ones. Keep batteries out of reach
of children.
- If a child swallows a battery, consult
a doctor immediately.
Never open any cover on the projector.
-
There is a high risk of electric shock
.
Do not look directly into the lens
when the projector is in use.
- The bright light may damage your
eyes.
When the lamp is on or has just been
turned off, avoid touching the air vent
or lamp, because these will be very hot.
If there is a gas leak in the room with
the projector, do not touch the projector
or power outlet. Open the windows
for ventilation.
- Sparks may cause fire or burns.
Unplug the power cord from
the outlet
during a lightning storm.
- This will prevent shock or damage
to the projector.
Do not use the projector near
electronic devices that generate a
strong magnetic field.
Do not put the plastic package used
to pack the projector around your
head.
6
SAFETY INSTRUCTIONS
- This may cause suffocation.
Do not keep your hand on the projector
for a long time when it is running.
When you play a game by connecting
a game console to a projector, it is
recommended that you maintain
a
distance of more than four times the
diagonal length of the screen.
- Make sure that the connecting cable is
long enough.
Otherwise, the product
may fall causing
personal injury or
damage to the product.
Do not place the projector or its
remote control with battery in
an extremely high temperature
environment.
- This may result in fire.
CAUTION
Do not place heavy objects on the
projector.
- It may fall down and cause personal
injury.
Be careful not to allow any impact to
the lens during transport.
Do not touch the lens of the projector.
- The lens may be damaged.
Do not use any sharp tools on the
projector such as a knife or hammer,
because this may damage the casing.
In the event that no image appears
on the screen or no sound is heard,
stop using the projector. Switch off the
projector, unplug it from the power out-
let
and contact our service center
.
- This may result in fire or electric shock.
Do not drop anything onto
the projector or allow anything to
bang into the projector.
- This may cause damage to the projector
or personal injury.
It is recommended that you maintain
a distance of at least 5-7 times the
diagonal length of the screen.
- If you watch the screen at a close
distance for a long time, your eye
sight may become worse.
Do not block the light beam emitted
from the projector using a book or
other object.
- Lengthy exposure to the projector
beam may result in fire. In addition, the
lens may be overheated and damaged
by the reflected heat. Disable the AV
function to stop projection temporarily
or turn off the power.
Do not start the projector with the
volume turned up high.
- High volume may damage hearing.
Do not use high voltage electrical
equipment near the projector, (e.g.
bug zapper). This may result in
product malfunction.
Cleaning
WARNING
Do not spray the projector with
water
when cleaning. Make sure water does
not flow into the projector
.
- This may result in fire or electric
shock.
When there is smoke or a strange
smell coming out from the projector
or a foreign object falls into the pro-
jector, please switch it off and unplug
it from the power outlet and contact
our service center.
-
Otherwise, this may result in fire or
electric shock.
Use air spray, a soft cloth or a cotton
swab moistened with a
lens cleaning
chemical
or alcohol to remove dust or
stains on the front projection lens.
CAUTION
Contact your seller or our service
center once a year to clean the inter-
nal parts of the projector.
- If you do not clean the projector for
a long period of time, dust will
accumulate, which may result in fire
or damage to the projector.
7
SAFETY INSTRUCTIONS
When cleaning plastic parts such as
the projector case, unplug the power
first and wipe with a soft cloth. Do not
spray with water or wipe with a wet
cloth. Never use glass cleaner, auto-
mobile or industrial shiner, abrasives,
wax, benzene, or alcohol as these
can damage the projector.
- This can result in fire, electric
shock or cause damage to the product
(deformation and corrosion).
Remove the plug from the outlet
before cleaning the product.
- Otherwise, this may result in electric
shock.
Others
WARNING
When you go out, place the projector
out of reach of animals, and remove
the power plug from the wall outlet.
- Using a damaged power cord may
result in short circuit or fire.
Do not use the projector near high-
precision electronic devices or those
that transmit weak radio signals.
- This may affect the operation of the
product, causing an accident.
Only a qualified technician can
disassemble or modify the projector. For
diagnosis, adjustment, or repair, contact
your seller or our service center.
- This may result in fire or electric
shock.
Do not stare directly into lens when in
operation, eye damage can occure.
No user serviceable parts inside unit.
High voltage parts can cause shock
and even electrocution.
Proper ventilation required, do not
block airflow around unit. Doing so can
cause injury and internal overheating.
To prevent damage to lamp, unit must
remain plugged in for approximately
3 minutes after power down to allow
for proper cool down (not applicable
on LED models).
Do not touch the lens; doing so can
result in burns or damage to lens.
Lens and unit may be HOT during
and immediately after use. Use
caution when handling unit, allowing
for proper cool down.
Only use a grounded electrical outlet.
Do not insert anything into or cover
up the exhaust vents.
- This may result in fire or electric
shock.
Follow all maintenance guidelines
for optimal use; service only at an
authorized service center.
Lamp contains mercury and as such
must be disposed of according to
local, state and federal laws (not
applicable on LED models).
CAUTION
Do not mix new batteries with old
ones.
- Burst or leaking batteries may result
in damage or injury.
Be sure to unplug if the projector is not
to be used for a long
period
.
- Accumulated dust may result in fire or
electric shock
due to overheating, igni-
tion, or poor insulation.
Only use the specified type of battery.
- Burst or leaking batteries may result in
damage or injury.
Do not charge the battery using any
devices other than the one provided with
the product.
- This may result in damage to the
battery or fire.
Dispose of used batteries properly.
- This may result in explosion or fire.
The correct method of disposal may
vary depending on your country or
region. Dispose of the battery pack
as instructed.
Do not throw or disassemble the battery.
- This may result in fire or explosion
due to damage to the battery.
Always use batteries approved and
certified by LG Electronics.
- This will prevent damage or fire.
8
SAFETY INSTRUCTIONS
Store batteries away from metallic ob-
jects, such as keys and paper clips.
- Excess current may cause a rapid
increase in temperature, resulting in
fire or burns.
Do not store the batteries near any
heat source, such as a heater.
- This may result in fire or damage to
the product.
Do not store batteries at temperatures
higher than 60 °C (140° F) or in high
humidity.
- This may result in explosion or fire.
Keep the batteries and remote out of
reach of children.
- This will prevent personal injury or
damage to the product.
Make sure that the battery is installed
correctly.
- This prevent explosion or fire.
The battery contains lithium-ion, so it
must be handled with care.
- This may result in explosion or fire.
Make sure you use the same type of
batteries for replacement.
Incorrect battery replacement may
cause fire.
Risk Group 2
CAUTION Possibly hazardous optical
radiation emitted from this product. Do
not
stare at operating lamp. It could be
harmful to
the eye.
For USA
NOTE TO CABLE/TV INSTALLER
This reminder is provided to call the CATV
system installer’s attention to Article 820 -
40 of the National Electric Code (U.S.A.).
The code provides guidelines for proper
grounding and, in particular, species that
the cable ground shall be connected to the
grounding system of the building, as close
to the point of the cable entry as practical.
ANTENNA
Outdoor Antenna Grounding
If an outdoor antenna is installed,
follow the precautions below. An
outdoor antenna system should not
be located in the vicinity of overhead
power lines or other electric light or
power circuits, or where it can come
in contact with such power lines or
circuits as death or serious injury
can occur. Be sure the antenna
system is grounded so as to provide
some protection against voltage
surges and built-up static charges.
Section 810 of the National Electrical
Code (NEC) in the U.S.A. provides
information with respect to proper
grounding of the mast and supporting
structure, grounding of the lead-
in wire to an antenna discharge
unit, size of grounding conductors,
location of antenna discharge unit,
connection to grounding electrodes
and requirements for the grounding
electrode.
Antenna grounding according to
the National Electrical Code, ANSI/
NFPA 70
Antenna Lead in Wire
Grounding Conductor
(NEC Section 810-21)
Antenna Discharge Unit
(NEC Section 810-20)
Power Service
GroundingElectrode
System (NEC Art 250,
Part H)
NEC: National Electrical Code
Ground Clamp
Electric Service
Equipment
Ground Clamp
9
SAFETY INSTRUCTIONS
USA
Federal Communications
Commission (FCC) Statement
You are cautioned that changes or
modications not expressly approved
by the part responsible for compliance
could void the user’s authority to operate
the equipment.
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to
part 15 of the FCC rules. These limits
are designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or projector
reception, which can be determined
by turning the equipment off and on,
the user is encouraged to try to correct
the interference by one or more of the
following measures:
- Reorient or relocate the receiving
antenna.
- Increase the separation between the
equipment and receiver.
- Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced
radio/projector technician for help.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
1) this device may not cause harmful
interference, and
2) this device must accept any
interference received, including
interference that may cause
undesired operation of the device.
CAUTION : Any changes or
modications not expressly approved
by the party responsible for compliance
could void the user’s authority to operate
this equipment.
FCC Radio Frequency
Interference Requirements
(for For UNII devices)
High power radars are allocated as
primary users of the 5.25 to 5.35 GHz
and 5.65 to 5.85 GHz bands. These
radar stations can cause interference
with and/or damage this device. This
device cannot be co-located with any
other transmitter.
FCC RF Radiation Exposure
Statement:
This equipment complies with FCC
radiation exposure limits set forth for
an uncontrolled environment. This
transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.
This equipment should be installed and
operated with minimum distance 20 cm
between the radiator and your body. End
users must follow the specic operating
instructions for satisfying RF exposure
compliance.
10
SAFETY INSTRUCTIONS
CANADA
Industry Canada Statement:
This device complies with RSS-210 of
the Industry Canada Rules. Operation is
subject to the following two conditions:
1) this device may not cause
interference and
2) this device must accept any
interference, including interference
that may cause undesired operation
of the device.
Avis d’Industrie Canada :
Cet appareil est conforme à la norme
CNR-210 des règlements d’Industrie
Canada. Son fonctionnement est sujet
aux deux conditions suivantes :
1) Cet appareil ne doit pas provoquer
d’interférences et
2) Cet appareil doit accepter toutes
les interférences, y compris
celles pouvant entraîner son
dysfonctionnement.
IC Radiation Exposure
Statement:
This equipment complies with IC
radiation exposure limits set forth for
an uncontrolled environment. This
equipment should be installed and
operated with minimum distance 20 cm
between the radiator & your body.
NOTE: THE MANUFACTURER IS NOT
RESPONSIBLE FOR ANY RADIO OR
PROJECTOR INTERFERENCE CAUSED
BY UNAUTHORIZED MODIFICATIONS
TO THIS EQUIPMENT. SUCH
MODIFICATIONS COULD VOID THE
USER’S AUTHORITY TO OPERATE THE
EQUIPMENT.
Avis d’Industrie Canada sur
l’exposition aux rayonnements
Cet appareil est conforme aux limites
d’exposition aux rayonnements
d’Industrie Canada pour un
environnement non contrôlé. Il doit être
installé de façon à garder une distance
minimale de 20 centimètres entre la
source de rayonnements et votre corps.
REMARQUE : LE FABRICANT
N’EST PAS RESPONSABLE
DES INTERFÉRENCES
RADIOÉLECTRIQUES CAUSÉES
PAR DES MODIFICATIONS NON
AUTORISÉES APPORTÉES À
CET APPAREIL. DE TELLES
MODIFICATIONS POURRAIENT
ANNULER L’AUTORISATION
ACCORDÉE À L’UTILISATEUR DE
FAIRE FONCTIONNER L’APPAREIL.
11
SAFETY INSTRUCTIONS
For product having the
wireless function using 5 GHz
frequency bands
Warning
i. the device for operation in the band
5150–5250 MHz is only for indoor
use to reduce the potential for harmful
interference to co-channel mobile
satellite systems;
ii. the maximum antenna gain permitted for
devices in the bands 5250–5350 MHz
and 5470–5725 MHz shall comply with
the e.i.r.p. limit; and
iii. the maximum antenna gain permitted
for devices in the band 5725–5825
MHz shall comply with the e.i.r.p. limits
specied for point-to-point and non
point-to-point operation as appropriate.
iv. High-power radars are allocated as
primary users (i.e. priority users)
of the bands 5250–5350 MHz and
5650–5850 MHz and that these
radars could cause interference and/
or damage to LE-LAN devices.
Avertissement
i. les dispositifs fonctionnant dans la
bande 5 150-5 250 MHz sont réservés
uniquement pour une utilisation à
l'intérieur an de réduire les risques de
brouillage préjudiciable aux systèmes
de satellites mobiles utilisant les
mêmes canaux;
ii. le gain maximal d'antenne permis
pour les dispositifs utilisant les bandes
5 250-5 350 MHz et 5 470-5 725 MHz
doit se conformer à la limite de p.i.r.e.;
iii. le gain maximal d'antenne permis
(pour les dispositifs utilisant la bande
5 725-5 825 MHz) doit se conformer
à la limite de p.i.r.e. spéciée pour
l'exploitation point à point et non point
à point, selon le cas.
iv. Radars de haute puissance sont
désignés utilisateurs principaux
(c.-à-d., qu'ils ont la priorité) pour les
bandes 5 250-5 350 MHz et 5 650-5
850 MHz et que ces radars pourraient
causer du brouillage et/ou des
dommages aux dispositifs LAN-EL.
12
CONTENTS
To Set Channel 35
- To View Program Information 35
- To set Favorite Channels 35
- To use Favorite 35
Additional Options 36
- Adjusting Aspect Ratio 36
- Using the Keystone Function 36

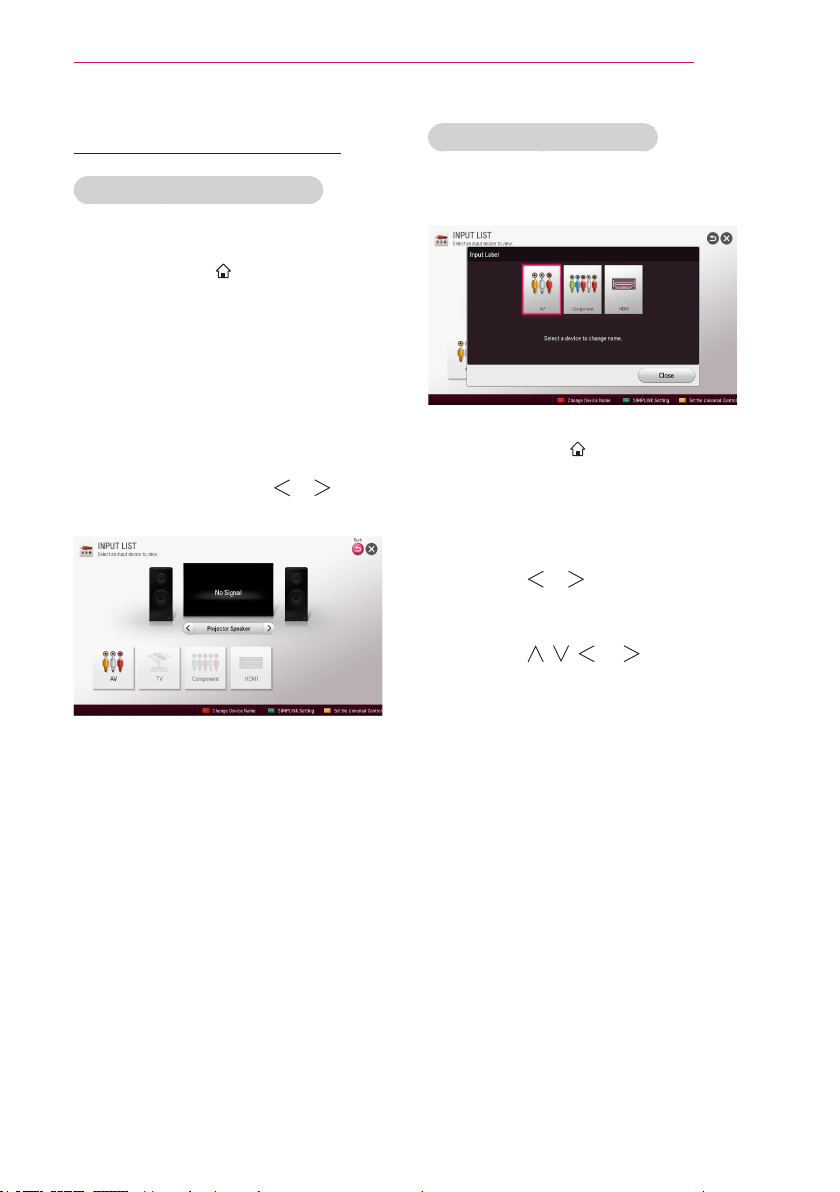

- Changing Input Device 37
- To Use SIMPLINK 38
Using the Quick Menu 39
To Set Sound 40
- To Set Sound Output 40
- To Connect and Use a Bluetooth headset
42
- Using the Multi Audio 42
ENTERTAINMENT 43
To Use Smart Features 43

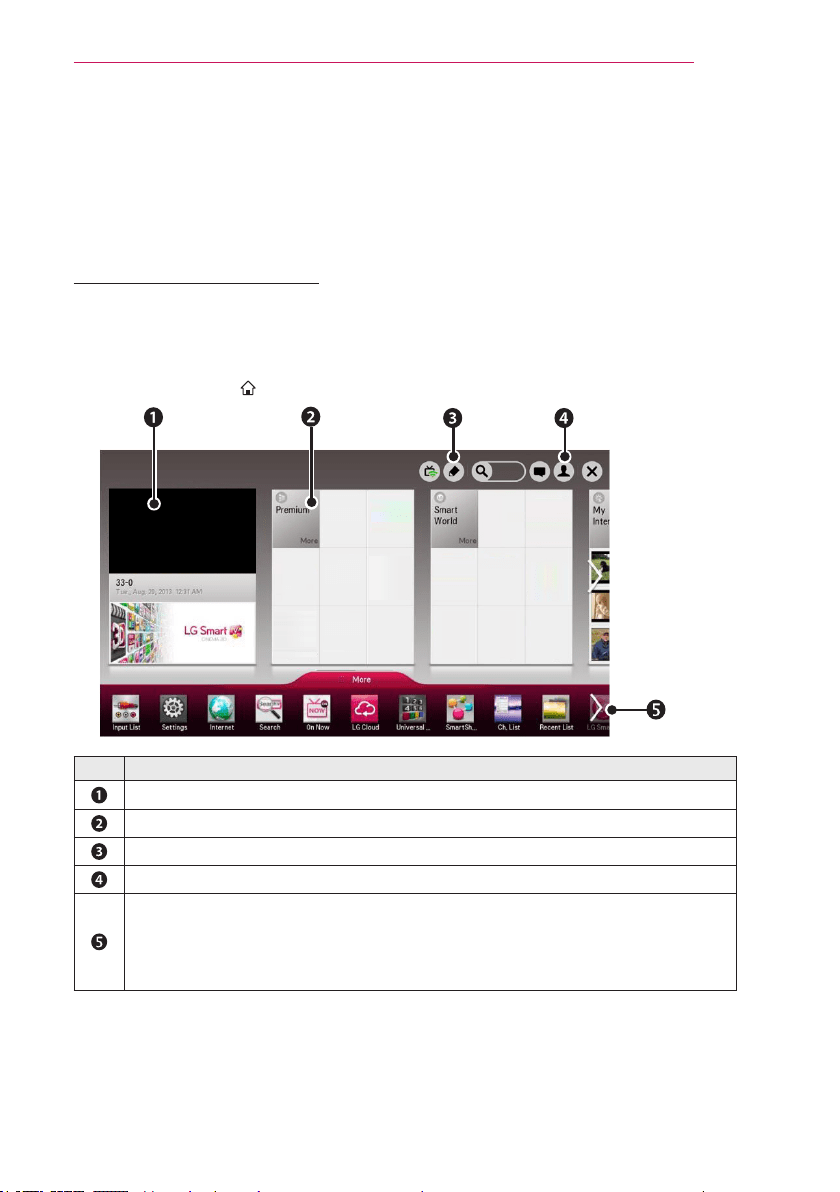

- To Use Home Screen 43
- To Use MY APPS 44
- To Edit Items in MY APPS 44
To Connect Network 45
- One-click Network Connection 45
- To Connect to a Network Through Set
Expert 45
- To Use the Wi-Fi Direct Function 46
- To Use the Miracast™/Intel’s WiDi
Function 46
- Tips for Network Settings 47
3D FUNCTION 48
Before Watching 3D 48
- While Watching 3D 48
Requirements for Watching 3D Images 50
- Using the DLP-LINK (DLP-Ready) Type
Glasses 51
To view 3D images 51
- Supported 3D Input Formats 52
LICENSE 2
SAFETY INSTRUCTIONS 3
PREPARATION 15
Accessories 15
Optional Extras 16
Parts and Components 17
- Front 17
- Back 18
Installation 19
- Installation Precautions 19
- Projection Distance per Screen Size 20

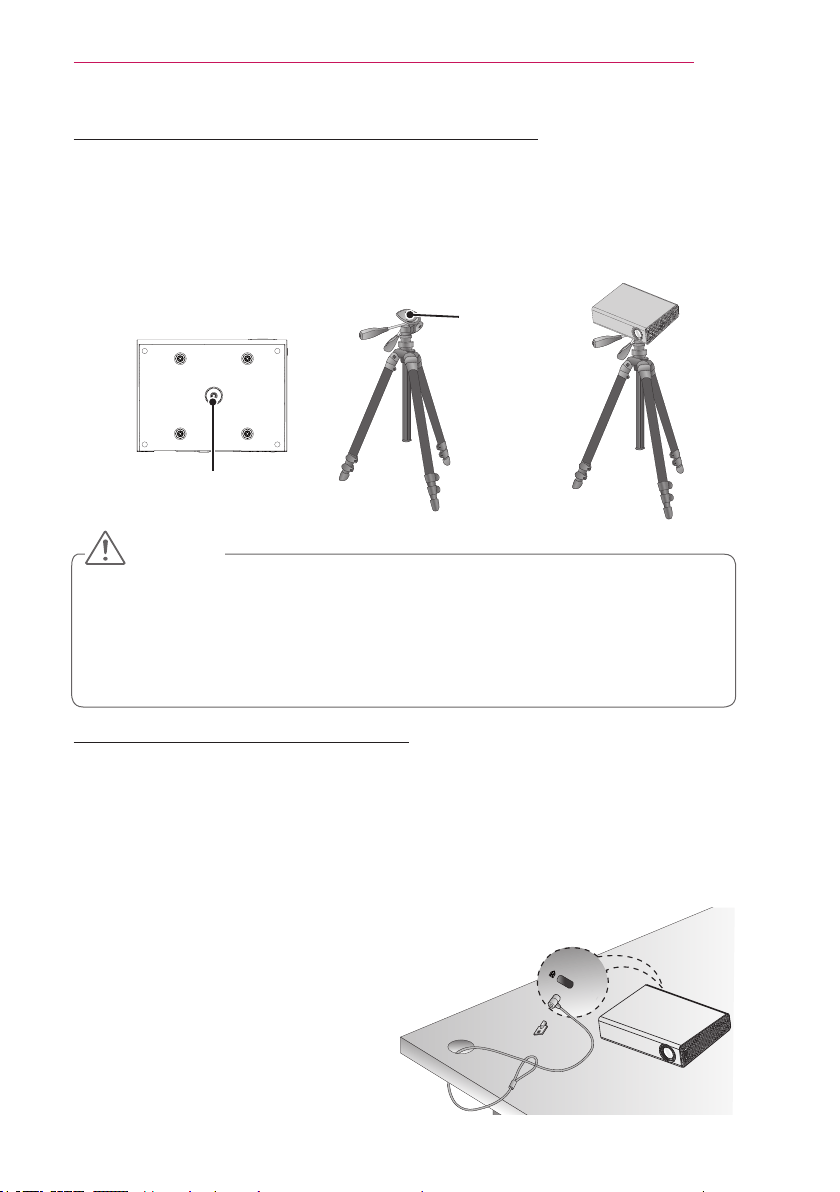

- How to Install the Projector On a Tripod
21
- Kensington Security System 21

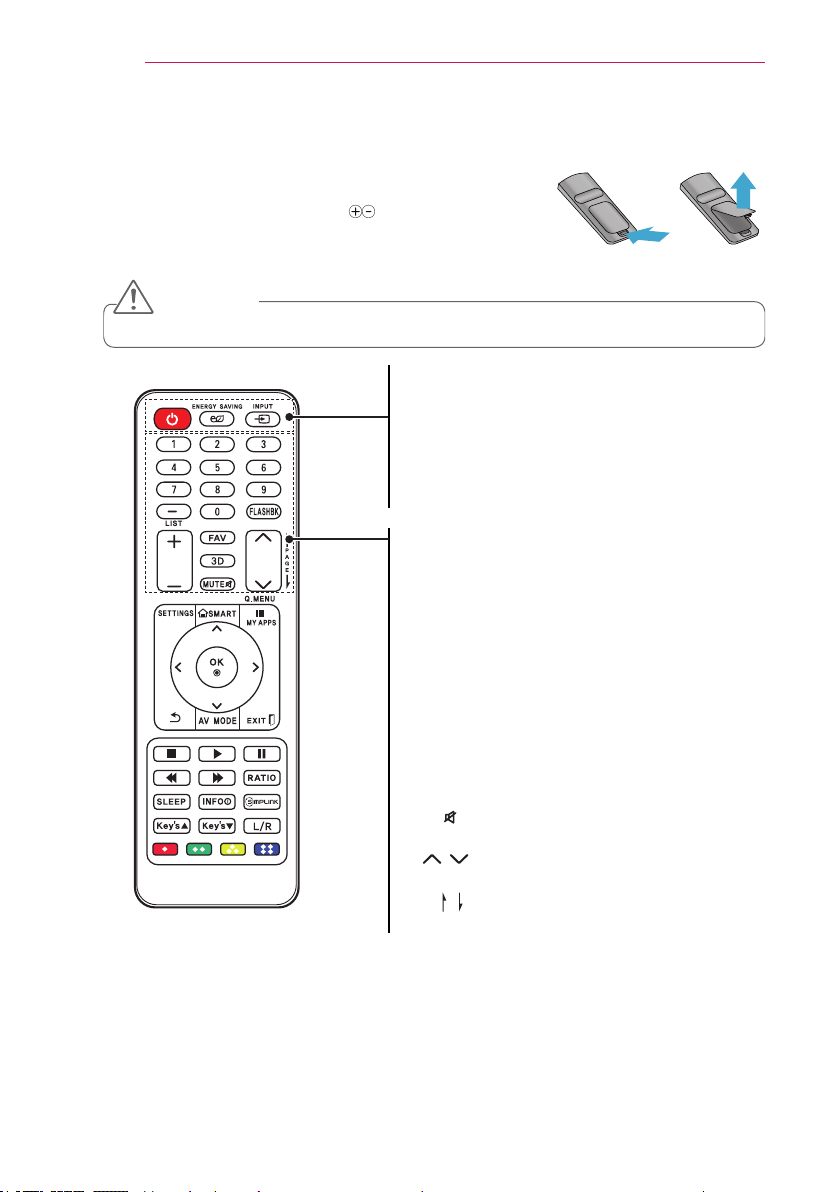

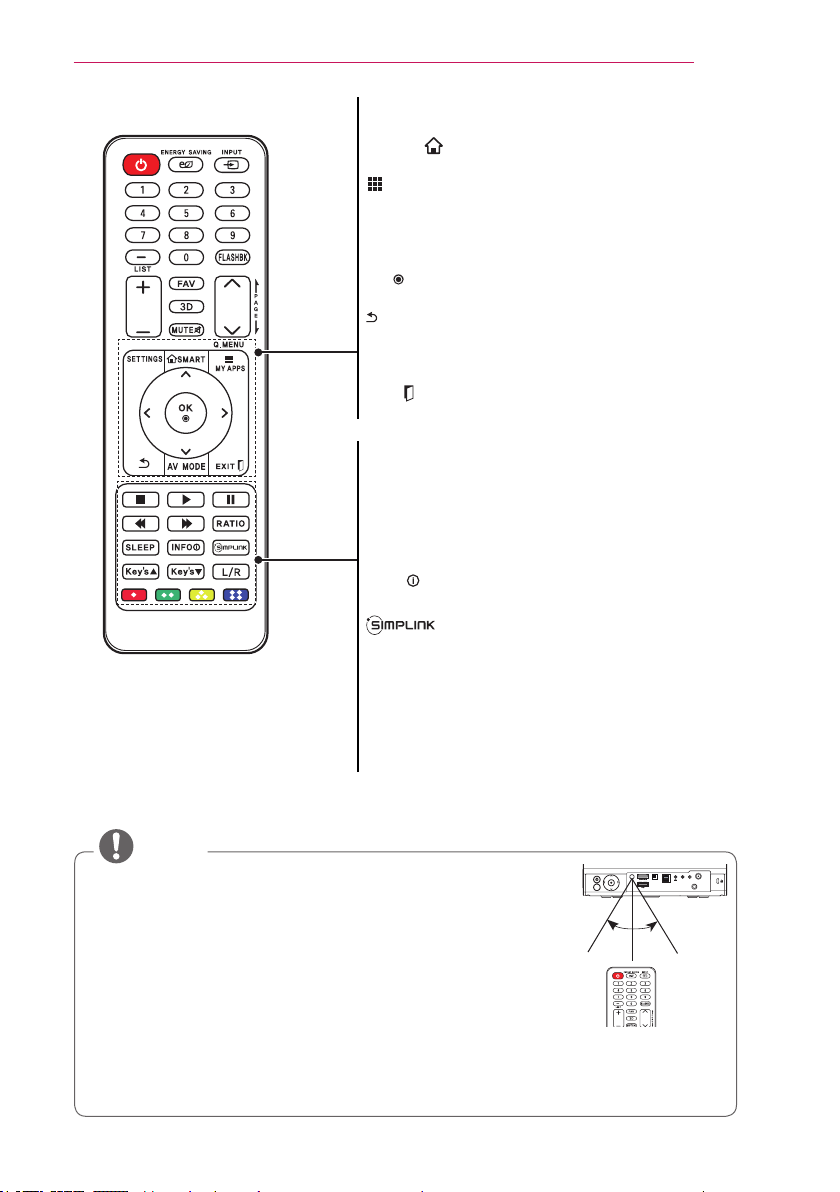

REMOTE CONTROL 22

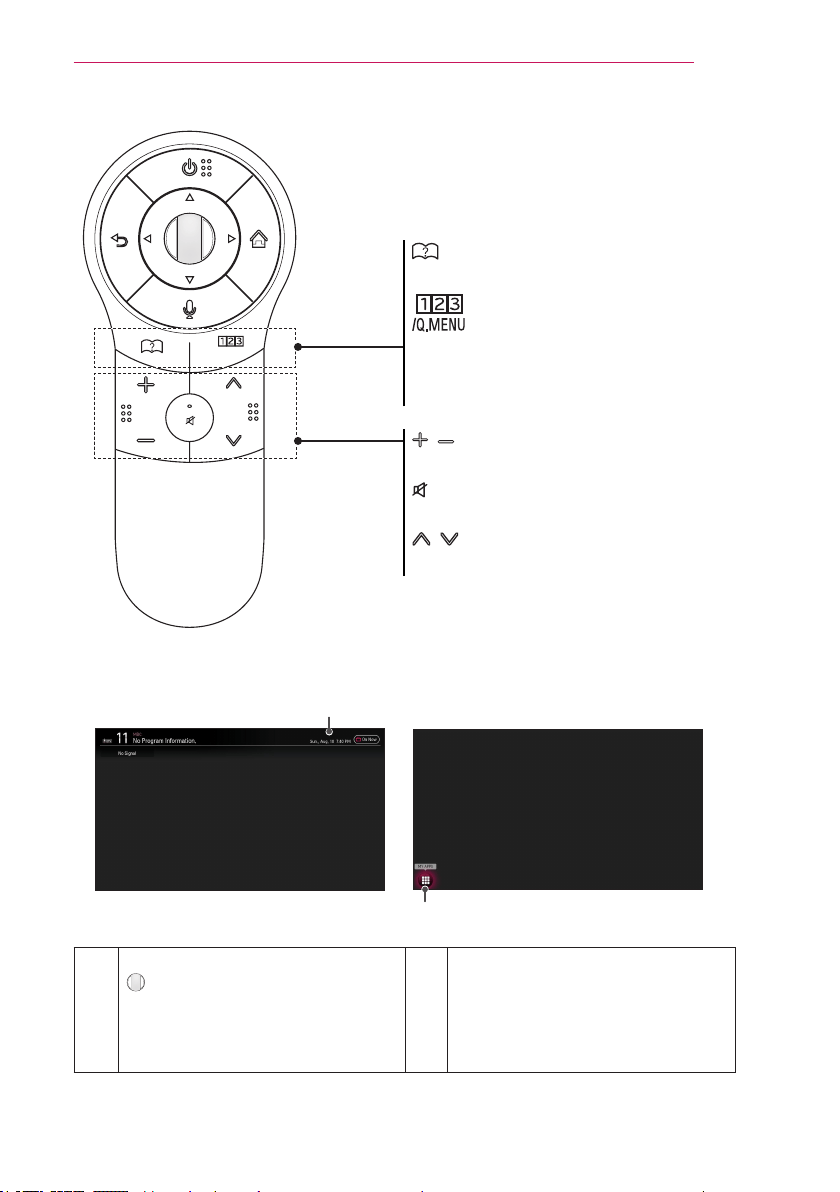

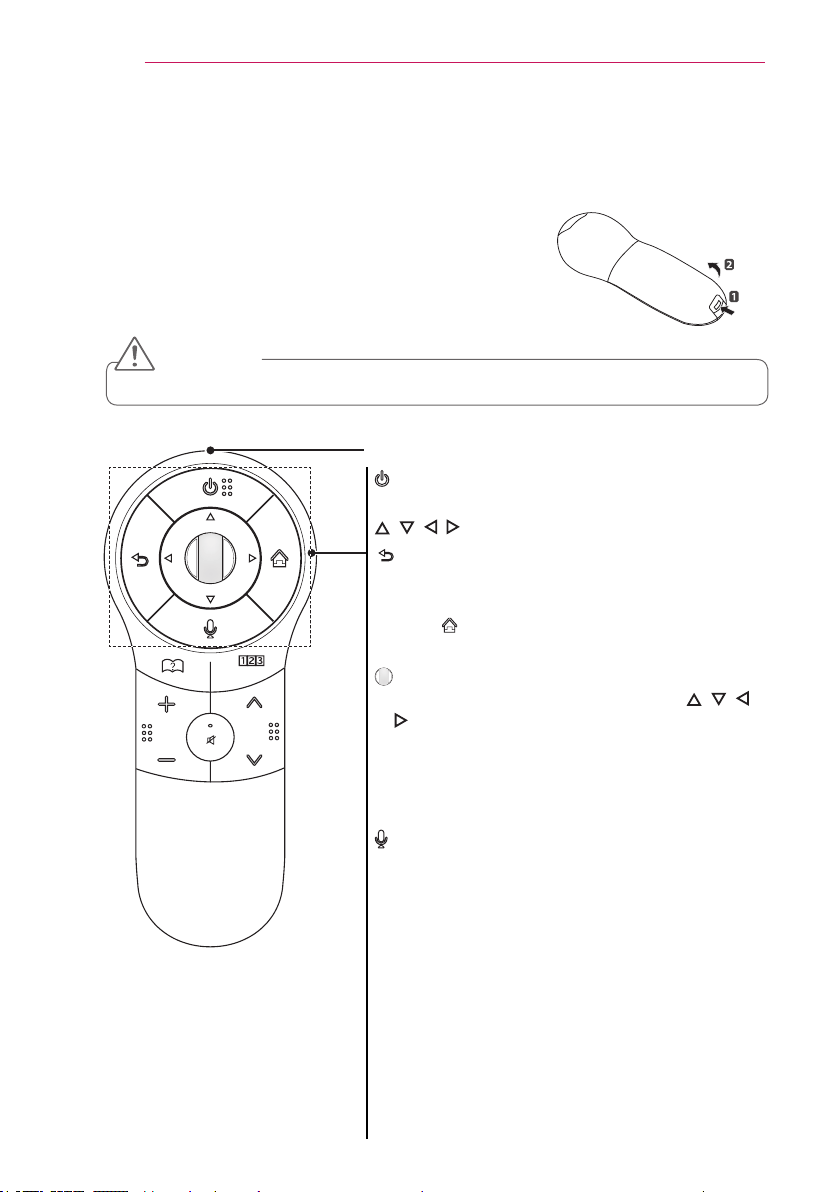

MAGIC REMOTE CONTROL 24
- To Register the Magic Remote Control 26
- To Re-register the Magic Remote Control
26
- Using the Magic Remote Control 27
USING THE PROJECTOR 28
Connecting to an Antenna or Cable 28
Connecting the Portable Antenna 29
- Antenna connection 29
- HDTV Reception 30
- Antenna Installation 30
Watching Projector 31

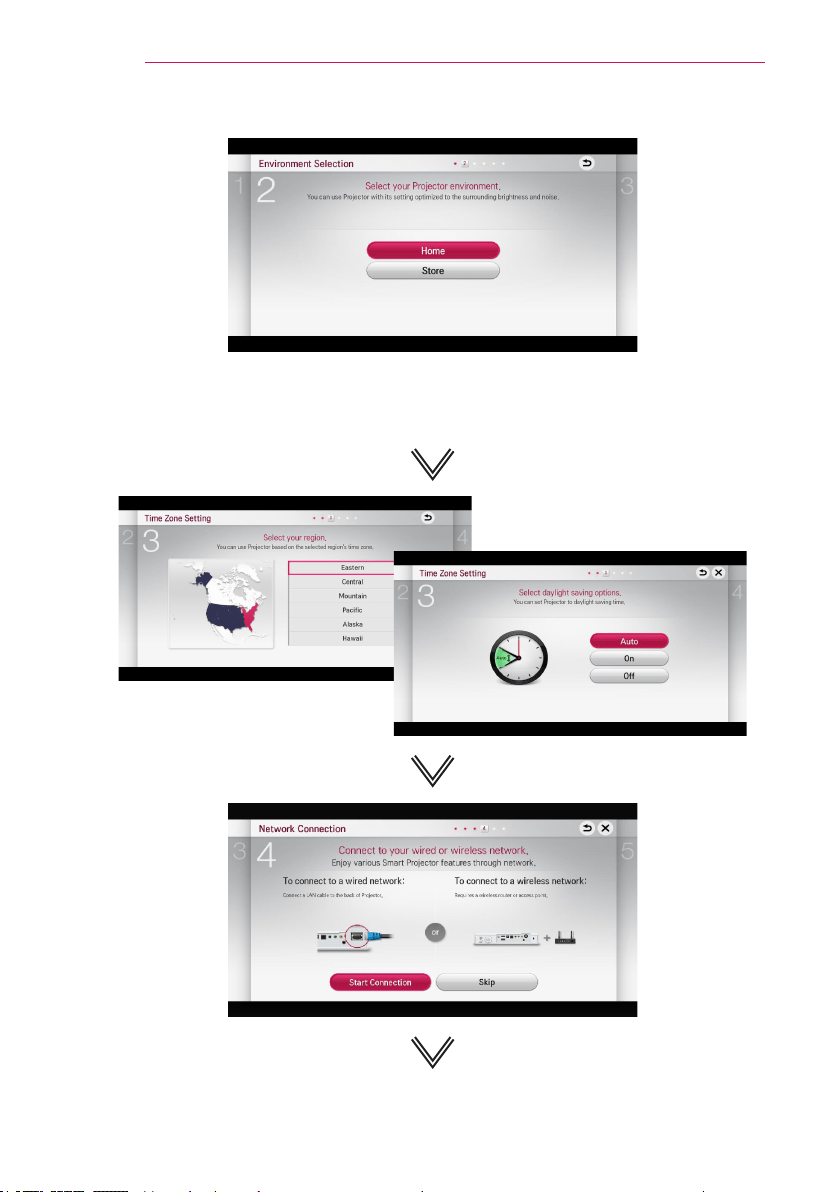

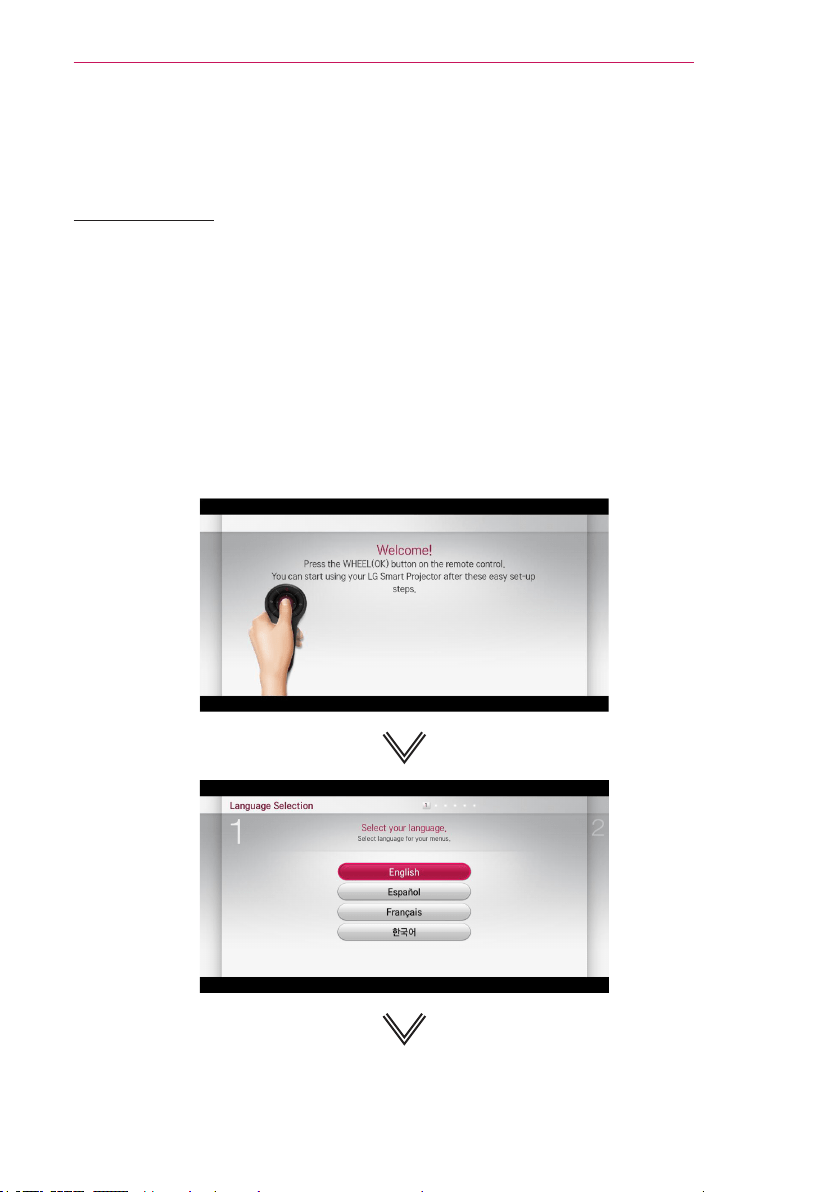

- Initial Setup 31
- Focus and Position of the Screen Image
34
- Watching With the Projector 34
CONTENTS
13
CONTENTS
SMARTSHARE 54
Before Using 54
- Connecting a USB Device 54
- Removing a USB Device 54

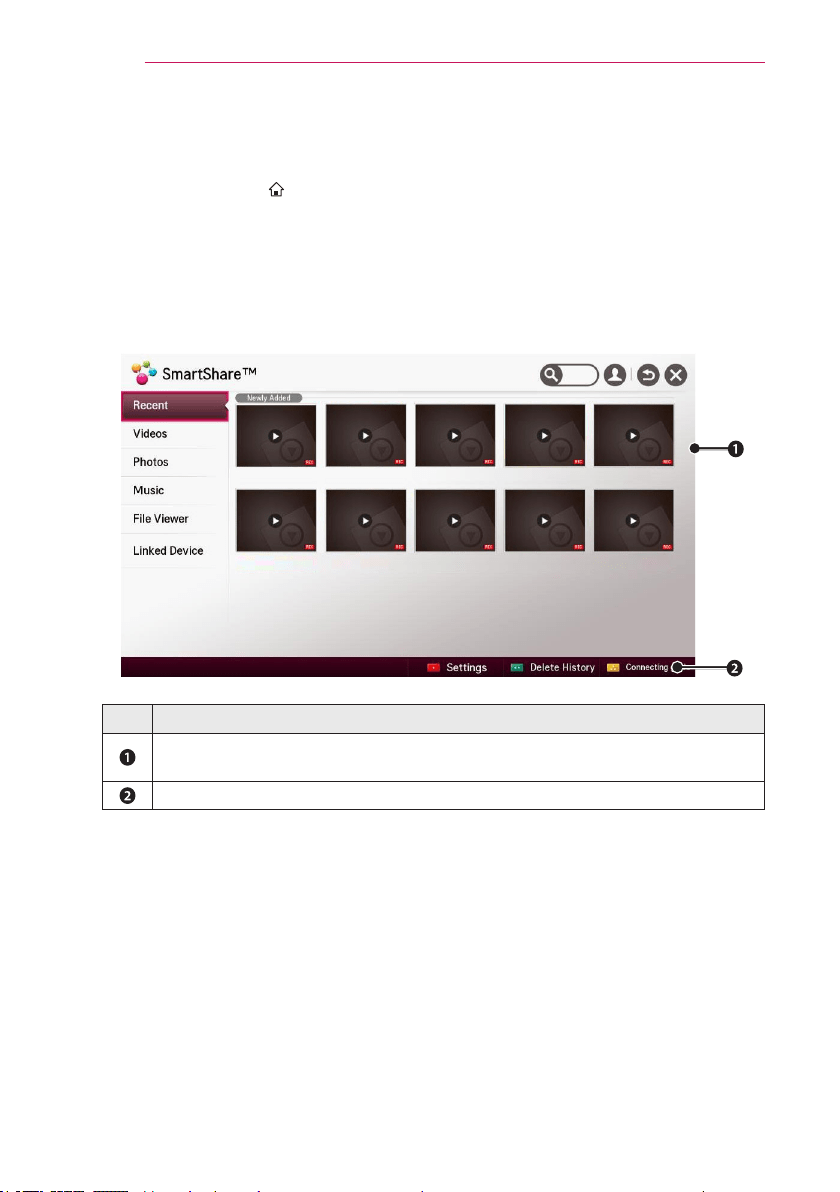

To use SmartShare™ 56

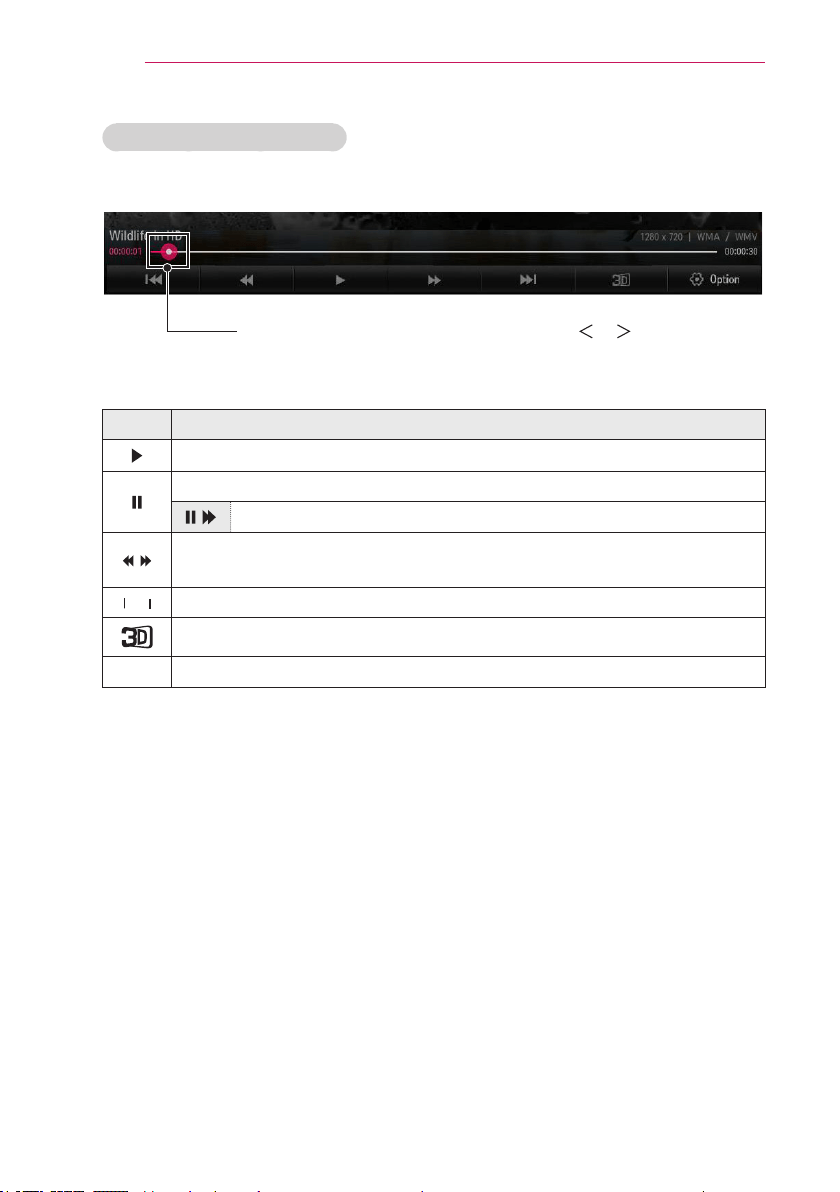

- Watching the Videos 57
- Viewing the Photos 59

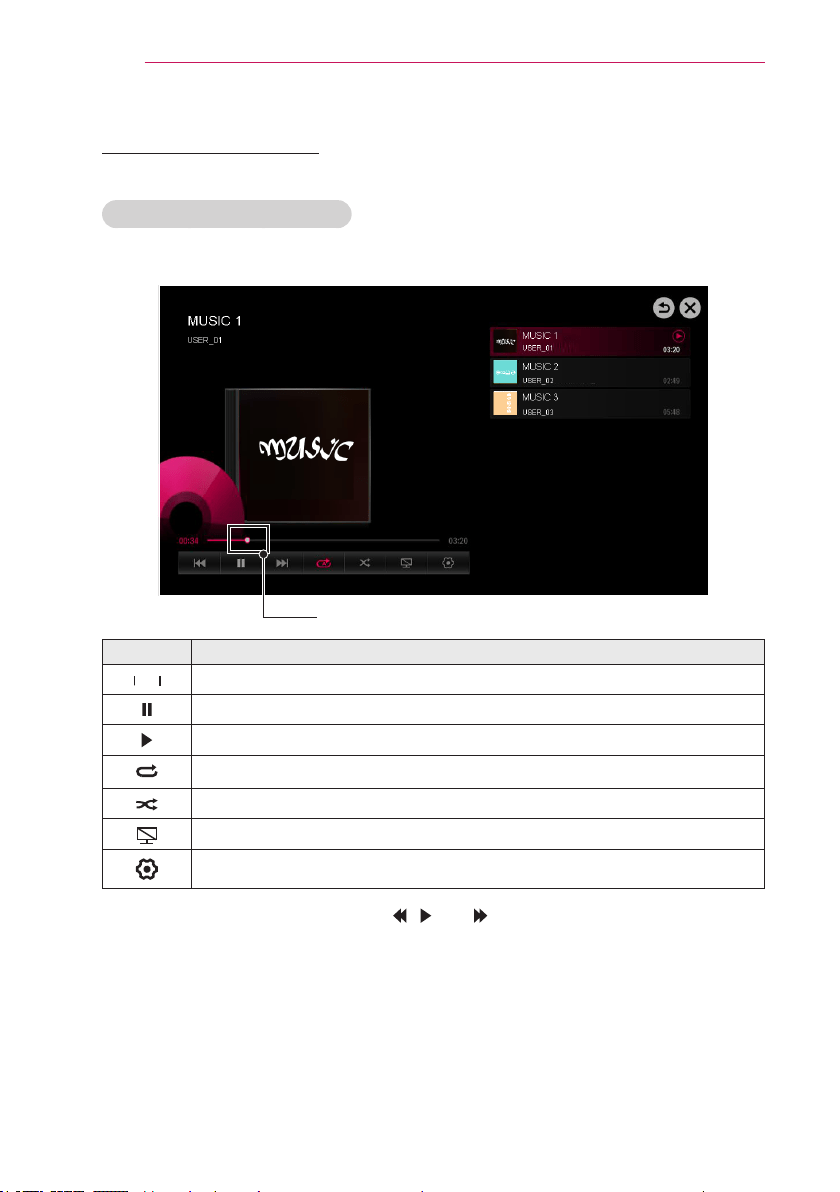

- Listening to Music 60

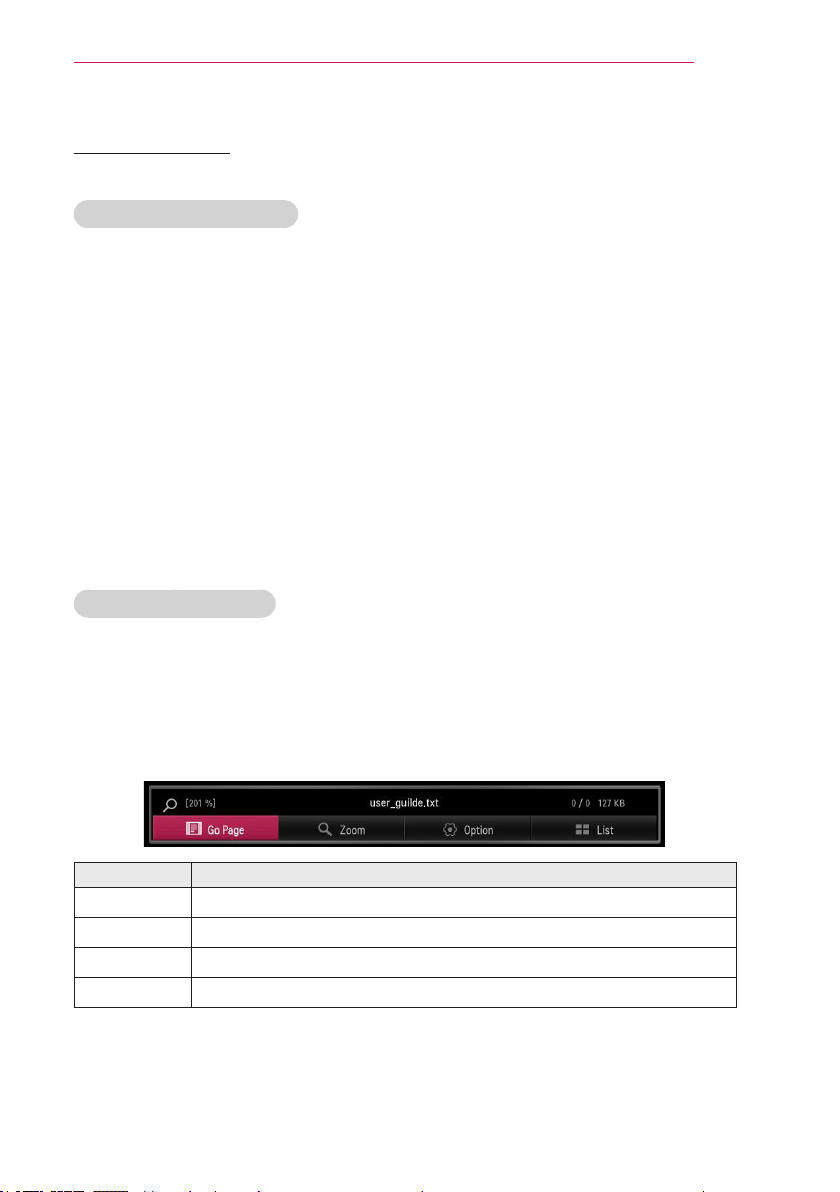

- Viewing Files 61
- To Set SmartShare™ Related Functions
62

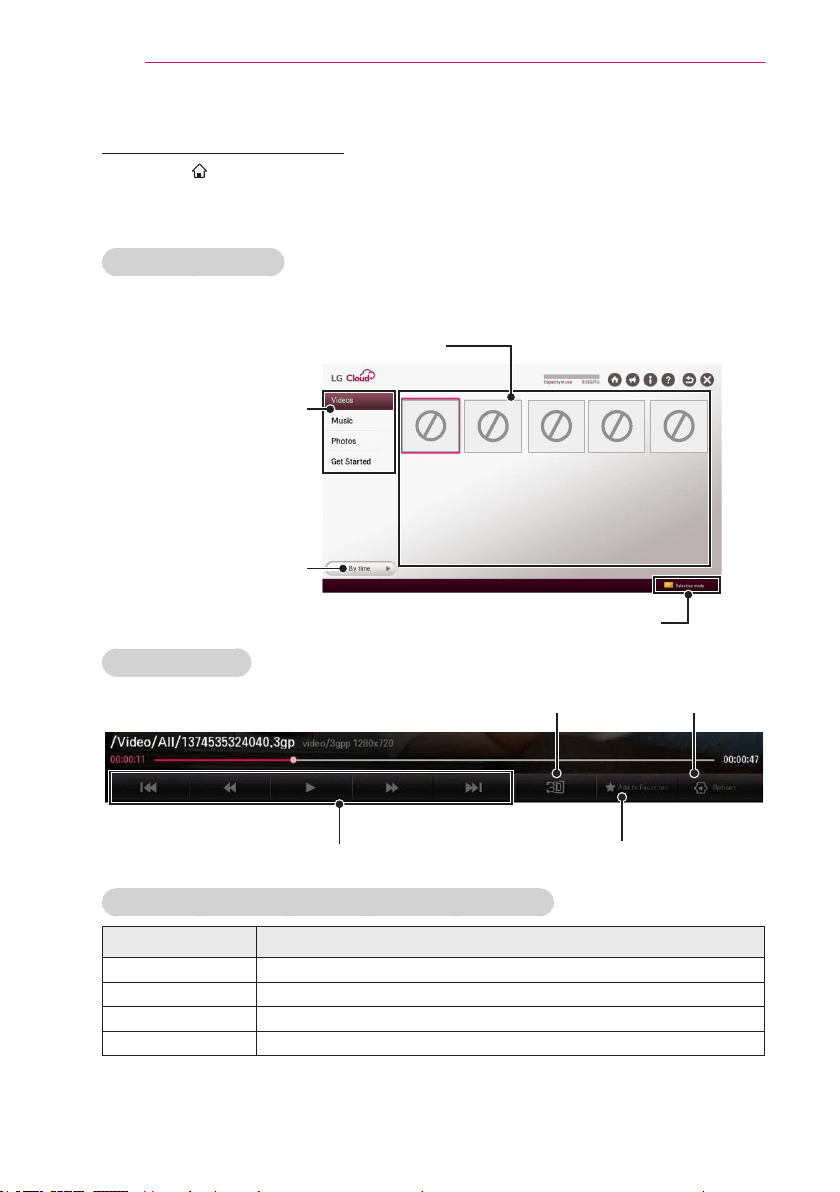

To Use the LG Cloud 65
- What is the LG Cloud? 65
- To Use the LG Cloud 66
To Connect DLNA 67
- To Connect a DLNA-Authenticated
Smartphone 67
- To Connect DLNA DMR (Digital Media
Renderer) 67
- To Connect DLNA DMP (Digital Media
Player) 68
- SmartShare™ PC SW Installing and
Setting 69
- In Case of a DLNA Malfunction 70

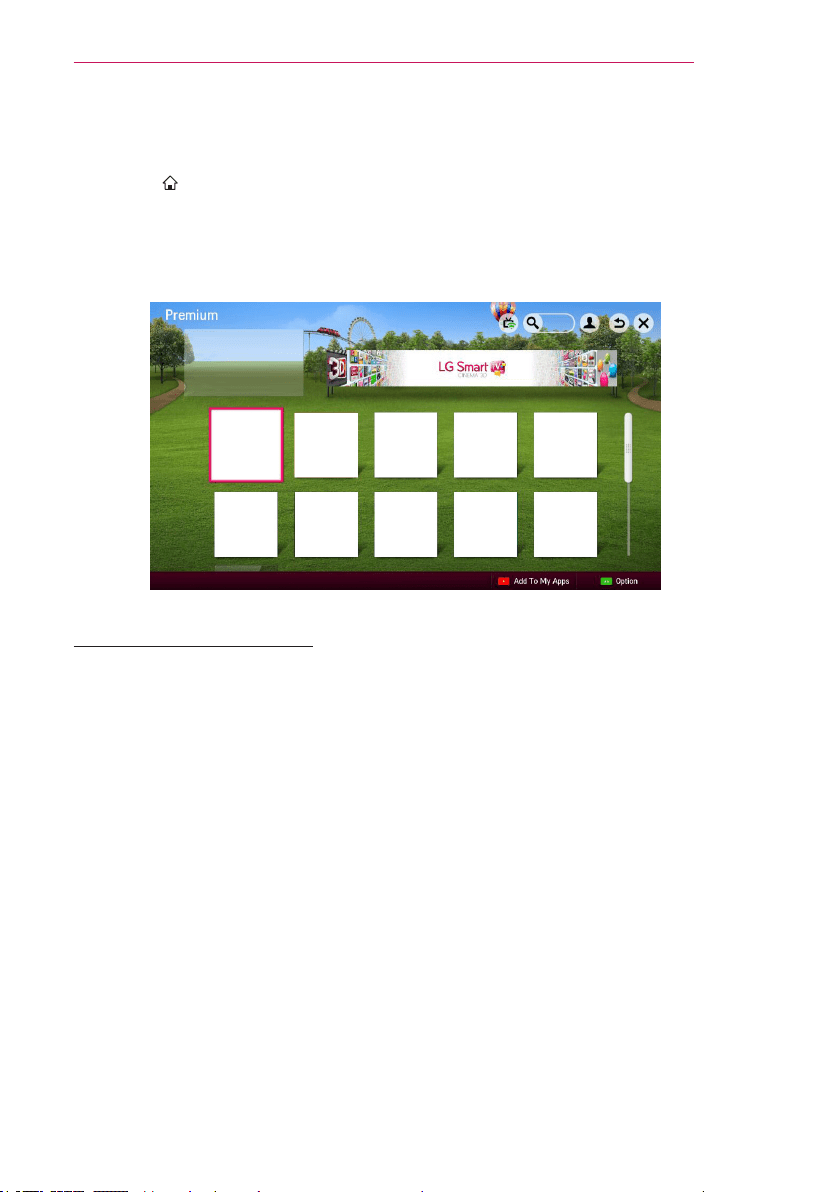

To Use A Premium Service 71
- To Use Paid Content 71
- To Reset Premium 72

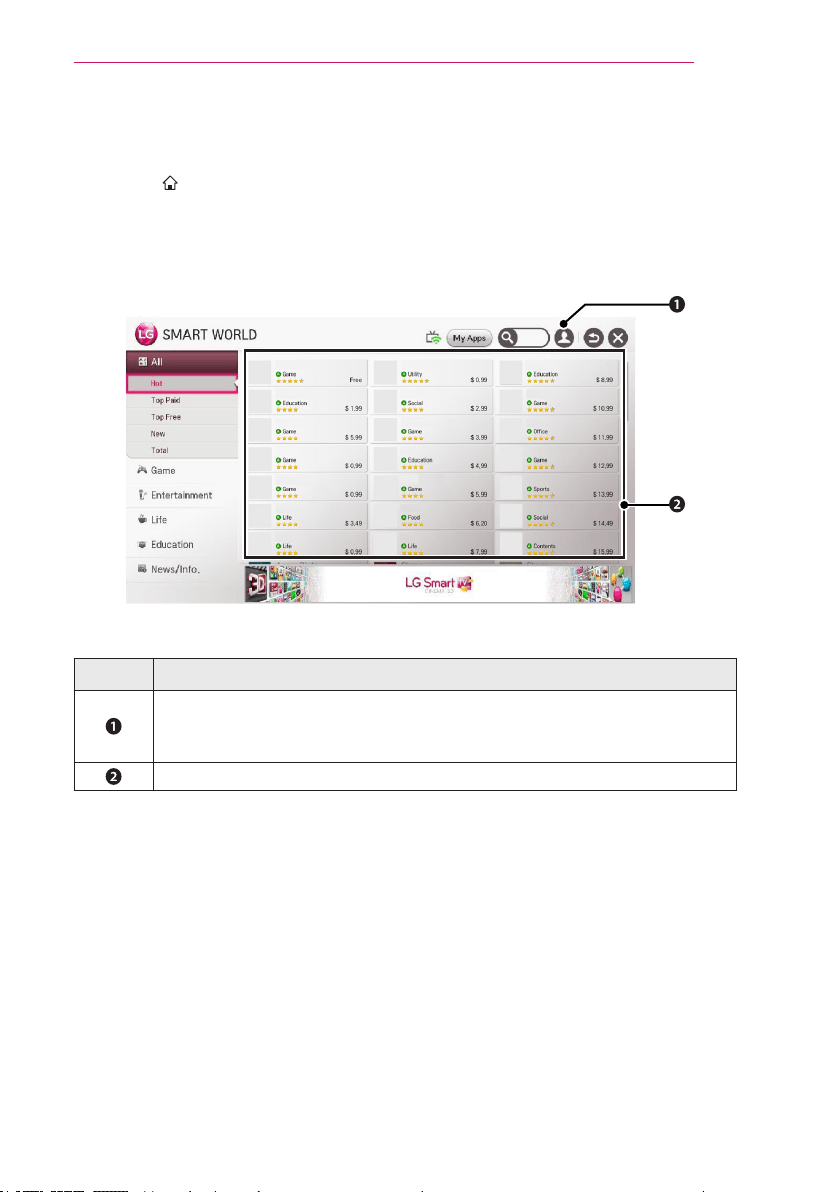

To use LG Smart World 73
To Use Search Function 74
To Use the Voice Recognition Function 74
- Using this Function Through Search 74
- Using this Function on the Internet 75

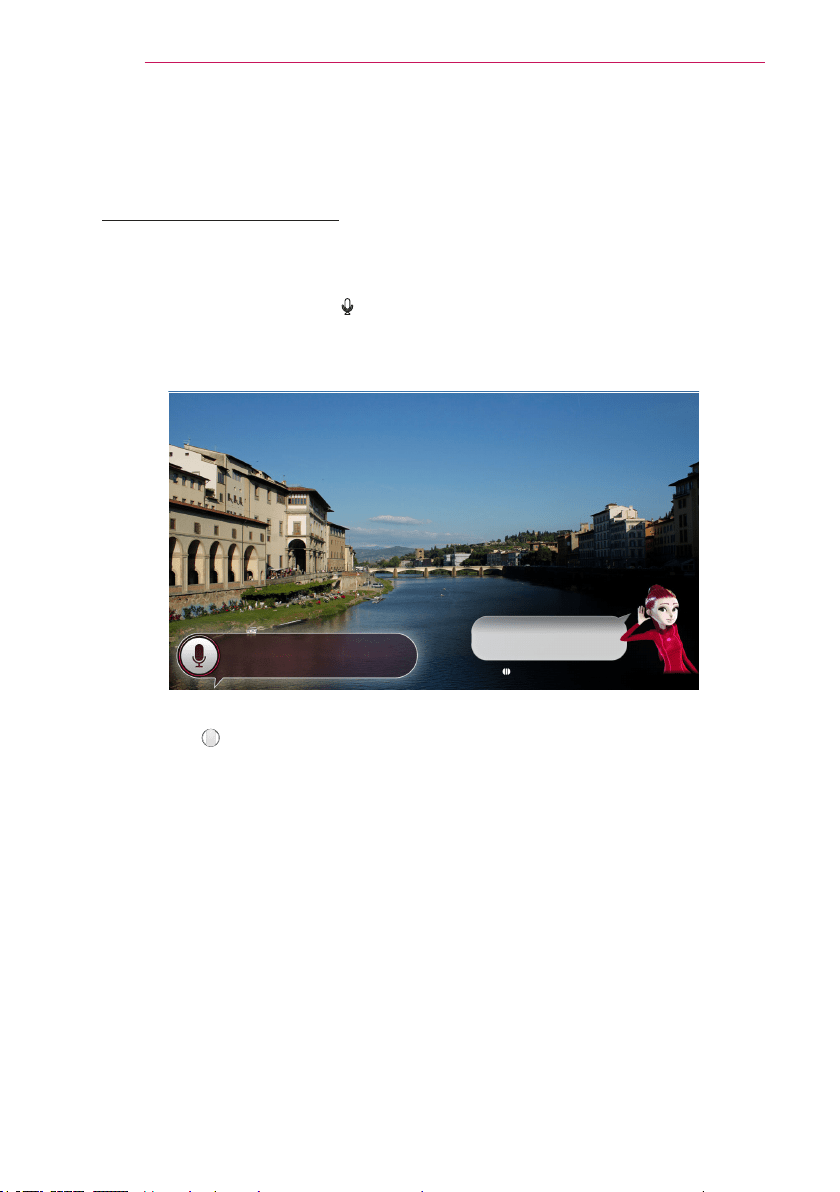

To Use Voice Mate Function 76
- What Is Voice Mate? 76
- How to Use Voice Mate? 77
- What Are Other Functions of Voice Mate?
77

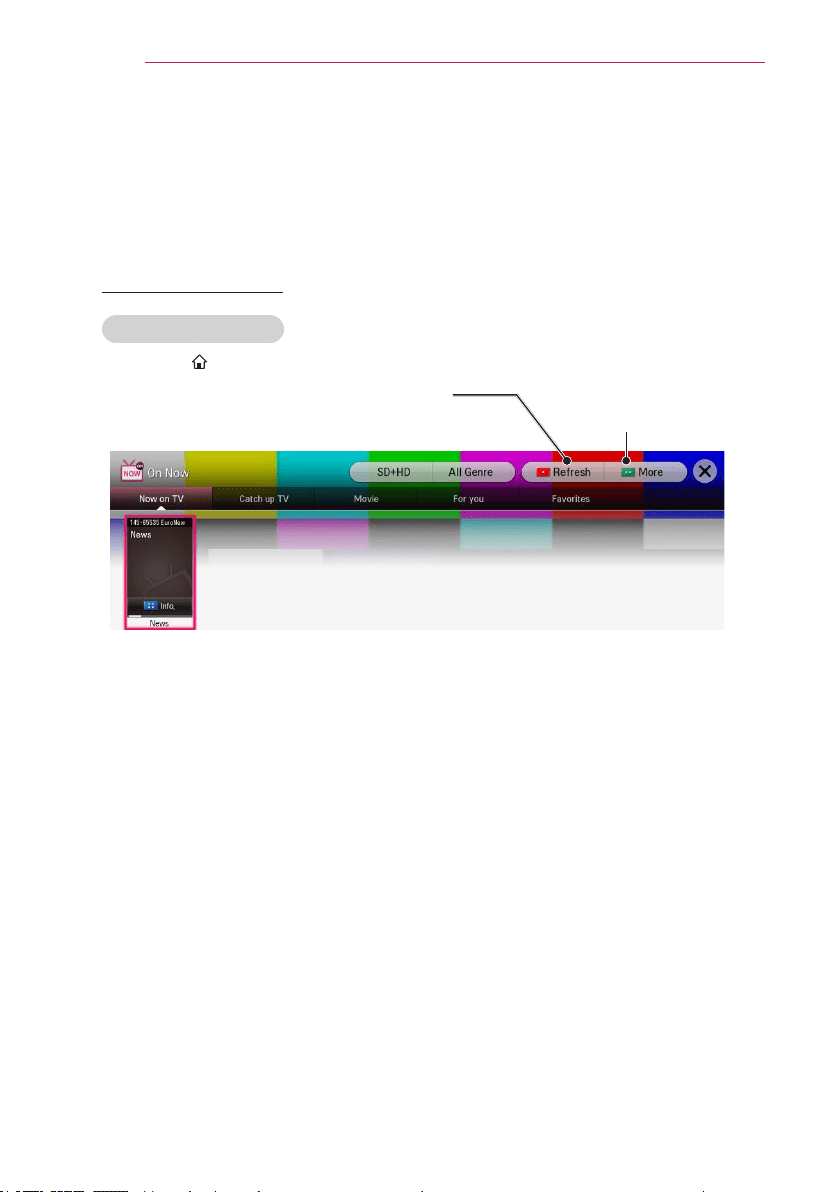

What Is On Now? 78

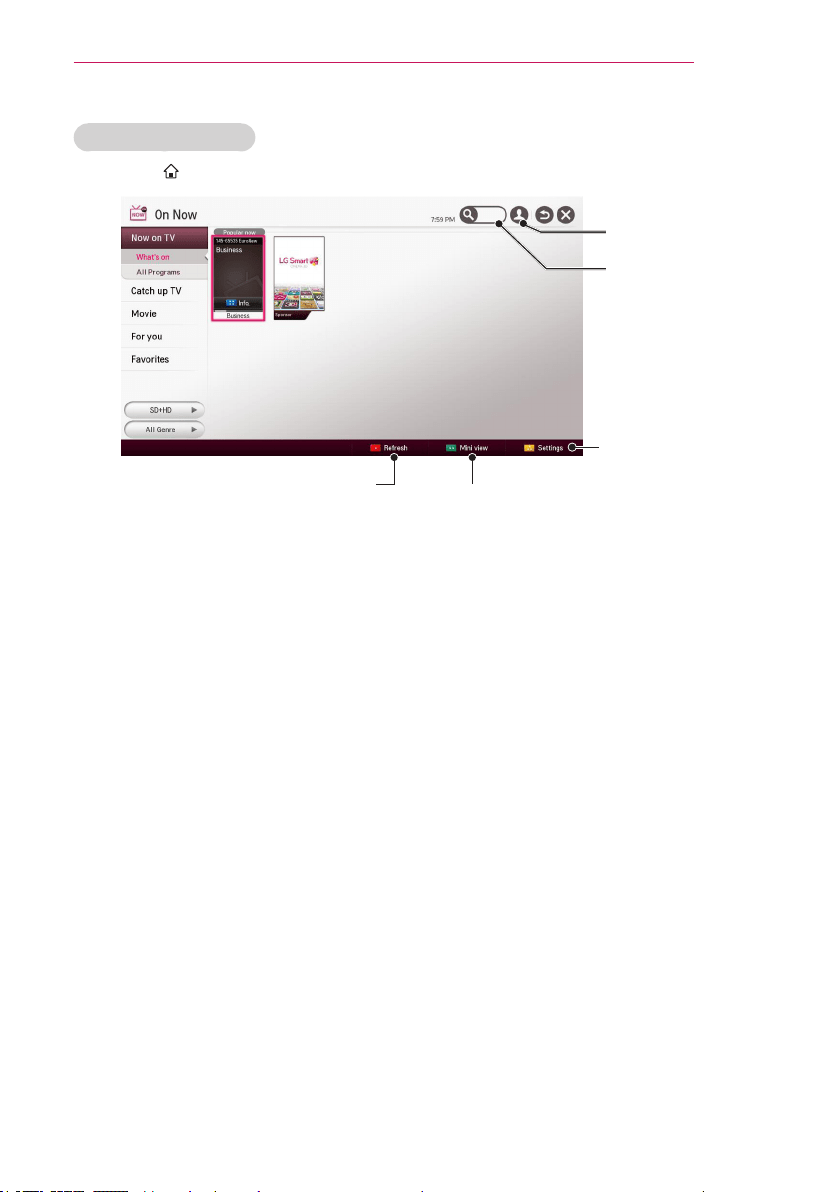

- To Use On Now 78

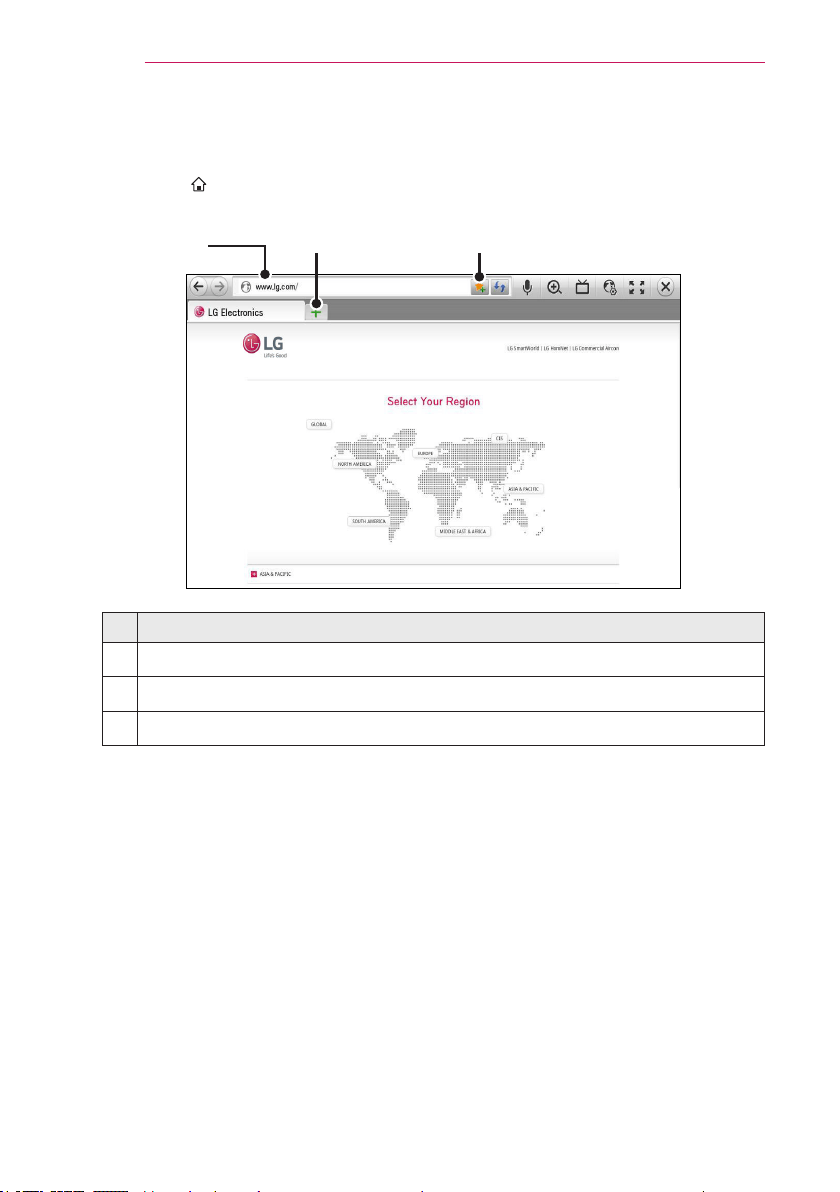

To Use Internet 80
Frequently Asked Questions for Smart
Projector 81
USING ADVANCED FUNCTIONS 85
To Use Screen Remote 85
- To Use Screen Remote 85
- To Control a Device Connected to the
Projector Using the Screen Remote 85
To Use the Universal Control function 86
To Control a Projector Using a
Smartphone 87
To Use a USB Input Device On a Projector 88
- To Use a USB Wired/wireless Mouse 88
- To Use a USB Wired/wireless Keyboard
88
CUSTOMIZING SETTINGS 89
SETTINGS 89

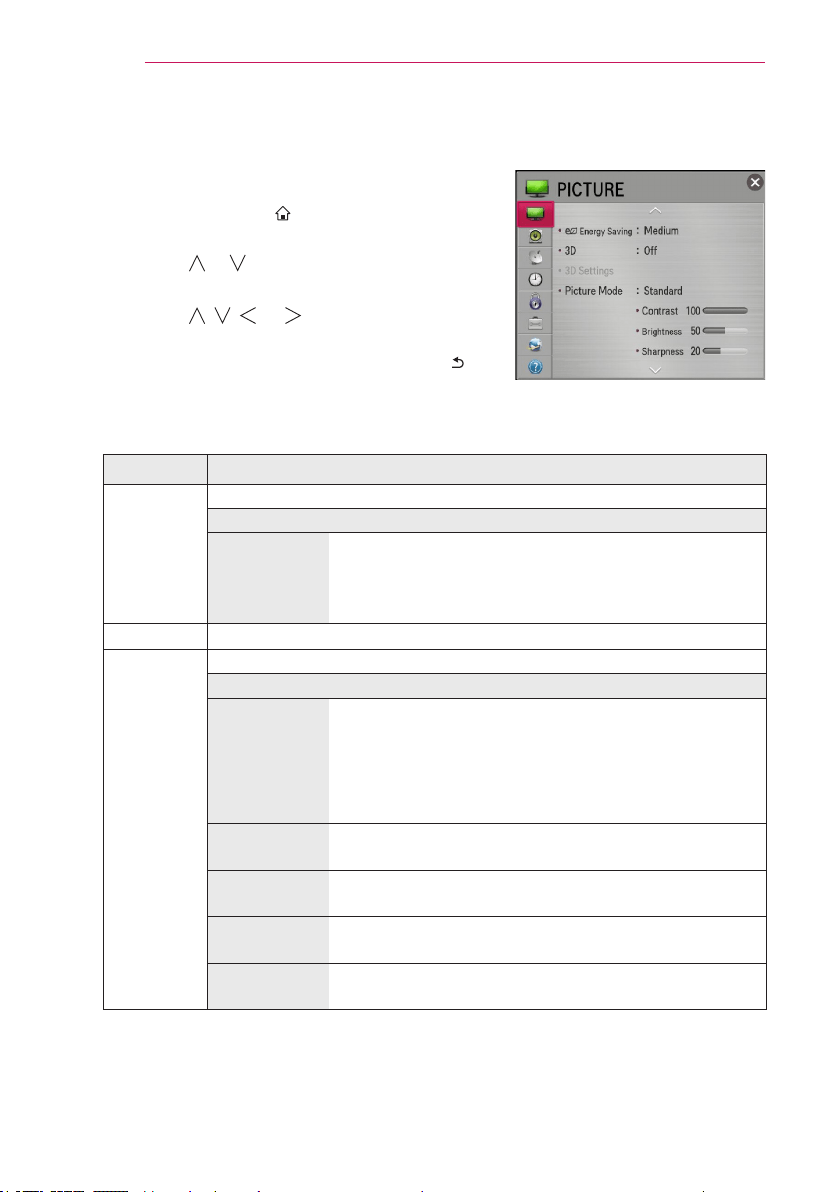

PICTURE Settings 90

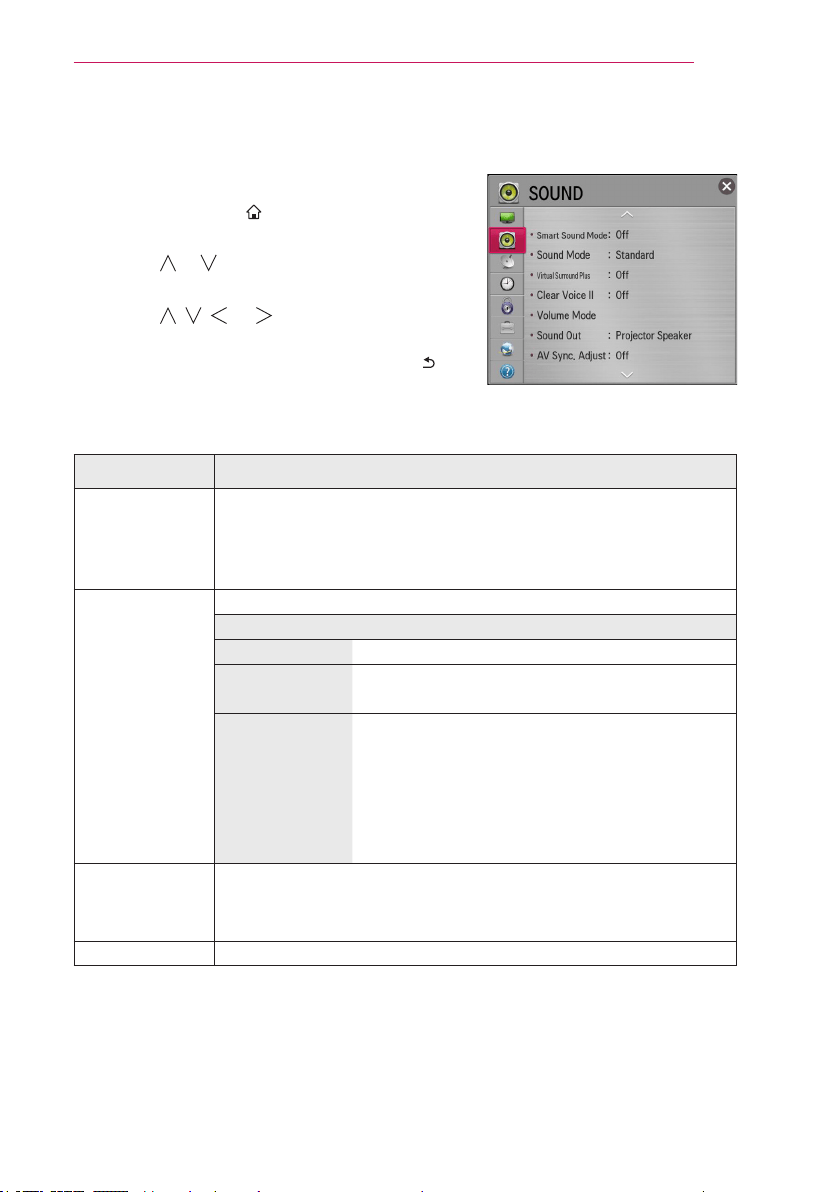

SOUND Settings 95

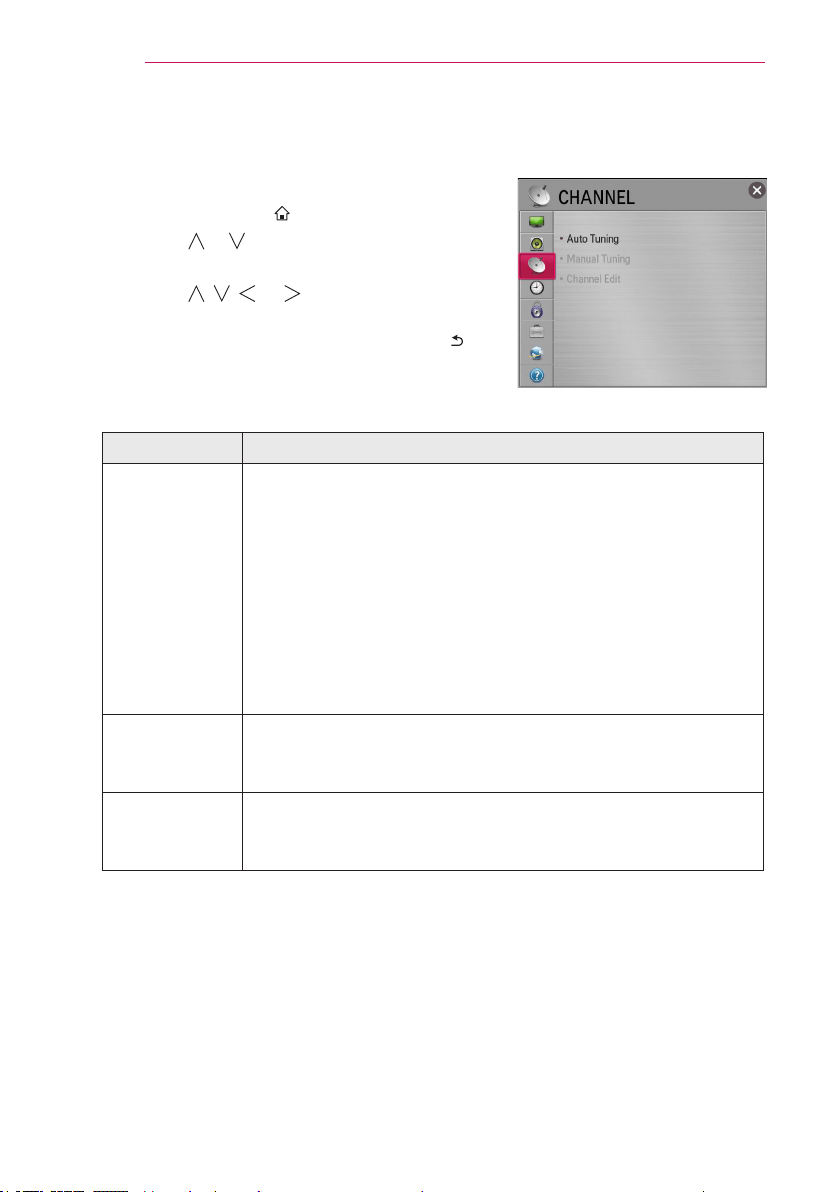

CHANNEL Settings 98
TIME Settings 99

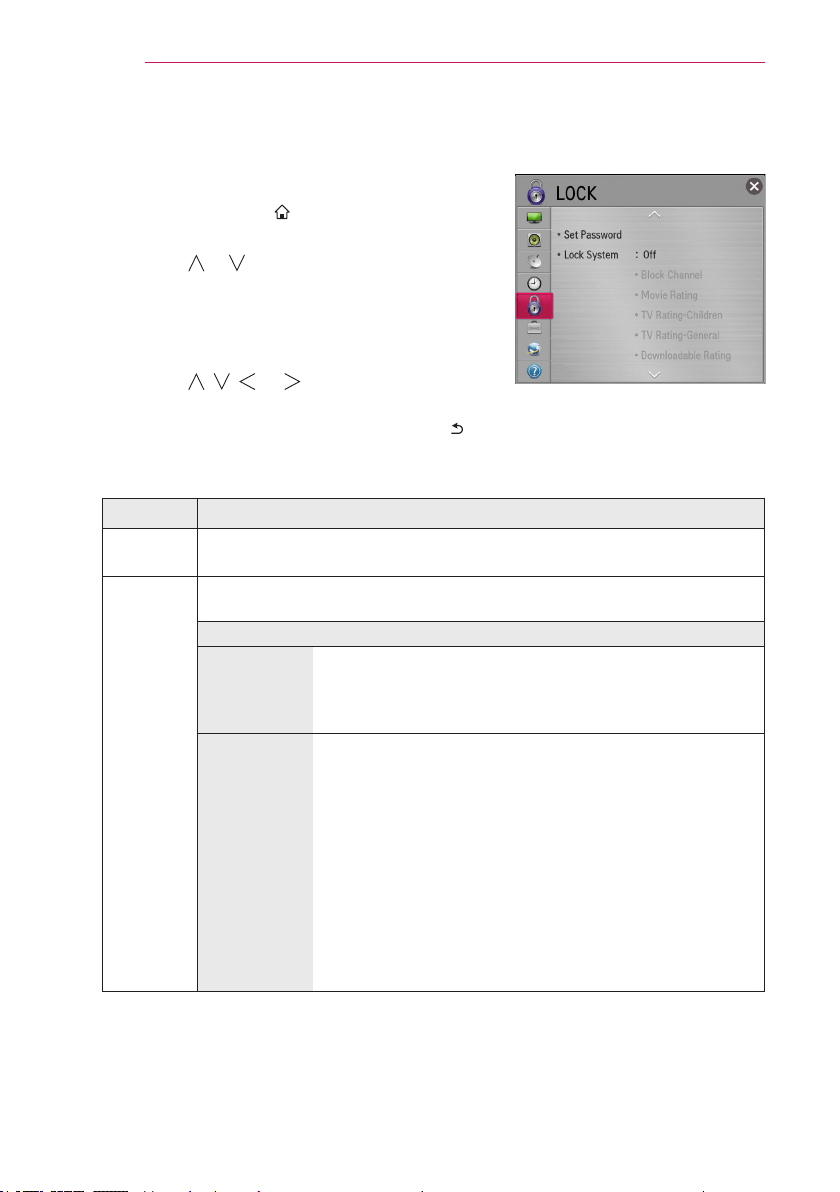

LOCK Settings 100

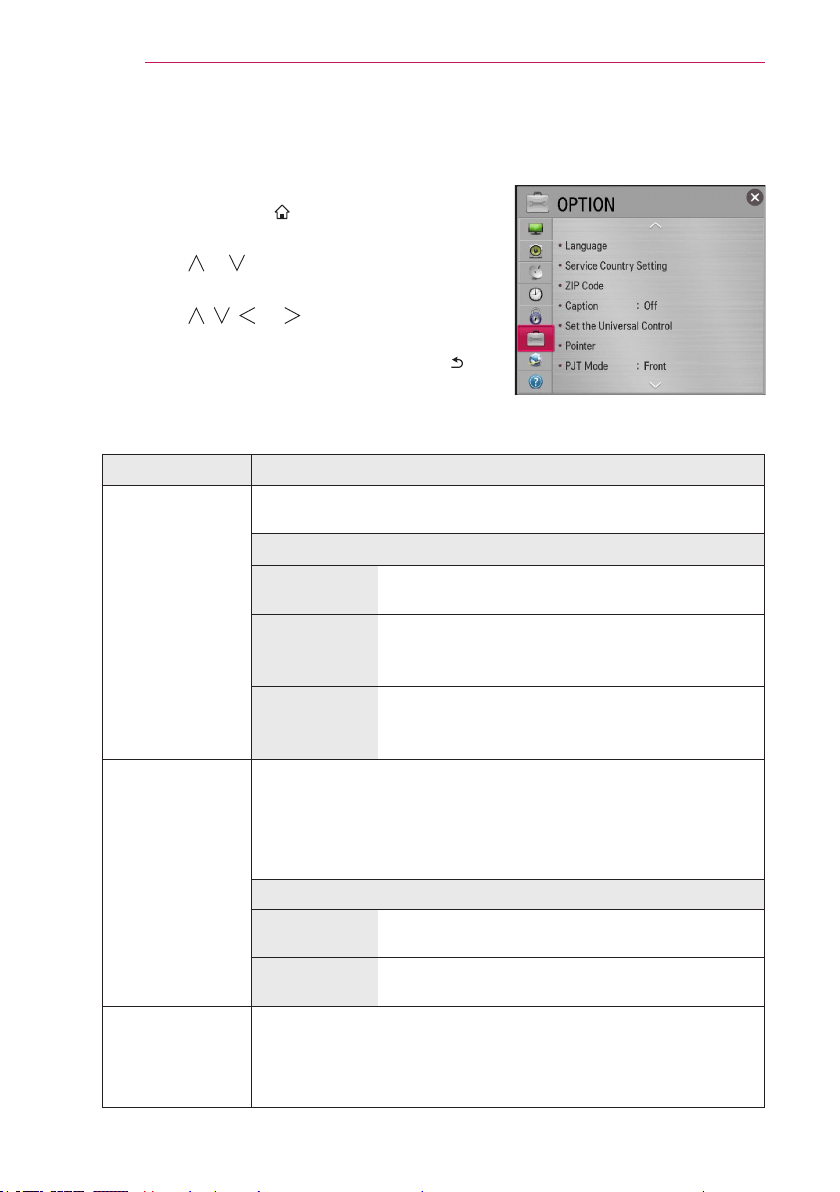

OPTION Settings 102
NETWORK Settings 106
SUPPORT 107

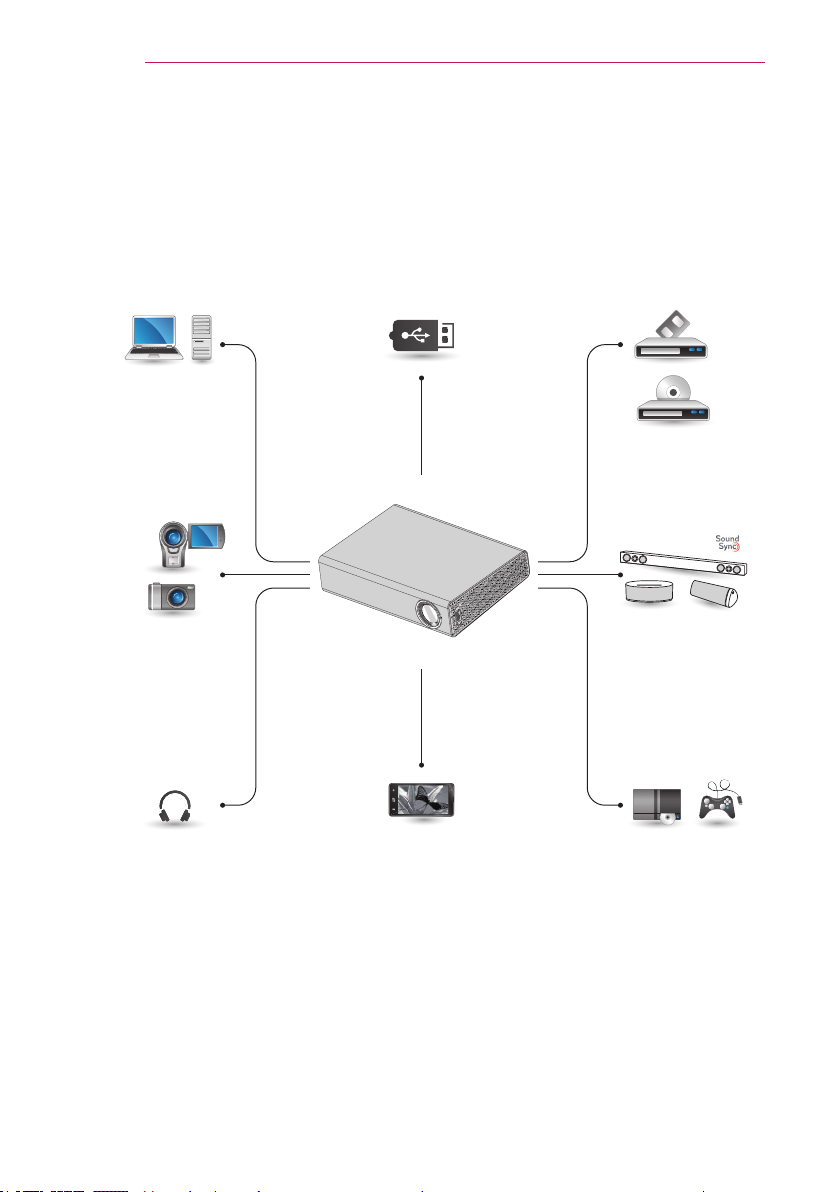

CONNECTING DEVICES 108
Connecting to HD Receiver, DVD, or VCR
Player, External Devices 109
- HDMI Connection 109

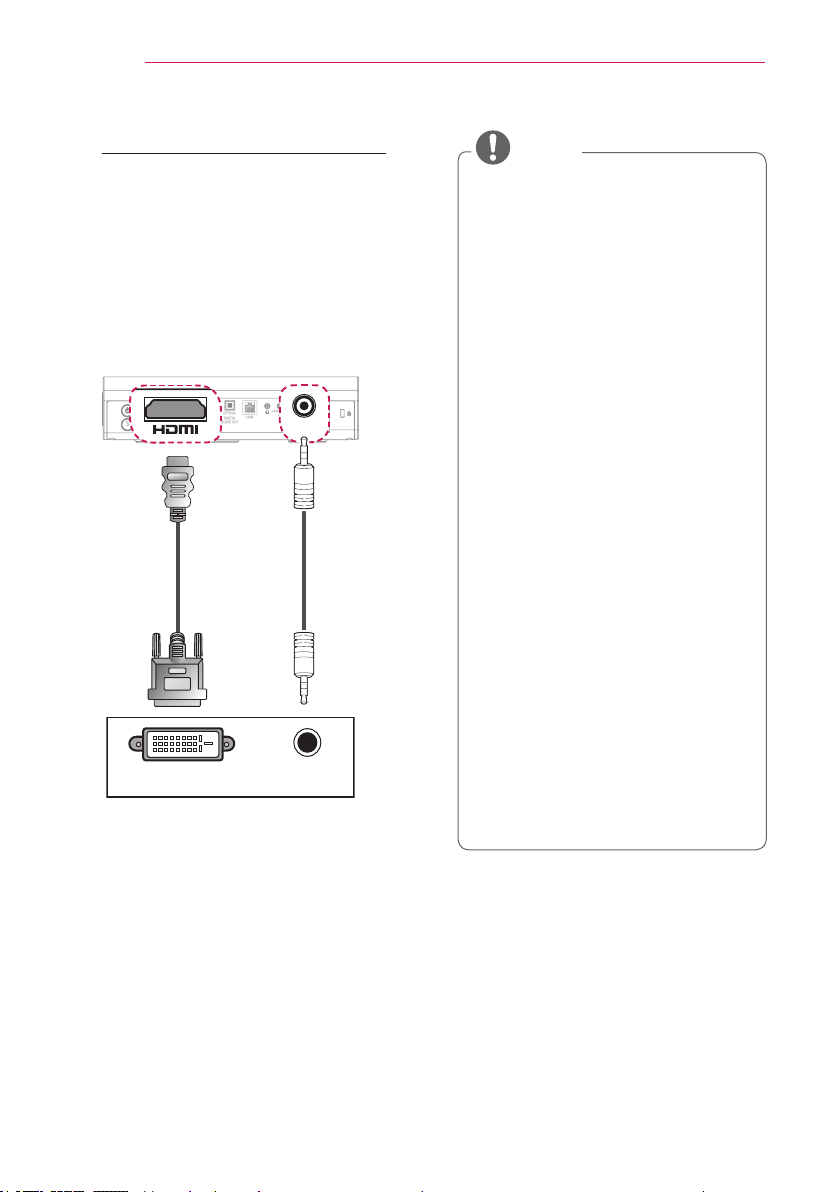

- HDMI to DVI Connection 110
- AV Connection 110

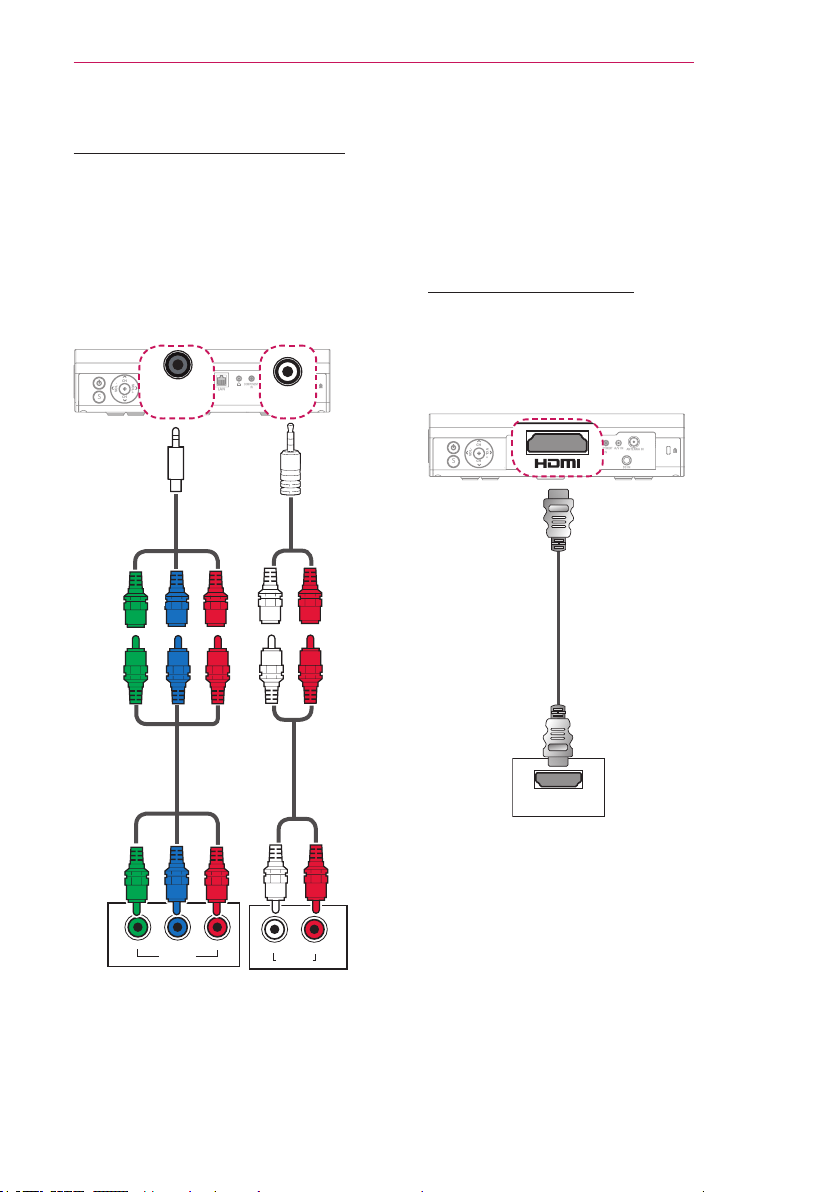

- Component Connection 111
Connecting a PC 111
- HDMI Connection 111
- HDMI to DVI Connection 112
Connecting a Laptop 113
- HDMI Connection 113
Connecting to Headphones 114
Connecting a Digital Amp 115
Using the Mirroring Function of a Mobile
Phone 116

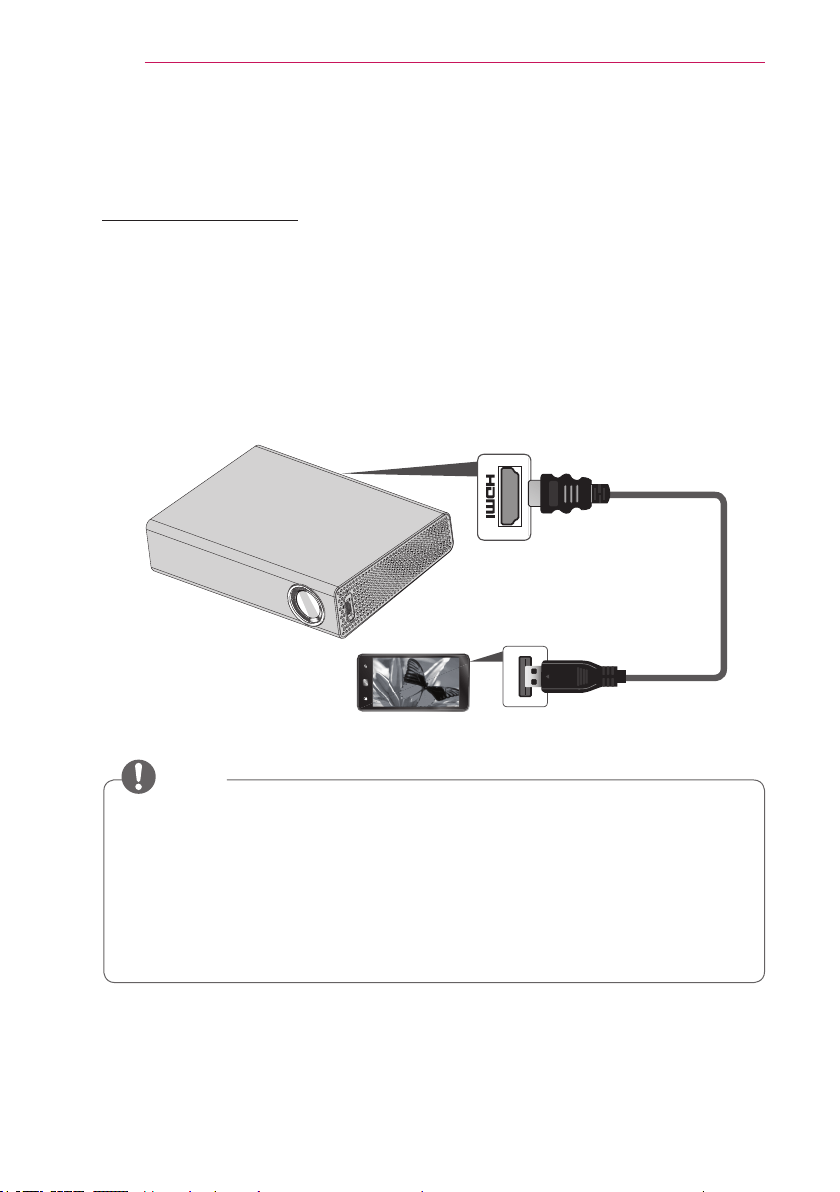

- MHL Connection 116
14
CONTENTS
MAINTENANCE 117
Cleaning 117
- Cleaning the Lens 117
- Cleaning the Projector Case 117
How to Attach the Lens Cap 117
INFORMATION 118
To Update Projector Software 118
Before Reporting a Problem, Check the
Following: 119
- General 119
- Picture 119
- Sound 120
- PC Connection Problem 121
- Problems Replaying Movies in My Media
122
SPECIFICATIONS 123
15
PREPARATION
PREPARATION

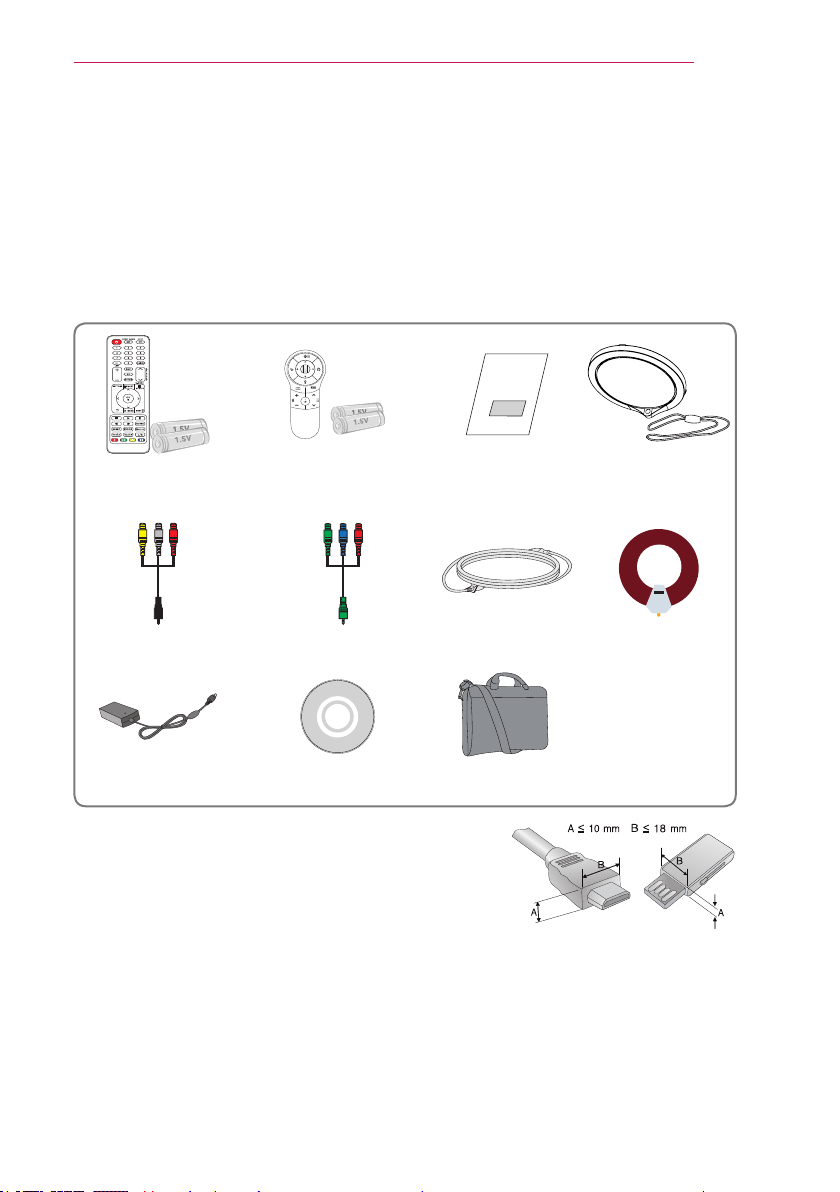

Accessories
Accessories included with the project are show below. The pictures may differ slightly
from the actual product. Accessories are subject to change without prior notice.
New accessories may be added or old ones removed.
70- $)
FK
YRO
EDFN VPDUW
/40(18
Remote Control
Two AAA Batteries
Magic Remote Control
Two AA Batteries
User Guide Lens Cap, Strap
Composite Gender Component Gender Power Cord Portable Antenna
AC-DC Adaptor Owner's Manual CD Bag
When connecting an HDMI or USB cable, or
connecting a USB flash drive to the HDMI or USB port,
use a product that has a width of 18 mm or less and a
height of 10 mm or less. If the USB cable or USB flash
drive does not fit the USB ports of the projector, use
an extension cable that supports USB 2.0.
Use a certified cable with the HDMI logo attached.
If you do not use a certified HDMI cable, the screen may not display or a connection
error may occur. (Recommended HDMI cable types)
- High-Speed HDMI
®
/™ Cable
- High-Speed HDMI
®
/™ Cable with Ethernet
16
PREPARATION
Optional Extras
To purchase optional accessories, visit an electronics store or online shopping site or
contact the retail store where you purchased the product. Optional accessories are
subject to change without prior notice.
Projection Screen Tripod HDMI Cable
Video Cable Audio Cable RF Cable
Optical Cable LG Audio Device MHL Cable
3D Glasses (DLP-LINK or
DLP-Ready Type)
17
PREPARATION
Parts and Components
The projector is manufactured using high-precision technology. You may, however, see
tiny black dots and/or bright colored dots (red, blue, or green) that continuously appear
on the projector screen. This is a normal result of the manufacturing process and does
not indicate a malfunction.

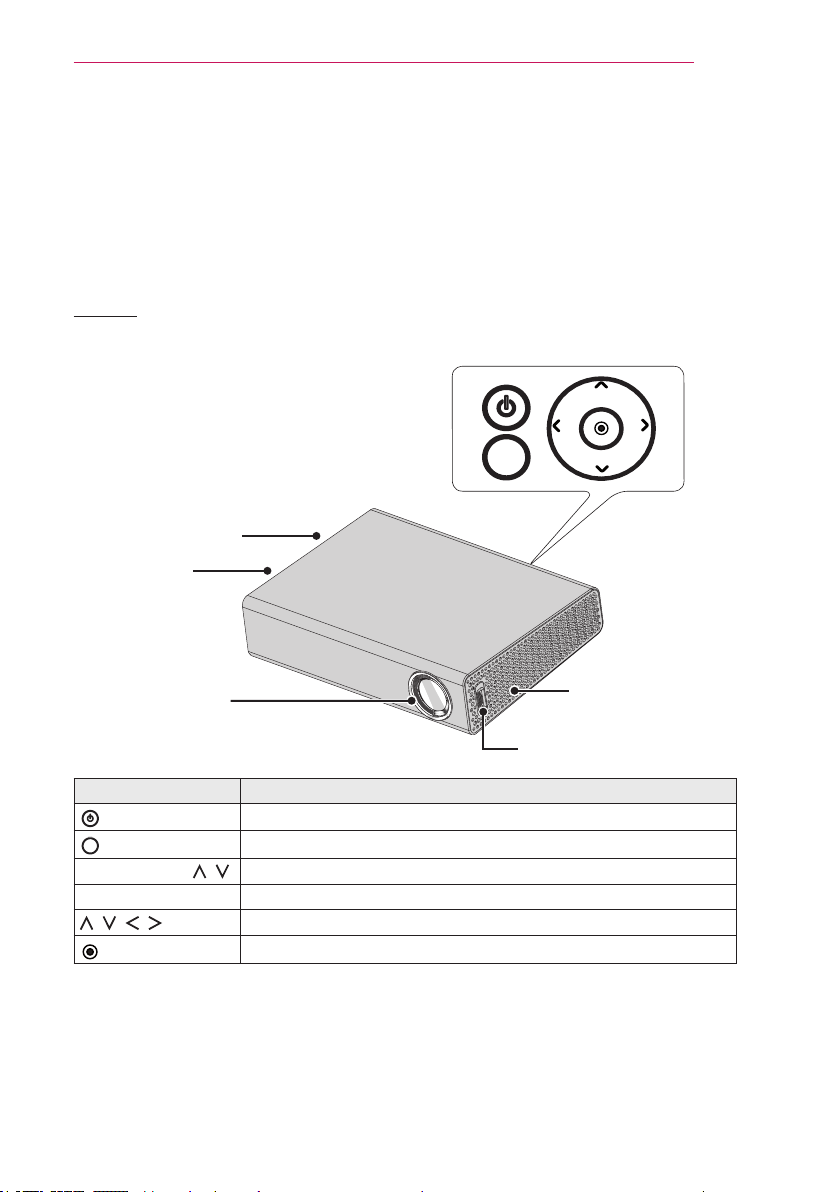

Front
Control Panel
Lens
2
Speaker
Speaker
Vent
1
Focus Ring
S
VOL -
VOL +
CH
CH
Button Description
S
VOL -
VOL +
CH
CH
(POWER)
Turns the projector on or off.
S
VOL -
VOL +
CH
CH
(SMART)
Display or closes the Home menu.
CH (Channel) ,
Changes the channel or sets the features.
VOL (Volume) -, +
Adjusts the volume level.
, , ,
Moves between menus and changes the settings.
S
VOL -
VOL +
CH
CH
(OK)
Shows the current mode and saves changes to the settings.
1 Due to the high temperature of vent area, do not get close to the vent area.
2 Do not touch the lens while using the projector. The lens may be damaged.
18
PREPARATION

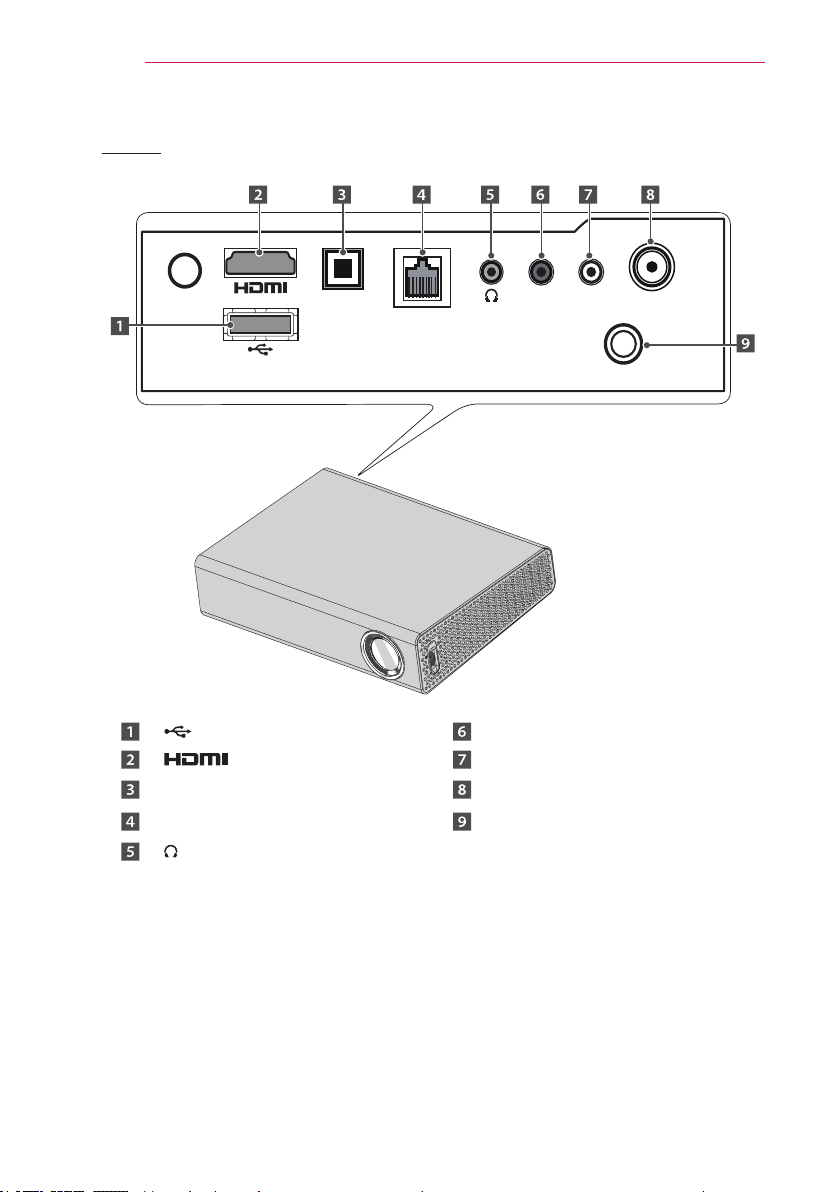

Back
$9,1
$17(11$,1
&20321(17
,1
237,&$/
',*,7$/
$8',2287
/$1
'&,1
(USB IN) Port COMPONENT IN Port
(HDMI IN) Port A/V IN Port
OPTICAL DIGITAL AUDIO OUT Port
ANTENNA IN Port
LAN Port DC IN Port
(Headphone) Port
19
PREPARATION
Installation
Installation Precautions
Place the projector in a well-ventilated
environment.
- To prevent internal heat build-up,
install the projector in a well-
ventilated place.
Do not place anything near the
projector as this may block its air
vents. If the air vents are blocked,
the internal temperature will
increase.
- Do not place the projector on a
carpet or rug. If the vent is on the
bottom, use the projector on a solid
level surface
and ensure the vent
is
not blocked.
- Be sure to prevent foreign objects
such as paper debris from entering
the projector.
- Leave enough distance (30 cm [11.8
inches] or more) around the projector.
Do not place the projector in a hot,
cool, or humid environment.
Do not place the projector in a place
where it will easily attract dust.
- This may result in fire.
Never open any cover on the
projector. There is a high risk of
electric shock.
The projector is manufactured using
high-precision technology. You may,
however, see tiny black dots and/
or bright colored dots (red, blue or
green) that continuously appear on
the projector screen. This is a normal
result of the manufacturing process
and does not indicate a malfunction.
The remote control may not work
in an environment where a lamp
equipped with electronic ballasts or
a three-wavelength fluorescent lamp
is installed. Replace the lamp with an
international standard lamp for the
remote control to work normally.
To install to the ceiling, attach the
ceiling-type bracket to the projector
with M4 x 8 mm screws.
20
PREPARATION
Projection Distance per Screen Size
1 Place the projector on a sturdy, level surface, together with the PC or audio/video
source.
2 Place the projector an appropriate distance away from the screen. The distance
between the projector and the screen determines the actual size of the image.
3 Position the projector so that the lens is at a right angle to the screen. If the
projector is not at a right angle, the projected image will look distorted. To correct the
distortion, use the Keystone function. (see page 36)
4 Connect the power cord of the projector and the connected device to the wall outlet.
Ratio of upward projection: 100 %
Screen Height (X)
X/2
X/2
Screen Width (Y)
Y/2
Y/2
DISPLAY
Projection distance (D)
Projection distance (D)
DISPLAY
47.7
mm
(1.8 inches)
16:10 Ratio
Screen
Size (mm)
Screen
Size
(inches)
Screen
Width (Y)
(mm)
Screen
Width (Y)
(inches)
Screen
Height (X)
(mm)
Screen
Height (X)
(inches)
Projection
Distance
(D) (mm)
Projection
Distance
(D) (
inches
)
762 30 646 25.4 404 15.9 902 35.5
889 35 754 29.6 471 18.5 1056 41.5
1016 40 861 33.8 539 21.2 1210 47.6
1143 45 969 38.1 606 23.8 1366 53.7
1270 50 1077 42.4 673 26.4 1520 59.8
1397 55 1185 46.6 741 29.1 1674 65.9
1524 60 1292 50.8 808 31.8 1828 71.9
1651 65 1400 55.1 875 34.4 1983 78
1778 70 1508 59.3 943 37.1 2137 84.1
1905 75 1615 63.5 1010 39.7 2291 90.1
2032 80 1723 67.8 1077 42.4 2445 96.2
2159 85 1831 72 1145 45 2601 102.4
2286 90 1938 76.2 1212 47.7 2755 108.4
2413 95 2046 80.5 1279 50.3 2909 114.5
2540 100 2154 84.8 1347 53 3063 120.5
21
PREPARATION
How to Install the Projector On a Tripod
You can install this projector using a camera tripod.
As shown below, you can mount the projector instead of a camera on the tripod.
When stabilizing the tripod, we recommend using a locking bolt of standard size
4.5 mm (0.1 inches) or less. The maximum size allowed for the locking bolt is
5.5 mm (0.2 inches).
(If it is longer than the maximum allowed size, it may damage the projector.)
+
⇒
The projector is
connected to this part.
Tripod
Bolt used to
attach the
projector
Bottom side of the projector
CAUTION
If you are using a tripod, be careful not to apply external force to the tripod. Doing
so may damage the projector.
Do not place the tripod on an unstable surface.
Be sure to use a tripod with a maximum load capacity of 2 kg or more.
To use the projector safely, position the tripod legs so that they are as wide and
stable as possible and be sure to securely attach the projector to the tripod.
Kensington Security System
This projector has a Kensington Security Standard connector. Connect a Kensington
Security System cable as shown below.
For more information on installation and use of the Kensington Security System,
refer to the user’s guide provided with the Kensington Security System.
The Kensington Security System is an optional accessory.
What is Kensington? Kensington is a company that provides security systems for
laptops and other electronic devices. Website: http://www.kensington.com
22
REMOTE CONTROL
REMOTE CONTROL
Open the lid at the back of the remote control and insert
the batteries as described in the instructions.
Use new batteries and do not mix regular or rechargeable
batteries. (1.5 V AAA)
CAUTION
Do not mix new batteries with old ones.
70- $)
POWER
Turns the projector on or off.
ENERGY SAVING
Reduces power consumption by adjusting peak
screen brightness.
INPUT
Changes the input source.
Number buttons
Enters a number.
- (dash)
Enters a channel number, such as 2-1 or 2-2.
LIST
Displays the channel list.
FLASHBK
Displays the channel you were watching previously.
VOL +, -
Adjusts the volume level.
FAV
Shows favorite channels.
3D
Shows 3D images.
MUTE
Mutes the sound of the projector.
CH ,
Changes the TV channel.
PAGE /
Moves to the previous/next page.
23
REMOTE CONTROL
70- $)
SETTINGS
Displays or closes the Settings menu.
SMART
Displays the Home menu.
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
MY APPS/ Q.MENU
MY APPS: Displays the list of my apps.
Q.MENU: Changes the settings easily.
Up/Down/Left/Right buttons
Switches between menu functions.
OK
Shows the current mode and saves changes to the settings.
Returns to the previous screen.
AV MODE
Selects AV mode for the genre of the program being watched.
EXIT
Exits the menu.
Playback control buttons
Controls the playback of multimedia content on the
SmartShare™.
RATIO
Resizes the picture.
SLEEP
Sets the sleep timer.
INFO
Displays the information of a program or screen.
Allows you to use the SIMPLINK function.
Key's ▲, ▼
Adjusts the Keystone function.
L/R
Switches the left and right sides of a 3D image.
Color buttons
Sets detailed settings or gesture for each menu.
NOTE
When using the remote control, the optimal operation range is
6 meters (19.6 feet) or less (left/right) and within a 30 degree
arc of the remote control IR receiver.
If a cable is connected to the back port, the optimal operating
range is 3 meters (9.8 feet) or less (left/right) and within a 30
degree arc of the remote control IR receiver.
For seamless operation, do not block the IR receiver.
When you carry the remote control in the portable bag, make sure that the buttons
on the remote control are not pressed by the projector, cables, documents or any
other accessories in the bag. Otherwise, it may significantly reduce the battery life.
S
VOL -
VOL +
CH
CH
$9,1
$17(11$,1
&20321(17
,1
237,&$/
',*,7$/
$8',2287
/$1
'&,1
70- $)
30 ° 30 °
24
MAGIC REMOTE CONTROL
MAGIC REMOTE CONTROL
If the battery low message appears while using the
projector, replace the batteries.
As shown in the gure, press the top of the battery cover
and slide it down the cover. Insert two new and identical
batteries (1.5 V, AA type) with + and - poles pointing in the
correct direction in the remote control.
CAUTION
Do not mix new batteries with old ones.
FK
YRO
EDFN VPDUW
/40(18
(POWER)
Turns the projector on or off.
, , , (Up/Down/Left/Right)
ㄮᗺ
ⰶᲳ
ⱞⳮ ➎Ẳ㞢
/Q.MENU
BACK
Press this button during menu selection to return
to the previous step.
SMART
ㄮᗺ
ⰶᲳ
ⱞⳮ ➎Ẳ㞢
/Q.MENU
Displays the Home menu.
Wheel (OK)
Select a menu or option. If you press the , , ,
or button while the pointer is moving, the pointer
disappears and the magic remote control operates
as a normal remote control.
To display the pointer on the screen, shake the
magic remote control to the left/right.
(Voice recognition)
Check the network connection before using the
voice recognition function.
1. Press the voice recognition button.
2. Speak your request when the voice display bar
on the left of the projector screen is activated.
Use the magic remote control no further than
10 cm (3.9 inches) from your face. The voice
search may fail if you speak too quickly or
too slowly. The recognition rate may vary
depending on the user's characteristics (voice
volume, pronunciation, intonation, and speed)
and the environment (noise and projector
volume).
Pointer Signal Transmitter
25
MAGIC REMOTE CONTROL
FK
YRO
EDFN VPDUW
/40(18
Opens the self-diagnosis window.
The universal remote is displayed. Allows
you to change the projector settings
easily.
, VOL
Adjusts the volume level.
(MUTE)
Mutes the sound of the projector.
, CH
Changes the TV channel.
1
2
1
Displayed when you press the
Wheel (OK) button on the magic
remote control. Check program
information.
2
If you point and hold the pointer at
the bottom left of the screen while
watching Projector, the MY APPS
icon is displayed. Clicking the icon
displays the MY APPS menu.
26
MAGIC REMOTE CONTROL
To Register the Magic Remote Control
To use the magic remote control, register it with your projector rst.
1 Turn on the projector and wait for about 10 seconds and then press
the Wheel (OK) button while pointing the remote control at the projector.
2 The remote control is automatically registered and the registration completion
message appears on the projector screen.
* If you failed to register the magic remote control, turn off the projector and try again.
To Re-register the Magic Remote Control
1 Press the SMART
ㄮᗺ
ⰶᲳ
ⱞⳮ ➎Ẳ㞢
/Q.MENU
and
ㄮᗺ
ⰶᲳ
ⱞⳮ ➎Ẳ㞢
/Q.MENU
BACK buttons together for about 5 seconds.
2 Press the Wheel (OK) button towards the projector to re-register the magic
remote control.
* Press the SMART
ㄮᗺ
ⰶᲳ
ⱞⳮ ➎Ẳ㞢
/Q.MENU
and
ㄮᗺ
ⰶᲳ
ⱞⳮ ➎Ẳ㞢
/Q.MENU
BACK button at the same time, for ve seconds, to
reset the Magic Remote Control.
* Press the
ㄮᗺ
ⰶᲳ
ⱞⳮ ➎Ẳ㞢
/Q.MENU
BACK button while pointing the remote control at the projector for ve
seconds to reset and re-register it.
27
MAGIC REMOTE CONTROL
Using the Magic Remote Control
1 Shake the magic remote control lightly when there is no pointer
displayed on the screen. A pointer will be displayed on the
screen.
- The pointer disappears if the remote control is not used for a
certain period of time.
2 When you move the pointer signal transmitter up/down/left/right
while pointing it toward the projector, the pointer moves.
- If the pointer is not working properly, do not move the magic
remote control for about 10 seconds, and then try again.
3 If you press the navigation button while moving the pointer on
the screen, the pointer disappears, and the magic remote control
works as a common remote control.
4 Use within an effective distance of 10 meters. (32.8 feet). Using
the remote control from greater distances or when obstructions
block the sight line may cause malfunctions.
5 Electronic devices nearby may cause communication
interference. Devices such as microwave ovens and wireless
LANs use the same frequency range (2.4 GHz) as the Magic
Remote Control and may cause interference.
6 Take care not to bang it against other hard objects such as
furniture or the oor.
28
USING THE PROJECTOR
USING THE
PROJECTOR

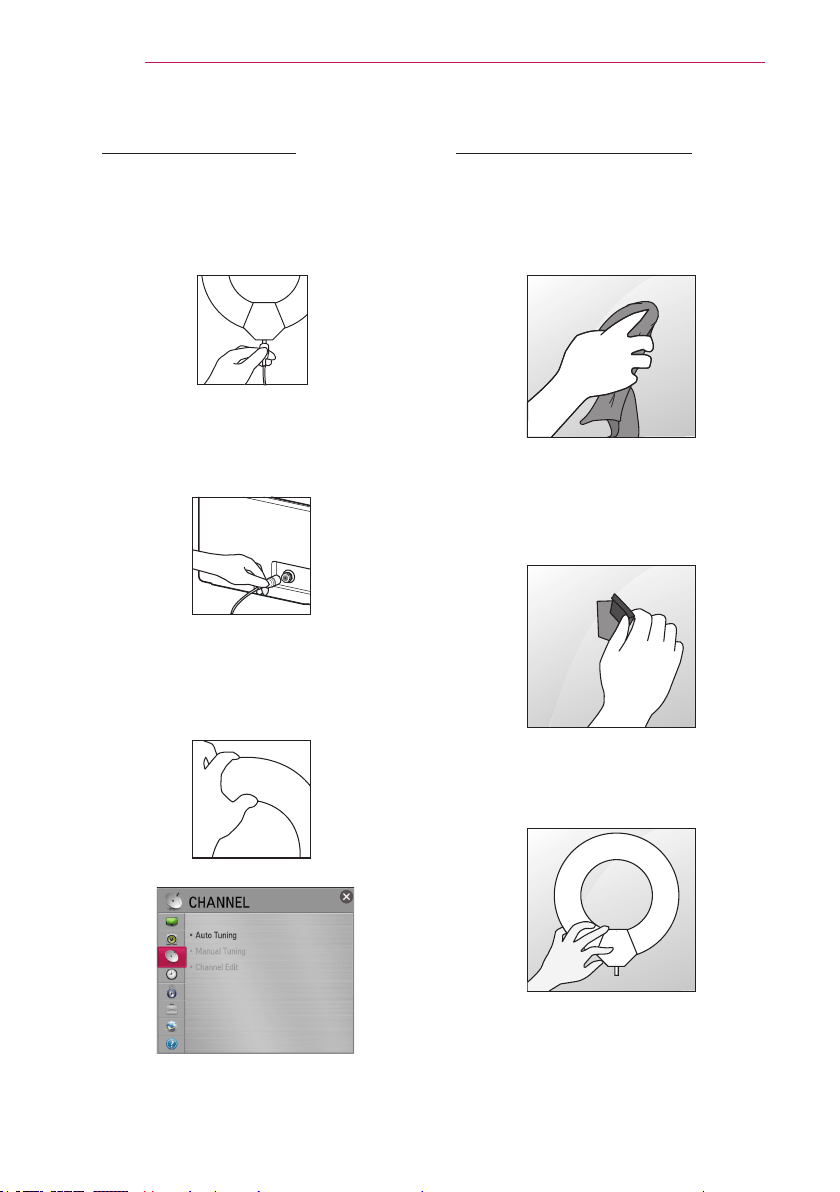

Connecting to an
Antenna or Cable
To watch TV using an indoor/outdoor
antenna, connect a wall terminal and the
antenna port of the Projector using an
RF cable (75 Ω).
You can watch terrestrial or cable
(analog, digital) TV.
(The RF cable is sold separately.)
$17(11$,1
NOTE
Make sure not to bend the copper
wire of the RF cable (75 Ω). Turn
the input jack to the right to fasten it.
Copper wire
Ensure you use a standard coaxial
cable (75 Ω, sold separately) when
connecting to the projector input.
For better image quality in
locations where signal strength is
low, purchase and install a signal
amplifier (booster).
A signal splitter is required if you
want to use two or more projectors
through one antenna.
If you have any problems when
installing the antenna, please
consult a suitable retailer or the
store where you purchased the
antenna.
29
USING THE PROJECTOR
Connecting the Portable Antenna
Antenna connection
Cable
Projector
CAUTION
It is recommended to attach the antenna to a window. This makes the reception
better than when attaching it to a wall.
Install the antenna in a place where it is out of reach of children.
The adhesive of the Velcro tape may be weakened if you attach it to an textured
or uneven surface or a wall covered with wallpaper made from linen, silk, fabric, or
expanded vinyl.
Do not install the antenna close to any valuable or fragile items.
When attaching the antenna to a surface on a cold or humid day, use a hair dryer
to warm and/or dry the surface before attachment.
If the adhesive of the Velcro tape is too weak to hold the antenna, hang the antenna
using a hook or ring.
Do not use the portable antenna outside.
- Otherwise, this may result in electric shock or fire due to lightning or rain water.
Therefore, be sure to use it inside only.
Winding a portable antenna wire around a person, animal, or object or using an
antenna wire as a strap can be dangerous. Remember to keep an antenna wire
from infants, children, elderly or mentally disabled people.
It is dangerous to throw the portable antenna or use it as a toy. Be sure to use it
inside only for receiving TV signals.
Install a portable antenna away from people, animals, or metal objects so that it
does not touch them or cannot fall on them.
Because the sensitivity of a portable antenna will vary depending on the
location of or distance from a TV transmitter, region, house type, surrounding
environment (mountain, structure, building, wall, and window material), and nearby
transportations (train, airplane, and vehicle), it is recommended you to subscribe to
cable television at home or office.
30
USING THE PROJECTOR
HDTV Reception
1 Connect an RF cable to the
connector port on the bottom of the
antenna. If the cable is not long
enough, you can use a coaxial cable.
2 Connect the other end of the cable
to the ANTENNA IN port of the
projector.
3 Attach the antenna to a wall near a
window temporarily and use the Auto
Tuning function of the projector to
tune channels.
CHANNEL
AutoTuning
ManualTuning
Ch.Edit
4 Install the antenna in a place with
the best reception using the signal
strength indicator.
Antenna Installation
1 When attaching the antenna to a
window, clean the window with a dry
cloth rst. You may also hang the
antenna on a wall with a hook or ring.
2 Remove the tape from the backside
of the Velcro
®
tape and attach the
tape while trying not to touch the
sticky side with your ngers.
3 Check if the tape is securely xed
after 10 minutes and attach the
antenna.
31
USING THE PROJECTOR
Watching Projector
Initial Setup
The menu screen display in this owner's manual is an example to help users
understand how to operate the product and may look different from the actual screen.
1 Connect the power cord correctly.
2 After waiting for a moment, press the POWER button on the remote control or the
control panel.
Check if the lens cap is open before turning on the projector.
3 When you turn on the projector for the rst time, a setting screen appears as shown
below. Here, you can specify the items required for watching the projector more
easily.
32
USING THE PROJECTOR
* Store mode is used when displaying the product in-store. The picture mode is
automatically reset after a certain period of time. You can select Home to use the
product at home.
33
USING THE PROJECTOR

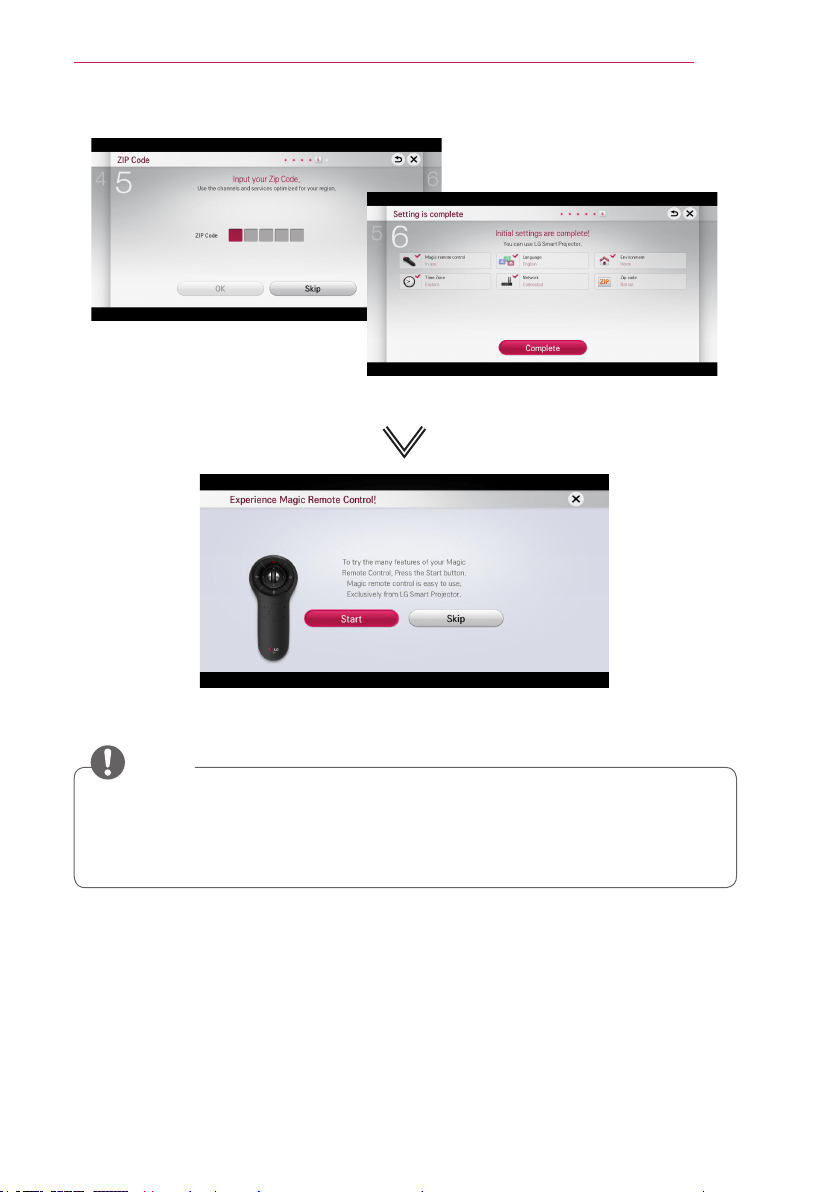

* The initial settings are completed when you select the settings above.
* Simple guide of Magic Remote Control.
NOTE
For Auto Tuning while using the projector, go to SETTINGS → CHANNEL and
select Auto Tuning.
To change the mode while using the projector, go to SETTINGS → OPTION and
select Mode Setting.
34
USING THE PROJECTOR
Focus and Position of the
Screen Image
When an image appears on the screen,
check if it is in focus and ts the screen
properly.
To adjust the focus of the image, rotate
the focus ring.
Focus Ring
Watching With the
Projector
1 In
Standby
mode, press the POWER
button to turn the projector on.
2 Press the INPUT button and select
the input signal you want.
3 Control the projector using the
following buttons while watching
projec tor.
Button Description
CH , Changes the TV channel.
LIST Displays the channel list.
0 - 9 Enters a channel number.
VOL +, - Adjusts the volume level.
MUTE Mutes the sound from the
projector.
FLASHBK Displays the channel you
were watching previously.
Key's ▲,
▼
Adjusts the Keystone
function.
4 To turn the projector off, press the
POWER button.
35
USING THE PROJECTOR
To Set Channel
Displays information on current program or current time, etc.
Image shown may differ from your projector.
To View Program Information
1 Move the pointer of the magic remote control to the top of the projector screen.
2 Click the activated channel banner area.
3 The program details will be displayed at the bottom of the projector screen.
❶
❷
Description
Current time
Program name/ Detail information on program (for digital broadcast)
To set Favorite Channels
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Settings → CHANNEL → Channel Edit
1 Move to the desired channel on Wheel (OK) button. Channel is selected.
2 Press Set as Favorite.
3 Select the desired Favorite channel group.
4 Select OK. Favorite is set.
To use Favorite
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Ch. List
Channel list will appear. Select the desired preset favorite channel from Favorite List A
to D.
36
USING THE PROJECTOR
Additional Options
Adjusting Aspect Ratio
Select SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Settings →
PICTURE → Aspect Ratio to change
the aspect ratio.
You can also use the Q.MENU,
SETTINGS, or RATIO button.
Menu Description
FULL Changes to the full screen
regardless of the aspect
ratio.
16:9 Resizes the image ratio to
t a 16:9 screen.
Just
Scan
Displays high-quality image
without loss.
In DTV/HDMI/Component
(over 720p) mode, Just
Scan is available.
Set By
Program
Depending on the input
signal, screen aspect ratio
changes to 4:3 or 16:9.
4:3 Resizes the image ratio to
t 4:3 screen.
Zoom Resizes the image to t the
screen width. The top and
bottom parts of the image
may be cut off.
Cinema
Zoom 1
Formats an image to the
cinemascope ratio (2.35:1)
and zooms in on the ratio.
NOTE
Available picture size may differ
depending on the input signal.
The screen aspect ratios on HDMI-PC
input are available in 4:3 and 16:9 only.
Using the Keystone
Function
To prevent the screen image from
becoming trapezoidal, Keystone adjusts
the top and bottom width of the image
if the projector is not set up at a right
angle to the screen.
Because the Keystone function may
cause inferior screen image quality, use
this function only when it is not possible
to set up the projector at an optimal
angle.
1 Press the Key's or Key's
button to adjust the picture.
Keystone can be adjusted
from -40 to 40.
2 Press the OK button when done.
37
USING THE PROJECTOR
Selecting an Input Label
Displays which devices are connected to
which input ports.
1 Select SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Input List
or press the INPUT button on the
remote control to display the input
selection screen.
2 Press the red button.
3 Press the or button to go to
the desired input and press the OK
button.
4 Press the , , , or button to
select a device name.
Changing Input Device
To select an external input
Selects external input.
Select SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Input List or
press the INPUT button on the remote
control to display the input selection
screen.
- Connected inputs are displayed first.
However, AV is always activated.
Select an input signal using the
remote control's INPUT button to
connect the projector to the desired
input. You can use the or button
to switch among all the input modes.
38
USING THE PROJECTOR
To Use SIMPLINK
SIMPLINK is a feature that enables
you to control and manage various
multimedia devices conveniently using
the projector remote control only via the
SIMPLINK menu.
1 Connect the projector's HDMI IN
terminal with SIMPLINK device's
HDMI output terminal using HDMI
cable. For home theater units with
SIMPLINK function, connect HDMI
terminals as above and use an
optical cable to connect Optical
Digital Audio Out from the projector
to Optical Digital Audio In of the
SIMPLINK device.
2 Select SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ SIMPLINK.
SIMPLINK menu window appears.
3 Select SIMPLINK Setting on
SIMPLINK menu window. SIMPLINK
setup window appears.
4 SIMPLINK Setting to On in
SIMPLINK setup window.
5 Close SIMPLINK setup window.
6 Select the device to control from
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ SIMPLINK.
NOTE
This function only works on devices
with the SIMPLINK logo ( ).
Verify that the external device has a
SIMPLINK logo.
To use the SIMPLINK function, you
need to use a high-speed HDMI
®
cable (with CEC, or Consumer
Electronics Control, feature added).
High-speed HDMI
®
cables have the
No. 13 pin connected for information
exchange between devices.
Turn on or select the media of a
device with home theatre features to
see the speaker switch to External
Speaker.
Connect with an Optical cable (sold
separately) to use External Speaker.
Switching to external input causes
devices operating with SIMPLINK to
stop.
Use of a third-party device with
HDMI-CEC features may cause
malfunctions.
39
USING THE PROJECTOR
Explanation Of SIMPLINK Features
Menu Description
Direct Play Plays the multimedia
device on the projector
instantly.
Select
multimedia
device.
Selects the desired
device via the SIMPLINK
menu to control it from
the projector screen
instantly.
Disc
playback
Manages the multimedia
device with the projector
remote control.
Power off
all devices
If the Auto Power
function is set to On in
the SIMPLINK setting,
turning the projector off
will turn the power off on
all SIMPLINK-connected
devices.
Sync
Power on
If the Auto Power
function is set to On in
the SIMPLINK setting,
turning on a SIMPLINK
device will turn the
projector on.
Speaker Selects speaker either
on the home theatre unit
or the projector.
Using the Quick Menu
You can customize frequently used
menus.
1 Press the MY APPS button to select
the Quick Menu.
Or press the SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
button and
select Quick Menu.
2 Press the or button to select a
menu and press OK.
Menu Description
Aspect
Ratio
Resizes the picture.
Mode
Changes the picture mode.
Sound
Mode
Sets the sound mode.
Sleep
Timer
Sets the projector to be
turned off at the specied
time.
Caption Sets whether to display
captions.
Multi
Audio
Sets MONO or STEREO,
or a language for a bilingual
broadcast (Digital signal).
SAP Changes the MTS sound
(Analog signal).
Energy
Saving
Reduces power
consumption by adjusting
peak screen brightness.
40
USING THE PROJECTOR
Menu Description
AV Mode Sets the genre.
Mode
Off You can watch
using the settings
in the video/
audio menu.
Cinema Change to
optimal video/
audio settings for
movies.
Game Change to
optimal video/
audio settings for
games.
Del/Add Can delete or add
channels.
USB
Device
Allows you to remove a
connected USB device in a
safe manner.
3 Press the , , , or button to
scroll through the following menus.
To Set Sound
To Set Sound Output
To use projector’s speakers
Sound is output through the projector
speaker.
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Settings → SOUND →
Sound Out → Projector Speaker
To use External Speaker
Sound is output through the speaker
connected to the optical port.
SIMPLINK is supported.
Select SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Settings →
SOUND → Sound Out → External
Speaker (Optical/HDMI ARC) to set
up as follows.
To use Digital Sound Out
Sets up Digital Sound Output.
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Settings → SOUND
→ Sound Out → External Speaker
(Optical/HDMI ARC) → Digital
Sound Out
Item Sound Input
Digital Sound
Out
Auto MPEG PCM
Dolby Digital Dolby Digital
Dolby Digital
Plus
Dolby Digital
HE-AAC Dolby Digital
PCM All PCM
41
USING THE PROJECTOR
To connect and use an LG audio
device
LG audio device allows you to enjoy rich
powerful sound easily.
Wired Connection:
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Settings
→ SOUND → Sound Out
→ LG Sound Sync (Optical)
Connect LG audio device with the
logo to the OPTICAL DIGITAL
AUDIO OUT port.
Wireless Connection:
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Settings
→ SOUND → Sound Out
→ LG Sound Sync (Wireless)
LG audio device with the logo
can be connected wirelessly.
NOTE
You can use the projector remote
control to adjust the volume of the
connected device.
For a wireless connection, if the
device fails to connect, check the
device power and make sure the LG
Audio device is set up properly.
When you select LG Sound Sync
(Wireless), devices available for
connection are searched and one of
searched devices is automatically
connected. When a device is
connected, its name is shown.
If two or more devices are detected,
the first detected device is connected
first. To view more detected devices to
connect, press the Show More button.
When LG Sound Sync (Wireless) is
active and you turn on the projector,
it will search and try to connect the
device which recently connected.
42
USING THE PROJECTOR
To Connect and Use a
Bluetooth headset
Sound output is through the Bluetooth
headset.
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Settings → SOUND
→ Sound Out → LG Sound Sync
(Wireless)
The devices that can be connected
are:LG BTS1, LG HBS-700, LG HBS-
730, LG HBS-800 (Product availability
may vary by country.)
For wireless connection, if the device
fails to connect. Check the device power
to connect and if the LG Audio device is
in a proper operating condition.
If two or more devices are detected,
the first detected device is connected
first. To view more detected devices to
connect, press the Show More button.
Using the Multi Audio
Multi Audio means stereo and multiple
language broadcast from the channel
provider.
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Quick Menu → Multi
Audio
In the case of digital broadcast
Multiple languages can be selected
depending on the multi-language signals
from the TV station.
For default language, select at
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Settings → OPTION
→ Language → Audio Language.
In the case of analog broadcast
Item Description
Mono Left and right speakers
produce sound, and the
sound model is mono.
Select this menu to
listen in Mono mode
regardless of broadcast
state. This can be set
for a stereo broadcast
signal. Select Mono in
poor reception areas
(e.g., areas with weak or
erratic signals) or when
multi audio reception is
not clear.
Stereo The sound mode is in
stereo when the sound
comes out of both left
and right speakers.
SAP Changes the MTS
sound.
43
ENTERTAINMENT
ENTERTAINMENT
To Use Smart Features

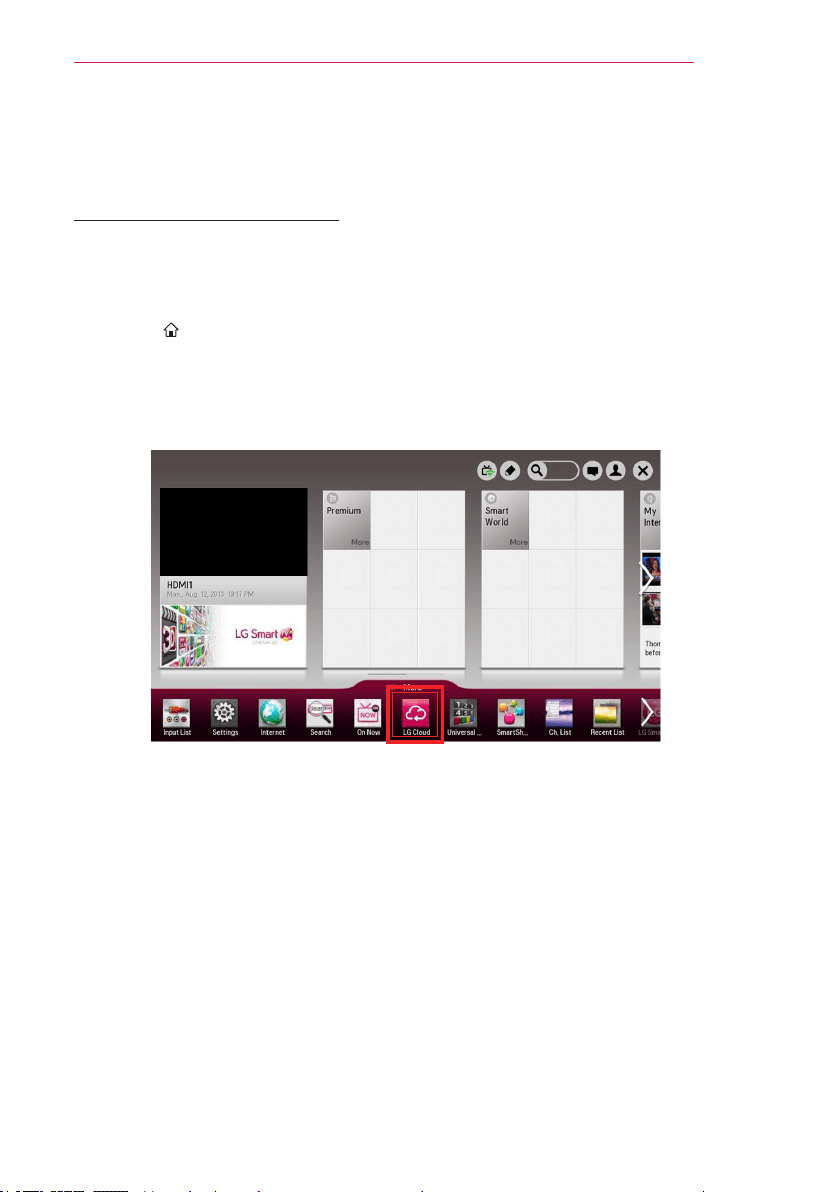

To Use Home Screen
With all smart projector features on one screen, everyone can access a wealth of
content and applications conveniently via the quick and easy-to-use menu, arranged by
themes such as Card, MY APPS, etc.
Press the SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
button on the remote control.
Movie Weather
News
Sports UCC
Picture Map Game
Description
Displays the screen you are currently watching.
Displays the premium menu.
Edit the card list.
Login button
Displays the list of my apps.
Select More at the bottom of the Home screen.
Select More to check pre-installed and downloaded apps.
Select an app to use.
44
ENTERTAINMENT
To Use MY APPS
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ More
Select More at the bottom of the home screen.
Select More to check apps pre-installed apps and apps you have downloaded.
To Edit Items in MY APPS
On the MY APPS page, select
(
Edit) at the top of the screen to move or delete
apps. Please note that system apps can be moved, but cannot be deleted.
Select SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ More → MY APPS → (Edit).
Changes orders / deletes items by dragging the app icons if your device has a Magic
Remote Control.
45
ENTERTAINMENT
To Connect Network
A wireless or wired network connection
is required to use smart features.
When connected to the network, you
can use premium content, LG Smart
World, DLNA and more.
One-click Network
Connection
Connects easily to a wired/wireless
network.
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Settings →
NETWORK → Network connection
to connect to an available network
automatically. Follow the prompts on
the projector.
To Connect to a Network
Through Set Expert
For use in special circumstances such
as in ofces (in cases where a static IP
is used).
Select SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Settings →
NETWORK → Network connection
→
Start Connection → Other
Network List → Manual Setup.
1 Select a network connection, either
Wired or Wireless.
2 When connecting via Wi-Fi, use
the one of the following network
connection methods.
Item Description
AP List Connects to the network
selected from the AP List.
Enter the
SSID
Connects to the wireless
AP typed in.
WPS-
PBC
Connects easily when the
button of a wireless AP
supporting PBC is pressed.
WPS-PIN Connects easily when the
PIN of the wireless AP
that you wish to connect
to is entered in to the AP
website.
46
ENTERTAINMENT
To Use the Wi-Fi Direct
Function
Wi-Fi Direct is a function that allows your
projector to connect with a Wi-Fi Direct
device without Internet connection. With
SmartShare™, you can watch the les
stored on a device connected via Wi-Fi
Direct.
Select SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Settings →
NETWORK → Wi-Fi Direct.
1 Set Wi-Fi Direct to On. (If you do not
use it, please change it to Off.)
2 Enable the Wi-Fi Direct settings on the
device that you want to connect to.
3 A list of devices that can be
connected to the projector is
displayed.
4 Select a device to connect.
5 Select Yes when the connection
request message appears.
6 If the device that you want to connect
accepts the request, Wi-Fi Direct is
connected.
To Use the Miracast™/
Intel’s WiDi Function
You can view the screen of a device with
Miracast™ and Intel’s WiDi technologies
on your projector. Contact the device
manufacturer to nd out if the device
supports this function.
Select SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Settings →
NETWORK → Miracast™/Intel’s WiDi.
1 Set Miracast™/Intel’s WiDi to On.
(If you do not use it, please change it
to Off.)
2 Enable the Miracast™/Intel’s WiDi
settings on the device that you want
to connect to.
3 A list of devices that can be
connected to the projector is
displayed.
4 Select a device to connect.
5 Select Yes, when the connection
request message appears.
6 If the device that you want to connect
accepts the request, Miracast™/
Intel’s WiDi is connected.
When Wi-Fi Direct is set to Off, if
you set Miracast™/Intel’s WiDi to
On, Wi-Fi Direct is automatically set
to On.
When you set the Miracast™ / Intel’s
WiDi function to Off, Wi-Fi Direct
returns to the previous setting.
NOTE
It is recommended to connect a
laptop using Intel’s WiDi within close
range.
Though Intel’s WiDi can be
connected without a wireless router,
it is recommended to connect the
wireless router first for optimal
performance.
You may not connect your projector
to a non-LG Electronics device even
when it is detected.
It is recommended you to connect a
device to a 5 GHz router.
The response rate may vary
depending on the user’s environment.
For more information on the device
you want to connect to, refer to its
owner’s manual.
47
ENTERTAINMENT
Tips for Network Settings
Use a standard LAN cable (Cat5
or higher with RJ45 connector, 10
Base-T or 100 Base TX LAN port).
Resetting your modem can cause
network connection problems. To
resolve the problem, turn the power
off, disconnect and reconnect, and
then turn the power back on.
LG Electronics is not responsible for
any network connection problems or
any faults, malfunctions and errors
caused by an network connection.
A network connection may not work
properly depending on the Internet
service provider.
A DSL modem is required for a DSL
service; a cable modem is required
for a cable service. Only a limited
number of network connections
may be available, and projector
network setting may not be available
depending on your contract with your
Internet Service Provider (ISP.)
(If only one device is allowed per line
and the PC is already connected,
other devices cannot be used.)
Wireless networks can be subject
to interference from other devices
operating at a frequency of 2.4 GHz
(wireless phones, Bluetooth devices
or microwave ovens). There may also
be interference from devices with a
frequency of 5 GHz, same as other
Wi-Fi devices.
The surrounding wireless environment
can cause the wireless network
service to run slowly.
If you do not turn off the entire local
home network, network traffic may
occur on some devices.
For an AP connection, an access
point device that supports wireless
connection is required and the
wireless connection feature must be
enabled on the device. Contact your
service provider regarding availability
of wireless connection on your access
point.
Check the SSID and security settings
of the AP for AP connection. Refer
to the appropriate documentation for
SSID and security settings of the AP.
Invalid settings on network devices
(wired/wireless line sharer, hub) can
cause the projector to run slowly
or not operate properly. Install the
devices correctly according to the
appropriate manual and set the
network.
Connection method may differ
according to the AP manufacturer.
48
3D FUNCTION
3D FUNCTION
3D technology uses different video frames for each eye to add depth to the video.
Before Watching 3D
While Watching 3D
WARNING
If you view 3D video or images too
closely for a long period of time, your
eyesight may become worse.
If you watch the projector or game
screen for a long time with 3D glasses
on, you may experience dizziness or
eye fatigue.
If you are pregnant, a senior citizen,
drunk, have heart problems, or easily
feel motion sickness, we recommend
that you do not watch 3D.
Because 3D can be recognized as
real, some viewers may get surprised
or overexcited.
Do not watch 3D images near fragile
objects or any objects that can be
knocked over easily.
Take care not to injure yourself as
you may subconsciously try to move
away from the life-like 3D images.
Prevent children of 5 years or
younger from watching a 3D video. It
may impair the development of their
eyes.
Warning about photosensitivity
seizures
- Some users may experience a
seizure or other abnormal symptoms
when they are exposed to a flashing
light or particular patterns from a video
game. If anyone in your family has a
history of epilepsy or has ever
experienced any kind of seizure,
please consult your doctor before
viewing 3D images.
If you experience one of the follow-
ing symptoms while watching a 3D
video, stop watching the 3D video
immediately and take a rest.
- Dizziness, switched eyesight, twitch-
ing of the eye or facial muscles,
involuntary movements, cramp, loss
of consciousness, confusion, loss of
sense of direction, or nausea. If the
symptom does not disappear, please
consult your doctor.
You can reduce the risk of
photosensitive seizures by taking the
following preventive measures.
- Take a rest of 5 to 15 mins. for every
1 hour of viewing.
- If vision varies between each eye,
correct the variation before beginning
to watch a 3D video.
- Ensure that the 3D video is directly in
front of you, at eye level.
- You should stop watching if you
experience a headache, fatigue or
dizziness.
- Do not view 3D images for a long
period of time when you are tired or ill.
49
3D FUNCTION
CAUTION
Extra special care is required for chil-
dren watching a 3D video.
When Watching 3D Video
Watch 3D images within the optimum
viewing angle and distance.
If you are outside the viewing angle
or distance, you may not be able to
see 3D images. You cannot view 3D
images when you are lying down.
You may see left and right images
overlapped during projector
initialization after it is powered on. It
may take some time for optimization.
It may take some time for the 3D
image to look normal after you turn
your eyes away from the screen and
look back at the 3D image.
It may flicker slightly while watching
3D images under a 3 wavelength lamp
fluorescent light (50 Hz to 60 Hz) or
near windows. If so, it is recommended
to block the sun light with a curtain
and to dim the lights.
The 3D glasses must be DLP-LINK
(DLP Ready) type.
You may not be able to watch 3D
properly if there is an obstacle
between the projector and 3D
glasses.
Install the 3D projector as far as
possible from other devices.
If a future 3D broadcasting format
that is not supported by this projector
becomes the standard, an additional
device such as a set-top box may be
required.
Please check the following when
using 3D glasses.
Do not use 3D glasses as ordinary
glasses, sunglasses or protective
goggles.
- If you do so, this may cause injury.
Do not store 3D glasses in very hot
or very cold conditions. If you do, this
may cause them to become distorted.
Do not use distorted glasses.
Do not drop 3D glasses or allow
them to come into contact with other
objects.
- This may cause product malfunction.
The lenses of 3D glasses are easily
scratched. Use a soft clean cloth
when cleaning them.
Foreign particles on the cloth may
cause scratches.
Do not scratch the surface of the 3D
glasses' lenses with sharp objects
or wipe them with chemicals. If the
lenses get scratched, images may not
look normal when viewing 3D.
50
3D FUNCTION
Requirements for Watching 3D Images
* Optimum viewing angle: Top/Bottom/Left/Right 9°
Recommended viewing distance: 3 m to 5 m (9.8 feet to 16.4 feet)
Recommended screen size: 101 cm (39.7 inches)
* Watching 3D videos should be done in dark room environments only.
NOTE
The pairing with the DLP-LINK glasses is affected by the intensity of light reflected
from the screen.
Therefore, the pairing with DLP-LINK glasses may not work properly if the light
reflected from the screen is not bright enough, such as when the surrounding area
is bright, the screen is big, or the maximum energy saving mode is enabled.
Some menus may not work while playing a 3D video.
You can only watch a 3D video properly when the 3D video format option has been
selected on the projector.
51
3D FUNCTION
Using the DLP-LINK (DLP-Ready) Type Glasses
1 While watching 3D images from the projector, press buttons on the glasses.
2 When you press the button, the glasses icker while synchronizing with the 3D
images. (The ickering is a unique operation method of DLP-LINK type glasses. It
may be different depending on the glasses type.)
3 If the glasses icker or problems occur while watching 3D, rst turn the lights off to
make the room darker. Contact your projector seller for queries about the glasses.
To view 3D images
3D imaging is a technology that utilizes the slight difference in left/right eyes to make
the images on the projector appear just like real-life 3-dimensional space.
1 Play a 3D-image title or tune to a 3D channel.
2 Press the 3D button to activate 3D.
3 Turn on the 3D glasses and put them on.
4 While viewing 3D images, press the 3D button on the remote control to end 3D
image viewing.
* Depending on the input signal, available 3D type may differ.
52
3D FUNCTION
Supported 3D Input Formats
3D Auto Conversion Formats
Signal
Horizontal
Frequency
(KHz)
Vertical
Frequency
(Hz)
Supported 3D Formats
HDMI
1080p
54
23.976
24
F/P, L/A
26.973
27
23.976
24
S/B, T&B, S/S Full
33.716
33.75
29.97
30.00
S/B, T&B, S/S Full
67.5
30 F/P, L/A
60 S/S, T&B
1080i
67.432
67.5
59.94
60
F/P, F/A
33.75 S/S, T&B, S/S Full
720p
90
59.94
60
F/P, L/A
44.96
45
S/S, T&B, S/S Full
480p
63
59.94
60
F/P, L/A
31.5 S/S, T&B, S/S Full
USB/
DLNA
1080p 33.75 30 S/S, T&B, C/B, MPO(Photo)
Supported 3D Formats
DTV Dual Stream
S/S : Side by Side, T&B : Top & Bottom, F/P : Frame Packing, F/A : Field Alternative
L/A : Line Alternative, S/S Full : Side by Side Full, C/B : Checker Board
R/I : Row Interleaving, C/I : Column Interleaving, F/S : Single Frame Sequential
53
3D FUNCTION
3D Manual Conversion Formats
Signal
Horizontal
Frequency
(KHz)
Vertical
Frequency
(Hz)
Supported 3D Formats
HDMI-DTV
1080p
27
23.976
24
2D to 3D, S/S, T&B, C/B, R/I, C/I
33.75
29.97
30
67.50
59.94
60
2D to 3D, S/S, T&B, C/B, F/S, R/I, C/I
1080i 33.75
59.94
60
2D to 3D, S/S, T&B
720p 45
59.94
60
2D to 3D, S/S, T&B, C/B, F/S, R/I, C/I
480p 31.50
59.94
60
2D to 3D, S/S, T&B, C/B, F/S, R/I,
C/I
Others - - 2D to 3D
Component
1080i 33.75
59.94
60
2D to 3D, S/S, T&B
720p 45
59.94
60
2D to 3D, S/S, T&B
480p 31.47
59.94
60
2D to 3D, S/S, T&B
Others - - 2D to 3D
USB/DLNA 1080p 33.75 30
2D to 3D, S/S, T&B, C/B, F/S, R/I, C/I
(Photo: 2D to 3D, S/S, T&B)
Miracast/
WiDi
1024 x 768p
-
30
60
2D to 3D, S/S, T&B
1280 x 720p
1920 x 1080p
Others - - 2D to 3D
Resolution Supported 3D Formats
DTV
HD 2D to 3D , S/S, T&B
SD 2D to 3D
S/S : Side by Side, T&B : Top & Bottom, F/P : Frame Packing, F/A : Field Alternative
L/A : Line Alternative, S/S Full : Side by Side Full, C/B : Checker Board
R/I : Row Interleaving, C/I : Column Interleaving, F/S : Single Frame Sequential
54
SMARTSHARE
SMARTSHARE
Before Using
Connecting a USB Device
Connect a USB device (external HDD,
USB memory) to the USB port of
projector to enjoy the content les stored
in the USB device with your projector.
You cannot write or delete data in the
USB device. Connect a USB ash drive
as shown below.
USB Flash Drive
Removing a USB Device
1 Press the MY APPS button to select
the Quick Menu.
(Or press the SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
button and
select Quick Menu.)
2 Use the or button to move
to USB Device and press the OK
button.
3 Select a USB to remove. Wait for
conrmation that the USB device has
stopped before removing the USB.
NOTE
If detached early, an error may occur
on the projector or the USB storage
device.
Once a USB device has been
selected for removal, it can no longer
be read. Remove the USB storage
device and then re-connect it.
55
SMARTSHARE
Tips for Using a USB Device
If the USB storage device has a built-
in auto recognition program or uses
its own driver, it may not work.
Some USB storage devices may not
work or may work incorrectly.
If you use a USB extension cable, the
USB device may not be recognized or
may not work properly.
Use only USB storage devices
formatted with the Windows FAT32 or
NTFS file system.
For external USB HDDs, it is
recommended that you use devices
with a rated voltage of less than 5 V
and a rated current of less than
500 mA.
It is recommended to use a USB
hub or hard disk drive with power
supplied. (If the power supplied is not
enough, the USB storage device may
not be detected properly.)
It is recommended that you use USB
flash drives of 32 GB or less and USB
HDDs of 2 TB or less.
If a USB HDD with power-saving
function does not work properly,
turn the power off and on. For more
information, refer to the user manual
of the USB HDD.
Data in USB storage device can
be damaged so be sure to back
up important files to other devices.
Data maintenance is the user's
responsibility and the manufacturer is
not responsible for data loss.
56
SMARTSHARE
To use SmartShare™
1 Press the SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
button on the remote control.
2 Select SmartShare™.
You can watch the photo, music, video and document on the projector by connecting
a USB or home network (DLNA). The photo, music, video and document les of all
devices connected to the projector are displayed. (For the document les, only those in
the devices connected via USB are displayed.)
000 001 002 003 004
005 006 007 008 009
Description
Displays photo / music / video / document les on all devices connected to the
projector.
Shows how to connect PC, smartphone/device, and USB.
57
SMARTSHARE
Watching the Videos
In the Movie List, you can watch movies stored on the connected USB device.
Controls playback and sets options while viewing videos.
Playing video - warning
Some subtitles created by users may not work properly.
The video and subtitle files should be placed in the same folder. In this case, you
must assign the same names for the video and subtitle files for proper display.
Subtitles on an NAS (Network Attached Storage) device may not be supported
depending on the manufacturer and model.
We do not support any stream that contains GMC (Global Motion Compensation) or
Qpel (Quarterpel Motion Estimation).
Full HD Video: 1920 X 1080
- Only H.264 / AVC profile level 4.1 and lower is supported.
The file size limit is dependent on the encoding environment.
Only Window Media Audio V2 and above is supported.
AAC Main Profile is not supported.
Video files created by some encoders may not be played back.
Video files in formats other than the ones specified here may not be played back.
Playback of video files stored on the USB device that do not support High Speed,
may not work properly.
The projector supports DTS audio codec when the USB/HDMI video file playback.
58
SMARTSHARE
To control video playback
You can control playback using the following buttons.
Shows the current playing position. Use the or button to
move forward or backward.
Item Description
Resumes normal playback.
Pauses the video player.
Displays in slow motion.
Whenever this button is pressed, the playback speed is increased or
decreased by one unit.
ꕙ
ꕙ
Plays the previous/next le.
Switches to the 3D screen.
Option Sets the option.
59
SMARTSHARE
Viewing the Photos
You can view photos stored on a connected device.
To control photo view
You can control playback using the following buttons.
Item Description
Selects the previous or next photo.
If no picture is selected, all photos in the current folder are displayed in a
slide show. If some photos are selected, those photos are displayed in a
slide show.
Set Slide Speed in the Option
→
Set Photo View. menu.
You can listen to music while viewing full-size photos.
Set BGM in the Option → Set Photo View. menu.
Switches to the 3D screen.
Rotates photos.
Rotates a photo 90 °, 180 °, 270 °, 360 ° clockwise.
Photos cannot be rotated if their width is greater than the height of the
maximum supported resolution.
Enlarges or reduces the photo.
Use the Up/Down/Left/Right buttons to select a page and press the OK
button.
Option A setting popup window will appear.
60
SMARTSHARE
Listening to Music
You can play audio les stored on the connected device.
To control music playback
You can control playback using the following buttons.
Changes the playing position.
Item Description
ꕙ
ꕙ
Plays the previous/next le.
Pauses the music player.
Resumes normal playback.
Sets the repeat playback.
Sets the random playback.
Plays music with the projector screen turned off.
Sets Option for the music list.
You can control playback using the , , and keys on a standard remote control.
If you use the USB device, time information will be not shown on screen.
61
SMARTSHARE
Viewing Files
You can see document les stored on a connected device.
Supported File Formats
XLS, DOC, PPT, TXT, XLSX, PPTX, DOCX, PDF
Microsoft Ofce 97/2000/2002/2003/2007 version
Adobe PDF 1.0/1.1/1.2/1.3/1.4 version
File Viewer realigns a document, so it may look different from what is displayed
on a PC.
For documents that include images, the resolution may look lower during the
realigning process.
If the document is large or has many pages, it may take longer to load.
Unsupported fonts may be replaced by other fonts.
The file viewer may not open for Office documents that contain many high resolution
images. In that case, reduce the image file size, save it on a USB storage device
and run the file viewer again or connect your PC to the projector and open the file on
your PC.
Browsing File Viewer
You can control playback using the following buttons.
Press the Go Page button to move to the previous or next page.
Press the volume button to zoom in or zoom out.
- Press the OK button.
- Press the Up/Down/Left/Right buttons to move to Go Page or Zoom.
Item Description
Go Page Moves to the page you specify.
Zoom Enlarges or reduces the document.
Option Sets Option for File Viewer.
List Returns to a list.
62
SMARTSHARE
To Set SmartShare™ Related Functions
Select SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ SmartShare™ → Settings.
Changes settings related to SmartShare™ content playback.
Advanced Setting
Item Description
My Projector Name Changes the name that appears when searching for the
projector from other devices.
Network Status Checks the network connection.
Wi-Fi Direct Allows use of wireless connection functions such as Wi-Fi
Direct and WiDi.
Auto Play on
Receive
Accepts / rejects content transferred from other devices.
DivX(R) VOD Registers or releases DivX.
Checks DivX Registration Code for playing DivX-protected
videos. Register at http://vod.divx.com.
Uses Registration Code to rent or purchase movies at
www.divx.com/vod.
When using the DivX Registration Code of another device,
the rented/purchased DivX file cannot be played. Use only
the DivX Registration Code granted to this device.
Converted files not conforming to DivX Codec Standard may
produce abnormal images and sound.
Delete History
To delete contents history, press Delete History button. Use the contents at Recent
menu.
SmartShare™ supporting file
Maximum data transfer rate: 20 Mbps (Mega bit per second)
External subtitle formats supported: *.smi, *.srt, *.sub (MicroDVD, SubViewer 1.0/2.0),
*.ass, *.ssa, *.txt (TMPlayer), *.psb (PowerDivX),
*.dcs(DLP Cinema)
Internal subtitle formats supported: XSUB (supports internal subtitles generated from
DivX6)
63
SMARTSHARE
Video Supported Codec
Maximum resolution: 1920 x 1080 @ 30p
Extension Codec
.asf
.wmv
Video VC-1 Advanced Prole, VC-1 Simple and Main Prole
Audio WMA Standard, WMA 9 Professional
.divx
.avi
Video
DivX3.11, DivX4, DivX5, DivX6, XViD, H.264/AVC,
Motion Jpeg, MPEG-4 Part 2
Audio
MPEG-1 Layer I, II, MPEG-1 Layer III (MP3),
Dolby Digital, Dolby Digital Plus, LPCM, ADPCM, DTS
.mp4
.m4v
.mov
Video H.264/AVC, MPEG-4 Part 2
Audio AAC , MPEG-1 Layer III (MP3)
.3gp
.3g2
Video H.264/AVC, MPEG-4 Part 2
Audio AAC, AMR-NB, AMR-WB
.mkv
Video H.264/AVC
Audio HE-AAC, Dolby Digital
.ts
.trp
.tp
.mts
.m2ts
Video H.264/AVC, MPEG-2, VC-1
Audio
MPEG-1 Layer I, II, MPEG-1 Layer III (MP3)
Dolby Digital, Dolby Digital Plus, AAC
.vob
Video MPEG-1, MPEG-2
Audio Dolby Digital, MPEG-1 Layer I, II, DVD-LPCM
.mpg
.mpeg
Video MPEG-1, MPEG-2
Audio MPEG-1 Layer I, II, MPEG-1 Layer III(MP3), AAC
64
SMARTSHARE
Audio File
File type Item Info
mp3
Bit rate 32 Kbps to 320 Kbps
Sample freq. 16 kHz to 48 kHz
Support MPEG1, MPEG2, Layer2, Layer3
Available photo file
File type Item
Prole
2D
(jpeg, jpg,
jpe)
JPEG
Minimum: 64 x 64
Maximum:
Normal Type: 15360 (W) x 8640 (H)
Progressive Type: 1920 (W) x 1440 (H)
3D
(jps)
JPS
Minimum: 64 x 64
Maximum:
Normal Type: 15360 (W) x 8640 (H)
3D
(mpo)
MPO
4:3 size
3:2 size
3648 x 2736
2592 x 1944
2048 x 1536
3648 x 2432
65
SMARTSHARE
To Use the LG Cloud
What is the LG Cloud?
LG Cloud is a service that allows you to enjoy your contents, such as video, music and
photos on your LG Projector, SmartPhone and LG Website at any time, regardless of
where you are.
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ More → LG Cloud
Sign up for LG Cloud to use the services.
You can sign up from your LG Smart projector, SmartPhone or LG Website.
The service or membership can only be cancelled at the LG Cloud website
(http://www.lgecloud.com).
Movie
Weather
News
Sports UCC
Picture Map Game
66
SMARTSHARE
To Use the LG Cloud
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ More → LG Cloud
Enter the e-mail and password you provided during the sign-up procedure to sign in
to the service.
Main screen layout
This is the main screen you will see rst after signing in.
Folder selection tabs
File display area
Sort criteria selection
NO
NO
NO
NO
NO
Selection mode
Video playback
Playback control Add or remove favorites
Set options3D Settings
LG Cloud Move to Home/Notice/My Account/FAQ
Item Description
Move to Home Displays a default screen.
Notice Shows notices about the LG Cloud service.
My Account Shows the user ID and e-mail address.
FAQ Displays the FAQ regarding LG cloud service.
67
SMARTSHARE
To Connect DLNA
DLNA stands for Digital Living Network
Alliance, which allows you to enjoy
video / music / photo les stored on a
PC or server on your Projector via home
networking.
To Connect a DLNA-
Authenticated
Smartphone
The
Projector
and the smartphone should
be on the same network.
1 Enable Wi-Fi on the smartphone.
2 Install/run a DLNA app to share
content on the smartphone (It’s called
SmartShare on LG phones).
3 Run Share my mobile phone
Content.
4 Select the kind of Content (video/
music/photo) to play.
5 Select the video, music or photo le
to play on the projector.
6 Select Add to Play List.
7 Select projector model name on the
device to replay content. (projector
model name is on the label of the
device.)
8 Play Shows the selected le on
projector.
To Connect DLNA DMR
(Digital Media Renderer)
With the Windows 7 or Windows 8 PC
operating system or DLNA-certied
device (e.g. mobile phone), music/
videos/photos may be played on
projector without installing a separate
program.
1 Congure Projector and PC on
the same network. Congure the
Windows 7 or Windows 8 PC on the
network.
2 To play a music/video/photo le, right-
click on the le and use the Remote
Playback or PlayTo Windows 7 or
Windows 8 feature.
For playback on devices like a mobile
phone, refer to the model’s user
guide.
3 Content will be played on only
one device even if more than one
projector or device is connected.
Play speed can vary depending on
network speed.
68
SMARTSHARE
To Connect DLNA DMP
(Digital Media Player)
With a PC having SmartShare™ PC
software, music / video / photo les may
be replayed on the projector via home
networking.
1 Congure projector and PC on the
same network. The projector and
each device should be connected
through a single access point to
enable DLNA service.
2 Install SmartShare™ PC software
on the PC from the website. Before
installation, close all running
programs including rewall and
anti-virus programs.
3 The sever should be running in order
to watch the shared le on your
projector.
For the website information, go to
SMART
→ Settings → SUPPORT
→ Product/Service Info..
For how to use the SmartShare™ PC
software, refer to the software help.
69
SMARTSHARE
SmartShare™ PC SW Installing and Setting
Install the SmartShare™ PC SW (DLNA) program on your PC.
1 Download the setup le from the path below in order to use the DLNA function.
http://liu.lge.com/smartshare/release/smartshare.zip
2 Install the downloaded SmartShare™ PC software.
3 You can run the program when installation is complete.
NOTE
DLNA or Media Link service is only available if projector and other devices are
connected via a single router.
PC requirement for installing LG SmartShare™
Item Minimum Specications
Recommended
Specications
CPU
Intel Pentium4 2.0 G or higher/
AMD Sempron 2000 or higher
Intel Pentium Dual Core or
higher/AMD Athlon 64 x 2 or
higher
RAM 1 GB or higher 2 GB or higher
VGA
64 MB RAM, 1024 x 768 or
higher resolution, and a video
card that supports 16 bit or
more colors
128 MB RAM, 1024 x 768 or
higher resolution, and a video
card that supports 16 bit or
more colors
Hard Disk Drive 200 MB or higher
Operating
System
Windows XP (Service Pack 2 or later), Windows Vista, Windows 7,
Windows 8
l Windows Media Player: 11.0.5721.5280 or higher is
recommended
Network
Environment
100 MB Ethernet, Wireless LAN (WLAN) IEEE 802.11g or higher
Program speed can be delayed depending on the system performance and the
network environment.
70
SMARTSHARE
In Case of a DLNA
Malfunction
If a DLNA feature does not work
properly, check network settings.
A 5-GHz access point is needed to
view 1080p videos via DLNA.
A 2.4-GHz access point may cause
frequent buffering or other problems.
DLNA may not work properly on a
wireless network. It is recommended
to use a wired connection.
Multi audio and internal subtitles are
not supported in DLNA mode.
If more than one Projector is
connected to a single server in DLNA
mode, the content may not play
depending on server performance.
Subtitles may not be supported
depending on the DLNA device.
The DLNA feature may not work
properly in all network environments.
The DLNA feature cannot be used
with some access points that
do not support multicasting. For
more information, refer to access
point manual or consult with the
manufacturer.
Supported file types may differ
depending on the DLNA server
environment, even for file types
supported by the projector.
Too many sub-folders and files
included in one folder may cause a
malfunction.
Information about the file from DLNA
server may not be displayed correctly.
SmartShare™ PC Software is
recommended when watching video
subtitles from a DLNA server.
To add a subtitle file later, turn off the
shared folder and reset.
DRM files located in SmartShare™
PC Software server are not played.
71
SMARTSHARE
To Use A Premium Service
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Premium
This service gives you easy access to a wide variety of content, such as video,
news, and UCC, at any time, as long as you are connected to the network. Premium
content includes specialized country-specific services taking regional cultural
sensitivities into account as well as global content.
WEB Movie Map SNS Play
NEWS Comic
Entertainment
Information TV
To Use Paid Content
A fee is payable for some Premium content. Fee-paying services are paid for either
through LG Electronics’ proprietary billing system or through that of the relevant
content provider. Before using the LG billing system, you will need to sign up for
membership and register payment information on projector or the website
(www.lgappstv.com) to purchase paid content.
You can sign up for membership on the login screen on your projector or our
website. You can then log into both the projector and the website with one ID.
1 Click Sign In button on the upper-right side of the screen on the home page to sign in.
2 Moves to the desired Premium service. (For some premium services, separate sign-
in is required after signing up for the premium service.)
3 After reviewing the pricing and service information for the content, click the
Purchase button. (There may be limitations on the available period and number of
times depending on content.)
4 Once the purchasing process is complete, view your purchased content by clicking
the Buy button.
5 Select your ID on upper menu of Home screen and check history of purchases
from My Page → Payment inquiry. It is also available on My Page → Purchase
History of web site (www.lgappstv.com).
72
SMARTSHARE
To Reset Premium
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Premium → Option → Initialization of Premium
Resets premium list, premium information, country setting, and user sign-in
information.
Resetting will resolve errors occurring during premium update.
NOTE
Content offered by service providers is subject to change or deletion without prior
notice to enhance their service quality. Refer to the website of the relevant content
provider for questions, troubleshooting, or the latest information about content.
LG Electronics assumes no legal responsibility for content services and related
information, even when a service is discontinued by the service provider.
The quality of your premium service may be affected by your Internet connection.
For any questions related to Internet speed or other service problems, consult your
Internet service provider.
For best service quality, we recommend that you subscribe to an Internet service
providing a speed of 4.0 Mbps (1.5 Mbps or faster). If you experience any Internet
speed problem, contact your Internet service provider.
Some content providers may provide content that is unsuitable for minors. Parental
discretion is advised.
73
SMARTSHARE
To use LG Smart World
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ LG Smart World
LG Smart World is a projector application service available through Smart projector
Service. You can download and enjoy many different apps (for fee or free) including
education, entertainment, life and news.
App 1 App 8 App 15
App 2 App 9 App 16
App 3 App 10 App 17
App 4 App 11 App 18
App 5 App 12 App 19
App 6 App 13 App 20
App 7 App 14 App 21
Description
Sign in.
When you sign in, ID is displayed.
When you select the ID, you can select My Page and Sign Out.
Select the app to install.
74
SMARTSHARE

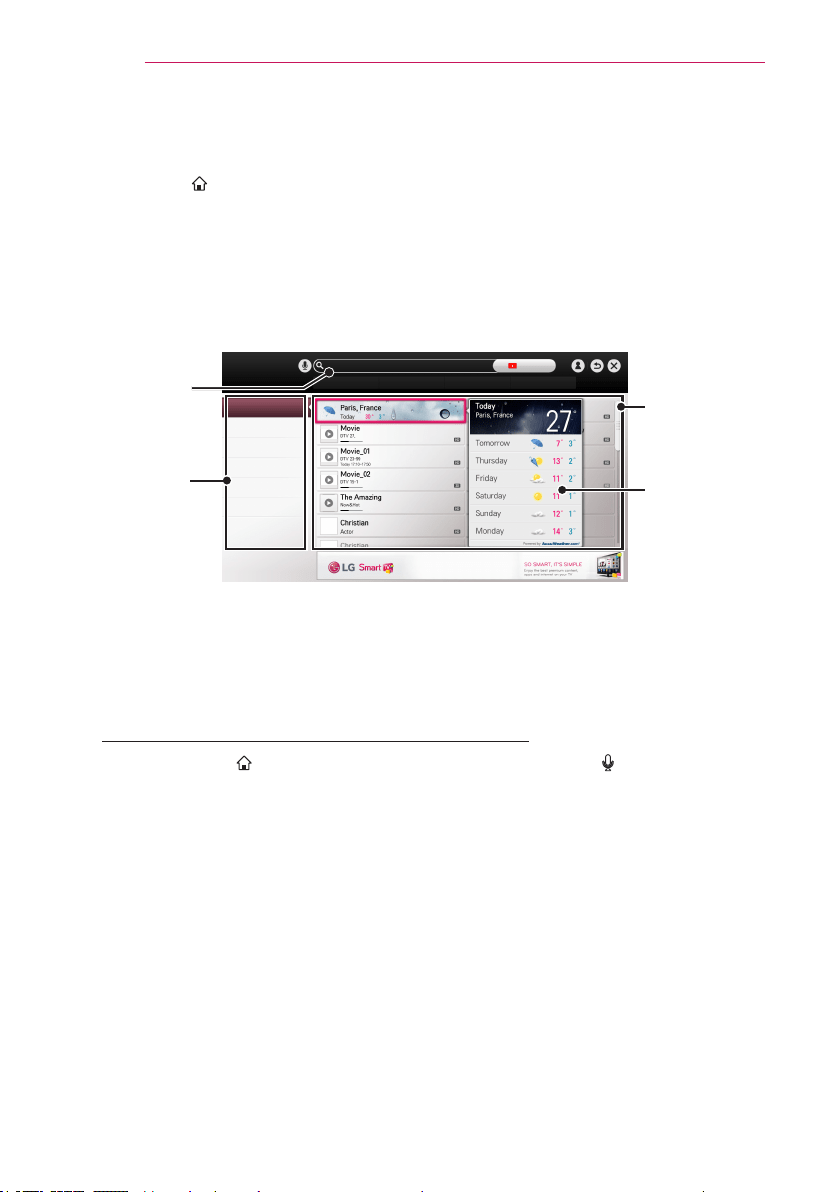

To Use Search Function
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Search
You can search apps and contents using the Search function of LG Smart Projector.
When you enter keywords using the input device, such as the remote control, you
can find apps of LG Smart World and some contents of the Premium service. Links
are also provided to go for web search. If you are using SmartShare
TM
, you can also
search contents of SmartShare
TM
. The Search categories and content types vary
depending on the country and will be kept updating.
Detailed
information
about the
search item
Category of
search results
Search
weather
Prev. Keywords
weather
Search
Search results
Enter
search terms.
All
Premium
YouTube
NEWS
Web
To Use the Voice Recognition Function
Using this Function Through Search
1 Go to SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Search. Select the voice recognition icon (
ㄮᗺ
ⰶᲳ
ⱞⳮ ➎Ẳ㞢
/忉蝽瓩篚
) on the left of the
text eld.
2 Speak slowly and clearly after the voice recognition window appears.
3 After the voice recognition is completed, the Similar List window pops up. If the pop-
up window does not have the results you want, press Retry to try again. Select the
most similar result, then it will be displayed in the text eld. Press the Search button
to get the result you want.
75
SMARTSHARE
Using this Function on
the Internet
1 Go to SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Internet.
Move the Magic Remote Control
pointer in the text eld on a website
to open the virtual keyboard.
2
Select the voice recognition icon (
ㄮᗺ
ⰶᲳ
ⱞⳮ ➎Ẳ㞢
/忉蝽瓩篚
)
on the left of the text eld on the virtual
keyboard.
3 Speak slowly and clearly after the
voice recognition window appears.
4 After the voice recognition is
completed, the Similar List window
pops up. If the pop-up window does
not have the results you want, press
Retry to try again. Select the most
similar result, then it will be displayed
on the text eld. Press the Search
button on the website to get the result
you want.
76
SMARTSHARE
To Use Voice Mate Function
What Is Voice Mate?
Voice Mate allows you to search desirable programs and content with your voice and
adjust the projector.
1 Press the voice recognition (
ㄮᗺ
ⰶᲳ
ⱞⳮ ➎Ẳ㞢
/忉蝽瓩篚
) button on the magic remote control.
2 When the Voice Display bar is activated on the left of the screen, say what you want
to watch.
Tell me what you want.
“Show me the hottest YouTube video,
and timer-record it (a program).”
WHEEL(OK) button: See voice user guide.
3 Press the Wheel (OK) button with the Voice Search standby to see the supported
language in the voice guide.
77
SMARTSHARE
How to Use Voice Mate?
To use all the functions and services
of Voice Mate, you need to set Smart
Wizard and Time. Set up the network,
region, auto tuning, and universal
remote control through the Smart
Wizard.
In order to use Voice Mate, you must
set up the network, time, region, and
tuning.
Set the language of your country to
use Voice Mate.
You can change the language for
Voice Search in
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Settings → OPTION
→ Language → Voice Recognition
Language.
You can turn the avatar On/Off in
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Settings → OPTION
→ See Avatar.
Point the universal remote control
towards the set-top box when you
use Voice Mate with it.
When speaking a command, hold the
remote within 10 cm (3.9 inches) of
your face.
The voice search may fail when you
speak too fast or too slow.
The recognition rate of Voice Mate
may vary depending on the user’s
characteristics (voice, pronunciation,
intonation, and speed) and the
environment (noise and projector
volume).
If your voice is not recognized
properly, Voice Mate may function
regardless of your intention.
What Are Other Functions
of Voice Mate?
You can access various Projector
features using Voice Mate.
Item Description
Channel
You can tune TV
channels and search
channel information.
Example: “What time
is *** on?”
Recommen-
dation and
Search
You can recommend
and search TV
programs and content
files.
Example: “Look up ***”
Information
and Internet
You can also search
other information such
as today’s weather.
Example: “How’s the
weather today?”
Available functions may vary
depending on the country.
For more supported examples, see
the voice user guide.
78
SMARTSHARE
What Is On Now?
On Now allows you to select and watch recommended programs currently available
on your Projector. The Favorite function allows you to select and watch recommended
content related to the program you are watching.
To Use On Now
To see in Mini view
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ On Now
Refreshes all list items and moves to
the beginning of the screen simultaneously.
Moves to Full View.
79
SMARTSHARE
To See in Full View
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ My Card →
On Now
Sets the
options.
Refreshes all the list items and
moves the screen up simultaneously.
Move to Mini view.
Find
Sign in
For TV channels, you need to complete Auto Tuning to use this service properly.
If you move to a different region, you need to set the region to your current location
in order to use this service.
The digital EPG (Electronic Program Guide) information which the TV receives may
be different from the programs on the On Now TV list which uses an external EPG
(Electronic Program Guide).
You can control a connected set-top box tuner with the magic remote control.
An internet connection is required to use On Now.
The channels in the On Now TV list are provided from the cable broadcasting service
provider. If the provider changes them without notice, the actual TV channels may
differ.
The channel names of analog cable broadcasting on the On Now TV list are
provided from an external EPG (Electronic Program Guide), so each name refers a
cable broadcasting service provider but may not match.
The program thumbnail image on the On Now TV list is the representative image
of the program, and it may be different from the image of the actual TV program
schedule.
If the channel information on the On Now TV list is different from the actual TV
channel or set-top box channel, set the set-top box and channel menu in the On
Now Settings.
80
SMARTSHARE
To Use Internet
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Internet
Types URL manually on Projector or visits websites added to favorite.
❶ ❸❷
Description
❶
Types in the web address.
❷
Chooses when you open several web browsers.
❸
Add the current page to favorites.
Internet supports up to Flash 11 but does not support platform-dependent
technology like ActiveX.
Internet only works with a pre-installed plug-in.
Internet may not play any media file format other than the following:
JPEG / PNG / GIF
Internet will be forcibly closed when there is insufficient memory.
For the Internet, fonts installed on the projector are used and may not be displayed
normally depending on the content played.
Internet does not support file and font download.
Internet is made for projector so it may have a different function to browsers made
for PC.
Internet is a projector browser and may not work properly when playing some
content files.
81
SMARTSHARE
Frequently Asked Questions for Smart Projector
Sign up is required to use LG Smart World.
You can sign up on either your Projector or the LG website (www.lgappstv.com). Free
apps are available immediately after signing up.
You can purchase paid apps using your credit card registered with the website or
credits. Paid apps can also be purchased through carrier billing.
Problem Solution
When entering menu, the
Initializing message always
appears.
The Initializing message shows you how
long it takes to reboot the microprocessor and
hardware, set up network communications, and
communications with SDP (device authentication
and basic information download). It takes about
20 seconds and this is a normal process.
There is no content shown
on the Premium card.
Content may not be shown after changing the
country setting on Smart Projector. Change to
desired country in SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Settings →
OPTION → Service Country Setting.
While using internet features,
there is a blank space on
some Web pages.
The internet of the Projector supports up to
Flash 11 and may not replay any file format
other than the following
: JPEG, PNG, GIF
Internet closes automatically
when visiting website.
If memory is insufficient because of large
volume of image information in the web page,
the browser may be forced to close.
I already signed up on
projector. Do I need to sign
up again at web site
(www.lgappstv.com)?
If you sign up on your projector, no additional
sign-up on the LG website (www.lgappstv.com)
is required.
After signing up on the projector, you can sign
into the website by using the same ID and
password and entering the additional information
to complete the email verification process.
82
SMARTSHARE
Problem Solution
Can each family member use
a different ID with a single
projector?
It is possible to register and use more than one ID
on one projector.
To check the ID registered with Projector from
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Sign In → ID List.
You can check the list of apps purchased by each
ID. However, you can see all apps installed by
each ID in SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Sign In → My Page.
What should I do if I forget
my ID?
After signing up on a PC, use the Forgot ID?
feature on web site (www.lgappstv.com) when
needed.
After signing up on Projector, check it from
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Sign In → Find ID.
I purchased an app from the
LG web site (www.lgappstv.
com). How can I use it on the
projector?
To check purchased apps from the Projector, sign
in and open the Purchased Apps menu.
Select the ID at the top of Home and check the app
in My Page → Purchased apps.
Can I see history of my
purchased apps?
Select the ID at the top of Home and check the app
in My Page → Purchased apps.
Sign in to website (www.lgappstv.com) and then
select My Page → Purchase History.
I deleted a paid app. Do I
have to purchase again to
download it?
If a purchased app is accidentally deleted, you can
download and reinstall it without having to buy it
again, as long as it is still in service.
Select the ID at the top of Home and re-download
apps in My Page → Purchased apps.
(Previously owned apps may not be re-downloaded
or run depending on the software version.)
Can I use apps from LG
Smart Projector's LG Smart
World on both a projector
and a PC?
Please check if the projector model supports LG
Smart World.
The apps provided from LG Smart Projector's LG
Smart World can only be used on an LG Smart
Projector.
Apps may be purchased from the website (www.
lgappstv.com) but cannot be used on a PC or Mac.
Use care when purchasing.
How can I check the ID
currently signed in on the
projector?
Select the ID at the top of Home and check the
currently signed-in ID in My Page → My Information.
83
SMARTSHARE
Problem Solution
I installed an app on the
projector. Where can I check
the installed app?
Select SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ MY APPS. All paid and free
apps installed on projector are displayed.
There is a difference between
the app size shown on the
screen and the actual app
size installed on projector.
The app size shown in the screen includes the
additional space needed for installing apps so it
may be different from actually installed app size.
I forgot my password on the
projector. What should I do?
If you only provide the ID and password when
signing up on your projector, you cannot recover
your password when it is lost. Create a new ID and
sign up with the ID.
If you provide other information than the ID and
password when signing up on your projector or the
LG website (www.lgappstv.com), you can recover
your password on the website.
Do I need to store payment
information in web site to
purchase paid apps?
The following payment methods are available to
purchase paid apps on your projector: credit card,
credits, and carrier billing.
To purchase paid apps using your credit card or
credits, you should have a credit card registered
with the LG website (www.lgappstv.com) or have
enough credits. Paid apps can also be purchased
through carrier billing if your credit card details
are not registered with the website or you do have
enough credits. If you purchase paid apps on
the website, the following payment methods are
available: credit card or credits.
Can I cancel an app that I
have purchased?
As a member you cannot demand refund just
because you changed your mind after purchase.
If there is a defect in the product or a problem of
using the product, which is not caused by your
fault, you can ask for a refund. However, the valid
reason for refund must be provided.
Should I use only an email
address for my ID?
For new sign-up members, the ID format has
changed from a combination of alphanumerics to
your email address.
You can use only an email address for your ID
when signing up.
84
SMARTSHARE
Problem Solution
Do I need to change my ID
format to the email address?
For new sign-up members, the ID format has
changed from a combination of numbers and
alphabets to the email address.
If you are already a member, you can still use your
existing ID or change it to the email address.
What is the LG account? The LG account allows you to sign into all of the
LG Smart service with a single ID and password.
You can use the following services with your LG
account:
LG Smart Projector, LG Cloud, LG Smart World
(excluding some countries), LG Smart ThinQ, and
LG Smart air conditioning, etc.
Additional information may be required depending
on the service.
85
USING ADVANCED FUNCTIONS
USING ADVANCED FUNCTIONS
To Use Screen Remote
To Use Screen Remote
Press the button on the magic remote control.
Select a button on the screen remote displayed on the screen using the magic remote
control.
The type of buttons on the screen remote varies depending on the region or the type
of a connected device.
Image shown may differ from your projector.
Exits the Screen Remote
Moves the position of the
Screen Remote to left or right
TV operation buttons
Change Device tab
To Control a Device Connected to the Projector Using
the Screen Remote
You can control a device connected via SIMPLINK or MHL using the Screen Remote.
1 Check if the device is connected to the projector.
2 After pressing the button on the magic remote control, select the device you
want to control in the Change Device tab. The screen remote that can control the
device appears.
This may not work with some buttons.
86
USING ADVANCED FUNCTIONS
To Use the Universal Control function
For magic remote control only
With the magic remote control, you can control a set-top box, Blu-ray player, home
theatre system, etc.
1 Check if a device you want to set is connected to your Projector.
2 After pressing the button on the magic remote control, select the icon of a
device you want in the change device tab.
If there is no device you want, press the on the tab, and select the external
device you want. Once the setup is complete, the name of the selected device is
displayed in the Change Device tab.
3 When you select a device you want in the change device tab, the screen remote that
can control the device appears on the screen.
To change or clear the Universal Control settings
1 After pressing the button on the magic remote control, select the (TV/input
selection) button.
2 Select Change Settings or Cancel Settings at the bottom of the device to be
changed.
When change setting, check if the power of the device to be changed is turned on.
You can set one device per type.
With the screen remote, you can only control the devices of a brand or manufacturer
that you can select in the setup screen.
If you connect to a network before setting the universal remote control, update for
the latest manufacturer list is available.
Some buttons may not work depending on the external device model.
Place the device near the projector for seamless operation.
If the device is in a drawer, open the drawer.
Go to SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Universal Control or, SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Input List
→ Set the Universal Control and add, delete, or change a device.
87
USING ADVANCED FUNCTIONS
To Control a Projector Using a Smartphone
You can download the LG TV Remote app from Google Play Store or Apple App Store
and use it on any projector connected with your smartphone.
-
Now you can enjoy your favorite projector shows on your smartphone. (Some
models only)
-
You can easily enter your account information to log in.
-
You can add your favorite channels on your smartphone.
-
You can use the functions such as Premium, MY APPS, and SmartShare™
directly on your smartphone.
-
The text input function is supported, so you can enter text easily. (Text cannot
be entered on some screens.)
-
Select the app's touch pad to control in the same way the pointer of the magic
remote control works.
-
Keypad which allows you to control the set-top box and media devices is
provided. (Some models with specified conditions only.)
-
You can set the projector to the power-saving mode while watching Projector
on your smartphone.
The supported functions may vary depending on the version of the LG TV remote
app.
88
USING ADVANCED FUNCTIONS
To Use a USB Input Device On a Projector
To Use a USB Wired/wireless Mouse
Connect your mouse to the USB port. Use the mouse to move the pointer on the
Projector screen and select the menu you want.
Mouse Magic Remote Control
Left Button OK Button on Magic Remote Control
Wheel Button Wheel Button on Magic Remote Control
The right and the special buttons on the mouse do not work with the Projector.
The usability of a wireless USB mouse and keyboard may be affected by Radio
Frequency environment and the distance.
To Use a USB Wired/wireless Keyboard
Connect your keyboard to the USB port. You can enter text with the keyboard when
using the search function and the Internet.
Text cannot be entered on some screens.
It is recommended to use the product which is tested for compatibility with the LG
Projector.
LOGITECH K200, LOGITECH K400, MICROSOFT Comfort Curve 2000,
MICROSOFT MS800, and LG Electronics ST-800
You can change the input language by pressing the language switch key (or the right
Alt key) on your keyboard.
89
CUSTOMIZING SETTINGS
CUSTOMIZING SETTINGS
SETTINGS
1 Press the SETTINGS button.
(Press the SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
button and select Settings.)
2 Use the or button to select the desired item and press the OK button.
3 Use the , , , or button to set up the desired item and press the OK button.
4 Press the EXIT button when completed.
Menu Description
PICTURE Adjusts the image quality for optimal viewing.
SOUND Adjusts the sound quality and volume level.
CHANNEL Sets up or edits a channel.

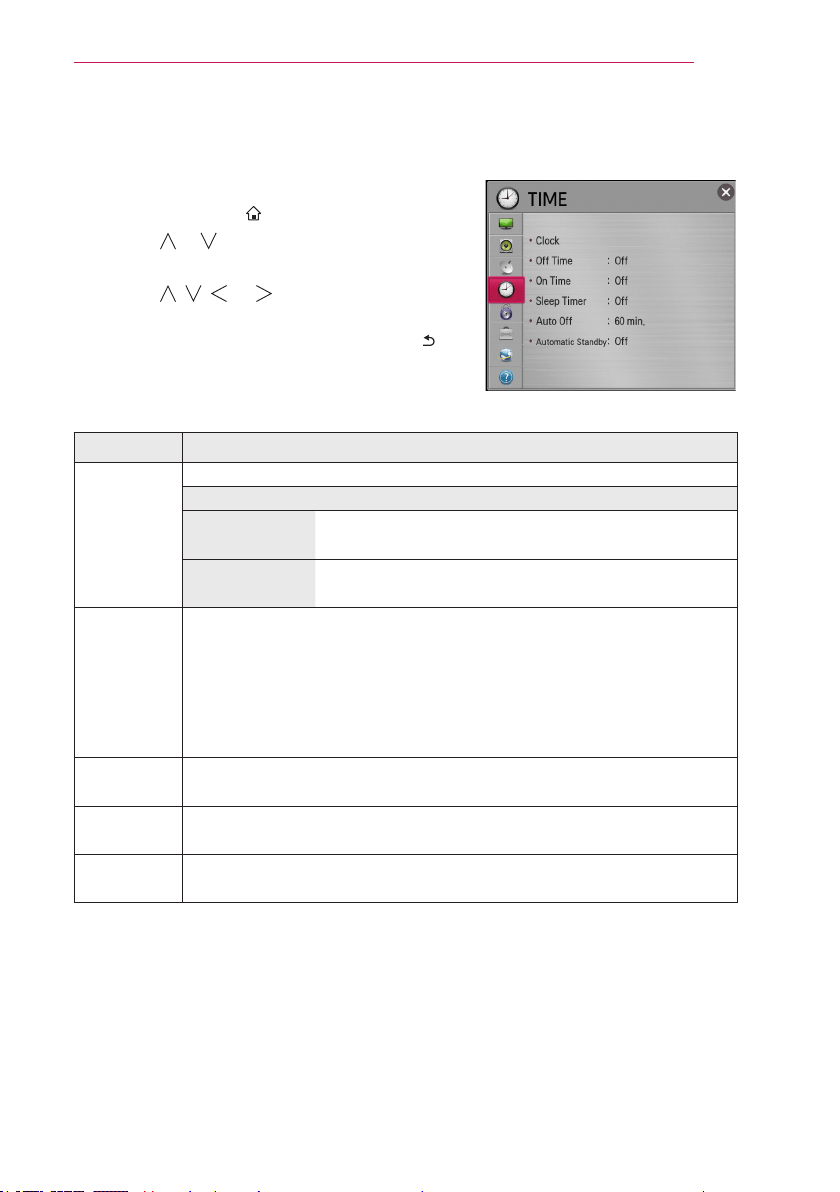

TIME Sets the time and time-related features.
LOCK Locks or unlocks a channel or a program.
OPTION Customizes the general settings.
NETWORK Sets the network.

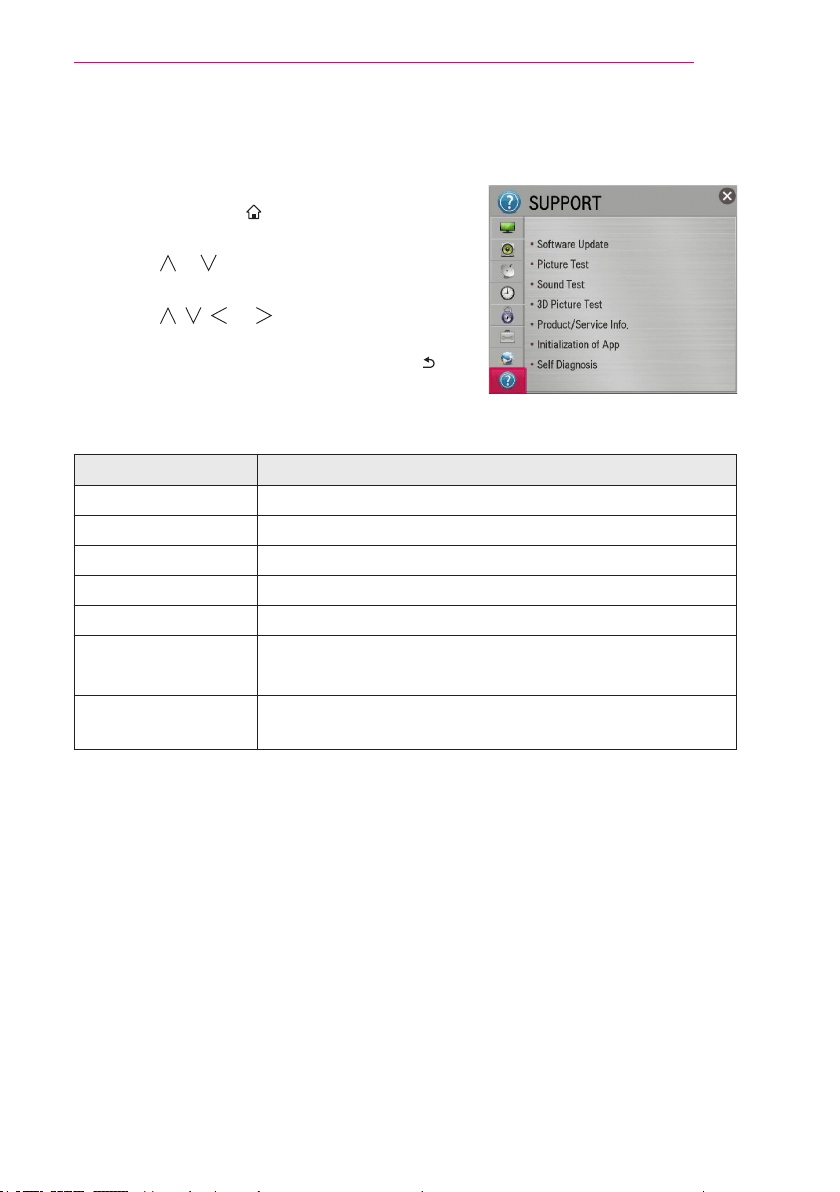

SUPPORT Shows the projector information.
90
CUSTOMIZING SETTINGS
PICTURE Settings
1 Press the SETTINGS button.
(Press the SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
button and select
Settings.)
2 Use the or button to select PICTURE and
press the OK button.
3 Use the , , , or button to set up the
desired item and press the OK button.
- To return to the previous menu, press the
button.
The available picture settings are described as follows.
Item Description
Energy
Saving
Reduces power consumption by adjusting peak screen brightness.
Mode
Minimum/
Medium/
Maximum
Applies the pre-set Energy Saving mode.
- If Energy Saving is set to Minimum and the ambient
temperature is 35 °C or higher, Energy Saving will be
disabled.
3D You can set the 3D mode On or Off.
3D
Settings
Adjusts various aspects of 3D imaging.
Mode
3D Mode Provides the appropriate 3D depth.
3D Depth: Adjust 3D depth between the foreground
object(s) and the background.
3D Viewpoint: 3D image can be made closer or
farther from user.
3D Sound
Zooming
Provides 3D-optimized sound.
3D Pattern
Recognition
This will activate and deactivate 3D mode automatically
based on the input.
Normal
Image View
This will down-convert a 3D signal to 2D.
3D Image
Correction
Switches the left/right images of 3D video.
91
CUSTOMIZING SETTINGS
Item Description
Mode
Selects the picture mode optimized for the viewing environment or the
programme. You can also customize advanced options for each mode.
Mode
Vivid Maximizes the visual effect of video.
Heightens contrast, brightness, and sharpness to
display vivid images.
Standard Displays images in standard levels of contrast,
brightness, and sharpness.
Cinema Optimizes the image for a movie.
Game Optimizes the image for playing games on fast-moving
screens.
Expert1/2 Menu for adjusting picture quality that allows experts
and amateurs to enjoy the best projector viewing.
- Expert mode is for picture tuning professionals to
control and ne-tune using a specic image. For
normal images, the effects may not be dramatic.
Contrast Adjusts the difference between bright and dark regions of the screen.
Brightness Adjusts the overall screen brightness.
Sharpness Adjusts the sharpness of the borders between bright and dark.
Horizontal and Vertical Sharpness are available only in Expert1/2.
Color Adjusts the colors on the screen darker or lighter.
Tint Adjusts the red/green color balance.
Advanced
Control
(Expert
Control)
Customizes the advanced settings.
Option
Sets optional settings.
Reset
Resets values customized by the user.
Each picture mode is reset. Select the picture mode you wish to reset.
Aspect
Ratio
Resizes the picture.
Wizard II
Use the remote control and follow the instructions of the Picture Wizard
to calibrate and adjust for optimum picture quality without expensive
pattern devices or help from a specialist. Follow the instructions to
obtain the optimum picture quality.
92
CUSTOMIZING SETTINGS
Advanced Control
Item Description
Dynamic
Contrast
Adjusts contrast and color to the optimal level according to the
screen’s brightness.
Dynamic
Color
Adjusts colors for more natural-looking colours.
Preferred
Color
Skin Color Skin color spectrum can be separately set to implement
the skin color as dened by the user.
Grass
Color
Natural color spectrum (meadows, hills, etc.) can be
separately set.
Sky Color Sky color is set separately.
Super
Resolution
Provides a crystal-clear picture by improving the details in areas where
the picture is blurry or unclear.
Gamma Sets the gradation curve according to the output of the picture signal in
relation to the input signal.
Expert Control
Item Description
Dynamic
Contrast
Adjusts contrast and color to the optimal level according to the
screen’s brightness.
Super
Resolution
Provides a crystal-clear picture by improving the details in areas
where the picture is blurry or unclear.
Color Gamut Selects the range of colors that can be expressed.
Standard: Displays the original colors of an input signal
regardless of the display features.
Wide: Makes use of the display's rich colors.
Edge Enhancer Shows clearer and distinctive yet natural edges of the video.
xvYCC Displays much richer colors.
Color Filter Filters a specic color spectrum in RGB colours to ne-tune colour
saturation and hue accurately.
Expert Pattern Patterns used for expert adjustment.
Gamma Sets the gradation curve according to the output of the picture
signal in relation to the input signal.
93
CUSTOMIZING SETTINGS
Item Description
White Balance Adjusts white balance. Detailed adjustment is possible as shown
below.
a. Method: 2 points
- Pattern: Inner, Outer
- Points: Low, High
- Red/Green/Blue: Adjustable range -50 to +50.
- Apply to all inputs: The values of the White Balance is
applied to all the input modes.
b. Method: 20 point IRE
- Pattern: Inner, Outer
- Institute of Radio Engineers (IRE) is the unit indicating the
size of a video signal and can be set to 5, 10, 15, ... 100.You
can ne-tune for each setting as shown below.
- Red/Green/Blue: The adjustment range is -50 to +50.
- Apply to all inputs: The values of the White Balance is
applied to all the input modes.
Color
Management
System
Adjusts Red/Green/Blue/Cyan/Magenta/Yellow colors. Allows an
expert to adjust the tint using a test pattern. Six colors (Red/Green/
Blue/Cyan/Magenta/Yellow) can be selectively adjusted without
affecting other colors. You may not see colors change on a normal
picture even after adjustment.
- Saturation Red/Green/Blue/Cyan/Magenta/Yellow,
Tint Red/Green/Blue/Cyan/Magenta/Yellow,
Luminance Red/Green/Blue/Cyan/Magenta/Yellow:
The adjustment range is -30 to +30 each.
* Depending on input signal or other picture settings, the range of detailed items for
adjustment may differ.
94
CUSTOMIZING SETTINGS
Picture Option
Item Description
Noise Reduction Reduces screen noise in the video.
MPEG Noise
Reduction
Eliminates noise generated while creating digital picture signals.
Black Level Adjusts the brightness or darkness of the screen to suit the
black level of the picture input using the degree of darkness
(black level) of the screen.
Real Cinema Optimizes the screen for movie viewing.
TruMotion Corrects images to display smoother motion sequences.
Mode
Smooth De-Judder value is set to 3.
Clear De-Judder value is set to 7.
User De-Judder/De-Blur can be set manually.
De-Judder:
This function adjusts juddering of
the screen.
De-Blur:
This function adjusts and eliminates
blurring of the screen.
Off De-Judder value is set to 0.
Color Temperature Adjusts the overall color of the screen to suit your preference.
You can select Natural, Cool, Medium, Warm or Purity
* If the video signal is 60 Hz, TruMotion may not work.
95
CUSTOMIZING SETTINGS
SOUND Settings
1 Press the SETTINGS button.
(Press the SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
button and select
Settings.)
2 Use the or button to select SOUND and
press the OK button.
3 Use the , , , or button to set up the
desired item and press the OK button.
- To return to the previous menu, press the
button.
The available sound settings are described as follows.
Item Description
Smart Sound
Mode
Provides the optimized sound adjusted for each content type.
If the Smart Sound Mode function is enabled, Sound Mode,
Virtual Surround Plus and Clear Voice ll are automatically
adjusted.
Sound Mode Sets the sound mode.
Mode
Standard Suitable for all types of video.
Music/ Cinema/
Sport/ Game
Sets audio optimized for a specic genre.
User Setting Adjusts volume level.
100 Hz/ 300 Hz/ 1 kHz/ 3 kHz/ 10 kHz:
Sets EQ by manual adjustment of sound
bands.
Reset: Resets the equalizer value changed by
the user.
Virtual
Surround Plus
Provides realistic 5.1 channel stereo sound from two speakers.
If Clear Voice ll is set to ON, Virtual Surround plus will not be
chosen.
Clear Voice II Boosts voice clarity.
96
CUSTOMIZING SETTINGS
Item Description
Volume Mode Sets various modes for volume control.
Mode
Auto Volume Sets Auto Volume to On. The volume varies
from channel to channel and program to
program. When clicking through the channels,
the volume is adjusted automatically to maintain
the same level.
Volume Control Using a single volume curve may result in
an inaudible or loud sound depending on the
environment. Adjusts volume levels depending
on the time of day (day/night).
Sound Out Sets the audio output of the projector.
Mode
Projector
Speaker
Sound is output through the projector speaker.
External
Speaker
(Optical/HDMI
ARC)
Sound is output through the speaker connected
to the optical port. SIMPLINK is supported.
Digital Sound Out: Sets up Digital Sound
Output.
LG Sound
Sync (Optical)
Sound is output through an LG audio device
connected to the optical digital audio output port.
LG Sound Sync
(Wireless)
Sound is output through a wirelessly connected
LG audio device.
Headphone Sound is output through headphones.
Headphones are detected and connected
automatically when the projector is on.
97
CUSTOMIZING SETTINGS
Item Description
AV Sync.
Adjust
Synchronizes video and audio directly when they do not match.
If you set AV Sync. Adjust to ON, you can adjust the sound output
(Projector speakers or SPDIF) to the screen image.
Mode
Projector
Speaker
Adjusts the synchronization of the sound from
the Projector's internal speakers.
The + and - buttons allow the viewer to
synchronize the audio with the video.
External
Speaker
Adjusts how the sound is synced to external
speakers, such as an external speaker
connected to the digital audio output port, LG
audio device and headphone.
The + and - buttons allow the viewer to
synchronize the audio with the video.
Bypass Outputs broadcasting signals or the audio of an
external device without audio delay. Audio may
be output before video as it takes time to process
video input into the projector.
Sound Option
Setting
Balance: Adjusts left/right audio balance.
98
CUSTOMIZING SETTINGS
CHANNEL Settings
1 Press the SETTINGS button.
(Press the SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
button and select Settings.)
2 Use the or button to select CHANNEL and
press the OK button.
3 Use the , , , or button to set up the desired
item and press the OK button.
- To return to the previous menu, press the
button.
The available channel settings are described as follows.
Item Description
Auto Tuning Remembers a channel which is currently broadcasting. You should
use this function when you move to another house or move the
projector to other place. It must be used while the antenna is
connected and there are channel broadcasting signals.
Channels are not registered properly unless the antenna/cable
is connected correctly.
Auto Tuning only finds programs that are currently broadcasting.
only finds programs that are currently broadcasting.
If Lock System is turned on, a pop-up window will appear
asking for password.
Manual Tuning Adjusts programs manually and saves the results.
For digital broadcasting, signal strength and signal quality can be
checked.
Channel Edit Edits the saved programs.
Set as favorite program, block/unblock program, skip program etc.
of the selected program.
CHANNEL
AutoTuning
ManualTuning
Ch.Edit
99
CUSTOMIZING SETTINGS
TIME Settings
1 Press the SETTINGS button.
(Press the SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
button and select Settings.)
2 Use the or button to select TIME and press
the OK button.
3 Use the , , , or button to set up the
desired item and press the OK button.
- To return to the previous menu, press the
button.
The available time settings are described as follows.
Item Description
Clock Checks or changes the time while watching projector.
Mode
Auto Synchronizes the projector clock to the digital time
information sent by the TV station.
Manual Sets the time and date manually if the auto setup
does not correspond to the current time.
Off Time
/On Time
Sets On/Off time. Select Off on Repeat to discontinue On Time/Off
Time.
To use On Time/Off Time, set the current time correctly.
Even when the On Time function is on, the projector will turn off
automatically in 120 minutes when no button is pressed within that
time.
Sleep Timer Turns off the projector after a preset number of minutes.
To cancel the Sleep Timer, select Off.
Auto Off If there is no input signal or button press, the projector automatically
turns off after the preset time has elapsed.
Automatic
Standby
If you do not press any button on the projector or remote control for a
certain period, the projector will automatically turns off.
100
CUSTOMIZING SETTINGS
LOCK Settings
1 Press the SETTINGS button.
(Press the SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
button and select
Settings.)
2 Use the or button to select LOCK and press
the OK button.
- To enter the LOCK menu, enter the preset
4-digit password. The initial password is set as
0000.
3 Use the , , , or button to set up the
desired item and press the OK button.
- To return to the previous menu, press the button.
The available lock settings are described as follows.
Item Description
Set
Password
Sets or changes projector password.
The initial password is set as 0000.
Lock
System
Permits only specic programs by blocking channels or external input.
Select the Lock System to On.
Item
Block
Channel
Blocks the programs that contain inappropriate contents for
children. The programs can be selected but the screen is
blank and the audio is muted. To watch a locked program,
enter the password.
Movie
Rating
Blocks the movies that are only broadcasted on the TV
and contain inappropriate contents, based on the Motion
Picture Association of America (MPAA) rating.
G (General audiences) All ages admitted
PG (Parental guidance suggested) Some material may
not be suitable for children
PG-13 (Patents strongly cautioned) Some material may
be inappropriate for children under 13
R (Restricted) Under 17 requires accompanying parent
or adult guardian
NC-17 No one 17 and under admitted.
X Adults only
LOCK
SetPassword
LockSystem :Off
BlockChannel
InputBlock
ApplicationLock
101
CUSTOMIZING SETTINGS
Item Description
Lock
System
Item
TV Rating-
Children
Blocks the children’s TV programs that parents do not
want their children to watch. To block other TV programs,
you should set the TV Rating-General feature.
Age TV-Y (All children, including children from ages 2-6),
TV-Y7 (Directed to older children, suitable for children age
6 and above)
Fantasy Violence TY-Y7 (Directed to older children
– Fantasy violence, suitable for children age 6 and
above, containing more intense or combative fantasy
violence)
TV Rating-
General
Blocks the TV programs that you want based on the
ratings by using the Parental Control Function (V-Chip).
The V-Chip electronically reads TV program ratings and
allows parents to block program that are unsuitable for
children.
Age TV-G (General audience, suitable for all ages)
TV-PG (Parental guidance suggested, containing material
that are unsuitable for younger children)
TV-14 (Parents strongly cautioned, containing material
that are unsuitable for children age 14 and under)
TV-MA (Mature audience only, unsuitable for children age
Dialog (suggestive dialogue) TV-PG or TV-14
Language (coarse language)TV-PG, TV-14, or TV-MA
Sex (sexual situation) TV-PG, TV-14, or TV-MA
Violence TV-PG, TV-14, or TV-MA
Downloadable
Rating
This function operates only when TV has received
Region5 Rating data. The name of the rating option may
differ.
Input Block
Block the input sources.
Application
Lock
Lock the application.
102
CUSTOMIZING SETTINGS
OPTION Settings
1 Press the SETTINGS button.
(Press the SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
button and select
Settings.)
2 Use the or button to select OPTION and
press the OK button.
3 Use the , , , or button to set up the
desired item and press the OK button.
- To return to the previous menu, press the
button.
The available option settings are described as follows.
Item Description
Language
Selects Menu Language and Audio Language displayed on the
screen.
Item
Menu
Language
Selects a screen menu language.
Audio
Language
Selects the desired language when watching
digital broadcasting containing several audio
languages. (In digital mode only)
Voice
Recognition
Language
Select the language to make voice search.
Service Country
Setting
You can change the country setting of your smart projector. The
premium service and LG Smart World that are available for the
country you selected will be provided.
If a network is disconnected while setting the service country, it
may not be set properly.
Item
Auto Setting A service country is automatically set for your
smart projector.
Manual
Setting
A service country can be set manually for your
smart projector.
ZIP Code
You can check the information of area when network is connected.
This function sets your area as the ZIP Code.
You can check the information of area when network is
connected.
103
CUSTOMIZING SETTINGS
Item Description
Caption
View subtitles when the TV station provides subtitled programing.
Program subtitles work only on digital/analog broadcasts or
external input. Change Caption to On and select caption setting.
Mode CC 1-4 (Closed Captioning) / Text 1-4
Displays the audio portion of a TV program as
text on the TV screen. CC1 is the most common
mode in use.
Field 1 data channels: two Captions (CC1, CC2),
two Text (T1, T2).
Field 2 data channels: two Captions (CC3, CC4),
two Text (T3, T4).
Service 1-6
This is only available for the digital broadcasting
system.
Set up the size and color of the subtitles on Digital Option.
Please select Set by Program or Custom.
Select Custom to adjust minute options such as the subtitles' size
and color.
Digital Option Item
Size Selects the wordsize.
Font Selects a typeface for the text.
Text Color Selects a color for the text.
Text
Opacity
Adjusts the opacity for the text
color.
Bg Color Selects a color for the background
color.
Bg Opacity Adjusts the opacity for the
background color.
Edge Type Selects an edge type.
Edge Color Selects a color for the edges.
Window
Color
Selects a color for the window color.
Window
Opacity
Adjust the opacity for the window
color.
Set the Universal
Control
With the magic remote control, you can control a set-top box, blu-
ray player, home theatre system, etc.
104
CUSTOMIZING SETTINGS
Item Description
Pointer
Sets the speed and shape of the pointer that appears on the
Projector screen.
Speed Sets the moving speed of the pointer.
Shape Selects a pointer shape from various options.
Size Chooses the size of the pointer.
Alignment
Set to On. If there is any misalignment between
the pointer and the actual direction the remote
control indicates, move the magic remote
control left and right to realign. The pointer will
automatically realign to the centre, making it
easier to control.
If it is set to Off, the alignment function will not
work even when you move the magic remote
control left and right.
PJT Mode
This function turns the projected image upside down or ips horizontal.
Auto Keystone Auto Keystone provides a rectangular screen image by
automatically adjusting the Keystone number when there is a
trapezoidal screen image caused by tilting of the projector.
Item
On Automatically adjusts the Keystone number.
Off Manually adjusts the Keystone number.
Keystone To prevent the screen image from becoming trapezoidal,
Keystone adjusts the top and bottom width of the image if the
projector is not set at a right angle to the screen.
Auto Power Makes the projector turn on automatically When the power code is
connected to the projector.
Item
On When the power code is connected to the
projector, it turns on automatically.
Off When the power code is connected to the
projector, it goes into standby mode.
High Altitude If the projector is used at an altitude higher than 1200 meters
(3,937 feet), turn this on.
Otherwise, the projector may overheat or its protection function
may be activated. If this happens, turn the projector off and then
on again after waiting for several minutes.
Auto Input
Search
Automatically searches for and displays the input signal type
when it is received. It is available only with external inputs (HDMI,
AV, and Component).
105
CUSTOMIZING SETTINGS
Item Description
Balloon Help Enables/disables the balloon help.
Control Device
List
Displays the list of control devices connected to the projector.
See Avatar Turns the Avatar function on or off.
Initial Setting
Deletes all optional settings and returns to initial default mode. Once
initialization is complete, the projector will turn off and on by itself.
If Lock System is activated, a pop-up password prompt will appear.
Do not turn off the power during initialization.
Mode Setting Selects Home or Store. For use at home, select Home. Store is a
mode used for store display.
106
CUSTOMIZING SETTINGS
NETWORK Settings
1 Press the SETTINGS button.
(Press the SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
button and select
Settings.)
2 Use the or button to select NETWORK and
press the OK button.
3 Use the , , , or button to set up the
desired item and press the OK button.
- To return to the previous menu, press the
button.
The available network settings are described as follows.
Item Description
Network
connection
Connects a network.
Network
Status
Displays the connection status of the network.
Soft AP This function allows you to change a wired Internet connection to
your projector to Wi-Fi, allowing you to connect various external
devices or to use wireless Internet.
Soft AP Sets to On/Off.
Security Key Sets the Wi-Fi security number.
You can set the security key with a
combination of English letters and numbers
between 8 and 64 characters long.
The default setting is “LG123456”.
To enable the Soft AP function, your projector must be turned on
and have a wired Internet connection.
Up to four external devices can be connected.
If the Soft AP function is enabled, the Wi-Fi Direct and Miracast
TM
functions become unavailable. You must set the Soft AP function to
Off to use the Wi-Fi Direct and Miracast
TM
functions.
Wi-Fi Direct Wi-Fi Direct is a function that allows your projector to connect with a
Wi-Fi Direct device without Internet connection.
Miracast
TM
/
Intel's WiDi
The Miracast
TM
allows you to enjoy video and audio from a portable
device through the projector wirelessly. Intel's WiDi allows you to
view a laptop screen through the projector without a cable.
My Projector
Name
Changes the name that appears when searching for the projector
from other devices.
107
CUSTOMIZING SETTINGS
SUPPORT
1 Press the SETTINGS button.
(Press the SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
button and select
Settings.)
2 Use the or button to select SUPPORT and
press the OK button.
3 Use the , , , or button to set up the
desired item and press the OK button.
- To return to the previous menu, press the
button.
The available support settings are described as follows.
Item Description
Software Update Updates to the latest software.
Picture Test Check whether a video signal is properly displayed.
Sound Test Check whether an audio signal is properly output.
3D Picture Test Check whether a 3D video signal is properly displayed.
Product/Service Info. Shows the product/service information.
Initialization of App If problems occur after updates, try initializing the system.
During initialization, the projector will restart automatically.
Self Diagnosis Troubleshoots functional problems that can arise while using
the product.
108
CONNECTING DEVICES
CONNECTING DEVICES
You can connect various external devices to the projector.
HDMI - page 109
Composite (AV) - page 110
Component - page 111
USB Devices - page 54
Headphones - page 114
Digital Amp - page 115
Mobile Phone - page 116
Computer/Laptop Video/DVDUSB
Digital Device
LG Audio Device
Headphones
Game Console
Mobile Phone
109
CONNECTING DEVICES
Connecting to HD
Receiver, DVD, or
VCR Player, External
Devices
Connect an HD receiver, DVD, VCR
player, or external devices to the projector
and select an appropriate input mode.
HDMI Connection
With an HDMI cable, you can enjoy high
quality picture and sound.
Using a HDMI cable, connect the HDMI
port of the projector to the HDMI output
port of the device to connect. Both video
and audio are output at the same time.
Press the INPUT button on the remote
control to select HDMI.
S
VOL -
VOL +
CH
CH
$9,1
$17(11$,1
&20321(17
,1
237,&$/
',*,7$/
$8',2287
/$1
'&,1
S
VOL -
VOL +
CH
CH
$9,1
$17(11$,1
&20321(17
,1
237,&$/
',*,7$/
$8',2287
/$1
'&,1
+'0,
* Optional
Extras
NOTE
ARC(Audio Return Channel)
External audio devices that support
SIMPLINK and ARC must be
connected using HDMI port.
When connected with a high-
speed HDMI
®
cable, external audio
devices that support ARC output
or SPDIF work with the SIMPLINK
function without the need for an
additional optical audio cable.
110
CONNECTING DEVICES
HDMI to DVI Connection
Using an HDMI to DVI cable, connect
the projector's HDMI port to the DVI
OUT port.
To output audio, use an audio cable for
connection.
Press the INPUT button on the remote
control to select HDMI.
DVI OUT
AUDIO OUT
S
VOL -
VOL +
CH
CH
$9,1
$17(11$,1
&20321(17
,1
237,&$/
',*,7$/
$8',2287
/$1
'&,1
S
VOL -
VOL +
CH
CH
$9,1
$17(11$,1
&20321(17
,1
237,&$/
',*,7$/
$8',2287
/$1
'&,1
S
VOL -
VOL +
CH
CH
$9,1
$17(11$,1
&20321(17
,1
237,&$/
',*,7$/
$8',2287
/$1
'&,1
AV Connection
Connect the output ports of an external
device and the A/V IN ports of the
projector using an AV cable. Press the
INPUT button on the remote control to
select AV.
Check whether cables of the same color
are connected properly.
S
VOL -
VOL +
CH
CH
$9,1
$17(11$,1
&20321(17
,1
237,&$/
',*,7$/
$8',2287
/$1
'&,1
S
VOL -
VOL +
CH
CH
$9,1
$17(11$,1
&20321(17
,1
237,&$/
',*,7$/
$8',2287
/$1
'&,1
$9287
/HIW 5LJKW
$8',2287
YELLOW
YELLOW
YELLOW
WHITE WHITE
WHITE
RED RED
RED
* Optional
Extras
* Accessories
* Optional
Extras
(Audio)
* Optional
Extras
(Video)
111
CONNECTING DEVICES
Component Connection
You can enjoy a video by connecting the
Component port of an external device
to the COMPONENT IN port of the
projector. Press the INPUT button on the
remote control to select Component.
Check whether cables of the same color
are connected properly.
$9287
/HIW
<3% 35
5LJKW
$8',2287
RED
RED RED
BLUE BLUE
BLUE
GREEN
GREEN
GREEN
WHITE
RED
$9287
/HIW 5LJKW
$8',2287
WHITE
WHITE
RED
RED
S
VOL -
VOL +
CH
CH
$9,1
$17(11$,1
&20321(17
,1
237,&$/
',*,7$/
$8',2287
/$1
'&,1
S
VOL -
VOL +
CH
CH
$9,1
$17(11$,1
&20321(17
,1
237,&$/
',*,7$/
$8',2287
/$1
'&,1
S
VOL -
VOL +
CH
CH
$9,1
$17(11$,1
&20321(17
,1
237,&$/
',*,7$/
$8',2287
/$1
'&,1
Connecting a PC
The projector supports Plug & Play. Your
PC will automatically detect the projector
and requires no driver installation.
HDMI Connection
Using an HDMI cable, connect the HDMI
port of the projector to the HDMI output
port of your PC. Both video and audio
are output at the same time.
S
VOL -
VOL +
CH
CH
$9,1
$17(11$,1
&20321(17
,1
237,&$/
',*,7$/
$8',2287
/$1
'&,1
S
VOL -
VOL +
CH
CH
$9,1
$17(11$,1
&20321(17
,1
237,&$/
',*,7$/
$8',2287
/$1
'&,1
+'0,
* Optional
Extras
* Accessories
(
Video
)
* Optional
Extras
(Audio)
* Optional
Extras
(Video)
* Optional
Extras
(Audio)
112
CONNECTING DEVICES
HDMI to DVI Connection
Using an HDMI to DVI cable, connect
the projector's HDMI port to the DVI
OUT port.
To output audio, use an audio cable for
connection.
Press the INPUT button on the remote
control to select HDMI.
DVI OUT
AUDIO OUT
S
VOL -
VOL +
CH
CH
$9,1
$17(11$,1
&20321(17
,1
237,&$/
',*,7$/
$8',2287
/$1
'&,1
S
VOL -
VOL +
CH
CH
$9,1
$17(11$,1
&20321(17
,1
237,&$/
',*,7$/
$8',2287
/$1
'&,1
S
VOL -
VOL +
CH
CH
$9,1
$17(11$,1
&20321(17
,1
237,&$/
',*,7$/
$8',2287
/$1
'&,1
NOTE
It is recommended to use an HDMI
connection for the best image
quality.
Depending on the graphics card,
DOS mode video may not work if a
HDMI to DVI Cable is in use.
In PC mode, there may be noise
associated with the resolution,
vertical pattern, contrast, or
brightness. If noise is present,
change the PC output to another
resolution, change the refresh
rate to another rate or adjust the
brightness and contrast on the
PICTURE menu until the picture is
clear.
The synchronization input form for
Horizontal and Vertical frequencies
is separate.
Depending on the graphics card,
some resolution settings may not
allow the image to be positioned on
the screen properly.
If you are using DVI out from a PC,
you have to connect analog audio
separately.
When using the HDMI/DVI cable,
Single link only is supported.
* Optional
Extras
(Audio)
* Optional
Extras
(Video)
113
CONNECTING DEVICES
Connecting a Laptop
You can connect the projector to a
laptop to use various functions.
HDMI Connection
Using an HDMI cable, connect the HDMI
port of the projector to the HDMI output
port of your laptop. Both video and audio
are output at the same time.
S
VOL -
VOL +
CH
CH
$9,1
$17(11$,1
&20321(17
,1
237,&$/
',*,7$/
$8',2287
/$1
'&,1
S
VOL -
VOL +
CH
CH
$9,1
$17(11$,1
&20321(17
,1
237,&$/
',*,7$/
$8',2287
/$1
'&,1
+'0,
The table below shows examples
of switching the output. For more
information, refer to the External
Output, Connecting to an External
Monitor, or similar sections of the
owner's manual of your computer.
Brand Switching Output
NEC Fn + F3
Panasonic Fn + F3
Toshiba Fn + F5
IBM Fn + F7
Sony Fn + F7
Fujitsu Fn + F10
LG Fn + F7
Samsung Fn + F4
Macintosh Adjust the control panel
to enable mirroring after
start-up.
* Optional
Extras
114
CONNECTING DEVICES
Connecting to
Headphones
You can listen to the audio through a
headphone.
S
VOL -
VOL +
CH
CH
$9,1
$17(11$,1
&20321(17
,1
237,&$/
',*,7$/
$8',2287
/$1
'&,1
S
VOL -
VOL +
CH
CH
$9,1
$17(11$,1
&20321(17
,1
237,&$/
',*,7$/
$8',2287
/$1
'&,1
* Optional
Extras
115
CONNECTING DEVICES
Connecting a Digital
Amp
Using an optical cable, connect the
digital audio input port of a digital amp
to the OPTICAL DIGITAL AUDIO OUT
port of the projector. The output of an
amp with a digital converter must be set
to the desired audio format. When using
a HDMI cable to connect a home theater
or when connecting an optical output
to an external audio device, set Sound
Out to External Speaker (Optical/HDMI
ARC) as shown below. If a projector,
home theater, or the speaker of an
external audio device is operating at the
same time, there will be an echo.
S
VOL -
VOL +
CH
CH
$9,1
$17(11$,1
&20321(17
,1
237,&$/
',*,7$/
$8',2287
/$1
'&,1
S
VOL -
VOL +
CH
CH
$9,1
$17(11$,1
&20321(17
,1
237,&$/
',*,7$/
$8',2287
/$1
'&,1
NOTE
Also, refer to the user manual of the
audio device to connect.
When connecting this product to
other devices, make sure to turn off
and unplug all the devices.
The audio output of this product
has wide-ranging audio bandwidth,
so the receiver volume must be
adjusted properly.
Speakers can be damaged by
unexpected high frequencies.
Connecting the OPTICAL DIGITAL
AUDIO OUT port of the projector
to the digital audio input port of a
digital amp and the audio input port
of the projector to the analog audio
output port of the digital amp can
cause sound oscillation due to the
closed loop. Remove one of the two
connections to prevent this.
(This also applies to home theater
devices.)
* Optional
Extras
116
CONNECTING DEVICES
Using the Mirroring Function of a Mobile Phone
MHL Connection
The Mobile High-denition Link (MHL) is an interface that can connect a mobile
phone to the projector and play video and audio from the mobile phone through the
projector.
This only applies to products with a HDMI input that supports MHL.
(To nd out whether your device is MHL-certied, please contact your device
manufacturer.)
For MHL support, check the HDMI port.
Use a dedicated cable for MHL.
S
VOL -
VOL +
CH
CH
$9,1
$17(11$,1
&20321(17
,1
237,&$/
',*,7$/
$8',2287
/$1
'&,1
* Optional Extras
NOTE
When you connect a mobile phone to the HDMI port, you can see the mobile
phone screen through a projector.
- This only applies to mobile phones that support MHL.
- You can use the remote control for some applications.
Disconnect the MHL cable from the projector when:
- The MHL function is disabled.
- Your mobile device is fully charged in standby mode.
117
MAINTENANCE
MAINTENANCE
Clean your Projector to keep it in optimal
condition.
Cleaning
Cleaning the Lens
If there is any dust or staining on the
lens surface, you must clean the lens.
Use an air spray or a cleaning cloth to
clean the lens.
To remove dust or stains, use an
air spray or apply a small amount of
cleaning agent onto a swab or soft cloth
to lightly rub the lens.
Please be aware that liquid may ow
into the lens if the product is sprayed
directly onto the lens.
Cleaning the Projector
Case
To clean the projector case, rst unplug
the power cord.
To remove dust or stains, use only a dry,
lint-free, nonabrasive cloth to polish the
lens.
Do not use alcohol, benzene, thinners,
or other chemicals, which may damage
the case.

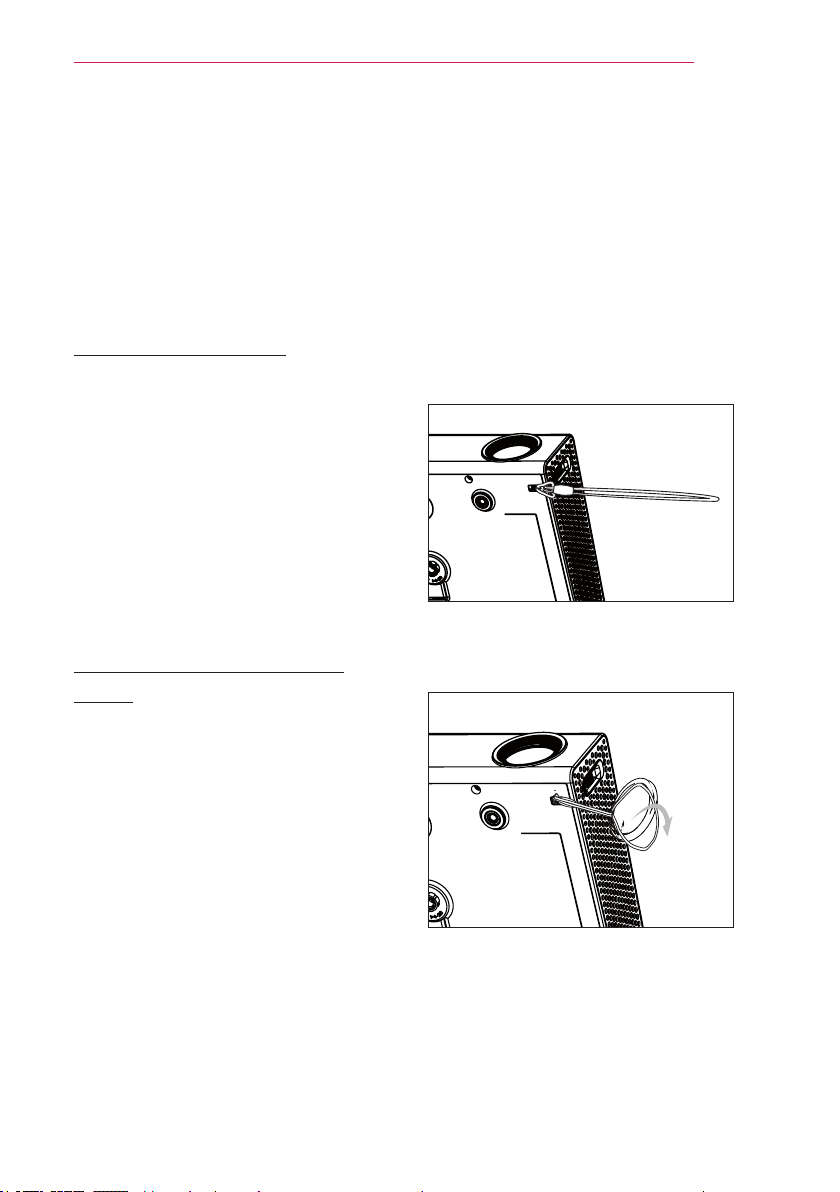

How to Attach the
Lens Cap
1 Prepare the lens cap and the strap
supplied as accessories.
2 Insert the end of the strap into the
hole at the bottom of the lens section
of the projector. Attach the strap to
the projector by inserting and pulling
the other end of the strap into the
other end.
3 Insert the other end of the strap into
the hole of the lens cap, and then
pass the lens cap through the strap.
118
INFORMATION
INFORMATION
To Update Projector Software
Uses Software Update to check and obtain the latest version.
It is also possible to check manually for available updates.
1 Press the SETTINGS button.
(Press the SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
button and select Settings.)
2 Select SUPPORT and go to Software Update.
Item Description
Software Update Set it to On.
If an update is available, a prompt will appear to perform
the update.
Automatic update
mode
If an update is available, the update automatically starts
without prompting.
Check Update Version Checks the latest update version installed. When a
new update is available, the download process can be
performed manually.
When the update starts, the update progress window appears for a short time and
disappears.
The latest version can be obtained via the digital broadcast signal or an internet
connection.
If software is not updated, certain functions may not work properly.
119
INFORMATION
Before Reporting a Problem, Check the
Following:
If the following symptoms occur, please carry out the checks and adjustments
described below. There may be no malfunction.
General
Problem Solution
Cannot view certain
programs.
Adjust the location or orientation of the antenna.
Save the programmes you wish to view later using
Auto Tuning or Channel Edit.
There is a delay after the
projector is switched on
before the image is fully
visible.
This is not a problem. Image noise that may occur
when the projector is first switched on is being
cleaned up.
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Settings → SUPPORT → Picture Test
First run a Picture Test to verify that the image signal output is normal.
If there is no problem with the test image, check external device connections and
broadcast signals.
Problem Solution
Images from previous
program or other programs
linger or the screen
displays annoying lines.
Adjust the orientation of the antenna to the TV
transmitter, or refer to the manual for instructions
on connecting the antenna.
Vibrating horizontal/vertical
lines and shnet patterns
appear momentarily.
Such a problem may happen when there is strong
electronic interference. Turn off other electronic
devices such as mobile phones, power tools, and
other small electrical appliances.
The screen display freezes
or does not work properly
during a digital broadcast.
This may occur in case of a weak signal or
unstable reception. Adjust the antenna orientation
and cable connections.
If the signal strength or quality is low on Manual
Tuning, check with the TV station or administration
office.
120
INFORMATION
Problem Solution
Digital broadcasting is not
available even though the
cable is connected.
Check with the cable operator providing your
subscription and/or signal. (Depending on your
subscription, digital broadcasting may not be
supported.)
The display is inactive or
unclear when connected to
an HDMI
source.
Check the HDMI cable specifications. If your
HDMI cable is not genuine, images may fade in
and out or not be displayed properly.
Ensure that all cables are securely connected.
When connections are not secure, images may
not be properly displayed.
Does not work with a USB
storage device.
Verify that the USB device and cable is version 2.0
or higher.
Sound
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Settings → SUPPORT → Sound Test
First run a Sound Test to verify that the sound signal output is normal.
If there is no problem with the test sound, check connected external devices and the
broadcast signal.
Problem Solution
Screen display is on but
there is no sound.
Check other TV programs.
Check if the audio output settings for the projector
are configured correctly.
For an analogue broadcast,
stereo is not clear or sound
comes from one speaker
only.
In a poor reception area (areas with weak or
unstable signals) or if multi audio is not stable,
select Mono on Multi Audio.
Adjust the balance using the navigation button.
TV sound is not in
sync with the image or
the sound breaks up
occasionally.
If the issue affects a specific TV program only, it
may be caused by problems with the broadcast
signal for the individual station. Check with the TV
station or your cable operator.
The volume changes when
I change program.
Volume can vary from program to program.
Set Auto Volume to On.
121
INFORMATION
Problem Solution
On certain programmes,
there is no sound at all, or
only the background music
can be heard
(in case of a programs
created for overseas
viewers).
In Language, set Language → Audio Language
to the language of your choice. Even if you change
the language on Multi Audio, you can go back to
the default setup once you turn off the power or
change the programme.
There is no sound when
connected to HDMI / USB.
Verify that the HDMI cable is high speed.
Check if the USB device and cable is version 2.0
or higher.
Use only regular music (*mp3) files.
PC Connection Problem
Problem Solution
The screen display
does not come on
after connecting to the
computer.
Verify that the computer and the projector are
securely connected.
Turn the projector off and back on using the
remote control.
Restart the PC with the projector on.
Check whether the resolution is correctly set for
PC input.
Reconnect the HDMI cable.
There is no sound after
connecting the computer
with the HDMI cable.
Check with manufacturer of your video card to
ensure it supports HDMI voice output. (Video
cards in DVI format require connection of a
separate sound cable.)
When connected to the
computer, the display is
partially cut off or shifts to
one side.
Set the resolution to support PC input. (If this does
not work, reboot the computer.)
122
INFORMATION
Problems Replaying Movies in My Media
Problem Solution
I cannot view the les on
the Movie List.
Check whether the file on the USB storage device
can be read on a computer.
Check whether the file extension is supported.
This le is invalid. message
appears or the image
display is not normal even
though the sound is OK.
Make sure that the file replays normally on the
computer's video player. (Check for damaged
files.)
Check whether the resolution is supported by the
computer.
Verify that the video/audio codec is supported.
Verify that the frame rate is supported.
Audio not supported.
message appears or the
sound is not normal even
though the image display
is OK.
Make sure that the file replays normally on the
computer's video player. (Check for damaged
files.)
Check if the audio codec is supported by the
computer.
Verify that the bit rate is supported.
Verify that the sample rate is supported.
Subtitles are not displayed.
Make sure that the file replays normally on the
computer's video player. (Check for damaged
files.)
Check if the video file has the same name as the
subtitle file.
Make sure that the video and subtitle files are in
the same folder.
Verify that the subtitle file format is supported.
Verify that the subtitle language is supported.
(Subtitle files can be opened in Notepad to check
the language.)
Image shown may differ from your projector.
For information on requesting service, refer to the following menu.
SMART
HOME
ⰶᲳ ㄮᗺ
ⱞⳮ
Ẳⱞ⩛
/
ხ㢢☎⳿
?
→ Settings → SUPPORT → Product/Service Info.
123
SPECIFICATIONS
SPECIFICATIONS
Model PA77U (PA77U-JE)
Resolution (Pixel) 1280 (Horizontal) × 800 (Vertical)
Aspect ratio 16:10 (Horizontal:Vertical)
Panel size (mm) 11.623
Projection distance
(Video size)
0.90 m to 3.06 m (76.2 cm to 254.0 cm)
35.4 inches to 120.4 inches (30 inches to 100 inches)
Ratio of upward
projection
100 %
Working range of
the remote control
6 m (236.2 inches)
AC-DC Adaptor
19.5 V , 7.18 A
Audio output 3 W + 3 W
Reception type NTSC-M, ATSC
Reception channels
VHF 2 to 13, UHF 14 to 69, CATV 1 to 135,
DTV 2 to 69, CADTV 1 to 135
External Antenna
Impedance
75 Ω
Height (mm)
Front Side
56.5 (without foot) (2.2 inches),
60.0 (with foot) (2.3 inches)
Rear Side
44.0 (without foot) (1.7 inches),
47.5 (with foot) (1.8 inches)
Width (mm) 230 (9.0 inches)
Depth (mm) 170 (6.6 inches)
Weight (g) 1350 (2.9 lbs)
USB Device 5 V, 0.5 A (Max.)
Operation
environment
Temperature
Operation 0 °C to 40 °C (32 °F to 104 °F)
Storage -20 °C to 60 °C (-4 °F to 140 °F)
Relative humidity
Operation 0 % to 80 %
Storage 0 % to 85 %
* Contents in this manual may be changed without prior notice due to upgrade of
product functions.
124
SPECIFICATIONS
If an invalid signal is input into the
product, it will not be displayed
properly on the screen or a message
such as No Signal or Invalid Format
will be displayed.
The product supports the DDC1/2B
type as the Plug & Play function
(Auto-recognition of PC monitor).
1280 x 800 is recommended as the
best picture quality in the PC mode.
Component supported mode
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
720 x 480i
15.73 59.94
15.75 60.00
720 x 480p
31.47 59.94
31.50 60
1280 x 720p
44.96 59.94
45.00 60.00
1920 x 1080i
33.72 59.94
33.75 60.00
1920 x 1080p
26.97 23.976
27.00 24.00
33.71 29.97
33.75 30.00
67.432 59.94
67.500 60.00
HDMI(DTV) supported mode
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
720 x 480
31.469 59.94
31.50 60.00
1280 x 720
44.96 59.94
45.00 60.00
1920 x 1080
33.72 59.94
33.75 60.00
26.97 23.97
27.000 24.000
33.716 29.976
33.75 30.00
67.43 59.94
67.500 60
HDMI (PC) supported mode
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
640 x 480 31.469 59.94
800 x 600 37.879 60.31
1024 x 768 48.363 60.00
1152 x 864 54.348 60.053
1280 x 800
49.68 60.00
1280 x 1024
63.981 60.020
1440 x 900
55.935 59.888
1400 x 1050
65.317 59.979
1600 x 900
60.000 60.00
1680 x 1050
65.290 59.954
1920 x 1080
67.5 60.00
125
SPECIFICATIONS
Component port Connecting
information
Component
ports on the TV
Y PB PR
Video output
ports on DVD
player
Y PB PR
Y B-Y R-Y
Y Cb Cr
Y Pb Pr
Open Source Software Notice
Information
To obtain the source code under GPL,
LGPL, MPL, and other open source
licenses, that is contained in this product,
please visit http://opensource.lge.com.
In addition to the source code, all
referred license terms, warranty
disclaimers and copyright notices are
available for download.
LG Electronics will also provide open
source code to you on CD-ROM for a
charge covering the cost of performing
such distribution (such as the cost of
media, shipping, and handling) upon
email request to [email protected].
This offer is valid for three (3) years from
the date on which you purchased the
product.
