OWNER’S MANUAL
DLP PROJECTOR
HX300G
HX301G
Please read this manual carefully before operating
your set and retain it for future reference.
www.lg.com
P/NO : MFL63282806 (1008-REV02)
DLP PROJECTOR
DLP PROJECTOR
This projector complies with EMC Directive and R&TTE Directive.
DE DK ES FI FR
GB GR HU IT NL
NO PL PT SE
Warning - Class B
(b) For a Class B Digital device or peripheral, the instructions furnished the user shall include the fol-
lowing or similar statement, placed in a prominent location in the text of the manual:
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protec-
tion against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
ENGLISH
Contents
3
Contents
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by
the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream
through designated collection facilities appointed by your government or your local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the
environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office,
waste disposal service or the shop where you purchased the product.
5. The fluorescent lamp used in this product contains a small amount of mercury. Do not dispose of this
product with general household waste. Disposal of this product must be carried out in accordance to
the regulations of your local authority.
Safety Instructions .......................................................4
Names of parts
Main Body ..........................................................................................7
Control Panel .....................................................................................7
Connecting Part .............................................................................. 8
Remote Control .............................................................................. 9
Installing Batteries ........................................................................... 9
Accessories ......................................................................................10
Optional Extras ..............................................................................10
Installing and Composition
Installation Precautions .................................................................. 11
Basic Operation of the Projector ...............................................12
How to install the projector using the tripod ..........................13
Kensington Security System .......................................................13
Turning on the Projector ..............................................................14
Turning off the Projector ..............................................................14
Focus and Position of the Screen Image ................................14
Selecting input mode ...................................................................14
Connection
Connecting to a Desktop PC ......................................................15
Connecting to a Video Source ...................................................15
Connecting to a DVD Player .......................................................16
Connecting to a D-TV Set-Top Box ..........................................16
Function
PICTURE Menu Options
Picture mode ................................................................................... 17
Adjusting Picture Mode ................................................................ 17
Advanced Control Function .........................................................18
Color Temperature Function ........................................................19
Picture Reset Function ..................................................................19
SCREEN Menu Options
To Change PJT Mode ..................................................................20
Using Aspect Ratio Function .....................................................20
Using Keystone Function ............................................................20
Auto Configure Function ..............................................................21
RGB Config. Function ...................................................................21
Using the Still Function ................................................................21
AUDIO Menu Options
What is FM Wireless Audio? (HX300G only) .......................22
Installing Instructions (HX300G only) .....................................23
What do I do if the FM receiving signal is not good?
(HX300G only) .............................................................................23
To listen through the FM receiver speaker
(HX300G only) .............................................................................24
Adjusting Volume ..........................................................................24
Function Audio ...............................................................................24
Adjusting Speaker Balance ........................................................25
Adjusting Treble .............................................................................25
TIME Menu Options
Sleep time Function .....................................................................26
Auto Off Function .........................................................................26
OPTION Menu Options
Selecting Language ..................................................................... 27
Using Blank Function ................................................................... 27
Selecting Blank image ................................................................. 27
Screen Capture Function ............................................................28
To adjust the brightness of the screen ...................................28
To make the power of the projector turn on automatically
when power is in...........................................................................28
Demo Mode Function ..................................................................29
Initial Setting Function .................................................................29
INFORMATION Menu Options
To See The Projector Information .............................................29
USB
To use the USB device

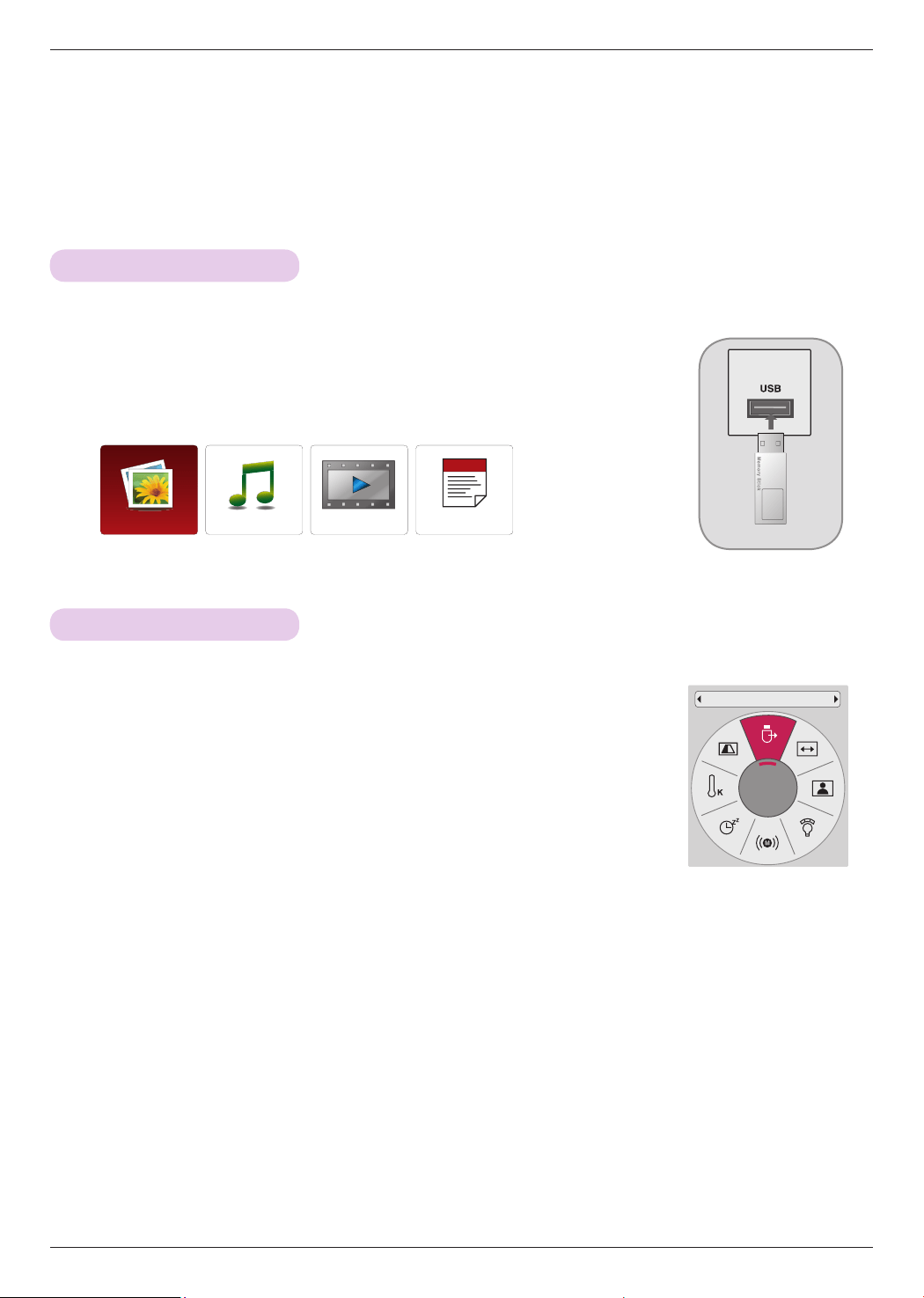

Connecting the USB device .......................................................30
Eject USB ........................................................................................30
Precautions when using the USB device ................................31
PHOTO LIST
Screen Components ....................................................................32
Photo Selection and Popup Menu ...........................................32
Full Screen Menu ..........................................................................33
MUSIC LIST
Screen Components ....................................................................34
Music Selection and Popup Menu ...........................................34
MOVIE LIST
Supported Movie File ...................................................................35
Precautions when playing the DivX ........................................36

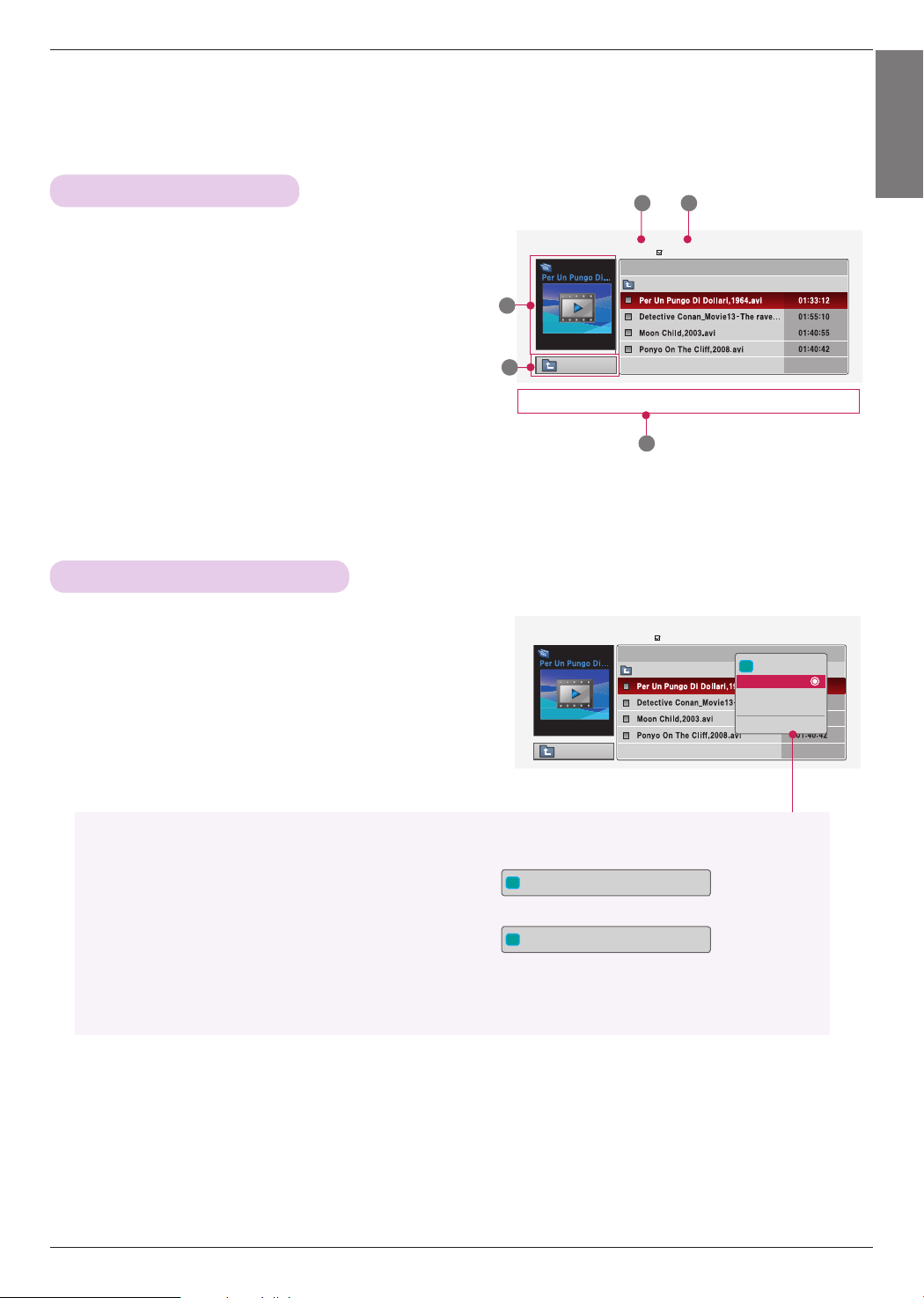

Screen Components .................................................................... 37
Movie Selection and Popup Menu ........................................... 37
Playing the Movie ..........................................................................38
Option Menu Selection................................................................38
To See The DivX Registration Code.........................................39
Deactivation Function ...................................................................39
FILE VIEWER
Screen Components ....................................................................40
View File ...........................................................................................40
Information
Supported Monitor Display ..........................................................41
Maintenance .................................................................................... 41
Specifications .................................................................................42
Open Source Software Notice ...................................................43
Safety Instructions
4
Safety Instructions
Please take note of the safety instructions to prevent any potential accident or misuse of the projector.
ꔈ Safety Instructions are given in two forms as detailed below.
WARNING : The violation of this instruction may cause serious injuries and even death.
NOTES : The violation of this instruction may cause injuries or damage to the projector.
ꔈ
After reading this manual, keep it in the place that you can access easily.
Indoor Installation WARNING
Do not place the Projector in direct
sunlight or near heat sources such
as radiators, fires, stove etc.
This may cause a fire hazard!
Do not place flammable materi-
als in, on or near the projector.
This may cause a fire hazard!
Do not hang on the installed
projector.
It may cause the projector to fall,
causing injury or death.
Power WARNING
Indoor Installation NOTES
Earth wire should be connected.
Ensure that you connect the earth ground
wire to prevent possible electric shock (That
is a Projector with a three-prong grounded
AC plug must be connected to a three-
prong grounded AC outlet).
If grounding methods are not possible, have
a qualified electrician install a separate circuit
breaker.
Do not try to ground the unit by connecting
it to telephone wires, lightening rods, or gas
pipes.
The power cord should be inserted
fully into the power outlet to avoid
a fire hazard!
This may cause a fire hazard or damage
the unit.
Do not place heavy objects on
the power cord.
This may cause a fire or an electric
shock hazard!
Do not place the projector close
to sources of steam or oil such
as a humidifier.
This may create a fire hazard or an
electric shock hazard!
Do not place the projector where
it might be exposed to dust.
This may cause a fire hazard or
damage to the unit!
Do not block the vents of the pro-
jector or restrict air-flow in any way.
This would cause the internal tempera-
ture to increase and could cause a fire
hazard or damage to the unit!
Ensure good ventilation around the
projector. The distance between
the projector and the wall should
be more than 30 cm.
An excessive increase in its internal
temperature may cause a fire hazard or
damage to the unit!
Do not use the projector in a
damp place such as a bathroom
where it is likely to get wet.
This may cause a fire or an electric
shock hazard!
Do not place the projector direct-
ly on a carpet, rug or place where
ventilation is restricted.
This would cause its internal tempera-
ture to increase and might create a
fire hazard or damage the unit.
When installing the projector on
a table, be careful not to place it
near the edge.
The projector could fall causing injury
and damage to the projector.
Only use a suitable stand.
Only use the projector on a level
and stable surface.
It may fall and cause injury and/or
damage to the unit.
Disconnect from the power sup-
ply and remove all connections
before moving, or cleaning.
ENGLISH
Safety Instructions
5
Using WARNING
If water is spilt into the projector unplug it from the power supply
immediately and consult your Service Agent.
This may cause an electric shock hazard or damage to the unit!
Dispose of used batteries
carefully and safely.
In the case of a battery being
swallowed by a child please consult
a doctor immediately.
CAUTION concerning the Power Cord
It is recommend that most appliances be placed on a dedicated circuit; that is, a single outlet circuit
which powers only that appliance and has no additional outlets or branch circuits.Check the specification
page of this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords,
frayed power cords, or damaged or cracked wire insulation are dangerous.Any of these conditions could
result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance
indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord
replaced with an exact replacement part by authorized service personnel.
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched,
closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the
cord exits the appliance.
Do not remove any covers. High
risk of Electric Shock!
Don’t look directly into the lens
when the projector is in use. Eye
damage may occur!
Do not touch metal parts during
or soon after operation since the
vents will remain very hot!
Power WARNING
Power NOTES
Do not plug-in too many items
into one power outlet.
It may result in overheating of the out-
let and create a fire hazard!
Never touch the power plug with
a wet hand.
This may cause an electric shock
hazard!
Prevent dust from collecting on
the power plug pins or outlet.
This may cause a fire hazard!
Hold the plug firmly when
unplugging. If you pull the cord,
it may be damaged.
This may cause a fire hazard!
Do not use if the power cord or
the plug is damaged or any part
of the power outlet is loose.
This may cause a fire or an electric
shock hazard or damage to the unit!
Ensure the power cord does not
come into contact with sharp or
hot objects.
This may cause a fire or an electric
shock hazard or damage to the unit!
Place the projector where people
will not trip or tread on the power
cord.
This may cause a fire or an electric
shock hazard or damage to the unit!
Do not turn the projector On/Off by plugging-in or unplugging the
power plug to the wall outlet.
(Allow the unit to cool before removing power.)
It may cause mechanical failure or could cause an electric shock.
Do not place anything containing
liquid on top of the projector
such as flowerpot, cup, cosmet-
ics or candle.
This may cause a fire hazard or
damage to the unit!
In case of impact shock or damage
to the projector switch it off and
unplug it from the power outlet and
contact an authorized service center.
This may cause a fire or an electric shock
hazard or damage to the unit!
Do not allow any objects to fall
into the projector.
This may cause an electric shock haz-
ard or damage to the unit!
Safety Instructions
6
Using NOTES
Do not place heavy objects on
top of projector.
This may cause mechanical failure or
personal injury!
Take care not to impact the lens
particularly when moving the
projector.
Do not touch the lens of the pro-
jector. It is delicate and easily
damaged.
Others NOTES
Cleaning NOTES
Contact the Service
Center once a year to
clean the internal
parts of the projector.
Accumulated dust can
cause mechanical failure.
When cleaning the plastic parts such as projector case, unplug the power and
wipe it with a soft cloth. Do not use cleanser, spray water or wipe with a wet
cloth. Especially, never use cleanser (glass cleaner), automobile or industrial
shiner, abrasive or wax, benzene, alcohol etc., which can damage the product.
Use an air spray or soft cloth that is moist with a neutral detergent and water
for removing dust or stains on the projection lens.
It can cause fire, electric shock or product damage (deformation, corrosion and damage).
Cleaning WARNING
Do not use water while cleaning
the projector.
This may cause damage to the pro-
jector or an electric shock hazard.
In the unlikely event of smoke or
a strange smell from the projec-
tor, switch it off, unplug it from
the wall outlet and contact your
dealer or service center.
This may cause a fire or an electric
shock hazard or damage to the unit!
Use an air spray or soft cloth that
is moist with a neutral detergent
and water for removing dust or
stains on the projection lens.
Others WARNING
Do not attempt to service the projector yourself. Contact your dealer or service center.
This may cause damage to the projector and could give an electric Shock as well as invalidating the warranty!
Using WARNING
If the projector is in a room that experiences a gas leak, do not touch
the projector.
It can cause a fire or a burn by a spark.
Always open the lens door or
remove the lens cap when the
projector lamp is on.
Do not use any sharp tools on
the projector as this will damage
the casing.
In the event that an image does
not appear on the screen please
switch it off and unplug it from the
power outlet and contact your
Service Agent.
This may cause a fire or an electric
shock hazard or damage to the unit!
Do not drop the projector or
allow impact shock.
This may cause mechanical failure or
personal injury!
Be sure to unplug if the projector is
not to be used for a long period.
Accumulated dust may cause a fire haz-
ard or damage to the unit!
Only use the specified type
of battery.
This could cause damage to the
remote control.
Do not mix new batteries with old
batteries.
This may cause the batteries to over-
heat and leak.
ENGLISH
Speaker
Names of parts
7
Names of parts
Main Body
* The projector is manufactured using high-precision technology. You may, however, see on the Projector screen tiny black
points and/or bright points (red, blue, or green). This can be a normal result of the manufacturing process and does not
always indicate a malfunction.
Control panel
Exhaustion Direction
High heat is generated, so do
not get near the exhaustion
direction during the use.
Focus ring
Speaker
Control Panel
MENU Button
Displays or closes menus.
POWER Button
Turns ON/OFF the projector.
∧/∨/＜/＞ Button
Adjusts functions of menus.
◉OK Button
Checks present mode and saves the change of functions.
* Do not touch the lens when using the projector or opening the lens door.
Names of parts
8
Connecting Part
USB
Headphone port
IR (Remote control sensor)
*
Do not block the IR port for normal operation
of remote control.
* When using HDMI/USB connector, if the size of the jack connecting
to the connector is too big, they may not be connected. Please use
standard size jack.
RGB IN
AUDIO IN
DC IN
Kensington Security
System Connector
(Refer to page 13)
VIDEO IN
HDMI
ENGLISH
Names of parts
9
Remote Control
Installing Batteries
INPUT Button
KEYSTONE ꔌ,ꔍ Button
MENU Button
USB control Buttons
AUTO Button
VOLUME ∧/∨ Button
RATIO Button
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED WITH AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
MUTE Button
BACK Button
OK◉, ∧/∨/＜/＞ Button
STILL Button
( Functions as the STILL button in
any mode other than DivX.)
BLANK Button
USB Button
Q.MENU Button
POWER Button
• Open the battery compartment cover on the back of the remote control.
• Insert the specified type of batteries with correct polarity, match “+” with “+”,
and match “-” with “-”.
• Install two 1.5V AAA batteries. Don’t mix used batteries with new batteries.
PAGE ∧/∨ Button
MARK Button
Names of parts
10
Ceiling mount for projector
Accessories
Optional Extras
* Contact your dealer to purchase these items.
* Optional parts can be changed without notice to improve the quality of the product, and new optional parts can be added.
▪ Use a remote control up to 6 m distance and 30° (left/right) within the
receiving unit scope.
▪ We recommend you to use the remote control under 3 m distance and
30° (left/right) when the cables are connected in the back outputs.
▪ When you carry the remote control in the portable bag, make sure that
the buttons on the remote control are not pressed by the projector,
cables, documents or any other accessories in the bag. Otherwise, it
may reduce the battery life significantly.
Remote Control AAA Battery Owner’s manual
Power Cord Computer Cable AC-DC Adapter RGB to Component Cable
Portable bag Polishing Cloth
Projection Screen Tripod HDMI Cable
Video Cable Audio Cable Component Cable
30° 30°
ENGLISH
Installing and Composition
11
Installing and Composition
Provide proper ventilation for this projector.
Place this projector in adequate temperature and humidity conditions.
• Install this projector only in a location where adequate temperature and humidity is available. (refer page 42)
Don’t place the projector where it can be covered with dust.
• This may cause overheating of the projector.
This projector is manufactured using high-precision technology. You may, however, see tiny black points and/or bright
points (red, blue or green) that continuously appear on the projector Screen. This is a normal result of the manufacturing
process and does not indicate a malfunction.
To display DTV programs, it is necessary to purchase a DTV receiver (Set-top Box) and connect it to the projector.
Installation Precautions
The remote control may not work when a lamp equipped with electronic ballast or a three-wavelength lamp is installed.
Replace those lamps with international standard products to use the remote control normally.
Do not obstruct the slots and openings of the projector. This may cause overheating and create a fire hazard.
• The projector is equipped with ventilation holes(intake) on
the bottom and ventilation holes(exhaust) on the front. Do
not block or place anything near these holes. Internal heat
build-up may occur, causing picture degradation or dam-
age to the projector.
• Do not place the projector on a carpet, rug or other similar
surface. It may prevent a adequate ventilation of the pro-
jector bottom. This product should be mounted to a wall
or ceiling only.
• Never push projector or spill any kind of liquid into the
projector.
• Leave an adequate distance (30 cm or more) around the
projector.
Installing and Composition
12
1 . Place the projector on a sturdy and horizontal surface with the PC or AV source.
2 . Place the projector with the desired distance from the screen. The distance between the projector and the
screen determines the actual size of the image.
3 . Position the projector so that the lens is set at a right angle to the screen. If the projector is not set at a
right angle, the screen image will be crooked. Although, slight angles can be counteracted using the
Keystone adjustement. (Refer to page 20.)
4 . Connect the power cable to the projector and the wall outlet after placing the projector in its desired loca-
tion.
projection distance based on the picture format
Projection distance (D)
Projection offset ratio: 110%
38.6 mm
Projection distance (D)
Basic Operation of the Projector
Screen
Screen height (X)
X/2
X/2
Y/2
Y/2
Screen
Screen Width (Y)
4 : 3 Scale
Diagonal Size (mm) Horizontal Size (mm) Vertical Size (mm)
Projection Distance (D)
(mm)
ENGLISH
Installing and Composition
13
• This projector has a Kensington Security System Connector on the side panel. Connect the Kensington Security System
cable as below.
• For the detailed installation and use of the Kensington Security System, refer to the user’s guide included with the
Kensington Security System set. And for further information, contact http://www.kensington.com, the internet homepage
of the Kensington company that deals with expensive electronic equipment such as notebook PCs or projectors.
• The Kensington Security System is an optional item.
Kensington Security System
* You can install this projector using a tripod for the camera. You can assemble the projector instead of the camera on camera
tripod.
* When stabilizing the tripod, we recommend using the locking bolt of the standard size 4.5 mm or less.The maximum size
allowed for the locking bolt is 6.5 mm.(If it is longer than the maximum allowed size, it may damage the projector.)
How to install the projector using the tripod
+ =
Camera Tripod
Part connected to the tripod
Finished condition when projector is install on the tripod
Part connected to the projector
Bottom side of Projector
Installing and Composition
14
Selecting input mode
1 . Press the INPUT button on the remote control.
2 . Selecting an input signal with the INPUT button will only change the projector only to connected inputs. You
can change it to any inputs with the ＜, ＞ button.
• The component input is always active, and it does not support plug &play function.
Input
ComponentVideo RGB HDMI
Turning on the Projector
1 . Make sure the power cord is connected correctly.
2 . Press the POWER button on the top cover or the POWER button on the remote control. (The light on the
control panel will be turned on.)
• Press the INPUT button on the remote control to select the input signal you want.
• When you press the POWER button on the remote control or the POWER button on the control panel when you
turn on the projector, the lights for all buttons on the control panel will be turned on.
• Check if the lens door is open before turning on the power.
Turning off the Projector
Press the POWER button on the top cover or the POWER button on the remote control.
When an image appears on the screen, check if it is in focus and fits the screen properly.
• To adjust the focus of the image, rotate the focus ring.
Focus ring
Focus and Position of the Screen Image
ENGLISH
Connection
15
Connection
Connecting to a Desktop PC
* You can connect the projector to a computer with VGA, SVGA, XGA, SXGA output.
* Refer to page 41 for resolutions the projector supports.
< How to connect >
1 . Connect the RGB IN of the projector and the comput-
er output port with a computer cable.
2 . Connect the AUDIO IN of the projector and the com-
puter audio output port with an audio cable.
* You may have to change the resolution that your PC
exports to one supported by the projector. (Refer to page
41.) This projector may not support output from laptops
when the laptop screen is on.
Connecting to a Video Source
< How to connect >
1 . Connect the VIDEO IN of the projector to the output
jack of the video source with a video cable.
2 . Connect the AUDIO IN of the projector to the output
jack of the audio source with an audio cable.
* You can connect a VCR, a camcorder or any other compatible video image source to the projector.
<VCR>
Audio Cable
Audio Cable
Audio Cable
Video Cable
Computer Cable
Computer Cable
Connection
16
Connecting to a DVD Player
< How to connect a Component source >
1 . After connecting the Component cable of DVD Player
to the RGB to Component cable, connect it to the
RGB IN terminal of the projector.
* When connecting the component cable, match the jack
colors with the component cable.(Y=green, PB=blue, PR
=red)
2 . Connect the AUDIO IN of the projector to the output
jacks of the audio source with an audio cable.
< How to connect a HDMI source >
1 . Connect the HDMI of the projector and the HDMI out-
put port of the DVD Player with an HDMI cable.
2 . Set the DVD Player's resolution to one of the following:
480p(576p)/720p/1080i/1080p mode.
* Depending on the equipment, the component output jacks (Y, PB, PR) of the DVD Player may be labeled as Y, Pb, Pr/Y, B-Y, R-Y/Y, Cb, Cr.
<DVD Player>
Component cable
Component cable
Connecting to a D-TV Set-Top Box
< How to connect a HDMI source >
1 . Connect the HDMI of the projector and the HDMI out-
put port of the DTV set-top box with an HDMI cable.
2 . Set the DTV receiver's resolution to one of the follow-
ing: 480p(576p)/720p/1080i/1080p mode.
* To receive Digital TV (D-TV) programs, it is necessary to purchase a D-TV receiver (Set-Top Box) and connect it to
the projector.
* Please refer to the owner's manual of the D-TV Set-Top Box for the connection between the projector and D-TV
Set-Top Box.
< How to connect a Component source >
1 . Connect the D-TV Set-Top Box Component cable with
RGB to Component cable and than connect it to RGB
IN of the projector.
* When connecting the component cable, match the jack
colors with the component cable.(Y=green, PB=blue, PR
=red)
2 . Connect the AUDIO IN of the projector to the output
jacks of the audio source with an audio cable.
<D-TV Set-Top Box>
<D-TV Set-Top Box>
RGB to Component
Cable
RGB to Component
Cable
<DVD Player>
HDMI Cable
HDMI Cable
Audio Cable
Audio Cable
ENGLISH
Function
17
PICTURE Menu Options
1 . Press the MENU button. Then, move to PICTURE with the
∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2 . Press the ∧, ∨ buttons to move to a desired function and
press the ◉OK button.
3 . Press the ＜, ＞ buttons to make a desired adjustment and
then press the ◉OK button.
• You can set image values differently for each input and Picture Mode.
• Saving after making adjustments will display (User) in adjusted Picture Mode.
(except Expert 1/2)
• Execute Picture Reset for Picture Mode to restore back to default factory set-
tings.
• Press the BACK button to exit the menu screen.
Adjusting Picture Mode
Function
* The On-Screen Display (OSD) in this manual may be slightly different from your projector.
* This operating guide explains operation of RGB(PC) mode mainly.
1 . Press the Q.MENU button on the remote control.
2 . Press the ＜, ＞ buttons to move to Picture mode.
3 . Press the ∧, ∨ button to toggle through the preset picture settings.
Picture mode
* Use the Picture mode function to set the projector for the best picture appearance.
• You can use this function through the MENU button.
• Press the BACK button to exit the menu screen.
ꔂMove ꔉOK
Picture Mode : Standard
• Contrast 50
• Brightness 50
• Sharpness 5
• Color 70
• Tint 0
• Advanced Control
• Picture Reset
G
ꔗ
Vivid
ꔃ ꔗ
Standard
ꔃ ꔗ
Cinema ►
ꔗ
Sport
ꔃ
ꔗ
Expert2
ꔃ ꔗ
Expert1
ꔃ ꔗ
Game
ꔃ
Picture Mode
Standard
Function
18
1 . Press the MENU button. Then, move to PICTURE with
the ∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2 . Press the ∧, ∨ buttons to move to Advanced Control
and press the ◉OK button.
3 . Move to a desired item with the ∧, ∨ buttons.
4 . Press the ＜, ＞ buttons to make a desired adjustment
and then press the ◉OK button.
• You can set image values differently for each input and Picture
Mode.
• Execute Picture Reset for Picture Mode to restore back to default
factory settings.
• Press the BACK button to exit the menu screen.
Advanced Control Function
OK
Move
Picture Mode : Standard
• Contrast 50
• Brightness 50
• Sharpness 5
• Color 70
• Tint 0
• Advanced Control
• Picture Reset
R G
OK
Move
Picture Mode : Standard
• Contrast 50
• Brightness 50
• Sharpness 5
• Color 70
• Tint 0
• Advanced Control
• Picture Reset
R G
< When Picture Mode is Vivid/Standard/Cinema/Sport/
Game >
< When Picture Mode is Expert 1/2 >
ꔗ
Medium
ꔃ
High
High
Medium
Medium
High
Off
Wide
On
Close
Color Temperature
Dynamic Contrast
Dynamic Color
Noise Reduction
Gamma
Black Level
Film Mode
Color Gamut
Edge Enhancer
ꔗ
High
ꔃ
High
High
High
On
Standard
Wide
On
Cool
Close
Dynamic Contrast
Noise Reduction
Gamma
Black Level
Film Mode
Color Standard
Color Gamut
Edge Enhancer
White Balance
ꔍ
Color Temperature
- This function enables Vivid/Standard/Cinema/Sport/Game.
ꔈSet to warm to enhance hotter colors such as red, or set to cool to make picture bluish.
Dynamic Contrast
ꔈAdjusts the contrast to keep it at the best level according to the brightness of the screen.
The picture is improved by making bright parts brighter and dark parts darker.
Dynamic Color
- This function enables Vivid/Standard/Cinema/Sport/Game.
ꔈAdjusts screen colors so that they look livelier, richer and clearer. This feature enhances
hue, saturation and luminance so that red, blue, green and white look more vivid.
Noise Reduction
ꔈReduces screen noise without compromising video quality.
Gamma
Low : Make dark and middle gray level area of the picture brighter.
Medium: Express original picture levels.
High: Make dark and middle gray level area of the picture darker.
ꔈYou can adjust brightness of dark area and middle gray level area of the picture.
Black Level
Low: The reflection of the screen gets darker.
High: The reflection of the screen gets brighter.
ꔈSet black level of the screen to proper level.
ꔈThis feather is disables in RGB mode.
Film Mode
ꔈMakes video clips recorded in film look more natural by eliminating judger effect.
ꔈDVD and Blu-ray movies are filmed at 24 frames per second.
Color Gamut
Standard: Displays standard color area.
Wide: Mode to use and set the rich color area of the display.
ꔈMaximize the utilization of color to increase color quality.
Edge Enhancer
ꔈShow clearer and distinctive yet natural corners of the video.
Color Standard
ꔈConvert the color of a different video to HD color.
ENGLISH
Function
19
1 . Press the MENU button. Then, move to PICTURE with the
∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2 . Press the ∧, ∨ buttons to move to Picture Reset and press
the ◉OK button.
3 . Press the ＜, ＞ buttons to move to Yes and press the ◉OK
button.
• Press the BACK button to exit the menu screen.
Picture Reset Function
* Settings of the selected PICTURE function for each input and Picture Mode return to the default factory settings.
ꔂMove ꔉOK
Picture Mode : Standard(User)
• Contrast 50
• Brightness 50
• Sharpness 5
• Color 70
• Tint 0
• Advanced Control
• Picture Reset
R G
White Balance
- This function enables Expert 1/2.
ꔈThis is the function to adjust the overall color of the screen to the feeling you want.
a. Method : 2 Points
- Pattern: Inner, Outer
- Red/Green/Blue Contrast, Red/Green/Blue Brightness: The adjustment range is -50 ~
+50.
b. Method : 20 Points IRE
- Pattern: Inner, Outer
- IRE (Institute of Radio Engineers) is the unit to display the size of the video signal and
can be set among 5, 10, 15 - 95, 100. You can adjust Red, Green or Blue according to
each setting.
- Red/Green/Blue: The adjustment range is -50 - +50.
Color Management
System
- This function enables Expert 1/2.
ꔈAs the tool used by the experts to make adjustments by using the test patterns, this does
not affect other colors but can be used to selectively adjust the 6 color areas (Red/Green/
Blue/Cyan/Mgt/Yellow).
Color difference may not be distinctive even when you make the adjustments for the gen-
eral video.
Adjusts Red/Green/Blue/Yellow/Cyan, Magenta.
- Red/Green/Blue/Yellow/Cyan, Magenta Color: The adjustment range is -30 ~ +30.
- Red/Green/Blue/Yellow/Cyan, Magenta Tint: The adjustment range is -30 ~ +30.
- This feature is disable in PC mode.
1 . Press the Q.MENU button on the remote control.
2 . Press the ＜, ＞ buttons to move to Color Temperature.
3 . Press the ∧, ∨ button to toggle through the preset picture settings.
Color Temperature Function
• This function enables Vivid/Standard/Cinema/Sport/Game.
• You can use this function through the MENU button.
• Press the BACK button to exit the menu screen.
ꔗ
Medium
ꔃ ꔗ
Warm
ꔃ ꔗ
Cool
ꔃ
Color Temperature
Cool
Function
20
SCREEN Menu Options
• Select Rear when projecting from the back of the transparent screen purchased
separately.
• Select Ceiling when installing the product on the ceiling.
• When PJT Mode is Rear/Ceiling, the left/right of the speaker changes automatically.
• You can use this function through the MENU button.
• Press the BACK button to exit the menu screen.
To Change PJT Mode
* This function turns the projected image upside down or flips horizontal.
Press the RATIO button to select a desired screen size.
Using Aspect Ratio Function
• Some options may not be available depending on input signals.
• You can use this function through the MENU button.
• Press the BACK button to exit the menu screen.
ꔗ
4:3
ꔃ
ꔗ
Just Scan
ꔃ ꔗ
Set By Program
ꔃ
ꔗ
Cinema Zoom1
ꔃ ꔗ
Zoom
ꔃ ꔗ
16:9
ꔃ
1 . Press the KEY.Sꔌ, KEY.Sꔍ button of remote control.
2 . Press the KEY.Sꔌ, KEY.Sꔍ button to adjust the screen condition as
you want.
• Keystone can be adjusted from -40 to 40.
• You can use this function through the MENU button.
• Press the BACK button to exit the menu screen.
Using Keystone Function
* Use this function when the screen is not at a right angle to the projector and the image is a trapezoid shape.
* Only use the Keystone function when you can’t get the best angle of projection.
•Keystone 0
ꔗ
ꔃ
ꔉOK
- +
PJT Mode
Front
Aspect Ratio
16:9
1 . Press the Q.MENU button on the remote control.
2 . Press the ＜, ＞ buttons to move to PJT Mode.
3 . Press the ∧, ∨ button to select a desired item.
ENGLISH
Function
21
RGB Config. Function
1 . Press the STILL button on the remote control.
* You can freeze the moving image.
2. To exit STILL, press any button.
* The STILL function will release automatically after approximately 10 minutes.
Using the Still Function
< Moving Image >
< Still Image >
RGB Config.
Auto Config.
Position
Resolution ꔃ
Size
Phase
Reset
ꔐ 1024 x 768
1280 x 768
1360 x 768
ꔂMove ꕉPrev.
Press the AUTO button of the remote control.
• If you execute screen adjustment for a video from PC graphic signal, optimal
state may not be found. Execute the Auto Config. function for a still image.
• You can use this function through the MENU button.
Auto Configure Function
* This function assures you of getting the best video quality by automatically adjusting the horizontal size and
synchronization of the image.
* Auto Tracking function works in RGB PC input only.
Auto config.
1 . Press the MENU button. Then, move to SCREEN with the
∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2 . Press the ∧, ∨ buttons to move to RGB Config. and press
the ◉OK button.
3 . Move to a desired item with the ∧, ∨ buttons and then
press the ＞ button.
4 . Press the ∧, ∨, ＜, ＞ button to adjust the screen condi-
tion as you want and then press the ◉OK button.
• Resolution can be chosen between 768 resolution (1024x768/1280x768/1360x768, 60Hz).
• Press the BACK button to exit the menu screen.
Function
22
AUDIO Menu Options
FM Wireless Audio is a function to send out audio signals from the projector using FM frequency (88.5 MHz
~ 95.5 MHz).
The frequency of Projector and FM receiver should be same in order to output the sound from FM receiver
normally.
The signal can be received by using FM receiver within 1 m of distance.
What is FM Wireless Audio? (HX300G only)
< The recommended use range of FM receiver >
Install projector and FM receiver without any abstacles as shown on the figure below.
A FM receiver can be reached 1.5 m when the antenna length and direction are good.
< The recommended length of FM receiver Antenna >
We recommend to use a rod antenna 0.8 m ~ 1.5 m for better sound quality since audio noise can be
detected when using under 0.8 m rod antenna.
Audio Signal 88.5 MHz ~95.5 MHz
Receiving range
Within 1 m
FM Receiver
Projector
Front
45° 45°
45° 45°
ENGLISH
Function
23
• If used in a medical institution, it may cause an error for medical equipments. Please do not use in a
medical establishment.
• Please maintain the distance between the projector and FM receiver within 1 m.
• The sound from FM receiver may not come out in the desired quality if the distance is more than 1 m.
• Please adjust the location of FM receiver and its antenna and install them to where it shows a good con-
dition of receiving reception.
• According to the installed location and environment, the receiving distance may become shorter and the
sound may be interrupted due to:
- If an obstacle is located near the projector and FM receiver.
- If an obstacle passes near by the projector and FM receiver.
- If the FM receiver is installed Left, Right, or diagonal line of projector
- If the Projector or the FM receiver is located inside of a rack made of metal.
- If other FM transmitter equipment is working near at the same frequency.
- If there is a radio broadcast on air at the same frequency.
- If working in the dusty, humid, or high temperature environment.
Installing Instructions (HX300G only)
• Please adjust the antenna of FM receiver or move the location of FM receiver.
• If there is no Audio signal or low reception, within 55 seconds the FM Wireless Audio function will
shut down automatically.
• Please check the incoming audio signal.
• Please check if the power of projector or FM receiver is on.
• Please check if there is any obstacle between the projector and FM receiver.
• Please check if there is any metallic hardware or electronic product nearby.
• Please check if there is any radio broadcasting channel using the same frequency.
• If there is a radio broadcasting channel using the same frequency, please change to a different
frequency on the projector.
• Please move the location of adaptor or cables which are connected to projector. Adaptor or cables
may affect the receiving reception.
What do I do if the FM receiving signal is not good? (HX300G only)
Function
24
To listen through the FM receiver speaker (HX300G only)
Adjusting Volume
Function Audio
Press the VOLUME ∧, ∨ button on the remote control.
• If FM Wireless Audio is On, it does not function. Adjust with FM receiver.
• You can use this function through the MENU button.
1 . Press the Q.MENU button on the remote control.
2 . Press the ＜, ＞ buttons to move to Audio.
3 . Press the ∧, ∨ button to select a desired item.
ꔂMove ꔉOK
AUDIO
FM Wireless Audio : Off
• Frequency 88.5 MHz
Volume 50
Balance 0
Treble 0
L R
1 . Press the MENU button. Then, move to AUDIO with the
∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2 . Press the ∧, ∨ buttons to move to FM Wireless Audio
and press the ◉OK button.
3 . Press the ∧, ∨ buttons to move to On and press the
◉OK button.
4 . Press the ∧, ∨ buttons to move to Frequency and press the ◉OK button.
5 . Press the ＜, ＞ buttons to adjusting frequency and press the ◉OK button.
6 . Set the frequency of FM receiver to the frequency of the set projector.
• Setting FM Wireless Audio as On disables Mute/Volume/Balance/Treble functions.
• There may be differences in the reception distance and the audio quality according to the type of FM receiver and
installation locations.
• FM frequency can be set between 88.5 MHz ~95.5 MHz.
• If you don’t use the FM receiver or audio signals from the projector, Off should be selected.
• When power is back on, it is changed to Off status.
• Press the BACK button to exit the menu screen.
Audio
L+R
• This function enables if connected a headphone.
• Press the BACK button to exit the menu screen.
ꔗ
L+R
ꔃ
ꔗ
R+R
ꔃ ꔗ
L+L
ꔃ
ENGLISH
Function
25
Adjusting Speaker Balance
Adjusting Treble
AUDIO
FM Wireless Audio : Off
• Frequency 88.5 MHz
Volume 50
Balance 0
Treble 0
L R
AUDIO
FM Wireless Audio : Off
• Frequency 88.5 MHz
Volume 50
Balance 0
Treble 0
L R
1 . Press the MENU button. Then, move to AUDIO with the
∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2 . Press the ∧, ∨ buttons to move to Treble and press
the ◉OK button.
3 . Press the ＜, ＞ buttons to adjusting audio treble and
press the ◉OK button.
• If FM Wireless Audio is On, it does not function. Adjust with FM receiver.
• Press the BACK button to exit the menu screen.
1 . Press the MENU button. Then, move to AUDIO with the
∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2 . Press the ∧, ∨ buttons to move to Balance and press
the ◉OK button.
3 . Press the ＜, ＞ buttons to adjusting audio balance and
press the ◉OK button.
• If FM Wireless Audio is On, it does not function. Adjust with FM receiver.
• Press the BACK button to exit the menu screen.
* Adjust the treble your taste and room situations.
* Adjust the left/right sound of speaker to suit your taste and room situations.
ꔂMove ꔉOK
ꔂMove ꔉOK
Function
26
* The sleep timer turns the projector off at the preset time.
1 . Press the Q.MENU button on the remote control.
2 . Press the ＜, ＞ buttons to move to Sleep Timer.
3 . Press the ∧, ∨ buttons to select a desired preset time.
• You can use this function through the MENU button.
• Press the BACK button to exit the menu screen.
Sleep time Function
Auto Off Function
TIME Menu Options
1 . Press the MENU button. Then, move to TIME with the
∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2 . Press the ∧, ∨ buttons to move to Auto Off and
press the ◉OK button.
3 . Move to a desired item with the ∧, ∨ buttons and
then press the ◉OK button.
• Press the BACK button to exit the menu screen.
* This function turns the projector off automatically after the preset time is passed when there is no signal.
ꔗ
Off
ꔃ ꔗ
10 Min.
ꔃ ꔗ
20 Min.
ꔃ ꔗ
30 Min.
ꔃ
ꔗ
240 Min.
ꔃ ꔗ
180 Min.
ꔃ ꔗ
120 Min.
ꔃ ꔗ
90 Min.
ꔃ
ꔗ
60 Min.
ꔃ
TIME
Sleep Timer : Off
Auto Off : 60 Min.
ꔂMove ꔉOK
Sleep Timer
Off
ENGLISH
Function
27
OPTION Menu Options
1 . Press the MENU button. Then, move to OPTION with the
∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2 . Press the ∧, ∨ buttons to move to Menu Language and
press the ◉OK button.
3 . Move to a desired item with the ∧, ∨, ＜, ＞ buttons and
then press the ◉OK button.
• On-Screen-Display (OSD) is displayed in the selected language.
• Press the BACK button to exit the menu screen.
Selecting Language
1 . Press the BLANK button on the remote control.
• The screen turns off to a background color.
• You can choose the background color.
(Refer to ‘Selecting Blank image’)
2 . Press any button to cancel the blank function.
• To temporarily turn off the lamp, press BLANK on the remote control. Do not block the projection lens with any
objects when the projector is under operation as this could cause the objects to become heated and deformed or
even cause a fire.
Using Blank Function
* This function may be effective if you need to get the attention of the audience during presentations, meetings or briefings.
1 . Press the MENU button. Then, move to OPTION with the
∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2 . Press the ∧, ∨ buttons to move to Blank Image and
press the ◉OK button.
3 . Move to a desired item with the ∧, ∨ buttons and then
press the ◉OK button.
• Background image will be altered to the selected Blank function image.
• If there is no Screen Captured, selecting Captured Image will display the Logo.
• Press the BACK button to exit the menu screen.
Selecting Blank image
OPTION
Menu Language : English
Blank Image : Blue
Screen Capture
LED Mode : Normal
Auto Power : Off
Demo Mode : Off
Initial Setting : Home Use
OPTION
Menu Language : English
Blank Image : Blue
Screen Capture
LED Mode : Normal
Auto Power : Off
Demo Mode : Off
Initial Setting : Home Use
ꔂMove ꔉOK
ꔂMove ꔉOK
Function
28
1 . Press the MENU button. Then, move to OPTION with the
∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2 . Press the ∧, ∨ buttons to move to Auto Power and
press the ◉OK button.
3 . Press the ∧, ∨ buttons to move to On and press the
◉OK button.
• On: Connecting DC cable to the projector turns on the projector.
• Off: Connecting DC cable to the projector makes the projector in standby state.
• Press the BACK button to exit the menu screen.
To make the power of the projector turn on automatically when power is in
OPTION
Menu Language : English
Blank Image : Blue
Screen Capture
LED Mode : Normal
Auto Power : Off
Demo Mode : Off
Initial Setting : Home Use
1 . Press the Q.MENU button on the remote control.
2 . Press the ＜, ＞ buttons to move to LED Mode.
3 . Move to a desired item with the ＜, ＞ buttons.
• LED Mode changes into Dimming mode automatically at specific temperatures (37°C or
higher). Dimming mode gets about 90% brightness of original led mode.
• LED Mode changes into Dimming mode automatically if use a optical battery.
• You can use this function through the MENU button.
• Press the BACK button to exit the menu screen.
To adjust the brightness of the screen
ꔂMove ꔉOK
LED Mode
Normal
1 . Press the MENU button. Then, move to OPTION with
the ∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2 . Press the ∧, ∨ buttons to move to Screen Capture
and press the ◉OK button.
• It can only be elected when there is an input signal.
• It takes up to 2 minutes when capturing screen.
• Press the BACK button to exit the menu screen.
Screen Capture Function
OPTION
Menu Language : English
Blank Image : Blue
Screen Capture
LED Mode : Normal
Auto Power : Off
Demo Mode : Off
Initial Setting : Home Use
ꔂMove ꔉOK
ENGLISH
Function
29
INFORMATION Menu Options
1 . Press the MENU button. Then, move to INFORMATION with
the ∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2 . You can see the current information of the projector.
• Press the BACK button to exit the menu screen.
To See The Projector Information
1 . Press the MENU button. Then, move to OPTION with the
∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2 . Press the ∧, ∨ buttons to move to Demo Mode and press
the ◉OK button.
3 . Press the ∧, ∨ buttons to move to On and press the
◉OK button.
• It can be selected when Initial Setting is set as Store Demo.
• Press the BACK button to exit the menu screen.
1 . Press the MENU button. Then, move to OPTION with the
∧, ∨, ＜, ＞ buttons and press the ◉OK button.
2 . Press the ∧, ∨ buttons to move to Initial Setting and
press the ◉OK button.
3 . Move to a desired item with the ∧, ∨ buttons and then
press the ◉OK button.
• Set as Home Use when used in homes.
• Press the BACK button to exit the menu screen.
OPTION
Menu Language : English
Blank Image : Blue
Screen Capture
LED Mode : Normal
Auto Power : Off
Demo Mode : Off
Initial Setting : Store Demo
OPTION
Menu Language : English
Blank Image : Blue
Screen Capture
LED Mode : Normal
Auto Power : Off
Demo Mode : Off
Initial Setting : Home Use
INFORMATION
Model Name : HX300
Input : RGB
Resolution : 1024 x 768
Fh/Fv : 48.36 Khz/60 Hz
ꔂMove ꔉOK
ꔂMove ꔉOK
Initial Setting Function
Demo Mode Function
USB
30
* When you connect a USB device, this screen is displayed, automatically.
In USB device, you can not add a new folder or delete the existing folder.
USB
To use the USB device
* Image shown may differ from your projector.
Connecting the USB device
1 . Connect the USB device to the USB jack on the back of the set.
2 . It turns automatically to DivX Home Menu.
* Select “Eject” in order to eject a USB device.
Eject USB
USB memory stick
PHOTO LIST
MUSIC LIST
MOVIE LIST FILE VIEWER
1 . Press the Q.MENU button on the remote control.
2 . Press the ＜, ＞ buttons to move to USB Device.
3 . Press the ◉OK button on the remote control.
• After Eject USB, USB memory cannot be read. Remove USB memory, and connect
again.
• Press the BACK button to exit the menu screen.
USB Device
Eject ꔉ
ENGLISH
USB
31
Precautions when using the USB device
► Only a USB storage device is recognizable.
► If the USB storage device is connected through a USB hub, the device is not recognizable.
► A USB storage device using an automatic recognition programmed may not be recognized.
► A USB storage device which uses its own driver may not be recognized.
► The recognition speed of a USB storage device may depend on each device.
► Please do not turn off the projector or unplug the USB device when the connected USB storage device is working. When
such device is suddenly separated or unplugged, the stored files or the USB storage device may be damaged.
► Please do not connect the USB storage device which was artificially maneuvered on the PC. The device may cause the
product to malfunction or fail to be played. Never forget to use only a USB storage device which has normal music files,
image files, movie files or text files.
► Please use only a USB storage device which was formatted as a FAT16, FAT32 and NTFS file system provided with the
Windows operating system. In case of a storage device formatted as a different utility programmed which is not support-
ed by Windows, it may not be recognized.
► Please connect power to a USB storage device which requires an external power supply. If not, the device may not be rec-
ognized.
► Please connect a USB storage device with cable is offered by USB maker. If connected with cable is not offered by USB
maker or an excessively long cable, the device may not be recognized.
► Some USB storage devices may not be supported or operated smoothly.
► If the name of a folder or file is too long, it will not be displayed or recognized.
► File alignment method of USB storage device is similar to Window XP and filename can recognize up to 100 English
characters.
► Please backup the important file because a data of USB device may be damaged. Data management is consumer's
responsibility and in consequence the manufactures does not cover the product bearing data damage.
► The recommended capacity is 1TB or less for a USB external hard disk and 32GB or less for USB memory. Any device
with more than the recommended capacity may not work properly.
► Only the FAT32 file system supports the delete function.
► If the USB memory device does not work properly, disconnect and reconnect it.
► If a USB external hard disk with a “Energy Saving” function does not work, turn the hard disk off and on again to make it
work properly.
► USB storage devices below USB 2.0 are supported as well. But they may not work properly in the movie list.
► If your USB memory device has multiple partitions, or if you use a USB multi-card reader, you can use up to 4 partitions
or USB memory devices.
► How fast a USB memory device is detected differs from device to device.
► If the USB is connected in Standby Mode, specific hard disk will automatically be loaded when the projector is turned on.
► Some USB storage devices may not be supported or operated smoothly.
USB
32
ꔂ
Navigation
ꔉ
PopUp Menu
꘧
Page Change
ꘁ
Mark
ꕉ
Exit
PHOTO LIST
* It is available to playback the photo file(*.jpg) in the USB device.
The On Screen Display may be different from your set. Images are an example to assist with the projector operation.
PHOTO(*.JPEG) supporting file
Baseline : 64 x 64 ~ 15360 x 8640
Progressive : 64 x 64 ~ 1920 x 1440
• You can play JPEG files only.
• Non-supported files are displayed in the form of predefined icon.
Screen Components
Photo Selection and Popup Menu
1 . Moves to upper level file
2 . Preview: Display the thumbnail/folder name of the photo
in the selected folder
3 . Current page/Total pages
4 . Total number of marked photos
5 . Corresponding buttons on the remote control
1 . Press the USB button. Then, move to PHOTO LIST with
the ＜, ＞ buttons and press the ◉OK button.
2 . Press the ∧, ∨, ＜, ＞ buttons to move to a desired
photo file and press the ◉OK button.
3 . Move to a desired item with the ∧, ∨ buttons and then
press the ◉OK button.
• If the picture file is damaged, it may not be displayed properly.
• High resolution pictures may take longer time to display on the entire screen.
Page 1/1
No Marked
PHOTO LIST
1366
x
768 125KB
ꔂ
Navigation
ꔉ
PopUp Menu
꘧
Page Change
ꘁ
Mark
ꕉ
Exit
Butterfly
Up Folder
X.Box
DSC0001
DSC0002
DSC0003
DSC0004
2
1
3 4
5
Page 1/1
No Marked
PHOTO LIST
Up Folder
1366
x
768 125KB
[090704]
Butterfly
Up Folder
X.Box
DSC0001
DSC0002
DSC0003
DSC0004
i 1366x768, 125KB
View
Mark All
Delete
Close
• View: Display the selected item.
• Mark All: Mark all photos on the screen.
• Delete: Delete the selected photo item.
• Close: Close the pop-up menu.
[090704]
Up Folder
ENGLISH
USB
33
Full Screen Menu
1 . Press the USB button. Then, move to PHOTO LIST with the
＜, ＞ buttons and press the ◉OK button.
2 . Press the ∧, ∨, ＜, ＞ buttons to move to desired photo and
press the ◉OK button.
3 . Press the ∧, ∨ buttons to move to View and press the ◉OK
button.
4 . The selected photo is displayed in full size and show up the
menu.
5 . Use ∧, ∨, ＜, ＞ button to select and control the menu on
the full-sized screen.
Slideshow BGM Delete Option Hide
• Use ＜, ＞ button to select the previous or next photo.
• Slideshow: Selected photos are displayed during the slide show. If no photo is selected, all photos in
the current folder are displayed during slide show.
- Set the time interval of the slide show in Option.
• BGM: Listen to music while viewing photos in full size.
- Set the BGM device and album in Option.
• (Rotate): Rotate photos.
• Delete: Delete photos.
• Option: Set values for Slide Speed and Music Folder.
- You cannot change Music Folder while BGM is playing.
• Hide: Hide the menu on the full-sized screen.
- To see the menu again on the full-sized screen, press ◉OK button to display.
USB
34
ꔂ
Navigation
ꔉ
PopUp Menu
꘧
Page Change
ꘁ
Mark
ꕉ
Exit
MUSIC LIST
* You can use the Music List menu to play MP3 files form a USB storage device.
The On Screen Display on your model may be slightly different.
1 . Moves to upper level file
2 . Preview: Display the title/folder name of the music in
the selected folder
3 . Current page/Total pages
4 . Total number of marked music
5 . Corresponding buttons on the remote control
Page 1/1
No Marked
MUSIC LIST
ꔛ 00:00 / 05:42
Drive 1
Flower
Up Folder
Oblivious
Flower
05:24
05:42
2
1
3 4
MUSIC (*.MP3) supporting file
Bit rate range 32 Kbps ~ 320 Kbps
• Sampling rate MPEG1 Layer3 : 32kHz, 44.1kHz, 48kHz
• Sampling rate MPEG2 Layer3 : 16kHz, 22.05kHz, 24kHz
• Sampling rate MPEG2.5 Layer3 : 8kHz, 11.025kHz, 12kHz
5
Up Folder
Music Selection and Popup Menu
1 . Press the USB button. Then, move to MUSIC LIST with
the ＜, ＞ buttons and press the ◉OK button.
2 . Press the ∧, ∨, ＜, ＞ buttons to move to a desired
music file and press the ◉OK button.
3 . Move to a desired item with the ∧, ∨ buttons and then
press the ◉OK button.
Page 1/1
No Marked
MUSIC LIST
Up Folder
ꔛ 00:00 / 05:42
Drive 1
Arirang
Up Folder
Good Bye
Arirang
05:30
04:12
i
3945 KB,128 Kbps
Play
Play with Photo
Mark All
Delete
Close
• Play: Once a song finishes playing, the next selected one will be played. When there are no selected
music to play, the next one in the current folder will be played. If you go to a different folder and
press the ◉OK button, the current music in playback will stop.
When music is playing, is displayed in front of the music play time.
After certain time elapsed,the full music list screen disappears and the playback information
screen which is on the top of the music list runs as a screen saver. Press ◉OK, ▇ , or BACK
button to stop the screen saver.
A damaged or corrupted music file that does not play displays 00:00 as the play time.
Music files with copy-protection will not play.
• Play with Photo: Start playing the selected music and then move to the PHOTO LIST.
• Mark All: Mark all music in the folder.
• Delete: Delete the selected music.
• Close: Close the pop-up menu.
ꔂ
Navigation
ꔉ
PopUp Menu
꘧
Page Change
ꘁ
Mark
ꕉ
Exit
Title Duration
Title Duration
Screen Components
ENGLISH
USB
35
MOVIE LIST
* The movie list is activated once USB is detected. It is used when playing movie files on projector.
Supported Movie File
Extension name Video Codec Audio Codec
Max Resolution
mpg, mpeg, vob MPEG1, MPEG2 Dolby Digital,MPEG,MP3,LPCM
1920x1080
@30p
dat MPEG1 Dolby Digital,MPEG,MP3,LPCM
ts,trp,tp MPEG2, H.264/AVC Dolby Digital,AAC,MPEG
mp4
MPEG4 SP, MPEG4 ASP, Divx 3.11, Dvix 4.12, Dvix 5.x
Dvix 6, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03
Xvid 1.10–beta 1, Xvid 1.10-beta 2, H.264/AVC
Dolby Digital,HEAAC,
AAC,MPEG,MP3,LPCM
avi
MPEG 2, MPEG 4 SP, MPEG4 ASP, Divx 3.11, Divx 4
Divx 5, Divx 6, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03
Xvid 1.10–beta 1, Xvid 1.10–beta 2, H.264/AVC
Dolby Digital,HEAAC,AAC,MPEG,
MP3,LPCM
mkv H.264/AVC, MPEG 1, MPEG 2, MPEG 4 SP, MPEG4 ASP Dolby Digital,HEAAC,AAC,MPEG,MP3,LPCM
divx
MPEG 2, MPEG 4 SP, MPEG4 ASP, Divx 3.11, Divx 4
Divx 5, Divx 6, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03
Xvid 1.10–beta 1, Xvid 1.10–beta 2, H.264/AVC
Dolby Digital,HEAAC,AAC,MPEG,
MP3,LPCM
Bit rate range : within 32 kbps ~ 320 kbps (MP3)
Subtitle format : *.smi/*.srt/*.sub(MicroDVD, SubViewer1.0/2.0)/*.ass/*.ssa/*.txt(TMPlayer)/*.psb(PowerDivx)
USB
36
Precautions when playing the DivX
► A DivX movie file and its subtitle file must be located in the same folder.
► At this time, a movie file name and its subtitle file name must be identical for it to be displayed.
► Specific subtitles created by the user may not be operated normally.
► Some special characters are not supported in subtitles.
► HTML tags are not supported in subtitles.
► Subtitles in languages other than the supported languages are not available.
► Time information in an external subtitle file should be arranged in ascending order to be played.
► Damaged movie files may not be played, and certain functions could be limited during the playback.
► Certain video files created with an encoder may not be played.
► If the video and audio structure of recorded file is not interleaved, either video or audio is outputted.
► Video with resolution higher than maximum resolution supported for each frame, cannot be guaranteed for smooth
playback.
► DTS Audio codec is not supported.
► Playback for movie file exceeding 30 GB (Giga Byte) is not supported.
► Playing a video through a USB connection that doesn’t support high speed may not work properly.
► When watching a video using MOVIE LIST, the function to ajdust screen deos not work.
► The screen may suffer temporary interruptions (image stoppage, faster playback, etc.) when the audio language is
changed.
► Movie files other than the specified types and formats may not work properly.
► Max bitrate of playable movie file is 20Mbps.
► Files encoded with GMC(Global Motion Compensation) may not be played.
► When you are watching the movie by Movie List function, user setup for each image mode does not operate.
► Only the files saved in ASCII CODE is supported for the external subtitles of the movie.
► Only 500 alphabets and 500 numbers are supported for each line of the subtitle.
► Only 10000 of sync blocks can be supported within the subtitle file.
ꔈ ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an official DivX Certified device that
plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.
ꔈ ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-
Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go
to vod.divx.com with this code to complete the registration process and learn more about DivX VOD.
ꔈ "DivX Certified® to play DivX® video up to HD 1080p, including premium content"
ꔈ "Pat. 7,295,673; 7,460,688; 7,519,274
Manufactured under license from Dolby Laboratories. “Dolby “and the double-D symbol are trademarks of
Dolby Laboratories.
ENGLISH
USB
37
1 . Moves to upper level folder
2 . Preview: Display the title/folder name of the movie in the
selected folder
3 . Current page/Total pages
4 . Total number of marked movies
5 . Corresponding buttons on the remote control
Up Folder
Page 1/1
No Marked
MOVIE LIST
704 x 396 668 MB
Movie
Up Folder
Up Folder
Page 1/1
No Marked
MOVIE LIST
704 x 396 668 MB
Movie
Up Folder
Movie Selection and Popup Menu
Screen Components
2
3 4
5
1
i
704 x 396 668 MB
Play
Mark All
Delete
Close
1 . Press the USB button. Then, move to MOVIE LIST with
the ＜, ＞ buttons and press the ◉OK button.
2 . Press the ∧, ∨, ＜, ＞ move to a desired movie file and
press the ◉OK button.
3 . Move to a desired item with the ∧, ∨ buttons and then
press the ◉OK button.
• Play: Play the selected movie titles.
- In the case of files not supported, a message regarding non-supported file is displayed.
- The screen is played, but when the audio file is not supported, the following message shows.
• Mark All: Mark all movies in the folder.
• Delete: Delete the selected movie.
• Close: Close the pop-up menu.
i
This file is invalid.
i
Unsupported Audio.
ꔂ
Navigation
ꔉ
PopUp Menu
꘧
Page Change
ꘁ
Mark
ꕉ
Exit
ꔂ
Navigation
ꔉ
PopUp Menu
꘧
Page Change
ꘁ
Mark
ꕉ
Exit
Title Duration
Title Duration
USB
38
Option Menu Selection
Playing the Movie
1 . Press the USB button. Then, move to MOVIE LIST with
the ＜, ＞ buttons and press the ◉OK button.
2 . Press the ∧, ∨, ＜, ＞ move to a desired movie file and
press the ◉OK button.
3 . Press the ∧, ∨ buttons to move to Play and press the
◉OK button.
On MOVIE LIST play mode.
Press the (RED) button on the remote control.
* You can adjust various method during the movie play.
◆ Use of remote control
ꔈ
Press the ▶II (Play/Pause) button to play/pause the screen.
ꔈ Press the ▇ (Stop) button to stop.
ꔈ Press the I◀◀ (Skip -) button to play the previous movie.
ꔈ Press the ▶▶I (Skip +) button to play the next movie.
ꔈPicture Size: Select the Full or Original screen size.
ꔈPicture Mode: Select the Vivid, Standard, Cinema, Sport or Game.
ꔈ Audio Language: Select Language Group of the audio during movie play.
ꔈ Subtitle Language: Select Language Group of the subtitle during movie play. Subtitle
language option can be differ according to choice of the language
for menu.
- Sync: When the video is not synchronized with the caption, it can be adjusted by the
unit of 0.5 second.
- Position: Move the location of the subtitle.
Picture Size
Picture Mode
Audio Language
Subtitle Language
Sync
Position
ꔗ
Full
ꔃ
Standard
Latin1
0
0
Close
Full
Option
Subtitle Language Group Supported Language
Latin1
French, Spanish, Catalan Basque, Portuguese, Italian, Albanian, Rhaeto-Romanic, Dutch, German,
Danish, Swedish, Norwegian, Finnish, Faeroese, Icelandic, Irish, Scottish, English
Latin2
Czech, Hungarian, Polish, Romanian, Croatian, Slovak, Slovenian, Servian
Latin4
Estonian, the Baltic languages Latvian(Lettish)and Lithuanian, Greenlandic and Lappish
Latin5
English, Turkish
Cyrillic
Bulgarian, Byelorussian, Macedonian, Russian, Serbian and pre-1990 (no ghe with upturn)Ukrainian
Greek
English, modern Greek
Hebrew
English, modern Hebrew
Chinese
Chinese
Korean
English, Korean
Arabic
English, Arabic
ENGLISH
USB
39
To See The DivX Registration Code
1 . Press the MENU button. Then, move to USB with the ∧, ∨, ＜, ＞
buttons and press the ◉OK button.
2 . Press the ∧, ∨ buttons to move to DivX Reg. Code and press the
◉OK button.
3 . You can see the DivX registration code of the projector.
• With a DivX registration code from other projector, playback of rented
or purchased DivX file is not allowed. (Only DivX files matched with the
registration code of the purchased projector are playable.)
• The video or audio of a file converted based on a standard other than the DivX codec standard may be corrupted
or unable to be played.
• Press the BACK button to exit the menu screen.
* Confirm the DivX registration code number of the projector.
Using the registration number, movies can be rented or purchased at www.divx.com/vod.
Deactivation Function
1 . Press the MENU button. Then, move to USB with the ∧, ∨, ＜, ＞
buttons and press the ◉OK button.
2 . Press the ∧, ∨ buttons to move to Deactivation and press the
◉OK button.
3 . Move to a desired item with the ＜, ＞ buttons and then press the
◉OK button.
• DRM (Digital Rights Management) function:
These are the technology and the service that prevents the illegal use of digital contents to protect the copyrights
owners’ benefits and rights. File can be played after the license is cleared through the methods of online, etc.
• Press the BACK button to exit the menu screen.
* Delete the existing authentication information to receive a new DivX user authentication for projector. Once this function is
executed, a DivX user authentication is required again to see DivX DRM files.
USB
PHOTO LIST
MUSIC LIST
MOVIE LIST
FILE VIEWER
DivX Reg. Code
Deactivation
USB
PHOTO LIST
MUSIC LIST
MOVIE LIST
FILE VIEWER
DivX Reg. Code
Deactivation
ꔂMove ꔉOK
ꔂMove ꔉOK
USB
40
FILE VIEWER
Screen Components
1 . Moves to upper level file
2 . Preview: Display the title/folder name of the file in
the selected folder
3 . Current page/Total pages
4 . Corresponding buttons on the remote control
Page 1/1
FILE VIEWER
Drive 1
Requiem 2 story.txt
Title Date
Up Folder
information.ppt
Requiem 2 story.txt
2
1
3
4
Up Folder
ꔂ
Navigation
ꔉ
PopUp Menu
꘧
Page Change
ꕉ
Exit
Supported File : XLS, DOC, PPT, TXT, XLSX, PPTX, DOCX, PDF
• Microsoft Office Version 97 / 2000 / 2002 / 2003 / 2007
• Adobe PDF Version 1.0 / 1.1 / 1.2 / 1.3 / 1.4
- FILE LIST realigns the document, so it may look different from the PC.
- For the documents that include images, the resolution may look lower during the realigning process.
- If the document volume is big or it has many pages, the loading may take long time.
- For some fonts that are not supported, they may be replaced with other fonts.
View File
1 . Press the USB button. Then, move to FILE VIEWER
with the ＜, ＞ buttons and press the ◉OK button.
2 . Press the ∧, ∨, ＜, ＞ move to a desired file and press
the ◉OK button.
Menu Go Page Zoom Hide
• Use Page
∧, ∨
button to move the previous or next page.
• Go Page: Move to a desired page.
1. Move to Go Page with ＜, ＞ buttons and press ∧ button.
2. Press the ∧, ∨, ＜, ＞ buttons select a desired page and press the ◉OK button.
• Zoom: Zoom in or zoom out.
1. Move to Zoom with ＜, ＞ buttons and press ∧ button.
2. Press the ＜, ＞ buttons select a desired page and press the ◉OK button.
• Hide: Close the menu.
- To see the menu again on the full-sized screen, press MENU button to display.
0 3 /14 page
100 % - + horizontal array vertical array
◉OK
ENGLISH
Information
41
Supported Monitor Display
* The following table lists the display formats supported by the projector.
* If the projector does not support the input signal,
“Invalid Format” message appears on the screen.
* The projector supports DDC1/2B type as Plug &
Play function. (Auto recognition of PC monitor)
* PC synchronization signal types supported
:Separate type synchronization.
* To get the the best picture quality, adjust the PC
graphics card to 1024x768.
Format Vertical Freq.(Hz) Horizontal Freq.(kHz)
* Cable type
1- RGB to Component Cable
2- HDMI Cable
< DVD/DTV Input >
Information
Signal Component-*1 HDMI-*2
NTSC (60 Hz)
480i O X
480p O O
720p O O
1080i O O
1080p O O
PAL (50 Hz)
576i O X
576p O O
720p O O
1080i O O
1080p O O
24 / 30 Hz 1080p
O O
Cleaning the lens
If there is any dust or stain on the surface of the lens, you must always clean the lens. Use an air spray or cleaning cloth
for product exterior, provided with the product, to lightly clean the product. Please use a recommended air spray or lens
cleaning product.To clean lens, small amount of cleaning agent on a swab or a soft cloth and rub on the lens. Please be
aware that liquid may flow pass through the lens if the product is sprayed on lens directly.
Cleaning the Projector Case
To clean the projector case, first unplug the power cable. To remove dirt or dust, wipe the casing with polish cloth provid-
ed. When you want to remove the dust or stain on the lens, use the cloth for product exterior, provided with the product.
Do not use alcohol, benzene, thinners or other chemical detergents as these can cause the casing to be warped or discol-
ored.
* The projector needs little maintenance. You should keep the lens clean because any dirt or stains may appear on the
screen. If any parts need to be replaced, contact your dealer. When cleaning any part of the projector, always turn the
power off and unplug the projector first.
Maintenance
Information
42
MODEL
HX300G (HX300G-JE) / HX301G (HX301G-JE)
Resolution 1024 (Horizontal) x 768 (Vertical) pixel
Horizontal / Vertical Ratio 4:3 (horizontal:vertical)
Panel size (mm) 13.97
Projection distance
(Screen size)
0.55 m - 2.75 m (50.8 cm - 254.0 cm)
Projection Offset 110 %
Remote control distance 6 m
Video compatibility NTSC/PAL/SECAM/NTSC4.43/PAL-M/PAL-N/PAL-60
AC-DC Adapter
LG, PA-1121-04, 19.5 V , 6.15 A
LG, SD-B191A, 19.5 V , 5.64 A
Audio Output 1W + 1W
Height (mm) 57.5 (without foot), 61.0 (with foot)
Width (mm) 160
Length (mm) 135.5
Weight (g) 786
USB Device 5 V, 0.5 A (max)
Operating Condition
Temperature
In operation : 0°C ~ 40°C (presentation mode: 0°C ~ 37°C)
In storage and transit : -20°C ~ 60°C
Humidity
In operation : 0 % ~ 80% relative humidity
Not in operation : 0 % ~ 85% relative humidity
FM Transmitter Spec
(HX300G only)
Frequency Band : 88.5 MHz ~ 95.5 MHz
Channel Spacing : 200 KHz
Transmition Power : Under 250 uV/m
Specifications
ENGLISH
Information
43
Open Source Software Notice
The following GPL executables and LGPL, MPL libraries used in this product are subject to the
GPL2.0/LGPL2.1/MPL1.1 License Agreements:
GPL EXECUTABLES:
Linux kernel 2.6, busybox, lzo, u-boot
LGPL LIBRARIES:
uClibc
MPL LIBRARIES:
nanox
LG Electronics offers to provide source code to you on CD-ROM for a charge covering the cost of
performing such distribution, such as the cost of media, shipping and handling upon e-mail request
to LG Electronics at: [email protected]
This offer is valid for a period of three (3) years from the date of the distribution of this product by
LG Electronics.
You can obtain a copy of the GPL, LGPL licenses from http://www.gnu.org/licenses/ and a copy of
MPL license from http://www.mozilla.org/MPL/
Also you can obtain the translation of GPL, LGPL licenses from
http://www.gnu.org/licenses/old-licenses/gpl-2.0-translations.html,
http://www.gnu.org/licenses/old-licenses/lgpl-2.1-translations.html.
This product includes
► cmap: copyright © 1990-1998 Adobe Systems Incorporated.
► GIF LZW Decoder: copyright © 1987, by Steven A. Bennett
► md5: copyright © 1991-2, RSA Data Security, Inc
► jpeg: Independent JPEG Group, copyright © 1991 – 1998, Thomas G. Lane.
► libpng: copyright © 2004 Glenn Randers-Pehrson
► OSSP str - String Handling:
- copyright © 1999-2005 Ralf S. Engelschall <rs[email protected]om>
- copyright © 1999-2005 The OSSP Project http://www.ossp.org/
► random number generator : copyright © 1990, 1993 The Regents of the University of California.
► Standard C functions
- copyright © 1998 Softweyr LLC.
- copyright © 1988, 1993 The Regents of the University of California.
► tinyxml: copyright © 2000-2006 Lee Thomason
► zlib: copyright © 1995-2002 Jean-loup Gailly and Mark Adler.
All rights reserved.
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and
associated documentation files (the "Software"), to deal in the Software without restriction, including
without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to whom the Software is furnished to do so, subject
to the following conditions:
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS
FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS
OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY,
WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR
IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
The model and serial number of the projector is
located on the back or one side of the projector.
Record it below should you ever need service.
MODEL
SERIAL
LG Customer Information Center
1-800-243-
0000
1-888-865-3026
1-888-542-2623
USA, Consumer User
USA, Commercial User
CANADA
