Caution!
WARNING: Please use this product as instructed. Misuse may cause
injury or death.
DO NOT use while driving
DO NOT expose to water or wet
surfaces. Electric shock may occur.
DO NOT expose the projected LED
image to your eyes or the eyes of
others
DO NOT block or restrict airow
from ventilation holes as this may
cause the projector to overheat
Keep the projector, battery, or
charger away from any heat sources
Caution for Battery Use
• Do not pierce or puncture the battery
with sharp objects
• Do not heat the product or expose it to
high temperature.
• Do not wet it or place it in any liquid
Caution for Headphone Use
• Prolonged use at high volume may impair
your hearing.
• High volume during walking or driving may
cause distractions and result in injury or death
Table of Contents
Chapter 1: P2-B at a Glance
P2-B Introduction
Remote
Accessories
Chapter 2: Getting Started
Powering On / O
Focus Adjustment / Throw
Distance
External Input/Outputs
Connecting to Digital Input
Connecting to Composite Video
Connecting to Digital Input Video
Connecting to Speaker or
Headphones
Connecting a TF Card
Connecting a USB Stick
Chapter 3: Menu Screens
Main Menu
Video Player Menu
Photo Viewer Menu
Music Player Menu
Text Viewer Menu
Chapter 4: Setup Menu
Settings
Chapter 5: Technical Details
Troubleshooting
Specications
Notes
1
2
4
5
6
7
10
12
14
16
17
19
22
23
27
31
34
35
40
42
43
P2-B at a Glance
1
Chapter 1
Digital Input
USB Port

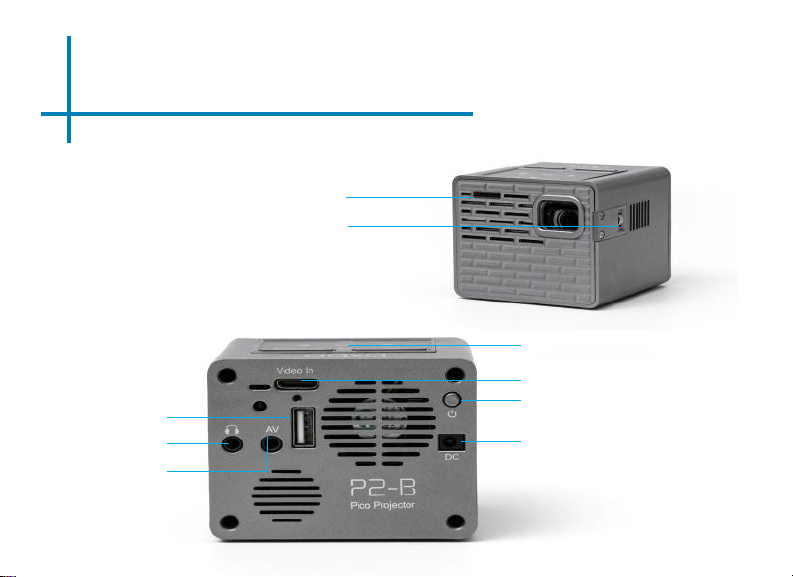

Main Unit Front/Back
Power Button
AV Port
Headphone Out
Power Port
Focus Adjustment
Touchpad
TF Card Slot
Remote & Touchpad
2
* The remote control is not able to POWER ON the projector
NOTE: Pressing power on the remote once will only enable or disable the remote control.
In order to fully turn the projector o
, hold the power button down on the remote or projector
for at least 3 seconds.
Power On/O
Select Source
Navigation
Volume Up
Volume Down
Remote
Back
Mute
Main Menu
Video Play Menu
Remote & Touchpad Cont.
The P2-B includes a touchpad directly on top of the projector. The touchpad allows
users to navigate through the menu options. In order to select an option, “OK” needs
to be tapped.
3
Accessories
4
Tripod
Remote
Power Adapter A/V Cable
*Under various circumstances, the actual accessories may be dierent from
those shown in the pictures above.
Additional accessories are available for purchase at www.aaxatech.com
Getting Started
1. To power-on a fully charged P2-B, hold down the power button for approxi-
mately three seconds until the projector turns on.
5
Powering ON the projector
Chapter 2
Powering OFF the projector
1. Hold down the power button for approximately three seconds until the
projector turns o.
NOTE: The P2-B Projector battery does not charge when it is in operation.
Focus Adjusment / Throw Distance
6
DIAGONAL SCREEN SIZE
16:9 Aspect Ratio
• Spin the focus wheel up or down until the image becomes
clear.
Focus Adjustment
Throw Distance Chart
Throw Ratio 1.20
Projection Angle: 100% Oset
*minimum throw distance: 10 inches
Throw Distance
Unit: Inches
20
30
40
50
60
70
80
90
Diagonal Size
Unit: Inches
19
29
38
48
57
67
76
86
7

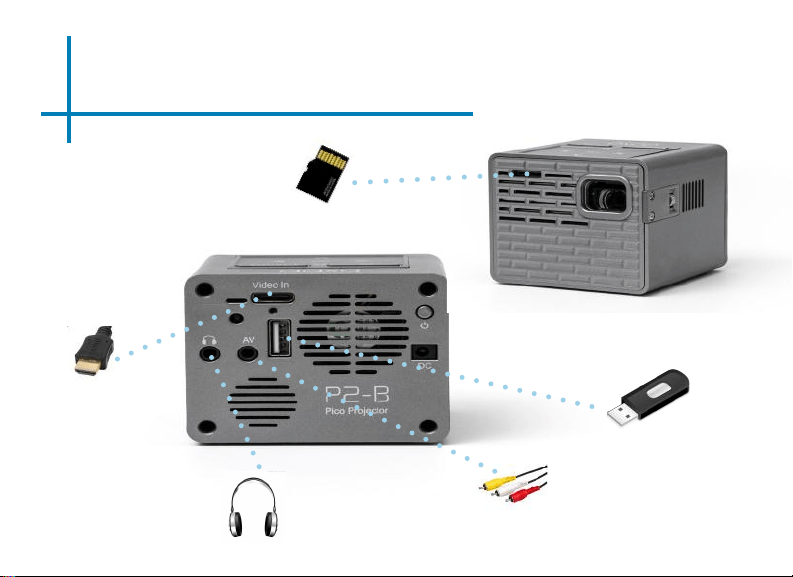

External Inputs and Outputs
Headphones/speakers
Composite AV
Digital Input
(Mini)
USB Stick
TF Card
Connecting to a Computer via Digital Input
10
Connect one end of the mini-Digital
Input Cable (purchased separately)
to your computer’s Digital Input port.
Step 1:
Step 2:
Step 3:

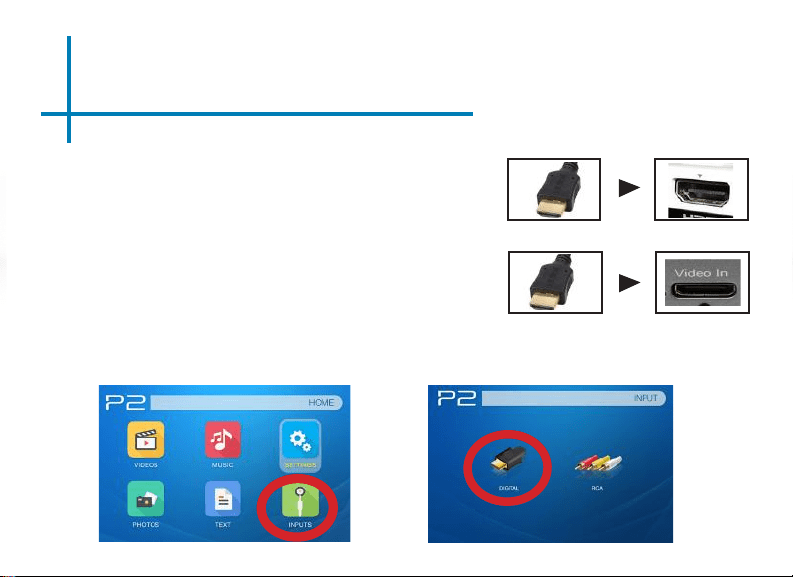

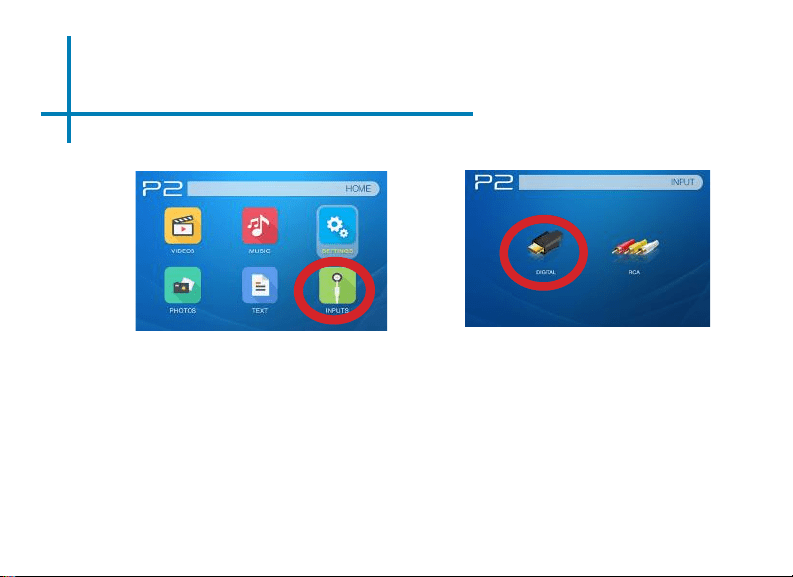

In the Main Menu, select the “INPUTS” icon and then the “VIDEO” icon.
Connect the other end of the mini-Digital
Input Cable to your P2-B’s Digital Input port.
Select the “INPUTS” icon Select the “VIDEO” icon
Connecting to a Computer Cont.
Step 4:
To enable Digital Video output on your computer, most computers require “turning on” the video
output feature. Each computer is dierent. Please consult your computer’s manual for instructions
to enable Digital Video output. Below are standard instructions for a Windows 10 computer – not
all systems are the same.
Press Windows+P to toggle
through display settings. Select
either “Duplicate” or “Extend” de-
pending on your viewing option.
*NOTE: dierent operating sys-
tems may dier
Step 5:
1. Right click on computer
desktop and select “Screen
Resolution”
2. Display Properties window
will pop up
3. If a secondary monitor is
grayed out, click on it and se-
lect “Extend these displays”
in the “Multiple Displays” drop
down
4. If the image is blurry or the
text is not legible, adjust
the screen resolution. We
recommend 1920x1080.
11
Step 6:
Connecting to Composite Video
12
Connect the 3.5mm Composite A/V
Cable to the back of the P2-B.
Plug the composite end of
the AV Cable (Red, White,Yellow)
to your device.
Step 1:
Step 2:
Connecting to Composite Video Cont.
Connectivity with multimedia devices through Composite AV
The P2-B can connect to many media devices including: VHS players, DVD play-
ers, cameras, video game consoles and other peripherals with ease.
13
In the Main Menu
Turn on your multimedia device.
Select the “INPUTS” icon
Select the “RCA” icon
Step 3:
Step 4:
Turn on your multimedia device.
Connecting to Digital Video Input
14
Connect one end of the mini-
Digital Input Cable (purchased
separately) to your device’s
Digital Input port.
Step 1:
Step 2:
Connect the other end of the
mini-Digital Input Cable to
your P2-B’s Digital Input port.
Note: Apple devices require a specialized
Digital Input adapter (Sold separately
by Apple)
Connecting to Digital Video Input Cont.
Connectivity with multimedia devices via Digital Video Input
The P2-B can connect to many media devices including: iPod, iPhone, iPad, DVD
players, Blu-Ray players, smart phones, cameras, video game consoles and other
peripherals with ease.
*Some smart phones require video out capabilities to work with the P2-B. Check with your
phone manufacturer.
15
Step 3:
In the Main Menu
Turn on your multimedia device. If available, select 1920x1080.
Step 4:
Select the “VIDEO” icon
Select the “INPUTS” icon
Step 3:
Turn on your multimedia device. If available, select 1920x1080.
Step 4:
Connecting Speakers / Headphones
16

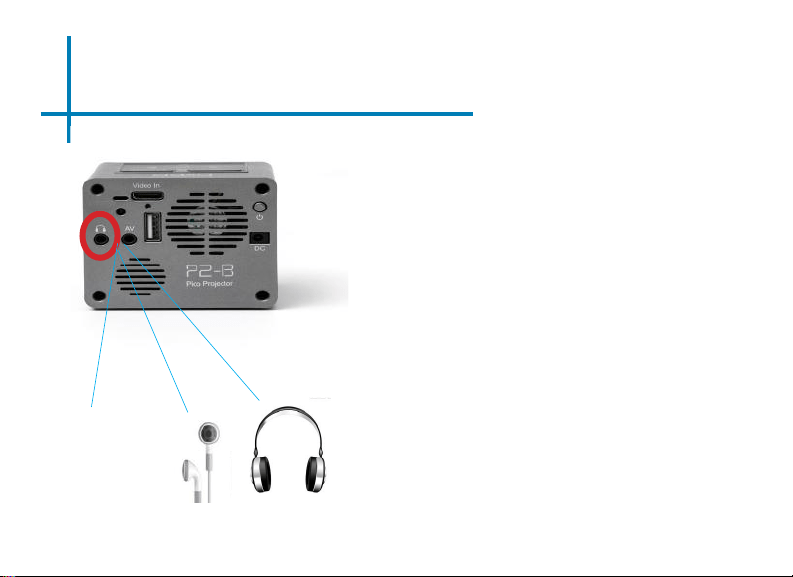

Connect your speakers/headphones
to the projector’s audio port.
Step 1:
Step 2:
CAUTION: Prolonged use of headphones at a high
volume may impair hearing.
Ensure that the projector and/or
the headphones are powered on.
Step 3:
Place the headphones on and enjoy!
TF Card
17

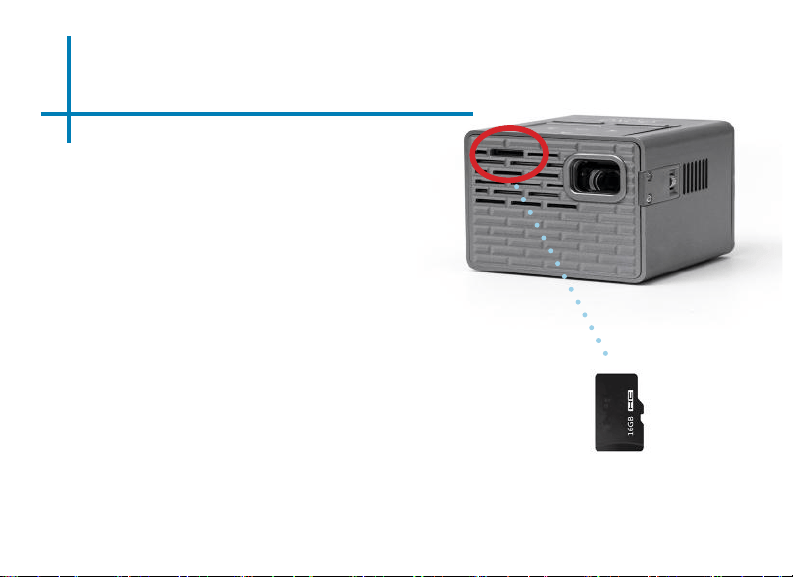

How to insert your TF Card
• Slide in your TF card into the TF card
slot on the back of the P2-B (facing
down as shown in picture).
• Gently slide the TF card until it clicks
into place.
*Review the “Specications”
section of this manual to read
about the supported le
formats.
How to access your TF Card
• Once your TF Card has been inserted,
you can navigate to any media content
in the main menu.
• After selecting the media content,
choose the TF card selection.
• You can now access the data on your
TF card through the onboard media
player
Microsoft Oce and PDF le formats are not supported
directly. In order to view a slideshow, you need to
convert your slideshow into JPEG pictures rst.
Note:
(up to 32 GB)
18
TF Card Cont.
Return: Brings you
back to the main
menu
File Menu System
• The P2-B will show all folders and les
you have on your TF Card in the C:
drive.
• Use the remote or touchpad to navigate
to dierent folders or les.
Media Player menu
• In the main menu, select the type of le
you wish to play.
• Select the TF Card icon to access your
les.
USB Drive
19

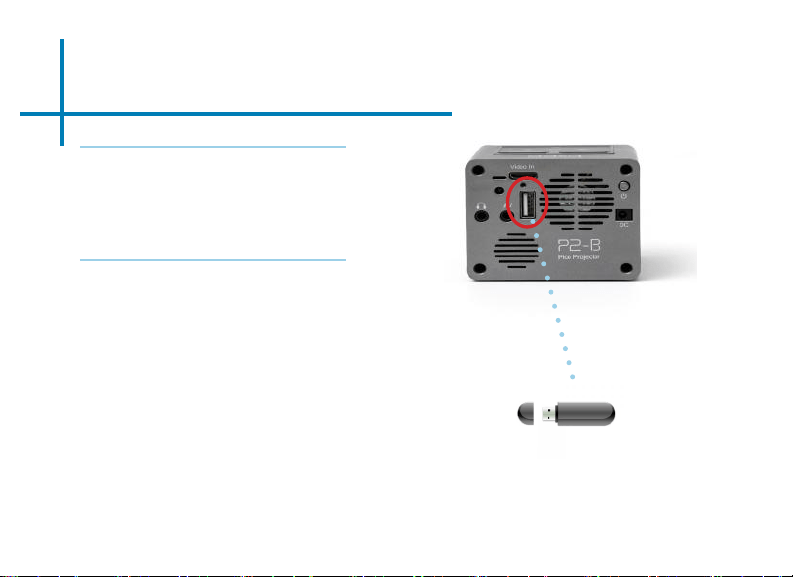

How to insert your USB Drive
How to access your USB Drive
• Insert your USB Drive into the
projector.
• Use the remote or touchpad to choose
the USB Drive icon from the main
menu to access your les.
• Choose your desired le.
• Slide your USB Drive into the USB
port.
• Gently slide the drive until it cannot
go in any further.
*Review the “Specications”
section of this manual to read
about the supported le
formats.
Microsoft Oce and PDF le formats are not supported
directly. In order to view a slideshow, you need to
convert your slideshow into JPEG pictures rst.
Note:
20
USB Drive Cont.
Media Player menu
• In the main menu, select the type of le
you wish to play.
• Select the USB Drive icon to access
your les.
Return: Brings you
back to the main
menu
File Menu System
• The P2-B will show all folders and les
you have in the C: drive.
• Use the remote or touchpad to navigate
to dierent folders or les.
21
TF Card and USB Drive
• If both TF Card and USB Drive are inserted,
depending on which one inserted rst, the
rst one will show in the C: drive and the
second one will show in the D: drive.
Menu Screens
22
Chapter 3
Main Menu
The P2-B features a built-in PMP (Portable Media Player) function.
This function allows the projector to play videos, pictures, music les, and text directly
from your connected devices.
• Press the left and right directional buttons on the remote or the directional arrows
on the touchpad to choose an icon from the main menu.
• To select a menu option, press the “OK” button on the remote or in the middle of
the touchpad.
• To go back to the previous screen, press the “Back” button.
• To Jump to the INPUTS menu, press the “Source” button on the projector once.
Video Player Menu
23
The P2-B will show all folders and les you have on your USB or TF card. Use the
remote or touchpad to select folders or les.

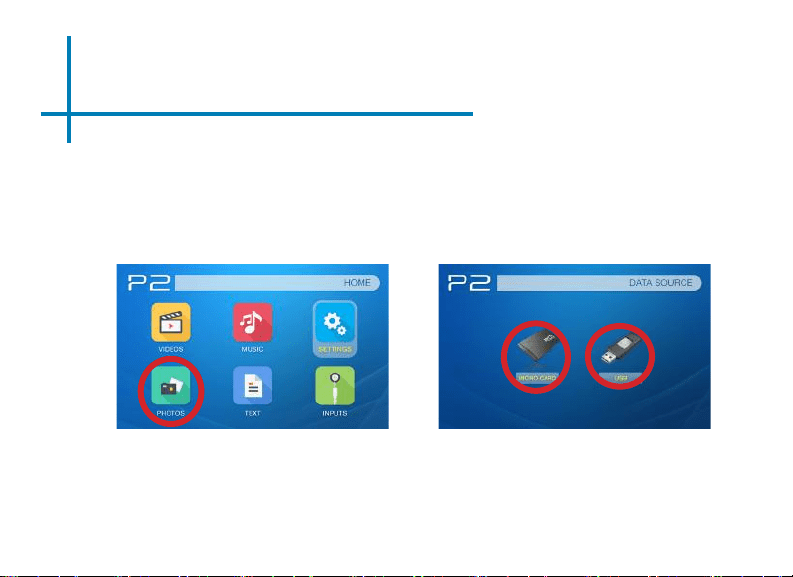

Opening a le:
• Select the “VIDEOS” icon (Fig. 3.1).
• From the sub menu (Fig. 3.2), select the storage media with the stored les.
• Choose which le you wish to play.
Fig. 3.1
Fig. 3.2
24
Video Player Menu
While Playing Videos
While playing videos, the volume is adjustable. You can simply adjust volume
by pressing the volume buttons on the remote or the up & down arrows on the
touchpad. Further controls of the video are available in the video player submenu
- which is accessed through the “OK” button.
Volume Down
OK
Enter Video Player Submenu
• To open/hide the video playback menu, use the
“Down” arrow on the remote or touchpad.
Volume Up
25
Video Player Sub-Menu
Playing Videos
The Video Player Sub-Menu can be accessed by pressing “OK” during video
playback. To exit the Video Player Sub-Menu, press the “Down” arrow on the
remote or touchpad. To navigate the Playback Menu, use the directional buttons
on the remote or touchpad to highlight the option you wish to choose (Fig 3.3).
Move selection left
Move selection right
Fig. 3.3
Conrm selection
OK
OK
Pause
FB
FF
Prev. Next Stop Repeat
00:00:59 / 00:04:20
Random
Video Playback FAQ
How do I loop a video?
1. Choose either USB or TF Card for playback
2. Navigate the folders until you reach the le you wish to play.
3. Choose the le you want to play.
4. Press “OK” when video is playing, then move left on the video player
menu to select “Repeat” and press “OK” until it shows “Repeat 1.”
5. The video will now loop after playback is nished.
26
Photo Menu
27
The P2-B will show all folders and les you have on your USB or TF card drive.
Use the navigation buttons to select folders or les.
Opening A File:
• Select the “PHOTOS” icon (Fig. 3.4)
• From the sub menu (Fig. 3.5), select the storage media with the stored les.
• Choose the le you wish to play.
Fig 3.4
Fig 3.5
28
Photo Menu
While Viewing Pictures
While viewing pictures, you can simply navigate through all images by pressing
the left and right buttons on the remote or touchpad. Further controls are available
in the Photo Submenu - which is accessed through the “OK” button.
Previous Picture
Next Picture
OK
Enter Photo Player Submenu
• To open/hide the Photo Playback menu, use
the “Down” Arrow on the remote or touchpad.
OK
29
Photo Sub-Menu
Viewing Pictures:
After pressing “OK” during picture slide-show playback, the Photo Sub-Menu
appears. To exit the Photo Sub-Menu, press the “Down” arrow on the remote or
touchpad. Every picture is able to be rotated and zoomed in or out based on the
option you wish to choose on the Sub-Menu. To navigate the Sub-Menu, use the
remote or touchpad to move selection (Fig 3.6).
Fig 3.6
Move selection left
Move selection right
Conrm selection
OK
OK
Photo Slideshow FAQ
How do I convert PPT to JPG?
1. First open your presentation on your
PC or MAC.
2. Go to “Save As” and save your pre-
sentation as .JPG les. (Fig 3.6.1)
3. Choose “All slides”. (Fig 3.6.2)
4. *If you have more than 10 slides, you
must rename Slides 1-9 with a “0” in
front of it or the playback order will
be mixed up. If you have more than
100 slides you will need to use a “00”
format. (Fig 3.6.3)
5. Copy the les either to your TF Card
or to the USB memory stick.
6. insert the TF Card or Memory stick
into the projector.
7. View the slidershow under “PHOTOS”
30
Fig 3.6.1
Fig 3.6.3
Fig 3.6.2
Music Player Menu
31
The P2-B will show all folders and les you have on your USB or TF card drive.
Use the remote or touchpad to select folders or les.
Opening A File:
• Select the “MUSIC” icon (Fig. 3.7).
• From the Sub-Menu (Fig. 3.8), select the storage media with the stored les.
• Choose the le you wish to play.
Fig. 3.7
Fig. 3.8
32
Music Player Menu
Fig. 3.9
Listening To Audio:
To adjust the volume, use the volume keys on the remote or “Up” and “Down”
arrows on the touchpad. To navigate the playback menu, push the “OK” button
to open the menu and use the directional buttons on the remote or touchpad to
highlight the option you wish to choose (Fig 3.9).
• To hide the music playback menu, press “Down” arrow on the remote or touchpad.
Move selection left
Move selection right
Volume Up
Volume Down
Conrm selection
OK
OK
Music Playback FAQ
How do I loop a song?
1. Choose either USB or TF Card
for playback
2. Navigate the folders until you
reach the le you wish to play.
3. Highlight the le you want to
play, then conrm the selection.
4. Move selection on music player
menu to “Repeat 1,” and con-
rm the selection.
5. The song will now loop after
playback is nished.
How do I create a song playlist?
1. Insert your media device (either TF card or
USB) into computer.
2. Make a new folder on media device (folder
name will be the name of the playlist).
3. Transfer songs from computer to the new
folder, name accordingly.
4. Remove media device from computer and
insert into projector.
5. Navigate to Audio section, then choose
appropriate media device.
6. Navigate to your playlist folder.
7. Start at rst song.
8. Playback will follow each successive song
on the list.
*To create a special order for the list, add nu-
merical numbering to the beginning of each le.
33
Text Viewer Menu
34
Viewing Text Files:
The P2-B Projector allows you to view text les. Select the le you want to view in the
le menu for the particular storage device on which the le is stored. You can press
the left and right arrow buttons on the remote to ip through the pages you have in the
present folder.
The P2-B will show all folders and les you have on your USB or TF card drives.
Use the navigation buttons to select folders or les.
Opening A File:
• From the Sub-Menu, select the
storage media with the stored les.
(Fig 3.10)
• Choose which le you wish to play.
Fig. 3.10
Microsoft Oce and PDF le formats are not supported directly. In order to view a slideshow, convert
your slideshow into JPEG pictures rst.
Note:
35
Setup Menu

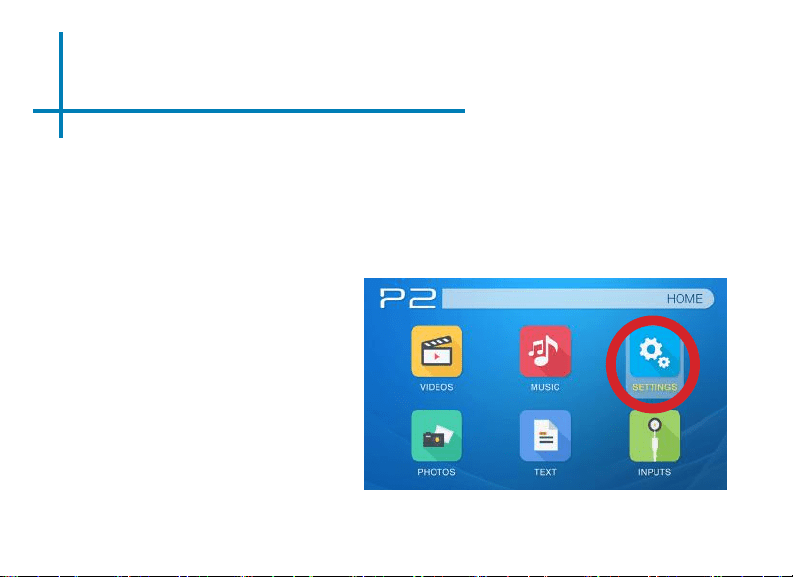

The Settings Menu can be accessed by selecting “Setting” on the Main Menu
• Picture Mode
• Color Mode
• Aspect Ratio
• Brightness Mode
• Projection
• Noise Reduction
Sound
• Sound Mode
• Balance
• Auto Volume
Time
• Sleep Timer
• Auto Sleep
Option
• OSD Language
• Restore Factory Default
Within the settings menu, there are four more submenus that allow
you to customize your P2-B the settings you want.
Chapter 4
**Boost mode should only be used in low
temperature environments with adequate
clearance of exhaust / intake vents. A tripod
is highly recommended. DO NOT block
vents while operating in Boost mode.
36
Picture Settings
Picture Mode
• Changes the picture mode to
dierent settings depending on
your usage
Color Mode
• Adjusts the color temperature
from warm to cool (red to blue)
Aspect Ratio
• Changes the aspect ratio of the
picture - Auto, 4:3, 16:9*, etc.
Brightness Mode
• Choose between Eco, Standard,
and Boost**
Projection
• Flips the projected image
Noise Reduction
• Reduces the noise on the video
*Caution: Some pictures may be cut o
when aspect ratio is set incorrectly
37

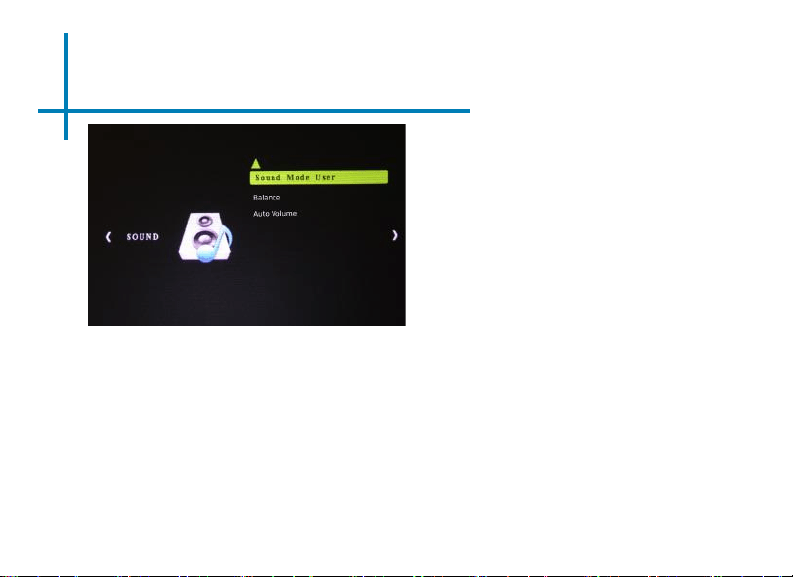

Sound Settings
Sound Mode
• Changes the sound mode depend-
ing on what is currently playing
Balance
• Adjusts the sound balance manu-
ally
Auto Volume
• When the auto volume function
is turned on, it normalizes the
incoming audio signal so that the
video will be played at a mederate
volume
Time Settings
38
Sleep Timer
• Sets when projector goes to
sleep
Auto Sleep
• Sets auto sleep function where
projector will turn o when not in
use or if there is no signal.
39
Option Settings
OSD Language
• Changes the language of the device. Options include English, Spanish,
Chinese, German, French, Korean, Japanese
Restore Factory Default
• Restores the projector to factory settings
Technical Details
Chapter 5
IMAGE IS BLURRED
Possible Causes Solution
The Projector is not in focus Adjust the focus with the focus adjustment dial
until the image comes into focus
The Projector is oset from plane / angle of
operation
Move the projector so that it is both 180 degrees
and on an evern plane with the screen.
NO SYNC, NO SIGNAL
Troubleshooting
1. Be sure to setup the computer to enable a video signal output. On some lap-
tops this is done by pressing and holding Function F5 key. If using the P2-B as
an external monitor on Windows based systems, this can be done by selecting
“extend my desktop to this monitor”. The native resolution of the P2-B projec-
tor is 854x480 (WVGA). Depending on the video driver dierent resolutions may
need to be selected for proper output.
40
41
Technical Details
THE PROJECTOR DOES NOT TURN ON
Possible Causes Solution
There is no power Check to ensure the power outlet source is good.
Check the Power Adapter to ensure a proper con-
nection with the wall outlet as well as the projector.
Conrm that the unit is charged and has enough
power
The power button was not held long enough To power on the projector, the power button needs
to be depressed for a full 3 seconds. Try holding
the power button until the optical engine turns on
NO PICTURE / FILE NOT SUPPORTED
Possible Causes Solution
The video source is not properly connected or
selected
Check the video source signal to ensure that it
is properly connected. Select the current input
source by choosing the input desired from the
main menu
Incorrect le extension / Video is encoded with
incorrect codec
Please refer to “Specications” page to see which
le types and codex are supported. Verify that the
le was encoded properly.
Troubleshooting
42
Specications
Brightness:
Max Resolution:
Native Resolution:
Contrast Ratio:
Aspect Ratio:
Projection Lens:
Image Size:
Lamp:
Video in:
Audio Out:
Color:
TF Card:
USB:
Dimensions:
Weight:
Power Consumption:
Battery Life:
Throw Ratio:
Projection Oset:
Conformances:
Supported File Formats:
130 Lumens
1920x1080 (1080P)
854x480 (WXGA)
1000:1
16:9
Manual Focus
8~100 inches
Triple RGB LEDs with Vibrant Color
Technology Life 20,000hrs
Composite A/V (3.5mm Jack)
Digital Input (Mini) (compatible)
3.5 mm Stereo Headphone Jack
Gray
TF Card Slot (32GB maximum)
Full Size USB 2.0 (32GB maximum)
2.8” x 2.8” x 2.3”
0.55 lbs
11 W
150 Minute Li-Ion Rechargeable Battery (Eco Mode)
1.2
100%
CE, FCC Class A
MP3, WMA, OGG, WAV, AVI,
BMP, JPG,TXT, GIF
43
Notes
Please direct all customer service inquiries to:
AAXA Technologies, Inc.
17691 Mitchell N., Unit #B
Irvine, CA 92614
(714) 957-1999
