* Vista superior de la barra de sonido
* Soundbar Ansicht von oben
* Vista superiore della soundbar
* Soundbar bovenaanzicht
* Lydbjelke sett ovenfra
* Soundbar ylhäältä päin
* Вид на звуковую панель сверху
* Soundbar sedd uppifrån
* Soundbar set oppefra
*サウンドバー平面図
* 사운드바 상단 보기
* 条形音响顶视图
* 條型音箱頂視圖

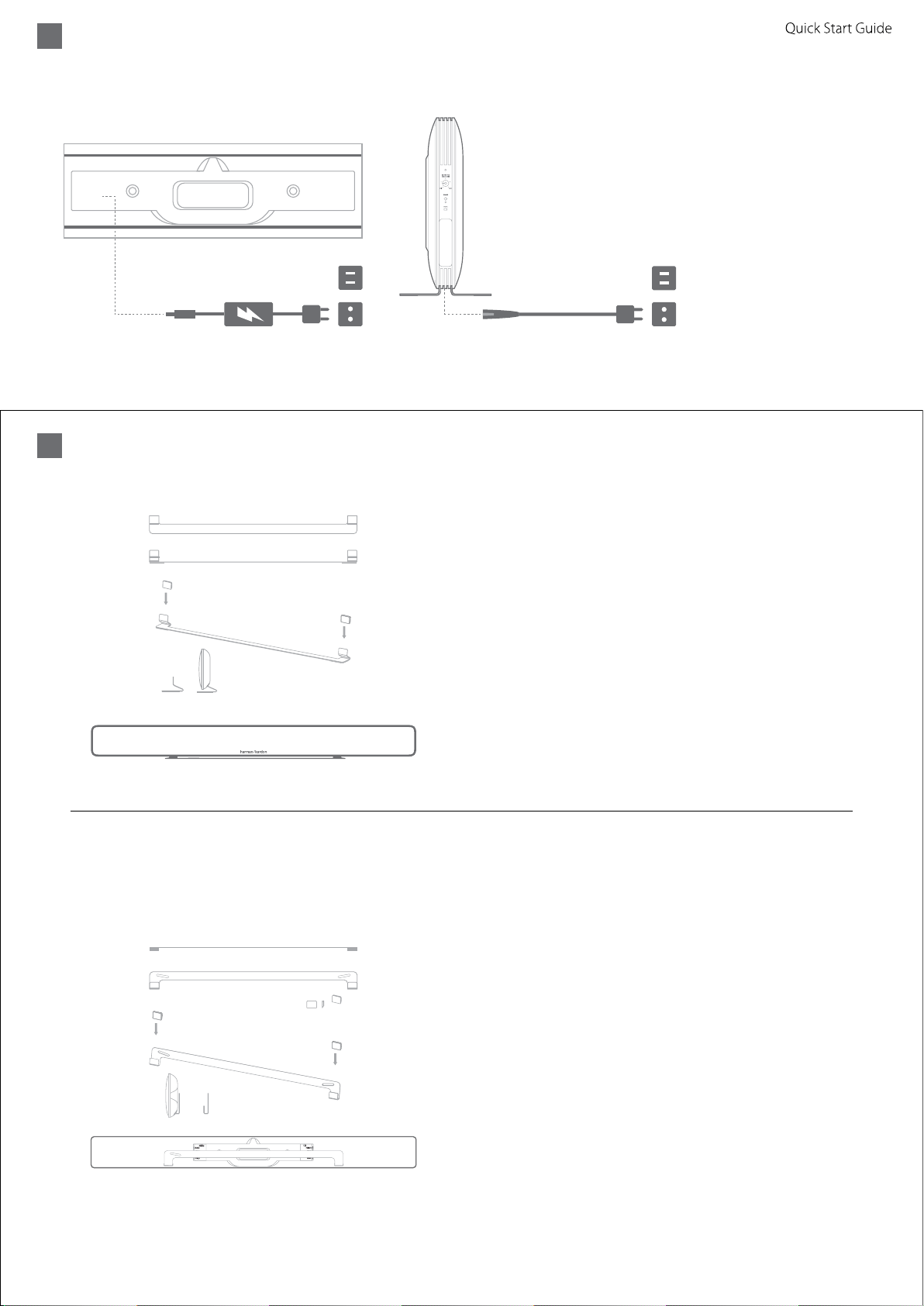

SABRE SB35
1
2
3
4
5
6
7
8
9
10
HDMI 1 HDMI 2
HDMI
TV
AUX IN
BASS
VOLUME
STEREO
WAVE
VIRTUAL
HARMAN
VOLUME
OPTICAL
HDMI 3
1) Power
2) HDMI inputs 1, 2 and 3
3) Optical, HDMI TV ARC,
Aux in
4) Bluetooth
5) Volume control +/-
6) Mute
7) Subwoofer
volume control +/-
8) Harman volume
9) Stereo, Virtual
10) Wave mode -
Select room size
•Small
•Medium
•Large
7
9
8
10
61
2
4
3
5
1) Subwoofer pairing button
2) AUX input (analog audio in)
3) Optical (digital optical audio in)
4) Power input DC
5) IR transmitter (optional)
6) USB port (software update only)
7) HDMI 3 (HDMI input)
8) HDMI 2 (HDMI input)
9) HDMI 1 (HDMI input)
10) HDMI TV (to TV with ARC support)
* Rear view / Vue arrière
* Vista posterior
* Vista de trás
* Rückansicht
* Vista posteriore
* Achteraanzicht
* Sett bakfra
* Näkymä takaa
* Вид сзади
* Baksida
* Set bagfra
* 背面図
* 후면 보기
* 背面图
* 後視圖
SURROUND SOURCE
* Soundbar top view /
Vue de dessus de la barre de son
Using the ‘Source’ and the ‘Volume +’ keys combined can switch the DRC settings.
Default setting of Dolby DRC is ‘Auto’, then switch between ‘Auto’ -> ‘Off’ -> ‘On’.
AUX IN
OPTICAL
DC IN 24V 2.7A

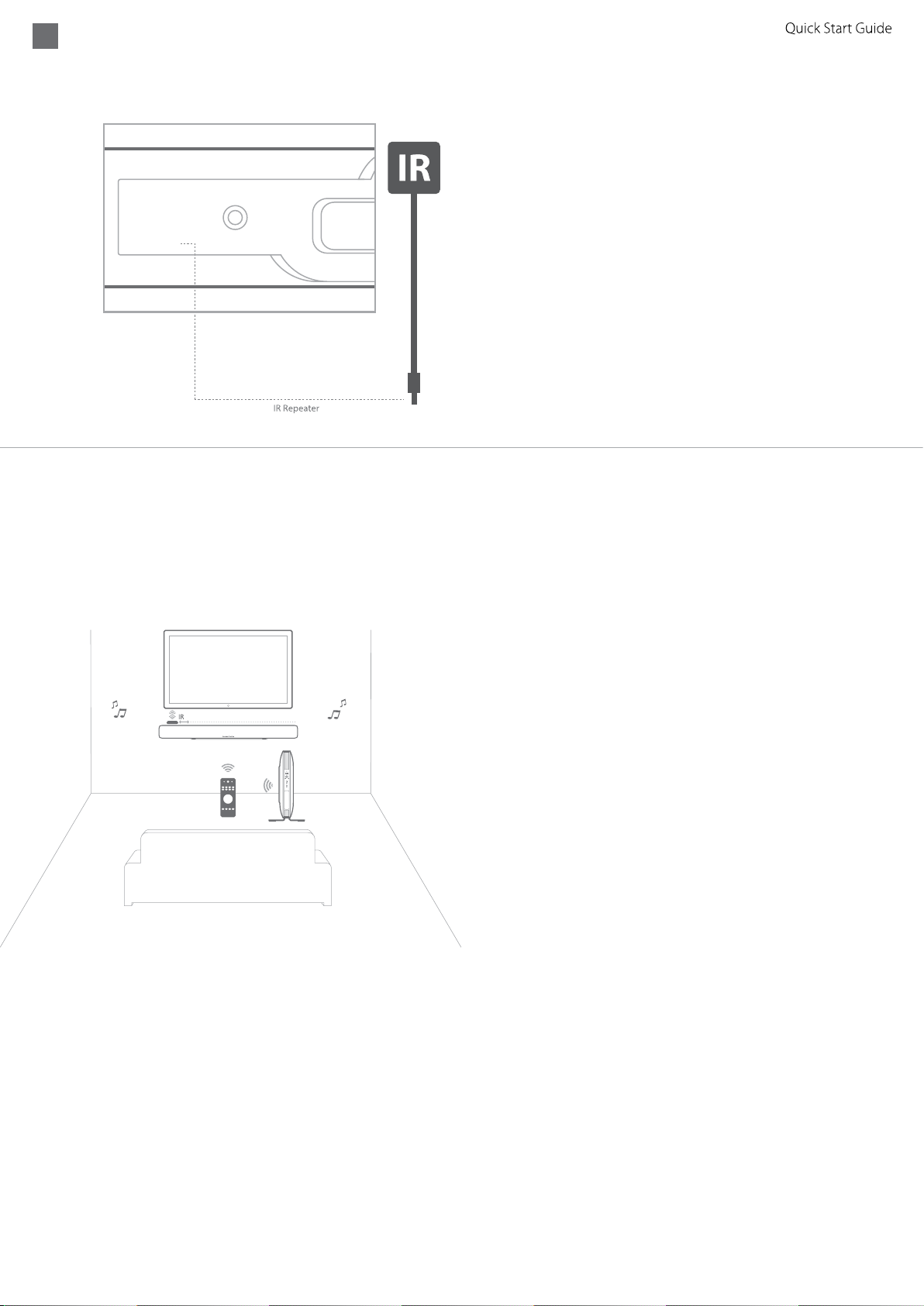

IR TRANSMITTER
PAIRING
FW UPGRADE
HDMI 3
HDMI 2
HDMI 1
HDMI TV
+
