INSTALLATION MANUAL
SONANCE SOUNDBARS
SB46 M AND SB46 L
Box Contents
Sonance Soundbar Box contains: (1) Soundbar, (2)
Flat Soundbar connectors, (2) Display attachment rails,
(2) Recessed Soundbar connectors, (1) Key hole wall mount
template, (2) Key hole wall mounts, (2) Display spacers and
(2) Black opaque strips.
The Hardware Pack contains: A. (4) M8 10mm screws
for display attachment rails, B. (4) M8 14mm screws for
flat Soundbar connector, C. (4) M8 23mm short screws for recessed
Soundbar connector, D. (4) M8 38mm long screws for recessed
Soundbar connector, E. (4) M6 25mm screws, F. (4) M8 25mm
screws, G. (8) M8 nuts, H. (8) M6 washers, I. (8) M8 washers and J.
(4) Rubber feet.
Introduction
Thank you for purchasing the Sonance Soundbar SB46 M or
SB46 L. When properly installed your new Soundbar will give you
years of entertainment pleasure. The Sonance SB46 M & SB46 L
Soundbar is a high performance Left, Center, & Right
3-way speaker system housed in a sealed aircraft grade
aluminum enclosure. The SB46 M will align with displays from
50” to 65” diagonal. The SB46 L will align with displays from
70” to 80” diagonal.
1
A. x 4
D. x 4
G. x 8
B. x 4
E. x 4
H. x 8 I. x 8
J. x 4
C. x 4
F. x 4
(1) Soundbar
(2) Display attachment rails
(2) Flat Soundbar connectors
(2) Recessed
Soundbar connectors
(1) Key hole
wall mount template
(2) Key hole
wall mounts
(2) Display spacers
(2) Black opaque strips
Before any installation carefully plan where wiring will pass
through walls. Perform an obstruction survey using a stud finder
to be certain there are no studs, conduit, pipes, heating ducts,
pocket doors or air returns in the wall cavity. If you are unsure
about obstructions, drill a small hole near where the Soundbar
wire terminals will be located and insert a coat hanger wire
into the hole to feel around for possible obstructions.
Run three sets of speaker wires: Left channel, Center channel,
Right channel as well as the necessary video cable from the
amplifier to the display location. Whenever possible leave extra
wire to make it easy to connect the wire to the Soundbar spring
terminals prior to hanging the display. Extra wire can then be
pushed back into the wall.
NOTE: CONSULT LOCAL BUILDING CODES BEFORE RUNNING
SPEAKER AND ELECTRICAL WIRES THROUGH WALLS.

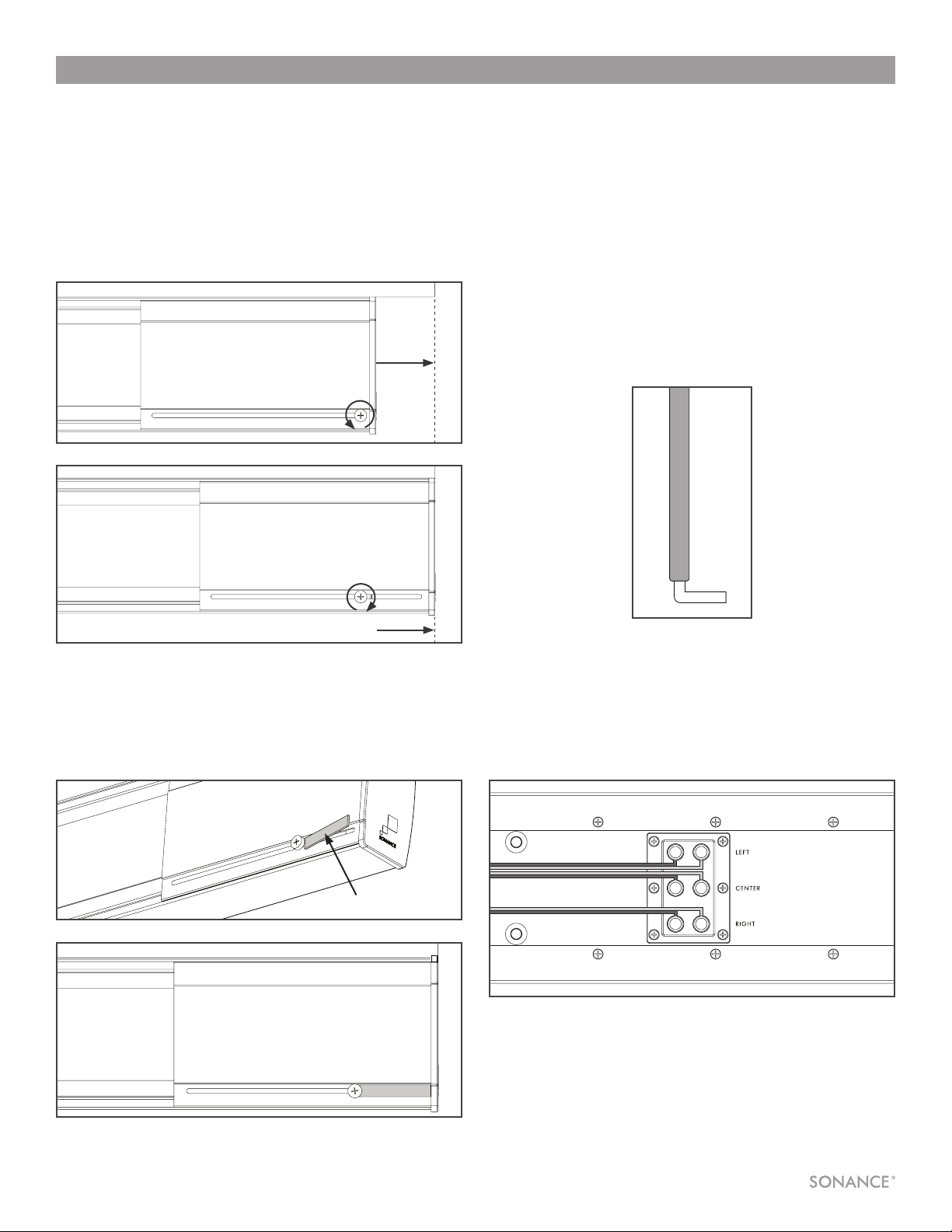

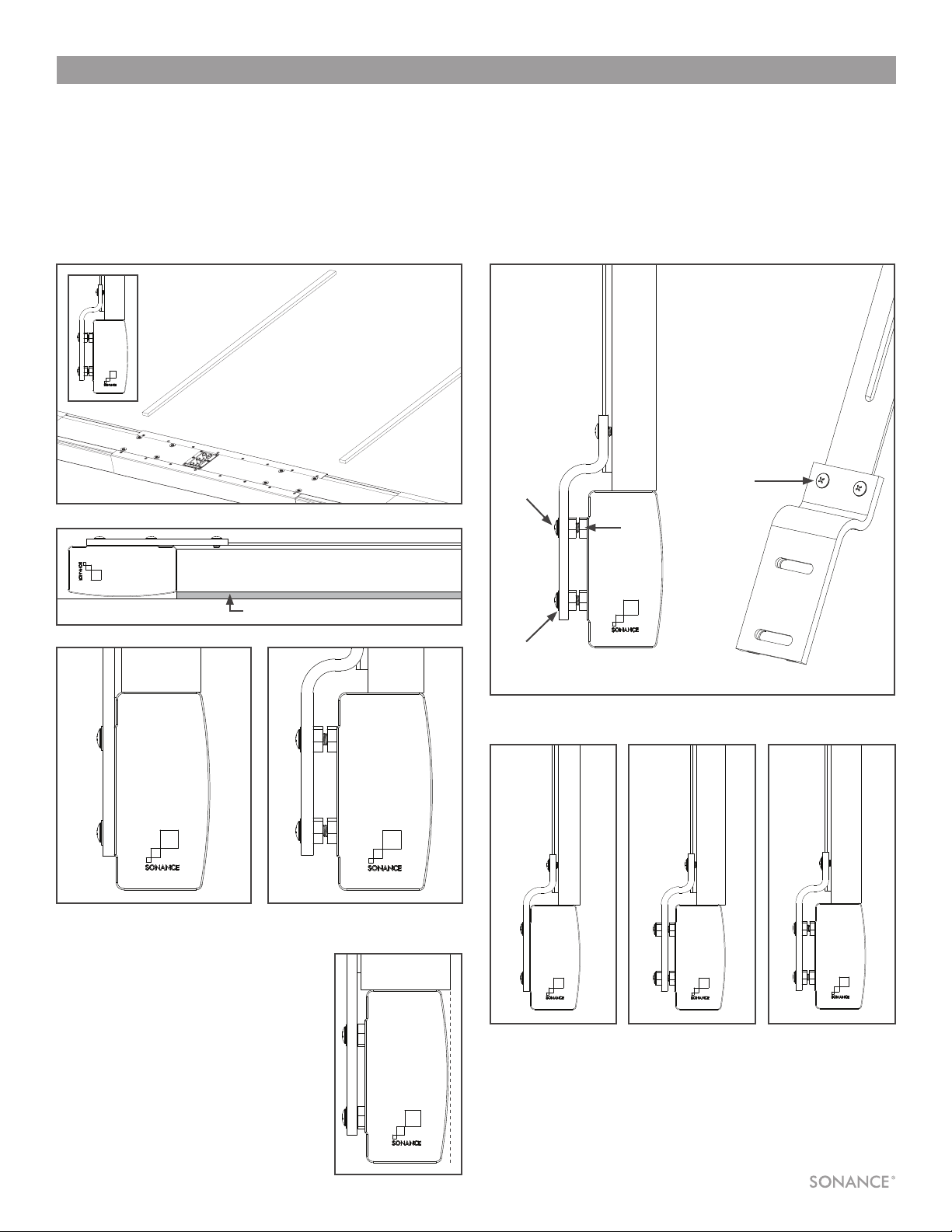

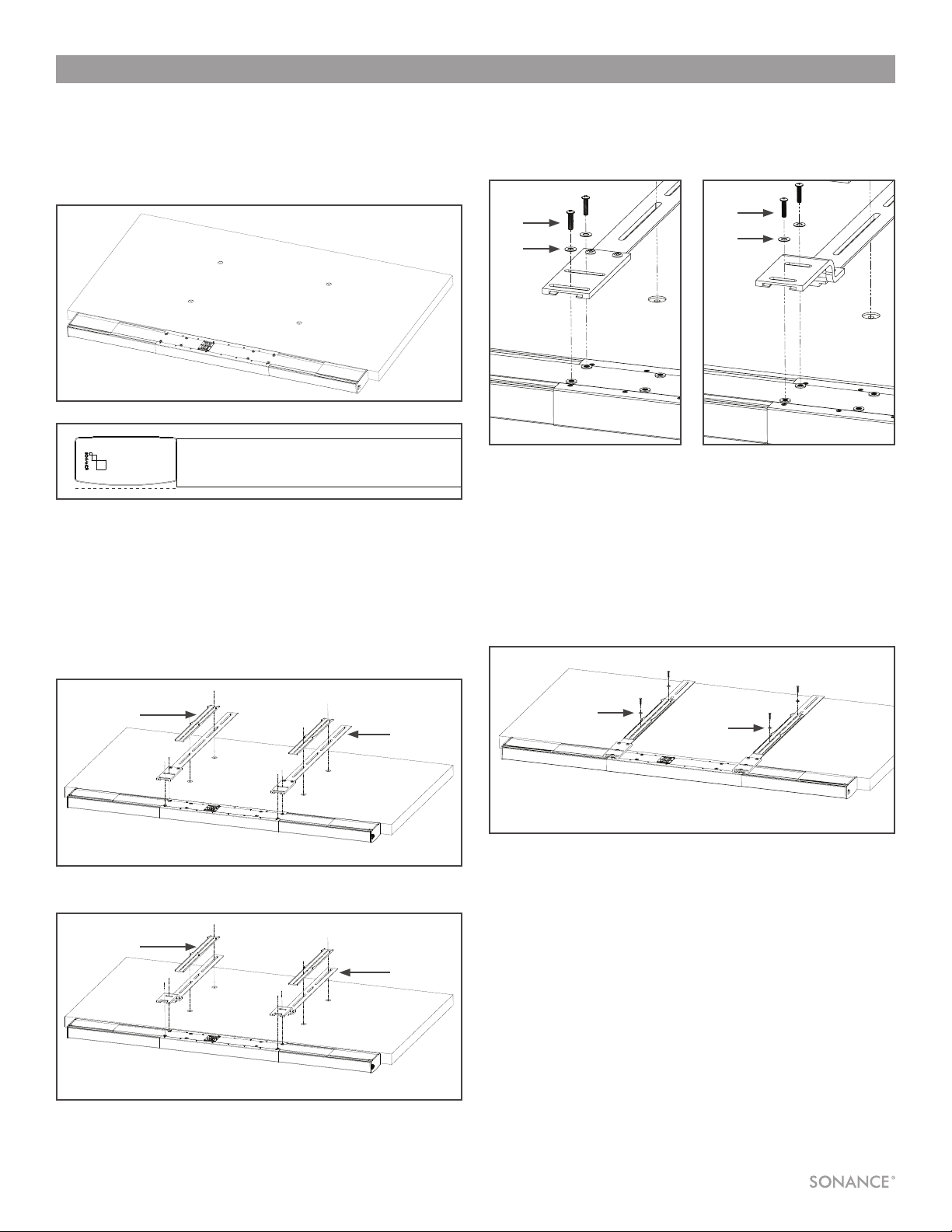

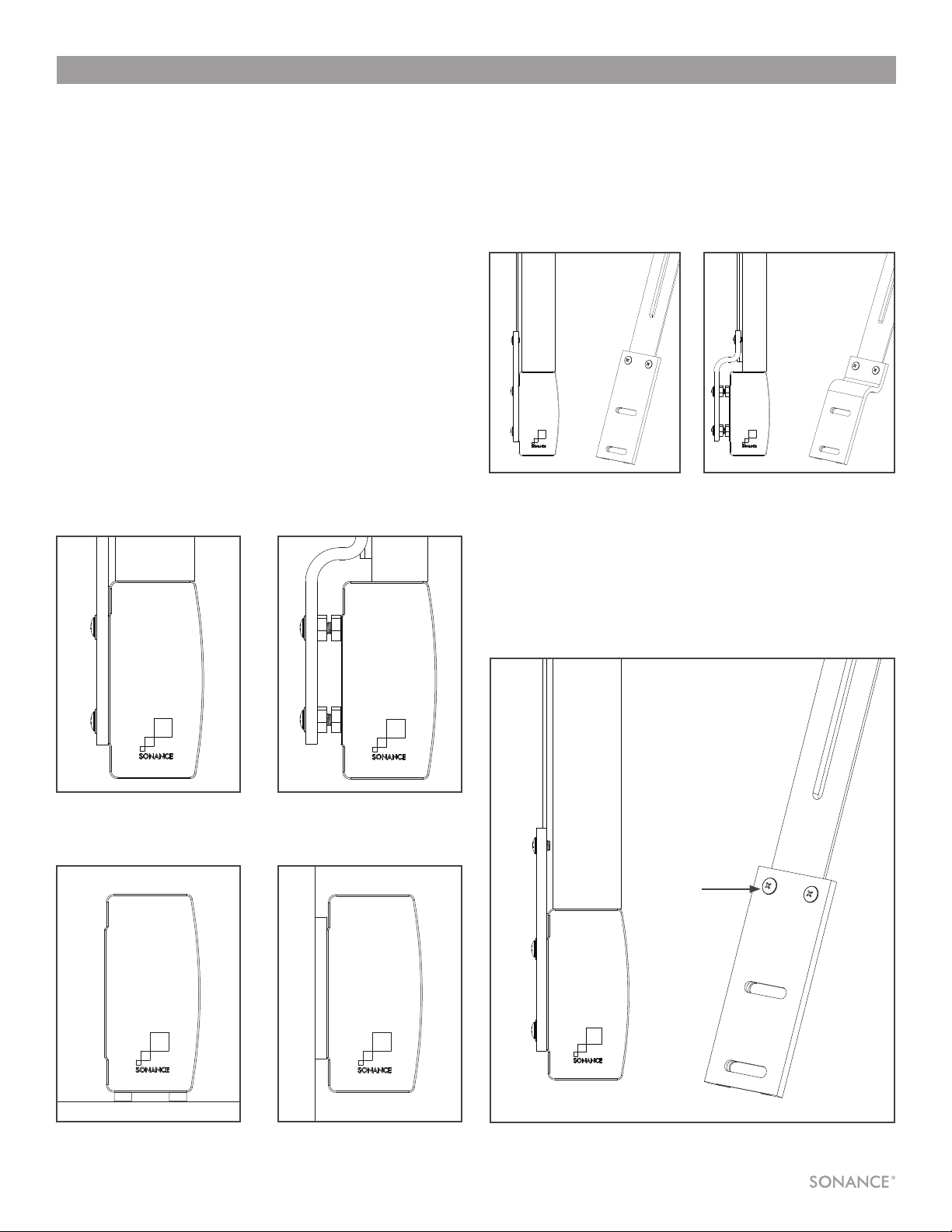

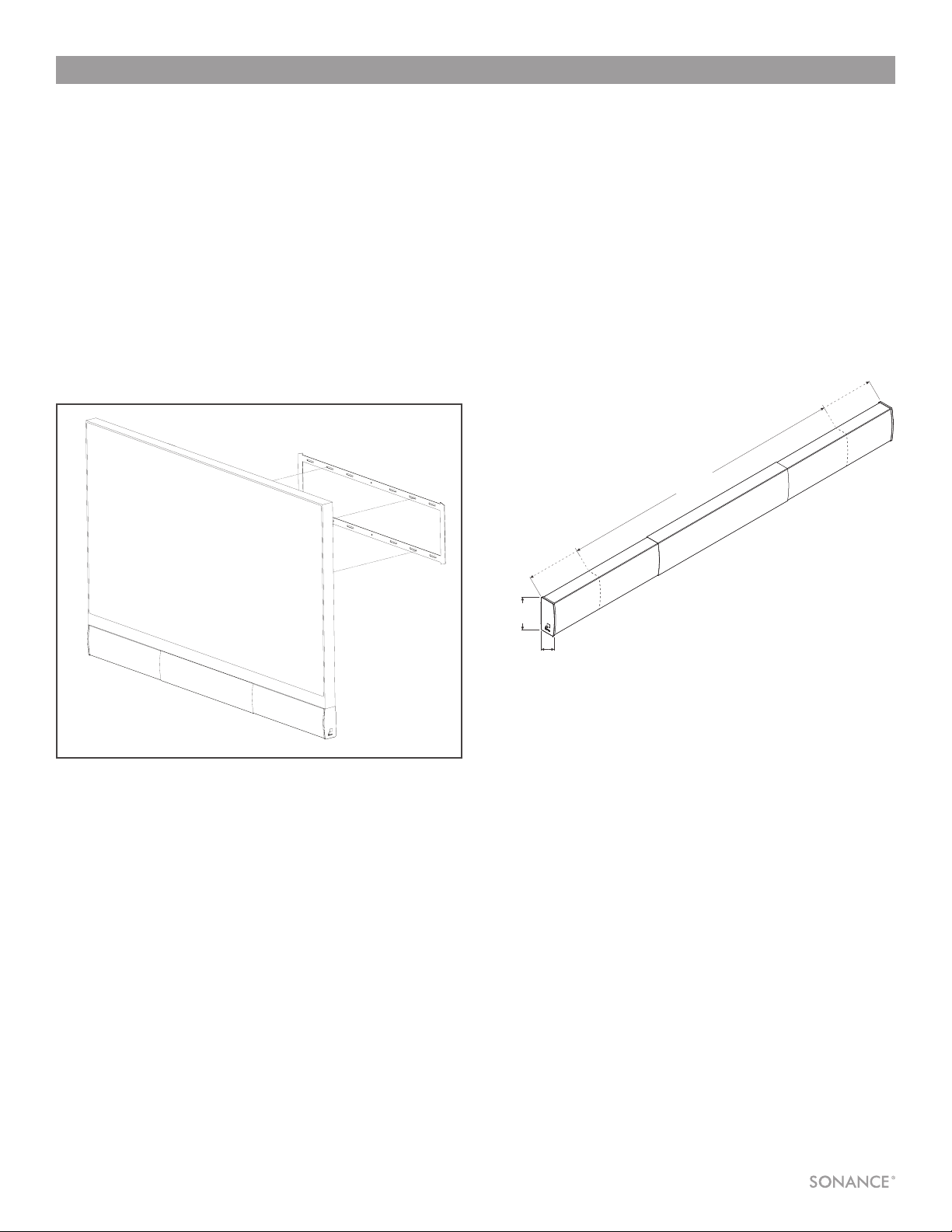

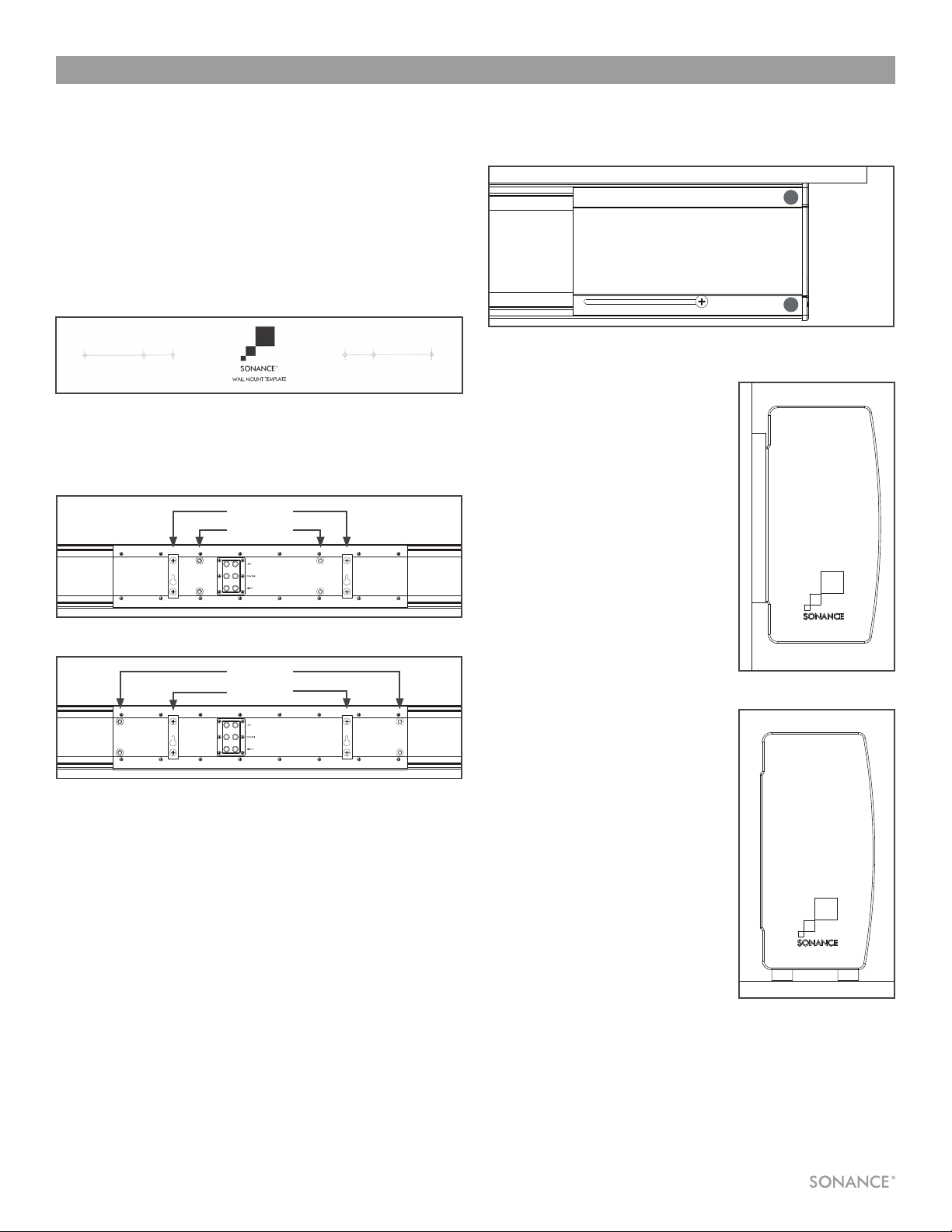

Wall Mount Installations
Verify the wall mount will support the combined
weight of the display and Soundbar.
SB46 M weighs 24 lbs. (10.88 kg) installed. Suitable for displays
50” to 65” (1270mm to 1651mm).
SB46 L weighs 29 lbs. (13.15 kg) installed. Suitable for displays
70” to 80” (1778mm to 2032mm).
NOTE: CAREFULLY FOLLOW INSTALLATION DIRECTIONS FOR
THE THIRD PARTY DISPLAY WALL MOUNT.
