User Manual Harman Kardon Go + Play Portable Bluetooth Speaker

Documents for Harman Kardon Go + Play

The following documents are available:
User Manual Photos
Go + Play photo
EN
FR
Quick Start Guide
Guide de demarrage rapide
Buttons
Bluetooth® / Music control
1. Bluetooth connection
What’s in the box
LED behaviour
x1
Speakerphone
Connections
Wireless Dual Sound
x1
GO+PLAY
GO+PLAY

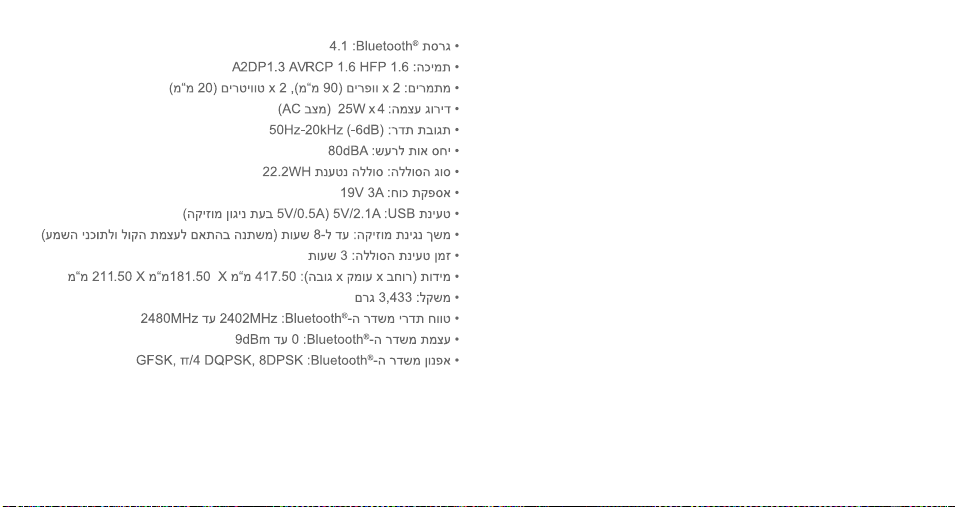

Bluetooth® version: 4.1
Support: A2DP 1.3, AVRCP 1.6, HFP 1.6
Transducers: 2x woofers (90mm), 2x tweeters (20mm)
Rated power: 4x25W (AC mode)
Frequency response: 50Hz-20kHz (-6dB)
Signal-to-noise ratio: 80dB A-weighted
Battery type: 22.2Wh rechargeable battery
Power Supply: 19V 3A
USB charge out: 5V/2.1A ( 5V/0.5A when playing music)
Music playtime: up to 8 hours (varies by volume level and audio content)
Battery charge time: 3 hours
Dimensions (W x D x H): 417.50mm x 181.50mm x 211.50mm
Weight: 3433g
Bluetooth® transmitter frequency range: 2402MHz to 2480MHz
Bluetooth® transmitter power: 0 to 9dBm
Bluetooth® transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
Version Bluetooth® : 4,1
Protocoles supportés : A2DP 1,3, AVRCP 1,6, HFP 1,6
Transducteurs : 2 haut-parleurs de graves (90 mm),
2 haut-parleurs d'aigus (20 mm)
Puissance nominale : 4x25 W (mode CA)
Réponse en fréquence : 50 Hz - 20 kHz (-6 dB)
Rapport signal/bruit : 80 dB (pondération A)
Type de batterie : batterie rechargeable 22.2Wh
Alimentation : 19 V 3 A
Sortie USB : 5 V/2,1 A sans diffusion de musique, 5 V/0,5 A avec
diffusion de musique
Autonomie : jusqu'à 8 heures (peut varier en fonction du
volume et du contenu)
Temps de charge de la batterie : 3 heures
Dimensions (L x P x H) : 417,50 mm x 181,50 mm x 211,50 mm
Poids : 3433 g
Plage de fréquences de l'émetteur Bluetooth® : 2402 MHz à 2480 MHz
Puissance de l'émetteur Bluetooth® : de 0 à 9 dBm
Modulation de l’émetteur Bluetooth® : GFSK, π/4 DQPSK, 8DPSK
FIRMWARE
UPGRADE
x1 x2
2. Music control
>5s
Speaker A
>5s
Speaker B
Versión de Bluetooth®: 4.1
Compatibilidad: A2DP 1.3, AVRCP 1.6, HFP 1.6
Transductores: 2 x altavoces de graves (90 mm),
2 altavoces de agudos (20 mm)
Potencia nominal: 4 x 25 W (Modo CA)
Respuesta de frecuencia: 50 Hz a 20 kHz (-6 dB)
Relación señal a ruido: 80 dB (ponderado con A)
Tipo de batería: batería recargable 22.2Wh
Alimentación eléctrica: 19 V, 3 A
Salida de carga USB: 5 V/2,1 A (5 V/0,5 A durante la reproducción de música)
Tiempo de reproducción de música: hasta 8 horas (varía según
el nivel de volumen y el contenido)
Tiempo de carga de la batería: 3 horas
Dimensiones (anchura x profundidad x altura):
417,50 mm x 181,50 mm x 211,50 mm
Peso: 3433 g
Rango de frecuencia del transmisor Bluetooth®: de 2402 MHz a 2480 MHz
Potencia del transmisor Bluetooth®: de 0 a 9 dBm
Modulación del transmisor Bluetooth®: GFSK, π/4 DQPSK, 8 DPSK
Versão Bluetooth®: 4.1
Suporte: A2DP 1,3, AVRCP 1,6, HFP 1,6
Transdutores: 2 x woofers (90 mm), 2 x tweeters (20 mm)
Potência nominal: 4x25W (modo CA)
Resposta de Frequência: 50Hz - 20kHz (-6dB)
Relação sinal/ruído: 80 dB (ponderação A)
Tipo da bateria: Bateria recarregável de 22.2Wh
Fonte de alimentação: 19V 3A
Carregador USB: 5V/2,1A (5V/ 0,5A quando estiver tocando música)
Tempo de reprodução de música de até 8 horas
(varia de acordo com o volume e conteúdo)
Tempo de carga da bateria: 3 horas
Dimensões (L x P x A): 417,50 mm x 181,50 mm x 211,50 mm
Peso: 3.433 g
Intervalo de frequência do transmissor Bluetooth®: 2.402 MHz a 2.480 MHz
Potência do transmissor Bluetooth®: 0 a 9 dBm
Modulação do transmissor Bluetooth®: GFSK, π/ 4 DQPSK, 8DPSK
ES PT

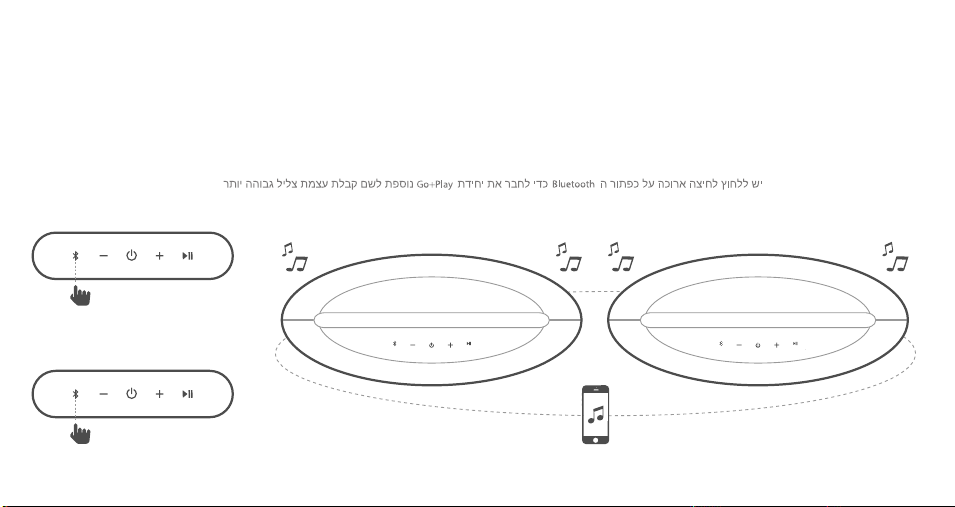

Long press the Bluetooth button to connect another Go + Play for louder sound / Appuyez longuement sur le bouton Bluetooth pour connecter une autre enceinte Go + Play et
obtenir un son plus puissant / Mantenga presionado el botón Bluetooth para conectar otro Go + Play para un sonido más potente / Pressione durante alguns segundos o botão
do Bluetooth para ligar outro Go + Play para um som mais alto / Die Bluetooth-Taste lange drücken, um für lauteren Klang die Verbindung mit einem weiteren Go + Play
herzustellen / Tenere premuto il tasto Bluetooth per collegare un altro Go + Play per un audio più potente / Houd de Bluetooth-knop lang ingedrukt om verbinding te maken met
een andere Go + Play voor nog meer geluid / Hold inne Bluetooth-knappen for å koble til en annen Go + Play for høyere lyd / Paina Bluetooth-painiketta pitkään liittääksesi toisen
Go + Play kaiuttimen äänenvoimakkuuden lisäämiseksi / Нажмите и удерживайте кнопку Bluetooth для подключения к другому Go + Play и получения более мощного звука
Med en lång knapptryckning Bluetooth-knappen kan du ansluta andra Go + Play-enheter för att uppnå högre ljud / Hold Bluetooth-knappen inde for at tilslutte endnu en Go
+ Play , du får højere lyd / 音量を上げるには、Bluetoothボタンを長押しして、別のGo + Play と接続します / Naciśnij i przytrzymaj przycisk Bluetooth, aby podłączyć
kolejny głośnik Go + Play w celu wzmocnienia dźwięku / 사운드를 위해 다른 Go + Play 연결하려면 블루투스 버튼을 길게 누릅니다 / 长按“Bluetooth”(蓝牙)按
钮,以连接另一台 Go + Play 使声音更响亮 / 長按「藍牙」按鈕,連接其他 Go + Play 來調高音量 / Tekan lama tombol Bluetooth untuk menyambungkan ke Go + Play
lainnya untuk suara yang lebih keras /
Dim - Stand by
Bright - ON
Speaker is OFF
ConnectedPairing
Phone ringing
Not connected
Blinking
ONOFF
Music control is active
