User Guide
Kasa Spot, 24/7 Recording
© 2021 TP-Link 1910013068 REV1.0.0
Contents
About This Guide ···················································· 1
Introduction ······························································· 2
Appearance ······························································· 3
Insert a microSD Card ·········································· 4
Set Up Your Camera ·············································· 5
Main Device Controls ··········································· 7
Set Schedules ·························································· 8
24/7 Recording ······················································10
Manage Device Settings ··································19
Reset Your Camera ··············································24
Smart Actions - Motion Sensing ··················26
Voice & 3rd Party Support ·······························31
Authentication ························································35
1
About This Guide
This guide provides a brief introduction to the Kasa Spot and the Kasa Smart app, as well as regulatory information.
Features available of this product and in Kasa Smart may vary by model and software version. Kasa Spot and Kasa Smart availability may also vary by
region. All images, steps, and descriptions in this guide are only examples and may not reect your actual experience.
Conventions
In this guide, the following convention is used:
Convention Description
Teal
Key information appears in teal, including management page text such as menus, items, buttons and so on.
Underline
Hyperlinks are in teal and underlined. You can click to redirect to a website.
More Info
• Specications can be found on the product page at https://www.tp-link.com.
• Our Technical Support and troubleshooting information can be found at https://www.tp-link.com/support.
• Frequently Asked Questions (FAQs) can be found at https://www.tp-link.com/support/faq.
2
Introduction
With the Kasa Spot connected to your home network, you can see what happens in your home even when you're away. This keeps your home safe and
gives yourself a little peace of mind — all while seeing every detail on your phone.
You can set up and use your Kasa Spot alone, or use it together with other smart home devices including plugs, bulbs, switches and more. All these can
be achieved on the app.
• Crystal Clear Video – Sharp and clear Full HD provides high-quality video right in the palm of your hand.
• Night Vision – Kasa camera detects activity up to 30 feet away even in total darkness.
• Live View – Keep an eye on what’s important to you from anywhere in real time with the Kasa Smart app.
• Secure Local Storage – Save your footage on a microSD card* and play back with your Kasa Smart app.
*microSD card not included.
• Kasa Care Cloud Storage – Subscribe to a Kasa Care Plan
‡
to store your video clips to the cloud for added backup and more benecial functions.
‡
Kasa Care Plans vary in dierent countries and regions.
• Customizable Activity Zones – Create dynamic activity zones around important areas and receive alerts you care about.
• Crisp Two-Way Audio – Built-in microphone and speaker allow you to carry on a conversation from anywhere with your phone or other supported
devices.
3
Appearance
Kasa Spot has a system LED that changes color according to its status, a microphone, a speaker, a micro USB port, a micro SD card slot and a RESET
button. Refer below for details.
*Images may dier from actual product.
RESET Button
• Press and hold for 3 to 15 seconds:
Reenable setup mode
• Press and hold for over 15 seconds:
Reset to factory default settings
System LED
• Solid amber:
Rebooting
• Alternating amber and green:
Ready for setup
• Flashing red:
Connecting to Wi-Fi
• Flashing green:
Connected to Wi-Fi
• Solid green:
Bound to Cloud
• Flashing amber:
Resetting
Speaker
The sound comes
out of the camera.
Microphone
Built-in internal microphone.
Note: Do NOT insert objects into the hole.
Micro USB Port
Connect the power
cord provided.
microSD Card Slot
Insert a microSD card
to save the recorded
videos locally.
4
Insert a microSD Card
Kasa provides options for your video recording. You can subscribe to a Kasa Care Plan to store 30-day video clips to the cloud for added backup and
more benecial functions.
Or you can save the footage continuously on a microSD card* and play back with your Kasa Smart app. The camera will overwrite the oldest les when
the microSD card memory is full. See the instructions below to insert a microSD card to your Kasa Spot.
*Micro SD card not included.
1. Find the SD card slot on the side panel of your Kasa Spot.
2. Holding the card in the correct orientation, carefully insert the SD card into the slot. Push in the SD card until you hear a clicking sound.
microSD
5
Set Up Your Camera
Follow the steps below to get started with your new camera.

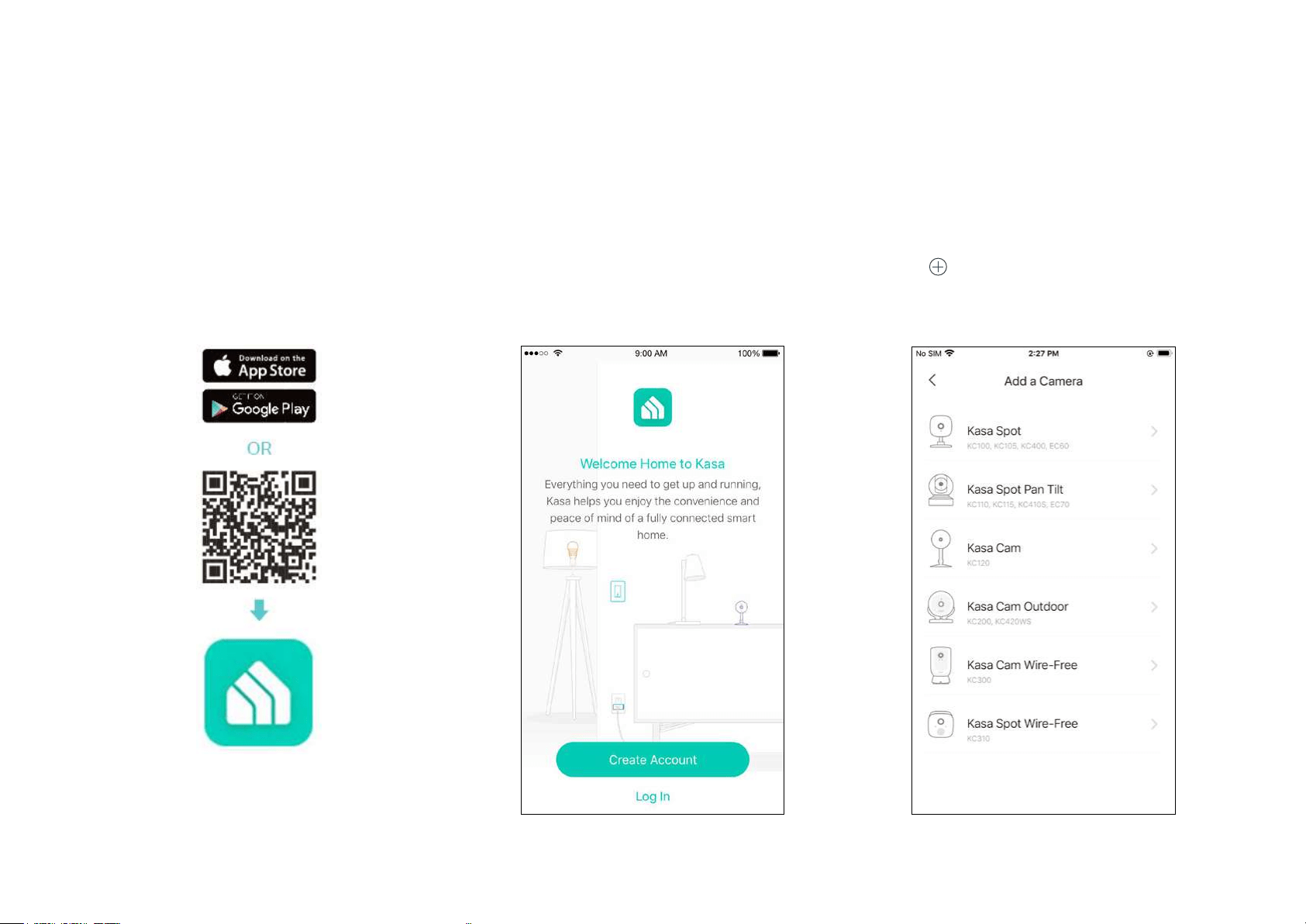

Step 1. Download Kasa
Get the Kasa Smart app from the App Store
or Google Play, or by scanning the QR code
below.
Step 2. Log In
Open the app, and log in with your TP-Link ID.
If you don't have an account, create one rst.
Step 3. Start Setup
Tap the button in the Kasa app and select
Kasa Spot.
6
Step 4. Congure Camera
Follow app instructions to congure your camera and add it to your
home network.

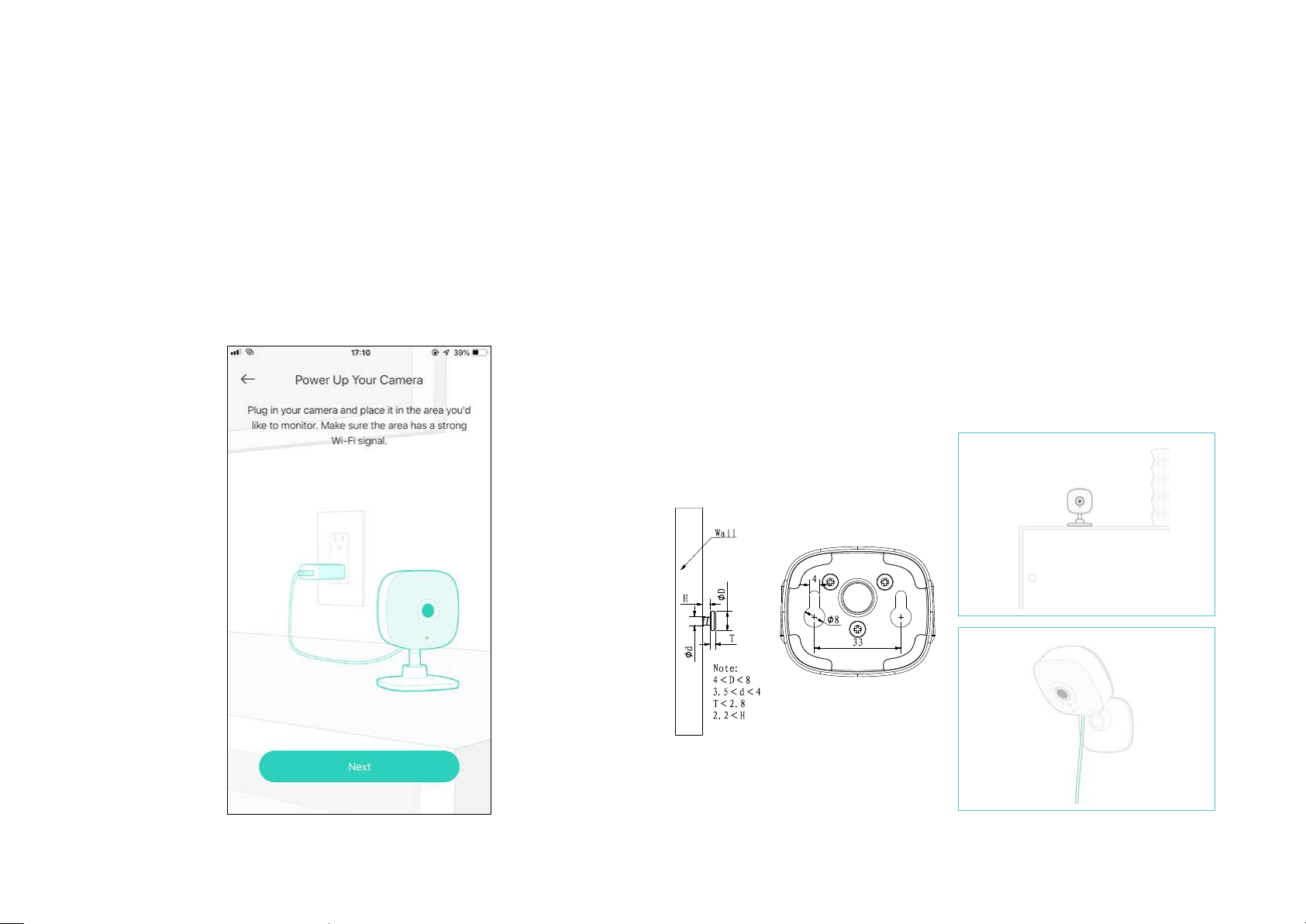

Step 5. Place Camera
Place your camera on a at surface, or install it on a wall or ceiling with
the provided indicator label and mounting screws.
• For cement wall: Drill two
φ
6mm holes with the help of indicator label, insert the plastic
expansion tubes into holes and screw the mounting screws into the expansion tubes.
• For soft surface: Directly screw the screws in.
7
Main Device Controls
After you successfully set up your camera, you will see the home page of the Kasa Smart app. Here you can view and manage all devices that you've
added to Kasa. Tap your camera to enter the live view page and further manage it.

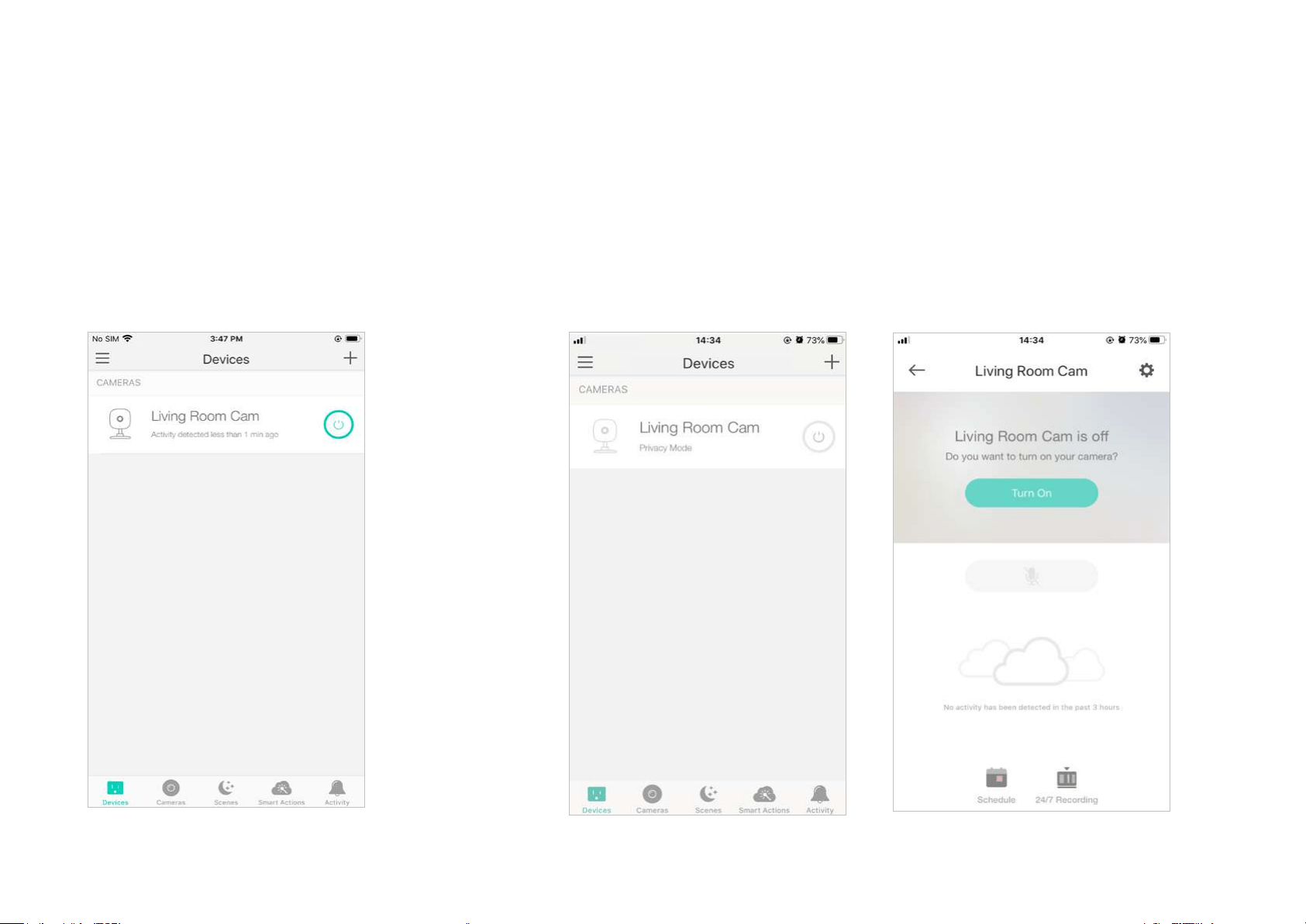

Home Page
You can see all your Kasa devices listed in
the Home page.
Turn on/o your camera
Turn on/o your camera quickly by tapping the switch in the home page. If the camera
is o, it means you are entering Privacy Mode and cannot stream live video.
8
Set Schedules
Schedule: Set schedules to automatically turn on/o your camera at set times according to your daily
routine.

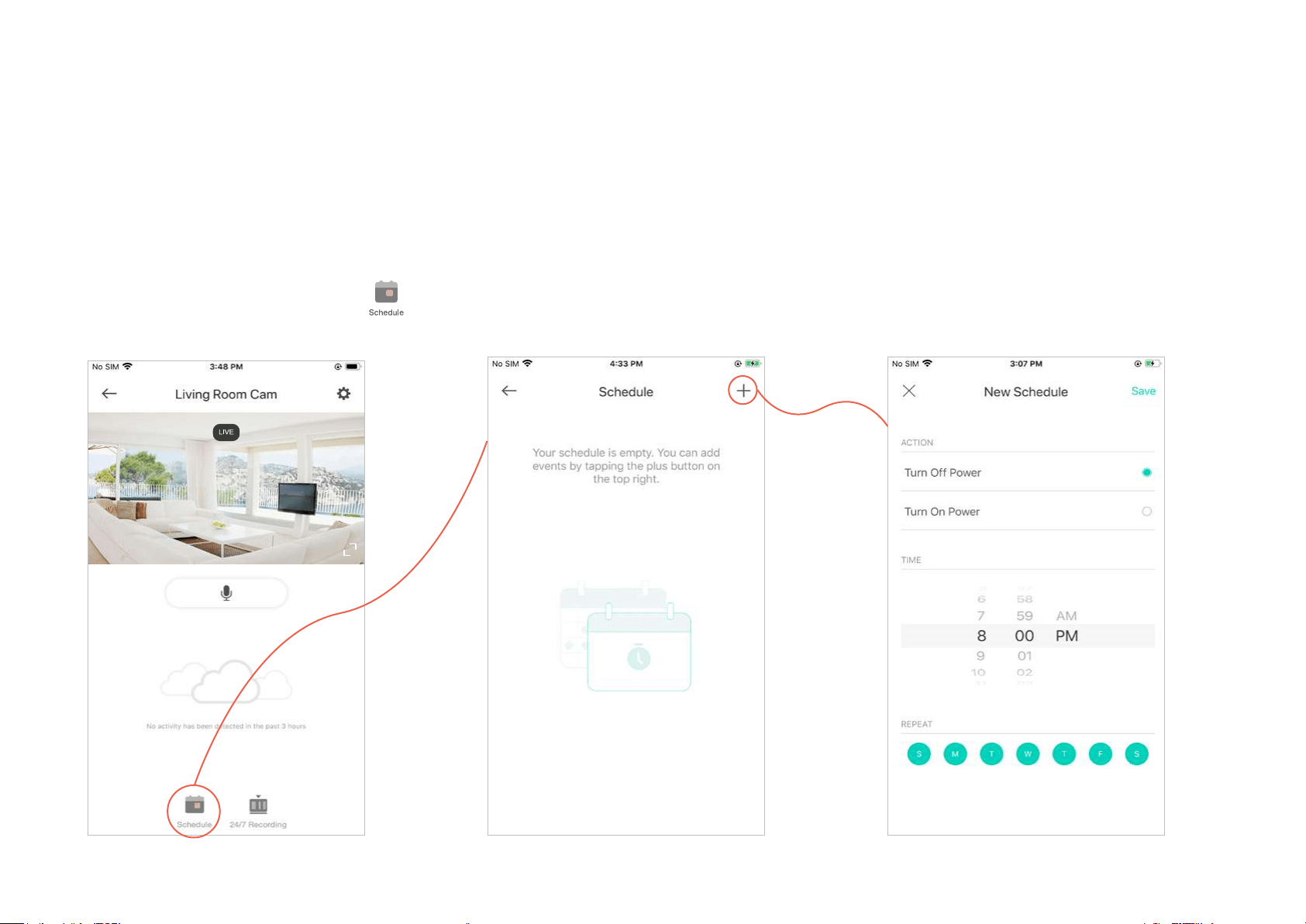

1. Tap your camera in the Home page to
enter the live view page, and then tap .
2. Tap + on the top right corner. 3. Set a schedule to turn the camera on or
o at set time.
E.g. I want to turn o the camera at 8:00 PM
every day.
9

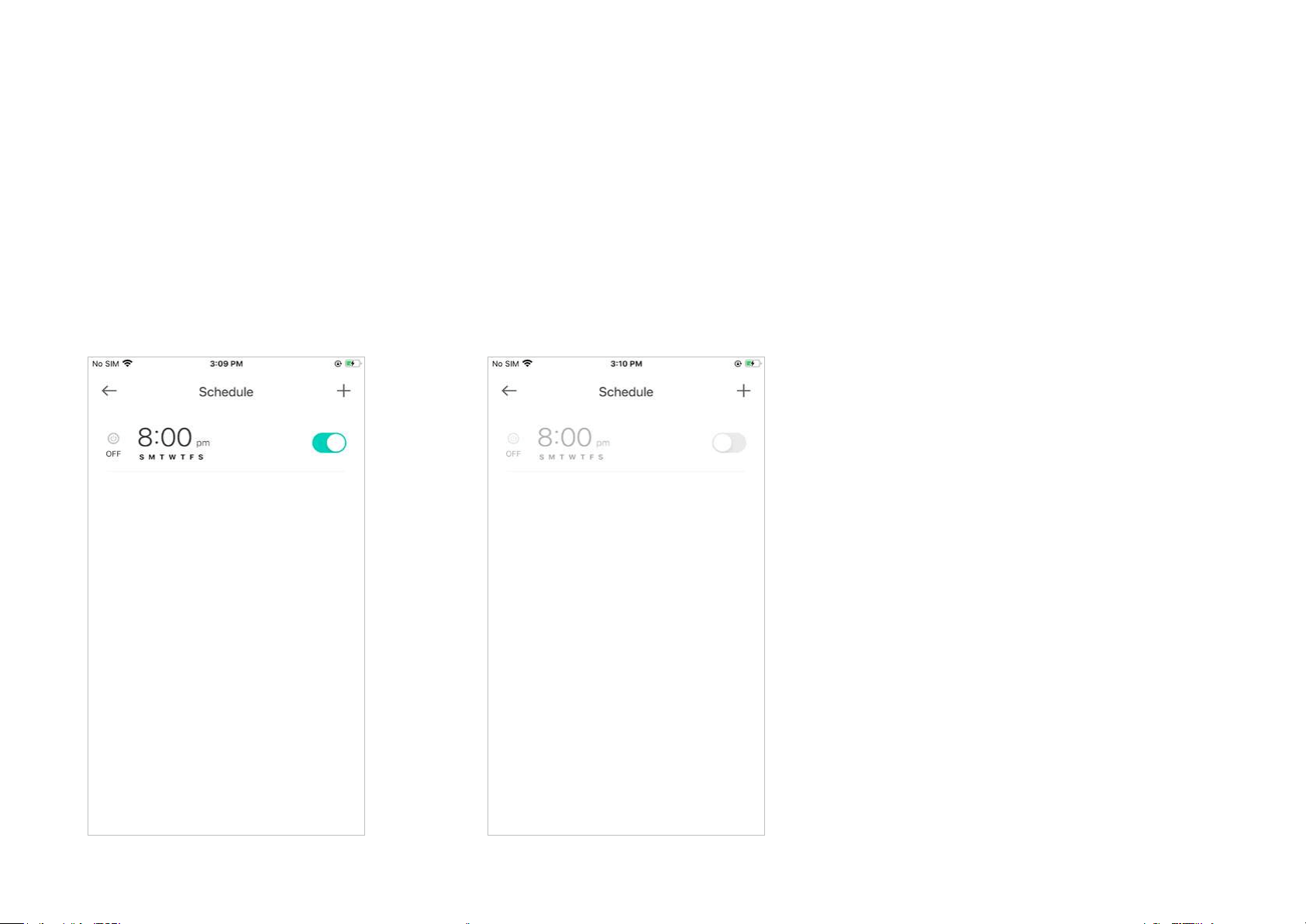

4. Tap Save and you'll see your schedule
listed in the Schedule Page. You can add
more schedules following the same steps.
5. You can turn o your schedule any time
at the Schedule page.
10
24/7 Recording

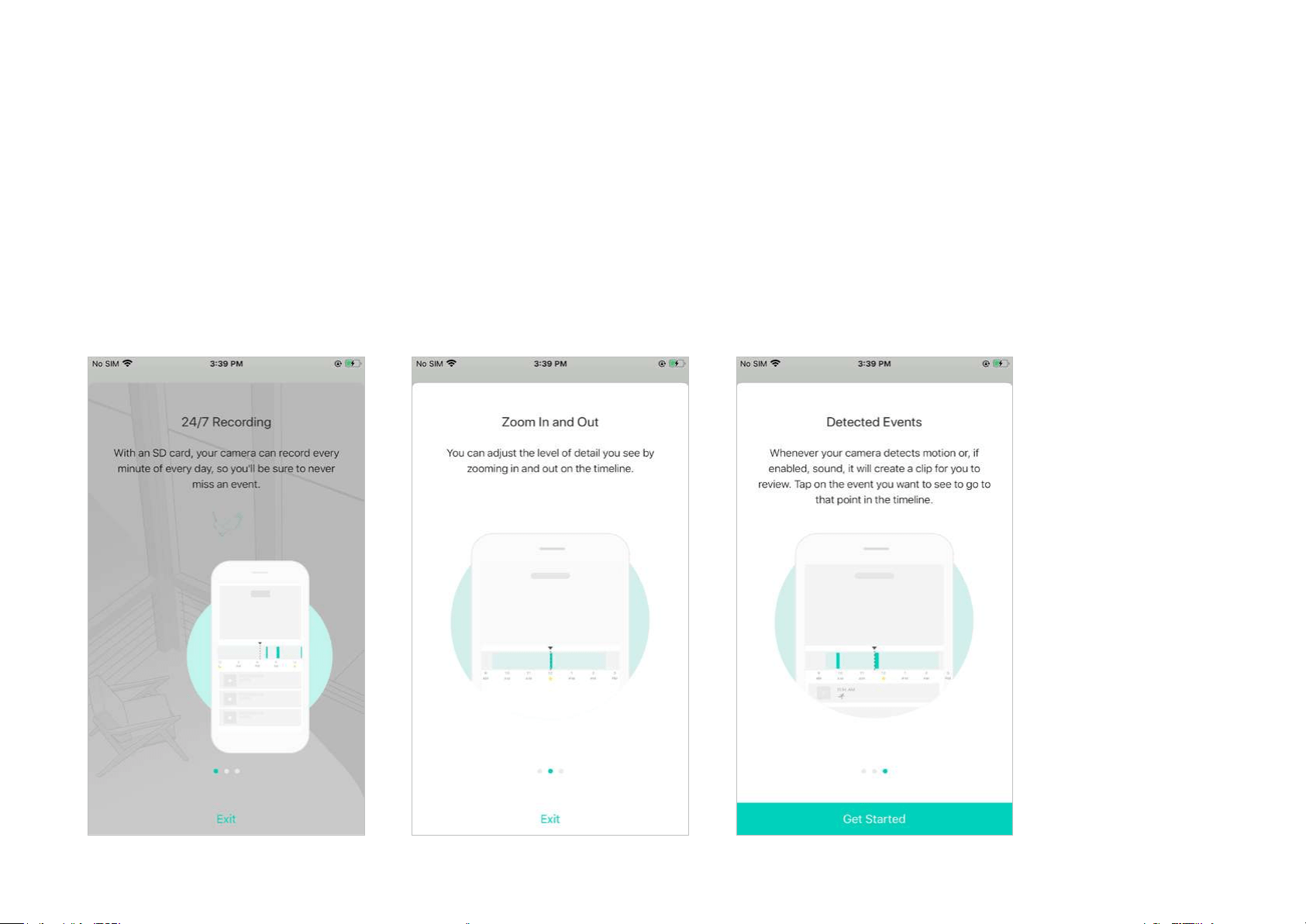

1. What is 24/7 Recording?
When 24/7 Recording is enabled, your camera can record every minute of every day so you'll never miss a thing.
Note: Format your microSD card in the Kasa Smart app before using it.
11

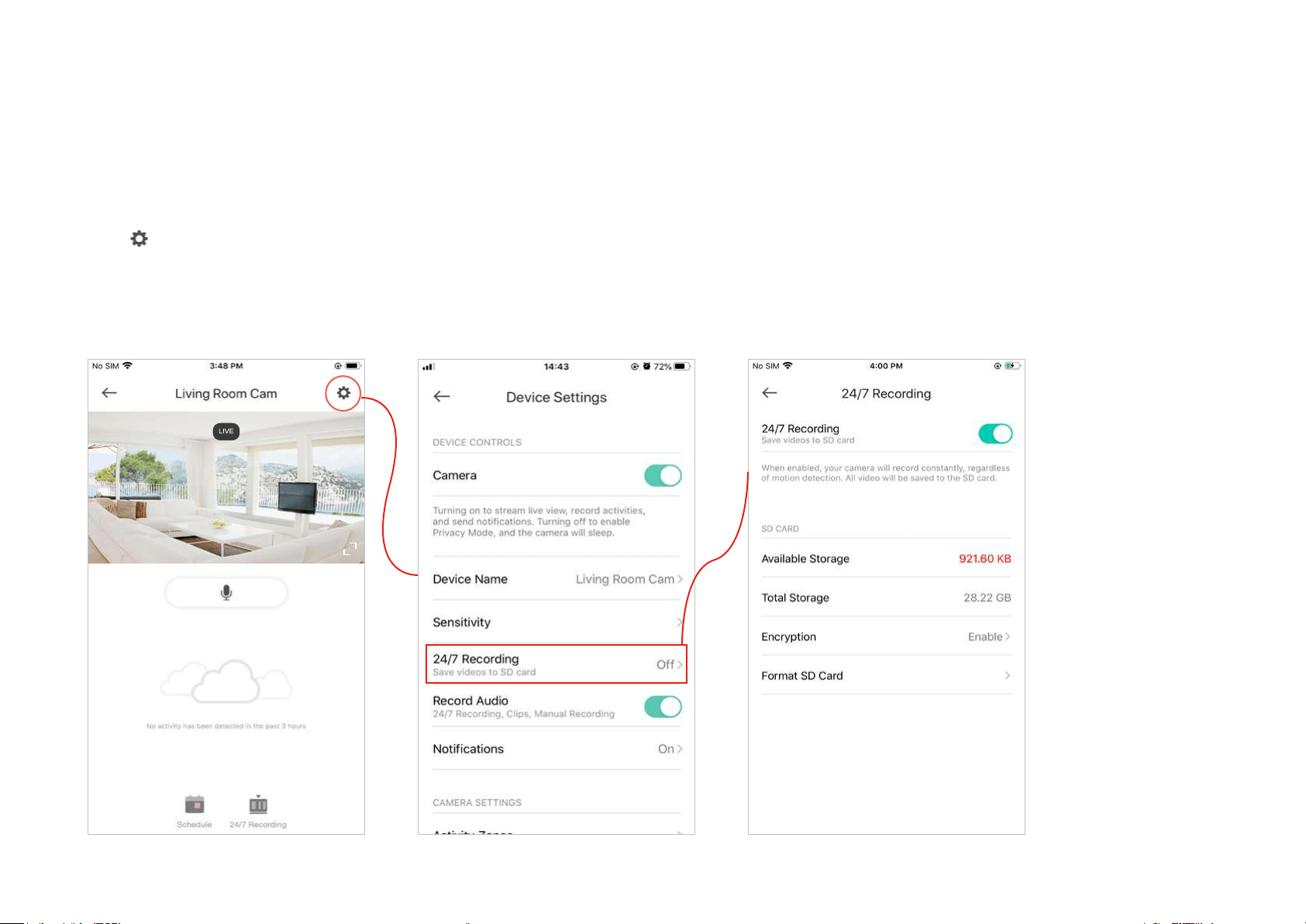

2. Enable / Disable 24/7 Recording
Tap your in the live view page and tap 24/7 Recording. Here you can enable or disabled the feature and check the storage of
your microSD card.
Encryption: when enabled, all videos recorded to your SD card can only be read from this camera.
12

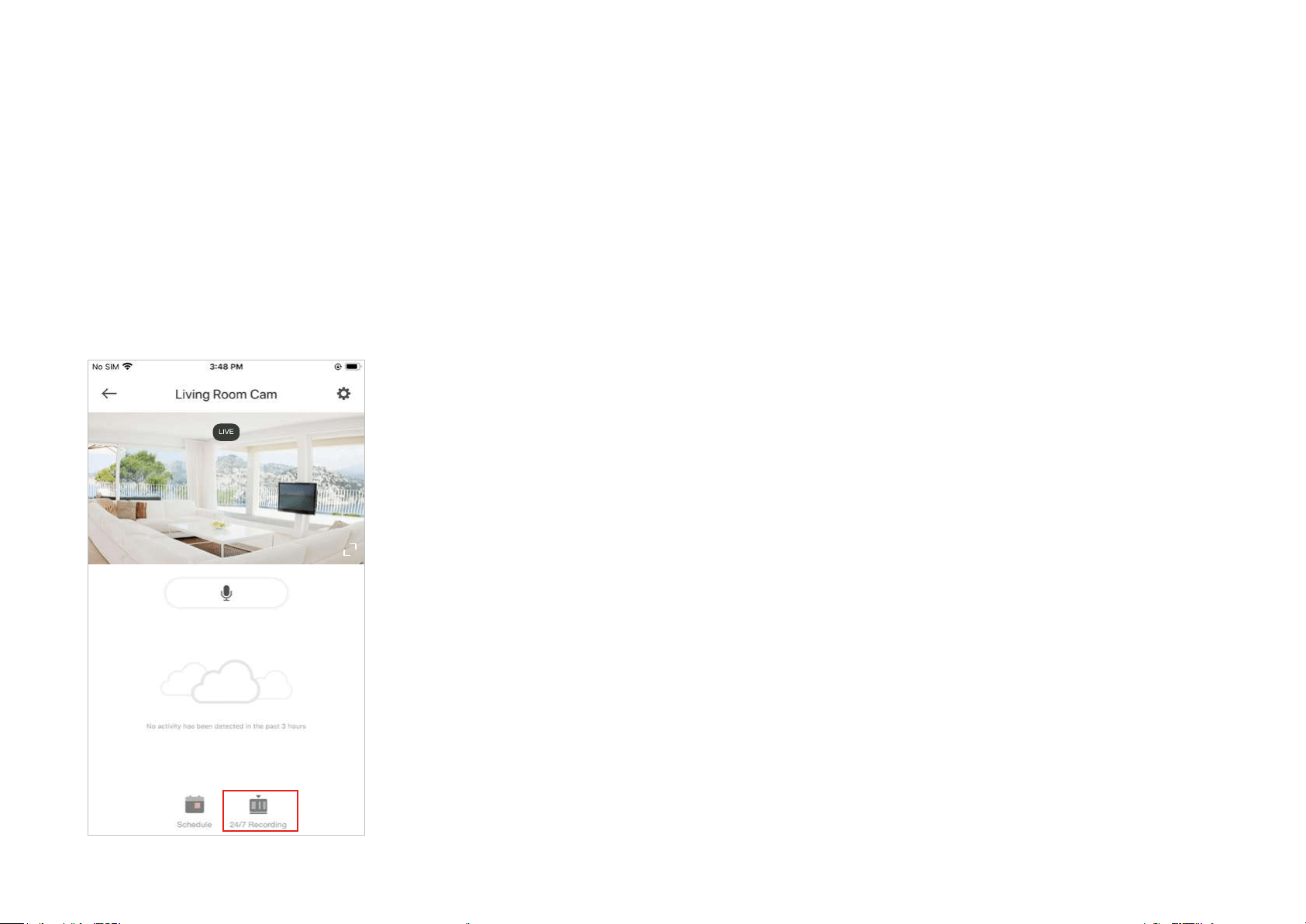

2. Check Recorded Videos
Go to the live view page and tap 24/7 Recording. You can check all your recorded videos here.
13
Manage Device Settings

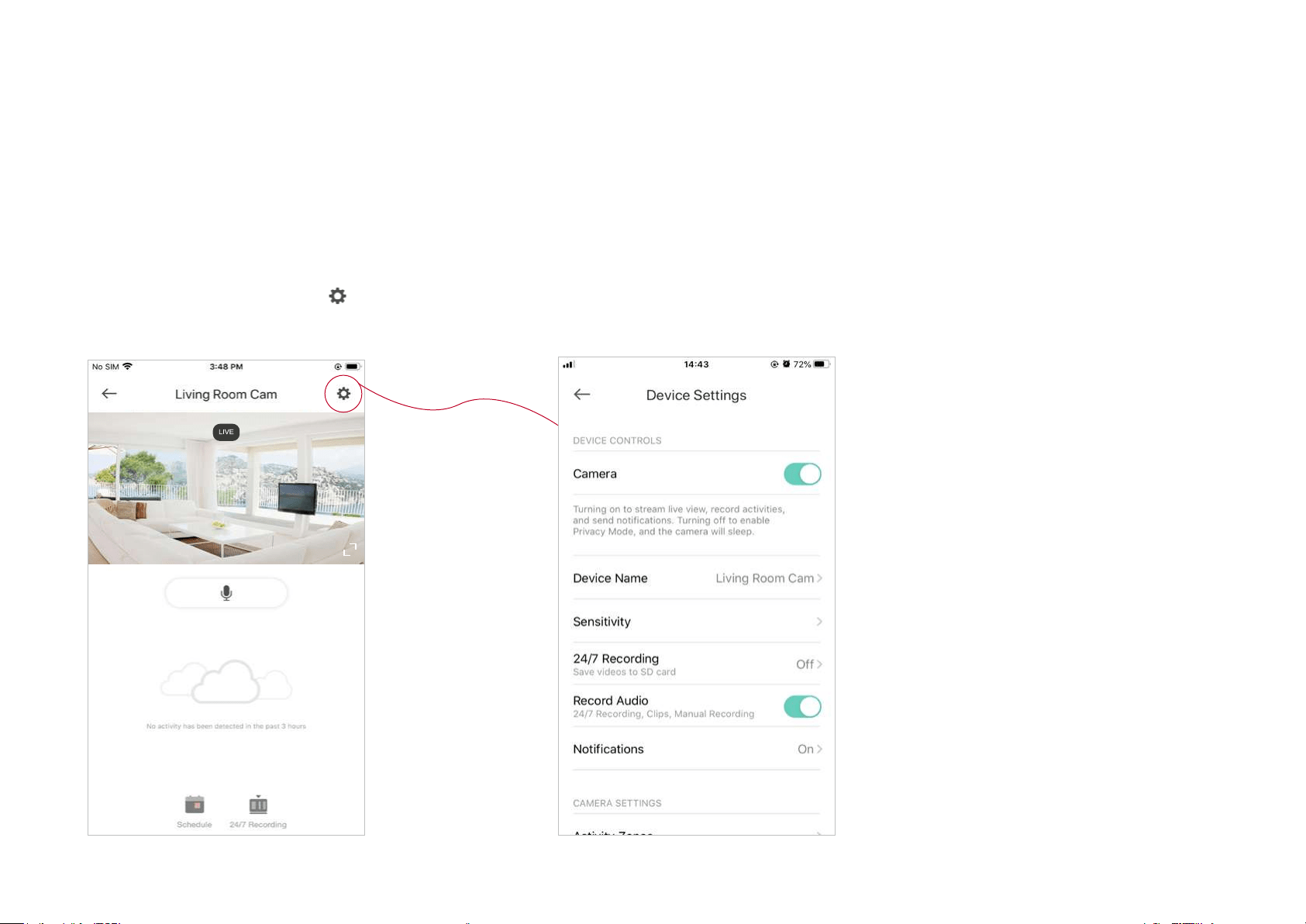

1. Tap your camera in the Home page to enter
the live view page and then tap .
2. Turn on or o the camera.
When turned o, it means your camera is in privacy mode. You can turn the camera o
when you do not want your camera to stream live view video and record videos.
14
Manage Device Settings

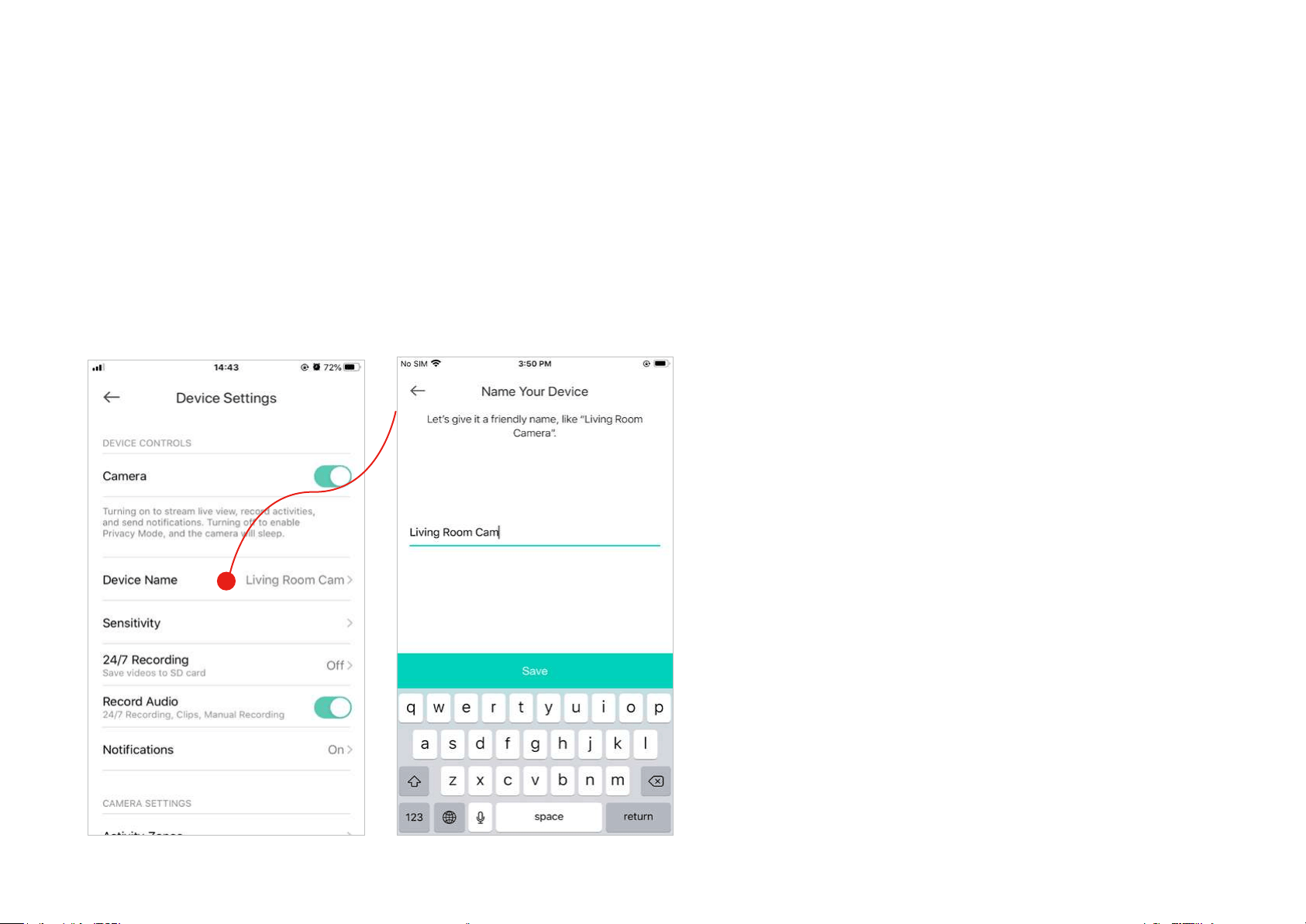

3. Edit device name.
15
Manage Device Settings

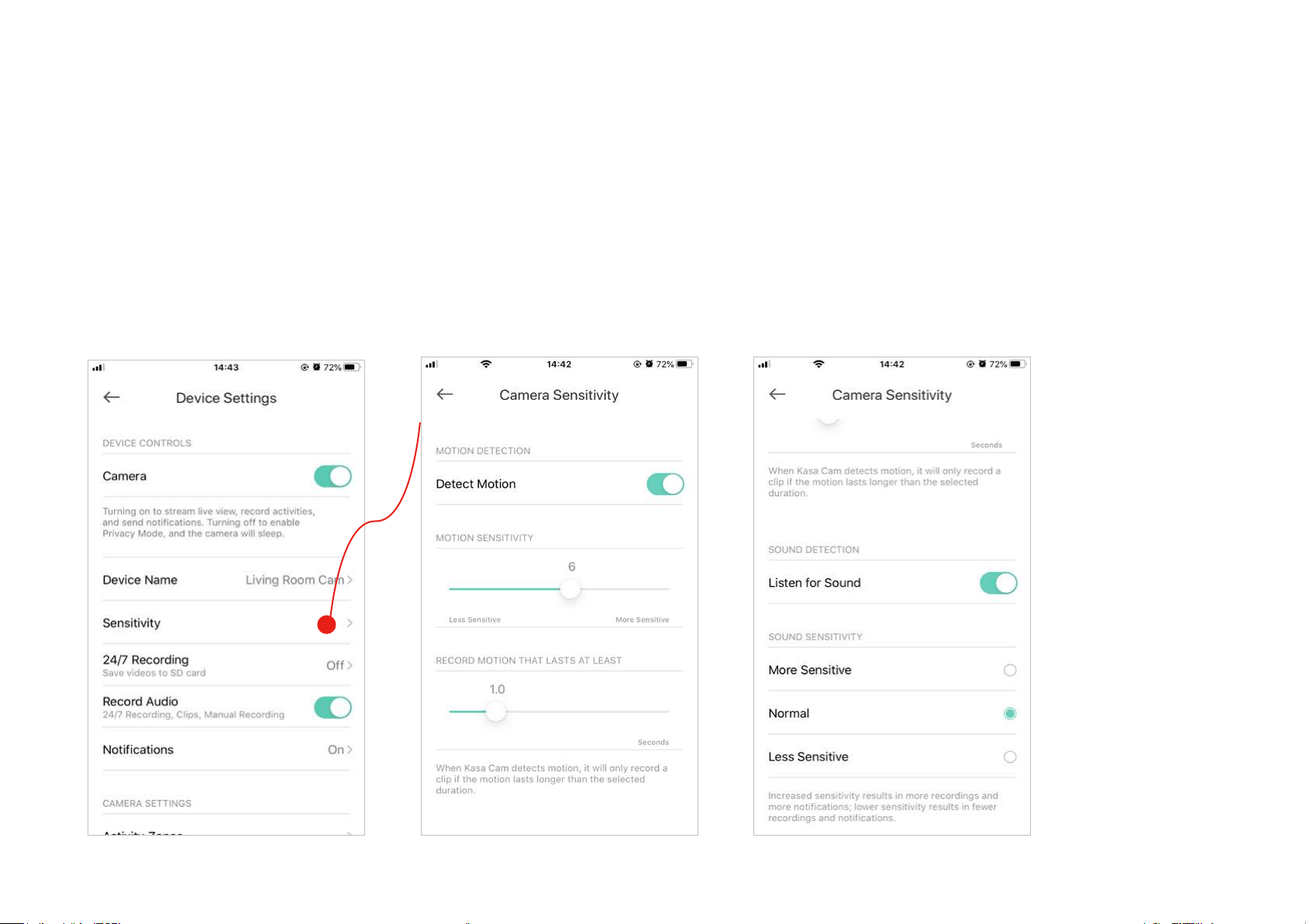

4. Set sensitivity for recording videos.
Enable Detect Motion if you want your camera to record when motion is detected. Also set the sensitivity of detection.
Enable Listen for Sound if you want your camera to record when sound is detected. Then set its sensitivity.
16
Manage Device Settings

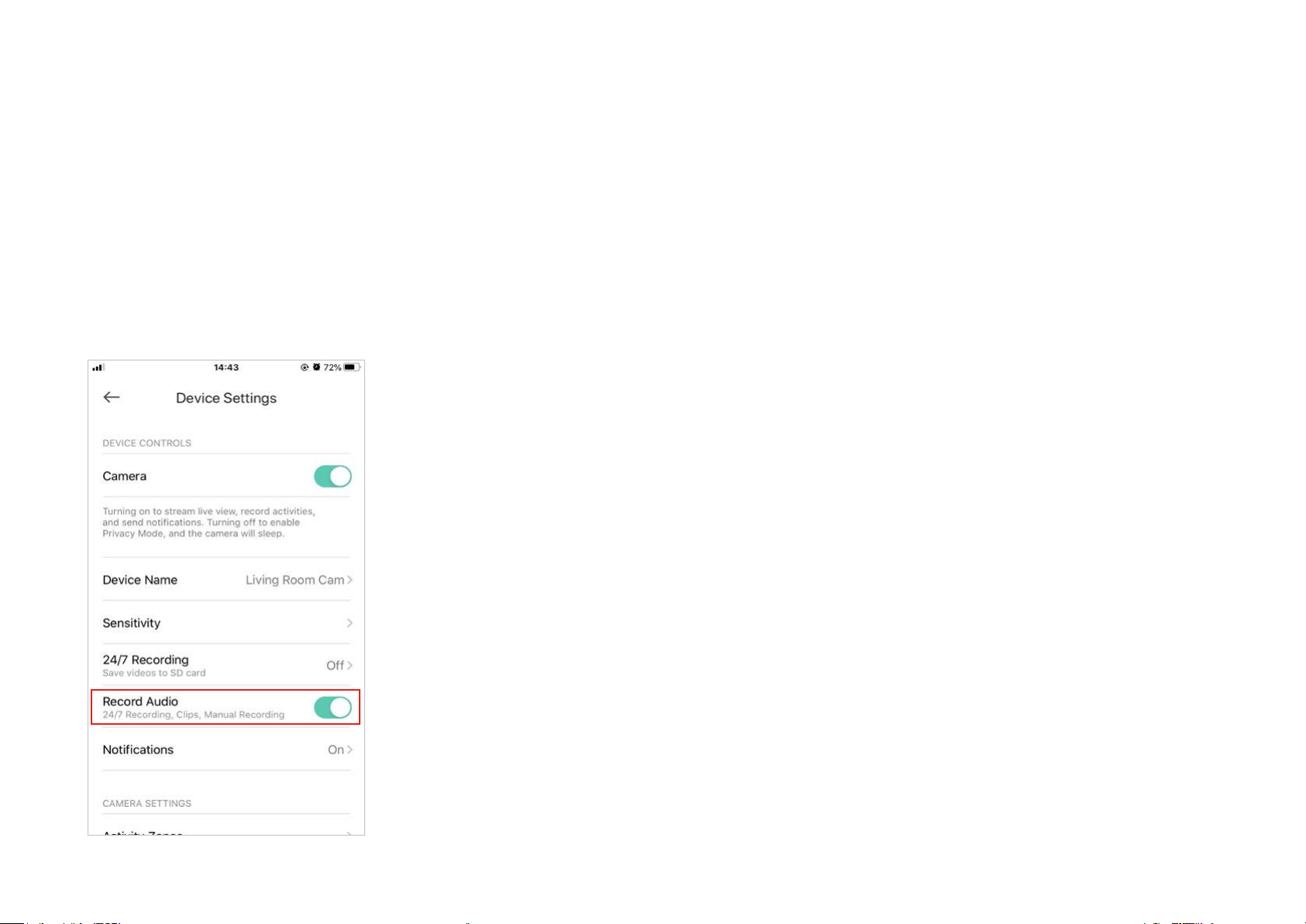

5. Choose whether to record audio.
Enable Record Audio if you want to also record sound during recording.
17
Manage Device Settings

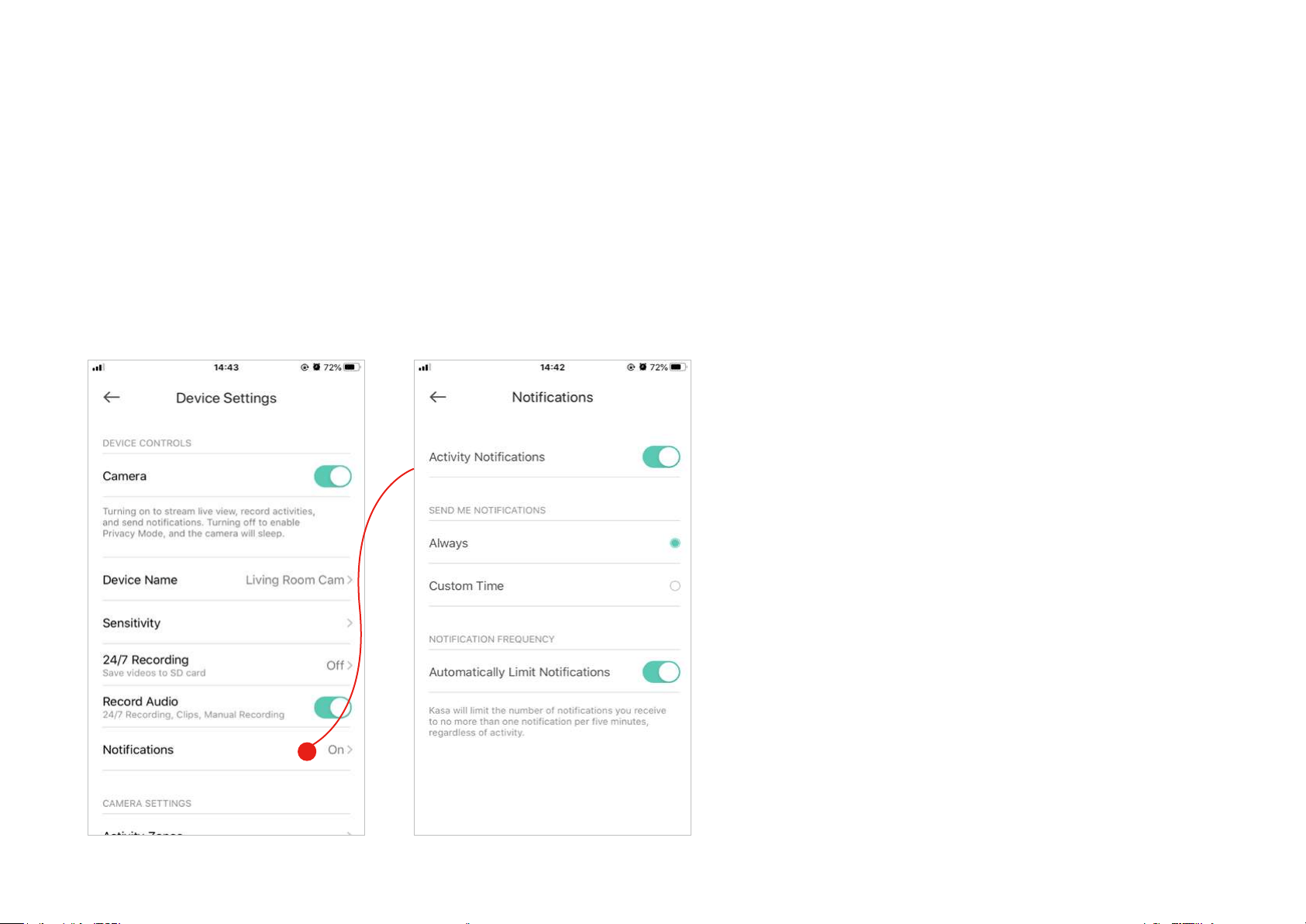

6. Choose whether to receive notications.
Enable Activity Notifications if you want to be notified when activity is detected. You can also set the time when you want to receive notications.
If you don't want to be bothered by frequent notications, enable Automatically Limit Notifications.
18
Manage Device Settings

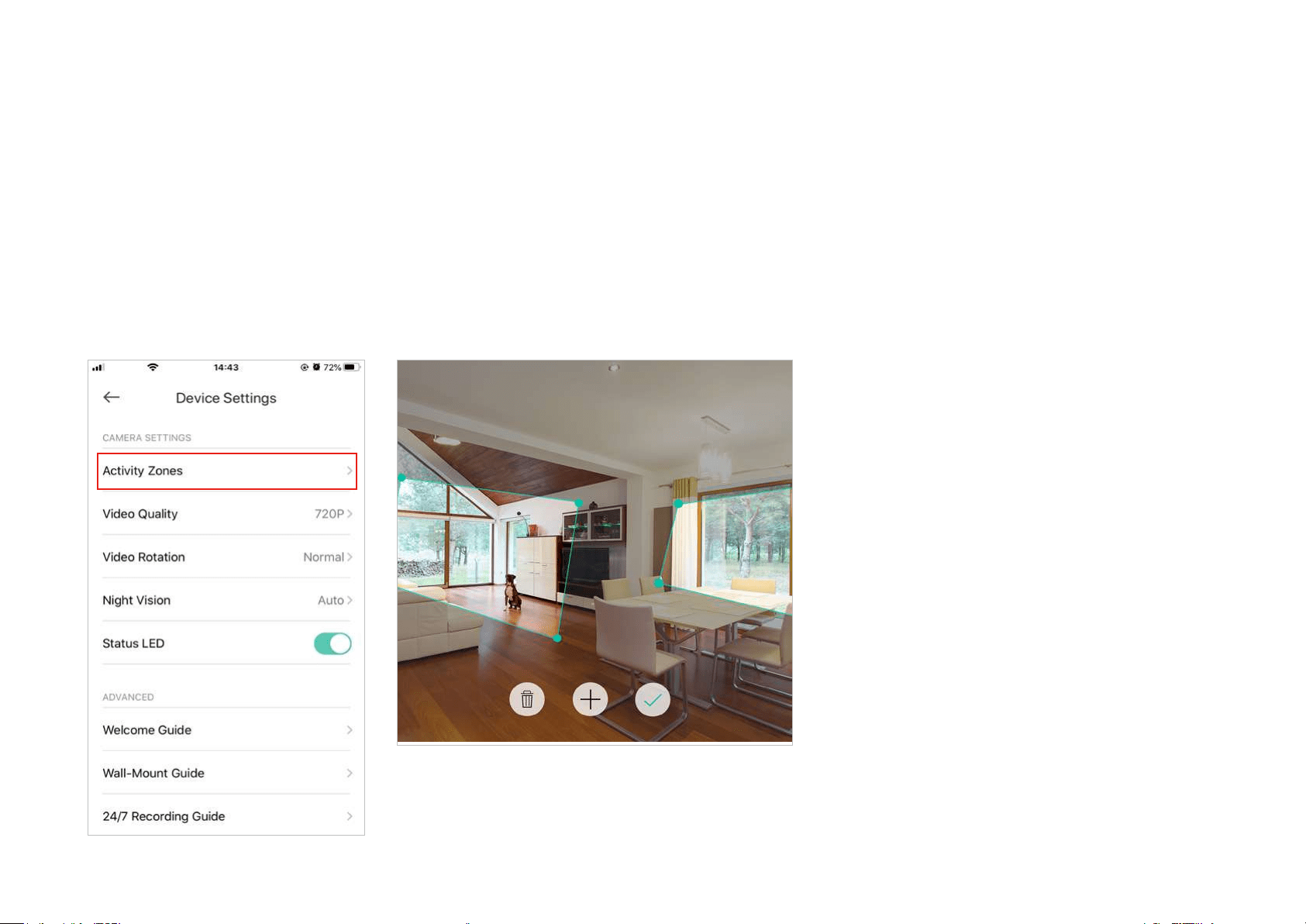

7. Set activity zones.
Control what alerts you by creating multiple custom activity zones around areas that are important to you.
19
Manage Device Settings

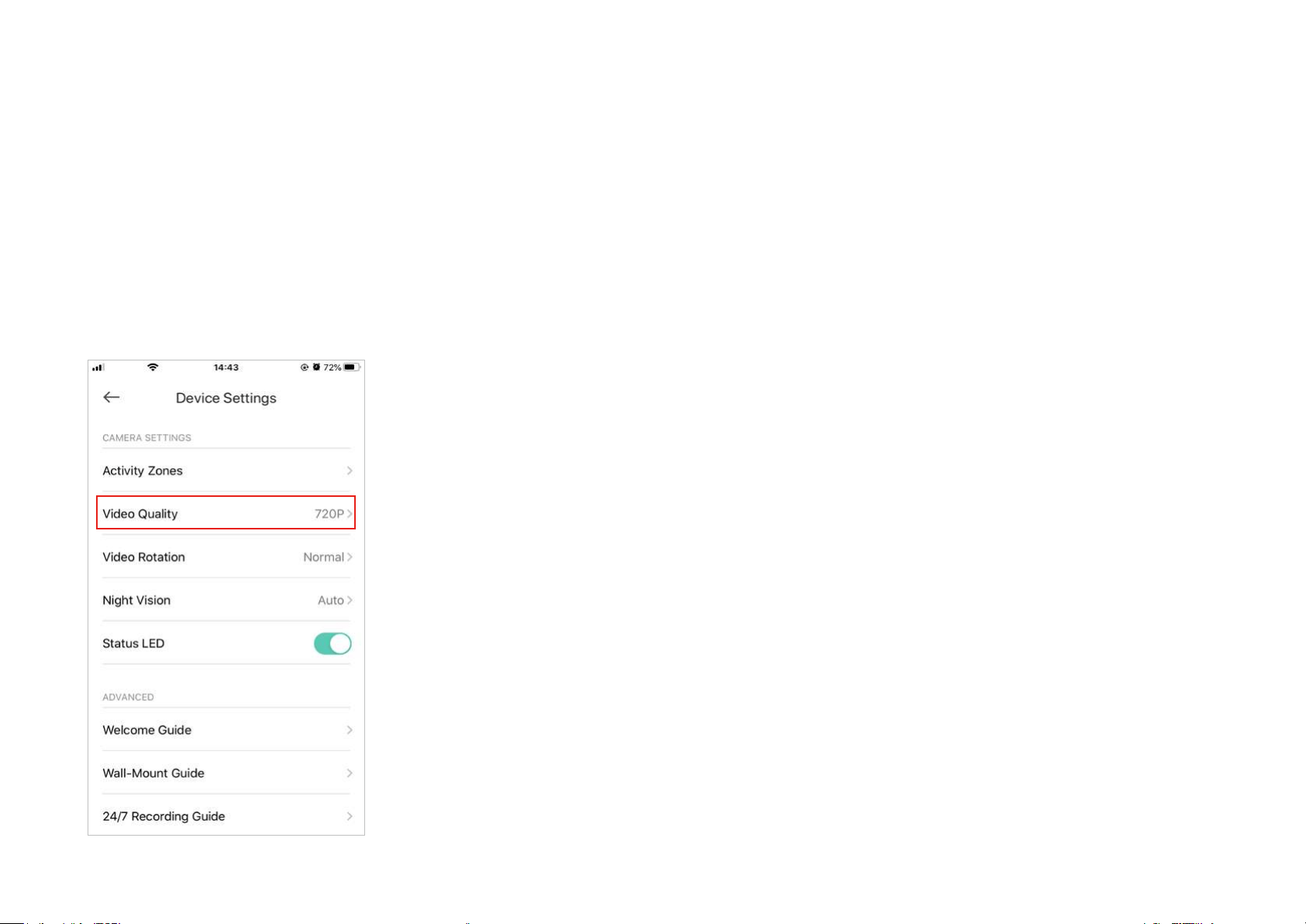

8. Choose the resolution for videos.
The highest quality looks better but requires faster internet connection and larger size for saving the videos.
20
Manage Device Settings

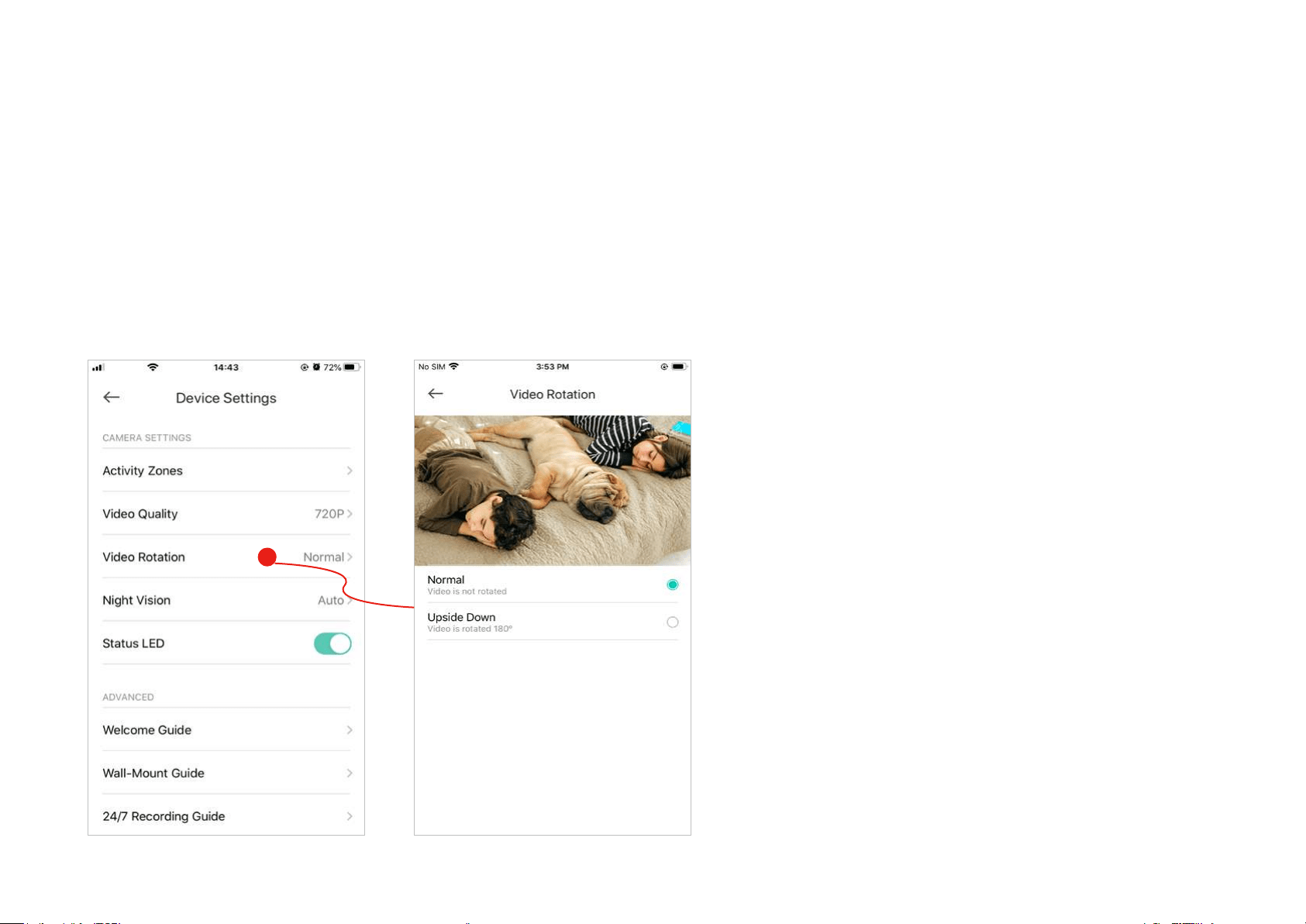

9. Choose to rotate the video.
21
Manage Device Settings
10. Choose when you want the night vision to be on.
Night vision allows you to see clearly at night. You can choose Automatic to turn on night vision automatically in low light conditions and turn off in
daylight.
22
Manage Device Settings

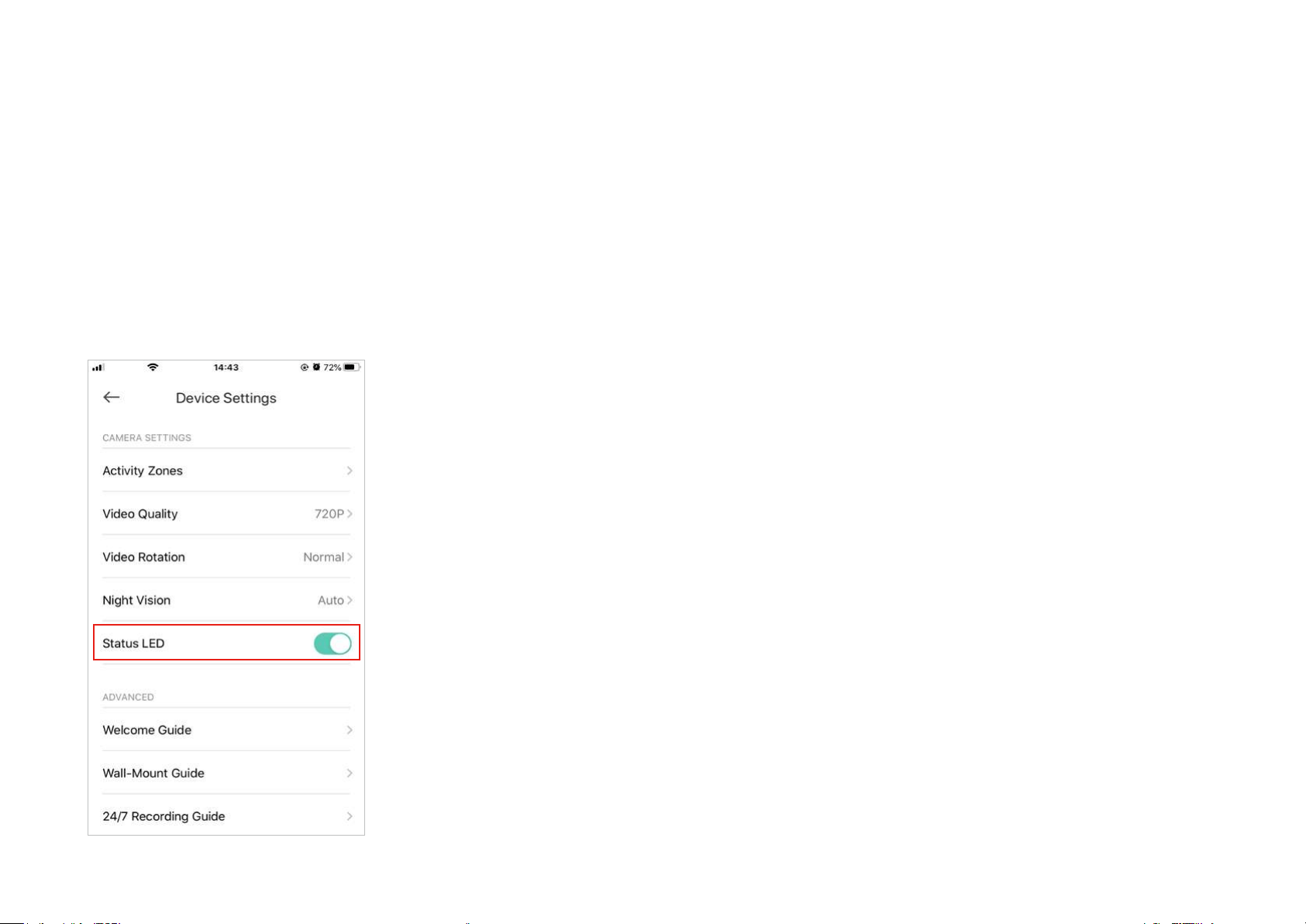

11. Turn on/o Status LED.
Turn on or off the status LED on the camera.
23
Manage Device Settings

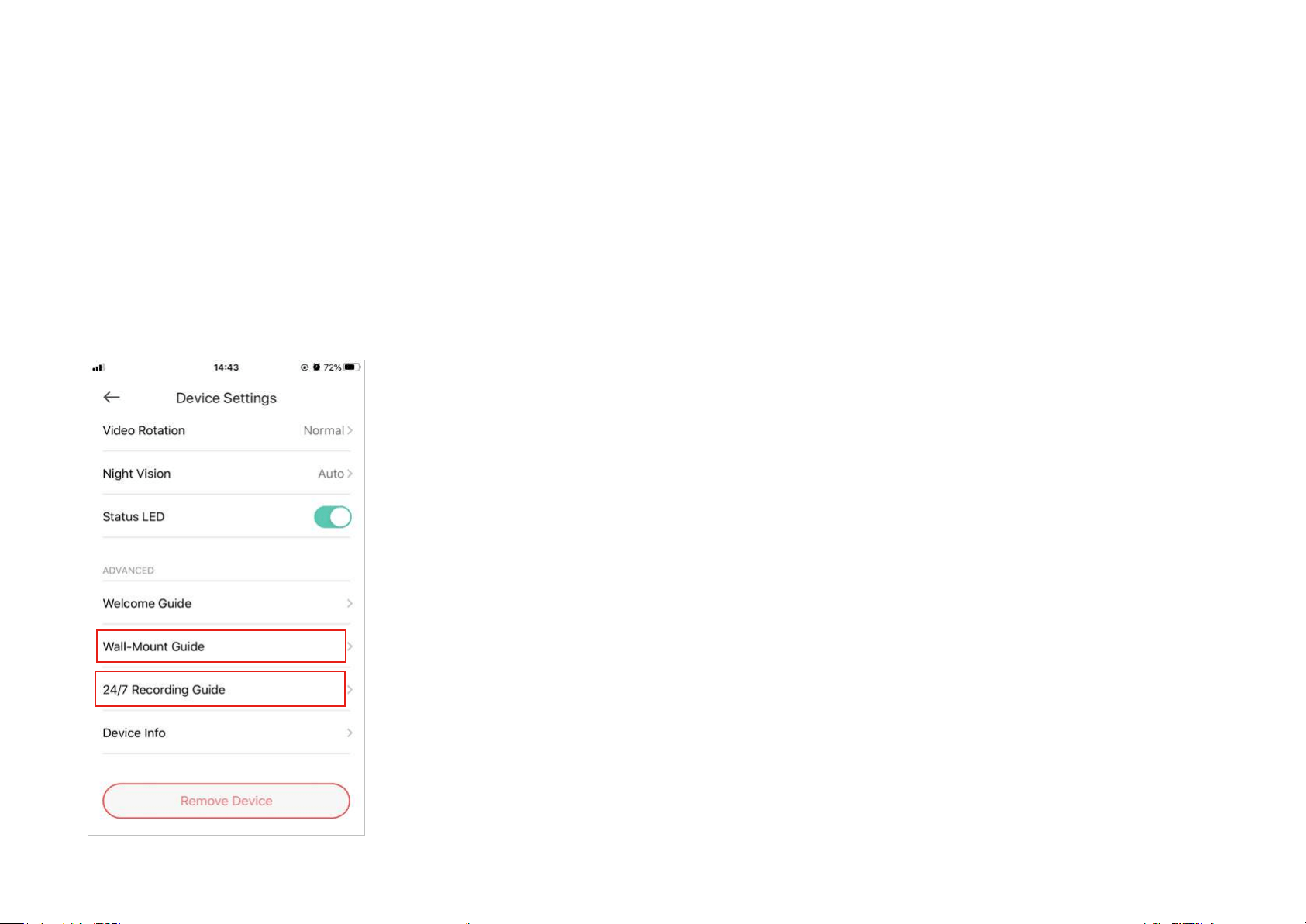

12. Get to know more about the wall-mount information or 24/7 recording information by tapping Wall-Mount Guide or 24/7 Recording Guide.
24
Reset Your Camera

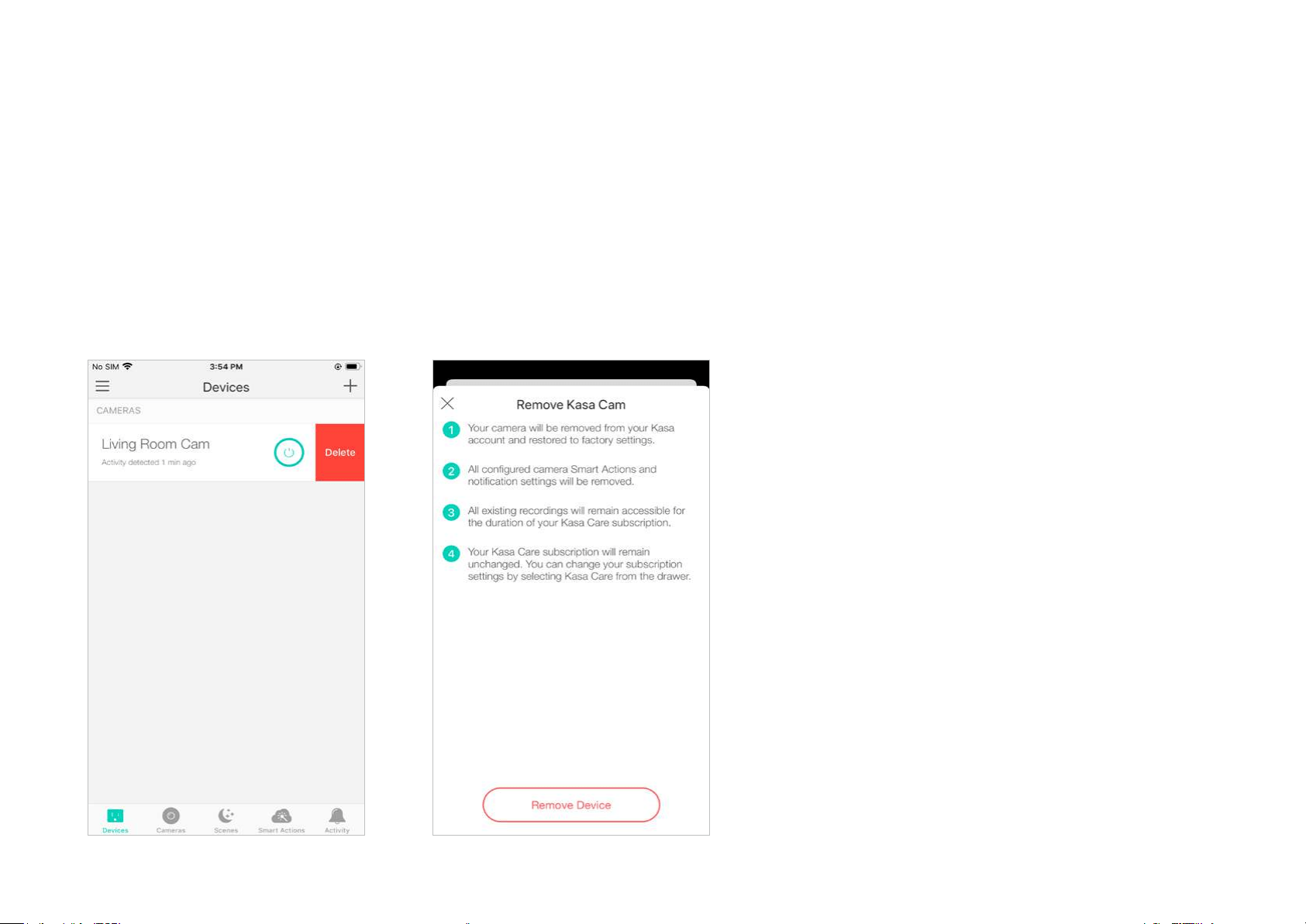

Kasa provides two methods to reset your camera.
Method 1
Swipe left your camera on the Home page and tap Delete. Then tap Remove Device. Your camera
will be removed from your Kasa account and restored to factory settings.
25
Method 2

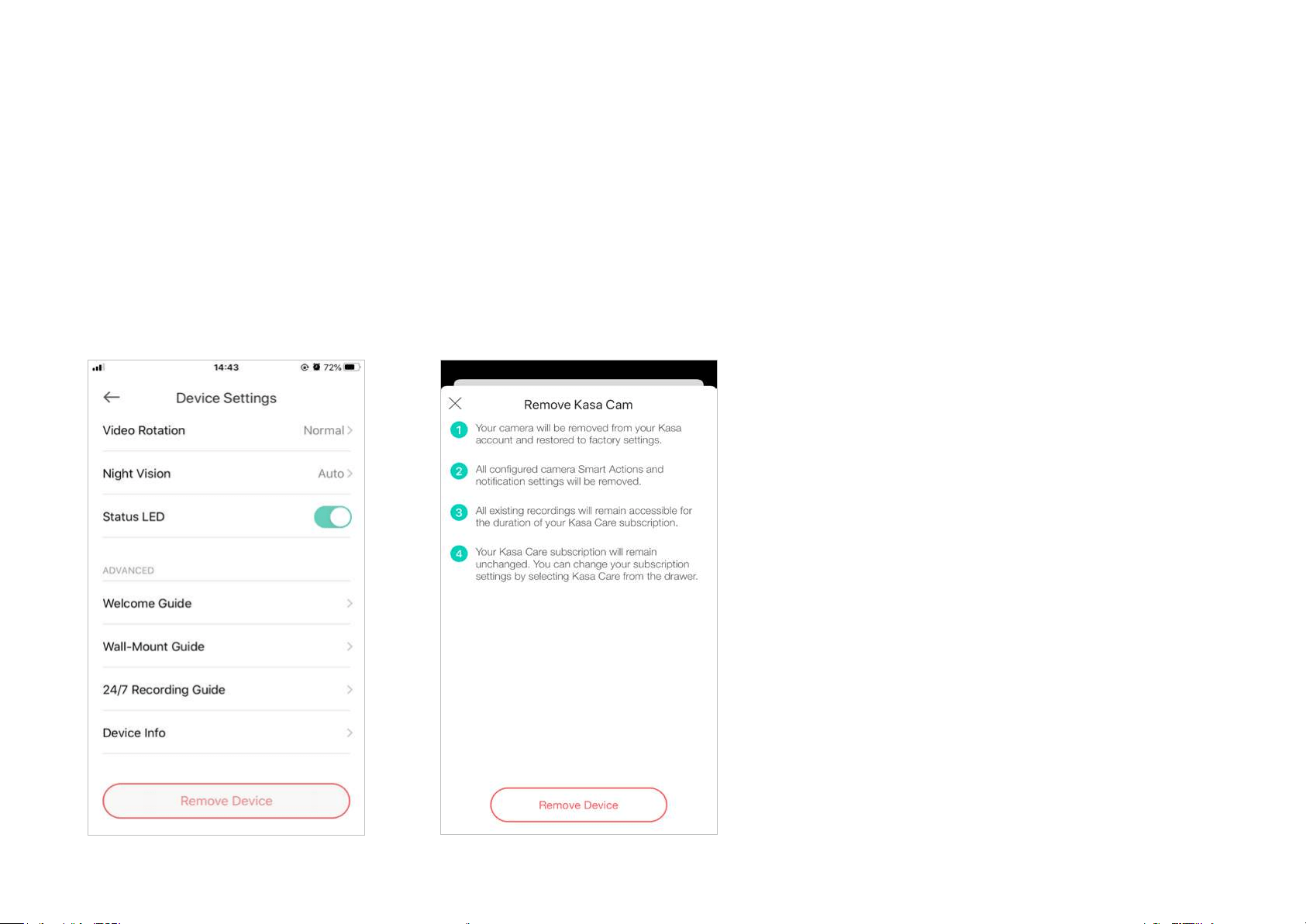

Tap your camera and go to the Devices Settings page. Then tap Remove Device in the bottom.
Your camera will be removed from your Kasa account and restored to factory settings.
26
Smart Actions - Motion Sensing
Smart Actions is a function provided that enables device interconnections and home automations. With Smart Actions, your Kasa devices can work
together to create a smarter smart home. From the moment you wake up to the moment you drift asleep, Smart Actions make your home safer and
more comfortable. There are four types of smart actions. For your Kasa Spot, you can set Motion Sensing smart action.

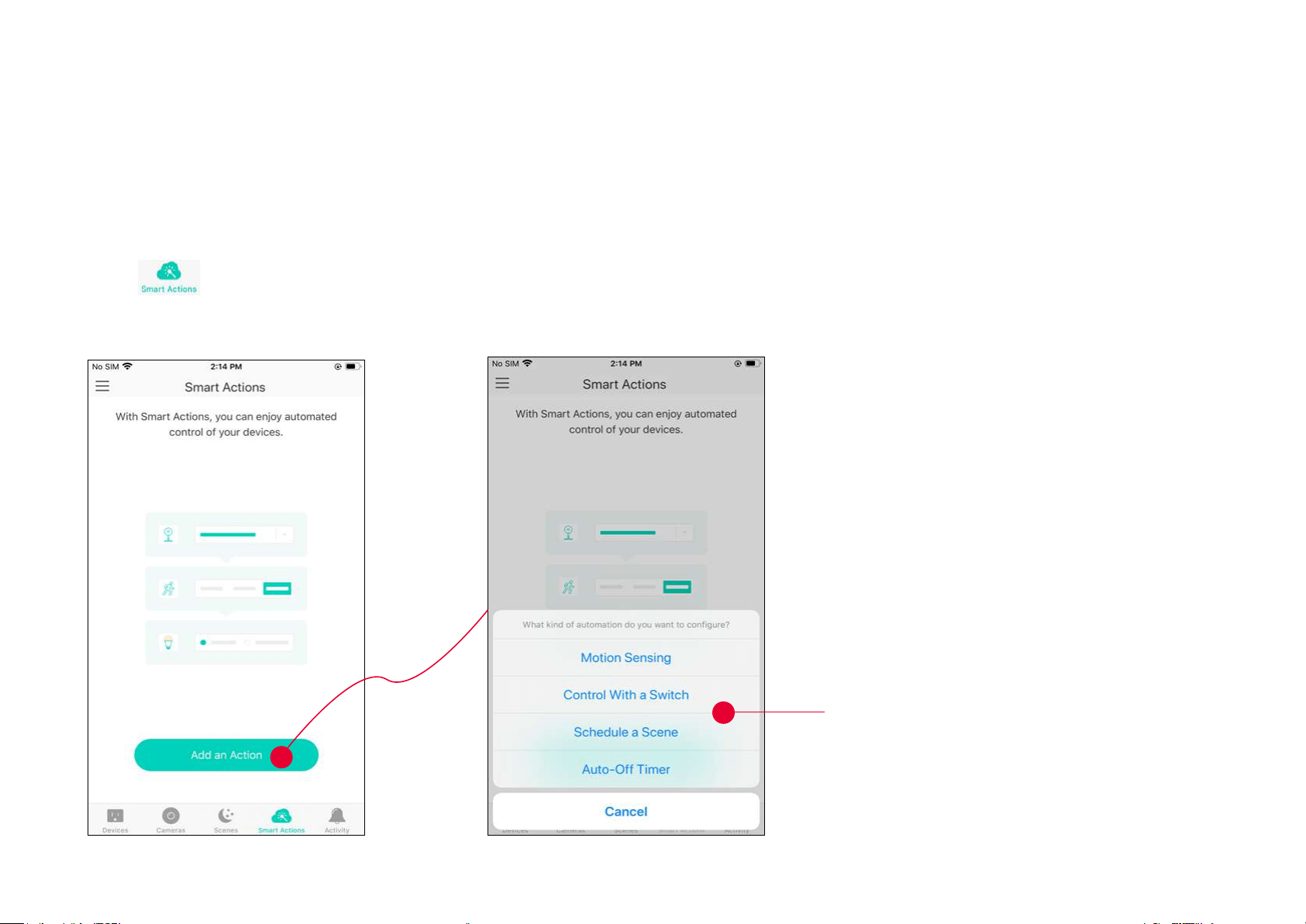

1. Tap at the bottom, then tap Add
an Action.
2. Select an automation type for your Smart
Actions. Here we choose Motion Sensing.
Motion Sensing: Take actions when a Kasa camera
senses a motion.
Control With a Switch: Extend the Smart Switch
control to other Kasa Smart devices. Turn on/o a
group of devices with the Smart Switch all together.
Schedule a Scene: Schedule a “Scene” to be turned
on automatically at the time specied.
Auto-o Timer: Whenever a Smart device is turned
on, turn it o after the designated amount of time.
27
1. Tap Motion Sensing then select a camera. 2. Select your Kasa Smart Plug in which your
living room light is plugged.
Congure Motion Sensing if you also have another Kasa smart device
E.g. I want to turn my living room light (plugged in my Kasa Smart Plug) on when my Kasa Spot senses a motion.
28

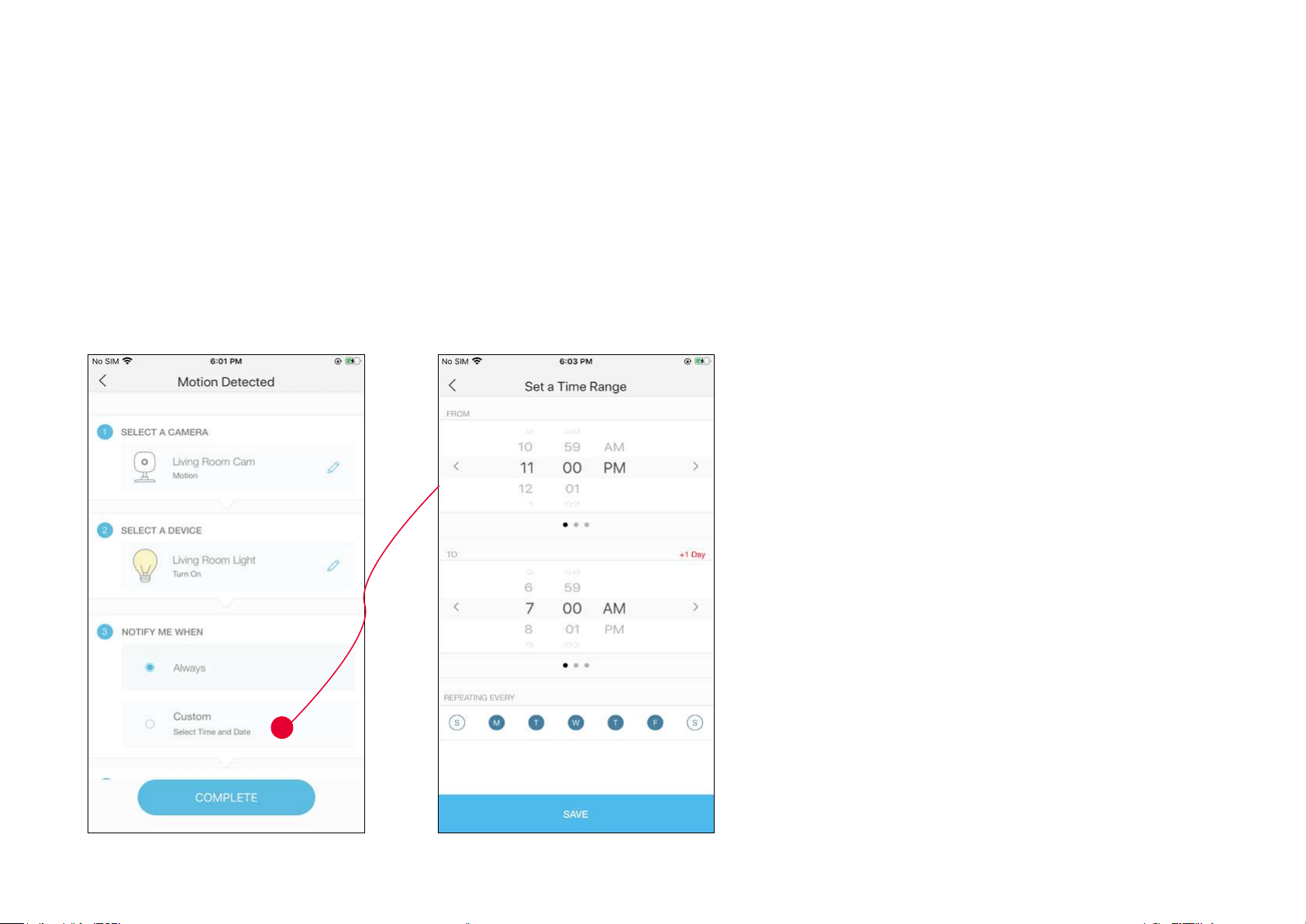

3. Set the time when you want the action to run. You can choose Always or tap Custom to choose time according to your needs.
E.g. I want the motion to trigger the light on from 11:00 PM to 7:00 AM every day.
29

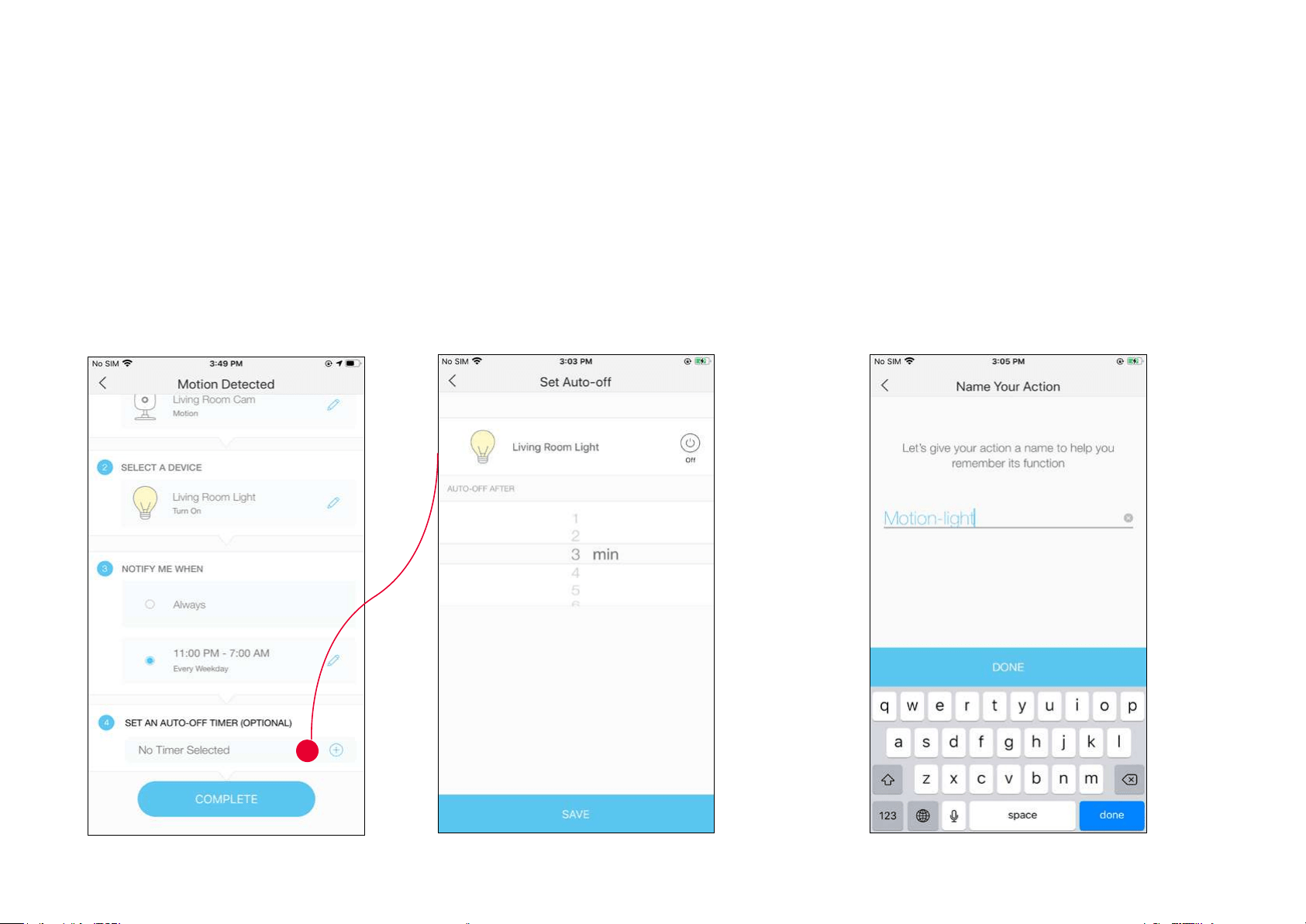

4. (Optional) Set an auto-o timer then tap Complete. Then your light will be turned o
after the time when it is triggered on.
5. Name your action for easy identication.
30

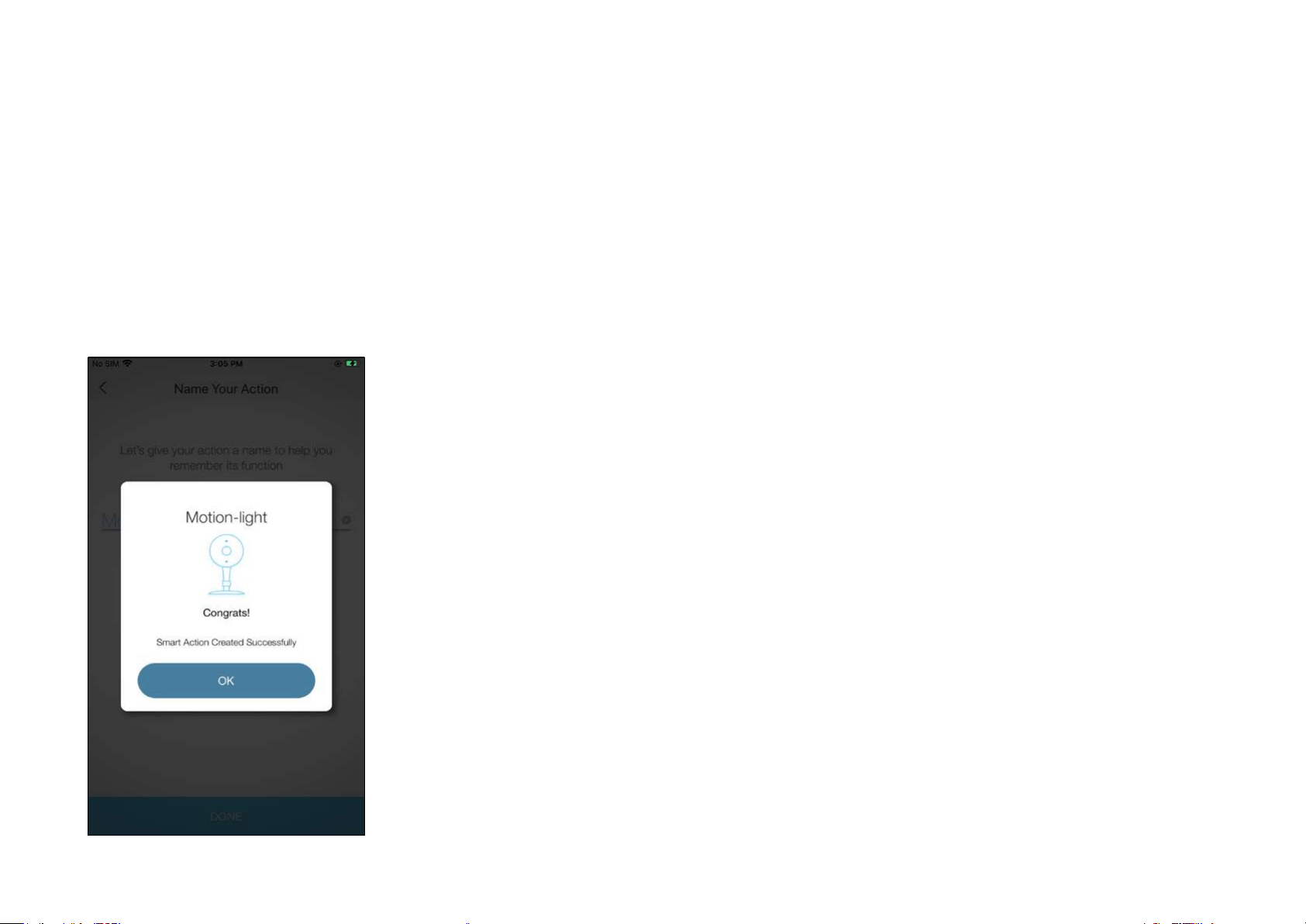

6. The Smart Action is created successfully and displayed in the Smart Actions list.
31
Voice & 3rd Party Support
Use the Kasa Smart app to control your Kasa Spot with Amazon Alexa or Google Home Assistant, and enjoy a full hands-free experience. Kasa helps
manage the rest of your smart home too, working with Samsung SmartThings to trigger changes when you arrive home or leave for the day.

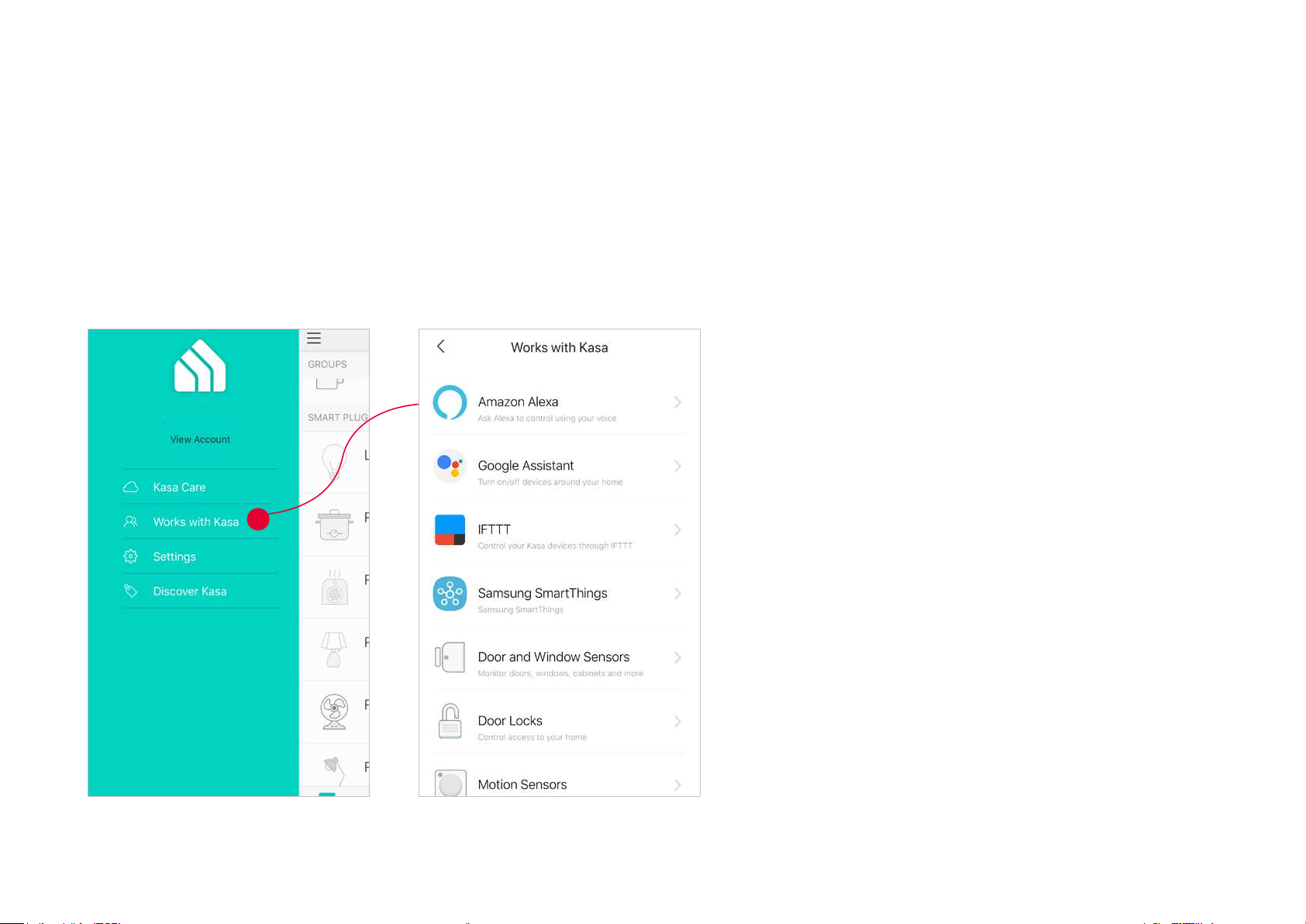

Launch the Kasa Smart app. Go to the sidebar and tap Works with Kasa. You can choose Amazon Alexa / Google Assistant / IFTTT / Samsung
SmartThings for detailed instructions.
32

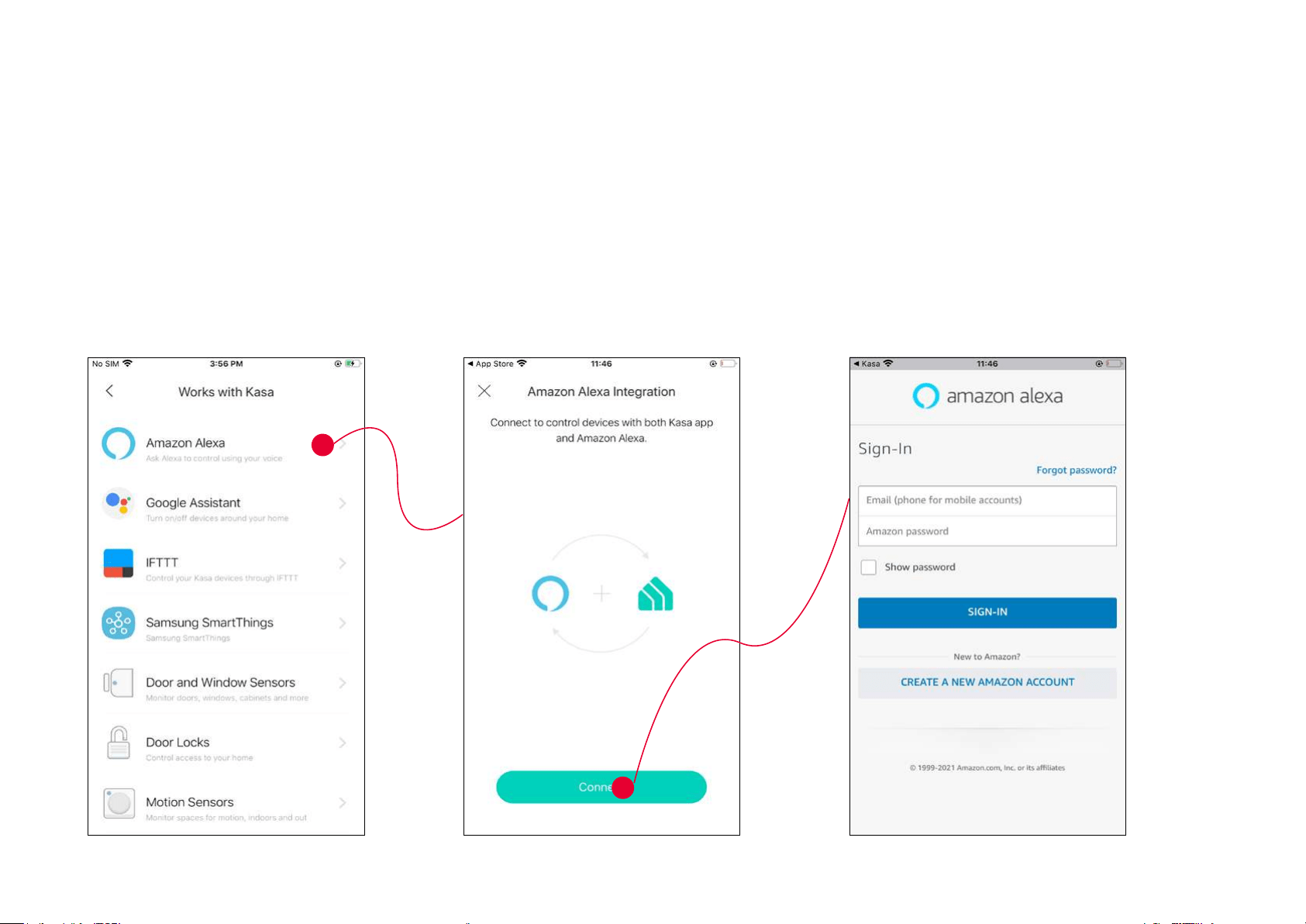

1. Tap Amazon Alexa. 2. Tap Connect. 3. Sign in with your amazon account.
1. Set up Amazon Alexa
33

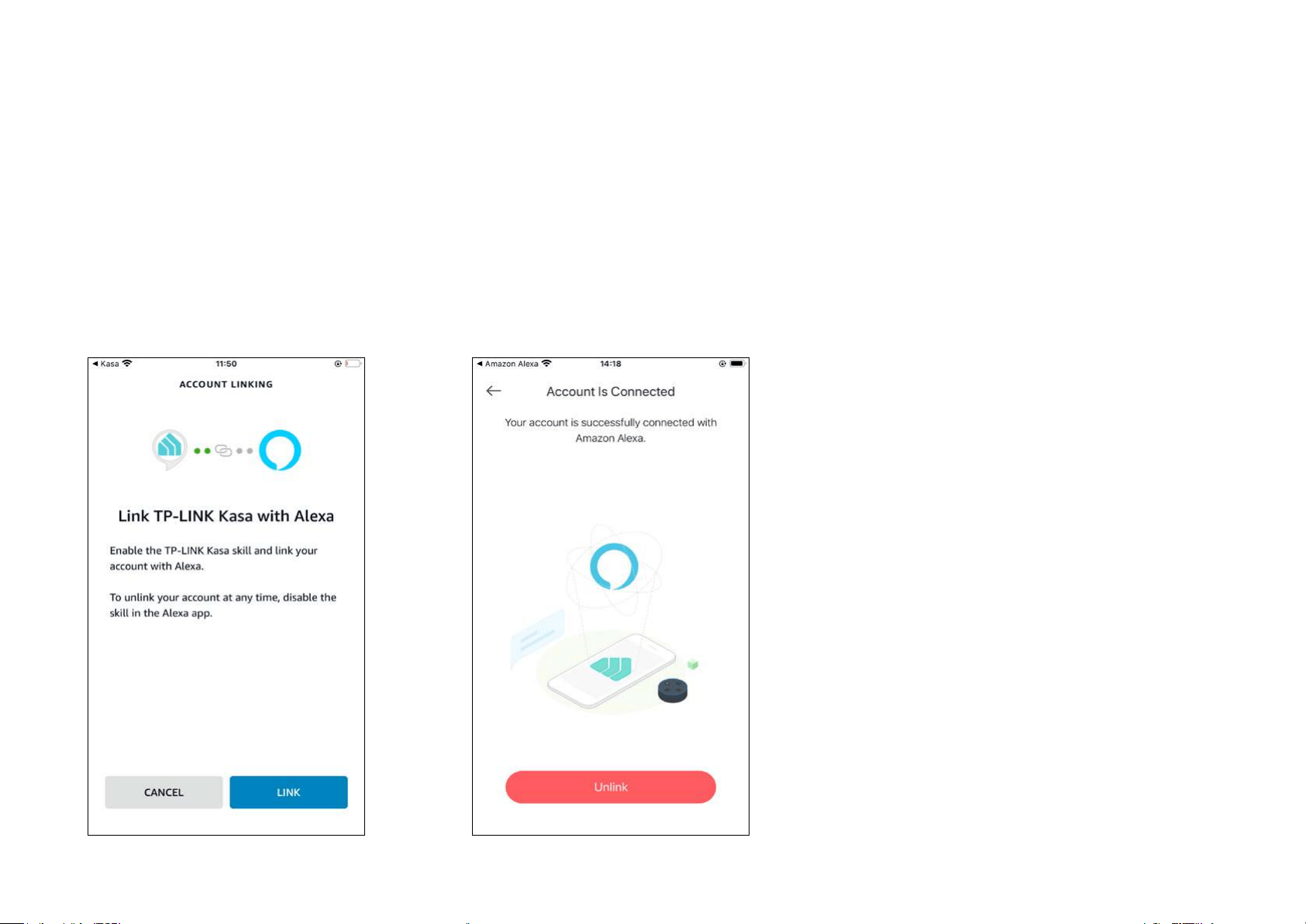

3. After sign-in, tap LINK. 4. Your TP-Link ID has been successfully linked with your amazon account. You can use Alexa voice
commands to control your Kasa Spot.
34

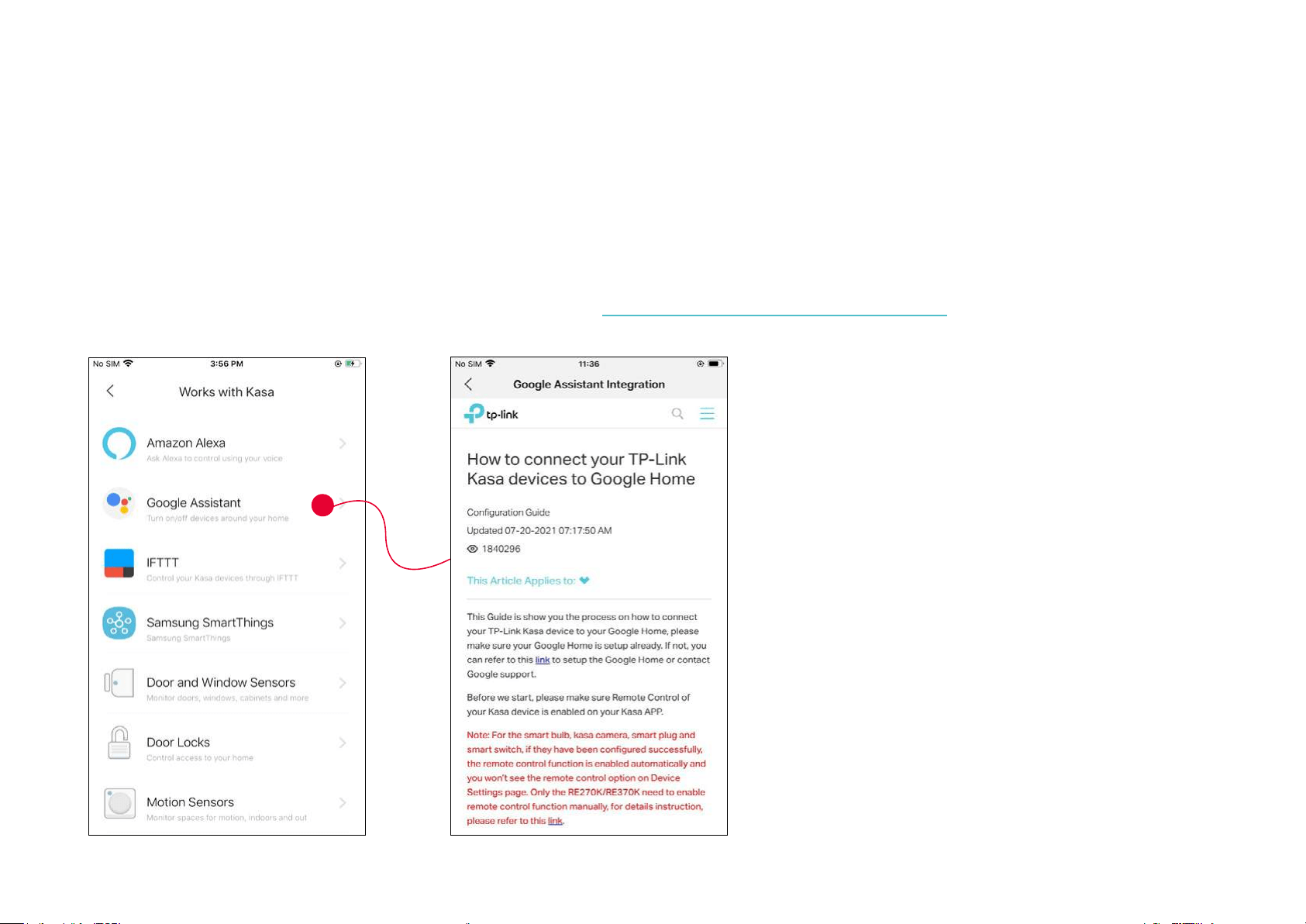

1. Tap Google Assistant.
2. Follow instructions to connect your device to your Google Home.
Or nd the FAQ at https://www.tp-link.com/en/support/faq/1534/.
2. Set up Google Assistant
35
Authentication
FCC compliance information statement
Product Name: Kasa Spot, 24/7 Recording
Model Number: KC105 / EC60
Component Name Model
AC ADAPTER A8-501000
Responsible Party:
TP-Link USA Corporation
Address: 10 Mauchly, Irvine, CA 92618
Website: https://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: [email protected]om
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
36
2. This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications
could void the user’s authority to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be
co-located or operating in conjunction with any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction
with any other antenna or transmitter.”
We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards,
FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
Issue Date: 2021-10-08
37
FCC compliance information statement
Product Name: AC ADAPTER
Model Number: A8-501000
Responsible Party:
TP-Link USA Corporation
Address: 10 Mauchly, Irvine, CA 92618
Website: https://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: [email protected]om
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards,
FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
Issue Date: 2021-10-08
38
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take
adequate measures.
OPERATING FREQUENCY (the maximum transmitted power)
2400 MHz -2483.5 MHz(20dBm)
EU Declaration of Conformity
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU,
2009/125/EC, 2011/65/EU and (EU)2015/863.
The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce.
RF Exposure Information
This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way
of health protection.
The device complies with RF specifications when the device used at 20 cm from your body.
Restricted to indoor use.
UKCA Mark
UKCA declaration of conformity
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Radio Equipment
Regulations 2017.
The original UK declaration of conformity may be found at https://www.tp-link.com/support/ukca.
39
Canadian Compliance Statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-
exempt RSS(s). Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement
économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
1. l’appareil ne doit pas produire de brouillage;
2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être
installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
Industry Canada Statement
CAN ICES-3 (B)/NMB-3(B)
Korea Warning Statements:
당해 무선설비는 운용중 전파혼신 가능성이 있음.
NCC Notice & BSMI Notice:
注意！
取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
前述合法通信，指依電信管理法規定作業之無線電通信。
40
低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
安全諮詢及注意事項
• 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
• 清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。
• 注意防潮，請勿將水或其他液體潑灑到本產品上。
• 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。
• 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。
• 不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。
限用物質含有情況標示聲明書
設備名稱：
Equipment name
Kasa Spot, 24/7 Recording
型號（型式）：
Type designation (Type)
KC105/EC60
單元
Unit
限用物質及其化學符號
Restricted substances and its chemical symbols
鉛
Lead
(Pb)
汞
Mercury
(Hg)
鎘
Cadmium
(Cd)
六價鉻
Hexavalent
chromium
(Cr+6)
多溴聯苯
Polybrominated
biphenyls
(PBB)
多溴二苯醚
Polybrominated
diphenyl ethers
(PBDE)
PCB ○ ○ ○ ○ ○ ○
外殼 ○ ○ ○ ○ ○ ○
電源供應器 — ○ ○ ○ ○ ○
其他及其配件 — ○ ○ ○ ○ ○
41
備考 1.〝超出 0.1 wt %〞及〝超出 0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準值
Note 1：“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance
exceeds the reference percentage value of presence condition.
備考 2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。
Note 2：“ ○ ” indicates that the percentage content of the restricted substance does not exceed the percentage of reference
value of presence.
備考 3.〝−〞係指該項限用物質為排除項目。
Note 3：The “−” indicates that the restricted substance corresponds to the exemption.
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам,
що передбачені чинними законодавчими актами України.
Safety Information
• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended.
• Do not use the device where wireless devices are not allowed.
• Adapter shall be installed near the equipment and shall be easily accessible.
• Use only power supplies which are provided by manufacturer and in the original packing of this product. If you have any questions, please don’t
hesitate to contact us.
• Operating Temperature: 0°C~40°C (32°F~104°F)
42
Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to
improper use of the device. Please use this product with care and operate at your own risk.
Explanation of the symbols on the product label
Symbol Explanation
DC voltage
Indoor use only
RECYCLING
This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to
European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.
User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment.
