Installation
Instructions
ZKHCT
Handle Side Trim (for Use with
Custom Handles)
Right hand door swing models are illustrated in these
instructions. Follow these same instructions for left hand
models.
This handle side trim should be installed on 3/4" overlay
panels when using custom handles.
Tools and materials required:
• #2 Phillips screwdriver
• Drill and 7/32", 1/8" bits and 7/8" spade bit
• Custom door panels
• Safety glasses
• Center punch
• Hammer
• Pencil
Parts List:
A. 5 Trim screws (4 required, one extra) 8665
B. Handle side trim for LH models (75468), trim for RH models (75469)
Before you begin – Read these instructions completely and carefully.
Note to Installer: Be sure to leave these instructions with the Consumer.
Note to Consumer: Keep these instructions with your Owner’s Manual for future reference.
STEP 1 REMOVE DOOR AND
DRAWER HANDLES

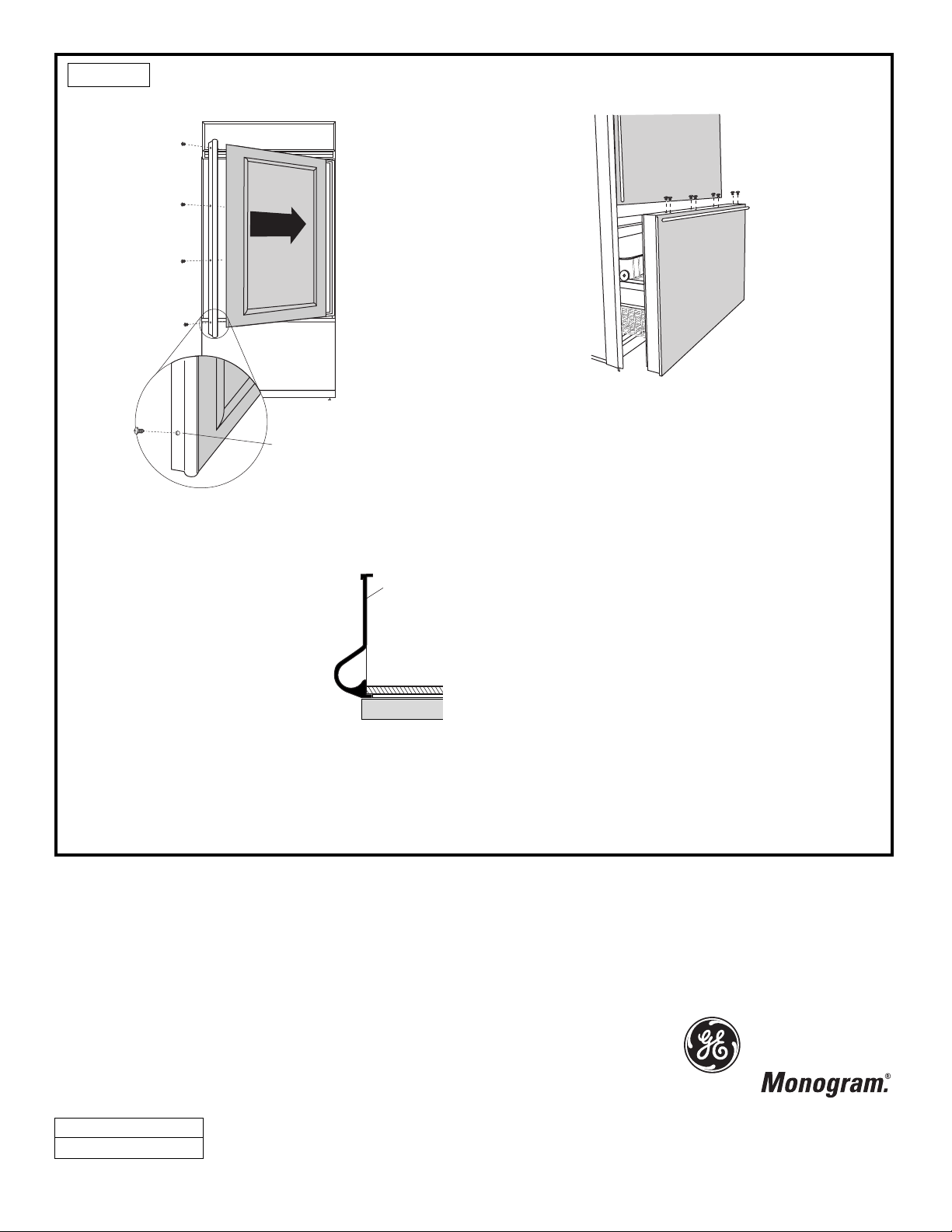

• Open refrigerator door to 90°. Remove the 4 screws
holding the handle to the door.
• Remove 4 screws holding handle side trim. Discard all
screws and trim. Discard handle.
• Open freezer drawer to access handle and trim.
Remove and discard handle, retain screws and trim.
