31-1000538 Rev. 1 05-21 GEA
Installation
Instructions
ZKR36R – 36” TRIM RETRO KIT
ZKR72R – 72” TRIM RETRO KIT
Before you begin - Read these instructions completely and carefully.
Note to Installer: Be sure to leave these instructions with the Consumer.
Note to Consumer: Keep these instructions with your Installation Instructions for future reference.
Kit provides components to install product(s) in an opening which is 24” deep.
Parts List:
- Water line jumper (72” only)
- Water fitting tee (72” only)
- 2 power cords (One cord on 36”)
- RH and LH Case side trims
- Case top trim
- #8 Phillips head trim screws
- #10 Phillips head trim screws
- 2 Spacer trim side (72” only)
- Toe Kick (36” only)
Tools and Materials Required:
- Adjustable wrench
- #2 Phillips screwdriver
- 1/4” driver / socket

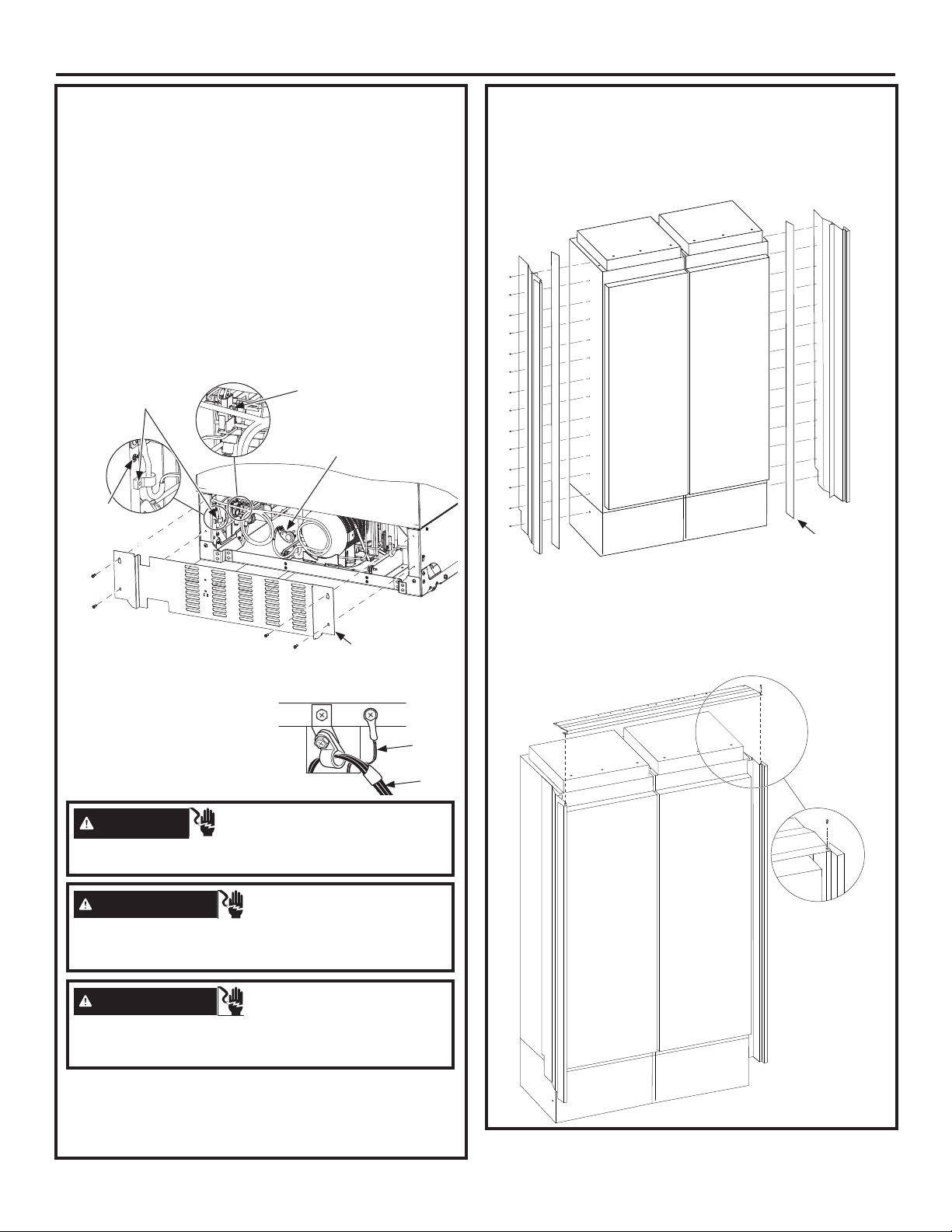

INSTALL WATER LINE JUMPER/TEE (Only used on dual installation.)
Ŷ Connect the jumper water line from the Trim Retro Kit
to the house cold water line. Tighten the compression
nut hand tight, then tighten one additional turn with a
wrench. Overtightening can cause leaks!
Ŷ Connect the other end of the jumper water line to the
water fitting tee supplied in the trim retro kit. Tighten
the compression nut hand tight, then tighten one
additional turn with a wrench. Overtightening can
cause leaks!
WARNING
Electrical Shock Hazard.
To avoid the risk of electric shock, make sure the power
cord is not plugged into the wall outlet.
AVERTISSEMENT
Risque d’électrocution
Pour éviter le risque d’électrocution, assurez-vous que
le cordon d’alimentation est débranché de la prise
murale.
ADVERTENCIA
Riesgo de Descarga
Eléctrica. A fin de evitar riesgos de descarga
eléctrica, asegúrese de que el cable de corriente no
esté enchufado al tomacorriente de la pared.
WARNING
Tip Over Hazard. This
appliance is top heavy. Use extreme caution with moving
to prevent tipping over which could result in death or
serious injury.
AVERTISSEMENT
Risque de
déséquilibre.
Le haut de cet appareil est lourd.
Faites preuve de grande prudence pendant son
déplacement pour éviter qu’il ne bascule et cause des
blessures graves ou mortelles.
ADVERTENCIA
Riesgo de Caídas.
Este electrodoméstico es inestable. Tenga extremo
cuidado al moverlo, a fin de evitar caídas hacia adelante
que puedan resultar en la muerte o lesiones graves.
WARNING
Connect to potable water supply
only.
AVERTISSEMENT
Raccordez l’appareil à une
alimentation d’eau potable seulement.
ADVERTENCIA
Realice la conexión a un suministro
de agua potable únicamente
