ATTACH YOUR RECEIPT HERE
Purchase Date _________________________
SM21528
ITEM #3856485
SALEM CEILING FAN
MODEL #42475
Español p. 18
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also
contact us at [email protected] or visit www.lowespartsplus.com.
HARBOR BREEZE and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
RATED
FOR DAMP
LOCATIONS
2
TABLE OF CONTENTS
Package Contents .................................................................3
Hardware Contents ................................................................4
Safety Information .................................................................5
Preparation ......................................................................6
Initial Installation ..................................................................7
Wiring ..........................................................................9
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operating Instructions .............................................................13
Care and Maintenance ............................................................14
Troubleshooting ..................................................................14
Limited Lifetime Warranty ..........................................................16

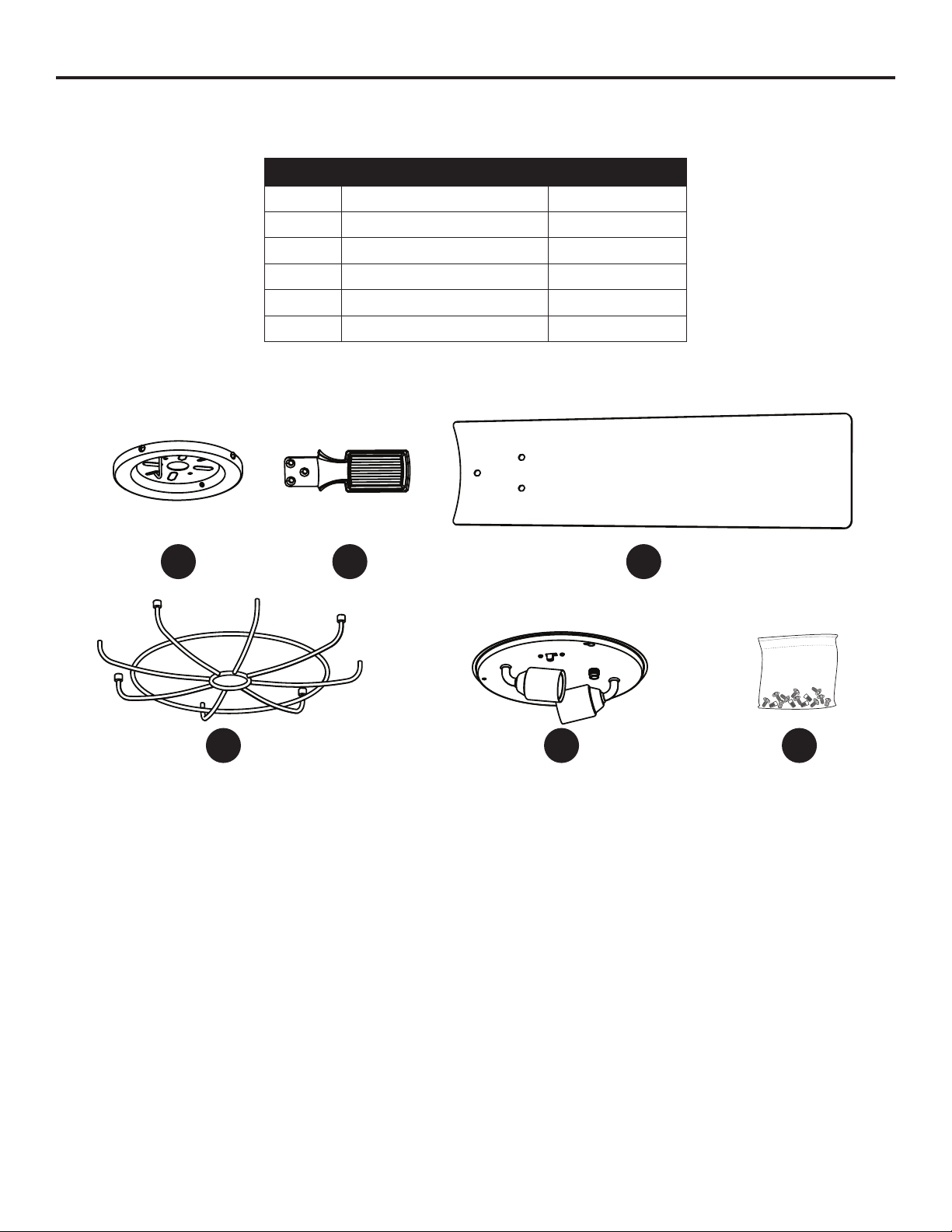

Replacement Parts List ............................................................17
33

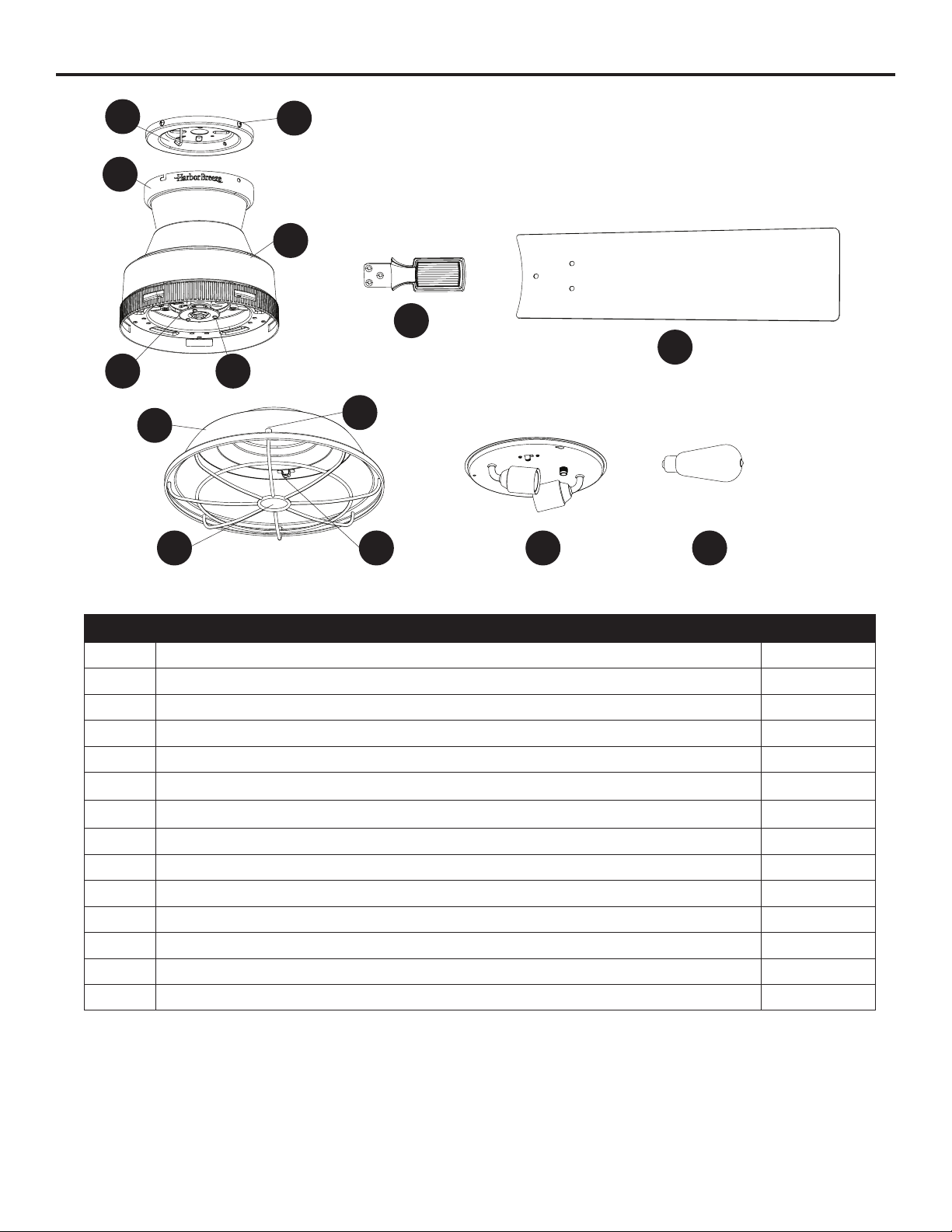

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Mounting Bracket 1
B Mounting Bracket Scew (preassembled to Mounting Bracket [A]) 4
C Canopy (preassembled to Motor Assembly [D]) 1
D Motor Assembly 1
E Fitter Plate (preassembled to Motor Assembly [D]) 1
F Fitter Plate Screw (preassembled to Fitter Plate [E]) 3
G Blade Arm 5
H Blade 5
I Light Pan 1
J Screw Cap (preassembled to Light Cage [K]) 4
K Light Cage 1
L Light Pan Screw (preassembled to Light Pan [I]) 3
M Light Kit 1
N Bulb 2
A
B
C
D
F
E
G
H
I
J
L M NK
4
HARDWARE CONTENTS (shown actual size)
Wire Connector
Qty. 3
+ 1 extra
Blade Screw
Qty. 15
+ 1 extra
Blade Washer
Qty. 15
+ 1 extra
Pull Chain
Extension
Qty. 2
Motor Screw
Qty. 15
+ 1 extra
AA BB CC XXDD
5
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning o the circuit
breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-199. Hire a qualied electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the oor and at least 30 in. from the end of the blades to any obstruction.
• The net weight of this fan is: 18.0 lb (8,19 kg).
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: Using a full-range dimmer switch to control fan speed will cause a loud humming
noise from the fan. To reduce the risk of re or electric shock, do NOT use a full-range dimmer switch
to control the fan speed.
WARNING: To reduce the risk of re, electric shock or personal injury, mount the fan to an
outlet box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with
the outlet box. Most outlet boxes commonly used for the support of lighting xtures are not acceptable
for fan support and may need to be replaced. Consult a qualied electrician if in doubt. Secure the
outlet box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.).
WARNING: To reduce the risk of re, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge and there is more than one house wire to connect
to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: To reduce the risk of re, electric shock or personal injury, do not bend the blade
arms when installing them, balancing the blades or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.
6
SAFETY INFORMATION
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are
secured.
CAUTION: This device complies with part 15 of FCC Rules. Operation is subject to the following
two conditions: 1) This device may cause harmful interference, and 2) this device must accept any
interference received, including interference that may cause undesired operation.
CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
HKC-US
3350 Players Club Parkway, Suite 225
Memphis, TN 38125
1-888-251-1003
PREPARATION
Before beginning the assembly of this product, ensure that all parts are present. Compare all parts
with the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder, Wire Cutters and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure and Wiring Handbook
7
INITIAL INSTALLATION

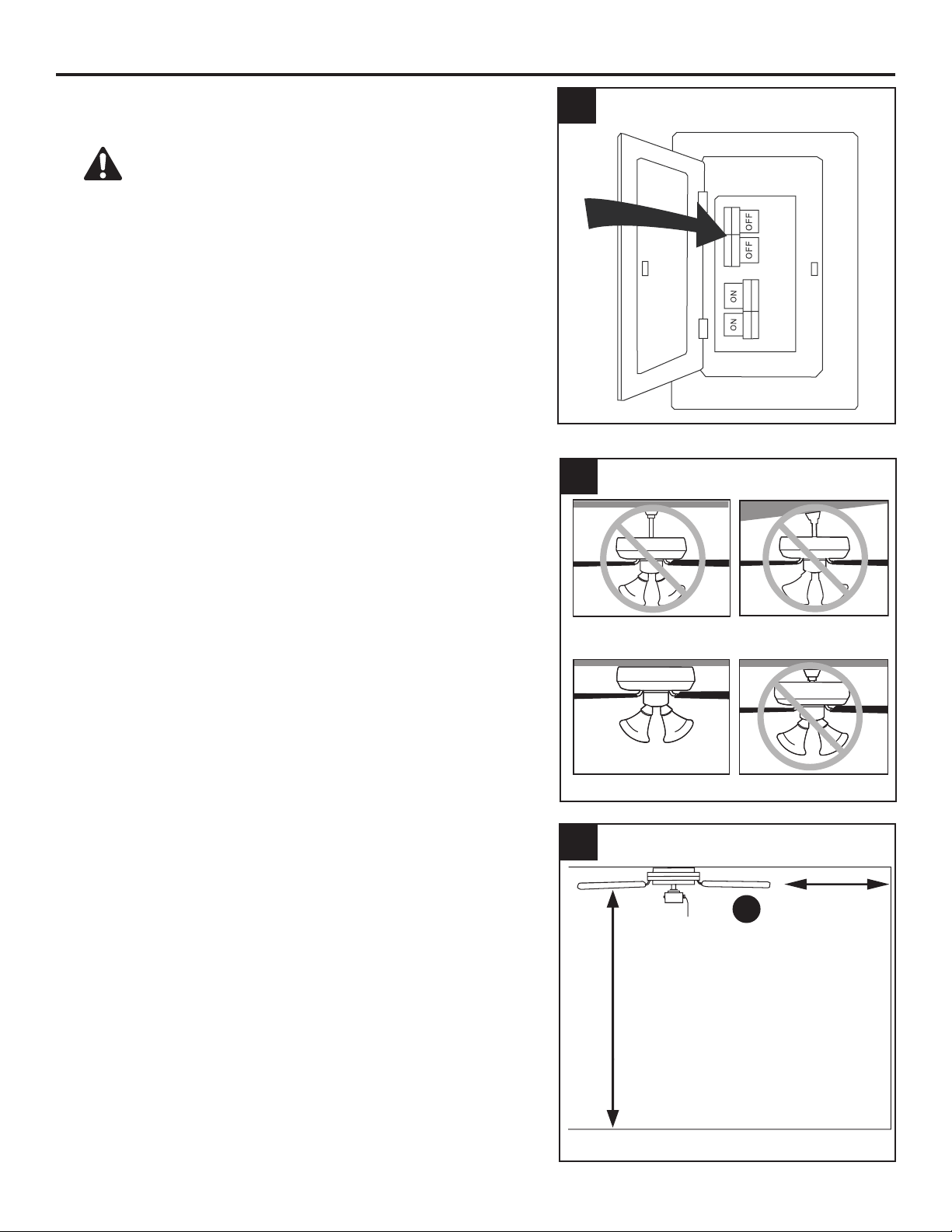

1. Turn o the circuit breakers and the wall switch to the
fan supply line leads.
DANGER: Failure to disconnect the power supply
prior to installation may result in serious injury or death.
2. This fan is intended for Flushmount Installation.
Standard Mounting, Angle Mounting, and Closemount
installations are not available.
3. Ensure the blades (H) will be at least 30 in. from any
obstructions and will be at least 7 ft. above the oor.
3
Standard Mounting
Flushmount Closemount
Angle Mounting
1
7 ft. Min
30 in. Min
H
2
8
INITIAL INSTALLATION
4. Loosen all four mounting bracket screws (B), then
completely remove two mounting bracket screws (B).
Set them aside for later use.
5. Feed the supply wires from the outlet box through the
center hole in the mounting bracket (A). Then, secure
the mounting bracket (A) to the outlet box (not included)
using screws and washers provided with the outlet box.
CAUTION: It is very important you use the proper
hardware when installing the mounting bracket (A) as it
will support the fan.
6. Raise the fan and place the canopy (C) on the hook on
the mounting bracket (A), temporarily leaving hands
free for the wiring process.
5
5
5
6
4
Outlet Box
Hook
A
B
A
C
A
9
Black (live)
White (neutral)
Bare/Green (ground)
Black
Blue
White
Green
WIRING
WARNING: To reduce the risk of re, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires
from the fan. If your house wire is larger than 12-gauge and/or there is more than one house wire to
connect to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.

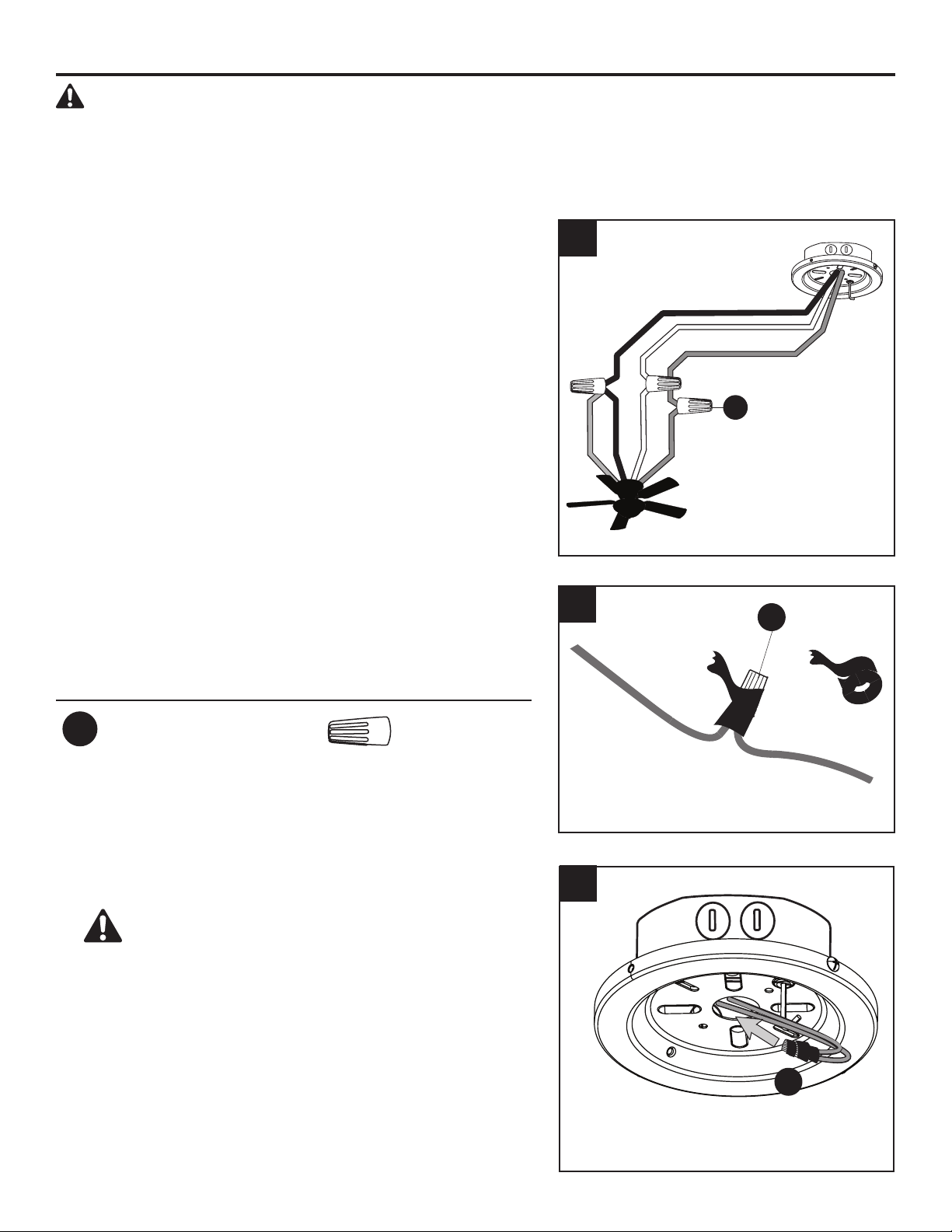

1. Connect household supply and fan wires according to
the diagram and these steps:
• Connect the Green wire from the mounting bracket
(A) to the Bare/Green (ground) supply wire.
• Connect the White wire from the fan to the White
(neutral) supply wire.
• Connect the Black and Blue wires from the fan to the
Black (hot) supply wire.
• Secure all wiring connections together with wire
connectors (AA).
Note: If there is a second hot/power wire coming from
the outlet box, connect it to the Blue (light power) fan
wire for separate light and fan control.
Note: The Black wire is hot power for the fan. The
White wire is common for the fan and light kit. The
Blue wire is hot power for light. The Green wire is the
ground wire. If household supply wires are dierent
colors than referred to above, it is recommended a
professional electrician determines the proper wiring.
Hardware Used
AA
Wire Connector x 3
2. Wrap electrical tape (not included) around each
individual wire connector (AA) down to the wire.
3. Turn the spliced/taped wires upward and gently push
the wires and wire connectors (AA) into the outlet box.
WARNING: Ensure no wire strands are visible
after making connections. Place the Green and White
wire connections on the opposite side of the outlet
box from the Black.
1
3
AA
AA
2
AA
10
BB
CC
FINAL INSTALLATION

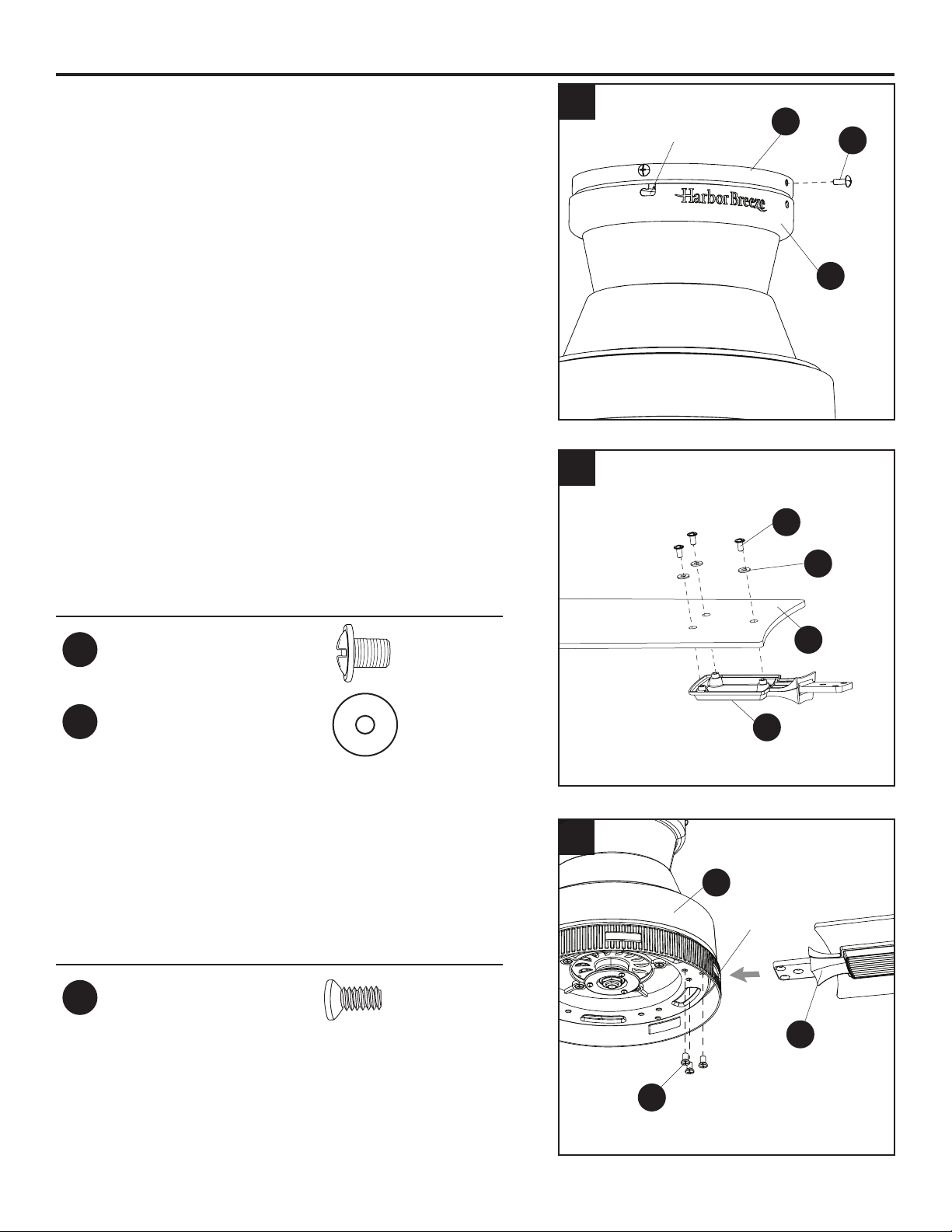

1. Slide the canopy (C) over the mounting bracket (A),
aligning the slotted holes in the canopy (C) with the
previously loosened mounting bracket screws (B) in the
mounting bracket (A). Twist the canopy (C) clockwise
to lock. Then re-insert the mounting bracket screws (B)
(Step 4, page 8) and securely tighten all screws.
2. Partially insert the blade screws (BB) along with the blade
washers (CC) through the blade (H) and into the blade
arm (G). Tighten each blade screw (BB) with a Phillips
screwdriver (not included), starting with the one in the
middle. Repeat this step for the remaining blades (H) and
blade arms (G).
Hardware Used
BB
Blade Screw x 15
CC
Blade Washer x 15
3. Insert blade arm (G) through slot in the side of the motor
assembly (D). Align the holes of one blade arm (G)
with three motor screw holes in underside of the motor
assembly (D). Secure with three motor screws (XX).
Repeat this step for the remaining blade arms (G).
Hardware Used
XX
Motor Screw x 15
2
3
1
XX
Slot
Slotted Hole
H
G
G
D
A
B
C
11
FINAL INSTALLATION

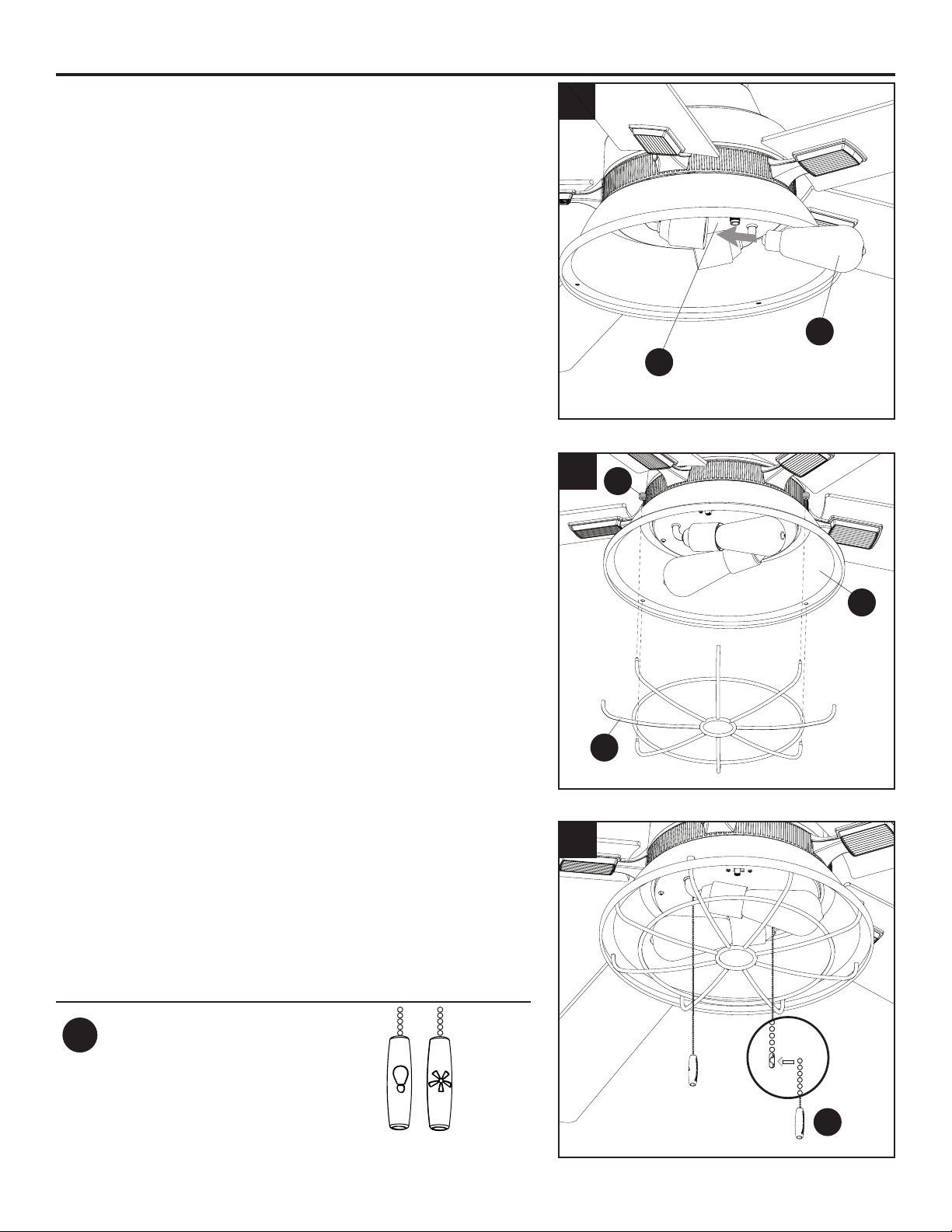

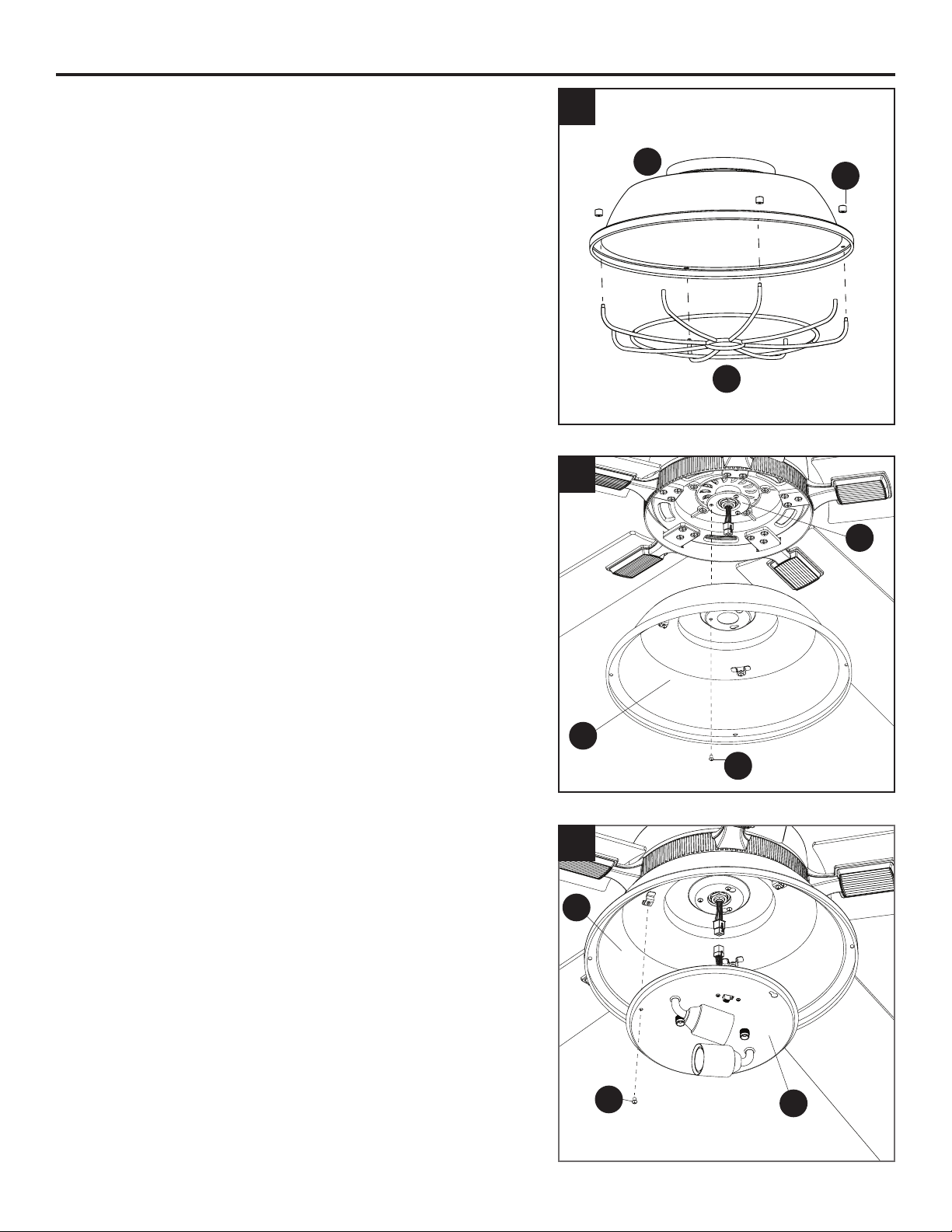

4. Remove the four screw caps (J) from the bottom edge
of the light pan (I). Remove the light cage (K) from the
light pan (I) and save the screw caps (J) for later.
5. Remove one and loosen the other two tter plate
screws (F) but do not remove from tter plate (E). Feed
the 9-pin connector through center hole in light pan
(I). Align the two key slots in the light pan (I) with the
loosened tter plate screws (F). Place the light pan (I)
over the two screws and turn the light pan (I) clockwise.
Then tighten the two tter plate screws (F). Re-install
the previously removed tter plate screw (F) and
tighten rmly.
6. Remove one of the three light pan screws (L) from
the light pan (I) and loosen the other two but do not
remove. Connect the 9-pin connector from the fan to
the 9-pin connector from the light kit (M). Lift the two
keyhole slots in the light kit (M) over the two loosened
light pan screws (L) and turn in a clockwise direction.
Then, use the previously removed light pan screw (L)
to secure the light kit (M) to the light pan (I). Tighten all
screws.
5
6
4
E
F
K
I
J
I
I
M
L
12
FINAL INSTALLATION
7. Install the bulbs (N) into the sockets of the light kit (M).
Important: Make sure you allow the bulbs (N) and
light kit (M) to cool before you replace the bulbs (N).
8. Reattach the light cage (K) to the light pan (I) using
the screw caps (J). Tighten all four screws.
9. Attach the pull chain extensions (DD) or custom pull
chain extensions (not included) to the fan and light
pull chains (if applicable).
Note: When facing the reverse switch, the light pull
chain is on the left and the fan pull chain is on the
right.
Hardware Used
DD
Pull Chain
Extension
x 2
Turn on power supply to the fan.
Assembly is complete.
7
8
9
J
K
I
DD
N
M
13

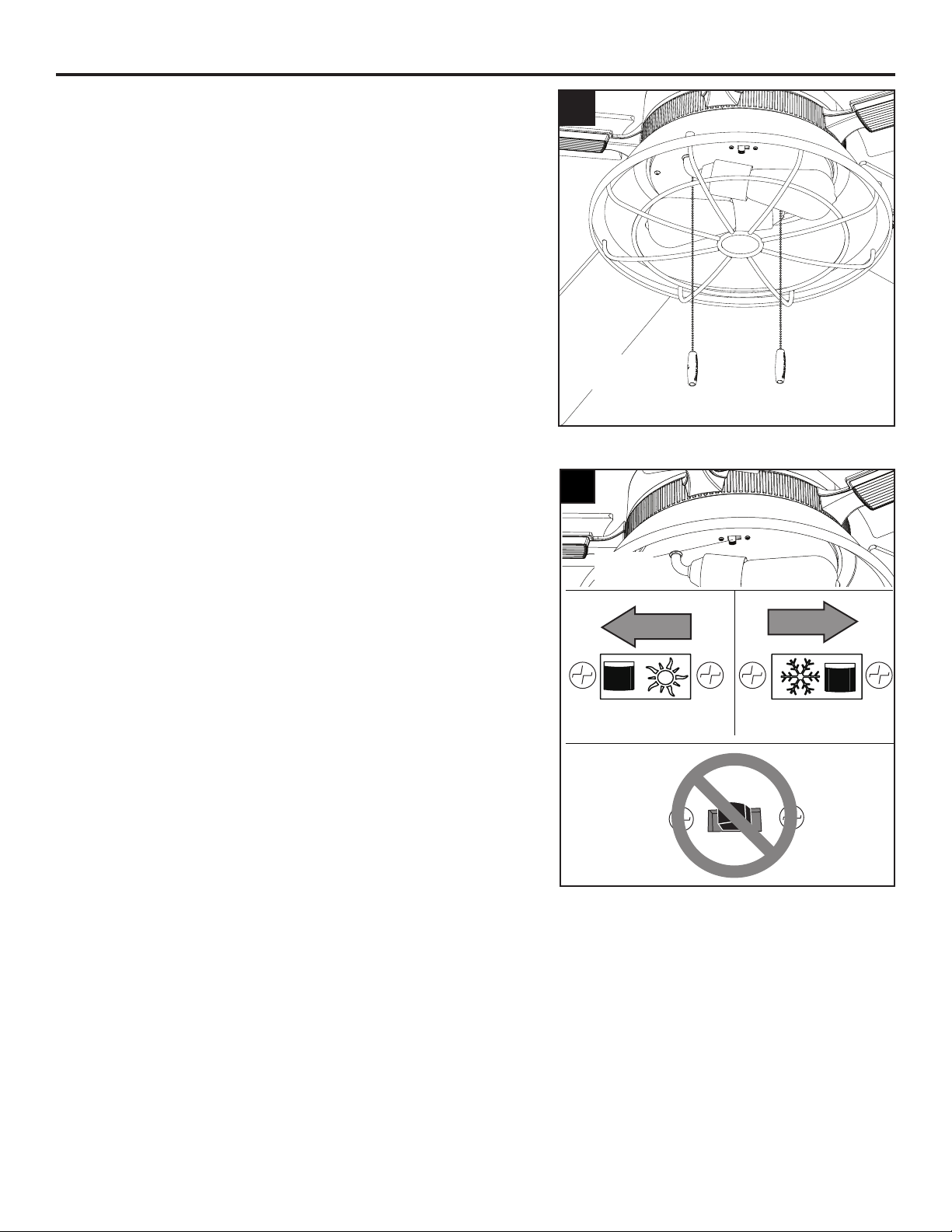

Fig. 2A Fig. 2B
Fig. 2C
OPERATING INSTRUCTIONS
1. The fan pull chain has four positions to control fan
speed. One pull is HIGH, two is MEDIUM, three is LOW
and four turns the fan OFF.
The light pull chain has two positions to control the light,
ON and OFF.
2. Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your
thermostat setting in winter without feeling a dierence
in your comfort.
In warmer weather, push the reverse switch left to
display a sun icon, which will result in downward airow
creating a wind chill eect (Fig. 2A).
In cooler weather, push the reverse switch right to
display a snowake icon, which will result in upward
airow that can help move hot air o the ceiling area
(Fig. 2B).
Important: Wait for the fan to stop before moving the
reverse switch. The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate (Fig. 2C).
1
2
Reverse
Switch
Light Pull
Chain
Fan Pull
Chain
14
CARE AND MAINTENANCE
At least twice each year, tighten all screws on the fan. Clean the motor housing with only a soft brush
or lint-free cloth to avoid scratching the nish. Clean the blades with a lint-free cloth.
Bulb Replacement: Use 60-watt max. E26-base LED, CFL or incandescent bulbs. Halogen bulbs are
not recommended for this item.
Important: Shut o the main power supply before you begin any maintenance tasks. Do not use
water or a damp cloth to clean the ceiling fan.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan does not
move.
1. The power is o or the fuse is
blown.
2. There is a faulty wire connection.
3. The plugs are not connected
properly.
4. The reverse switch is not
completely engaged.
1. Turn the power on or check the
fuse.
2. Turn the power o. Loosen the
canopy and check all connections.
3. Check that the connectors from
the light kit and fan are connected
properly.
4. Push the reverse switch completely
to the left or right.
There is excessive
wobbling.
1. The blades and/or blade arms are
loose.
2. The blades are unbalanced.
3. The fan mounting is not secure.
1. Check and tighten all screws that
hold the fan blades to the blade
arms and the blade arms to the
motor.
2. Switch one blade with a blade from
the opposite side. Or balance the
fan using a blade balancing kit (sold
separately).
3. Turn o the power. Loosen the
motor housing and verify the upper
mounting bracket is secure to the
electrical outlet box. The bracket
must be ush without movement
against the outlet box.
The fan operates
correctly, but
the lights are
not working (if
applicable).
1. The bulb(s) not installed correctly.
2. The light kit wire plugs are not
connected properly.
3. There is a faulty wire connection.
1. Re-install the bulb(s).
2. Ensure that the male and female
plugs in the light kit tter are
connected properly.
3. Turn the power o and check all
connections at the ceiling outlet box.
15
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan is noisy.
1. The blades are loose.
2. There is a cracked blade.
3. A wall control is not
compatible with the fan.
4. The outlet box is not secure.
5. The mounting bracket is not
secure.
1. Check and tighten all screws that hold the
fan blades to the blade arms and the motor.
2. Replace the cracked blade.
3. Do not connect fan to wall control.
4. Ensure the ceiling outlet box is secured to
the building structure.
5. Ensure the mounting bracket is secured to
the outlet box and that the screws are tight.
16
LIMITED LIFETIME WARRANTY
The manufacturer warrants this fan to be free from defects in workmanship and materials present at
time of shipment from the factory for a lifetime from the date of purchase by the original purchaser.
The retailer also warrants that all other fan parts, excluding any glass or plastic blades, to be free
from defects in workmanship and material at the time of shipment from the factory for a period of one
year after the date of purchase by the original purchaser. The manufacturer agrees to correct such
defects without charge or at its option replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Any damage to any part such as by accident or
misuse or improper installation or by axing any accessories, is not covered by this warranty. The
manufacturer assumes no responsibility whatsoever for fan installation during the limited lifetime
warranty. Any service performed by an unauthorized person will render the warranty invalid.
Due to varying climate conditions, this warranty does not cover any changes in brass nish, including
rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give their longest useful life
when protected from varying weather conditions. Any glass provided with this fan is not covered by
the warranty.
Any replacement of defective parts from the ceiling fan must be reported within the rst year from the
date of purchase. For the balance of the warranty, call our customer service department for return
authorization and shipping instructions so that we may repair or replace the ceiling fan. Any fan or
parts returned improperly is the sole responsibility of the purchaser. There is no other expressed
warranty. The manufacturer disclaims any and all warranties. The duration of any implied warranty
which cannot be disclaimed is limited to the time period as specied in the expressed warranty. The
manufacturer shall not be liable for incidental, consequential, or special damages arising out of or
in connection with product use or performance except as may otherwise be accorded by law. This
warranty gives specic legal rights, and you may also have other rights which vary from state to state.
This warranty supersedes all prior warranties.
Note: A small amount of “wobble” is normal and should not be considered a defect.
17
Printed in China
REPLACEMENT PARTS LIST
For replacement parts, call the customer service department at 1-888-251-1003, 8 a.m. - 8 p.m., EST,
Monday - Sunday. You could also contact us at [email protected] or visit www.lowespartsplus.com.
PART DESCRIPTION #3856485
A Mounting Bracket 4L000015480
G Blade Arm (x5) 4L074490001
H Blade (x5) 4L086150001
K Light Cage 4L000015500
M Light Kit 4L000015490
HW Hardware Kit 4L000015510
9740 PB · 071921
A
K M
G
H
HW
