Owner's Manual Front-Tine Tiller
900 Series 18" Tine Width Model No. 917.298021
WARRANTY
Craftsman Professional Riding Equipment Warranty
CRAFTSMAN PROFESSIONAL FULL WARRANTY
FOR TWO YEARS from the date of purchase, all non-expendable parts of this riding equipment are warranted against any defects in material or workmanship. A defective non-expendable part will receive free in-home repair or replacement if repair is impossible.
FOR FIVE YEARS from the date of purchase, the frame and front axle of this riding equipment are warranted against any defects in material or workmanship. A defective frame or front axle will receive free in-home repair or replacement if repair is impossible.
All of the above warranty coverage applies for only one year from the date of purchase if this riding equipment is ever used while providing commercial services or if rented to another person. FOR 90 DAYS from the date of purchase, the battery (an expendable part) of this riding equipment is warranted against any defects in material or workmanship (our testing proves that it will not hold a charge). A defective battery will receive free in-home replacement.
ADDITIONAL LIFETIME LIMITED WARRANTY on CAST iRON FRONT AXLE (if equipped)
FOR AS LONG AS IT IS USED by the original owner after the fifth year from the date of purchase, the cast iron front axle (if equipped) of this riding equipment is warranted against any defects in material or workmanship. With proof of purchase, a defective cast front axle will receive free in-home replacement.
WARRANTY SERVICE
For warranty coverage details to obtain free repair or replacement, call 1-800-659-5917 or visit the web site: www. craftsman.com In all cases above, if part repair or replacement is impossible, the riding equipment will be replaced free of charge with the same or an equivalent model.
This warranty covers ONLY defects in material and workmanship. Warranty coverage does NOT include:
• Expendable parts (except for battery) that can wear out from normal use within the warranty period, including but not limited to blades, spark plugs, air cleaners, belts, and oil filters.
• Standard maintenance servicing, oil changes, or tune-ups.
• Tire replacement or repair caused by punctures from outside objects, such as nails, thorns, stumps, or glass.
• Tire or wheel replacement or repair resulting from normal wear, accident, or improper operation or maintenance.
• Repairs necessary because of operator abuse, including but not limited to damage caused by towing objects beyond the capability of the riding equipment, impacting objects that bend the frame, axle assembly or crankshaft, or over-speeding the engine.
• Repairs necessary because of operator negligence, including but not limited to, electrical and mechanical damage caused by improper storage, failure to use the proper grade and amount of engine oil, failure to keep the deck clear of flammable debris, or failure to maintain the riding equipment according to the instructions contained in the operator's manual.
• Engine (fuel system) cleaning or repairs caused by fuel determined to be contaminated or oxidized (stale). In general, fuel should be used within 30 days of its purchase date.
• Normal deterioration and wear of the exterior finishes, or product label replacement.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
SAFETY RULES
IMPORTANT: This cutting machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death.
TRAINING
• Read the Owner's Manual carefully. Be thoroughly familiar with the controls and the proper use of the equipment. Know how to stop the unit and disengage the controls quickly.
• Never allow children to operate the equipment. Never allow adults to operate the equipment without proper instruction.
• Keep the area of operation clear of all persons, particularly small children, and pets.
PREPARATION
• Thoroughly inspect the area where the equipment is to be used and remove all foreign objects.
• Disengage all clutches and shift into neutral before starting the engine (motor).
• Do not operate the equipment without wearing adequate outer garments. Wear footwear that will improve footing on slippery surfaces.
• Handle fuel with care; it is highly flammable.
• Use an approved fuel container.
• Never add fuel toa running engine or hot engine.
• Fill fuel tank outdoors with extreme care. Never fill fuel tank indoors.
• Replace gasoline cap securely and clean up spilled fue! before restarting.
• Use extension cords and receptacles as specified by the manufacturer for all units with electric drive motors or electric starting motors.
• Never attempt to make any adjustments while the engine (motor) is running (except where specifically recommended by manufacturer).
OPERATION
• Do not put hands or feet near or under rotating parts.
• Exercise extreme caution when operating on or crossing gravel drives, walks, or roads. Stay alert for hidden hazards or traffic. Do not carry passengers.
• After striking a foreign object, stop the engine (motor), remove the wire from the spark plug, thoroughly inspect the tiller for any damage, and repair the damage before restarting and operating the tiller.
• Exercise caution to avoid slipping or falling.
• If the unit should start to vibrate abnormally, stop the engine (motor) and check immediately for the cause. Vibration is generally a warning of trouble.
• Stopthe engine (motor) when leaving the operating position.
• Take all possible precautions when leaving the machine unattended. Disengage the tines, shift into neutral, and stop the engine.
• Before cleaning, repairing, or inspecting, shut off the engine and make certain all moving parts have stopped. Disconnect the spark plug wire, and keep the wire away from the plug to prevent accidental starting. Disconnect the cord on electric motors.
• Do not run the engine indoors; exhaust fumes are dangerous.
• Never operate the tiller without proper guards, plates, or other safety protective devices in place.
• Keep children and pets away.
• Do not overload the machine capacity by attempting to till too deep at too fast a rate.
• Never operate the machine at high speeds on slippery surfaces. Look behind and use care when backing.
• Never allow bystanders near the unit.
• Use only attachments and accessories approved bythe manufacturer of the tiller.
• Never operate the tiller without good visibility or light.
• Be careful when tilling in hard ground. The tines may catch in the ground and propel the tiller forward. If this occurs, let go of the handlebars and do not restrain the machine.
MAINTENANCE AND STORAGE
• Keep machine, attachments, and accessories in safe working condition.
• Check shear pins, engine mounting bolts, and other bolts at frequent intervals for proper tightness to be sure the equipment is in safe working condition.
• Never store the machine with fue! in the fuel tank inside a building where ignition sources are present, such as hot water and space heaters, clothes dryers, and the like. Allow the engine to cool before storing in any enclosure.
• Always refer to the operator's guide instructions for important details if the tiller is to be stored for an extended period.
Look for this symbol to point out important safety precautions. It means CAUTION!!! BECOME ALERT!!! YOUR SAFETY IS INVOLVED.
CAUTION: Always disconnect spark plug wire and place wire where it cannot contact spark plug in order to prevent accidental starting when setting up, transporting, adusting or making repairs.
WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
PRODUCT SPECIFICATIONS
CONGRATULATIONS on your purchase of a Sears Tiller. It has been designed, engineered and manufactured to give you the best possible dependability and performance.
Should you experience any problems you cannot easily remedy, please contact a Sears or other qualified Service Center. We have competent, well-trained technicians and the proper tools to service or repair this unit. Please read and retain this manual. The instructions will enable you to assemble and maintain your tiller properly. Always observe the "SAFETY RULES".
Your new tiller has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tiller all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness.
CUSTOMER RESPONSIBILITIES
• Read and observe the safety rules.
• Follow a regular schedule in maintaining, caring for and using your tiller.
• Follow the instructions under the "Maintenance" and "Storage" sections of this Owner's Manual.
WARNING: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-covered or grass covered land unless the engine's exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the state of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest Sears service center (See REPAIR PARTS section of this manual).
REPAIR PROTECTION AGREEMENTS
Congratulations on making a smart purchase. Your new Craftsman® product is designed and manufactured for years of dependable operation. But like all products, it may require repair from time to time. That's when having a Repair Protection Agreement can save you money and aggravation.
Purchase a Repair Protection Agreement now and protect yourself from unexpected hassle and expense. Here's what's included in the Agreement:
• Expert service by our 12,000 profesional repair specialists.
• Unlimited serviceand no chargefor parts and labor on all covered repairs.
• Product replacement if your covered product can't be fixed.
• Discount of 10% from regular price of service and service-related parts not covered bythe agreement; also, 10% off regular price of preventive maintenance check.
• Fast help by phone- phone support from a Sears technician on products requiring in-home repair, plus convenient repair scheduling.
Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can call anytime day or night, or schedule a service appointment online.
Sears has over 12,000 professional repair specialists, who have access to over 4.5 million quality parts and accessories. That's the kind of professionalism you can count on to help prolong the life of your new purchase for years to come. Purchase your Repair Protection Agreement today!
Some limitations and exclusions apply. For prices and additional information call 1-800-827-6655.
SEARS INSTALLATION SERVICE
For Sears professional installation of home appliances, garage door openers, water heaters, and other major home items, in the U.S.A. call 1-800-4-MY-HOME®

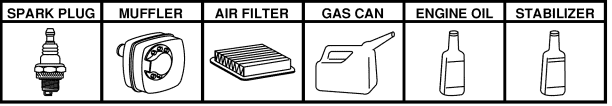

ACCESSORIES
These accessories were available when the tiller was produced. They are also available at most Sears retail outlets and service centers. Some of these accessories may not apply to your tiller.
ENGINE
TILLER MAINTENANCE
UNASSEMBLED PARTS
ASSEMBLY/PRE-OPERATION
Your new tiller has been assembled at the factory with the exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tiller all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness.
TOOLS REQUIRED FOR ASSEMBLY
A socket wrench set will make assembly Nut, easier. Standard wrench sizes are listed.
(1) Utility knife Panel
(2) 1/2 Wrench
OPERATOR'S POSITION
When right or left hand is mentioned in this manual, it means when you are in the operating position (standing behind tiller handles).
UNPACK CARTON & INSTALL HANDLE
CAUTION: Be careful of exposed staples when handling or disposing of cartoning material.
IMPORTANT:: When unpacking and assembling tiller, be careful not to stretch or kink cable(s).
1. Cut cable ties securing handles.
2. The handle may be assembled in high or low position. Slowly lift handle assembly up and align handle holes with desired handle panel hole and slot.
3. Loosely assemble hardware as shown. Be sure the shorter (1" long) hex bolt is assembled in lower hole of handle. Repeat for opposite side. Tighten all hardware securely.
NOTE: Cables must not touch the muffler.
4. Cut cable ties securing tiller to skid and remove tiller from skid.
5. Remove screws securing depth stake to skid and discard screws.
INSTALL DEPTH STAKE ASSEMBLY
1. Loosen nut "A".
2. Insert stake support between engine bracket halves with stake spring down.
3. Bolt stake support to engine brackets with bolts, lock washers and nuts. Tighten securely. Tighten nut "A".
4. Depth stake must move freely. If it does not, loosen support bolt.
HANDLE HEIGHT
- Handle height may be adjusted to better suit operator. (See "HANDLE HEIGHT" in the Service and Adjustments section of this manual).

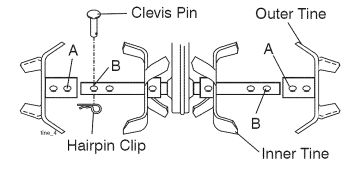

TILLING WIDTH
- Tilling width may be adjusted to better handle your tilling conditions (See "TINE ARRANGEMENT" in the Service and Adjustments section of this manual).
TINE OPERATION
- Checktine operation beforefirst use. (See "TINE OPERATION CHECK" in the Service and Adjustments section of this manual)
OPERATION
KNOW YOUR TILLER READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TILLER
Compare the illustrations with your tiller to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference.
Our tillers conform to the safety standards of the American National Standards Institute.
CHOKE CONTROL - Used when starting a cold engine.
DEPTH STAKE - Controls forward speed and the depth at which tiller will dig.
FORWARD TINE CONTROL - Engages tines in forward direction.
RECOIL STARTER HANDLE - Used to start the engine.
THROTTLE CONTROL - Used to control engine speed.
The operation of any tiller can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields before starting your tiller and while tilling. We recommend standard safety glasses or a wide vision safety mask worn over spectacles.
HOW TO USE YOUR TILLER
Know howto operate all controls before adding fuel and oil or attempting to start engine.
STOPPING
TINES
* Release tine control to stop movement.
ENGINE
* Move throttle control to "STOP" position.
NOTE: choke to stop engine. "Off" (UP) Position
TINE OPERATION
* Squeeze tine control to handle.
TILLING
The speed and depth of tilling is regulated by the position ofthe depth stake and wheel height.
The depth stake should always be belowthe wheels for digging. It serves as a brake to slow the tiller's forward motion to enable the tines to penetrate the ground. Also, the more the depth stake is lowered into the ground the deeper the tines will dig.
DEPTH STAKE
Adjust depth stake by removing the hairpin clip and clevis pin. Change depth stake to desired position. Replace the clevis pin and hairpin clip.
- For normal tilling, set depth stake at the second or third hole from the top.
WHEELS
Adjust wheels by removing the hairpin clip and clevis pin. Change wheel position. Replace the hairpin clip and clevis pin.
- Fornormaltilling, setwheelsatthesecond or third hole from the top.
TO TRANSPORT
CAUTION: Before lifting or transporting, allow tiller engine and muffler to cool. Disconnect spark plug wire. Drain gasoline from fuel tank.
AROUND THE YARD
1. Tip depth stake forward until it is held by the stake spring.
2. Push tiller handles down, raising tines off the ground.
3. Push or pull tiller to desired location.
AROUND TOWN
1. Disconnect spark plug wire.
2. Drain fuel tank.
3. Transport in upright position to prevent oil leakage.
BEFORE STARTING ENGINE
IMPORTANT: Be very careful not to allow dirt to enter the engine when checking or adding oil or fuel. Use clean oil and fuel and store in approved, clean, covered containers. use clean fill funnels.
FILL ENGINE WITH OIL
1. Remove hangtag from engine.
2. With engine level, remove engine oil filler plug.
3. Fill engine with oil to point of overflowing. For approximate capacity see "PRODUCT SPECIFICATIONS" on page 4 of this manual. All oil must meetA.RI. Service Classification SG-SL.
4. Tilt tiller back on its wheels and then re-level.
5. With engine level, refill to point of overflowing if necessary. Replace oil filler plug.
• For cold weather operation you should change oil for easier starting (See "OIL VISCOSITY CHART" in the Maintenance section of this manual).
• To change engine oil, seethe Maintenance section of this manual.
ADD GASOLINE
• Fill fuel tank to bottom of filler neck. Do not overfill. Use fresh, clean, regular unleaded gasoline with a minimum of 87 octane. (Use of leaded gasoline will increase carbon and lead oxide deposits and reduce valve life). Do not mix oil with gasoline. Purchase fuel in quantities that can be used within 30 days to assure fuel freshness.
CAUTION: Fill to within 1/2" of top of fuel tank to prevent spills and to allow for fue! expansion. If gasoline is accidentally spilled, move machine away from area of spill. Avoid creating any source of ignition until gasoline vapors have disappeared. Wipe off any spilled oil or fuel. Do not store, spill or use gasoline near an open flame.
IMPORTANT: When operating in temperatures below 32°F(0°C), use fresh, clean winter grade gasoline to help insure good cold weather starting.
CAUTION: Alcohol blended fuels (called gasohol or using ethanol or methanol) can attract moisture which leads to separation and formation of acids during storage. Acidic gas can damagethe fuel system of an engine while in storage. To avoid engine problems, the fuel system should be emptied before storage of 30 days or longer. Drain the gas tank, start the engine and let it run until the fue! lines and carburetor are empty. Use fresh fuel next season. See Storage Instructions for additional information. Never use engine or carburetor cleaner products in the fuel tank or permanent damage may occur.
TO START ENGINE
CAUTION: Keep tine control in "OFF" position when starting engine. When starting engine for the first time or if engine has run out of fuel, it will take extra pulls of the recoil starter to move fuel from the tank to the engine.
1. Make sure spark plug wire is properly connected.
2. Place throttle control in "FAST" position.
3. Movechokecontroltofull"CHOKE"position. Grasp recoil starter handle with one hand and grasp tiller handle with other hand. Pull rope out slowly until engine reaches start of com pression cycle (rope will pull slightly harder at this point).
4. Pull recoil starter handle quickly. Do not let starter handle snap back against starter. Repeat if necessary.
NOTE: If engine fires but does not start, move choke control to half choke position. Pull recoil starter handle until engine starts.
5. When engine starts, slowly move choke control to "RUN" position as engine warms up.
NOTE: A warm engine requires less choking to start.
6. Move throttle control to desired running position.
7. Allowenginetowarm upforafewminutes before engaging tines.
NOTE: If at a high altitude (3000 feet) or in cold temperatures (below 32°F/0°C), the carburetor fuel mixture may need to be adjusted for best engine performance. See "TO ADJUST CARBURETOR" in the Service and Adjustments section of this manual.
NOTE: If engine does not start, see troubleshooting points.
BREAKING iN YOUR TILLER
Break-in your belt(s), pulleys and tine control before you actually begin tilling.
• Start engine, tip tines off ground by pressing handles down and engagetine control to start tine rotation. Allow tines to rotate for five minutes.
• Check tine operation and adjust if necessary. See "TINE OPERATION CHECK" in the Service and Adjustments section of this manual.
TILLING HINTS
CAUTION: Until you are accustomed to handling your tiller, start actual field use with throttle in slow position. To help tiller move forward, lift up the handles slightly (thus lifting depth stake out of ground). To slow down the tiller, press down on handles.
If you are straining or tiller is shaking, the wheels and depth stake are not set properly in the soil being tilled. The proper setting of the wheels and depth stake is through trial and error and depends upon the soil condition. (The harder or wetter the ground, the slower the engine and tine speed needed. Under these poor conditions, at fast speed the tiller will run and jump over the ground).
A properly adjusted tiller will dig with little effort from the operator.
• Tilling is digging into, turning over, and breaking up packed soil before planting. Loose, unpacked soil helps root growth. Best tilling depth is 4"-6". A tiller will also clear the soil of unwanted vegetation. The decomposition of this vegetable matter enriches the soil. Depending on the climate (rainfall and wind), it may be advisable to till the soil at the end of the growing season to further condition the soil.
• Soil conditions are important for proper tilling. Tines will not readily penetrate dry, hard soil which may contribute to excessive bounce and difficult handling of your tiller. Hard soil should be moistened before tilling; however, extremely wet soil will "ball-up" or clump during tilling. Wait until the soil is less wet in order to achieve the best results. When tilling in the fall, remove vines and long grass to prevent them from wrapping around the tine shaft and slowing your tilling operation.
• You will find tilling much easier ifyou leave a row untilled between passes. Then go back between tilled rows There are two reasons for doing this. First, wide turns are much easier to negotiate than aboutfaces. Second, the tiller won't be pulling itself, and you, toward the row next to it.
• Set depth stake and wheel height for shallow tilling when working extremely hard soil or sod. Then work across the first cuts at normal depth.
CULTIVATING
Cultivating is destroying the weeds between rows to prevent them from robbing nourishment and moisture from the plants. At the same time, breaking up the upper layer of soil crust will help retain moisture in the soil.
Best digging depth is 1"-3".
• You will probably not need to use the depth stake. Begin by tipping the depth stake forward until it is held by the stake spring.
• Cultivate up and down the rows at a speed which will allow tines to uproot weeds and leave the ground in rough condition, promoting no further growth of weeds and grass.
MAINTENANCE
1 - Change more often when operating under a heavy load or in high ambient temperatures.
2 - Service more often when operating in dirty or dusty conditions.
GENERAL RECOMMENDATIONS
The warranty on this tiller does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, the operator must maintain tiller as instructed in this manual.
Some adjustments will need to be made periodically to properly maintain your tiller. All adjustments in the Service and Adjustments section of this manual should be checked at least once each season.
• Once a year you should replace the spark plug, clean or replace air filter, and check tines and belts for wear. Anewspark plug and clean air filter assure proper air-fuel mixture and help your engine run better and last longer.
BEFORE EACH USE
1. Check engine oil level.
2. Checktine operation.
3. Check for loose fasteners.
LUBRICATION Keep unit well lubricated (See "LUBRICATION CHART") .
CAUTION:Disconnect spark plug wire before performing any maintenance (except carburetor adjustment) to prevent accidental starting of engine.
Prevent fires! Keep the engine free of grass, leaves, spilled oil, or fuel. Remove fuel from tank before tipping unit for maintenance. Clean muffler area of all grass, dirt, and debris.
Do not touch hot muffler or cylinder fins as contact may cause burns.
ENGINE
LUBRICATION
Use only high quality detergent oil rated with API service classification SG-SL Selectthe oil's SAE viscosity grade according to your expected temperature.
NOTE: Although multi-viscosity oils (5W30, 10W-30, etc.) improve starting in cold weather, these m ulti-viscosity oils will result in increased oil consumption when used above 32°F (0°C). Checkyour engine oil level more frequentlyto avoid possible engine damage from running low on oil.
Change the oil after every 50 hours of operation or at least once a year if the tiller is not used for 50 hours in one year.
Checkthe crankcase oil level before starting the engine and after each five (5) hours of continuous use. Add SAE 30 motor oil or equivalent. Tighten oil filler plug securely each time you check the oil level.
TO CHANGE ENGINE OIL
Determine temperature range expected before oil change. All oil must meet API service classification SG-SL
• Be sure tiller is on level surface.
• Oil will drain more freely when warm.
• Catch oil in a suitable container.
1. Remove drain plug.
2. Tip tiller forward to drain oil.
3. After oil has drained completely, replace oil drain plug and tighten securely.
4. Remove oil filler plug. Be careful not to allow dirt to enter the engine. 5. Refill enginewith oil. See "FILL ENGINE WITH OIL " in the Operation section of this manual.

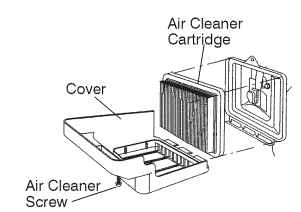

AIR CLEANER
Service air cleaner cartridge every 50 hours, more often if engine is used in very dusty conditions.
1. Loosen air cleaner screw.
2. Remove air cleaner cover.
3. Carefully remove air cleaner cartridge. Be careful. Do not allow dirt or debris to fall into carburetor.
4. Clean bytapping gentlyon afiatsurface.
NOTE: If very dirty or damaged, replace cartridge.
5. Clean and replace cover. Tighten screw securely.
CAUTION: Petroleum solvents, such as kerosene, are not to be used to clean cartridge. They may cause deterioration of the cartridge. Do not oil cartridge. Do not use pressurized airto clean or dry cartridge.

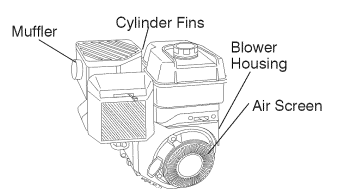

COOLING SYSTEM
Your engine is air cooled. For proper engine performance and long life keep your engine clean.
• Clean air screen frequently using a stiffbristled brush.
• Remove blower housing and clean as necessary.
• Keep cylinder fins free of dirt and chaff.
MUFFLER
Do not operate tiller without muffler. Do not tamper with exhaust system. Damaged mufflers or spark arresters could create a fire hazard. Inspect periodically and replace if necessary. If your engine is equipped with a spark arrester screen assembly, remove every 50 hours for cleaning and inspection. Replace if damaged.
SPARK PLUG
Replace spark plugs at the beginning of each tilling season or after every 50 hours of use, whichever comes first. Spark plug type and gap setting are shown in "PRODUCT SPECIFICATIONS" on page 4 of this manual.
TRANSMISSION
Your transmission is sealed and will not require lubrication unless serviced.
CLEANING
Do not clean your tiller when the engine and transmission are hot. We do not recommend using pressurized water (garden hose, etc.) to clean your unit unless the gasket area around thetransmission and the engine muffler, air filter and carburetor are covered to keep water out. Water in engine will shorten the useful life of your tiller.
• Clean engine, wheels, finish, etc. of all foreign matter.
• Keep finished surfaces and wheels free of all gasoline, oil, etc.
• Protect painted surfaces with automotive type wax.
SERVICE AND ADJUSTMENTS
CAUTION: Disconnect spark plug wire from spark plug and place wire where it cannot come into contact with plug.
TILLER
TO ADJUST HANDLE HEIGHT
Factory assembly has provided lowest handle height. Select handle height best suited foryourtilling conditions. Handle heightwill be different when tiller digs into soil.
1. If a higher handle height is desired, loosen the four nuts securing handle panel to engine brackets.
2. Slide handle panel to desired location.
3. Tighten the four nuts securely.
TINE ARRANGEMENT
Your outer tines can be assembled in several different ways to suit your tilling or cultivating needs.
CAUTION: Tines are sharp. Wear gloves or other protection when handling tines.
NORMAL TILLING - 24" PATH
• Assemble holes "A" in tine hubs to holes "B" in tine shaft.
MID-WIDTH TILLING - 22" PATH
• Assemble holes "A" in tine hubs to holes "C" in tine shaft.
NARROW TILLING/CULTIVATING - 12-3/4" PATH
• Remove outer tines.
NOTE: When reassembling outer tines, be sure right tine assembly (marked "R") and left tine assembly (marked "L') are mounted to correct side of tine shaft.
TINE OPERATION CHECK
WARNING: Disconnect spark plug wire from spark plug to prevent starting while checking tine operation.
For proper tine operation, tine control lever must be against control body and all slack removed from inner wire of control cable when control is in the "OFF" (up) position. If lever and cable are loose, loosen cable clip at lower end of cable. Pull up on cable to remove slack, without extending spring on end of cable, and retighten cable clip.
FINAL CHECK "OFF" POSITION
1. With tine control "OFF" (up), push down on handle to raise tines off the ground.
2. Slowly pull recoil starter handle while observing tines. Tines should not rotate.
3. Iftines rotate, innerwire ofcontrol cable is too tight which is extending lower spring and engaging tines. Loosen cable clip and push down on cable only enough to relieve spring tension. Tighten cable clip.
4. Recheck in "OFF" position and adjust if necessary.
FINALCHECK"ON" POSITION
5. With tine control "ON" (held down to handle) push down on handle to raise tines off the ground.
6. Slowly pull recoil starter handle while observing tines. Tines should rotate forward.
7. Iftines do not rotate, inner wire of control cable is too loose. Loosen cable clip and pull cable up to remove slack and retighten clip.
8. Recheck in "ON" position and adjust if necessary. NOTE: If "ON" position check required adjustment, recheck "OFF" position adjustment to insure tines do not rotate when control is "OFF" (up).
TO REMOVE BELT GUARD
1. Remove screws from side of belt guard.
2. Pull belt guard out and away from unit.
3. Replace belt guard by reversing above procedure. Be sure slot in bottom of belt guard is under head of tine shield bolt and all nuts are tightened securely.
TO REPLACE V-BELT
Replace V-belt if it has stretched considerably or if it has cracks or frayed edges.
1. Belt guard must be removed to service belt. See "TO REMOVE BELT GUARD" in this section of manual.
BELT REMOVAL
2. Remove V-belt from transmission pulley first and then from engine pulley.
BELT REPLACEMENT
3. Install new V-belt to engine pulley first then to transmission pulley. Be sure belt is positioned on inside groove of both pulleys, inside all belt guides and rests on idler pulley.
CHECK TINE OPERATION
4. See "TINE OPERATION CHECK" in this section of manual.
5. Replace belt guard.
ENGINE
Maintenance, repair, or replacement of the emission control devices and systems, which are being done at the customers expense, may be performed by any non-road engine repair establishment or individual. Warranty repairs must be performed by an authorized engine manufacturer's service outlet.
TO ADJUST CARBURETOR
The carburetor has been preset at the factory and adjustment should not be necessary. However, engine performance can be affected by differences in fuel, temperature, altitude or load. Ifthe carburetor does need adjustment, contact your nearest authorized service center/department
IMPORTANT: Never tamper with the engine governor, which is factory set for proper engine speed. Overspeeding the engine above the factory high speed setting can be dangerous. If you thinkthe engine-governed high speed needs adjusting, contact your nearest sears or other qualified service center which has the proper equipment and experience to make any necessary adjustments
STORAGE
Immediately prepare your tiller for storage at the end of the season or if the unit will not be used for 30 days or more.
Warning: Never store the tiller with gasoline in the tank inside a building where fumes may reach an open flame or spark. Allow the engine to cool before storing in any enclosure.
TILLER
1. Clean entire tiller (See "CLEANING" in the Maintenance section of this manual).
2. Inspect and replace belts, if necessary (See belt replacement instructions in the Service and Adjustments section of this manual).
3. Lubricate as shown in the Maintenance section of this manual.
4. Be sure that all nuts, bolts and screws are securely fastened. Inspect moving parts for damage, breakage and wear. Replace if necessary. 5. Touch up all rusted or chipped paint surfaces; sand lightly before painting.
ENGINE
FUEL SYSTEM
IMPORTANT: It is important to prevent gum deposits from forming in essential fuel system parts such as the carburetor, fuel filter, fuel hose, or tank during storage. Also, alcohol blended fuels (called gasohol or using ethanol or methanol) can attract moisture which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage.
• Emptythefuel tank by starting the engine and letting it run until the fuel lines and carburetor are empty.
• Never use engine or carburetor cleaner products in the fuel tank or permanent damage may occur.
• Use fresh fuel next season.
NOTE: Fuel stabilizer is an acceptable alternative in minimizing the formation of fuel gum deposits during storage. Add stabilizer to gasoline in fuel tank or storage container. Always follow the mix ratio found on stabilizer container. Run engine at least 10 minutes after adding stabilizer to allow the stabilizer to reach the carburetor. Do not empty the gas tank and carburetor if using fuel stabilizer.
ENGINE OIL
Drain oil (with engine warm) and replace with clean oil. (See "ENGINE" inthe Maintenance section of this manual).
CYLINDER
1. Remove spark plug.
2. Pour 1 ounce (29ml) ofoilthroughspark plug hole into cylinder.
3. Pull starter handle slowly several times to distribute oil.
4. Replace with new spark plug.
OTHER
- Do not store gasoline from one season to another.
- Replace your gasoline can if your can starts to rust. Rust and/or dirt in your gasoline will cause problems.
- If possible, store your unit indoors and cover it to give protection from dust and dirt.
- Cover your unit with a suitable protective cover that does not retain moisture. Do not use plastic. Plastic cannot breathe which allows condensation to form and will cause your unit to rust.
IMPORTANT: Never cover tiller while engine and exhaust areas are still warm.
TROUBLESHOOTING
See appropriate section in manual unless directed to Sears service center
Will not start
1. Out of fuel.
- Fill fuel tank.
2. Engine not "CHOKED" properly.
- See "TO START ENGINE" in the Operation section.
3. Engine flooded.
- Wait several minutes before attempting to start.
4. Dirty air cleaner.
- Clean or replace air cleaner cartridge.
5. Water in fuel.
- Empty fue! tank and carburetor, and refill tank with fresh gasoline.
6. Clogged fuel tank.
- Remove fuel tank and clean.
7.Loose spark plug wire.
- Make sure spark plug wire is seated properly on plug.
8. Bad spark plug or improper gap.
- Replace spark plug or adjust gap.
9. Carburetor out of adjustment
- Make necessary adjustments.
Hard to start
1. Throttle control not set properly.
- Place throttle control in "FAST" position.
2. Dirty air cleaner.
- Clean or replace air cleaner cartridge.
3. Bad spark plug or improper gap.
- Replace spark plug or adjust gap.
4. Stale or dirty fuel.
- Empty fuel tank and refill tank with fresh clean gasoline.
5. Loose spark plug wire.
- Make sure spark plug wire is seated properly on plug.
6. Carburetor out of adjustment.
- Make necessary adjustments.
Loss of power
1. Engine is overloaded.
- Set depth stake and wheels for shallower tilling.
2. Dirty air cleaner.
- Clean or replace air cleaner cartridge.
3. Low oil level/dirty oil.
- Check oil leve!/change oil.
4. Faulty spark plug.
- Clean and regap or change spark plug.
5. Oil in fuel.
- Empty and clean fuel tank and refill, and clean carburetor.
6. Stale or dirty fuel.
- Empty fuel tank and refill tank with fresh clean gasoline
7. Water in fuel.
- Empty fue! tank and carburetor, and refill tank with fresh gasoline.
8. Clogged fuel tank.
- Remove fuel tank and clean.
9. Spark plug wire loose.
- Connect and tighten spark plug wire.
10. Dirty engine air screen.
- Clean engine air screen.
11. Dirty/clogged muffler.
- Clean/replace muffler.
12. Carburetor out of adjustment.
- Make necessary adjust ments
13. Poor compression.
- Contact a Sears or other qualified service center.
Engine overheats
1. Low oil level/dirty oil.
- Check oil level/change oil.
2. Dirty engine air screen.
- Clean engine air screen.
3. Dirty engine.
- Clean cylinder fins, airscreen, muffler area.
4. Partially plugged muffler.
- Remove and clean muffler.
5. Improper carburetor adjustment.
- Adjust carburetor to richer position.
Excessive bounce/difficult handling
1. Ground too dry and hard.
- Moisten ground or wait for more favorable soil conditions.
2.Wheels and depth stake incorrectly adjusted.
- Adjust wheels and depth stake.
Soil balls up or clumps
Ground too wet.
- Wait for more favorable soil conditions.
Engine runs but tiller won't move
1. Tine control is not engaged.
- Engage tine control.
2. V-belt not correctly adjusted.
- Inspect/adjust V-belt
3. V-belt is off pulley(s).
- Inspect V-belt
Engine runs but labors when tilling
1. Tilling too deep.
- Set depth stake for shallower tilling.
2. Throttle control not properly adjusted.
- Check throttle control setting.
3. Carburetor out of adjustment.
- Make necessary adjustments.
NEED MORE HELP?
You'll find the answer and more on managemyhome - for free!
- Find this and aLLyour other product manuals online.
- Get answers from our team of home experts.
- Get a personalized maintenance plan for your home.
- Find information and tools to help with home projects.
See other models: 24738909 917297042 316731932 917374090 390251600
