Craftsman 917275021 lawn tractor User Manual

Owner's Manual

JCRAFTSMAN°J

23.0 HP

ELECTRIC START

48" MOWER

AUTOMATIC

GARDEN TRACTOR

Model No.

917.275021

• Safety

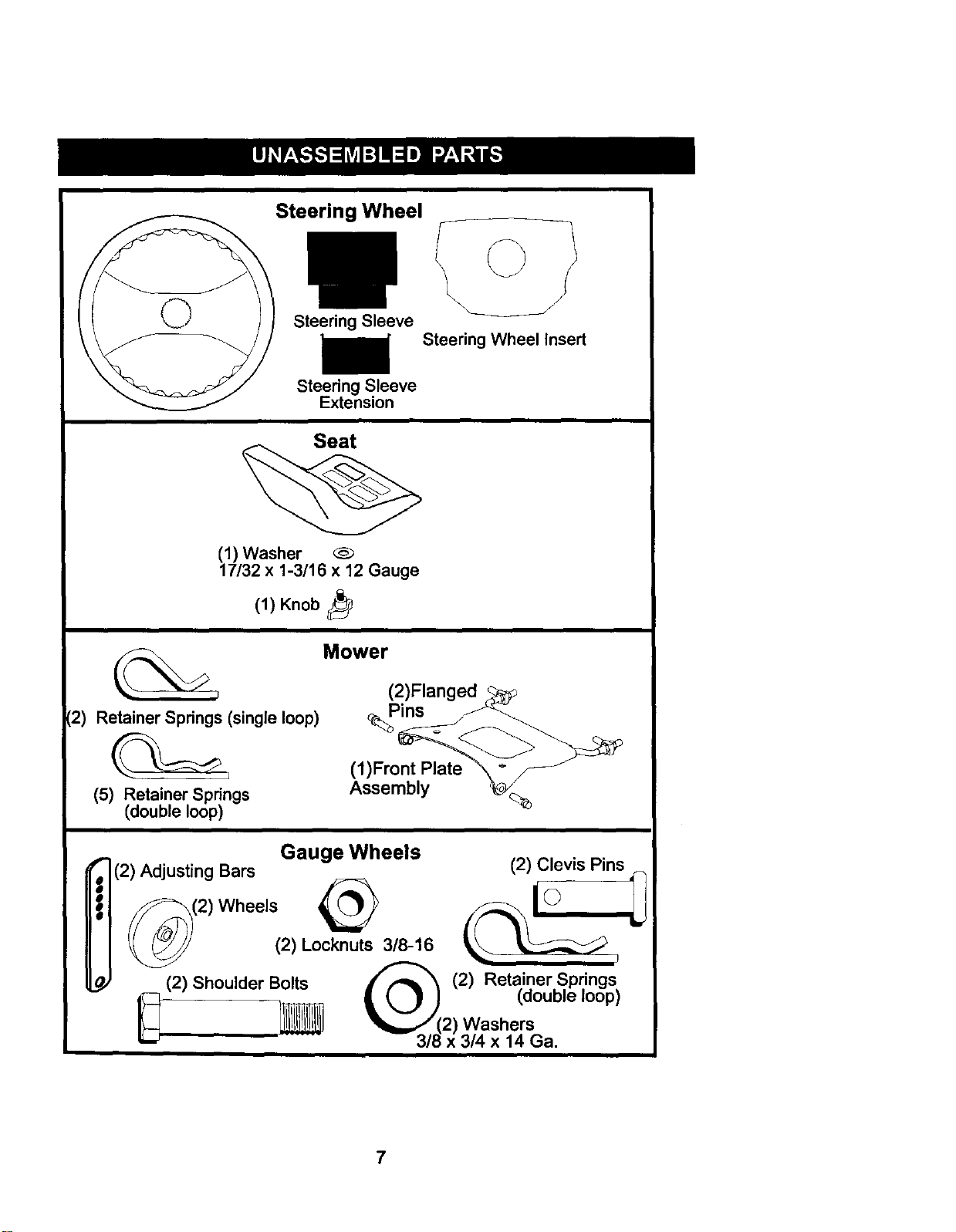

• Assembly

• Operation

• Maintenance

• Repair Parts

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, II 60179

Visit our Craftsman website:www.sears.comlcraftsman

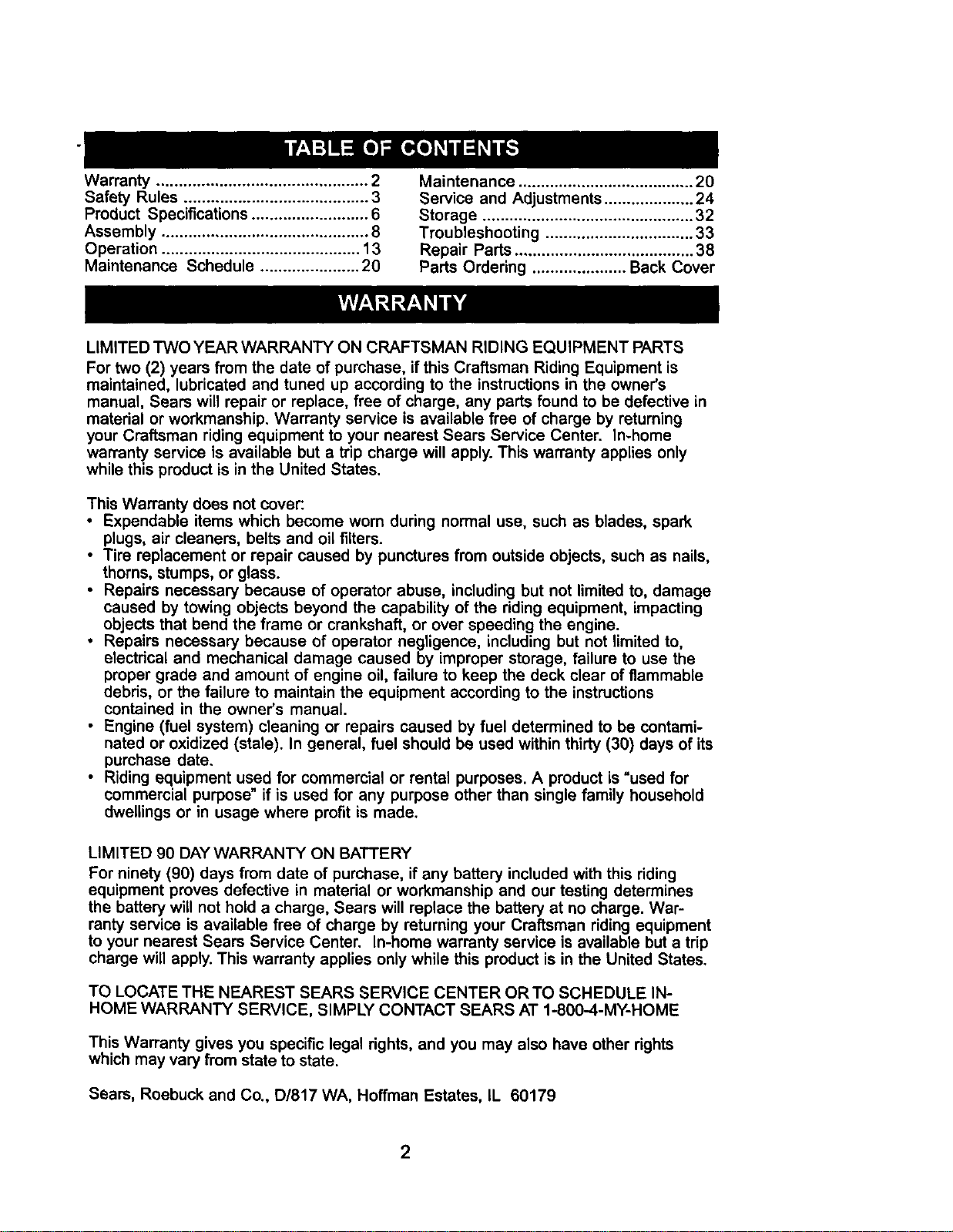

Warranty............................................... 2

Safety Rules ......................................... 3

Product Specifications .......................... 6

Assembly .............................................. 8

Operation ............................................ 13

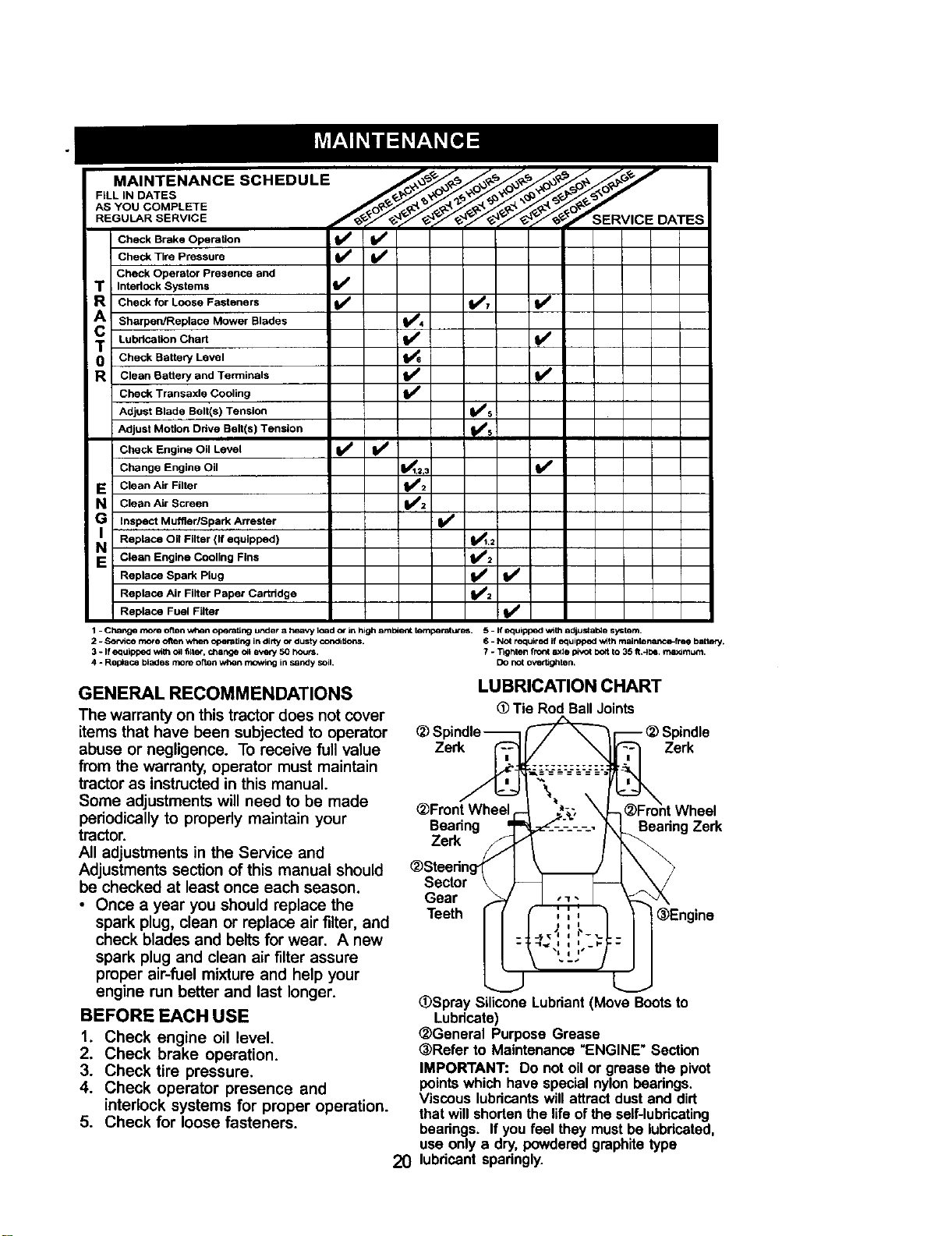

Maintenance Schedule ...................... 20

Maintenance ....................................... 20

Service and Adjustments .................... 24

Storage ............................................... 32

Troubleshooting ................................. 33

Repair Parts ........................................ 38

Parts Ordering ..................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT PARTS

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's

manual, Sears will repair or replace, free of charge, any parts found to be defective in

material or workmanship. Warranty service is available free of charge by returning

your Craftsman riding equipment to your nearest Sears Service Center. In-home

warranty service is available but a trip charge will apply. This warranty applies only

while this product is in the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts and oil filters.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or the failure to maintain the equipment according to the instructions

contained in the owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within thirty (30) days of its

purchase date.

• Riding equipment used for commercial or rental purposes. A product is "used for

commercial purpose" if is used for any purpose other than single family household

dwellings or in usage where profit is made.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines

the battery will not hold a charge, Sears will replace the battery at no charge. War-

ranty service is available free of charge by returning your Craftsman riding equipment

to your nearest Sears Service Center. In-home warranty service is available but a trip

charge will apply. This warranty applies only while this product is in the United States.

TO LOCATE THE NEAREST SEARS SERVICE CENTER OR TO SCHEDULE IN-

HOME WARRANTY SERVICE, SIMPLY CONTACT SEARS AT 1-800-4-MY-HOME

This Warranty gives you specific legal dghts, and you may also have other rights

which may vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwing, objects. Failure to observe the following safety instructions could result in

serious injury or death.

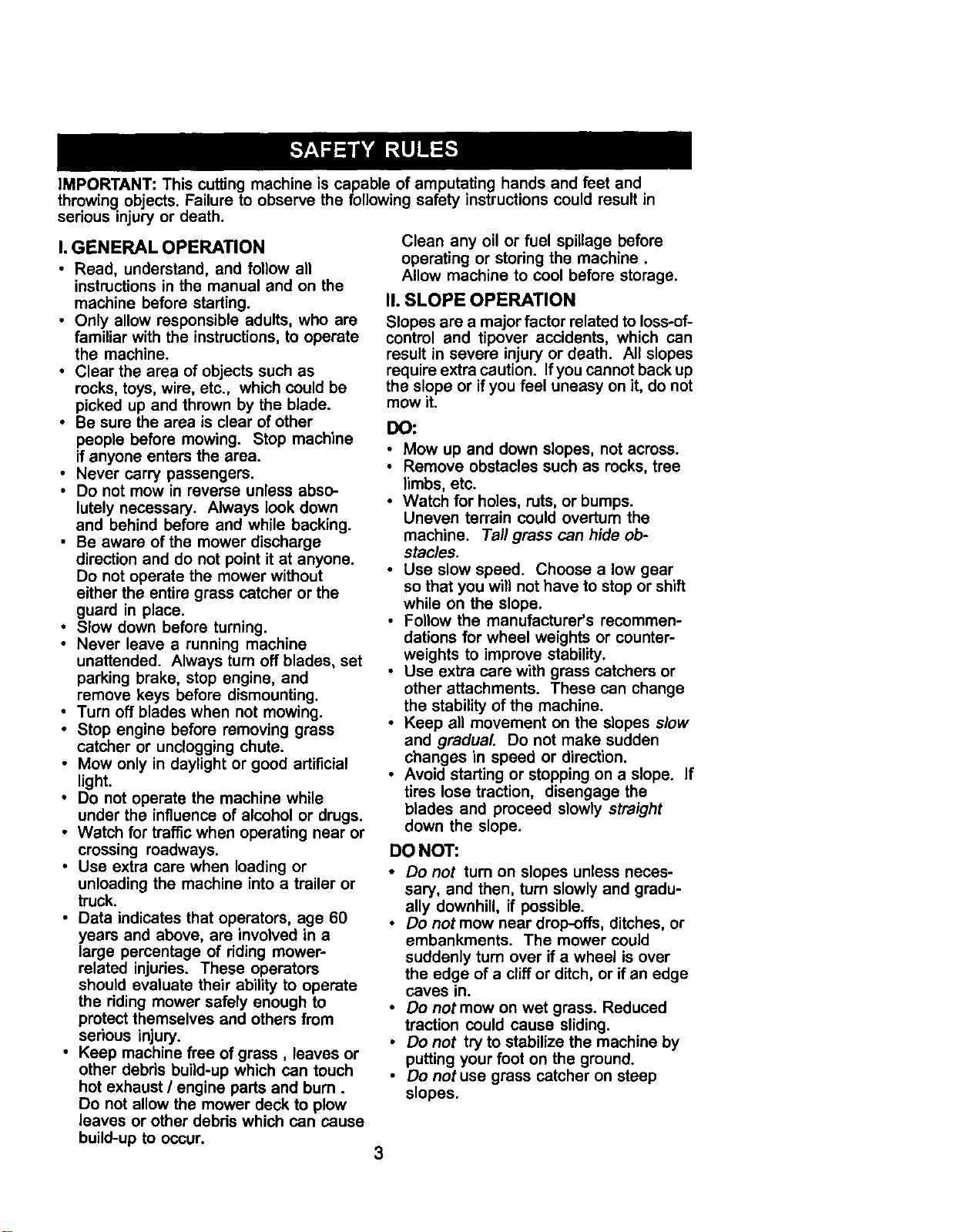

I. GENERAL OPERATION

• Read, understand, and follow all

instructions in the manuel and on the

machine before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as

rocks, toys, wire, etc., which could be

picked up and thrown by the blade.

• Be sure the area is clear of other

people before mowing. Stop machine

if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without

either the entire grass catcher or the

guard in place.

• Slow down before turning.

• Never leave a running machine

unattended. Always turn off blades, set

parking brake, stop engine, and

remove keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while

under the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or

unloading the machine into a trailer or

truck.

• Data indicates that operators, age 60

years and above, are involved in a

large percentage of riding mower-

related injuries. These operators

should evaluate their ability to operate

the riding mower safely enough to

protect themselves and others from

serious injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust / engine parts and bum.

Do not allow the mower deck to plow

leaves or other debris which can cause

build-up to occur.

Clean any oil or fuel spillage before

operating or storing the machine.

Allow machine to cool before storage.

I1. SLOPE OPERATION

Slopes are a major factor related to loss-of-

control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. Ifyou cannot back up

the slope or if you feel uneasy on it, do not

mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide ob-

stacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommen-

dations for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

DO NOT:

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

• Do not mow near drop-offs, ditches, or

embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

• Do not mow on wet grass. Reduced

traction could cause sliding.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not use grass catcher on steep

slopes.

IlL CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

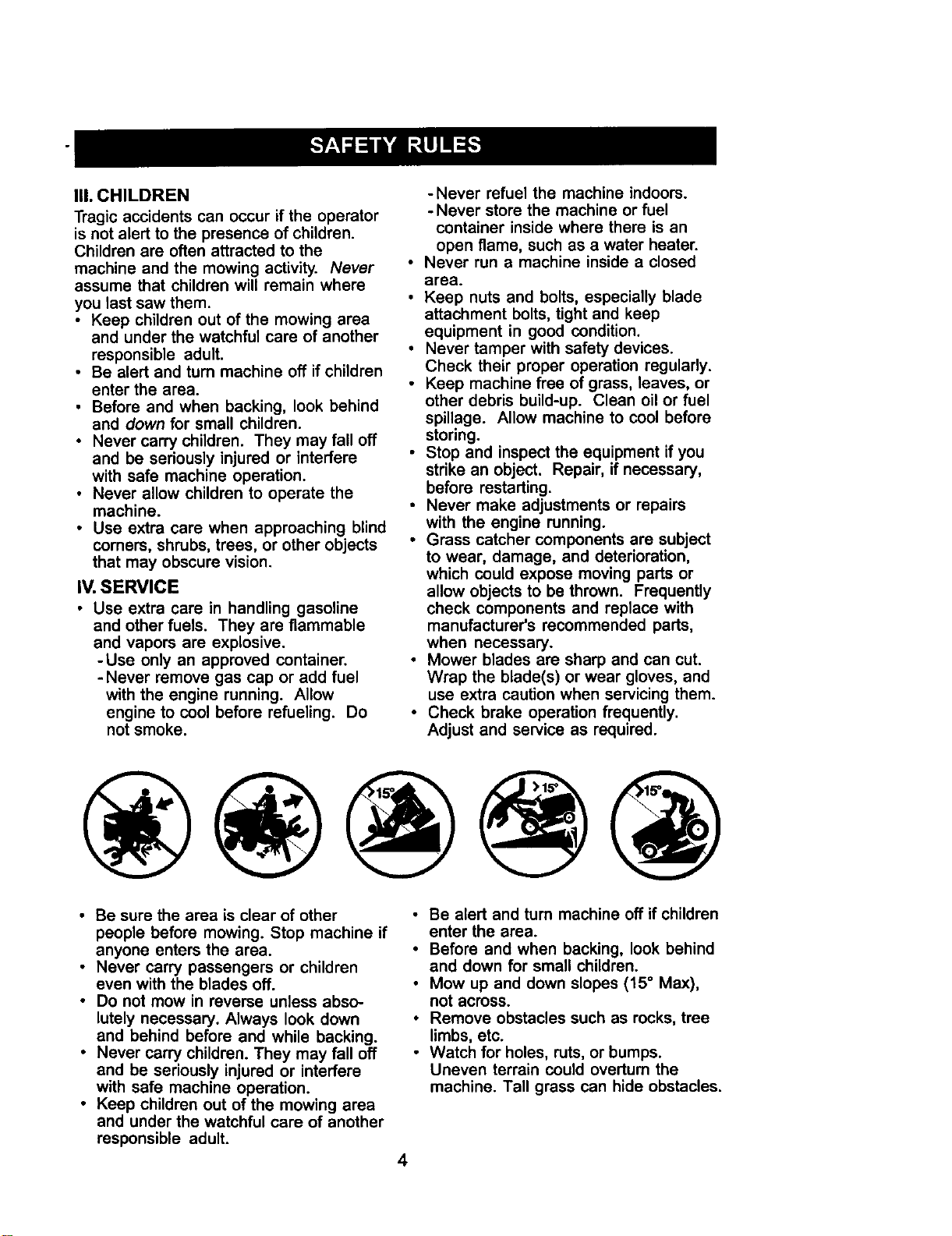

IV. SERVICE

• Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs

with the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently.

Adjust and service as required.

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

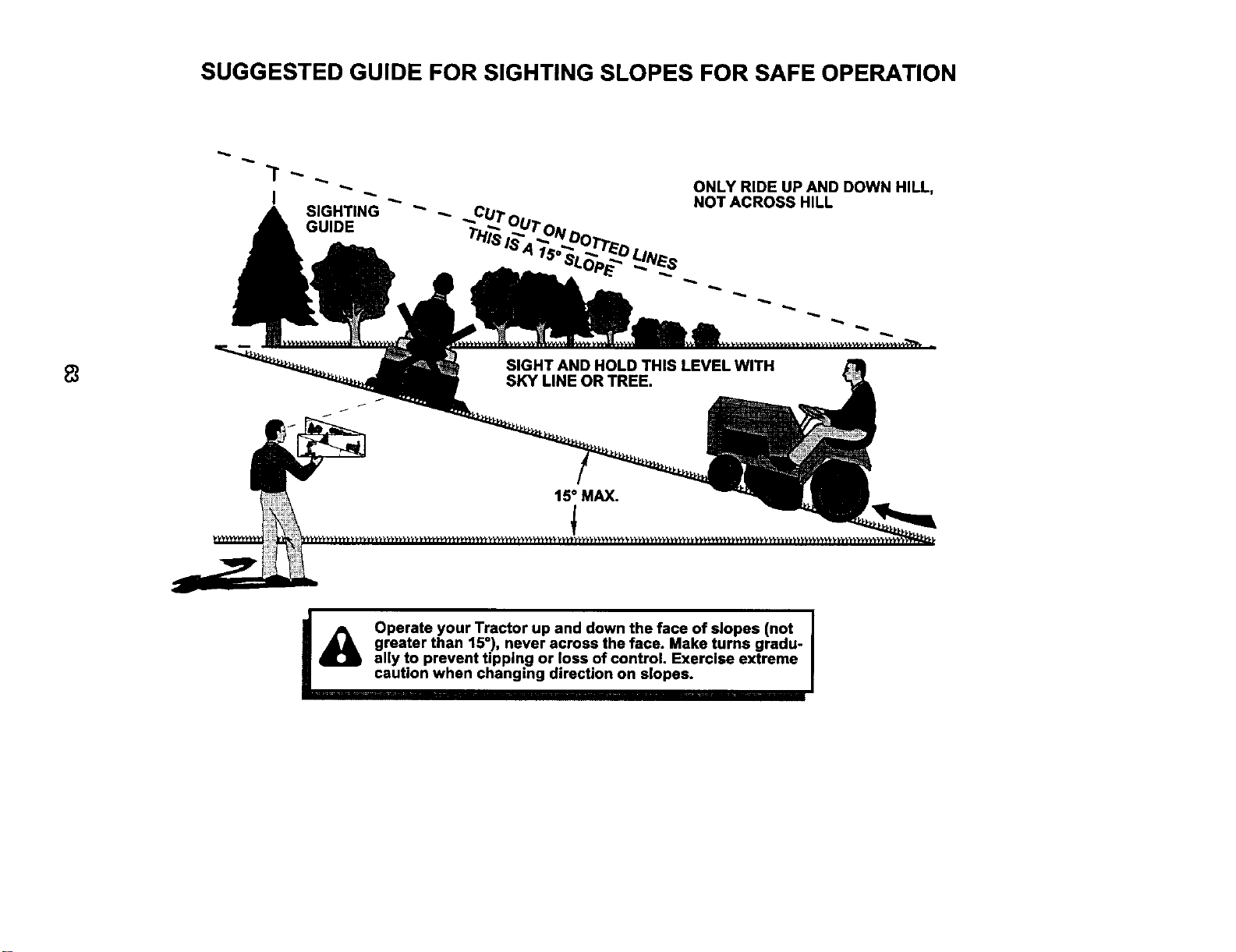

• Mow up and down slopes (15 = Max),

not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

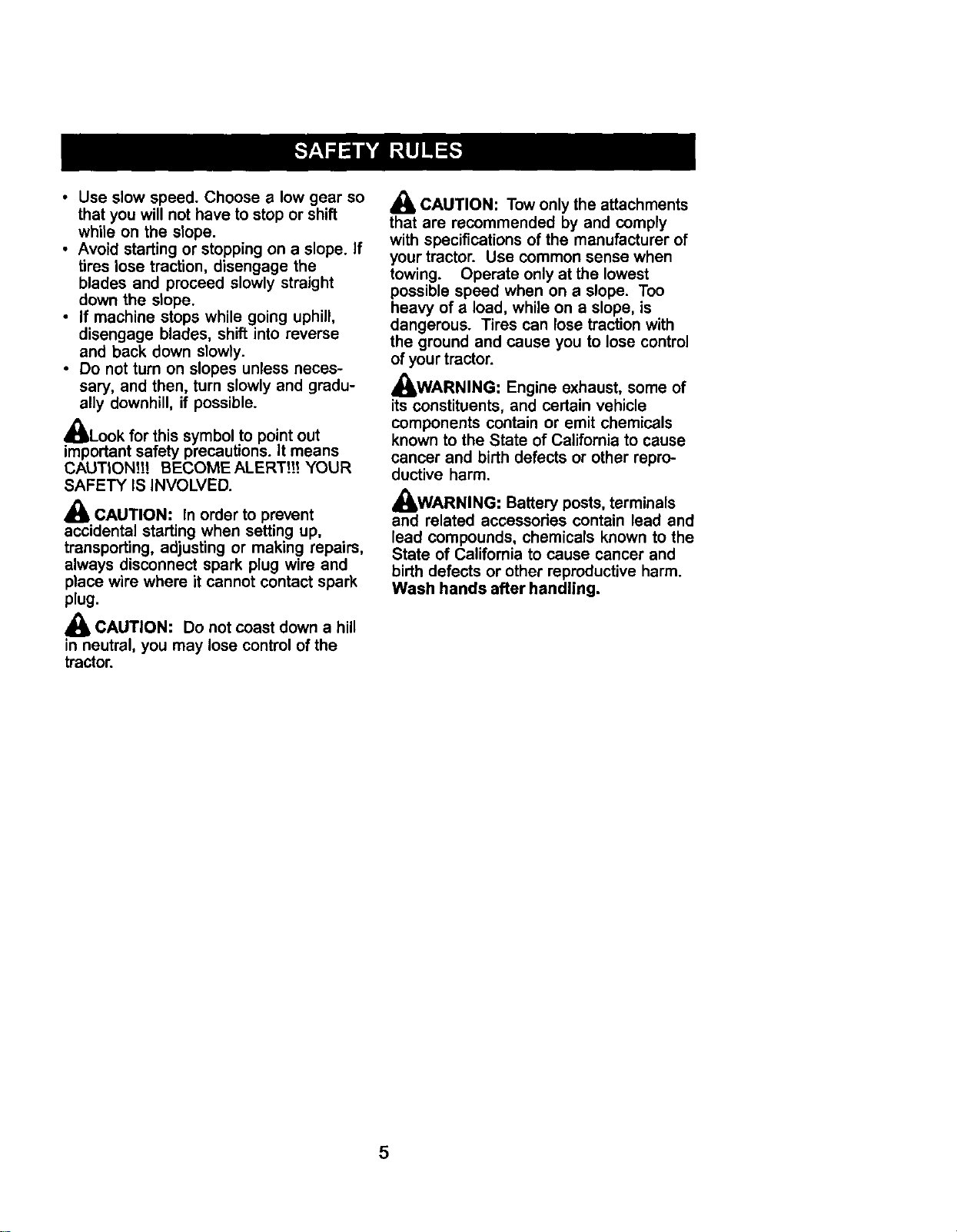

_Look for this symbol to point out

important safety precautions. It means

CAUTION!!! BECOME ALERT!!! YOUR

SAFETY IS INVOLVED.

_ CAUTION: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_ CAUTION: Do not coast down a hill

in neutral, you may lose control of the

tractor.

CAUTION: Tow only the attachments

that are recommended by and comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

&WARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other repro-

ductive harm.

_IbWARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

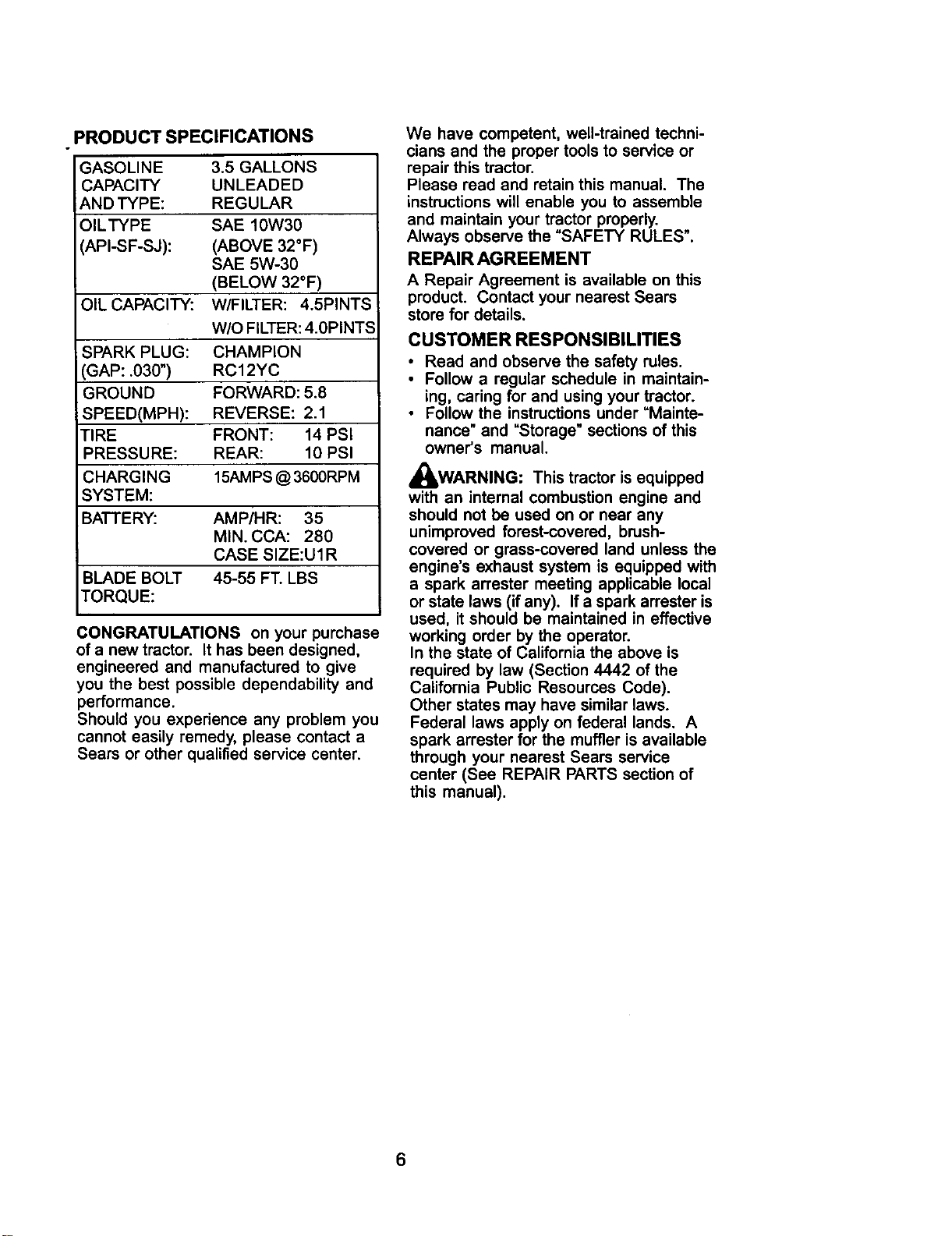

PRODUCT SPECIFICATIONS

GASOLINE 3.5 GALLONS

CAPACITY UNLEADED

AND TYPE: REGULAR

OILTYPE SAE 10W30

API-SF-SJ): (ABOVE 32°F)

SAE 5W-30

(BELOW 32°F)

OIL CAPACITY: W/FILTER: 4.5PINTS

W/O FILTER: 4.0PINTS

;SPARK PLUG: CHAMPION

GAP: .030") RCl 2YC

GROUND FORWARD: 5.8

SPEED(MPH): REVERSE: 2.1

TIRE FRONT: 14 PSI

PRESSURE: REAR: 10 PSI

CHARGING 15AMPS @ 3600RPM

SYSTEM:

BATTERY: AMP/HR: 35

MIN. CCA: 280

CASE SIZE:U1 R

BLADE BOLT 45-55 FT. LBS

TORQUE:

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

REPAIR AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

• Follow the instructions under =Mainte-

nance" and "Storage" sections of this

owner's manual.

_IbWARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears service

center (See REPAIR PARTS section of

this manual).

Steering Wheel

Steering Sleeve

Steering Wheel Insert

Steering Sleeve

Extension

Seat

(1) Washer

17/32 x 1-3/16 x 12 Gauge

(1) Knob

Mower

(2) Retainer Springs (single loop)

(5) Retainer Springs

(double loop)

(2)Flanged

_Pins j

(1)Front Plate

Assembly

Gauge Wheels

(2) Adjusting Bars

:2) Wheels

.o)

(2) Locknuts 3/8-16 ___

#"f,,,-_, (2) Retainer Springs

(2)Shoulder Bolts _, (_) (doubleloop)

(2)Washers

3/8 x 314 x 14 Ga.

(2) Clevis Pins

Video Cassette

Keys

Slope Sheet

(2) Keys

(1) Oil Drain Tube

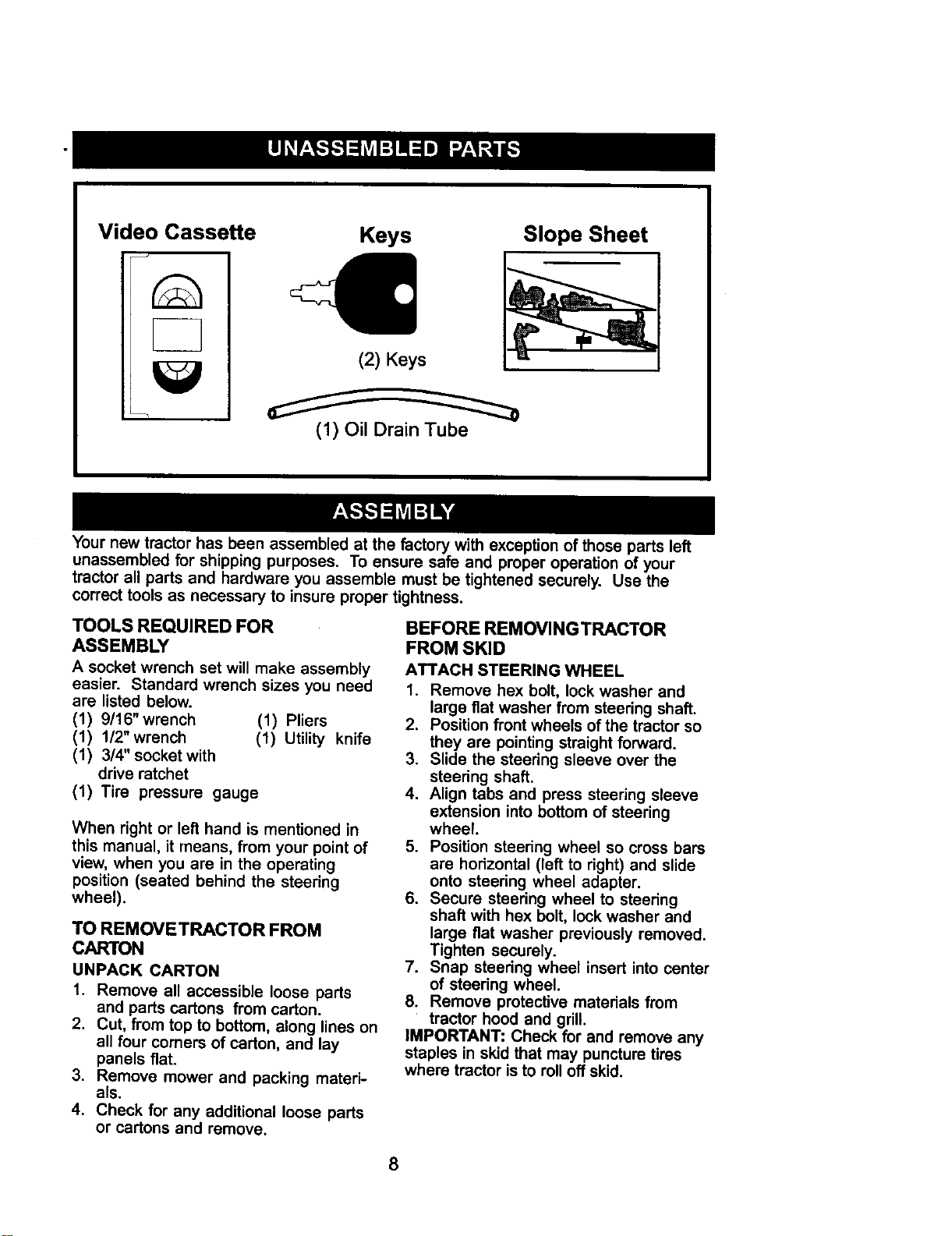

Your new tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16"wrench (1) Pliers

(1) 1/2"wrench (1) Utility knife

(1) 3/4" socket with

drive ratchet

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating

position (seated behind the steering

wheel).

TO REMOVETRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts

and parts cartons from carton.

2. Cut, from top to bottom, along lines on

all four corners of carton, and lay

panels flat.

3. Remove mower and packing materi-

als.

4. Check for any additional loose parts

or cartons and remove.

BEFORE REMOVINGTRACTOR

FROM SKID

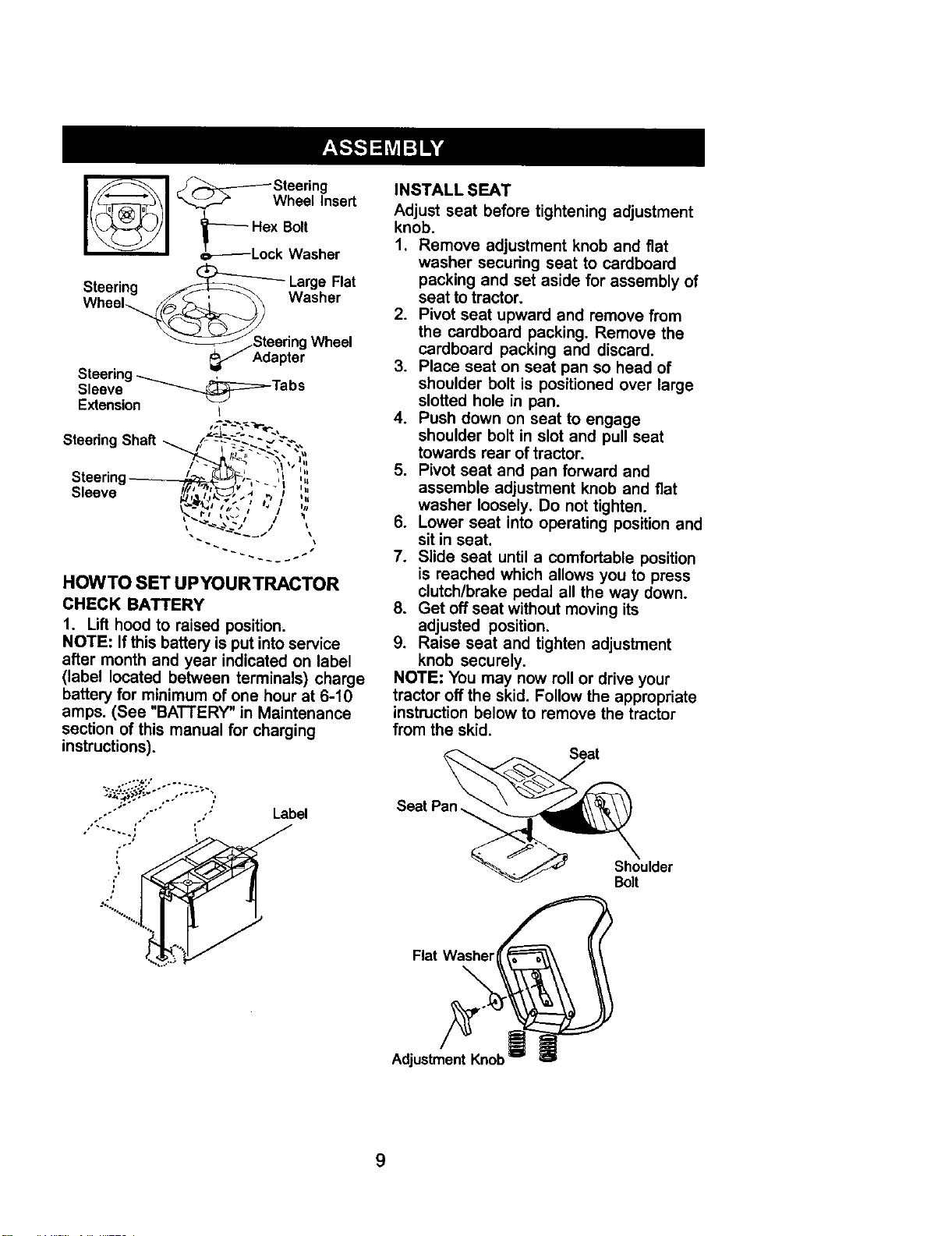

ATTACH STEERING WHEEL

1. Remove hex bolt, lock washer and

large fiat washer from steering shaft.

2. Position front wheels of the tractor so

they are pointing straight forward.

3. Slide the steering sleeve over the

steering shaft.

4. Align tabs and press steering sleeve

extension into bottom of steering

wheel.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

onto steering wheel adapter.

6. Secure steering wheel to steering

shaft with hex bolt, lock washer and

large fiat washer previously removed.

Tighten securely.

7. Snap steering wheel insert into canter

of steering wheel.

8. Remove protective materials from

tractor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

_ J_'_-Steefing

___.-_ Wheel Insert

_-_ Hex Bolt

o-----Lock Washer

Steedn" _ Large Flat

w s er

Steering _ ,

Sleeve _::===_Ta bs

Extension I

Steering Shaft

Steerin!

Sleeve

HOWTO SET UPYOURTRACTOR

CHECK BATTERY

1. Lift hood to raised position_

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging

instructions).

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and fiat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolt is positioned over large

slotted hole in pan.

4. Push down on seat to engage

shoulder bolt in slot and pull seat

towards rear of tractor.

5. Pivot seat and pan forward and

assemble adjustment knob and flat

washer loosely• Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its

adjusted position.

9. Raise seat and tighten adjustment

knob securely.

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

Seat

"" "" ' Label

• --./ •

Shoulder

Bolt

Flat Washer

AdjustmentKnob

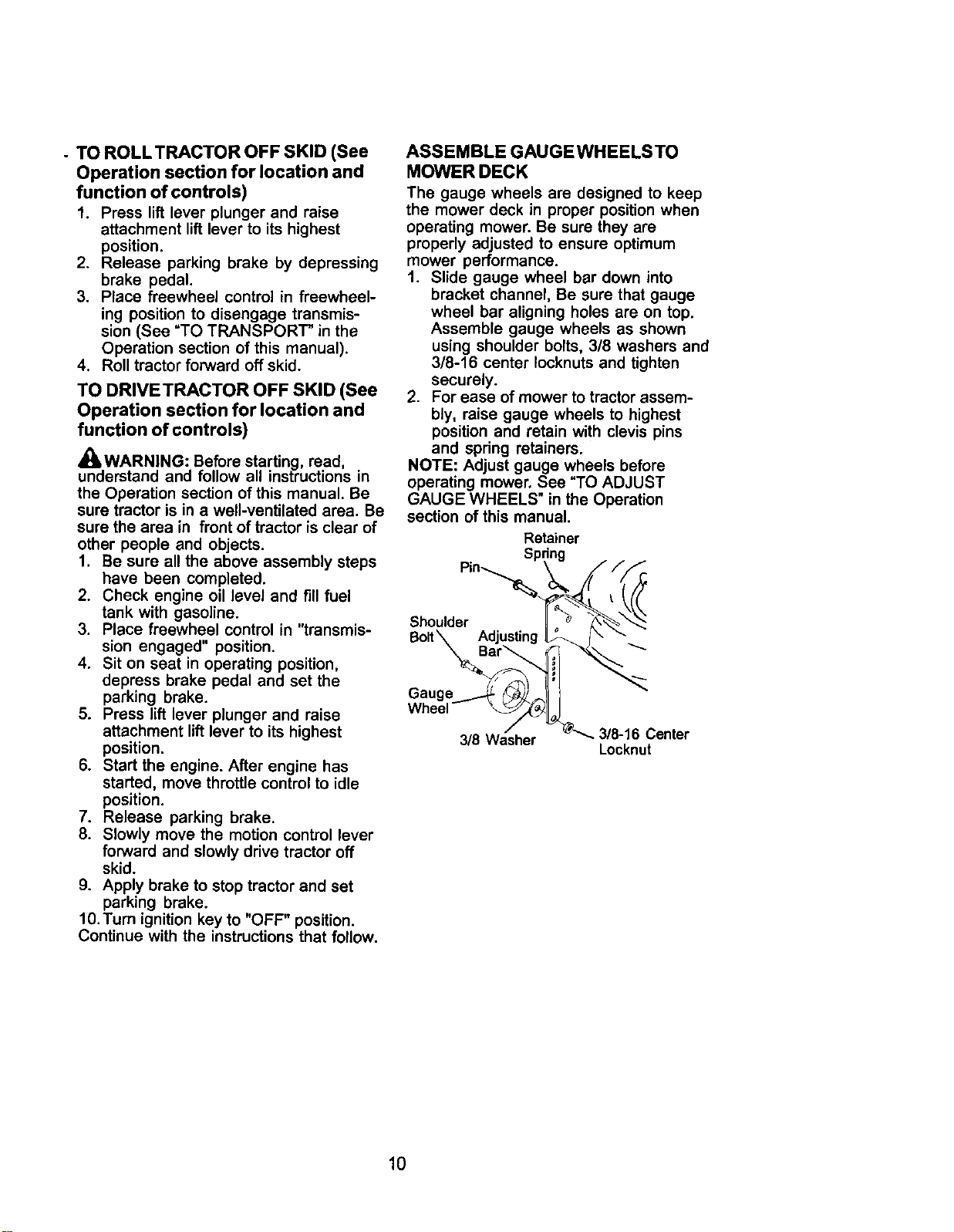

. TO ROLLTRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest

position.

2. Release parking brake by depressing

brake pedal.

3. Place freewheel control in freewheel-

ing position to disengage transmis-

sion (See "TO TRANSPORT" in the

Operation section of this manual).

4. Roll tractor forward off skid.

TO DRIVETRACTOR OFF SKID (See

Operation section for location and

function of controls)

_WARNING: Before starting, read,

understand and follow all instructions in

the Operation section of this manual. Be

sure tractor is in a well-ventilated area. Be

sure the area in front of tractor is clear of

other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline.

3. Place freewheel control in "transmis-

sion engaged" position.

4. Sit on seat in operating position,

depress brake pedal and set the

parking brake.

5. Press lift lever plunger and raise

attachment lift lever to its highest

position.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Release parking brake.

8. Slowly move the motion control lever

forward and slowly drive tractor off

skid.

9. Apply brake to stop tractor and set

parking brake.

10.Turn ignition key to "OFF" position.

Continue with the instructions that follow.

ASSEMBLE GAUGEWHEELSTO

MOWER DECK

The gauge wheels are designed to keep

the mower deck in proper position when

operating mower. Be sure they are

properly adjusted to ensure optimum

mower performance.

1. Slide gauge wheel bar down into

bracket channel, Be sure that gauge

wheel bar aligning holes are on top.

Assemble gauge wheels as shown

using shoulder bolts, 3/8 washers and

3/8-16 center Iocknuts and tighten

securely.

2. For ease of mower to tractor assem-

bly, raise gauge wheels to highest

position and retain with clevis pins

and spring retainers.

NOTE: Adjust gauge wheels before

operating mower. See "TO ADJUST

GAUGE WHEELS" in the Operation

section of this manual.

Retainer

Shoulder

Bolt_ Adjusting

_' _r_ II° "_"

Gauge_ _ll I

Wheel- _

3/8 Washer _. 3/8-16 Center

Locknut

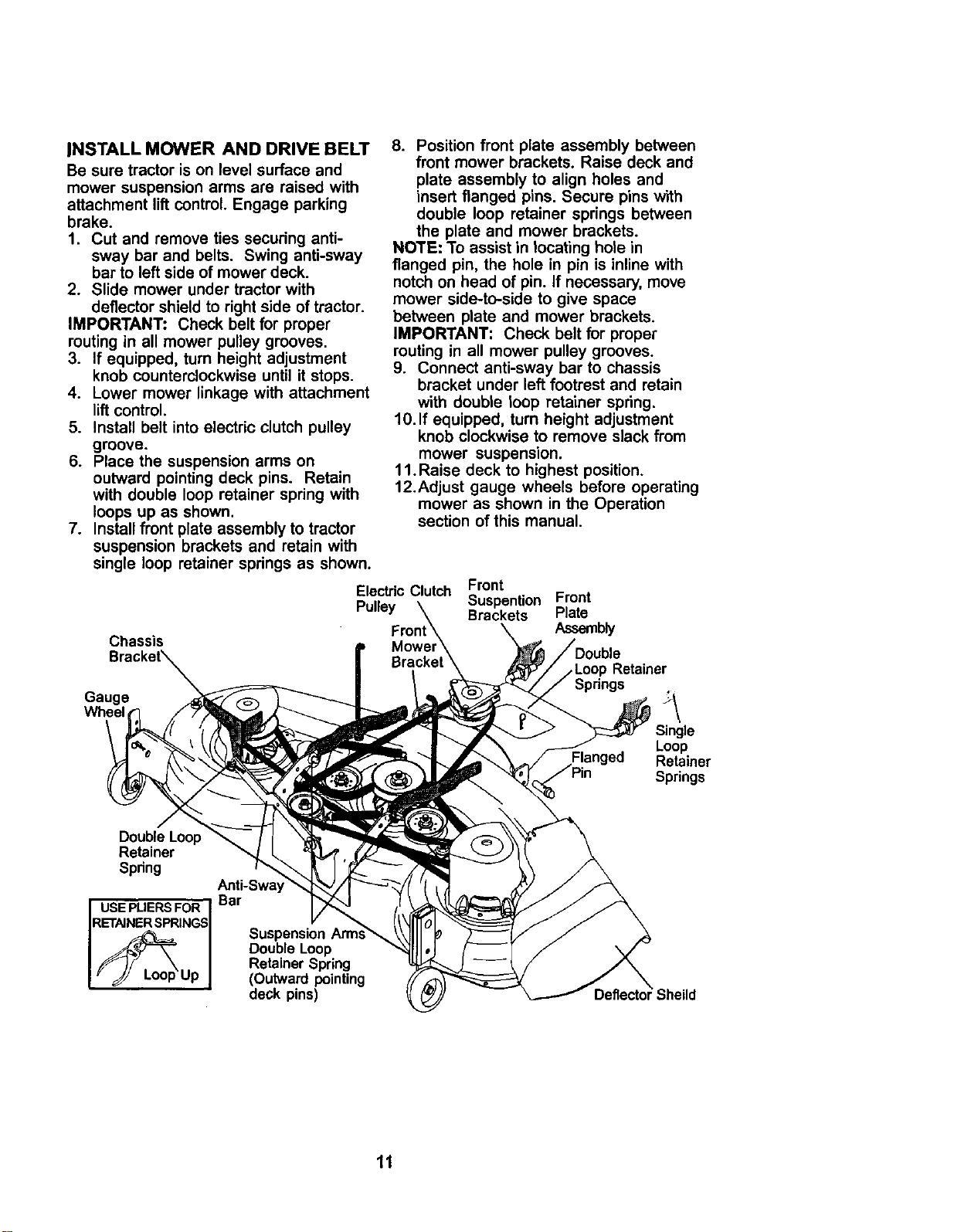

INSTALL MOWER AND DRIVE BELT

Be sure tractor is on level surface and

mower suspension arms are raised with

attachment lift control. Engage parking

brake.

1. Cut and remove ties securing anti-

sway bar and belts. Swing anti-sway

bar to left side of mower deck.

2. Slide mower under tractor with

deflector shield to right side of tractor.

IMPORTANT: Check belt for proper

routing in all mower pulley grooves.

3. If equipped, turn height adjustment

knob counterclockwise until it stops.

4. Lower mower linkage with attachment

lift control.

5. Install belt into electric clutch pulley

groove.

6. Place the suspension arms on

outward pointing deck pins. Retain

with double loop retainer spring with

loops up as shown.

7. Install front plate assembly to tractor

suspension brackets and retain with

single loop retainer springs as shown.

Chassis

Bracket_

Gauge

Wheel

8. Position front plate assembly between

front mower brackets. Raise deck and

plate assembly to align holes and

insert flanged pins. Secure pins with

double loop retainer springs between

the plate and mower brackets.

NOTE: To assist in locating hole in

flanged pin, the hole in pin is inline with

notch on head of pin. If necessary, move

mower side-to-side to give space

between plate and mower brackets.

IMPORTANT: Check belt for proper

routing in all mower pulley grooves.

9. Connect anti-sway bar to chassis

bracket under left footrest and retain

with double loop retainer spring.

10.If equipped, turn height adjustment

knob clockwise to remove slack from

mower suspension.

11.Raise deck to highest position.

12.Adjust gauge wheels before operating

mower as shown in the Operation

section of this manual.

Electric Clutch Front

Pulley SuspenUon Front

Brackets Plate

Assembly

,,Loop Retainer

Loop

Retainer

Springs

Double

Retainer

Spring

USE PLIERS FOR I

RETAINER SPRINGS

Anti-Sway

Bar

Suspension

Double Loop

Retainer Spring

(Outward pointing

deck pins)

Deflector:Sheild

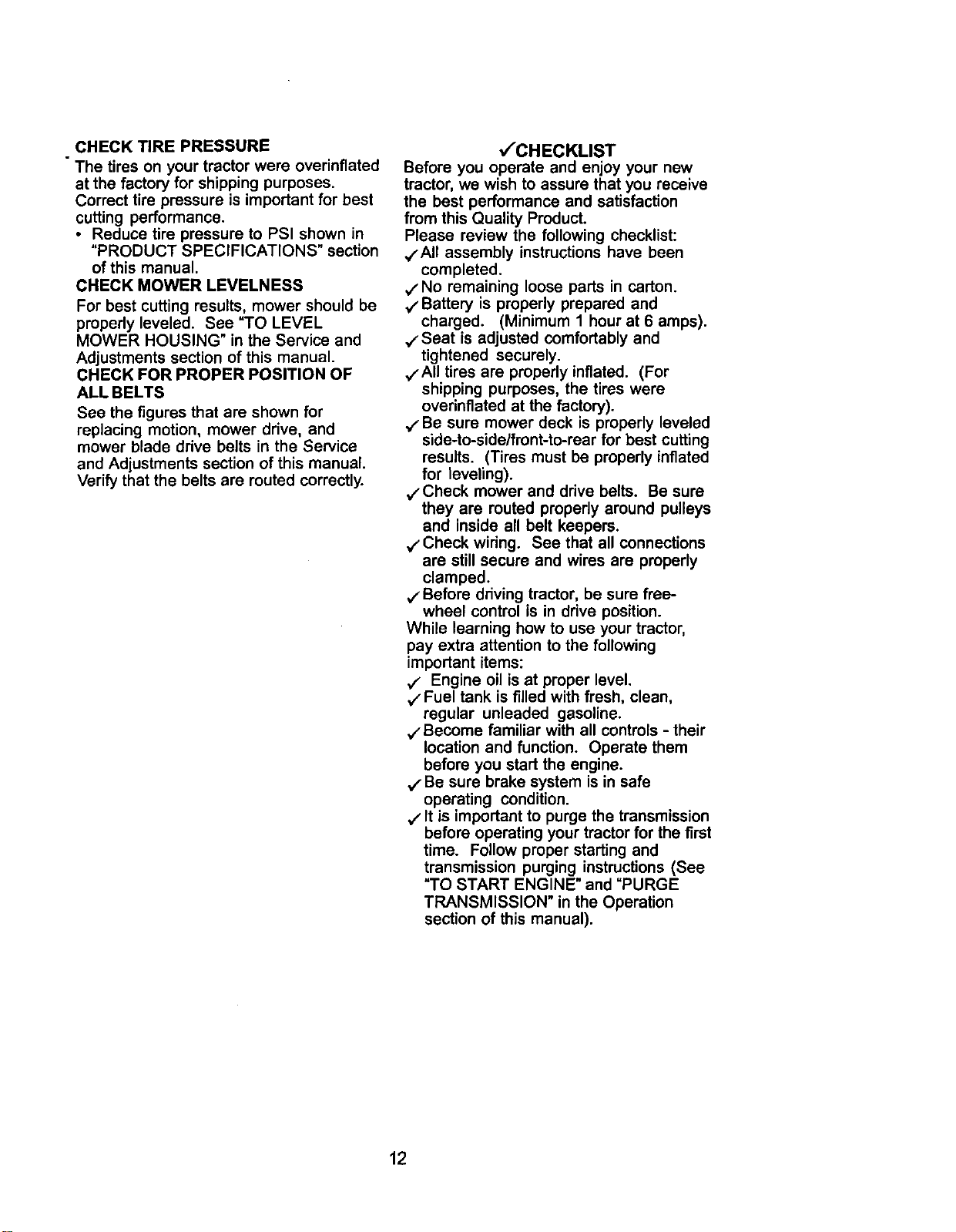

CHECK TIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK MOWER LEVELNESS

For best cutting results, mower should be

propedy leveled. See "TO LEVEL

MOWER HOUSING" in the Service and

Adjustments section of this manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for

replacing motion, mower drive, and

mower blade drive belts in the Service

and Adjustments section of this manual.

Verify that the belts are routed correctly.

v"CHECKLIST

Before you operate and enjoy your new

tractor, we wish to assure that you receive

the best performance and satisfaction

from this Quality Product.

Please review the following checklist:

`/All assembly instructions have been

completed.

`/No remaining loose parts in carton.

`/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/"Seat is adjusted comfortably and

tightened securely.

,/,All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

`/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

,/Before driving tractor, be sure free-

wheel control is in drive position.

While learning how to use your tractor,

pay extra attention to the following

important items:

,/ Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

`/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe

operating condition.

,/It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and

transmission purging instructions (See

"TO START ENGINE" and "PURGE

TRANSMISSION" in the Operation

section of this manual).

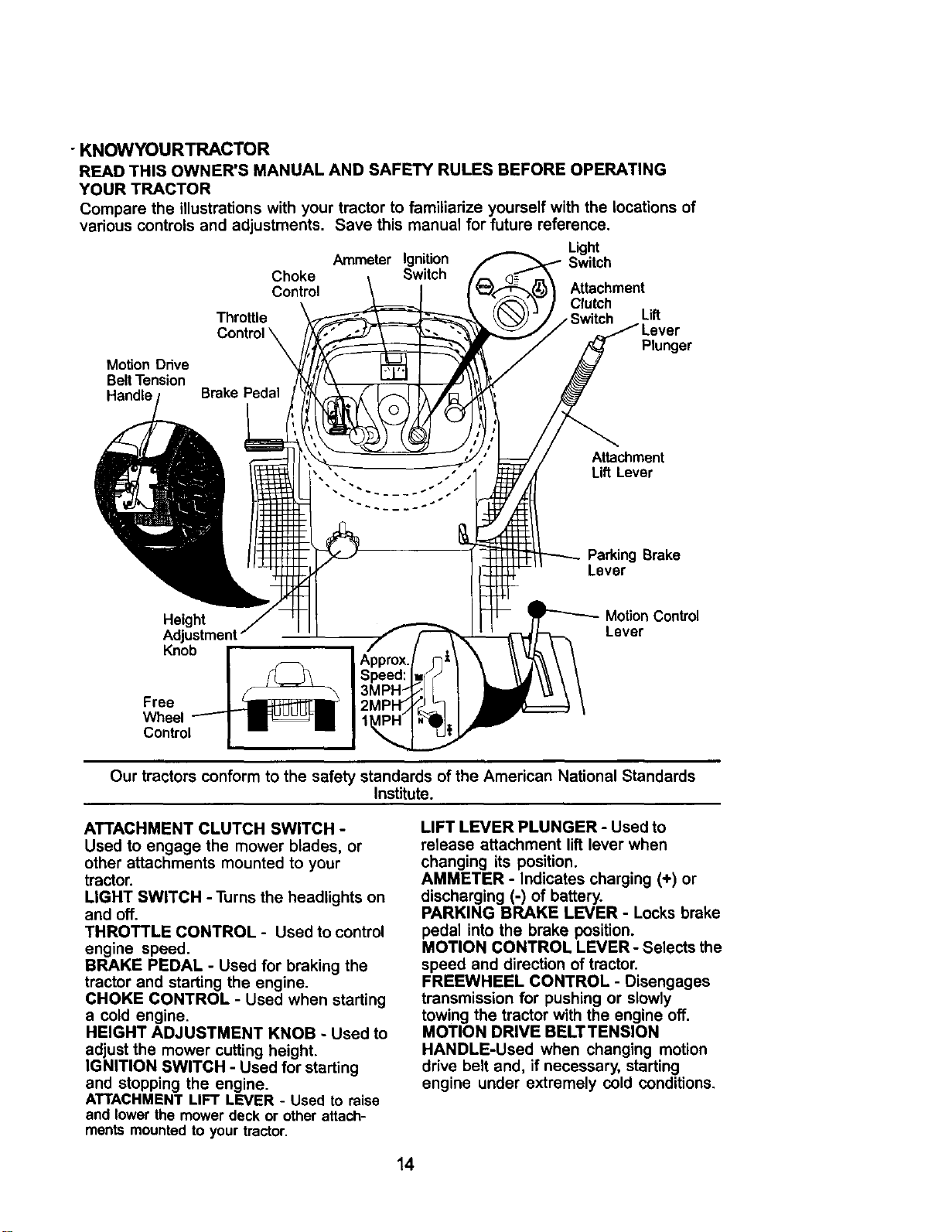

- KNOWYOURTRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Light

Ammeter Ignition Switch

Choke Switch

Control Attachment

Clutch

Throttle Lift

Plunger

MotionDrive

BeltTension

Handle

Attachment

Lift Lever

Parking Brake

Lever

Height

Knob

Free

Wheel

Control

MotionControl

Lever

Our tractors conform to the safety standards of the American National Standards

Institute.

ATTACHMENT CLUTCH SWITCH -

Used to engage the mower blades, or

other attachments mounted to your

tractor.

LIGHT SWITCH - Turns the headlights on

and off.

THROTTLE CONTROL - Used to control

engine speed.

BRAKE PEDAL - Used for braking the

tractor and starting the engine.

CHOKE CONTROL - Used when starting

a cold engine.

HEIGHT ADJUSTMENT KNOB - Used to

adjust the mower cutting height.

IGNITION SWITCH - Used for starting

and stopping the engine.

ATTACHMENT LIFT LEVER - Used to raise

and lower the mower deck or other attach-

ments mounted to your tractor.

LIFT LEVER PLUNGER - Used to

release attachment lift lever when

changing its position.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

PARKING BRAKE LEVER - Locks brake

pedal into the brake position.

MOTION CONTROL LEVER - Selects the

speed and direction of tractor.

FREEWHEEL CONTROL - Disengages

transmission for pushing or slowly

towing the tractor with the engine off.

MOTION DRIVE BELTTENSION

HANDLE-Used when changing motion

drive belt and, if necessary, starting

engine under extremely cold conditions.

The operation of any tractor can result in foreign objects thrown into

the eyes, which can result in severe eye damage• Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask over

spectacles or standard safety glasses.

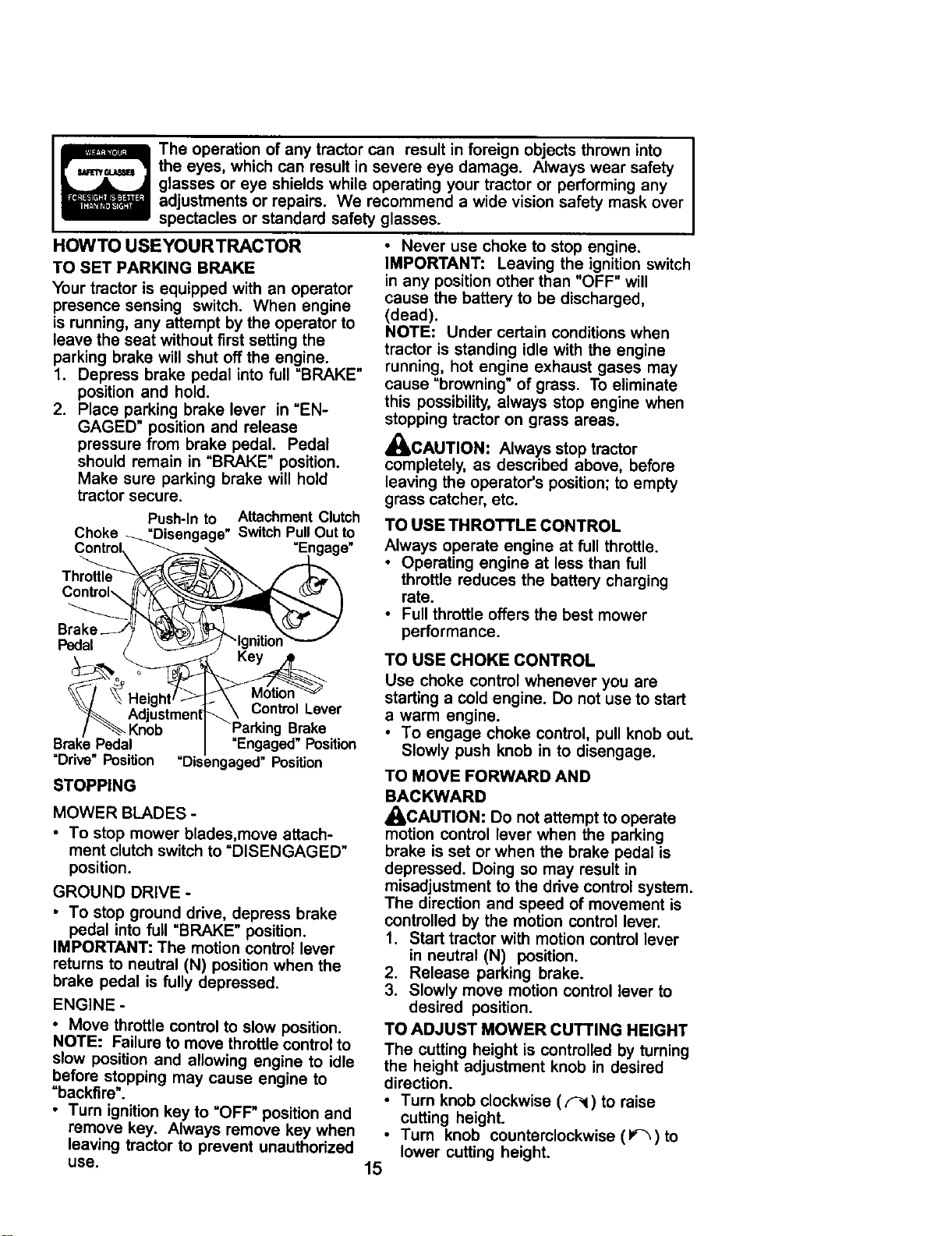

HOWTO USEYOURTRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat without first setting the

parking brake will shut off the engine.

1. Depress brake pedal into full =BRAKE"

position and hold.

2. Place parking brake lever in "EN-

GAGED" position and release

pressure from brake pedal. Pedal

should remain in "BRAKE" position.

Make sure parking brake will hold

tractor secure.

Push-In to Attachment Clutch

Choke ___=Disengage" Switch Pull Out to

Control, _,, Engage"

Brake-_ _'_/_ _ ....... __ J

Pedal / _ r _ _U_ _ v

_/ _ Height _f _, Motion "_

• Control Lever

Adjustment \

_---'- Knob "Parking Brake

Brake Pedal "Engaged" Position

"Drive" Position =Disengaged" Position

STOPPING

MOWER BLADES -

• To stop mower blades,move attach-

ment clutch switch to "DISENGAGED"

position.

GROUND DRIVE -

• To stop ground drive, depress brake

pedal into full "BRAKE" position.

IMPORTANT: The motion control lever

returns to neutral (N) position when the

brake pedal is fully depressed.

ENGINE -

• Move throttle control to slow position•

NOTE: Failure to move throttle control to

slow position and allowing engine to idle

before stopping may cause engine to

"backfire".

• Turn ignition key to "OFF* position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "OFF" will

cause the battery to be discharged,

(dead).

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

,_CAUTION: Always stop tractor

completely, as described above, before

leaving the operator's position; to empty

grass catcher, etc.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best mower

performance.

TO USE CHOKE CONTROL

Use choke control whenever you are

starting a cold engine. Do not usa to start

a warm engine.

• To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND

BACKWARD

A(_,CAUTION: Do not attempt to operate

motion control lever when the parking

brake is set or when the brake pedal is

depressed. Doing so may result in

misadjustment to the drive control system.

The direction and speed of movement is

controlled by the motion control lever.

1. Start tractor with motion control lever

in neutral (N) position.

2. Release parking brake.

3. Slowly move motion control lever to

desired position•

TO ADJUST MOWER CUTTING HEIGHT

The cutting height is controlled by turning

the height adjustment knob in desired

direction.

• Turn knob clockwise (F_I) to raise

cutting height.

• Turn knob counterclockwise (P-'_) to

lower cutting height.

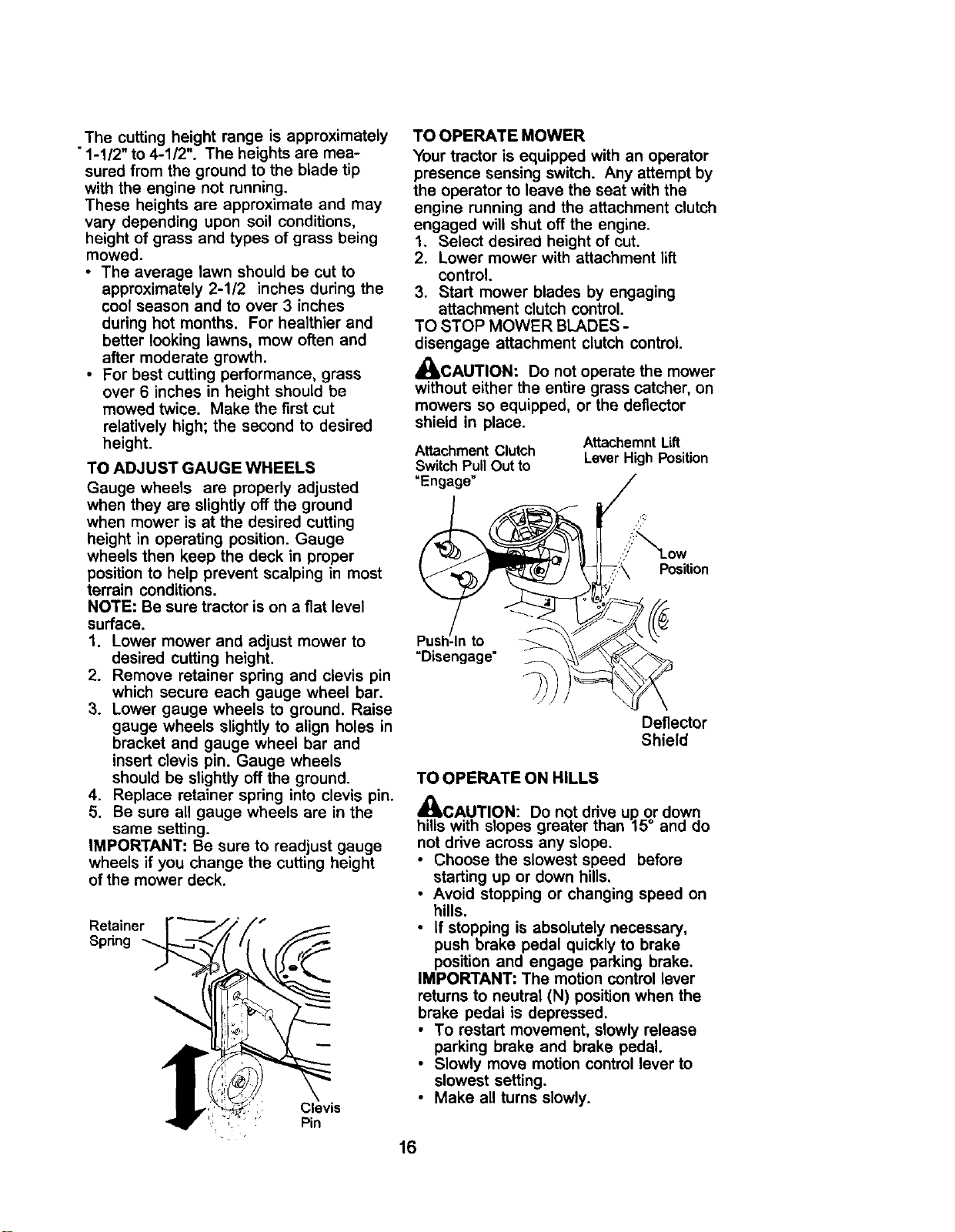

Thecuttingheight range is approximately

"1-1/2" to 4-1/2". The heights are mea-

sured from the ground to the blade tip

with the engine not running.

These heights are approximate and may

vary depending upon soil conditions,

height of grass and types of grass being

mowed.

• The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches

during hot months. For healthier and

better looking lawns, mow often and

after moderate growth.

• For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut

relatively high; the second to desired

height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground

when mower is at the desired cutting

height in operating position. Gauge

wheels then keep the deck in proper

position to help prevent scalping in most

terrain conditions.

NOTE: Be sure tractor is on a fiat level

surface.

1. Lower mower and adjust mower to

desired cutting height.

2. Remove retainer spring and clevis pin

which secure each gauge wheel bar.

3. Lower gauge wheels to ground. Raise

gauge wheels slightly to align holes in

bracket and gauge wheel bar and

insert clevis pin. Gauge wheels

should be slightly off the ground.

4. Replace retainer spring into clevis pin.

5. Be sure all gauge wheels are in the

same setting.

IMPORTANT: Be sure to readjust gauge

wheels if you change the cutting height

of the mower deck.

Retainer

Spring

; Clevis

: Pin

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

1. Select desired height of cut.

2. Lower mower with attachment lift

control.

3. Start mower blades by engaging

attachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

_CAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the deflector

shield in place.

AttachemntLift

Attachment Clutch Lever High Position

SwitchPullOut to

"Engage"

Position

"Disengage=

Deflector

Shield

TO OPERATE ON HILLS

_bCAUTION: Do not drive up or down

hills with slopes greater than 15° and do

not drive across any slope.

• Choose the slowest speed before

starting up or down hills.

• Avoid stopping or changing speed on

hills.

• if stopping is absolutely necessary,

push brake pedal quickly to brake

position and engage parking brake.

IMPORTANT: The motion control lever

returns to neutral (N) position when the

brake pedal is depressed.

• To restart movement, slowly release

parking brake and brake pedal.

• Slowly move motion control lever to

slowest setting.

• Make all turns slowly.

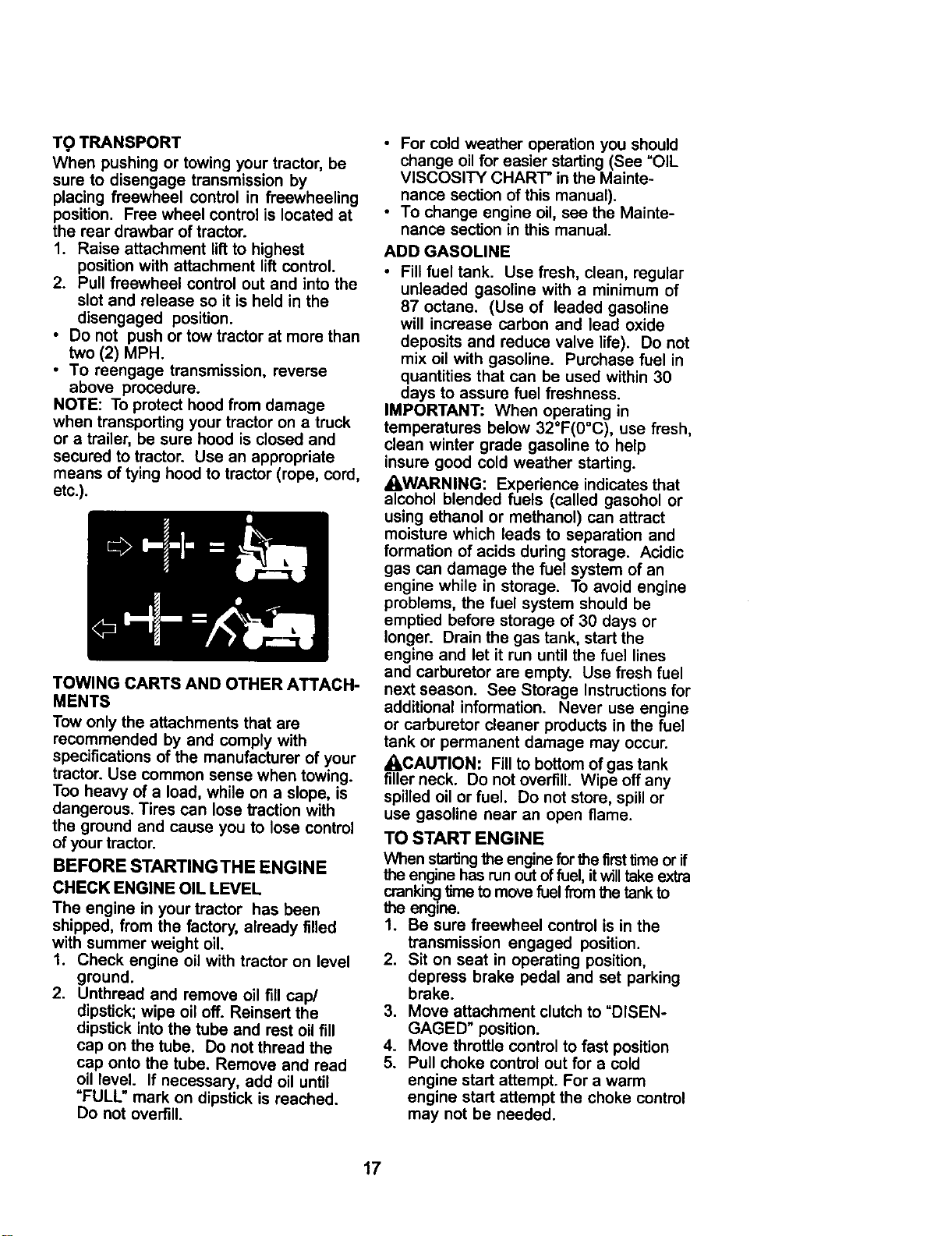

T.O TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by

placing freewheel control in freewheeling

position. Free wheel control is located at

the rear drawbar of tractor.

1. Raise attachment lift to highest

position with attachment lift control.

2. Pull freewheel control out and into the

slot and release so it is held in the

disengaged position.

• Do not push or tow tractor at more than

two (2) MPH.

• To reengage transmission, reverse

above procedure.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are

recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Too heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Unthread and remove oil fill cap/

dipstick; wipe oil off. Reinsert the

dipstick into the tube and rest oil fill

cap on the tube. Do not thread the

cap onto the tube. Remove and read

oil level. If necessary, add oil until

=FULL" mark on dipstick is reached.

Do not overfill.

• For cold weather operation you should

change oil for easier starting (See =OIL

VISCOSITY CHART" in the Mainte-

nanca section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline

will increase carbon and lead oxide

deposits and reduce valve life). Do not

mix oil with gasoline. Purchase fuel in

quantities that can be used within 30

days to assure fuel freshness.

IMPORTANT: When operating in

temperatures below 32°F(0°C), use fresh,

clean winter grade gasoline to help

insure good cold weather starting.

_WARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids dudng storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

• I,CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

TO START ENGINE

When startingthe engine for the first time or if

the engine has run out offuel, itwilltake extra

crankincj_me to move fuel from the tank to

the eng=ne.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress brake pedal and set parking

brake.

3. Move attachment clutch to "DISEN-

GAGED" position.

4. Move throttle control to fast position

5. Pull choke control out for a cold

engine start attempt. For a warm

engine start attempt the choke control

may not be needed.

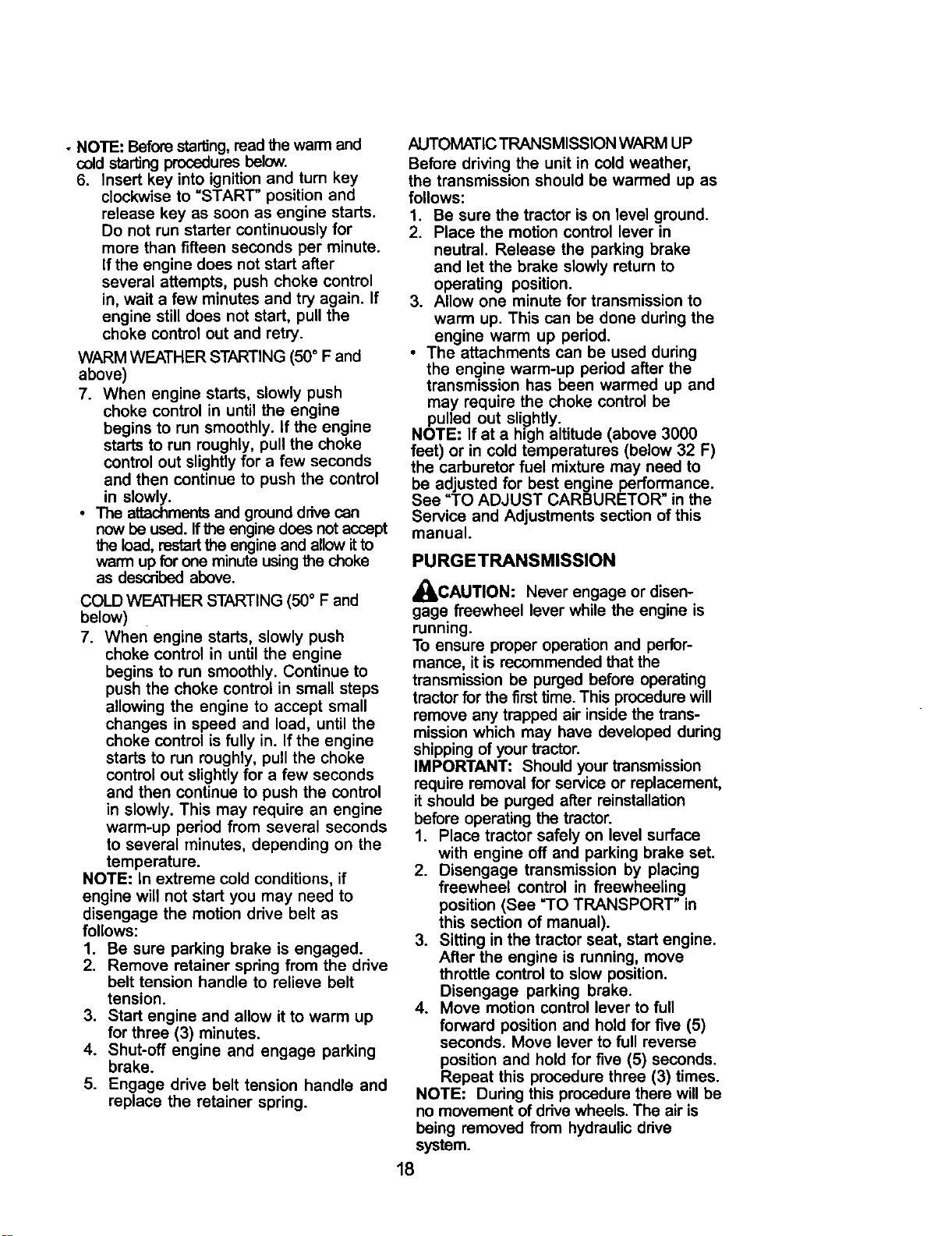

- NOTE: Before starling, read the warm and

cold sta_ng procedures below.

6. Insert key into ignition and turn key

clockwise to "START" position and

release key as soon as engine starts.

Do not run starter continuously for

more than fifteen seconds per minute.

If the engine does not start after

several attempts, push choke control

in, wait a few minutes and try again. If

engine still does not start, pull the

choke control out and retry.

WARM WEATHER STARTING (50 ° F and

above)

7. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. If the engine

starts to run roughly, pull the choke

control out slightly for a few seconds

and then continue to push the control

in slowly.

• The attachments and ground drive can

now be used. Ifthe engine does not accept

the load, restart the engine and allow it to

warm up for one minute using the choke

as described above.

COLD WEATHER STARTING (50 ° F and

below)

7. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. Continue to

push the choke control in small steps

allowing the engine to accept small

changes in speed and load, until the

choke control is fully in. If the engine

starts to run roughly, pull the choke

control out slightly for a few seconds

and then continue to push the control

in slowly. This may require an engine

warm-up period from several seconds

to several minutes, depending on the

temperature.

NOTE: in extreme cold conditions, if

engine will not start you may need to

disengage the motion drive belt as

follows:

1. Be sure parking brake is engaged.

2. Remove retainer spring from the drive

belt tension handle to relieve belt

tension.

3. Start engine and allow it to warm up

for three (3) minutes.

4. Shut-off engine and engage parking

brake.

5. Engage drive belt tension handle and

replace the retainer spring.

AUTOMATIC TRANSMISSION WARM UP

Before driving the unit in cold weather,

the transmission should be warmed up as

follows:

1. Be sure the tractor is on level ground.

2. Place the motion control lever in

neutral. Release the parking brake

and let the brake slowly return to

operating position.

3. Allow one minute for transmission to

warm up. This can be done during the

engine warm up period.

• The attachments can be used during

the engine warm-up period after the

transmission has been warmed up and

may require the choke control be

pulled out slightly.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.

PURGETRANSMISSION

,_CAUTION: Never engage or disen-

gage freewheel lever while the engine is

running.

To ensure proper operation and perfor-

mance, itis recommended that the

transmission be purged before operating

tractor for the first time. This procedure will

remove any trapped air inside the trans-

mission which may have developed dudng

shipping of your tractor.

IMPORTANT: Should your transmission

require removal for service or replacement,

it should be purged after reinstallation

before operating the tractor.

1. Place tractor safely on level surface

with engine off and parking brake set.

2. Disengage transmission by placing

freewheel control in freewheeling

position (See =TO TRANSPORT" in

this section of manual).

3. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to slow position.

Disengage parking brake.

4. Move motion control lever to full

forward position and hold for five (5)

seconds. Move lever to full reverse

position and hold for five (5) seconds.

Repeat this procedure three (3) times.

NOTE" Dudng this procedure there will be

no movement of drive wheels. The air is

being removed from hydraulic ddve

system.

5. Move motion control lever to neutral •

- (N) position. Shut- off engine and set

parking brake.

6. Engage transmission by placing

freewheel control in driving position

(See "TO TRANSPORT" in this section

of manual). •

7. Sifting in the tractor seat, start engine.

After the engine is running, move

throttle control to half (1/2) speed.

Disengage parking brake.

8. Slowly move motion control lever •

forward, after the tractor moves

approximately five (5) feet, slowly

move motion control lever to reverse

position. After the tractor moves •

approximately five (5) feet return the

motion control lever to the neutral (N)

position. Repeat this procedure with

the motion control lever three (3)

times.

Your tractor is now purged and now ready

for normal operation. •

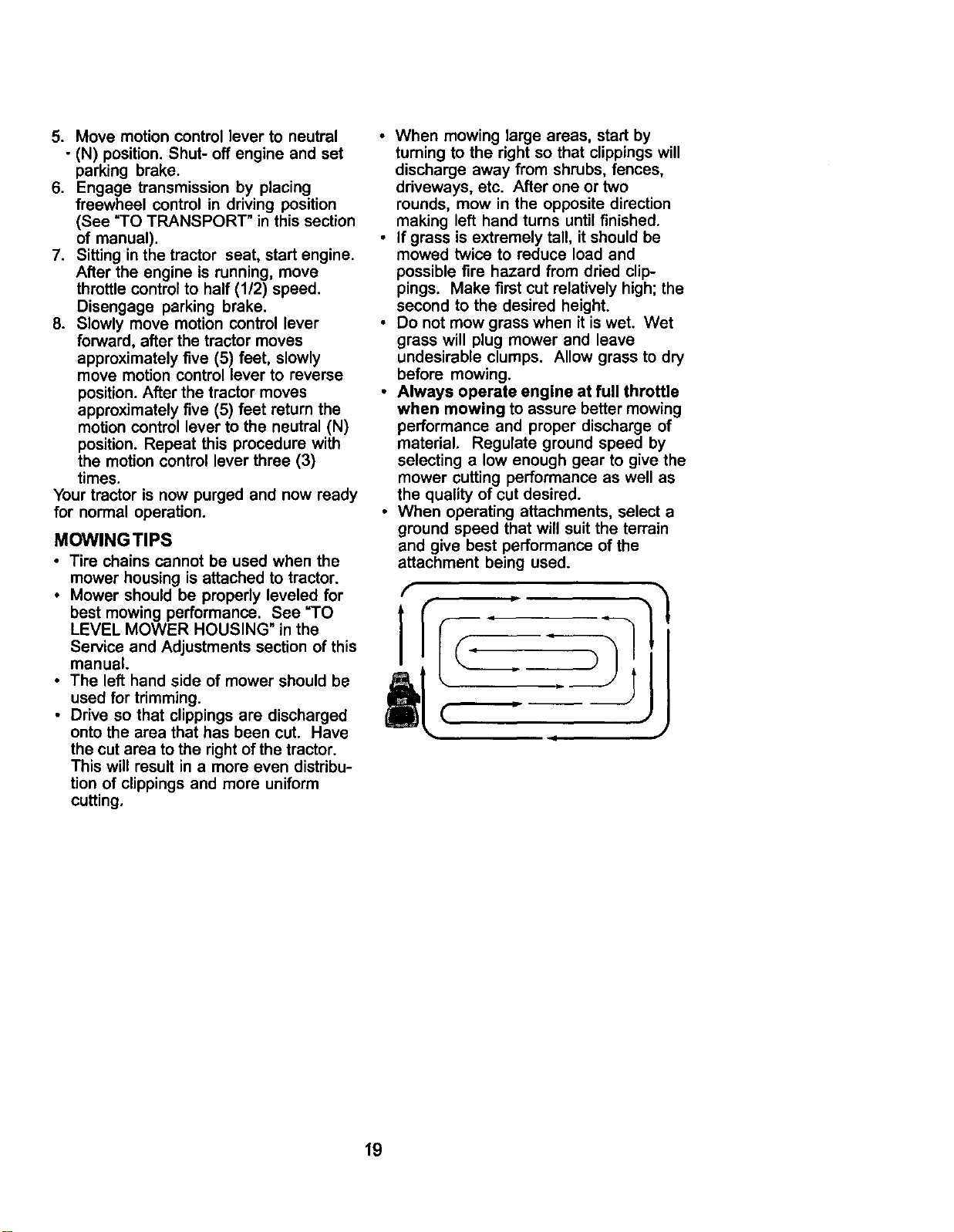

MOWlNGTIPS

• Tire chains cannot be used when the

mower housing is attached to tractor.

• Mower should be properly leveled for /"

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be ,_,

used for trimming.

• Drive so that clippings are discharged

onto the area that has been cut. Have

the cut area to the right of the tractor.

This will result in a more even distribu-

tion of clippings and more uniform

cutting.

When mowing large areas, start by

tuming to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two

rounds, mow in the opposite direction

making left hand turns until finished.

If grass is extremely tall, it should be

mowed twice to reduce load and

possible fire hazard from dried clip-

pings. Make first cut relatively high; the

second to the desired height.

Do not mow grass when it is wet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the

attachment being used.

FILL IN DATES

AS YOU COMPLETE _i'_ ,_ G'_-_'_._# _

Check Operator Presence and

T Interlock Systems I1 #

R Check for Loose Fasteners _ _T

cA Sharpen/Replace Mower Blades _4

T Lubdcatlon Chart

0 Check Battery Level

R Clean Battery and Terminals

Check Transaxle Cooling I_

Adjust Blade Belt(s) Tension I_/s

Adjus Motion Ddve Belt(s) Tension _#s

Check Engine Oil Level _ (l_

Change Engine Oil 1_1.2._

E Clean Air Filter _/:

N Clean Air Screen

G Inspect Muffler/Spark Arrester

Replace Oil Filter (If equipped) _.2

E Clean Engine Cooling Fins _2

Replace Spark Plug _2 I_

Replace Air Filter Paper Cartddge

Replace Fuel Filter

1 - Ct_4angetrite Often _ Ope_t Jog under a heavy I_ad o# in high aml_r_t tertlpetat ur_JI. 5 - If equipped _ adjuldal_e sy_tent.

2 - Service mote o_en when operating in dirty or dusty conditior_s. 6 - Not requirad if equipped v_th maintena._.e-free battery.

3 - If equipped with ell _lter, ct,ange ell e_m'y 50 hours, 7 - Tighten frord axle t0_o_ bolt to 35 ft.-tl_, rna_mum,

4 ° Replace blades more often when mowing in sandy SOil. DO not ove_ghlen.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover

items that have been subjected to operator

abuse or negligence. To receive full value

from the warranty, operator must maintain

tractor as instructed in this manual.

Some adjustments will need to be made

periodically to propedy maintain your

tractor.

All adjustments in the Service and

Adjustments section of this manual should

be checked at least once each season.

• Once a year you should replace the

spark plug, clean or replace air filter, and

check blades and belts for wear. A new

spark plug and clean air filter assure

proper air-fuel mixture and help your

engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

LUBRICATION CHART

(_ Tie Rod Ball Joints

Spindle_ _---_ r--- _) Spindle

Zerk _...::_,_ Zerk

(_Fron.tWheel.._ _.-_ _]--_Front Wheel

Bearing =l"_z_---'----_-.-]kl Beadng Zerk

Zerk _ i _

_Steedng_ I _J

Sector \ _ I-

Gear _

Teeth _i!i!_ "_II!'_'';_ @Engine

_Spray Silicone Lubriant(Move'-Bootsto

Lubricete)

_General Purpose Grease

(_Refer to Maintenance "ENGINE" Section

IMPORTANT: Do not oilor grease the pivot

pointswhich have specialnylon beadngs.

Viscous lubricantswill attractdust and dirt

that willshortenthe life of theself-lubdcating

bearings. If you feel they mustbe lubricated,

use only a dry,powderedgraphitetype

20 lubricant sparingly.

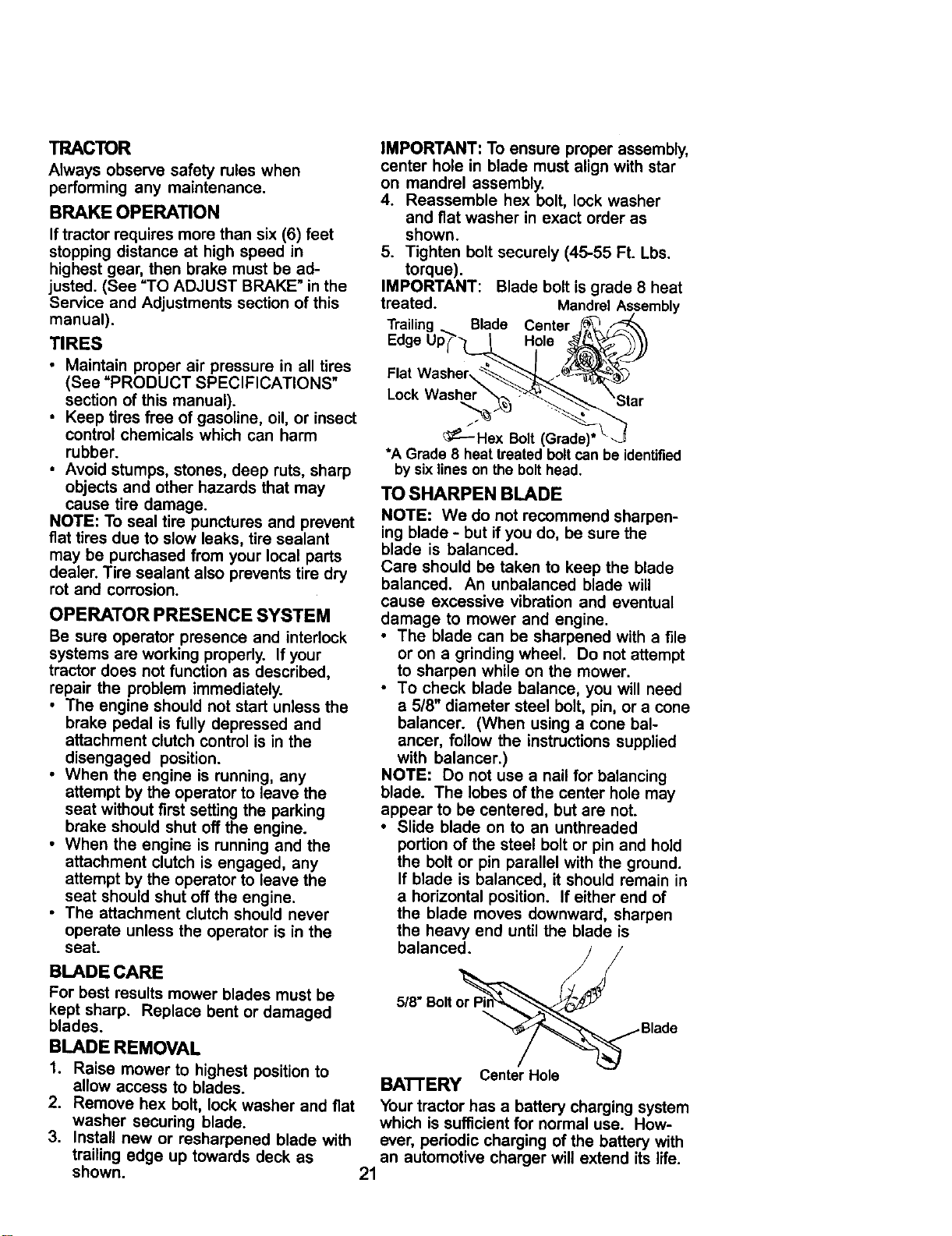

TEACTOR

Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

Iftractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be ad-

justed. (See =TO ADJUST BRAKE" in the

Service and Adjustments section of this

manual).

TIRES

• Maintain proper air pressure in all tires

(Sea "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

fiat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your

tractor does not function as described,

repair the problem immediately.

• The engine should not start unless the

brake pedal is fully depressed and

attachment clutch control is in the

disengaged position.

• When the engine is running, any

attempt by the operator to leave the

seat without first setting the parking

brake should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the

seat should shut off the engine.

• The attachment clutch should never

operate unless the operator is in the

seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to

allow access to blades.

2. Remove hex bolt, lock washer and fiat

washer securing blade.

3. Install new or resharpened blade with

trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble hex bolt, lock washer

and fiat washer in exact order as

shown.

5. Tighten bolt securely (45-55 Ft. Lbs.

torque).

IMPORTANT: Blade bolt is grade 8 heat

treated. Mandrel Assembly

Trailing Blade Center

Edge Hole

Flat Washer,

_;_---Hex Bolt (Grade)'

*A Grade 8 heat treated bolt can be identified

by sixlineson the bolthead.

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need

a 5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone bal-

ancer, follow the instructions supplied

with balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded

portion of the steel bolt or pin and hold

the bolt or pin parallel with the ground.

If blade is balanced, it should remain in

a horizontal position. If either end of

the blade moves downward, sharpen

the heavy end until the blade is

balanced.

5/8"

BA'I-FERY Center Hole

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

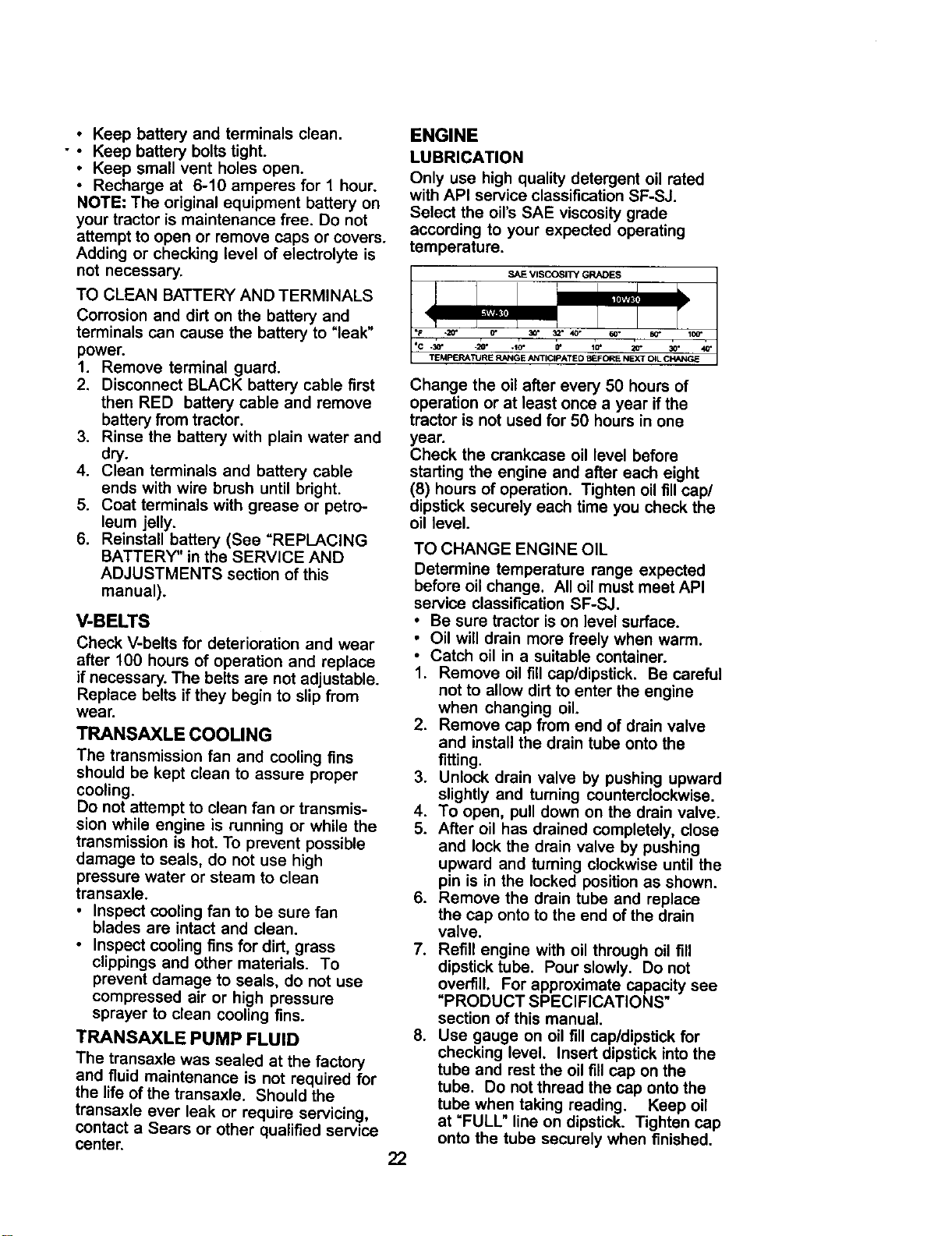

• Keep battery and terminals clean.

- • Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable

ends with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND

ADJUSTMENTS section of this

manual).

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wea r.

TRANSAXLE COOLING

The transmission fan and cooling fins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmis-

sion while engine is running or while the

transmission is hot. To prevent possible

damage to seals, do not use high

pressure water or steam to clean

transaxle.

• Inspect cooling fan to be sure fan

blades are intact and clean.

• Inspect cooling fins for dirt, grass

clippings and other materials. To

prevent damage to seals, do not use

compressed air or high pressure

sprayer to clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxle. Should the

transaxle ever leak or require servicing,

contact a Sears or other qualified service

center.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF-SJ.

Select the oil's SAE viscosity grade

according to your expected operating

temperature,

SAE VISCOSITY GRADES

-2O"

"C .36- 0" 10" 20- 30.

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

Change the oil after every 50 hours of

operation or at least once a year if the

tractor is not used for 50 hours in one

year.

Check the crankcase oil level before

starting the engine and after each eight

(8) hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove cap from end of drain valve

and install the drain tube onto the

fitting.

3. Unlock drain valve by pushing upward

slightly and turning counterclockwise.

4. To open, pull down on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

upward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace

the cap onto to the end of the drain

valve.

7. Refill engine with oil through oil fill

dipstick tube. Pour slowly, Do not

overfill. For approximate capacity see

=PRODUCT SPECIFICATIONS"

section of this manual.

8. Use gauge on oil fill cap/dipstick for

checking level, Insert dipstick into the

tube and rest the oil fill cap on the

tube, Do not thread the cap onto the

tube when taking reading. Keep oil

at =FULL" line on dipstick. Tighten cap

onto the tube securely when finished.

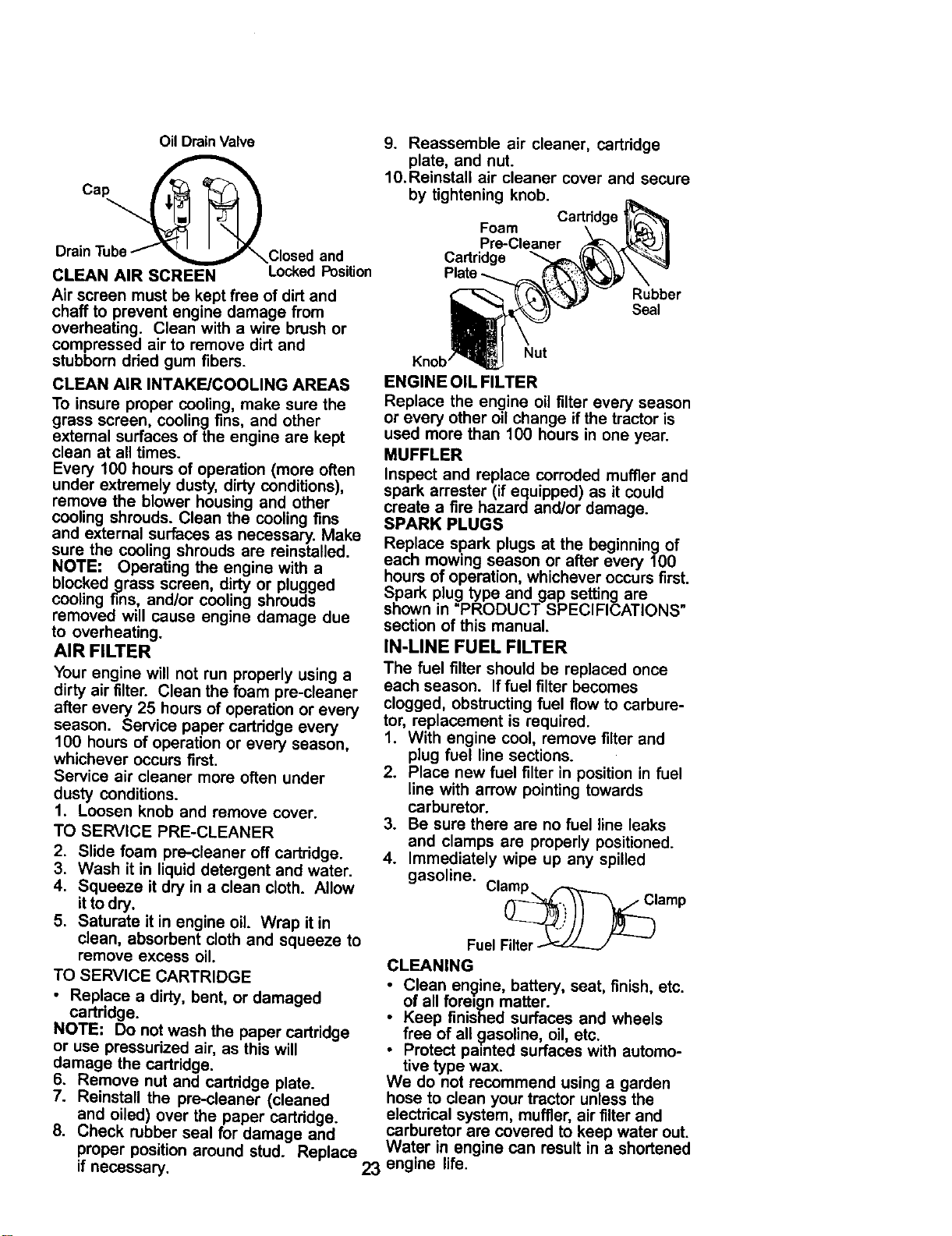

Oil DrainValve

Cap

Closed and

CLEAN AIR SCREEN LockedPosition

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubborn dried gum fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other

external surfaces of the engine are kept

clean at all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other

cooling shrouds. Clean the cooling fins

and external surfaces as necessary. Make

sure the cooling shrouds are reinstalled.

NOTE: Operating the engine with a

blockedgrass screen, dirty or plugged

cooling fins, and/or cooling shrouds

removed will cause engine damage due

to overheating.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under

dusty conditions.

1. Loosen knob and remove cover.

TO SERVICE PRE-CLEANER

2. Slide foam pre-cleaner off cartridge.

3. Wash it in liquid detergent and water.

4. Squeeze it dry in a clean cloth. Allow

it to dry.

5. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

TO SERVICE CARTRIDGE

• Replace a dirty, bent, or damaged

cartridge.

NOTE: Do not wash the paper cartridge

or use pressurized air, as this will

damage the cartridge.

6. Remove nut and cartddge plate.

7. Reinstall the pre-cleaner (cleaned

and oiled) over the paper cartridge.

8. Check rubber seal for damage and

proper position around stud. Replace

if necessary.

9. Reassemble air cleaner, cartridge

plate, and nut.

10.Reinstall air cleaner cover and secure

by tightening knob.

Cartridge

Foam

Pre-Cleaner

Cartridge

Plate

Rubber

Seal

Nut

ENGINE OIL FILTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could

create a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbure-

tor, replacement is required.

1, With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards

carburetor.

3. Be sure there are no fuel line leaks

and clamps are properly positioned.

4. Immediately wipe up any spilled

gasoline. Cla_lamp

Fuel Filter

CLEANING

i Clean engine, battery, seat, finish, etc.

of all fore=gn matter.

Keep finished surfaces and wheels

free of all _]asoline, oil, etc.

• Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unless the

electrical system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in a shortened

23 engine life.

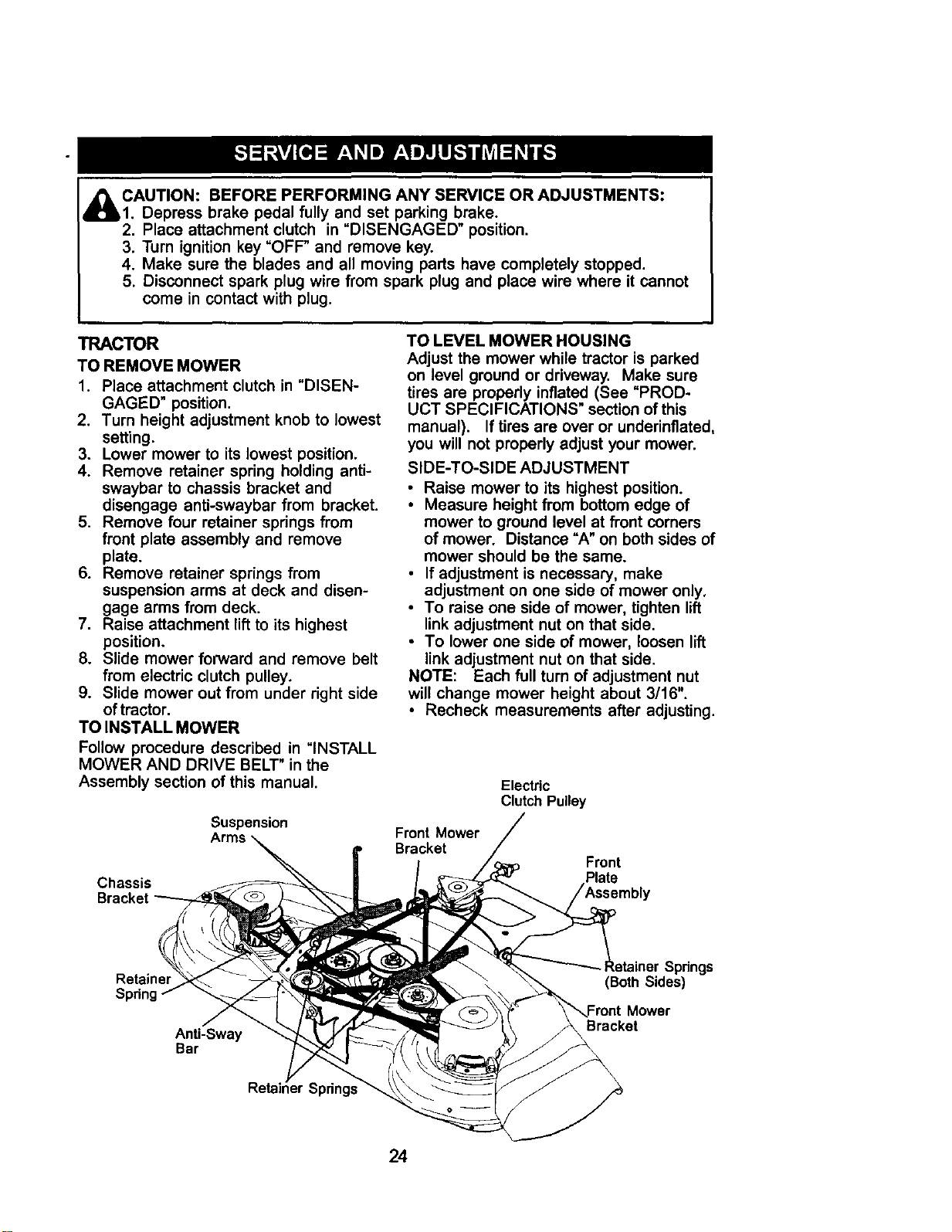

,_CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

1. Depress brake pedal fully and set parking brake.

2, Place attachment clutch in "DISENGAGED" position,

3. Turn ignition key _OFF" and remove key.

4. Make sure the blades and all moving parts have completely stopped.

5. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Turn height adjustment knob to lowest

setting.

3. Lower mower to its lowest position.

4. Remove retainer spring holding anti-

swaybar to chassis bracket and

disengage anti-swaybar from bracket.

5. Remove four retainer springs from

front plate assembly and remove

plate.

6. Remove retainer springs from

suspension arms at deck and disen-

gage arms from deck.

7. Raise attachment lift to its highest

position.

8. Slide mower forward and remove belt

from electric clutch pulley.

9. Slide mower out from under right side

of tractor.

TO INSTALL MOWER

Follow procedure described in "INSTALL

MOWER AND DRIVE BELT" in the

Assembly section of this manual.

Suspension

Chassis

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or underinflated,

you will not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• Measure height from bottom edge of

mower to ground level at front corners

of mower. Distance =A" on both sides of

mower should be the same.

• If adjustment is necessary, make

adjustment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 3/16".

• Recheck measurements after adjusting.

Front Mower

Bracket

Electric

Clutch Pulley

Front

Plate

Retainer

Spdng

Anti-Sway

Bar

ainer Springs

(BothSides)

:font Mower

Bracket

.=rSpdngs

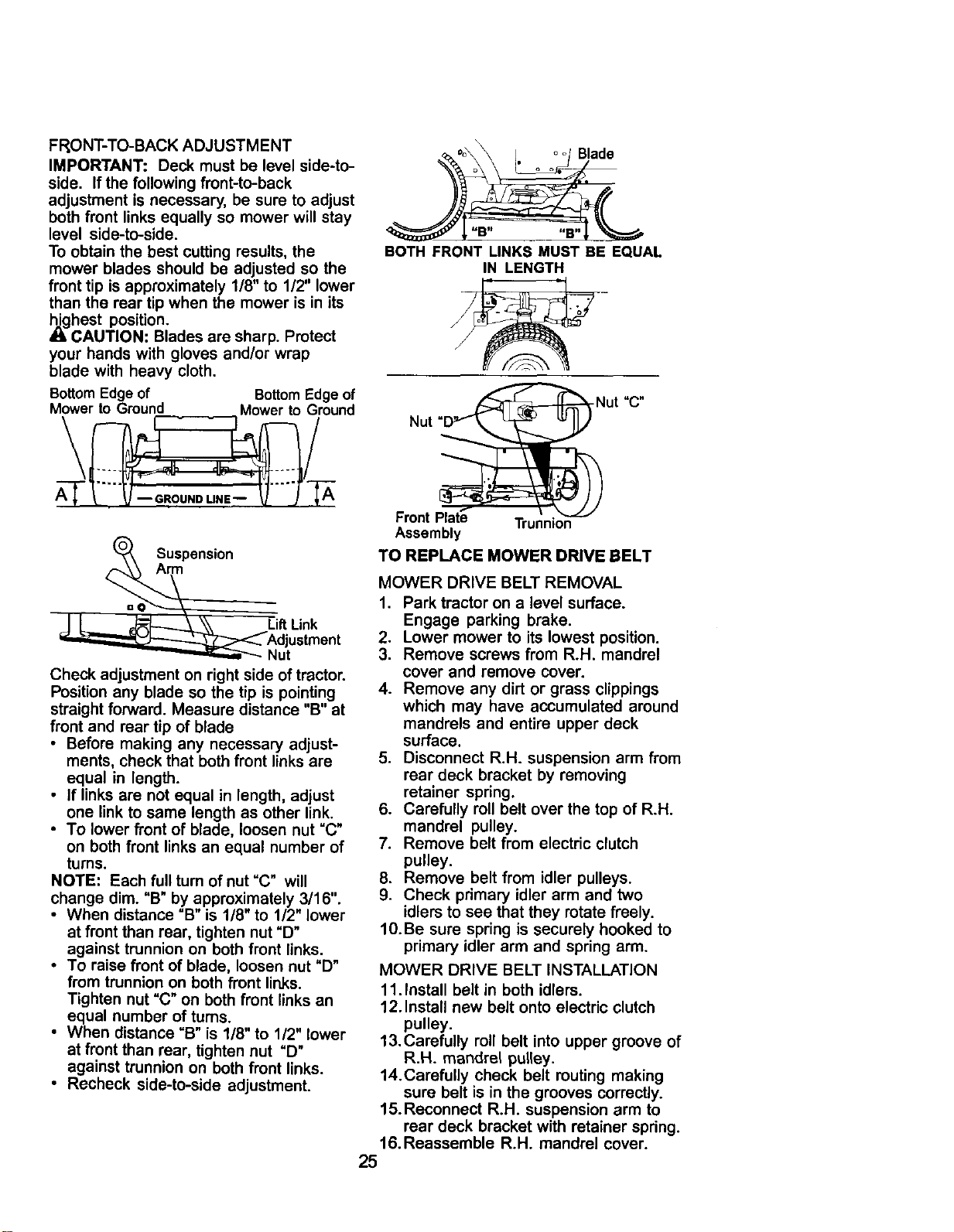

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to-

side. If the following front-to-back

adjustment is necessary, be sure to adjust

both front links equally so mower will stay

level side-to-side.

To obtain the best cutting results, the

mower blades should be adjusted so the

front tip is approximately 1/8" to 1/2" lower

than the roar tip when the mower is in its

,_ghest position.

CAUTION: Blades are sharp. Protect

your hands with gloves and/or wrap

blade with heavy cloth.

Bottom Edge of Bottom Edge of

Mower to Ground Mower to Ground

\ /

(_ Suspension

_ _--_\\ Li. Link

' Adjustment

__ Nut

Check adjustment on right side of tractor.

Position any blade so the tip is pointing

straight forward. Measure distance "B" at

front and rear tip of blade

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of blade, loosen nut =C"

on both front links an equal number of

turns.

NOTE: Each full turn of nut "C" will

change dim. "B" by approximately 3/16".

• When distance "B" is 118"to 1/2" lower

at front than rear, tighten nut "D"

against trunnion on both front links.

• To raise front of blade, loosen nut "D"

from trunnion on both front links.

Tighten nut "C" on both front links an

equal number of turns.

• When distance "B" is 1/8" to 1/2" lower

at front than rear, tighten nut "D"

against trunnion on both front links.

• Recheck side-to-side adjustment.

Blade

"B" "B"

BOTH FRONT LINKS MUST BE EQUAL

IN LENGTH

Nut

Front Plate Trunnion

Assembly

TO REPLACE MOWER DRIVE BELT

MOWER DRIVE BELT REMOVAL

1. Park tractor on a level surface.

Engage parking brake.

2. Lower mower to its lowest position.

3. Remove screws from R.H. mandrel

cover and remove cover.

4. Remove any dirt or grass clippings

which may have accumulated around

mandrels and entire upper deck

surface.

5. Disconnect R.H. suspension arm from

rear deck bracket by removing

retainer spring.

6. Carefully roll belt over the top of R.H.

mandrel pulley.

7. Remove belt from electric clutch

pulley.

8. Remove belt from idler pulleys.

9. Check primary idler arm and two

idlers to see that they rotate freely.

10. Be sure spring is securely hooked to

primary idler arm and spring arm.

MOWER DRIVE BELT INSTALLATION

11.Install belt in both idlers.

12. Install new belt onto electric clutch

pulley.

13. Carefully roll belt into upper groove of

R.H. mandrel pulley.

14.Carefully check belt routing making

sure belt is in the grooves correctly.

15.Reconnect R.H. suspension arm to

rear deck bracket with retainer spring.

18.Reassemble R.H. mandrel cover.

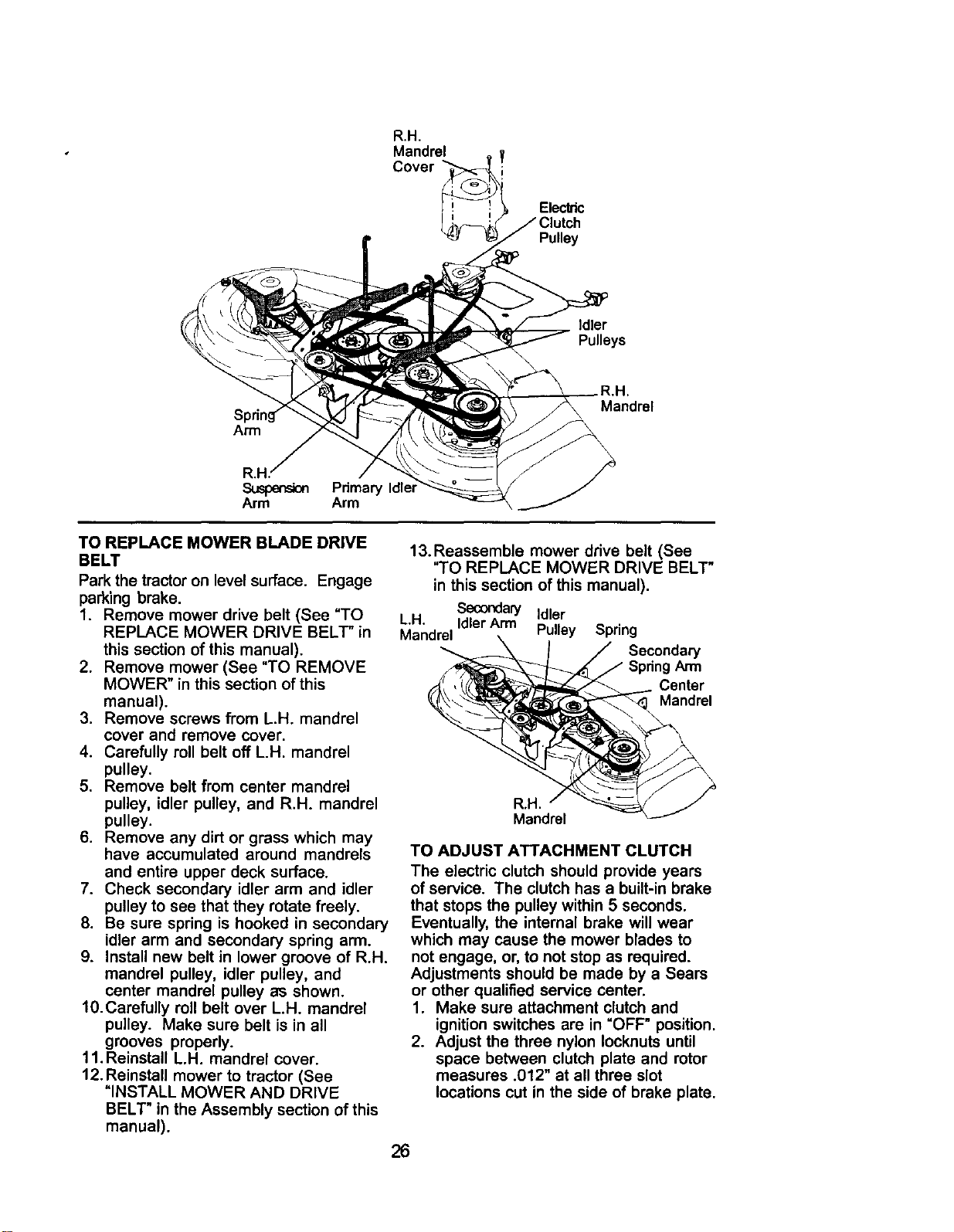

R.H.

Mandrel T

Cover

Elecltic

Pulley

Idler

Pulleys

Mandrel

Suspension Primary

Arm Arm

TO REPLACE MOWER BLADE DRIVE

BELT

Park the tractor on level surface. Engage

parking brake.

1. Remove mower drive belt (See "TO

REPLACE MOWER DRIVE BELT" in

this section of this manual).

2. Remove mower (See "TO REMOVE

MOWER" in this section of this

manual).

3. Remove screws from L.H. mandrel

cover and remove cover.

4. Carefully roll belt off L.H. mandrel

pulley.

5. Remove belt from center mandrel

pulley, idler pulley, and R.H. mandrel

pulley.

6. Remove any dirt or grass which may

have accumulated around mandrels

and entire upper deck surface.

7. Check secondary idler arm and idler

pulley to see that they rotate freely.

8. Be sure spring is hooked in secondary

idler arm and secondary spring arm.

9. Install new belt in lower groove of R.H.

mandrel pulley, idler pulley, and

center mandrel pulley as shown.

10.Carefully roll belt over L.H. mandrel

pulley. Make sure belt is in all

grooves properly.

11. Reinstall L.H. mandrel cover.

12. Reinstall mower to tractor (See

"INSTALL MOWER AND DRIVE

BELT" in the Assembly section of this

manual).

13.Reassemble mower drive belt (See

"TO REPLACE MOWER DRIVE BELT"

in this section of this manual).

Secondary Idler

L.H. Idler Arm

Mandrel Pulley Spring

Secondary

Spring Arm

Center

Mandrel

R.H.

Mandrel

TO ADJUST ATTACHMENT CLUTCH

The electric clutch should provide years

of service. The clutch has a built-in brake

that stops the pulley within 5 seconds.

Eventually, the internal brake will wear

which may cause the mower blades to

not engage, or, to not stop as required.

Adjustments should be made by a Sears

or other qualified service center.

1. Make sure attachment clutch and

ignition switches are in =OFF" position.

2. Adjust the three nylon Iocknuts until

space between clutch plate and rotor

measures .012" at all three slot

locations cut in the side of brake plate.

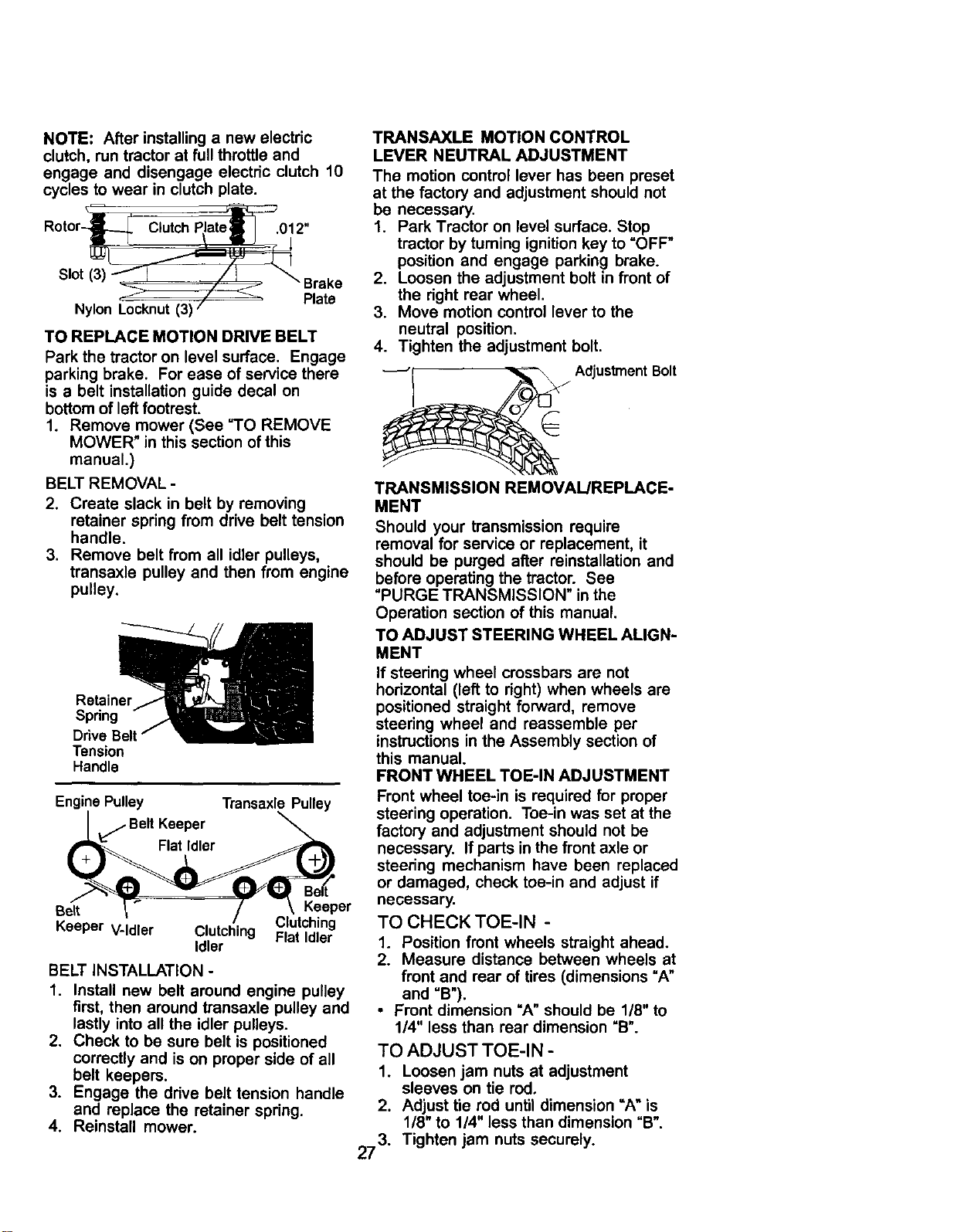

NOTE:Afterinstallinga newelectric

clutch,runtractoratfull throttle and

engage and disengage electric clutch 10

cycles to wear in clutch plate.

Clutch F .012"

Slot (3) - " Brake

Plate

Nylon Locknut (3)

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For ease of service there

is a belt installation guide decal on

bottom of left footrest.

1. Remove mower (See =TO REMOVE

MOWER" in this section of this

manual.)

BELT REMOVAL -

2. Create slack in belt by removing

retainer spring from drive belt tension

handle.

3. Remove belt from all idler pulleys,

transaxle pulley and then from engine

pulley.

Retainer

Drive

Tension

Handle

Engine Pulley

Transaxle Pulley

Belt Keeper

Clutching

Keeper V-Idler Clutching Flat Idler

Idler

BELT INSTALLATION -

1. Install new belt around engine pulley

first, then around transaxle pulley and

lastly into all the idler pulleys.

2. Check to be sure belt is positioned

correctly and is on proper side of all

belt keepers.

3. Engage the ddve belt tension handle

and replace the retainer spring.

4. Reinstall mower.

TRANSAXLE MOTION CONTROL

LEVER NEUTRAL ADJUSTMENT

The motion control lever has been preset

at the factory and adjustment should not

be necessary.

1. Park Tractor on level surface. Stop

tractor by turning ignition key to "OFF"

position and engage parking brake.

2. Loosen the adjustment bolt in front of

the right rear wheel.

3. Move motion control lever to the

neutral position.

4. Tighten the adjustment bolt.

_ AdjustmentBolt

TRANSMISSION REMOVAL/REPLACE-

MENT

Should your transmission require

removal for service or replacement, it

should be purged after reinstallation and

before operating the tractor. See

"PURGE TRANSMISSION" in the

Operation section of this manual.

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove

steering wheel and reassemble per

instructions in the Assembly section of

this manual.

FRONT WHEEL TOE-IN ADJUSTMENT

Front wheel toe-in is required for proper

steering operation. Toe-in was set at the

factory and adjustment should not be

necessary. If parts in the front axle or

steering mechanism have been replaced

or damaged, check toe-in and adjust if

necessary.

TO CHECK TOE-IN -

1. Position front wheels straight ahead.

2. Measure distance between wheels at

front and rear of tires (dimensions °A"

and "B").

• Front dimension "A" should be 1/8" to

1/4" less than rear dimension =B".

TO ADJUST TOE-IN -

1. Loosen jam nuts at adjustment

sleeves on tie rod.

2. Adjust tie rod until dimension =A" is

118"to 1/4" less than dimension "B".

27 3. Tighten jam nuts securely.

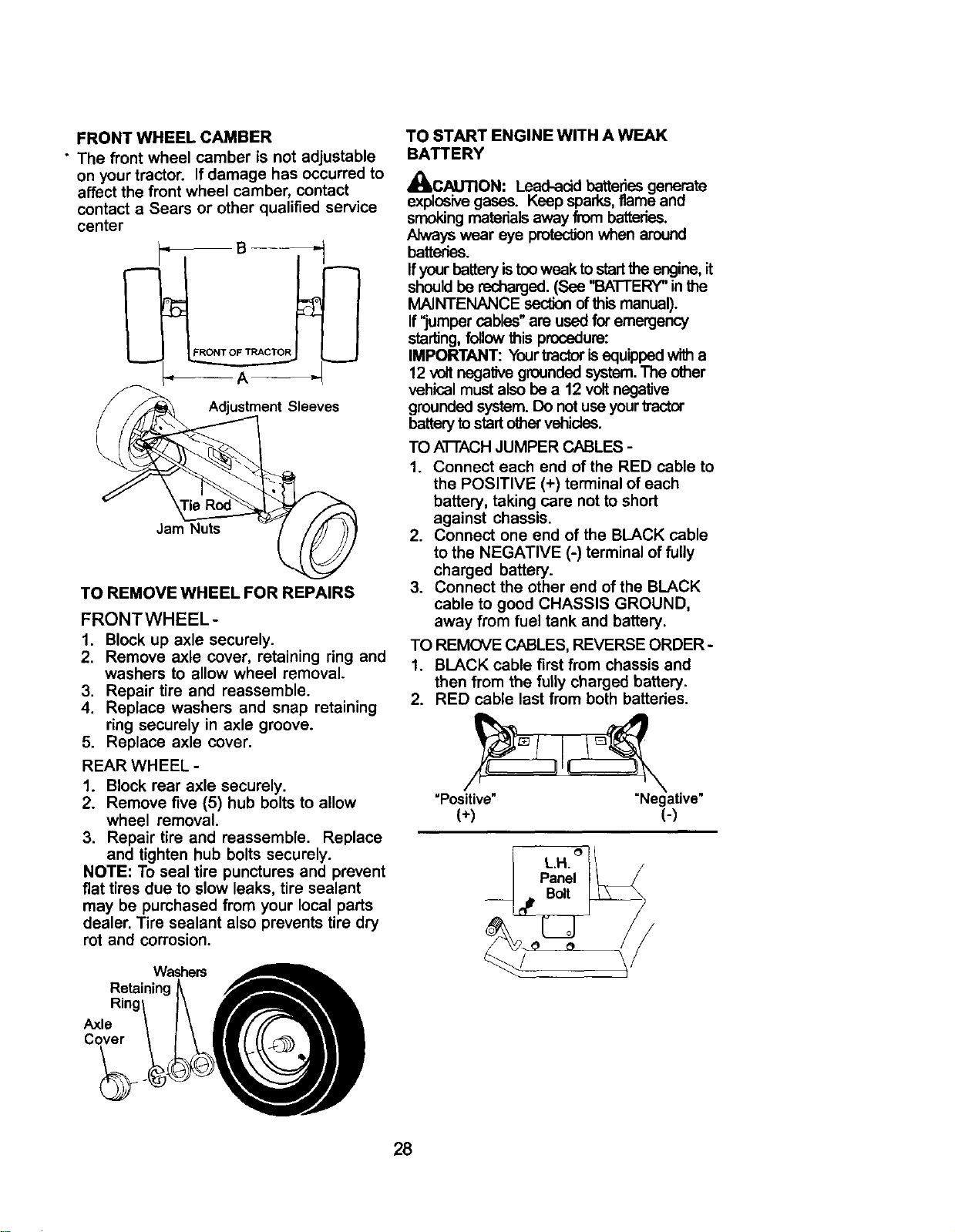

FRONTWHEELCAMBER

• Thefront wheel camber is not adjustable

on your tractor. If damage has occurred to

affect the front wheel camber, contact

contact a Sears or other qualified service

center

Adjustment Sleeves

Jam Nuts

TO REMOVE WHEEL FOR REPAIRS

FRONTWHEEL-

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal.

3. Repair tire and reassemble.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

REAR WHEEL -

1. Block rear axle securely.

2. Remove five (5) hub bolts to allow

wheel removal.

3. Repair tire and reassemble. Replace

and tighten hub bolts securely.

NOTE: To seal tire punctures and prevent

fiat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

Washem

Retaining

Ring'

Axle

Cover

TO START ENGINE WITH A WEAK

BATTERY

_hbcAIJTION: Lead-acid batteries generate

explosive gases. Keep spanks,flame and

smoking materials away from batteries.

Always wear eye protectionwhen around

batteries.

Ifyour battery istoo weak to startthe engine, it

should be recharged. (See "BA'I-I'ERY" in the

MAINTENANCE sectionof this manual).

If"jumper cables" are used for emergency

starling, follow this procedure:

IMPORTANT: Yourtractorisequipped with a

12 volt negative grounded system. The other

vehical must also be a 12 volt negative

grounded system. Do not use yourtractor

battery tostartother vehicles.

TO A'I-rACH JUMPER CABLES -

1. Connect each end of the RED cable to

the POSITIVE (+) terminal of each

battery, taking care not to short

against chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal of fully

charged battery.

3. Connect the other end of the BLACK

cable to good CHASSIS GROUND,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER-

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both battedes.

"Positive" =Negative"

(+) (-)

L.H. o

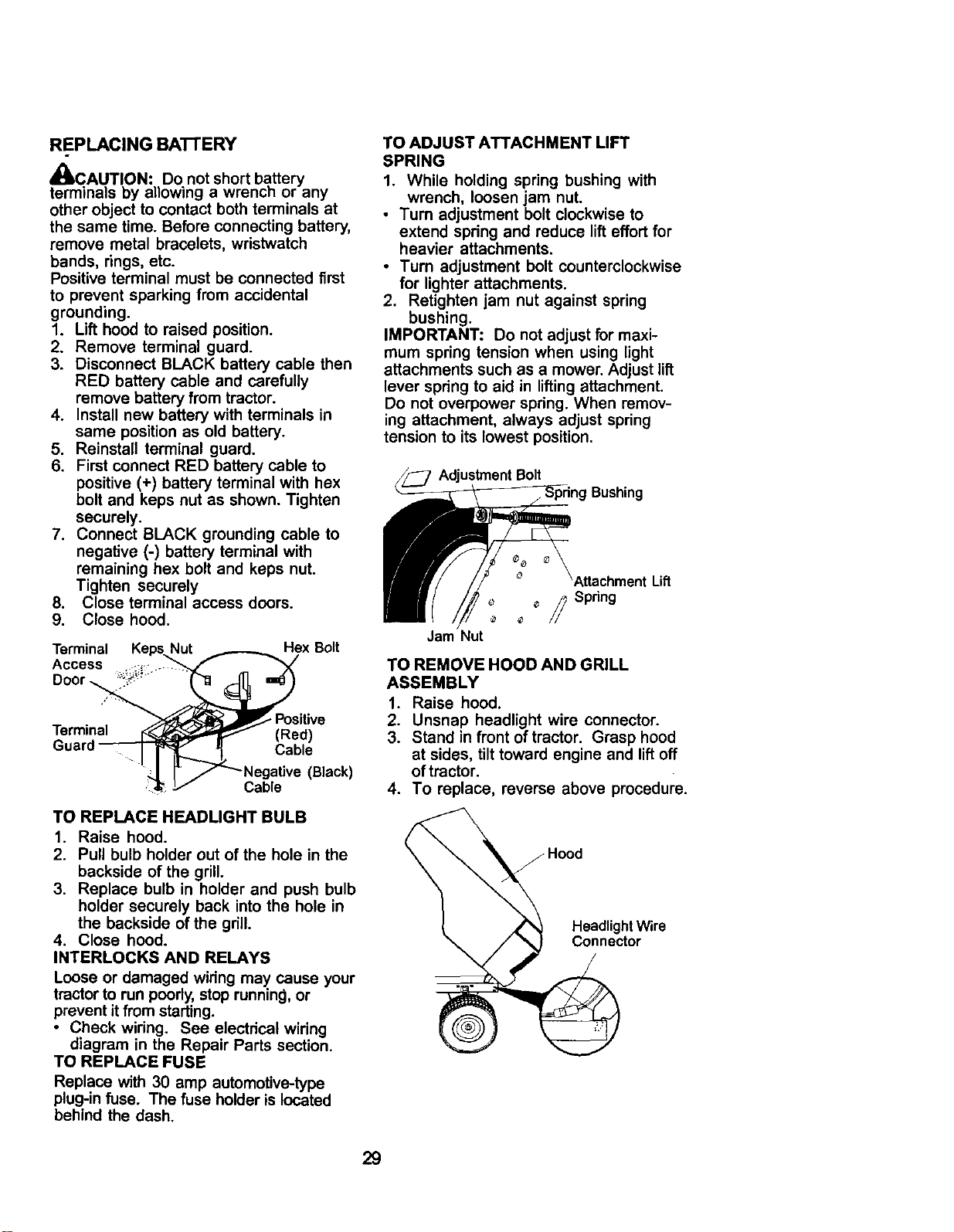

REPLACING BA'I-FERY

_LCAUTION: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected flint

to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable then

RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with

remaining hex bolt and keps nut.

Tighten securely

8. Close terminal access doors.

9. Close hood.

Terminal Keps Nut Hex Bolt

Access

Terminal

Positive

(Red)

Cable

(Black)

Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your

tractor to run poorly, stop running, or

prevent itfrom starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 30 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO ADJUST ATTACHMENT LIFT

SPRING

1. While holding spring bushing with

wrench, loosen jam nut.

• Turn adjustment bolt clockwise to

extend spring and reduce lift effort for

heavier attachments.

• Turn adjustment bolt counterclockwise

for lighter attachments.

2. Retighten jam nut against spring

bushing.

IMPORTANT: Do not adjust for maxi-

mum spring tension when using light

attachments such as a mower. Adjust lift

lever spring to aid in lifting attachment.

Do not overpower spring. When remov-

ing attachment, always adjust spring

tension to its lowest position.

/J Adjustment Bolt

Bushing

Spnng

: Lift

Jam Nut

TO REMOVE HOOD AND GRILL

ASSEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood

at sides, tilt toward engine and lift off

of tractor.

4. To replace, reverse above procedure.

/Hood

HeadlightWire

Connector

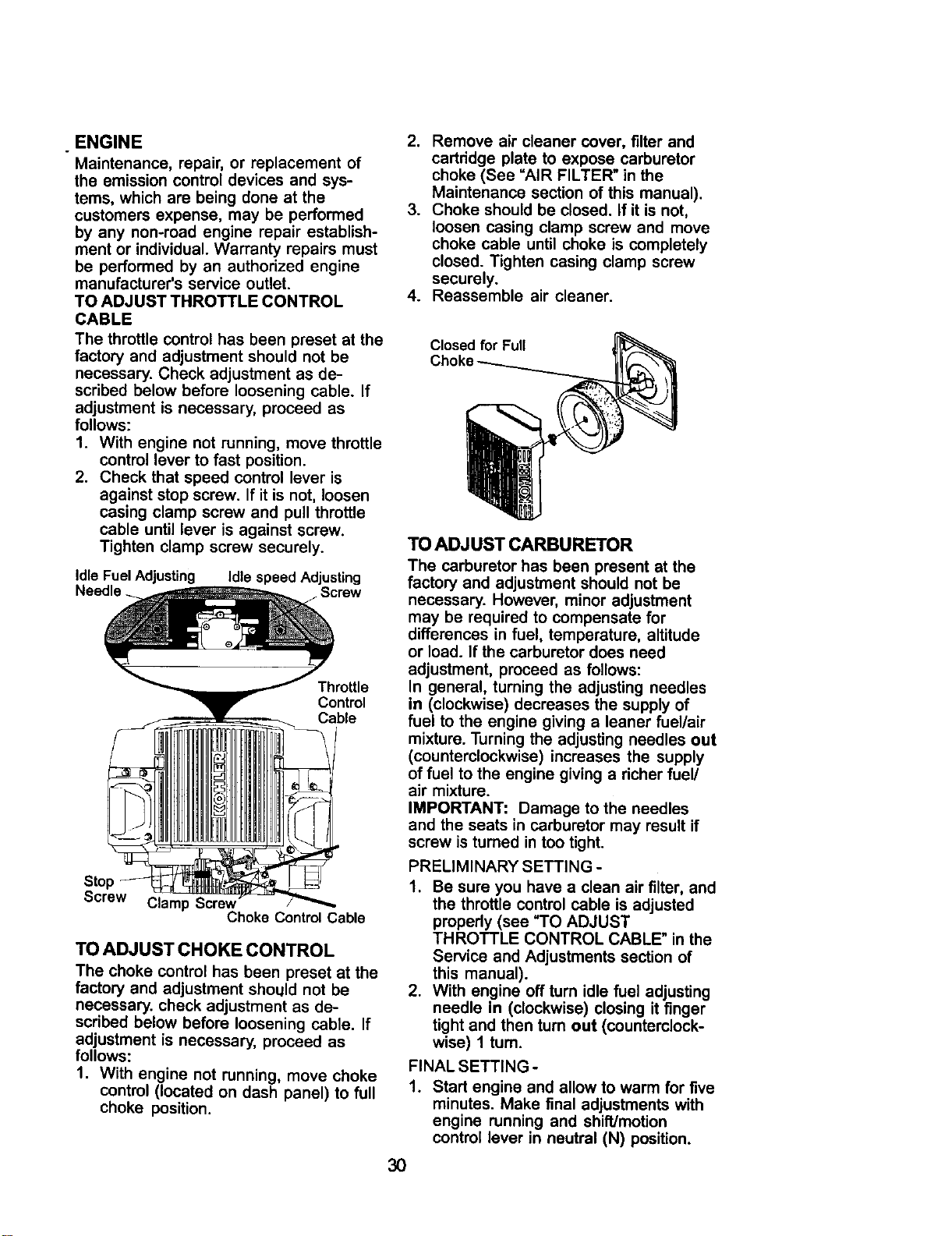

. ENGINE

Maintenance, repair, or replacement of

the emission control devices and sys-

tems, which are being done at the

customers expense, may be performed

by any non-road engine repair establish-

ment or individual. Warranty repairs must

be performed by an authorized engine

manufacturer's service outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move throttle

control lever to fast position.

2. Check that speed control lever is

against stop screw. If it is not, loosen

casing clamp screw and pull throttle

cable until lever is against screw.

Tighten clamp screw securely.

Idle FuelAdjusting

Needle

Idle speed Adjusting

Screw

Throttle

Control

Cable

Screw Clamp Screw

Choke ControlCable

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be

necessary, check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Remove air cleaner cover, filter and

cartridge plate to expose carburetor

choke (See =AIR FILTER" in the

Maintenance section of this manual).

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4. Reassemble air cleaner.

Closed for Full

TO ADJUST CARBURETOR

The carburetor has been present at the

factory and adjustment should not be

necessary. However, minor adjustment

may be required to compensate for

differences in fuel, temperature, altitude

or load. If the carburetor does need

adjustment, proceed as follows:

In general, turning the adjusting needles

in (clockwise) decreases the supply of

fuel to the engine giving a leaner fuel/air

mixture. Turning the adjusting needles out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/

air mixture.

IMPORTANT: Damage to the needles

and the seats in carburetor may result if

screw is turned in too tight.

PRELIMINARY SETTING -

1. Be sure you have a clean air filter, and

the throttle control cable is adjusted

propedy (see "TO ADJUST

THROTTLE CONTROL CABLE" in the

Service and Adjustments section of

this manual).

2. With engine off turn idle fuel adjusting

needle in (clockwise) closing it finger

tight and then turn out (counterclock-

wise) 1 tum.

FINAL SETTING -

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion

control lever in neutral (N) position.

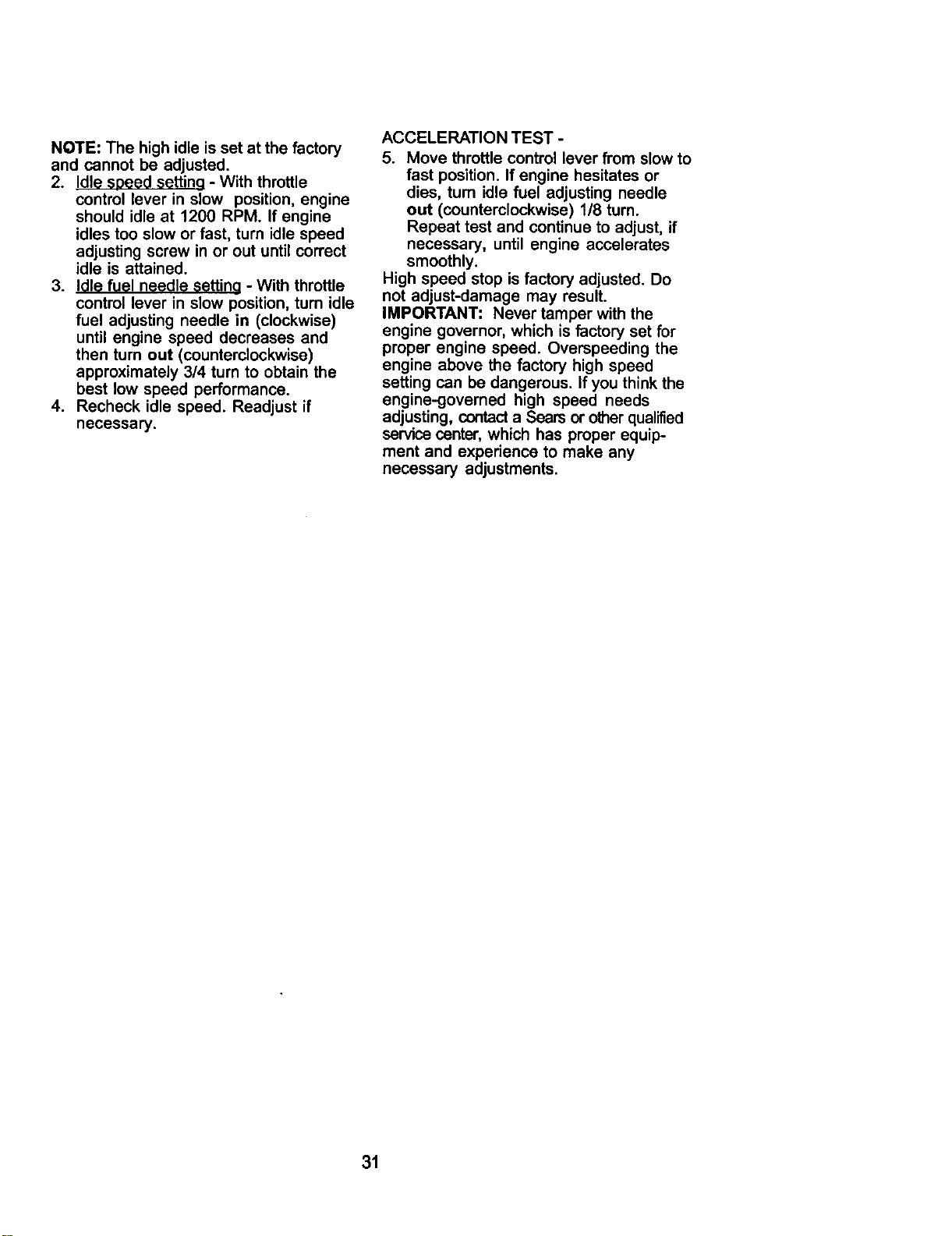

NOTE: The high idle is set at the factory

and cannot be adjusted.

2. Idle seeed settina - With throttle

control lever in slow position, engine

should idle at 1200 RPM. If engine

idles too slow or fast, turn idle speed

adjusting screw in or out until correct

idle is attained.

3. Idle fuel needle settina - With throttle

control lever in slow position, turn idle

fuel adjusting needle in (clockwise)

until engine speed decreases and

then turn out (counterclockwise)

approximately 3/4 turn to obtain the

best low speed performance.

4. Recheck idle speed. Readjust if

necessary.

ACCELERATION TEST -

5. Move throttle control lever from slow to

fast position. If engine hesitates or

dies, tum idle fuel adjusting needle

out (counterclockwise) 1/8 turn.

Repeat test and continue to adjust, if

necessary, until engine accelerates

smoothly.

High speed stop is factory adjusted. Do

not adjust-damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact a Sears or other qualified

service center, which has proper equip-

ment and experience to make any

necessary adjustments.

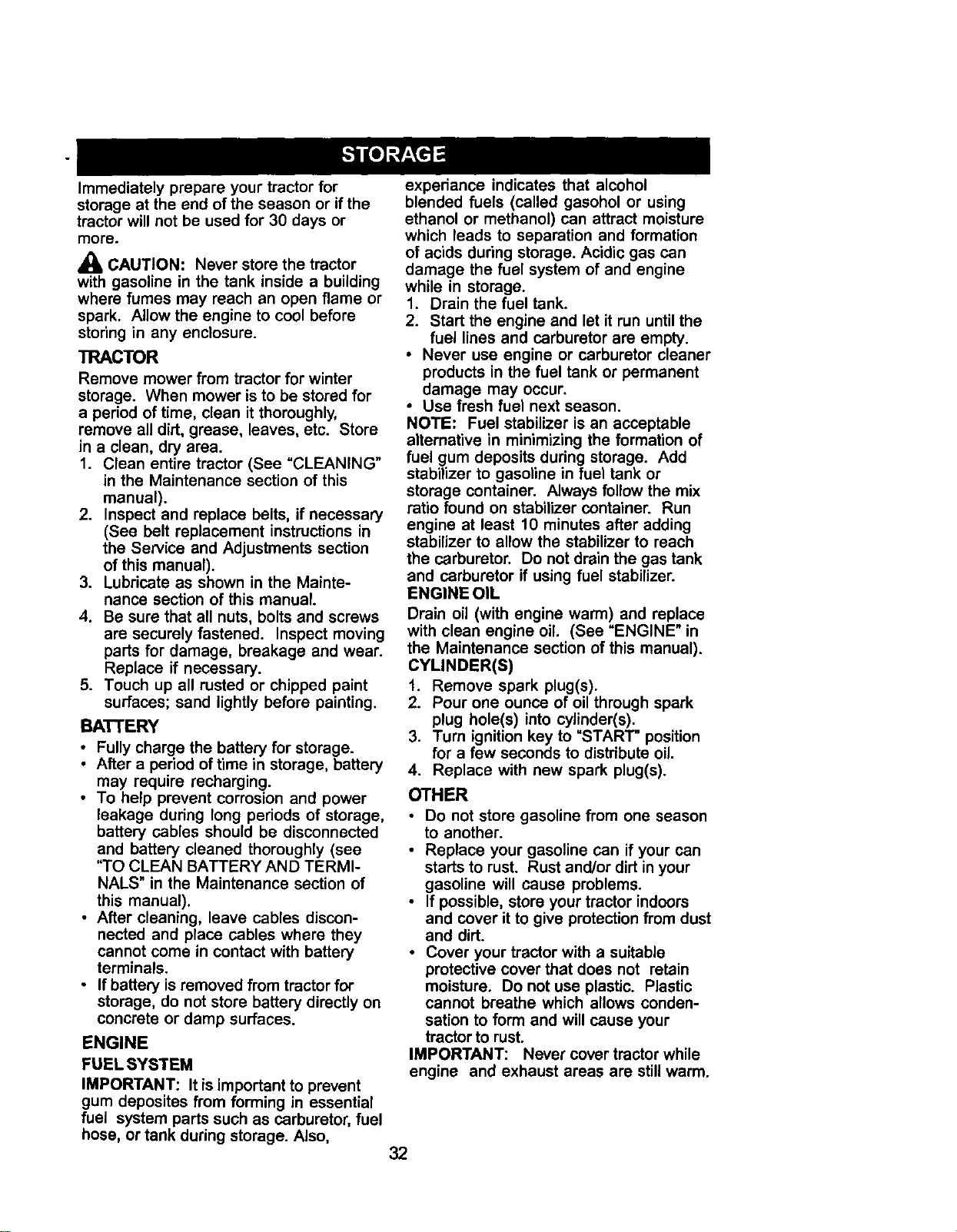

Immediately prepare your tractor for

storage at the end of the season or if the

tractor will not be used for 30 days or

more.

CAUTION: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for

a period of time, clean it thoroughly,

remove all dirt, grease, leaves, etc. Store

in a clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section

of this manual).

3. Lubricate as shown in the Mainte-

nance section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATI'ERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage dudng long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

"TO CLEAN BATTERY AND TERMI-

NALS" in the Maintenance section of

this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposites from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage. Also,

experiance indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation

of acids during storage. Acidic gas can

damage the fuel system of and engine

while in storage.

1. Drain the fuel tank.

2. Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to =START" position

for a few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe which allows conden-

sation to form and will cause your

tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

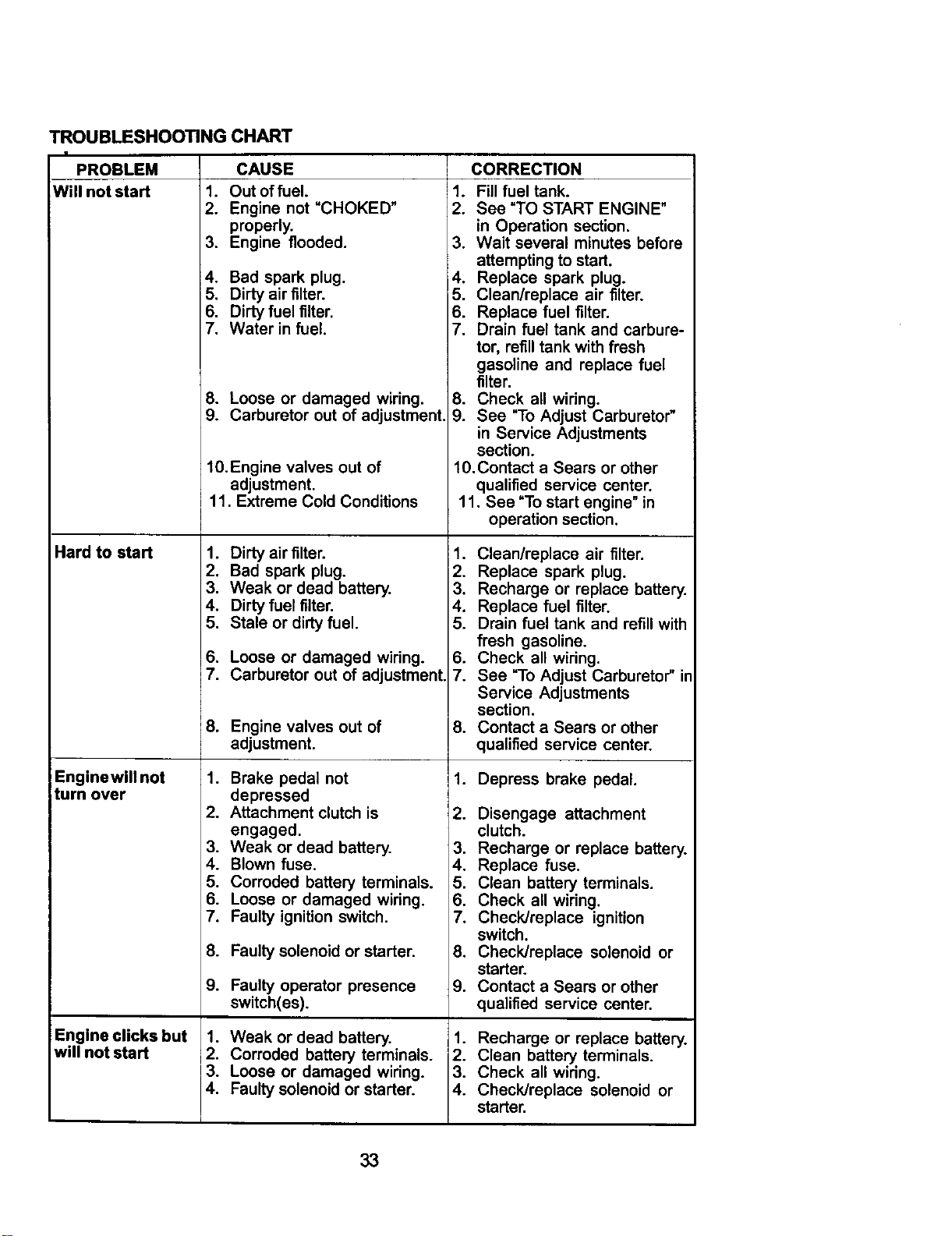

TROUBLESHOOTING CHART

PROBLEM

Will not start 1.

Hard to start

CAUSE CORRECTION

Out of fuel.

Enginewill not

turn over

Engine clicks but

will not start

2. Engine not "CHOKED"

properly.

3. Engine flooded.

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes before

attempting to start.

Replace spark plug.

Clean/replace air filter.

Replace fuel filter.

Drain fuel tank and carbure-

tor, refill tank with fresh

gasoline and replace fuel

filter.

Check all wiring.

See "To Adjust Carburetor"

in Service Adjustments

section.

10.Contact a Sears or other

qualified service center.

11. See "To start engine" in

operation section.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of

adjustment.

11. Extreme Cold Conditions

Bad spark plug. 4.

Dirty air filter. 5.

Dirty fuel filter. 6.

Water in fuel. 7.

Dirty air filter. 1.

Bad spark plug. 2.

Weak or dead battery. 3.

Dirty fuel filter. 4.

Stale or dirty fuel. 5.

Loose or damaged widng. 6.

Carburetor out of adjustment, 7.

Brake pedal not 1.

depressed

Attachment clutch is 2.

engaged.

Weak or dead battery. 3.

Blown fuse. 4.

Corroded battery terminals. 5.

Loose or damaged wiring. 6.

Faulty ignition switch. 7.

Weak or dead battery. 1.

Corroded battery terminals. 2.

Loose or damaged wiring. 3.

Faulty solenoid or starter. 4.

8. Engine valves out of

adjustment.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

Clean/replace air filter.

Replace spark plug.

Recharge or replace battery.

Replace fuel filter.

Drain fuel tank and refill with

fresh gasoline.

Check all wiring.

See "To Adjust Carburetor" in

Service Adjustments

section.

Contact a Sears or other

qualified service center.

Depress brake pedal.

Disengage attachment

clutch.

Recharge or replace battery.

Replace fuse.

Clean battery terminals.

Check all widng.

Check/replace ignition

switch.

Check/replace solenoid or

starter.

Contact a Sears or other

qualified service center.

Recharge or replace battery.

Clean battery terminals.

Check all widng.

Check/replace solenoid or

starter.

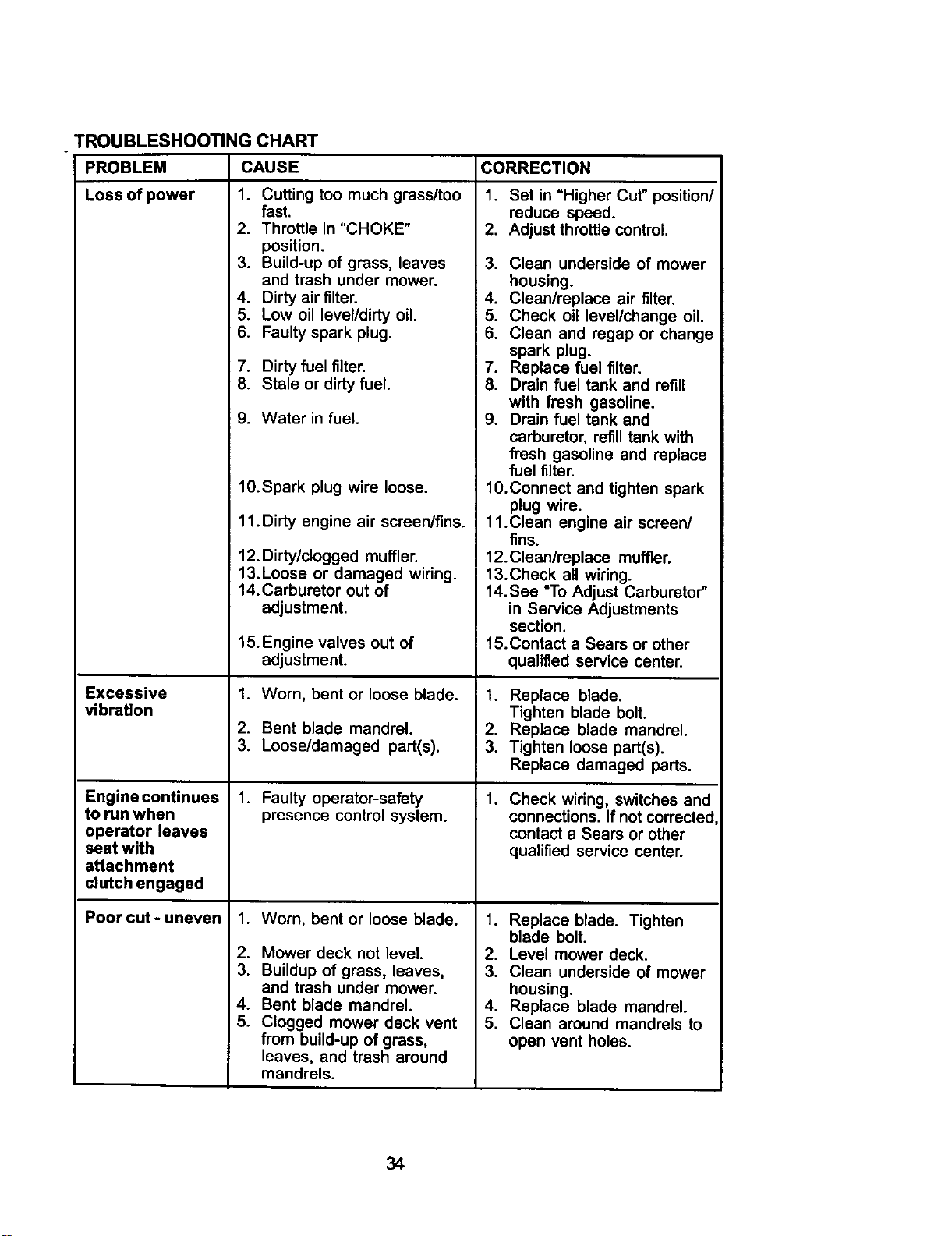

TROUBLESHOOTING CHART

PROBLEM CAUSE CORRECTION

Lossofpower

Cutting too much grass/too

fast.

Throttle in "CHOKE"

position.

Build-up of grass, leaves 3.

and trash under mower.

Dirty air filter. 4.

Low oil level/dirty oil. 5.

Faulty spark plug. 6.

7. Dirty fuel filter.

8. Stale or dirty fuel.

Excessive

vibration

Engine continues

to run when

operator leaves

seat with

attachment

clutch engaged

Poor cut - uneven

9. Water in fuel.

1O.Spark plug wire loose.

11.Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13.Loose or damaged wiring.

14.Carburetor out of

adjustment.

15.Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

Worn, bent or loose blade.

Mower deck not level.

Buildup of grass, leaves,

and trash under mower.

Bent blade mandrel.

Clogged mower deck vent

from build-up of grass,

leaves, and trash around

mandrels.

1. Set in "Higher Cut" position/

reduce speed.

2. Adjust throttle control.

Clean underside of mower

housing.

Clean/replace air filter.

Check oil level/change oil.

Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Drain fuel tank and refill

with fresh gasoline.

9. Drain fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

10.Connect and tighten spark

plug wire.

11.Clean engine air screen/

fins.

12.Clean/replace muffler.

13.Check all wiring.

14. See "To Adjust Carburetor"

in Service Adjustments

section.

15.Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Replace blade mandrel.

3. Tighten loose part(s).

Replace damaged parts.

Check wiring, switches and

connections. If not corrected

contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Replace blade mandrel.

5. Clean around mandrels to

open vent holes.

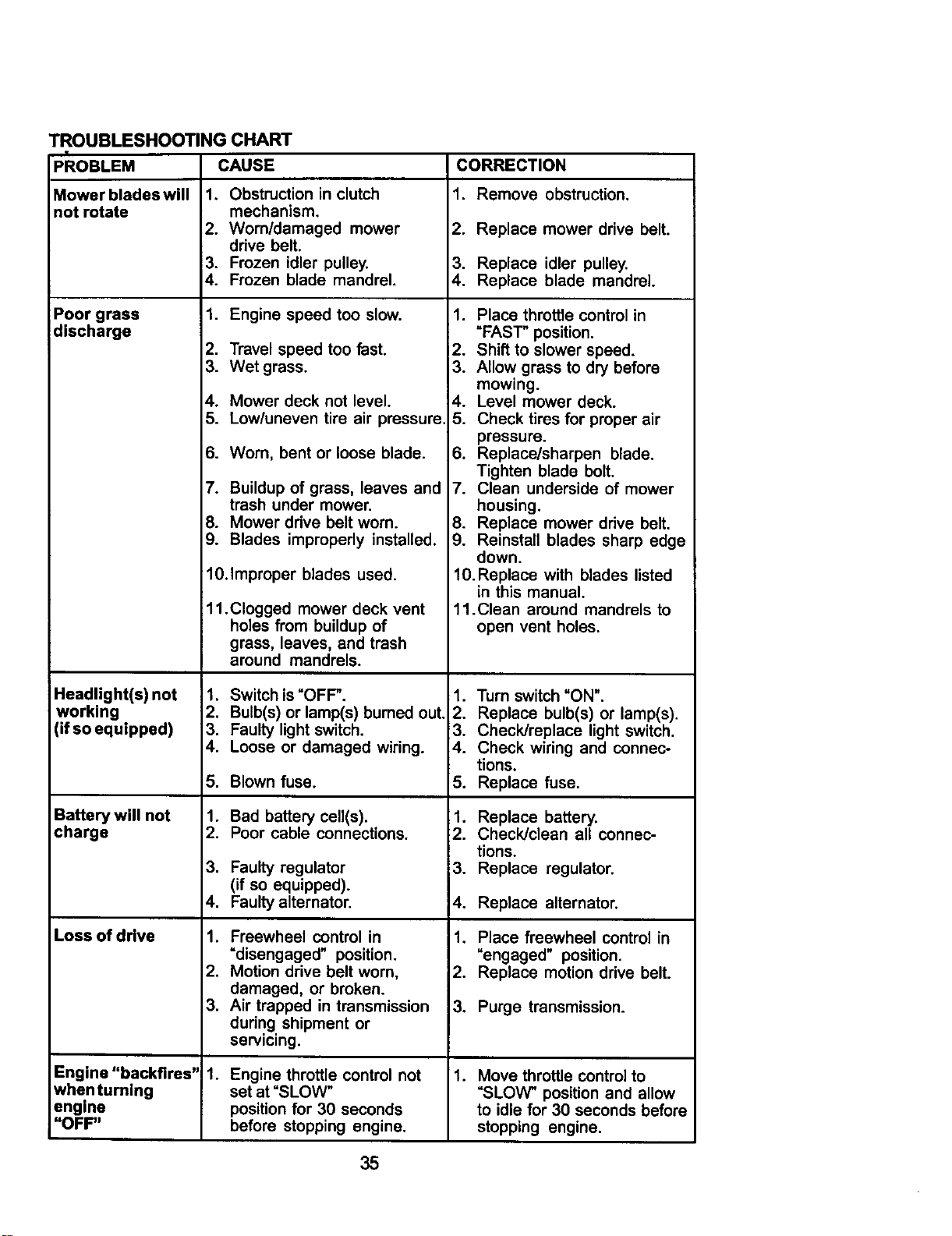

TROUBLESHOOTING CHART

PROBLEM CAUSE CORRECTION

Mower blades will 1. Obstruction in clutch 1. Remove obstruction.

not rotate mechanism.

2. Worn/damaged mower 2. Replace mower drive belt.

drive belt.

3. Frozen idler pulley. 3. Replace idler pulley.

4. Frozen blade mandrel. 4. Replace blade mandrel.

Poor grass 1. Engine speed too slow.

I ,

id,scharge

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and

trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10.Improper blades used.

11 .Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

Headlight(s) not 1.

working 2.

(if so equipped) 3,

Battery will not 1.

charge 2,

Loss of drive 1.

1.Engine "backfires"

when turning

engine

"OFF"

Switch is "OFP.

Bulb(s) or lamp(s) bumed out.

Faulty light switch.

Loose or damaged wiring.

Blown fuse.

Bad battery cell(s).

Poor cable connections.

Faulty regulator

(if so equipped).

Faulty alternator.

Freewheel control in

"disengaged" position.

Motion drive belt worn,

damaged, or broken.

Air trapped in transmission

during shipment or

servicing.

Engine throttle control not

set at "SLOW"

position for 30 seconds

before stopping engine.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10.Replace with blades listed

in this manual.

11.Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec-

tions.

5. Replace fuse.

1. Replace battery.

:2. Check/clean all connec-

tions.

!3. Replace regulator.

4. Replace alternator.

1. Place freewheel control in

"engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

NOTES

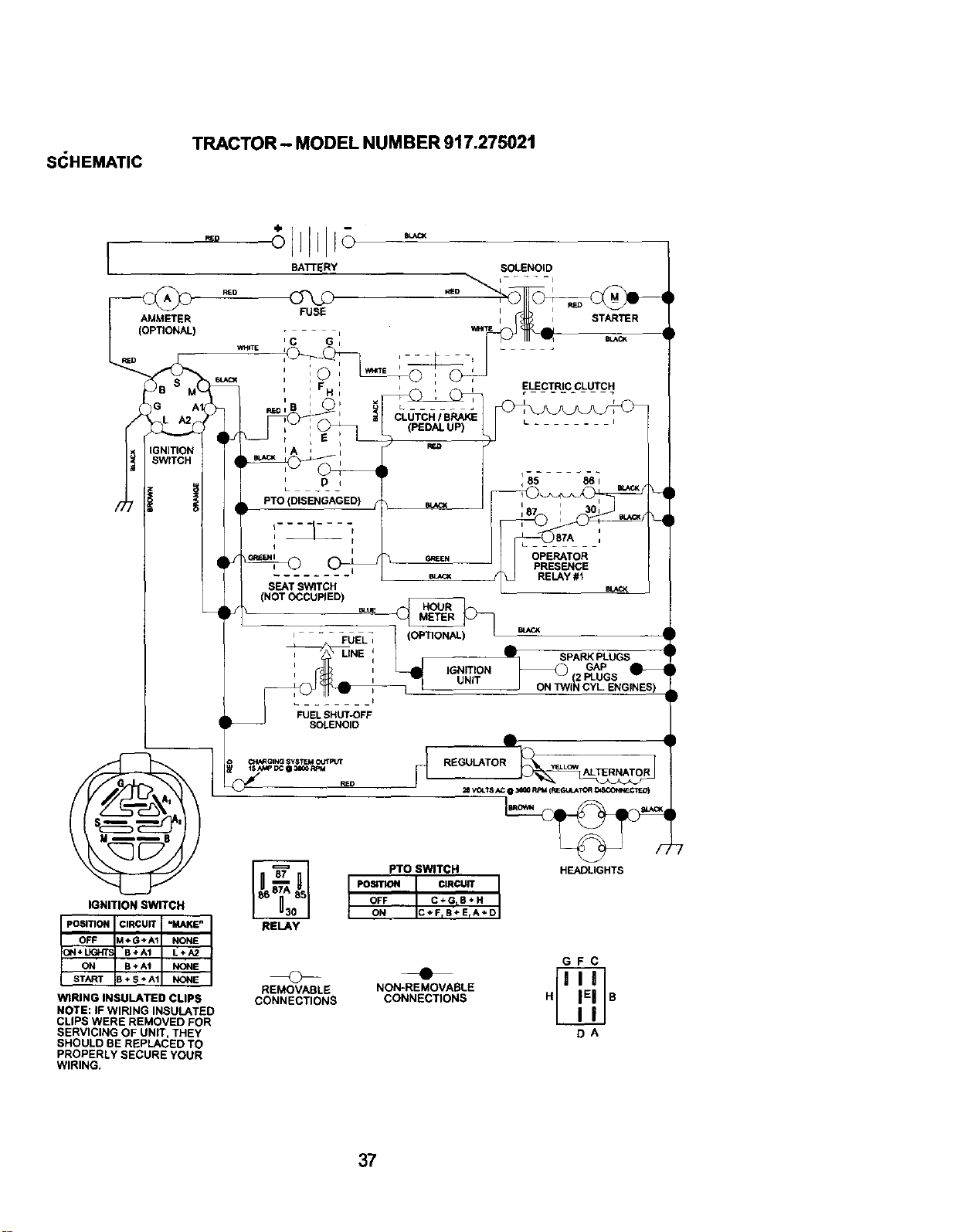

S(_HEMATIC

TRACTOR - MODEL NUMBER 917.275021

AMMETER

)

WHI_

IGNITION SWITCH

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE REPLACED TO

PROPERLY SECURE YOUR

WIRING.

PTO (DISENGAGED)

SEAT SWITCH

(NOT OCCUPIED)

FUEL SHUT-OFF

SOLENOID

RED

RELAY

(OPTIONAL) eu_K

S_:*ARKPLUGS

IGNITION GAP

UNIT {2 PLUGS

J ON TWiN CYL ENGINES)

_ REGULATOR __R

PTO SWITCH HEADLIGHTS

POSITION CIRCUIT

OFF C÷GIB+H

ON C+FrB+ErA+D

GFC

REMOVABLE NON-REMOVABLE

CONNECTIONS CONNECTIONS H B

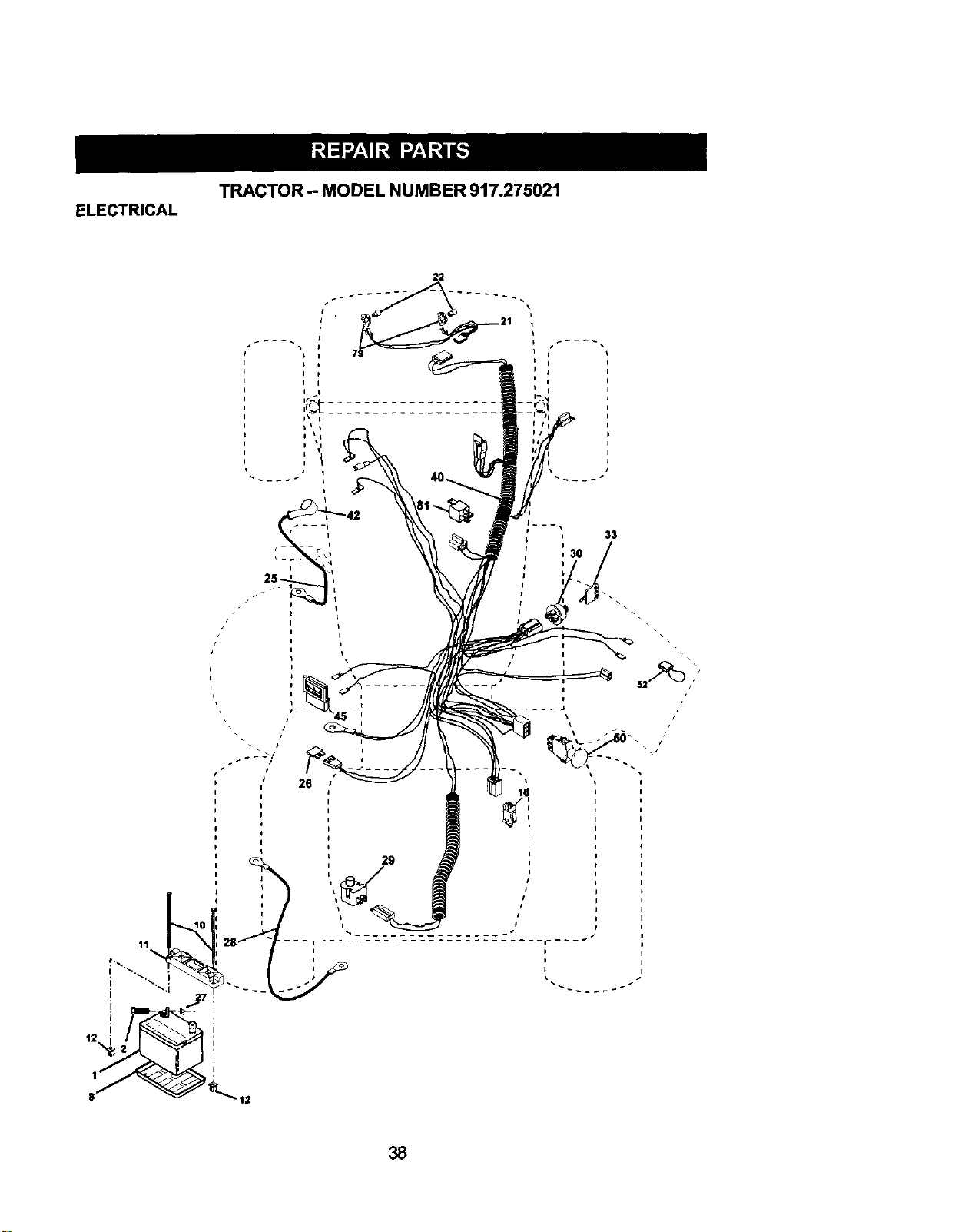

TRACTOR- MODELNUMBER917.275021

ELECTRICAL

10 n L

. =8 ---; ......................... :.....

i '_. O I

i " i

1 i

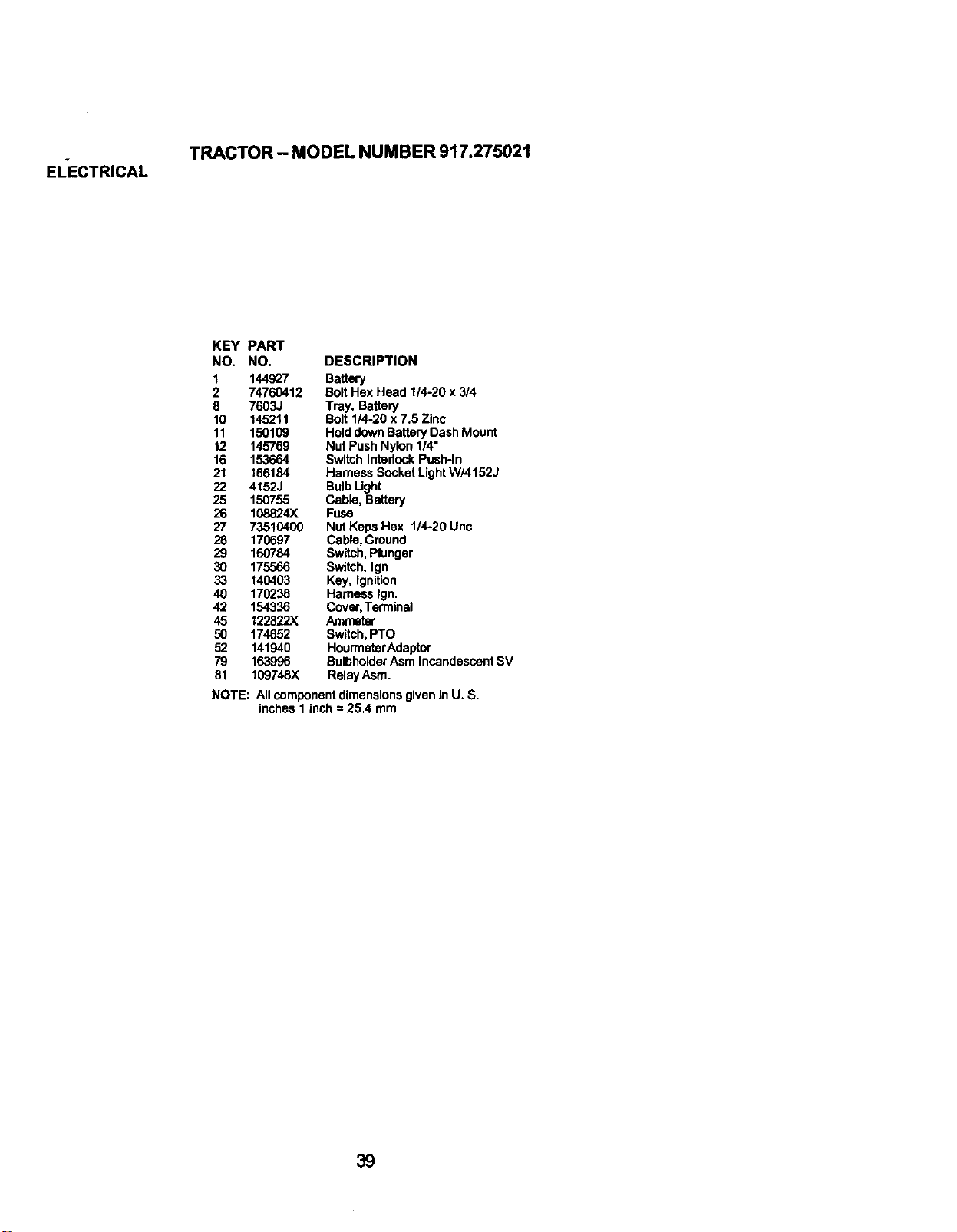

ELECTRICAL

TRACTOR - MODEL NUMBER 917,275021

KEY PART

NO. NO. DESCRIPTION

1 144927 Battery

2 74760412 BoltHex Head 1/4-20 x 3/4

8 7603J Tray, Battery

10 145211 Bolt 1/4-20 x 7.5 Zinc

11 150109 HolddownBatteryDashMount

12 145769 Nut PushNylon1/41

16 153664 SwitchInterlockPush-In

21 166184 HarnessSocketLightW/4152J

22 4152J BulbLight

25 150755 Cable, Battery

26 108824X Fuse

27 73510400 Nut KepsHex 1/4-20 Unc

28 170697 Cable,Ground

29 160784 Switch,Plunger

30 175566 Switch,Ign

33 140403 Key, Ignition

40 170238 HarnessIgn.

42 154336 Cover,Terminal

45 122822X Ammeter

50 174652 Switch,PTO

52 141940 HourmeterAdaptor

79 1639o._ BulbholderAsm IncandescentSV

81 109748X RelayAsm.

NOTE: Allcomponentdimensionsgivenin U. S.

inches 1 inch = 25.4 mm

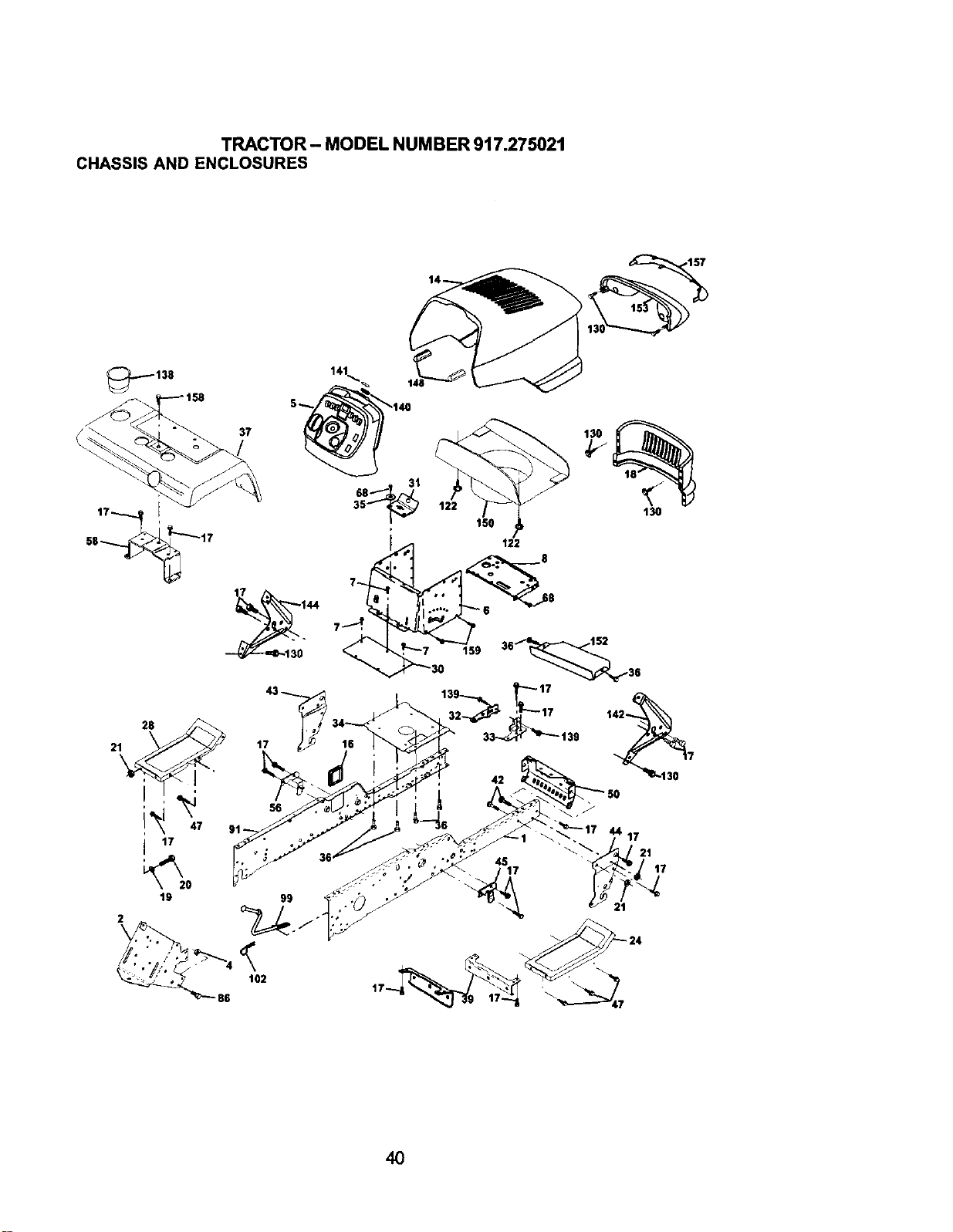

TRACTOR - MODEL NUMBER 917.275021

CHASSIS AND ENCLOSURES

_138

1,-_._I ,22 ,5o

58_ _'-'_'17 122

17 144

21 17

130

36/ 152

159 _36

_ 17 44 17

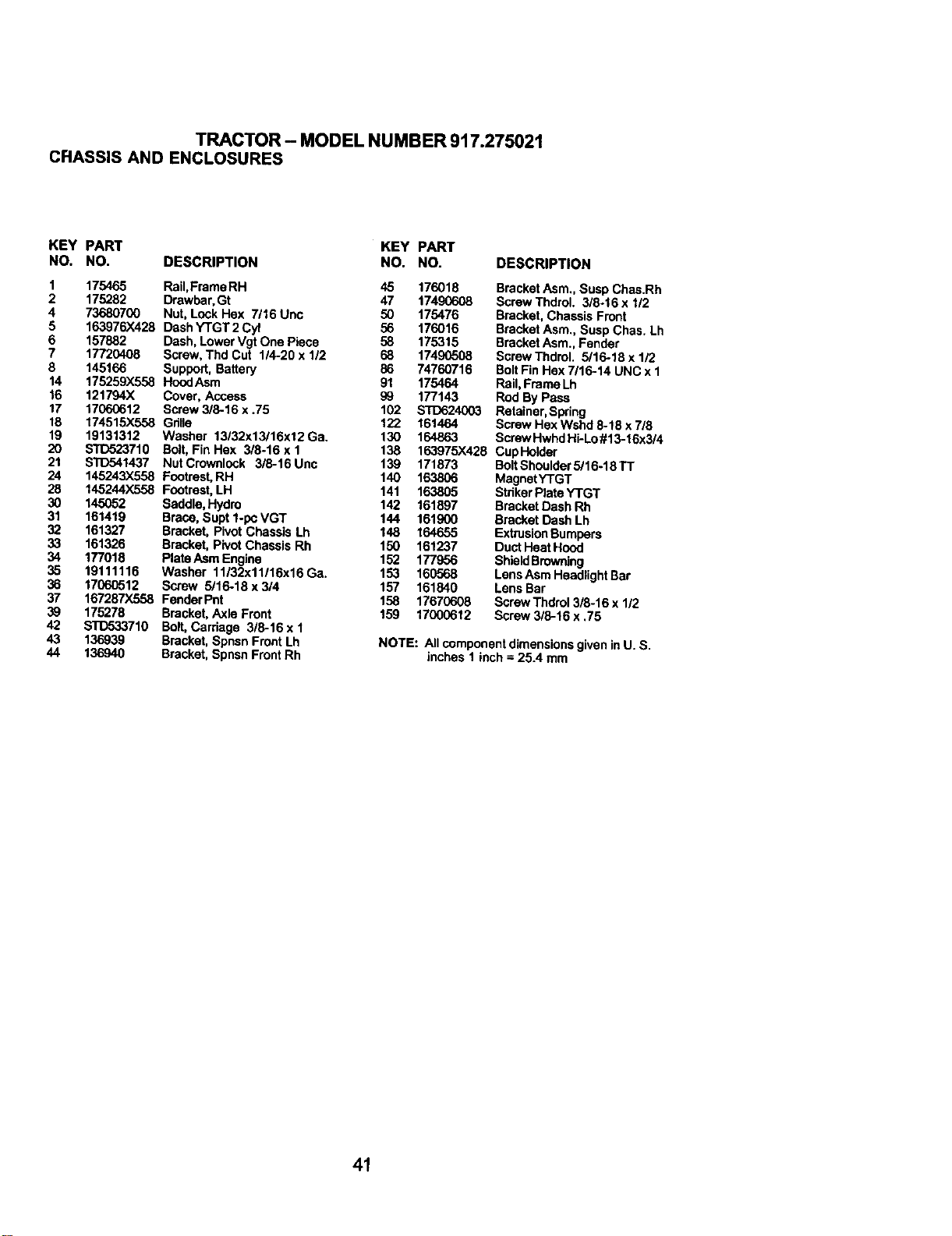

TRACTOR- MODEL NUMBER 917.275021

CflASSIS AND ENCLOSURES

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 175465 Rail,FrameRH 45 176018

2 175282 Drawbar,Gt 47 17490608

4 73680700 Nut, LockHex 7/16 Unc 50 175476

5 163976X428 DashY'I'GT2 Cyl 56 176016

6 157882 Dash,LowerVgtOne Piece 58 175315

7 17720408 Screw,Thd Cut 114-20x 1/2 68 1749_508

8 145166 Support,Battery 86 74760716

14 175259X558 HoodAsm 91 175464

16 121794X Cover,Access 99 177143

17 1706G612 Screw3/8-16 x .75 102 STD624003

18 174515X558 Grille 122 161464

19 19131312 Washer 13/32x13/16x12Ga. 130 164863

20 SID52371g Bolt,Fin Hex 3/8-16 x 1 138

21 S'I_541437 NutCrownlock 3/8-16Unc 139 171873

24 145243X558 Footrest,RH 140 163806

28 145244X558 Footrest,LH 141 163805

30 145052 Saddle,Hydro 142 161897

31 161419 Brace,Supt lopcVGT 144 161900

32 161327 Bracket,PivotChassisLh 148 164655

33 161326 Bracket,PivotChassisRh 150 161237

34 177018 PleteAsm Engine 152 177956

35 19111116 Washer 11/32x11/16x16Ga. 153 160568

36 17060512 Screw 5/16-19x3/4 157 161840

37 167287X558 FenderPnt 158 17670608

39 175278 Bracket,Axle Front 159 17000612

42 STD533710 Bolt,Carriage 3/8-16 x 1

43 136939 Bracket,Spnsn FrontLh

44 136940 Bracket,SpnsnFront Rh

BracketAsm.,Susp Chas.Rh

ScrewThdrol. 3/8-16x 1/2

Bracket,ChassisFront

BracketAsm., Susp Chas. Lh

BracketAsm., Fender

ScrewThdrol, 3/16-18 x 1/2

BoltFinHex 7/16-14 UNC x 1

Rail,FrameLh

Rod ByPass

Retainer,Spring

ScrewHex Wshd8-18 x 7/8

ScrewHwhdHi-Lo#13-16x3/4

163975X428 CupHolder

BoltShoulder5/16-18 TT

MagnetYTGT

StrikerPlateYTGT

BracketDashRh

BracketDashLh

ExtrusionBumpers

DuctHeatHood

ShieldBrowning

LensAsm HeadlightBar

LensBar

ScrewThdrol3/8-16 x 1/2

Screw3/8-16 x .75

NOTE: All componentdimensionsgiveninU. S.

inches 1 inch-=25.4 mm

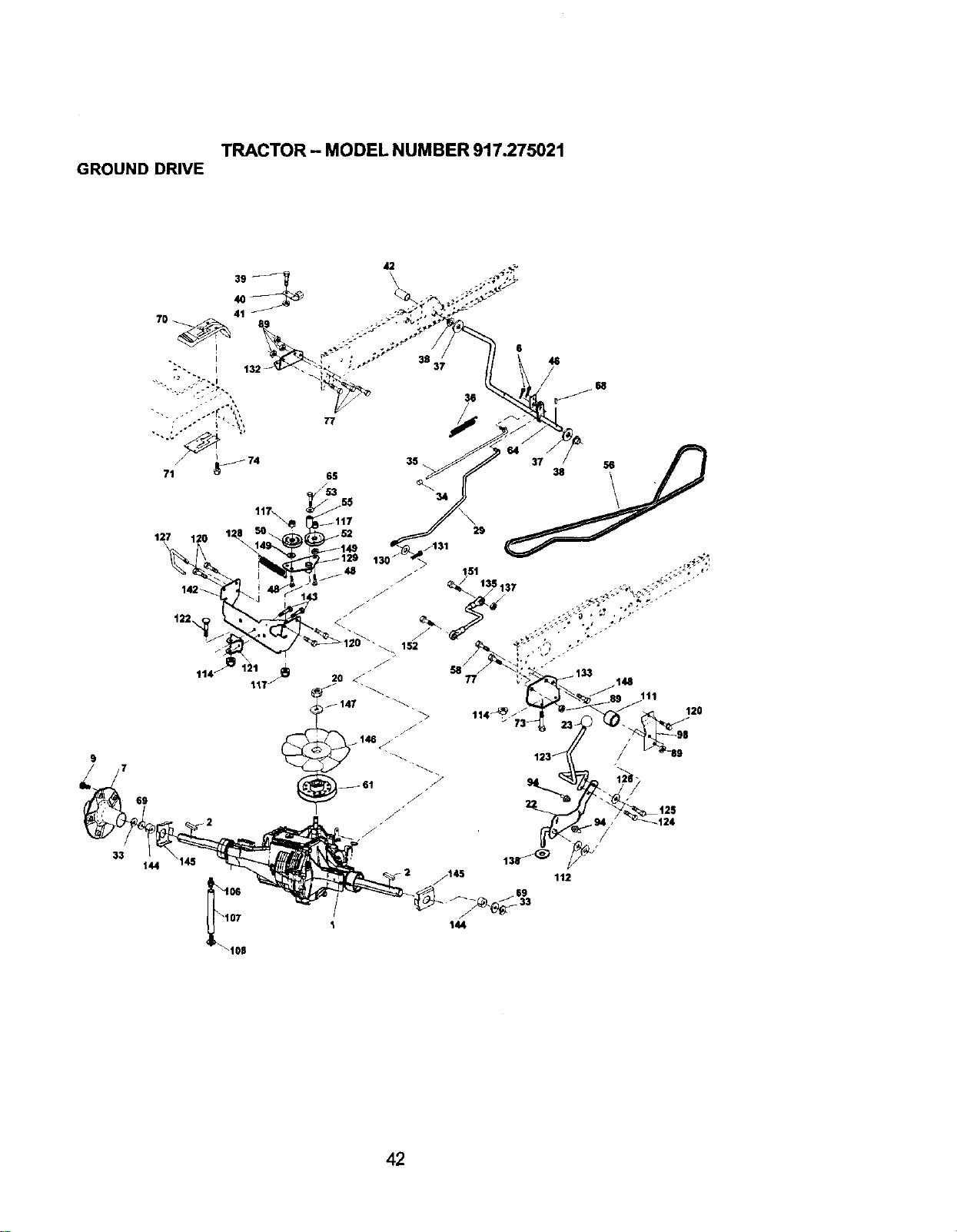

TRACTOR - MODEL NUMBER 917.275021

GROUND DRIVE

127 120

142_

122,

120

t44

_1 °6

107

1011

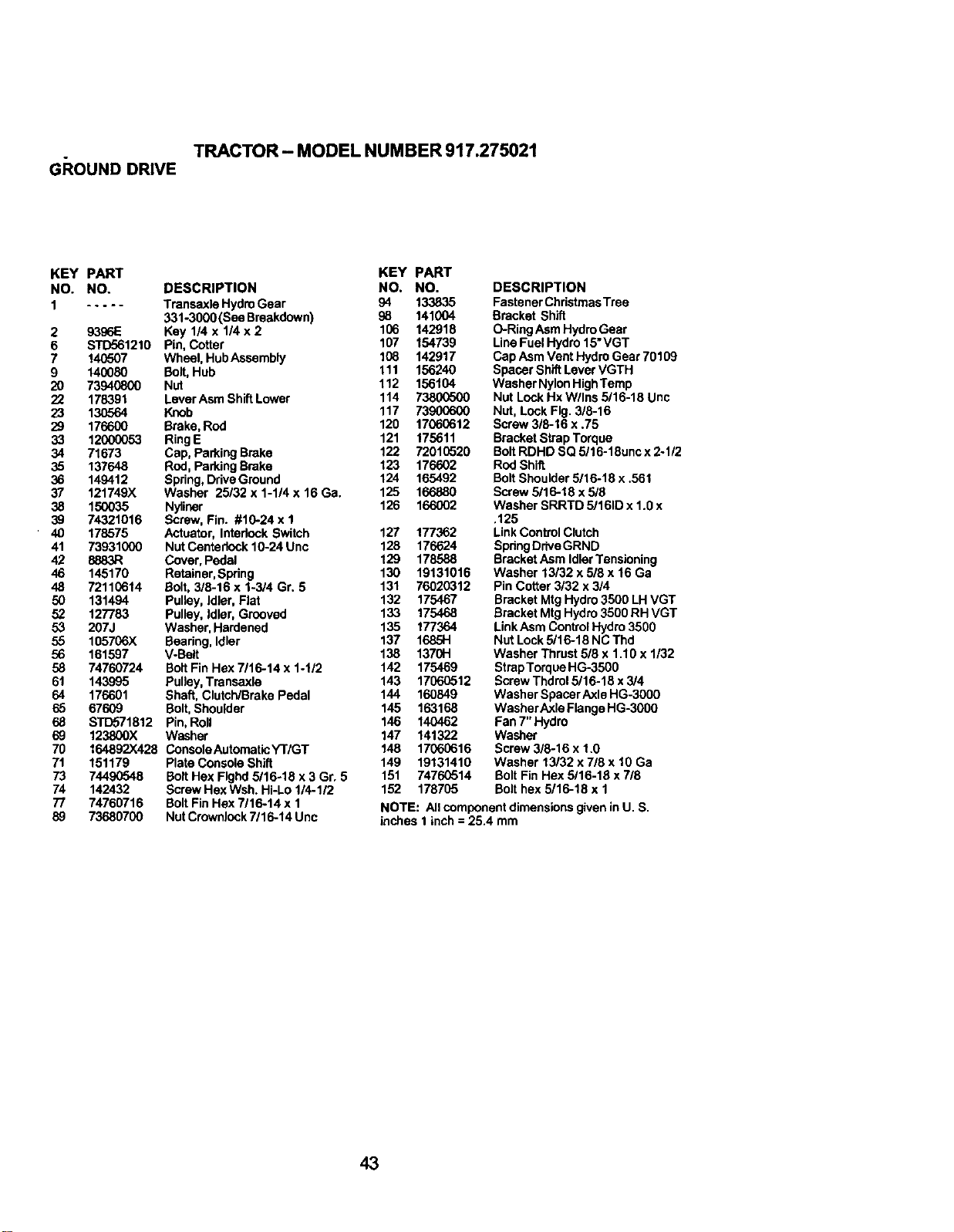

TRACTOR - MODEL NUMBER 917.275021

GIROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 ..... TransaxleHydroGear 94 133835

331-3000(See Breakdown) 98 141004

2 9396E Key 1/4 x 1/4 x2 106 142918

6 STD561210 Pin,Cotter 107 154739

7 140507 Wheel,HubAssembly 108 142917

9 140080 Bolt,Hub 111 156240

20 73940800 Nut 112 156104

22 178391 LoverAsm ShiftLower 114 73800500

23 130564 Knob 117 73900600

29 176600 Brake,Rod 120 17060612

33 12(X)0053 RingE 121 175611

34 71673 Cap, ParkingBrake 122 72010520

35 137648 Rod, ParkingBrake 123 176602

36 149412 Spring, DriveGround 124 165492

37 121749X Washer 25/32 x 1-1/4 x 16 Ga. 125 166880

38 150035 Nyliner 126 166002

39 74321016 Screw, Fin. #10-24 x 1

40 178575 Actuator,InterlockSwitch 127 177362

41 73931000 NutCentadock10-24Unc 128 176624

42 8883R Cover,Pedal 129 178588

46 145170 Retainer,Spring 130 19131016

48 72110614 Bolt, 3/8-16 x 1-3/4 Gr. 5 131 76020312

50 131494 Pulley,Idler,Flat 132 175467

52 127783 Pulley,Idler,Grooved 133 175468

53 207J Washer,Herdened 135 177364

55 105706X Bearing,Idler 137 1685H

56 161597 V-Belt 138 1370H

58 74760724 BoltFin Hex 7/16-14 x 1-112 142 175469

61 143995 Pulley,Transaxlo 143 17060512

64 176601 Shaft, Clutch/BrakePedal 144 160849

65 67609 Bolt,Shoulder 145 163168

68 STD571812 Pin,Roll 146 140462

69 123800X Washer 147 141322

70 164892X428 ConsoleAutomaScY'r/GT 148 17060616

71 151179 Plate ConsoleShift 149 19131410

73 74490548 BoltHex Flghd5116-18x 3 Gr. 5 151 74760514

74 142432 Screw HexWsh. Hi-Lo1/4-1/2 152 178705

77 74760716 Bolt FinHex 7116-14x 1

89 73680700 Nut Crownlock7116-14Unc

DESCRIPTION

FastenerChristmasTree

Bracket Shift

O-RingAsm HydroGear

Line FuelHydro15"VGT

Cap AsmVent HydroGear 70109

SpacerShiftLever VGTH

WasherNylonHighTemp

Nut LockHx W/Ins5/16-18 Unc

Nut, Lock Fig.3/8-16

Screw318-16x.75

BracketStrap Torque

BoltRDHD SQ 5/16-18uncx 2-112

ROdShift

BoltShoulder5/16-18 x .561

Screw5116-18x 5/8

WasherSRRTD 5/161Dx1.0 x

.125

LinkControlClutch

SpringDriveGRND

BracketAsm IdlerTensioning

Washer 13/32 x 5/8 x 16 Ga

PinCotter3/32 x 3/4

Bracket Mtg Hydro3500 LHVGT

Bracket MtgHydro3500RH VGT

LinkAsm ControlHydro3500

Nut Lock5/16-18 NC Thd

WasherThrust5/8 x 1.10 x 1/32

StrapTorqueHG-3500

ScrewThdrol5/16-18 x 3/4

WasherSpacerAxleHG-3000

WasherAxlaFlangeHG-3000

Fan 7" Hydro

Washer

Screw3/8-16 x 1.0

Washer 13/32 x7/8 x 10 Ga

BoltFin Hex5116-18x 7/8

Bolthex 5/16-18 x 1

NOTE: AllcomponentdimensionsgiveninU. S.

inches 1 inch= 25.4 mm

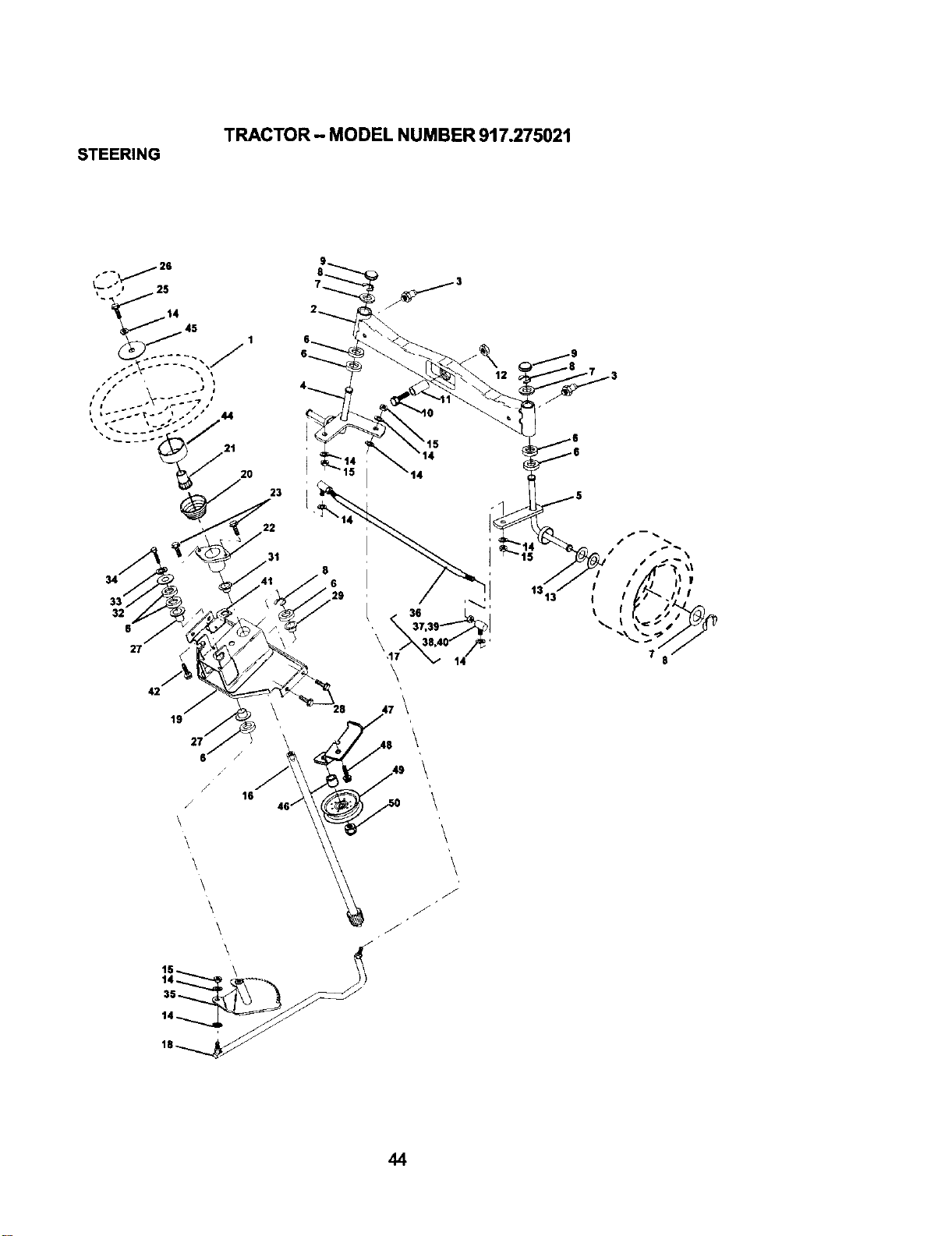

STEERING

TRACTOR - MODEL NUMBER 917.275021

6 /

1313

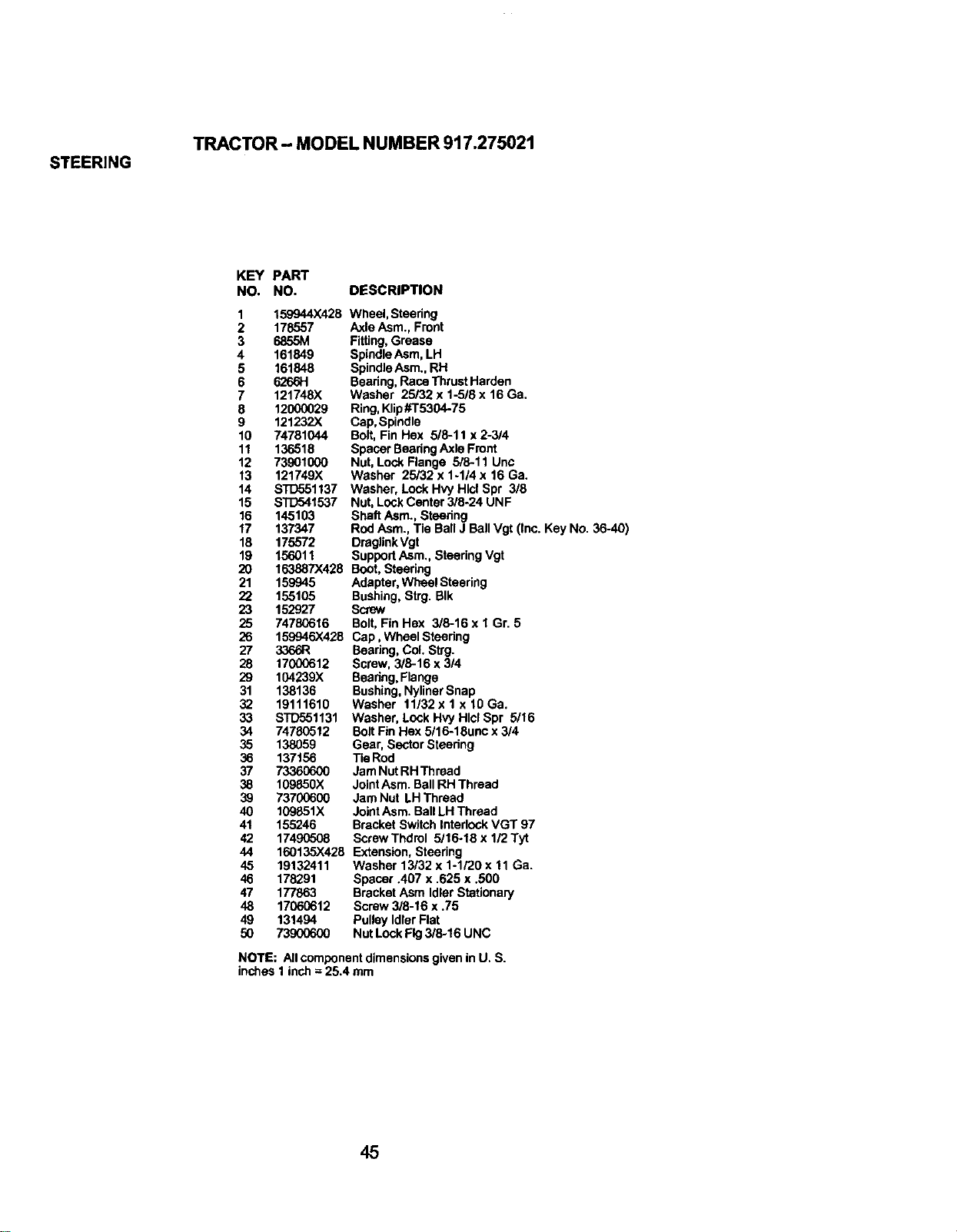

STEERING

TRACTOR- MODEL NUMBER 917.275021

KEY PART

NO. NO. DESCRIPTION

1 159944X428

2 178557

3 6855M

4 161849

5 161848

6 6266H

7 121748X

8 12000029

9 121232X

10 74781044

11 136518

12 73901000

13 121749X

14 STD551137

15 STD541537

16 145103

17 137347

18 175572

19 156011

20 163887X428

21 159945

22 155105

23 152927

25 74780616

26 159946X428

27 3366R

28 1700_612

29 104239X

31 138136

32 19111610

33 STD551131

34 74780512

35 138059

36 137156

38 109850X

39 73700600

40 109851X

41 155246

42 17490508

44 160135X428

45 19132411

46 178291

47 177863

48 17060612

49 131494

5O 739O06OO

Wheel,Steedng

AxleAsm., Front

Fitting,Grease

SpindleAsm,LH

SpindleAsm.,RH

Bearing,RaceThrustHarden

Washer 25/32 x 1-5/8 x 16 Ga.

Ring,Klip#r5304-75

Cap,Spindle

Bolt,Fin Hex 5/8-11 x 2-3/4

SpacerBeadngAxle Front

Nut,LockFlange 518-11Unc

Washer 25/32 x 1-1/4 x 16 Ga.

Washer, LockHW HlclSpr 3/8

Nut,LockCenter3/8-24 UNF

ShaftAsm., Steering

RodAsm.,Tie BallJ BallVgt (Inc.KeyNo. 36-40)

DraglinkVgt

SupportAsm.,SteeringVgt

Boot,Steering

Adapter,WheelSteering

Bushing,Strg.BIk

Scow

Bolt,Fin Hex 3/8-16 x 1 Gr. 5

Cap, Wheel Steering

Bearing,Col.Strg.

Screw,3/8-16 x 3/4

Beadng,Flange

Bushing,NylinerSnap

Washer t1/32 x 1x 10 Ga.

Washer, LockHvy HlclSpr 5/16

BoltFin Hex 5116-18uncx 3/4

Gear, SectorSteedng

Tie Rod

JamNutRHThread

JointAsm.BallRH Thread

JamNut LHThread

JointAsm,BallLHThread

BracketSwitchInterlockVGT 97

ScrewThdrel 5/16-18 x 1/2 Tyt

Extension,Steering

Washer 13/32 x 1-1/20 x 11 Ga.

Spacer.407 x .625 x ,500

BracketAsm IdlerStationary

Screw3/8-16 x .75

PulleyIdlerFlat

NutLockFig3/8-16 UNC

NOTE: All component dimensions given in U. S.

inches I inch = 25.4 mm

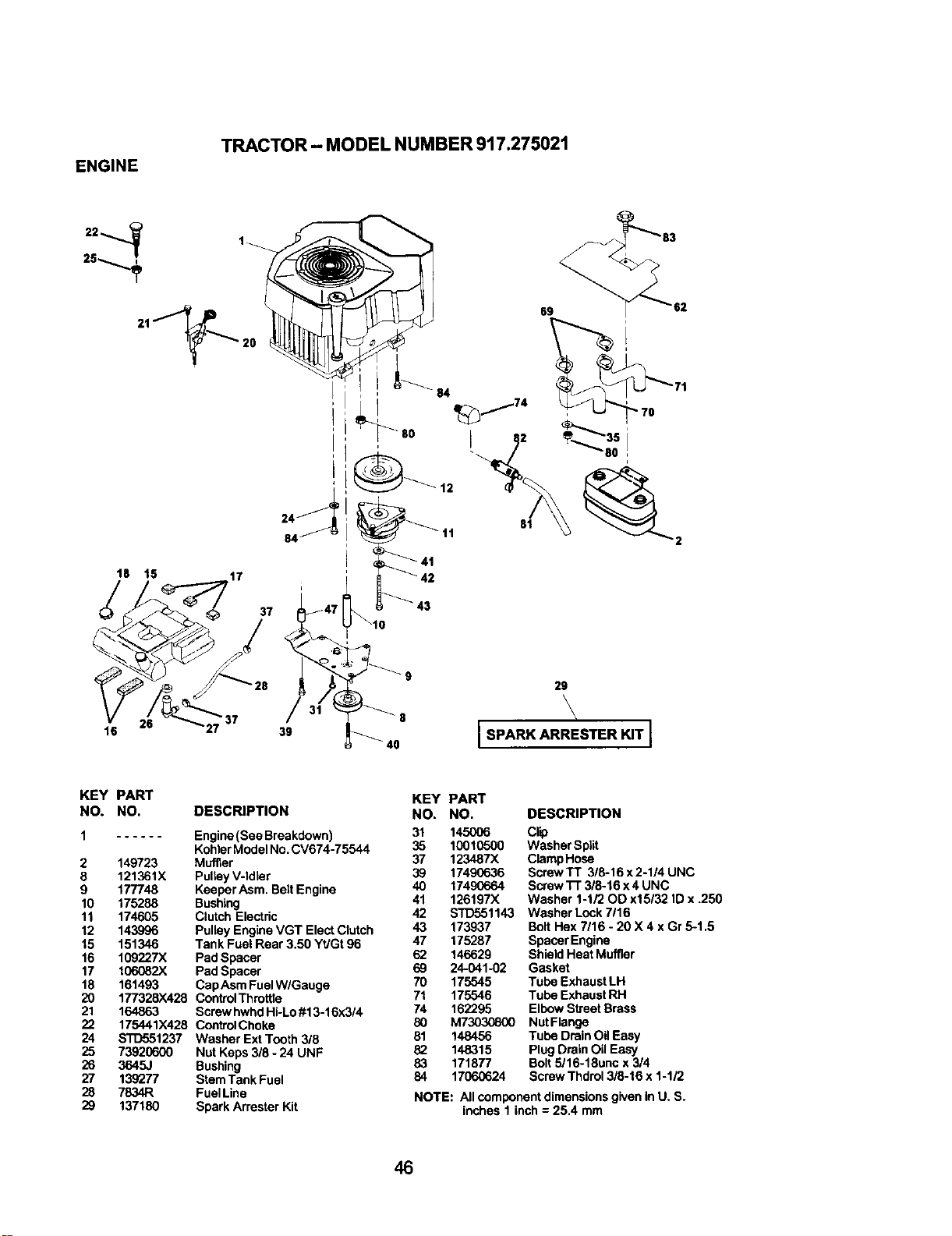

ENGINE

TRACTOR - MODEL NUMBER 917.275021

21"_JP 20

18 t5 17

I SPARK ARRESTER KIT I

KEY PART

NO. NO. DESCRIPTION

1 ......

2 149723

8 121361X

9 177748

10 175288

11 174605

12 143996

15 151346

16 109227X

17 106o082X

18 161493

20 177328)(428

21 164863

22 175441X428

24 STD551237

25 73920600

26 3645J

27 139277

28 7834R

29 137180

Engine (See Breakdown

Kohter Model No. CV674-75544

Muffler

Pulley V-Idler

Keepor Asm. Belt Engine

Bushing

Clutch Electric

Pulley Engine VGT Elect Crutch

Tank Fuel Rear 3.50 YtJGt 96

Pad Spacer

Cap Asm Fuel W/Gauge

Control Threttte

Screw hwhd Hi-Lo #13-16x314

Control Choke

Washer Ext Tooth 318

Nut Keps 3/8 - 24 UNF

Bushing

Stem Tank Fuel

Fuel Line

Spark Arrester Kit

KEY

NO.

PART

NO. DESCRIPTION

145006 Clip

10010500 Washer Split

123487X Clamp Hose

17490636 Screw TT 3/8-16 x 2-1/4 UNC

17490664 Screw "CI"3/8-16 x 4 UNC

126197X Washer 1-1i20D x15132 ID x .250

STD551143 Washer Lock 7/16

173937 Bolt Hex 7/16 - 20 X 4 x Gr 5-1.5

175287 Spacer Engine

146629 Shield Heat Muffler

24-041-02 Gasket

175545 Tube Exhaust LH

175546 Tube Exhaust RH

162295 Elbow Skeet Brass

M7303GS00 Nut Flange

148456 Tube Drain Oil Easy

148315 Plug Drain Oil Easy

171877 Bolt 5/16-18unc x 3/4

17060624 Screw Thdrol 3/8-16 x 1-1/2

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

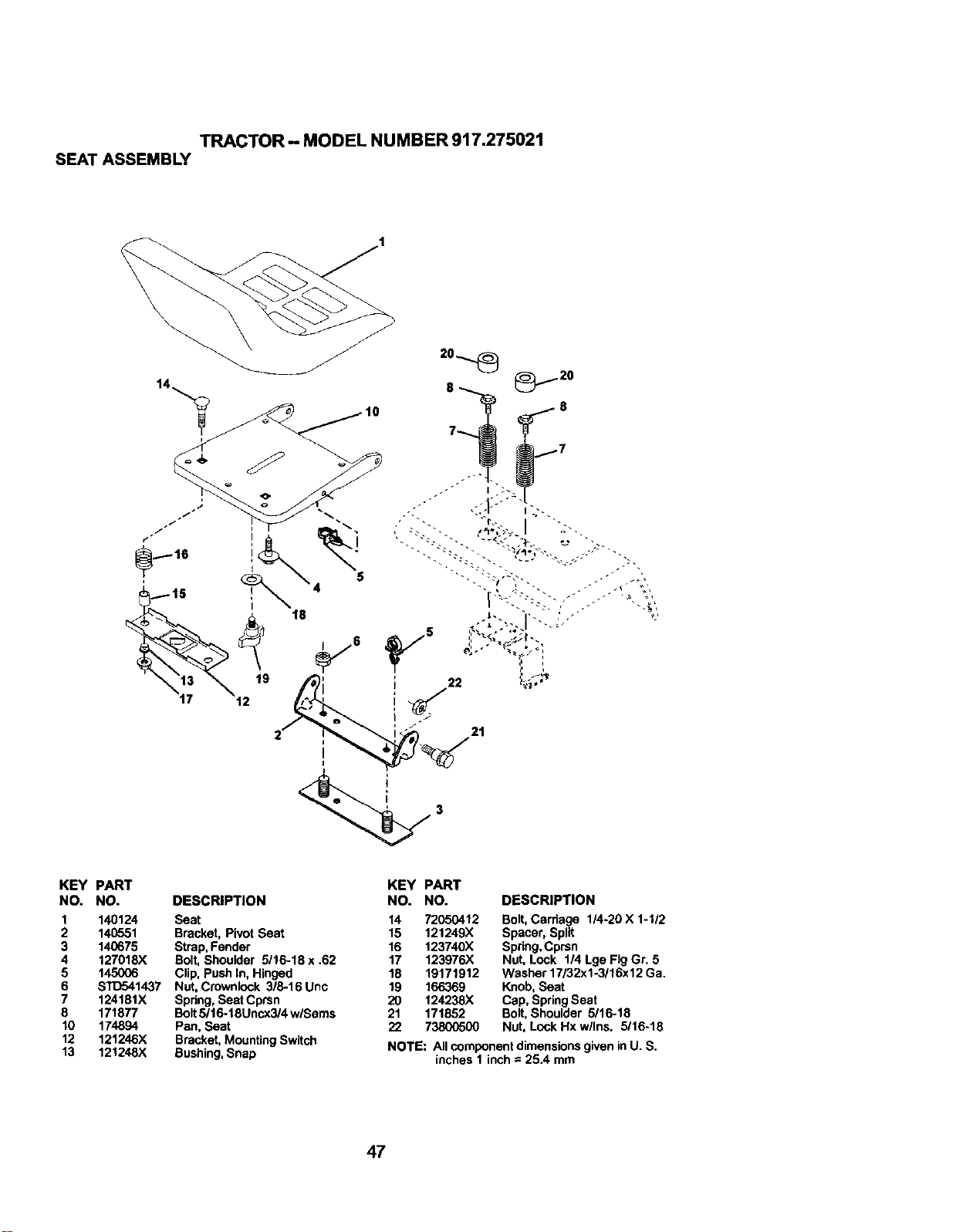

TRACTOR- MODEL NUMBER 917.275021

SEAT ASSEMBLY

KEY PART

NO. NO.

1 140124

2 140551

3 140675

4 127018X

5 145O06

6 STD541437

7 124181X

8 171877

10 174894

12 121246X

13 121248X

DESCRIPTION

Seat

Bracket, Pivot Seat

Strap, Fender

Bolt, Shoulder 5116-18 x .62

Clip, Push in, Hinged

Nut, Crownlock 3/8-16 Unc

Spdng, Seat Cpran

Bolt 5116-18Uncx3/4 w/Sems

Pan, Seat

Bracket, Mounting Switch

Bushing, Snap

KEY PART

NO. NO. DESCRIPTION

14 72050412 Bolt, Carriage 114-20 X 1-1/2

15 121249X Spacer, Split

16 123740X Spdng, Cprsn

17 123976X Nut, Lock 1/4 Lge Fig Gr. 5

18 19171912 Washer 17/32x1-3/16x12 Ga.

19 166369 Knob, Seat

20 124238X Cap, Spring Seat

21 171852 Bolt, Shoulder 5/16-18

22 73800500 Nut, Lock Hx w/Ins. 5116-18

NOTE: Allcomponentdimensionsgivenin U. S.

inches1 inch = 25.4 mm

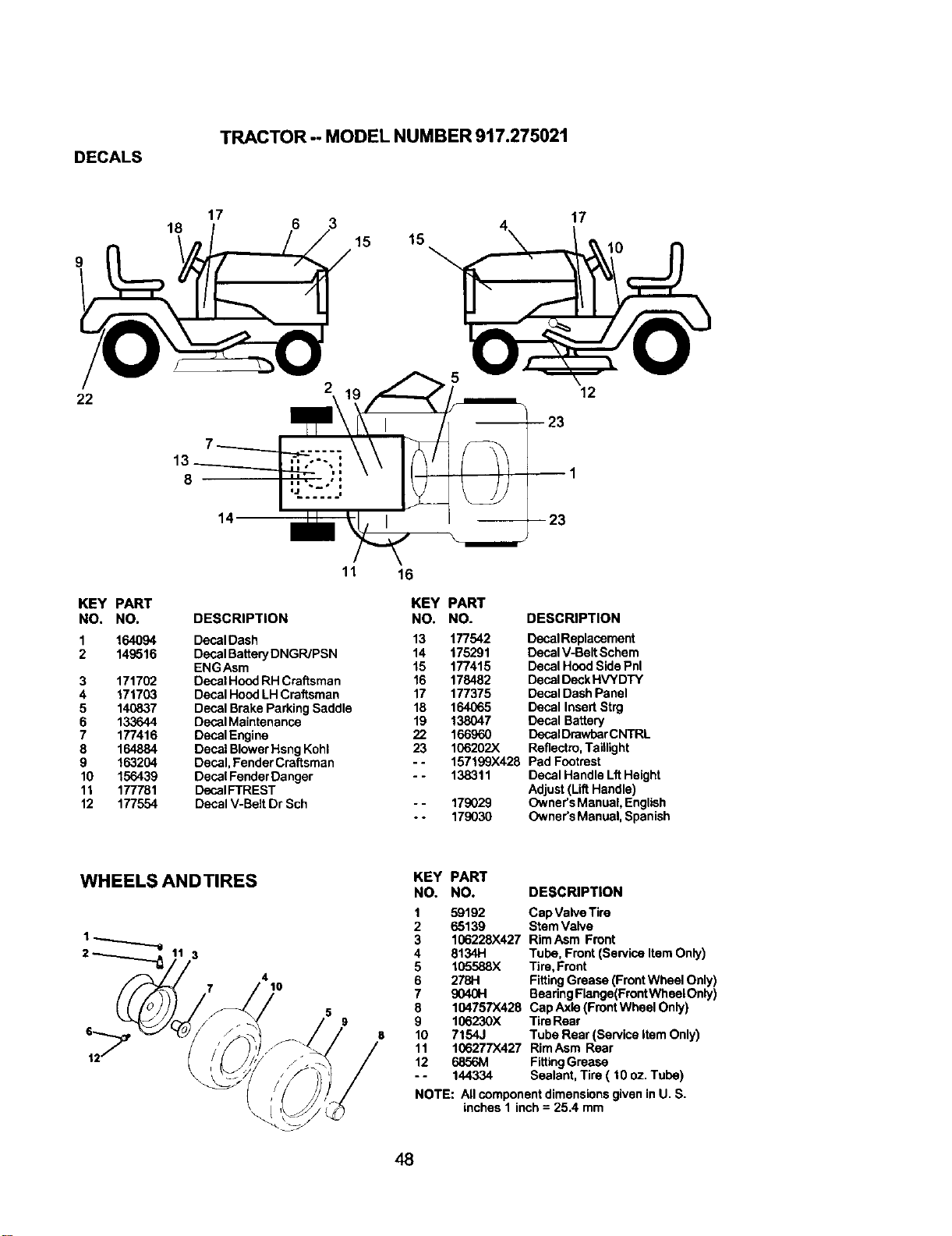

DECALS

TRACTOR - MODEL NUMBER 917.275021

6 3

15 15

-- --23

----23

11 16

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 164094 DecalDash 13 177542 DecalReplacament

2 149516 DecalBatteryDNGR/PSN 14 175291 DecalV-BeltSchem

ENGAsm 15 177415 Decal HoodSidePnl

3 171702 DecalHoodRHCraftsman 16 178482 DecalDeckHVYDTY

4 171703 DecalHoodLH Craftsman 17 177375 DecalDashPanel

5 140837 Decal Brake ParkingSaddle 18 164065 Decal InsertStrg

6 133644 DecalMaintenance 19 138047 Decal Battery

7 177416 DecalEngine 22 166960 D6calDrawberCNTRL

8 164884 Decal BlowerHsngKohl 23 106202X Reflectro,Taillight

9 163204 Decal,FenderCraftsman -- 157199X428 PadFootrest

10 156439 Decal FenderDanger -- 138311 DecalHandleLftHeight

11 177781 DecaIFTREST Adjust(LiftHandle)

12 177554 DecalV-Belt Dr Sch - - 179029 Owner'sManual,English

- - 179030 Owner's Manual,Spanish

WHEELS ANDTIRES

7 10

KEY PART

NO. NO. DESCRIPTION

1 59192 CapValveTire

2 65139 StemValve

3 106228X427 RimAsm Front

4 8134H Tube, Front(ServiceItem Only)

5 105588X Tire,Front

6 2781-1 FittingGrease (FrontWheelOnly)

7 904011 BeeringFlange(FrontWheelOnly)

8 104757X428 Cap Axle(FrontWheelOnly)

9 106230X TireRear

10 7154J Tube Rear(ServiceItemOnly)

11 106277X427 RimAsm Rear

12 6856M FittingGrease

- - 144334 Sealant,Tire ( 10 oz.Tube)

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

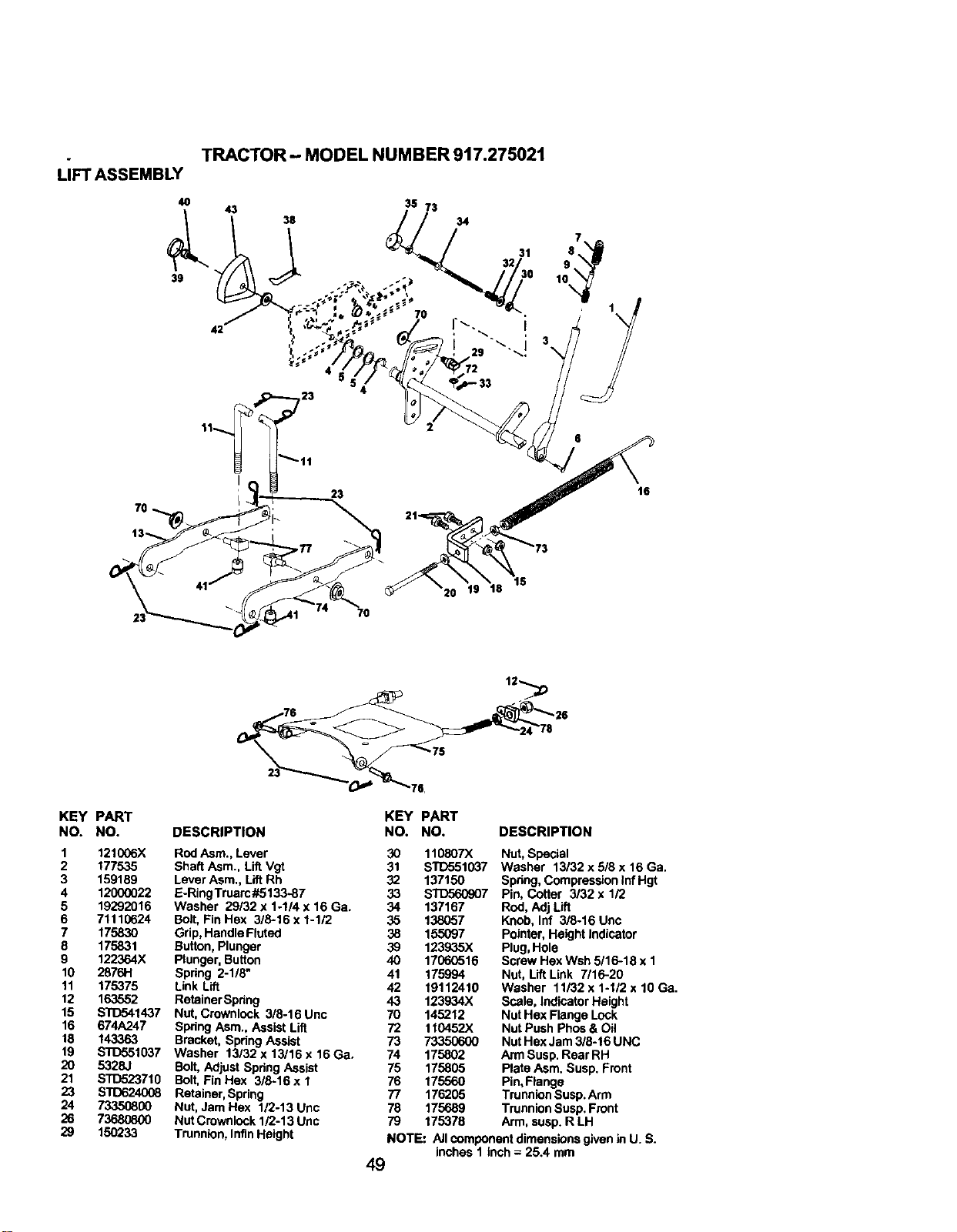

TRACTOR- MODELNUMBER917.275021

LiFTASSEMBLY

35 73

KEY PART

NO. NO.

1 1210O0X

2 177535

3 159189

4 12000022

5 19292016

6 71110624

7 175830

8 175831

9 122364X

10 2876H

11 175375

12 163552

15 S'1"D541437

16 674A,?.47

18 143363

19 s'r0551037

20 5328,)

21 S'rD523710

23 BTD624O08

24 7335O8O0

26 73680800

29 15O233

DESCRIPTION

RodAsm., Lever

ShaftAsm., LiftVgt

LeverAsm., LiftRh

E-RingTruam#5133_87

Washer 29/32 x %1/4 x 16 Ga.

Bolt,FinHex 3/8-16 x 1-1/2

Grip,HandleFluted

Button,Plunger

Plunger,Button

Spring 2-1/8"

LinkLift

RetainerSpring

Nut,Crownlock3/8-16 Unc

SpringAsm., AssistLift

Bracket,SpringAssist

Washer 13/32x 13/16x 16Ga.

Bolt,AdjustSpringAssist

Bolt,FinHex 3/8-16 x 1

Retainer,Spring

Hut,Jam Hex 1/2-13 Unc

NutCrownlock1i2-13Unc

Trunnion,InfinHeight

KEY PART

NO. NO. DESCRIPTION

30 110807)( Nut,Special

31 STD551O07 Washer 13/32 x 518x 16 Ga.

32 137150 Spring,CompressionInfHgt

33 $1"D560907 Pin, Cotter 3/32 x 1/2

34 137167 Rod,Adj Lift

35 138057 Knob,Inf 3/6-16 Unc

38 155097 Pointer,HeightIndicator

39 123935X Plug,Hole

40 1706G516 ScrewHexWsh 5/16-18 x1

41 175994 Nut, Lift Link 7116-20

42 19112416 Washer 11/32 x 1-II2 x 10Ga,

43 123934X Scale, IndicatorHeight

70 145212 Nut HexFlangeLock

72 110452X Nut PushPhos& Oil

73 73350600 Nut HexJam3/8-16 UNC

74 175802 ArmSusp.Rear RH

75 175805 Plate Asm. Susp.Front

76 175560 Pin.Flange

77 176205 TrunnionSusp.Arm

78 175689 TrunnionSusp.Front

79 175378 Arm,susp.R LH

NOTE: All component dimensions given in U. S.

inches 1 Inch = 25.4 mm

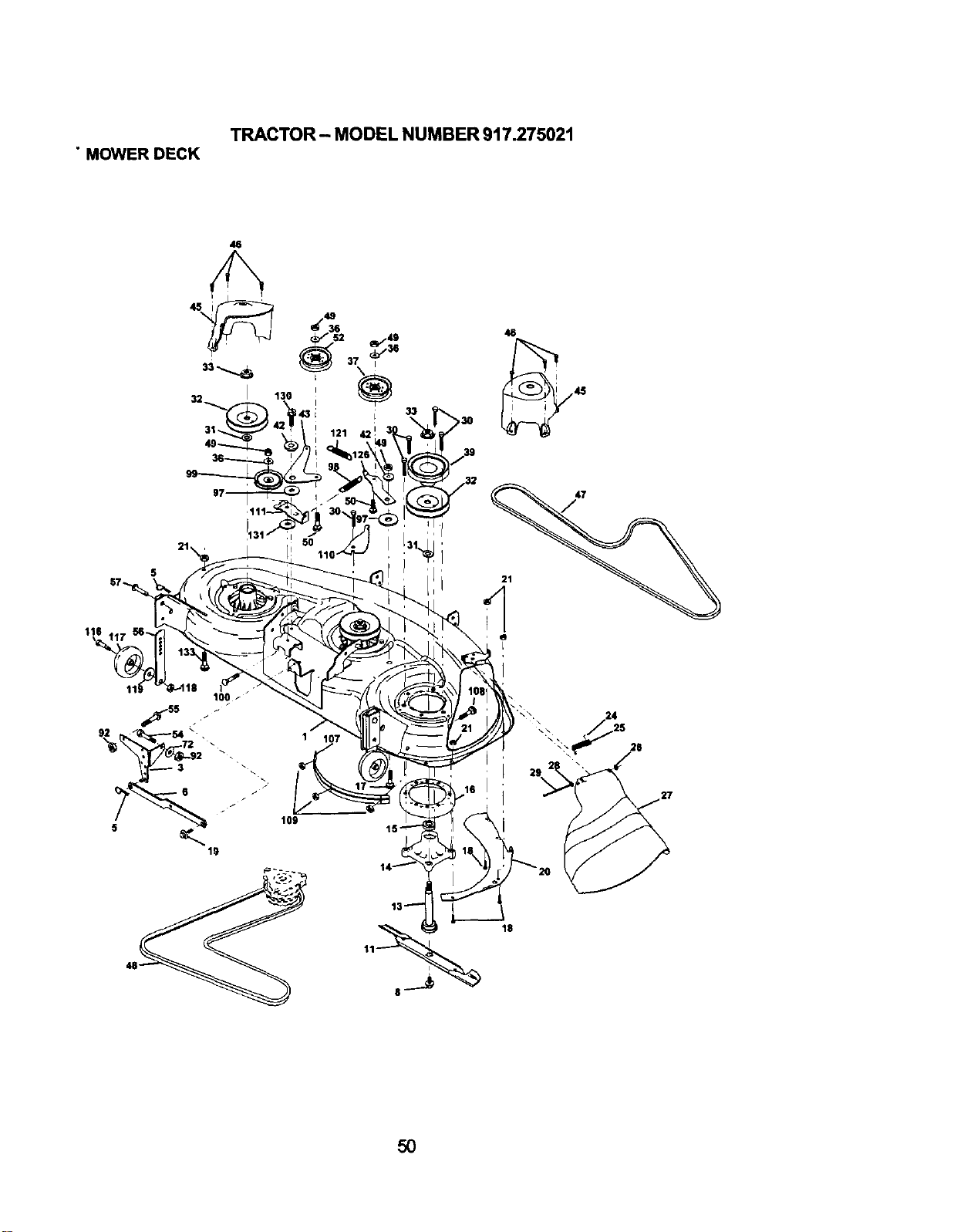

"MOWER DECK

TRACTOR- MODEL NUMBER 917.275021

130 i 45

116

107

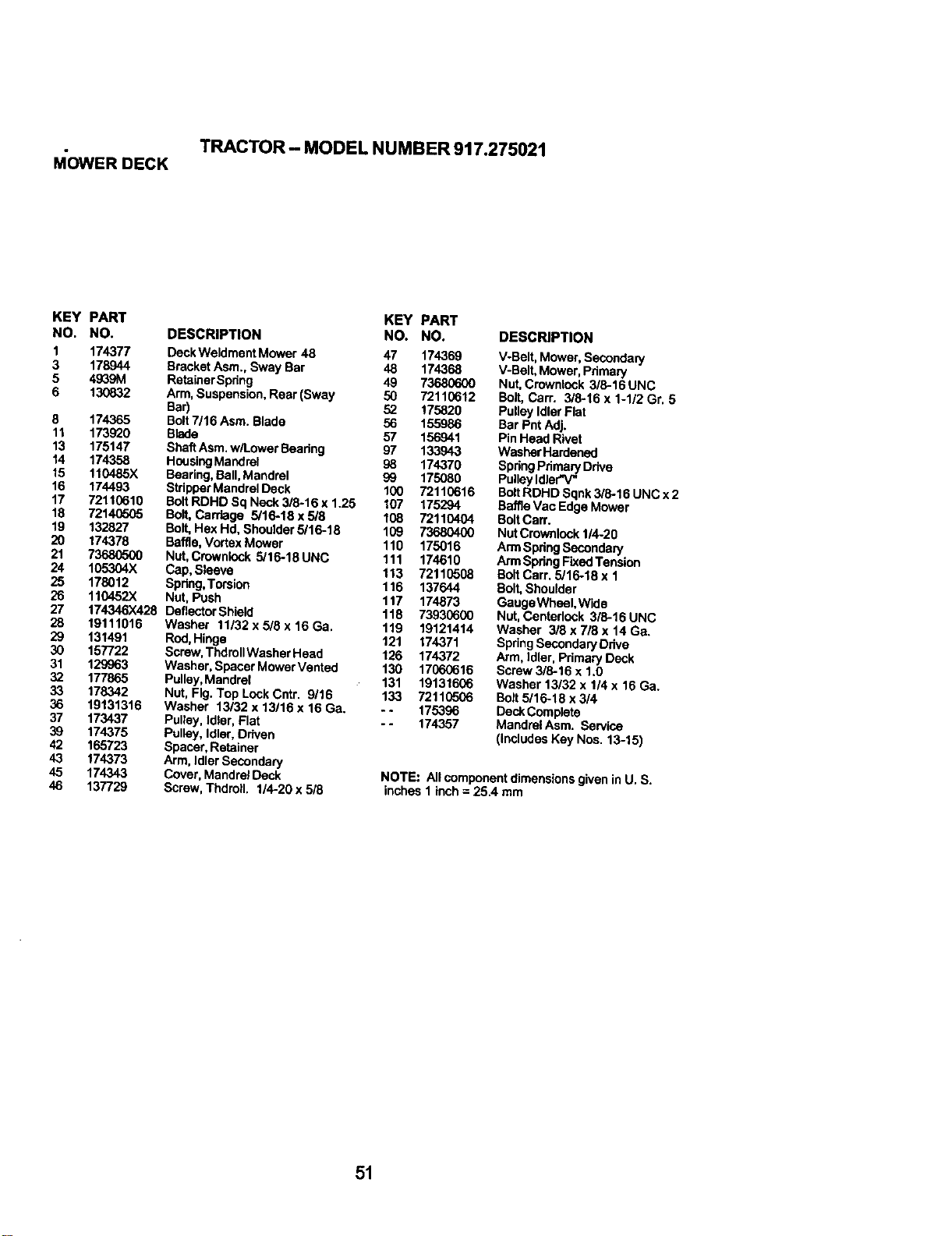

MOWER DECK

TRACTOR- MODEL NUMBER 917.275021

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 174377 DeckWeldmentMower 48 47 174369

3 178944 BracketAsm., Sway Bar 48 174368

5 4939M RetainerSpdng 49 73680600

6 130832 Arm,Suspension,Rear(Sway 50 72110612

Bar) 52 175820

8 174365 Bolt7116Asm.Blade 56 155986

11 173920 Blade 57 156941

13 175147 ShaftAsm.w/LowerBearing 97 133943

14 174358 HousingMandrel 98 174370

16 110485X Bearing,Ball,Mandrel 99 175080

16 174493 StripperMan,alterDeck 100 72110616

17 72110610 BoltRDHD Sq Neck3/6-16 x 1.25 107 175294

18 72140505 Bolt,Carriage 5/16-18 x 5/8 108 72110404

19 132827 Bolt,Hex Hd,Shoulder5/16-18 109 73680400

20 174378 Baffle,VortexMower 110 175016

21 73680500 Nut,Crownlock5/16-18UNC 111 174610

24 105304X Cap,Sleeve 113 72110508

25 178012 Spdng,Torsion 116 137644

26 110452X Nut, Push 117 174873

27 174346X428 DeflectorShield 118 739306o00

28 19111016 Washer 11/32 x 5/8 x 16 Ga. 119 19121414

29 131491 Rod,Hinge 121 174371

30 157722 Screw,ThdmllWasherHead 126 174372

31 129963 Washer,SpacerMowerVen'ted 130 17060616

32 177865 Pulley,Mandrel 131 19131606

33 178342 Nut, Fig.Top Lock Cntr. 9/16 133 72110506

36 19131316 Washer 13/32 x 13/16 x 16 Ga. - - 175396

37 173437 Pulley,Idler, Flat - - 174357

39 174375 Pulley,Idler, Driven

42 165723 Spacer,Retainer

43 174373 Arm, IdlerSecondary

45 174343 Cover,MandrelDeck

46 137729 Screw,Thdroll. 114-20x518

DESCRIPTION

V-Belt, Mower,Secondary

V-BelLMower,Pdmary

Nut,Crownlock3/8-16 UNC

Bolt,Carr, 3/8-16 x 1-1/2 Gr. 5

PulleyIdlerFlat

Bar Pnt Adj.

PinHeadRivet

WasherHardened

SpringPdmaryDrive

PulleyIdler"V"

BoltROHD Sqnk3/6-16 UNC x2

BaffleVasEdgeMower

BoltCarr.

Nut Crownlock1/4-20

ArmSpringSecondary

Arm SpringFixedTension

BoltCarr.5/16-18 x 1

Bolt, Shoulder

GaugeWheeI,Wide

Nut,Centedock 318-16UNC

Washer 3/8 x 7/8 x 14 Ga.

SpringSecondaryDdve

Arm, idler, PrimaryDeck

Screw3/6-16 x 1,0

Washer 13/32 x 1/4 x 16 Ga.

Bolt5/16-18 x3/4

DeckComplete

MandrelAsm. Service

(IncludesKey Nos. 13-15)

NOTE: AllcomponentdimensionsgiveninU, S.

inches1 inch= 25.4 mm

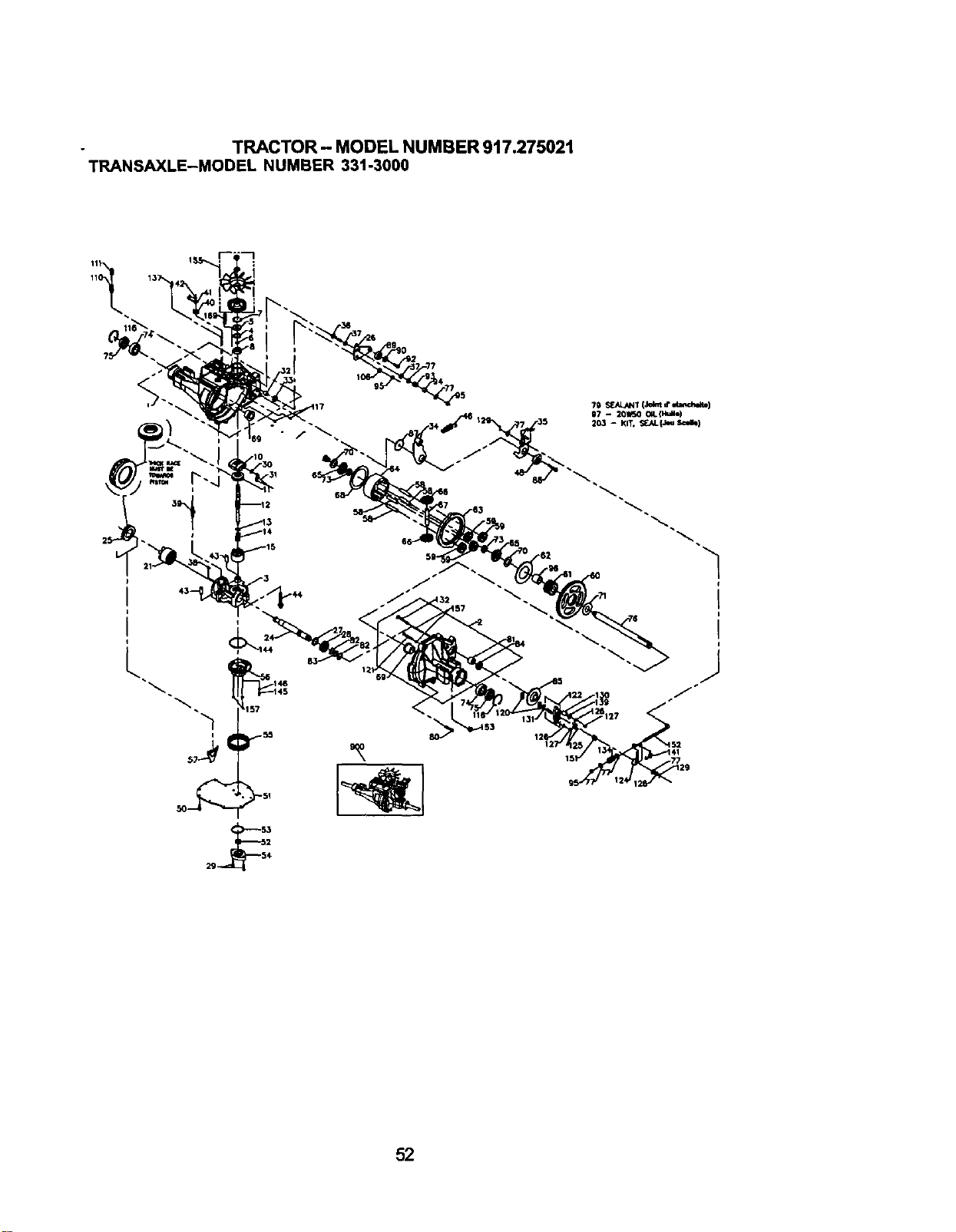

TRACTOR- MODEL NUMBER 917.275021

TRANSAXLE-MODEL NUMBER 331-3000

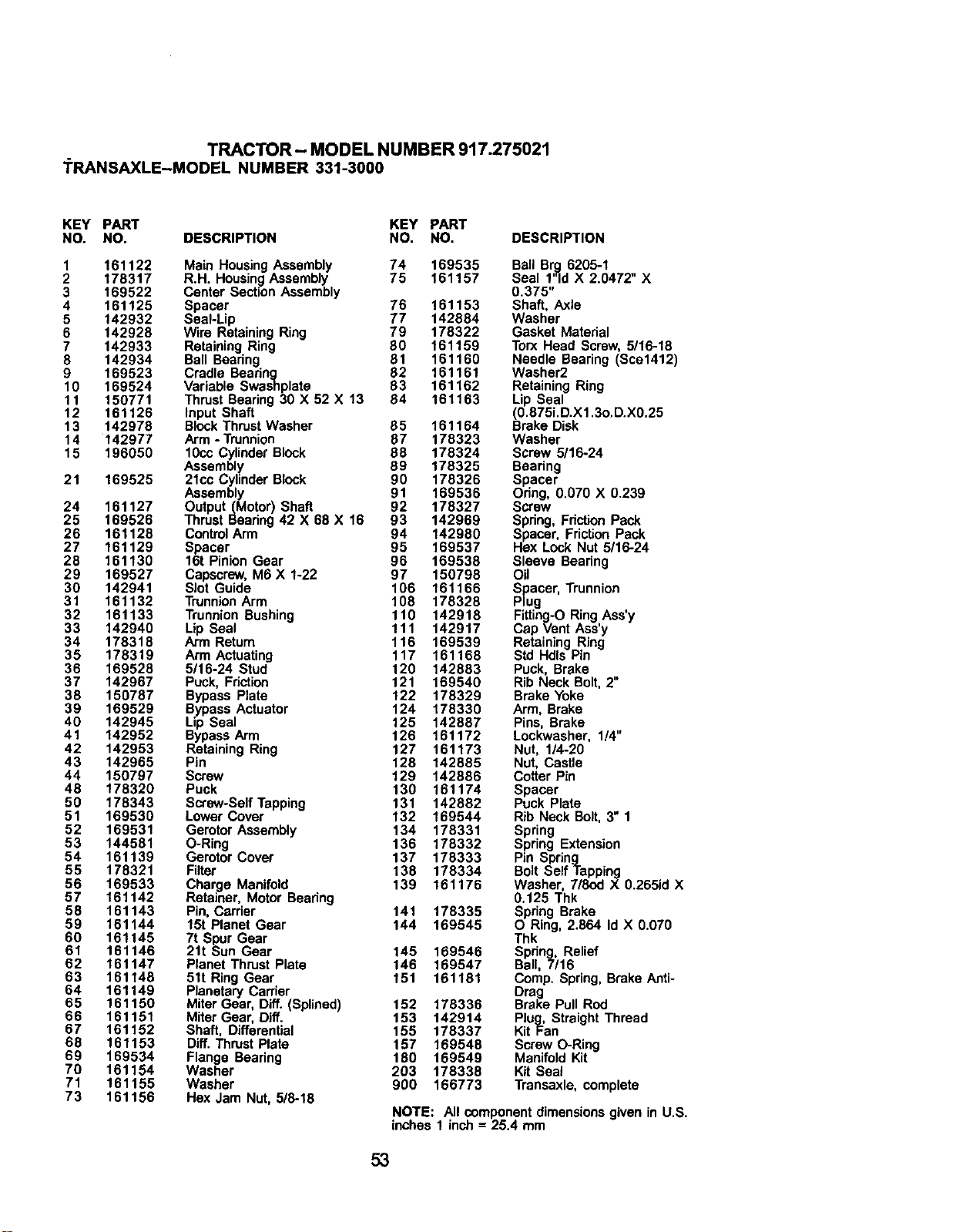

TRACTOR- MODELNUMBER917.275021

TRANSAXLE-MODELNUMBER331-3000

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 161122 Main Housing Assembly 74 169535

2 178317 R.H. Housing Assembly 75 161157

3 169522 Center Section Assembly

4 161125 Spacer 76 161153

5 142932 Seal-Lip 77 142884

6 142928 Wire Retaining Ring 79 178322

7 142933 Retaining Ring 80 161159

8 142934 Ball Bearing 61 161160

9 169523 Cradle Bearing 82 161161

10 169524 Variable Swashplate 93 161162

11 150771 Thrust Bearing 30 X 52 X 13 64 161163

12 161126 Input Shaft

13 142978 Block Thrust Washer 65 161164

14 142977 Arm -Trunnion 87 178323

15 196050 10cc Cylinder Block 88 178324

Assembly 89 178325

21 169525 21cc Gyhnder Block 90 178326

Assembly 91 169536

24 161127 Output(Motor) Shaft 92 178327

25 169526 Thrust Bearing 42 X 68 X 16 93 142969

26 161128 Control Arm 94 142980

27 161129 Spacer 95 169537

28 161130 16t Pinion Gear 98 169538

29 169527 Capscrew, M6 X 1-22 97 150798

30 142941 Slot Guide 106 161166

31 161132 Trunnion Arm 108 178328

32 161133 Trunnion Bushing 110 142918

33 142940 Lip Seal 111 142917

34 178318 Arm Retum 116 169539

35 178319 Arm Actuating 117 161168

36 169528 5/16-24 Stud 120 142883

37 142967 Puck, Friction 121 169540

38 150787 Bypass Plate 122 178329

39 169529 Bypass Actuator 124 178330

40 142945 Lip Seal 125 142887

41 142952 Bypass Arm 126 161172

42 142953 Retaining Ring 127 161173

43 142965 Pin 128 142885

44 150797 Screw 129 142886

48 178320 Puck 130 161174

50 178343 Screw-Self Tapping 131 142882

51 169530 Lower Cover 132 169544

52 169531 Gerotor Assembly 134 178331

53 144581 O-Ring 136 178332

54 161139 Gerotor Cover 137 178333

55 178321 Filter 138 178334

56 169533 Charge Manifold 139 161176

57 161142 Retainer, Motor Bearing

58 161143 Pin, Carder 141 178335

59 161144 15t Planet Gear 144 169545

60 161145 7t Spur Gear

61 161146 21t Sun Gear 145 169546

62 161147 Planet Thrust Plate 146 169547

63 161148 51t Ring Gear 151 161181

64 161149 Planetary Carder

65 161150 MiterGear, Diff. (Splined) 152 176336

66 161151 Miter Gear, Diff. 153 142914

87 161152 Shaft, Differential 155 178337

68 161153 Diff. Thrust Plate 157 169548

69 169534 Flange Bearing 160 169549

70 161154 Washer 203 178338

71 161155 Washer 900 166773

73 161156 Hex Jam Nut, 5/8-18

DESCRIPTION

Ball Brg 6205-I

Seal l"ld X 2.0472" X

0.375"

Shaft, Axle

Washer

Gasket Material

Torx Head Screw, 5/16-18

Needle Bearing (Sce1412)

Washer2

Retaining Ring

Lip Seal

(0,875i.D.X1.3o.D.X0.25

Brake Disk

Washer

Screw 5116-24

Bearing

Spacer

Odng, 0,070 X 0.239

Screw

Spring, Friction Pack

Spacer, Friction Pack

Hax Lock Nut 5/16-24

Sleeve Beadng

Oil

Spacer, Trunnion

Plug

Fitting-O Ring Ass'y

Cap Vent Ass'y

Retaining Ring

Std Hdls Pin

Puck, Brake

Rib Neck Bolt, 2"

Brake Yoke

Arm, Brake

Pins, Brake

Lockwasher, 1/4"

Nut, 1/4-20

Nut, Castle

Cotter Pin

Spacer

Puck Plate

Rib Neck Bolt, 3" 1

Spring

Spring Extension

Pin Spring

Bolt Self Tapping

Washer, 7/8od X 0.265id X

0,125 Thk

Spring Brake

O Ring, 2,864 Id X 0.070

Thk

Spring, Relief

Ball, 7/16

Comp. Spring, Brake Anti-

Drag

Brake Pull Rod

Plug, Straight Thread

KitFan

Screw O-Ring

Manifold Kit

Kit Seal

Transaxlo, complete

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

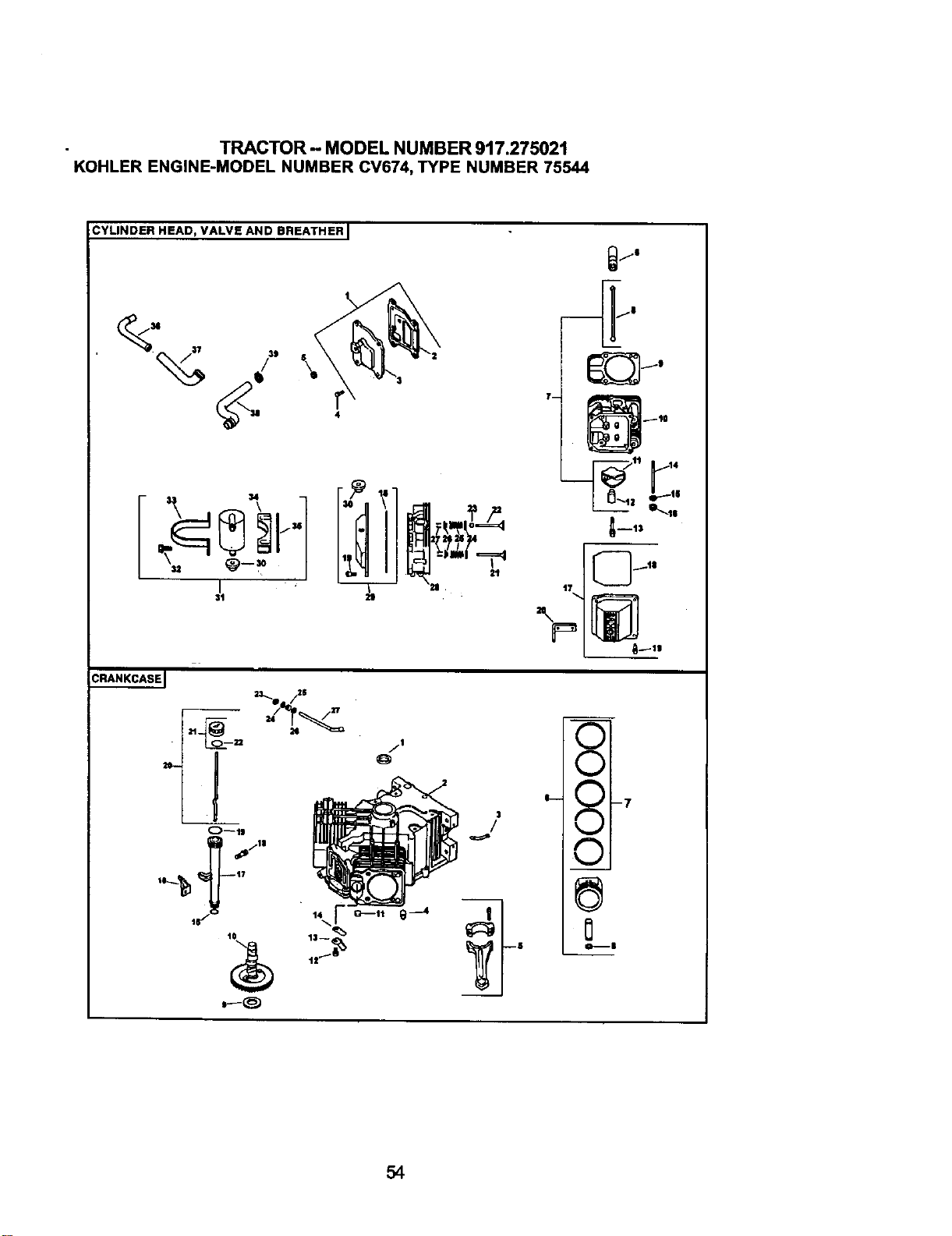

TRACTOR - MODEL NUMBER 917.275021

KOHLER ENGINE-MODEL NUMBER CV674, TYPE NUMBER 75544

CYLINDER HEAD, VALVE AND BREATHER I

CRANKCASEJ

o-_le

$--

-7

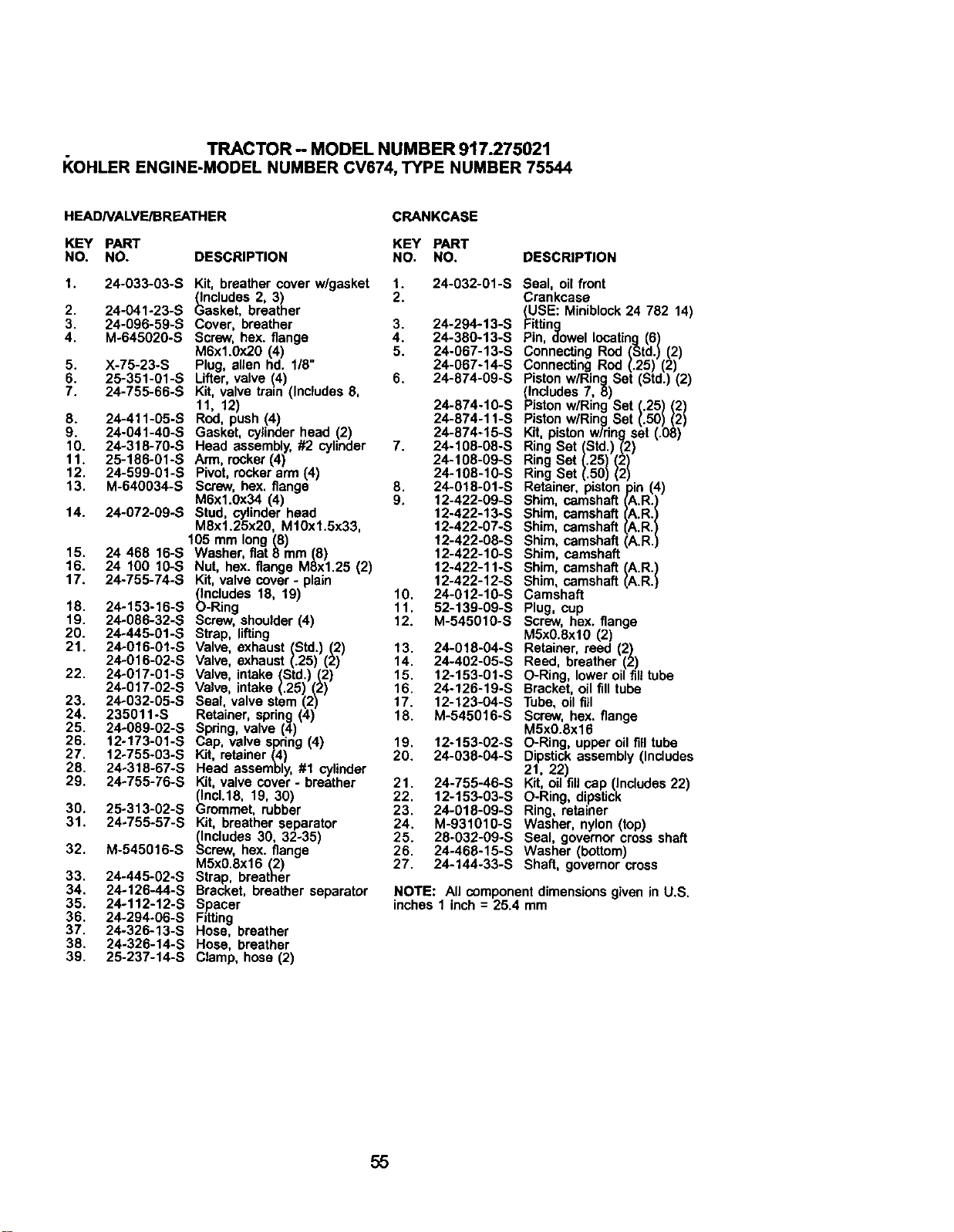

TRACTOR - MODEL NUMBER 917.275021

I(OHLER ENGINE-MODEL NUMBER CV674, TYPE NUMBER 75544

HEADNALVE/BREATHER CRANKCASE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1. 24-033-03-S Kit, breather cover w/gasket 1. 24-032-01-S

(Includes 2, 3) 2.

2. 24-041-23-S Gasket, breather

3. 24-096-59-S Cover, breather 3. 24-294*13-S

4. M-645020-S Screw, hex. flange 4. 24-380-13-S

M6xl.0x20 (4) 5. 24-067-13-S

5. X-75-23-S Plug, allen hd, 1/8" 24-067-14-S

6. 25-351-01-S Lifter, valve (4) 6, 24-874-09-S

7. 24-755-66-S Kit, valve train (Includes 8,

11, 12) 24-874°10-S

8. 24-411-05-S Rod, push (4) 24-874-11-S

9. 24-041-40-S Gasket, cylinder head (2) 24-874-15-S

10. 24-318-70-S Head assembly, #2 cylinder 7. 24-108-08-S

11. 25-186-01-S Arm, rocker (4) 24-108-09-S

12. 24-599-01-S Pivot, rocker arm (4) 24-108-10-S

13. M-640034-S Screw, hex. flange 8. 24°018-01-S

M6xl.0x34 (4) 9. 12-422-09-S

14. 24-072-09-S Stud, cylinder head 12-422-13-S

M8xl.25x20, M10x1.5x33, 12-422-07-S

105 mm long (8) 12-422-08-S

15. 24 468 16-S Washer, flat 8 mm (8) 12-422-10-S

16. 24 100 10-S Nut, hex. flange M8x1.25 (2) 12-422-11-S

17. 24-755-74-S Kit, valve cover - plain 12-422-12-S

(Includes 18, 19) 10. 24-012-10-S

18. 24-153-16-S O-Ring 11. 52-139-09-S

19. 24-086-32-S Screw, shoulder (4) 12. M-545010-S

20. 24-445-01-S Strap, lifting

21. 24-016-01-S Valve, exhaust (Std.) (2) 13. 24-018-04-S

24-016-02-S Valve, exhaust (.25) (2) 14. 24-402-05-S

22. 24-017-01-S Valve, intake (Std,) (2) 15, 12-153-01-S

24-017-02-S Valve, intake (,25) (2) 16. 24-128-19-S

23. 24-032-05°S Seal, valve stem (2) 17. 12-123-04-S

24. 235011-S Retainer, spdng (4) 18. M-545016-S

25. 24-089-02-S Spring, valve (4)

26. 12-173-01-S Cap, valve spdng (4) 19, 12-153-02-S

27, 12-755°03-S Kit, retainer (4) 20. 24-038-04-S

28. 24-318-67-S Head assembly, #1 cylinder

29. 24-755-76-S Kit, valve cover - breather 21. 24-755-46-S

(Inc1.18, 19, 30) 22, 12-153-03-S

30. 25-313-02-S Grommet, rubber 23. 24-018-09-S

31. 24o755-57-S Kit, breather separator 24, M-931010-S

(Includes 30, 32-35) 25. 28-032-09-S

32. M-545016-S Screw, hex. flange 26. 24-468-15-S

M5x0.8x16 (2) 27. 24-144-33-S

33. 24-445-02-S Strap, breather

34. 24-126-44-S Bracket, breather separator

35. 24-112-12-S Spacer

36. 24-294-06-S Fitting

37, 24-326-13-S Hose, breather

38. 24-326-14-S Hose, breather

39. 25-237-14-S Clamp, hose (2)

Seal, oil front

Crankcase

FUSE: Miniblock 24 782 14)

itting

Pin, dowel locating (6)

Connecting Rod (Std.) (2)

Connecting Rod (.25) (2)

Piston w/Ring Set (Std.) (2)

(Includes 7, 8)

Piston wiring Set (.25) (2)

Piston w/Ring Set (.50) (2)

Kit, )iston w/dng set (,08)

Rin._Set (Std,) (2)

Rin! Set (.25) (2)

Rn! Set (,50) (2)

Retl net, piston pin (4)

Shirr camshaft (A.R.)

Shim camshaft (A,R.)

Shim camshaft

ShirrcamshaftShirr camshaft i i

Camshaft

Plug, cup

Screw, hex. flange

M5x0.8xl0 (2)

Retainer, reed (2)

Reed, breather (2)

O-Ring, lower oil fill tube

Bracket, oil fill tube

Tube, oil fitl

Screw, hex. flange

M5x0.8x18

O-Ring, upper oil fill tube

Dipstick assembly (Includes

21, 22)

Kit, oil fill cap (Includes 22)

O-Ring, dipstick

Ring, retainer

Washer, nylon (top)

Seal, governor cross shaft

Washer (bottom)

Shaft, governor cross

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

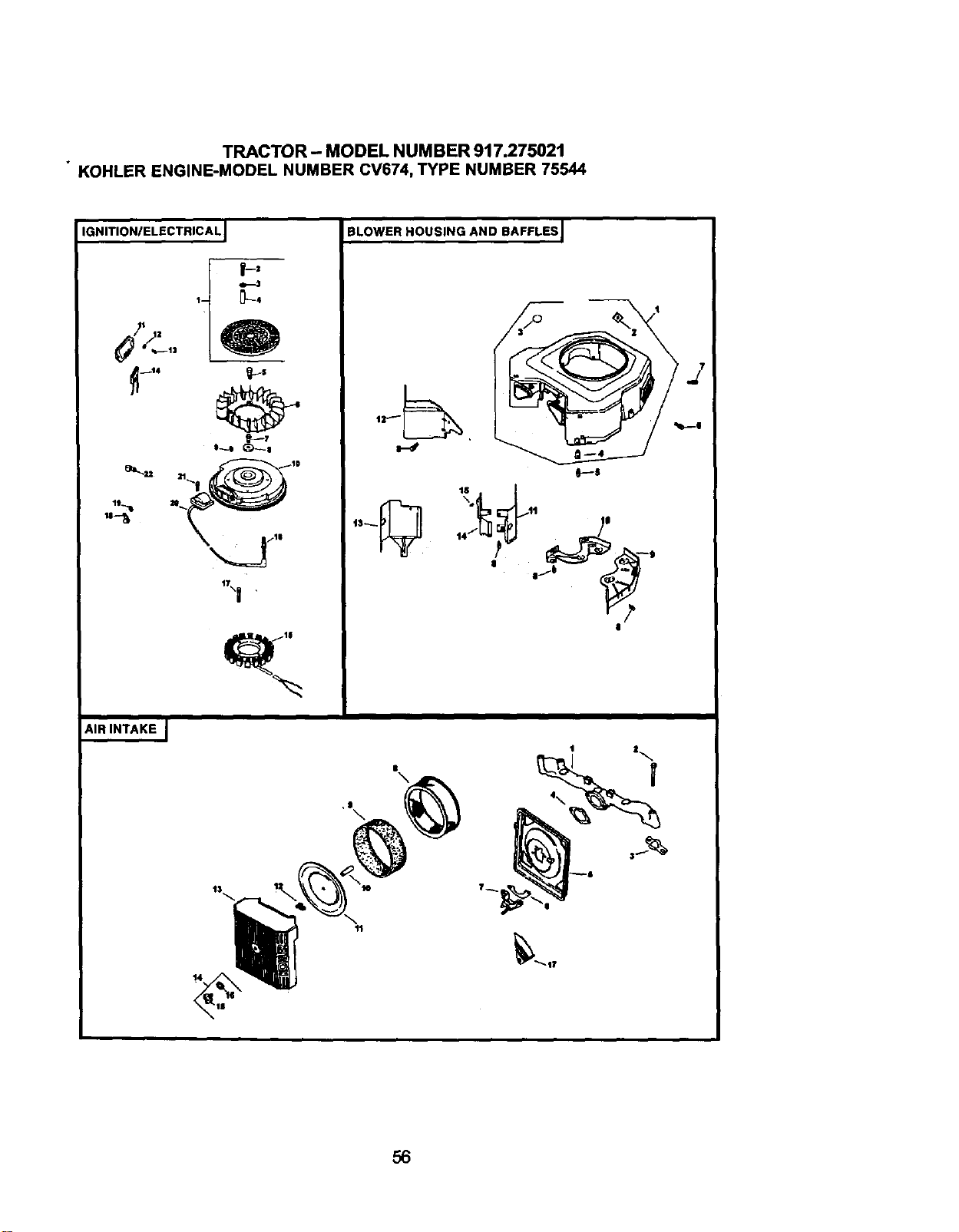

TRACTOR- MODELNUMBER917.275021

" KOHLER ENGINE-MODEL NUMBER CV674, TYPE NUMBER 75544

IGNITION/ELECTRICALI

_h7

I--t _--I

AIR INTAKE I

SLOWER HOUSING AND BAFFLESI

e--S

tl €

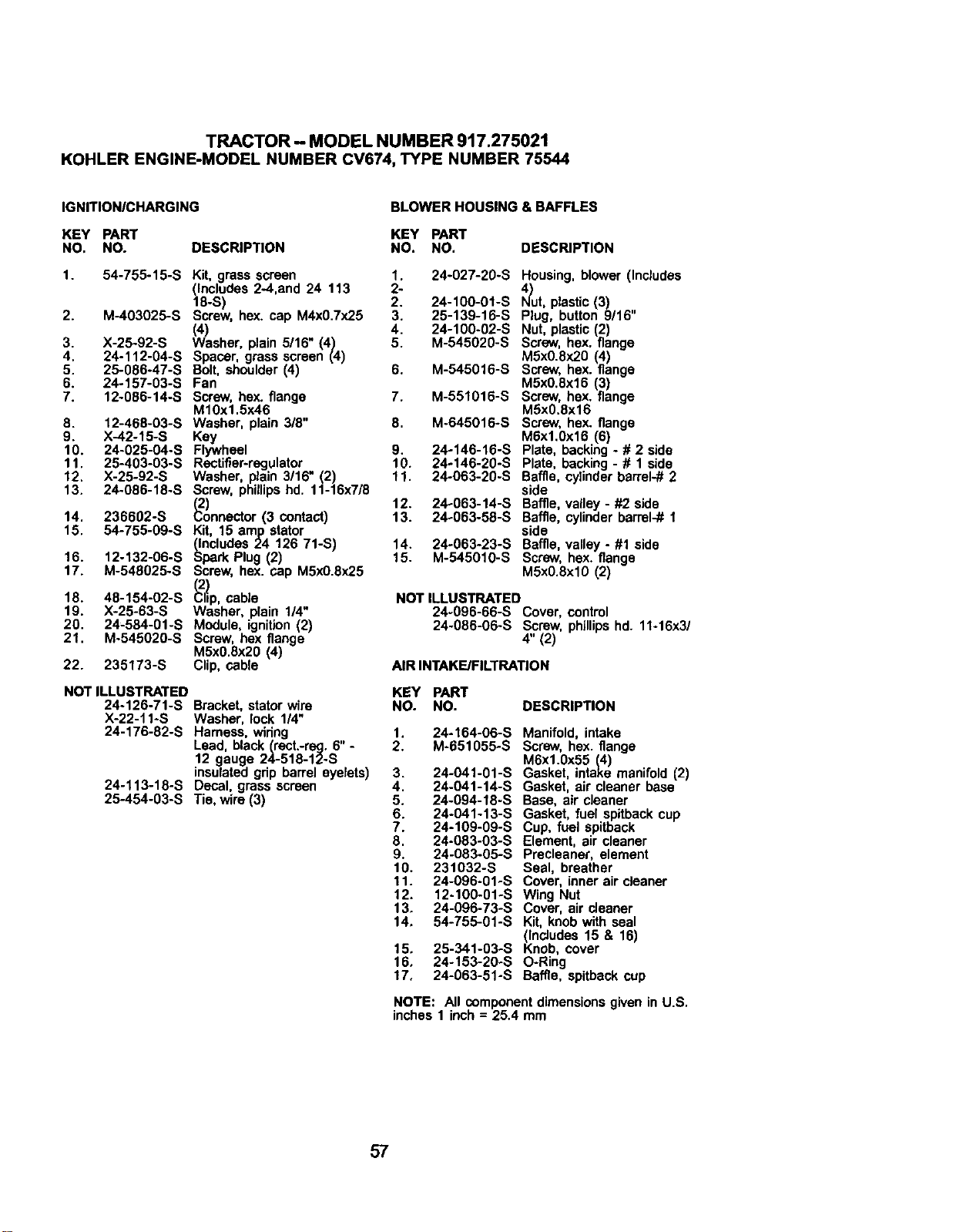

TRACTOR - MODEL NUMBER 917.275021

KOHLER ENGINE-MODEL NUMBER CV674, TYPE NUMBER 75544

IGNITION/CHARGING BLOWER HOUSING & BAFFLES

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1. 54-755-15-S Kit, grass screen 1. 24°027-20-S Housing, blower (Includes

(Includes 2-4,and 24 113 2- 4)

18-S) 2. 24-100-01-S Nut, plastic (3)

2. M-403025-S Screw, hex. cap M4xO7x25 3. 25-139-16-S Plug, button 9/16"

(4) 4. 24-100-02-S Nut, plastic (2)

3 X-25-92-S Washer, plain 5116" (4) 5. M-545020-S Screw, hex. flange

4. 24-112-04-S Spacer, grass screen (4) MSxO.8x20 (4)

5. 25-086-47-S Bolt, shoulder (4) 6. M-545016-S Screw, hex. flange

6. 24-157-03-S Fan M6x0.8x16 (3)

7. 12-086-14-S Screw, hex. flange 7. M-551016-S Screw, hex. flange

M10x1.5x46 M5xO.8x16

8. 12-468-03-S Washer, plain 3/8" 8. M-645016-S Screw, hex. flange

9. X-42-15-S Key . M6xl.0x16 (6)

10. 24-025-04-S Flywheel 9. 24-146-16-S Plate, backing ° # 2 side

11. 25-403-03-S Rectifier-regulator 10. 24-146-20-S Plate, backing - # 1 side

12. X-25-92-S Washer, plain 3/16" (2) 11. 24-063-20-S Baffle, cylinder barrel-# 2

13. 24-086-18-S Screw, phillips hd. 11-16x7/8 side

(,_2) 12. 24-063-14-S Baffle, valley - #2 side

14. 236602-S Connector (3 contact) 13. 24-063-58-S Baffle, cylinder barrel-# 1

15. 54-755-09-S Kit, 15 amp stator side

(Includes 24 126 71-S) 14. 24-063-23-S Baffle, valley - #1 side

16. 12-132-06-S Spark Plug (2) 16. M-545010-S Screw, hex. flange

17. M-548025-S Screw, hex. cap M5x0.8x25 MSx0.8x16 (2)

(2}2

18. 48-154-02-S ('31_p,cable NOT ILLUSTRATED

19. X-25-63-S Washer, plain 1/4" 24-096-66-S Cover, control

20 24-584-01-S Module, ignition (2) 24-086-06-S Screw, phillipshd. 11-16x3/

21. M-545020-S Screw, hex flange 4" (2)

M5x0.8x2O

(4)

22. 235173-S Clip, cable AIR INTAKF-./FILTRATION

NOT ILLUSTRATED KEY PART

24-126-71-S Bracket, stator wire NO. NO.

X-22-11*S Washer, lock 1/4"

24-176-62-S Harness, wiring 1.

Lead, black (rect.-reg. 6" - 2.

12 gauge 24-518-12°S

insulated grip barrel eyelets)

24-113-18-S Decal, grass screen

25-454-03-S Tie, wire (3)

DESCRIPTION

24-164-06-S

M-651055-S

3. 24-041-01-S

4. 24-041-14-S

5. 24-094-18-S

6. 24-041°13-S

7. 24-109-09-S

8. 24-083-03-S

9. 24-083-05-S

10. 231032-S

11. 24-096-01-S

12. 12-100-01-S

13. 24-096-73-S

14. 54-755-01-S

15. 25-341-03°S

16. 24-153-20-S

17, 24-063-51-S

Manifold, intake

Screw, hex. flange

M6x1.0x65 (4)

Gasket, intake manifold (2)

Gasket, air cleaner base

Base, air cleaner

Gasket, fuel spitback cup

Cup, fuel spitback

Element, air cleaner

Precleaner, element

Seal, breather

Cover, inner air cleaner

Wing Nut

Cover, air cleaner

Kit, knob with seal

(Indudes 15 & 16)

Knob, cover

O-Ring

Baffle, spitback cup

NOTE: All component dimensions given in US.

inches 1 inch = 25.4 mm

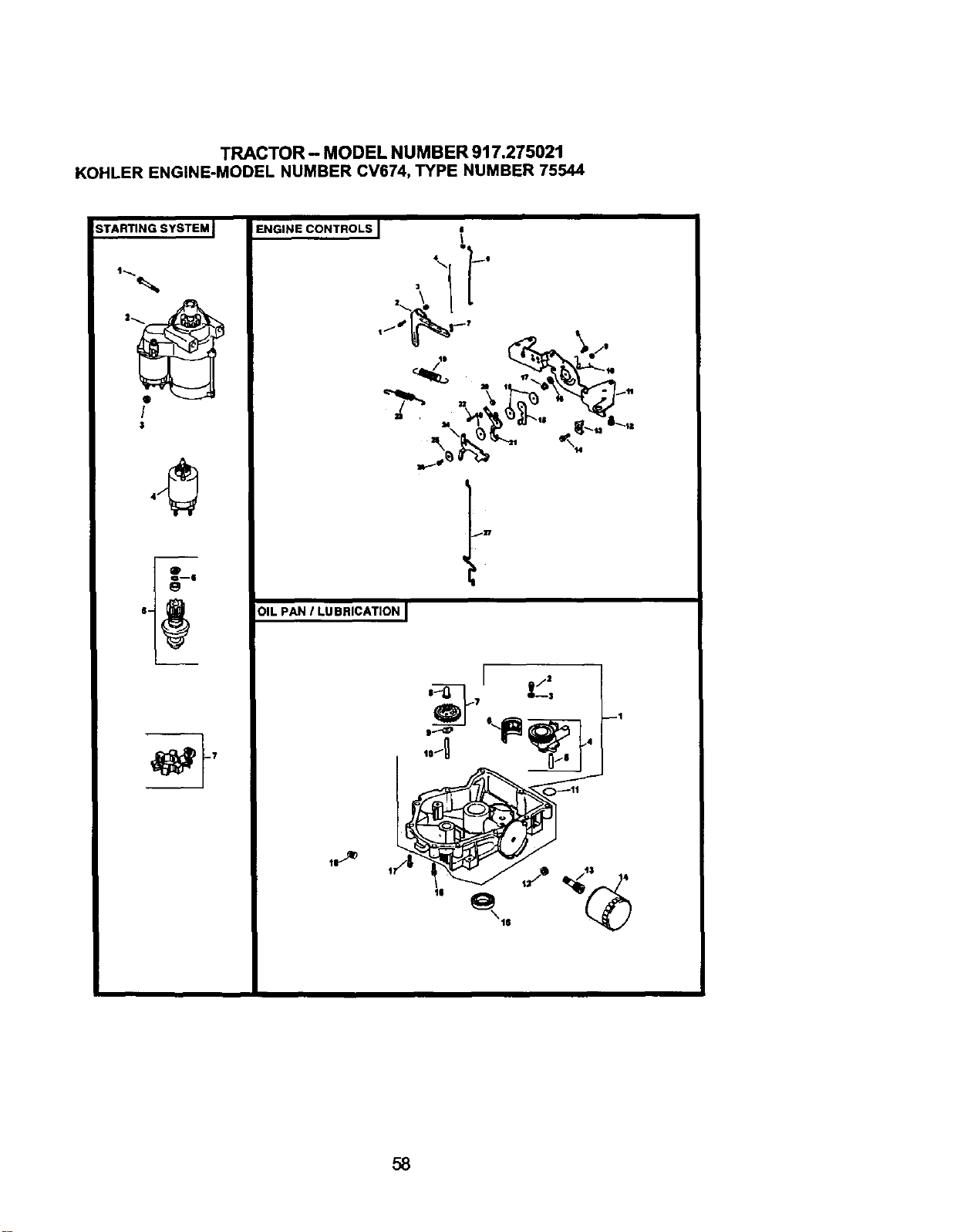

TRACTOR - MODEL NUMBER 917.275021

KOHLER ENGINE-MODEL NUMBER CV674, TYPE NUMBER 75544

STARTING SYSTEM I

ENGINE CONTROLS

2_ _ 7_

(/_ _ !

OIL PAN I LUBRICATION I

/]17

,,._

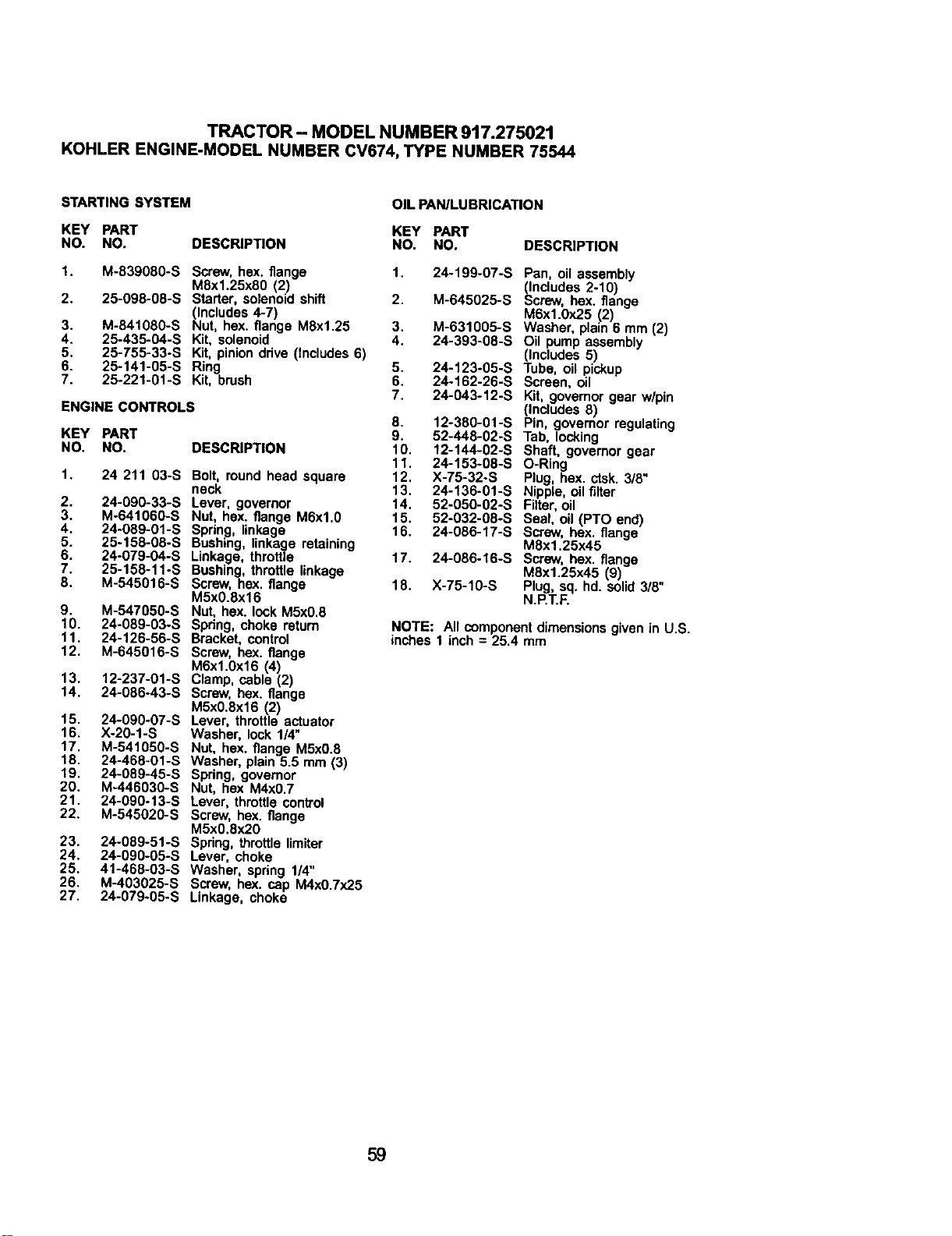

TRACTOR- MODEL NUMBER 917.275021

KOHLER ENGINE-MODEL NUMBER CV674, TYPE NUMBER 75544

STARTING SYSTEM

OIL PAN/LUBRICATION

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

M-839080-S

25-098-08-S

M-841080-S

25-435-04-S

25-755-33-S

25-141-05-S

25-221-01-S

Screw, hex. flange

M8x1.25x80 (2)

Starter, solenoid shift

NInCludes4-7)

ut, hex. flange M8x125

Kit, solenoid

Kit, pinion drive (Includes 6)

Ring

Kit, brush

ENGINE CONTROLS

DESCRIPTION

KEY PART

NO. NO.

24 211 O3-S

24-090-33-S

M-641060-S

24-089-01-S

25-158-08-S

24-079-04-S

25-158-11-S

M-545016-S

M-547050-S

24-089-03-S

24-126-56-S

M-645016-S

12-237-01-S

24-086-43-S

24-090-07-S

X-20-1-S

M-541050-S

24-468°01-S

24-089-45-S

M-446030-S

24-090-13-S

M-545020-S

24-089-51-S

24-090-05-S

41-468-03-S

M-403025-S

24-07g-05-S

Bolt, round head square

neck

Lever, governor

Nut, hex. flange M6xl.0

Spring, linkage

Bushing, linkage retaining

Linkage, throttle

Bushing, throttle linkage

Screw,hex. flange

M5x0.Sx16

Nut, hex. lock M5x0.8

Spring, choke return

Bracket, control

Screw, hex. flange

M6x1.0x16 (4)

Clamp, cable (2)

Screw, hex. flange

M5xg.8x16 (2)

Lever, throttle actuator

Washer, lock 1/4"

Nut, hex. flange M5x0.8

Washer, plain 5.5 mm (3)

Spring, governor

Nut, hex M4x0.7

Lever, threttte control

Screw, hex. flange

M5xO.8x20

Spr_ng,throttle limitar

Lever, choke

Washer, spring 1/4"

Screw, hex. cap M4x0.7x25

Linkage, choke

11.

12.

13.

14.

16.

17.

20.

21.

22.

23.

24.

25.

26.

27.

DESCRIPTION

1. 24-199-07-S Pan, oil assembly

(Includes 2-10)

2. M-645025-S Screw, hex, flange

M6x1.Ox25 (2)

3. M-631005-S Washer, plain 6 mm (2)

4. 24-393-08-S Oil pump assembly

(Includes 5)

5. 24-123-05-S Tube, oil pickup

6. 24*162-26-S Screen, oil

7. 24-043-12-S Kit, governor gear w/pin

(Includes B)

8. 12-380-01-S Pin, governor regulating

9. 52-448-02-S Tab, locking

10. 12-144-02-S Shaft, governor gear

11, 24-153-08-S O-Ring

12, X-75-32-S Plug, hex ctsk. 318"

13. 24-136-01-S Nipple, oil filter

14. 52-050-02-S Filter, oil

15. 52-032-08-S Seal, oil (PTO end)

16. 24-086-17-S Screw, hex. flange

M8x1.25x45

17. 24-086-16-S Screw, hex flange

MSx1.25x45 (9)

18. X-75-10-S Plug, sq. hd. solid 318"

N PT.F.

NOTE: All componentdimensionsgivenin US

inches 1 inch= 25,4 mm

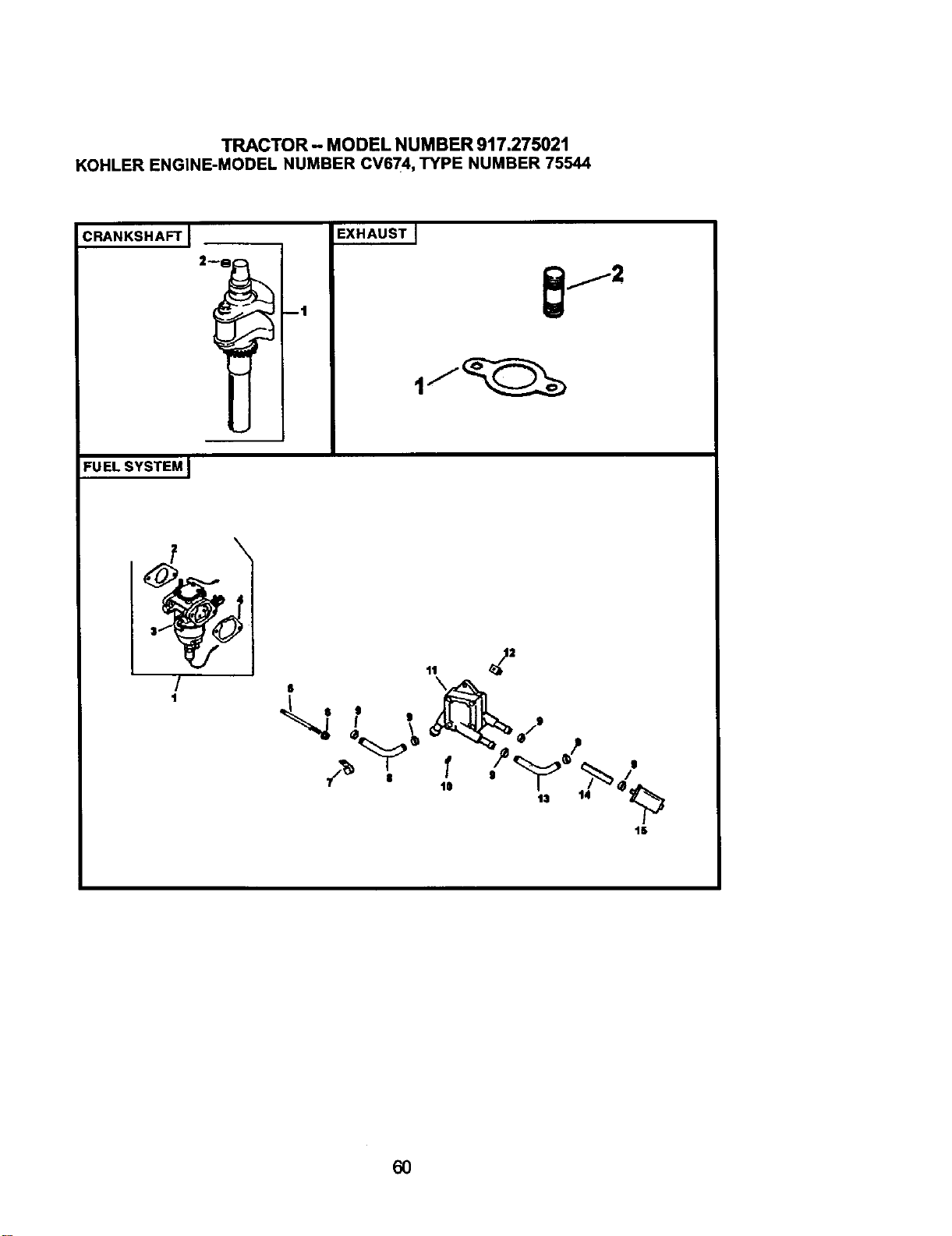

TRACTOR - MODEL NUMBER 917.275021

KOHLER ENGINE-MODEL NUMBER CV674, TYPE NUMBER 75544

CRANKSHAFT I

EXHAUST J

FUELSYSTEMJ

• ),

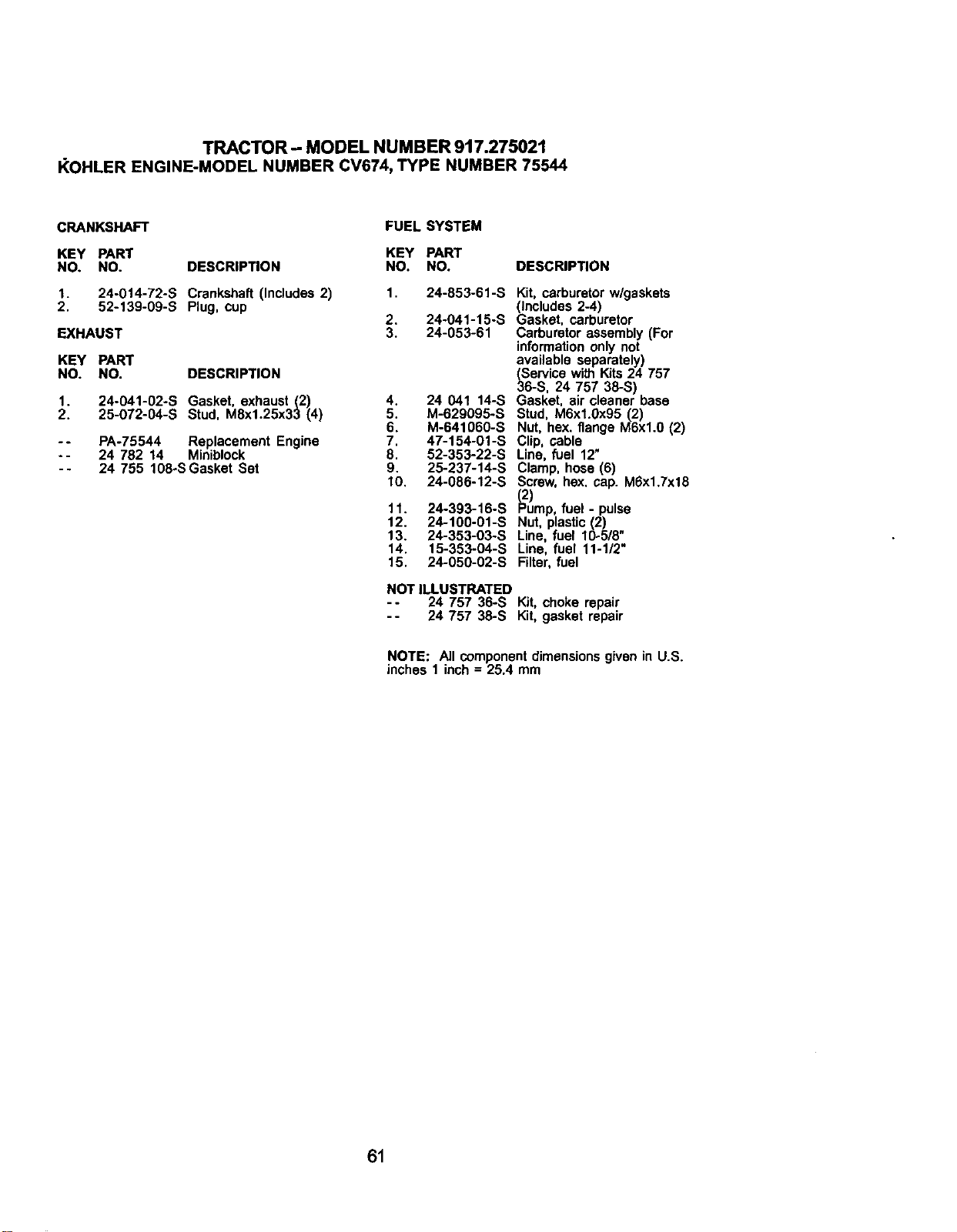

TRACTOR- MODEL NUMBER 917.275021

I(OHLER ENGINE-MODEL NUMBER CV674, TYPE NUMBER 75544

CRANKSHAFT FUEL SYSTEM

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1. 24-014-72-S Crankshaft (Includes 2) I.

2. 52-139-09-S Plug, cup

EXHAUST 3.

KEY PART

NO. NO. DESCRIPTION

1. 24-041-02-S Gasket, exhaust (2) 4.

2. 25-072-04-S Stud, M8xl.25x33 (4) 5.

-- PA-75544 Replacement Engine 7.

-- 24 782 14 Miniblock 8.

-- 24 755 108-SGasket Set 9.

10.

DESCRIPTION

24-853-61-S

24-041-15-S

24-053-61

24 041 14-S

M-629095-S

M-641060-S

47-154-01-S

52-353-22-S

25-237-14-S

24-086-12-S

11. 24-393-16-S

12. 24-100-01-S

13. 24-353-03-S

14. 15-353-04-S

15. 24-050-02-S

Kit, carburetor w/gaskets

GlnCludes2-4)

asket, carburetor

Carburetor assembly (For

information only not

available separately)

(Service with Kits 24 757

36-S, 24 757 38-S)

Gasket, sir cleaner base

Stud, M6xl.0x95 (2)

Nut, hex. flange M6xl.0 (2)

Clip, cable

Line, fuel 12"

Clamp, hose (6)

Screw, hex. cap. M6x1.7xt8

(2)

Pump, fuel - pulse

Nut, plastic (2)

Line, fuel 10-5/8"

Line, fuel 11-1/2"

Filter, fuel

NOT ILLUSTRATED

-- 24 757 36-S Kit, choke repair

-- 24 757 38-S Kit, gasket repair

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

NOTES

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

_r _

SIGHTING _ ._ CUT

GUIDE THe..-S

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

Operate your Tractor up and down the face of slopes (not ]

greater than 15°), never across the face. Make turns gradu-

ally to prevent tipping or loss of control. Exercise extreme

caution when changing direction on slopes.

Forrepairofmajorbrand appliancesin your own home...

nomatterwho made it,no matter who sold

1.800-4-MY-HOME e Aretime,dayornight

(1-800-4_Y_63) (U.S._.and_)

Www.sear&com www.searsaca

Forrepairofcarry-inproductslike vacuums,lawnequipment,and

electronics,callfor the nearestSears Parts and Repair Center.

1-800-488-1222 .e_'dme,dayornight(U.S.A.orgy)

www.sears.com

Forthe replacementparts,accessoriesand owner'smanuals

thatyou need todo-it-yourself,callSears PartsDirectS"t

1-800-366-PART 6a.m.-11 p.m.,7daysaweek

(1-8oo-36e7278) (u.s.A.only)

www.sears.com/parts_rect

To purchase or inquire about a Sears Service Agreement

or Sears Maintenance Agreement:

1-800-827-6655 (u.s_.) 1-800-361-6685 (Canada)

7 a.m.- 5 p.m.,CST,Mort.- Sat. 9 a.m.- 8 p.m.EST,M- F,4 p.m.Sat.

Parapecirserviciodereparad6na AuCaredapourserviceen_:

domic=lio,yparaomlenarpiezas: I-SIX).-LE-FO_tER_Ac

1"888"sU'HOGARsa (1-800-533-6_7)

(1..aa8-784.64_

® Registered Trademark / TMTrademark I su Service Mark of Sears, Roebuck and Co.

® Marca Registrada/'rM Marca de F_brice I SMMarca de Servicio de Sears, Roebuck and Co.

MCMarque de commerce / MDMarque d_pos_e de Sears, Roebuck and Co.

179029 3.8.01 RD Printed in U.S.A.

Craftsman 917275021 lawn tractor

Product's Documents

User Manual

Specifications

Craftsman 917275021 Questions and Answers

Related Products

Craftsman 917273900 lawn tractor

Craftsman 917287440 Lawn tractor 26.0HP. 54'' Mover Electric Start Automatic Transmission

Craftsman 917250551 Lawn Tractor

Craftsman 917276390 Lawn Tractor 18.0 HP, 42'' Mower Electric Start 6 Speed Transaxle

Craftsman 247203790 Lawn Tractor

Craftsman 917287320 Lawn Tractor 26.0 HR 54" Mower Electric Start Automatic Transmission
