Owner's Manual

IC.nFTSMnN,I

LAWN TRACTOR

20.0 HP, 42" Mower

Electric Start

6 Speed Transaxle

Model No.

917.272911

This product has a low emission engine which operates

IIL_._II differently from previously budt engines. Before you start the

engine, read and understand this Owner's Manual.

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

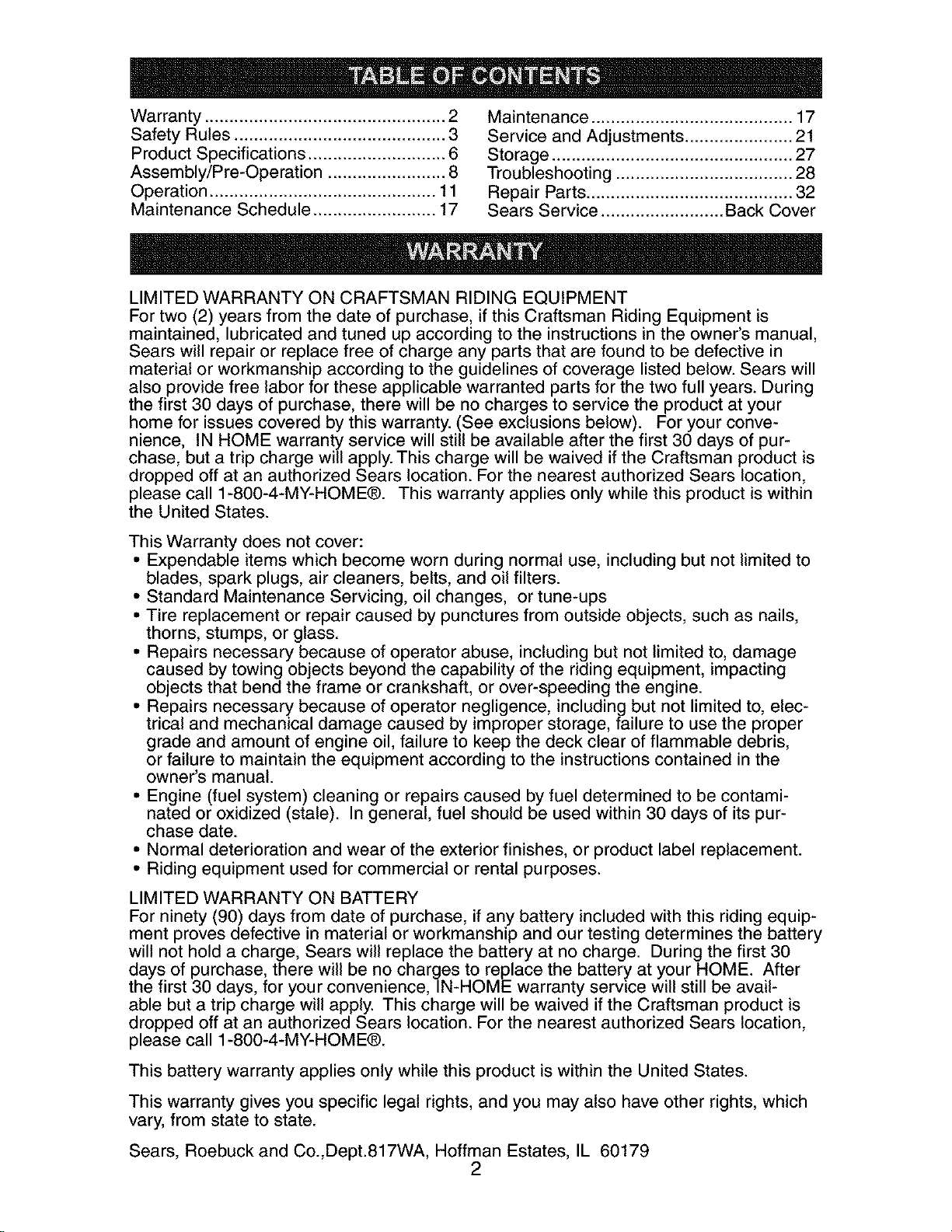

Warranty ................................................. 2 Maintenance ......................................... 17

Safety Rules ........................................... 3 Service and Adjustments ...................... 21

Product Specifications ............................ 6 Storage ................................................. 27

Assembly/P re-Operation ........................ 8 Troubleshooting .................................... 28

Operation .............................................. 11 Repair Parts .......................................... 32

Maintenance Schedule ......................... 17 Sears Service ......................... Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears will

also provide free labor for these applicable warranted parts for the two full years. During

the first 30 days of purchase, there will be no charges to service the product at your

home for issues covered by this warranty. (See exclusions below). For your conve-

nience, IN HOME warranty service will still be available after the first 30 days of pur-

chase, but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®. This warranty applies only while this product is within

the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

• Standard Maintenance Servicing, oil changes, or tune-ups

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in material or workmanship and our testing determines the battery

will not hold a charge, Sears will replace the battery at no charge. During the first 30

days of purchase, there will be no charges to replace the battery at your HOME. After

the first 30 days, for your convenience, IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

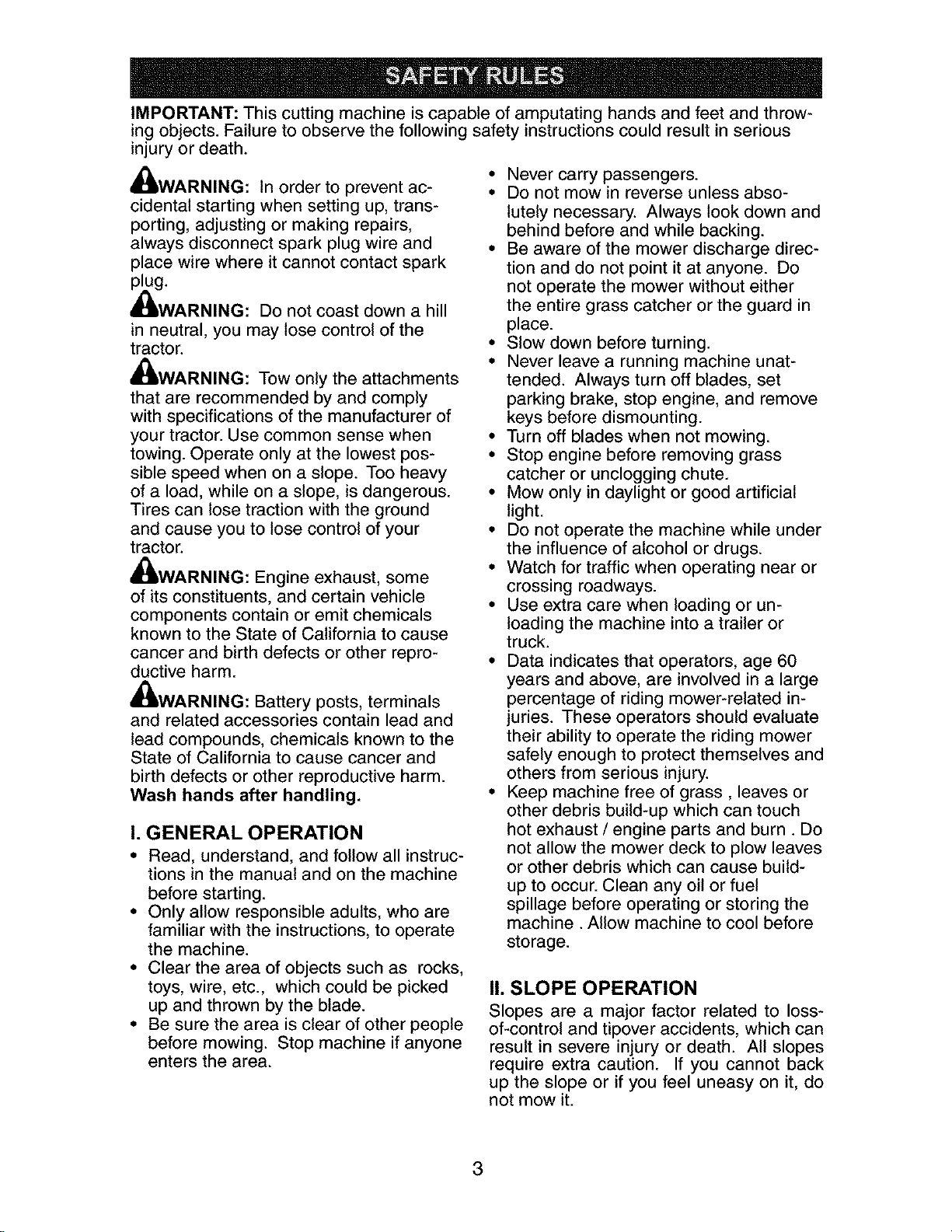

IMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

_WARNING: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_,WARNING: Do not coast down a hill

in neutral, you may lose control of the

tractor.

_WARNING: Tow only the attachments

that are recommended by and comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest pos-

sible speed when on a slope. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground

and cause you to lose control of your

tractor.

_WARNING: Engine exhaust, some

of its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other repro-

ductive harm.

_WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or un-

loading the machine into a trailer or

truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust / engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

II. SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Un-

even terrain could overturn the machine.

Tall grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

• Do not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

• Do not mow on wet grass. Reduced

traction could cause sliding.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not use grass catcher on steep

slopes.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Neveras-

sume that children will remain where you

last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel con-

tainer inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs with

the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently. Ad-

just and service as required.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15° Max), not

across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

• If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

• Be not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

PRODUCT SPECIFICATIONS

3asoline Capacity

and Type:

3il Type

API-SF-SJ):

3il Capacity:

Spark Plug:

',Gap: .040")

3round Speed

',MPH):

3.5 Unleaded and

Regular

SAE 30 (above 32°F)

SAE 5W-30 (below 32°F

3.75 Pints

Champion QC 12YC

Forward: 1st 1.2

2nd 1.5

3rd 2.4

4th 3.5

5th 4.8

6th 5.3

Reverse: 1.5

Fire Pressure: Front: 14 PSI

Rear: 10 PSI

iCharging 3 Amps Battery

iSystem: 5 Amps Headlights

iBattery: Amp/Hr: 35

Min. CCA: 280

Case Size: U1R

iBlade Bolt Torque: 27-35 Ft. Lbs.

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in main-

taining, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

_k_,NAwner's manual.

RNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all prod-

ucts, it may require repair from time to

time. That's when having a Repair Protec-

tion Agreement can save you money and

aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

• Expert service by our 12,000 profe-

sional repair specialists.

• Unlimited service and no charge for

parts and labor on all covered repairs.

• Product replacement if your covered

product can't be fixed.

• Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

• Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME®

Steering

Wheel Insert

Steering Wheel

(1) Hex Bolt 1/4-28 x 1-1/4

Steering Wheel

Adapter

(1) Locknut 1/2-20

(1) Large Flat Washer

_St_eritg

(1) Locknut 1/4-28

Steering

Extension

Shaft

Seat

(1)Washer

@ 17/32 x 1-3/16 x 12 Gauge

_(1) Knob

Keys

(2) Keys

For Future Use

Slope Sheet Video Cassette

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness. Review the video cassette before you begin.

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4"wrench (1) Pliers

(2) 7/16" wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means when you are in

the operating position (seated behind the

steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts boxes from carton.

2. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

3. Check for any additional loose parts or

cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower steer-

ing shaft. Align mounting holes in ex-

tension and lower shafts and install 1/4

hex bolt and Iocknut. Tighten securely.

IMPORTANT: Tighten bolt and nut se-

curely to 10-12 ft. Ibs torque.

2. Place tabs of steering boot over tab

slots in dash and push down to secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 1/2 hex

nut and tighten securely.

7. Snap steering wheel insert into center

of steering wheel.

_] _ Insert

_- 1/2 Hex Nut

__ Large Flat

Steering _. _Washer

_ teering

Boot

Tabs

Adapter_

a _ Extension

Shaft

1/4 kocknut _

.__ _'--_1/4 Hex Bolt

Lower ',

Steeri_).. _. _,________....

Shaft , "- -. _ Tab

,..._.\... _/,, Slots

8. Remove protective materials from trac-

tor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc-

tions).

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolt is positioned over large

slotted hole in pan.

4. Push down on seat to engage shoulder

bolt in slot and pull seat towards rear of

tractor.

5. Pivot seat and pan forward and as-

semble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its ad-

justed position.

9. Raise seat and tighten adjustment

knob securely.

Seat

Bolt

Adjl Knob

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLLTRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

A(_WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set park-

ing brake and place gearshift lever in

neutral position.

10.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

INSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

Deflector

Shield

Mulcher

Plate

Latch

Hooks

_CAUTION: Do not remove deflector

shield from mower.

TO CONVERTTO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place.Your mower is now ready for

discharging or installation of optional grass

catcher accessory.

NOTE: It is not necessary to change

blades. The mulcher blades are designed

for discharging and bagging also.

CHECKTIRE PRESSURE

The tires on your tractor were overin-

flated at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

,[ CHECKL IS T

Before you operate and enjoy your new

tractor, we wish to assure that you receive

the best performance and satisfaction

from this Quality Product.

Please review the following checklist:

,/All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor, pay

extra attention to the following important

items:

,/Engine oil is at proper level.

,/Fuel tank isfilled with fresh, clean, regu-

lar unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe oper-

ating condition.

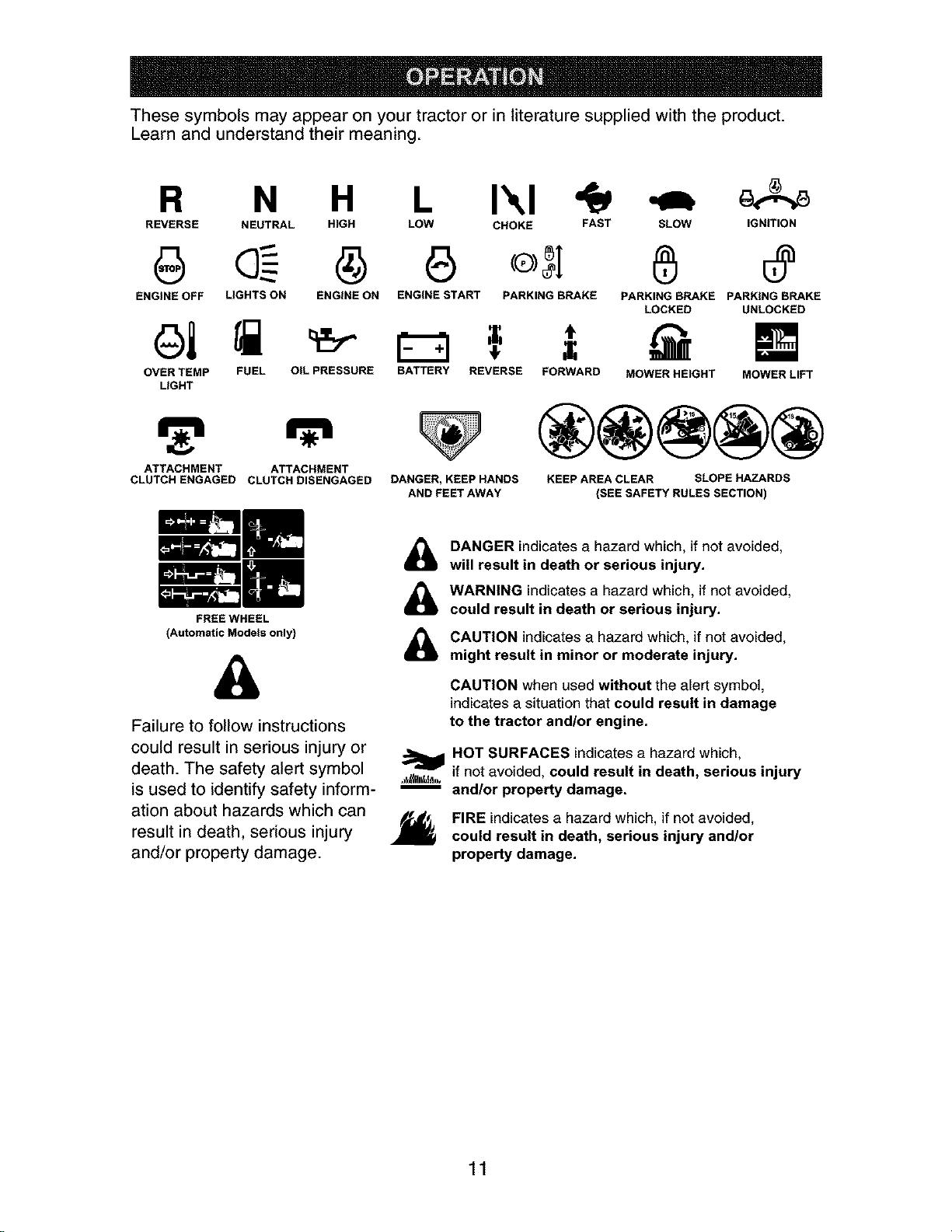

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

R N H L I\I

REVERSE NEUTRAL HIGH LOW CHOKE FAST SLOW IGNITION

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

OVER TEMP FUEL OIL PRESSURE BATTERY REVERSE FORWARD MOWER HEIGHT MOWER LIFT

LIGHT

ATTACHMENT ATTACHMENT

CLUTCH ENGAGED CLUTCH DISENGAGED

FREE WHEEL

(Automatic Models only)

DANGER, KEEP HANDS

AND FEET AWAY

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicatesa hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

_HOT SURFACES indicatesa hazard which,

,_l,., if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicatesa hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Ammeter

Choke Control

Throttle Control

Attachment Ignition Switch Light Switch

Position

Clutch Lever --. I

"2"-

Lever

Plunger

Attachment

Lift Lever

Clutch/Brake

Pedal

Height

Adjustment

Lever

Brake Lever

Gearshift Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck or

other attachments mounted to your tractor.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

GEARSHIFT LEVER - Selects the speed

and direction of tractor.

IGNITION SWITCH - Used for starting and

stopping the engine.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH POSITION -Turns the

headlights on and off.

PARKING BRAKE LEVER - Locks clutch/

brake pedal into the brake position.

THROTTLE CONTROL - Used for start-

ing and controlling engine speed.

CHOKE CONTROL - Used when starting a cold

engine.

The operation of any tractor can result in foreign objects thrown into

the eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask over

spectacles or standard safety glasses.

HOW TO USE YOU R TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the way

down and hold.

2. Pull parking brake lever up and release

pressure from clutch/brake pedal.

Pedal should remain in brake position.

Make sure parking brake will hold trac-

tor secure.

Attachment Clutch Lever

Position

Choke _

inition Key

,"Disengaged"

Thn Position

Clutch/

Brake

"Engaged"

Position

Broke

Gearshift

"Disengaged" "Brake" Lever

Position Position

STOPPING

MOWER BLADES -

• To stop mower blades, move attachment

clutch lever to "DISENGAGED" position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal all the way down.

• Move gearshift lever to neutral (N)

position.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control

to slow position and allowing engine to

idle before stopping may cause engine to

"backfire".

• Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

,_CAUTION: Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USETHROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

TO USE CHOKE CONTROL

Use choke control whenever you are start-

ing a cold engine. Do not use to start a

warm engine.

• To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the gearshift lever.

1. Start tractor with clutch/brake pedal

depressed and gearshift lever in neutral

(N) position.

2. Move gearshift lever to desired po-

sition.

3. Slowly release clutch/brake pedal to

start movement.

IMPORTANT: Bring tractor to a complete

stop before shifting or changing gears.

Failure to do so will shorten the useful life

of your transaxle.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

• Grasp lift lever.

• Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are mea-

sured from the ground to the blade tip with

the engine not running. These heights

are approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

• The average lawn should be cut to ap-

proximately 2-1/2 inches during the cool

season and to over 3 inches during hot

months. For healthier and better looking

lawns, mow often and after moderate

growth.

• For best cutting performance, grass over

6 inches in height should be mowed

twice. Make the first cut relatively high;

the second to desired height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground when

mower is at the desired cutting height in

operating position. Gauge wheels then

keep the deck in proper position to help

prevent scalping in most terrain conditions.

NOTE: Adjust gauge wheels with tractor

on a flat level surface.

1. Adjust mower to desired cutting height

(See "TO ADJUST MOWER CUTTING

HEIGHT" in this section of manual).

2. With mower in desired height of cut

position, gauge wheels should be

assembled so they are slightly off the

ground. Install gauge wheel in ap-

propriate hole with shoulder bolt, 3/8

washer, and 3/8-16 Iocknut and tighten

securely.

3. Repeat for opposite side, installing

gauge wheel in same adjustment hole.

Gauge Wheel o_%

Mounting \ _-._ _ _/-_j_

Bracket 2_.___

Locknut --------_/_ _f\

_ Shoulder

3/8 Washer f_Bolt

Gauge Wheel

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

1. Select desired height of cut.

2. Start mower blades by engaging at-

tachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

_IUkCAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place.

Lift

igh Position

Clutch Lever 4!_.......

,,,, Low

Position

"Disengaged"

Position

Shield

TO OPERATE ON HILLS

_WARNING: Do not drive up or down

hills with slopes greater than 15° and do

not drive across any slope. Use the slope

guide at the back of this manual.

• Choose the slowest speed before start-

ing up or down hills.

• Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary, push

clutch/brake pedal quickly to brake posi-

tion and engage parking brake.

• Move gearshift lever to 1st gear. Be

sure you have allowed room for tractor

to roll slightly as you restart movement.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Make all turns slowly.

TO TRANSPORT

• Raise attachment lift to highest position

with attachment lift control.

• When pushing or towing your tractor,

be sure gearshift lever is in neutral (N)

position.

• Do not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

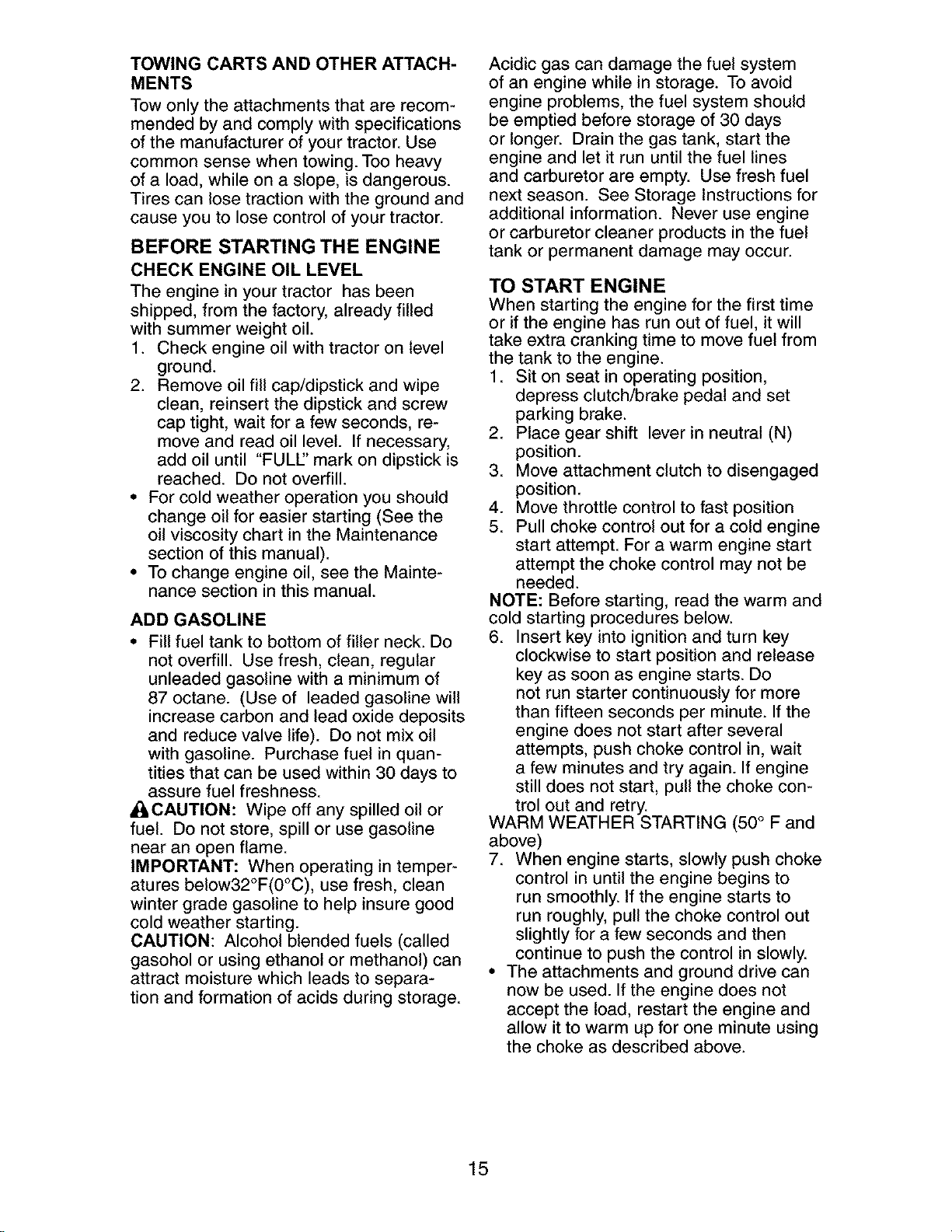

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds, re-

move and read oil level. If necessary,

add oil until "FULL' mark on dipstick is

reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting (See the

oil viscosity chart in the Maintenance

section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of filler neck. Do

not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quan-

tities that can be used within 30 days to

assure fuel freshness.

_i, CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in temper-

atures below32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separa-

tion and formation of acids during storage.

Acidic gas can damage the fuel system

of an engine while in storage. To avoid

engine problems, the fuel system should

be emptied before storage of 30 days

or longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

2. Place gear shift lever in neutral (N)

position.

3. Move attachment clutch to disengaged

position.

4. Move throttle control to fast position

5. Pull choke control out for a cold engine

start attempt. For a warm engine start

attempt the choke control may not be

needed.

NOTE: Before starting, read the warm and

cold starting procedures below.

6. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, push choke control in, wait

a few minutes and try again. If engine

still does not start, pull the choke con-

trol out and retry.

WARM WEATHER STARTING (50 ° F and

above)

7. When engine starts, slowly push choke

control in until the engine begins to

run smoothly. If the engine starts to

run roughly, pull the choke control out

slightly for a few seconds and then

continue to push the control in slowly.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

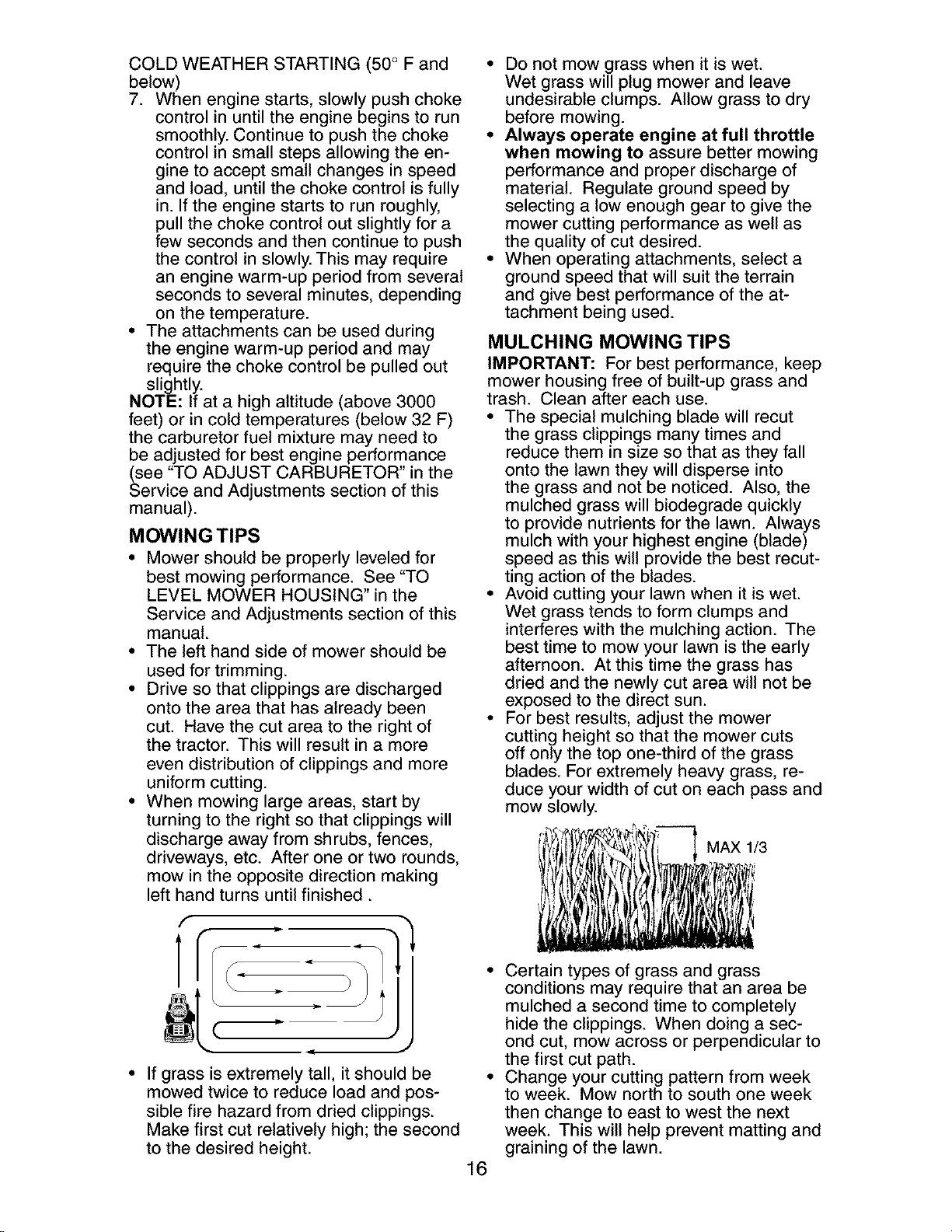

COLD WEATHER STARTING (50° F and

below)

7. When engine starts, slowly push choke

control in until the engine begins to run

smoothly. Continue to push the choke

control in small steps allowing the en-

gine to accept small changes in speed

and load, until the choke control is fully

in. If the engine starts to run roughly,

pull the choke control out slightly for a

few seconds and then continue to push

the control in slowly. This may require

an engine warm-up period from several

seconds to several minutes, depending

on the temperature.

• The attachments can be used during

the engine warm-up period and may

require the choke control be pulled out

slightly.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance

(see "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual).

MOWING TIPS

• Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of

the tractor. This will result in a more

even distribution of clippings and more

uniform cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

• Do not mow grass when it is wet.

Wet grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

• Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. Clean after each use.

• The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into

the grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn. Always

mulch with your highest engine (blade)

speed as this will provide the best recut-

ting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried and the newly cut area will not be

exposed to the direct sun.

• For best results, adjust the mower

cutting height so that the mower cuts

off only the top one-third of the grass

blades. For extremely heavy grass, re-

duce your width of cut on each pass and

mow slowly.

MAX 1/3

• Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a sec-

ond cut, mow across or perpendicular to

the first cut path.

• Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting and

graining of the lawn.

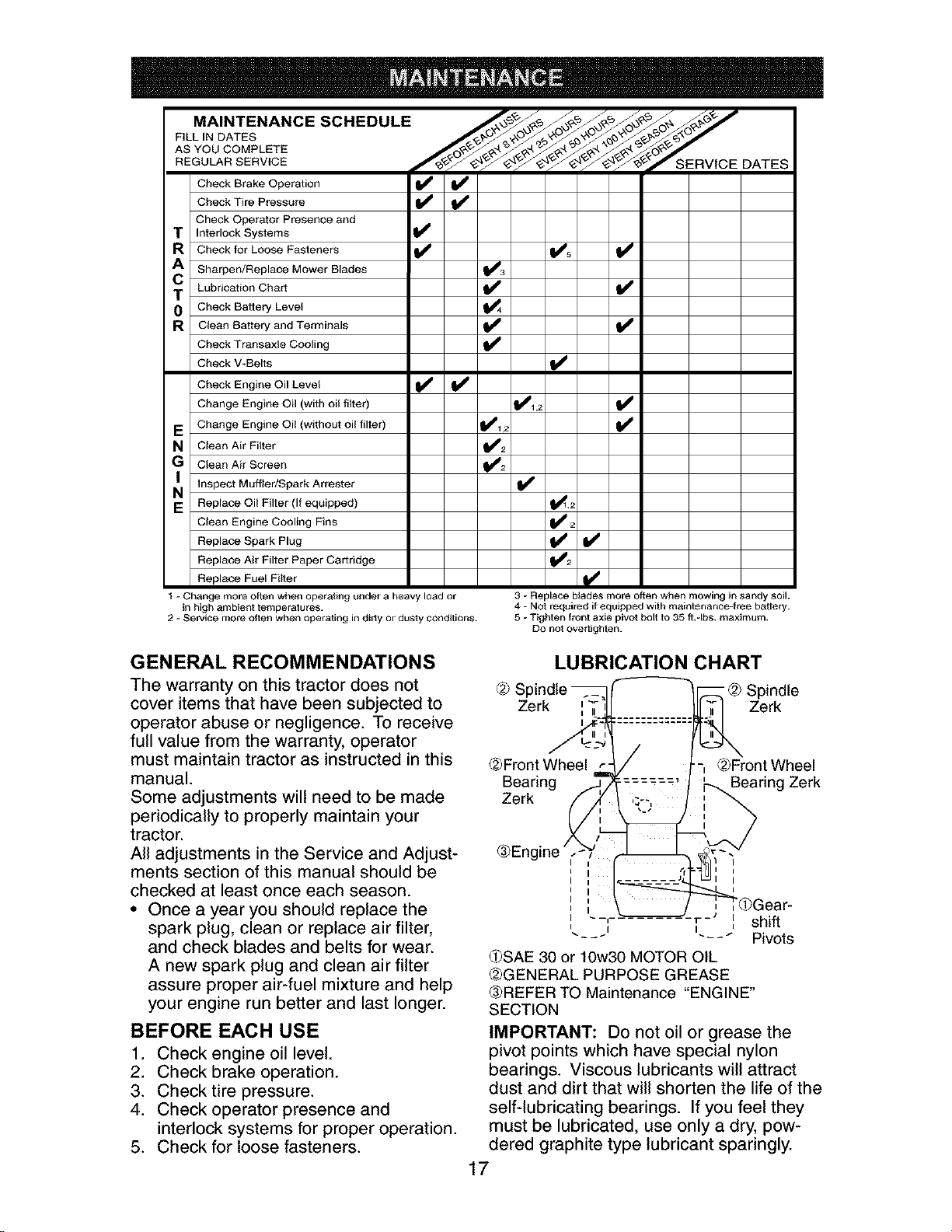

PILL'NOATES

AS YOU COMPLETE

BE ° BSEBVICE OATHS

Check Brake Operation _ _#,

Check Tire Pressure

Check Operator Presence and

T Interlock Systems

R Check for Loose Fasteners _ liars

A Sharpen/Replace Mower Blades i3

T Lubrication Chart

0 Check Battery Level

R Clean Battery and Terminals

Check Transaxle Cooling

Check V-Belts

Check Engine Oil Level I_ #

Change Engine Oil (with oil filter) _1,2

E Change Engine Oil (without oil filter) V_1,2

U Clean Air Filter

G Clean Air Screen

N_ Inspect MuffledSpark Attester I_

E Replace Oil Filter (If equipped) =_,.

C_ean Engine Cooling Fins

Replace Spark Plug _ I[_

Replace Air Filter Paper Cartridge _2

Fuel FilterReplace

t = Change more often wben operating under a heavy load or 3 - Replace blades more often when mowing in sandy soil.

in high ambient temperatures. 4 - Not required if equipped with maintenance-free battery.

2 - Service more often when operating in dirty or dusty conditions. 5 - Tighten front axle pivot bolt to 35 ft.dbs, maximum.

DO not overtigbten.

GENERAL RECOMMENDATIONS LUBRICATION CHART

The warranty on this tractor does not @

cover items that have been subjected to Zerk i,

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this @FrontWheel

manual. Bearing

Some adjustments will need to be made Zerk

periodically to properly maintain your

tractor.

All adjustments in the Service and Adjust- ®En

ments section of this manual should be

checked at least once each season.

• Once a year you should replace the

spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

@ Spindle

Zerk

q @Front Wheel

Bearing Zerk

i I

I _ --i /- - J

_SAE 30 or 10w30 MOTOR OIL

@GENERAL PURPOSE GREASE

®REFER TO Maintenance "ENGINE"

SECTION

shift

Pivots

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

self-lubricating bearings. If you feel they

must be lubricated, use only a dry, pow-

dered graphite type lubricant sparingly.

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm rub-

ber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your trac-

tor does not function as described, repair

the problem immediately.

• The engine should not start unless the

clutch/brake pedal is fully depressed

and attachement clutch control is in the

disengaged position.

• When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

• The attachment clutch should never op-

erate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

2. Remove blade bolt, lock washer and

flat washer securing blade.

3. Install new or resharpened blade

with trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble blade bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten bolt securely (27-35 Ft. Lbs.

torque).

IMPORTANT: Blade bolt is grade 8 heat

treated.

Mandrel Assembly

Trailing _ BI_,4^ _f4_3

_u_ n r

Edge Up //_'_ _ Ce te _"_'_

F'at Wa_heL_ _

Str

__Blade Bolt (Grade)* _

*AGrade 8 heat treated bolt can be identified

by six lines on the bolt head.

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the

bolt or pin parallel with the ground. If

blade is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

5/8" Bolt or..

Center Hole

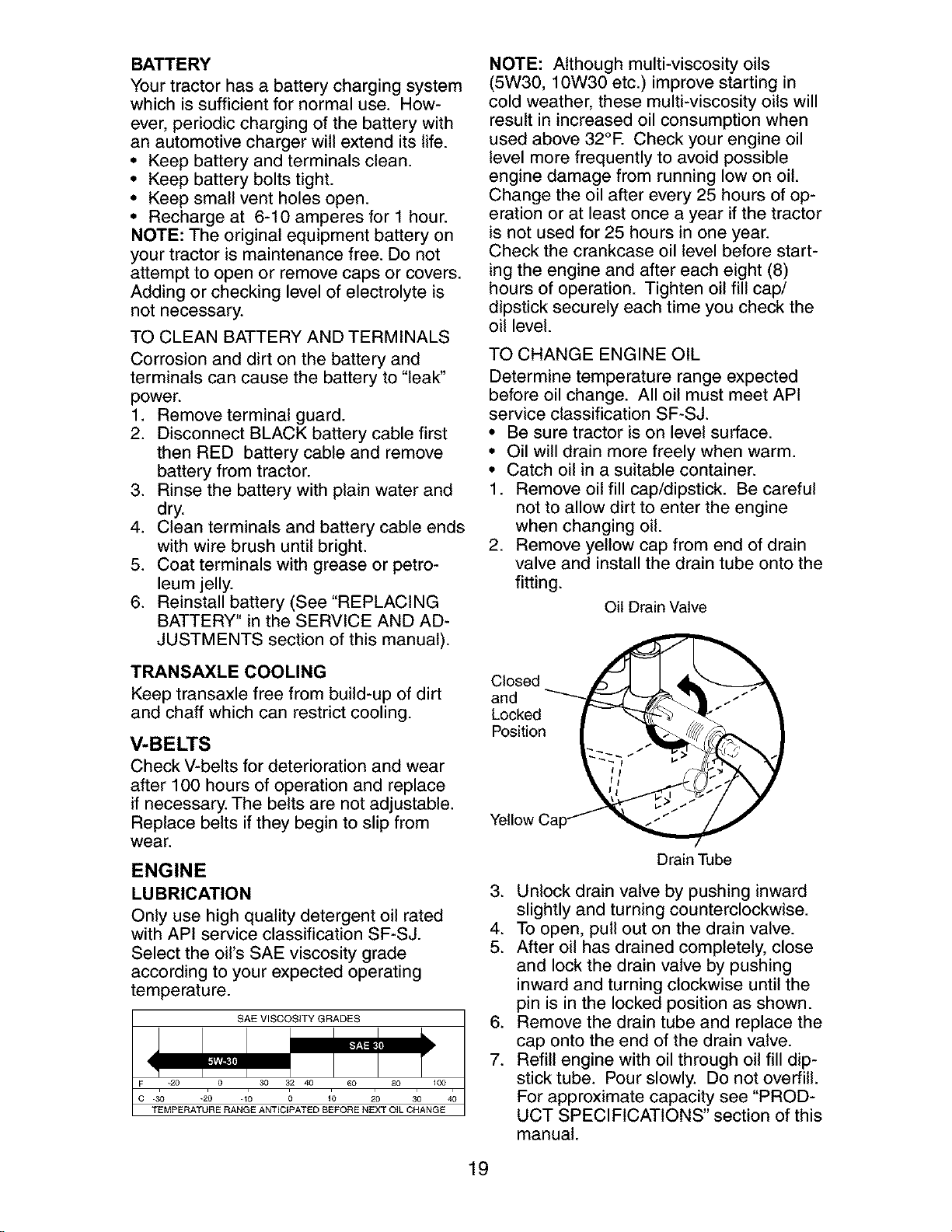

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable ends

with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND AD-

JUSTMENTS section of this manual).

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt

and chaff which can restrict cooling.

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts ifthey begin to slip from

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF-SJ.

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

SAE VISCOSITY GRADES

1oo

TEMPERATURE RANGE ANT_CIPATED BEFORE NEXT OiL CHANGE

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils will

result in increased oil consumption when

used above 32°F. Check your engine oil

level more frequently to avoid possible

engine damage from running low on oil.

Change the oil after every 25 hours of op-

eration or at least once a year ifthe tractor

is not used for 25 hours in one year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto the

fitting.

Oil Drain Valve

Closed

and

Locked

Position

Drain Tube

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace the

cap onto the end of the drain valve.

7. Refill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacity see "PROD-

UCT SPECIFICATIONS" section of this

manual.

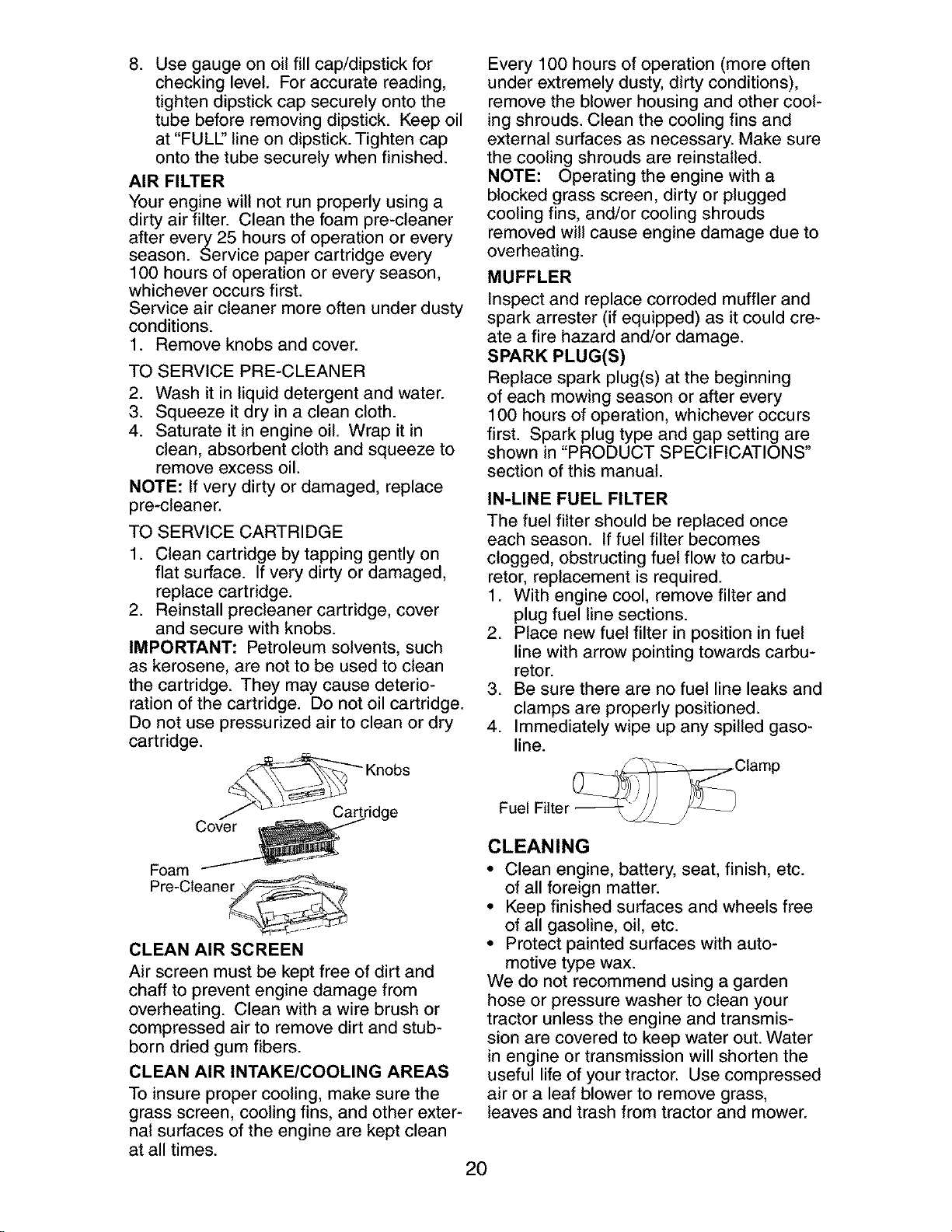

8. Use gauge on oil fill cap/dipstick for

checking level. For accurate reading,

tighten dipstick cap securely onto the

tube before removing dipstick. Keep oil

at "FULL' line on dipstick. Tighten cap

onto the tube securely when finished.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under dusty

conditions.

1. Remove knobs and cover.

TO SERVICE PRE-CLEANER

2. Wash it in liquid detergent and water.

3. Squeeze it dry in a clean cloth.

4. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

NOTE: If very dirty or damaged, replace

pre-cleaner.

TO SERVICE CARTRIDGE

1. Clean cartridge by tapping gently on

flat surface. If very dirty or damaged,

replace cartridge.

2. Reinstall precleaner cartridge, cover

and secure with knobs.

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause deterio-

ration of the cartridge. Do not oil cartridge.

Do not use pressurized air to clean or dry

cartridge.

J ..... Cartridge

Cover

Foam __

Pre-Cleaner " _--,-__J_-

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other exter-

nal surfaces of the engine are kept clean

at all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other cool-

ing shrouds. Clean the cooling fins and

external surfaces as necessary. Make sure

the cooling shrouds are reinstalled.

NOTE: Operating the engine with a

blocked grass screen, dirty or plugged

cooling fins, and/or cooling shrouds

removed will cause engine damage due to

overheating.

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

3. Be sure there are no fuel line leaks and

clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line.

Clamp

Fuel Filter -__/

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with auto-

motive type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmis-

sion are covered to keep water out. Water

in engine or transmission will shorten the

useful life of your tractor. Use compressed

air or a leaf blower to remove grass,

leaves and trash from tractor and mower.

_ WARNING: TO AVOID SERIOUS BEFORE PERFORMING ANY SER-

INJURY,

VICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place gearshift lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key to "STOP" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and

remove clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

6. Disconnect anti-sway bar from chassis

bracket by removing retainer spring.

7. Disconnect suspension arms from rear

deck brackets by removing retainer

springs.

8. Disconnect front links from deck by

removing retainer springs.

9. Raise lift lever to raise suspension

arms. Slide mower out from under trac-

tot.

Small Retainer

Clutch Spring --

Small Retainer

Clutch Spring _

Spring _ _-

Retainer

Spring

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in frame.

TO INSTALL MOWER

1. Raise attachment lift lever to its highest

position.

2. Slide mower under tractor with deflec-

tor shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. Connect front links to mower deck and

secure with retainer springs.

5. Connect suspension arms to rear

deck brackets and secure with retainer

springs.

6. Connect anti-sway bar to chassis

bracket and secure with retainer spring.

7. Push clutch cable housing guide into

bracket, slide collar onto guide and

secure with large retainer spring.

8. Place flat washer and clutch spring on

idler pulley bolt and secure with small

retainer spring.

9. Install belt onto engine pulley.

Flat Washer

_.'_;_ _-_ Square Hole

Engine

Pulley

Anti-Sway

Bar

Collar

Housir

Guide

Large Retainer

Spring

Bracket

Retainer Springs

(Both Sides)

Deflector

/ Shield

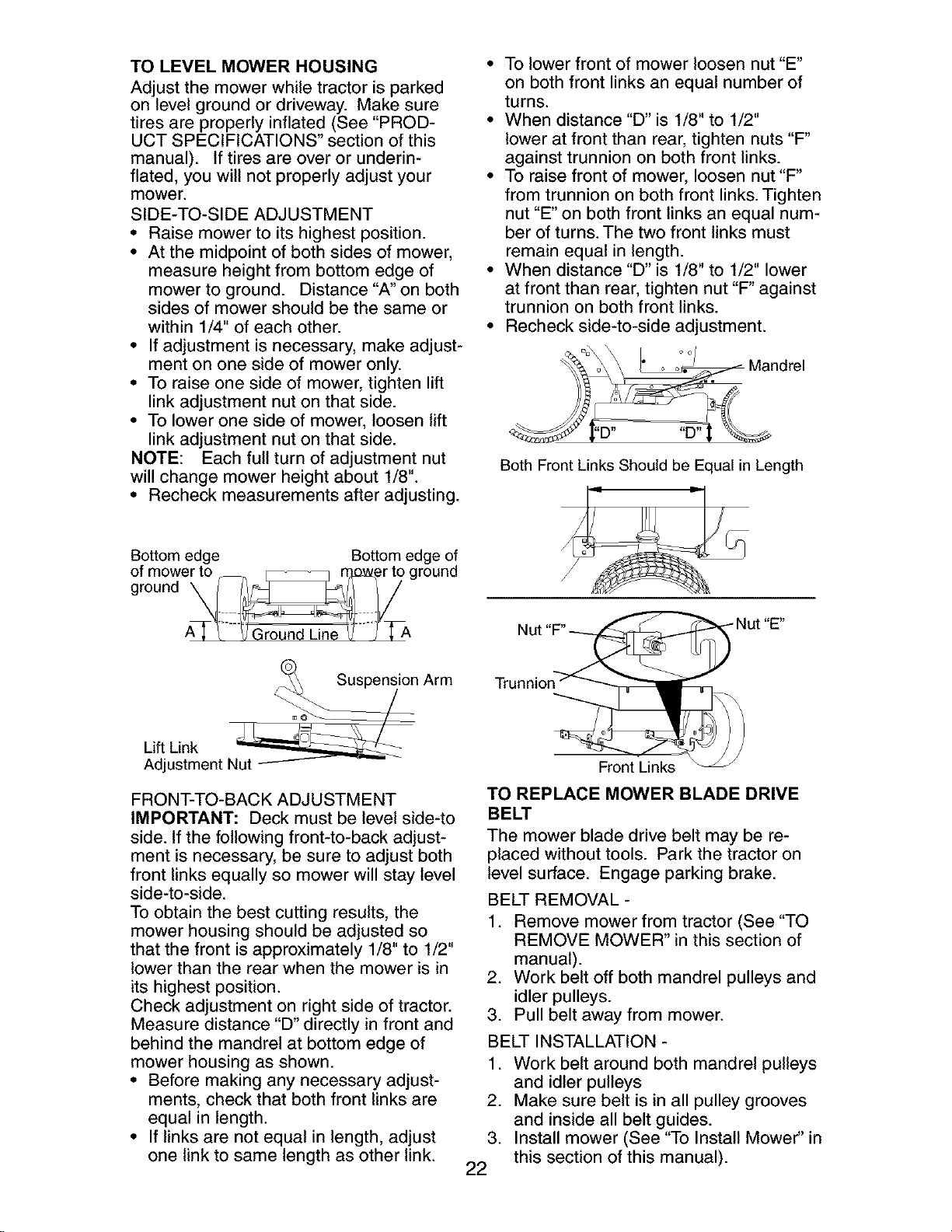

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or underin-

flated, you will not properly adjust your

mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on both

sides of mower should be the same or

within 1/4" of each other.

• If adjustment is necessary, make adjust-

ment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

• Recheck measurements after adjusting.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

• When distance "D" is 1/8" to 1/2"

lower at front than rear, tighten nuts "F"

against trunnion on both front links.

• To raise front of mower, loosen nut "F"

from trunnion on both front links. Tighten

nut "E" on both front links an equal num-

ber of turns. The two front links must

remain equal in length.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

• Recheck side-to-side adjustment.

_g _

Both Front Links Should be Equal in Length

Bottom edge Bottom edge of

of mower to _ _ n'jo_er to ground

A_T _Ground Line_- _f_A

nArm

kidf_ulitnkent N_

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay level

side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance "D" directly in front and

behind the mandrel at bottom edge of

mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

=t"E"

mru

Front Links

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be re-

placed without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

1. Work belt around both mandrel pulleys

and idler pulleys

2. Make sure belt is in all pulley grooves

and inside all belt guides.

3. Install mower (See "To Install Mower" in

this section of this manual).

With parking brake "Engaged"

Mandrel _

Nut

Arm

Pulley

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxle.

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch/brake

pedal all the way down and engage

parking brake.

2. Place gear shift lever in neutral (N)

position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO ADJUST BRAKE

1. Depress clutch/brake pedal all the way

down and engage parking brake.

2. Measure distance between brake oper-

ating arm and nut "A" on brake rod.

3. If distance is other than 1-1/2", loosen

jam nut and turn nut "A" until distance

becomes 1-1/2". Retighten jam nut

against nut "A".

4. Road test tractor for proper stopping

distance as stated above. Readjust

if necessary. If stopping distance is

still greater than five (5) feet in highest

gear, further maintenance is neces-

sary. Replace brake pads or contact a

Sears or other qualified service center.

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom side

of left footrest.

BELT REMOVAL -

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and keepers.

2. Remove belt from stationary idler and

clutching idler.

3. Remove belt downward from around

engine pulley.

4. Pull belt slack toward rear of tractor.

Remove belt upwards from transaxle

pulley by deflecting belt keepers.

5. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down between

transaxle belt keepers and onto the

input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and roll

around the top groove of engine pulley.

4. Install belt through stationary idler and

clutching idler.

5. Make sure belt is in all pulley grooves

and inside all belt guides and keepers.

6. Install mower (See "TO INSTALL

MOWER" in this section of manual).

Engine Pulle

Clutching

Stationary

Keeper

Transaxle

Pulley

TRANSAXLE GEAR SHIFT LEVER NEU-

TRAL ADJUSTMENT

The transaxle should be in neutral when

the gear shift lever is in neutral (N) (lock

gate) position. The adjustment is preset

at the factory; however, if adjustment is

needed, proceed as follows:

1. Make sure transaxle is in neutral (N).

NOTE: When the tractor rear wheels move

freely, the transaxle is in neutral.

2. Loosen adjustment bolt in front of the

right rear wheel.

3. Position the gear shift lever in the neu-

tral (N) position.

4. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

Gearshift Lever

Neutral Lock Gate

Adjustment Bolt

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbars

horizontal. Tighten securely.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle. Insert

square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers

Retaining

Rin

Axle

Cover

Square Key

(Rear Wheel Only)

TO START ENGINE WITH A WEAK BAT-

TERY

_WARNING: Lead-acid batteries gen-

erate explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See "BAT-

TERY" in the MAINTENANCE section of

this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable

to the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

Weak or Dead Fully Charged

Battery Battery

REPLACING BATTERY

_WARNING: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable

then RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with re-

maining hex bolt and keps nut. Tighten

securely

8. Close terminal access doors.

9. Close hood.

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent itfrom starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to re-

connect the headlight wire connector.

Hood

Hex Bolt

Nut

Terminal

Access __ ,.

Door ' _

Terminal

Guard

Positive

Cable

,Negative

(Black)

Cable

ENGINE

Maintenance, repair, or replacement of

the emission control devices and systems,

which are being done at the customers ex-

pense, may be performed by any non-road

engine repair establishment or individual.

Warranty repairs must be performed by an

authorized engine manufacturer's service

outlet.

TO ADJUSTTHROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move throttle

control lever to fast position.

2. Check that swivel is against stop. If it is

not, loosen cable clamp screw and pull

cable back until swivel is against stop.

Tighten cable clamp screw securely.

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Loosen knob and remove cover as-

sembly from air cleaner.

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4. Replace air cleaner cover assembly

and tighten knob.

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your

engine does not operate properly due to

suspected carburetor problems, take your

tractor to an authorized service center for

repair and/or adjustment.

High speed stop is factory adjusted. Do

not adjust - damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeed-

ing the engine above the factory high

speed setting can be dangerous. If you

think the engine-governed high speed

needs adjusting, contact a Sears or other

qualified service center,, which has proper

equipment and experience to make any

necessary adjustments.

Swivel Clamp

Screw

Clamp Screw

Immediately prepare your tractor for stor-

age at the end of the season or if the trac-

tor will not be used for 30 days or more.

_WARNING: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage. Also, alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can dam-

age the fuel system of an engine while in

storage.

1. Drain the fuel tank.

2. Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not drain the gas tank and

carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to start position for a

few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can ifyour can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Will not start

Hard tostart

Engine will not

turn over

Engine clicks but

will not start

CAUSE CORRECTION

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes

before attempting to start.

Replace spark plug.

Clean/replace air filter.

Replace fuel filter.

Drain fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10.Contact a Sears or other

qualified service center.

Bad spark plug. 4.

Dirty air filter. 5.

Dirty fuel filter. 6.

Water in fuel. 7.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

Loose or damaged wiring. 6.

Carburetor out of adjustment. 7.

Engine valves out of 8.

adjustment.

Clutch/brake pedal not 1.

depressed.

Attachment clutch is 2.

engaged.

Weak or dead battery. 3.

Blown fuse. 4.

Corroded battery terminals. 5.

Loose or damaged wiring. 6.

Faulty ignition switch. 7.

Faulty solenoid or starter. 8.

Faulty operator presence 9.

switch(es).

Weak or dead battery. 1.

Corroded battery terminals. 2.

Loose or damaged wiring. 3.

Faulty solenoid or starter. 4.

Clean/replace air filter.

Replace spark plug.

Recharge or replace

battery.

Replace fuel filter.

Drain fuel tank and refill

with fresh gasoline.

Check all wiring.

See "To Adjust Carburetor"

in Service and Adjustments

section.

Contact a Sears or other

qualified service center.

Depress clutch/brake

pedal.

Disengage attachment

clutch.

Recharge or replace

battery.

Replace fuse.

Clean battery terminals.

Check all wiring.

Check/replace ignition

switch.

Check/replace solenoid or

starter.

Contact a Sears or other

qualified service center.

Recharge or replace battery.

Clean battery terminals.

Check all wiring.

Check/replace solenoid or

starter.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

CAUSE CORRECTION

7. Dirty fuel filter.

8. Stale or dirty fuel.

PROBLEM

Loss of power

Excessive

vibration

Engine continues

to run

when operator

leaves seat with

with attachment

clutch engaged

Poor cut - uneven

9. Water in fuel.

Cutting too much grass/too

fast.

Throttle in "CHOKE"

position.

Build-up of grass, leaves 3.

and trash under mower.

Dirty air filter. 4.

Low oil level/dirty oil. 5.

Faulty spark plug. 6.

10.Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14.Carburetor out of

adjustment.

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

Worn, bent or loose blade.

Mower deck not level.

Buildup of grass, leaves,

and trash under mower.

Bent blade mandrel.

Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

1. Set in "Higher Cut" position/

reduce speed.

2. Adjust throttle control.

Clean underside of mower

housing.

Clean/replace air filter.

Check oil level/change oil.

Clean and regap or change

spark plug.

Replace fuel filter.

Drain fuel tank and refill with

fresh gasoline.

Drain fuel tank and carbure-

tor, refill tank with fresh

gasoline and replace fuel

filter.

10.Connect and tighten spark

plug wire.

11.Clean engine air screen/fins.

12.Clean/replace muffler.

13.Check all wiring.

14.See "To Adjust Carburetor"

in Service and Adjustments

section.

15.Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Replace blade mandrel.

3. Tighten loose part(s).

Replace damaged parts.

Check wiring, switches and

connections. If not

contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Replace blade mandrel.

5. Clean around mandrels to

open vent holes.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Mower blades will

not rotate

Poor grass

discharge

CAUSE CORRECTION

1. Remove obstruction.1. Obstruction in clutch

mechanism.

2. Worn/damaged mower

drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air

pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves

and trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

11. Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

iHeadlight(s) not 1.

iworking 2.

i(if so equipped) 3.

iBattery will not 1.

charge 2.

Engine "backfires"

iwhen turn ng

engine "OFF"

Switch is "OFF".

Bulb(s) or lamp(s) burned out.

Faulty light switch.

Loose or damaged wiring.

Blown fuse.

Bad battery cell(s).

Poor cable connections.

Faulty regulator

(if so equipped).

Faulty alternator.

Engine throttle control not

set at "SLOW" position

for 30 seconds before

stopping engine.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Replace blade mandrel.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11. Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec-

tions.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec-

tions.

3. Replace regulator.

4. Replace alternator.

. Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

TRACTOR - - MODEL NUMBER 917.272911

SCHEMATIC

.I-

0E0 o111 0LAOK

BATTERY

RED

I AMMETER

(OPTIONAL) WHETE

)G A1

IGNITION

SWITCH

IGNITION SWITCH

FUSE

I I

'© : _2)

[ J

CLUTCH / BRAKE

(PEDAL UP)

BLACK

(OPTIONAL)

[ i

SOLENOID

RED

STARTER

BLACK

WHETE

SEAT SWITCH

(NOT OCCUPIED)

i 111 •1_

Wl-I_TE

I I

i I i i I

'o ,BLAo

LUTOH

SLACK (CLUTCH OFF) I GROUNDING

CONNECTOR

A •

v SPARK •

BLACK IGNITION _ PLUG H

UNIT GAP

J (2 PLUGS ON

TWIN CYL ENGINES) •

FUEL SHUT*OFF SOLENOID

(IF SO EQUIPPED)

ORANGE

CHARGENG SYSTEM OUTPUT

3 AMP DC @ 3600RPM

RED

I LIGHTING SYSTEM OUTPUT

28 VOLTS AC M_N @ 3600 RPM

(CHARGING SYSTEM DISCONNECTED)

DIODE ALTERNATOR

\ 14 VOLTSAC MIN @3600 RPM(LIGHTSOFF)

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

HEADLIGHTS

NON-REMOVABLE

CONNECTIONS

BROWN

POSITION CIRCUIT "MAKE"

OFF M+G+A1 NONE

RUN/LIGH_ B+A1 A2+L

RUN B+A1 NONE

START B + S + A1 NONE

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

TRACTOR - - MODEL NUMBER 917.272911

ELECTRICAL

I I

42 i

I I

i 41

I [i

/ I

)/ i

i 29

I I

I \

TRACTOR - - MODEL NUMBER 917.272911

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 144927 Battery

2 74760412 Bolt Hex Hd 1/4-20 Unc x 3/4

8 7603J Case Battery

10 145211 Bolt, Btr Front 1/4-20 x 7-1/2

11 150109 Holddewn Battery Front Mount

12 145769 Nut, Push Nylon Battery Front 1/4

16 176138 Switch, Interlock

21 175688 Harness Light Socket (W/4152j)

22 4152J Bulb Light #1156

24 4799J Cable Battery

25 146148 Cable Battery

26 175158 Fuse

27 73510400 Nut Keps Hex 1/4-20 Unc

28 145491 Cable Ground

29 121305X Switch Seat

30 175566 Switch Ign

33 140403 Key Molded Craftsman

40 179720 Harness Ign

41 71110408 Bolt BIk. Pin Hex 1/4-20 Unc x 1/2

42 131563 Cover Terminal

43 178861 Solenoid

45 121433X Ammeter Rectangular 6 Amp

52 141940 Protection Wire Loop

55 17490508 Screw Thdrol 5/16-18 x 1/2

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.272911

CHASSIS AND ENCLOSURES

209_

222

208

219

208

chassis-Laser -It,stlt 10

TRACTOR - - MODEL NUMBER 917.272911

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619

2 176554

3 17060612

5 155272

9 168337X013

10 STD533710

11 174996

13 172107X010

14 17490608

17 174330X558

20 180679

23 124028X

26 STD541437

28 175049

29 174331X558

30 174738X558

31 139976

37 17490508

38 175710

39 174714

58 184462

60 STD533707

64 154798

74 STD541437

114 158112

115 17060620

142 175702

143 154966

144 175582

145 156524

161 184921

166 171875

206 170165

207 17670508

208 17670608

209 17000612

211 145212

212 175143

219 17000512

-- 5479J

Chassis Assembly

Drawbar

Screw 3/8-16 x 3/4

Bumper Hood/Dash

Dash

Bolt, Carriage 3/8-16 x 1

Panel, Dash, L.H.

Panel, Dash, R.H.

ScrewThdrol 3/8-16 x 1/2

Hood Assembly

Plate Mtg Battery Fuel Tank

Bushing, Snap, Nylon, Fuel Line

Locknut, Hex, with Insert 3/8-16 Uric

Grille/Lens Asm

Lens, Grille

Fend/Ftrest

Bracket, Fender Support

ScrewThdrol 5/16-18x 1/2

Pivot Bracket Assembly

Bracket Pivot Laser Lt

Air Duct

Bolt Rdhd Sqnk 3/8-16 Uric x 3/4

Dash Lower STLT

Nut Crownlock 3/8-16 Uric

Keeper Belt Rear Lh Stl

Screw 3/8-16 x 1-1/4

Plate Reinforcement STLT

Bracket Swaybar Chassis

Bracket Pnt Footrest STLT

Rod Pivot Chassis/Hood

Bumper Hood

Screw HwHd Hi-Lo #13-16 x 3/4

Bolt Shoulder 5/16-18 TT

Screw Thdrol 5/16-18 x 1/2

Screw Thdrol 3/8-16 x 1/2

Screw Hex Wsh Thrd 3/8-16 x 3/4

Nut Hexflange Lock

Insert Lens Reflective

Screw 5/16-18 x 3/4

Plug Button

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

T_CTOR - - MODEL NUMBER 917.272911

GROUND DRIVE

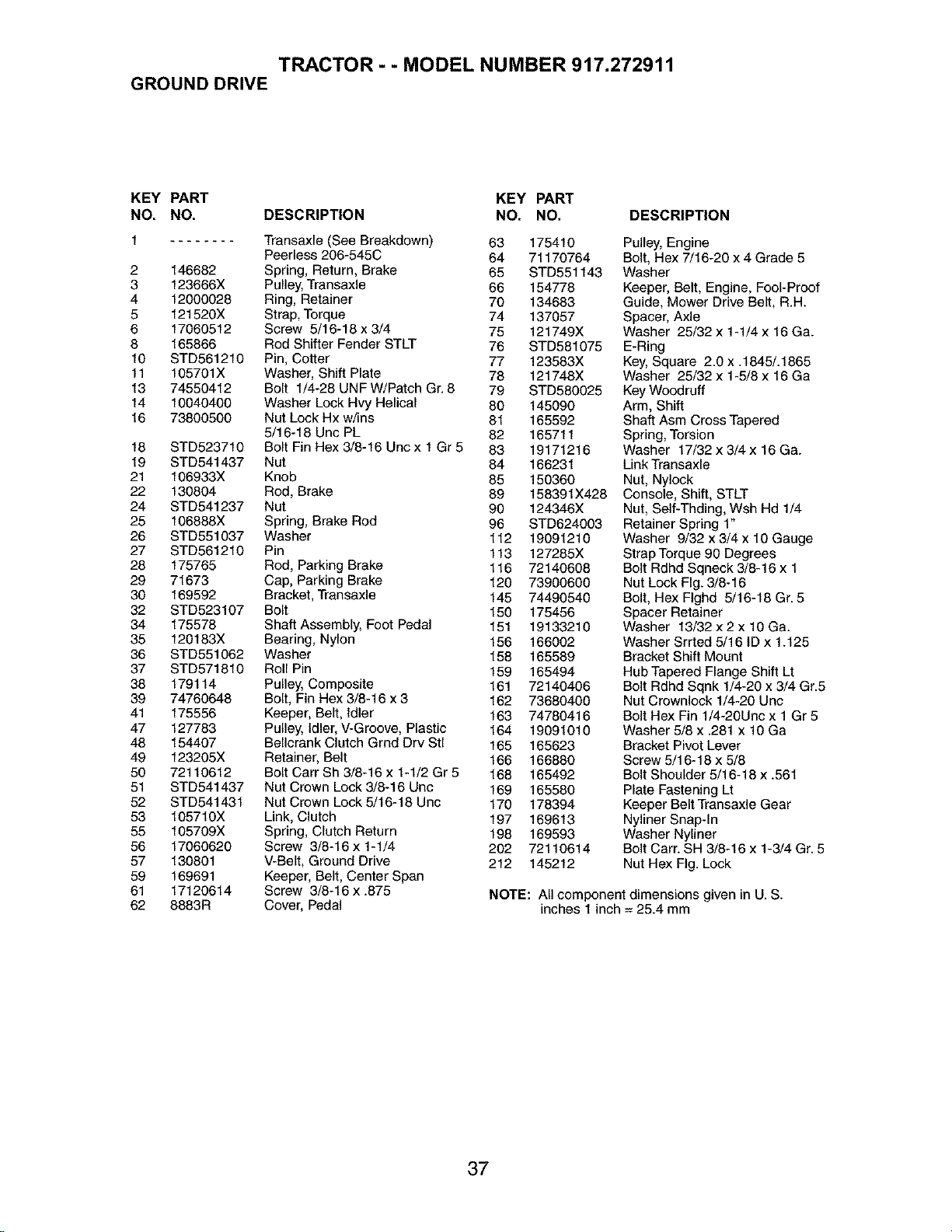

TRACTOR - - MODEL NUMBER 917.272911

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO,

1 Transaxle (See Breakdown) 63 175410

Peerless 206-545C 64 71170764

2 146682 Spring, Return, Brake 65 STD551143

3 123666X Pulley, Transaxle 66 154778

4 12000028 Ring, Retainer 70 134683

5 121520X Strap, Torque 74 137057

6 17060512 Screw 5/16-18 x 3/4 75 121749X

8 165866 Rod Shifter Fender STLT 76 STD581075

10 STD561210 Pin, Cotter 77 123583X

11 105701X Washer, Shift Plate 78 121748X

13 74550412 Bolt 1/4-28 UNFW/Patch Gr. 8 79 STD580025

14 10040400 Washer Lock Hvy Helical 80 145090

16 73800500 Nut Lock Hx w/ins 81 165592

5/16-18 Unc PL 82 165711

18 STD523710 Bolt Fin Hex 3/8-16 Unc x 1 Gr 5 83 19171216

19 STD541437 Nut 84 166231

21 106933X Knob 85 150360

22 130804 Rod, Brake 89 158391X428

24 STD541237 Nut 90 124346X

25 106888X Spring, Brake Rod 96 STD624003

26 STD551037 Washer 112 19091210

27 STD561210 Pin 113 127285X

28 175765 Rod, Parking Brake 116 72140608

29 71673 Cap, Parking Brake 120 73900600

30 169592 Bracket, Transaxle 145 74490540

32 STD523107 Bolt 150 175456

34 175578 Shaft Assembly, Foot Pedal 151 19133210

35 120183X Bearing, Nylon 156 166002

36 STD551062 Washer 158 165589

37 STD571810 Roll Pin 159 165494

38 179114 Pulley, Composite 161 72140406

39 74760648 Bolt, Fin Hex 3/8-16 x 3 162 73680400

41 175556 Keeper, Belt, Idler 163 74780416

47 127783 Pulley, Idler, V-Groove, Plastic 164 19091010

48 154407 Bellcrank Clutch Grnd Dry Stl 165 165623

49 123205X Retainer, Belt 166 166880

50 72110612 Bolt Cart Sh 3/8-16 x 1-1/2 Gr 5 168 165492

51 STD541437 Nut Crown Lock 3/8-16 Uric 169 165580

52 STD541431 Nut Crown Lock 5/16-18 Uric 170 178394

53 105710X Link, Clutch 197 169613

55 105709X Spring, Clutch Return 198 169593

56 17060620 Screw 3/8-16x1-1/4 202 72110614

57 130801 V-Belt, Ground Drive 212 145212

59 169691 Keeper, Belt, Center Span

61 17120614 Screw 3/8-16 x .875

62 8883R Cover, Pedal

DESCRIPTION

Pulley, Engine

Bolt, Hex 7/16-20 x 4 Grade 5

Washer

Keeper, Belt, Engine, Fool-Proof

Guide, Mower Drive Belt, R.H.

Spacer, Axle

Washer 25/32 x 1-1/4 x 16 Ga.

E-Ring

Key, Square 2.0 x .1845/.1865

Washer 25/32 x 1-5/8 x 16 Ga

Key Woodruff

Arm, Shift

Shaft Asm Cross Tapered

Spring, Torsion

Washer 17/32 x 3/4 x 16 Ga.

Link Transaxle

Nut, Nylock

Console, Shift, STLT

Nut, Self-Thding, Wsh Hd 1/4

Retainer Spring 1"

Washer 9/32 x 3/4 x 10 Gauge

Strap Torque 90 Degrees

Bolt Rdhd Sqneck 3/8-16 x 1

Nut Lock Fig. 3/8-16

Bolt, Hex Flghd 5/16-18 Gr. 5

Spacer Retainer

Washer 13/32 x 2 x 10 Ga.

Washer Srrted 5/16 ID x 1.125

Bracket Shift Mount

Hub Tapered Flange Shift Lt

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr.5

Nut Crownlock 1/4-20 Unc

Bolt Hex Fin 1/4-20Unc x 1 Gr 5

Washer 5/8 x .281 x 10 Ga

Bracket Pivot Lever

Screw 5/16-18 x 5/8

Bolt Shoulder 5/16-18 x .561

Plate Fastening Lt

Keeper Belt Transaxle Gear

Nyliner Snap-In

Washer Nyliner

Bolt Carr. SH 3/8-16 x 1-3/4 Gr. 5

Nut Hex Fig. Lock

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

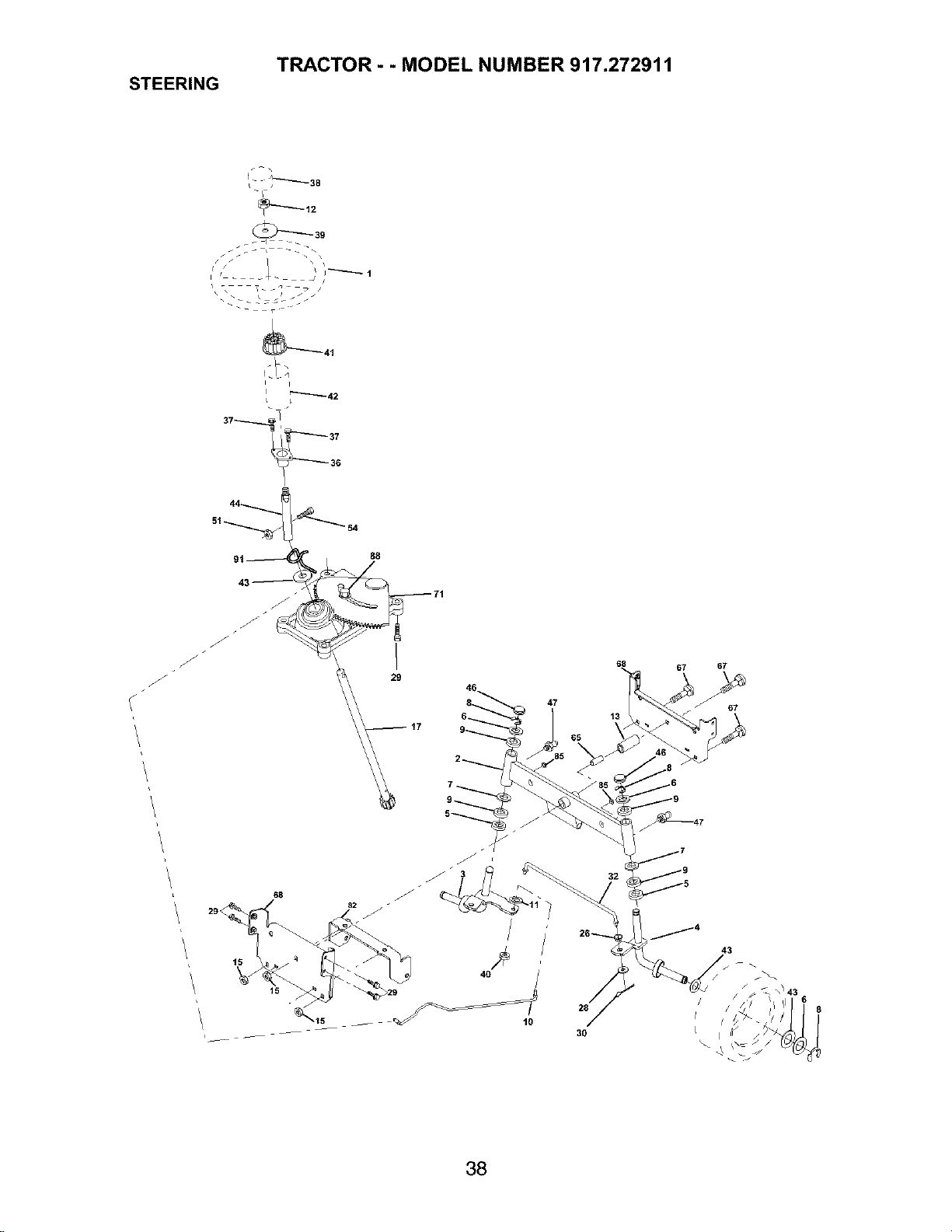

TRACTOR - - MODEL NUMBER 917.272911

STEERING

IL_ _38

_39

44_

68 67

STEERING

TRACTOR - ,.MODEL NUMBER 917.272911

KEY PART

NO. NO. DESCRIPTION

1 139768 Steering Wheel

2 175131 Axle Assembly

3 169840 Spindle Assembly, LH.

4 169839 Spindle Assembly, R.H.

5 6266H Bearing, Race, Thrust, Hardened

6 121748X Washer 25/32 x 1-5/8 x 16 Gauge

7 19272016 Washer 27/32 x 1-1/4 x 16 Gauge

8 12000029 Ring, Klip

9 3366R Bearing, Steering Column

10 175121 Draglink

11 STD551137 Washer, Lock

12 73940800 Nut Hex Jam Toplock 1/2-20 Unf

13 136518 Spacer, Bearing, Axle

15 145212 Nut, Hexflange Lock

17 180641 Shaft Assembly, Steering

26 126847X Bushing, Link, Drag

28 19131416 Washer 13/32 x 7/8 x 16 Gauge

29 17060612 Screw 3/8-16 x 3/4

30 STD561210 Pin

32 130465 Rod, Tie

36 155099 Bushing, Steering

37 152927 Screw

38 139769 Insert, Steering Wheel

39 19183812 Washer 9/16 x 2-3/8

40 STD541537 Gripco Nut

41 100711L Adaptor, Steering Wheel

42 145054X428 Boot, Steering Shaft

43 121749X Washer 25/32 x 1-1/4 x 16 Gauge

44 180640 Extension Shaft Steering

46 121232X Cap, Spindle

47 183226 Fitting, Grease

51 73540400 Nut Crownlock 1/4-28

54 71130420 Bolt Hex 1/4-28 Unf x 1-1/4 Gr. 8

65 160367 Spacer Brace Axle

67 72140618 Bolt RDHD SQNK 3/8-16 x 2-1/4

68 169827 Axle, Brace

71 175146 Steering Asm

82 169835 Bracket Susp Chassis Front

85 133835 Fastner Christmas Tree

88 175118 Bolt shoulder 7/16-20

91 175553 Clip Steering

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

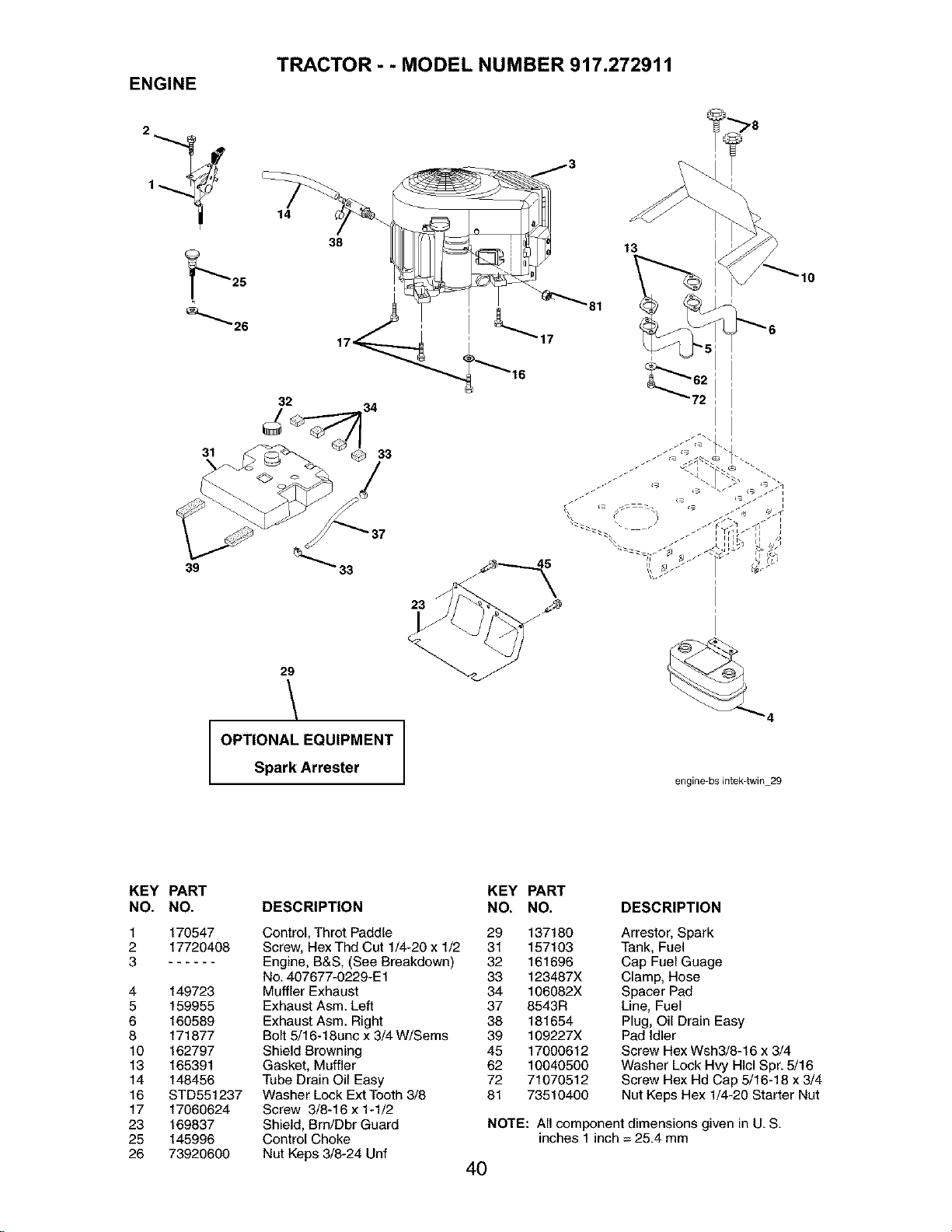

TRACTOR - - MODEL NUMBER 917.272911

ENGINE

1_ 14

OPTIONAL EQUIPMENT

Spark Arrester

engine-bs intek4win 29

KEY PART

NO. NO.

1 170547

2 17720408

4 149723

5 159955

6 160589

8 171877

10 162797

13 165391

14 148456

16 STD551237

17 17060624

23 169837

25 145996

26 73920600

KEY PART

DESCRIPTION NO. NO.

Control, Throt Paddle 29 137180

Screw, Hex Thd Cut 1/4-20 x 1/2 31 157103

Engine, B&S, (See Breakdown) 32 161696

No. 407677-0229-E1 33 123487X

Muffler Exhaust 34 106082X

Exhaust Asm. Left 37 8543R

Exhaust Asm. Right 38 181654

Bolt 5/16-18unc x 3/4 W/Sems 39 109227X

Shield Browning 45 17000612

Gasket, Muffler 62 10040500

Tube Drain Oil Easy 72 71070512

Washer Lock Ext Tooth 3/8 81 73510400

Screw 3/8-16 x 1-1/2

Shield, Brn/Dbr Guard

Control Choke

Nut Keps 3/8-24 Unf

DESCRIPTION

Arrestor, Spark

Tank, Fuel

Cap Fuel Guage

Clamp, Hose

Spacer Pad

Line, Fuel

Plug, Oil Drain Easy

Pad Idler

Screw Hex Wsh3/8-16 x 3/4

Washer Lock Hvy Hlcl Spr. 5/16

Screw Hex Hd Cap 5/16-18 x 3/4

Nut Keps Hex 1/4-20 Starter Nut

NOTE: All component dimensions given in U. S.

inches 1inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.272911

LIFT ASSEMBLY

32 /

KEY PART

NO. NO.

1 159460

2 159471

3 105767X

4 12000002

5 19211621

6 120183X

7 125631X

8 122365X

11 139865

12 139866

13 STD624008

DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

LiftLever Inner Wire Assembly 15 173288

Shaft Assembly, Lift 16 73350800

Pin, Groove 17 175689

E-Ring 18 73800800

Washer 21/32 x 1 x 21 Gauge 19 139868

Bearing, Nylon 20 163552

Grip, Handle, Fluted 31 169865

Button, Plunger, Red 32 73540600

Link, Lift, LH.

Link, Lift, R.H.

Retainer Spring

Link, Front

Nut, Hex, Jam 1/2-13 Uric

Trunnion

Nut Lock w/Wsh 1/2-13 Unc

Arm, Suspension, Rear

Retainer Spring

Bearing, Pvt, Lift

Nut, Crownlock 3/8-24

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

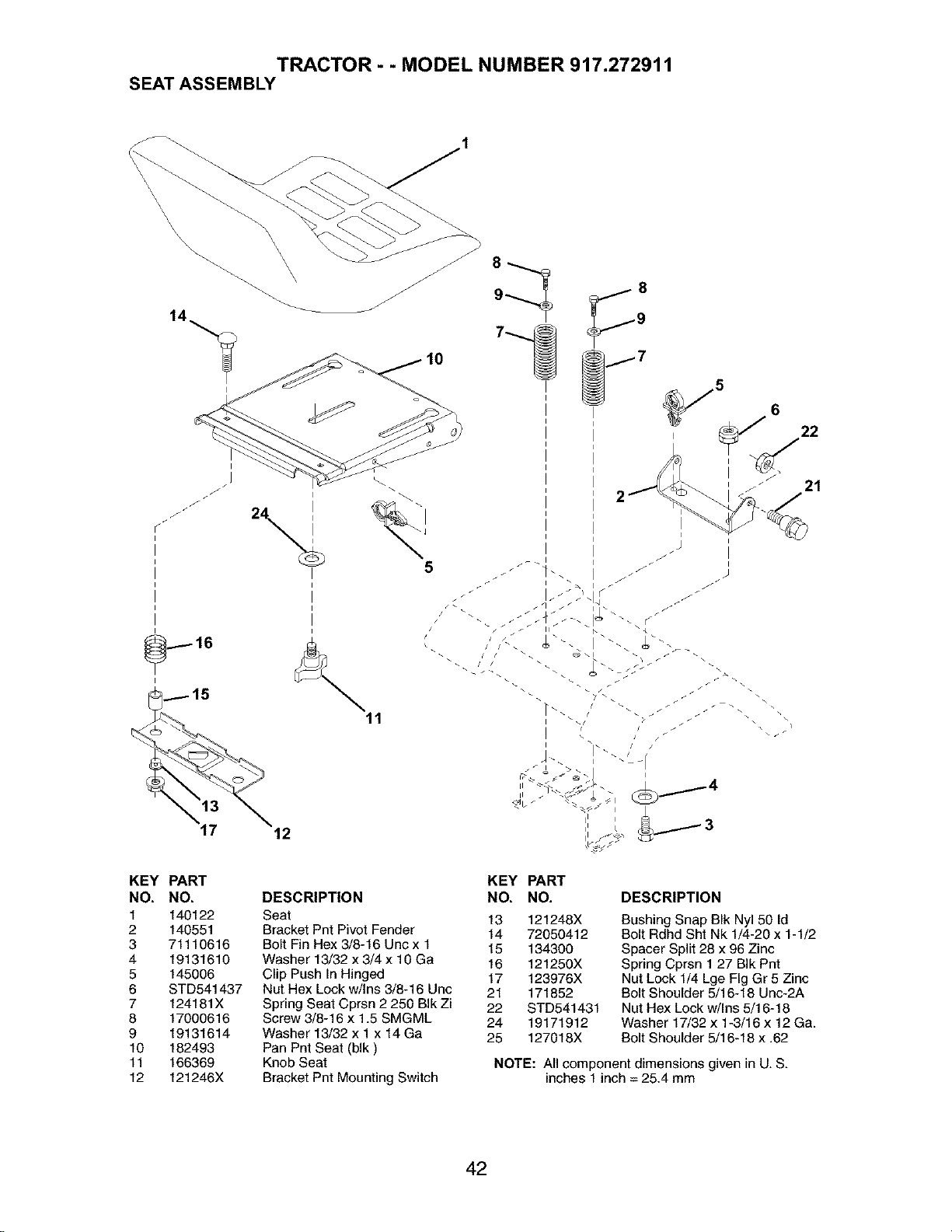

TRACTOR - - MODEL NUMBER 917.272911

SEAT ASSEMBLY

__...--- 16

KEY PART

NO. NO.

1 140122

2 140551

3 71110616

4 19131610

5 145006

6 STD541437

7 124181X

8 17000616

9 19131614

10 182493

11 166369

12 121246X

DESCRIPTION

Seat

Bracket Pnt Pivot Fender

Bolt Fin Hex 3/8-16 Uncx 1

Washer 13/32 x 3/4 x 10 Ga

Clip Push In Hinged

Nut Hex Lock w/Ins 3/8-16 Unc

Spring Seat Cprsn 2 250 BIk Zi

Screw 3/8-16 x 1.5 SMGML

Washer 13/32 x 1 x 14 Ga

Pan Pnt Seat (blk)

Knob Seat

Bracket Pnt Mounting Switch

KEY PART

NO. NO.

13 121248X

14 72050412

15 134300

16 121250X

17 123976X

21 171852

22 STD541431

24 19171912

25 127018X

DESCRIPTION

Bushing Snap BIk Nyl 50 Id

Bolt Rdhd Sht Nk 1/4-20 x 1-1/2

Spacer Split 28 x 96 Zinc

Spring Cprsn 1 27 BIk Pnt

Nut Lock 1/4 Lge Fig Gr 5 Zinc

Bolt Shoulder 5/16-18 Unc-2A

Nut Hex Lock w/Ins 5/16-18

Washer 17/32 x 1-3/16 x 12 Ga.

Bolt Shoulder 5/16-18 x .62

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.272911

DECALS

2 m

KEY PART

NO. NO.

1 156439

2 181659

3 184728

4 184729

5 184730

6 133644

7 181824

8 184916

9 184899

11 156368

KEY PART

DESCRIPTION NO. NO,

Decal, Fender Danger Sears 13 146046

Decal, Engine 15 160396

Decal, Hood, R.H. 19 138047

Decal, Hood, LH. 20 172331

Decal, Hood Side 21 179128

Decal, Maintenance 22 149516

Decal, Lower Dash - - 138311

Decal, Rplcmnt - - 165800X428

Decal, Fender, Craftsman Gold - - 165799X428

Decal, Fender STLT Oper lnst - - 185323

E/S - - 185326

DESCRIPTION

Decal, V-Belt Dr SChTractor

Decal, Mower Drive Schematic

Decal, Battery Diehard Sears

Decal, Deck Sears

Decal, Deck

Decal, Battery

Decal, Lift Handle

Pad Footrest LH STLT

Pad Footrest RH STLT

Owner's Manual, English

Owner's Manual, Spanish

WHEELS AND TIRES

4,10

KEY PART

NO. NO. DESCRIPTION

59192 Valve Cap, Tire

65139 Stem, Valve

106222X Tire, Front

59904 Tube, Front Tire

(Not Provided, Service Item Only)

106732X624 Rim, Front

278H Fitting, Grease (Front Wheel

Only)

9040H Bearing, Flange (Front Wheel

Only)

106108X624 Rim, Rear

122082X Tire, Rear

7152J Tube, Rear Tire

(Not Provided, Service Item Only)

104757X428 Cap, Axle

144334 Sealant, Tire 10 oz.

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.272911

MOWER DECK

i147

142

.__ 105

106 _'_ 102 lu_ !

1 I 6

101

102/_

113 111 114

116

10_,

_8 _

_117

@116

42 Dinah-t-path stlt 3.

TRACTOR - - MODEL NUMBER 917.272911

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO,

1 165892 Mower Deck Assembly, 42" 67 149846

2 STD533107 Bolt 68 144959

3 138017 Bracket Assembly, Sway Bar, 92 STD541437

Front 101 136420

4 165460 Bracket Sway Bar 38/42"Deck 102 71081010

5 STD624008 Retainer Spring 103 19061216

6 178024 Bar Sway Deck 104 STD551110

8 850857 Bolt, Hex 3/8-24 x 1.25 Gr. 8 105 160793

9 STD551137 Washer, Lock 106 2029J

10 140296 Washer, Hardened 111 179292

(The following blades are 112 179293

available) 113 17060510

11 134149 Blade, 42" Mulching Std. 114 STD541431

(For mulching mowers only) 115 72110505

-- 139775 Blade, 42" Mulching Premium 116 4898H

(For better wear when mulching) 117 165746

-- 138971 Blade, 42" Hi-Lift 118 73930600

(For bagging or discharging) 119 STD551037

13 137645 Shaft Assembly, Mandrel, Vented 129 19131312

14 128774 Housing, Mandrel, Vented 130 STD523710

15 110485X Bearing, Ball, Mandrel 131 STD533710

16 174493 Stripper, Mower Deck 142 165890

18 72140505 Bolt, Carriage 5/16-18 x 5/8 143 157109

19 132827 Bolt, Shoulder 144 158634

20 159770 Baffle, Vortex 145 165888

21 STD541431 Nut Crownlock 5/16-18 Unc 146 171977

23 177563 Bracket, Deflector 147 131335

24 105304X Cap, Sleeve 148 169022

25 123713X Spring, Torsion, Deflector 149 165898

26 110452X Nut, Push 150 19091216

27 130968X428 Shield, Deflector 151 169670

28 19111016 Washer 11/32 x 5/8 x 16 Ga. 152 169676

29 131491 Rod, Hinge 153 169674

30 173984 Screw Thdrol 154 169675

31 129963 Washer, Spacer 155 169671

32 153535 Pulley, Mandrel 156 169672

33 178342 Nut, Toplock, Flanged 157 169669

34 STD533717 Bolt 158 17720408

36 131494 Pulley, Idler, Flat 159 STD533717

37 STD551037 Washer 13/32 x 13/16 x 16 Ga. 184 19131410

40 STD541437 Nut Crownlock 3/8-16 Unc - - 130794

44 140088 Guard, Mandrel, L.H.

45 STD624003 Retainer

46 137729 Screw, Thd. Roll 1/4-20 x 5/8

48 133944 Washer, Hardened - - 169583

52 139888 Bolt, Shoulder 5/16-18 Unc

53 184907 Arm Assembly, Pad, Brake

54 178515 Washer, Hardened

55 155046 Arm, Idler

56 165723 Spacer, Retainer

59 141043 Guard, TUV Idler

DESCRIPTION

Knob Custom Oval

V-Belt

Nut

Mulcher Cover

Screw Pan HD Phillip 10-24 x 5/8

Washer #10

Washer, Lock

Latch Assembly, Bagger

Nut, Weld

Bracket, Gauge, Wheel L.H.

Bracket, Gauge, Wheel R.H.

Screw 5/16-18 x .625

Nut, Hex, Keps 5/16-18 Unc

Bolt, Carriage 5/16 Unc x 5/8

Bolt, Shoulder

Wheel, Gauge

Nut, Centerlock 3/8-16

Washer 3/8 x 7/8 x 14 Gauge

Washer 13/32 x 13/16 x 12 Ga.

Bolt, Fin Hex 3/8-16 unc x 1Gr. 5

Bolt, Rdhd Sqnk 3/8-16 Unc x 1

Arm Spring Brake Mower

Bracket Arm Idler 42"

Keeper Belt

Pulley Idler Flat

Bolt Carriage Idler

Spring Extension

Spring Return Idler

Retainer Spring Yellow Zinc

Washer 9/32 x 3/4 x 16 Ga.

Bracket Clutch

Cable Clutch 42 In

Washer Flat 3/8" Type B

Spring Retainer

Spring Retention Lever

Spacer

Rod Clutch

Screw Hex Thd Cut 1/4-20 x 1/2

Bolt Rdhd Sqn 3/8-16 Unc x 1-3/4

Washer 13/32 x 7/8 x 10 Ga.

Mandrel Assembly (Includes

Housing, Shaft and Shaft

Hardware Only- Pulley not

Included)

Replacement Mower, Complete

(Std. Deck-Order separately

mulcher cover and guage wheel

components key nos. 101 - 106

and 116- 119)

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

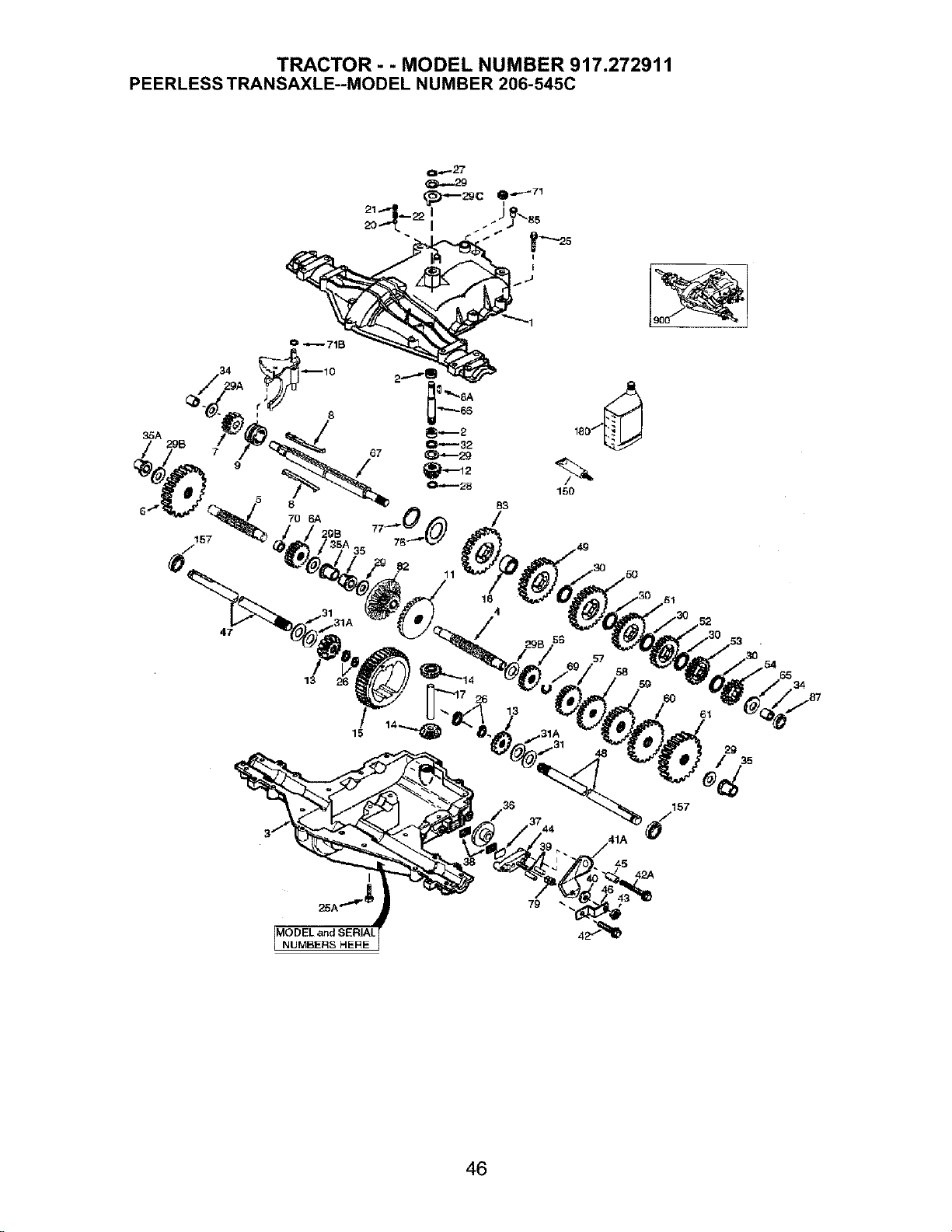

TRACTOR - - MODEL NUMBER 917.272911

PEERLESS TRANSAXLE--MODEL NUMBER 206-545C

35A

157

47 _,,,,31A

TRACTOR - - MODEL NUMBER 917.272911

PEERLESS TRANSAXLE--MODEL NUMBER 206-545C

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO,

1 772147 Transaxle Cover 39 786026

2 780086A Needle Bearing 5/8" 40 792076A

3 770128 Transaxle Case 41A 790079

4 776395 Countershaft 42 792073A

5 776409 Output Shaft 42A 792085A

6 778364 Spur Gear (38 teeth) 43 792075

6A 778369 Spur Gear (15 teeth) 44 790025

7 778330 Spur Gear (11 teeth) 45 786066

8 792180 Shift Key 46 786086

8A 792047 Woodruff Key #9 47 774690

9 784352 Shift Collar 48 774691

10 784378 Shift Rod & Fork 49 778356

11 778334 Bevel Gear (30 teeth) 50 778338

12 778309 Input Bevel Pinion (13 teeth) 51 778354

13 778368 Bevel Gear (13 teeth) 52 778352

(Include. 14) 53 778350

14 778368 Bevel Pinion (13 teeth) 54 778346

(Include. 13) 56 778355

15 778370 Ring Gear (43 teeth) 57 778337

17 786188 Drive Pin 58 778353

18 786102 Spacer 1.130 X .695 59 778351

20 792077A Ball 5/16" dia 60 778349

21 792078 Set Screw 3/8 - 16 x 3/8" 61 778345

22 792079 Spring .310 OD x .625 L 65 780189

25 792073A Screw 1/4 - 20 x 1-1/4" 66 776422

25A 792177 Screw 1/4-20x 1-3/8" 67 776396

26 792125 Retaining Ring (pkg of 2) 69 792170

27 792035 Retaining Ring 70 786187

28 788040 Retaining Ring 71 788069

29 780072 ThrustWasher.627 ID x .031W 71B 788092

29A 780160 ThrustWasher.762 ID x .031W 76 780090

29B 780051 Thrust Washer .762 ID x .031W 77 788078A

29C 780199 Anti-Rotation Washer .632 79 792144

30 780108 Cup Washer 1.127 ID x .032W 82 778333

31 780001 Flat Washer .750 ID x .056W

(Use As Needed) 83 778338

31A 780195 Flat Washer .750 ID x .062W 85 792154

32 788083 Oil Seal 5/8" 87 788089A

34 780194 Bushing .563 150 788093A

35 780193 Flanged Bushing 5 / 8" ID 157 788088A

35A 780197 Flanged Bushing .751 180 730229A

36 790075 Brake Disk 900 794712

37 790007 Brake Pad Plate

36 799021 Brake Pad (pkg of 2)

DESCRIPTION

Dowel Pin

Flat Washer .312 ID x .059W

Brake Lever

Screw 1/4 - 20 x 1-1/4"

Screw 1/4 - 20 x 2 1/4"

Locknut 5 / 16 - 24

Brake Pad Holder

Spacer .2625 x 1.0

Brake Lever Bracket

Axle (11-15/16" Long)

Axle (16 - 1 / 2"long)

Spur Gear (29 teeth)

Spur Gear (27 teeth)

Spur Gear (23 teeth)

Spur Gear (19 teeth)

Spur Gear (16 teeth)

Spur Gear (15 teeth)

Spur Gear (11 teeth)

Spur Gear (13 teeth)

Spur Gear (17 teeth)

Spur Gear (21 teeth)

Spur Gear (24 teeth)

Spur Gear (25 teeth)

Flat Washer .563 ID x .062W

Input Shaft

Shifter & Brake Shaft

Retaining Ring

Spacer .890

Square Cut Ring

"O" Ring

Flat Washer 1.128 ID x .058W

Inverted Retaining Ring

Spring .430 OD x .5000 L

Bevel & Spur Gear (30 & 13

teeth)

Spur Gear (27 teeth)

Oil Fill Plug

Oil Seal 9 / 16"

Liquid Gasket RTV Silicone

Oil Seal 3/4"

Gear Oil 80W90

Replacement MST

206-545C Transaxle

NOTE: All component dimensions given in

U.S. inches 1 inch = 25.4 mm

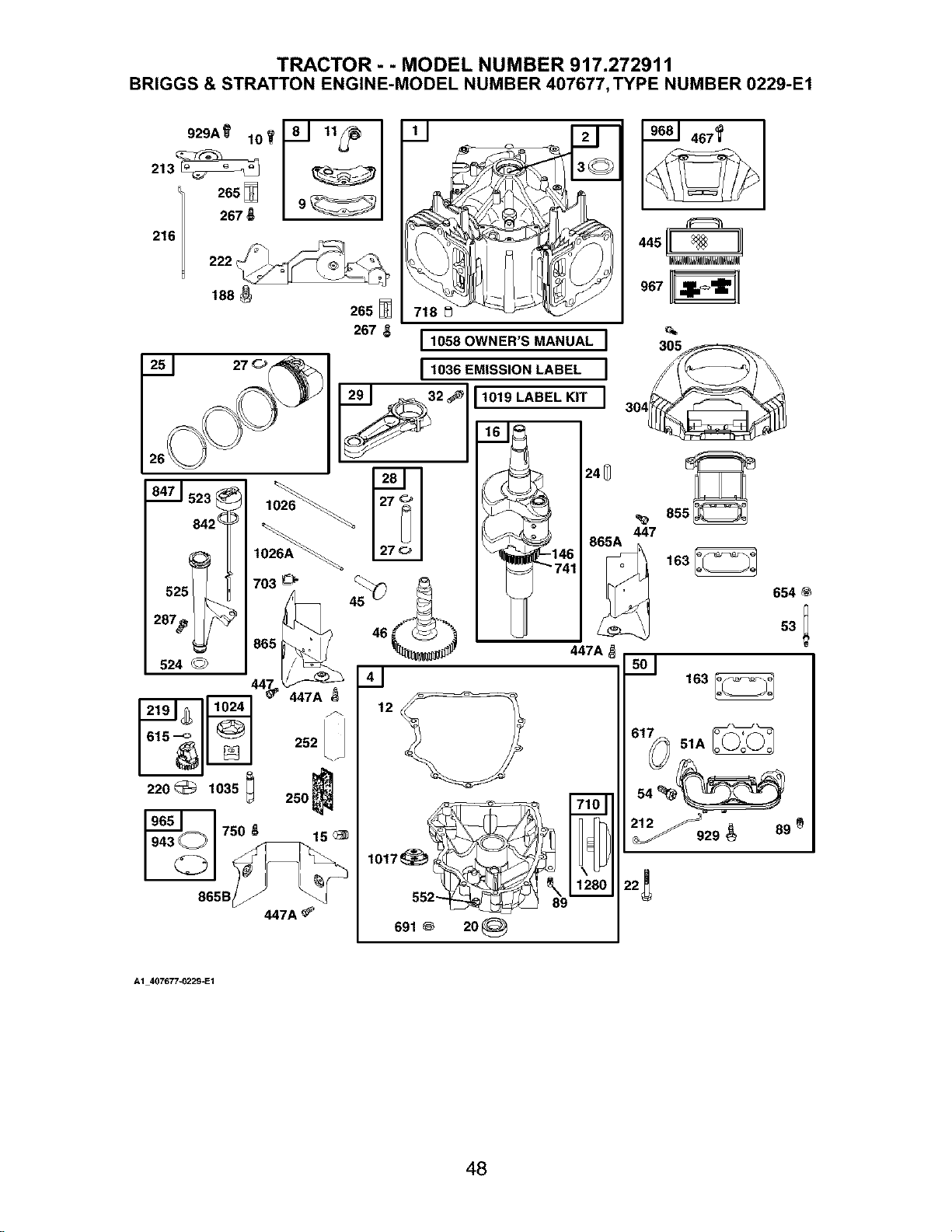

TRACTOR - - MODEL NUMBER 917.272911

BRIGGS & STRATTON ENGINE-MODEL NUMBER 407677, TYPE NUMBER 0229-E1

929A_ 10V

213_

265

267

216

222

188

265

445

967

A| 407677-0229-E1

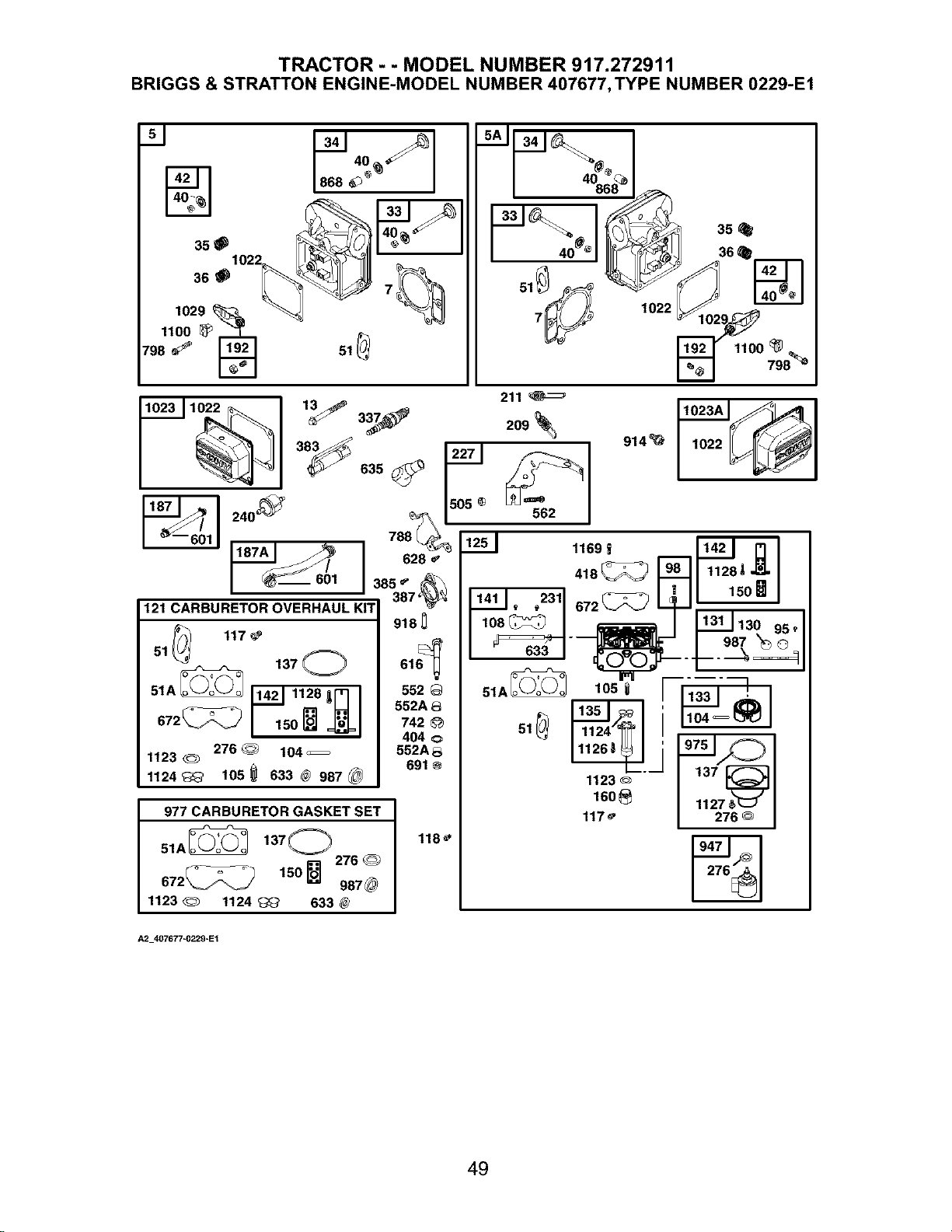

TRACTOR - - MODEL NUMBER 917.272911

BRIGGS & STRATTON ENGINE-MODEL NUMBER 407677, TYPE NUMBER 0229-E1

1029

1100

799

1022

121 CARBURETOR OVERHAUL KIT

918

137O

51A _ J142J 1128 jp"] I

276 _ 104

1123

1124_ 105_ 533® 987@)

977 CARBURETOR GASKET SET

51A 13'0

5 2Q- 2)15ol2 5®

987_

616 r]

552 Q

552A 8

742_

404_

552A6

691

914%

418_

672

633

117_

118_

1022

A2 407677-0229-E1

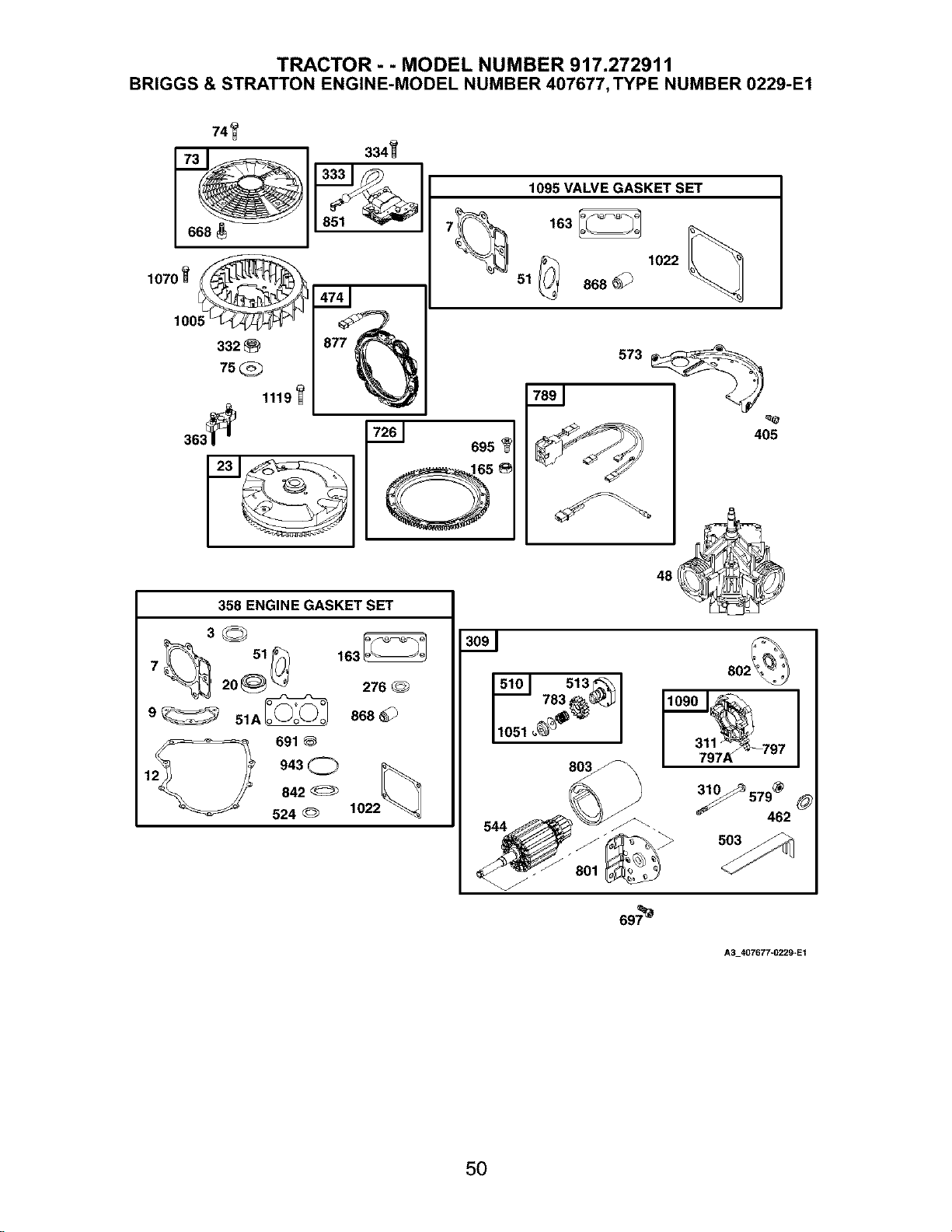

TRACTOR - - MODEL NUMBER 917.272911

BRIGGS & STRATTON ENGINE-MODEL NUMBER 407677, TYPE NUMBER 0229-E1

74I_

334_

332

1119_

363

1095 VALVE GASKET SET

153 1o22

51 868 _)

695

573_

405

358 ENGINE GASKET SET

3©

20 276 O

9_ 51A_ 868_

591

943 0

842

524 _ 1022

513_I

783 _1; I

_579 _

503

599

A3 407677_0229-E1

TRACTOR - - MODEL NUMBER 917.272911

BRIGGS & STRATTON ENGINE-MODEL NUMBER 407677, TYPE NUMBER 0229-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 690231 Cylinder Assembly 133 499806 Float-Carburetor

2 499585 Kit-Bushing/Seal (Magneto Side) 135 499803 Tube-Fuel Transfer

3 391086 *Seal-Oil (Magneto Side) 137 690994 OSGasket-Float Bowl

4 697473 Sump-Engine 141 499807 Kit-Choke Shaft

5 693998 Head-Cylinder (Cylinder 1) 142 499808 ONezzle-Carburetor

5A 693999 Head-Cylinder (Cylinder 2) 146 690979 Key-Timing

7 690962 *+Gasket-Cylinder Head 150 690995 O_Gasket-Nozzle

8 499601 Breather Assembly 160 690996 Retainer-Solenoid

9 690937 *Gasket-Breather 163 691001 *+Gasket-Air Cleaner

10 690960 Screw (Breather Assembly) 165 693148 Nut (Ring Gear)

11 690942 Tube-Breather 187 691050 Line-Fuel (Cut to Required

12 690945 *Gasket-Crankcase Length)

13 690360 Screw (Cylinder Head) 187A 691049 Line-Fuel(Molded)

15 690946 Plug-Oil Drain 188 690960 Screw (Control Bracket)

16 691046 Crankshaft 192 690083 Adjuster-Rocker Arm

20 690947 *Seal-Oil (PTO Side) 209 697674 Spring-Governor

22 694966 Screw (Engine Sump) 211 691019 Spring-Governed Idle

23 691054 Flywheel 212 695238 Link-Throttle

24 222698 Key-Flywheel 213 691021 Bracket-Choke Control

25 499588 Piston Assembly (Standard) 216 691022 Link-Choke

25 499589 Piston Assembly (.010" Over- 219 698231 Gear-Governor

size) 220 690412 Washer (Governor Lever)

25 499590 Piston Assembly (.020" Over- 222 691023 Bracket-Control

size) 227 691048 Lever-Governor Control

25 499591 Piston Assembly (.030" Over- 231 690718 Screw (Choke Valve)

size) 240 691035 Filter-Fuel

26 499604 Ring Set-Piston (Standard) 250 690957 Retainer-Breather

26 499605 Ring Set-Piston (.010_Oversize) 252 690956 Collector-Oil

26 499606 Ring Set-Piston (.020" Oversize) 265 691024 Clamp-Casing

26 499607 Ring Set-Piston (.030" Oversize) 267 695134 Screw (Casing Clamp)

27 690975 Lock-Piston Pin 276 690997 *Q+Washer-Sealing

28 690229 Pin-Piston 287 690960 Screw (Dipstick Tube)

29 499583 Rod-Connecting 304 695277 Housing-Blower

32 690976 Screw (Connecting Rod) 305 691005 Screw (Blower Housing)

33 499596 Valve-Exhaust 309 497595 Motor-Starter

34 499597 Valve-Intake 310 690323 Bolt (Starter Motor)

35 690963 Spring-Valve (Intake) 311 395538 Brush Set

36 690963 Spring-Valve (Exhaust) 332 691059 Nut (Flywheel)

40 690964 Retainer-Valve 333 691060 Armature-Magneto

42 499586 Keeper-Valve 334 691061 Screw (Magneto Armature)

45 690977 Tappet-Valve 337 691043 Plug-Spark

46 690978 Camshaft 358 694012 Set-Engine Gasket

48 698172 Short Block (446777-0027-E2 363 691062 Flywheel Puller

Replacement Engine) 383 690966 Wrench-Spark Plug

50 695241 Manifold4ntake 385 690960 Screw (Fuel Pump)

51 690949 *O+ Gasket-Intake 387 808656 Pump-Fuel

51A 690950 * OSGasket-tntake 404 690442 Washer (Governor Crank)

53 690951 Stud (Carburetor) 405 697820 Screw (Back Plate)

54 695240 Screw (Intake Manifold) 418 690999 Plate-Carburetor

73 691055 Screen-Rotating 445 499486 Filter-Air Cleaner Cartridge

74 691057 Screw (Rotating Screen) 447 691003 Screw (Air Guide Cover)

75 691056 Washer (Flywheel) 447A 690960 Screw (Air Guide Cover)

89 690283 Plug-Oil 462 691261 Washer (Starter Cable)

95 690718 Screw (Throttle Valve) RPM Settings: Low Speed: 1900-2100

98 499802 Kit-Idle Speed High Speed: 3000-3200

104 690984 QPin-Float Hinge

105 690985 QValve-Float Needle * Included in Engine Gasket Set, Key. No. 358

108 690986 Valve-Choke O Included in Carburetor Overhaul Kit, Key. No.

117 690232 QJet-Main (Standard) 121

118 690989 Jet-Main (High Altitude) $ Included in Carburetor Gasket Set, Key. No.

121 499811 Kit-Carburetor Overhaul 977

125 499804 Carburetor + Included in Valve Overhaul Kit, Key. No. 1095

130 690993 Valve-Throttle

131 499805 Kit-Throttle Shaft NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

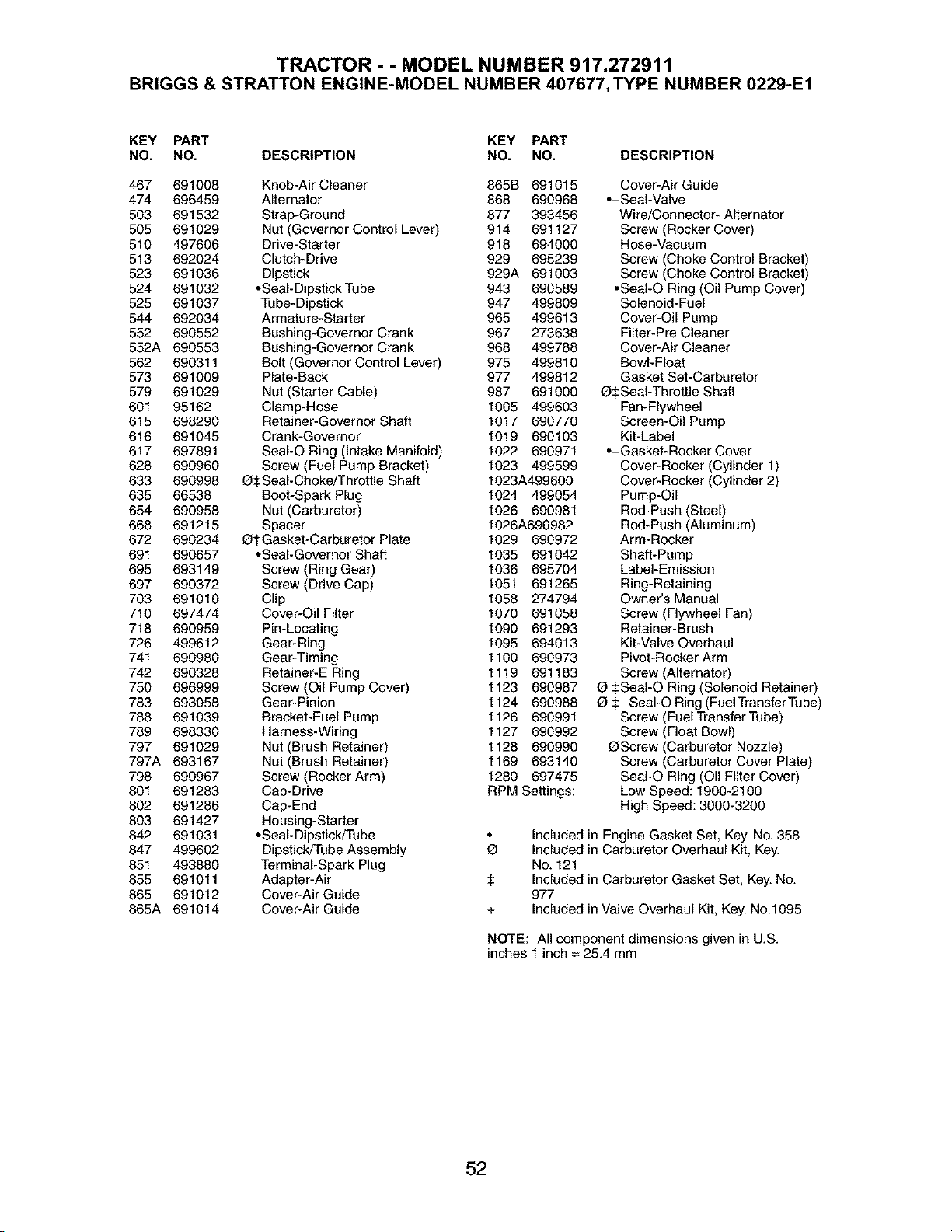

TRACTOR - - MODEL NUMBER 917.272911

BRIGGS & STRATTON ENGINE-MODEL NUMBER 407677, TYPE NUMBER 0229-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

467 691008 Knob-Air Cleaner 865B 691015 Cover-Air Guide

474 696459 Alternator 868 690968 *+Seal-Valve

503 691532 Strap-Ground 877 393456 Wire/Connector- Alternator

505 691029 Nut (Governor Control Lever) 914 691127 Screw (Rocker Cover)

510 497606 Drive-Starter 918 694000 Hose-Vacuum

513 692024 Clutch-Drive 929 695239 Screw (Choke Control Bracket)

523 691036 Dipstick 929A 691003 Screw (Choke Control Bracket)

524 691032 *Seal-Dipstick Tube 943 690589 *SeaI-O Ring (Oil Pump Cover)

525 691037 Tube-Dipstick 947 499809 Solenoid-Fuel

544 692034 Armature-Starter 965 499613 Cover-Oil Pump

552 690552 Bushing-Governor Crank 967 273638 Filter-Pre Cleaner

552A 690553 Bushing-Governor Crank 968 499788 Cover-Air Cleaner

562 690311 Bolt (Governor Control Lever) 975 499810 Bowl-Float

573 691009 Plate-Back 977 499812 Gasket Set-Carburetor

579 691029 Nut (Starter Cable) 987 691000 O$SeaI-Throttle Shaft

601 95162 Clamp-Hose 1005 499603 Fan-Flywheel

615 698290 Retainer-Governor Shaft 1017 690770 Screen-Oil Pump

616 691045 Crank-Governor 1019 690103 Kit-Label

617 697891 SeaI-O Ring (Intake Manifold) 1022 690971 *+Gasket-Rocker Cover

628 690960 Screw (Fuel Pump Bracket) 1023 499599 Cover-Rocker (Cylinder 1)

633 690998 Q$SeaI-Choke/Threttle Shaft 1023A499600 Cover-Rocker (Cylinder 2)

635 66538 Boot-Spark Plug 1024 499054 Pump-Oil

654 690958 Nut (Carburetor) 1026 690981 Red-Push (Steel)

668 691215 Spacer 1026A690982 Red-Push (Aluminum)

672 690234 Q$ Gasket-Carburetor Plate 1029 690972 Arm-Rocker

691 690657 *Seal-Governor Shaft 1035 691042 Shaft-Pump

695 693149 Screw (Ring Gear) 1036 695704 Label-Emission

697 690372 Screw (Drive Cap) 1051 691265 Ring-Retaining

703 691010 Clip 1058 274794 Owner's Manual

710 697474 Cover-Oil Filter 1070 691058 Screw (Flywheel Fan)

718 690959 Pin-Locating 1090 691293 Retainer-Brush

726 499612 Gear-Ring 1095 694013 Kit-Valve Overhaul

741 690980 Gear-Timing 1100 690973 Pivot-Rocker Arm

742 690328 Retainer-E Ring 1119 691183 Screw(Alternator)

750 696999 Screw (Oil Pump Cover) 1123 690987 O $SeaI-O Ring (Solenoid Retainer)

783 693058 Gear-Pinion 1124 690988 O $ SeaI-O Ring (FueITransferTube)

788 691039 Bracket-Fuel Pump 1126 690991 Screw (Fuel Transfer Tube)

789 698330 Harness-Wiring 1127 690992 Screw (Float Bowl)

797 691029 Nut (Brush Retainer) 1128 690990 QScrew (Carburetor Nozzle)

797A 693167 Nut (Brush Retainer) 1169 693140 Screw (Carburetor Cover Plate)

798 690967 Screw (Rocker Arm) 1280 697475 SeaI-O Ring (Oil Filter Cover)

801 691283 Cap-Drive RPM Settings: Low Speed: 1900-2100

802 691286 Cap-End High Speed: 3000-3200

803 691427 Housing-Starter

842 691031 *Seal-Dipstick!Tube * Included in Engine Gasket Set, Key. No. 358

847 499602 Dipstick/Tube Assembly O Included in Carburetor Overhaul Kit, Key.

851 493880 Terminal-Spark Plug No. 121

855 691011 Adapter-Air $ Included in Carburetor Gasket Set, Key. No.

865 691012 Cover-Air Guide 977

865A 691014 Cover-Air Guide + Included in Valve Overhaul Kit, Key. No.1095

NOTE: All component dimensions given in U.S.

inches 1inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

o'l

WARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

Get it fixed, at your home or ours!

Your Home

For repatr- in your home - of all major brand apphances,

lawn and garden equipment, or heahng and coohng systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessones and

owner's manuals that you need to do-it-yourself.

For Sears professional mstallahon of home apphances

and _tems hke garage door openers and water heaters.

1-800-4-MY-HOME ® Anytime, day or night

(1-800-469-4663) (U.S A and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-_n products hke vacuums, lawn equtpment,

and electronics, call or go on-hne for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U S A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (u.s A.) 1-800-361-6665 (Canada)

Para pedir servlcio de reparaci6n

a domlciho, y para ordenar ptezas:

1-888-SU-HOGAR sM

(1-888-784-6427)

Au Canada pour se_ce en franq.a=s:

1-800-LE-FOYER Mc

(1-800-533-6937)

www sears ca

6E/ARS

® Regrstered Trademark / T_ Trademark / sr,_Servtce Mark of Sears, Roebuck and Co

® Marca Regrstrada / T_Marca de FAbnca / SMMarca de Servlclo de Sears, Roebuck and Co

r_cMarque de commerce / r,_oMarque depos#e de Sears, Roebuck and Co

185323 Rev. 4 7.16.03 RD/MH/TR/MH PnntedmU.S.A.

Craftsman 917272911 tractor

Product's Documents

User Manual

Specifications

Craftsman 917272911 Questions and Answers
