Craftsman 917252714 Tractor User Manual

MODEL NUMBER 917.252714

• Assembly

• Operation

• Customer Responsibilities

• Service and Adjustments

• Repair Parts

OWNER'S MANUAL

Convertible

CAUTION: Read and follow all safety rules and instructions before operating this equipment.

FOR CONSUMER ASSISTANCE HOT LINE, CALL THIS TOLL FREE NUMBER: 1-800-659-5917

Ill ..................... I _ IIHiIIIIIIIIIII//[IHIIIIIIII HI II 111 .................

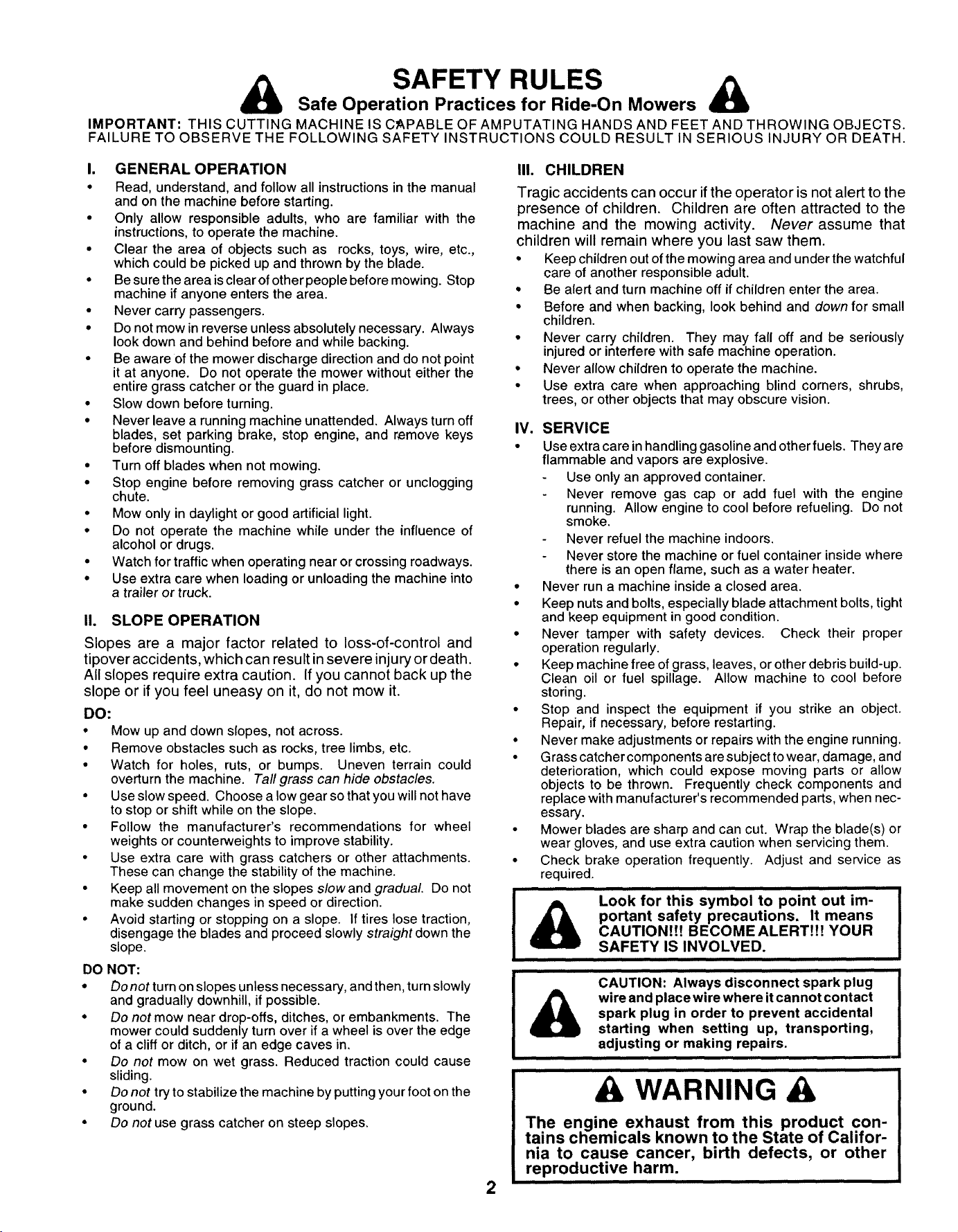

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS.

FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

I. GENERAL OPERATION

• Read, understand, and follow all instructions in the manual

and on the machine before starting.

• Only allow responsible adults, who are familiar with the

instructions, to operate the machine.

• Clear the area of objects such as rocks, toys, wire, etc.,

which could be picked up and thrown by the blade.

• Be sure the area is clear of other people before mowing. Stop

machine if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely necessary. Always

look down and behind before and while backing.

• Be aware of the mower discharge direction and do not point

it at anyone. Do not operate the mower without either the

entire grass catcher or the guard in place.

• Slow down before turning.

• Never leave a running machine unattended. Always turn off

blades, set parking brake, stop engine, and remove keys

before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass catcher or unclogging

chute.

• Mow only in daylight or good artificial light.

• Do not operate the machine while under the influence of

alcohol or drugs.

• Watch for traffic when operating near or crossing roadways.

• Use extra care when loading or unloading the machine into

a trailer or truck.

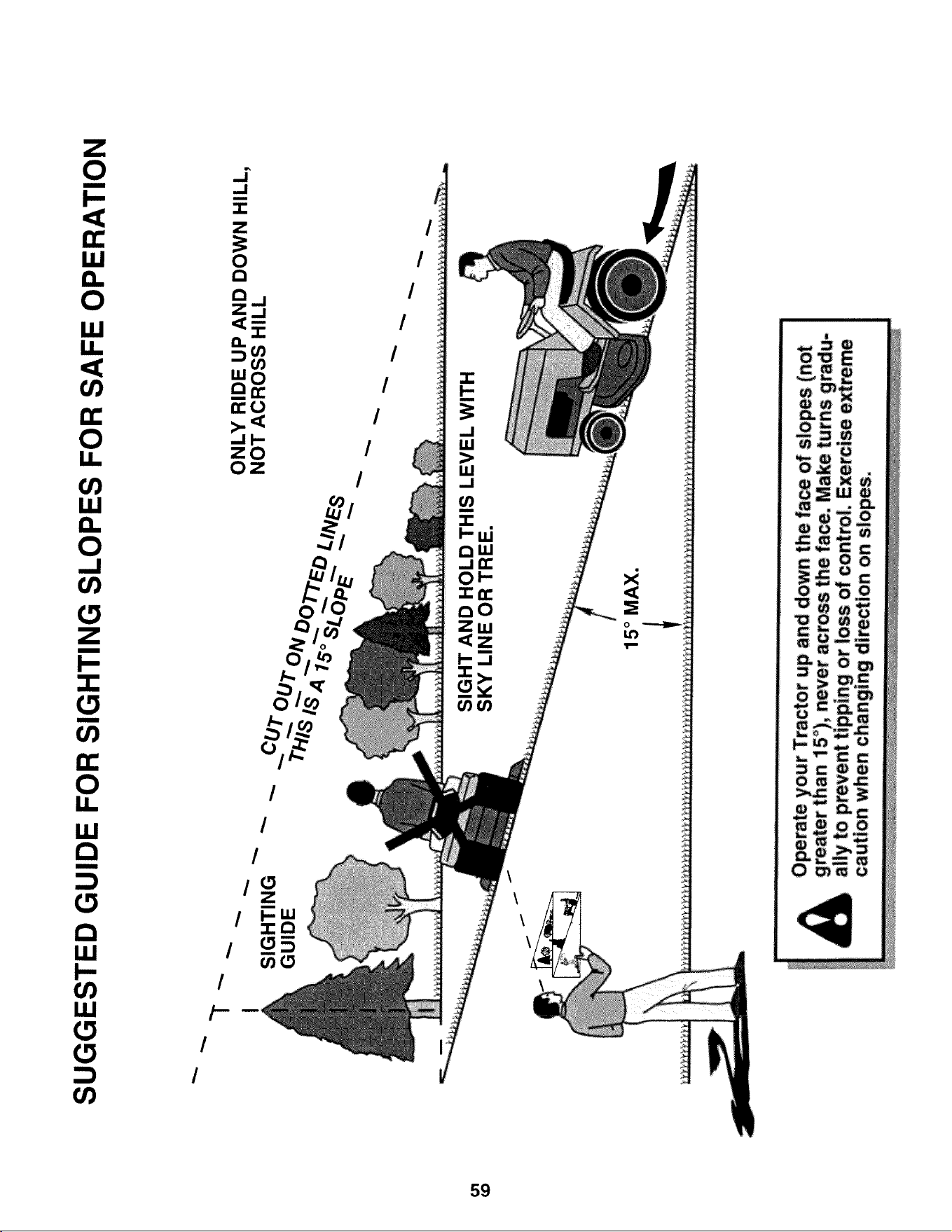

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-control and

tipover accidents, which can result in severe injury or death.

All slopes require extra caution. If you cannot back up the

slope or if you feel uneasy on it, do not mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree limbs, etc.

• Watch for holes, ruts, or bumps. Uneven terrain could

overturn the machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so that you will not have

to stop or shift while on the slope.

• Follow the manufacturer's recommendations for wheel

weights or counterweights to improve stability.

• Use extra care with grass catchers or other attachments.

These can change the stability of the machine.

• Keep all movement on the slopes slow and gradual. Do not

make sudden changes in speed or direction.

• Avoid starting or stopping on a slope. If tires lose traction,

disengage the blades and proceed slowly straight down the

slope.

DO NOT:

• Do not turn on slopes unless necessary, and then, turn slowly

and gradually downhill, if possible.

• Do not mow near drop-offs, ditches, or embankments. The

mower could suddenly turn over if a wheel is over the edge

of a cliff or ditch, or if an edge caves in.

• Do not mow on wet grass. Reduced traction could cause

sliding.

• Do not try to stabilize the machine by putting your foot on the

ground.

• Do not use grass catcher on steep slopes.

III. CHILDREN

Tragic accidents can occur if the operator is not alert to the

presence of children. Children are often attracted to the

machine and the mowing activity. Never assume that

children will remain where you last saw them.

• Keep children out of the mowing area and under the watchful

care of another responsible adult.

• Be alert and turn machine off if children enter the area.

• Before and when backing, look behind and down for small

children.

• Never carry children. They may fall off and be seriously

injured or interfere with safe machine operation.

• Never allow children to operate the machine.

• Use extra care when approaching blind corners, shrubs,

trees, or other objects that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline and other fuels. They are

flammable and vapors are explosive.

Use only an approved container.

Never remove gas cap or add fuel with the engine

running. Allow engine to cool before refueling. Do not

smoke.

Never refuel the machine indoors.

Never store the machine or fuel container inside where

there is an open flame, such as a water heater.

• Never run a machine inside a closed area.

• Keep nuts and bolts, especially blade attachment bolts, tight

and keep equipment in good condition.

• Never tamper with safety devices. Check their proper

operation regularly.

• Keep machine free of grass, leaves, or other debris build-up.

Clean oil or fuel spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you strike an object.

Repair, if necessary, before restarting.

• Never make adjustments or repairs with the engine running.

• Grass catcher components are subject to wear, damage, and

deterioration, which could expose moving parts or allow

objects to be thrown. Frequently check components and

replace with manufacturer's recommended parts, when nec-

essary.

• Mower blades are sharp and can cut. Wrap the blade(s) or

wear gloves, and use extra caution when servicing them.

• Check brake operation frequently. Adjust and service as

required.

i ii

Look for this symbol to point out im-

portant safety precautions. It means

CAUTION!!! BECOME ALERT!!! YOUR

SAFETY IS INVOLVED.

ii ill

CAUTION: Always disconnect spark plug

wire and place wire where it cannot contact

spark plug in order to prevent accidental

starting when setting up, transporting,

adjusting or making repairs.

i i

WARNING A

The engine exhaust from this product con-

tains chemicals known to the State of Califor-

nia to cause cancer, birth defects, or other

reproductive harm.

ii ill i

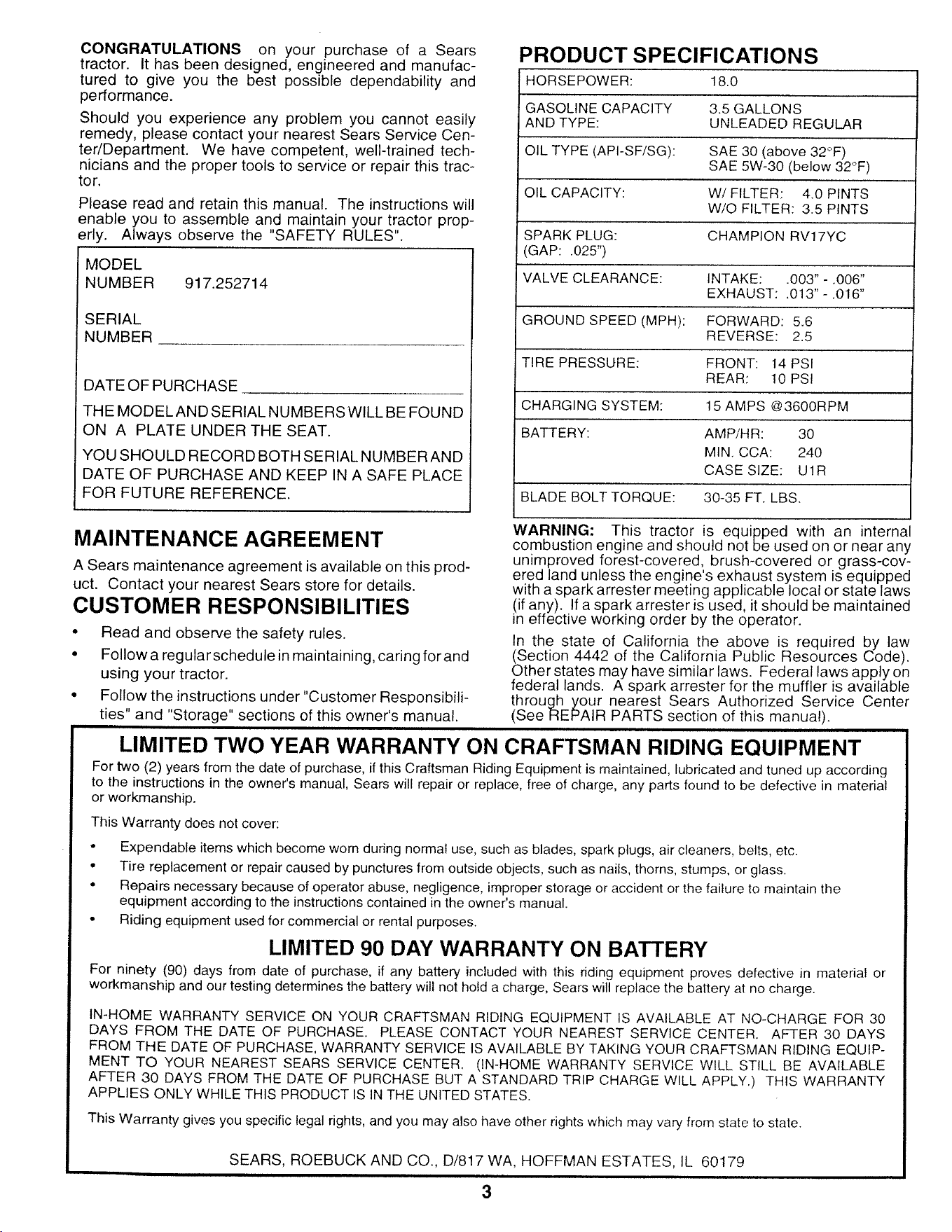

CONGRATULATIONS on your purchase of a Sears

tractor. It has been designed, engineered and manufac-

tured to give you the best possible dependability and

performance.

Should you experience any problem you cannot easily

remedy, please contact your nearest Sears Service Cen-

ter/Department. We have competent, well-trained tech-

nicians and the proper tools to service or repair this trac-

tor.

Please read and retain this manual. The instructions will

enable you to assemble and maintain your tractor prop-

erly. Always observe the "SAFETY RULES".

MODEL

NUMBER 917.252714

SERIAL

NUMBER

DATE OF PURCHASE

THE MODEL AND SERIAL NUMBERS WILL BE FOUND

ON A PLATE UNDER THE SEAT.

YOU SHOULD RECORD BOTH SERIAL NUMBER AND

DATE OF PURCHASE AND KEEP IN A SAFE PLACE

FOR FUTURE REFERENCE.

PRODUCT SPECIFICATIONS

HORSEPOWER: 18.0

GASOLINE CAPACITY 3.5 GALLONS

AND TYPE: UNLEADED REGULAR

OIL TYPE (API-SFiSG): SAE 30 (above 32°F)

SAE 5W-30 (below 32°F)

OIL CAPACITY: W/FILTER: 4.0 PINTS

W/O FILTER: 3.5 PINTS

SPARK PLUG: CHAMPION RV17YC

(GAP: .025")

VALVE CLEARANCE: INTAKE: .003" - .006"

EXHAUST: .013" - .016"

GROUND SPEED (MPH): FORWARD: 5.6

REVERSE: 2.5

TIRE PRESSURE: FRONT: 14 PSI

REAR: 10 PSI

CHARGING SYSTEM: 15 AMPS @3600RPM

BATTERY: AMPiHR: 30

MIN. CCA: 240

CASE SIZE: U1R

BLADE BOLT TORQUE: 30-35 FT. LBS.

MAINTENANCE AGREEMENT

A Sears maintenance agreement is available on this prod-

uct. Contact your nearest Sears store for details.

CUSTOMER RESPONSIBILITIES

° Read and observe the safety rules.

° Follow a regular schedule in maintaining, caring for and

using your tractor.

• Follow the instructions under "Customer Responsibili-

ties" and "Storage" sections of this owner's manual.

WARNING: This tractor is equipped with an internal

combustion engine and should not be used on or near any

unimproved forest-covered, brush-covered or grass-cov-

ered land unless the engine's exhaust system is equipped

with a spark arrester meeting applicable local or state laws

Iif any). If a spark arrester is used, it should be maintained

Jn effective working order by the operator.

In the state of California the above is required by law

(Section 4442 of the California Public Resources Code).

Other states may have similar laws. Federal laws apply on

federal lands. A spark arrester for the muffler is available

through your nearest Sears Authorized Service Center

(See REPAIR PARTS section of this manual).

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is maintained, lubricated and tuned up according

to the instructions in the owner's manual, Sears will repair or replace, free of charge, any parts found to be defective in material

or workmanship.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as blades, spark plugs, air cleaners, belts, etc.

• Tire replacement or repair caused by punctures from outside objects, such as nails, thorns, stumps, or glass.

• Repairs necessary because of operator abuse, negligence, improper storage or accident or the failure to maintain the

equipment according to the instructions contained in the owner's manual.

• Riding equipment used for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equipment proves defective in material or

workmanship and our testing determines the battery will not hold a charge, Sears will replace the battery at no charge.

IN-HOME WARRANTY SERVICE ON YOUR CRAFTSMAN RIDING EQUIPMENT IS AVAILABLE AT NO-CHARGE FOR 30

DAYS FROM THE DATE OF PURCHASE. PLEASE CONTACT YOUR NEAREST SERVICE CENTER. AFTER 30 DAYS

FROM THE DATE OF PURCHASE, WARRANTY SERVICE IS AVAILABLE BY TAKING YOUR CRAFTSMAN RIDING EQUIP-

MENT TO YOUR NEAREST SEARS SERVICE CENTER. (IN-HOME WARRANTY SERVICE WILL STILL BE AVAILABLE

AFTER 30 DAYS FROM THE DATE OF PURCHASE BUT A STANDARD TRIP CHARGE WILL APPLY.) THIS WARRANTY

APPLIES ONLY WHILE THIS PRODUCT IS IN THE UNITED STATES.

This Warranty gives you specific legal rights, and you may also have other rights which may vary from state to state.

SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, IL 60179

II II i I I I I i I Ii

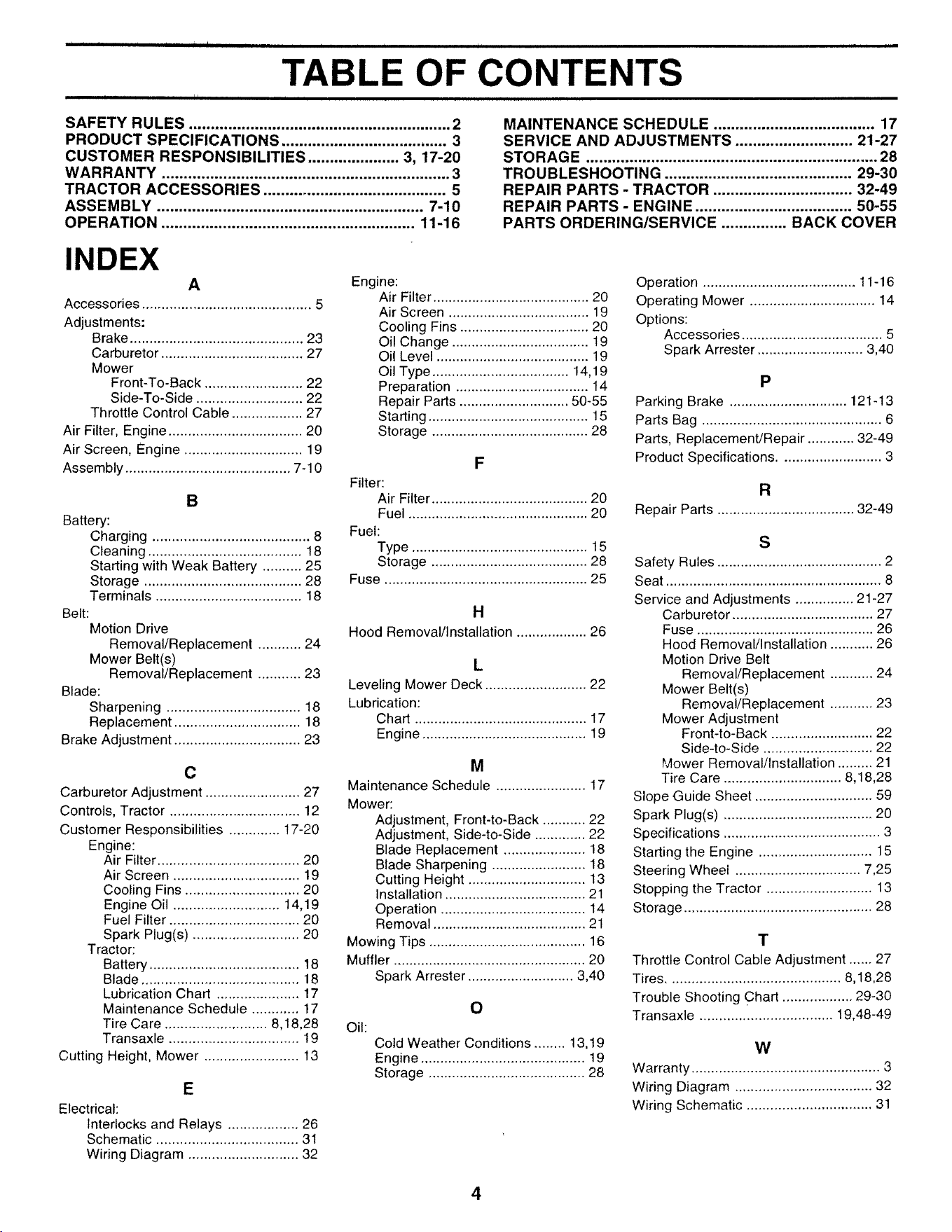

TABLE OF CONTENTS

II ill

SAFETY RULES ............................................................ 2

PRODUCT SPECIFICATIONS ...................................... 3

CUSTOMER RESPONSIBILITIES ..................... 3, 17-20

WARRANTY .................................................................. 3

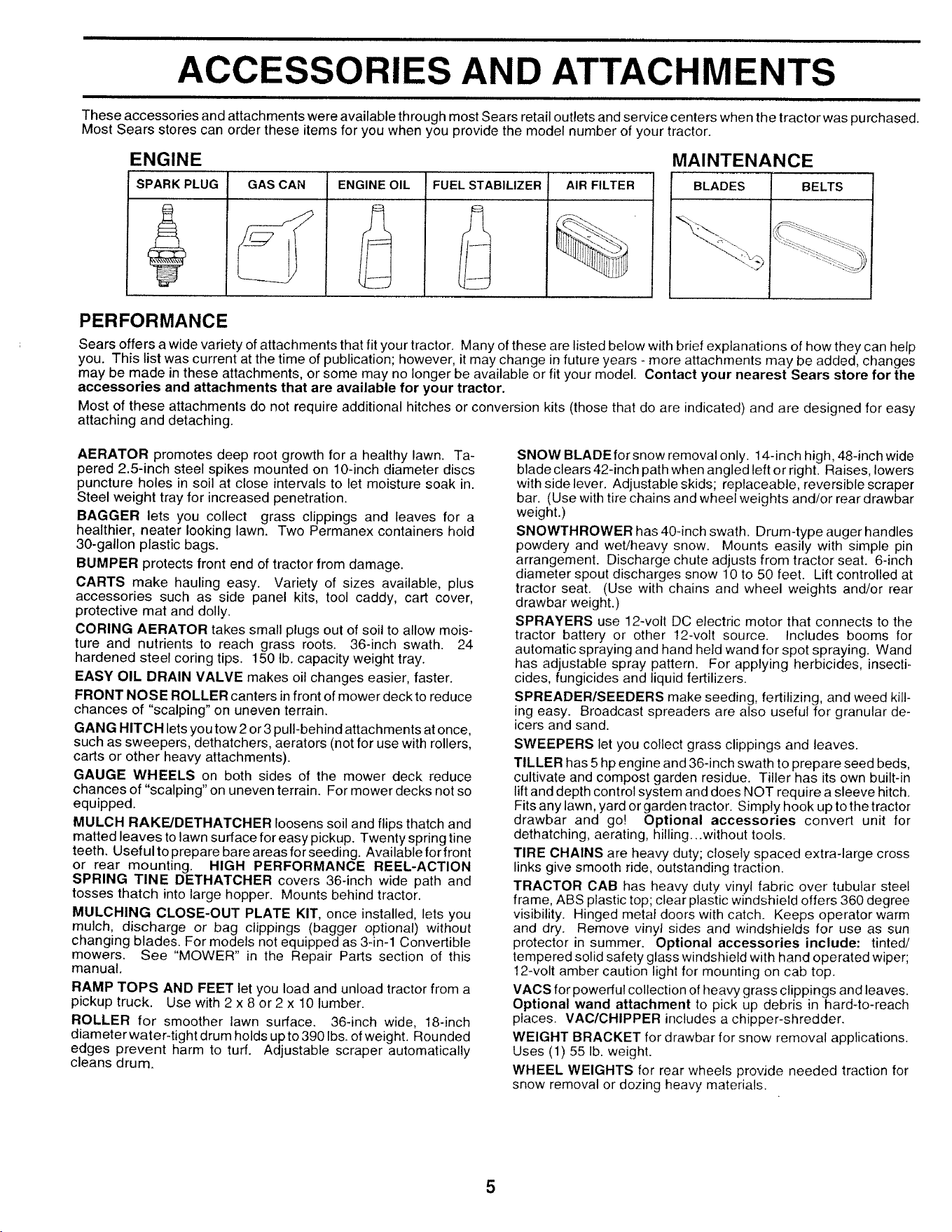

TRACTOR ACCESSORIES .......................................... 5

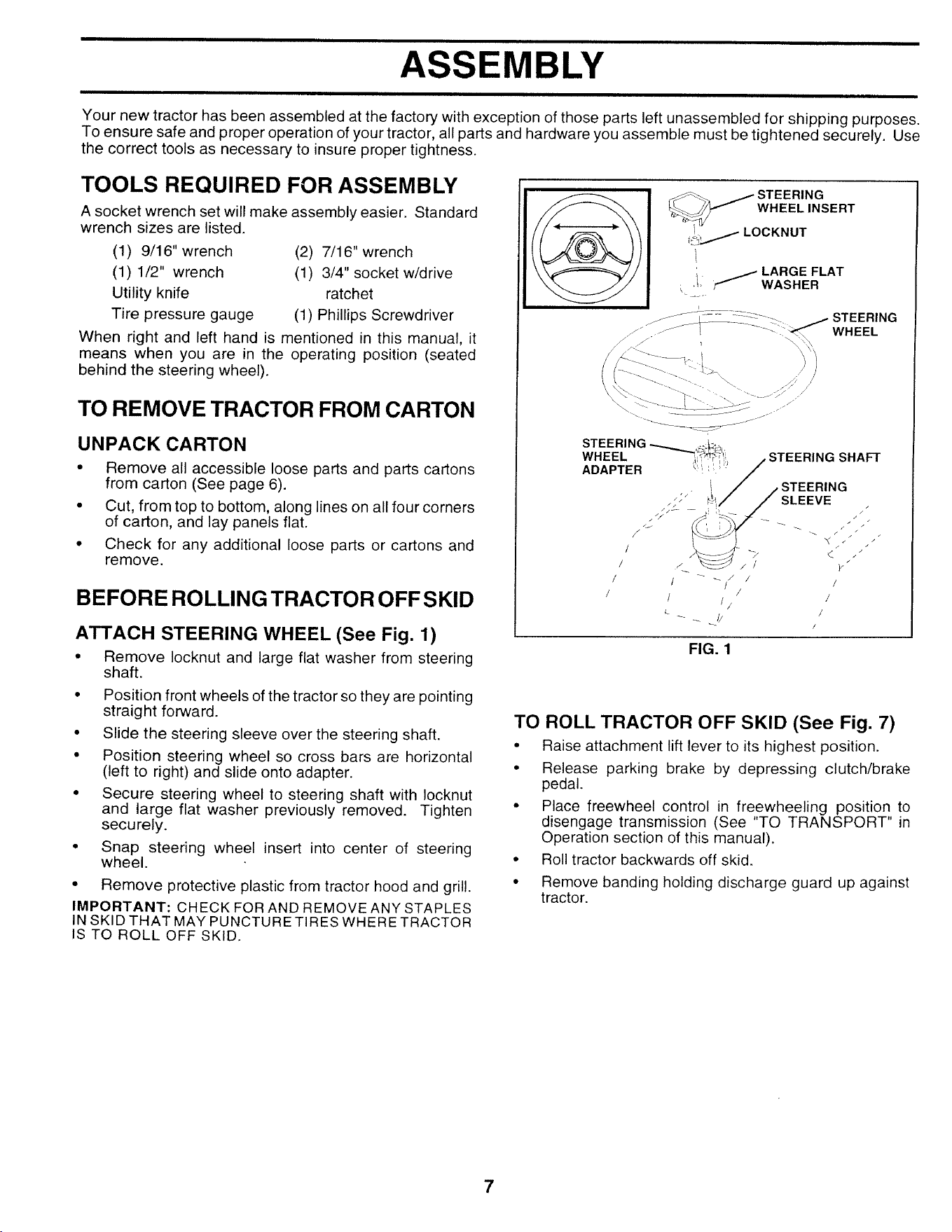

ASSEMBLY ............................................................. 7-10

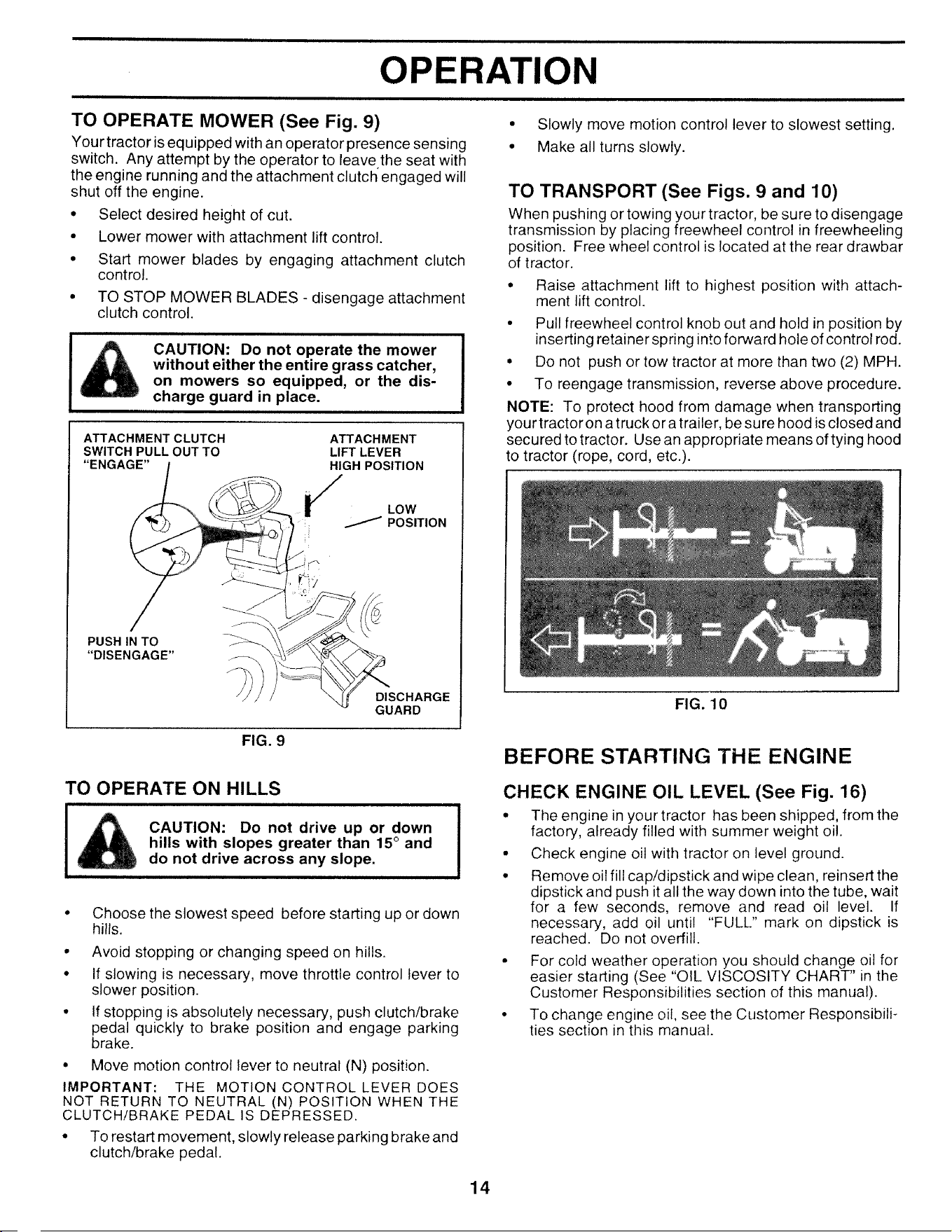

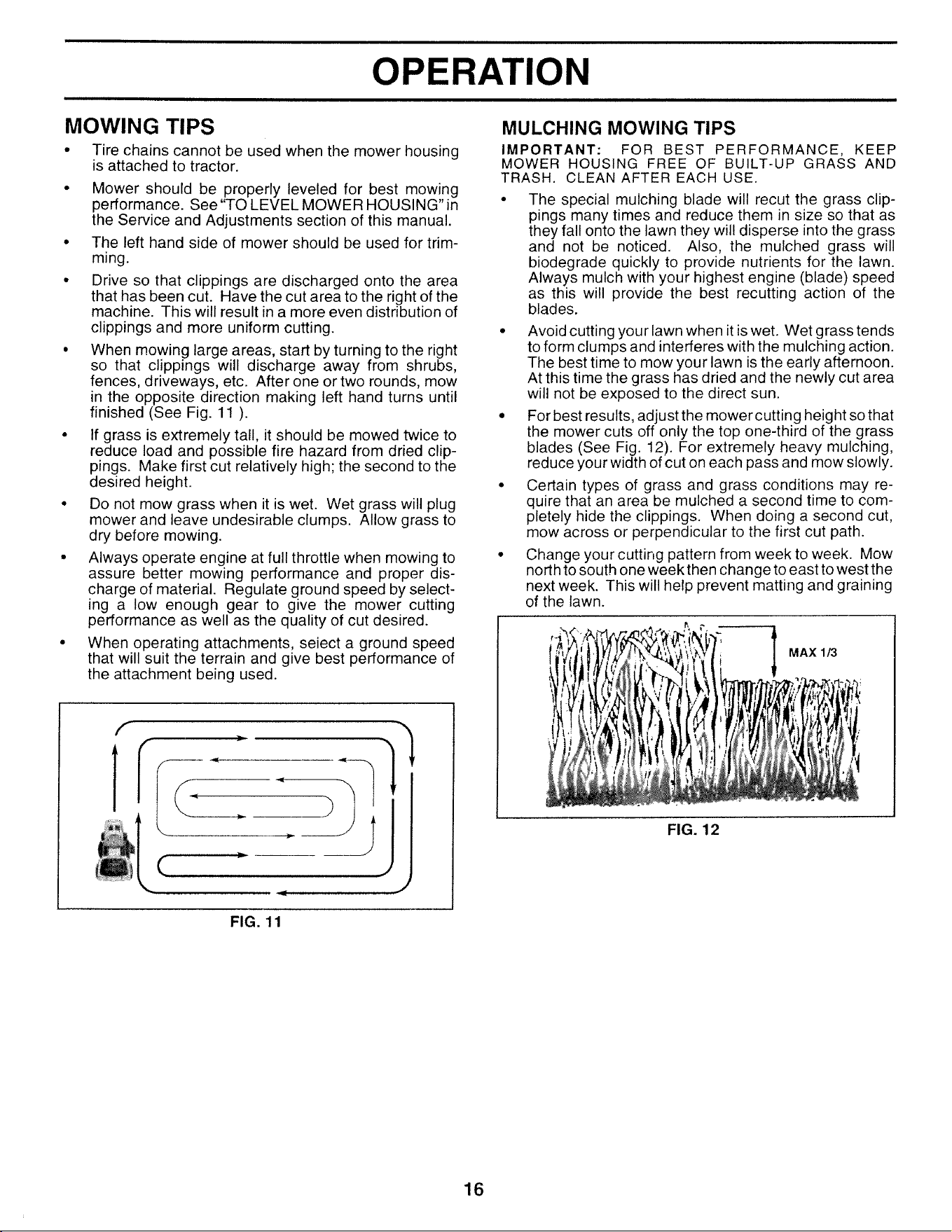

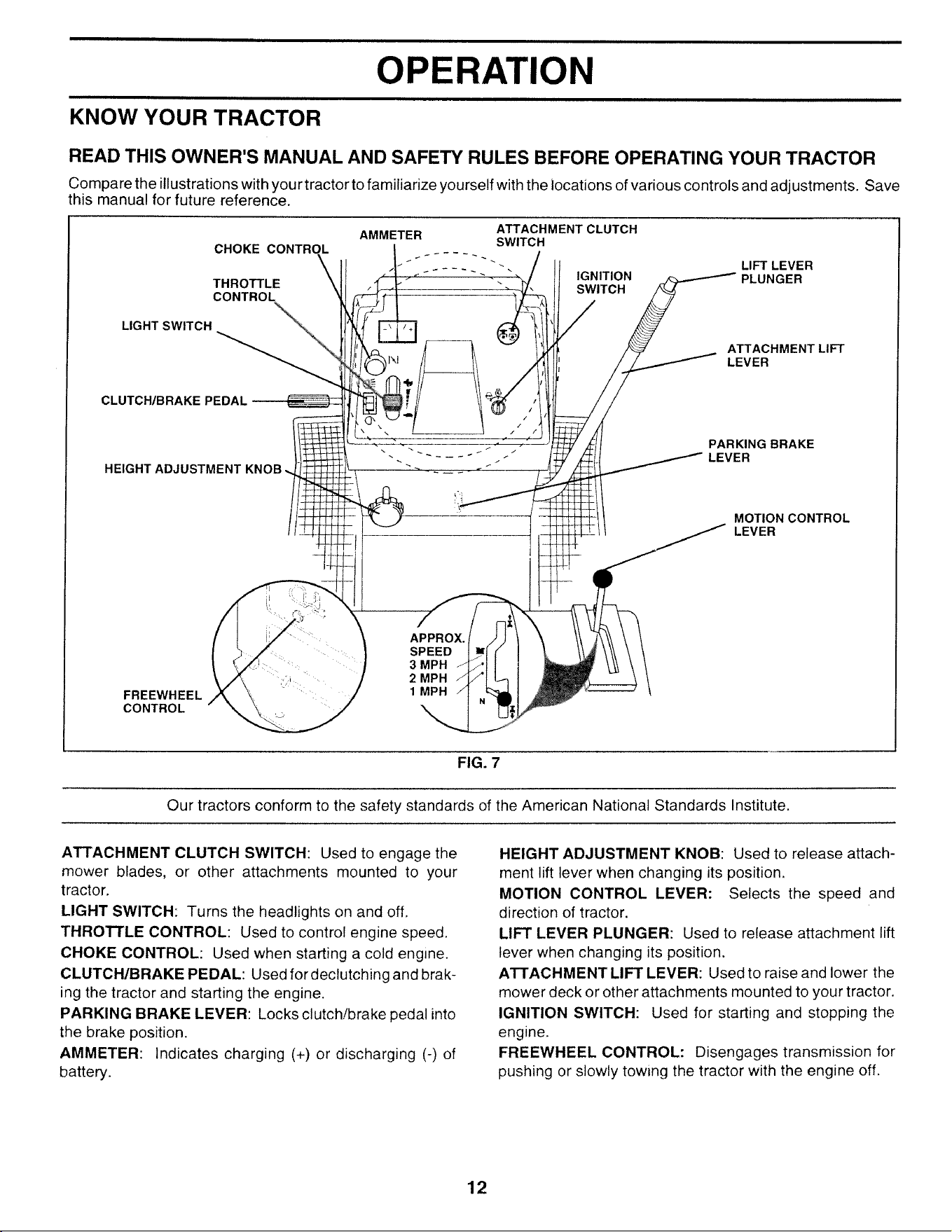

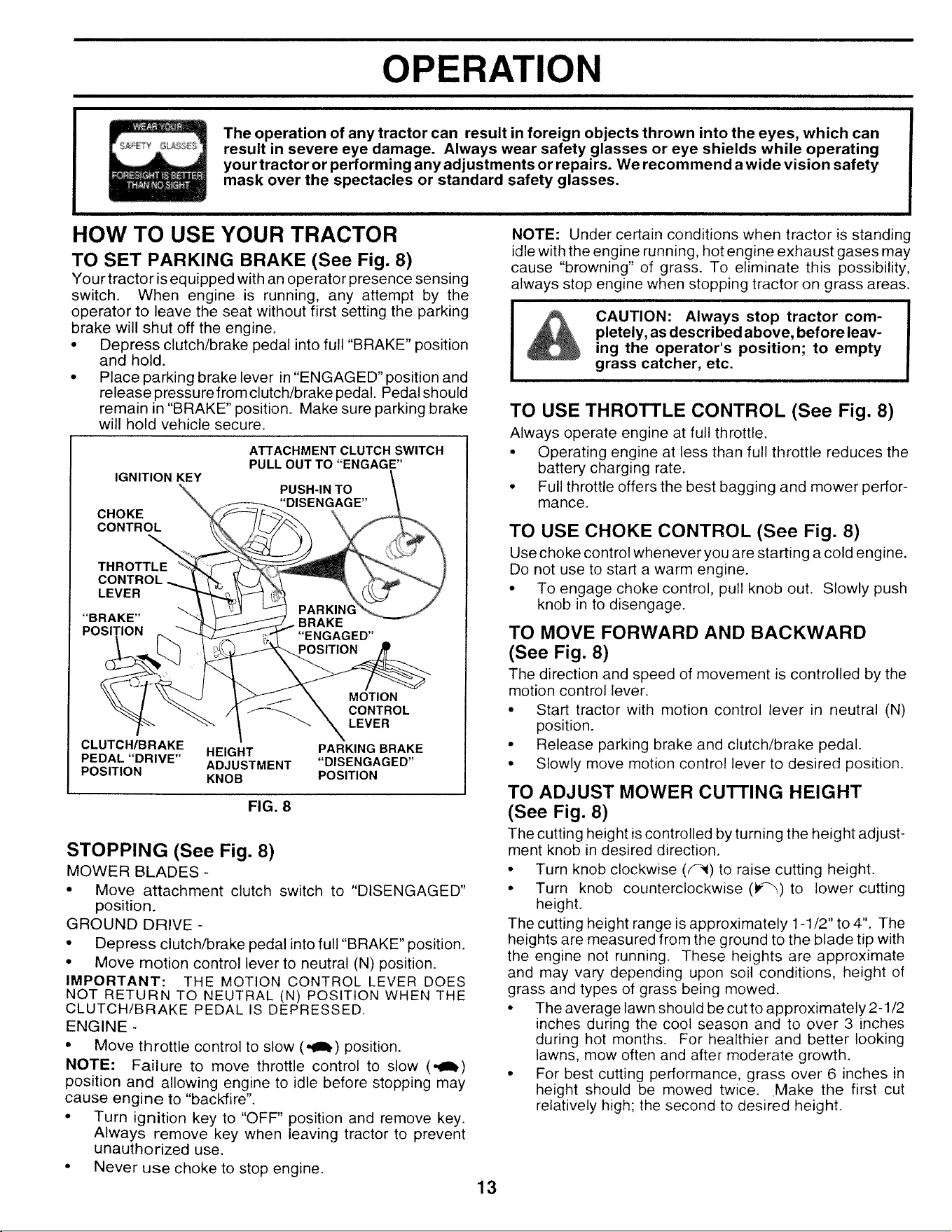

OPERATION .......................................................... 11-16

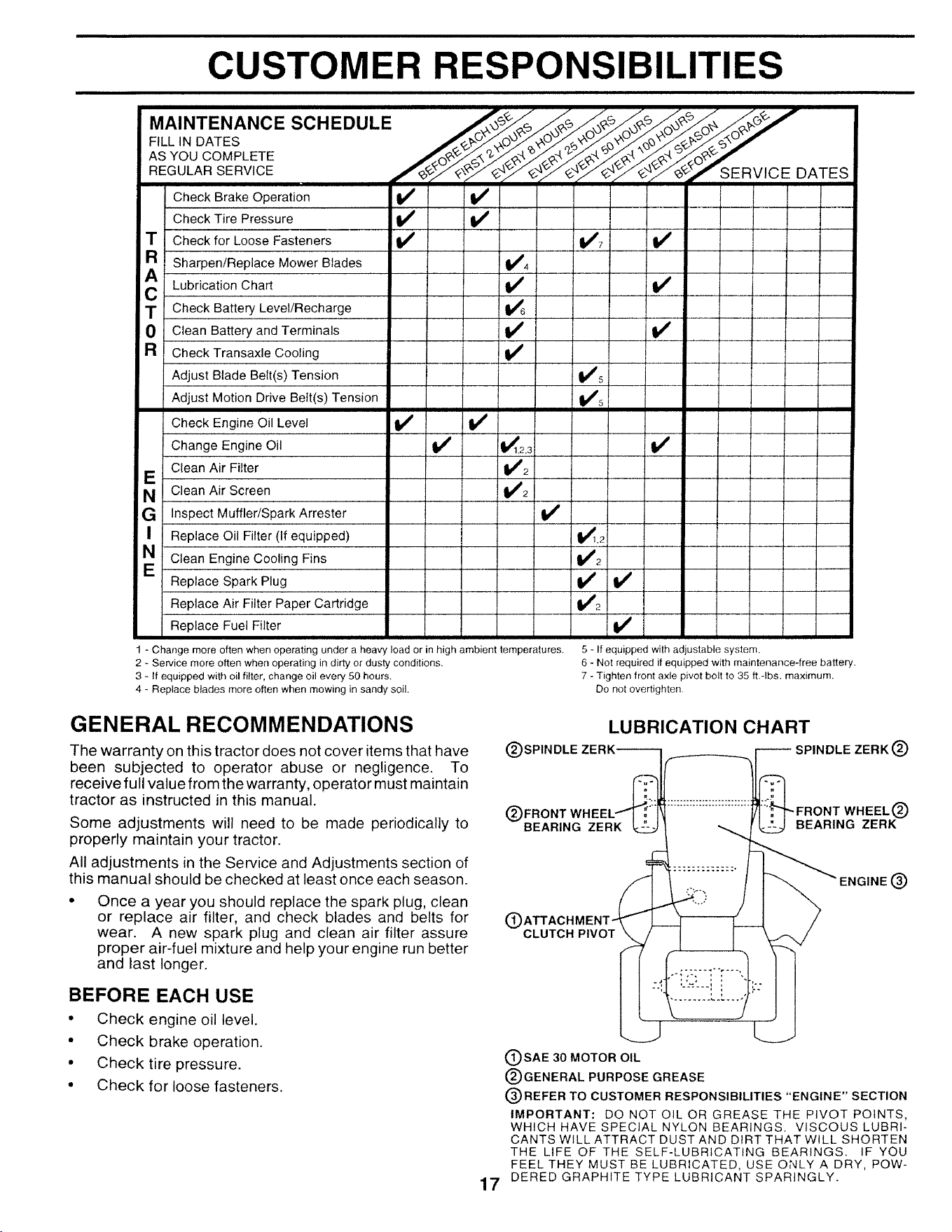

MAINTENANCE SCHEDULE ..................................... 17

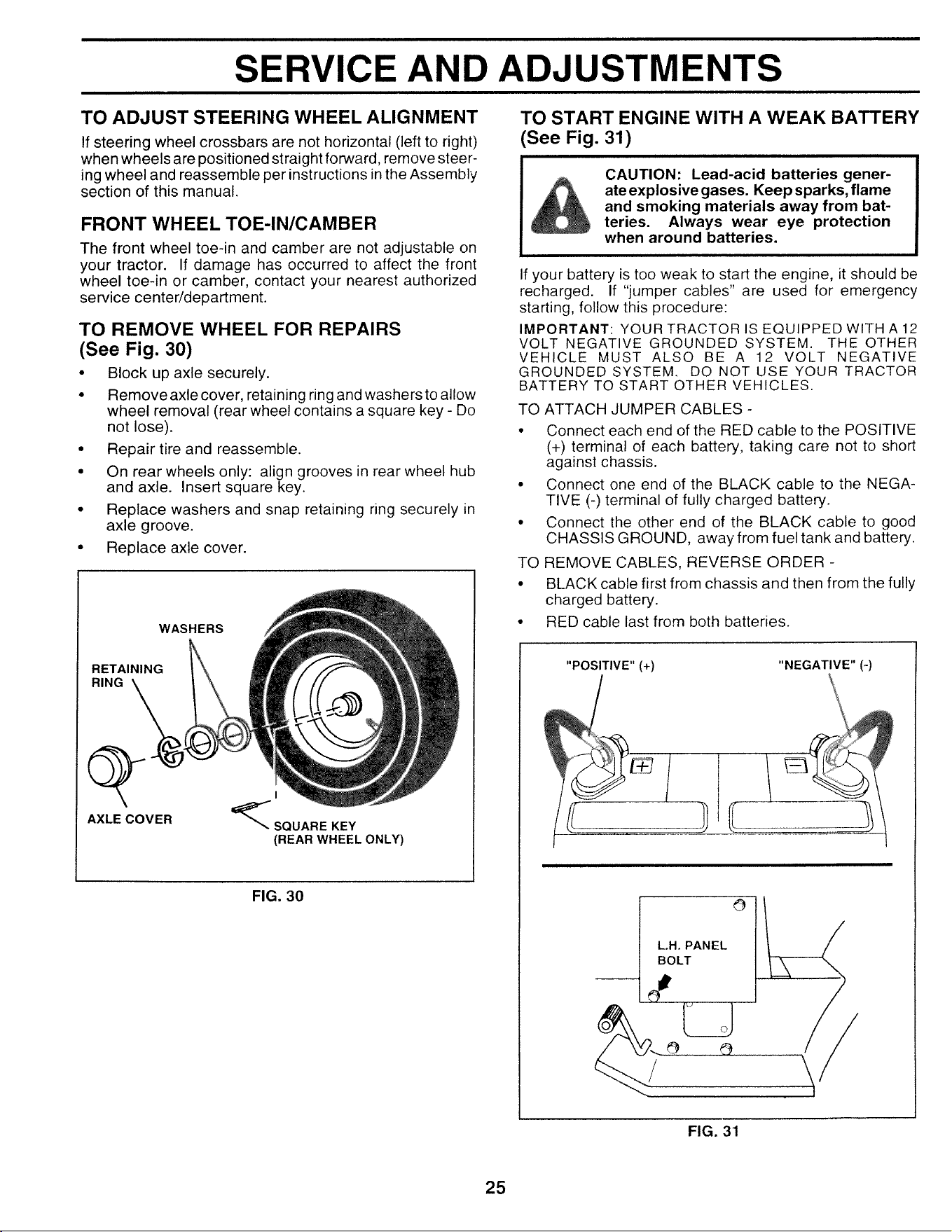

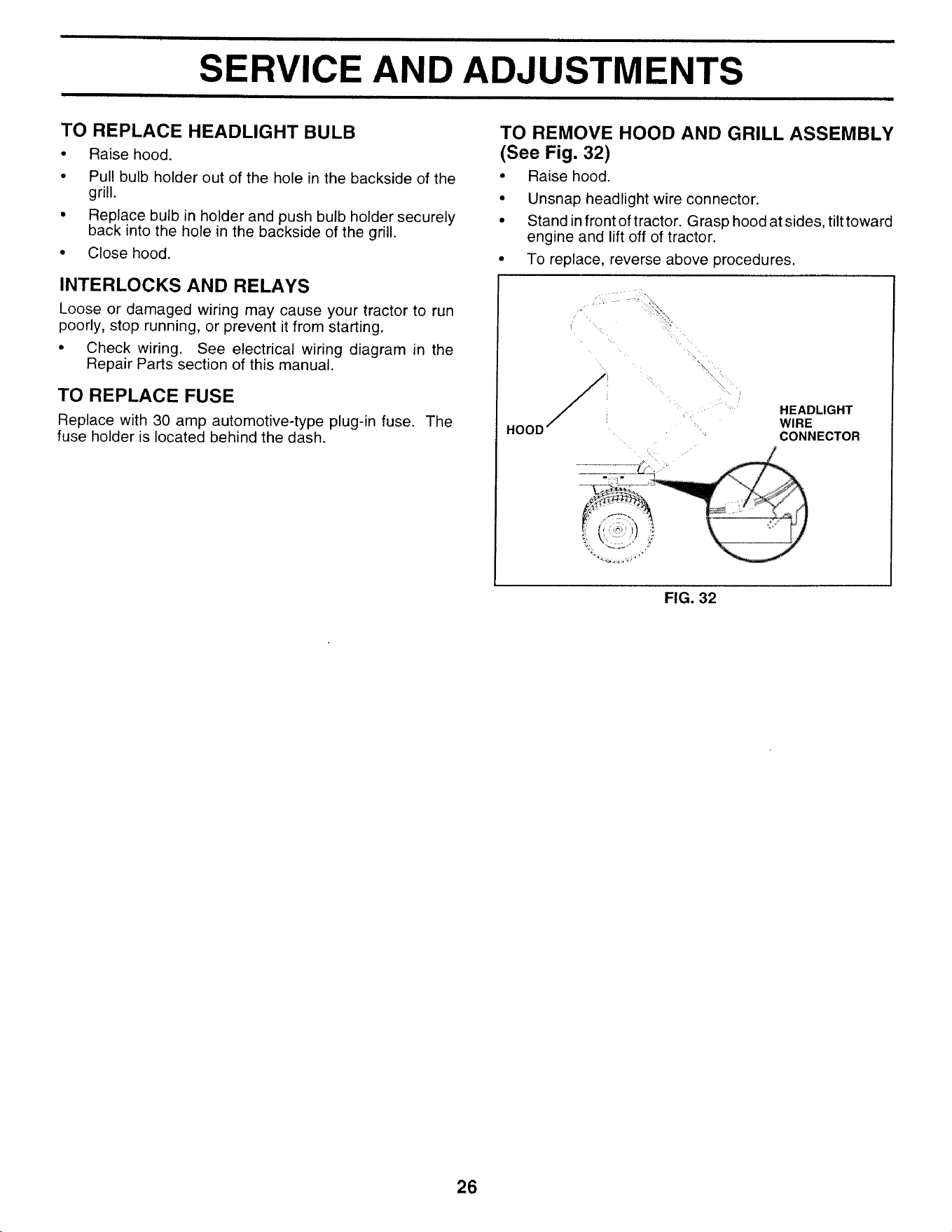

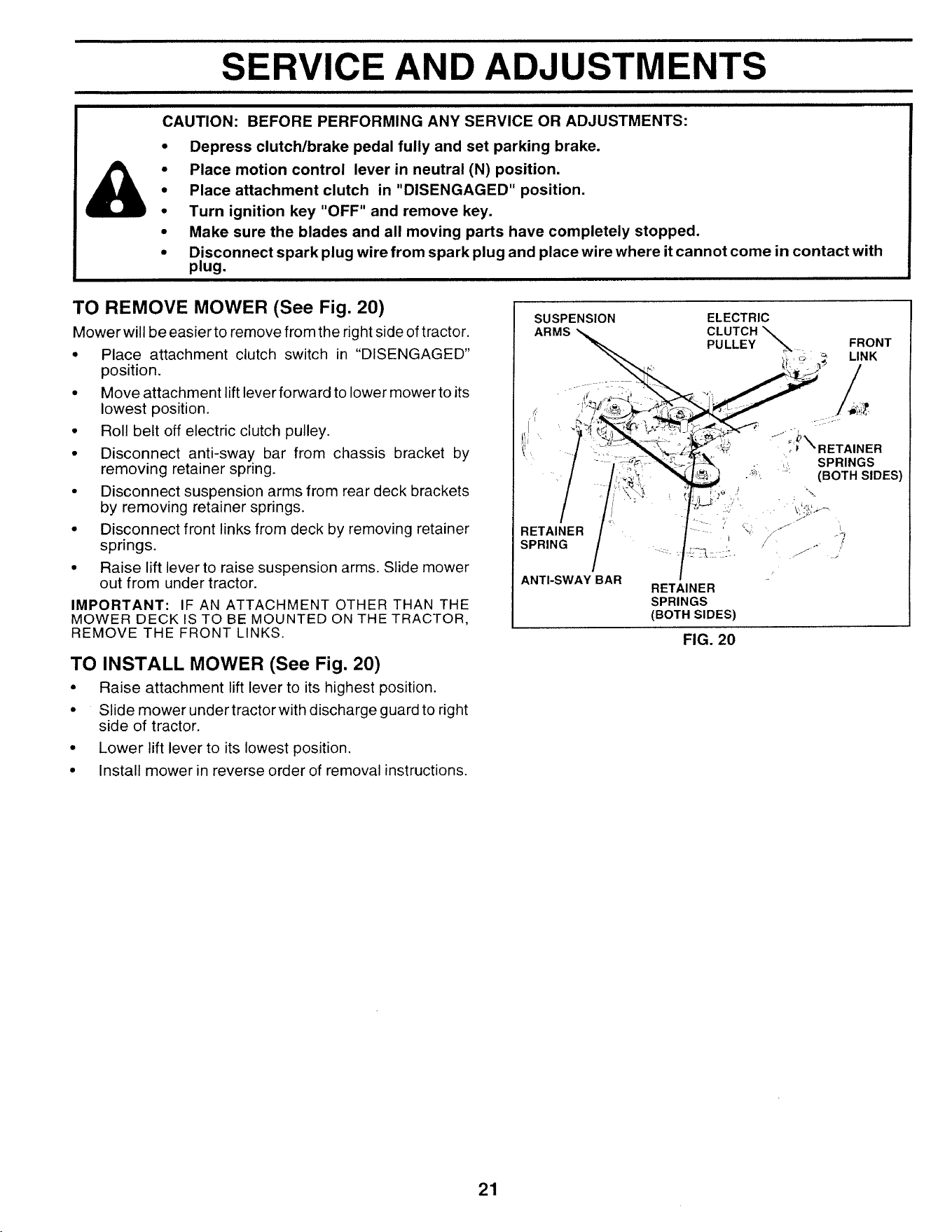

SERVICE AND ADJUSTMENTS ........................... 21-27

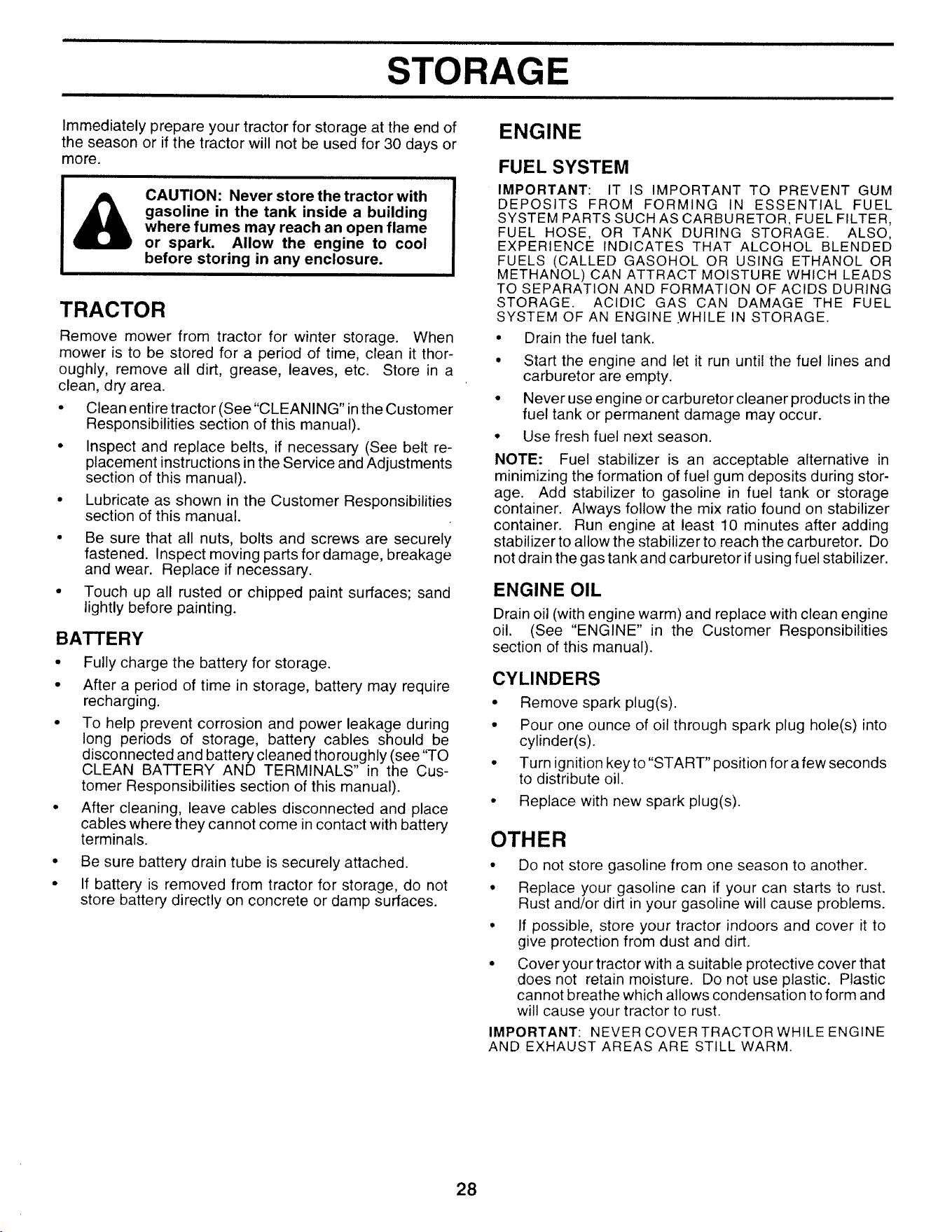

STORAGE ................................................................... 28

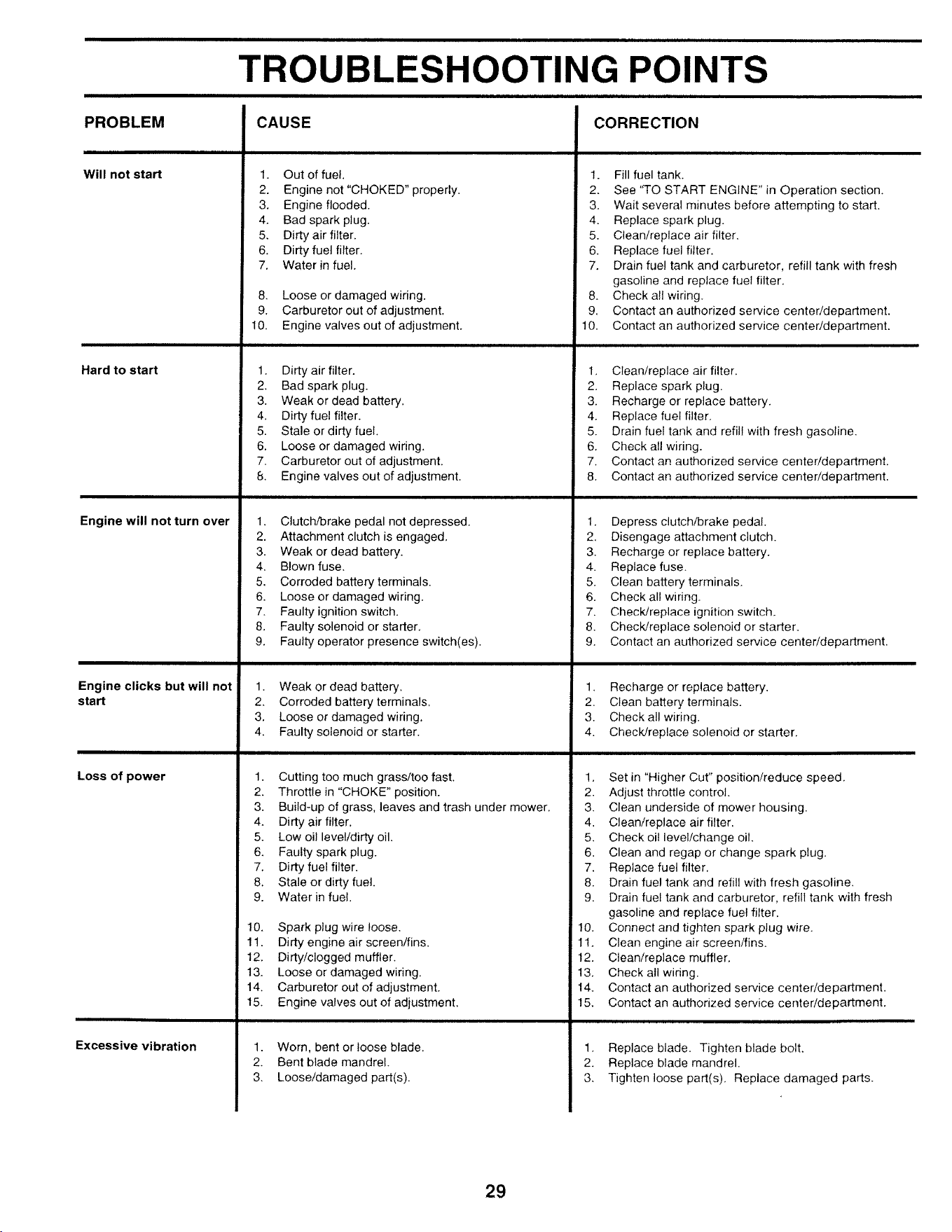

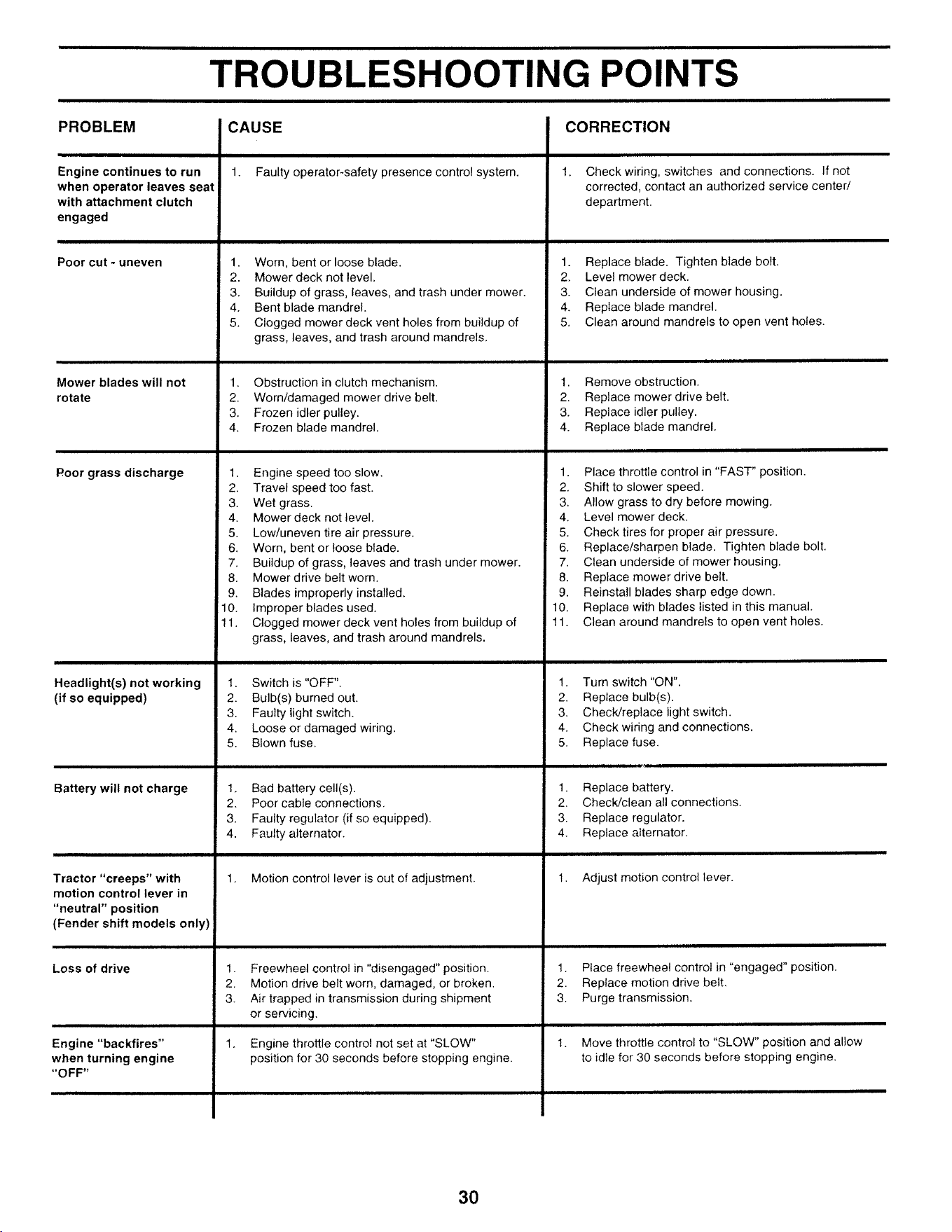

TROUBLESHOOTING ........................................... 29-30

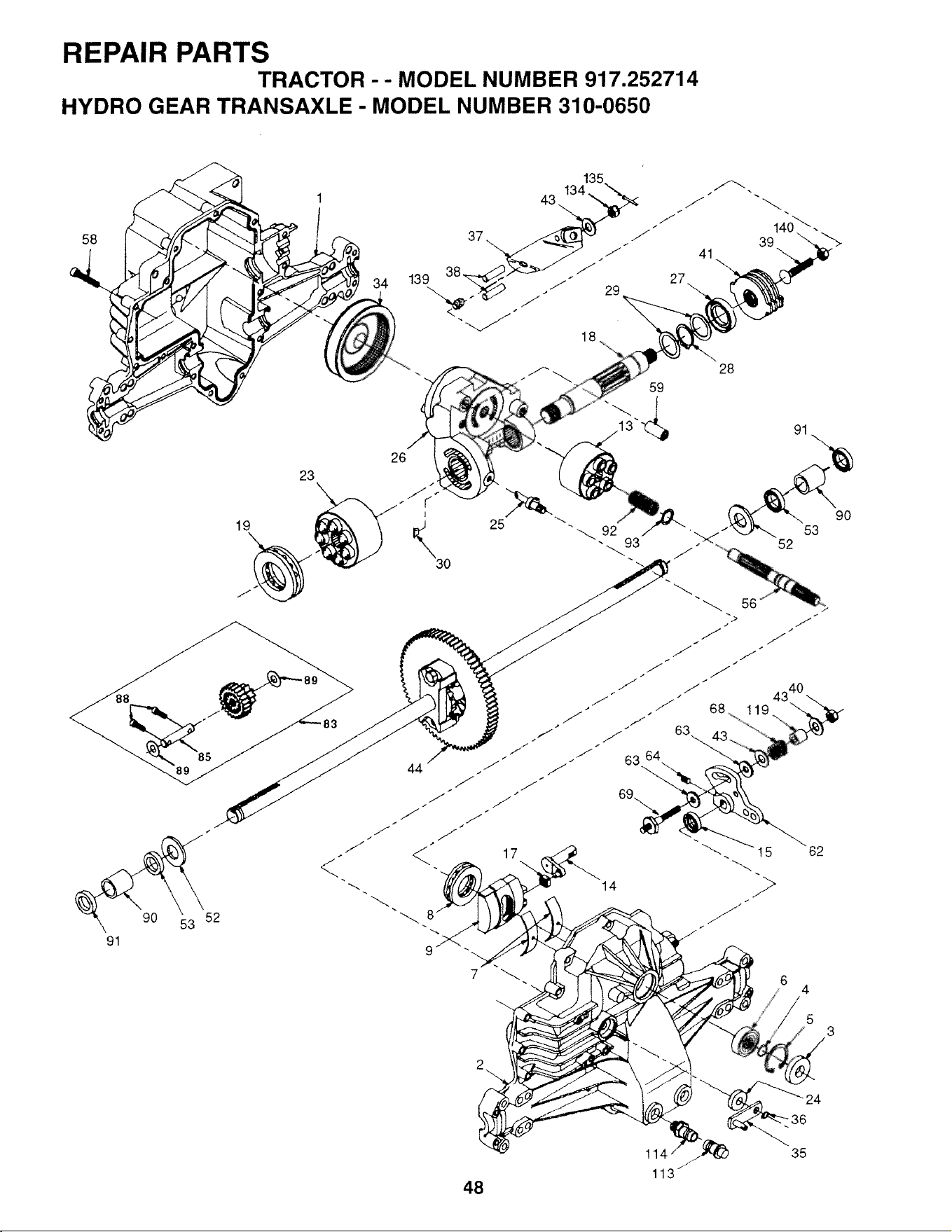

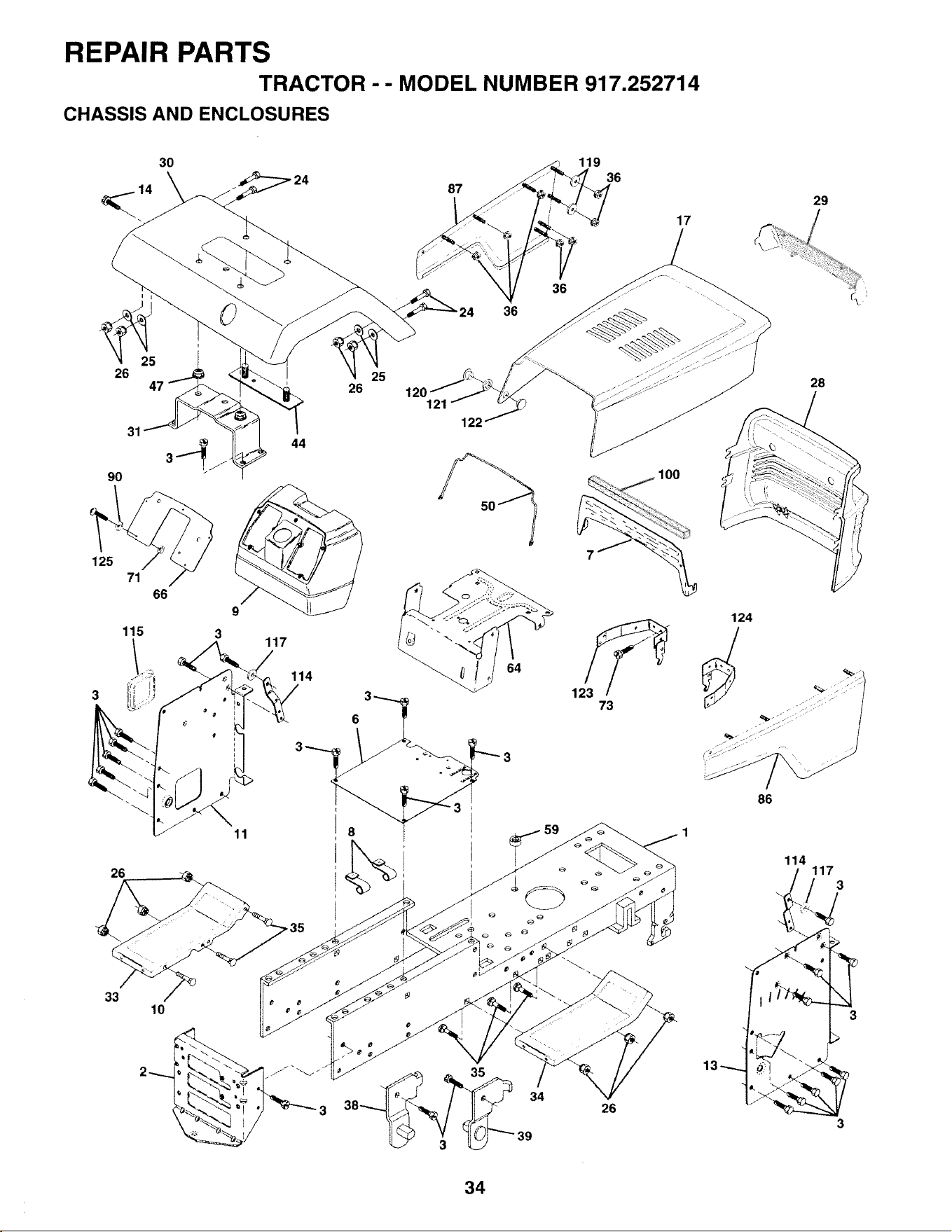

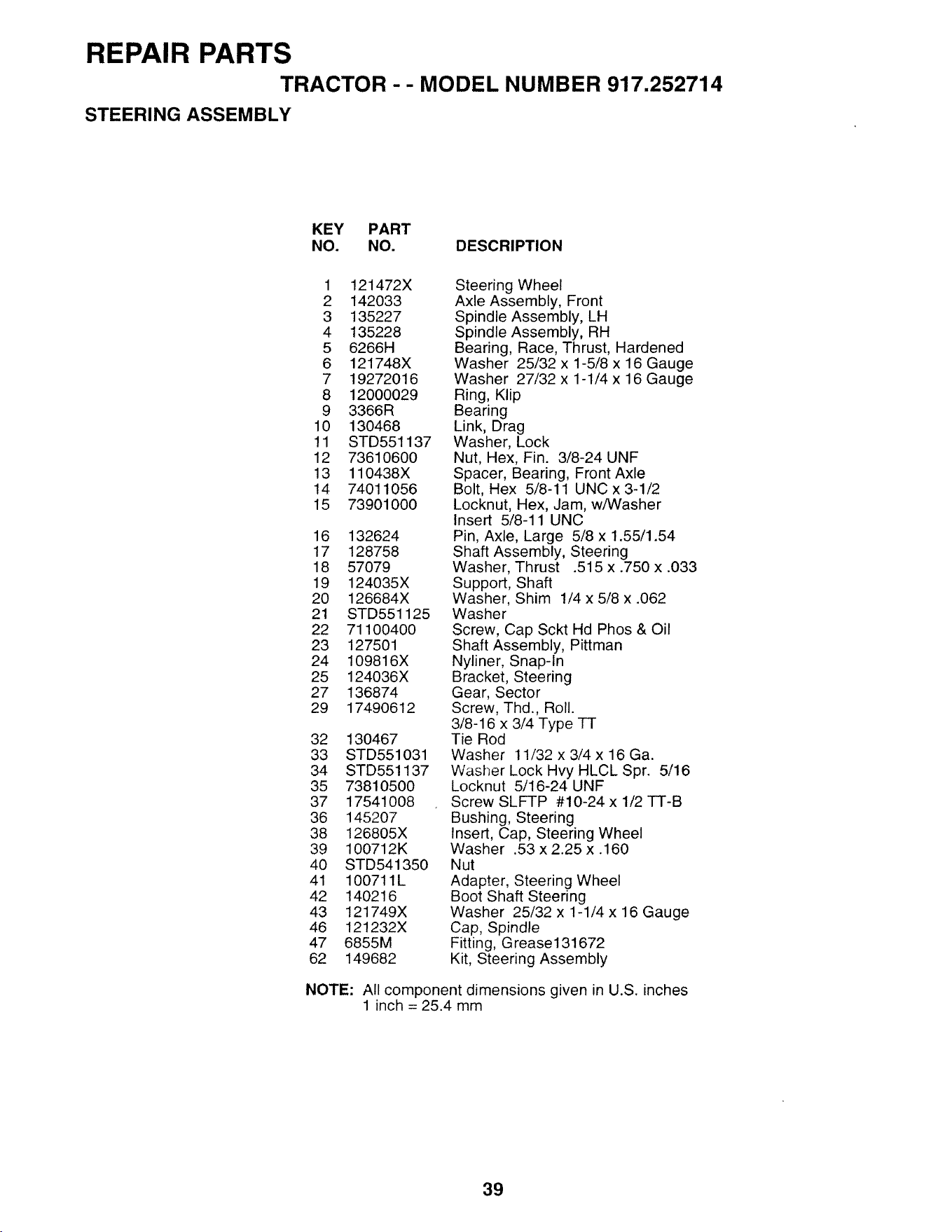

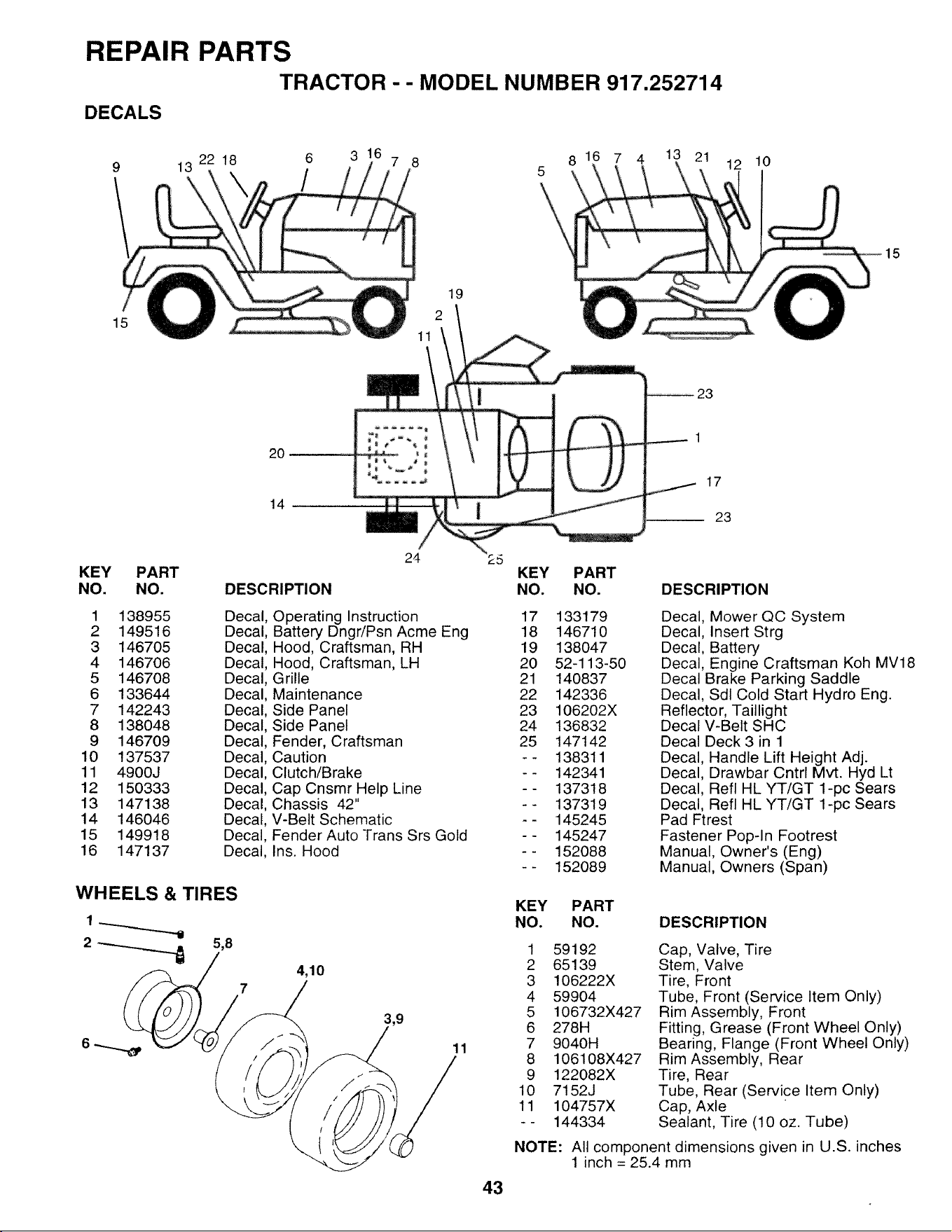

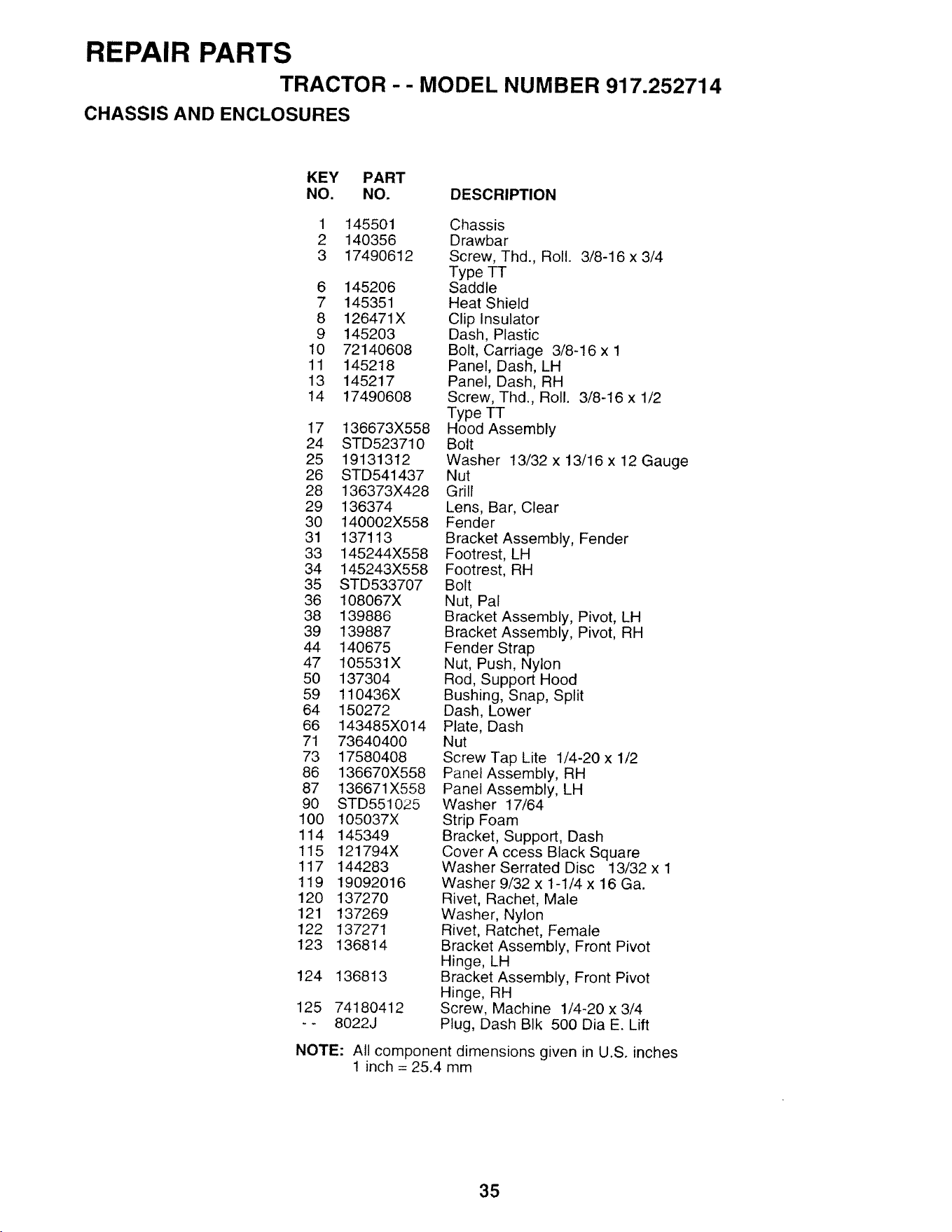

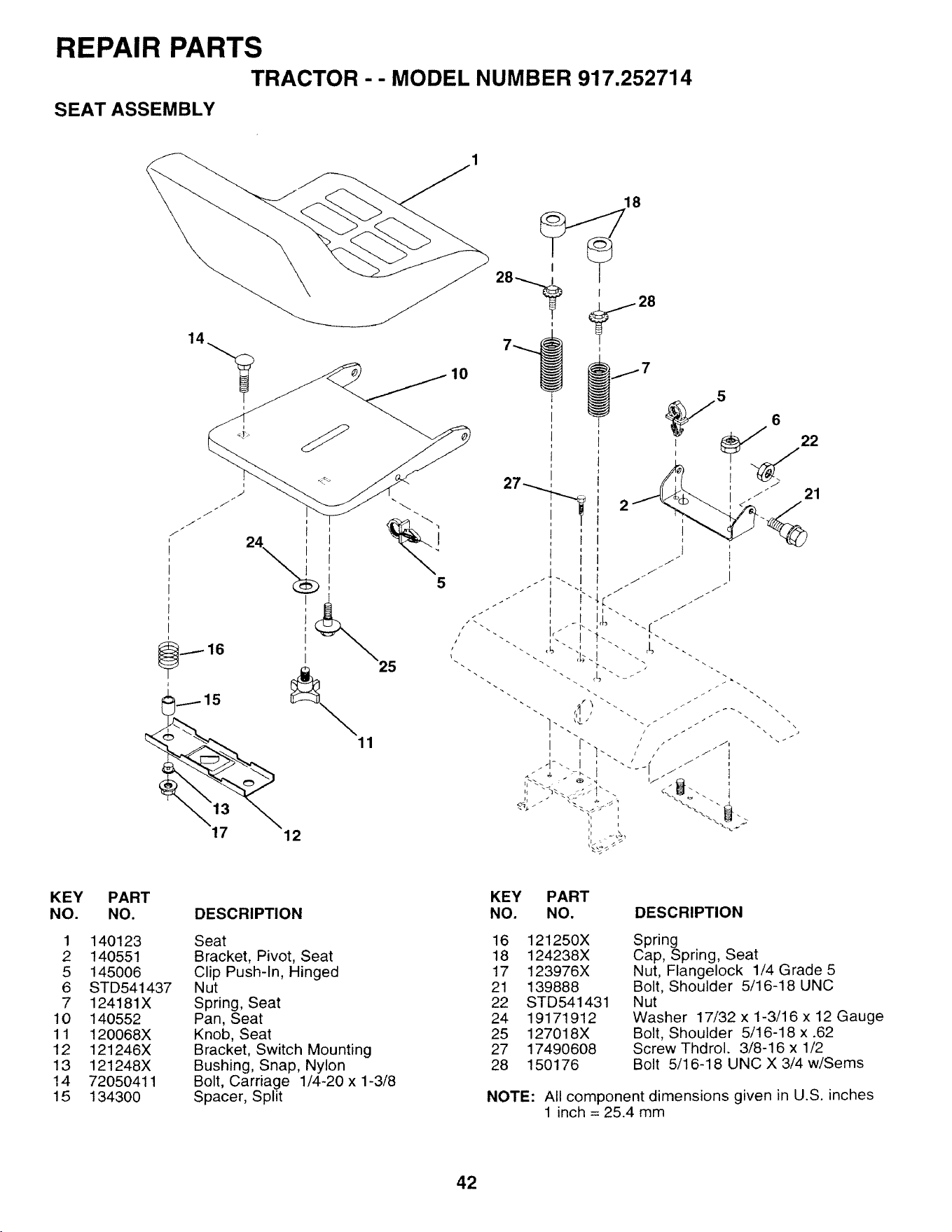

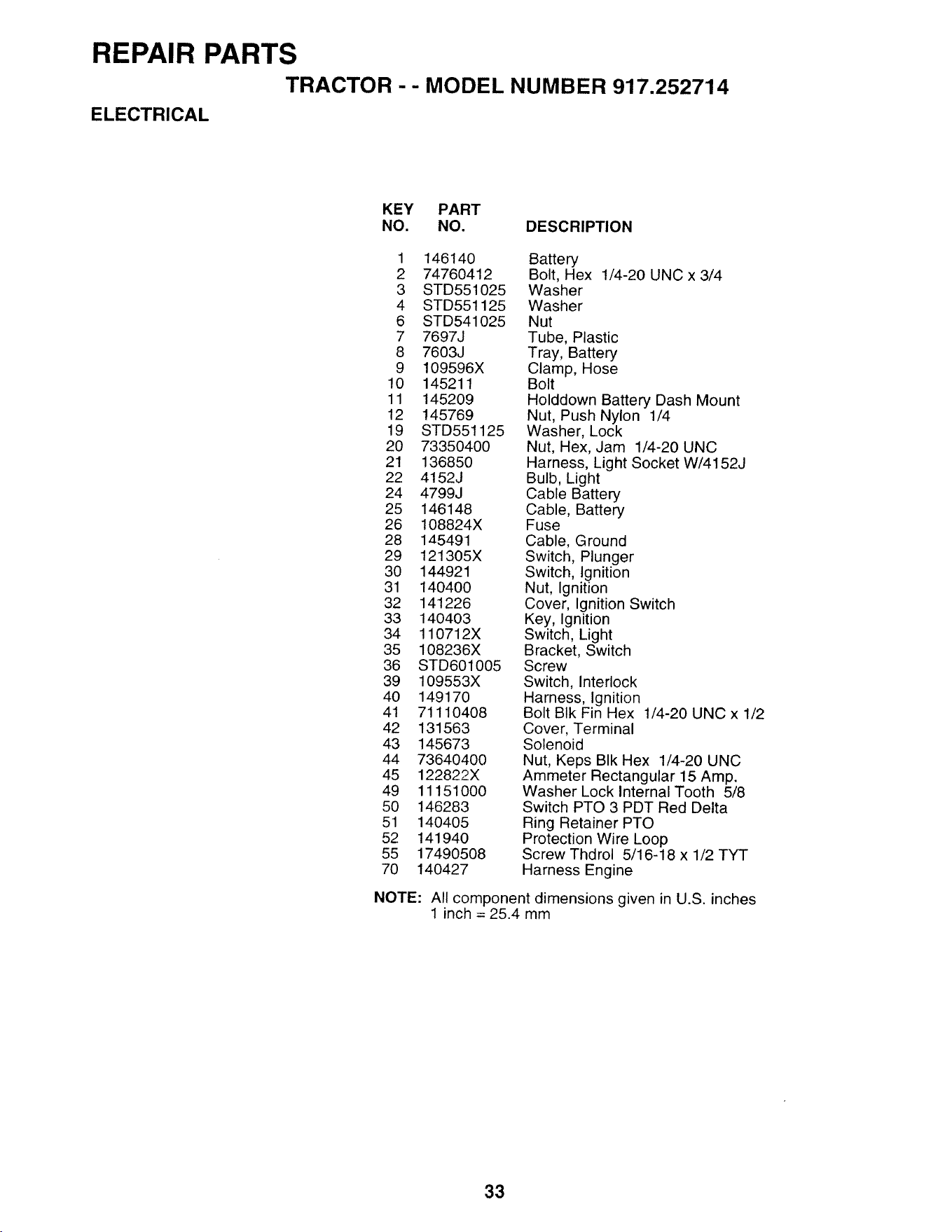

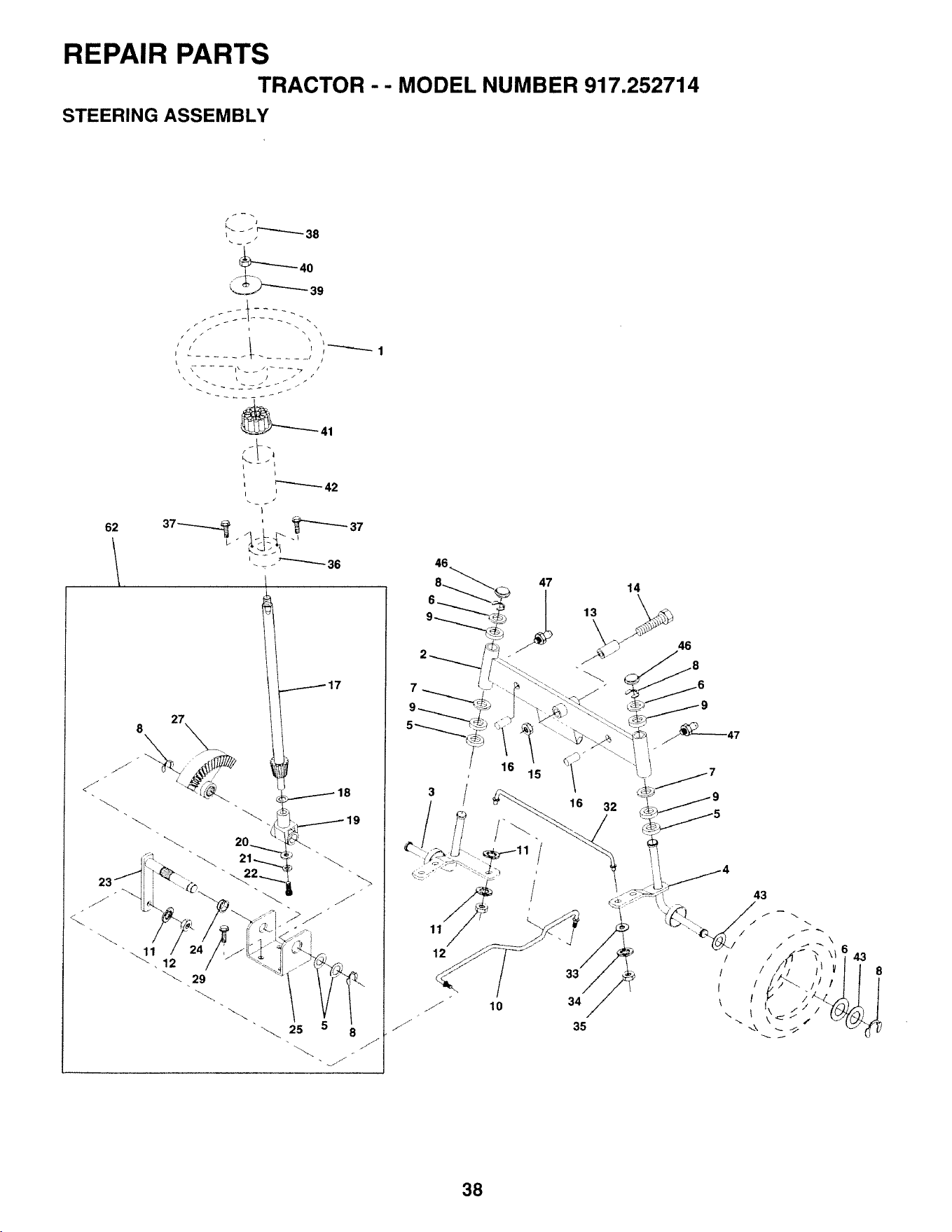

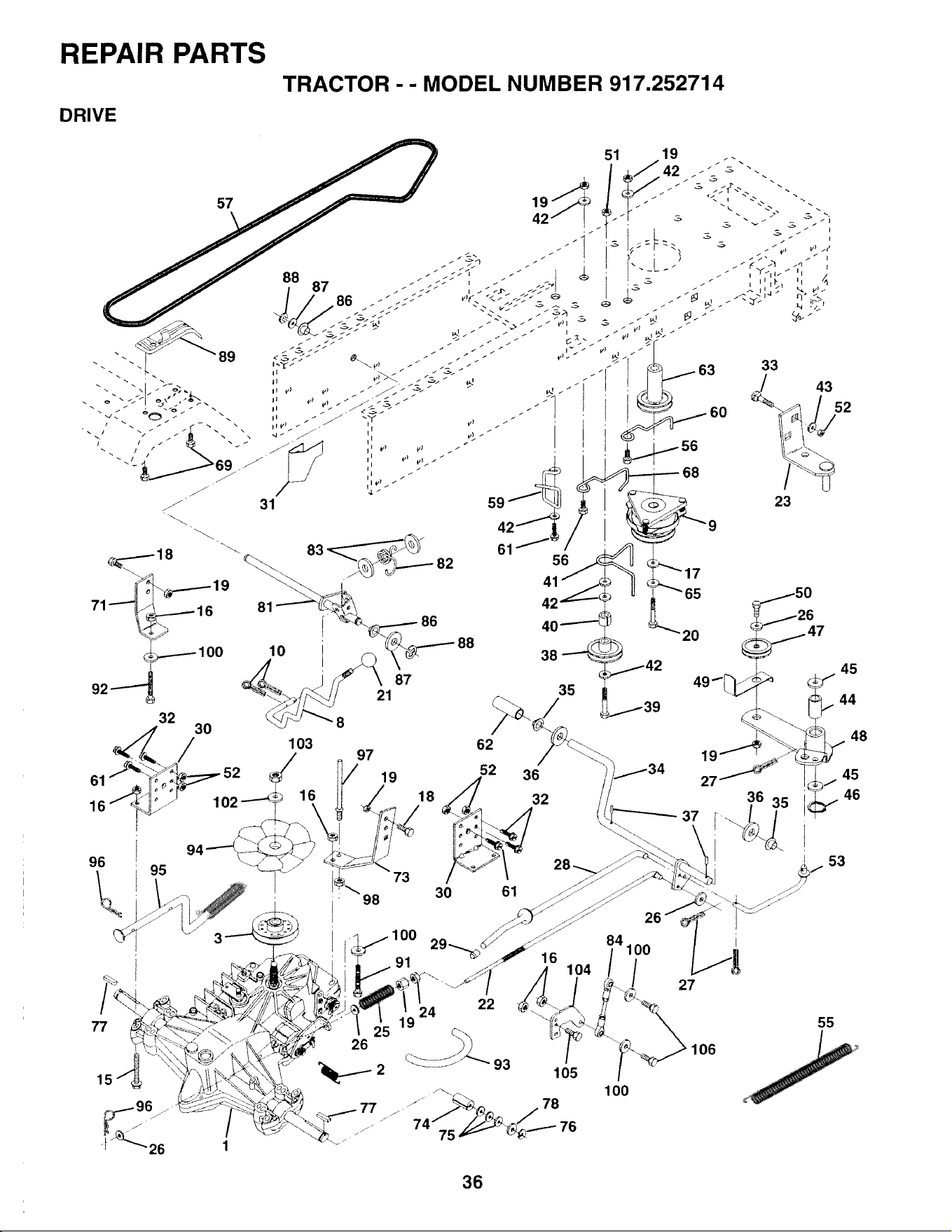

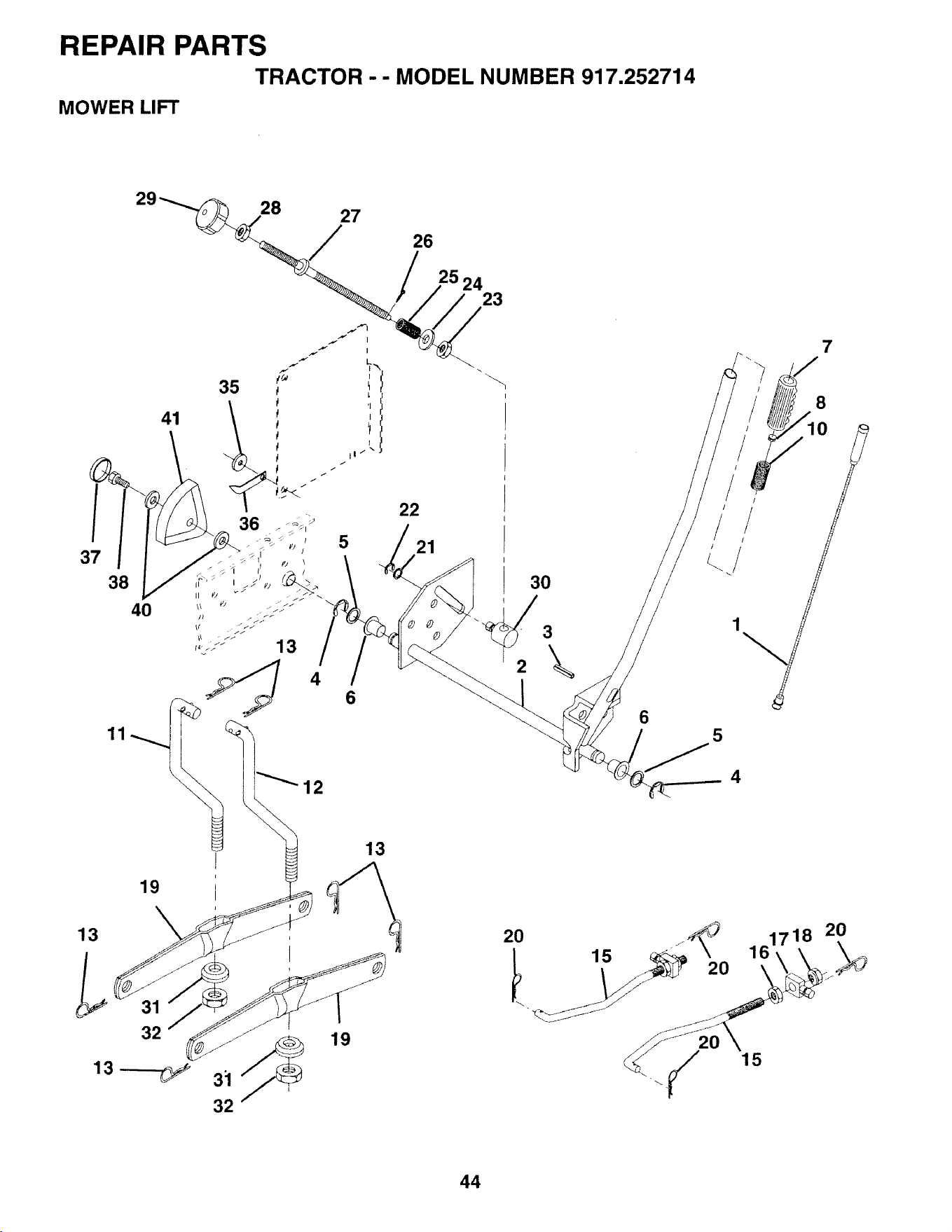

REPAIR PARTS - TRACTOR ................................ 32-49

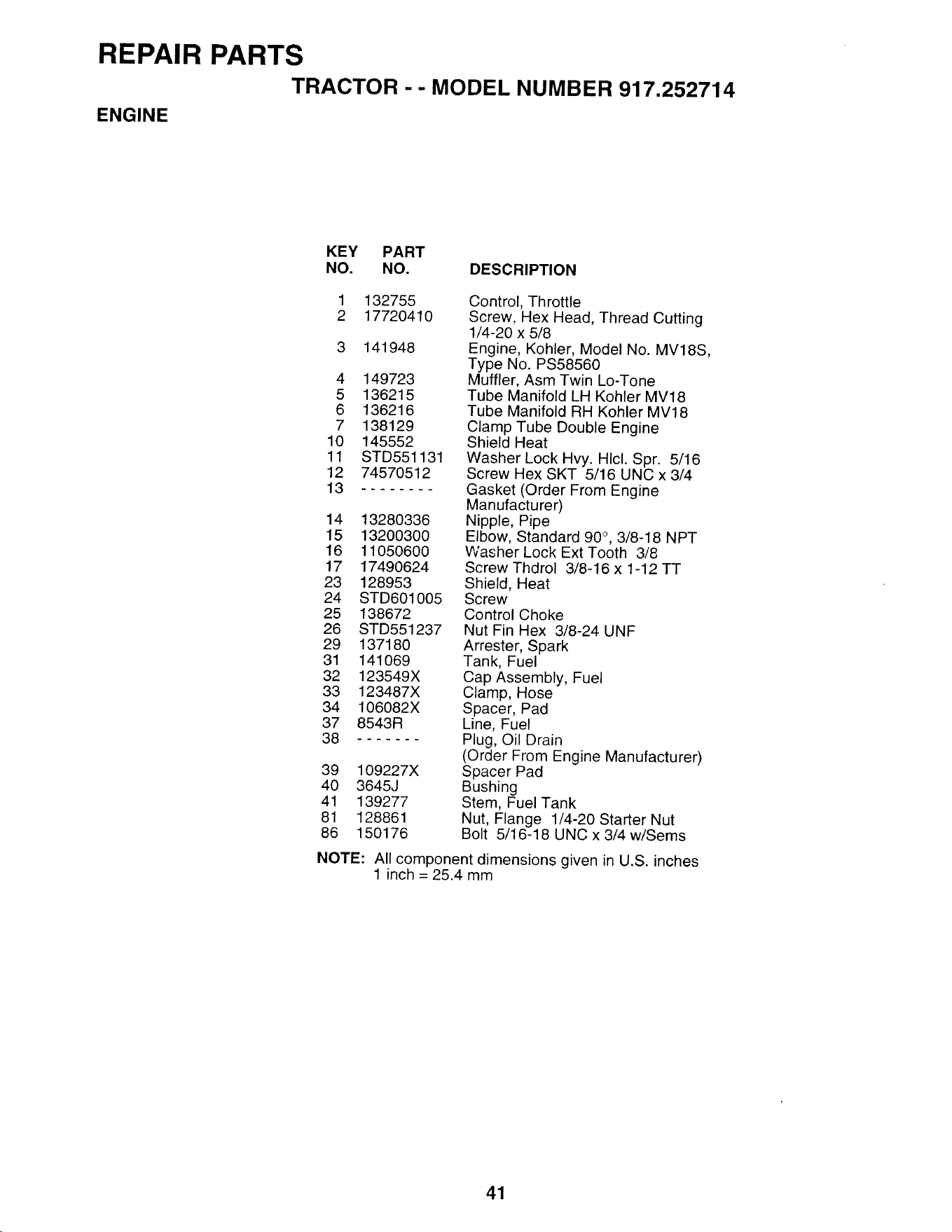

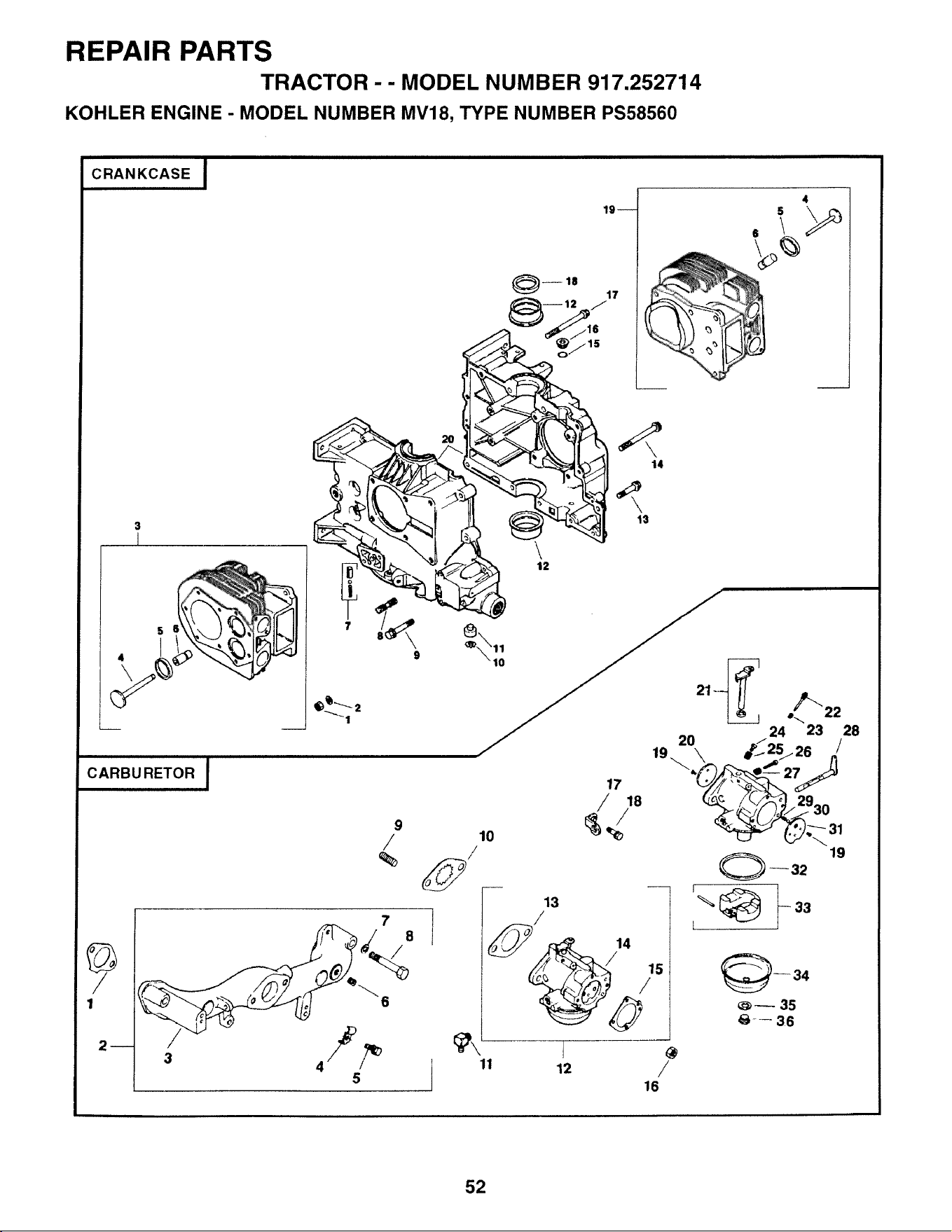

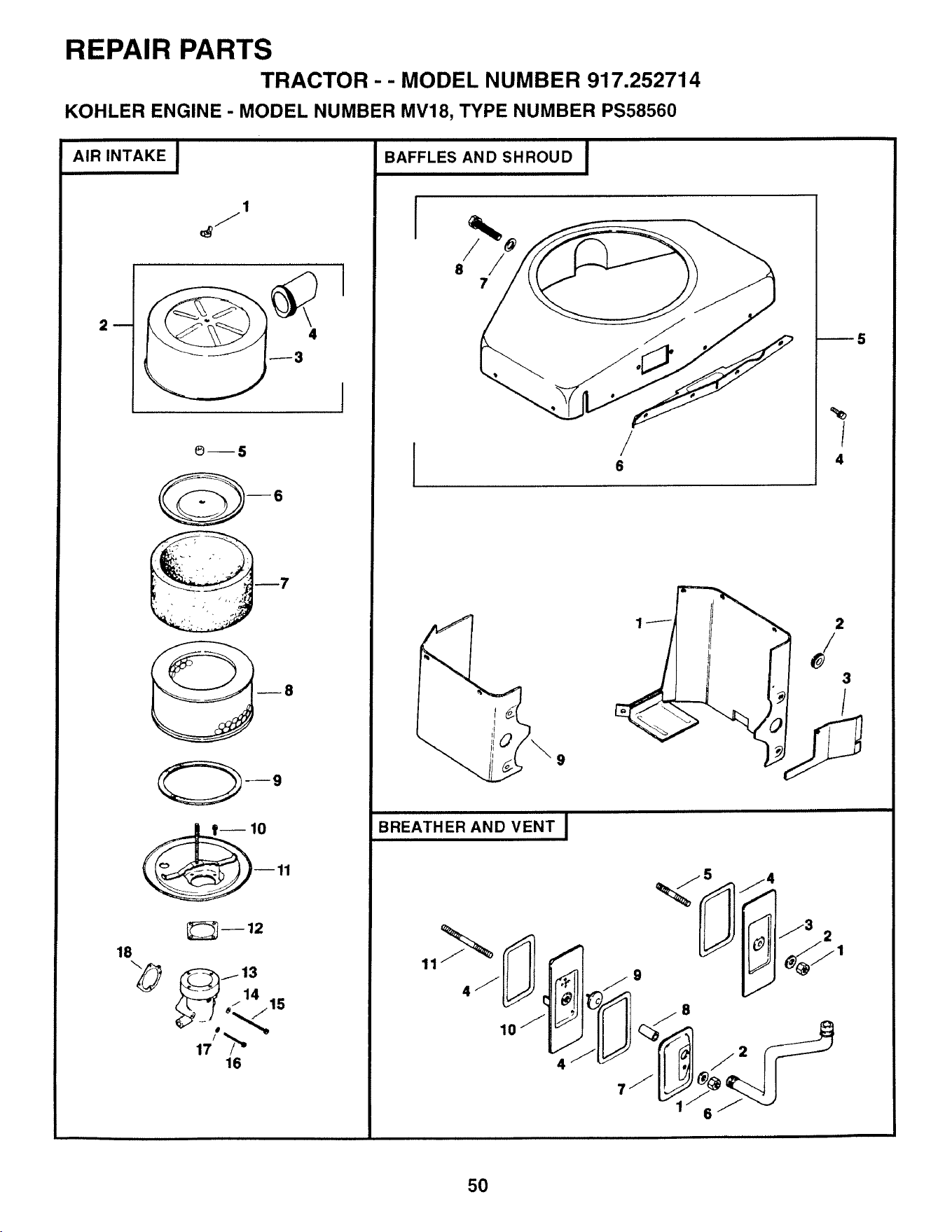

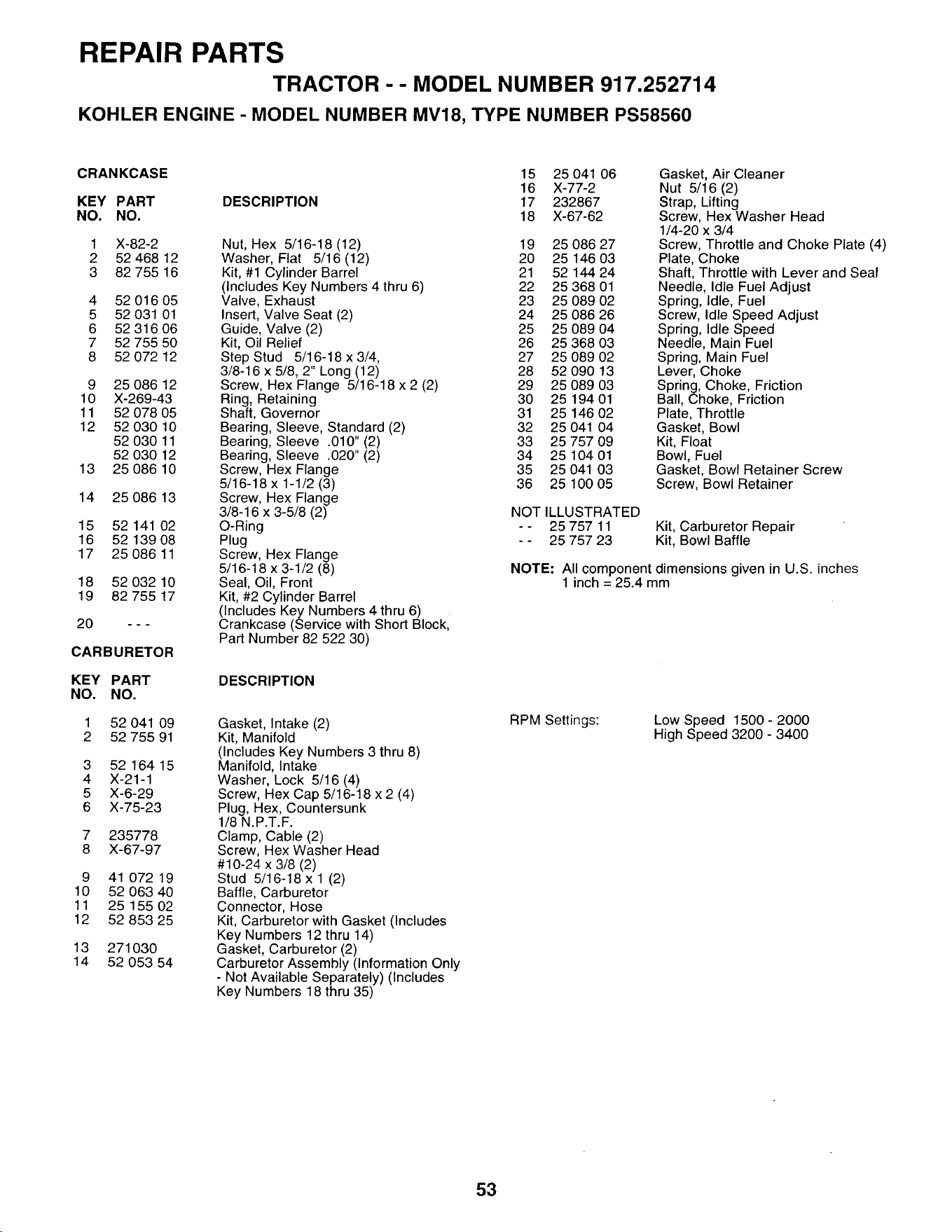

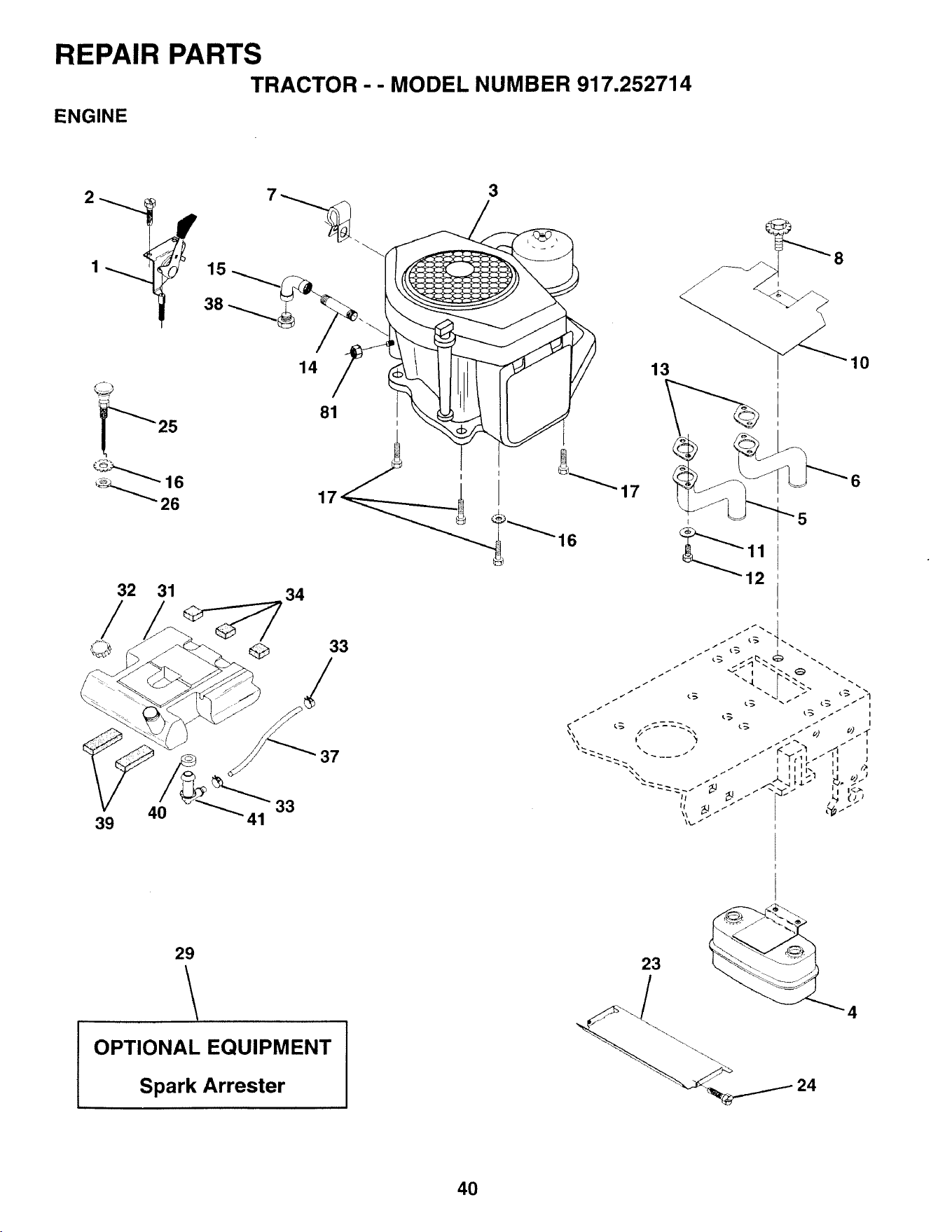

REPAIR PARTS - ENGINE .................................... 50-55

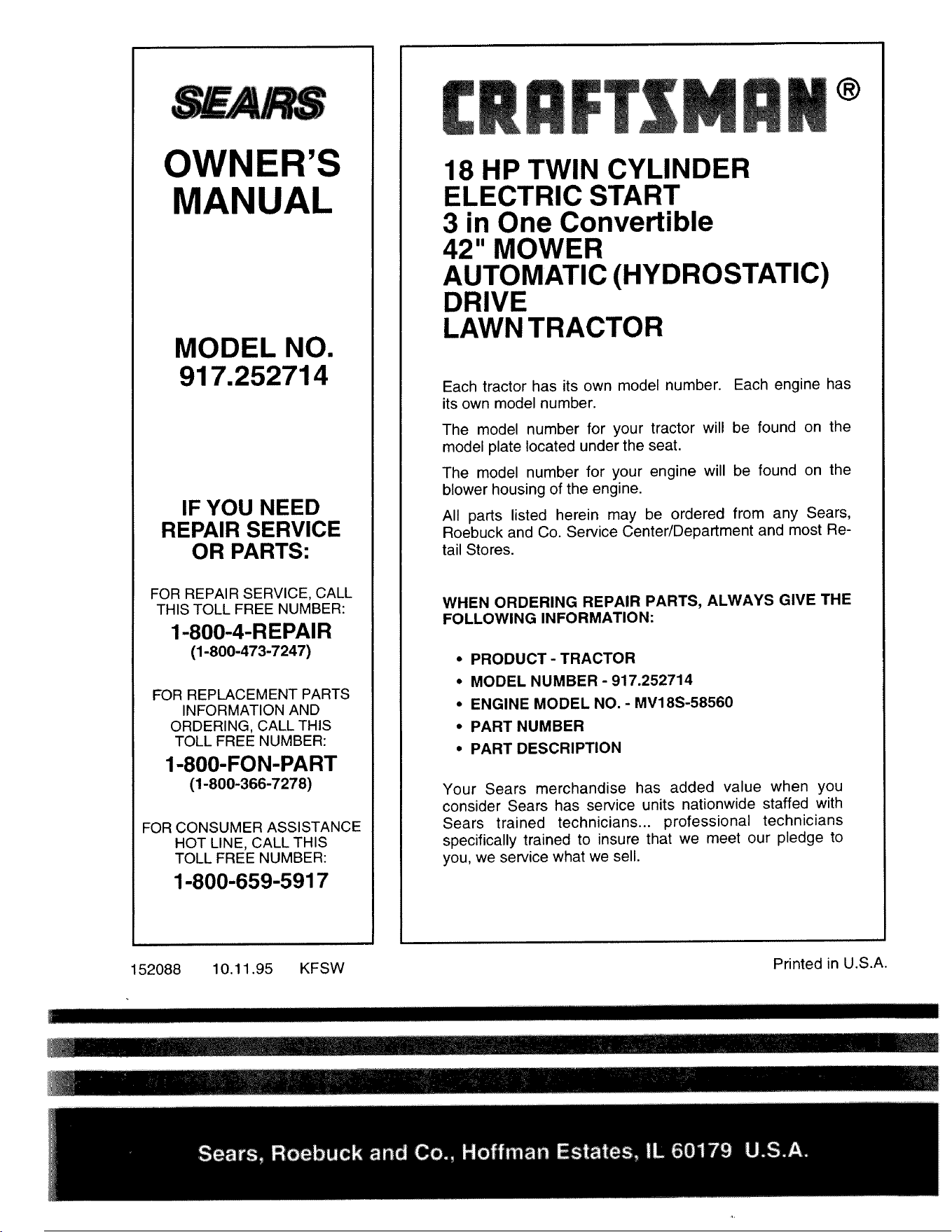

PARTS ORDERING/SERVICE ............... BACK COVER

INDEX

Accessories ........................................... 5

Adjustments:

Brake ............................................ 23

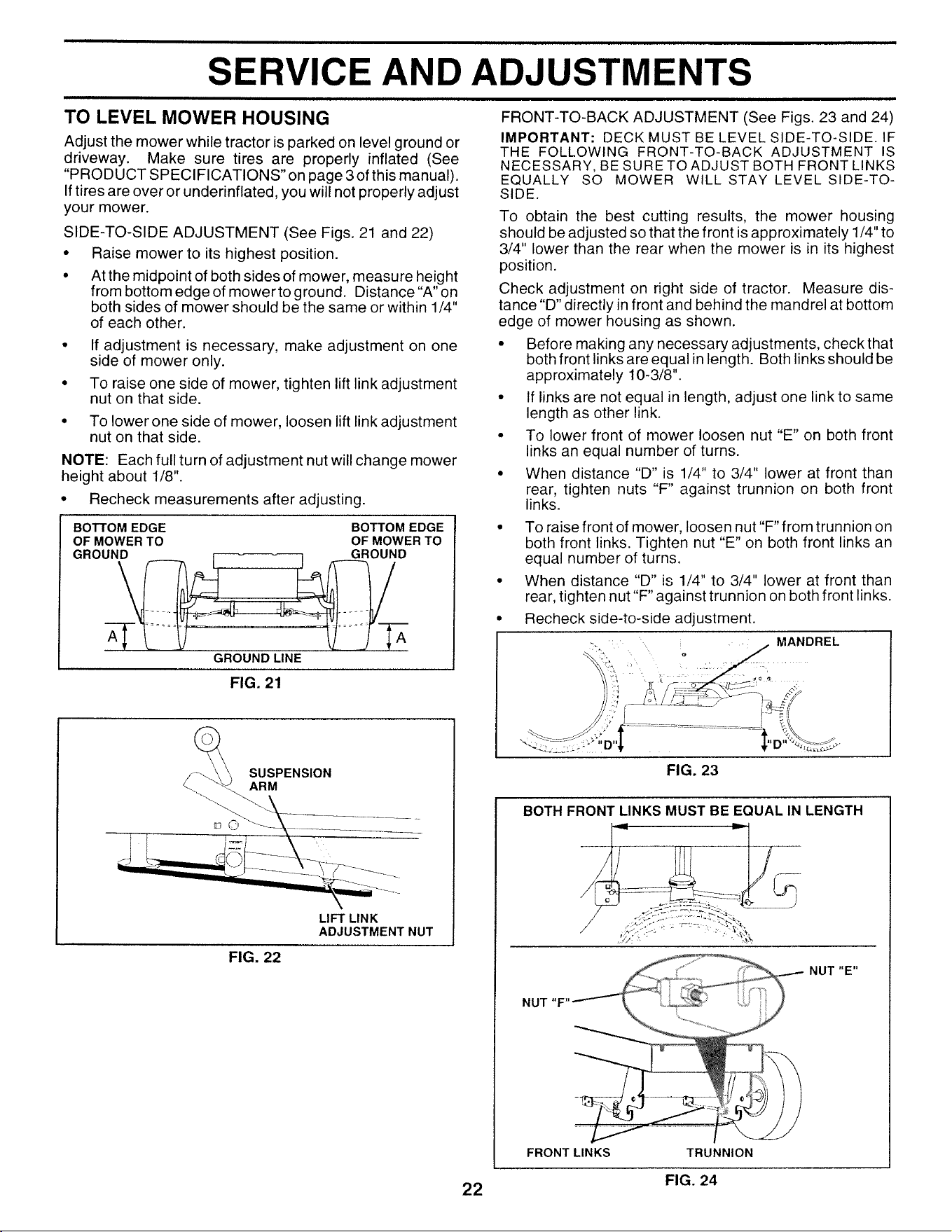

Carburetor .................................... 27

Mower

Front-To-Back ......................... 22

Side-To-Side ........................... 22

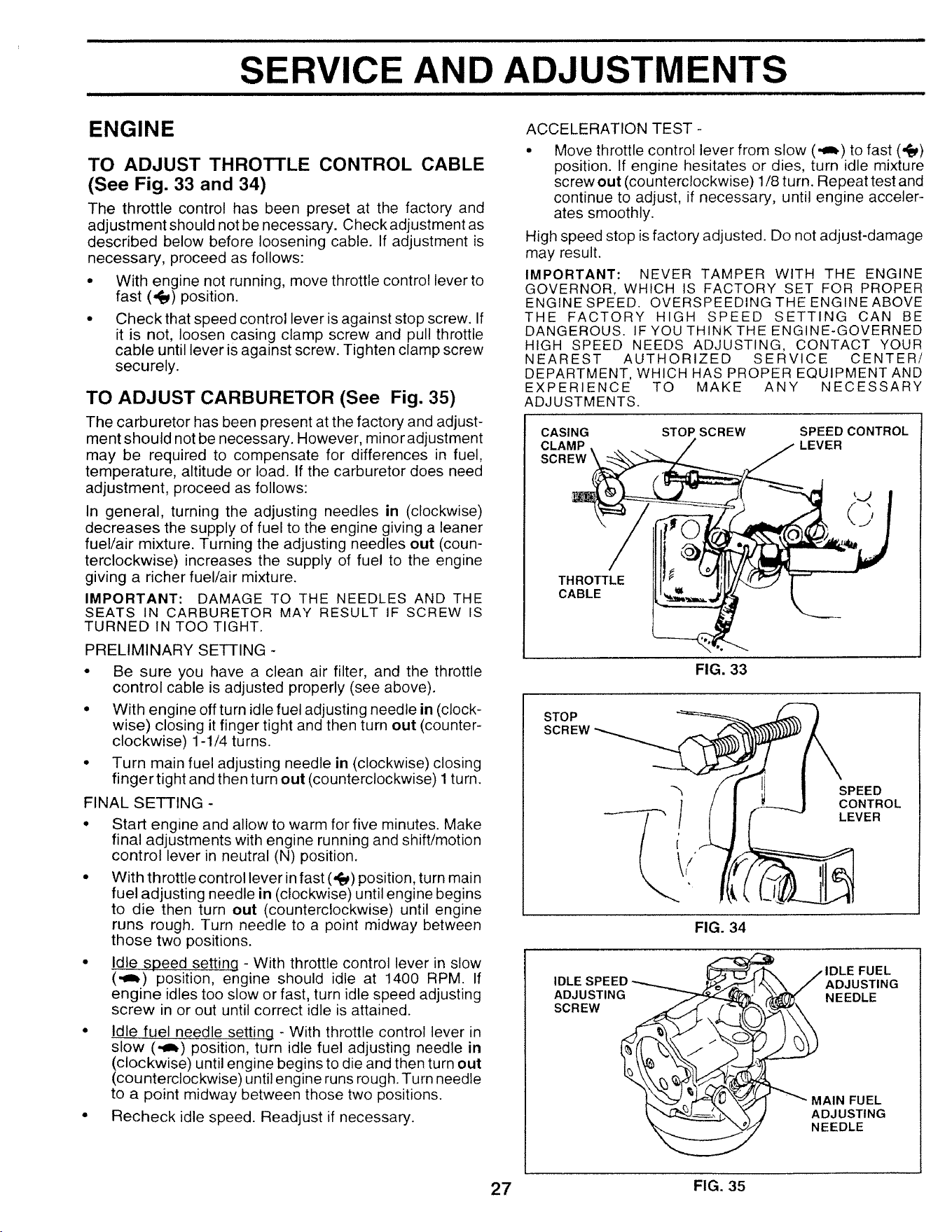

Throttle Control Cable .................. 27

Air Filter, Engine .................................. 20

Air Screen, Engine .............................. 19

Assembly .......................................... 7-10

Battery:

Charging ........................................ 8

Cleaning ....................................... 18

Starting with Weak Battery .......... 25

Storage ........................................ 28

Terminals ..................................... 18

Belt:

Motion Drive

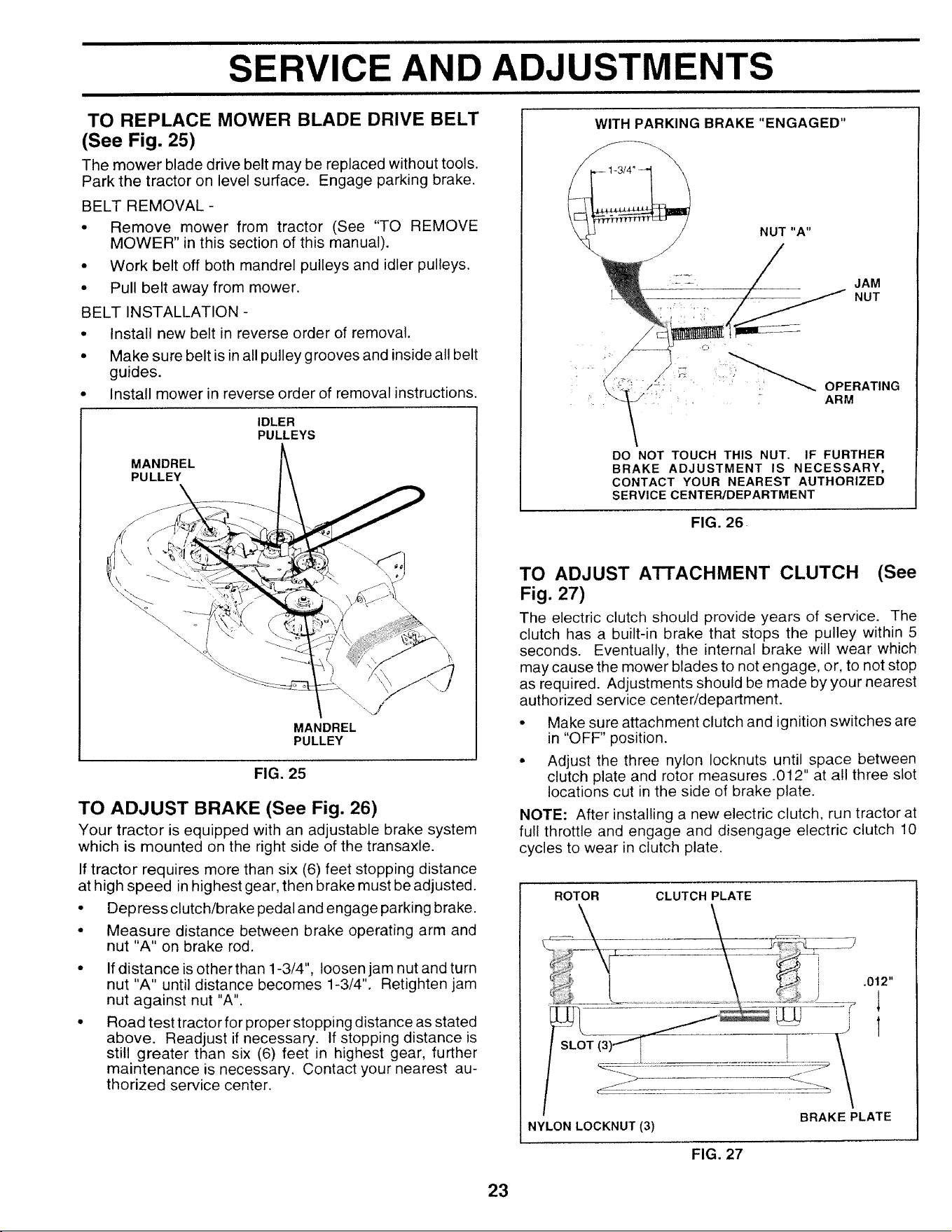

Removal/Replacement ........... 24

Mower Belt(s)

Removal/Replacement ........... 23

Blade:

Sharpening .................................. 18

Replacement ................................ 18

Brake Adjustment ................................ 23

Carburetor Adjustment ........................ 27

Controls, Tractor ................................. 12

Customer Responsibilities ............. 17-20

Engine:

Air Filter .................................... 20

Air Screen ................................ 19

Cooling Fins ............................. 20

Engine Oil ........................... 14,19

Fuel Filter ................................. 20

Spark Plug(s) ........................... 20

Tractor:

Battery ...................................... 18

Blade ........................................ 18

Lubrication Chart ..................... 17

Maintenance Schedule ............ 17

Tire Care .......................... 8,18,28

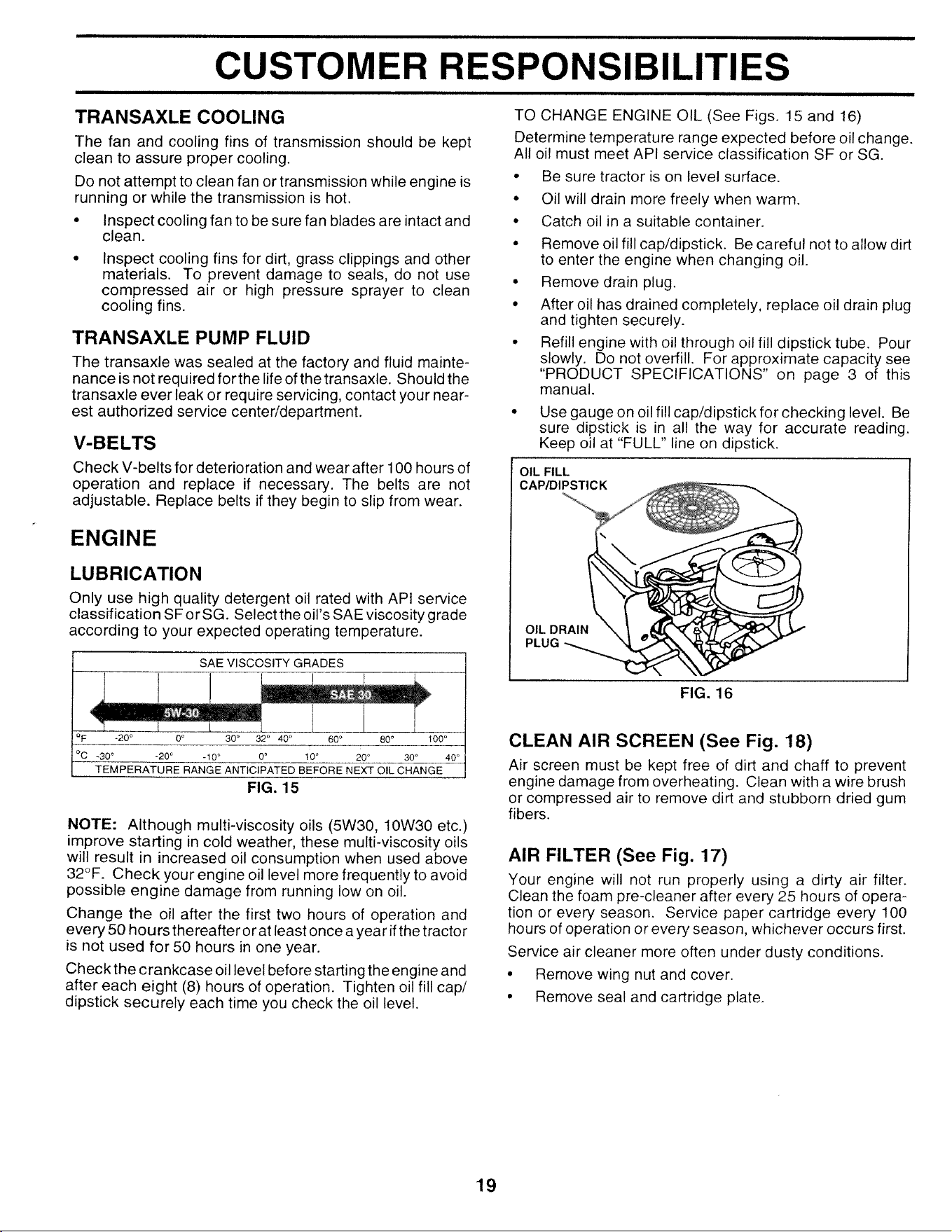

Transaxle ................................. 19

Cutting Height, Mower ........................ 13

Electrical:

Interlocks and Relays .................. 26

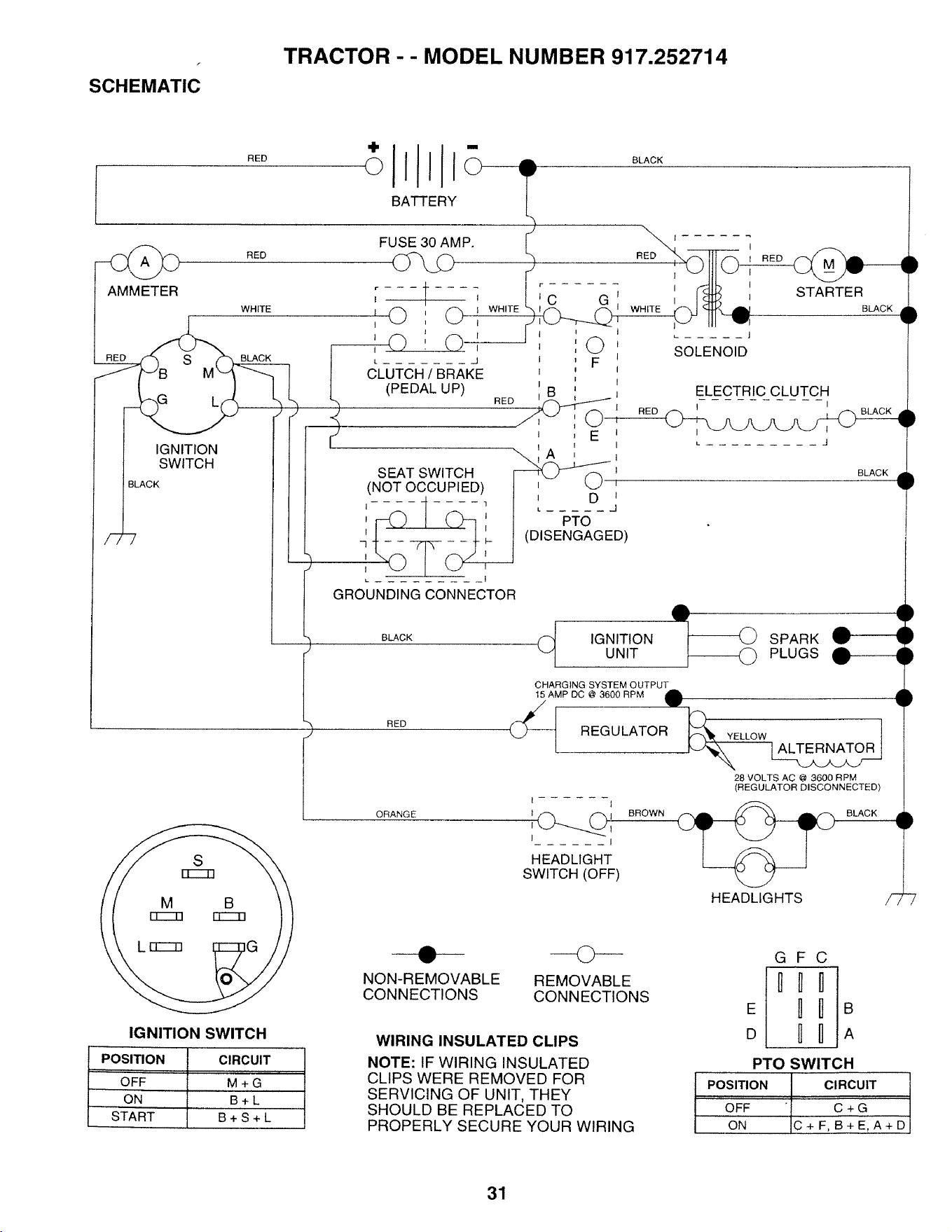

Schematic .................................... 31

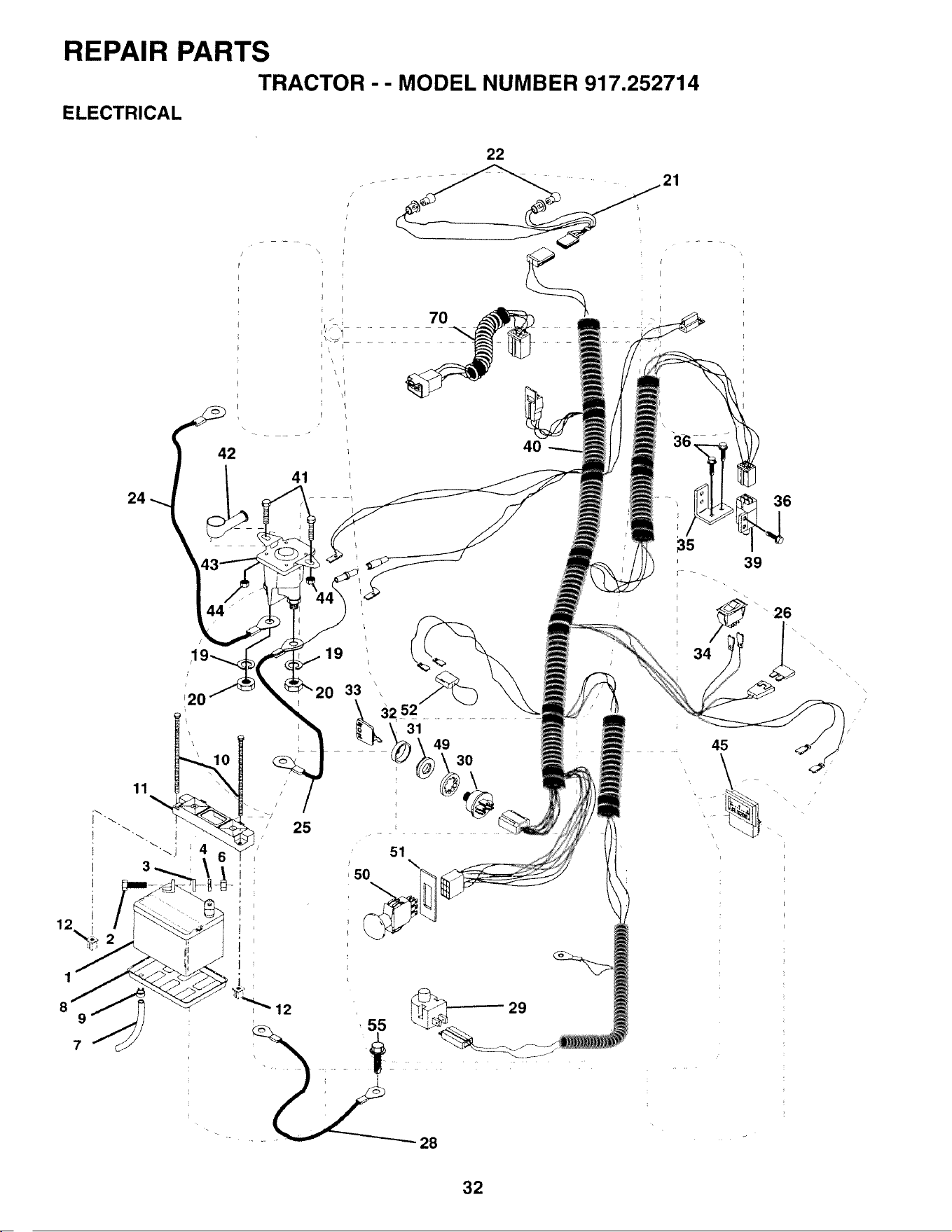

Wiring Diagram ............................ 32

Engine:

Air Filter ........................................ 20

Air Screen .................................... 19

Cooling Fins ................................. 20

Oil Change ................................... ! 9

Oil Level ....................................... 19

Oil Type ................................... 14,19

Preparation .................................. 14

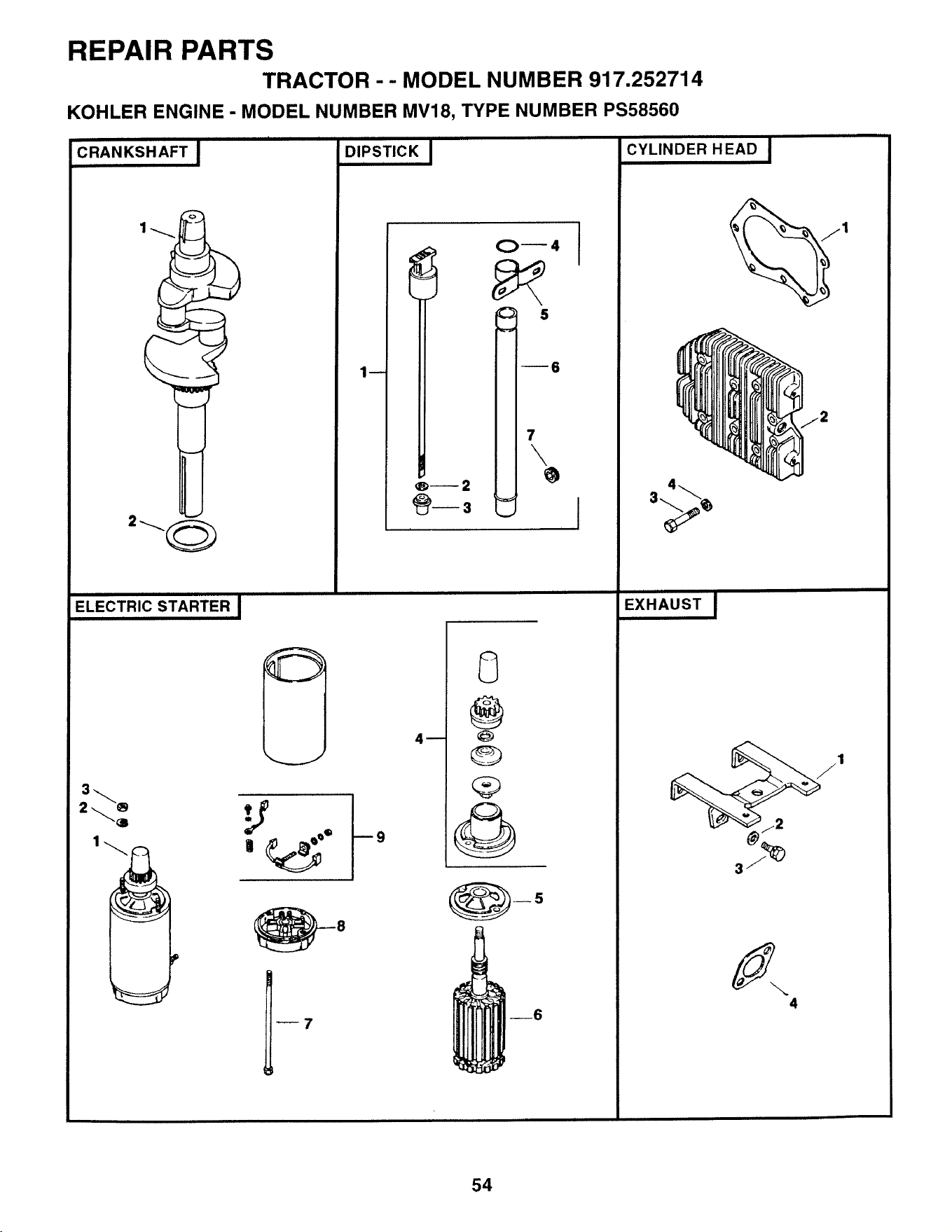

Repair Parts ............................ 50-55

Starting ......................................... 15

Storage ........................................ 28

Filter:

Air Filter ........................................ 20

Fuel .............................................. 20

Fuel:

Type ............................................. 15

Storage ........................................ 28

Fuse .................................................... 25

Hood Removal/Installation .................. 26

Leveling Mower Deck .......................... 22

Lubrication:

Chart ............................................ 17

Engine .......................................... 19

Maintenance Schedule ....................... 17

Mower:

Adjustment, Front-to-Back ........... 22

Adjustment, Side-to-Side ............. 22

Blade Replacement ..................... 18

Blade Sharpening ........................ 18

Cutting Height .............................. 13

Installation .................................... 21

Operation ..................................... 14

Removal ....................................... 21

Mowing Tips ........................................ 16

Muffler ................................................. 20

Spark Arrester ........................... 3,40

Oil:

Cold Weather Conditions ........ 13,19

Engine .......................................... 19

Storage ........................................ 28

Operation ....................................... 11-16

Operating Mower ................................ 14

Options:

Accessories .................................... 5

Spark Arrester ........................... 3,40

Parking Brake .............................. 121-13

Parts Bag .............................................. 6

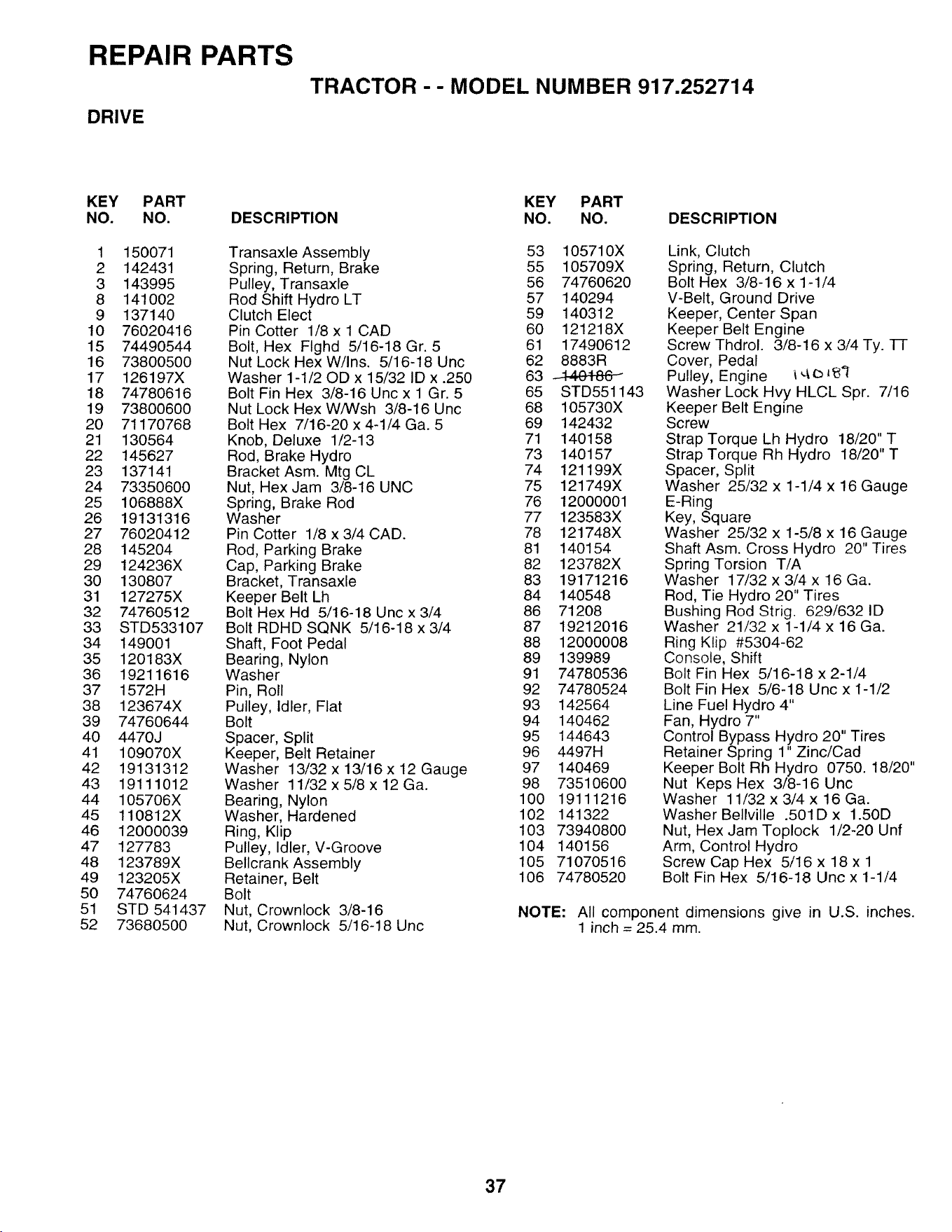

Parts, Replacement/Repair ............ 32-49

Product Specifications .......................... 3

Repair Parts ................................... 32-49

Safety Rules .......................................... 2

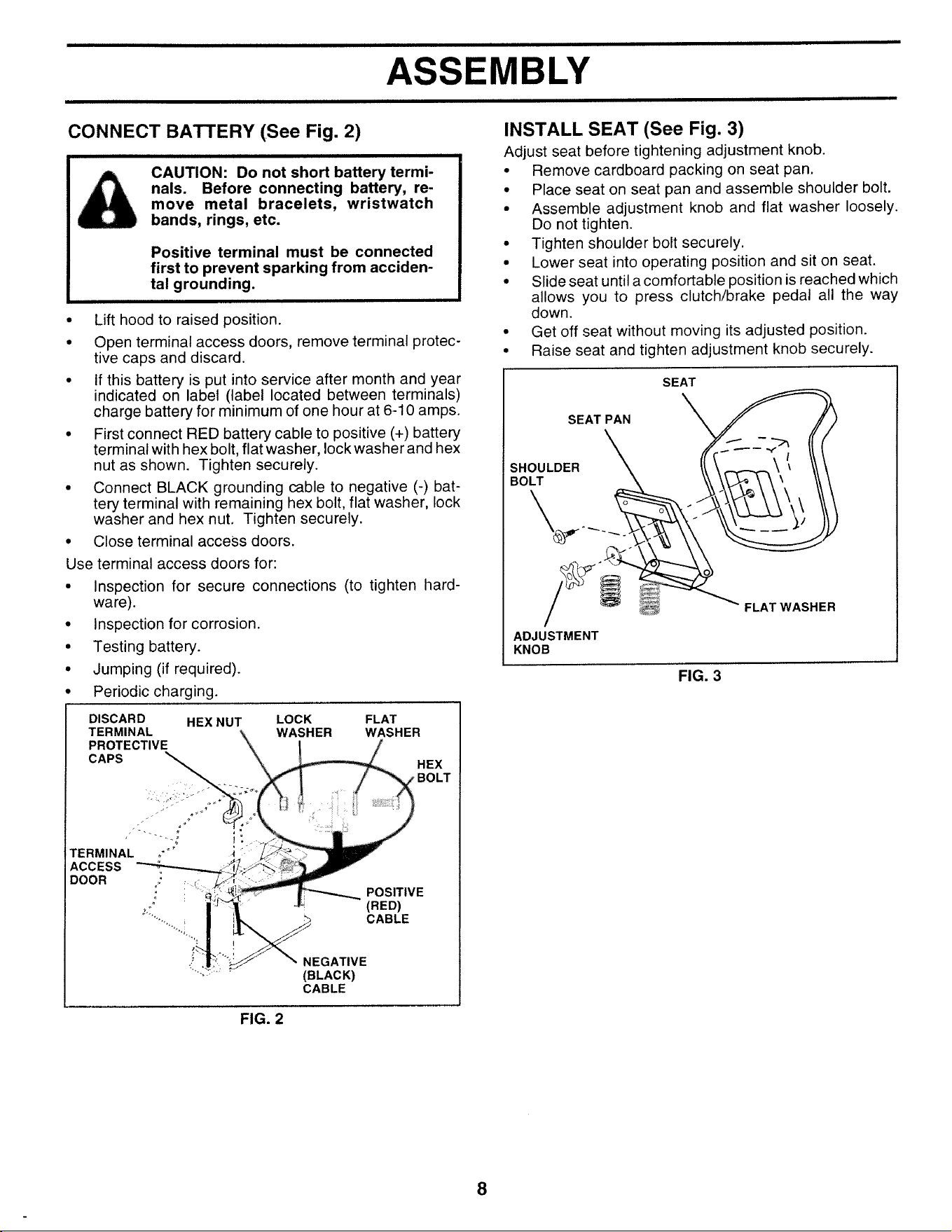

Seat ....................................................... 8

Service and Adjustments ............... 21-27

Carburetor .................................... 27

Fuse ............................................. 26

Hood Removal/Installation ........... 26

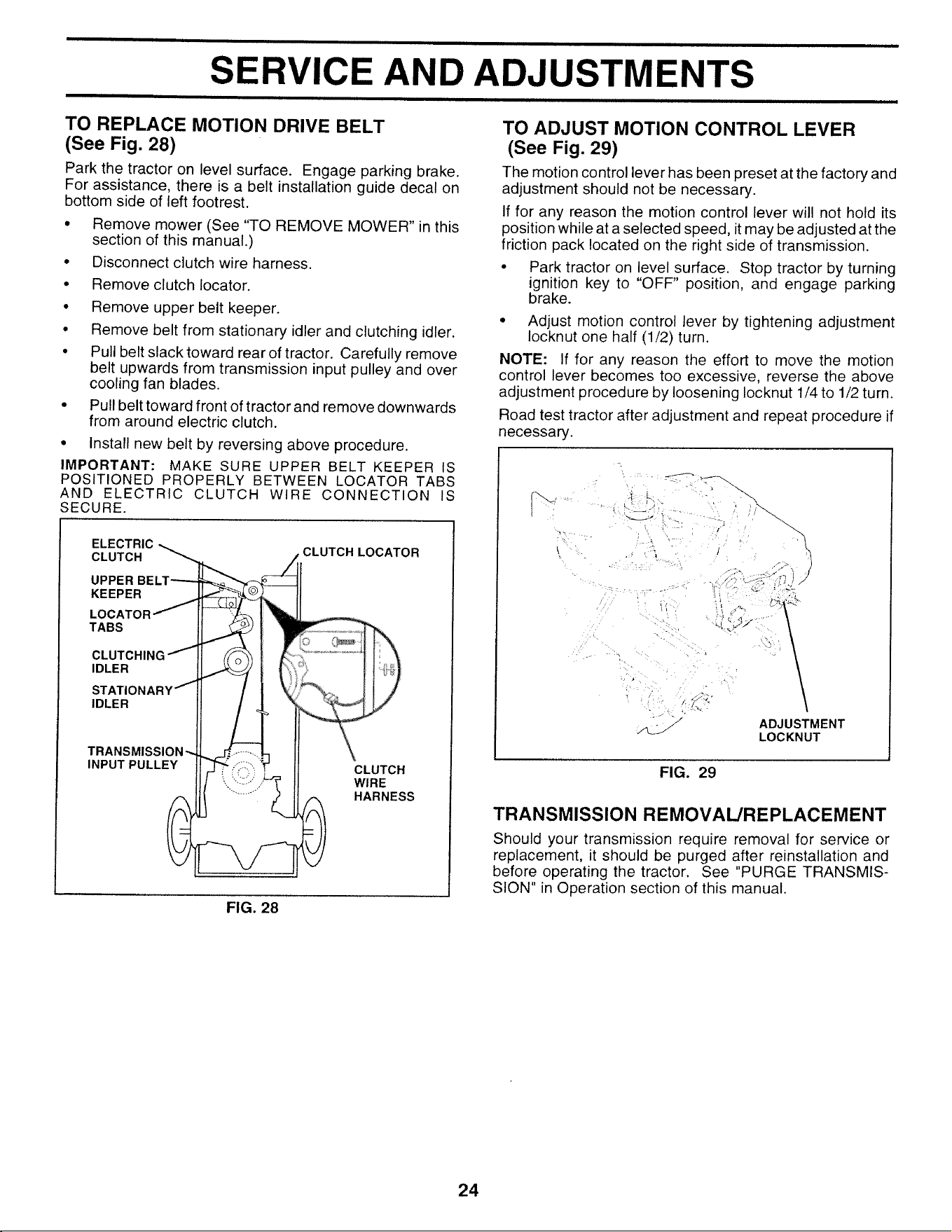

Motion Drive Belt

Removal/Replacement ........... 24

Mower Belt(s)

Removal/Replacement ........... 23

Mower Adjustment

Front-to-Back .......................... 22

Side-to-Side ............................ 22

Mower Removal/Installation ......... 21

Tire Care .............................. 8,18,28

Slope Guide Sheet .............................. 59

Spark Plug(s) ...................................... 20

Specifications ........................................ 3

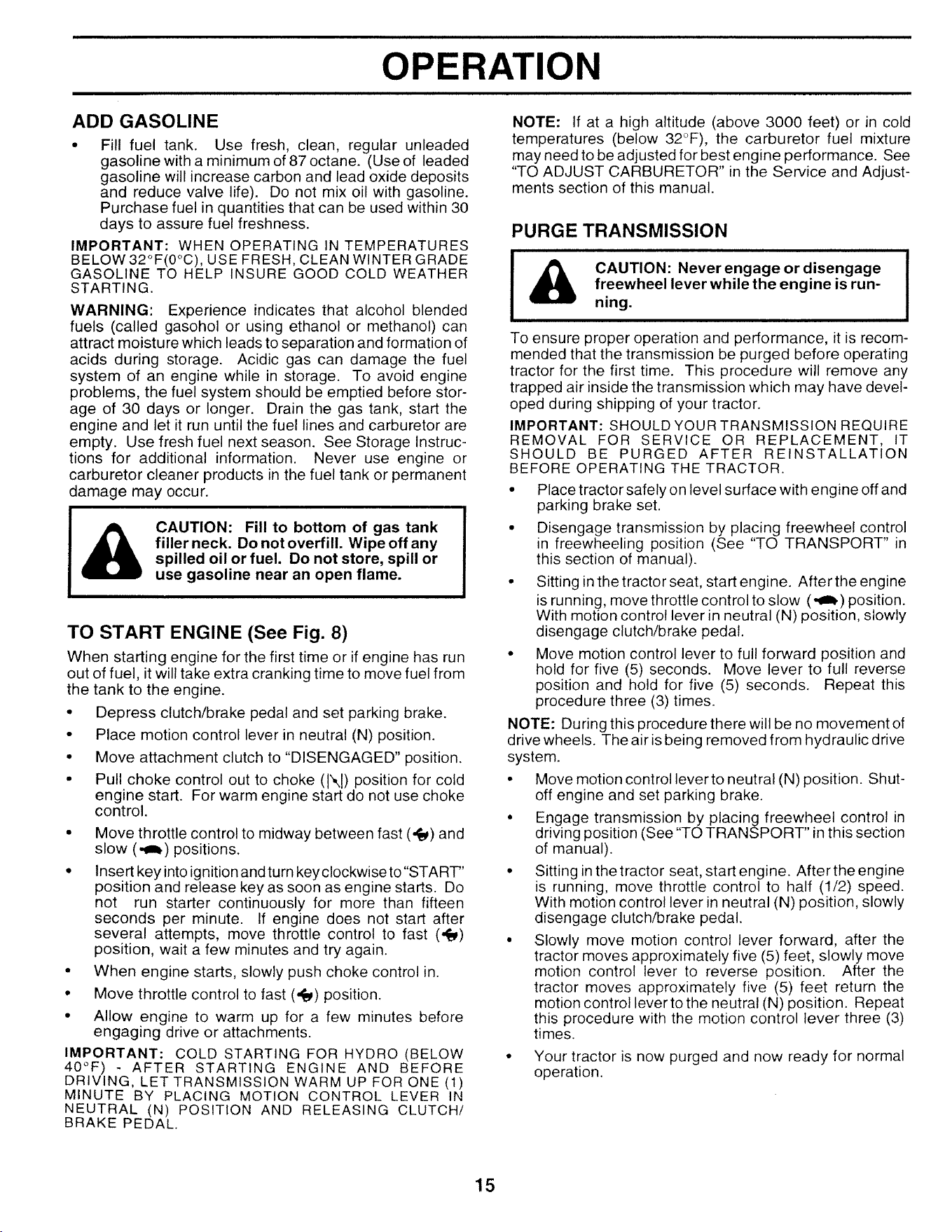

Starting the Engine ............................. 15

Steering Wheel ................................ 7,25

Stopping the Tractor ........................... 13

Storage ................................................ 28

Throttle Control Cable Adjustment ...... 27

Tires ............................................ 8,18,28

Trouble Shooting Chart .................. 29-30

Transaxle .................................. 19,48-49

Warranty ................................................ 3

Wiring Diagram ................................... 32

Wiring Schematic ................................ 31

ACCESSORIES AND ATTACHMENTS

These accessories and attachments were available through most Sears retail outlets and service centers when the tractor was purchased.

Most Sears stores can order these items for you when you provide the model number of your tractor.

ENGINE

SPARK PLUG GAS CAN ENGINE OIL

FUEL STABILIZER

AIR FILTER

MAINTENANCE

BLADES

BELTS

PERFORMANCE

Sears offers a wide variety of attachments that fit your tractor. Many of these are listed below with brief explanations of how they can help

you. This list was current at the time of publication; however, it may change in future years - more attachments may be added, changes

may be made in these attachments, or some may no longer be available or fit your model. Contact your nearest Sears store for the

accessories and attachments that are available for your tractor.

Most of these attachments do not require additional hitches or conversion kits (those that do are indicated) and are designed for easy

attaching and detaching.

AERATOR promotes deep root growth for a healthy lawn. Ta-

pered 2.5-inch steel spikes mounted on 10-inch diameter discs

puncture holes in soil at close intervals to let moisture soak in.

Steel weight tray for increased penetration.

BAGGER lets you collect grass clippings and leaves for a

healthier, neater looking lawn. Two Permanex containers hold

30-gallon plastic bags.

BUMPER protects front end of tractor from damage.

CARTS make hauling easy. Variety of sizes available, plus

accessories such as side panel kits, tool caddy, cart cover,

protective mat and dolly.

CORING AERATOR takes small plugs out of soil to allow mois-

ture and nutrients to reach grass roots. 36-inch swath. 24

hardened steel coring tips. 150 lb. capacity weight tray.

EASY OIL DRAIN VALVE makes oil changes easier, faster.

FRONT NOSE ROLLER canters in front of mower deck to reduce

chances of "scalping" on uneven terrain.

GANG HITCH lets you tow 2 or 3 pull-behind attachments at once,

such as sweepers, dethatchers, aerators (not for use with rollers,

carts or other heavy attachments).

GAUGE WHEELS on both sides of the mower deck reduce

chances of "scalping" on uneven terrain. For mower decks not so

equipped.

MULCH RAKE/DETHATCHER loosens soil and flips thatch and

matted leaves to lawn surface for easy pickup. Twenty spring tine

teeth. Usefultopreparebareareasforseeding. Available forfront

or rear mounting. HIGH PERFORMANCE REEL-ACTION

SPRING TINE DETHATCHER covers 36-inch wide path and

tosses thatch into large hopper. Mounts behind tractor.

MULCHING CLOSE-OUT PLATE KIT, once installed, lets you

mulch, discharge or bag clippings (bagger optional) without

changing blades. For models not equipped as 3-in-1 Convertible

mowers. See "MOWER" in the Repair Parts section of this

manual.

RAMP TOPS AND FEET let you load and unload tractor from a

pickup truck. Use with 2 x 8 or 2 x 10 lumber.

ROLLER for smoother lawn surface. 36-inch wide, 18-inch

diameter water-tight drum holds up to 390 Ibs. of weight. Rounded

edges prevent harm to turf. Adjustable scraper automatically

cleans drum.

SNOW BLADE for snow removal only. 14-inch high, 48-inch wide

blade clears 42-inch path when angled left or right. Raises, lowers

with side lever. Adjustable skids; replaceable, reversible scraper

bar. (Use with tire chains and wheel weights and/or rear drawbar

weight.)

SNOWTHROWER has 40-inch swath. Drum-type auger handles

powdery and wet/heavy snow. Mounts easily with simple pin

arrangement. Discharge chute adjusts from tractor seat. 6-inch

diameter spout discharges snow 10 to 50 feet. Lift controlled at

tractor seat. (Use with chains and wheel weights and/or rear

drawbar weight.)

SPRAYERS use 12-volt DC electric motor that connects to the

tractor battery or other 12-volt source. Includes booms for

automatic spraying and hand held wand for spot spraying. Wand

has adjustable spray pattern. For applying herbicides, insecti-

cides, fungicides and liquid fertilizers.

SPREADER/SEEDERS make seeding, fertilizing, and weed kill-

ing easy. Broadcast spreaders are also useful for granular de-

icers and sand.

SWEEPERS let you collect grass clippings and leaves.

TILLER has 5 hp engine and 36-inch swath to prepare seed beds,

cultivate and compost garden residue. Tiller has its own built-in

lift and depth control system and does NOT require a sleeve hitch.

Fits any lawn, yard or garden tractor. Simply hook up to the tractor

drawbar and go! Optional accessories convert unit for

dethatching, aerating, hilling...without tools.

TIRE CHAINS are heavy duty; closely spaced extra-large cross

links give smooth ride, outstanding traction.

TRACTOR CAB has heavy duty vinyl fabric over tubular steel

frame, ABS plastic top; clear plastic windshield offers 360 degree

visibility. Hinged metal doors with catch. Keeps operator warm

and dry. Remove vinyl sides and windshields for use as sun

protector in summer. Optional accessories include: tinted/

tempered solid safety glass windshield with hand operated wiper;

12-volt amber caution light for mounting on cab top.

VACS for powerful collection of heavy grass clippings and leaves.

Optional wand attachment to pick up debris in hard-to-reach

places. VAC/CHIPPER includes a chipper-shredder.

WEIGHT BRACKET for drawbar for snow removal applications.

Uses (1) 55 lb. weight.

WHEEL WEIGHTS for rear wheels provide needed traction for

snow removal or dozing heavy materials.

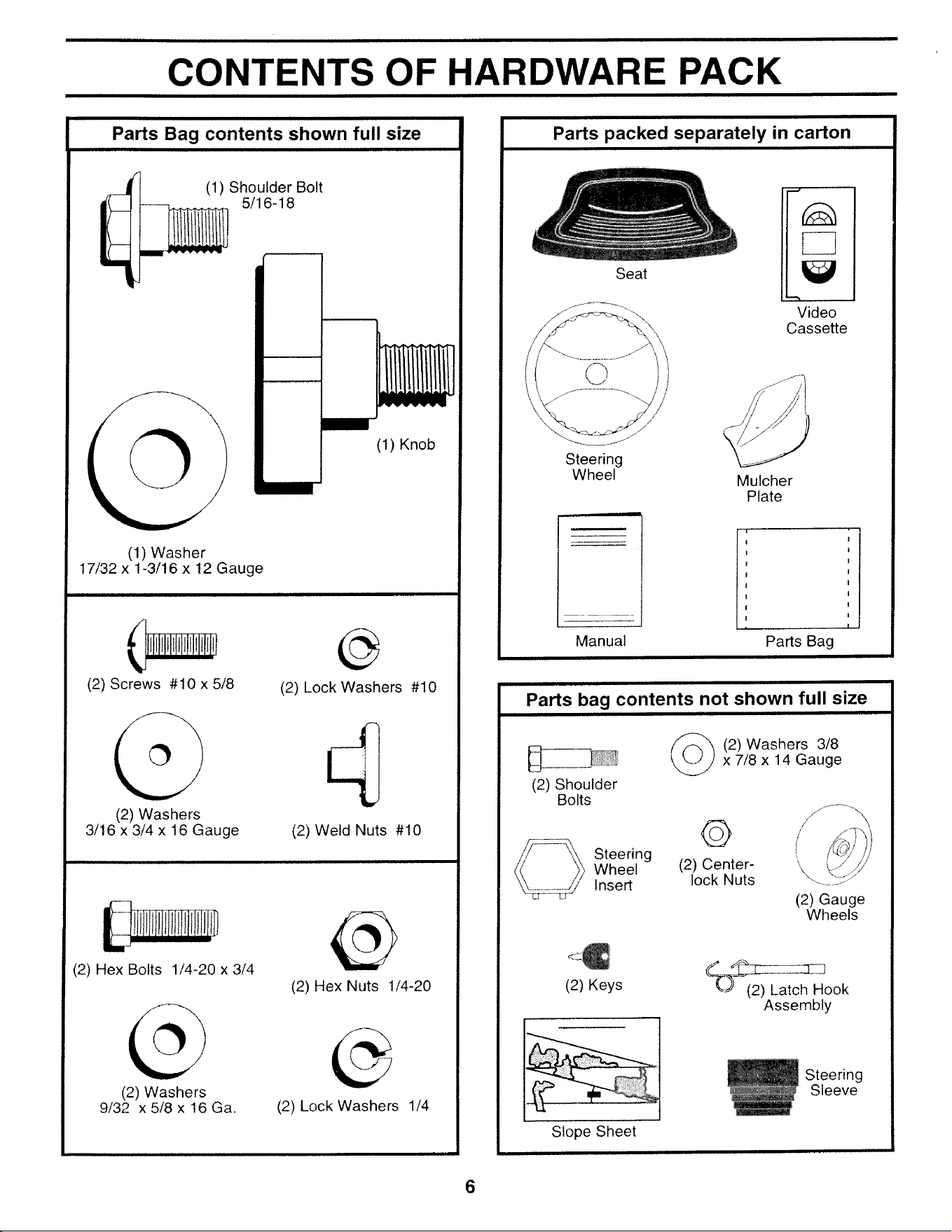

CONTENTS OF HARDWARE PACK

Parts packed separately in carton

Parts Bag contents shown full size

(1) Shoulder Bolt

(1) Knob

(1) Washer

17/32 x 1-3/16 x 12 Gauge

(2) Screws #10 x 5/8

(2) Washers

3/16 x 3/4 x 16 Gauge

(2) Lock Washers #10

(2) Weld Nuts #10

(2) Hex Bolts 1/4-20 x 3/4

(2) Washers

9/32 x 5/8 x 16 Ga.

(2) Hex Nuts 1/4-20

(2) Lock Washers 1/4

Seat

Steering

Wheel

Manual

Video

Cassette

Mulcher

Plate

i i

Parts Bag

Parts bag contents not shown full size

(2) Shoulder

Bolts

(_) (2)Washers 3/8

x 7/8 x 14 Gauge

Q /

_ Steering

Wheel (2) Center-

Insert lock Nuts X._

(2) Gauge

Wheels

(2) Keys _ook

Assembly

Steering

Sleeve

Slope Sheet

ASSEMBLY

Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes.

To ensure safe and proper operation of your tractor, all parts and hardware you assemble must be tightened securely. Use

the correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Standard

wrench sizes are listed.

(1) 9/16" wrench (2) 7/16" wrench

(1) 1/2" wrench (1) 3/4" socket w/drive

Utility knife ratchet

Tire pressure gauge (1) Phillips Screwdriver

When right and left hand is mentioned in this manual, it

means when you are in the operating position (seated

behind the steering wheel).

TO REMOVE TRACTOR FROM CARTON

UNPACK CARTON

• Remove all accessible loose parts and parts cartons

from carton (See page 6).

• Cut, from top to bottom, along lines on all four corners

of carton, and lay panels flat.

• Check for any additional loose parts or cartons and

remove.

BEFORE ROLLING TRACTOR OFF SKID

ATTACH STEERING WHEEL (See Fig. 1)

• Remove Iocknut and large flat washer from steering

shaft.

• Position front wheels of the tractor so they are pointing

straight forward.

• Slide the steering sleeve over the steering shaft.

• Position steering wheel so cross bars are horizontal

(left to right) and slide onto adapter.

• Secure steering wheel to steering shaft with Iocknut

and large flat washer previously removed. Tighten

securely.

• Snap steering wheel insert into center of steering

wheel.

• Remove protective plastic from tractor hood and grill.

IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES

IN SKID THAT MAY PUNCTURE TIRES WHERE TRACTOR

IS TO ROLL OFF SKID.

_ STEERING

WHEEL INSERT

_\,_,I" LOCKNUT

t _i, / WASHERLARGEFLAT

jj_J

SHAFT

ADAPTER

• / STEERING

_; 2 , / SLEEVE •

/ / _ _/ /

/ /

/ / // /

FIG. 1

TO ROLL TRACTOR OFF SKID (See Fig. 7)

• Raise attachment lift lever to its highest position.

• Release parking brake by depressing clutch/brake

pedal.

• Place freewheel control in freewheeling position to

disengage transmission (See "TO TRANSPORT" in

Operation section of this manual).

• Roll tractor backwards off skid.

• Remove banding holding discharge guard up against

tractor.

i i i

ASSEMBLY

CONNECT BATTERY (See Fig. 2)

CAUTION: Do not short battery termi-

nals. Before connecting battery, re-

move metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected

first to prevent sparking from acciden-

tal grounding.

• Lift hood to raised position.

• Open terminal access doors, remove terminal protec-

tive caps and discard.

• If this battery is put into service after month and year

indicated on label (label located between terminals)

charge battery for minimum of one hour at 6-10 amps.

• First connect RED battery cable to positive (+) battery

terminal with hex bolt, flat washer, lock washer and hex

nut as shown. Tighten securely.

• Connect BLACK grounding cable to negative (-) bat-

tery terminal with remaining hex bolt, flat washer, lock

washer and hex nut. Tighten securely.

• Close terminal access doors.

Use terminal access doors for:

• Inspection for secure connections (to tighten hard-

ware).

• Inspection for corrosion.

• Testing battery.

• Jumping (if required).

• Periodic charging.

DISCARD HEX NUT LOCK FLAT

TERMINAL WASHER WASHER

PROTECTIVE

CAPS

TERMINAL 5°

ACCESS

DOOR _ ....._

HEX

BOLT

POSITIVE

(RED)

CABLE

INSTALL SEAT (See Fig. 3)

Adjust seat before tightening adjustment knob.

• Remove cardboard packing on seat pan.

° Place seat on seat pan and assemble shoulder bolt.

• Assemble adjustment knob and flat washer loosely.

Do not tighten.

• Tighten shoulder bolt securely.

• Lower seat into operating position and sit on seat.

• Slide seat until a comfortable position is reached which

allows you to press clutch/brake pedal all the way

down.

• Get off seat without moving its adjusted position.

• Raise seat and tighten adjustment knob securely.

SEAT

SEAT PAN

SHOULDER

BOLT

ADJUSTMENT

KNOB

FIG. 3

FLAT WASHER

NEGATIVE

(BLACK)

CABLE

FIG. 2

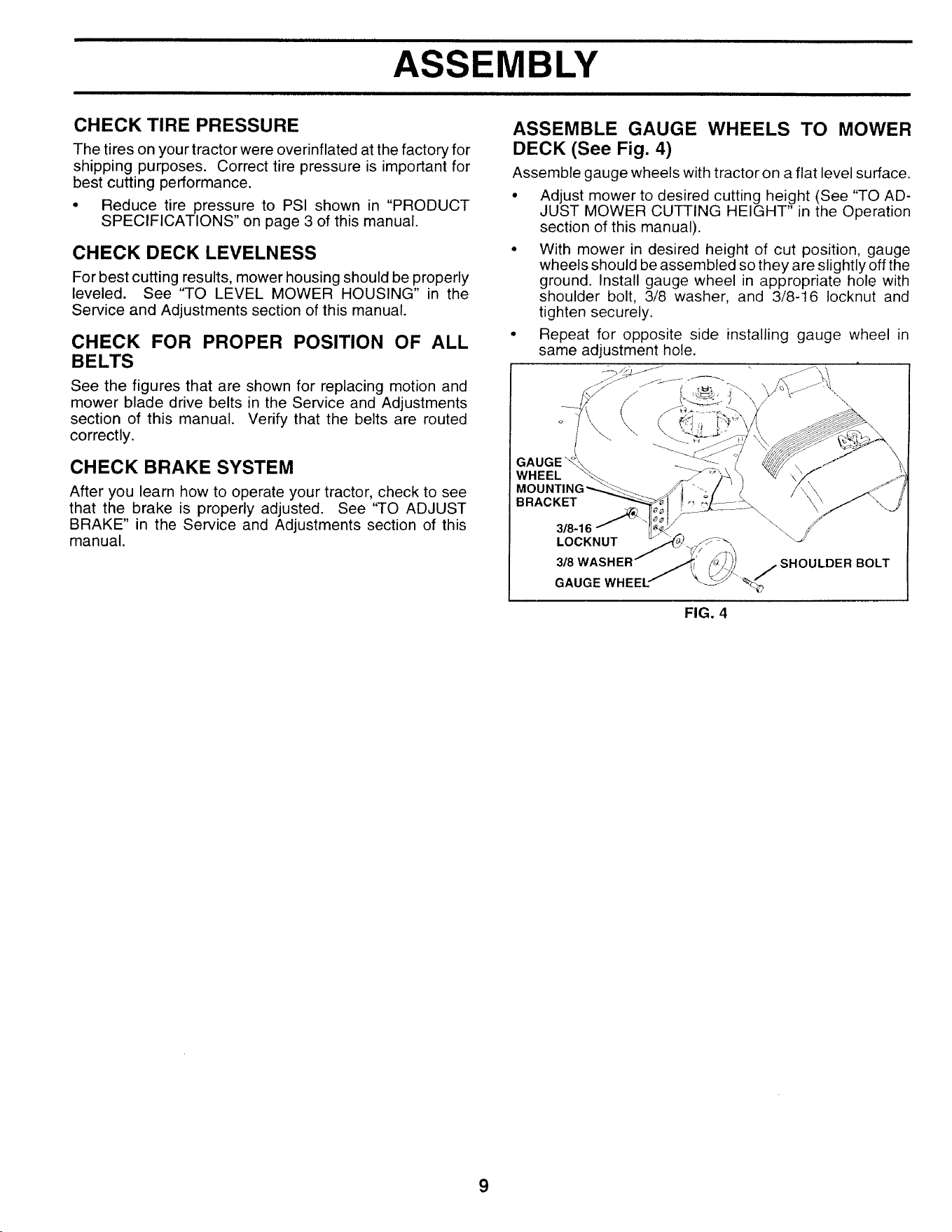

ASSEMBLY

CHECK TIRE PRESSURE

The tires on your tractor were overinflated at the factory for

shipping purposes. Correct tire pressure is important for

best cutting performance.

• Reduce tire pressure to PSI shown in "PRODUCT

SPECIFICATIONS" on page 3 of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing should be properly

leveled. See '70 LEVEL MOWER HOUSING" in the

Service and Adjustments section of this manual.

CHECK FOR PROPER POSITION OF ALL

BELTS

See the figures that are shown for replacing motion and

mower blade drive belts in the Service and Adjustments

section of this manual. Verify that the belts are routed

correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor, check to see

that the brake is properly adjusted. See 'q'O ADJUST

BRAKE" in the Service and Adjustments section of this

manual.

ASSEMBLE GAUGE WHEELS TO MOWER

DECK (See Fig. 4)

Assemble gauge wheels with tractor on a flat level surface.

• Adjust mower to desired cutting height (See "TO AD-

JUST MOWER CUTTING HEIGHT" in the Operation

section of this manual).

• With mower in desired height of cut position, gauge

wheels should be assembled so they are slightly off the

ground. Install gauge wheel in appropriate hole with

shoulder bolt, 3/8 washer, and 3/8-16 Iocknut and

tighten securely.

• Repeat for opposite side installing gauge wheel in

same adjustment hole.

GAUGE

BRACKET

3/8-16 _J'_'\

LOCKNUT

3/8

GAUGE WHEEL"

FIG. 4

f SHOULDER BOLT

-4

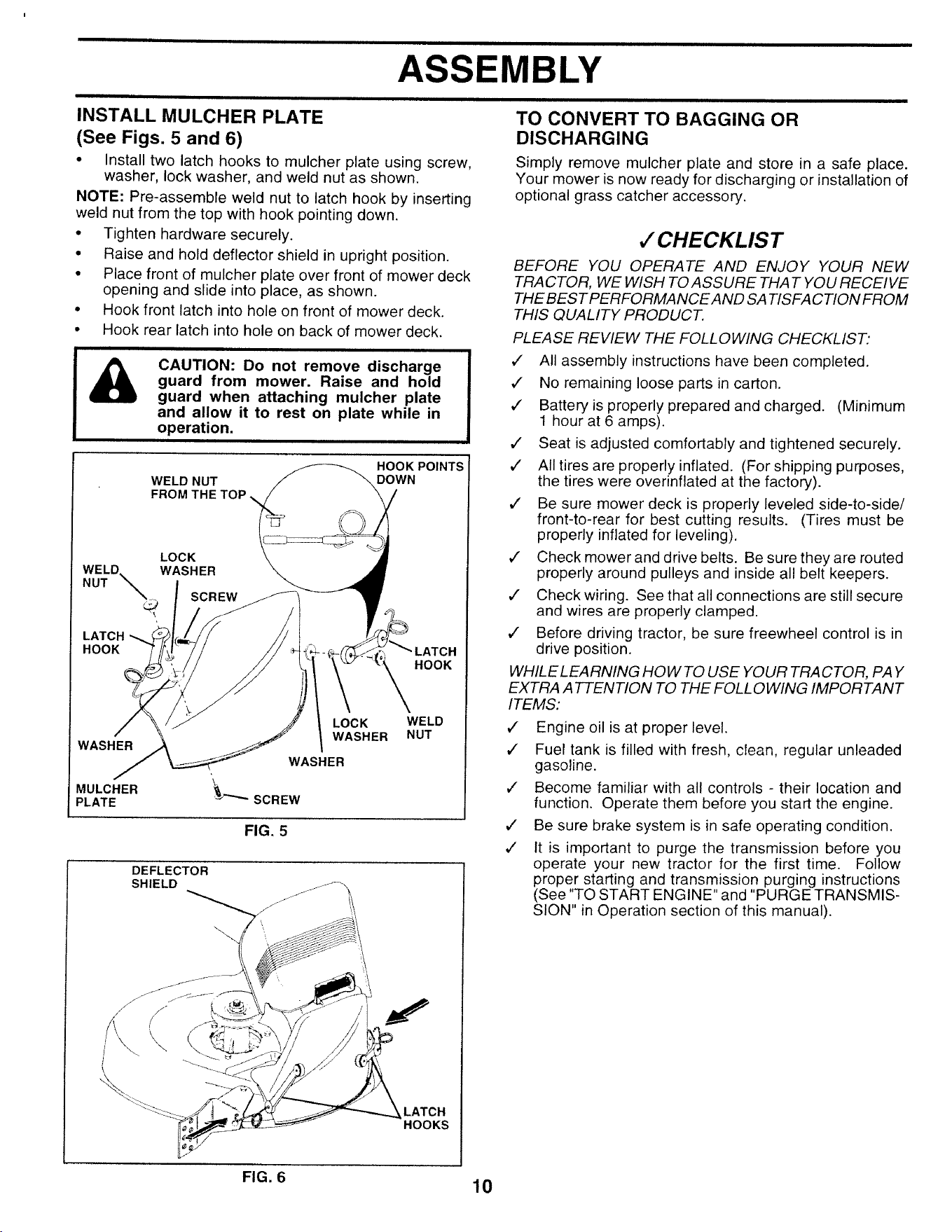

ASSEMBLY

INSTALL MULCHER PLATE

(See Figs. 5 and 6)

• Install two latch hooks to mulcher plate using screw,

washer, lock washer, and weld nut as shown.

NOTE: Pre-assemble weld nut to latch hook by inserting

weld nut from the top with hook pointing down.

• Tighten hardware securely.

• Raise and hold deflector shield in upright position.

• Place front of mulcher plate over front of mower deck

opening and slide into place, as shown.

• Hook front latch into hole on front of mower deck.

• Hook rear latch into hole on back of mower deck.

CAUTION: Do not remove discharge

guard from mower. Raise and hold

guard when attaching mulcher plate

and allow it to rest on plate while in

operation.

WELD NUT

FROM THE TOP,

HOOK POINTS

DOWN

LOCK

WELD. WASHER

NUT ___ SCREW

LATCH

HOOK

LATCH

HOOK

WASHER

LOCK

WASHER

MULCHER _'-_'_ SCREW

PLATE

FIG. 5

DEFLECTOR

SHIELD

\\...

WELD

NUT

kLATCH

HOOKS

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in a safe place.

Your mower is now ready for discharging or installation of

optional grass catcher accessory.

,/'CHECKLIST

BEFORE YOU OPERATE AND ENJOY YOUR NEW

TRACTOR, WE WISH TO ASSURE THAT YOU RECEIVE

THE BEST PERFORMANCE AND SATISFACTION FROM

THIS QUALITY PRODUCT.

PLEASE REVIEW THE FOLLOWING CHECKLIST:

v" All assembly instructions have been completed.

v" No remaining loose parts in carton.

,/ Battery is properly prepared and charged. (Minimum

1 hour at 6 amps).

,/ Seat is adjusted comfortably and tightened securely.

,/ All tires are properly inflated. (For shipping purposes,

the tires were overinflated at the factory).

,/ Be sure mower deck is properly leveled side-to-side/

front-to-rear for best cutting results. (Tires must be

properly inflated for leveling).

,/ Check mower and drive belts. Be sure they are routed

properly around pulleys and inside all belt keepers.

,/ Check wiring. See that all connections are still secure

and wires are properly clamped.

v" Before driving tractor, be sure freewheel control is in

drive position.

WHILELEARNING HOW TO USE YOUR TRACTOR, PAY

EXTRA ATTENTION TO THE FOLLOWING IMPORTANT

ITEMS:

,/ Engine oil is at proper level.

v" Fuel tank is filled with fresh, clean, regular unleaded

gasoline.

v" Become familiar with all controls - their location and

function. Operate them before you start the engine.

¢" Be sure brake system is in safe operating condition.

,/ It is important to purge the transmission before you

operate your new tractor for the first time. Follow

proper starting and transmission purging instructions

(See "TO START ENGINE" and "PURGE TRANSMIS-

SION" in Operation section of this manual).

FIG. 6 10

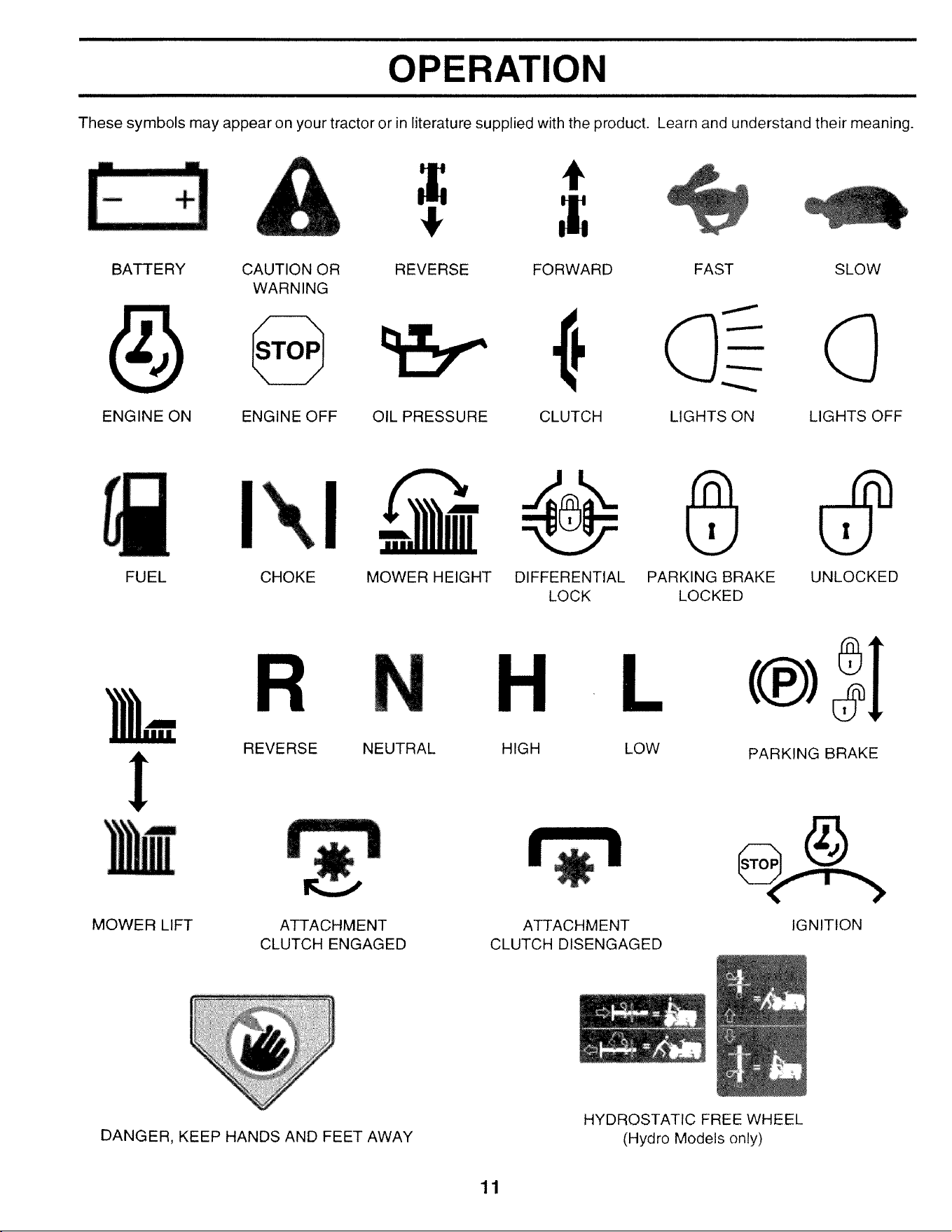

OPERATION

These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning.

BATTERY CAUTION OR REVERSE FORWARD FAST SLOW

WARNING

ENGINE ON ENGINE OFF OIL PRESSURE CLUTCH LIGHTS ON LIGHTS OFF

FUEL CHOKE MOWER HEIGHT DIFFERENTIAL PARKING BRAKE UNLOCKED

LOCK LOCKED

R H L

REVERSE NEUTRAL HIGH LOW

PARKING BRAKE

MOWER LIFT ATTACHMENT ATTACHMENT IGNITION

CLUTCH ENGAGED CLUTCH DISENGAGED

DANGER, KEEP HANDS AND FEET AWAY

HYDROSTATIC FREE WHEEL

(Hydro Models only)

OPERATION

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments. Save

this manual for future reference.

CHOKE CONTRC _L

THROTTLE

CONTROL

LIGHT SWITCH

AMMETER ATTACHMENT CLUTCH

SWITCH

IGNITION

SWITCH

CLUTCH/BRAKE PEDAL

HEIGHT ADJUSTMENT KNOB

..... \ /

.... \ APPROX.

/ SPEED

:! :: _ 3 MPH

,:_ / 2 MPH

FREEWHEEL _ _ 1 MPH

CONTROL

LIFT LEVER

PLUNGER

ATTACHMENT LIFT

LEVER

PARKING BRAKE

LEVER

MOTION CONTROL

LEVER

FIG. 7

Our tractors conform to the safety standards of the American National Standards Institute.

ATTACHMENT CLUTCH SWITCH: Used to engage the

mower blades, or other attachments mounted to your

tractor.

LIGHT SWITCH: Turns the headlights on and off.

THROTTLE CONTROL: Used to control engine speed.

CHOKE CONTROL: Used when starting a cold engane.

CLUTCH/BRAKE PEDAL: Used for declutching and brak-

ing the tractor and starting the engine.

PARKING BRAKE LEVER: Locks clutch!brake pedal into

the brake position.

AMMETER: Indicates charging (+) or discharging (-) of

battery.

HEIGHT ADJUSTMENT KNOB: Used to release attach-

ment lift lever when changing its position.

MOTION CONTROL LEVER: Selects the speed and

direction of tractor.

LIFT LEVER PLUNGER: Used to release attachment lift

lever when changing its position.

ATTACHMENT LIFT LEVER: Used to raise and lower the

mower deck or other attachments mounted to your tractor.

IGNITION SWITCH: Used for starting and stopping the

engine.

FREEWHEEL CONTROL: Disengages transmission for

pushing or slowly towing the tractor with the engine off.

OPERATION

The operation of any tractor can result in foreign objects thrown into the eyes, which can

result in severe eye damage. Always wear safety glasses or eye shields while operating

your tractor or performing any adjustments or repairs. We recommend a wide vision safety

mask over the spectacles or standard safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE (See Fig. 8)

Your tractor is equipped with an operator presence sensing

switch. When engine is running, any attempt by the

operator to leave the seat without first setting the parking

brake will shut off the engine.

• Depress clutch/brake pedal into full "BRAKE" position

and hold.

• Place parking brake lever in "ENGAGED" position and

release pressure from clutch!brake pedal. Pedal should

remain in "BRAKE" position. Make sure parking brake

will hold vehicle secure.

IGNITION KEY

CHOKE

CONTROL

THROTTLE

CONTROL

LEVER

ATTACHMENT CLUTCH SWITCH

PULL OUT TO "ENGAGE"

PUSH-IN TO

"DISENGAGE"

MOTION

CONTROL

LEVER

CLUTCH/BRAKE HEIGHT PARKING BRAKE

PEDAL "DRIVE"

POSITION ADJUSTMENT "DISENGAGED"

KNOB POSITION

FIG. 8

STOPPING (See Fig. 8)

MOWER BLADES -

• Move attachment clutch switch to "DISENGAGED"

position.

GROUND DRIVE -

• Depress clutch/brake pedal into full "BRAKE" position.

• Move motion control lever to neutral (N) position.

IMPORTANT: THE MOTION CONTROL LEVER DOES

NOT RETURN TO NEUTRAL (N) POSITION WHEN THE

CLUTCH/BRAKE PEDAL IS DEPRESSED.

ENGINE -

• Move throttle control to slow (,ah) position.

NOTE: Failure to move throttle control to slow (,_)

position and allowing engine to idle before stopping may

cause engine to "backfire".

• Turn ignition key to "OFF" position and remove key.

Always remove key when leaving tractor to prevent

unauthorized use.

• Never use choke to stop engine.

NOTE: Under certain conditions when tractor is standing

idle with the engine running, hot engine exhaust gases may

cause "browning" of grass. To eliminate this possibility,

always stop engine when stopping tractor on grass areas.

CAUTION: Always stop tractor com-

pletely, as described above, before leav-

ing the operator's position; to empty

grass catcher, etc.

TO USE THROTTLE CONTROL (See Fig. 8)

Always operate engine at full throttle.

• Operating engine at less than full throttle reduces the

battery charging rate.

• Full throttle offers the best bagging and mower perfor-

mance.

TO USE CHOKE CONTROL (See Fig. 8)

Use choke control whenever you are starting a cold engine.

Do not use to start a warm engine.

• To engage choke control, pull knob out. Slowly push

knob in to disengage.

TO MOVE FORWARD AND BACKWARD

(See Fig. 8)

The direction and speed of movement is controlled by the

motion control lever.

• Start tractor with motion control lever in neutral (N)

position.

• Release parking brake and clutch/brake pedal.

• Slowly move motion control lever to desired position.

TO ADJUST MOWER CUTTING HEIGHT

(See Fig. 8)

The cutting height is controlled by turning the height adjust-

ment knob in desired direction.

• Turn knob clockwise (_) to raise cutting height.

• Turn knob counterclockwise (t__) to lower cutting

height.

The cutting height range is approximately 1-1/2" to 4". The

heights are measured from the ground to the blade tip with

the engine not running. These heights are approximate

and may vary depending upon soil conditions, height of

grass and types of grass being mowed.

• The average lawn should be cut to approximately 2-1/2

inches during the cool season and to over 3 inches

during hot months. For healthier and better looking

lawns, mow often and after moderate growth.

• For best cutting performance, grass over 6 inches in

height should be mowed twice. Make the first cut

relatively high; the second to desired height.

OPERATION

TO OPERATE MOWER (See Fig. 9)

Your tractor is equipped with an operator presence sensing

switch. Any attempt by the operator to leave the seat with

the engine running and the attachment clutchengaged will

shut off the engine.

• Select desired height of cut.

• Lower mower with attachment lift control.

• Start mower blades by engaging attachment clutch

control.

• TO STOP MOWER BLADES - disengage attachment

clutch control.

CAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the dis-

charge guard in place.

ATTACHMENT CLUTCH

SWITCH PULL OUT TO

"ENGAGE"

PUSH IN TO

"DISENGAGE"

ATTACHMENT

LIFT LEVER

HIGH POSITION

t _// LOWTIoN

DISCHARGE

GUARD

FIG. 9

TO OPERATE ON HILLS

CAUTION: Do not drive up or down

hills with slopes greater than 15° and

do not drive across any slope.

• Choose the slowest speed before starting up or down

hills.

• Avoid stopping or changing speed on hills.

• If slowing is necessary, move throttle control lever to

slower position.

• If stopping is absolutely necessary, push clutch/brake

pedal quickly to brake position and engage parking

brake.

• Move motion control lever to neutral (N) position.

IMPORTANT: THE MOTION CONTROL LEVER DOES

NOT RETURN TO NEUTRAL (N) POSITION WHEN THE

CLUTCH!BRAKE PEDAL IS DEPRESSED.

• To restart movement, slowly release parking brake and

clutch/brake pedal.

• Slowly move motion control lever to slowest setting.

• Make all turns slowly.

TO TRANSPORT (See Figs. 9 and 10)

When pushing or towing your tractor, be sure to disengage

transmission by placing freewheel control in freewheeling

position. Free wheel control is located at the rear drawbar

of tractor.

• Raise attachment lift to highest position with attach-

ment lift control.

• Pull freewheel control knob out and hold in position by

inserting retainer spring into forward hole of control rod.

• Do not push or tow tractor at more than two (2) MPH.

• To reengage transmission, reverse above procedure.

NOTE: To protect hood from damage when transporting

your tractor on a truck or a trailer, be su re hood is closed and

secured to tractor. Use an appropriate means of tying hood

to tractor (rope, cord, etc.).

FIG. 10

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL (See Fig. 16)

• The engine in your tractor has been shipped, from the

factory, already filled with summer weight oi!.

• Check engine oil with tractor on level ground.

• Remove oil fill cap!dipstick and wipe clean, reinsert the

dipstick and push it all the way down into the tube, wait

for a few seconds, remove and read oil level. If

necessary, add oil until "FULL" mark on dipstick is

reached, Do not overfill.

• For cold weather operation you should change oil for

easier starting (See "OIL VISCOSITY CHART'' in the

Customer Responsibilities section of this manual).

• To change engine oil, see the Customer Responsibili-

ties section in this manual.

OPERATION

ADD GASOLINE

• Fill fuel tank. Use fresh, clean, regular unleaded

gasoline with a minimum of 87 octane. (Use of leaded

gasoline will increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil with gasoline.

Purchase fuel in quantities that can be used within 30

days to assure fuel freshness.

IMPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW32°F(0°C), USE FRESH, CLEAN WINTER GRADE

GASOLINE TO HELP INSURE GOOD COLD WEATHER

STARTING.

WARNING: Experience indicates that alcohol blended

fuels (called gasohol or using ethanol or methanol) can

attract moisture which leads to separation and formation of

acids during storage. Acidic gas can damage the fuel

system of an engine while in storage. To avoid engine

problems, the fuel system should be emptied before stor-

age of 30 days or longer. Drain the gas tank, start the

engine and let it run until the fuel lines and carburetor are

empty. Use fresh fuel next season. See Storage Instruc-

tions for additional information. Never use engine or

carburetor cleaner products in the fuel tank or permanent

damage may occur.

CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

TO START ENGINE (See Fig. 8)

When starting engine for the first time or if engine has run

out of fuel, it will take extra cranking time to move fuel from

the tank to the engine.

• Depress clutch/brake pedal and set parking brake.

• Place motion control lever in neutral (N) position.

• Move attachment clutch to "DISENGAGED" position.

• Pull choke control out to choke (IX!) position for cold

engine start. For warm engine start do not use choke

control.

• Move throttle control to midway between fast (,_) and

slow (,_) positions.

• Insert key into ignition and turn key clockwise to"START"

position and release key as soon as engine starts. Do

not run starter continuously for more than fifteen

seconds per minute. If engine does not start after

several attempts, move throttle control to fast (,_)

position, wait a few minutes and try again.

• When engine starts, slowly push choke control in.

• Move throttle control to fast (,_) position.

• Allow engine to warm up for a few minutes before

engaging drive or attachments.

IMPORTANT: COLD STARTING FOR HYDRO (BELOW

40°F) AFTER STARTING ENGINE AND BEFORE

DRIVING, LET TRANSMISSION WARM UP FOR ONE (1)

MINUTE BY PLACING MOTION CONTROL LEVER IN

NEUTRAL (N) POSITION AND RELEASING CLUTCH/

BRAKE PEDAL.

NOTE: If at a high altitude (above 3000 feet) or in cold

temperatures (below 32°F), the carburetor fuel mixture

may need to be adjusted for best engine performance. See

"TO ADJUST CARBURETOR" in the Service and Adjust-

ments section of this manual.

PURGE TRANSMISSION

CAUTION: Never engage or disengage

freewheel lever while the engine is run-

ning.

To ensure proper operation and performance, it is recom-

mended that the transmission be purged before operating

tractor for the first time. This procedure will remove any

trapped air inside the transmission which may have devel-

oped during shipping of your tractor.

IMPORTANT: SHOULD YOUR TRANSMISSION REQUIRE

REMOVAL FOR SERVICE OR REPLACEMENT, IT

SHOULD BE PURGED AFTER REINSTALLATION

BEFORE OPERATING THE TRACTOR.

• Place tractor safely on level surface with engine off and

parking brake set.

• Disengage transmission by placing freewheel control

in freewheeling position (See "TO TRANSPORT" in

this section of manual).

• Sitting in thetractor seat, start engine. After the engine

is running, move throttle control to slow (,_I) position.

With motion control lever in neutral (N) position, slowly

disengage clutch/brake pedal.

• Move motion control lever to full forward position and

hold for five (5) seconds. Move lever to full reverse

position and hold for five (5) seconds. Repeat this

procedure three (3) times.

NOTE: During this procedure there will be no movement of

drive wheels. The air is being removed from hydraulic drive

system.

• Move motion control lever to neutral (N) position. Shut-

off engine and set parking brake.

• Engage transmission by placing freewheel control in

driving position (See "TO TRANSPORT" in this section

of manual).

° Sitting in the tractor seat, start engine. After the engine

is running, move throttle control to half (1/2) speed.

With motion control lever in neutral (N) position, slowly

disengage clutch/brake pedal.

• Slowly move motion control lever forward, after the

tractor moves approximately five (5) feet, slowly move

motion control lever to reverse position. After the

tractor moves approximately five (5) feet return the

motion control lever to the neutral (N) position. Repeat

this procedure with the motion control lever three (3)

times.

Your tractor is now purged and now ready for normal

operation.

OPERATION

MOWING TIPS

• Tire chains cannot be used when the mower housing

is attached to tractor.

• Mower should be properly leveled for best mowing

performance. See'q'O LEVEL MOWER HOUSING" in

the Service and Adjustments section of this manual.

• The left hand side of mower should be used for trim-

ming.

• Drive so that clippings are discharged onto the area

that has been cut. Have the cut area to the right of the

machine. This will result in a more even distribution of

clippings and more uniform cutting.

° When mowing large areas, start by turning to the right

so that clippings will discharge away from shrubs,

fences, driveways, etc. After one or two rounds, mow

in the opposite direction making left hand turns until

finished (See Fig. 11 ).

• If grass is extremely tall, it should be mowed twice to

reduce load and possible fire hazard from dried clip-

pings. Make first cut relatively high; the second to the

desired height.

• Do not mow grass when it is wet. Wet grass will plug

mower and leave undesirable clumps. Allow grass to

dry before mowing.

• Always operate engine at full throttle when mowing to

assure better mowing performance and proper dis-

charge of material. Regulate ground speed by select-

ing a low enough gear to give the mower cutting

performance as well as the quality of cut desired.

• When operating attachments, select a ground speed

that will suit the terrain and give best performance of

the attachment being used.

(

FIG. 11

MULCHING MOWING TIPS

IMPORTANT: FOR BEST PERFORMANCE, KEEP

MOWER HOUSING FREE OF BUILT-UP GRASS AND

TRASH. CLEAN AFTER EACH USE.

The special mulching blade will recut the grass clip-

pings many times and reduce them in size so that as

they fall onto the lawn they wil! disperse into the grass

and not be noticed. Also, the mulched grass will

biodegrade quickly to provide nutrients for the lawn.

Always mulch with your highest engine (blade) speed

as this will provide the best recutting action of the

blades.

• Avoid cutting your lawn when it is wet. Wet grass tends

to form clumps and interferes with the mulching action.

The best time to mow your lawn is the early afternoon.

At this time the grass has dried and the newly cut area

will not be exposed to the direct sun.

• For best results, adjust the mower cutting height so that

the mower cuts off only the top one-third of the grass

blades (See Fig. 12). For extremely heavy mulching,

reduce your width of cut on each pass and mow slowly.

• Certain types of grass and grass conditions may re-

quire that an area be mulched a second time to com-

pletely hide the clippings. When doing a second cut,

mow across or perpendicular to the first cut path.

• Change your cutting pattern from week to week. Mow

north to south one week then change to east to west the

next week. This will help prevent matting and graining

of the lawn.

MAX 1/3

FIG. 12

CUSTOMER RESPONSIBILITIES

AS YOU COMPLETE

REGULAR SERVICE j_ _q_e.qye_I_SERVICE DATES

Check Brake Operation If If

Check Tire Pressure V'

t Check for Loose Fasteners I_

Sharpen/Replace Mower Blades M_'4

_ Lubrication Chart

T Check Battery Level/Recharge

0 Clean Battery and Terminals V p

a Check Transaxle Cooling if

Adjust Blade Belt(s) Tension

Adjust Motion Drive Belt(s) Tension

Check Engine Oil Level

Change Engine Oil

Clean Air Filter

N Clean Air Screen

iG Inspect Muffler/Spark Arrester

I Replace Oil Filter (If equipped)

N Clean Engine Cooling Fins

Replace Spark Plug

Replace Air Filter Paper Cartridge

Replace Fuel Filter

v's

i,,'

v' v'

1 - Change more often when operating under a heavy load or in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

3 - If equipped with oil filter, change oil every 50 hours.

4 - Replace blades more often when mowing in sandy soil.

5 - If equipped with adjustable system.

6 - Not required if equipped with maintenance*free battery.

7 - Tighten front axle pivot bolt to 35 ft.-Ibs, maximum.

Do not overtighten.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover items that have

been subjected to operator abuse or negligence. To

receive full value from the warranty, operator must maintain

tractor as instructed in this manual.

Some adjustments will need to be made periodically to

properly maintain your tractor.

All adjustments in the Service and Adjustments section of

this manual should be checked at least once each season.

Once a year you should replace the spark plug, clean

or replace air filter, and check blades and belts for

wear. A new spark plug and clean air filter assure

proper air-fuel mixture and help your engine run better

and last longer.

(_)ATTACHMENT _

CLUTCH PIVOT

BEFORE EACH USE

• Check engine oil level.

• Check brake operation.

• Check tire pressure.

• Check for loose fasteners.

(_)SAE 30 MOTOR OIL

®GENERAL PURPOSE GREASE

®REFER TO CUSTOMER RESPONSIBILITIES "ENGINE" SECTION

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS,

WHICH HAVE SPECIAL NYLON BEARINGS. VISCOUS LUBRI-

CANTS WILL ATTRACT DUST AND DIRT THAT WILL SHORTEN

THE LIFE OF THE SELF-LUBRICATING BEARINGS. IF YOU

FEEL THEY MUST BE LUBRICATED, USE ONLY A DRY, POW-

DERED GRAPHITE TYPE LUBRICANT SPARINGLY.

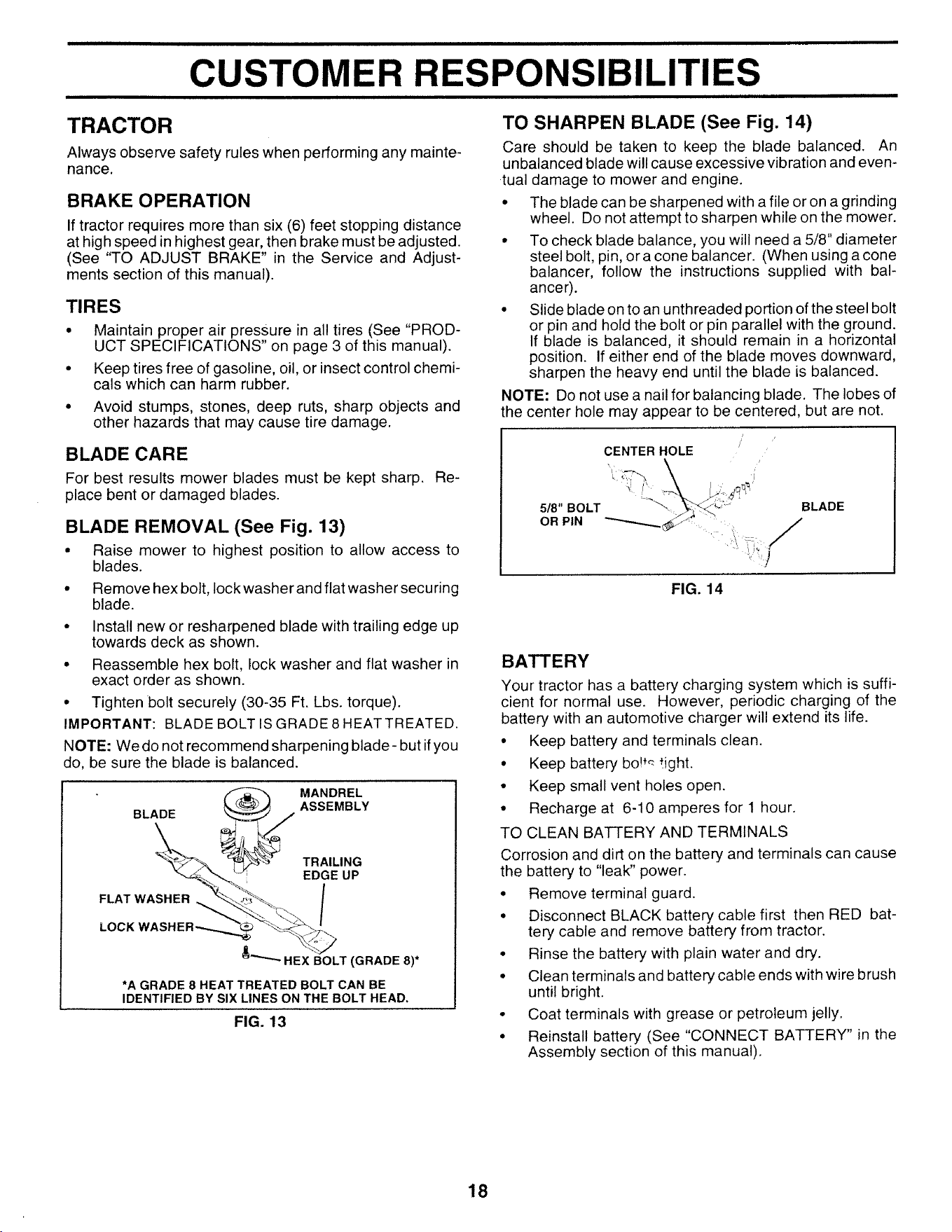

CUSTOMER RESPONSIBILITIES

TRACTOR

Always observe safety rules when performing any mainte-

nance.

BRAKE OPERATION

If tractor requires more than six (6) feet stopping distance

at high speed in highest gear, then brake must be adjusted.

(See "TO ADJUST BRAKE" in the Service and Adjust-

ments section of this manual).

TIRES

• Maintain proper air pressure in all tires (See "PROD-

UCT SPECIFICATIONS" on page 3 of this manual).

• Keep tires free of gasoline, oil, or insect control chemi-

cals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage.

BLADE CARE

For best results mower blades must be kept sharp. Re-

place bent or damaged blades.

BLADE REMOVAL (See Fig. 13)

• Raise mower to highest position to allow access to

blades.

• Remove hex bolt, lock washer and flat washer securing

blade.

• Install new or resharpened blade with trailing edge up

towards deck as shown.

• Reassemble hex bolt, lock washer and flat washer in

exact order as shown.

• Tighten bolt securely (30-35 Ft. Lbs. torque).

IMPORTANT: BLADE BOLT IS GRADE 8 HEATTREATED.

NOTE: We do not recommend sharpening blade- but if you

do, be sure the blade is balanced.

BLADE

MANDREL

ASSEMBLY

TRAILING

EDGEUP

FLAT WASHERs, /

LOCK

*A GRADE 8 HEAT TREATED BOLT CAN BE

IDENTIFIED BY SIX LINES ON THE BOLT HEAD.

FIG. 13

TO SHARPEN BLADE (See Fig. 14)

Care should be taken to keep the blade balanced. An

unbalanced blade will cause excessive vibration and even-

tual damage to mower and engine.

• The blade can be sharpened with a file or on a grinding

wheel. Do not attempt to sharpen while on the mower.

• To check blade balance, you will need a 5/8" diameter

steel bolt, pin, or a cone balancer. (When using a cone

balancer, follow the instructions supplied with bal-

ancer).

• Slide blade on to an unthreaded portion of the steel bolt

or pin and hold the bolt or pin parallel with the ground.

If blade is balanced, it should remain in a horizontal

position. If either end of the blade moves downward,

sharpen the heavy end until the blade is balanced.

NOTE: Do not use a nail for balancing blade. The lobes of

the center hole may appear to be centered, but are not.

CENTER HOLE

5/8" BOLT

OR PIN

FIG. 14

BATTERY

Your tractor has a battery charging system which is suffi-

cient for normal use. However, periodic charging of the

battery with an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bo!÷_tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and terminals can cause

the battery to "leak" power.

• Remove terminal guard.

• Disconnect BLACK battery cable first then RED bat-

tery cable and remove battery from tractor.

• Rinse the battery with plain water and dry.

• Clean terminals and battery cable ends with wire brush

until bright.

• Coat terminals with grease or petroleum jelly.

• Reinstall battery (See "CONNECT BATTERY" in the

Assembly section of this manual).

CUSTOMER RESPONSIBILITIES

TRANSAXLE COOLING

The fan and cooling fins of transmission should be kept

clean to assure proper cooling.

Do not attempt to clean fan or transmission while engine is

running or while the transmission is hot.

• Inspect cooling fan to be sure fan blades are intact and

clean.

Inspect cooling fins for dirt, grass clippings and other

materials. To prevent damage to seals, do not use

compressed air or high pressure sprayer to clean

cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory and fluid mainte-

nance is not required forthe life of the transaxle. Should the

transaxle ever leak or require servicing, contact your near-

est authorized service center/department.

V-BELTS

Check V-belts for deterioration and wear after 100 hours of

operation and replace if necessary. The belts are not

adjustable. Replace belts if they begin to slip from wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service

classification SF or SG. Select the oil's SAE viscosity grade

according to your expected operating temperature.

SAE VISCOSITY GRADES

-20 ° 0o 30 ° 32 ° 40 ° 60 ° 80 ° 100 °

° C .30 ° .20 ° .10 ° 0o 10 ° 20 ° 30 ° 40 °

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

FIG. 15

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)

improve starting in cold weather, these multi-viscosity oils

will result in increased oil consumption when used above

32°F. Check your engine oil level more frequently to avoid

possible engine damage from running low on oil.

Change the oil after the first two hours of operation and

every 50 hours thereafter or at least once a year if the tractor

is not used for 50 hours in one year.

Check the crankcase oil level before starting the engine and

after each eight (8) hours of operation. Tighten oil fill cap/

dipstick securely each time you check the oil level.

TO CHANGE ENGINE OIL (See Figs. 15 and 16)

Determine temperature range expected before oil change.

All oil must meet API service classification SF or SG.

Be sure tractor is on level surface.

Oil will drain more freely when warm.

Catch oil in a suitable container.

Remove oil fill cap/dipstick. Be careful not to allow dirt

to enter the engine when changing oil.

Remove drain plug.

After oil has drained completely, replace oil drain plug

and tighten securely.

Refill engine with oil through oil fill dipstick tube. Pour

slowly. Do not overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS" on page 3 of this

manual.

Use gauge on oil fill cap!dipstick for checking level. Be

sure dipstick is in all the way for accurate reading.

Keep oil at "FULL" line on dipstick.

OIL FILL

CAP/DIPSTICK

OIL DRAIN

PLUG

FIG. 16

CLEAN AIR SCREEN (See Fig. 18)

Air screen must be kept free of dirt and chaff to prevent

engine damage from overheating. Clean with a wire brush

or compressed air to remove dirt and stubborn dried gum

fibers.

AIR FILTER (See Fig. 17)

Your engine will not run properly using a dirty air filter.

Clean the foam pre-cleaner after every 25 hours of opera-

tion or every season. Service paper cartridge every 100

hours of operation or every season, whichever occurs first.

Service air cleaner more often under dusty conditions.

• Remove wing nut and cover.

• Remove seal and cartridge plate.

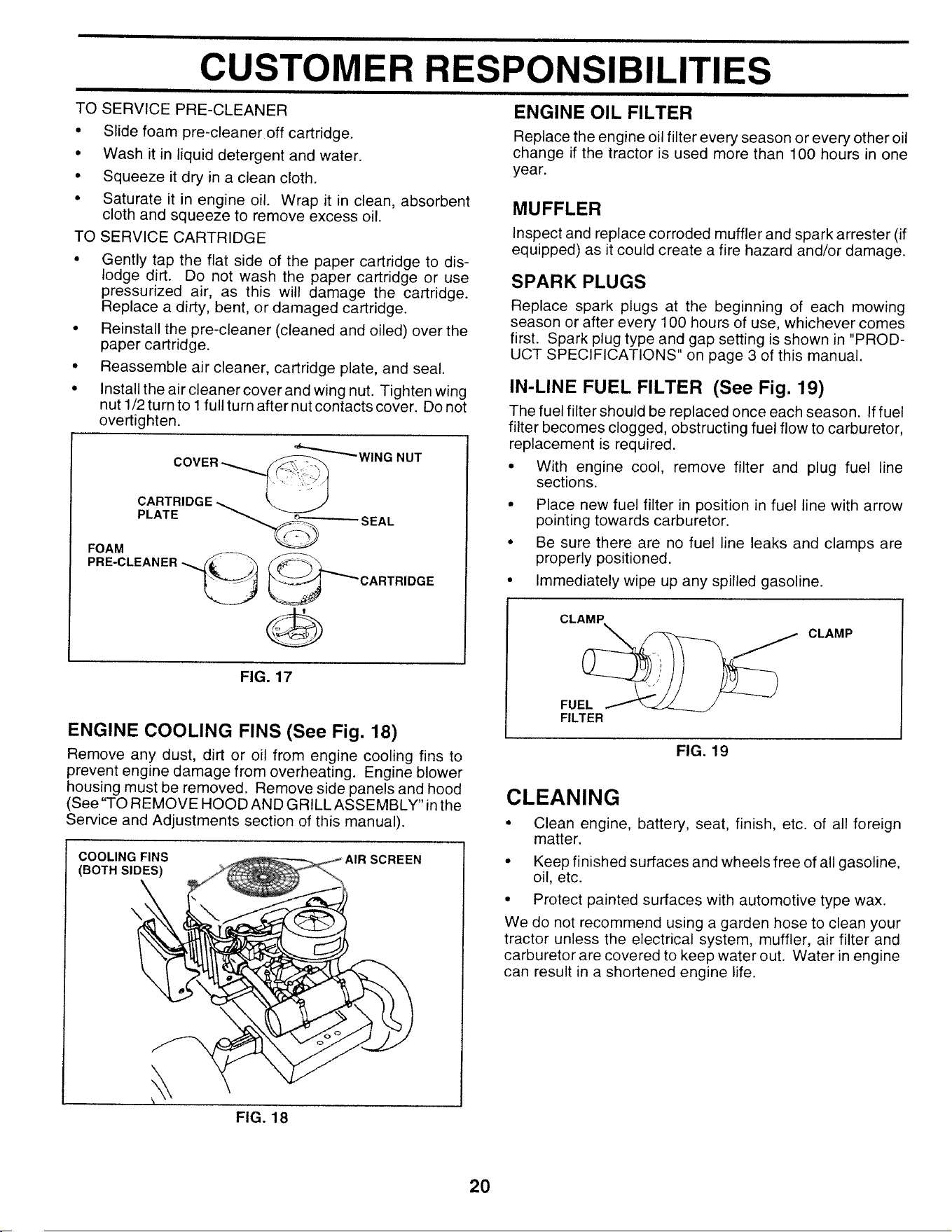

CUSTOMER RESPONSIBILITIES

TO SERVICE PRE-CLEANER

• Slide foam pre-cleaner off cartridge.

• Wash it in liquid detergent and water.

• Squeeze it dry in a clean cloth.

• Saturate it in engine oil. Wrap it in clean, absorbent

cloth and squeeze to remove excess oil.

SERVICE CARTRIDGE

Gently tap the flat side of the paper cartridge to dis-

lodge dirt. Do not wash the paper cartridge or use

pressurized air, as this will damage the cartridge.

Replace a dirty, bent, or damaged cartridge.

Reinstall the pre-cleaner (cleaned and oiled) over the

paper cartridge.

Reassemble air cleaner, cartridge plate, and seal.

Install the air cleaner cover and wing nut. Tighten wing

nut 1/2 turn to 1full turn after nut contacts cover. Do not

overtighten.

COVER

CARTRIDGE

PLATE

-SEAL

FOAM

PRE-CLEANER _ _CARTRIDGE

FIG. 17

ENGINE COOLING FINS (See Fig. 18)

Remove any dust, dirt or oil from engine cooling fins to

prevent engine damage from overheating. Engine blower

housing must be removed. Remove side panels and hood

(See"TO REMOVE HOOD AND GRILL ASSEMBLY" inthe

Service and Adjustments section of this manual).

COOLING FINS SCREEN

(BOTH SIDES)

FIG. 18

ENGINE OIL FILTER

Replace the engine oil filter every season or every other oil

change if the tractor is used more than 100 hours in one

year.

MUFFLER

Inspect and replace corroded muffler and spark arrester (if

equipped) as it could create a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of each mowing

season or after every 100 hours of use, whichever comes

first. Spark plug type and gap setting is shown in "PROD-

UCT SPECIFICATIONS" on page 3 of this manual.

IN-LINE FUEL FILTER (See Fig. 19)

The fuel filter should be replaced once each season. If fuel

filter becomes clogged, obstructing fuel flow to carburetor,

replacement is required.

• With engine cool, remove filter and plug fuel line

sections.

• Place new fuel filter in position in fuel line with arrow

pointing towards carburetor.

• Be sure there are no fuel line leaks and clamps are

properly positioned.

• Immediately wipe up any spilled gasoline.

CLAMP

FUE_ I CLAMP

FILTER

FIG. 19

CLEANING

• Clean engine, battery, seat, finish, etc. of all foreign

matter.

° Keep finished surfaces and wheels free of all gasoline,

oil, etc.

° Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose to clean your

tractor unless the electrical system, muffler, air filter and

carburetor are covered to keep water out. Water in engine

can result in a shortened engine life.

SERVICE AND ADJUSTMENTS

CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

i Depress clutch/brake pedal fully and set parking brake.

Place motion control lever in neutral (N) position.

Place attachment clutch in "DISENGAGED" position.

Turn ignition key "OFF" and remove key.

• Make sure the blades and all moving parts have completely stopped.

• Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with

plug.

TO REMOVE MOWER (See Fig. 20)

Mower will be easier to remove from the right side of tractor.

• Place attachment clutch switch in "DISENGAGED"

position.

• Move attachment lift lever forward to lower mower to its

lowest position.

• Roll belt off electric clutch pulley.

• Disconnect anti-sway bar from chassis bracket by

removing retainer spring.

• Disconnect suspension arms from rear deck brackets

by removing retainer springs.

• Disconnect front links from deck by removing retainer

springs.

• Raise lift lever to raise suspension arms. Slide mower

out from under tractor.

IMPORTANT: IF AN ATTACHMENT OTHER THAN THE

MOWER DECK IS TO BE MOUNTED ON THE TRACTOR,

REMOVE THE FRONT LINKS.

TO INSTALL MOWER (See Fig. 20)

• Raise attachment lift lever to its highest position.

• Slide mower under tractor with discharge guard to right

side of tractor.

• Lower lift lever to its lowest position.

• Install mower in reverse order of removal instructions.

SUSPENSION ELECTRIC

FRONT

,_ _ RETAINER

(BOTH SIDES)

RETAINER

SPRING

ANTI-SWAY BAR

RETAINER

SPRINGS

(BOTH SIDES)

FIG. 20

SERVICE AND ADJUSTMENTS

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked on level ground or

driveway. Make sure tires are properly inflated (See

"PRODUCT SPECIFICATIONS" on page 3 of this manual).

If tires are over or underinflated, you will not properly adjust

your mower.

SIDE-TO-SIDE ADJUSTMENT (See Figs. 21 and 22)

• Raise mower to its highest position.

• At the midpoint of both sides of mower, measure height

from bottom edge of mower to ground. Distance "A" on

both sides of mower should be the same or within 1/4"

of each other.

• If adjustment is necessary, make adjustment on one

side of mower only.

• To raise one side of mower, tighten lift link adjustment

nut on that side.

To lower one side of mower, loosen lift link adjustment

nut on that side.

NOTE: Each full turn of adjustment nut will change mower

height about 1/8".

• Recheck measurements after adjusting.

BOTTOM EDGE BOTTOM EDGE

OF MOWER TO OF MOWER TO

GROUND F -I GROUND

GROUND LINE

FIG. 21

SUSPENSION

ARM

LIFT LINK

ADJUSTMENT NUT

FIG. 22

FRONT-TO-BACK ADJUSTMENT (See Figs. 23 and 24)

IMPORTANT: DECK MUST BE LEVEL SIDE-TO-SIDE. IF

THE FOLLOWING FRONT-TO-BACK ADJUSTMENT IS

NECESSARY, BE SURE TO ADJUST BOTH FRONT LINKS

EQUALLY SO MOWER WILL STAY LEVEL SIDE-TO-

SIDE.

To obtain the best cutting results, the mower housing

should be adjusted so that the front is approximately 1/4" to

3/4" lower than the rear when the mower is in its highest

position.

Check adjustment on right side of tractor. Measure dis-

tance "D" directly in front and behind the mandrel at bottom

edge of mower housing as shown.

• Before making any necessary adjustments, check that

both front links are equal in length. Both links should be

approximately 10-3/8".

• If links are not equal in length, adjust one link to same

length as other link.

• To lower front of mower loosen nut "E" on both front

links an equal number of turns.

• When distance "D" is 1/4" to 3/4" lower at front than

rear, tighten nuts "F" against trunnion on both front

links.

• To raise front of mower, loosen nut"F" from trunnion on

both front links. Tighten nut "E" on both front links an

equal number of turns.

• When distance "D" is 1/4" to 3/4" lower at front than

rear, tighten nut"F" against trunnion on both front links.

• Recheck side-to-side adjustment.

_. : . MANDREL

.....................t-tt

FIG. 23

BOTH FRONT LINKS MUST BE EQUAL IN LENGTH

NUT "F" NUT "E"

FRONT LINKS TRUNNION

22 FIG. 24

SERVICE AND ADJUSTMENTS

TO REPLACE MOWER BLADE DRIVE BELT

(See Fig. 25)

The mower blade drive belt may be replaced without tools.

Park the tractor on level surface. Engage parking brake.

BELT REMOVAL-

• Remove mower from tractor (See "TO REMOVE

MOWER" in this section of this manual).

• Work belt off both mandrel pulleys and idler pulleys.

• Pull belt away from mower.

BELT INSTALLATION -

• Install new belt in reverse order of removal.

• Make sure belt is in all pulley grooves and inside all belt

guides.

• Install mower in reverse order of removal instructions.

IDLER

PULLEYS

MANDREL

PULLEY

MANDREL

PULLEY

FIG. 25

TO ADJUST BRAKE (See Fig. 26)

Your tractor is equipped with an adjustable brake system

which is mounted on the right side of the transaxle.

If tractor requires more than six (6) feet stopping distance

at high speed in highest gear, then brake must be adjusted.

• Depress clutch/brake pedal and engage parking brake.

• Measure distance between brake operating arm and

nut "A" on brake rod.

If distance is other than 1-3/4", loosen jam nut and turn

nut "A" until distance becomes 1-3/4". Retighten jam

nut against nut "A".

Road test tractor for proper stopping distance as stated

above. Readjust if necessary. If stopping distance is

still greater than six (6) feet in highest gear, further

maintenance is necessary. Contact your nearest au-

thorized service center.

WITH PARKING BRAKE "ENGAGED"

DO NOT TOUCH THIS NUT. IF FURTHER

BRAKE ADJUSTMENT IS NECESSARY,

CONTACT YOUR NEAREST AUTHORIZED

SERVICE CENTEWDEPARTMENT

FIG. 26

TO ADJUST A'I-i'ACHMENT CLUTCH (See

Fig. 27)

The electric clutch should provide years of service. The

clutch has a built-in brake that stops the pulley within 5

seconds. Eventually, the internal brake will wear which

may cause the mower blades to not engage, or, to not stop

as required. Adjustments should be made by your nearest

authorized service center/department.

• Make sure attachment clutch and ignition switches are

in "OFF" position.

• Adjust the three nylon Iocknuts until space between

clutch plate and rotor measures .012" at all three slot

locations cut in the side of brake plate.

NOTE: After installing a new electric clutch, run tractor at

full throttle and engage and disengage electric clutch 10

cycles to wear in clutch plate.

ROTOR CLUTCH PLATE

.012"

NYLON LOCKNUT (3)

FIG. 27

BRAKE PLATE

SERVICE AND ADJUSTMENTS

TO REPLACE MOTION DRIVE BELT

(See Fig. 28)

Park the tractor on level surface. Engage parking brake.

For assistance, there is a belt installation guide decal on

bottom side of left footrest.

• Remove mower (See "TO REMOVE MOWER" in this

section of this manual.)

• Disconnect clutch wire harness.

• Remove clutch Iocator.

• Remove upper belt keeper.

• Remove belt from stationary idler and clutching idler.

• Pull belt slack toward rear of tractor. Carefully remove

belt upwards from transmission input pulley and over

cooling fan blades.

• Pull belt toward front of tractor and remove downwards

from around electric clutch.

• Install new belt by reversing above procedure.

IMPORTANT: MAKE SURE UPPER BELT KEEPER IS

POSITIONED PROPERLY BETWEEN LOCATOR TABS

AND ELECTRIC CLUTCH WIRE CONNECTION IS

SECURE.

ELECTRIC CLUTCH LOCATOR

CLUTCH

KEEPER

TABS

CLUTCHING

IDLER

TRANSMISSION_

INPUT PULLEY

CLUTCH

WIRE

HARNESS

FIG. 28

TO ADJUST MOTION CONTROL LEVER

(See Fig. 29)

The motion control lever has been preset at the factory and

adjustment should not be necessary.

If for any reason the motion control lever will not hold its

position while at a selected speed, it may be adjusted at the

friction pack located on the right side of transmission.

• Park tractor on level surface. Stop tractor by turning

ignition key to "OFF" position, and engage parking

brake.

• Adjust motion control lever by tightening adjustment

Iocknut one half (1/2) turn.

NOTE: If for any reason the effort to move the motion

control lever becomes too excessive, reverse the above

adjustment procedure by loosening Iocknut 1/4 to 1/2 turn.

Road test tractor after adjustment and repeat procedure if

necessary.

....... Y" ADJUSTMENT

LOCKNUT

FIG. 29

TRANSMISSION REMOVAL/REPLACEMENT

Should your transmission require removal for service or

replacement, it should be purged after reinstallation and

before operating the tractor. See "PURGE TRANSMIS-

SION" in Operation section of this manual.

SERVICE AND ADJUSTMENTS

TO ADJUST STEERING WHEEL ALIGNMENT

If steering wheel crossbars are not horizontal (left to right)

when wheels are positioned straight forward, remove steer-

ing wheel and reassemble per instructions in the Assembly

section of this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not adjustable on

your tractor. If damage has occurred to affect the front

wheel toe-in or camber, contact your nearest authorized

service center/department.

TO REMOVE WHEEL FOR REPAIRS

(See Fig. 30)

• Block up axle securely.

• Remove axle cover, retaining ring and washers to allow

wheel removal (rear wheel contains a square key - Do

not lose).

• Repair tire and reassemble.

• On rear wheels only: align grooves in rear wheel hub

and axle. Insert square key.

• Replace washers and snap retaining ring securely in

axle groove.

• Replace axle cover.

WASHERS

RETAINING

RING

AXLE COVER

_ SQUARE KEY

(REAR WHEEL ONLY)

FIG. 30

TO START ENGINE WITH A WEAK BATTERY

(See Fig. 31)

CAUTION: Lead-acid batteries gener-

ate explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection

when around batteries.

If your battery is too weak to start the engine, it should be

recharged. If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: YOUR TRACTOR IS EQUIPPED WITH A 12

VOLT NEGATIVE GROUNDED SYSTEM. THE OTHER

VEHICLE MUST ALSO BE A 12 VOLT NEGATIVE

GROUNDED SYSTEM. DO NOT USE YOUR TRACTOR

BATTERY TO START OTHER VEHICLES.

TO ATTACH JUMPER CABLES -

• Connect each end of the RED cable to the POSITIVE

(+) terminal of each battery, taking care not to short

against chassis.

• Connect one end of the BLACK cable to the NEGA-

TIVE (-) terminal of fully charged battery.

• Connect the other end of the BLACK cable to good

CHASSIS GROUND, away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

• BLACK cable first from chassis and then from the fully

charged battery.

• RED cable last from both batteries.

"POSITIVE" (+) "NEGATIVE"(-)

L.H. PANEL

BOLT

FIG. 31

SERVICE AND ADJUSTMENTS

TO REPLACE HEADLIGHT BULB

• Raise hood.

• Pull bulb holder out of the hole in the backside of the

grill.

• Replace bulb in holder and push bulb holder securely

back into the hole in the backside of the grill.

• Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run

poorly, stop running, or prevent it from starting.

• Check wiring. See electrical wiring diagram in the

Repair Parts section of this manual.

TO REPLACE FUSE

Replace with 30 amp automotive-type plug-in fuse. The

fuse holder is located behind the dash.

TO REMOVE HOOD AND GRILL ASSEMBLY

(See Fig. 32)

• Raise hood.

• Unsnap headlight wire connector.

• Stand in front of tractor. G rasp hood at sides, tilt toward

engine and lift off of tractor.

• To replace, reverse above procedures.

HEADLIGHT

_ WIRE

CONNECTOR

FIG. 32

SERVICE AND ADJUSTMENTS

ENGINE

TO ADJUST THROTTLE CONTROL CABLE

(See Fig. 33 and 34)

The throttle control has been preset at the factory and

adjustment should not be necessary. Check adjustment as

described below before loosening cable. If adjustment is

necessary, proceed as follows:

• With engine not running, move throttle control lever to

fast (,_) position.

• Check that speed control lever is against stop screw. If

it is not, loosen casing clamp screw and pull throttle

cable until lever is against screw. Tighten clamp screw

securely.

TO ADJUST CARBURETOR (See Fig. 35)

The carburetor has been present at the factory and adjust-

ment should not be necessary. However, minor adjustment

may be required to compensate for differences in fuel,

temperature, altitude or load. If the carburetor does need

adjustment, proceed as follows:

In general, turning the adjusting needles in (clockwise)

decreases the supply of fuel to the engine giving a leaner

fuel/air mixture. Turning the adjusting needles out (coun-

terclockwise) increases the supply of fuel to the engine

giving a richer fuel/air mixture.

IMPORTANT: DAMAGE TO THE NEEDLES AND THE

SEATS IN CARBURETOR MAY RESULT IF SCREW IS

TURNED IN TOO TIGHT.

PRELIMINARY SETTING -

• Be sure you have a clean air filter, and the throttle

control cable is adjusted properly (see above).

• With engine off turn idle fuel adjusting needle in (clock-

wise) closing it finger tight and then turn out (counter-

clockwise) 1-1/4 turns.

• Turn main fuel adjusting needle in (clockwise) closing

finger tight and then turn out (counterclockwise) 1 turn.

FINAL SETTING -

• Start engine and allow to warm for five minutes. Make

final adjustments with engine running and shift/motion

control lever in neutral (N) position.

• With throttle control lever in fast (,_) position, turn main

fuel adjusting needle in (clockwise) until engine begins

to die then turn out (counterclockwise) until engine

runs rough. Turn needle to a point midway between

those two positions.

• Idle speed setting - With throttle control lever in slow

(._) position, engine should idle at 1400 RPM. If

engine idles too slow or fast, turn idle speed adjusting

screw in or out until correct idle is attained.

• Idle fuel needle setting - With throttle control lever in

slow (-a_) position, turn idle fuel adjusting needle in

(clockwise) until engine begins to die and then turn out

(counterclockwise) until engine runs rough. Turn needle

to a point midway between those two positions.

• Recheck idle speed. Readjust if necessary.

ACCELERATION TEST -

• Move throttle control lever from stow (._) to fast (,_)

position. If engine hesitates or dies, turn idle mixture

screw out (counterclockwise) 1/8 turn. Repeat test and

continue to adjust, if necessary, until engine acceler-

ates smoothly.

High speed stop is factory adjusted. Do not adjust-damage

may result.

IMPORTANT: NEVER TAMPER WITH THE ENGINE

GOVERNOR, WHICH IS FACTORY SET FOR PROPER

ENGINE SPEED. OVERSPEEDING THE ENGINE ABOVE

THE FACTORY HIGH SPEED SETTING CAN BE

DANGEROUS. IF YOU THINK THE ENGINE-GOVERNED

HIGH SPEED NEEDS ADJUSTING, CONTACT YOUR

NEAREST AUTHORIZED SERVICE CENTER/

DEPARTMENT, WHICH HAS PROPER EQUIPMENT AND

EXPERIENCE TO MAKE ANY NECESSARY

ADJUSTMENTS.

CASING STOP SCREW SPEED CONTROL

CLAMP LEVER

THROTTLE

CABLE

FIG. 33

STOP

SCREW

SPEED

CONTROL

LEVER

FIG. 34

IDLE SPEED _-_ /IDLEFUEL

ADJUSTING _-__//ATJUSTING

sc. w

27 FIG. 35

STORAGE

Immediately prepare your tractor for storage at the end of

the season or if the tractor will not be used for 30 days or

more.

CAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool

before storing in any enclosure.

TRACTOR

Remove mower from tractor for winter storage. When

mower is to be stored for a period of time, clean it thor-

oughly, remove all dirt, grease, leaves, etc. Store in a

clean, dry area.

• Clean entire tractor (See "CLEAN ING" in the Customer

Responsibilities section of this manual).

• Inspect and replace belts, if necessary (See belt re-

placement instructions in the Service and Adjustments

section of this manual).

• Lubricate as shown in the Customer Responsibilities

section of this manual.

• Be sure that all nuts, bolts and screws are securely

fastened. Inspect moving parts for damage, breakage

and wear. Replace if necessary.

• Touch up all rusted or chipped paint surfaces; sand

lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery may require

recharging.

• To help prevent corrosion and power leakage during

long periods of storage, battery cables should be

disconnected and battery cleaned thoroughly (see 'q-o

CLEAN BATTERY AND TERMINALS" in the Cus-

tomer Responsibilities section of this manual).

• After cleaning, leave cables disconnected and place

cables where they cannot come in contact with battery

terminals.

• Be sure battery drain tube is securely attached.

• If battery is removed from tractor for storage, do not

store battery directly on concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL FUEL

SYSTEM PARTS SUCH AS CARBURETOR, FUEL FILTER,

FUEL HOSE, OR TANK DURING STORAGE. ALSO,

EXPERIENCE INDICATES THAT ALCOHOL BLENDED

FUELS (CALLED GASOHOL OR USING ETHANOL OR

METHANOL) CAN ATTRACT MOISTURE WHICH LEADS

TO SEPARATION AND FORMATION OF ACIDS DURING

STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL

SYSTEM OF AN ENGINE WHILE IN STORAGE.

• Drain the fuel tank.

• Start the engine and let it run until the fuel lines and

carburetor are empty.

• Never use engine or carburetor cleaner products in the

fuel tank or permanent damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in

minimizing the formation of fuel gum deposits during stor-

age. Add stabilizer to gasoline in fuel tank or storage

container. Always follow the mix ratio found on stabilizer

container. Run engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach the carburetor. Do

not drain the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine

oil. (See "ENGINE" in the Customer Responsibilities

section of this manual).

CYLINDERS

• Remove spark plug(s).

• Pour one ounce of oil through spark plug hole(s) into

cylinder(s).

• Turn ignition key to "START" position for a few seconds

to distribute oil.

• Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season to another.

• Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems.

• If possible, store your tractor indoors and cover it to

give protection from dust and dirt.

• Cover your tractor with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form and

will cause your tractor to rust.

IMPORTANT: NEVER COVER TRACTOR WHILE ENGINE

AND EXHAUST AREAS ARE STILL WARM.

TROUBLESHOOTING POINTS

PROBLEM

Will not start

Hard to start

Engine will not turn over

Engine clicks but will not

start

Loss of power

Excessive vibration

CAUSE

1. Out of fuel.

2. Engine not "CHOKED" properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7. Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of adjustment.

1, Clutch/brake pedal not depressed.

2. Attachment clutch is engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence switch(es).

1. Weak or dead battery.

2. Corroded battery terminals,

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Cutting too much grass/too fast.

2. Throttle in "CHOKE" position.

3. Build-up of grass, leaves and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

10. Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of adjustment.

15. Engine valves out of adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

CORRECTION

1. Fill fuel tank.

2. See 'q-o START ENGINE" in Operation section.

3. Wait several minutes before attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Drain fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter.

8. Check all wiring_

9. Contact an authorized service center!department,

10. Contact an authorized service center/department.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Drain fuel tank and refill with fresh gasoline.

6. Check all wiring.

7. Contact an authorized service center/department.

8. Contact an authorized service center!department.

1. Depress clutch/brake pedal.

2, Disengage attachment clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition switch.

8. ChecWreplace solenoid or starter.

9. Contact an authorized service center/department.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or starter,

1. Set in "Higher Cut" position/reduce speed.

2. Adjust throttle control.

3. Clean underside of mower housing.

4. Clean/replace air filter.

5. Check oil level!change oil.

6. Clean and regap or change spark plug.

7. Replace fuel filter.

8. Drain fuel tank and refill with fresh gasoline.

9. Drain fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter.

10. Connect and tighten spark plug wire.

11. Clean engine air screen/fins.

12. Clean/replace muffler.

13. Check all wiring.

14. Contact an authorized service center/department.

15. Contact an authorized service center/department.

1. Replace blade. Tighten blade bolt.

2. Replace blade mandrel.

3, Tighten loose part(s). Replace damaged parts.

TROUBLESHOOTING POINTS

PROBLEM

Engine continues to run

when operator leaves seat

with attachment clutch

engaged

Poor cut - uneven

Mower blades will not

rotate

Poor grass discharge

CAUSE

CORRECTION

1. Faulty operator-safety presence control system. 1. Check wiring, switches and connections. If not

corrected, contact an authorized service center/

department.

1. Worn, bent or loose blade.

2. Mower deck not level.

3. Buildup of grass, leaves, and trash under mower.

4. Bent blade mandrel.

5. Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels.

1. Obstruction in clutch mechanism.

2. Wor!!damaged mower drive belt.

1. Replace blade. Tighten blade bolt.

2. Level mower deck.

3. Clean underside of mower housing.

4. Replace blade mandrel.

5. Clean around mandrels to open vent holes.

1. Remove obstruction.

2. Replace mower drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure.

6. Worn, bent or loose blade.

3. Replace idler pulley.

4. Replace blade mandrel.

1. Place throttle control in "FAST position.

2. Shift to slower speed.

3. Allow grass to dry before mowing.

4. Level mower deck.

5. Check tires for proper air pressure.

6. Replace/sharpen blade. Tighten blade bolt.

Headlight(s) not working

(if so equipped)

Battery will not charge

Tractor "creeps" with

motion control lever in

"neutral" position

(Fender shift models only)

Loss of drive

Engine "backfires"

when turning engine

"OFF"

7. Buildup of grass, leaves and trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

11. Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels.

1. Switch is "OFF".

2. Bulb(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring,

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator (if so equipped).

4. Faulty alternator.

1. Motion control lever is out of adjustment.

1. Freewheel control in"disengaged" position.

2, Motion drive belt worn, damaged, or broken,

3. Air trapped in transmission during shipment

or servicing.

Engine throttle control not set at "SLOW"

position for 30 seconds before stopping engine.

7. Clean underside of mower housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge down.

10, Replace with blades listed in this manual.

11. Clean around mandrels to open vent holes.

1. Turn switch "ON".

2. Replace bulb(s).

3. ChecWreptace light switch.

4. Check wiring and connections.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connections.

3. Replace regulator.

4. Replace alternator.

1. Adjust motion control lever.

1. Place freewheel control in "engaged" position.

2. Replace motion drive belt,

3. Purge transmission.

1, Move throttle control to "SLOW" position and allow

to idle for 30 seconds before stopping engine.

SCHEMATIC

TRACTOR -- MODEL NUMBER 917.252714

I I

HEADLIGHT ___SWITCH (OFF)

HEADLIGHTS

IGNITION SWITCH

POSITION CIRCUIT

OFF M + G

ON B+L

START B + S + L

• ©

NON-REMOVABLE REMOVABLE

CONNECTIONS CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING

GFC

UnD

E _ _ B

D _ _ A

PTO SWITCH

POSITION CIRCUIT

OFF C + G

ON C+F,B+E,A+D

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.252714

ELECTRICAL

- // I1

) 25 _ _ ...............

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.252714

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 146140 Battery

2 74760412 Bolt, Hex 1/4-20 UNC x 3/4

3 STD551025 Washer

4 STD551125 Washer

6 STD541025 Nut

7 7697J Tube, Plastic

8 7603J Tray, Battery

9 109596X Clamp, Hose

10 145211 Bolt

11 145209 Holddown Battery Dash Mount

12 145769 Nut, Push Nylon 1/4

19 STD551125 Washer, Lock

20 73350400 Nut, Hex, Jam 1/4-20 UNC

21 136850 Harness, Light Socket W/4152J

22 4152J Bulb, Light

24 4799J Cable Battery

25 146148 Cable, Battery

26 108824X Fuse

28 145491 Cable, Ground

29 121305X Switch, Plunger

30 144921 Switch, Ignition

31 140400 Nut, Ignition

32 141226 Cover, Ignition Switch

33 140403 Key, Ignition

34 110712X Switch, Light

35 108236X Bracket, Switch

36 STD601005 Screw

39 109553X Switch, Interlock

40 149170 Harness, Ignition

41 71110408 Bolt BIk Fin Hex 1/4-20 UNC x 1/2

42 131563 Cover, Terminal

43 145673 Solenoid

44 73640400 Nut, Keps BIk Hex 1/4-20 UNC

45 122822X Ammeter Rectangular 15 Amp.

49 11151000 Washer Lock Internal Tooth 5/8

50 146283 Switch PTO 3 PDT Red Delta

51 140405 Ring Retainer PTO

52 141940 Protection Wire Loop

55 17490508 Screw Thdrol 5/16-18 x 1/2 TYT

70 140427 Harness Engine

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.252714

CHASSIS AND ENCLOSURES

30 119

87 36

125

115

0 _ 36

26 120

121 122 ...._

117

114

6 3

3 3

123

100

13----.

114

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.252714

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 145501 Chassis

2 140356 Drawbar

3 17490612 Screw, Thd., Roll. 3/8-16 x 3/4

Type TT

6 145206 Saddle

7 145351 Heat Shield

8 126471X Clip Insulator

9 145203 Dash, Plastic

10 72140608 Bolt, Carriage 3/8-16 x 1

11 145218 Panel, Dash, LH

13 145217 Panel, Dash, RH

14 17490608 Screw, Thd., Roll. 3/8-16 x 1/2

Type TT

17 136673X558 Hood Assembly

24 STD523710 Bolt

25 19131312 Washer 13/32 x 13/16x 12 Gauge

26 STD541437 Nut

28 136373X428 Grill

29 136374 Lens, Bar, Clear

30 140002X558 Fender

31 137113 Bracket Assembly, Fender

33 145244X558 Footrest, LH

34 145243X558 Footrest, RH

35 STD533707 Bolt

36 108067X Nut, Pal

38 139886 Bracket Assembly, Pivot, LH

39 139887 Bracket Assembly, Pivot, RH

44 140675 Fender Strap

47 105531X Nut, Push, Nylon

50 137304 Rod, Support Hood

59 110436X Bushing, Snap, Split

64 150272 Dash, Lower

66 143485X014 Plate, Dash

71 73640400 Nut

73 17580408 Screw Tap Lite 1/4-20 x 1/2

86 136670X558 Panel Assembly, RH

87 136671X558 Panel Assembly, LH

90 STD551025 Washer 17/64

100 105037X Strip Foam

114 145349 Bracket, Support, Dash

115 121794X Cover A ccess Black Square

117 144283 Washer Serrated Disc 13/32 x 1

119 19092016 Washer 9/32 x 1-1/4 x 16 Ga.

120 137270 Rivet, Rachet, Male

121 137269 Washer, Nylon

122 137271 Rivet, Ratchet, Female

123 136814 Bracket Assembly, Front Pivot

Hinge, LH

124 136813 Bracket Assembly, Front Pivot

Hinge, RH

125 74180412 Screw, Machine 1/4-20 x 3/4

- - 8022J Plug, Dash BIk 500 Dia E. Lift

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

DRIVE

TRACTOR .. MODEL NUMBER 917.252714

98 30 61

i 100

% 91 16 84100

24 22

105

100

106

REPAIR PARTS

DRIVE

TRACTOR -- MODEL NUMBER 917.252714

KEY PART

NO. NO.

1 150071

2 142431

3 143995

8 141002

9 137140

10 76020416

15 74490544

16 73800500

17 126197X

18 74780616

19 73800600

20 71170768

21 130564

22 145627

23 137141

24 73350600

25 106888X

26 19131316

27 76020412

28 145204

29 124236X

30 130807

31 127275X

32 74760512

33 STD533107

34 149001

35 120183X

36 19211616

37 1572H

38 123674X

39 74760644

40 4470J

41 109070X

42 19131312

43 19111012

44 105706X

45 110812X

46 12000039

47 127783

48 123789X

49 123205X

50 74760624

51 STD 541437

52 73680500

DESCRIPTION

Transaxle Assembly

Spring, Return, Brake

Pulley, Transaxle

Rod Shift Hydro LT

Clutch Elect

Pin Cotter 1/8 x 1 CAD

Bolt, Hex Ftghd 5/16-18 Gr. 5

Nut Lock Hex W/Ins. 5/16-18 Unc

Washer 1-1/20D x 15/32 ID x .250

Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5

Nut Lock Hex W/Wsh 3/8-16 Unc

Bolt Hex 7/16-20 x 4-1/4 Ga. 5

Knob, Deluxe 1/2-13

Rod, Brake Hydro

Bracket Asm. Mtg CL

Nut, Hex Jam 3/8-16 UNC

Spring, Brake Rod

Washer

Pin Cotter 1/8 x 3/4 CAD.

Rod, Parking Brake

Cap, Parking Brake

Bracket, Transaxle

Keeper Belt Lh

Bolt Hex Hd 5/16-18 Unc x 3/4

Bolt RDHD SQNK 5/16-18 x 3/4

Shaft, Foot Pedal

Bearing, Nylon

Washer

Pin, Roll

Pulley, Idler, Flat

Bolt

Spacer, Split

Keeper, Belt Retainer

Washer 13/32 x 13/16 x 12 Gauge

Washer 11/32 x 5/8 x 12 Ga.

Bearing, Nylon

Washer, Hardened

Ring, Klip

Pulley, Idler, V-Groove

Bellcrank Assembly

Retainer, Belt

Bolt

Nut, Crownlock 3/8-16

Nut, Crownlock 5/16-18 Uric

KEY PART

NO. NO. DESCRIPTION

53 105710X

55 105709X

56 74760620

57 140294

59 140312

60 121218X

61 17490612

62 8883R

63 --4464-e6--

65 STD551143

68 105730X

69 142432

71 140158

73 140157

74 121199X

75 121749X

76 12000001

77 123583X

78 121748X

81 140154

82 123782X

83 19171216

84 140548

86 71208

87 19212016

88 12000008

89 139989

91 74780536

92 74780524

93 142564

94 140462

95 144643

96 4497H

97 140469

98 73510600

100 19111216

102 141322

103 73940800

104 140156

105 71070516

106 74780520

Link, Clutch

Spring, Return, Clutch

Bolt Hex 3/8-16 x 1-1/4

V-Belt, Ground Drive

Keeper, Center Span

Keeper Belt Engine

Screw Thdrol. 3/8-16 x 3/4 Ty. T-I

Cover, Pedal

Pulley, Engine _q c__r_'_

Washer Lock Hvy HLCL Spr. 7/16

Keeper Belt Engine

Screw

Strap Torque Lh Hydro 18/20" T

Strap Torque Rh Hydro 18/20" T

Spacer, Split

Washer 25/32 x 1-1/4 x 16 Gauge

E-Ring

Key, Square

Washer 25/32 x 1-5/8 x 16 Gauge

Shaft Asm. Cross Hydro 20" Tires

Spring Torsion T/A

Washer 17/32 x 3/4 x 16 Ga.

Rod, Tie Hydro 20" Tires

Bushing Rod Strig. 629/632 ID

Washer 21/32 x 1-1/4 x 16 Ga.

Ring Klip #5304-62

Console, Shift

Bolt Fin Hex 5/16-18 x 2-1/4

Bolt Fin Hex 5/6-18 Unc x 1-1/2

Line Fuel Hydro 4"

Fan, Hydro 7"

Control Bypass Hydro 20" Tires

Retainer Spring 1" Zinc/Cad

Keeper Bolt Rh Hydro 0750.18/20"

Nut Keps Hex 3/8-16 Unc

Washer 11/32 x 3/4 x 16 Ga.

Washer Bellville .501D x 1.50D

Nut, Hex Jam Toplock 1/2-20 Unf

Arm, Control Hydro

Screw Cap Hex 5/16 x 18 x 1

Bolt Fin Hex 5/16-18 Uric x 1-1/4

NOTE: All component dimensions give in U.S. inches.

1 inch = 25.4 mm.

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.252714

STEERING ASSEMBLY

b - ";"-----_ 3e

- --2__-CCC - -

' / _ ""-"---1

...... _ .... / !

b!-,

' ,_-_--_ 42

27_\

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.252714

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 121472X

2 142033

3 135227

4 135228

5 6266H

6 121748X

7 19272016

8 12000029

9 3366R

10 130468

11 STD551137

12 73610600

13 110438X

14 74011056

15 73901000

16 132624

17 128758

18 57079

19 124035X

20 126684X

21 STD551125

22 71100400

23 127501

24 109816X

25 124036X

27 136874

29 17490612

32 130467

33 STD551031

34 STD551137

35 73810500

37 17541008

36 145207

38 126805X

39 100712K

40 STD541350

41 100711L

42 140216

43 121749X

46 121232X

47 6855M

62 149682

Steering Wheel

Axle Assembly, Front

Spindle Assembly, LH

Spindle Assembly, RH

Bearing, Race, Thrust, Hardened

Washer 25/32 x 1-5/8 x 16 Gauge

Washer 27/32 x 1-1/4 x 16 Gauge

Ring, Klip

Bearing

Link, Drag

Washer, Lock

Nut, Hex, Fin. 3/8-24 UNF

Spacer, Bearing, Front Axle

Bolt, Hex 5/8-11 UNCx3-1/2

Locknut, Hex, Jam, w/Washer

Insert 5/8-11 UNC

Pin, Axle, Large 5/8 x 1.55/1.54

Shaft Assembly, Steering

Washer, Thrust .515 x .750 x .033

Support, Shaft

Washer, Shim 1/4 x 5/8 x .062

Washer

Screw, Cap Sckt Hd Phos & Oil

Shaft Assembly, Pittman

Nyliner, Snap-In

Bracket, Steering

Gear, Sector

Screw, Thd., Roll.

3/8-16 x 3/4 Type TT

Tie Rod

Washer 11/32 x 3/4 x 16 Ga.

Washer Lock Hvy HLCL Spr. 5/16

Locknut 5/16-24 UNF

Screw SLFTP #10-24 x 1/2 TT-B

Bushing, Steering

Insert, Cap, Steering Wheel

Washer .53 x 2.25 x .160

Nut

Adapter, Steering Wheel

Boot Shaft Steering

Washer 25/32 x 1-1/4 x 16 Gauge

Cap, Spindle

Fitting, Grease131672

Kit, Steering Assembly

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.252714

ENGINE

32 31

40 33

39 41

OPTIONAL EQUIPMENT

Spark Arrester

1 24

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917,252714

ENGINE

KEY PART

NO. NO. DESCRIPTION

1 132755

2 17720410

3 141948

4 149723

5 136215

6 136216

7 138129

10 145552

11 STD551131

12 74570512

13 ........

14 13280336

15 13200300

16 11050600

17 17490624

23 128953

24 STD601005

25 138672

26 STD551237

29 137180

31 141069

32 123549X

33 123487X

34 106082X

37 8543R

38 .......

39 109227X

40 3645J

41 139277

81 128861

86 150176

Control, Throttle

Screw, Hex Head, Thread Cutting

1/4-20 x 5/8

Engine, Kohler, Model No. MV18S,

Type No. PS58560

Muffler, Asm Twin Lo-Tone

Tube Manifold LH Kohler MV18

Tube Manifold RH Kohler MV18

Clamp Tube Double Engine

Shield Heat

Washer Lock Hvy. Hlcl. Spr. 5/16

Screw Hex SKT 5/16 UNC x 3/4

Gasket (Order From Engine

Manufacturer)

Nipple, Pipe

Elbow, Standard 90°, 3/8-18 NPT

Washer Lock Ext Tooth 3/8

Screw Thdrol 3/8-16 x 1-12 TT

Shield, Heat

Screw

Control Choke

Nut Fin Hex 3/8-24 UNF

Arrester, Spark

Tank, Fuel

Cap Assembly, Fuel

Clamp, Hose

Spacer, Pad

Line, Fuel

Plug, Oil Drain

(Order From Engine Manufacturer)

Spacer Pad

Bushing

Stem, Fuel Tank

Nut, Flange 1/4-20 Starter Nut

Bolt 5/16-18 UNC x 3/4 w/Sems

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.252714

SEAT ASSEMBLY

17 12

28__ 28

/ 21

/j _j

J I j

I "4" /

f'"I / "" /'

_4-.I ' / ,

1.1.- . i

KEY

NO.

PART

NO.

140123

140551

145006

STD541437

124181X

140552

120068X

121246X

121248X

72050411

134300

DESCRIPTION

Seat

Bracket, Pivot, Seat

Clip Push-In, Hinged

Nut

Spring, Seat

Pan, Seat

Knob, Seat

Bracket, Switch Mounting

Bushing, Snap, Nylon

Bolt, Carriage 1/4-20 x 1-3/8

Spacer, Split

KEY PART

NO. NO. DESCRIPTION

16 121250X

18 124238X

17 123976X

21 139888

22 STD541431

24 19171912

25 127018X

27 17490608

28 150176

Spring

Cap, Spring, Seat

Nut, Flangelock 1/4 Grade 5

Bolt, Shoulder 5/16-18 UNC

Nut

Washer 17/32 x 1-3/16 x 12 Gauge

Bolt, Shoulder 5/16-18 x .62

Screw Thdrol. 3/8-16 x 1/2

Bolt 5/16-18 UNC X 3/4 w/Sems

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.252714

DECALS

22 18 6 3 16 7 8

13 /

16 7 4 1; 10

KEY PART

NO. NO.

24 25

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

1 138955

2 149516 Decal.

3 146705 Decal.

4 146706 Decal.

5 146708 Decal.

6 133644 Decal

7 142243 Decal

8 138048 Decal

9 146709 Decal

10 137537 Decal

11 4900J Decal

12 150333 Decal

13 147138 Decal

14 146046 Decal

15 149918 Decal

16 147137 Decal

Decal, Operating Instruction

17 133179

Battery Dngr/Psn Acme Eng 18 146710

Hood, Craftsman, RH 19 138047

Hood, Craftsman, LH 20 52-113-50

Grille 21 140837

Maintenance 22 142336

Side Panel 23 106202X

Side Panel 24 136832

Fender, Craftsman 25 147142

Caution -- 138311

Clutch/Brake -- 142341

Cap Cnsmr Help Line - - 137318

Chassis 42" -- 137319

V-Belt Schematic -- 145245

Fender Auto Trans Srs Gold - - 145247

Ins. Hood -- 152088

-- 152089

WHEELS & TIRES

4,10

Decal, Mower QC System

Decal, Insert Strg

Decal, Battery

Decal, Engine Craftsman Koh MV18

Decal Brake Parking Saddle

Decal, Sdt Cold Start Hydro Eng.

Reflector, Taillight

Decal V-Belt SHC

Decal Deck 3 in 1

Decal, Handle Lift Height Adj.

Decal, Drawbar Cntrl Mvt. Hyd Lt

Decal, Refl HL YT/GT 1-pc Sears

Pad Ftrest

Fastener Pop-In Footrest

Manual, Owner's (Eng)

Manual, Owners (Span)

KEY PART

NO. NO.

DESCRIPTION

1 59192

2 65139

3 106222X

4 59904

5 106732X427

6 278H

7 9040H

8 106108X427

9 122082X

10 7152J

11 104757X

-- 144334

NOTE:

Cap, Valve, Tire

Stem, Valve

Tire, Front

Tube, Front (Service Item Only)

Rim Assembly, Front

Fitting, Grease (Front Wheel Only)

Bearing, Flange (Front Wheel Only)

Rim Assembly, Rear

Tire, Rear

Tube, Rear (Service Item Only)

Cap, Axle

Sealant, Tire (10 oz. Tube)

All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.252714

MOWER LIFT

13 .-...-........-_ 3:1

20 15 __ 1617 18 2'_

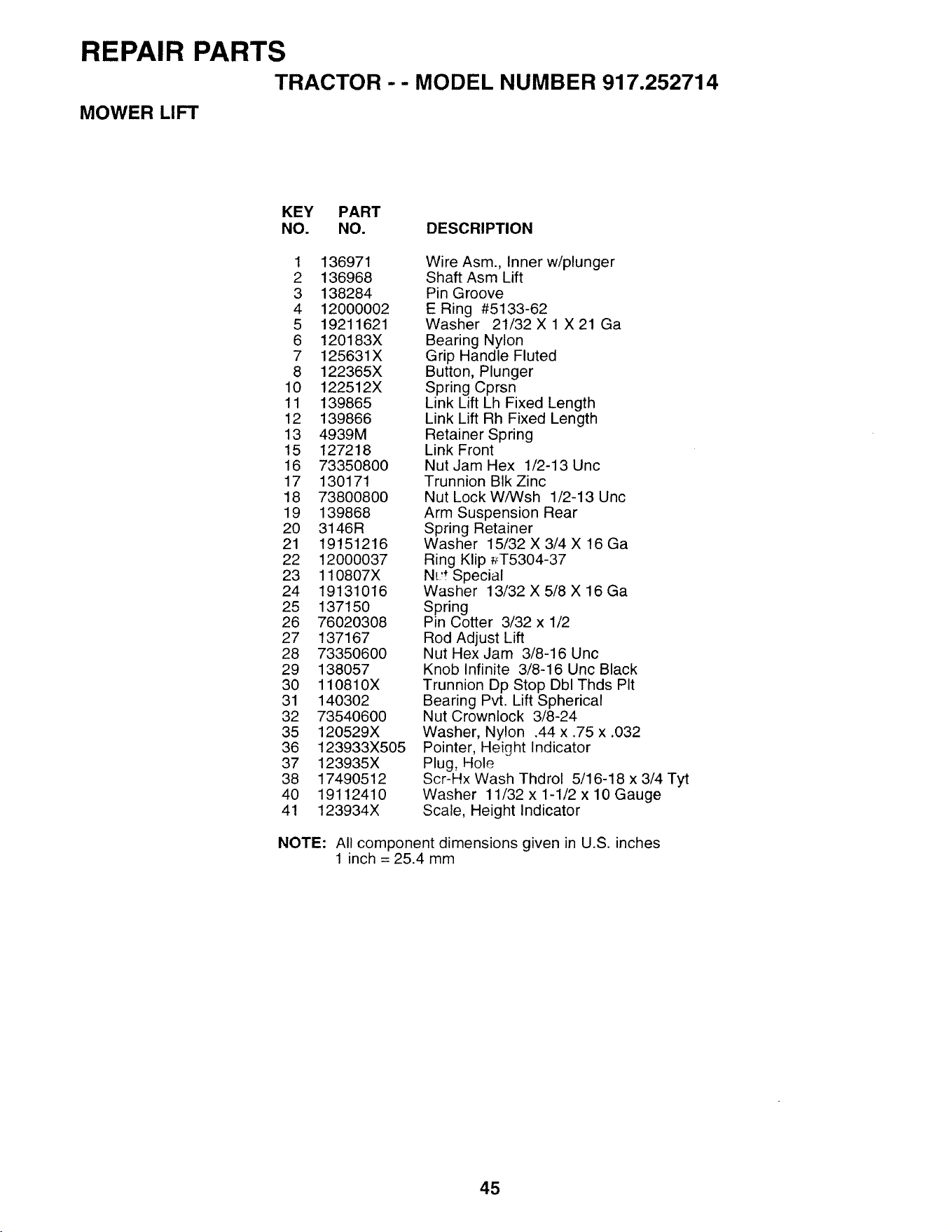

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.252714

MOWER LIFT

KEY PART

NO. NO. DESCRIPTION

1 136971

2 136968

3 138284

4 12000002

5 19211621

6 120183X

7 125631X

8 122365X

10 122512X

11 139865

12 139866

13 4939M

15 127218

16 73350800

17 130171

18 73800800

19 139868

20 3146R

21 19151216

22 12000037

23 110807X

24 19131016

25 137150

26 76020308

27 137167

28 73350600

29 138057

30 110810X

31 140302

32 73540600

35 120529X

36 123933X505

37 123935X

38 17490512

40 19112410

41 123934X

Wire Asm., Inner w/plunger

Shaft Asm Lift

Pin Groove

E Ring #5133-62

Washer 21/32XlX21Ga

Bearing Nylon

Grip Handle Fluted

Button, Plunger

Spring Cprsn

Link Lift Lh Fixed Length

Link Lift Rh Fixed Length

Retainer Spring

Link Front

Nut Jam Hex 1/2-13 Unc

Trunnion BIk Zinc

Nut Lock W/Wsh 1/2-13 Unc

Arm Suspension Rear

Spring Retainer

Washer 15/32 X 3/4 X 16 Ga

Ring Klip _T5304-37

Nl't Special

Washer 13/32 X 5/8 X 16 Ga

Spring

Pin Cotter 3/32 x 1/2

Rod Adjust Lift

Nut Hex Jam 3/8-16 Unc

Knob Infinite 3/8-16 Unc Black

Trunnion Dp Stop Dbl Thds Pit

Bearing Pvt. Lift Spherical

Nut Crownlock 3/8-24

Washer, Nylon .44 x .75 x .032

Pointer, Height Indicator

Plug, Hole

Scr-Hx Wash Thdrol 5/16-18 x 3/4 Tyt

Washer 11/32 x 1-1/2 x 10 Gauge

Scale, Height Indicator

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

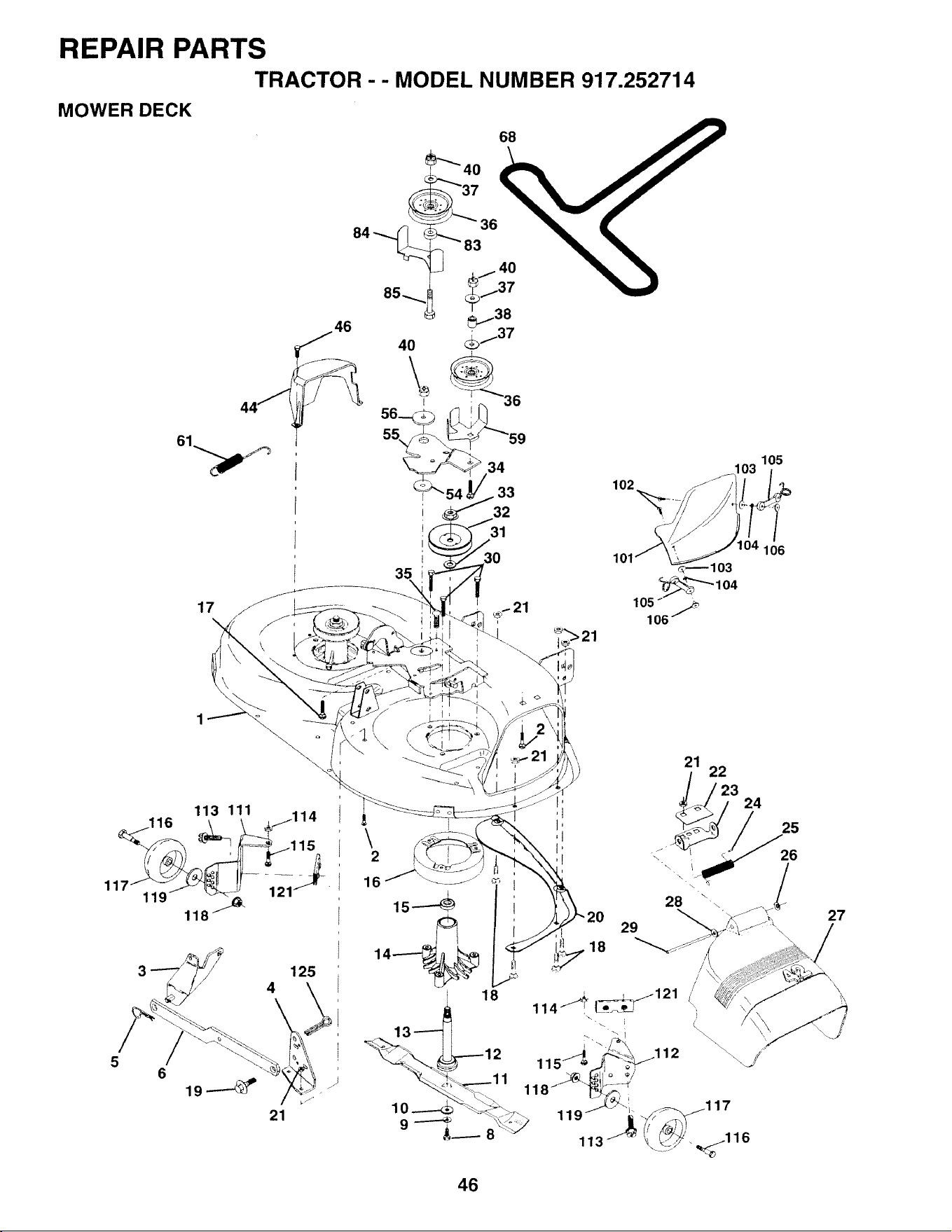

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.252714

MOWER DECK

102

103

*_"'- 104

105 _ j_

106"

105

106

113 111

_j116 _\ \.114

118 _

125

19_

113

_116

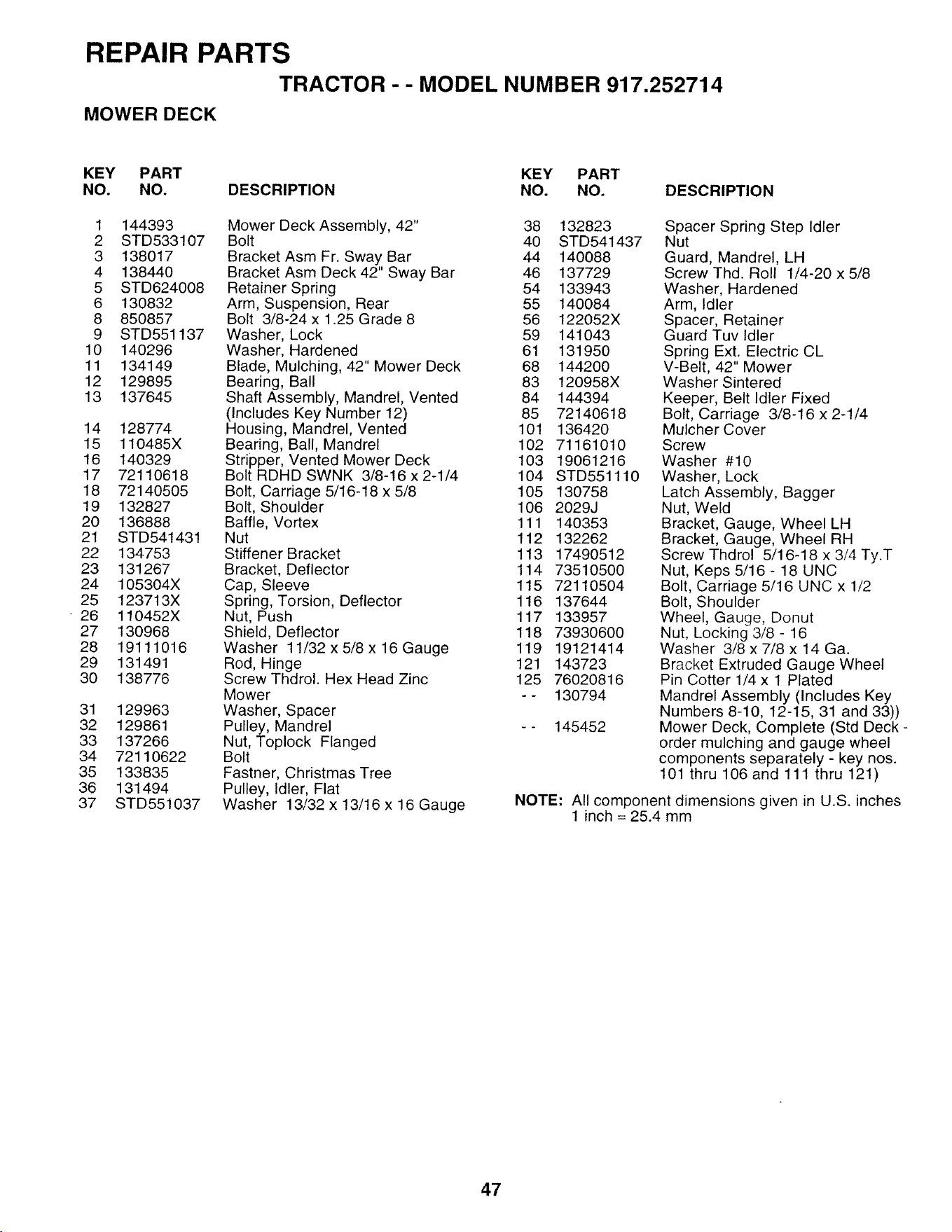

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.252714

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 144393 Mower Deck Assembly, 42" 38 132823

2 STD533107 Bolt 40 STD541437

3 138017 Bracket Asm Ft. Sway Bar 44 140088

4 138440 Bracket Asm Deck 42" Sway Bar 46 137729

5 STD624008 Retainer Spring 54 133943

6 130832 Arm, Suspension, Rear 55 140084

8 850857 Bolt 3/8-24 x 1.25 Grade 8 56 122052X

9 STD551137 Washer, Lock 59 141043

10 140296 Washer, Hardened 61 131950

11 134149 Blade, Mulching, 42" Mower Deck 68 144200

12 129895 Bearing, Ball 83 120958X

13 137645 Shaft Assembly, Mandrel, Vented 84 144394

(Includes Key Number 12) 85 72140618

14 128774 Housing, Mandrel, Vented 101 136420

15 110485X Bearing, Ball, Mandrel 102 71161010

16 140329 Stripper, Vented Mower Deck 103 19061216

17 72110618 Bolt RDHD SWNK 3/8-16x2-1/4 104 STD551110

18 72140505 Bolt, Carriage 5/16-18 x 5/8 105 130758

19 132827 Bolt, Shoulder 106 2029J

20 136888 Baffle, Vortex 111 140353

21 STD541431 Nut 112 132262

22 134753 Stiffener Bracket 113 17490512

23 131267 Bracket, Deflector 114 73510500

24 105304X Cap, Sleeve 115 72110504

25 123713X Spring, Torsion, Deflector 116 137644

26 110452X Nut, Push 117 133957

27 130968 Shield, Deflector 118 73930600

28 19111016 Washer 11/32 x 5/8 x16 Gauge 119 19121414

29 131491 Rod, Hinge 121 143723

30 138776 Screw Thdrol. Hex Head Zinc 125 76020816

Mower -- 130794

31 129963 Washer, Spacer

32 129861 Pulley, Mandrel - - 145452

33 137266 Nut, Toplock Flanged

34 72110622 Bolt

35 133835 Fastner, Christmas Tree

36 131494 Pulley, Idler, Flat

37 STD551037 Washer 13/32 x 13/16 x 16 Gauge

Spacer Spring Step Idler

Nut

Guard, Mandrel, LH

Screw Thd. Roll 1/4-20 x 5/8

Washer, Hardened

Arm, Idler

Spacer, Retainer

Guard Tuv Idler

Spring Ext. Electric CL

V-Belt, 42" Mower

Washer Sintered

Keeper, Belt Idler Fixed

Bolt, Carriage 3/8-16 x 2-1/4

Mulcher Cover

Screw

Washer #10

Washer, Lock

Latch Assembly, Bagger

Nut, Weld

Bracket, Gauge, Wheel LH

Bracket, Gauge, Wheel RH

Screw Thdrol 5/16-18 x 3/4 Ty.T

Nut, Keps 5/16 - 18 UNC

Bolt, Carriage 5/16 UNC x 1/2

Bolt, Shoulder

Wheel, Gauge, Donut

Nut, Locking 3/8 - 16

Washer 3/8 x 7/8 x 14 Ga.

Bracket Extruded Gauge Wheel

Pin Cotter 1/4 x 1 Plated

Mandrel Assembly (Includes Key

Numbers 8-10, 12-15, 31 and 33))

Mower Deck, Complete (Std Deck -

order mulching and gauge wheel

components separately - key nos.

101 thru 106 and 111 thru 121)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.252714

HYDRO GEAR TRANSAXLE - MODEL NUMBER 310-0650

113 _

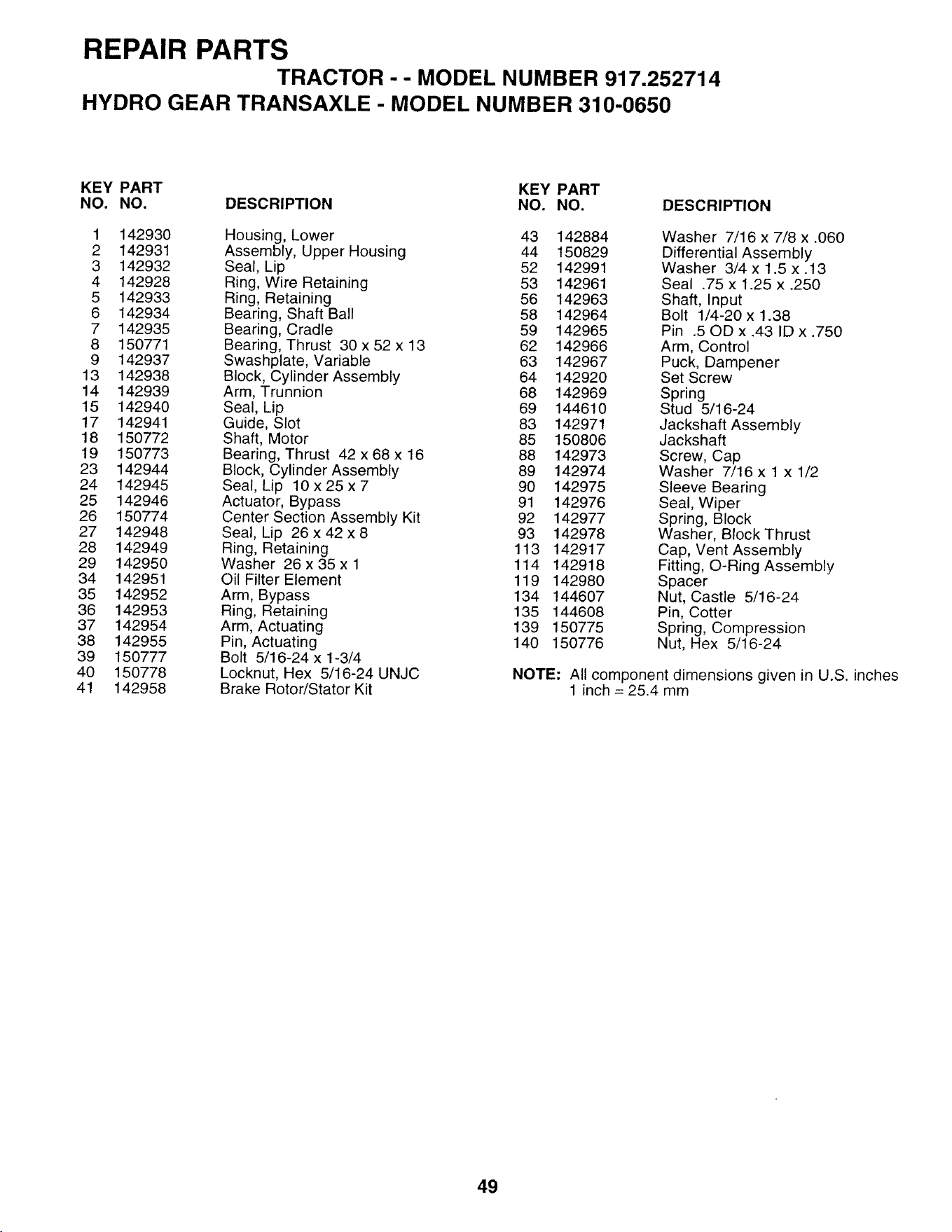

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.252714

HYDRO GEAR TRANSAXLE - MODEL NUMBER 310-0650

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 142930 Housing, Lower 43 142884 Washer 7/16 x 7/8 x .060

2 142931 Assembly, Upper Housing 44 150829 Differential Assembly

3 142932 Seal, Lip 52 142991 Washer 3/4 x 1.5 x .13

4 142928 Ring, Wire Retaining 53 142961 Seal .75 x 1.25 x .250

5 142933 Ring, Retaining 56 142963 Shaft, Input

6 142934 Bearing, Shaft Ball 58 142964 Bolt 1/4-20 x 1.38

7 142935 Bearing, Cradle 59 142965 Pin .50D x .43 ID x .750

8 150771 Bearing, Thrust 30 x 52 x 13 62 142966 Arm, Control

9 142937 Swashplate, Variable 63 142967 Puck, Dampener

13 142938 Block, Cylinder Assembly 64 142920 Set Screw

14 142939 Arm, Trunnion 68 142969 Spring

15 142940 Seal, Lip 69 144610 Stud 5/16-24

17 142941 Guide, Slot 83 142971 Jackshaft Assembly

18 150772 Shaft, Motor 85 150806 Jackshaft

19 150773 Bearing, Thrust 42 x 68 x 16 88 142973 Screw, Cap

23 142944 Block, Cylinder Assembly 89 142974 Washer 7/16 x 1 x 1/2

24 142945 Seal, Lip 10 x 25 x 7 90 142975 Sleeve Bearing

25 142946 Actuator, Bypass 91 142976 Seal, Wiper

26 150774 Center Section Assembly Kit 92 142977 Spring, Block

27 142948 Seal, Lip 26 x 42 x 8 93 142978 Washer, Block Thrust

28 142949 Ring, Retaining 113 142917 Cap, Vent Assembly

29 142950 Washer 26 x 35 x 1 114 142918 Fitting, O-Ring Assembly

34 142951 Oil Filter Element 119 142980 Spacer

35 142952 Arm, Bypass 134 144607 Nut, Castle 5/16-24

36 142953 Ring, Retaining 135 144608 Pin, Cotter

37 142954 Arm, Actuating 139 150775 Spring, Compression

38 142955 Pin, Actuating 140 150776 Nut, Hex 5/16-24

39 150777 Bolt 5/16-24 x 1-3/4

40 150778 Locknut, Hex 5/16-24 UNJC NOTE: All component dimensions given in U.S. inches

41 142958 Brake RotodStator Kit 1 inch = 25.4 mm

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.252714

KOHLER ENGINE - MODEL NUMBER MV18, TYPE NUMBER PS58560

AIR INTAKE J

Oq5

_11

_12

114 15

BAFFLES AND SHROUD I

BREATHER AND VENT I

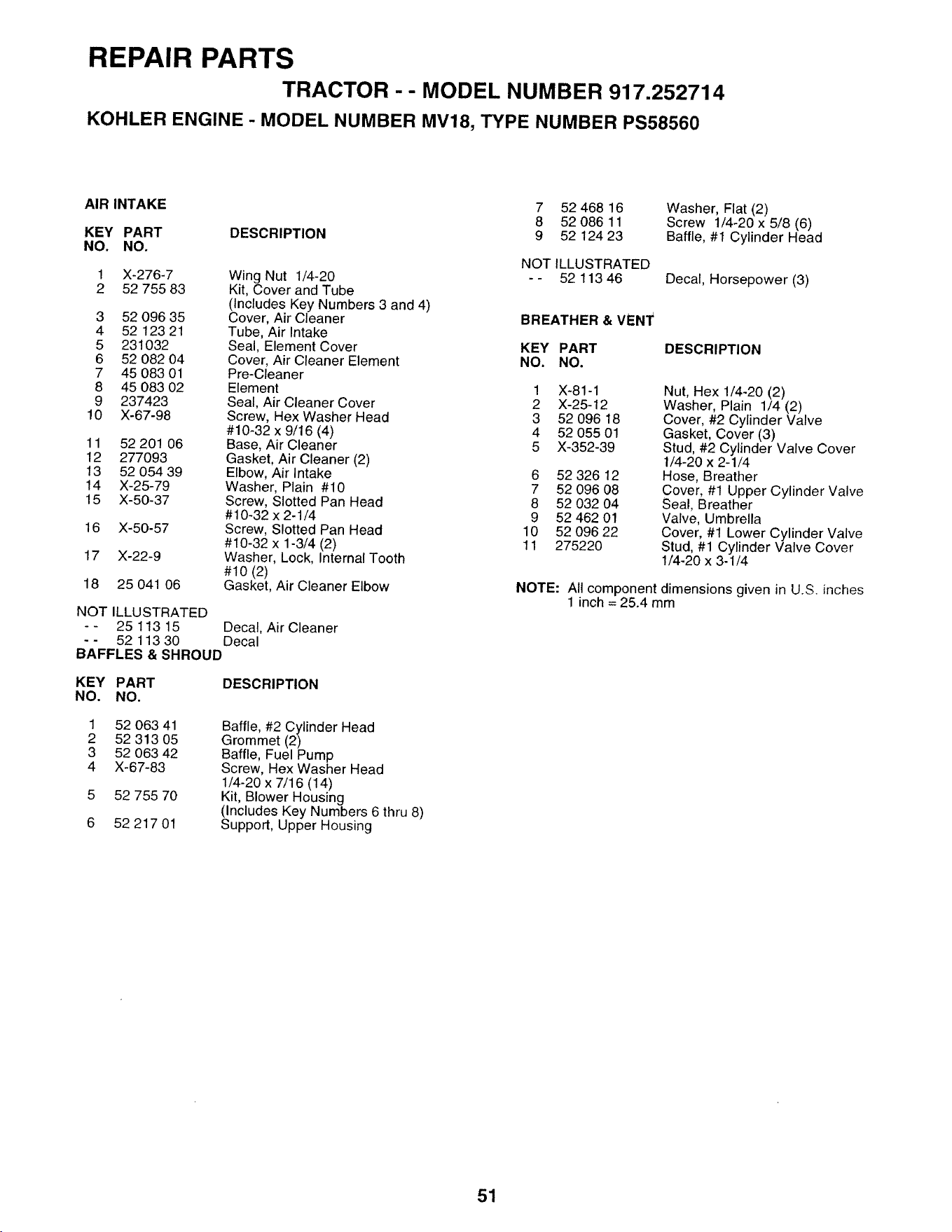

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.252714

KOHLER ENGINE - MODEL NUMBER MV18, TYPE NUMBER PS58560

AIR INTAKE

KEY PART DESCRIPTION

NO. NO.

1 X-276-7 Wing Nut 1/4-20

2 52 755 83 Kit, Cover and Tube

(Includes Key Numbers 3 and 4)

3 52 096 35 Cover, Air Cleaner

4 52 123 21 Tube, Air Intake

5 231032 Seal, Element Cover

6 52 082 04 Cover, Air Cleaner Element

7 45 083 01 Pre-Cleaner

8 45 083 02 Element

9 237423 Seal, Air Cleaner Cover

10 X-67-98 Screw, Hex Washer Head

#10-32 x 9/16 (4)

11 52 201 06 Base, Air Cleaner

12 277093 Gasket, Air Cleaner (2)

13 52 054 39 Elbow, Air Intake

14 X-25-79 Washer, Plain #10

15 X-50-37 Screw, Slotted Pan Head

#10-32 x 2-1/4

16 X-50-57 Screw, Slotted Pan Head

#10-32 x 1-3/4 (2)

17 X-22-9 Washer, Lock, Internal Tooth

#10 (2)

18 25 041 06 Gasket, Air Cleaner Elbow

NOT ILLUSTRATED

- - 25 113 15 Decal, Air Cleaner

-- 5211330 Decal

BAFFLES & SHROUD

KEY PART DESCRIPTION

NO. NO.

1 52 063 41

2 52 313 05

3 52 063 42

4 X-67-83

5 52 755 70

6 52 217 01

Baffle, #2 Cylinder Head

Grommet (2)

Baffle, Fuel Pump

Screw, Hex Washer Head

t/4-20 x 7/16 (14)

Kit, Blower Housing

(Includes Key Numbers 6 thru 8)

Support, Upper Housing

7 52 468 16

8 52 086 11

9 52 124 23

NOT ILLUSTRATED

- - 52 113 46

Washer, Flat (2)

Screw 1/4-20 x 5/8 (6)

Baffle, #1 Cylinder Head

Decal, Horsepower (3)

BREATHER & VENT

KEY PART

NO. NO.

DESCRIPTION

1 X-81-1

2 X-25-12

3 52 096 18

4 52 055 01

5 X-352-39

6 52 326 12

7 52 096 08

8 52 032 04

9 52 462 01

10 52 096 22

11 275220

Nut, Hex 1/4-20 (2)

Washer, Plain 1/4 (2)

Cover, #2 Cylinder Valve

Gasket, Cover (3)

Stud, #2 Cylinder Valve Cover

1/4-20 x 2-1/4

Hose, Breather

Cover, #1 Upper Cylinder Valve

Seal, Breather

Valve, Umbrella

Cover, #1 Lower Cylinder Valve

Stud, #1 Cylinder Valve Cover

1/4-20 x 3-1/4

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.252714

KOHLER ENGINE - MODEL NUMBER MV18, TYPE NUMBER PS58560

CRANKCASE, , I

19--

]

CARBURETOR [

" 12 /

5 16

--34

@_ 35

_--- 36

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.252714

KOHLER ENGINE - MODEL NUMBER MV18, TYPE NUMBER PS58560

CRANKCASE 15 25 041 06

16 X-77-2

KEY PART DESCRIPTION 17 232867

NO. NO. 18 ×-67-62

1 X-82-2 Nut, Hex 5/16-18 (12) 19 25 086 27

2 52 468 12 Washer, Flat 5/16 (12) 20 25 146 03

3 82 755 16 Kit, #1 Cylinder Barrel 21 52 144 24

(Includes Key Numbers 4 thru 6) 22 25 368 01

4 52 016 05 Valve, Exhaust 23 25 089 02

5 52 031 01 Insert, Valve Seat (2) 24 25 086 26

6 52 316 06 Guide, Valve (2) 25 25 089 04

7 52 755 50 Kit, Oil Relief 26 25 368 03

8 52 07212 Step Stud 5/16-18x3/4, 27 25 089 02

3/8-16 x 5/8, 2" Long (12) 28 52 090 13

9 25 086 12 Screw, Hex Flange 5/16-18 x 2 (2) 29 25 089 03

10 X-269-43 Ring, Retaining 30 25 194 01

11 52 078 05 Shaft, Governor 31 25 146 02

12 52 030 10 Bearing, Sleeve, Standard (2) 32 25 041 04

52 030 11 Bearing, Sleeve .010" (2) 33 25 757 09

52 030 12 Bearing, Sleeve .020" (2) 34 25 104 01

13 25 086 10 Screw, Hex Flange 35 25 041 03

5/16-18 x 1-1/2 (3) 36 25 100 05

14 25 086 13 Screw, Hex Flange

3/8-16 x 3-5/8 (2)

15 52 141 02 O-Ring

16 52 139 08 Plug

17 25 086 11 Screw, Hex Flange

5/16-18 x 3-1/2 (8)

18 52 032 10 Seal, Oil, Front

19 82 755 17 Kit, #2 Cylinder Barrel

(Includes Key Numbers 4 thru 6)

20 - - - Crankcase (Service with Short Block,

Part Number 82 522 30)

CARBURETOR

KEY PART DESCRIPTION

NO. NO.

Gasket, Air Cleaner

Nut 5/16 (2)

Strap, Lifting

Screw, Hex Washer Head

1/4-20 x 3/4

Screw, Throttle and Choke Plate (4)

Plate, Choke

Shaft, Throttle with Lever and Seal

Needle, Idle Fuel Adjust

Spring, Idle, Fuel

Screw, Idle Speed Adjust

Spring, Idle Speed

Needle, Main Fuel

Spring, Main Fuel

Lever, Choke

Spring, Choke, Friction

Ball, Choke, Friction

Plate, Throttle

Gasket, Bowl

Kit, Float

Bowl, Fuel

Gasket, Bowl Retainer Screw

Screw, Bowl Retainer

3 52 164 15

4 X-21-1

5 X-6-29

6 X-75-23

7 235778

8 X-67-97

9 41 072 19

10 52 063 40

11 25 155 02

12 52 853 25

13 271030

14 52 053 54

NOT ILLUSTRATED

- - 25 757 11 Kit, Carburetor Repair

-- 25 757 23 Kit, Bowl Baffle

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

1 52 041 09 Gasket, Intake (2) RPM Settings:

2 52 755 91 Kit, Manifold

(Includes Key Numbers 3 thru 8)

Manifold, Intake

Washer, Lock 5/16 (4)

Screw, Hex Cap 5/16-18 x 2 (4)

Plug, Hex, Countersunk

1/8 N.P.T.F.

Clamp, Cable (2)

Screw, Hex Washer Head

#10-24 x 3/8 (2)

Stud 5/16-18 x 1 (2)

Baffle, Carburetor

Connector, Hose

Kit, Carburetor with Gasket (Includes

Key Numbers 12 thru 14)

Gasket, Carburetor (2)

Carburetor Assembly (Information Only

- Not Available Separately) (Includes

Key Numbers 18 thru 35)

Low Speed 1500 - 2000

High Speed 3200 - 3400

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.252714

KOHLER ENGINE - MODEL NUMBER MV18, TYPE NUMBER PS58560

i i

CRANKSHAFT J

ELECTRIC STARTE R,I

DIPSTICK I

i i

| _e 9

o-,, f

--6

CYLINDER HEAD I

EXHAUST I

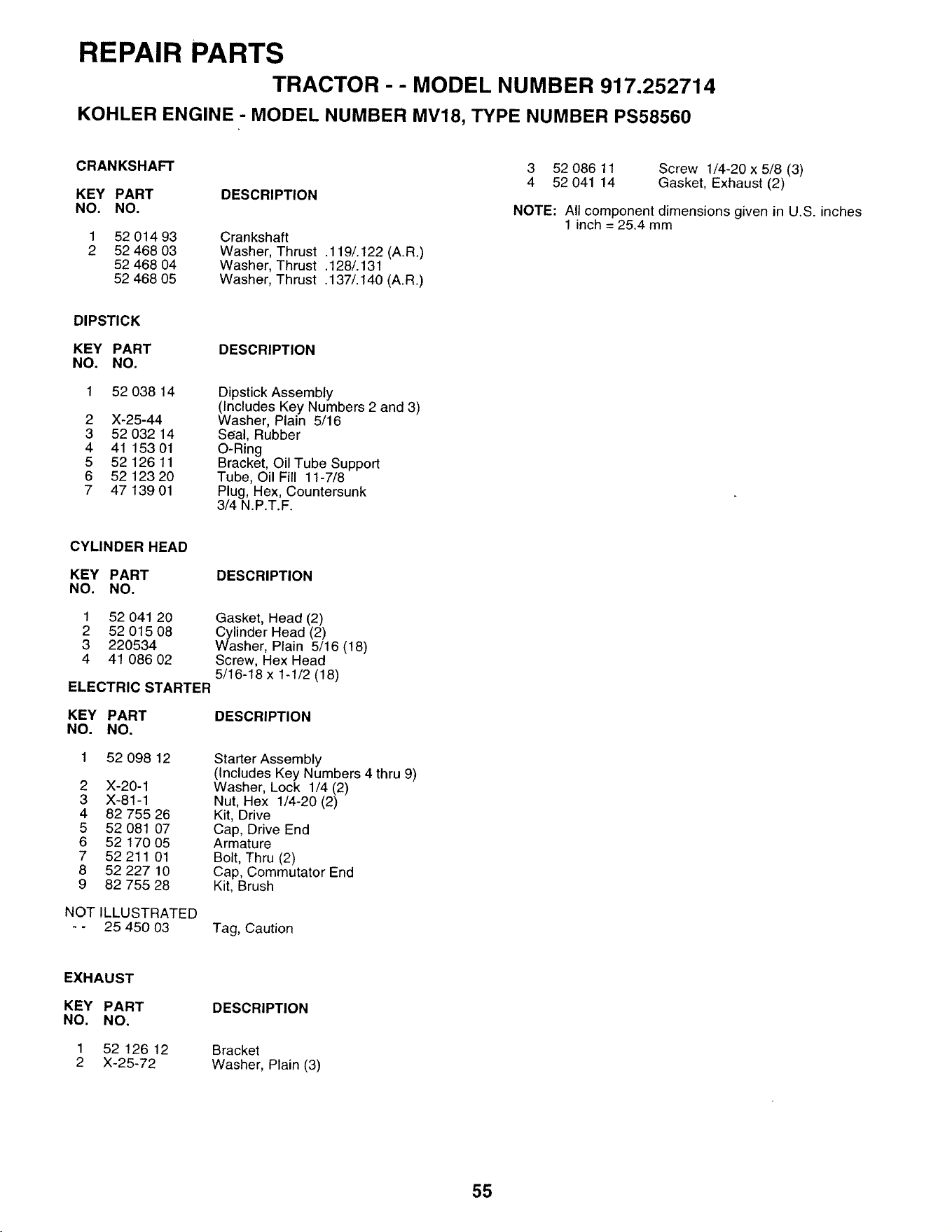

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.252714

KOHLER ENGINE - MODEL NUMBER MV18, TYPE NUMBER PS58560

CRANKSHAFT 3 52 086 11

4 52 041 14

KEY PART DESCRIPTION

NO. NO.

1 52 014 93

2 52 468 03

52 468 04

52 468 05

Crankshaft

Washer, Thrust .119/.122 (A.R.)

Washer, Thrust .128/. 131

Washer, Thrust .137/.140 (A.R.)

Screw 1/4-20 x 5/8 (3)

Gasket, Exhaust (2)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

DIPSTICK

KEY PART

NO. NO.

1 52 038 14

2 X-25-44

3 52 032 14

4 41 153 01

5 52 126 11

6 52 123 20

7 47 139 01

DESCRIPTION

Dipstick Assembly

(Includes Key Numbers 2 and 3)

Washer, Plain 5/16

Seal, Rubber

O-Ring

Bracket, Oil Tube Support

Tube, Oil Fill 11-7/8

Plug, Hex, Countersunk

3/4 N.P.T.F.

CYLINDER HEAD

KEY PART

NO. NO.

1 52 041 20

2 52 015 08

3 220534

4 41 086 02

ELECTRIC STARTER

KEY PART

NO. NO.

1 52 098 12

2 X-20-1

3 X-81-1

4 82 755 26

5 52 081 07

6 52 170 05

7 52 211 01

8 52 227 10

9 82 755 28

NOT ILLUSTRATED

- - 25 450 03

DESCRIPTION

Gasket, Head (2)

,alinderHead (2)

sher, Plain 5/16 (18)

Screw, Hex Head

5/16-18 x 1-1/2 (18)

DESCRIPTION

Starter Assembly

(Includes Key Numbers 4 thru 9)

Washer, Lock 1/4 (2)

Nut, Hex 1/4-20 (2)

Kit, Drive

Cap, Drive End

Armature

Bolt, Thru (2)

Cap, Commutator End

Kit, Brush

Tag, Caution

EXHAUST

KEY PART

NO. NO.

1 5212612

2 X-25-72

DESCRIPTION

Bracket

Washer, Plain (3)

SERVICE NOTES

i ii i i i

i i ii i i i

SERVICE NOTES

o .e;

#. o

0 o.j

Z..j

,,,o

an-

I.i..

t.I)

ILl

_.!

or)

O:O

>-< I I

..JI-

I--

I.i.

LL!

LLI

Or)

)m 0

OWNER'S

MANUAL

MODEL NO.

917.252714

IF YOU NEED

REPAIR SERVICE

OR PARTS:

FOR REPAIR SERVICE, CALL

THIS TOLL FREE NUMBER:

1-800-4-REPAIR

(1-800-473-7247)

FOR REPLACEMENT PARTS

INFORMATION AND

ORDERING, CALL THIS

TOLL FREE NUMBER:

1-800-FON-PART

(1-800-366-7278)

FOR CONSUMER ASSISTANCE

HOT LINE, CALL THIS

TOLL FREE NUMBER:

1-800-659-5917

18 HP TWIN CYLINDER

ELECTRIC START

3 in One Convertible

42" MOWER

AUTOMATIC (HYDROSTATIC)

DRIVE

LAWN TRACTOR

Each tractor has its own model number. Each engine has

its own model number.

The model number for your tractor will be found on the

model plate located under the seat.

The model number for your engine will be found on the

blower housing of the engine.

All parts listed herein may be ordered from any Sears,

Roebuck and Co. Service Center/Department and most Re-

tail Stores.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION:

• PRODUCT- TRACTOR

• MODEL NUMBER - 917.252714

• ENGINE MODEL NO. - MV18S-58560

• PART NUMBER

• PART DESCRIPTION

Your Sears merchandise has added value when you

consider Sears has service units nationwide staffed with

Sears trained technicians.., professional technicians

specifically trained to insure that we meet our pledge to

you, we service what we sell.

152088 10.11.95 KFSW

Printed in U.S.A.

Craftsman 917252714 Tractor

Product's Documents

Owner's Manual

Specifications

Craftsman 917252714 Questions and Answers
