Use Manual LG WKGX201HBA 4.5 cu. ft. Washer and 7.4 cu. ft. Gas Dryer

LG WKGX201HBA 4.5 cu. ft. Washer and 7.4 cu. ft. Gas Dryer - Use Manual - Use Guide PDF download or read online.

- Owner Manual ( English, Spanish ) - 20.76 MB - pdf
- Specification ( English )

User manual Washer for LG WKGX201HBA

Table of contents

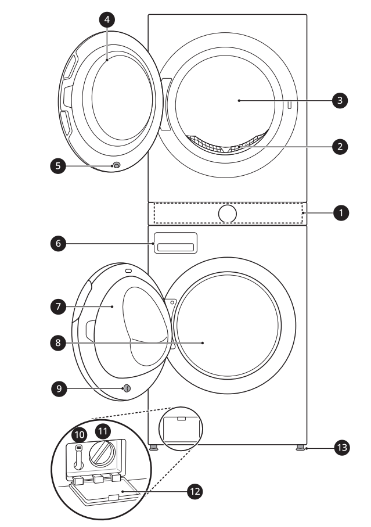

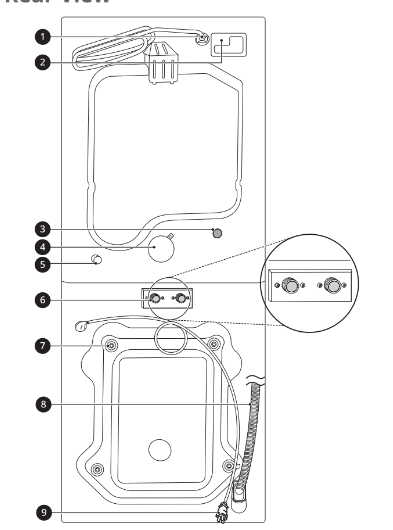

  • Product Features
  • Before Installing
  • Choosing the Proper Location
  • Unpacking and Removing Shipping Material

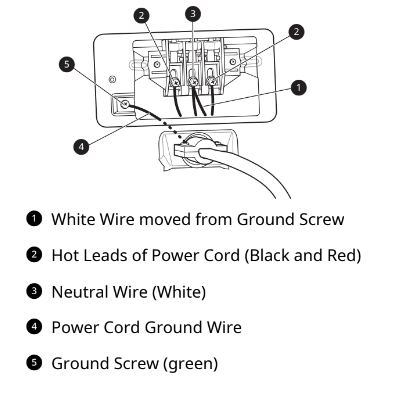

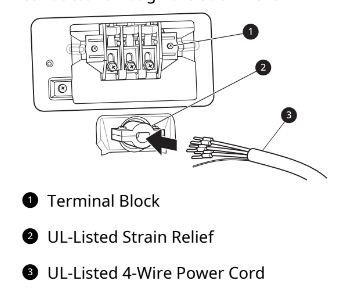

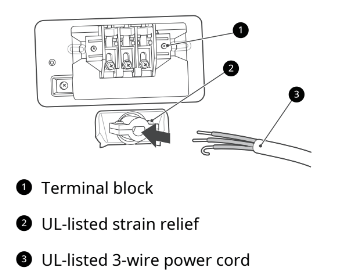

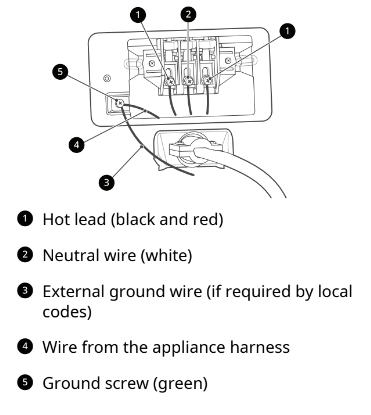

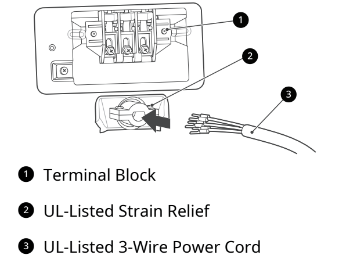

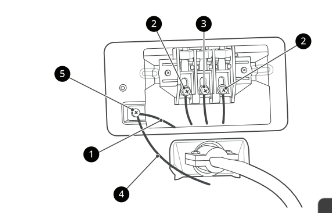

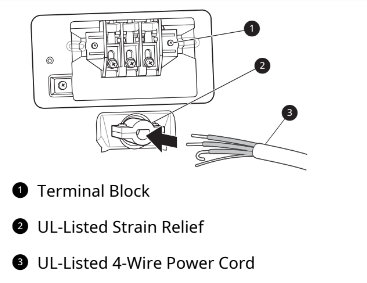

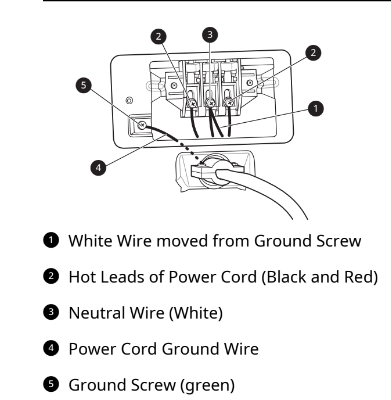

  • Connecting Electric Dryers
  • Installing the Dryer Side Vent Kit
  • Venting the Dryer

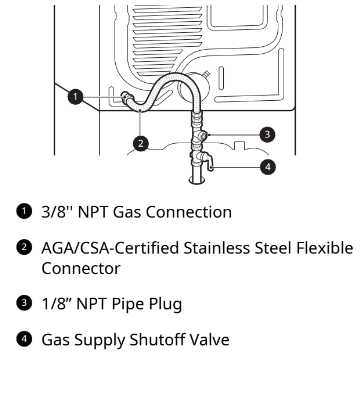

  • Connecting Gas Dryers

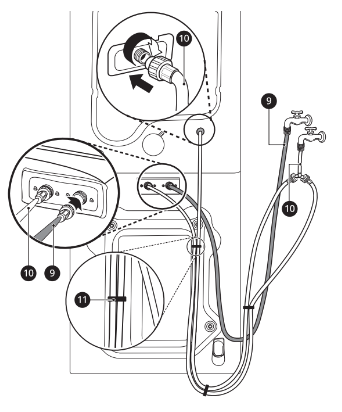

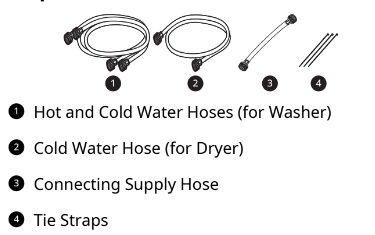

  • Connecting the Water Inlet Hoses
  • Connecting the Drain Hose
  • Leveling the Appliance
  • Final Installation Check

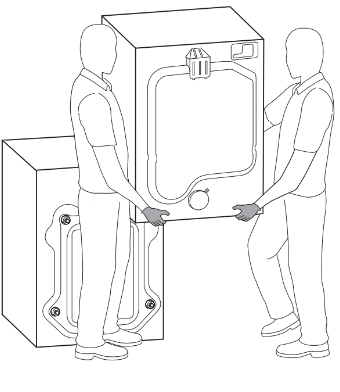

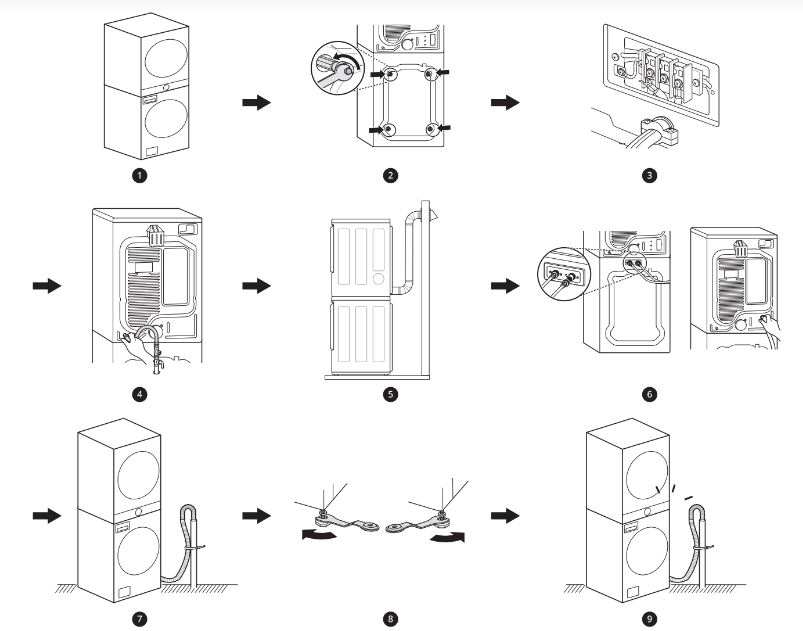

  • Disassembly

Power Outlet

  • The power outlet must be within 60 inches (1.5 m) of either side of the appliance.
  • Position the appliance so that the outlet and plug are easily accessible.
  • Do not overload the outlet with more than one appliance.
  • The outlet must be grounded in accordance with current electrical wiring codes and regulations.
  • Use a time-delay fuse or circuit breaker.
  • It is the personal responsibility and obligation of the appliance owner to have a proper outlet installed by a qualified electrician.

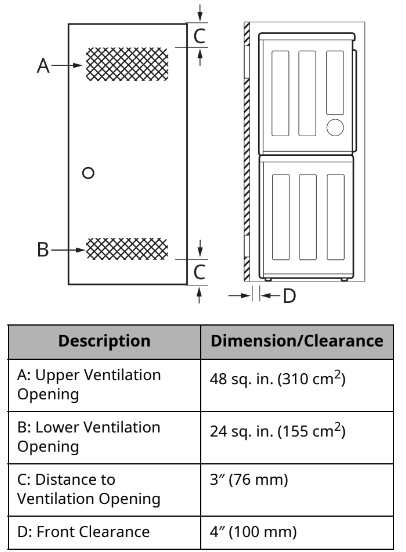

Closet Ventilation Requirements

Closets with doors must have both an upper and lower vent to prevent heat and moisture buildup in the closet. One upper vent opening with a minimum opening of 48 sq. in. (310 cm2) must be installed no lower than 6 feet above the floor. One lower vent opening with a minimum opening of 24 sq. in. (155 cm2) must be installed no more than one foot above the floor. Install vent grills in the door or cut down the door at the top and bottom to form openings. Louvered doors with equivalent ventilation openings are also acceptable.

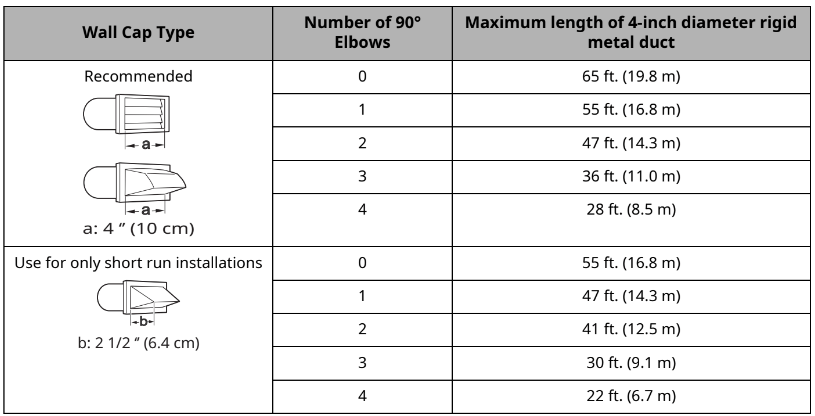

Routing and Connecting Ductwork

Follow the guidelines below to maximize drying performance and reduce lint buildup and condensation in the ductwork. Ductwork and fittings are NOT included and must be purchased separately.

  • Use 4'' (10 cm) diameter rigid, semi-rigid or flexible metal ductwork.
  • The exhaust duct run should be as short as possible.
  • Use as few elbow joints as possible.
  • The male end of each section of exhaust duct must point away fro

Newest Added: LSDT9908SS HCED3015S HCED3615S HCED3615D LSHD3680ST

Also, These documents are for others LG Electronics models: WKEX200H*A, WKGX201H*A

Tags: Lg Frontliad Dryer, LG Ultra Capacity 4.5 Cu Feet Front Load Washer, Lg Nanocell 90, LG 4.5 Cu Ft All In One Washer Dryer, LG Front Loading Dryer, Lg 4.8 Top Load Washer, Lg Front Load Dryer

LG Electronics WKGX201HBA | File type: PDF | Filename: LG WKGX201HBA Single Unit Front Load LG WashTower™ with Center Control™ 4.5 cu. ft. Washer and 7.4 cu. ft. Gas Dryer.pdf | Size: 20.76 MB | Language: English, Spanish | Other documents: 1 files.

Download User Manual

LG Electronics WKGX201HBA Questions and Answers

Find answers or Ask a question.

Does the model WKGX201HBA gas dryer come with the proper kit to convert the dryer to propane from natural gas?
The ENERGY STAR® Qualified LG 4.5 Cu.Ft. 6-Cycle Front-Load Washer and 7.4 Cu.Ft. 6-Cycle Gas Dryer WashTower™ with Steam and Built-in Intelligence - Black Steel, Model # WKGX201HBA does not come with an LP Nozzle Conversion Kit as an included accessory. The LP Conversion Kit, Part # 383EEL3002D has to be purchased separately
