Chimney Hood INSTALLATION GUIDE LG HCED3615D
 TABLE OF CONTENTS

  • Before You Begin
  • IMPORTANT SAFETY
  • INSTRUCTIONS
  • Product Specifications
  • General Specifications
  • Dimensions
  • PRODUCT OVERVIEW
  • Accessories
  • Planning the Installation
  • Cabinet Layout
  • Ducting Options
  • Ducting Calculation Sheet
  • Power Supply
  • Verify the Package Contents
  • Installation Instructions
  • Mounting the Range Hood

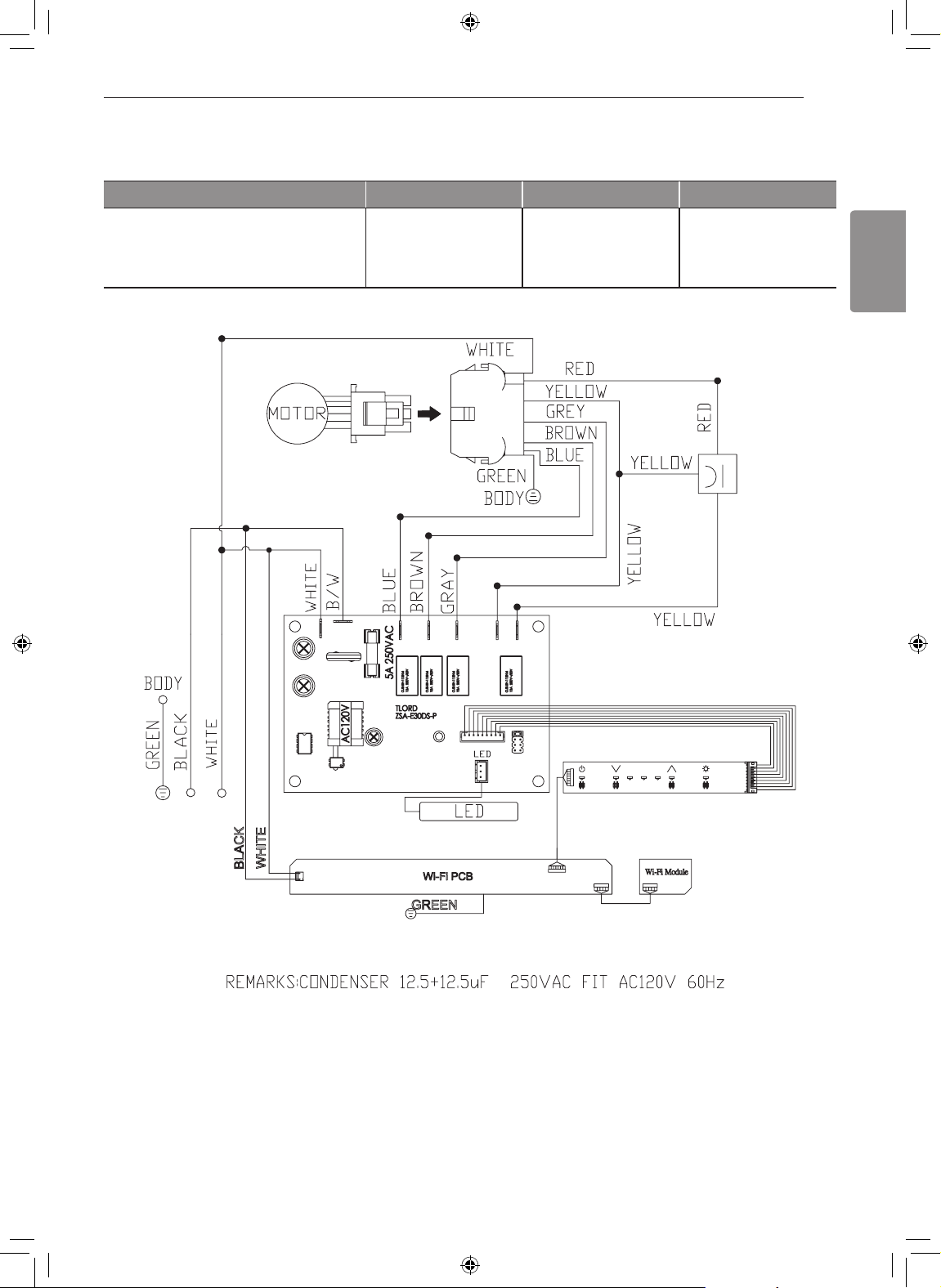

  • Wiring Diagram
  • Before You Begin Important:

APPLIANCE DATA PLATE

The appliance data plate contains the model and serial number information and the electrical requirements.

It is located inside the hood behind the filters on the back side of the chassis. Remove the filters to view it.

All specifications subject to change without notice. LG STUDIO assumes no liability for changes to specifications.

IMPORTANT SAFETY INSTRUCTIONS

Read and follow all instructions when using the range to prevent the risk of fire, electric shock, personal injury, or damage. This guide does not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand.

This is the safety alert symbol. This symbol alerts you to potential hazards that can result in property damage and/or serious bodily harm or death.

All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION. These words mean:

WARNING - Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION - Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

To avoid the possibility of explosion or fire, do not store or use combustible, flammable or explosive vapors and liquids (such as gasoline) inside or in the vicinity of this or any other appliance. Also keep items that could explode, such as aerosol cans away from cooktop burners, ovens and range hoods. Do not store flammable or explosive materials in adjacent cabinets or areas.

If the information in this manual is not followed exactly, a fire or ex
