LG WKGX201HWA Washer User Manual

INSTALLATION MANUAL

LAUNDRY CENTER

Read this installation manual thoroughly before installing the

appliance and keep it handy for reference at all times.

ENGLISH ESPAÑOL

WKEX200H*A / WKGX201H*A

MFL71728904

Rev.06_081020

www.lg.com

TABLE OF CONTENTS

3 IMPORTANT SAFETY

INSTRUCTIONS

3 READ ALL INSTRUCTIONS BEFORE USE

4 WARNING STATEMENTS

8 CAUTION STATEMENTS

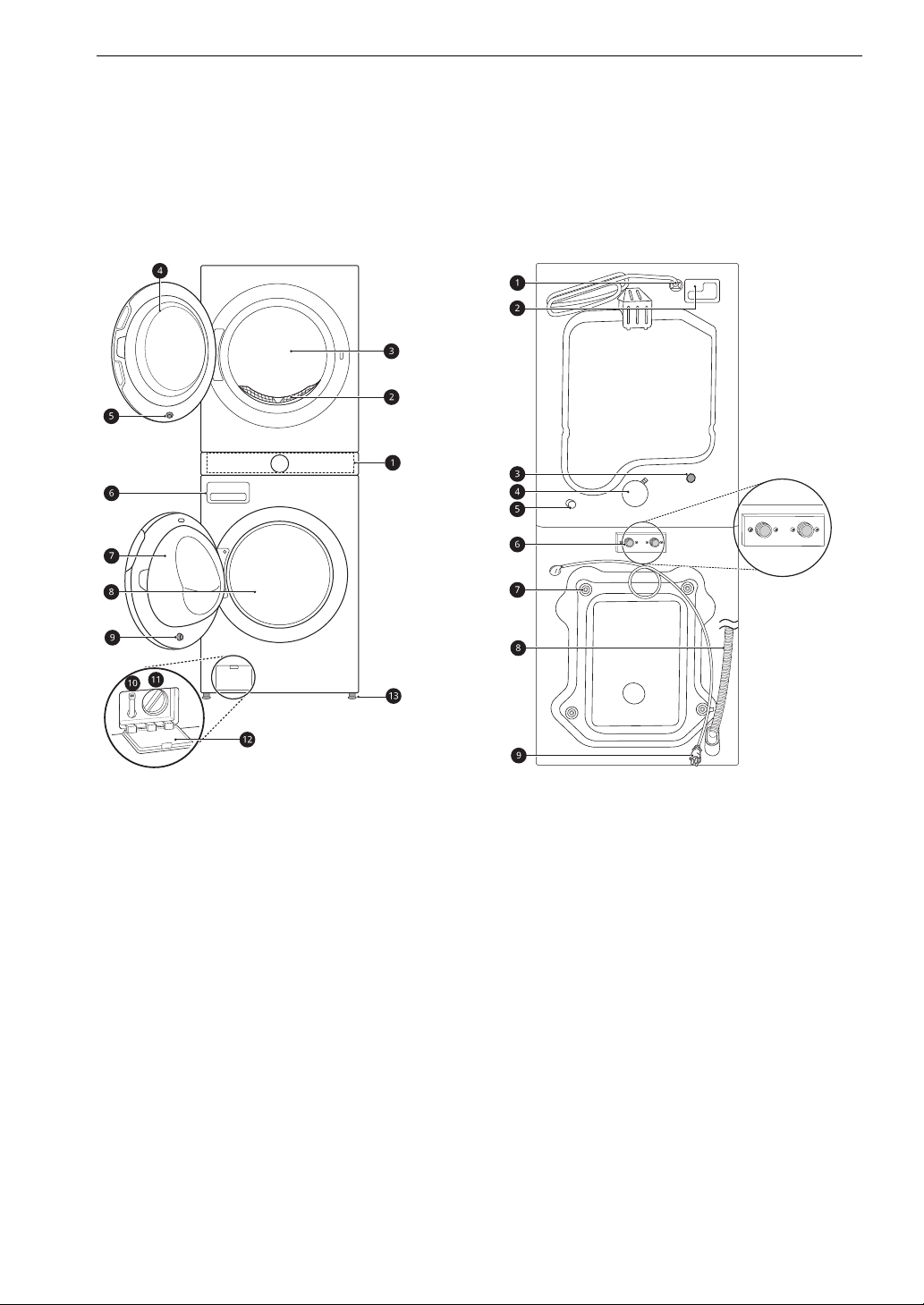

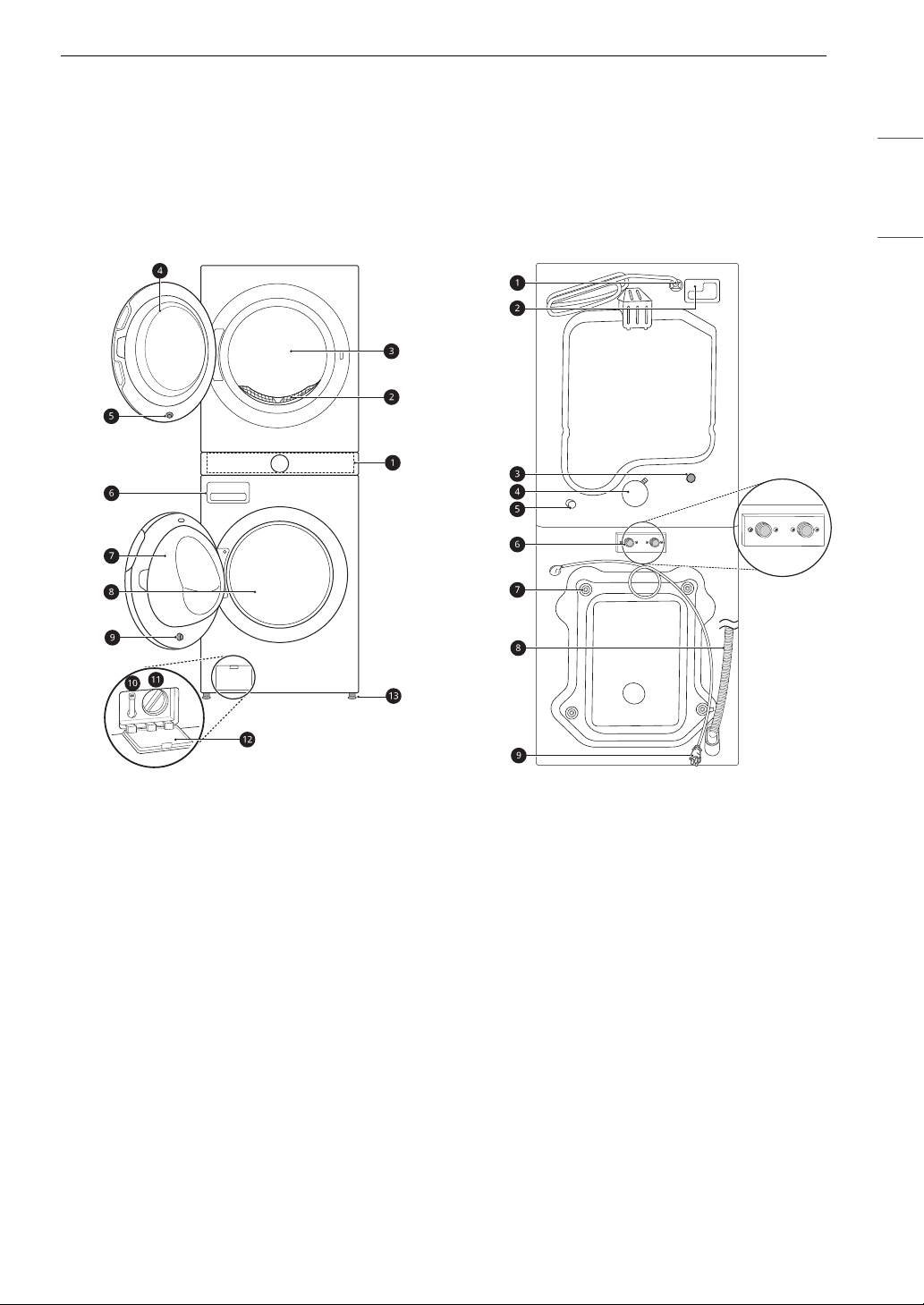

9 PRODUCT OVERVIEW

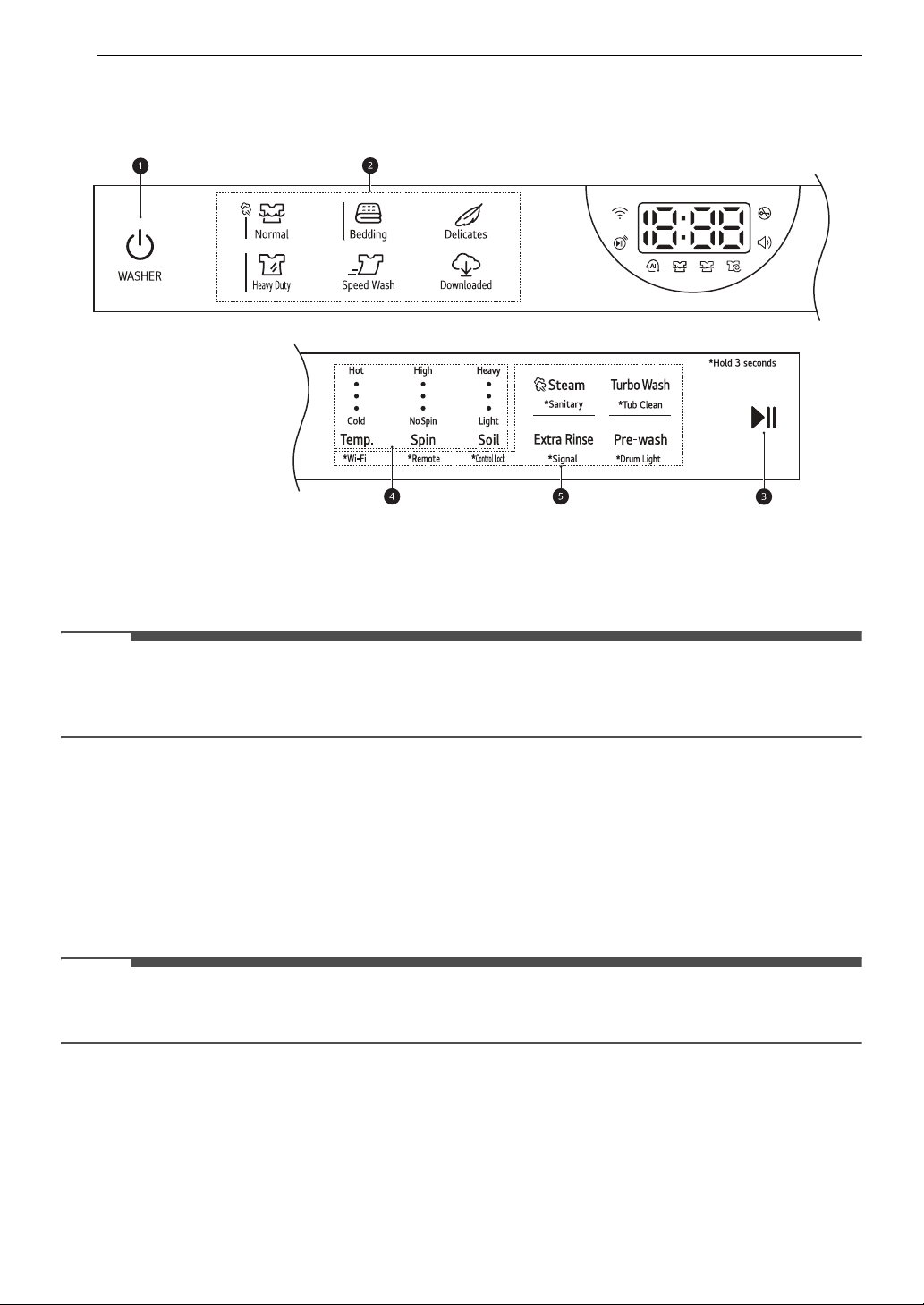

9 Product Features

11 INSTALLATION

11 Before Installing

12 Choosing the Proper Location

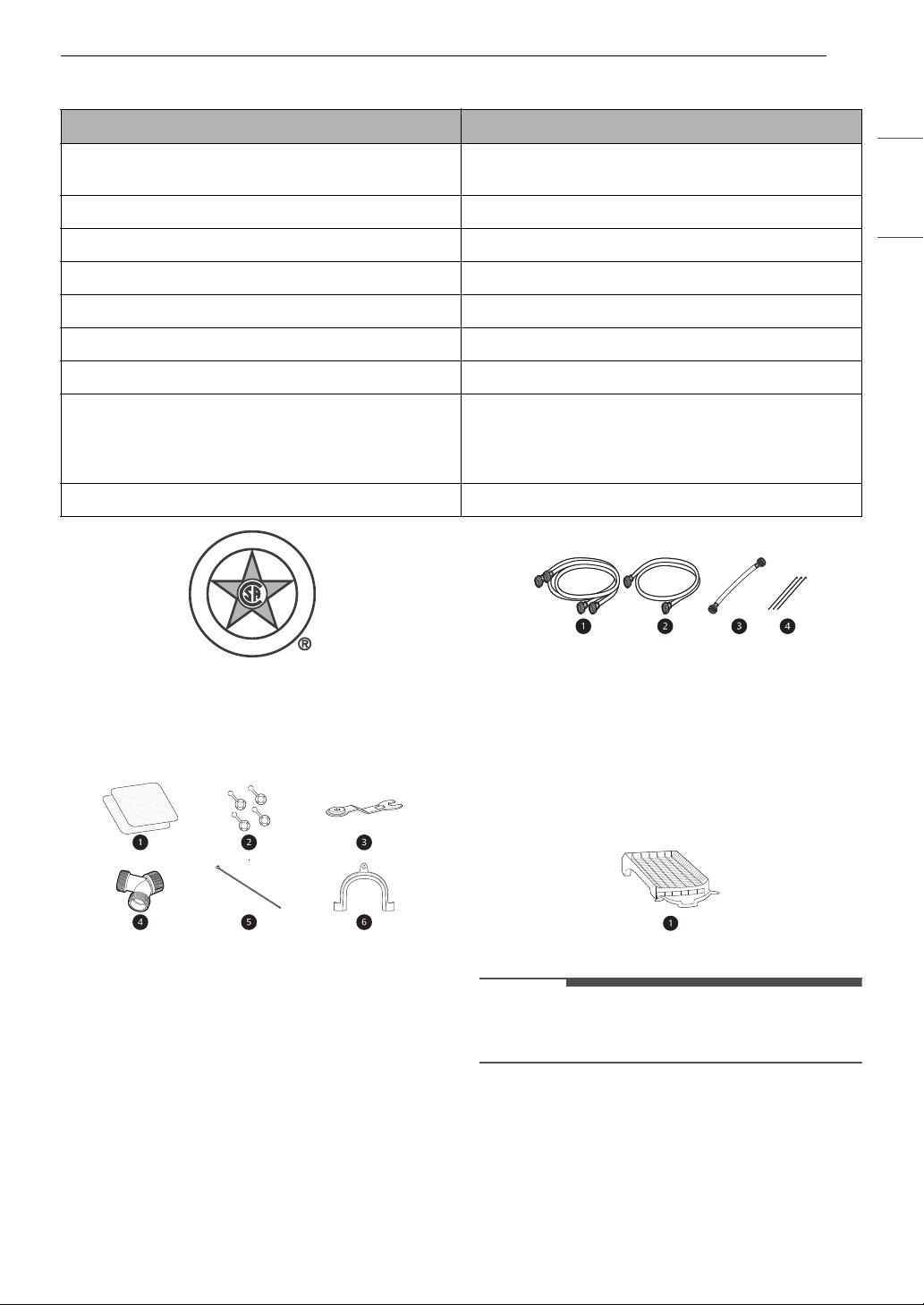

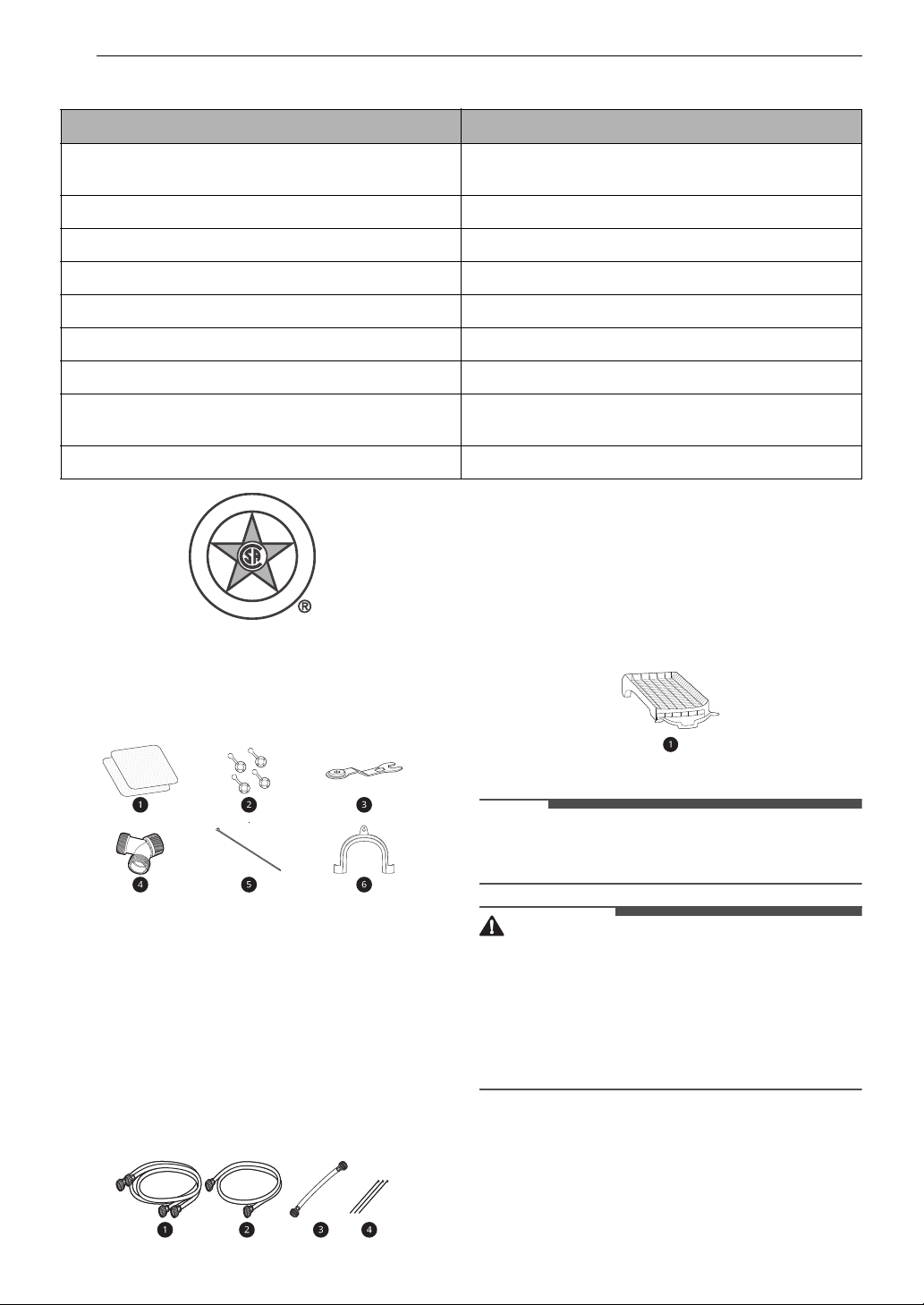

14 Unpacking and Removing Shipping Material

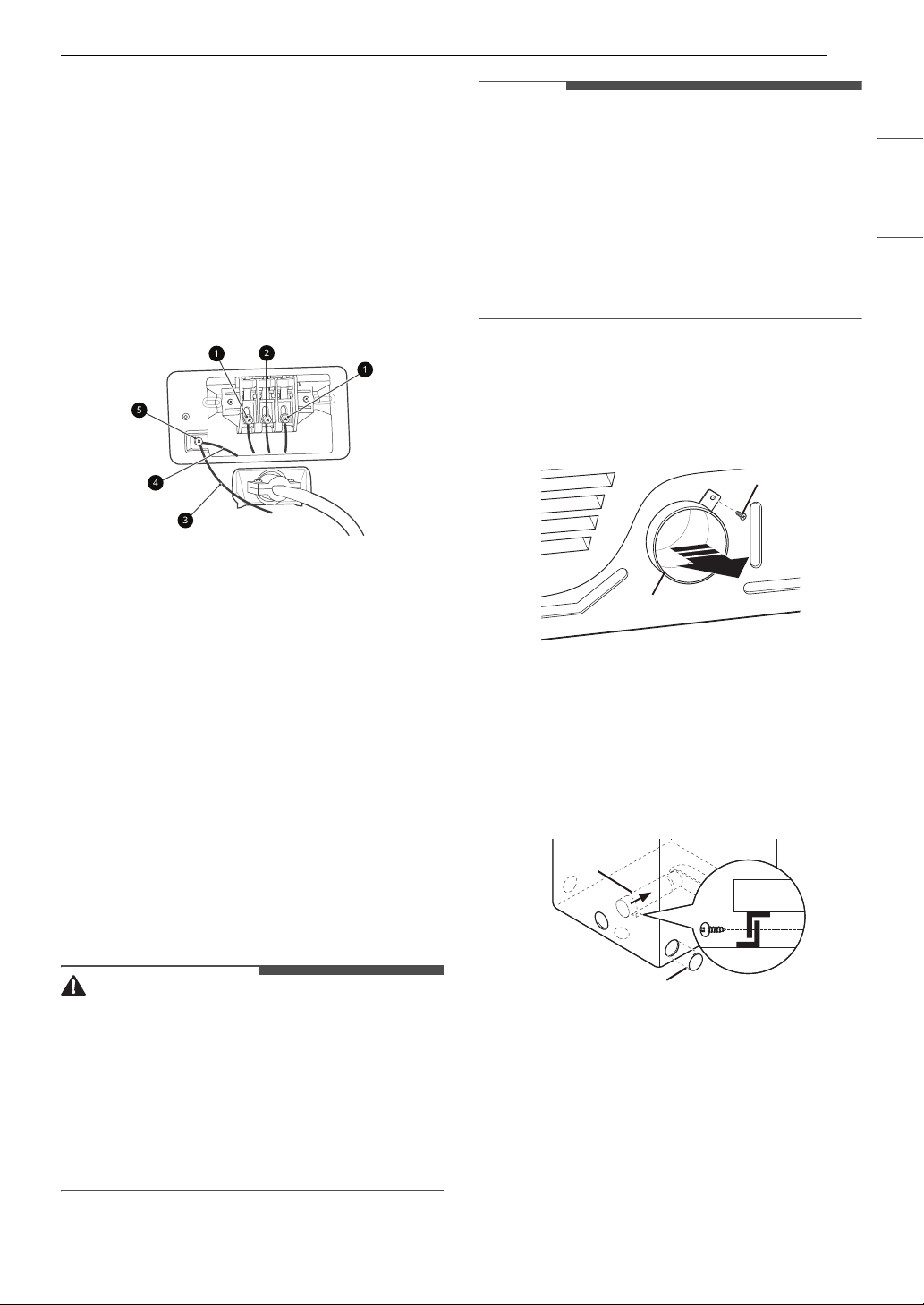

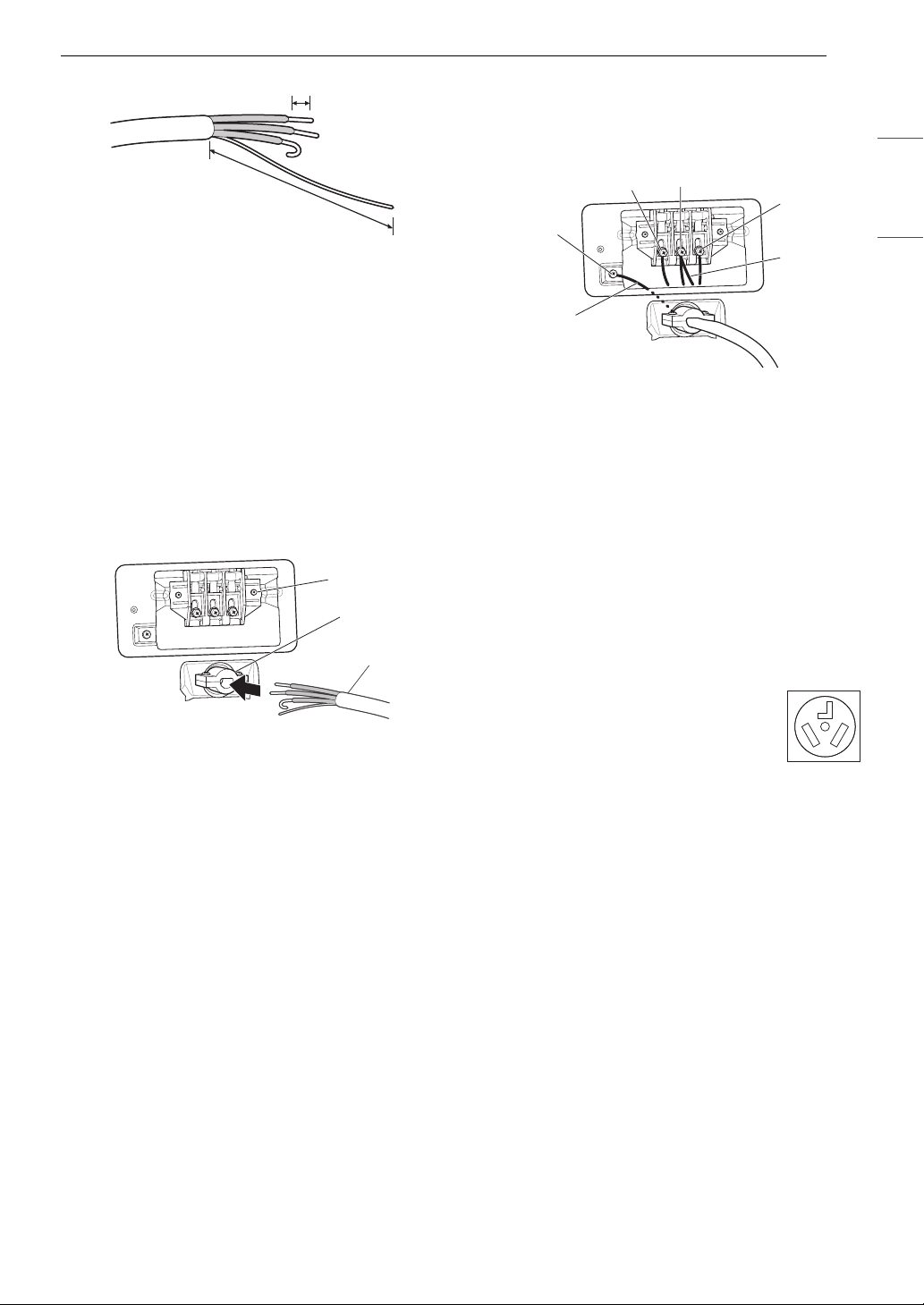

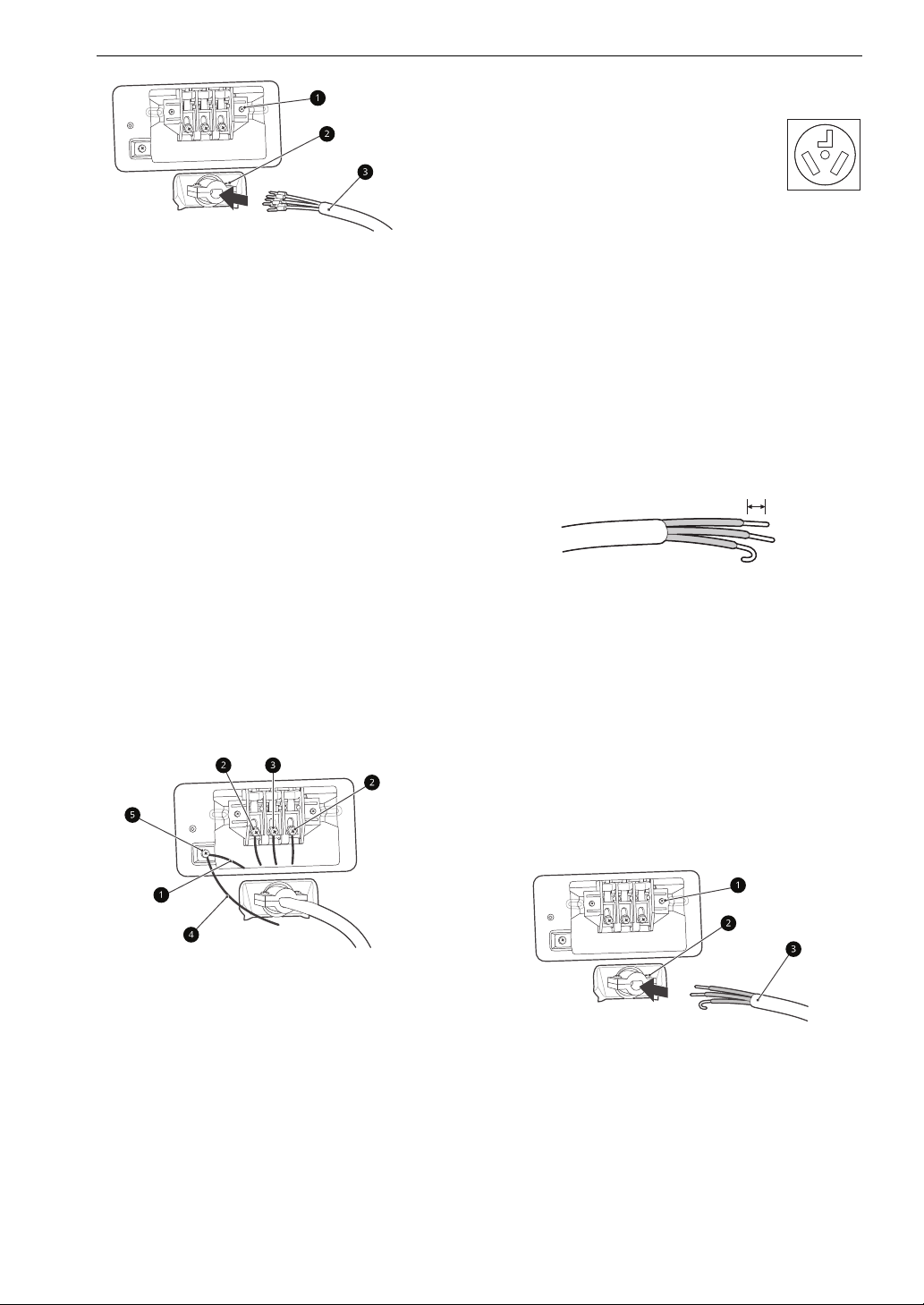

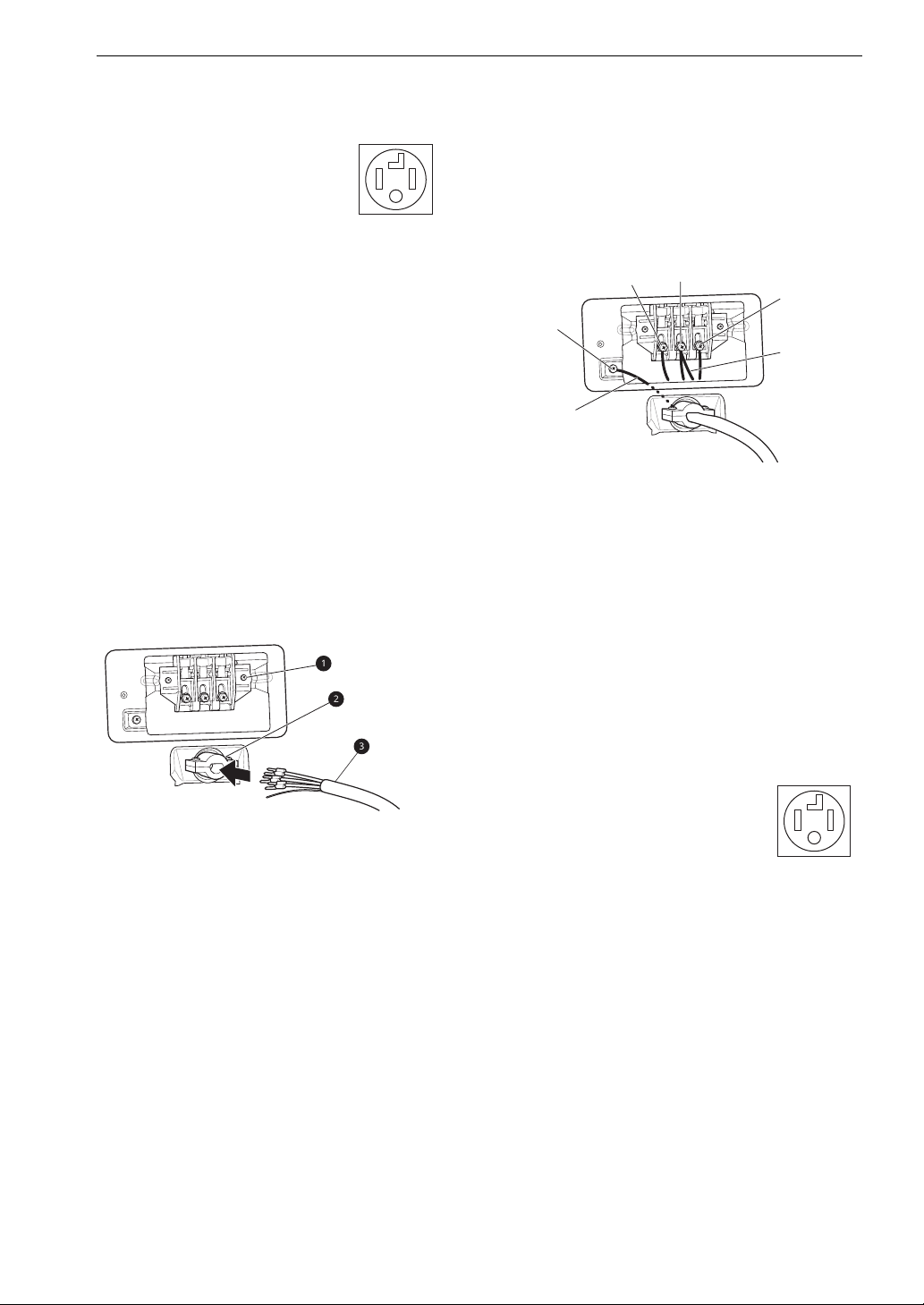

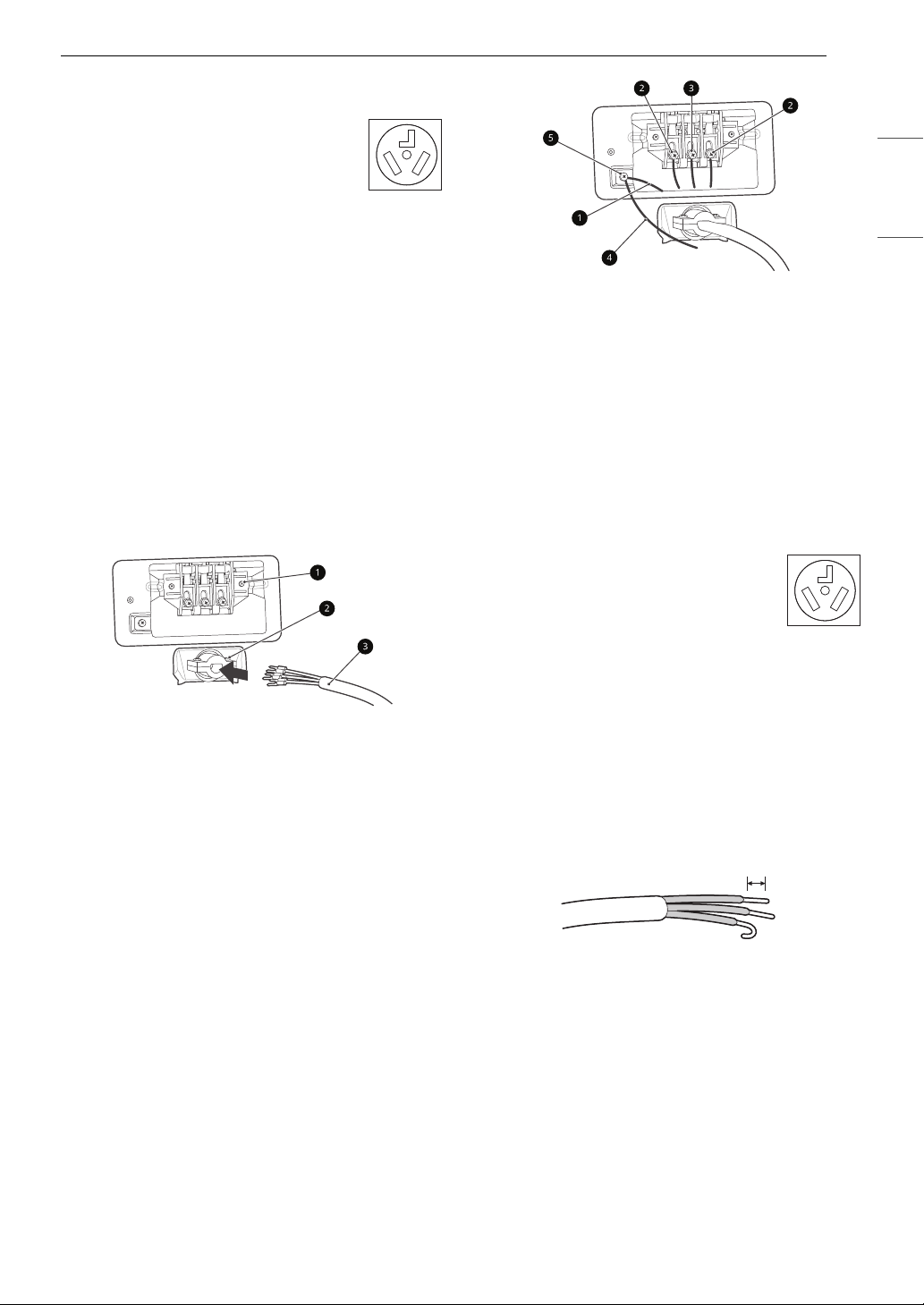

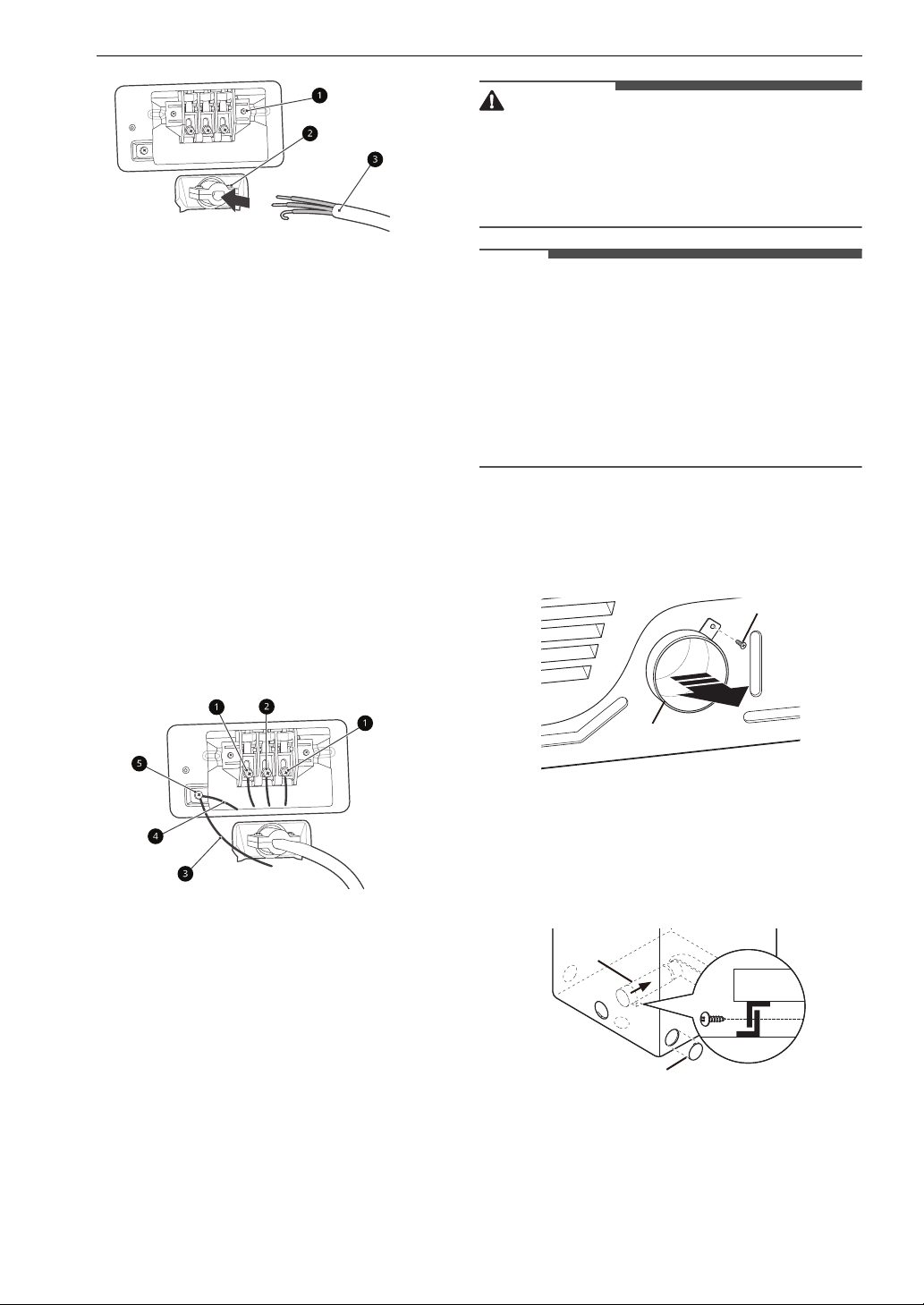

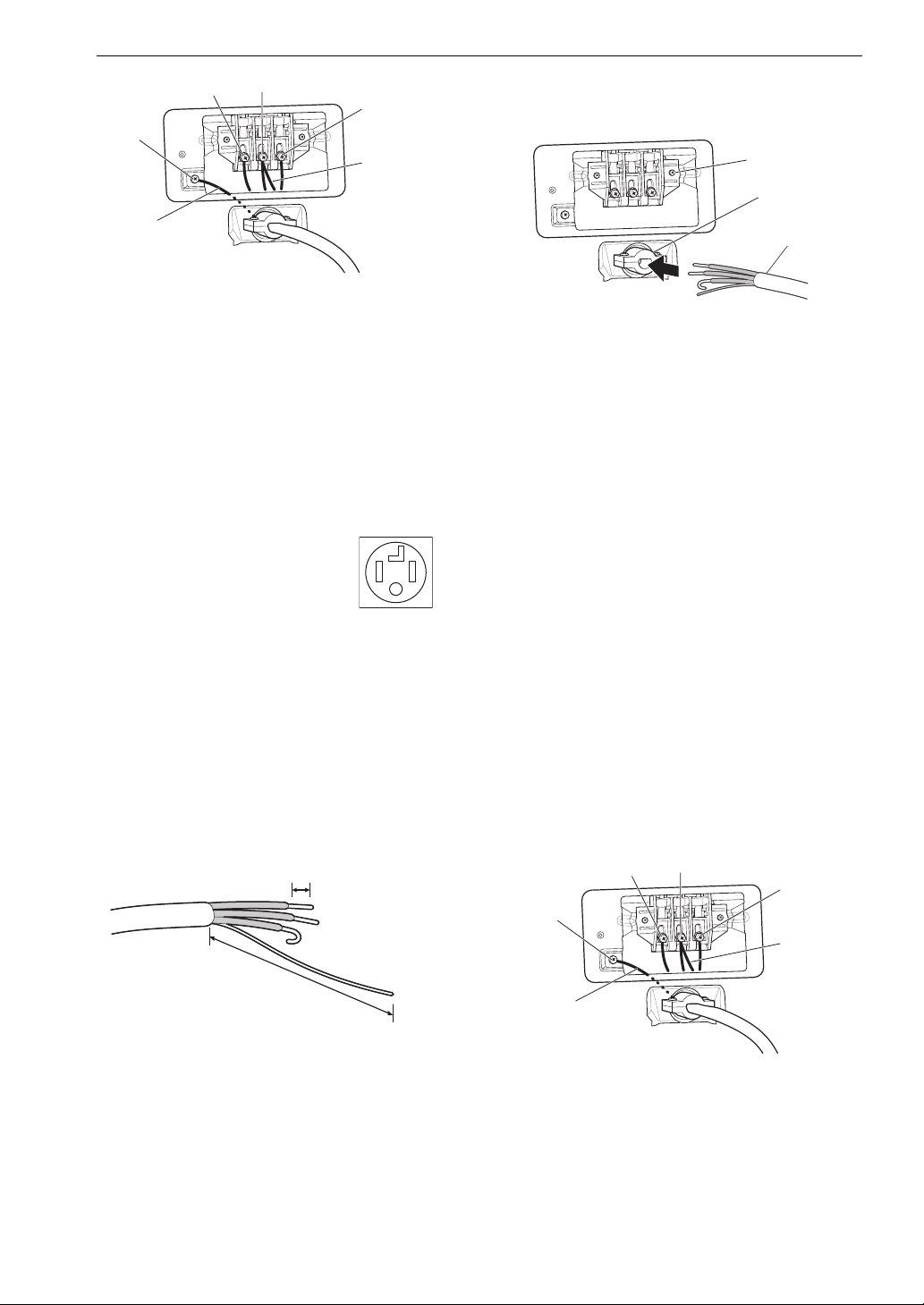

14 Connecting Electric Dryers

18 Installing the Dryer Side Vent Kit

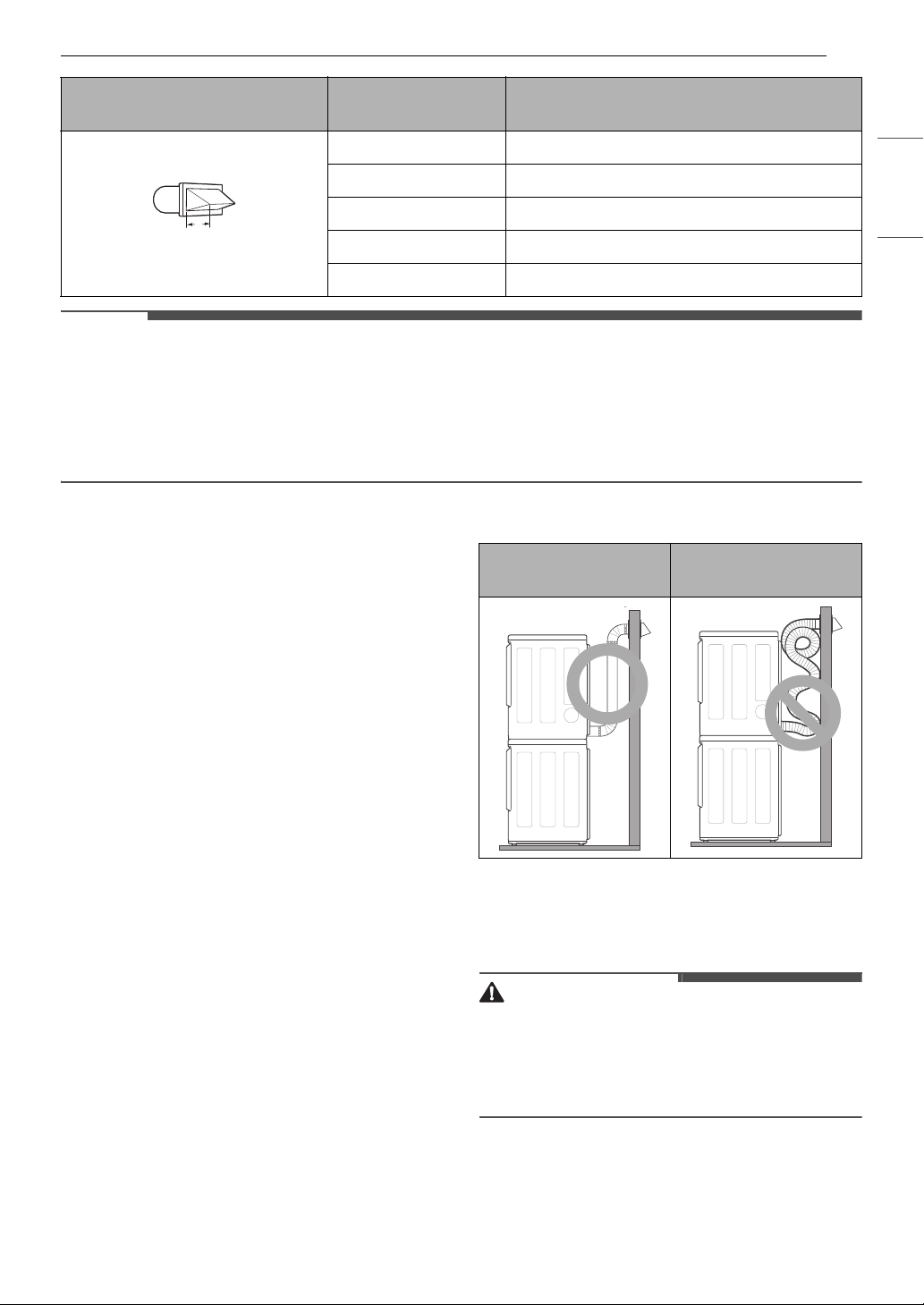

19 Venting the Dryer

20 Connecting Gas Dryers

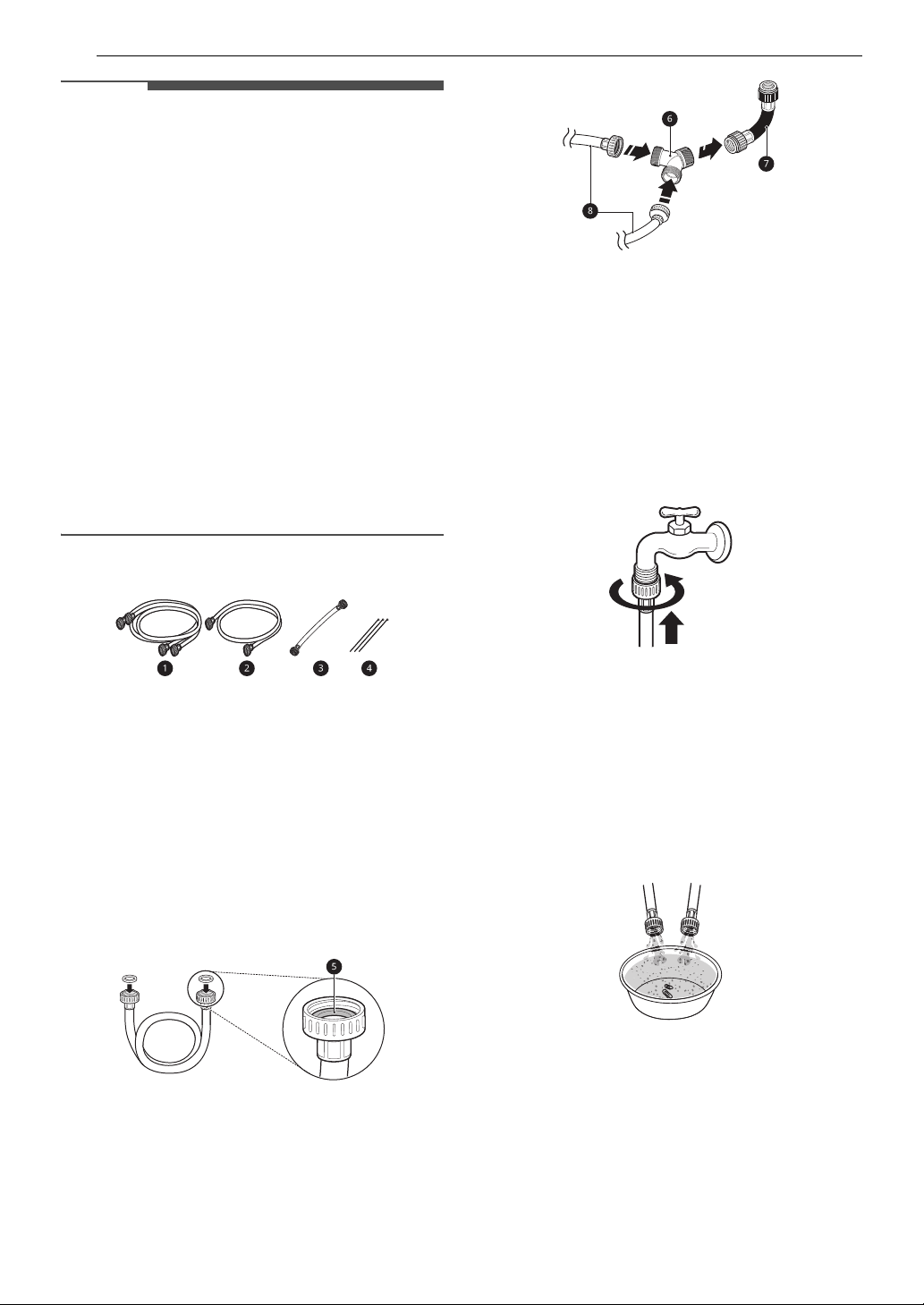

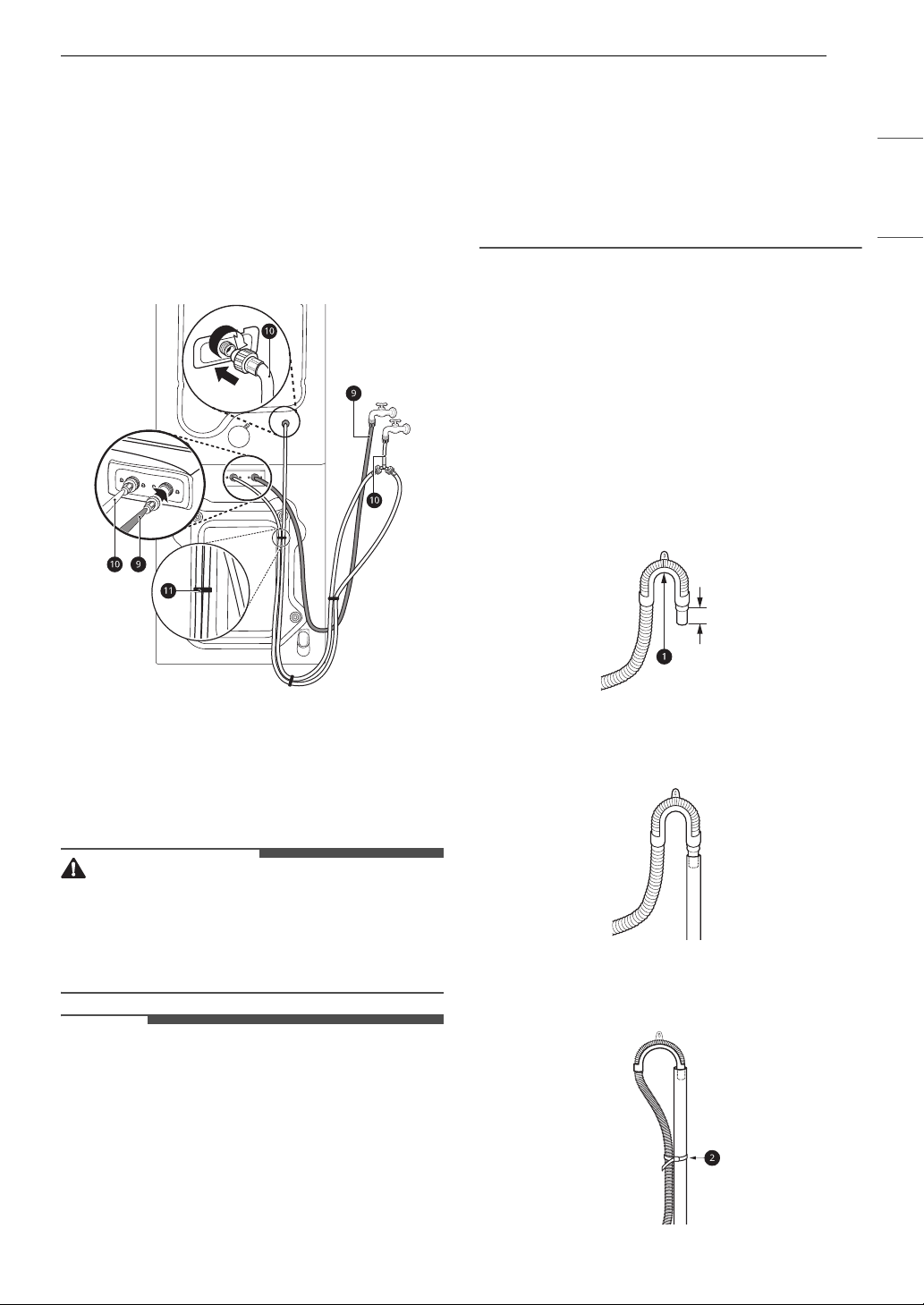

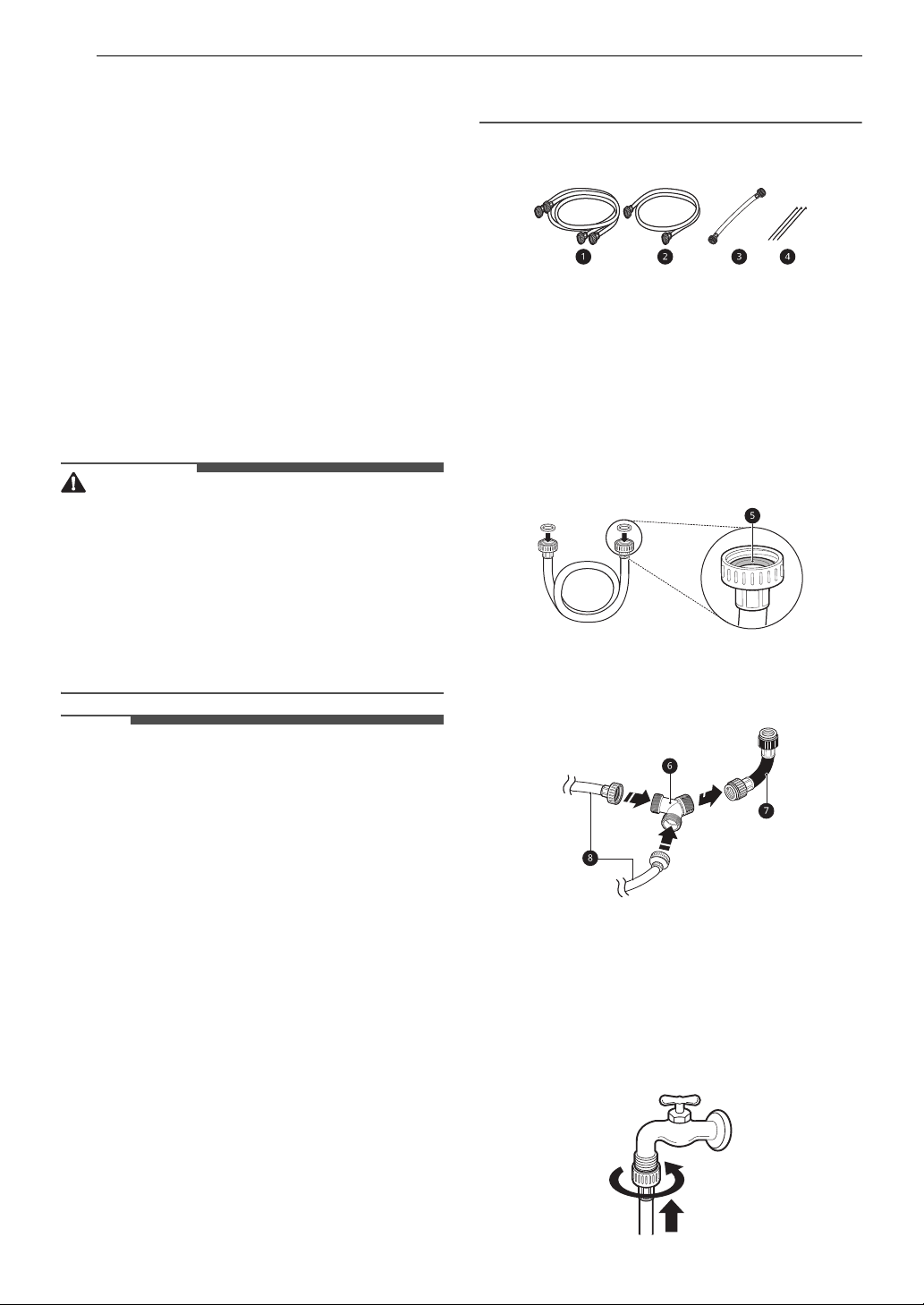

22 Connecting the Water Inlet Hoses

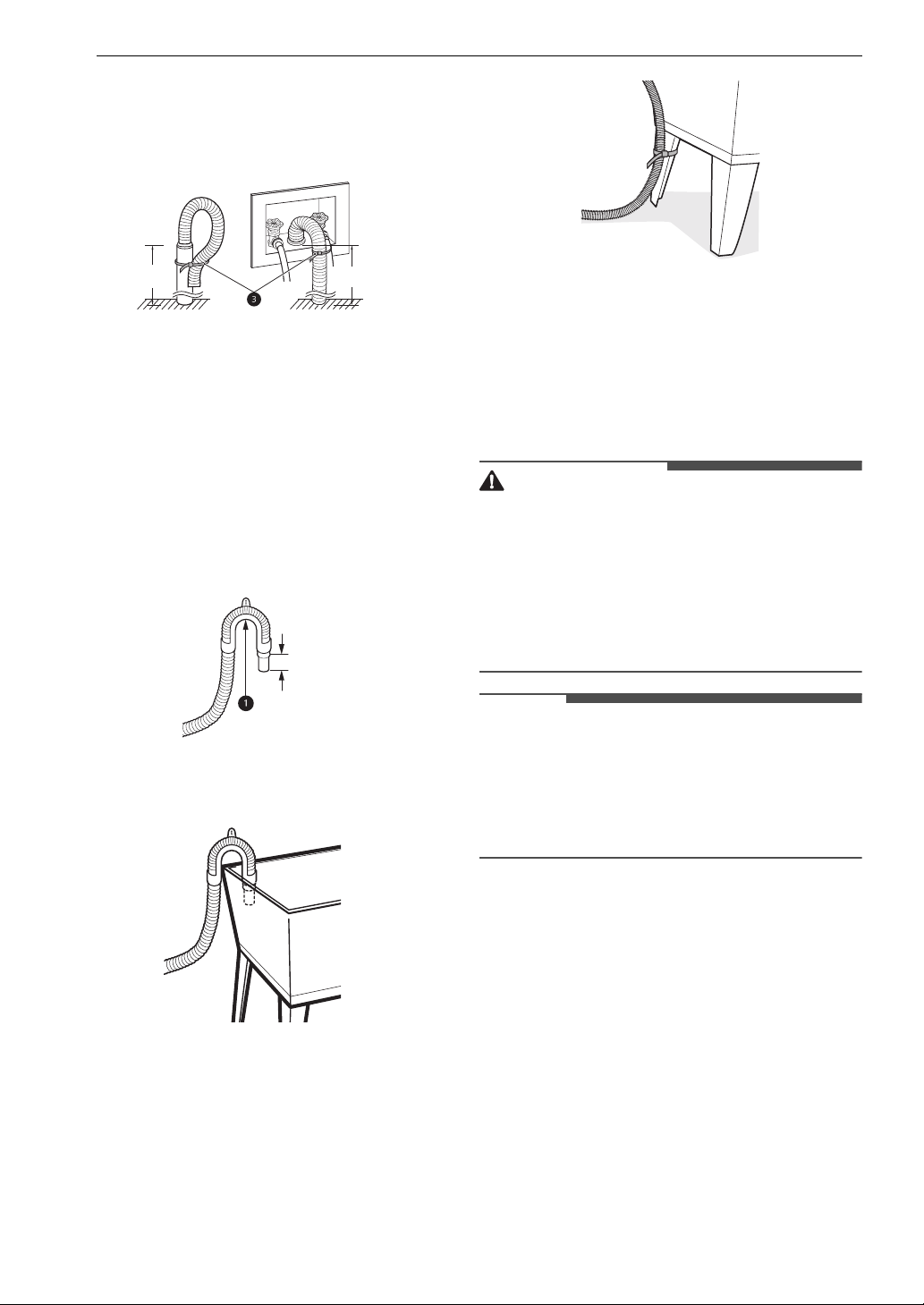

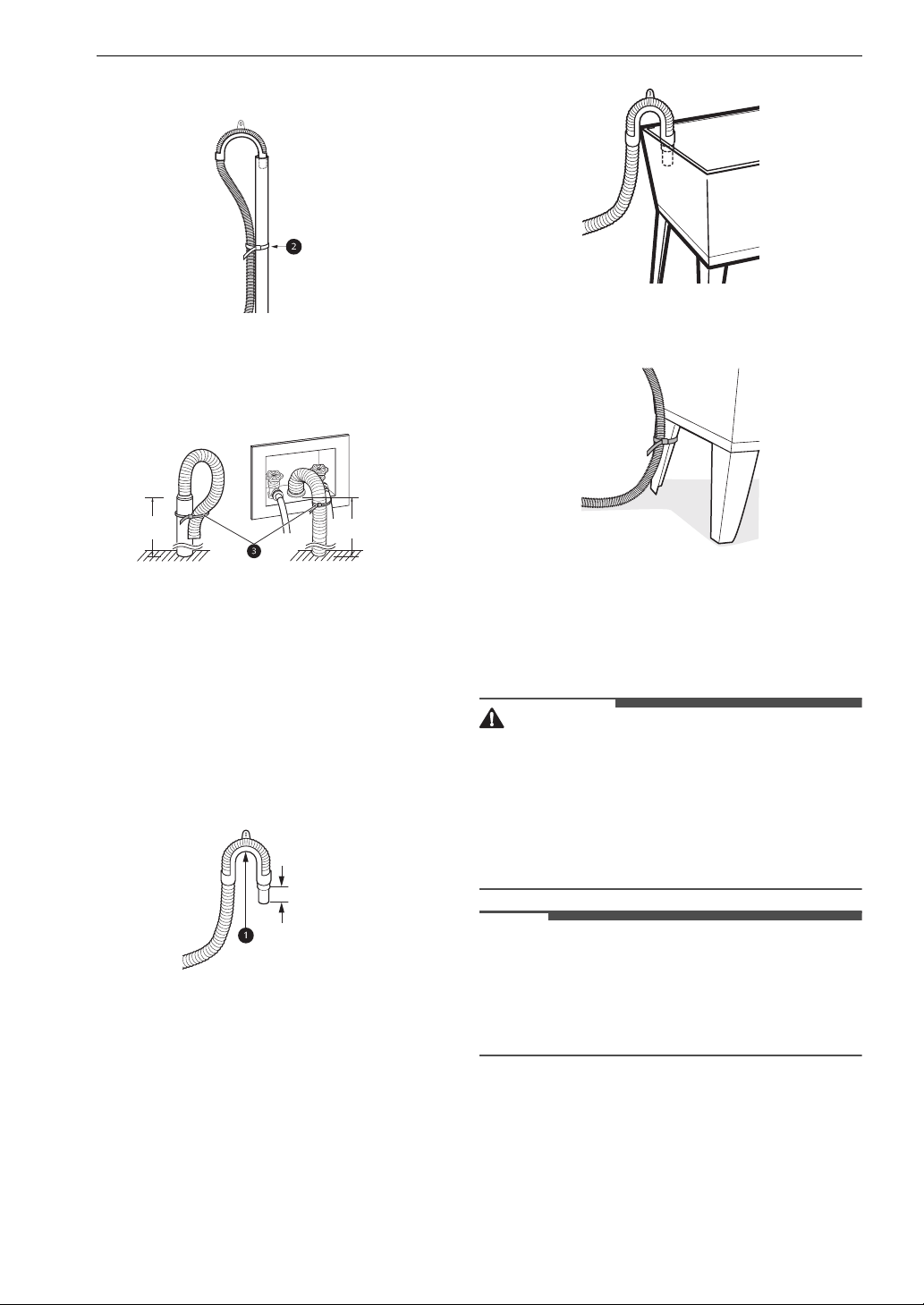

23 Connecting the Drain Hose

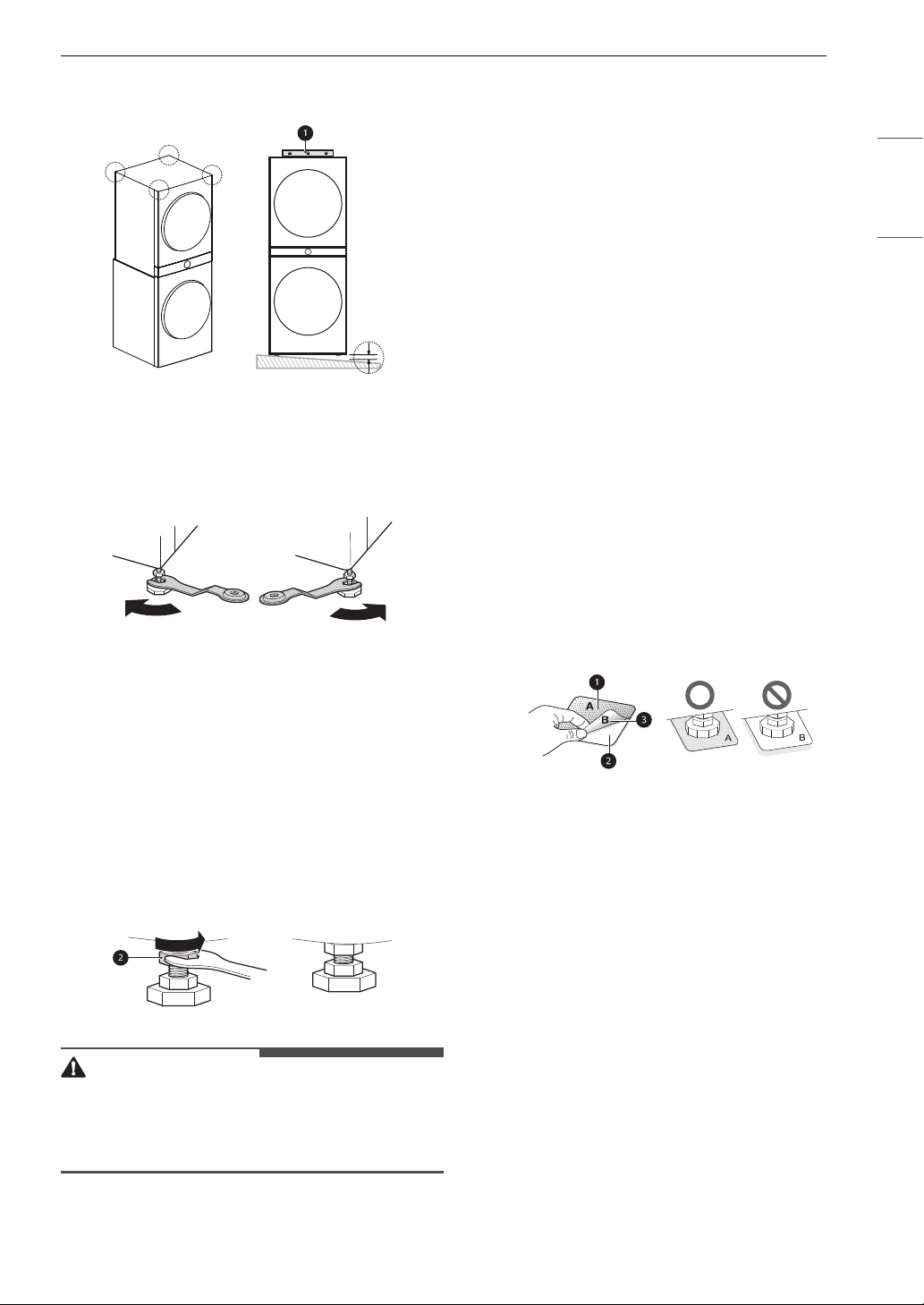

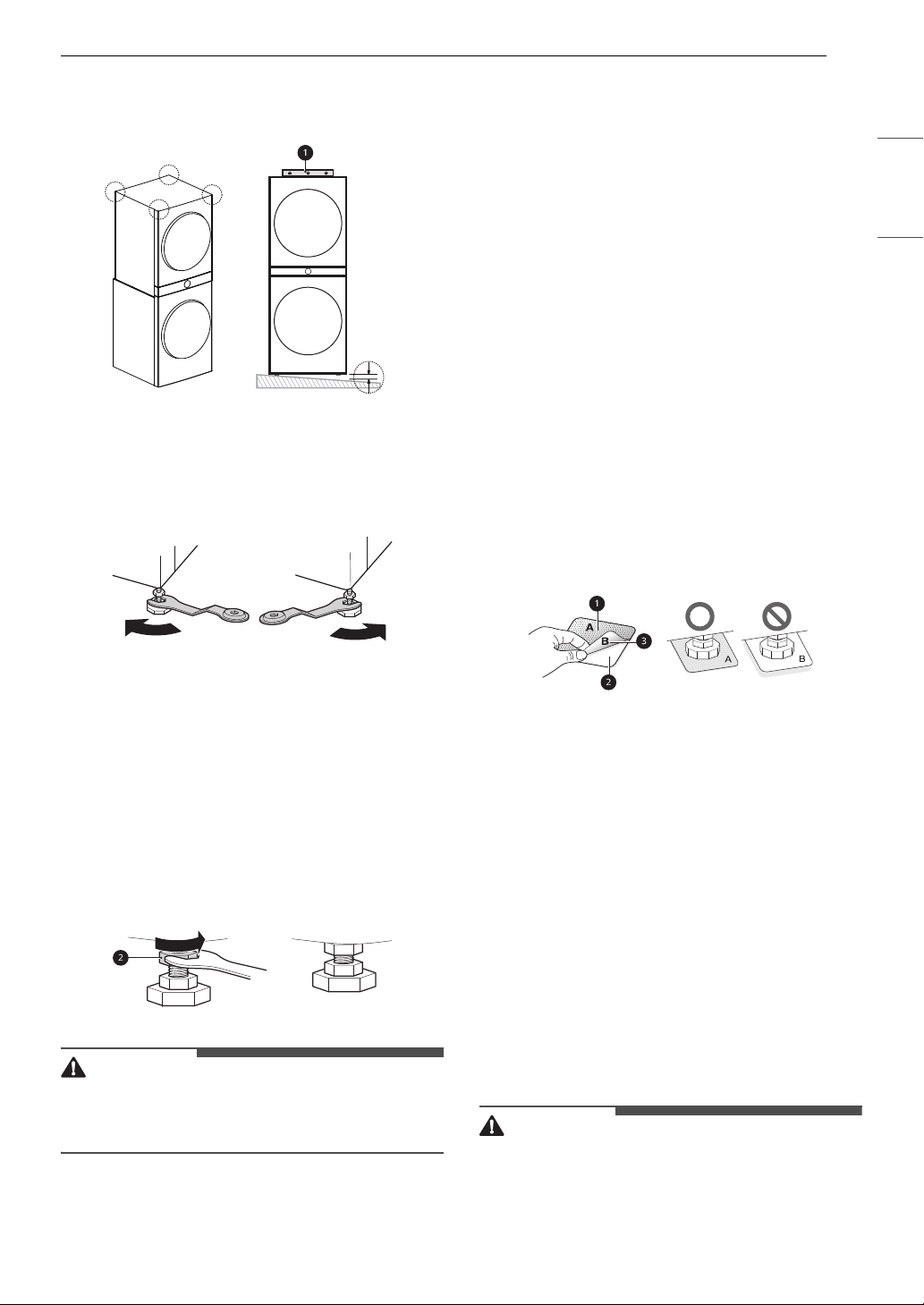

24 Leveling the Appliance

25 Final Installation Check

29 APPENDIX

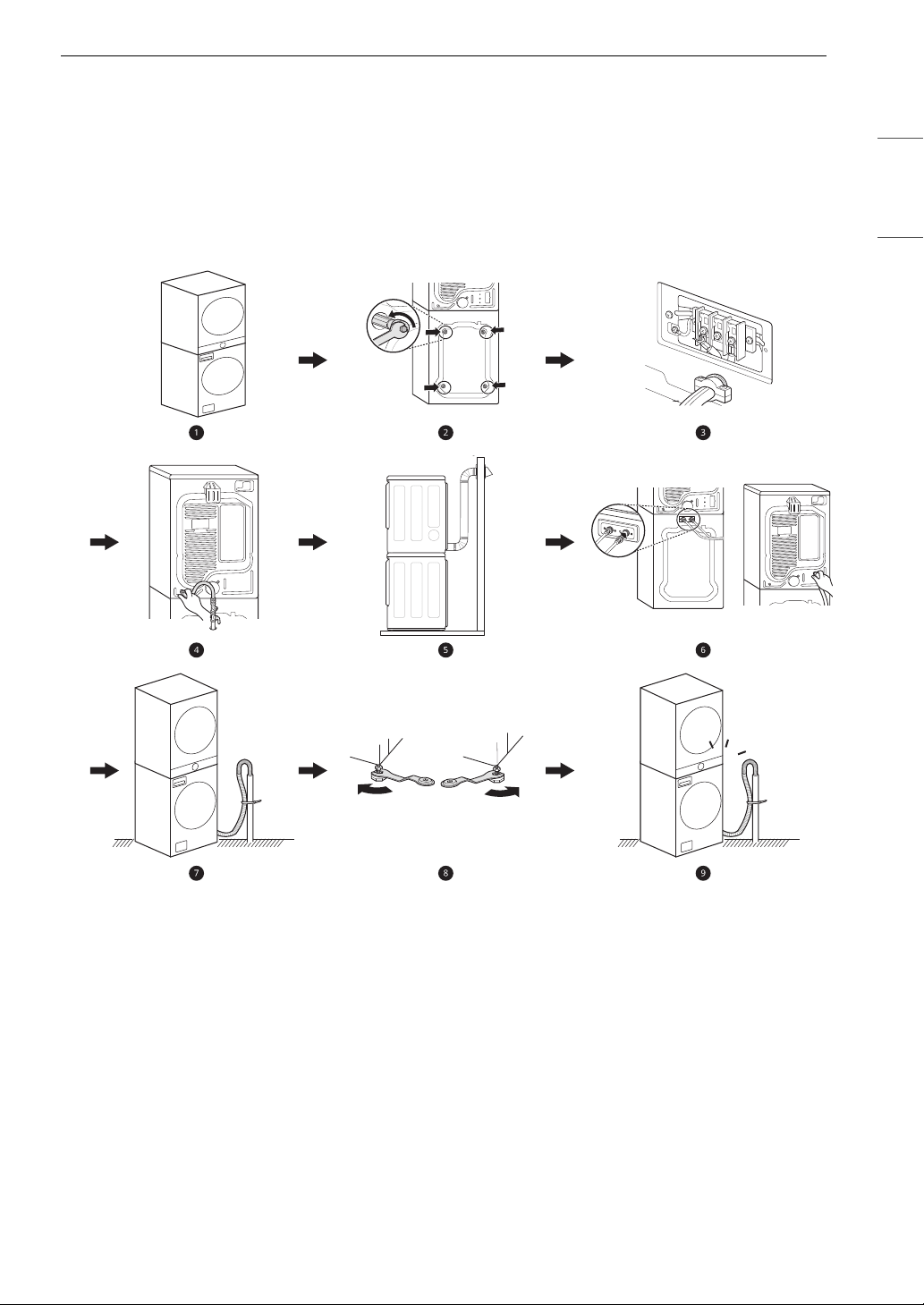

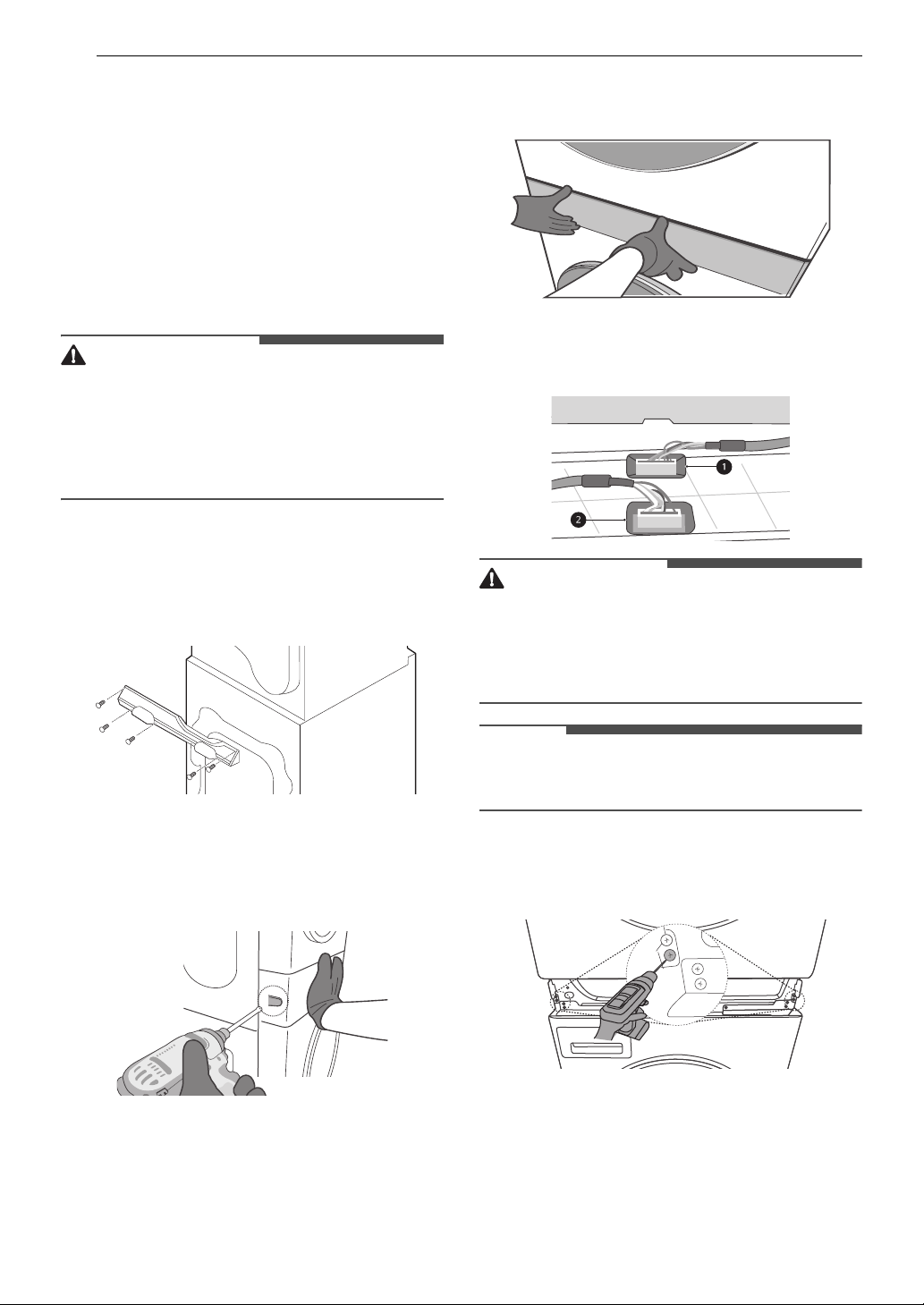

29 Disassembly

3IMPORTANT SAFETY INSTRUCTIONS

ENGLISH

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

Safety for a Dryer

WARNING

Fire Hazard

Failure to follow safety warnings exactly could result in serious injury,

death or property damage.

Do not install a booster fan in the exhaust duct.

Install all clothes dryer in accordance with the installation instructions of

the manufacturer of dryer.

WARNING:

FIRE OR EXPLOSION HAZARD

Failure to follow safety warnings exactly could result in serious injury,

death or property damage.

• Do not store or use gasoline or other flammable vapors and liquids in

the vicinity of this or any other appliance.

• WHAT TO DO IF YOU SMELL GAS

- Do not try to light any appliance.

- Do not touch any electrical switch; do not use any phone in your

building.

- Clear the room, building or area of all occupants.

- Immediately call your gas supplier from a neighbor’s phone. Follow

the gas supplier’s instructions.

- If you cannot reach your gas supplier, call the fire department.

• Installation and service must be performed by a qualified installer,

service agency or your gas supplier.

4 IMPORTANT SAFETY INSTRUCTIONS

Safety Messages

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and

follow all safety messages.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury,

and tell you what may happen if the instructions are not followed.

WARNING STATEMENTS

WARNING

• To reduce the risk of explosion, fire, death, electric shock, scalding or injury to persons when using this

product, follow basic precautions, including the following:

Installation

• Adhere to all industry recommended safety procedures including the use of long-sleeved gloves and

safety glasses.

• Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has

missing or broken parts, including a damaged cord or plug.

• Before use, the appliance must be properly installed as described in this manual.

• To reduce the risk of severe injury or death, follow all installation instructions.

WARNING - Risk of Fire

Install the clothes dryer according to the manufacturer’s instructions

and local codes.

• Clothes dryer installation must be performed by a qualified installer.

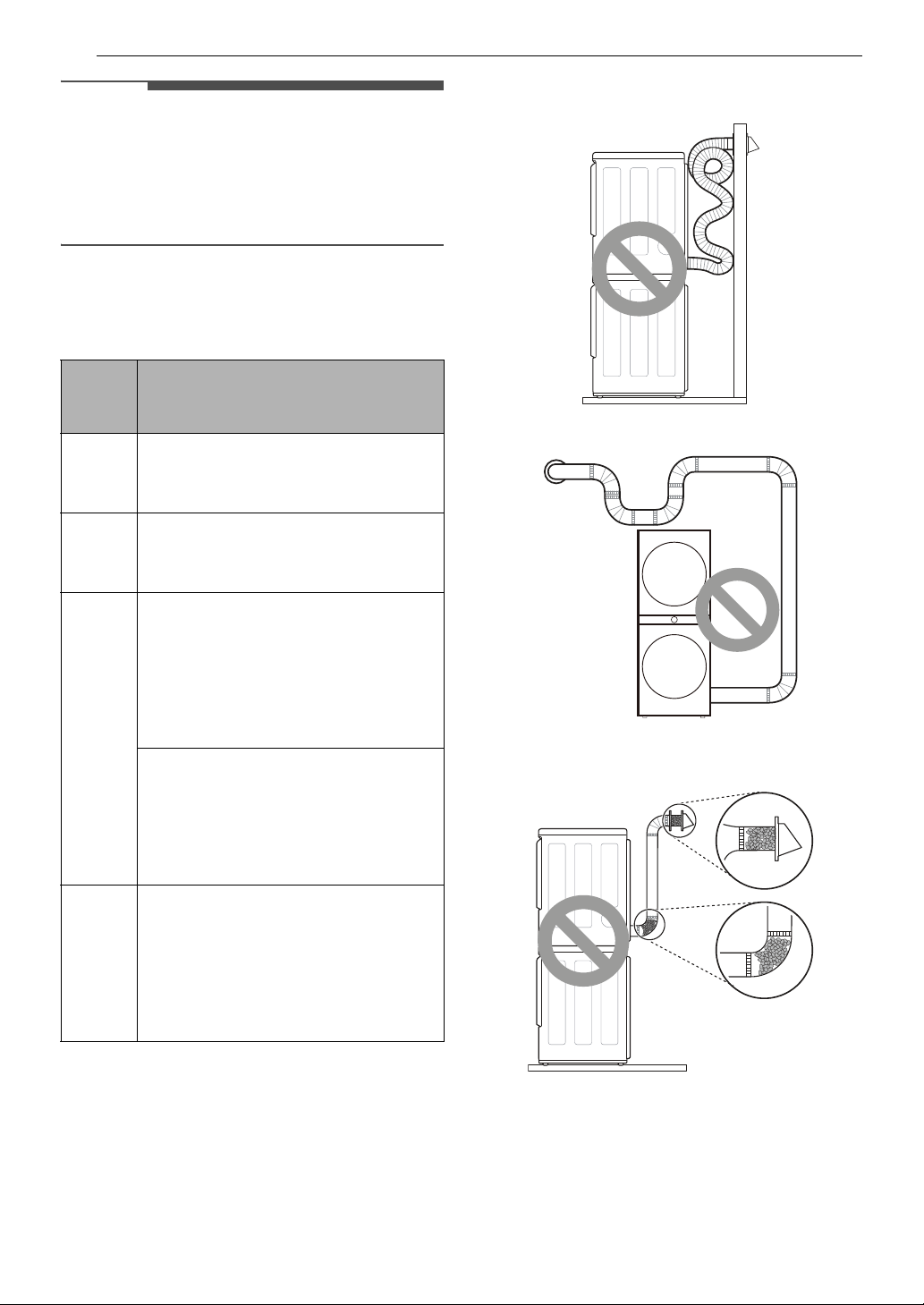

• Do not install a clothes dryer with flexible plastic venting materials. If

flexible metal (foil type) duct is installed, it must be of a specific type

identified by the appliance manufacturer as suitable for use with

clothes dryers. Flexible venting materials are known to collapse, be

easily crushed, and trap lint. These conditions will obstruct clothes

dryer airflow and increase the risk of fire.

• To reduce the risk of severe injury or death, follow all installation

instructions.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages

will follow the safety alert symbol and either the word WARNING or CAUTION.

These words mean:

WARNING

You may be killed or seriously injured if you do not follow instructions.

CAUTION

You may be injured or cause damage to the product if you do not follow instructions.

5IMPORTANT SAFETY INSTRUCTIONS

ENGLISH

• Refer to the INSTALLATION INSTRUCTIONS for detailed grounding procedures. Installation instructions

are packed with the appliance for the installer’s reference. If the appliance is moved to a new location,

have it checked and reinstalled by qualified service personnel.

• When moving or installing the product in a different location, call two or more qualified service

personnel for installation and service.

• Do not install the appliance in humid spaces.

• Store and install the appliance where it will not be exposed to temperatures below freezing or exposed

to outdoor weather conditions.

• This appliance is not designed for maritime use or for mobile installations such as in RVs, trailers, or

aircraft.

• Keep packing materials out of the reach of children. Packaging material can be dangerous for children.

There is a risk of suffocation.

• Destroy the carton, plastic bag, and other packing materials after the appliance is unpacked. Children

might use them for play. Cartons covered with rugs, bedspreads, or plastic sheets can become airtight

chambers.

• The appliance must be installed and electrically grounded by qualified service personnel in accordance

with local codes.

• When installing or moving the appliance, be careful not to pinch, crush, or damage the power cord.

• Connect to a properly rated, protected, and sized power circuit to avoid electrical overload.

• This appliance must be positioned near to an electrical power supply.

• Disconnect the power cord, house fuse or circuit breaker before installing or servicing the appliance.

• The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a

standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock from this appliance.

• Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

• Use new hoses when connecting the appliance to the water supply. Do not reuse old hoses.

• Do not install the appliance with flexible plastic venting materials. If flexible metal (foil type) duct is

installed, it must be of a specific type identified by the appliance manufacturer as suitable for use with

the dryer section of the appliance. Flexible venting materials are known to collapse, be easily crushed,

and trap lint. These conditions will obstruct the dryer section's airflow and increase the risk of fire.

• Local ordinances may prohibit installation in a garage. Contact a local building inspector.

• Do not use sheet metal screws or other fasteners which extend into the duct that could catch lint and

reduce the efficiency of the exhaust system. Secure all joints with duct tape.

• Use only rigid, semi-rigid or flexible metal 4-inch diameter duct inside the appliance cabinet or for

exhausting to the outside. Use of plastic or other combustible ductwork may cause a fire. Punctured

ductwork may cause a fire if it collapses or becomes otherwise restricted in use or during installation.

• All nonrigid metal transition duct must be UL-listed. Use of other materials for transition duct could

affect drying time.

• Ductwork is not provided with the appliance, and you should obtain the necessary ductwork locally. The

end cap should have hinged dampers to prevent backdraft when the dryer is not in use.

• Gas dryers MUST be exhausted to the outside.

• The dryer exhaust system must be exhausted to the outside of the dwelling. If the dryer is not exhausted

outdoors, some fine lint and large amounts of moisture will be expelled into the laundry area. An

accumulation of lint in any area of the home may create a health and fire hazard.

• Do not install near another heat source such as a stove, oven or heater.

• Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of

lint, dust, and dirt.

• The appliance must not be supplied through an external switching device, such as a timer, or connected

to a circuit that is regularly switched on and off by a utility.

• Do not install a booster fan in the exhaust duct.

• This is a single appliance and a single unit for sale, delivery and installation.

6 IMPORTANT SAFETY INSTRUCTIONS

• Do not disassemble this appliance as it can’t be installed in a side-by-side configuration.

Grounding Instructions

• Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check

with a qualified electrician or service personnel if you are in doubt whether the appliance is properly

grounded. Do not modify the plug provided with the appliance; if it will not fit the outlet, have a proper

outlet installed by a qualified electrician.

• The appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the

risk of electric shock by providing a path of least resistance for electric current. The appliance is

equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must

be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes

and ordinances.

Operation

• Read all instructions before using the appliance and save these instructions.

• Use this appliance only for its intended purpose.

• If the product has been submerged in water, sitting in standing water, or waterlogged, do not come in

contact with the product and immediately contact an LG Electronics Customer Information Center for

instructions before resuming use.

• If you detect a strange sound, a chemical or burning smell, or smoke coming from the appliance, unplug

it immediately, and contact an LG Electronics Customer Information Center.

• Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used

for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for

such a period, before using the appliance, turn on all hot water faucets and let the water flow from each

for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not

smoke or use an open flame during this time.

• Do not reach into the appliance if the tub or drum, agitator, or any interior parts are moving. Before

loading, unloading, or adding items, press Start/Pause and allow the tub or drum to coast to a complete

stop before reaching inside.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge, unless they have been given supervision or

instruction concerning the use of the appliance by a person responsible for their safety.

• Do not allow children or pets to play on, in or with the appliance. Close supervision is necessary when the

appliance is used near children or pets.

• Keep laundry products out of children’s reach. To prevent injury to persons, observe all warnings on

product labels.

• Repair or immediately replace all power cords that have become frayed or otherwise damaged. Do not

use a cord that shows cracks or abrasion damage along its length or at either end.

• Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull straight

out from the outlet.

• Do not use an extension cord or adapter with this appliance.

• Do not grasp the power cord or touch the appliance controls with wet hands.

• Do not modify or extend the power cord.

• If the electrical supply cord is damaged, it must only be replaced by the manufacturer or its service agent

or a similar qualified person in order to avoid a hazard.

• Do not put oily or greasy clothing, candles or flammable materials on top of the appliance.

• Keep the area underneath and around your appliances free of combustible materials (lint, paper, rags,

etc.), gasoline, chemicals and other flammable vapors and liquids.

7IMPORTANT SAFETY INSTRUCTIONS

ENGLISH

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other

appliance.

• Do not mix chlorine bleach with ammonia or acids such as vinegar. Follow package directions when

using laundry products. Incorrect usage can produce poisonous gas, resulting in serious injury or death.

• Never use harsh chemicals, abrasive cleaners, or solvents to clean the appliance. They will damage the

finish.

• Do not wash or dry articles that have been previously cleaned in, washed in, soaked in, or spotted with

gasoline, dry-cleaning solvents, vegetable or cooking oil, or other flammable or explosive substances, as

they give off vapors that could ignite or explode.

• Do not dry unwashed items in the appliance.

• Remove all objects from pockets such as lighters and matches.

• Do not add gasoline, dry cleaning solvents, or other flammable or explosive substances to the wash

water. These substances give off vapors that could ignite or explode.

• In the event of a gas leak (propane gas, LP gas, etc.), do not operate this or any other appliance. Open a

window or door to ventilate the area immediately.

• Do not tamper with controls.

• Fix the drain hose securely in place to avoid flooding.

• Do not abuse, sit on, or stand on the door of the appliance.

• Always check the inside of the appliance for foreign objects.

• Do not allow water, bleach or other liquids to sit in the drum for extended periods. Doing so can corrode

the drum or cause mildew or odors.

• Do not use the appliance to dry articles containing foam rubber or similarly textured rubber-like

materials.

• Gas appliances can cause minor exposure to four potentially hazardous substances, namely benzene,

carbon monoxide, formaldehyde, and soot, caused primarily by the incomplete combustion of natural

gas or LP fuels.

• Properly adjusted appliances will minimize incomplete combustion. Exposure to these substances can be

minimized further by properly venting the dryer to the outdoors.

• Do not place items exposed to cooking oils in your appliance. Items contaminated with cooking oils may

contribute to a chemical reaction that could cause a load to catch fire. To reduce the risk of fire due to

contaminated loads, the final part of a tumble dryer cycle occurs without heat (cool down period). Avoid

stopping tumble drying before the end of the drying cycle unless all items are quickly removed and

spread out so that the heat is dissipated.

• Do not put any part of your body, such as your hands or feet, or metal objects under the appliance.

• Do not let your hand get pinched when opening or closing the appliance door.

• Do not open the appliance door during a STEAM CYCLE.

• Do not touch the steam nozzle in the drum during or after a STEAM CYCLE.

• On models with a steam feeder drawer, do not fill the steam feeder with hot water (over 86 ℉ / 30 ℃),

gasoline, dry cleaning solvents, or other flammable or explosive substances.

Maintenance

• Do not repair or replace any part of the appliance. All repairs and servicing must be performed by

qualified service personnel unless specifically recommended in this owner’s manual. Use only authorized

factory parts.

• Disconnect this appliance from the power supply before cleaning and attempting any user maintenance.

Turning the controls to the OFF position does not disconnect this appliance from the power supply.

• Remove any dust or foreign matter from the power plug pins.

• Do not disassemble or repair the appliance by yourself.

8 IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

• Remove the door(s) before the appliance is removed from service or discarded to avoid the danger of

children or small animals getting trapped inside.

• Make sure the dispenser drawer or lid is closed at all times when not being filled with laundry products.

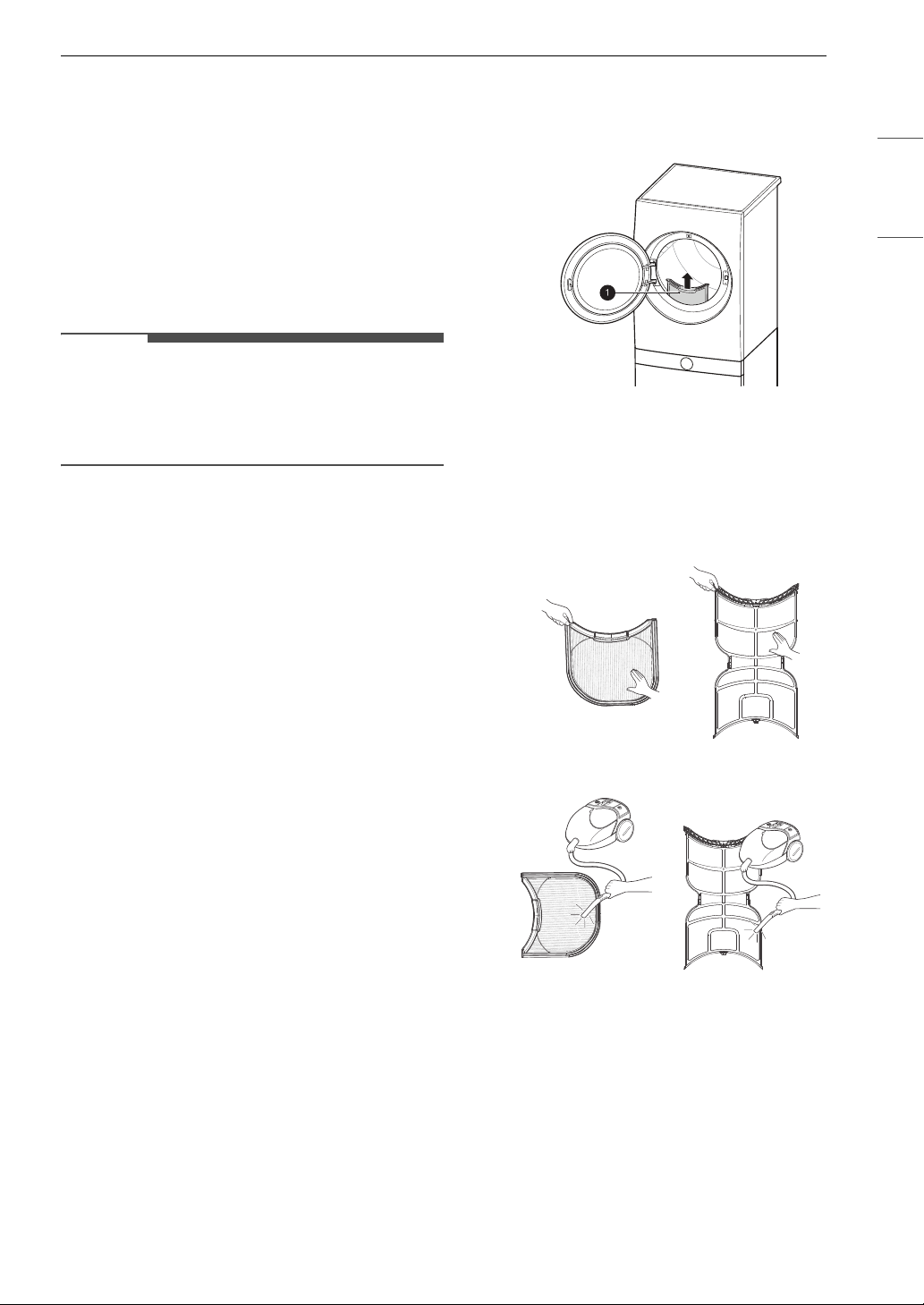

• Clean the lint filter of the dryer before or after each load.

• The interior of the appliance and exhaust duct should be cleaned periodically by qualified service

personnel.

CAUTION STATEMENTS

CAUTION

• To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or

property when using this product, follow basic precautions, including the following:

Installation

• Install the product on a firm and level floor.

Operation

• Turn off the water faucets and unplug the appliance if the appliance is to be left for an extended period

of time, such as during vacations.

• ALWAYS follow the fabric care instructions supplied by the garment manufacturer.

• Use fabric softeners or products to eliminate static only as recommended by the manufacturer.

• Do not combine laundry products for use in one load unless specified on the label.

• Do not touch draining water which may be hot.

• If the drain hose and the water inlet hose are frozen in winter, defrost them before using the appliance.

• Do not store or spill liquid detergents, cleaners, or bleaches (chlorine bleach, oxygen bleach) on the

appliance. Doing so may result in corrosion, discoloration or damage to the surface of the appliance.

• Clothing or articles that are waterproof or water resistant must be washed in the Waterproof cycle only.

(Examples include water resistant clothing, mattress covers, outdoor clothes, plastic mats.) Using

another cycle may result in personal injury or damage to the washer, clothes, walls, floor, and

surrounding objects due to abnormal vibration.

9PRODUCT OVERVIEW

ENGLISH

PRODUCT OVERVIEW

Product Features

The images in this guide may be different from the actual components and accessories, which are subject

to change by the manufacturer without prior notice for product improvement purposes.

Front View

a Control Panel

b Lint Filter

c Dryer Drum

d Dryer Door

e Dryer Door Magnet

f Detergent Dispenser Drawer

g Washer Door

h Washer Drum

i Washer Door Magnet

j Drain Hose

k Drain Pump Filter

l Drain Pump Filter Cover

m Leveling Feet

Rear View

a Power Cord (for Gas Models)

b Terminal Block Access Panel (for Electric

Models)

c Cold Water Inlet

d Exhaust Duct Outlet

e Gas connection (for Gas Models)

f Hot and Cold Water Inlets

g Shipping Bolts

h Drain Hose

i Power Cord (for Washer)

10 PRODUCT OVERVIEW

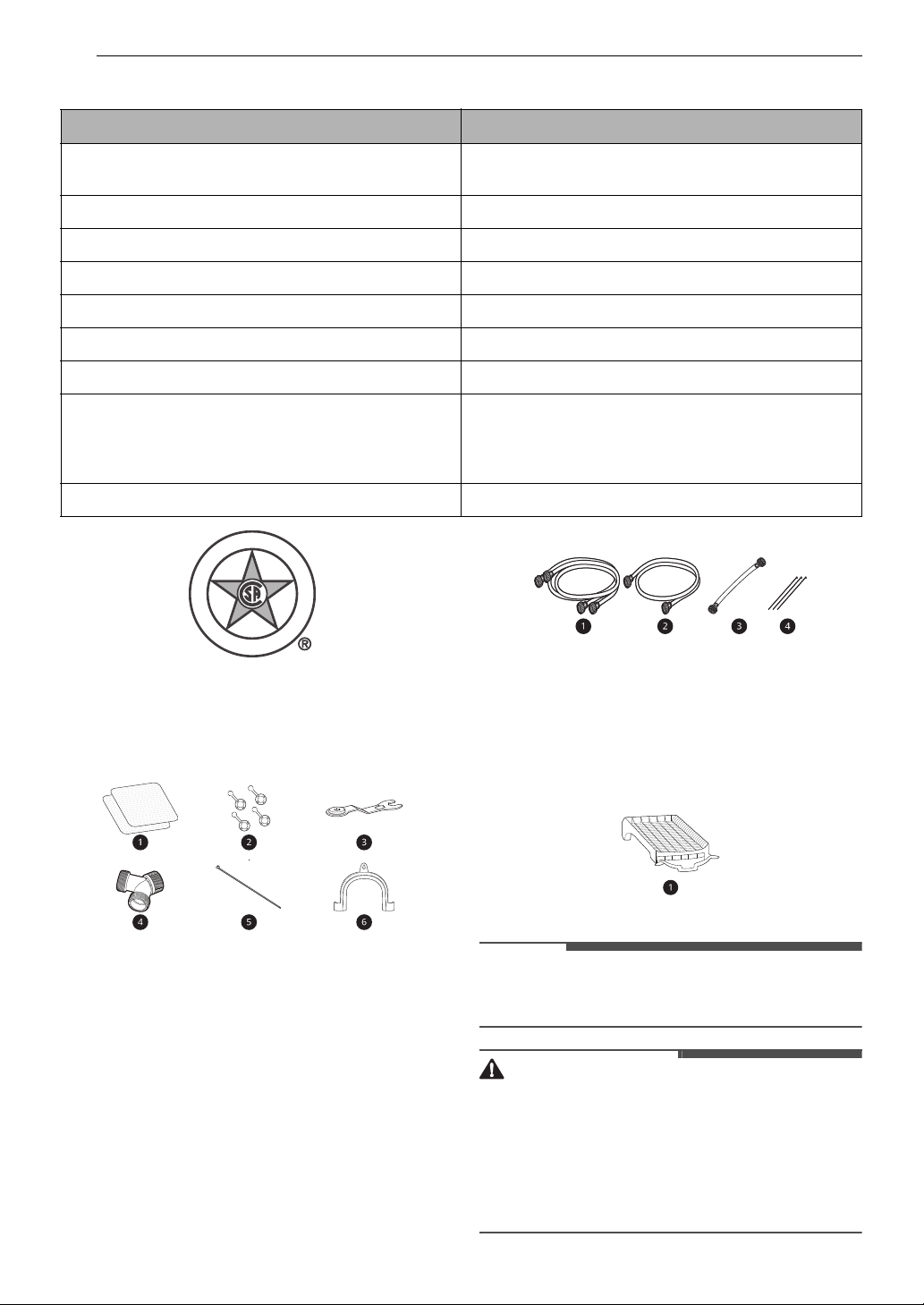

Product Specifications

Accessories

Included Accessories

a Non-skid Pads

b Hole Caps

c Wrench

d Y Connector

e Tie Strap

f Elbow Bracket (for securing drain hose)

Required Accessories

a Hot and Cold Water Hoses (for Washer)

b Cold Water Hose (for Dryer)

c Connecting Supply Hose

d Tie Straps

Optional Accessories

a Drying Rack

NOTE

• Depending on the model, the rack may be an

included accessory.

WARNING

• For your safety and for extended product life,

use only authorized components. The

manufacturer is not responsible for product

malfunction, property damage or bodily injury

caused by the use of separately purchased

unauthorized components, parts, or non-LG

products.

Model WKEX200H*A / WKGX201H*A

Electrical Requirements

Please refer to the rating label for detailed

information.

Min. / Max. Water Pressure 20 - 120 psi (138 - 827 kPa)

Dimensions (Width X Height X Depth) 27'' X 74 3/8'' X 30 3/8'' (70 cm X 189 cm X 77 cm)

Maximum Depth with Door Open 55'' (139.6 cm)

Net Weight 320 lb (145 kg)

Capacity (Washer/Dryer) 4.5 cu.ft. / 7.4 cu.ft.

Max. Spin Speed (Washer) 1300 RPM

Gas Requirements

NG: 4 - 10.5-inch (10.2 - 26.7 cm) WC

LP: 8 - 13-inch (20.4 - 33.1 cm) WC

Operating Temperature Range 41-95 ℉ (5-35 ℃)

11INSTALLATION

ENGLISH

INSTALLATION

Before Installing

Installation Overview

Please read the following installation instructions first after purchasing this appliance or transporting it to

another location.

a Choosing the Proper Location

b Unpacking and Removing Shipping Material

c Connecting the Electric Dryer

d Connecting the Gas Dryer

e Venting the Dryer

f Connecting the Inlet Hoses

g Connecting the Drain Hose

h Leveling the Appliance

i Final Installation Check

12 INSTALLATION

WARNING

• Read all installation instructions completely before installing and operating the appliance. It is important

that you review this entire manual before installing and using the appliance. Detailed instructions

concerning electrical connections and additional requirements are provided on the following pages.

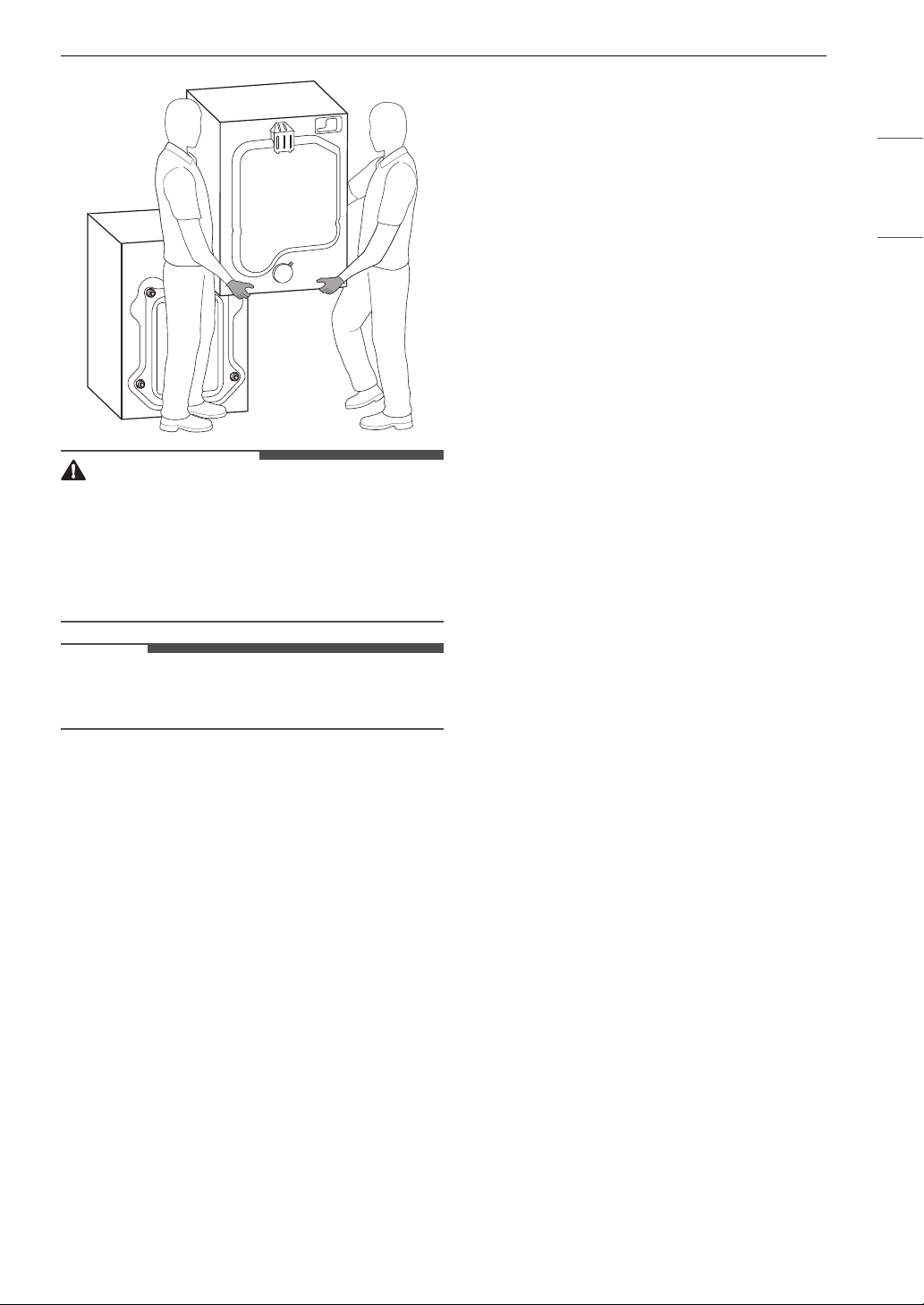

• Moving or installation of the appliance requires two or more people. Failure to follow these instructions

may result in injury.

• Store and install the appliance where it will not be exposed to temperatures below freezing or exposed

to outdoor weather conditions. Failure to follow this warning can cause product or part failure, serious

injury, fire, electric shock, or death.

• Properly ground the appliance to conform with all governing codes and ordinances. Failure to follow this

warning can cause serious injury, fire, electric shock, or death.

• To ensure proper airflow, do not block the large opening on the bottom of the appliance with carpeting

or other materials.

• Do not remove the ground prong from the power cord. Do not use an adapter or extension cord. Plug

into a grounded 3-prong outlet. Failure to follow this warning can cause serious injury, fire, electric

shock, or death.

• Certain internal parts are intentionally not grounded and may present a risk of electric shock only during

servicing. Service personnel- Do not contact the following parts while the appliance is energized: pump,

valve, motor, control board.

Choosing the Proper

Location

Check the following requirements for the install

location before installing the appliance.

• Allow for sufficient space between the walls and

the appliance for installation.

• Make sure that the floor is clean, dry and free of

dust, dirt, water and oil so the leveling feet

cannot slide easily. Leveling feet that can move

or slide on the floor can contribute to excess

vibration and noise.

• If the floor has too much flex, reinforce it to

make it more rigid. If the floor is not solid, it may

cause severe vibration and noise.

• If a drain pan must be used, take extra care to

follow the instructions provided with the drain

pan and make sure the leveling feet are adjusted

for firm and even contact with the pan. Use of

drain pans and failure to properly level the

appliance may result in increased vibration and

noise during operation.

Flooring

• To minimize noise and vibration, install the

washer on a level, solidly constructed floor

capable of supporting the appliance without

flexing or bouncing.

• The appliance must be installed on firm flooring

to minimize vibration during the spin cycle.

Concrete flooring is best, but a wood floor is

sufficient, provided it is built to FHA standards.

• The floor under the appliance must not slope

more than 1 inch (2.5 cm) from front to back or

side to side.

• Installing on carpeting and soft tile surfaces is

not recommended.

• Never install the appliance on a platform or

weakly supported structure.

Floor Installation

To ensure sufficient clearance for water inlet

hoses, drain hose and airflow, allow minimum

clearances of at least 1'' (2.5 cm) at the sides and

4'' (10 cm) behind the appliance. Be sure to allow

for wall, door, or floor moldings that may increase

the required clearances.

13INSTALLATION

ENGLISH

Exhaust

• A location that allows for proper exhaust

installation. A gas dryer must be exhausted to

the outdoors.

Power Outlet

• The power outlet must be within 60 inches (1.5

m) of either side of the appliance.

• Position the appliance so that the outlet and

plug are easily accessible.

• Do not overload the outlet with more than one

appliance.

• The outlet must be grounded in accordance with

current electrical wiring codes and regulations.

• Use a time-delay fuse or circuit breaker.

• It is the personal responsibility and obligation of

the appliance owner to have a proper outlet

installed by a qualified electrician.

NOTE

• Check code requirements that limit, or do not

permit, installation of the appliance in garages,

mobile homes or sleeping quarters. Contact

your local building inspector.

Clearances

The following clearances are recommended for

the appliance.

• Additional clearances should be considered for

ease of installation and servicing.

• Additional clearances should be considered on

all sides of the appliance to reduce noise

transfer.

Installation spacing for Recessed Area

or Closet Installation

Closet Ventilation Requirements

Closets with doors must have both an upper and

lower vent to prevent heat and moisture buildup in

the closet. One upper vent opening with a

minimum opening of 48 sq. in. (310 cm

) must be

installed no lower than 6 feet above the floor. One

lower vent opening with a minimum opening of 24

sq. in. (155 cm

) must be installed no more than

one foot above the floor. Install vent grills in the

door or cut down the door at the top and bottom

to form openings. Louvered doors with equivalent

ventilation openings are also acceptable.

NOTE

• There should be at least a little space around the

appliance (or any other appliance) to eliminate

the transfer of vibration from one appliance to

another. If there is enough vibration, it could

cause appliances to make noise or come into

contact, causing paint damage and further

increasing noise.

• No other fuel-burning appliance can be installed

in the same closet as an appliance.

Dimensions and Clearances

A 55'' (139.6 cm)

B 30 3/8'' (77 cm)

C 4'' (10 cm)

D1'' (2.5 cm)

E 27'' (70 cm)

F 74 3/8'' (189 cm)

G 4'' (10 cm)

Description Dimension/Clearance

A: Upper Ventilation

Opening

48 sq. in. (310 cm

)

B: Lower Ventilation

Opening

24 sq. in. (155 cm

)

C: Distance to

Ventilation Opening

3″ (76 mm)

D: Front Clearance 4″ (100 mm)

14 INSTALLATION

Unpacking and Removing

Shipping Material

Unpacking Shipping Material

* This feature is only available on some models.

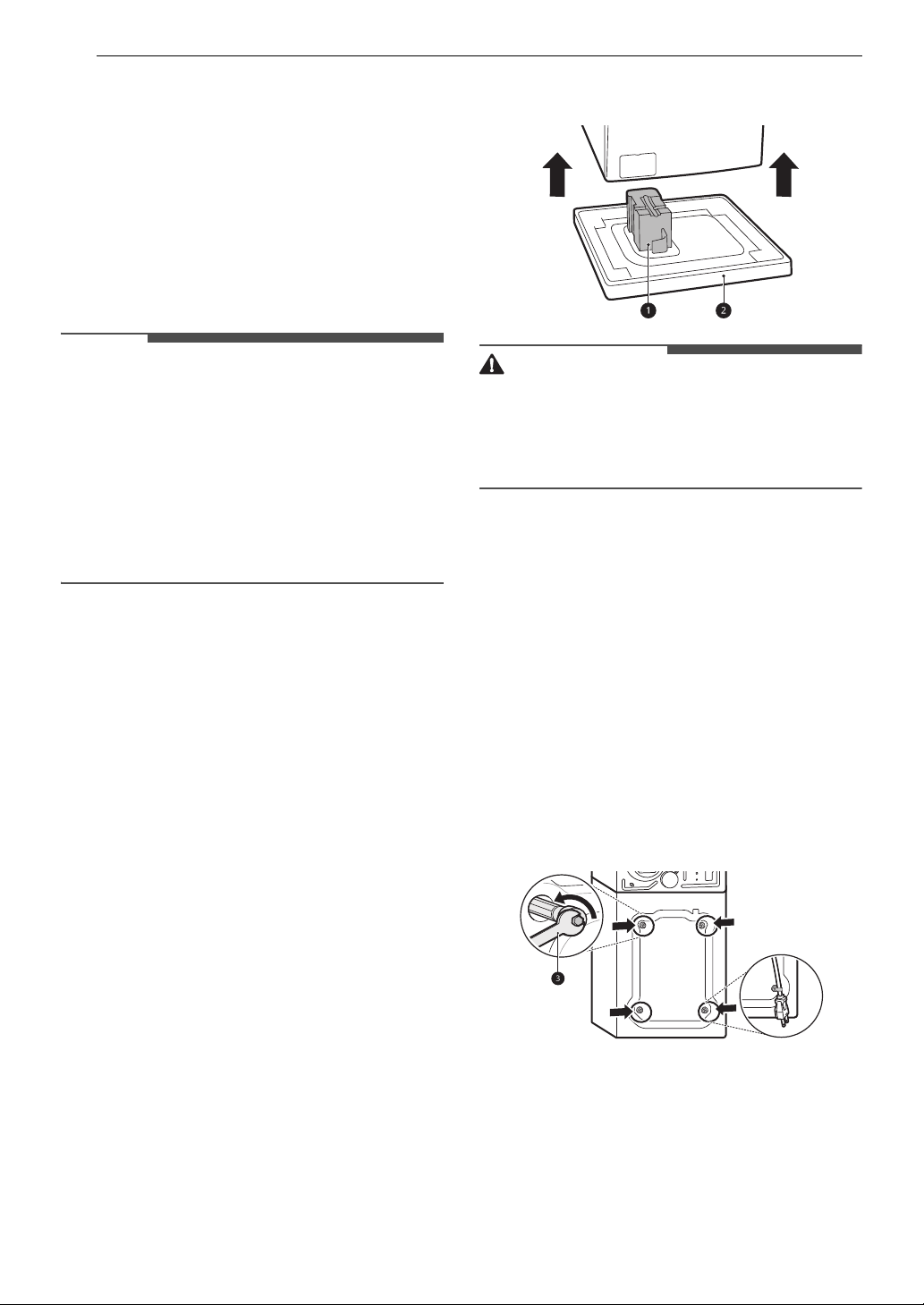

Lifting the Appliance off the Foam

Base

• After removing the carton and shipping

material, lift the appliance off the foam base.

• Make sure the plastic drum support

a* comes

off with the base and is not stuck to the bottom

of the appliance.

• If you must lay the appliance down to remove

the carton base b, always protect the side of the

appliance and lay it carefully on its side. Do not

lay the appliance on its front or back.

CAUTION

• Remove all shipping materials from the

appliance for proper operation and inspect it for

shipping damage. Failure to remove shipping

materials can cause excessive noise and

vibration.

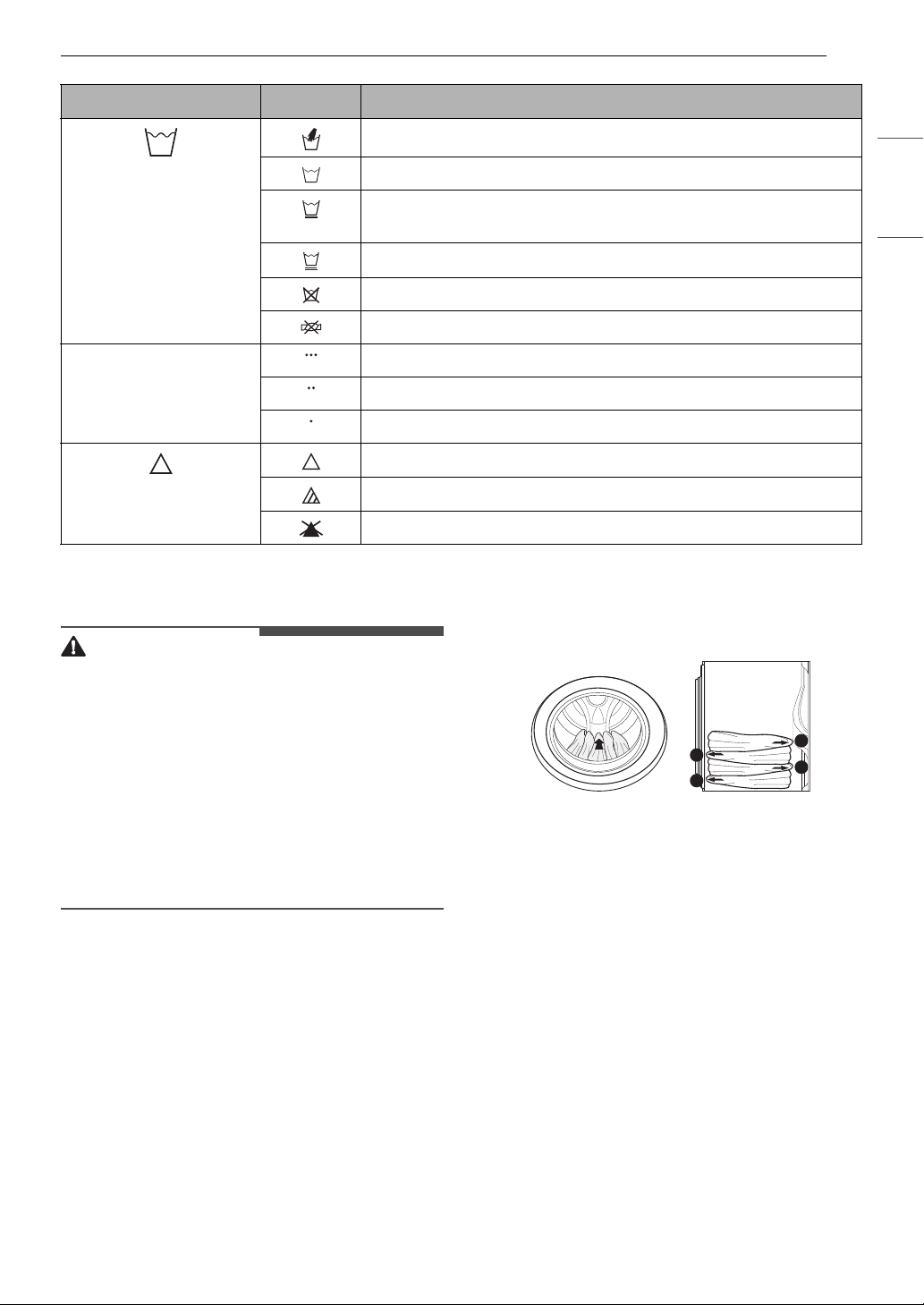

Removing Shipping Material

1 Remove the bolt assemblies.

• Starting with the bottom two shipping bolts,

use the included wrench c to fully loosen

all 4 shipping bolts by turning them

counterclockwise.

• Remove the bolt assemblies (bolts and

retainers) by wiggling them slightly while

pulling them out.

• The power cord is secured to the back of the

washer with a shipping bolt to help prevent

operation with shipping bolts in place.

2 Install the hole caps.

• Locate the hole caps d included in the

accessory pack or attached to the back of

the washer. Install the caps in the holes left

by the bolt assemblies.

CAUTION

• Once removed, save the bolt assemblies for

future use. To prevent damage to internal

components, do not transport the appliance

without reinstalling the shipping bolts. Failure to

remove shipping bolts and retainers may cause

severe vibration and noise, which can lead to

permanent damage to the appliance.

Connecting Electric Dryers

WARNING

• To reduce the risk of fire or explosion, electric

shock, property damage, injury to persons, or

death when using this appliance, fulfill the

following requirements.

Electrical Requirements for Electric

Models Only

WARNING

• The wiring and grounding must conform to the

latest edition of the National Electrical Code,

ANSI/NFPA 70 and all applicable local

regulations. Please contact a qualified electrician

15INSTALLATION

ENGLISH

to check your home’s wiring and fuses to ensure

that your home has adequate electrical power to

operate the dryer.

• This dryer must be connected to a grounded

metal, permanent wiring system, or an

equipment-grounding conductor must be run

with the circuit conductors and connected to the

equipment-grounding terminal or lead on the

dryer.

• The dryer has its own terminal block that must

be connected to a separate 240 VAC, 60-Hertz,

single-phase circuit, fused at 30 amperes (the

circuit must be fused on both sides of the line).

ELECTRICAL SERVICE FOR THE DRYER SHOULD

BE OF THE MAXIMUM RATE VOLTAGE LISTED ON

THE NAMEPLATE. DO NOT CONNECT THE DRYER

TO 110-, 115-, OR 120-VOLT CIRCUIT.

• If the branch circuit to dryer is 15 ft. (4.5 m) or

less in length, use UL (Underwriters

Laboratories) listed No.-10 AWG wire (copper

wire only), or as required by local codes. If over

15 ft. (4.5 m), use UL-listed No.-8 AWG wire

(copper wire only), or as required by local codes.

Allow sufficient slack in wiring so the dryer can

be moved from its normal location when

necessary.

• The power cord (pigtail) connection between the

wall receptacle and the dryer terminal block IS

NOT supplied with the dryer. Type of pigtail and

gauge of wire must conform to local codes and

with instructions on the following pages.

• Do not modify the plug and internal wire

provided with the dryer.

• The dryer should be connected to a 4-hole

outlet.

• If the plug does not fit the outlet, a proper outlet

will need to be installed by a qualified electrician.

• Connect the power cord to the terminal block.

Each colored wire should be connected to the

same color screw. Wire color indicated on

manual is connected to the same color screw in

the block.

• Grounding through the neutral conductor is

prohibited for: (1) new branch-circuit

installations and (2) areas where local codes

prohibit grounding through the neutral

conductor.

• This dryer is supplied with the neutral wire

grounded. This white ground wire MUST BE

MOVED to the neutral terminal when a 4-wire

cord is to be used, or where grounding through

the neutral conductor is prohibited.

Four-Wire Power Cord

1 Remove the terminal block access cover on

the upper back of the appliance.

2 Install UL-listed strain relief into the power

cord through-hole.

3 Thread a 30-amp, 240-volt, 4-wire, UL-listed

power cord with #10 AWG-minimum copper

conductor through the strain relief.

a Terminal Block

b UL-Listed Strain Relief

c UL-Listed 4-Wire Power Cord

4 Transfer the appliance's ground wire from

behind the green ground screw to the center

screw of the terminal block.

5 Attach the two hot leads (black and red) of the

power cord to the outer terminal block

screws.

6 Attach the neutral (white) wire to the center

screw of the terminal block

7 Attach the power cord ground wire to the

green ground screw.

8 Tighten all screws securely.

9 Reinstall the terminal block access cover.

• A UL-listed strain relief is

required.

• Use a 30-amp, 240-volt, 4-wire, UL-listed

power cord with #10 AWG-minimum copper

conductor and closed loop or forked terminals

with upturned ends.

16 INSTALLATION

a White Wire moved from Ground Screw

b Hot Leads of Power Cord (Black and Red)

c Neutral Wire (White)

d Power Cord Ground Wire

e Ground Screw (green)

Four-Wire Direct Wire

1 Remove 5 inches (12.7 cm) of the outer

covering from the wire and remove 5 inches

of insulation from the ground wire. Cut off

approximately 1.5 inches (3.8 cm) from the

other three wires and strip 1 inch (2.5 cm)

insulation from each wire. Bend the ends of

the three shorter wires into a hook shape.

a Ground Wire

2 Remove the terminal block access cover on

the upper back of the appliance.

3 Install UL-listed strain relief into the power

cord through-hole.

4 Thread the 4-wire #10 AWG minimum copper

power cable prepared in step 1 through the

strain relief.

a Terminal Block

b UL-Listed Strain Relief

c UL-Listed 4-Wire Power Cord

5 Transfer the appliance's ground wire from

behind the green ground screw to the center

of the terminal block.

6 Attach the two hot leads (black and red) of the

power cord to the outer terminal block

screws.

7 Attach the neutral (white) wire to the center

screw of the terminal block.

8 Attach the power cord ground wire to the

green ground screw.

9 Tighten all screws securely.

10 Reinstall the terminal block access cover.

a White Wire moved from Ground Screw

b Hot Leads of Power Cord (Black and Red)

c Neutral Wire (White)

d Power Cord Ground Wire

e Ground Screw (green)

• A UL-listed strain relief is

required.

• Use UL-listed 4-wire #10 AWG minimum

copper conductor cable. Allow at least 5 ft. (1.5

m) of wire to allow for removal and

reinstallation of the dryer.

5’’ (12.7 cm)

1’’ (2.5 cm)

17INSTALLATION

ENGLISH

Three-Wire Power Cord

1 Remove the terminal block access cover on

the upper back of the appliance.

2 Install the UL-listed strain relief into the

power cord through-hole.

3 Thread a 30-amp, 240 volt, 3-wire, UL-listed

power cord with #10 AWG-minimum copper

conductor through the strain relief.

a Terminal Block

b UL-Listed Strain Relief

c UL-Listed 3-Wire Power Cord

4 Attach the two hot leads (black and red) of the

power cord to the outer terminal block

screws.

5 Attach the neutral (white) wire to the center

terminal block screw.

6 Connect the external ground (if required by

local codes) to the green ground screw.

7 Tighten all screws securely.

8 Reinstall the terminal block access cover.

a White Wire from Dryer harness

b Hot Leads of Power Cord (Black and Red)

c Neutral Wire (White)

d External Ground Wire (If required by local

codes)

e Ground Screw (green)

Three-Wire Direct Wire

1 Remove 3.5 inches (8.9 cm) of the outer

covering from the wire. Strip 1 inch (2.5 cm)

insulation from each wire. Bend the ends of

the three wires into a hook shape.

2 Remove the terminal block access cover on

the upper back of the appliance.

3 Install UL-listed strain relief into the power

cord through-hole.

4 Thread the 3-wire, #10 AWG minimum copper

conductor power cable prepared in step 1

through the strain relief.

• A 3-wire connection is NOT

permitted on new construction after

January 1, 1996.

• A UL-listed strain relief is required.

• Use a 30-amp, 240-volt, 3-wire, UL-listed

power cord with #10 AWG-minimum copper

conductor and closed loop or forked terminals

with upturned ends.

• A 3-wire connection is NOT

permitted on new construction after

January 1, 1996.

• A UL-listed strain relief is required.

• Use UL-listed 3-wire, #10 AWG minimum

copper conductor cable. Allow at least 5 ft. (1.5

m) length to allow for removal and installation

of dryer.

1’’ (2.5 cm)

18 INSTALLATION

a Terminal block

b UL-listed strain relief

c UL-listed 3-wire power cord

5 Attach the two hot leads (black and red) of the

power cord to the outer terminal block

screws.

6 Attach the neutral (white) wire to the center

terminal block screw.

7 Connect the external ground (if required by

local codes) to the green ground screw.

8 Tighten all screws securely.

9 Reinstall the terminal block access cover.

a Hot lead (black and red)

b Neutral wire (white)

c External ground wire (if required by local

codes)

d Wire from the appliance harness

e Ground screw (green)

Installing the Dryer Side

Vent Kit

The appliance is configured to vent to the rear. It

can also vent to the side.

WARNING

• Use long-sleeved gloves and safety glasses.

• Use a heavy metal vent.

• Do not use plastic or thin foil ducts.

• Clean old ducts before installing the appliance.

NOTE

• An adapter kit, part number 383EEL9001B, may

be purchased from your LG retailer. This kit

contains duct components necessary to change

the appliance vent location.

• Right-side venting is not available on gas

models.

• Bottom venting is not available on stacked or

integrated stacked models.

Side Venting

1 Remove the rear exhust duct retaining screw

a and pull out the exhaust duct b.

2 Press the tabs on the knockout c and

carefully remove the knockout for the desired

vent opening. (Right-side venting is not

available on gas models.) Press the adapter

duct

d onto the blower housing and secure

to the base of the dryer as shown.

3 Preassemble a 4" (10 cm) elbow e to the next

4" (10 cm) duct section, and secure all joints

with duct tape. Be sure that the male end of

the elbow faces AWAY from the dryer. Insert

the elbow/duct assembly through the side

opening and press it onto the adapter duct.

Secure it in place with duct tape. Be sure that

19INSTALLATION

ENGLISH

the male end of the duct protrudes 1 1/2" (3.8

cm) to connect the remaining ductwork.

Attach the cover plate f to the back of the

dryer with the included screw.

Venting the Dryer

WARNING

• Gas dryers MUST exhaust to the outdoors.

• DO NOT use sheet metal screws or other

fasteners which extend into the duct that could

catch lint and reduce the efficiency of the

exhaust system. Secure all joints with duct tape.

• To reduce the risk of fire, combustion, or

accumulation of combustible gases, DO NOT

exhaust dryer air into an enclosed and

unventilated area, such as an attic, wall, ceiling,

crawl space, chimney, gas vent, or concealed

space of a building.

• To reduce the risk of fire, DO NOT exhaust the

dryer with plastic or thin foil ducting.

• Do not exceed the recommended duct length

limitations noted in the chart. Failure to follow

these instructions may result in extended drying

times, fire or death.

• Do not crush or collapse ductwork.

• Do not allow ductwork to rest on or contact

sharp objects.

• If connecting to existing ductwork, make sure it

is suitable and clean before installing the dryer.

• Venting must conform to local building codes.

• Use only 4 '' (10 cm) rigid, semi-rigid or flexible

metal ductwork inside the dryer cabinet and for

venting outside.

• The exhaust duct must be 4 '' (10 cm) in diameter

with no obstructions. The exhaust duct should

be kept as short as possible. Make sure to clean

any old ducts before installing your new dryer.

• Rigid, semi-rigid or flexible metal ducting is

recommended for use between the dryer and

the wall. All non-rigid metal transition duct must

be UL-listed. Use of other materials for transition

duct could affect drying time.

• Ductwork is not provided with the dryer. You

should obtain the necessary ductwork locally.

The vent hood should have hinged dampers to

prevent backdraft when the dryer is not in use.

• The total length of flexible metal duct must not

exceed 8 ft. (2.4 m).

Ductwork

NOTE

• Deduct 6 ft. (1.8 m) for each additional elbow. Do not use more than four 90° elbows.

Wall Cap Type

Number of 90°

Elbows

Maximum length of 4-inch diameter rigid

metal duct

Recommended 0 65 ft. (19.8 m)

1 55 ft. (16.8 m)

2 47 ft. (14.3 m)

3 36 ft. (11.0 m)

4 28 ft. (8.5 m)

Use for only short run installations 0 55 ft. (16.8 m)

1 47 ft. (14.3 m)

2 41 ft. (12.5 m)

3 30 ft. (9.1 m)

4 22 ft. (6.7 m)

a: 4 ‘’ (10 cm)

b: 2 1/2 ‘’ (6.4 cm)

20 INSTALLATION

NOTE

• In Canada, only those foil-type flexible ducts, if any, specifically identified for use with the appliance by

the manufacturer should be used. In the United States, only those foil-type flexible ducts, if any,

specifically identified for use with the appliance by the manufacturer and that comply with the Outline

for Clothes Dryer Transition Duct, Subject 2158A, should be used.

Routing and Connecting Ductwork

Follow the guidelines below to maximize drying

performance and reduce lint buildup and

condensation in the ductwork. Ductwork and

fittings are NOT included and must be purchased

separately.

• Use 4'' (10 cm) diameter rigid, semi-rigid or

flexible metal ductwork.

• The exhaust duct run should be as short as

possible.

• Use as few elbow joints as possible.

• The male end of each section of exhaust duct

must point away from the dryer.

• Use duct tape on all duct joints.

• Insulate ductwork that runs through unheated

areas in order to reduce condensation and lint

buildup on duct surfaces.

• Incorrect or inadequate exhaust systems are not

covered by the dryer warranty. Dryer failures or

service required because of such exhaust

systems will not be covered by the dryer

warranty.

Connecting Gas Dryers

WARNING

• To reduce the risk of fire or explosion, electric

shock, property damage, injury to persons, or

death when using this appliance, follow

requirements including the following:

Electrical Requirments for Gas

Models

WARNING

• This dryer is equipped with a three-prong

grounding plug for protection against shock

hazard and should be plugged directly into a

properly grounded three-prong receptacle. Do

not cut or remove the grounding prong from

this plug.

• Do not, under any circumstances, cut or remove

the third (ground) prong from the power cord.

• For personal safety, this dryer must be properly

grounded.

• This dryer must be plugged into a 120-VAC, 60-

Hz. grounded outlet protected by a 15-ampere

fuse or circuit breaker.

• Where a standard 2-prong wall outlet is

encountered, it is your personal responsibility

and obligation to have it replaced with a

properly grounded 3-prong wall outlet.

Gas Supply Requirements

WARNING

• DO NOT attempt any disassembly of the dryer;

disassembly requires the attention and tools of

an authorized and qualified service technician or

company.

• DO NOT use an open flame to inspect for gas

leaks. Use a noncorrosive leak detection fluid.

• Gas pressure must not exceed 8-inch (20.4 cm)

water column for NG, or 13-inch (33.1 cm) water

column for LP.

• Isolate the dryer from the gas supply system by

closing its individual manual shutoff valve during

any pressure testing of the gas supply at

pressures greater than 1/2 psi (3.5 kPa).

Correct Venting Incorrect Venting

21INSTALLATION

ENGLISH

• Supply line requirements: Your laundry room

must have a rigid gas supply line to your dryer.

In the United States, an individual manual

shutoff valve MUST be installed within at least 6

ft. (1.8 m) of the dryer, in accordance with the

National Fuel Gas Code ANSI Z223.1 or Canadian

gas installation code CSA B149.1. A 1/8-inch NPT

pipe plug must be installed.

• If using a rigid pipe, the rigid pipe should be 0.5-

inch IPS. If acceptable under local codes and

ordinances and when acceptable to your gas

supplier, 3/8-inch approved tubing may be used

where lengths are less than 20 ft. (6.1 m). Larger

tubing should be used for lengths in excess of 20

ft. (6.1 m).

• To prevent contamination of the gas valve,

purge the gas supply of air and sediment before

connecting the gas supply to the dryer. Before

tightening the connection between the gas

supply and the dryer, purge remaining air until

the odor of gas is detected.

• Use only a new AGA- or CSA-certified gas supply

line (in compliance with the Standard for

Connectors for Gas Appliances, ANSI Z21.24 •

CSA 6.10) with flexible stainless steel connectors.

• Use Teflon tape or a pipe-joint compound that is

insoluble in propane (LP) gas on all pipe threads.

Connecting the Gas Supply

NOTE

• In the Commonwealth of Massachusetts: This

product must be installed by a licensed plumber

or gas fitter. When using ball-type gas shut off

valves, they must be T-handle-type. A flexible gas

connector, when used, must not exceed 3 feet.

• Installation and service must be performed by a

qualified installer, service agency, or the gas

supplier.

• The dryer is configured for natural gas when

shipped from the factory. Make sure that the

dryer is equipped with the correct burner nozzle

for the type of gas being used (natural gas or

propane gas).

• Use only a new stainless steel flexible connector

and a new AGA-certified connector.

• A gas shutoff valve must be installed within 6 ft.

(1.8 m) of the dryer.

• If necessary, the correct nozzle (for the LP nozzle

kit, order part number 383EEL3002D) should be

installed by a qualified technician and the

change should be noted on the dryer.

•All connections must be in accordance with local

codes and regulations. Gas dryers MUST exhaust

to the outdoors.

1 Make sure that the gas supply to the laundry

room is turned OFF and the dryer is

unplugged. Confirm that the type of gas

available in your laundry room is appropriate

for the dryer.

2 Remove the shipping cap from the gas fitting

at the back of the dryer. Be careful not to

damage the threads of the gas connector

when removing the shipping cap.

3 Connect the dryer to your laundry room’s gas

supply using a new flexible stainless steel

connector with a 3/8-inch NPT fitting.

WARNING

• DO NOT use old connectors.

4 Securely tighten all connections between the

dryer and your laundry room’s gas supply.

5 Turn on your laundry room’s gas supply.

6 Check all pipe connections (both internal and

external) for gas leaks with a noncorrosive

leak-detection fluid.

7 Proceed to Venting the Dryer.

a 3/8'' NPT Gas Connection

b AGA/CSA-Certified Stainless Steel Flexible

Connector

c 1/8” NPT Pipe Plug

d Gas Supply Shutoff Valve

22 INSTALLATION

High-Altitude Installations

The BTU rating of this dryer is AGA-certified for

elevations below 10,000 feet.

If your gas dryer is being installed at an elevation

above 10,000 feet, it must be derated by a

qualified technician or gas supplier.

Connecting the Water Inlet

Hoses

How to Connect the Water Inlet

Hoses

To avoid the risk of costly water damage, purchase

and install new water inlet hoses when installing

the appliance.

WARNING

• Do not overtighten the hoses or cross-thread the

hose fittings. Overtightening or cross-threading

can damage the valves or couplings, resulting in

leaking and property damage.

• Do not reuse old hoses. Use only new hoses

when installing the appliance. Old hoses could

leak or burst causing flooding and property

damage. Contact an LG Customer Information

Center for assistance in buying hoses.

NOTE

• Periodically check the hoses for cracks, leaks,

and wear, and replace the hoses every five years.

• Do not stretch the water hoses intentionally, and

make sure that they are not pinched, crushed or

kinked by other objects.

• Water supply pressure must be between 20 psi

and 120 psi (138 - 827 kPa). If the water supply

pressure is more than 120 psi, a pressure

reducing valve must be installed.

• Your hot water heater should be set to deliver

water at 120–135 ℉ (48–57 ℃) to allow the

appliance to properly control wash

temperatures.

• Do not store or install the appliance in a location

subject to freezing temperatures. Damage to the

water inlet hoses and internal mechanisms of

the appliance can result. If the appliance was

exposed to freezing temperatures prior to

installation, allow it to stand at room

temperature for several hours before use and

check for leaks prior to operation.

• Do not use flood-preventing hoses with auto

shut off devices. The devices can be tripped

during fill and prevent the appliance from filling

properly.

Required Accessories

a Hot and Cold Water Hoses (for Washer)

b Cold Water Hose (for Dryer)

c Connecting Supply Hose

d Tie Straps

1 Check the fittings and seals. Inspect the

threaded fitting on each hose and make sure

there is a rubber seal e in place in both ends

of each hose to prevent leaking.

2 Connect the Y connector f to the short hose

g. Connect the 2 blue hoses h to the Y

connector.

3 Connect the water supply hoses.

• Connect the water inlet hoses to the hot

and cold water faucets tightly by hand and

then tighten another 2/3 turn with pliers.

• Connect the short blue hose to the cold

water faucet and the red hose to the hot

water faucet.

23INSTALLATION

ENGLISH

4 Flush out the inlet hoses.

• After the hoses are connected, turn on the

water faucets and flush out any foreign

substances such as dirt, sand, or sawdust.

• Let the water drain into a bucket, and check

the water temperature to make sure you’ve

connected the hoses to the correct faucets.

5 Attach the inlet hoses to the back of the

appliance and secure the cold water inlet

hoses with tie straps k.

For the Washer

• Attach the hot water inlet hose

i to the hot

water inlet on the back of the washer.

Attach the cold water inlet hose

j to the

cold water inlet on the back of the washer.

For the Dryer

• Attach the cold water inlet hose

j to the

cold water inlet on the back of the dryer.

• Tighten the fittings securely. Turn on both

faucets all the way and check for leaks at

both ends of the hoses.

Connecting the Drain Hose

Connect the drain hose to either a standpipe or

laundry tub.

WARNING

• The drain hose should always be properly

secured. Failure to properly secure the drain

hose can result in flooding and property

damage.

NOTE

• The drain must be installed in accordance with

any applicable local codes and regulations.

• Make sure that the drain hose is not stretched,

pinched, crushed, or kinked.

• Do not install the drain hose with the end lower

than 29.5 inches (75 cm) or higher than 96 inches

(244 cm) above the bottom of the washer or

more than 60 inches (152 cm) away from the

washer.

• Never create an airtight seal between the hose

and the drain with tape or other means. If no air

gap is present, water can be siphoned out of the

drum resulting in poor wash/rinse performance

or clothing damage.

Using a Standpipe to Drain

1 Clip the end of the hose into the elbow

bracket.

• Connect the elbow bracket

a within 4

inches (10 cm) of the end of the drain hose.

If the drain hose is extended more than 4

inches (10 cm) beyond the end of the elbow

bracket, mold or microorganisms could

spread to the inside of the washer.

2 Insert the end of the drain hose into the

standpipe.

4 "

(10 cm)

24 INSTALLATION

3 Use the provided tie strap b to secure the

drain hose in place.

4 If the water valves and drain are built into the

wall, fasten the drain hose to one of the water

hoses with the provided tie strap

c (ribbed

side on inside).

Using the Laundry Tub to Drain

1 Clip the end of the hose into the elbow

bracket.

• Connect the elbow bracket a within 4

inches (10 cm) of the end of the drain hose.

If the drain hose is extended more than 4

inches (10 cm) beyond the end of the elbow

bracket, mold or microorganisms could

spread to the inside of the washer.

2 Hang the end of the drain hose over the side

of the laundry tub.

3 Use the provided tie strap to secure the drain

hose in place.

Leveling the Appliance

The drum of the washer spins at very high speeds.

To minimize vibration, noise, and unwanted

movement, the floor must be a solid, level surface.

CAUTION

• Using the appliance without leveling it may

cause excess vibration and noise, leading to an

appliance malfunction.

• Adjust the leveling feet only as far as necessary

to level the appliance. Extending the leveling feet

more than necessary can cause the appliance to

vibrate.

NOTE

• Before installing the appliance, make sure that

the floor is clean, dry and free of dust, dirt, water

and oil so the appliance feet cannot slide easily.

Feet that move or slide on the floor can

contribute to excessive vibration and noise.

How to Level the Appliance

1 Position the appliance in its final location.

• Take special care not to pinch, strain, or

crush the water and drain hoses. If you have

a carpenter’s level

a, you can use it to

check that the appliance is level. The slope

29.5 - 96 "

(75 - 244 cm)

29.5 - 96 "

(75 - 244 cm)

4 "

(10 cm)

25INSTALLATION

ENGLISH

beneath the appliance should not exceed 1

inch, and all 4 leveling feet must rest firmly

on the floor.

2 Adjust the leveling feet.

• Turn all 4 leveling feet in one direction to

raise the appliance or the other direction to

lower it.

3 Check the level again.

• Push or rock the top edges of the appliance

gently to make sure the appliance does not

rock. If the appliance rocks, readjust the

leveling feet.

4 Tighten the locknuts b.

• Turn the locknuts counterclockwise and

tighten them when the appliance is level.

WARNING

• Do not raise the front of the appliance with a

wood block or similar object. Doing so can cause

serious injury or death.

Using Non-Skid Pads

If you install the appliance on a slippery surface, it

may move because of excessive vibration.

Incorrect leveling may cause malfunction through

noise and vibration. If this occurs, install the non-

skid pads under the leveling feet and adjust the

level.

1 Clean the floor to attach the non-skid pads.

• Use a dry rag to remove and clean foreign

objects or moisture. If moisture remains,

the non-skid pads may slip.

2 Adjust the level after placing the appliance in

the installation area.

3 Place the adhesive side c of the non-skid pad

on the floor.

• It is most effective to install the non-skid

pads under the front leveling feet. If it is

hard to place the pads under the front

leveling feet, place them under the back

leveling feet.

a This side up

b Remove backing

4 Recheck the appliance’s levelness.

• Push or rock the top edges of the appliance

gently to make sure the appliance does not

rock. If the appliance rocks, level the

appliance again.

Final Installation Check

Connecting the Washer to the

Power Supply

Plug the washer into a 120 VAC, 60 Hz grounded 3-

prong outlet.

WARNING

• Do not use a worn or damaged power cord or

power plug. Replace or repair it immediately.

Failure to do so may result in death, fire, electric

shock, or malfunction.

26 INSTALLATION

WARNING

• Do not modify the power cord and plug provided

with the appliance. Do not damage it when

installing or moving the appliance. Doing so may

result in death, fire, electric shock, or

malfunction.

• Make sure that the appliance is grounded.

• Connect this appliance to a grounded outlet

conforming to the rating prior to use. Failure to

do so may result in fire, electric shock, or

malfunction.

• Do not damage or cut off the ground prong of

the power cord. Doing so may cause death, fire,

electric shock, or product malfunction.

• Improper connection of the equipment

grounding conductor can result in risk of electric

shock. Check with a qualified electrician or

service technician if you are in doubt as to

whether the appliance is properly grounded. If

the plug does not fit the outlet, have a proper

outlet installed by a qualified electrician.

• The appliance and outlet must be positioned so

that the plug is easily accessible.

• Do not use an adapter or extension cord. Doing

so may result in serious injury, fire, electric

shock, or death.

• For best performance, plug the appliance into its

own individual outlet. This helps prevent

overloading house wiring circuits which could

cause a fire hazard from overheated wires.

• If necessary, use a new, UL-listed 3-prong

(grounding) plug rated at no less than the

branch circuit. Do not use an extension cord

longer than 3 feet. Failure to follow these

warnings may result in serious injury, fire,

electric shock, or death.

Testing the Washer

Check if the washer is properly installed and run a

test cycle.

1 Load the washer with 6 thick bath towels

(approximately 6 pounds).

2 Press the Power button.

3 Press the Speed Wash button.

4 Select the Start/Pause button to start the

wash cycle.

5 Make sure that water is supplied, that the

washer does not rock or vibrate excessively,

and that it drains well during the spin cycle.

NOTE

• If water leaks during water supply, see

Connecting the Water Inlet Hoses to connect

them properly.

• If the appliance rocks and vibrates excessively,

see Leveling the Appliance to level it again.

• If the drain does not work, see Connecting the

Drain Hose to install the hose properly.

Testing the Dryer

Once you have completed the installation of the

appliance, use this test to make sure the condition

of the exhaust system is adequate for proper

operation of the appliance. This test should be

performed to alert you to any serious problems in

the exhaust system of your home.

• Your appliance features Flow Sense(

W), an

innovative sensing system that automatically

detects blockages and restrictions in dryer

ductwork. Keeping ductwork clean of lint

buildup and free of restrictions allows clothes to

dry faster and reduces energy use.

Testing Dryer Heating

Gas Models

Close the dryer door and press the Power button

to turn the dryer on. Press the Time Dry and

Start/Pause buttons to start the test. When the

dryer starts, the igniter should ignite the main

burner.

NOTE

• If all air is not purged from the gas line, the gas

igniter may turn off before the main burner

ignites. If this happens, the igniter will reattempt

gas ignition after approximately two minutes.

Electric Models

Close the dryer door and press the Power button

to turn the dryer on. Press the Time Dry and

Start/Pause buttons to start the test. The exhaust

air should be warm after the dryer has been

operating for 3 minutes.

Checking Airflow

Effective dryer operation requires proper airflow.

The adequacy of the airflow can be measured by

27INSTALLATION

ENGLISH

evaluating the static pressure. Static pressure in

the exhaust duct can be measured with a

manometer, placed on the exhaust duct

approximately 2 ft. (60.9 cm) from the dryer. Static

pressure in the exhaust duct should not exceed 0.6

inch (1.5 cm). The dryer should be checked while

the dryer is running with no load.

Activating the Installation Test

1 Do not load anything in the drum for this test,

as it may affect the accuracy of the results.

2 Press the Power button and then press and

hold the Reduce Static and Energy Saver

buttons.

• This button sequence activates the

installation test. The code

1Ns will display if

the activation is successful.

3 Press the Start/Pause button.

• The appliance will start the test, which will

last a few minutes. The heat will be turned

on and the temperatures in the drum will be

measured.

4 Check the display for results.

• During the test cycle, monitor the Flow

Sense(W) display on the control panel. If

the Flow Sense(

W) indicator has not turned

on when the cycle ends, the exhaust system

is adequate. If the exhaust system is

severely restricted, the Flow Sense(

indicator will turn on. Other problems may

also be shown with error codes. See the

chart on the next page for error code details

and solutions.

•If the Flow Sense(W) display indicates that

the exhaust system is severely restricted,

have the system checked immediately, as

performance will be poor.

5 End of cycle.

• At the end of the test cycle, ENd will display.

The test cycle will end and the appliance will

shut off automatically after a short delay.

Check the Duct Condition

If the Flow Sense(W) indicator is turned on, check

the exhaust system for restrictions and damage.

Repair or replace the exhaust system as needed.

NOTE

• When the appliance is first installed, this test

should be performed to alert you to any existing

problems with the exhaust duct in your home.

However, since the test performed during

normal operation provides more accurate

information on the condition of the exhaust duct

than the installation test, the number of bars

displayed during the two tests may not be the

same.

• Do not interrupt the test cycle, as this could

result in inaccurate results.

• Even if no bars are displayed during the test

cycle, some restrictions may still be present in

the exhaust system. Refer to the Venting the

Dryer section of this manual for complete

exhaust system and venting requirements.

Error Codes

Check the error code before you call for service.

Restricted or Blocked Airflow

Avoid long runs or runs with multiple elbows or

bends.

Error

Code

Possible Cause & Solution

tE1 or

tEz

Temperature sensor failure.

• Turn off the appliance and call for

service.

Humidity sensor failure.

• Turn off the appliance and call for

service.

Ps, PF,

Electric dryer power cord is not

connected correctly, or house power

supply is incorrect.

• Reset circuit breaker or replace

fuse. Do not increase the fuse

capacity.

House fuse is blown, circuit breaker

has tripped, or power outage has

occurred.

• If the problem is a circuit overload,

have it corrected by a qualified

electrician.

QAs

Gas supply or service turned off. (Gas

Model only.)

• Confirm that house gas shutoff and

the dryer gas shutoff are both fully

open.

28 INSTALLATION

Excess or crushed transition duct

Too many elbows or exhaust too long

Check for blockages and lint buildup.

Make sure the ductwork is not crushed or

restricted.

29APPENDIX

ENGLISH

APPENDIX

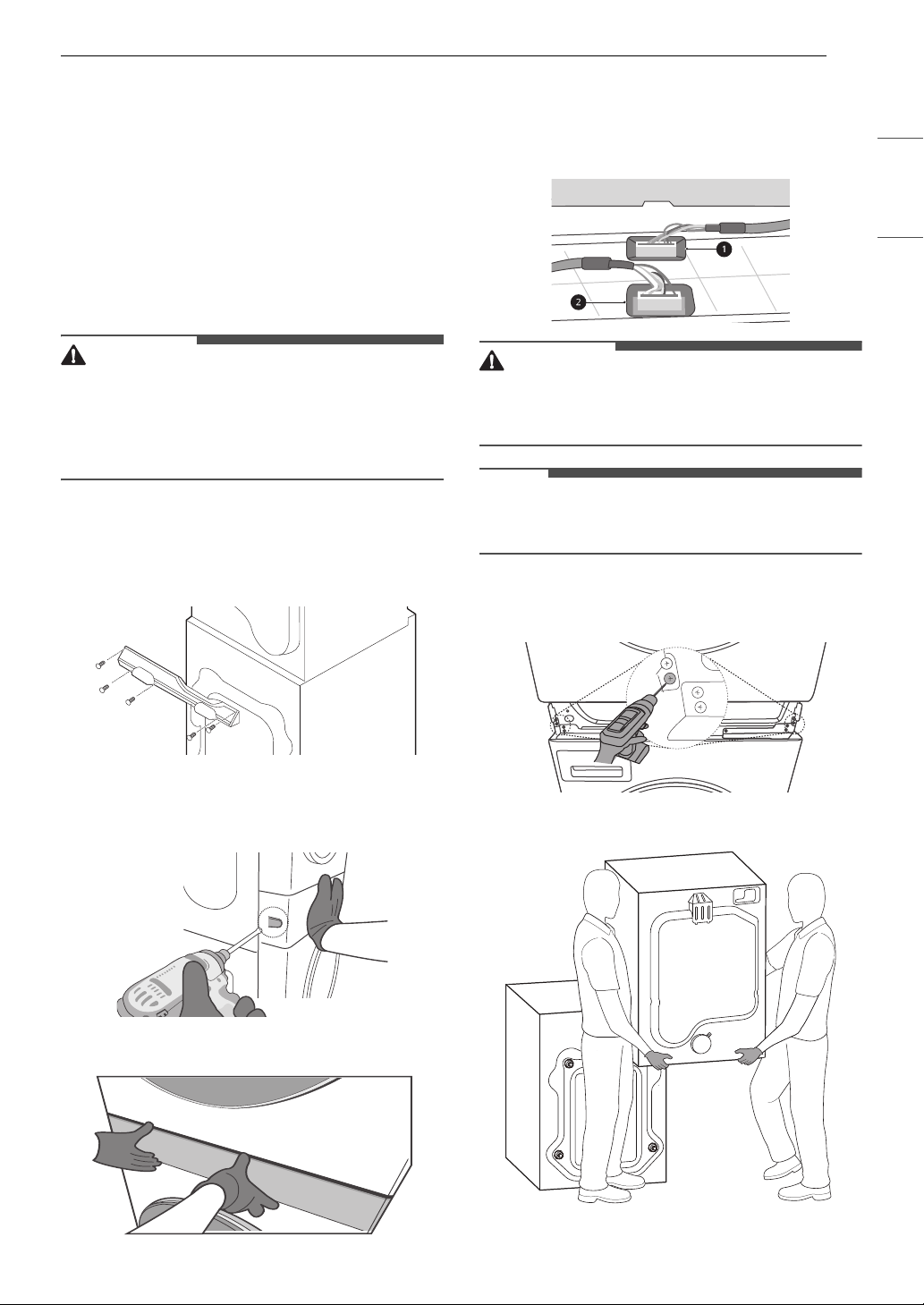

Disassembly

Disassembling the Washer and

Dryer

The washer and dryer cannot be disassembled and

installed for use side by side. If it is necessary to

disassemble the appliance in order to move or

reinstall it, follow these instructions.

WARNING

• Protect your hands and arms from sharp edges.

To reduce the risk of injury to persons, adhere to

all industry recommended safety procedures

including the use of long-sleeved gloves and

safety glasses.

1 Be sure to unplug the appliance.

2 Loosen screws assembled on the stack

bracket on the back of the appliance.

3 Push open the caps at the left and right sides

of the control panel on the front of the

appliance. Loosen the screws under the caps.

4 Pull the control panel forward to remove it.

5 Disconnect the wire harnesses from the

washer a and dryer b to the control panel.

CAUTION

• Always ground yourself before touching the PCB

or wiring. Discharge of static electricity may

cause product malfunction.

NOTE

• Tuck the wire harnesses to the side to avoid

pinching them.

6 Unscrew the second screw from the top of the

four screws on the left and right.

7 Lift the dryer and separate it from the washer.

30 APPENDIX

WARNING

• Protect your hands and arms from sharp edges

of the panel frame exposed on the top of the

washer.

• To avoid strain injuries, use 2 or more people to

lift the dryer.

NOTE

• When assembling the appliance, proceed in

reverse order.

OWNER'S MANUAL

LAUNDRY CENTER

Read this owner's manual thoroughly before operating the

appliance and keep it handy for reference at all times.

ENGLISH ESPAÑOL

WKEX200H*A / WKGX201H*A

MFL71485405

Rev.05_081120

www.lg.com

TABLE OF CONTENTS

3 IMPORTANT SAFETY

INSTRUCTIONS

3 READ ALL INSTRUCTIONS BEFORE USE

4 WARNING STATEMENTS

8 CAUTION STATEMENTS

9 PRODUCT OVERVIEW

9 Product Features

11 OPERATION-WASHER

11 Using the Washer

14 Adding Cleaning Products

16 Control Panel

19 Wash Cycles

22 Cycle Modifiers

22 Options and Extra Functions

24 OPERATION-DRYER

24 Using the Dryer

26 Control Panel

28 Dry Cycles

30 Cycle Modifiers

30 Options and Extra Functions

32 SMART FUNCTIONS

32 Using LG ThinQ Application

34 Smart Diagnosis

Function

36 MAINTENANCE

36 Washer

42 Dryer

44 TROUBLESHOOTING

44 Washer

52 Dryer

57 Common

58 LIMITED WARRANTY

58 USA

3IMPORTANT SAFETY INSTRUCTIONS

ENGLISH

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

Safety for a Dryer

WARNING

Fire Hazard

Failure to follow safety warnings exactly could result in serious injury,

death or property damage.

Do not install a booster fan in the exhaust duct.

Install all clothes dryer in accordance with the installation instructions of

the manufacturer of dryer.

WARNING:

FIRE OR EXPLOSION HAZARD

Failure to follow safety warnings exactly could result in serious injury,

death or property damage.

• Do not store or use gasoline or other flammable vapors and liquids in

the vicinity of this or any other appliance.

• WHAT TO DO IF YOU SMELL GAS

- Do not try to light any appliance.

- Do not touch any electrical switch; do not use any phone in your

building.

- Clear the room, building or area of all occupants.

- Immediately call your gas supplier from a neighbor’s phone. Follow

the gas supplier’s instructions.

- If you cannot reach your gas supplier, call the fire department.

• Installation and service must be performed by a qualified installer,

service agency or your gas supplier.

4 IMPORTANT SAFETY INSTRUCTIONS

Safety Messages

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and

follow all safety messages.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury,

and tell you what may happen if the instructions are not followed.

WARNING STATEMENTS

WARNING

• To reduce the risk of explosion, fire, death, electric shock, scalding or injury to persons when using this

product, follow basic precautions, including the following:

Installation

• Adhere to all industry recommended safety procedures including the use of long-sleeved gloves and

safety glasses.

• Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has

missing or broken parts, including a damaged cord or plug.

• Before use, the appliance must be properly installed as described in this manual.

• To reduce the risk of severe injury or death, follow all installation instructions.

WARNING - Risk of Fire

Install the clothes dryer according to the manufacturer’s instructions

and local codes.

• Clothes dryer installation must be performed by a qualified installer.

• Do not install a clothes dryer with flexible plastic venting materials. If

flexible metal (foil type) duct is installed, it must be of a specific type

identified by the appliance manufacturer as suitable for use with

clothes dryers. Flexible venting materials are known to collapse, be

easily crushed, and trap lint. These conditions will obstruct clothes

dryer airflow and increase the risk of fire.

• To reduce the risk of severe injury or death, follow all installation

instructions.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages

will follow the safety alert symbol and either the word WARNING or CAUTION.

These words mean:

WARNING

You may be killed or seriously injured if you do not follow instructions.

CAUTION

You may be injured or cause damage to the product if you do not follow instructions.
