User Manual Levoit LV-H132 Compact HEPA Air Purifier

• User Manual - (English)

• Specification Sheet (PDF) - (English)
• Spec Sheet (web) - (English)

Table of contents

• GETTING TO KNOW YOUR AIR PURIFIER
• GETTING STARTED
• OPERATION
• KEEPING THINGS CLEAN
• TROUBLESHOOTING
• SAFETY INFORMATION

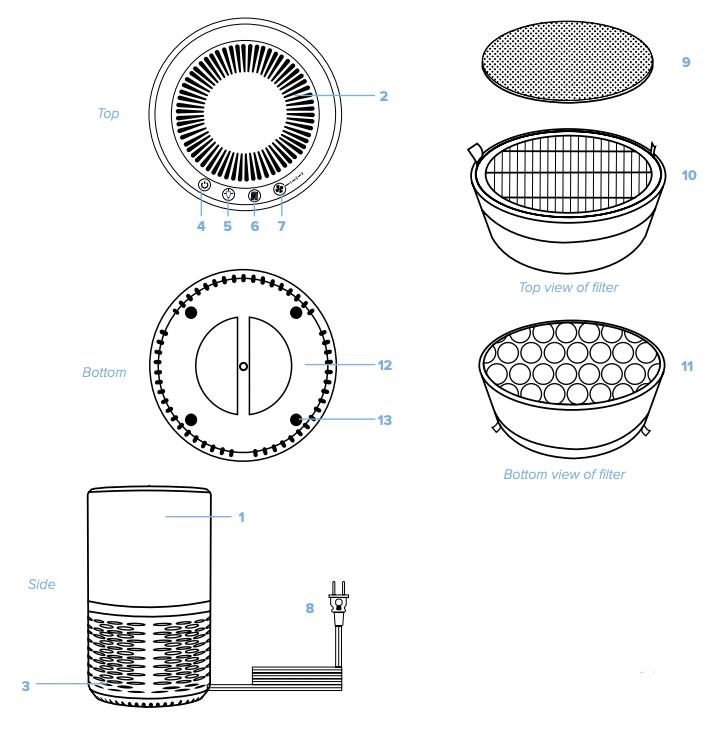

GETTING TO KNOW YOUR AIR PURIFIER

1. Housing

2. Air Outlet

3. Air Inlet

4. Power Button

5. Night Light Button

6. Filter Reset Button

7. Fan Speed Button

8. Power Cord

9. Pre-Filter

10. HEPA Filter

11. Activated Carbon Filter

12. Filter Cover

13. Anti-Skid Pads

GETTING STARTED

1. Flip over the purifier to reveal the filter cover.

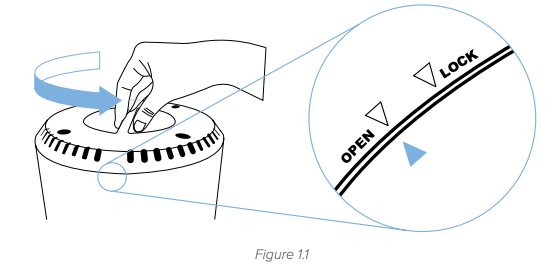

2. Twist the filter cover counterclockwise to the “OPEN” position and remove the cover. [Figure 1.1]

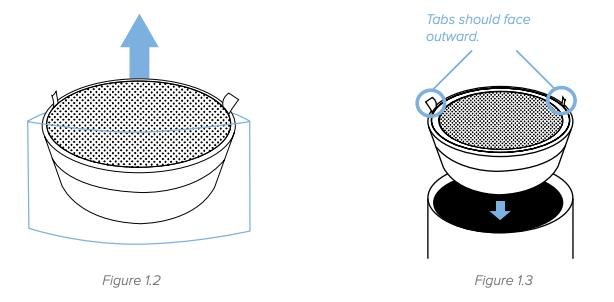

3. Remove the filters from their plastic packaging, then reinstall the filters. The white HEPA filter along with the pull tabs should be facing outward. Place the pre-filter on top of the HEPA filter. [Figures 1.2 & 1.3]

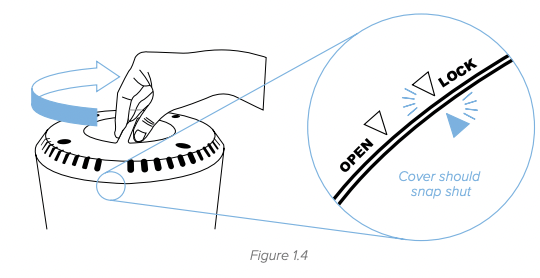

4. Replace the filter cover on the air purifier, making sure the arrows on the housing and filter cover align. Twist the filter cover clockwise to the “LOCK” position to secure the filters. The filter cover should snap shut. [Figure 1.4]

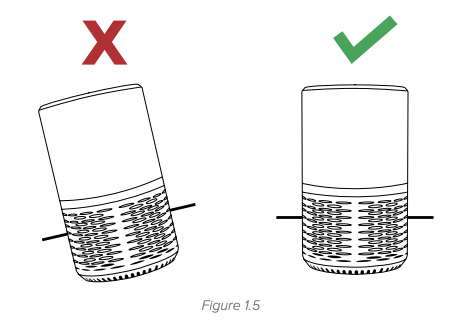

5. Place the air purifier on a flat, stable surface with the night light facing up. [Figure 1.5]

NOTE:

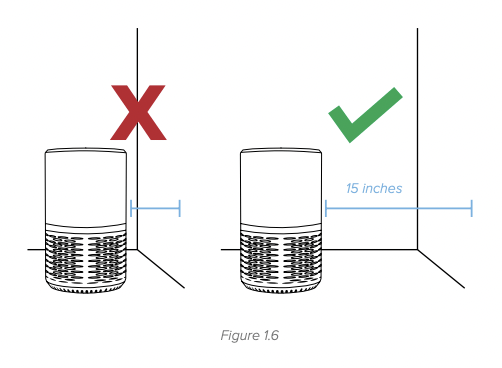

• Always allow 15 inches of clearance on all sides of the purifier. [Figure 1.6]
• Ensure the air filter is properly positioned in the purifier before use.

OPERATION

General Operation

1. Plug the air purifier into a powered electrical outlet. The unit will chime to indicate that it is connected to a power source.
2. Tap ‘ ’ to turn on the air purifier. It will start producing fresh air on fan speed level 2.
3. (Optional): Tap ‘ ’ to change the fan speed of the air purifier.
4. (Optional): Tap ‘ ’ to adjust the brightness or turn off the built-in night light.
5. Tap ‘ ’ to turn off the air purifier once you are finished using the air purifier.

NOTE: It may seem that the airflow is restricted at certain portions of the air purifier when it is operating. This is normal.

Button Controls

Power Button

Tap once to turn on or turn off the air purifier.

Night Light Button

Activates the night light for the air purifier.

Filter Reset Button

This button will light up when the air filters need to be checked or replaced. Tap and hold ‘ ’ for 3 seconds after checking or changing the air filters (See Checking the Air Filters on page 12).

Fan Speed Button

Tap ‘ ’ to cycle through the 3 fan speeds of the air purifier.

NOTE:

• To effectively clean the air. make sure to keep the windows closed while the air purifier is operating. Open the windows regularly to maintain proper air circulation throughout your home.
• For best results, it is recommended to run the air purifier at maximum speed for 15–20 minutes before using a lower speed setting

Memory Function

The air purifier will remember its programmed settings when turned off. This includes fan speed and night light brightness level. The purifier will resume its settings when it is turned back on.

KEEPING THINGS CLEAN

General Maintenance

• Wipe down the housing with a soft, clean cloth.
• DO NOT immerse the purifier in water or liquid detergents.
• If necessary, wipe the housing with a clean damp cloth, then immediately dry the housing with a separate clean cloth.

Checking the Air Filters

The ‘ ’ will light up to remind you to check the air filters. Please note, this is simply a reminder to check the air filters. The button will light up on sooner or later depending on how often you use your air purifier. It does not necessarily mean it is time to change the filters.

If ‘ ’ has illuminated, please remember to reset the air purifier after checking the filters by tapping and holding for 3 seconds (See Resetting the Air Purifier see page 15).

When Should I Replace the Air Filters?

It is recommended to change the air filters every 6–8 months. However, you may need to change your filters sooner or later depending on how often you use your air purifier. It is important to watch out for the following signs of expired filters:

• Increased operating noise
• Decreased airflow
• Clogged filters
• Increased presence of odors

NOTE:

• The environment in which the air purifier being used may also extend or shorten the lifetime of the the air filters. Using your air purifier in an environment of relatively high pollution may mean you will need to change the air filters more often.
• If the air pollution in your environment is very high, there is a possibility that the filters may not be completely effective and may need to be replaced before ‘ ’ lights up.
• Remember to reset the air purifier after changing the air filters.

Replacing the Air Filters

1. Turn off and unplug the air purifier.
2. Flip over the purifier and remove the filter cover. [Figure 2.1 & 2.2]

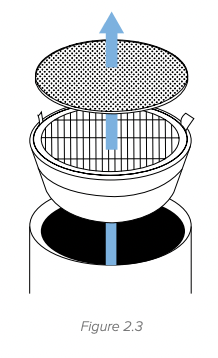

3. Remove the old filters. [Figure 2.3]

4. (Optional) Clean any remaining dust or hair inside the purifier using a vacuum hose [Figure 2.4]. DO NOT use water or liquids to clean the purifier.

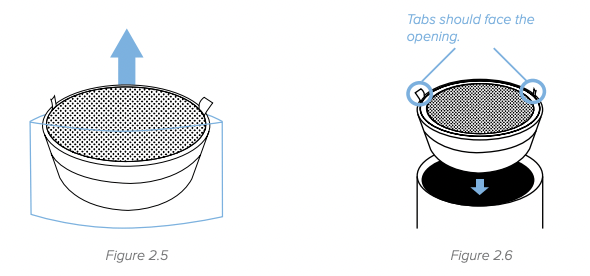

5. Remove the new filters from their packaging and place them into the purifier with the pull tabs facing out. The white HEPA filter should also be facing out with the gray pre-filter on top of it. [Figures 2.5 & 2.6]

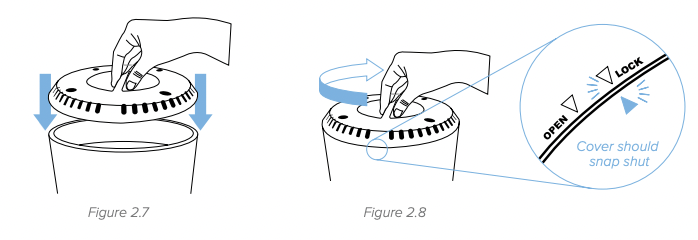

6. Replace the filter cover onto the housing, making sure the arrows on the housing and filter cover align. Turn the filter cover clockwise to the lock position. [Figures 2.7 & 2.8]

7. Follow the instructions in the Resetting the Air Purifier on page 15 to complete the filter replacement process.

NOTE:

• DO NOT wash and reuse air filters. The air filters cannot be be cleaned manually.
• Only use Levoit LV-H132-RF True HEPA Filters when changing the filter for this device.
• Scan the QR Code to the right to purchase new air filters.

Resetting the Air Purifier

The air purifier must be reset if ‘ ’ lights up, and after checking or replacing the air filters.

1. Plug in the air purifier and turn it on.
2. Press and hold ‘ ’ for 3 seconds.
3. Release ‘ ’ and the light will turn off, indicating that the reset is complete.

Performing a Hard Reset

When using the air purifier in an environment of heavy pollution, the lifespan of the air filters may be significantly reduced. You can change the filters even if ‘ ’ does not light up. Follow the steps below to perform a hard reset.

1. Replace the air filters as mentioned in the Replacing the Air Filters section on page 13.
2. Plug in the air purifier and turn it on.
3. Press and hold ‘ ’ for 3 seconds, and it will light up.
4. Press and hold ‘ ’ again for 3 seconds, and it will turn off. The reset is now complete.

TROUBLESHOOTING

Problem	Cause	Solution
Air purifier does not power on.	Unit is not plugged into an electrical outlet.	Connect the plug to a powered electrical outlet.
	Outlet is not working properly.	Try plugging the air purifier into a different outlet.
	Power button has not been pressed after plugging in the air purifier.	Press ‘ ’ once to turn on the air purifier.
	Power cord is damaged.	Immediately discontinue use and contact Customer Support (page 18).
	Air purifier is defective or malfunctioning.
Air purifier does not respond to button controls.	Air purifier is not plugged into an outlet.	Connect the plug to a powered electrical outlet.
	Air purifier is defective or malfunctioning.	Immediately discontinue use and contact Customer Support (page 18).
Air purifier makes an unusual noise while operating.	Air filters are dirty.	Replace the air filters as instructed in the Replacing the Air Filters section on page 13.
	Filter does not fit properly	Properly place filter(s) as noted in the Getting Started and Replacing the Air Filters sections (pages 8 and 13).
	Foreign object inside the unit.	Immediately discontinue use and contact Customer Support (page 18). DO NOT attempt to open the air purifier.
Significantly reduced airflow.	Filter packaging has not been removed.	Remove filter from packaging before use.
	Fan speed is low.	Press ‘ ’ to adjust fan speed.
	Air filters need to be replaced.	Replace the air filters as instructed in the Replacing the Air Filters section on page 13.
	Not enough clearance on all sides of the purifier.	Ensure there is at least 15 inches (38 cm) of clearance on all sides of the purifier.
Poor air purification quality.	Air filters need to be replaced.	Replace the air filters as instructed in the Replacing the Air Filters section on page 13.
	Room is too large for the air purifier’s applicable area.	Ensure the room is smaller than 129 ft² (12 m²).
	Air inlet or outlet is blocked.	Remove objects blocking air inlet or outlet.
	Filters not properly placed in housing.	Properly place filters as noted in the Getting Started and Replacing the Air Filters sections (pages 8 & 13).
Filter reset button is still illuminated after replacing the air filters.	The air purifier has been reset incorrectly.	See the Resetting the Air Purifier section on how to properly reset the unit (page 15).
Air purifier turns on, then suddenly turns off.	Air purifier is defective or malfunctioning.	Immediately discontinue use and contact Customer Support (page 18). DO NOT attempt to open the air purifier for self-servicing.
Air purifier beeps repeatedly after being powered on or plugged in.

SAFETY INFORMATION

IMPORTANT: Please read and comply with all of the instructions and warnings provided in this manual before using the product. Failure to comply with the instructions and warnings provided herein may result in inaccurate results and/or damage to the product itself.

General Safety

Only use this air purifier as described in this manual.

• Ensure the plug fits properly into a polarized power oulet.
• When not being used, turn the air purifier off and disconnect it from its power source by removing the plug from the electrical outlet.
• DO NOT operate the unit if cord or plug is damaged. Doing so may result in injury or damage to the unit.
• DO NOT handle the unit with wet hands. Thoroughly dry your hands before handling any part of the air purifier.
• DO NOT immerse air purifier in water or liquids. Doing so may result in damage to the appliance, electric shock, or fire.
• DO NOT use the air purifier in wet or humid environments.
• DO NOT use the air purifier outdoors. This appliance is designed for indoor use only.
• DO NOT use the purifier in a room with major indoor temperature changes as this may cause condensation to build up inside the appliance.
• DO NOT use the air purifier in an enclosed space where flammable, combustible or explosive gases are present.
• DO NOT use in an area where toxic vapors, flammable dust or oxygen tanks are present. It is important to keep all objects away from the air intake grill.
• DO NOT insert fingers or objects into the air outlet. Child supervision is required while the air purifier is on. Do not allow children to play on or near the air purifier.
• CAUTION: This appliance does not remove carbon monoxide (CO) or radon (Rn). It cannot be used as a safety device to prevent or clean up accidents with combustion processes and hazardous chemicals.

Use & Care

• Always make sure to place the air purifier on a flat, level surface before operation.
• Always allow 15 inches (38 cm) of clearance on all sides of the purifier.
• WARNING: To reduce the risk of fire or electric shock, do not use the appliance with any solid-state speed control device.
• Place the air purifier so that the power cord easily reaches a standard electrical outlet for a polarized plug.
• DO NOT run the power cord under carpeting. Do not cover cord with throw rugs, runners or similar coverings. DO NOT ROUTE CORD UNDER FURNITURE OR APPLIANCES. Place the power cord away from hightraffic areas.
• DO NOT use an extension cord with this unit. • Never place the unit on soft surfaces such as a bed or sofa.
• This air purifier should not be used as a substitute for kitchen or bathroom ventilation or vacuum cleaning.
• DO NOT sit on or place anything on top of the purifier •
• DO NOT place the purifier directly below an air conditioner to prevent any moisture from getting into the purifier.
• DO NOT place the air purifier near sources of heat, such as stove tops, ovens, radiators or computers.
• DO NOT place open flames, including candles, directly in front of the air purifier.
• DO NOT use this appliance with indoor smoke-type insect repellents or in places with oily residues, burning incense, or chemical fumes.
• This appliance should only be used in rooms with temperatures between 14°F and 104°F.
• Always unplug the appliance from the power supply before servicing.
• This unit should be inspected frequently. Dirt that has collected should be removed regularly to prevent excessive accumulation that may result in flashover or fire.
• DO NOT clean the appliance with water or any other liquid to avoid electric shock and/or electrical fires.
• Only use Levoit LV-H132-RF replacement filters for this unit. Do not attempt to use other filters with this appliance.
• If you experience any problems while operating the air purifier, refer to the Troubleshooting section on page 16. If you are still having problems with your air purifier, contact Customer Support on page 18.
• If the unit is damaged or is not functioning properly, immediately discontinue use and contact Customer Support (page 18).
• DO NOT attempt to repair this device in any way or use any replacement components or parts to modify the air purifier. Doing so will void your warranty. Contact Customer Support immediately if your appliance is no longer working.
