Service Manual
PEG1502003CE
Version:1501
CONTENTS
2.Parts Identification
3.Wiring Diagram
4.Parts List
PAGE
4
Ventilating Fan
2~3
5~6
(North America Market)
WARNING
This service information is designed for experienced repair technicians only and is not designed for use by
the general public. It does not contain warnings or cautions to advise non-technical individuals of potential
dangers in attempting to service a product. Products powered by electricity should be serviced or repaired
only by experienced professional technicians. Any attempt to service or repair the product or products dealt
with in this service information by anyone else could result in serious injury or death.
IMPORTANT SAFETY NOTICE
There are special components used in this equipment which are important for safety. These parts are
marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential
that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire
or other hazards. Do not modify the original design without permission of manufacture.
We suggest to handle such parts after the static electricity prevention.
It is forbidden to touch the PCB parts by bare hands during the repairing process.
FV-08-11VFM5
1.Specifications
1
1. Specifications
1
F-08-11VFM5
Model No.
Air
direction
Voltage
(V)
Frequency
(Hz)
Noise
(sones)
Speed
(rpm)
Power (W)
Fan
Duct
diameter
(inches)
Air volume
at 0.1"WG
(CFM)
HVI Certified performance based on HVI Procedures 915, 916, and 920.
Exhaust
3
0.5
1.3
21.4
26.8
1036
1246100
70
9.9(4.5)
Weight
lb.
FV-08-11VFM5
0.3
0.8
21.6
27.0
890
1015110
80
4
(k )g
120 60
2

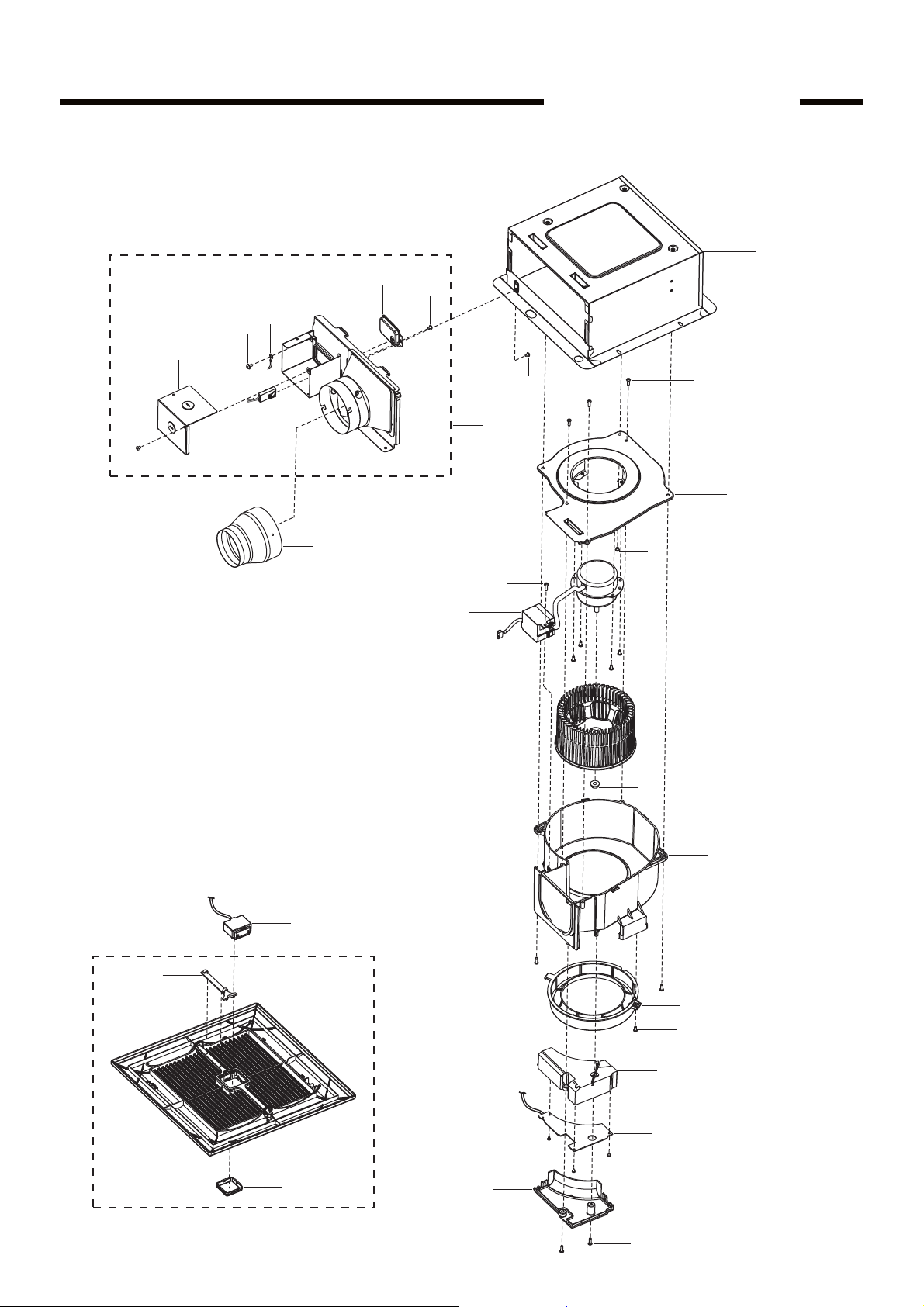

Main Body Section
2. Parts Identification
F-08-11VFM5
1
2
3
4
5
6
A
A
7
8
9
10
11
C
12
14
A
C
A
B
(3pcs)
D
(4pcs)
E
(2pcs)
13
Louver Section
15
16
F
(3pcs)
G
(2pcs)
20
17
18
19
C
3
Main Labels
2. Parts Identification
FAN
US
LISTED
E78414
08VSL3082
Not for use in cooking area-See installation
instructions Non destiné à la zone de cuisson -Voir
instructions d’installation.
se
/
/
.
No usar en áreas donde
cocine - Consulte las instrucciones de instalación.
80
110
CFM
Packing Section
32
34
33
24
25
26
23
22
21
30
36
35
27
28
29
F-08-11VFM5
31
4
3. Wiring Diagram
F-08-11VFM5
Black
Red
White
Green
Black
Blue
White
Green
Earth ground
Thermally - protected
(114 Fuse in motor)
C
Fan Body
Junction Box
Black
Switch
110 CFM
80 CFM
Capacitor
AC120V 60Hz
Power supply
White
Live
Neutral
Motor
Red
Black
White
Yellow
PCB
White
Black
SENSOR
PCB
Thermally - protected
(114 Fuse in motor)
C
No. Part No. Part Name Q'ty Remark
1
FFV1600146S
Frame Assembly 1
2
FFV0000155S
Adapter Assembly 1
3
FFV0900052S
Connector Plate 1
4
FFV3450010S
Earth Lead Wire 1
5
FFV0900059S
Connector Assembly (V) 1
6
FFV2800020S
Junction Cover 1
7
FFV0000038S
Adapter Connector 1
8
FFV3702266S
Motor Support 1
9
FFV3702268S
Motor Unit 1
10
FFV0400119S
Blade 1
11
FFV7020021S
Nut 1 For Fixing Blade
12
FFV0790115S
Casing 1 Include 1pc Packing
13
FFV4300131S
Orifice 1
14
FFV3740018S
Main PCB Box 1
15
FFV3740019S
Main PCB Assembly 1
16
FFV3740020S
Main PCB Box Cover 1
17
FFV5500045S
Sensor Assembly 1
18
FFV2520025S
Insulation Plate 1
19
FFV2220051S
Sensor Cover 1
20
FFV3420031S
Louver Section 1
A
FFV7000108S
Truss Tap Screw 4
B
FFV7000203S
Earth Lead Wire Screw 1 For Fixing Lead Wire
C
FFV7000089S
Truss Tap Screw 5
D
FFV7000074S
Truss Tap Screw 4
E
FFV7000080S
Plus Bind Screw 2
F
FFV7000145S
Truss Tap Screw 3
G
FFV7000193S
Truss Tap Screw 2
No. Part No. Part Name Q'ty Remark
21
FFV4020844S
Name Plate 1
22
FFV5530075S
Switch Label 1
23
FFV0810011S
Caution Label 1 1
24
FFV0810010S
Caution Label 1
25
FFV6730045S
Warning Label 1
26
FFV2260003S
UL Mark 1
Main Body Section
Main Labels
5
4. Parts List
F-08-11VFM5
No. Part No. Part Name Q'ty Remark
27
FFV2230024S
Hanger Assembly 1
28
FFV4710381S
Louver Case Assembly 1
29
FFV4650016S
Poly Cover 1 For Louver Section Packing
30
FFV4710394S
Left Pad 1
31
FFV4710330S
Sensor Pad 1
32
FFV2540187S
Installation Instructions 1 English,For CA Market/USA Market
33
FFV0010238S
Accessory A 1
34
FFV2540188S
Installation Instructions 1 French,For USA Market
(34)
FFV2540189S
Installation Instructions 1 Spanish,For CA Market
35
FFV4710395S
Right Pad 1
36
FFV9001207S
Packing Case Assembly 1
Packing Section
6
4. Parts List
F-08-11VFM5
