User manual Bluetooth Speaker for JBL Tuner

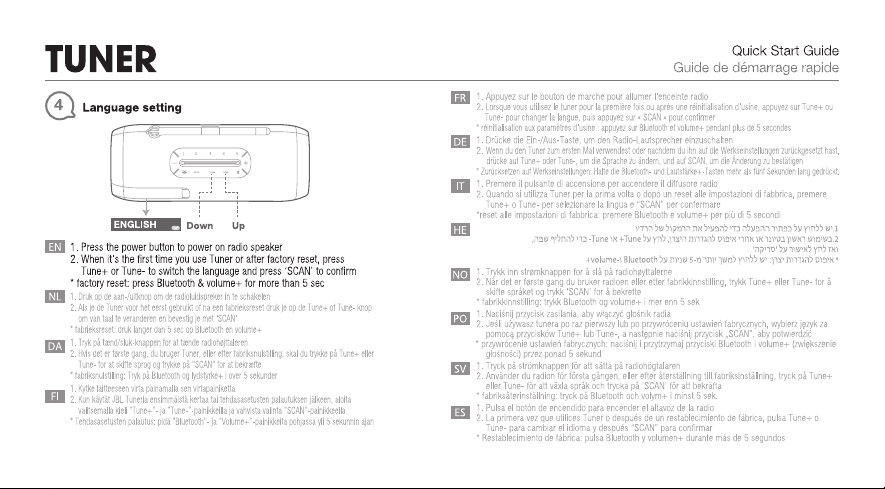

Language setting

  • Press the power button to power on radio speaker
  • When it's the first time you use Tuner or after factory reset, press Tune+ or Tune- to switch the language and press 'SCAN' to confirm

Factory reset: press Bluetooth & volume+ for more than 5 sec.

Tune in to DAB/FM radio station

  • Press "DAB/FM" to select DAB or FM.
  • Tune up or Tune down to select a radio station.

When DAB mode is activated for the first time, a full scan will automatically start.

Preset and Listen to station

  • Select one of your favorite FM or DAB station.
  • Long press (>2 seconds) preset button 1 (2,3,4,5) until screen shows station saved.
  • Press the preset button 1 (2,3,4,5). Your favorite stations will play if it was saved as preset.

You can save a maximum of 5 preset radio stations.

Auto scan radio

  • Press "SCAN" button to start scanning automatically
  • In FM mode, JBL Tuner will automatically search for and tune to a available radio station
  • In DAB mode, JBL Tuner scans all available DAB radio stations and play the first available station.

Bluetooth

  • Press bluetooth button to enter pairing mode.
  • Search and select "JBL Tuner" in your Bluetooth device.

Waming

  • Severely stretch or snap antenna will damage antenna and affect signal reception. Please avoid the risky operation.
  • If the speaker will not be used for a long period of time, please recharge the battery at least once every 3 months. Battery life will vary due to usage patterns and environmental conditions.
  • Recommend to use the bundled JBL USB adapter. Using other USB adapters can cause poor radio performance.

Specifications

  • Transducer: 1 x 44.5mm
  • Frequency response: 85Hz-20KHZ
  • DAB Tuning range: 174.928 MHz-239.200 MHz (Band-il)
  • FM Tuning range: 87.5 MHz-108 MHz
  • Bluetooth version: 4.1
  • Support: A2DP V1.2, AVRCP V1.5
  • Rated power: 5WRMS
  • Signal-to-noise ratio: >80dB
  • Battery type: Lithium-ion polymer (3.7V/2000mAh)
  • Battery charge time: 3.5 hours
  • Music playtime: up to 8 hours (varies by volume level and audio content)
  • Bluetooth transmitter power: 0-9dBm
  • Bluetooth transmitter frequency range: 2.402-2.480GHz
  • Bluetooth transmitter modulation: GFSK/DQPSK / 8DPSK
  • Dimension: 165mm x 66mm x 66mm
  • Weight: 450g
