JBL Xtreme 3 Portable Waterproof Speaker

Quick Start Guide

For XTREME 3.

PDF File Manual, 20 pages, Read Online | Download pdf file

XTREME 3 photo
background
TECH SPEC
WHAT’S
IN THE
BOX
Bluetooth
pairing
APP
chargING
XTREME3
ON
quick
START
GUIDE
Settings Bluetooth
Bluetooth
DEVICES
JBL Xtreme 3
Now Discoverable
Connected
JBL PORTABLE
Use the JBL PORTABLE app for speaker configuration and
software upgrade.
×1

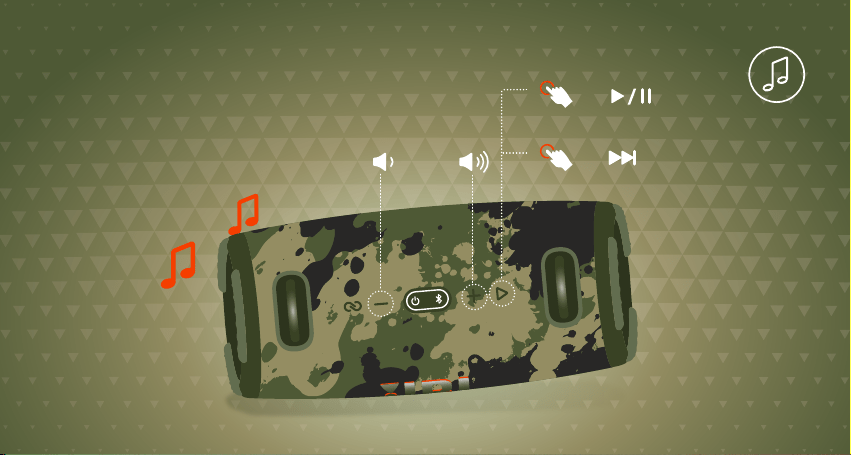

Play
partyboost
2.
1.
×1
POWERBANK
* Plug types vary by regions.
IP67
WATERPROOF
DUSTPROOF
IP67
1m
30 mins
×2
100%
50%
20%
2.
1.
Transducers: 2 x 70 mm woofer / 2 x 2.75’,
2 x 20 mm tweeter/ 2 x 0.75”
Output power: 2 x 25W RMS woofer +
2 x 25W RMS tweeter (AC power mode)
Power input: 5V / 9V / 12V / 15V / 20V, 3A
Frequency response: 53.5 Hz - 20 kHz
Signal-to-noise ratio: > 80 dB
Battery type: Li-ion 36.3 Wh
Battery charge time: 2.5 hours (20 V/3 A)
Music play time: up to 15 hours (dependent on volume level and
audio content)
USB-A charge out: 5V / 2A (maximum)
USB-C charge out: 5V / 1.5A (maximum)
Total 2.5A maximum for USB-A & USB-C
Bluetooth® version: 5.1
Bluetooth® profile: A2DP 1.3, AVRCP 1.6
Bluetooth® transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
Bluetooth® transmitter frequency range: 2400 MHz - 2483.5 MHz
Bluetooth® transmitter power: < 12 dBm (EIRP)
2.4GHz SRD frequency range: 2407 MHz ~ 2475 MHz
SRD transmitter power: < 10 dBm (EIRP)
Dimensions (W x H x D):
298.5 x 136 x 134 mm / 11.75 x 5.35 x 5.28”
Weight: 1.968 kg / 4.339 lbs
PA_JBL_Xtreme 3_Global_QSG_CR_V11.indd 1PA_JBL_Xtreme 3_Global_QSG_CR_V11.indd 1 9/22/2020 11:43:19 AM9/22/2020 11:43:19 AM
Loading page 2...
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
Loading page 8...
Loading page 9...
Loading page 10...
Loading page 11...
Loading page 12...
Loading page 13...
Loading page 14...
Loading page 15...
Loading page 16...
Loading page 17...
Loading page 18...
Loading page 19...
Loading page 20...

Other documents for JBL XTREME 3

The following documents are available:
User Manual Specification
  • Spec Sheet English - (English) Download
Other Documents
  • Declaration of Conformity - (English) Download
Photos

Specifications

JBL XTREME 3 Questions and Answers


#1 Does the speaker pair with xtreme 2 because I’m trying and don’t work and I don’t want to return xtreme 3 ?

Our JBL Xtreme 3 can only paired with other JBL speakers that has the 'Partyboost' feature. The same goes for the JBL Xtreme 2,only speakers with the connect + feature can pair with it. Due to different technologies, they re not compatible to be connected with each other. Please reach out to our customer support team if you need assistance: https://support.jbl.com/us/en/#contact see less

#2 Why did jbl respond to my previous question about size of power bank for added 5 hours of playtime telling me it won't charge using usb when it does?

Our JBL Xtreme 3 a built-in power bank feature. The USB port can be used to charge your devices.

#3 Does this have fm tuner?

Our JBL Xtreme 3 does not have an FM tuner. You may only use this device as a Bluetooth speaker and a Powerbank.

#4 Can you connect(if you need to) using jbl xtreme 3 built in usb ports(x2) to your phone/tablet ect..., and play your media; like your playlist ?

The usb ports of our JBL Xtreme 3 can only be used as a powerbank to charge other devices and can not be used to play media files.

#5 Can this be paired with boombox 2?

Yes. The other people think you are talking about the Xtreme 2. The Boombox 2 and Xtreme 3 both use Partyboost, so they can be linked together.

#6 Will the speaker stand and play upright (vertically) as opposed to horizontally?

The Xtreme 3 can be placed either horizontally or vertically.
World Wide Stereo is 42 years old and a proud authorized JBL dealer.

#7 Can it pair with boombox 1?

Our JBL Xtreme 3 can only paired with other JBL speakers that has the 'Partyboost' feature. The same goes for the JBL Boombox,only speakers with the connect + feature can pair with it. Due to different technologies, they re not compatible to be connected with each other.

#8 Can I bring this on a plane?

While I wouldn't recommend using it to play a movie or listen to music while during a flight, yes you can store it in a suitcase and bring it on the plane.

#9 Can you charge the JBL unit and listen at the same time?

There is no harm in leaving your JBL Xtreme 3 connected to electricity at all times. The battery will not overcharge. You can simply pick it up, unplug it from the charger and be on your way, knowing that you have a full charge. However, if you’d like to conserve electrical energy, disconnect from charging.
