User Manual Jbl Charge 5 Portable Waterproof Speaker

Jbl Charge 5 Portable Waterproof Speaker - Use Manual - Use Guide PDF.
Documents: Go to donwload!
User Manual
  • User Manual - (English, French, Portuguese, Spanish, German, Arabic, Danish, Dutch - Holland, Hungarian, Italian, Japanese, Korean, Polish, Russian, Swedish)
  • Troubleshooting - (English)
Specification Warranty
  • JBL Global Warranty Card - (English)

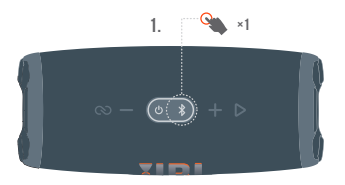

Quick Start Guide Portable Waterproof Speaker for Jbl Charge 5

Bluetooth pairing

Play

Partyboost

APP

CHARGING

POWERBANK

WATERPROOF IP67 DUSTPROOF IP67

TECH SPEC

  • Transducer: 52 mm x 90 mm woofer, 20 mm tweeter
  • Rated output power: 30 W RMS for woofer, 10 W RMS for tweeter
  • Frequency response: 65 Hz - 20 kHz
  • Signal-to-noise ratio: > 80 dB
  • Battery type: Li-ion polymer 27 Wh (equivalent to 3.6 V/ 7500 mAh)
  • Battery charge time: 4 hours (5 V / 3 A)
  • Music play time: up to 20 hours (dependent on volume level and audio content)
  • USB port: Type C
  • USB rating: 5 V / 2 A (maximum)
  • Bluetooth® version: 5.1 Bluetooth® profile: A2DP 1.3, AVRCP 1.6
  • Bluetooth® transmitter frequency range: 2400 MHz - 2483.5 MHz
  • Bluetooth® transmitter power: ≤ 10 dBm (EIRP)
  • 2.4GHz SRD frequency range: 2407 MHz - 2475 MHz SRD transmitter power: < 10 dBm (EIRP)
  • Dimensions (W x H x D): 223 x 96.5 x 94 mm / 8.7 x 3.76 x 3.67 inch
  • Weight: 0.98 kg / 2.16 lbs

To protect battery lifespan, fully charge at least once every 3 months. Battery life will vary due to usage patterns and environmental conditions.

Do not expose the JBL Charge 5 to liquids without removing cable connection. Do not expose JBL Charge 5 to water while charging. After a liquid spill, do not charge your speaker until it’s completely dry and clean. Charging when wet may result in permanent damage to the speaker or power source.

When using an external adapter or USB-C cable, the speaker performance will be affected during charging.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.

Bluetooth Troubleshooting

How to avoid Bluetooth interference/interruptions:

  • Always have a clear line of sight between your Bluetooth device (speaker, headphones, etc.) and source device (Smartphone/tablet/PC, etc). Be aware of obstacles in front of your devices.
  • Try to shutdown products that have Bluetooth, but not are not being used. They are often the reason for interference even though they are not being used.
  • Do not stand too close to your Wi-Fi router since a Wi-Fi signal is stronger and in many cases will "overlap" the connection.
  • Be aware of walls around you. Concrete and brick walls will often interrupt the signal, as it cannot pass through such thick walls.
  • Bluetooth signals cannot travel through water, which includes the human body. Make sure with Wireless Headphones to keep your Source device and the receiver on the same side of your body.
  • Open spaces such as parks can cause issues for your devices, as open air is "bad" for any Bluetooth signal if it cannot reflect from objects around you.

Pairing issues with a Smartphone or Tablet:

  • First, try to restart the Bluetooth connection on your source device (Smartphone/tablet/PC) by switching Bluetooth off and on again with a short pause in between.
  • "Forget" (remove) the previously paired connection (on your smartphone/tablet/PC) in your Bluetooth settings if you had once paired with our product.
  • Try to restart the source device(Smartphone/tablet/PC) by powering it off and on again, and after restarting try to establish a Bluetooth connection to your product.
  • If the above does not work, then try to restart your product (Portable speaker, Headphone) by turning it off and on again.
  • Press and hold down the Bluetooth button on your device (Portable speaker, Headphones) to initiate pairing mode again.
  • Go into the Bluetooth settings on your Smartphone/tablet or PC to start the pairing process.
  • You should now have a successful pairing with our device, but if you are still experiencing issues then contact us again.

Pairing issues with a Computer or PC:

  • In most cases when a Computer/PC/Laptop has issues connecting to a Bluetooth device (Portable speaker, Headphones, Active speakers), it's caused by your Computer/PC/Laptop's Bluetooth driver (software).
  • The driver (software) should support the following Bluetooth protocols, to be able to play music/sounds from your Computer/PC/Laptop:
  • A2DP (Advanced Audio Distribution Profile) driver for your Computer/PC/Headphones to transfer music. AVRCP (Audio/Video Remote Control Profile) driver to send skip/forward/pause/play music to your device Always get the latest driver version available for your Computer/PC/Laptop

To download the correct driver (software), visit the manufacturer's website of your Computer/PC/Laptop. They usually have a "Support/Download" section where you can find the correct driver. Otherwise, contact their support.

The standard drivers provided by Microsoft/Windows systems are often not correct, and will result in error messages (such as having to enter a PIN code), or pairing not working.

What is Bluetooth technology?

  • Bluetooth technology is a wireless technology that exchanges data (Music etc.) over short distances from a mobile device.
  • Bluetooth range depends on your surroundings (reflection from objects) and what chipset is being used (some can go 1 meter, 10 meters or 100 meters). Our Bluetooth devices typically supports up to 10 meter distance from the source device.

Explaining the different Bluetooth profiles used in our devices:

  • Many of our Bluetooth devices have a specification sheet like Bluetooth Profiles Supported: A2DP v1.5/AVRCP v1.6. These are the protocols that a specific Bluetooth speaker or Headphone device is compatible with. This might look too technical for some customers, but all you need to know is that Bluetooth Speakers and Headphones they are the only ones with these profile that you need to be aware of:

A2DP – A2DP stands for ‘Advanced Audio Distribution Profile’ and is a Bluetooth protocol that allows mobile users to stream high quality (stereo or mono) audio wirelessly. If you want to listen to your music on a pair of Bluetooth headphones or speakers, both devices need to support this.

AVRCP – AVRCP stands for ‘Audio/Video Remote Control Profile' and controls remote functions such as pause/start/skip/forward.

HSP – HSP stands for ‘Headset Profile’ and is a Bluetooth profile to enable a two-way wireless Headphone to be used with a Bluetooth smartphone. In our Headphones this is one of the most common Bluetooth profiles and supports simultaneous two-way (full-duplex) audio, but it does not support stereo audio.

HFP - HFP Stands for 'Hands Free Profile'. This profile provides the same abilities as HSP does, but adds abilities such as redial last number called, voice dialing and call waiting.

Note for HSP and HFP: You can also use it with devices other than phones, like your Computer/PC with a Bluetooth Headphone that could be used with a Bluetooth-enabled PC and VoIP software to place an Internet phone call (NOTE: some PC software requires different drivers for specific purposes like SKYPE - Always refer to the manufacturer of the PC/Laptop for help with setting this up).



Newest Added: INSPIRE® 300 FOR WOMEN CINEMA SB260 LIVE 660NC LIVE 460NC GRAND TOURING GTO 6428

Tags: JBL Audio Use Manual, JBL Live 460NC, JBL Charge 5 Blue Tooth Speaker, JBL Charge 5, JBL CHARGE5, Jbl Sb 260, Jbl 660nc

JBL CHARGE 5 | File type: PDF | Filename: 6073824_charge-5.pdf | Size: 8.62 MB | Language: English, French, Portuguese, Spanish, German, Arabic, Danish, Dutch - Holland, Hungarian, Italian, Japanese, Korean, Polish, Russian, Swedish | Other documents: 3 files.

Download User Manual

Specs Sheet

  • Wattage: 30W
  • Playing time: 20 hrs
  • Dynamic frequency: 65 Hz - 20k Hz
  • H x W x D: 8.7 x 3.76 x 3.67 inches
  • Weight: 2.11 lbs
  • Bluetooth: A2DP 1.3, AVRCP 1.6

Product Infomation and Reviews - CHARGE 5 photo

CHARGE 5 Photo

T: @manualsFile

https://manualsFile.com

JBL CHARGE 5 Questions and Answers

Find answers or Ask a question.
  • Total questions: 6
  • Questions unAnswered : 6

Can you connect a charge 3 with the charge 5 together?
Our JBL Charge 5 can't be connected with JBL Charge 3 because these two speakers have different technologies that are incompatible with one another. Because our JBL Charge 5 has the PartyBoost feature, it is compatible with other PartyBost enabled speakers like the Boombox 2, Flip 5, and Pulse 4. Our JBL Charge 3 on the other hand has the JBL Connect feature. When the firmware is upgraded for the Charge 3, it can be connected with Connect+ enabled speakers like the Xtreme 2, Pulse 3, Flip 4, Charge 4, and Boombox.

Does the charge 5 come with a case?
Unfortunately, our JBL Charge 5 does not come with a case but you may try looking for a case in third party retailers such as Amazon, etc..

Can you play music using a wired connection with aux or USB-c?
The USB Type C cable is used for charging our JBL Charge 5. You can, however, use a 3.5mm aux cable plugged into the 3.5mm auxiliary input of the speaker to your source device.

Can it be charged by any usb c cable, such as the one i use to charge my mac or ipad - or do i have to lug around its special cable to charge?
Yes, our JBL Charge 5 comes with a USB type C cable. You may use any USB Type-C cable and power adapter of your other devices but not the cable you used to charge your Mac or iPad as they are not compatible.

So there is a 3.5 mm input connection on the unit? I want to plug in my wireless seinheiser receiver and use my mic to sing while using the Bluetooth
Our JBL Charge 5 doesn't have an input for a 3.5 mm audio cable. It can’t be used for Karaoke however as microphone connections won’t work on the speaker. Our JBL PartyBox series has the feature to plug in a microphone with their Plug and Play feature.

What's the difference from the charge 4 and 5?
Our JBL Charge 5 is waterproof and dustproof, has no 3.5mm input, 5.1 Bluetooth version and PartyBoost. While our JBL Charge 4 is only waterproof, has 3.5mm input, 4.2 Bluetooth version and a Connect+. Speakers with PartyBoost feature can only connect with speakers with PartyBoost, while speakers with Connect+ feature can only connect with speakers with Connect+.

Can I connect the Charge 5 by using the JBL connect app to work together with the jbl extreme 3?
Yes, our JBL Charge 5 can be connected with the JBL Xtreme 3 via the Partyboost feature.
