Bi-lateral calf support assembly 3
Set-up and use of the bi-lateral
calf support
4
Exploded view drawing 6
Parts list 7
3
Step 1.
Install the Calf support bracket (Left bracket is part
number 1, Right is #2) to the outside of the pedal support
tube. Push the bracket all the way to the top of the tube as
shown.
Step 2.
Install the securing plate (#7) to the bracket by hooking it
onto the tab. Place a at washer (#18) onto the T-handle
knob (#10) and thread the knob through the plate and into
the bracket.
Bi-lateral
calf support
assembly
4

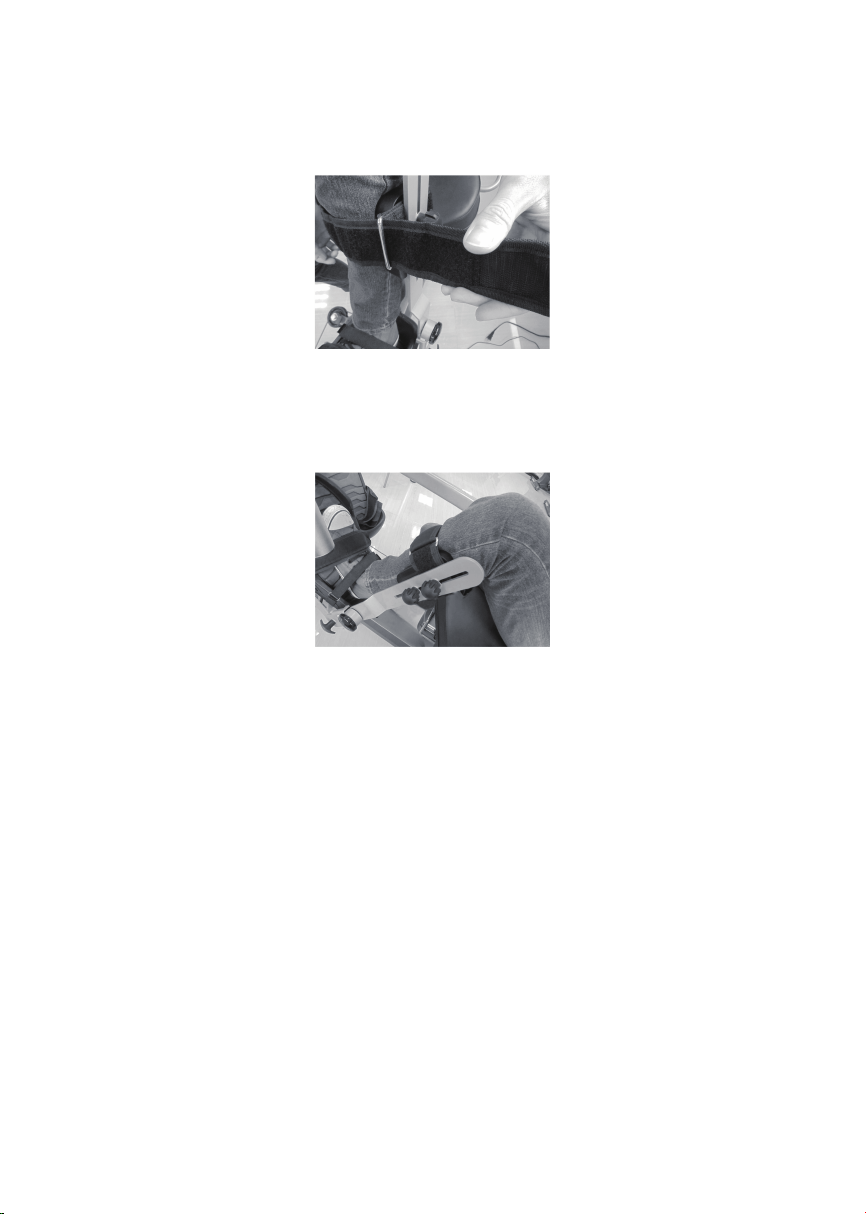

Place the patient’s foot on the foot pedal and secure with
the straps if needed. Align the Calf support pivot point
with the patient’s ankle. If it is not already aligned loosen
the T-Handle knob and slide the adjustment plate up or
down to align then tighten the knob securely.
Adjust the Calf support pad to the desired position by
loosening the two locking knobs and sliding the pad into
place and tightening the knobs securely.
Set-up and
use of the
bi-lateral calf
support
5
Secure the patient’s calf to the support pad using the
Velcro strap.
The Bi-lateral calf support is now ready for use.
6

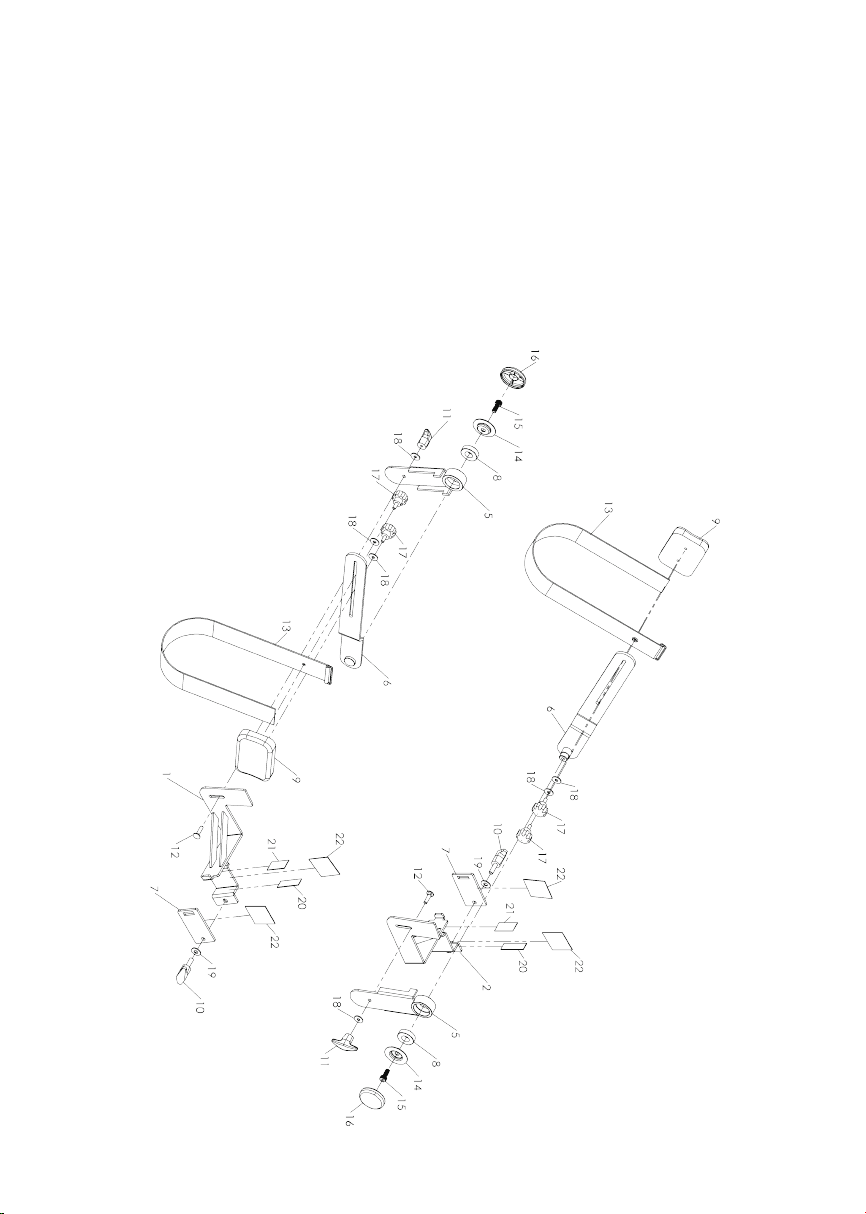

Exploded
view drawing
7
Item Qty
1
2
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
Description
1
1
1
1
1
1
1
1
1
1
1
2
4
1
1
2
2
2
1
1
Left bracket (bottom)
Right bracket (bottom)
Adjustment bracket
Articulating bracket
Securing plate
6003_bearing
Calf support pads
T-handle knob
Threaded t-handle knob
1/4" carriage bolt
Velcro strap
Cup washer
M8 socket head bolt
End cap
Calf pad locking knobs
1/4" at washer
8.7mm at washer
17 x 55mm foam tape
23 x 23 x 45mm foam tape
49 x 49mm foam tape
Parts list
